MariaDB TX 3.0 introduces several new features to enhance its capabilities for enterprise workloads. These include purpose-built storage engines tailored for different use cases, improved schema evolution capabilities like invisible and compressed columns, instant column additions, temporal data and queries, and increased compatibility with Oracle databases through features like sequences and PL/SQL support. The new release aims to challenge proprietary databases by providing an open source alternative with many advanced enterprise features.

1. What’s new in MariaDB TX 3.0
Shane K Johnson
Senior Director of Product Marketing
MariaDB Corporation

2. What is MariaDB TX
What’s new in MariaDB TX 3.0

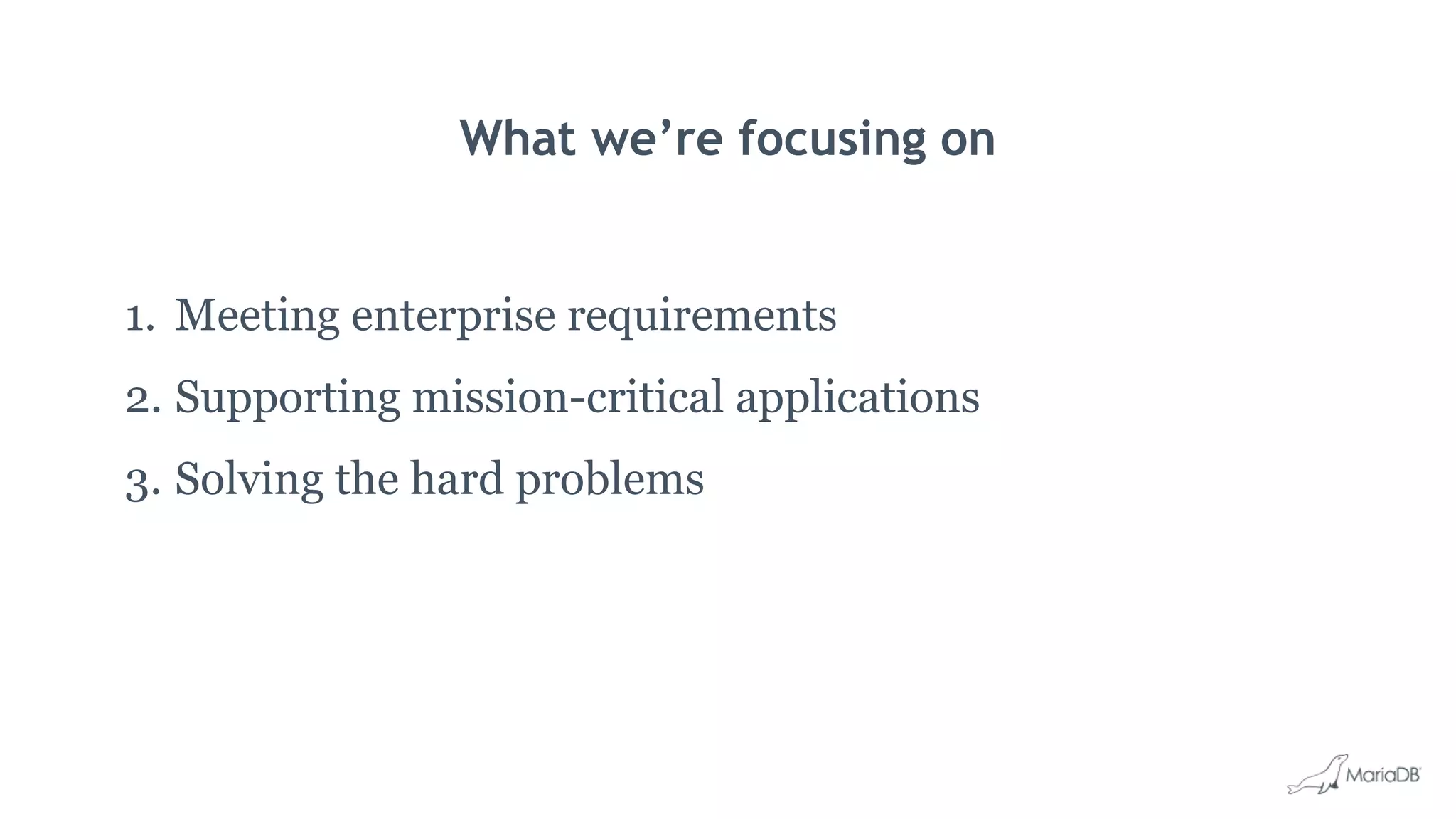

4. What we’re focusing on
1. Meeting enterprise requirements
2. Supporting mission-critical applications
3. Solving the hard problems

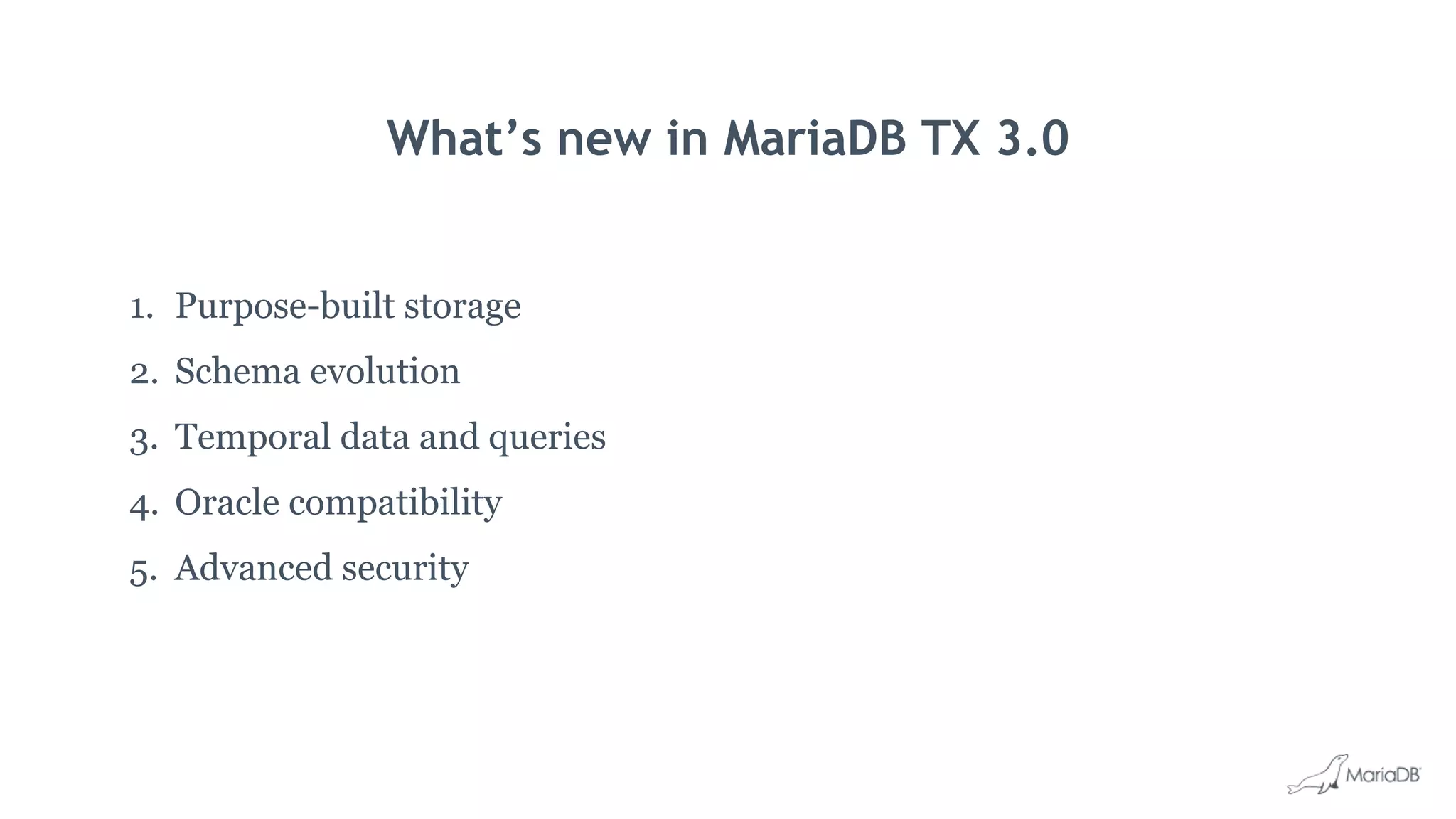

5. What’s new in MariaDB TX 3.0
1. Purpose-built storage
2. Schema evolution
3. Temporal data and queries
4. Oracle compatibility
5. Advanced security

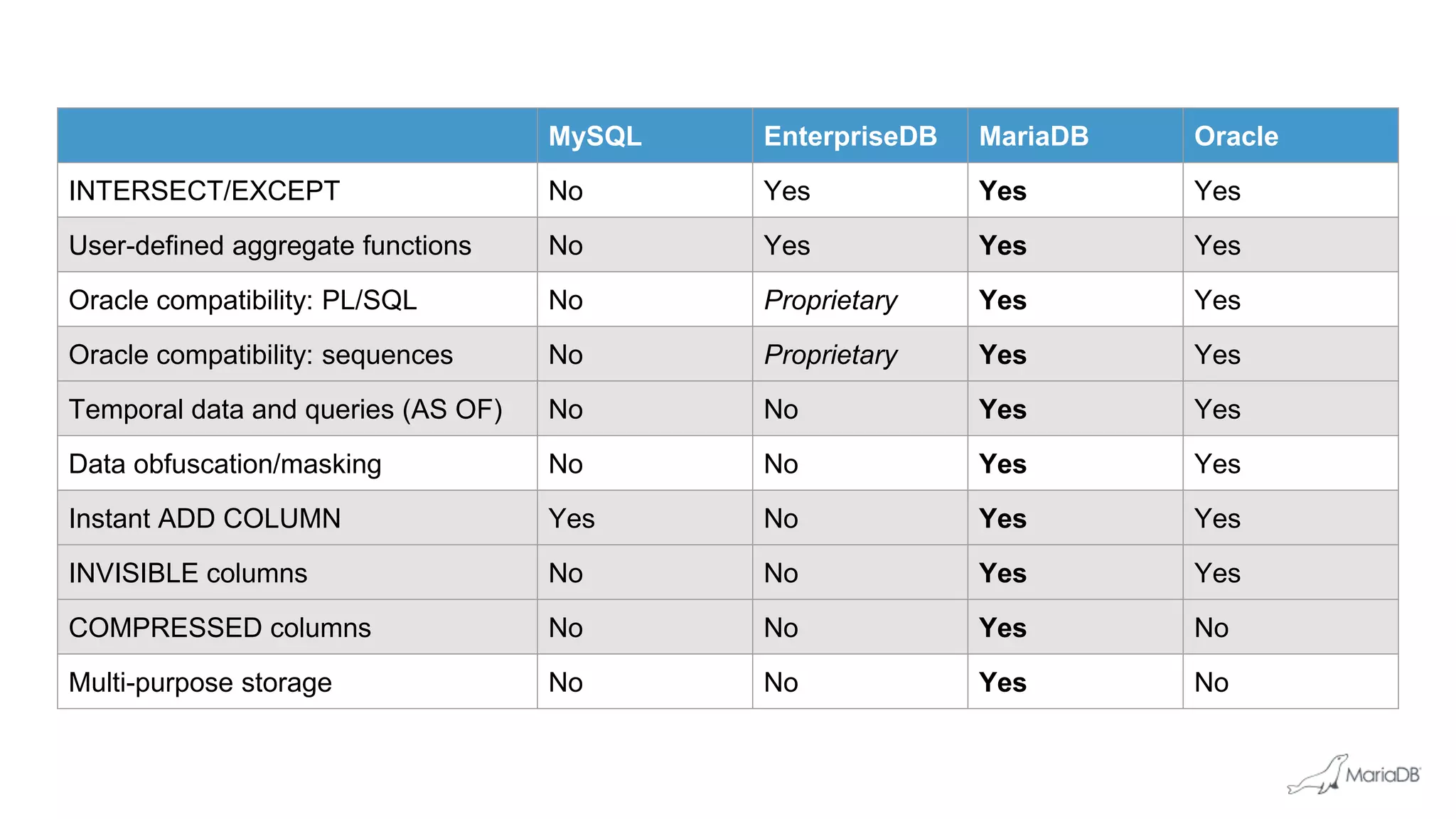

6. MySQL EnterpriseDB MariaDB Oracle
INTERSECT/EXCEPT No Yes Yes Yes
User-defined aggregate functions No Yes Yes Yes
Oracle compatibility: PL/SQL No Proprietary Yes Yes
Oracle compatibility: sequences No Proprietary Yes Yes
Temporal data and queries (AS OF) No No Yes Yes
Data obfuscation/masking No No Yes Yes
Instant ADD COLUMN Yes No Yes Yes
INVISIBLE columns No No Yes Yes
COMPRESSED columns No No Yes No
Multi-purpose storage No No Yes No

7. MariaDB TX is the first enterprise open source database to
challenge Oracle, Microsoft and IBM with features that,
until now, were the domain of proprietary databases.

8. Purpose-built storage
What’s new in MariaDB TX 3.0

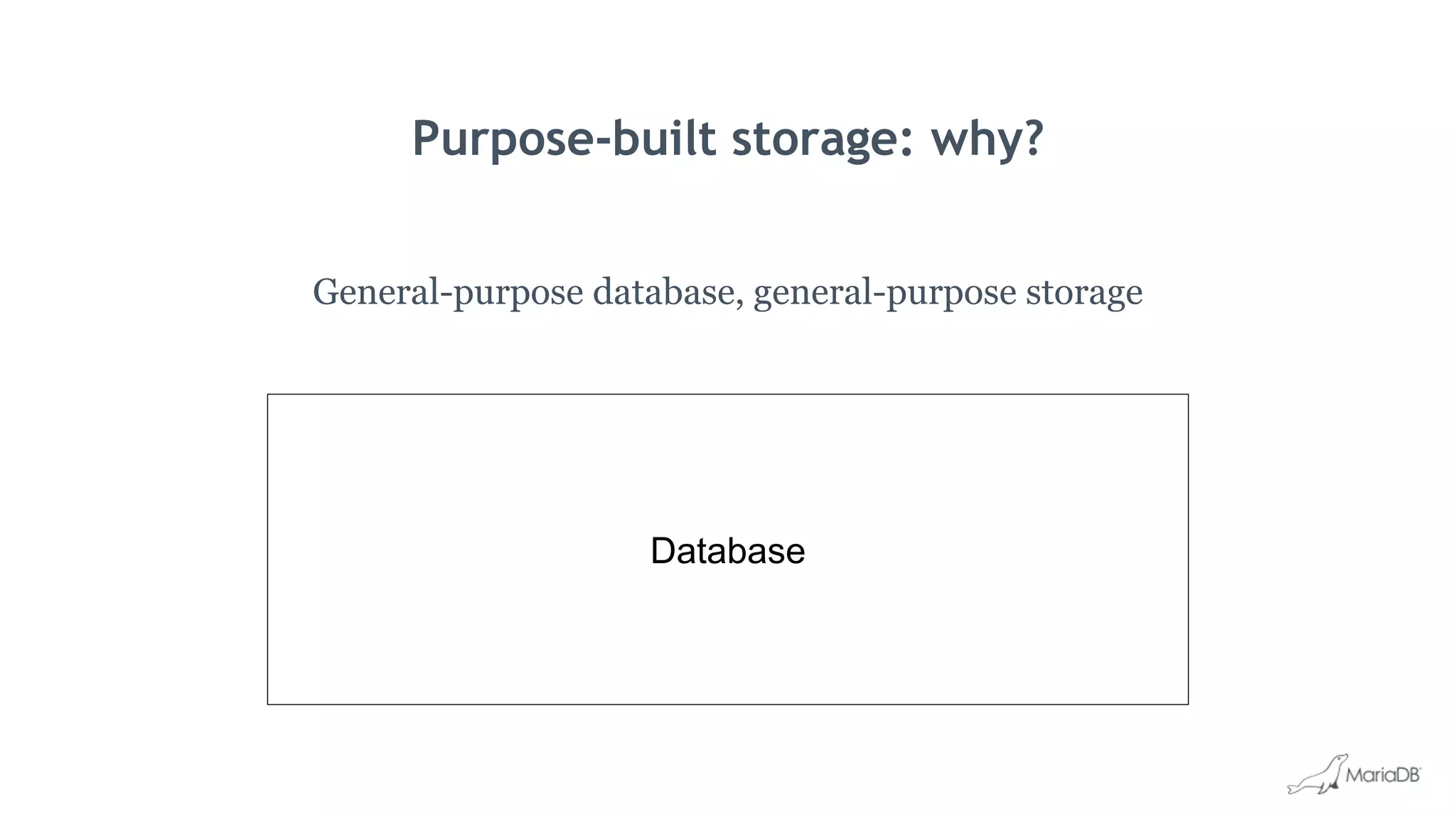

9. Purpose-built storage: why?
General-purpose database, general-purpose storage
Database

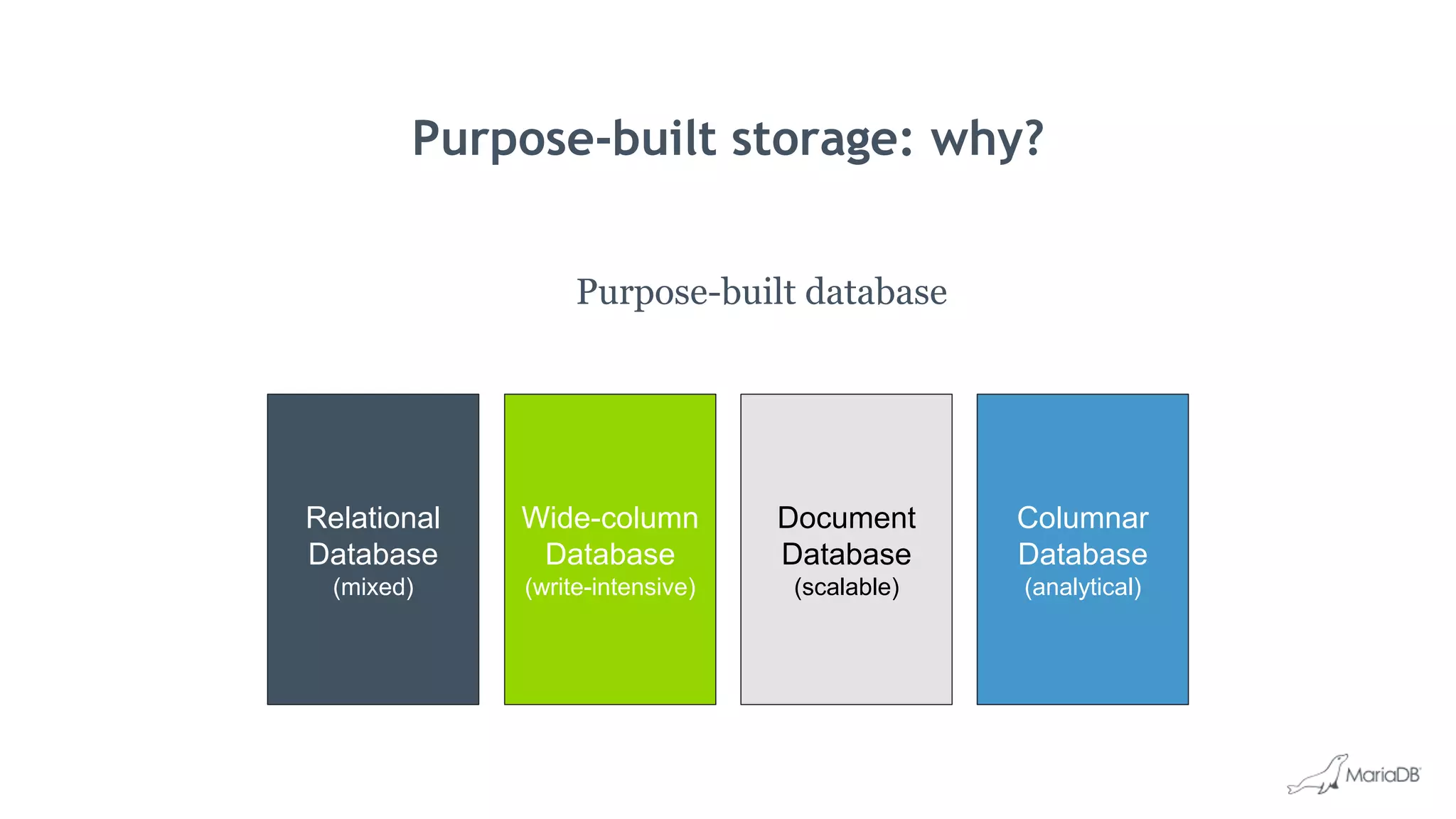

10. Purpose-built storage: why?
Purpose-built database
Relational
Database
(mixed)
Columnar
Database
(analytical)
Wide-column
Database
(write-intensive)
Document
Database
(scalable)

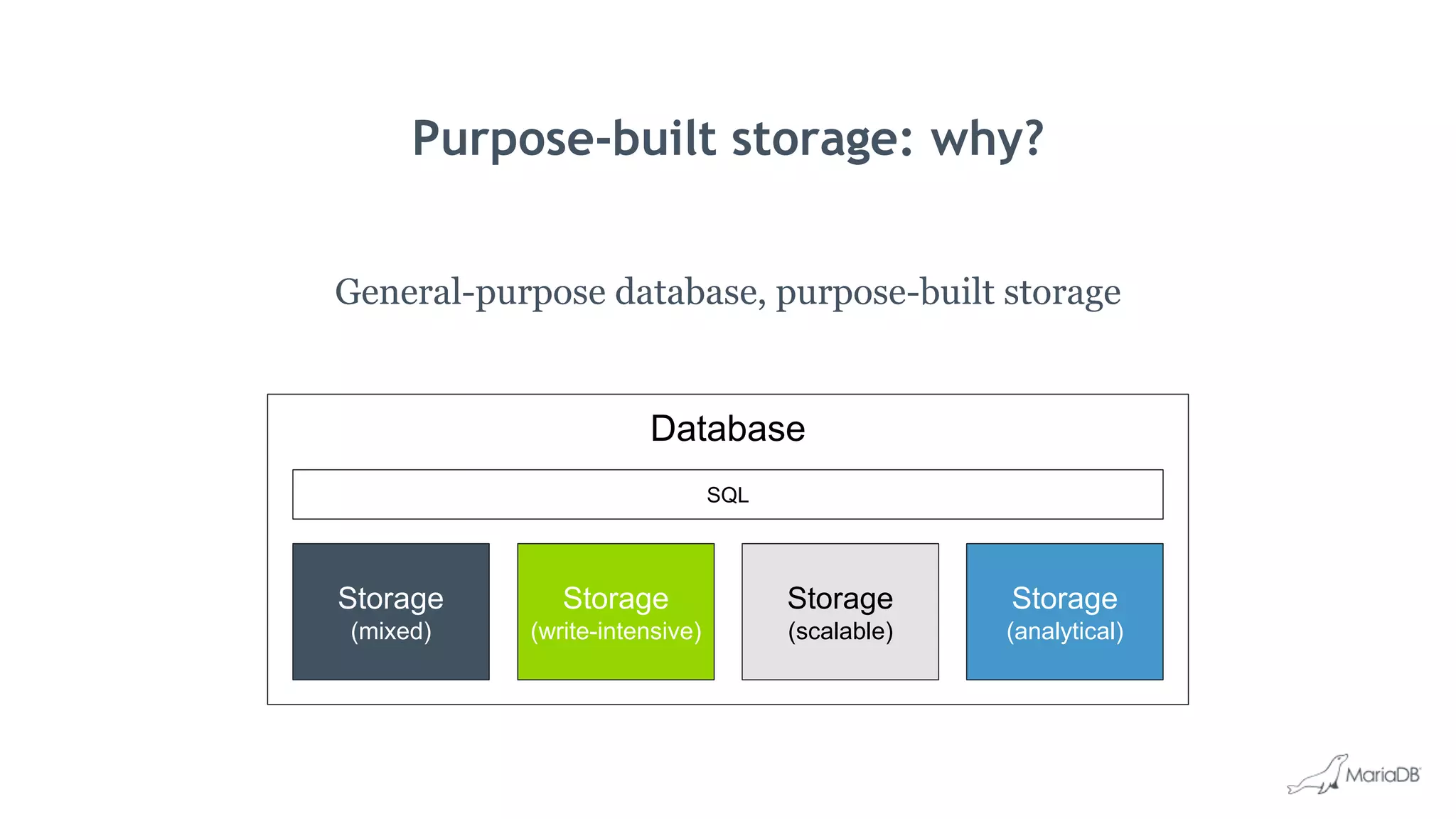

11. Database
Purpose-built storage: why?
General-purpose database, purpose-built storage
Storage
(mixed)
Storage
(scalable)
Storage
(write-intensive)
Storage
(analytical)
SQL

12. Database
Purpose-built storage: why?
General-purpose database, purpose-built storage
B Tree
(mixed)
Distributed
(scalable)
LSM Tree
(write-intensive)
Columnar
(analytical)
SQL

13. Database
Purpose-built storage: why?
General-purpose database, purpose-built storage
Table A Table B Table C Table D
B Tree
(mixed)
Distributed
(scalable)
LSM Tree
(write-intensive)
Columnar
(analytical)

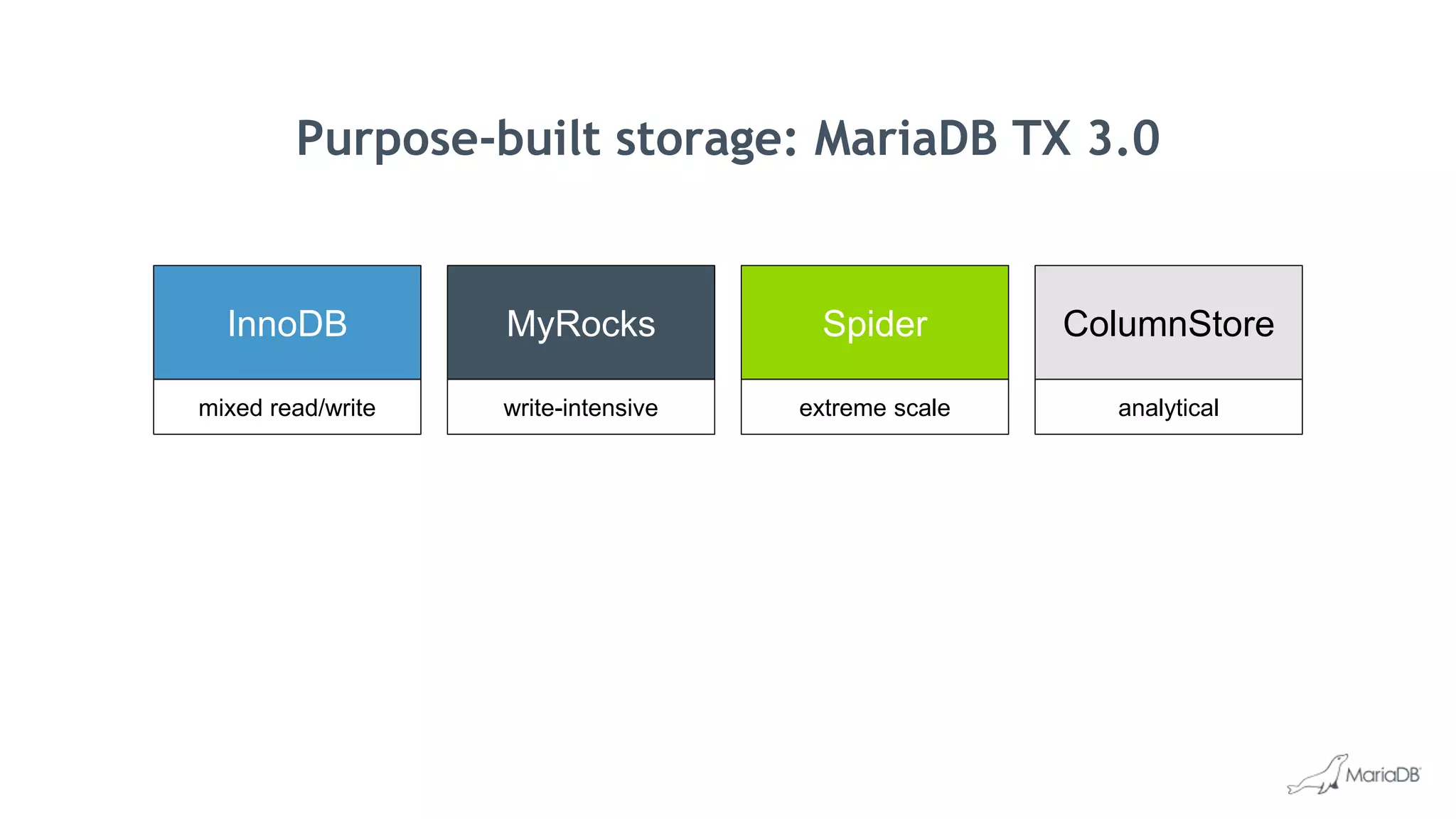

14. InnoDB
mixed read/write
MyRocks
write-intensive
Spider
extreme scale
ColumnStore
analytical
Purpose-built storage: MariaDB TX 3.0

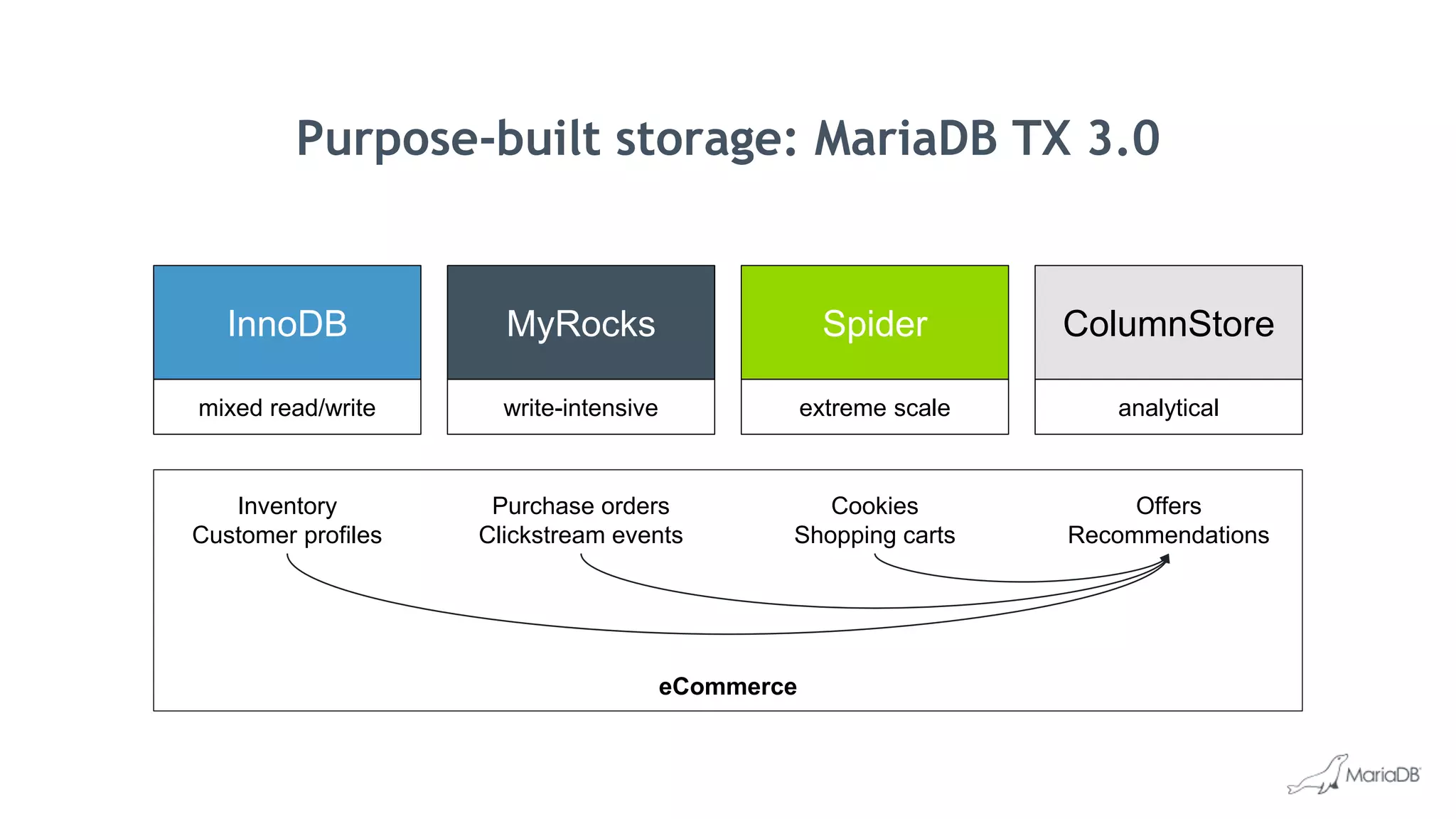

15. eCommerce
InnoDB
mixed read/write
MyRocks
write-intensive
Spider
extreme scale
ColumnStore
analytical
Inventory
Customer profiles
Purchase orders
Clickstream events
Cookies
Shopping carts
Offers
Recommendations
Purpose-built storage: MariaDB TX 3.0

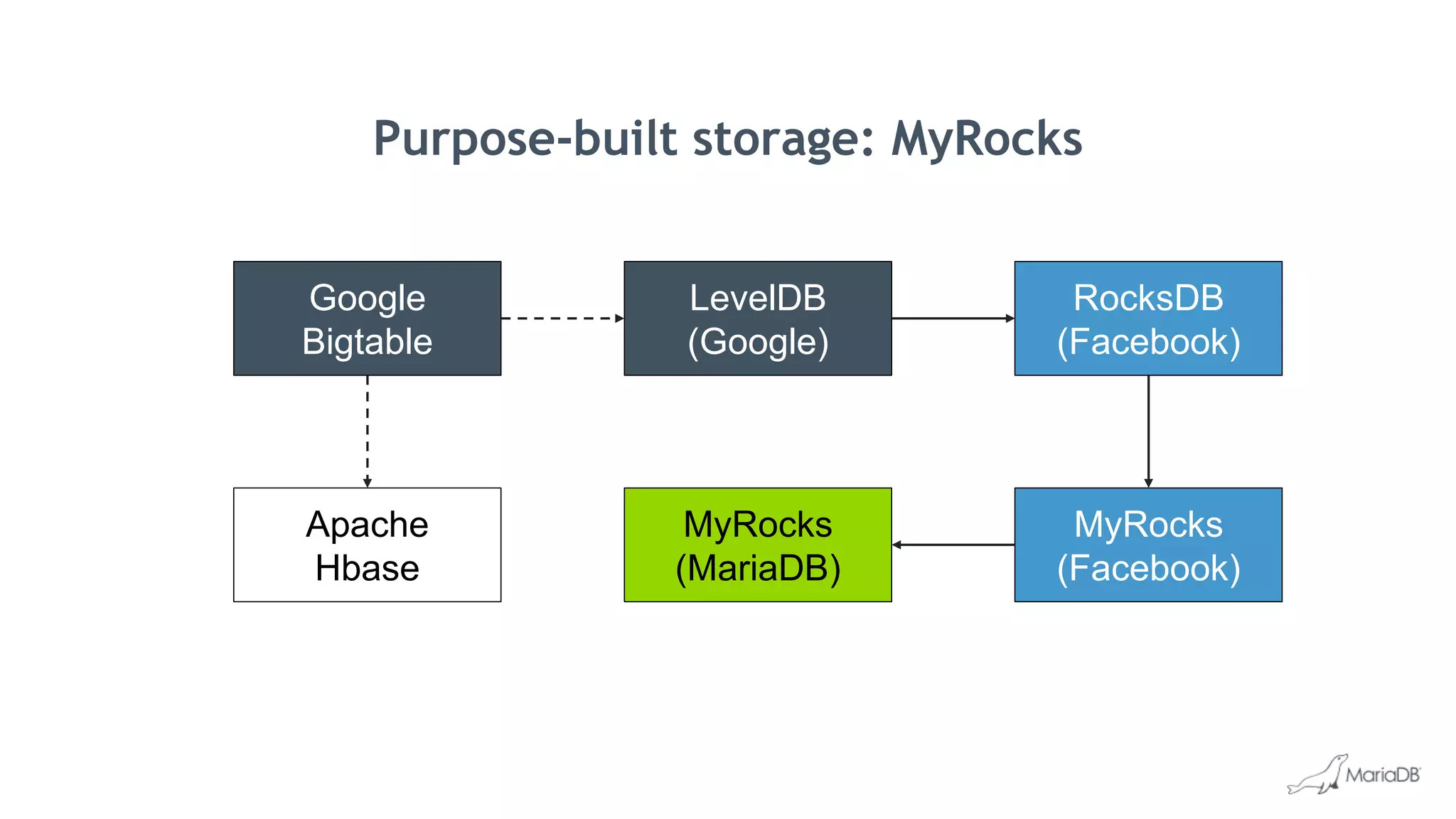

16. Purpose-built storage: MyRocks
Google
Bigtable
LevelDB
(Google)
MyRocks
(Facebook)
RocksDB
(Facebook)
MyRocks
(MariaDB)
Apache
Hbase

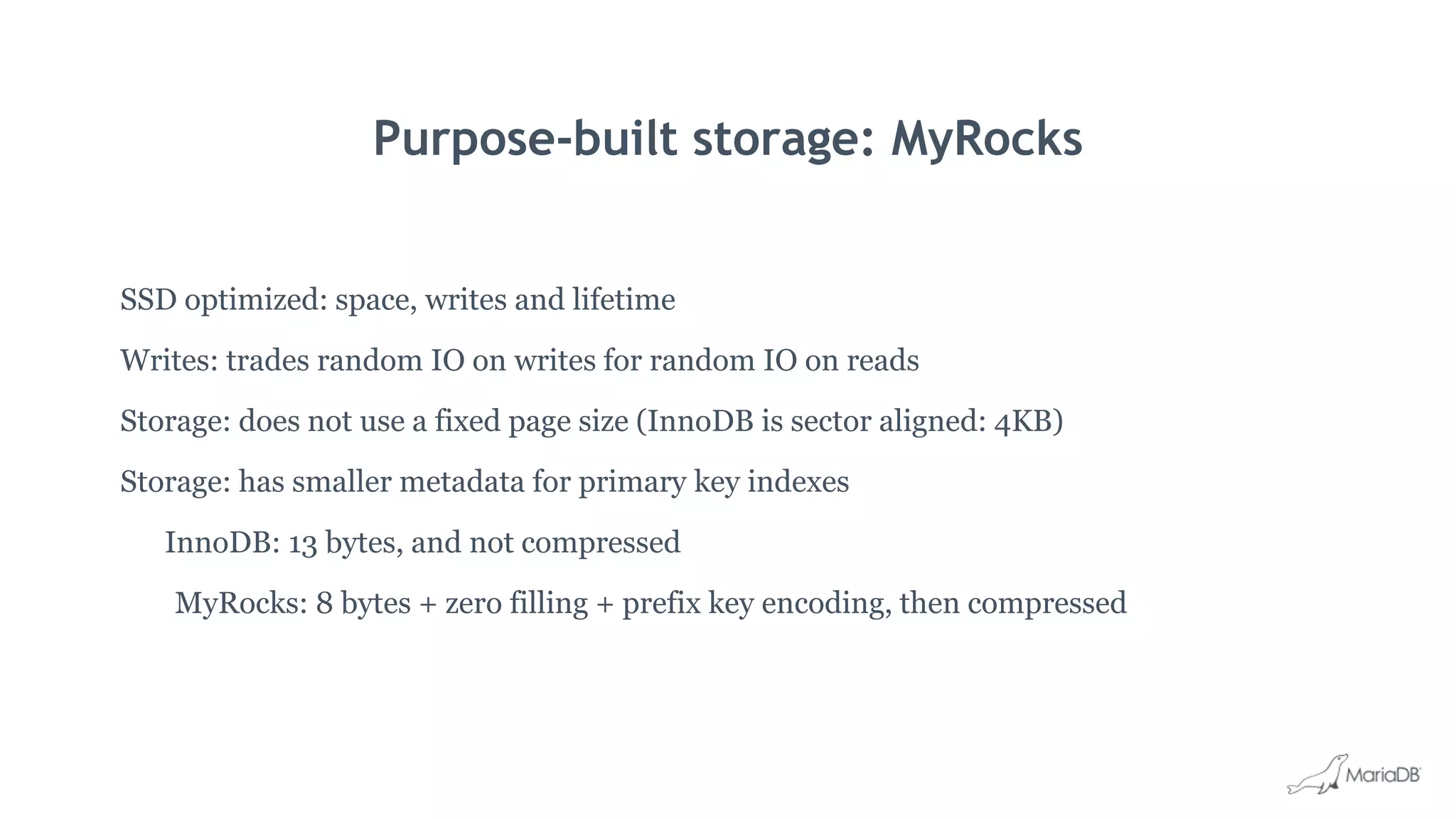

17. Purpose-built storage: MyRocks
SSD optimized: space, writes and lifetime
Writes: trades random IO on writes for random IO on reads
Storage: does not use a fixed page size (InnoDB is sector aligned: 4KB)
Storage: has smaller metadata for primary key indexes
InnoDB: 13 bytes, and not compressed
MyRocks: 8 bytes + zero filling + prefix key encoding, then compressed

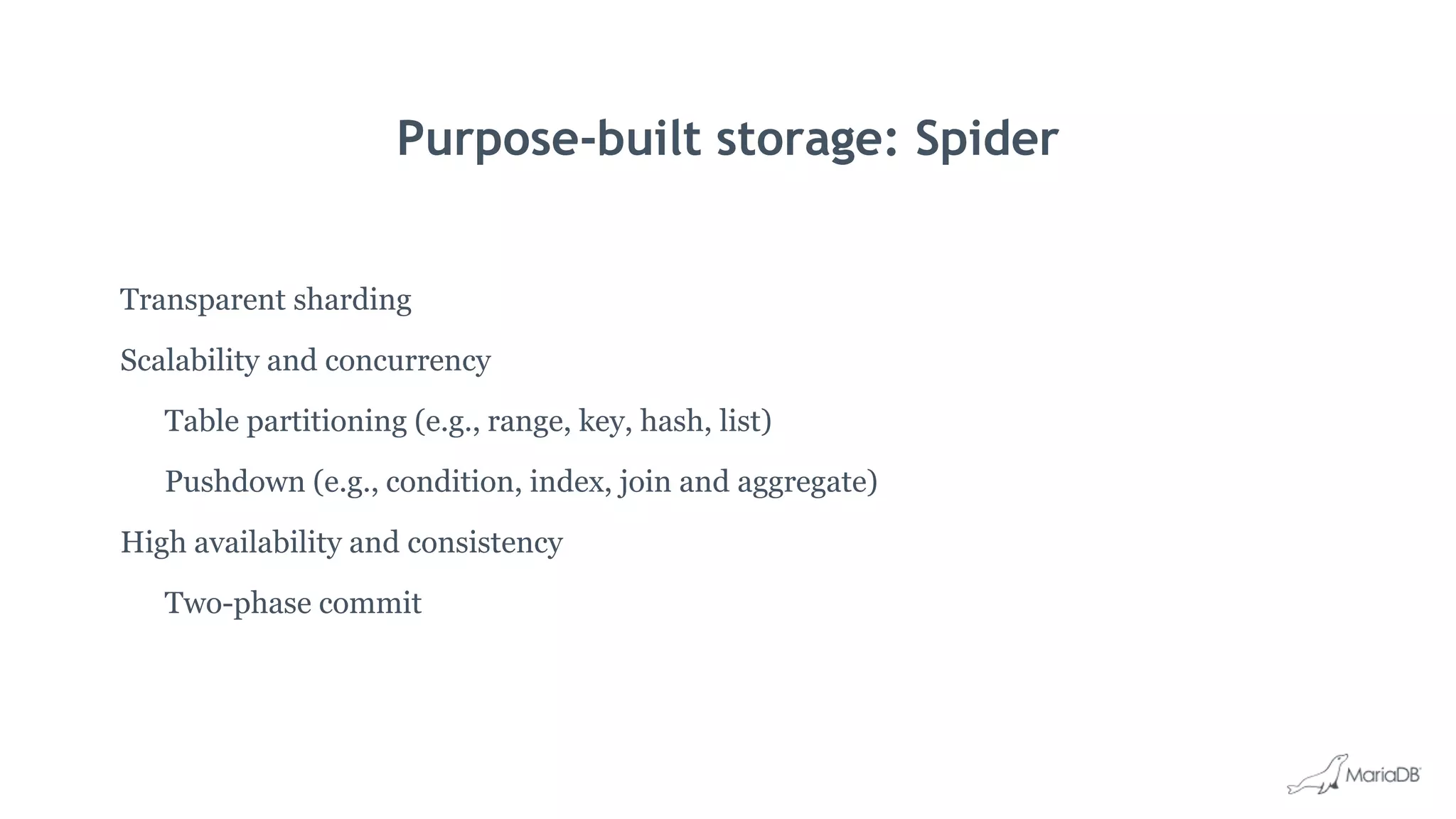

18. Purpose-built storage: Spider
Transparent sharding
Scalability and concurrency
Table partitioning (e.g., range, key, hash, list)
Pushdown (e.g., condition, index, join and aggregate)
High availability and consistency
Two-phase commit

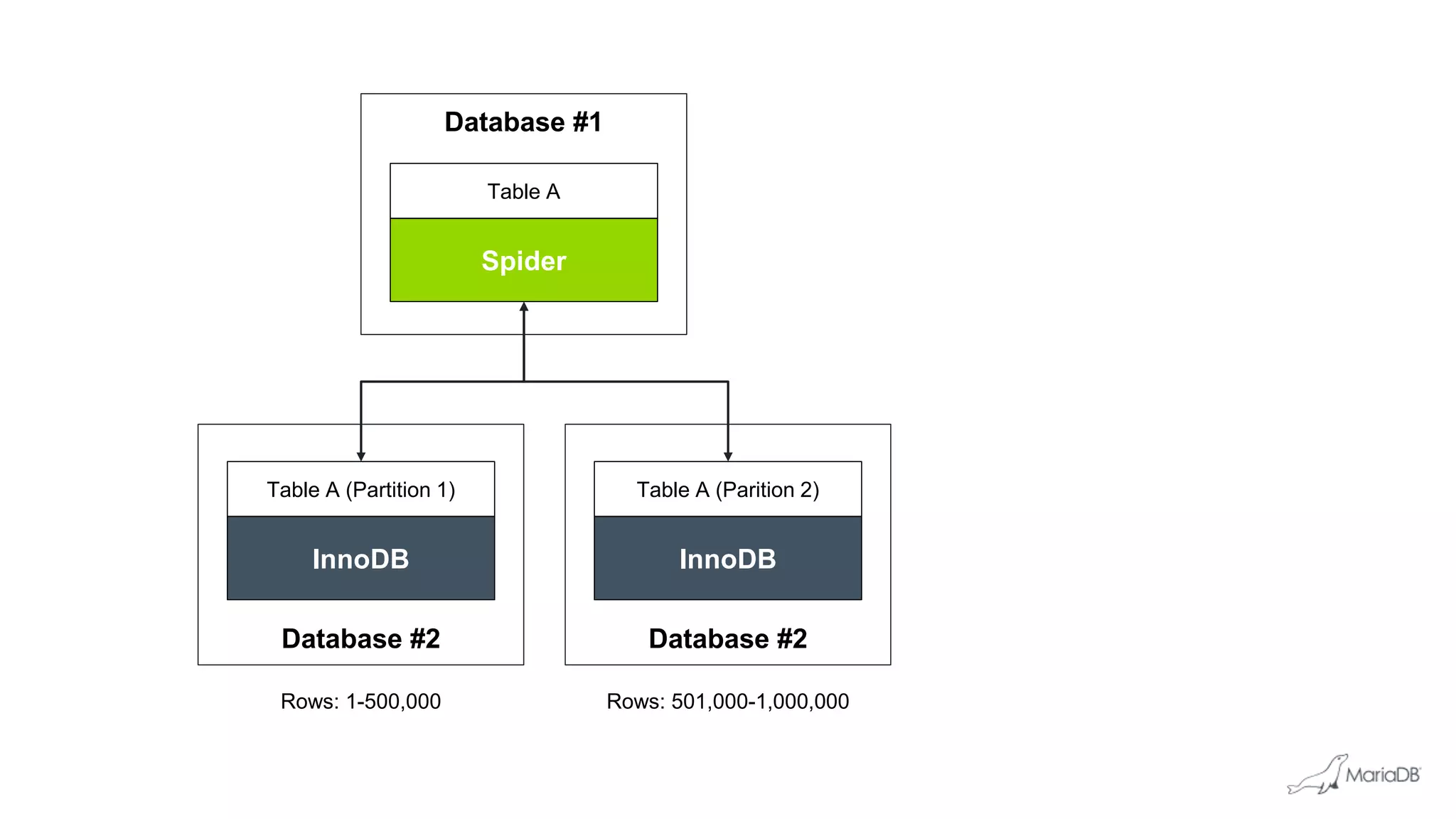

19. Database #1
Spider
Table A
Database #2Database #2
InnoDB
Table A (Parition 2)
InnoDB
Table A (Partition 1)
Rows: 1-500,000 Rows: 501,000-1,000,000

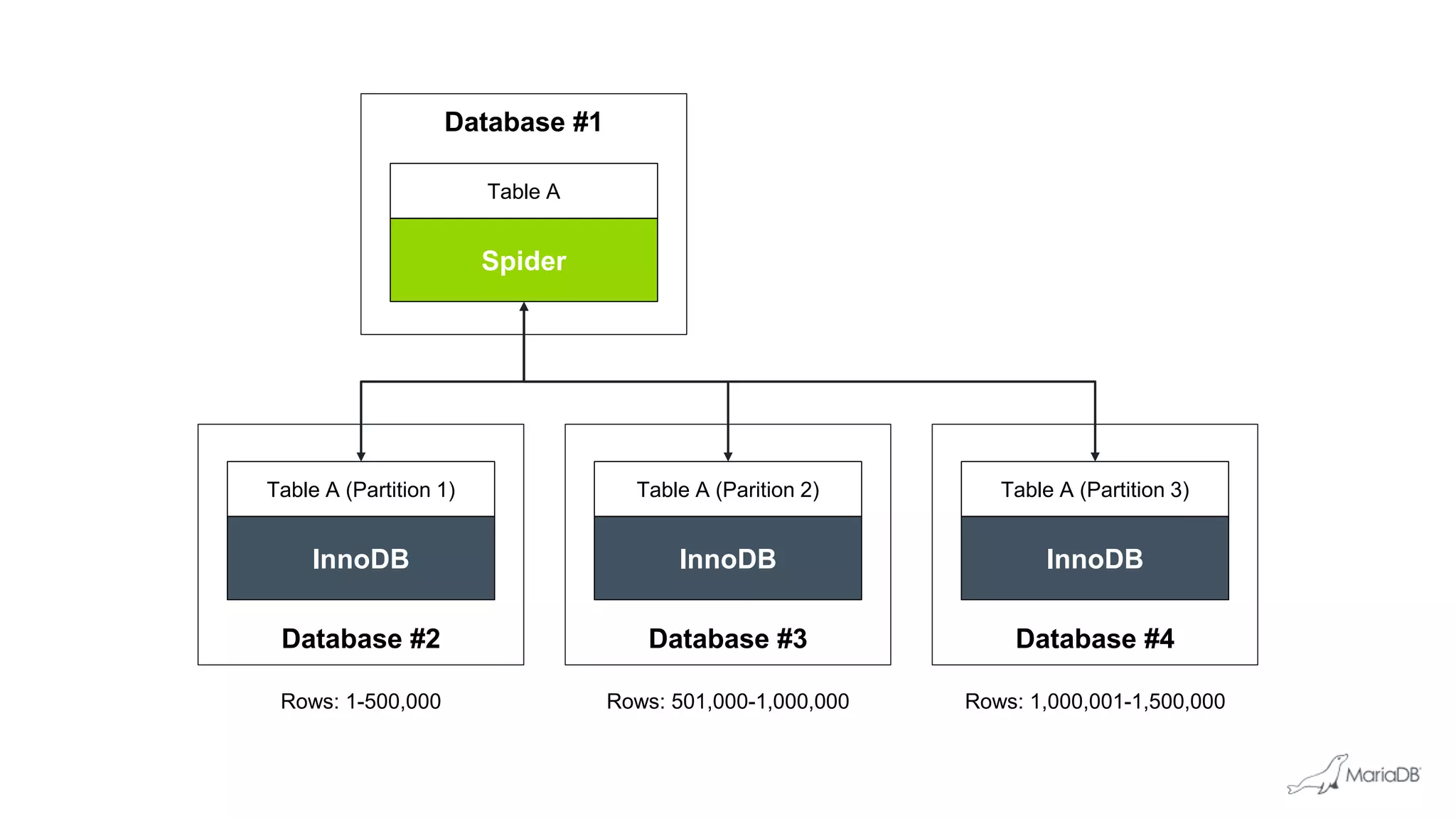

20. Database #1
Spider
Table A
Database #3 Database #4Database #2
InnoDB
Table A (Parition 2)
InnoDB
Table A (Partition 1)
InnoDB
Table A (Partition 3)
Rows: 1-500,000 Rows: 501,000-1,000,000 Rows: 1,000,001-1,500,000

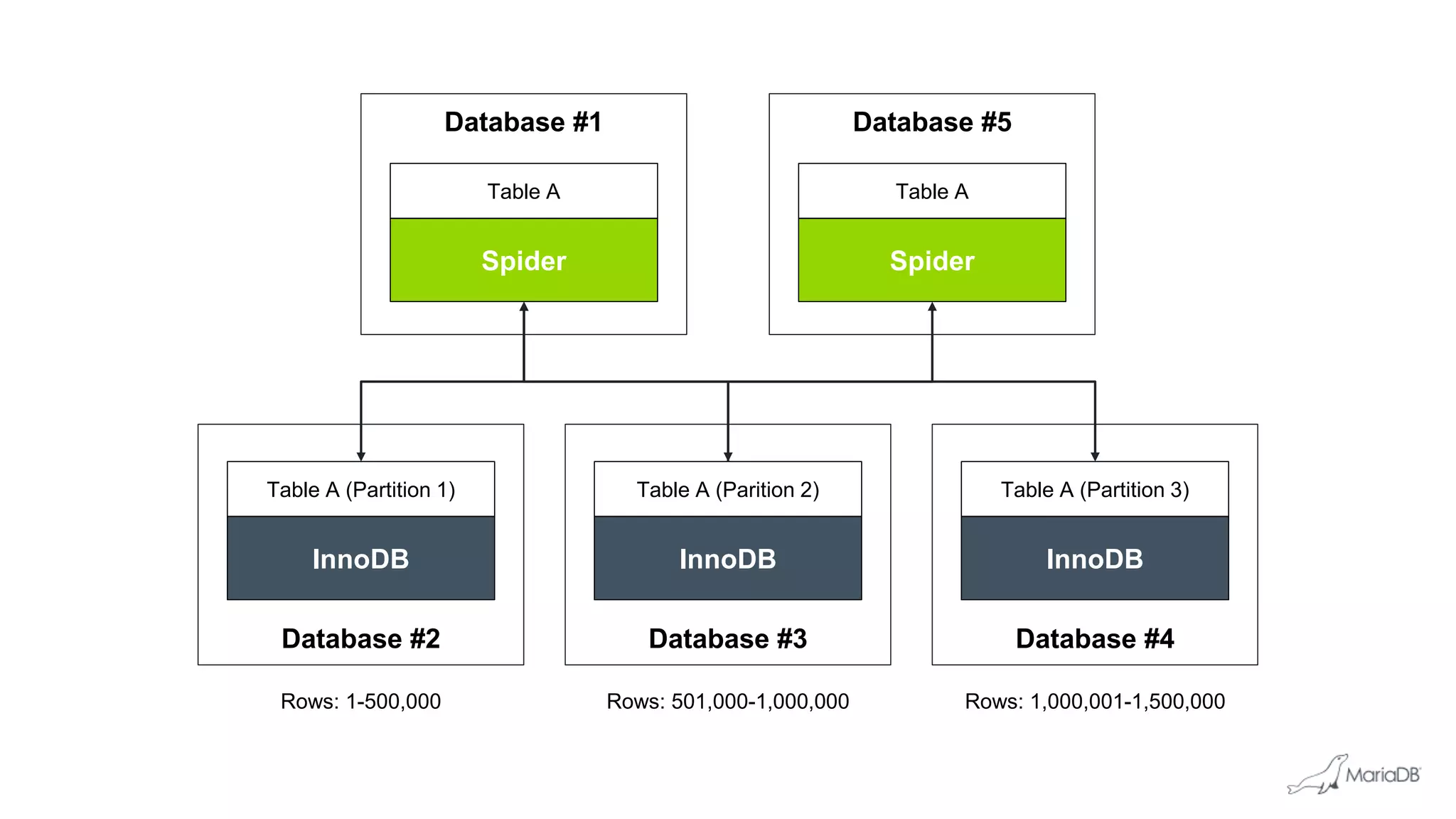

21. Database #1
Spider
Table A
Database #3 Database #4Database #2
InnoDB
Table A (Parition 2)
InnoDB
Table A (Partition 1)
InnoDB
Table A (Partition 3)
Rows: 1-500,000 Rows: 501,000-1,000,000 Rows: 1,000,001-1,500,000
Database #5
Spider
Table A

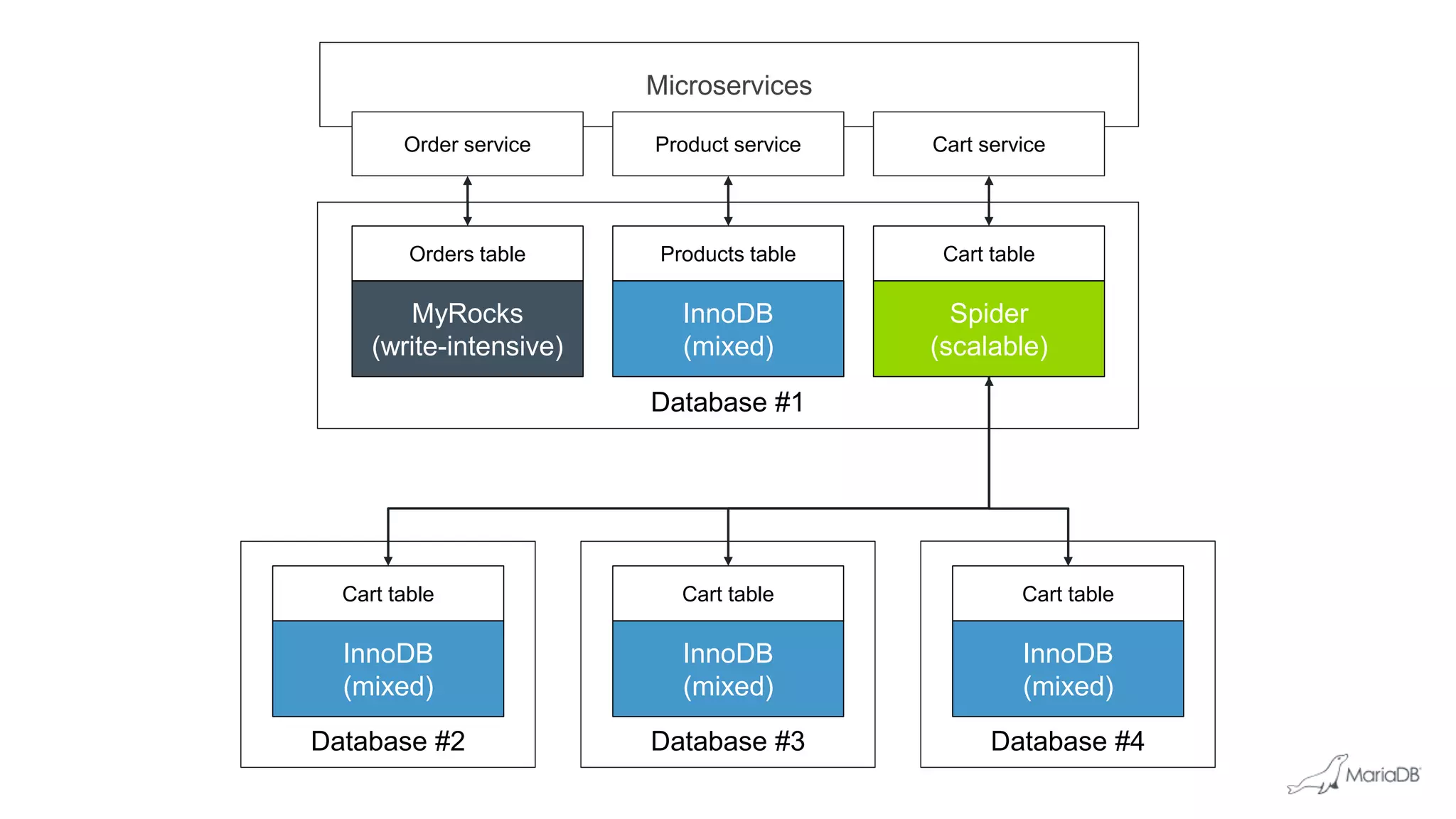

22. Microservices
Database #1
InnoDB
(mixed)
Products table
MyRocks
(write-intensive)
Orders table
Order service Product service
Spider
(scalable)
Cart table
Cart service
Database #2
InnoDB
(mixed)
Cart table
Database #3
InnoDB
(mixed)
Cart table
Database #4
InnoDB
(mixed)
Cart table

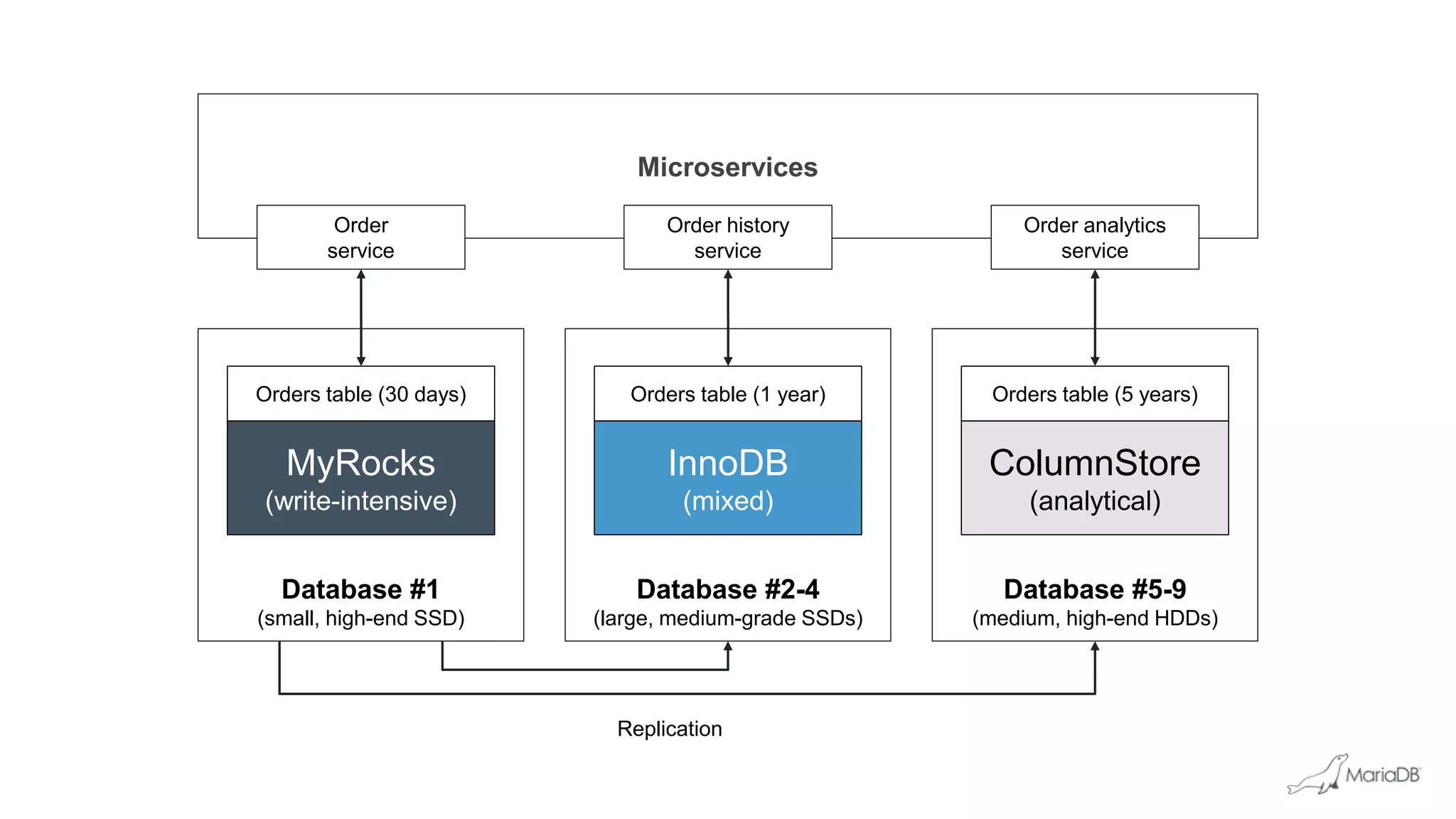

23. Database #2-4
(large, medium-grade SSDs)
Microservices
Database #5-9
(medium, high-end HDDs)
Database #1
(small, high-end SSD)
InnoDB
(mixed)
Orders table (1 year)
MyRocks
(write-intensive)
Order
service
Order history
service
Orders table (30 days)
ColumnStore
(analytical)
Orders table (5 years)
Order analytics
service
Replication

24. Schema evolution
What’s new in MariaDB TX 3.0

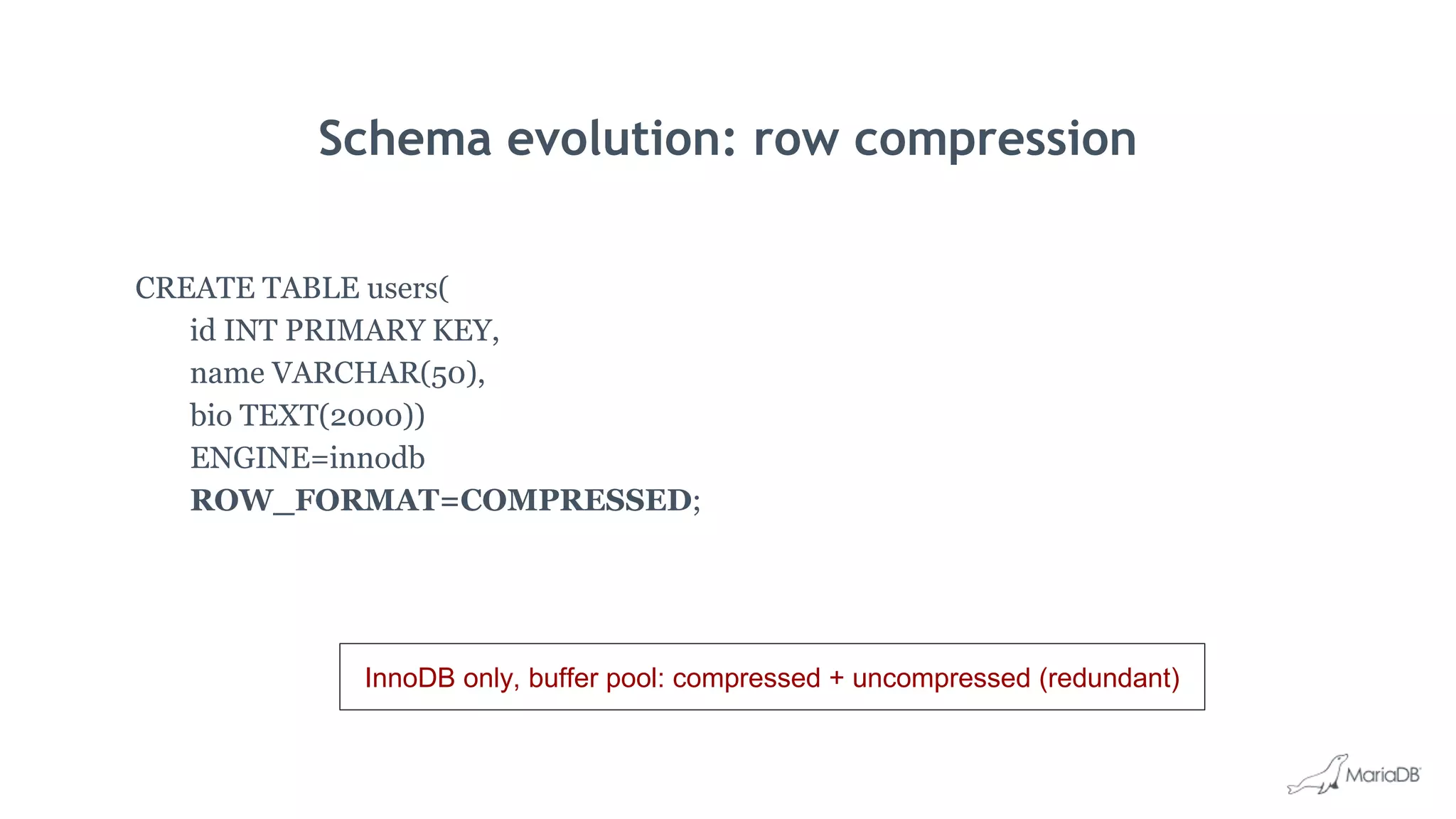

25. Schema evolution: row compression
CREATE TABLE users(
id INT PRIMARY KEY,
name VARCHAR(50),
bio TEXT(2000))
ENGINE=innodb
ROW_FORMAT=COMPRESSED;
InnoDB only, buffer pool: compressed + uncompressed (redundant)

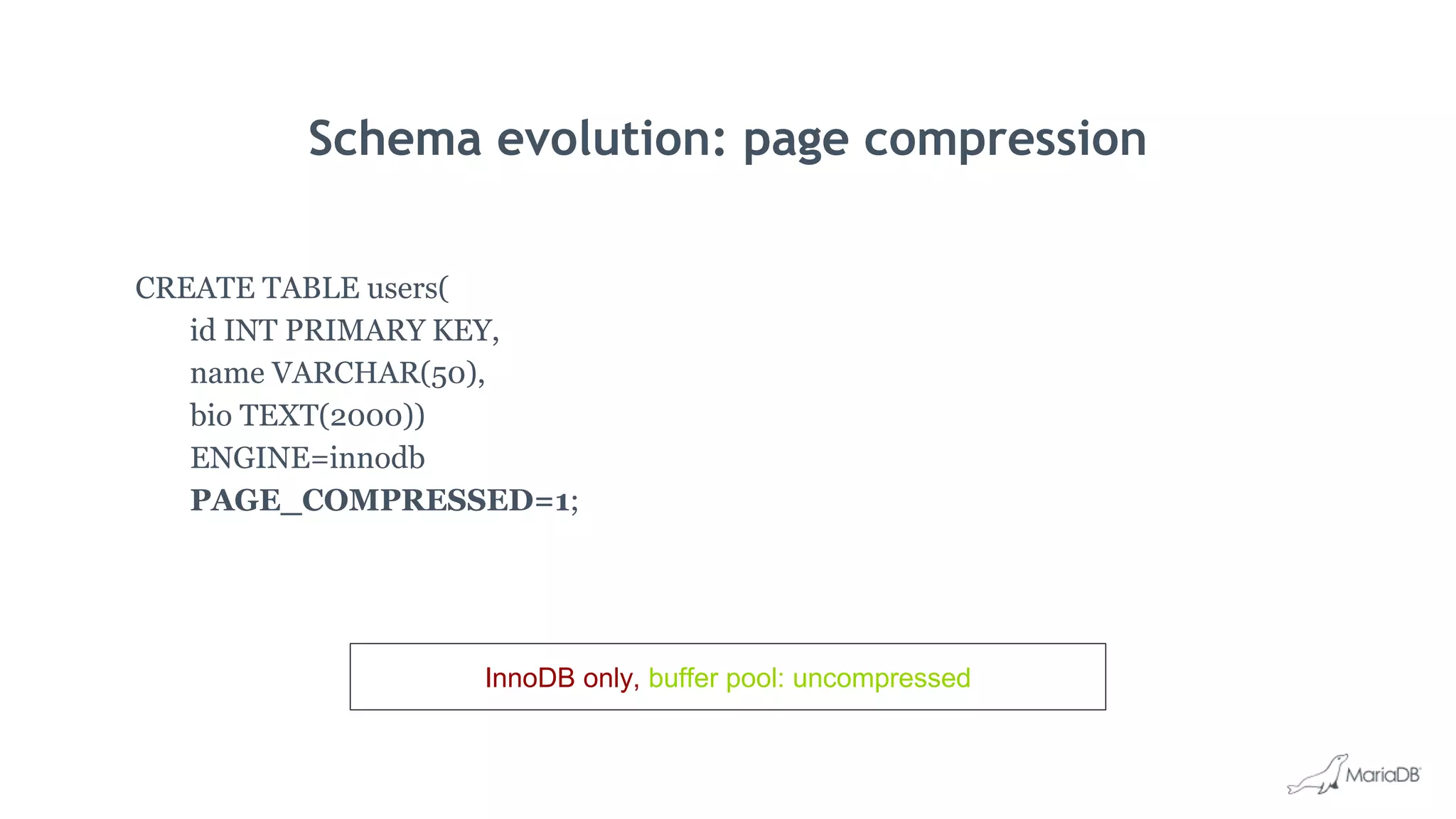

26. Schema evolution: page compression
CREATE TABLE users(
id INT PRIMARY KEY,
name VARCHAR(50),
bio TEXT(2000))
ENGINE=innodb
PAGE_COMPRESSED=1;
InnoDB only, buffer pool: uncompressed

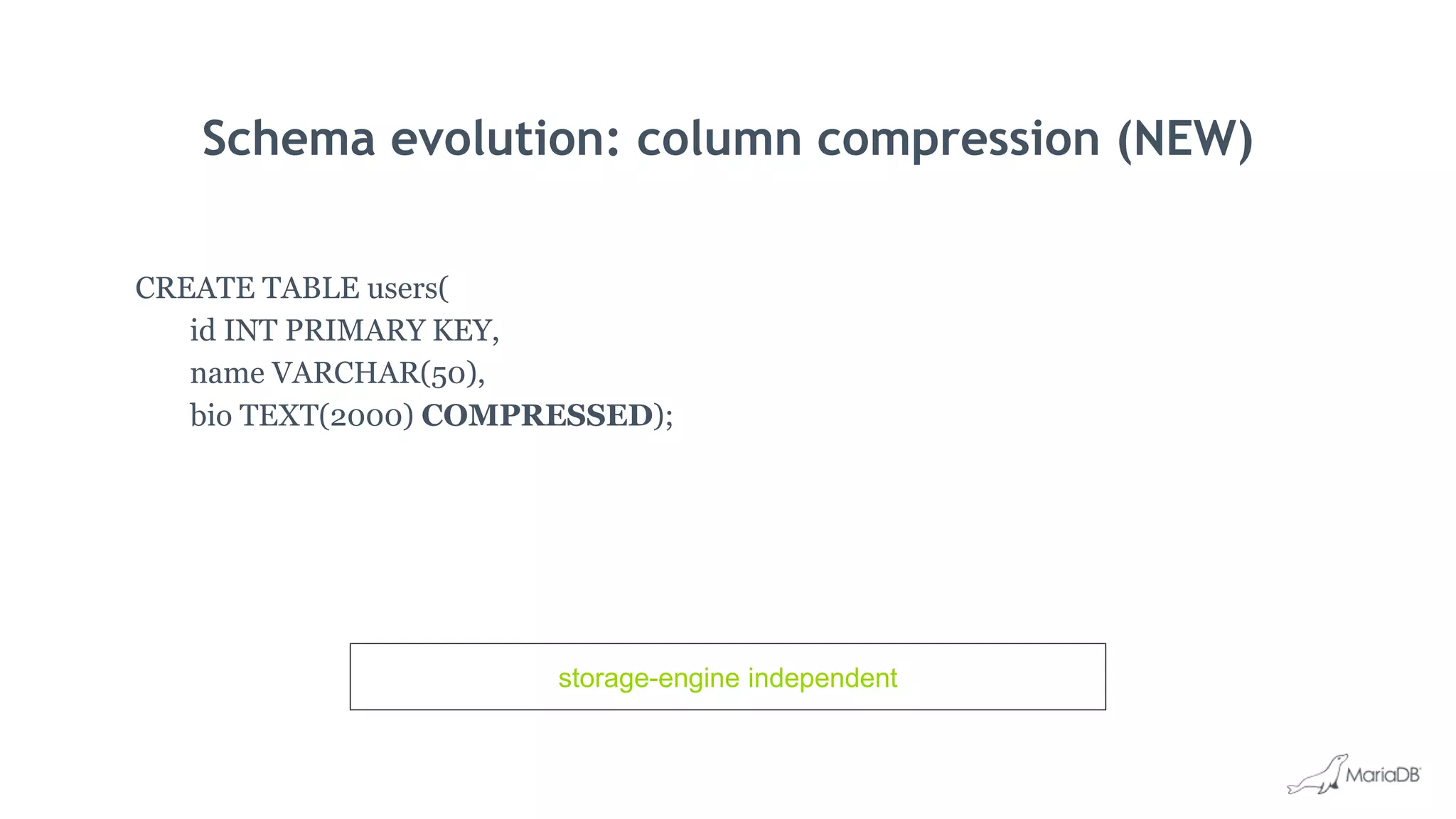

27. Schema evolution: column compression (NEW)
CREATE TABLE users(
id INT PRIMARY KEY,
name VARCHAR(50),
bio TEXT(2000) COMPRESSED);
storage-engine independent

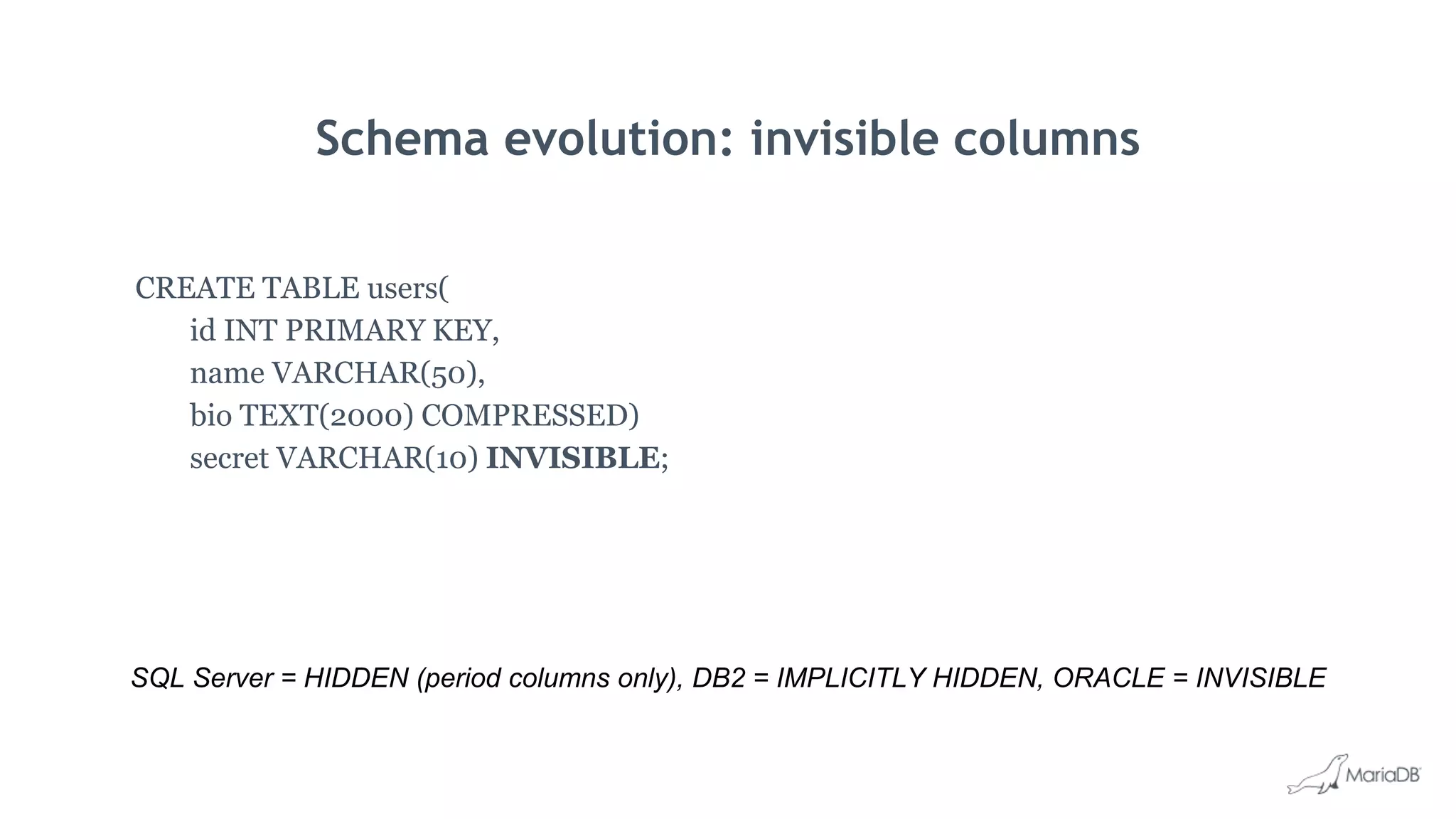

28. Schema evolution: invisible columns
CREATE TABLE users(
id INT PRIMARY KEY,
name VARCHAR(50),
bio TEXT(2000) COMPRESSED)
secret VARCHAR(10) INVISIBLE;
SQL Server = HIDDEN (period columns only), DB2 = IMPLICITLY HIDDEN, ORACLE = INVISIBLE

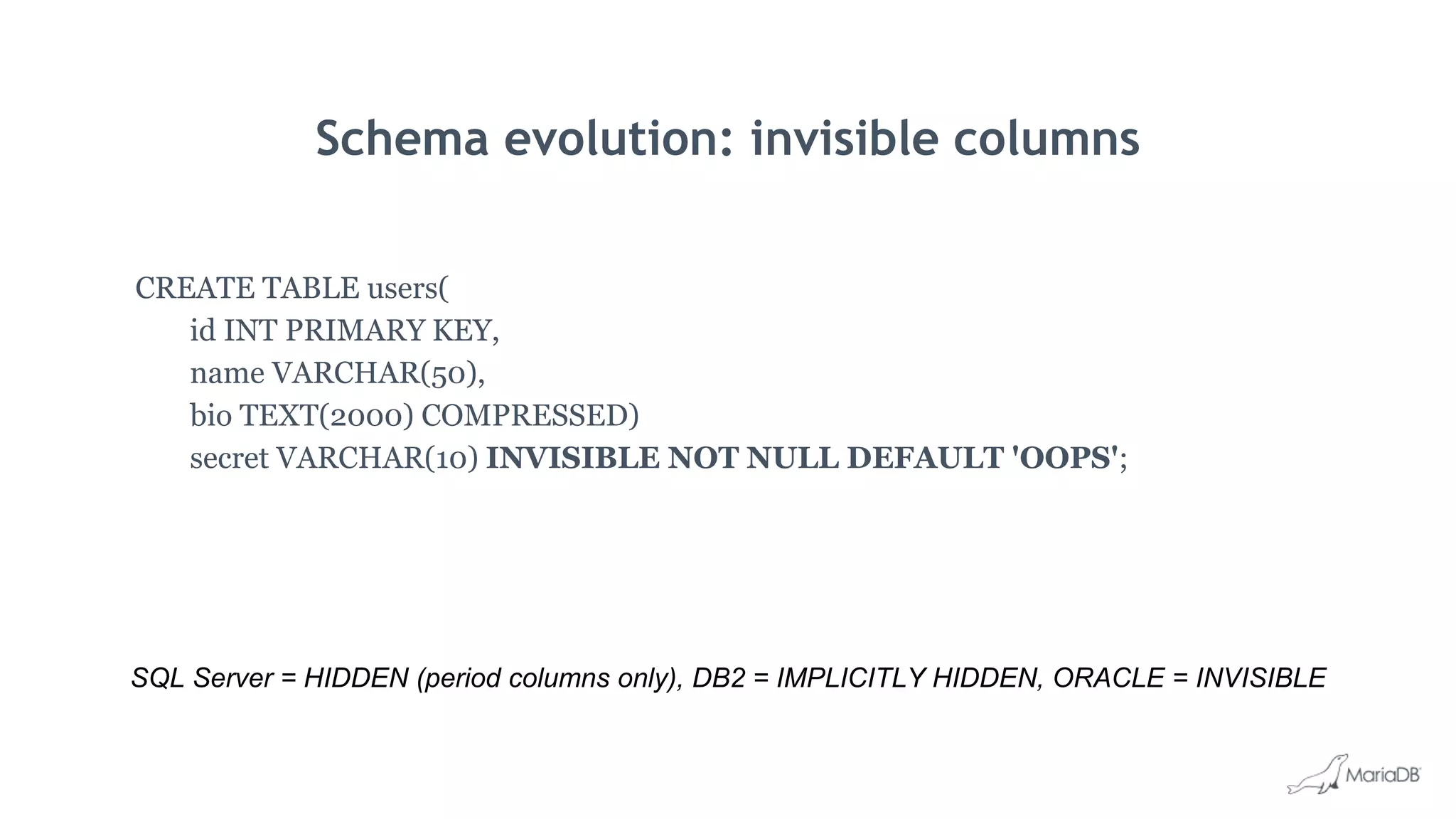

29. Schema evolution: invisible columns
CREATE TABLE users(
id INT PRIMARY KEY,
name VARCHAR(50),
bio TEXT(2000) COMPRESSED)
secret VARCHAR(10) INVISIBLE NOT NULL DEFAULT 'OOPS';
SQL Server = HIDDEN (period columns only), DB2 = IMPLICITLY HIDDEN, ORACLE = INVISIBLE

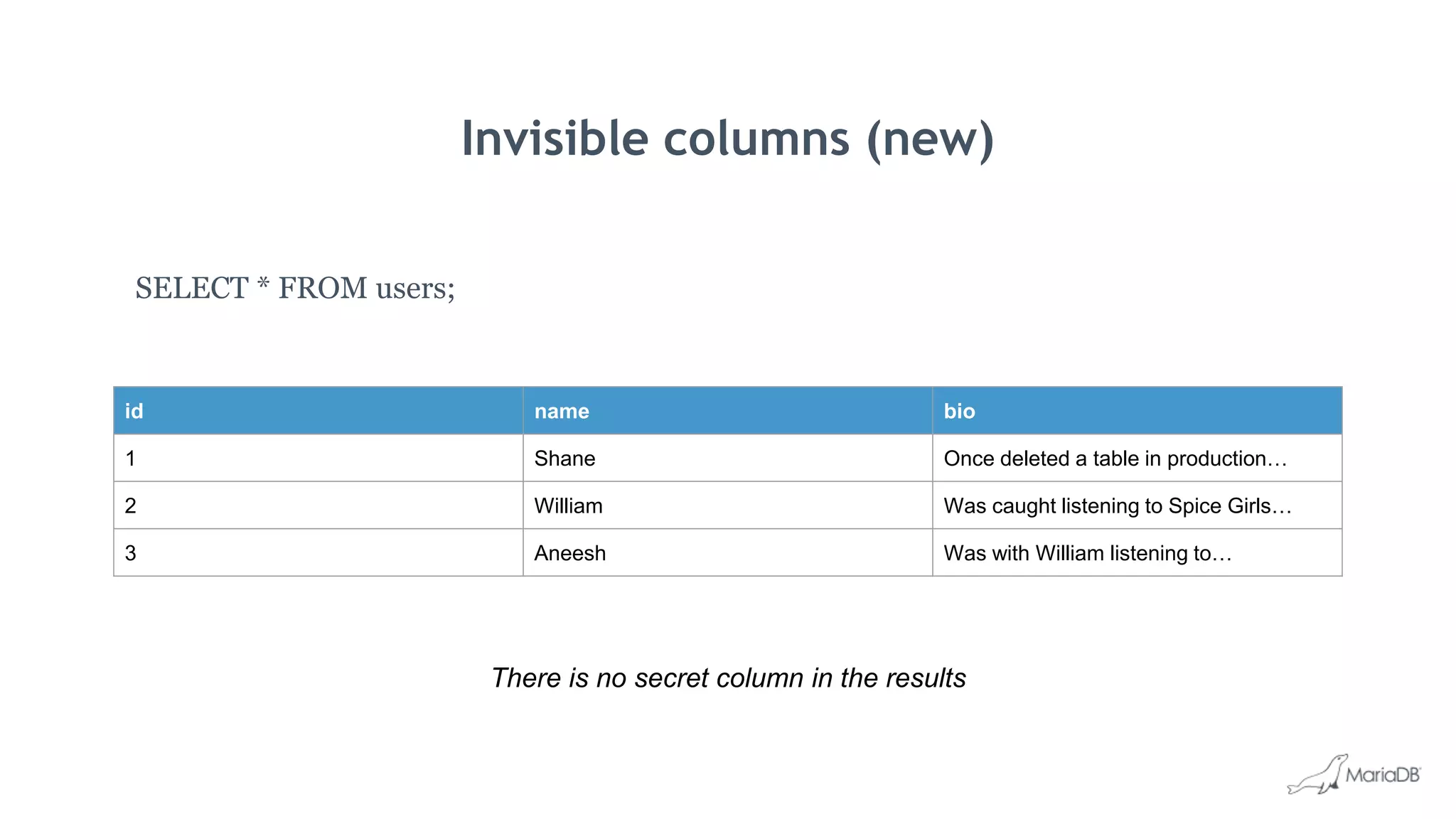

30. Invisible columns (new)
SELECT * FROM users;
There is no secret column in the results
id name bio
1 Shane Once deleted a table in production…
2 William Was caught listening to Spice Girls…
3 Aneesh Was with William listening to…

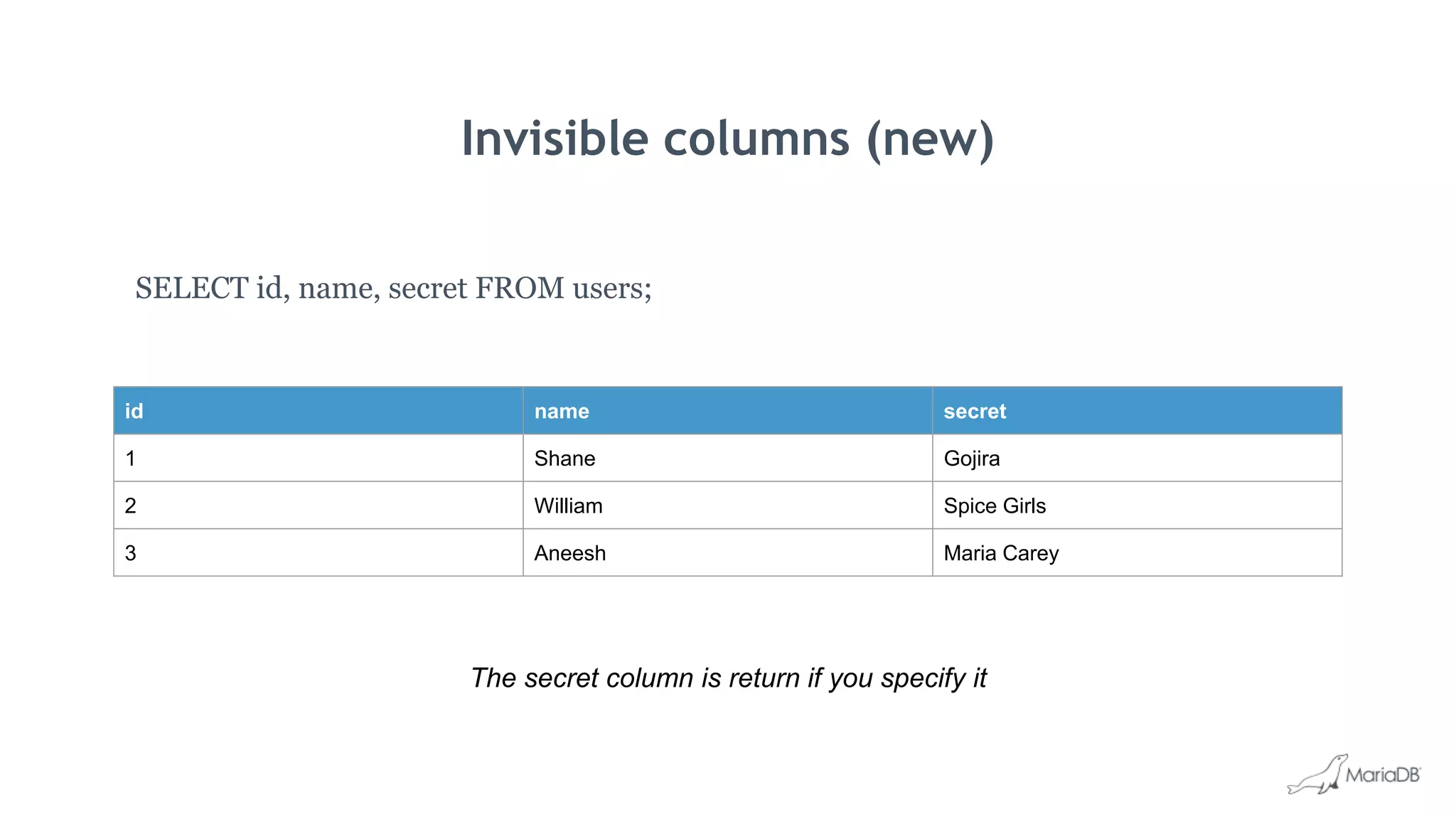

31. Invisible columns (new)
SELECT id, name, secret FROM users;
The secret column is return if you specify it
id name secret
1 Shane Gojira
2 William Spice Girls
3 Aneesh Maria Carey

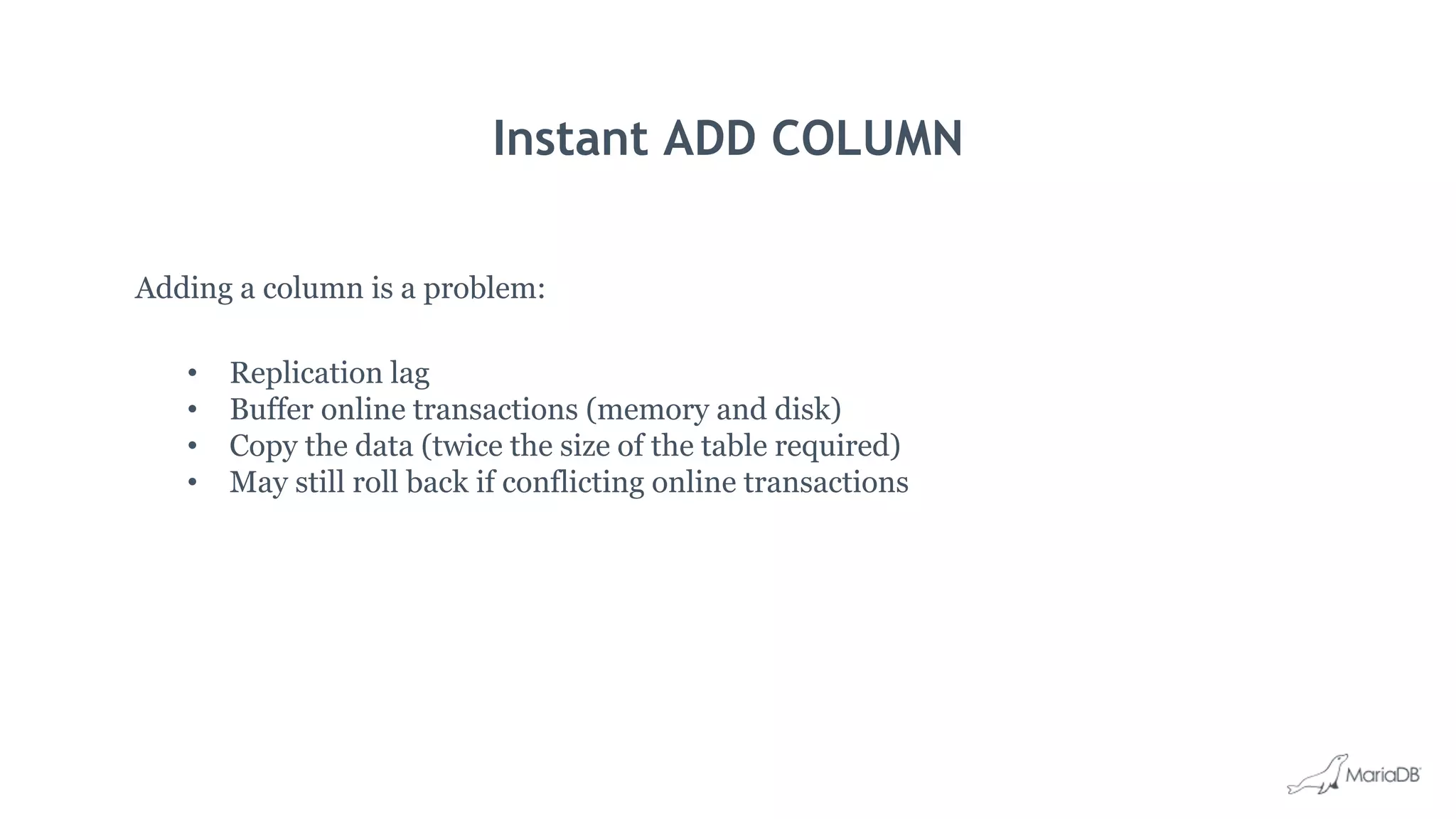

32. Instant ADD COLUMN
Adding a column is a problem:
• Replication lag
• Buffer online transactions (memory and disk)
• Copy the data (twice the size of the table required)
• May still roll back if conflicting online transactions

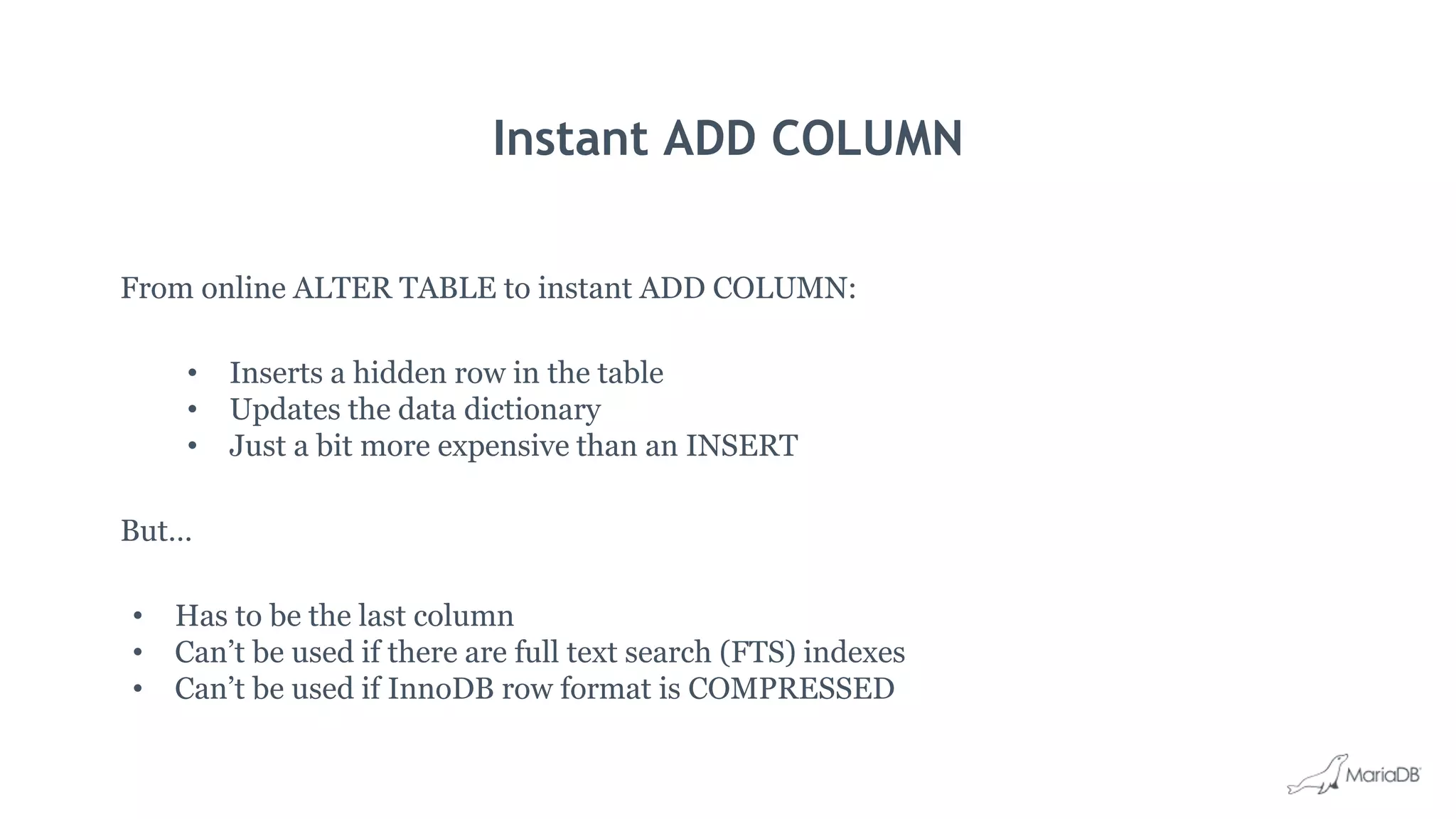

33. Instant ADD COLUMN
From online ALTER TABLE to instant ADD COLUMN:
• Inserts a hidden row in the table
• Updates the data dictionary
• Just a bit more expensive than an INSERT
But…
• Has to be the last column
• Can’t be used if there are full text search (FTS) indexes
• Can’t be used if InnoDB row format is COMPRESSED

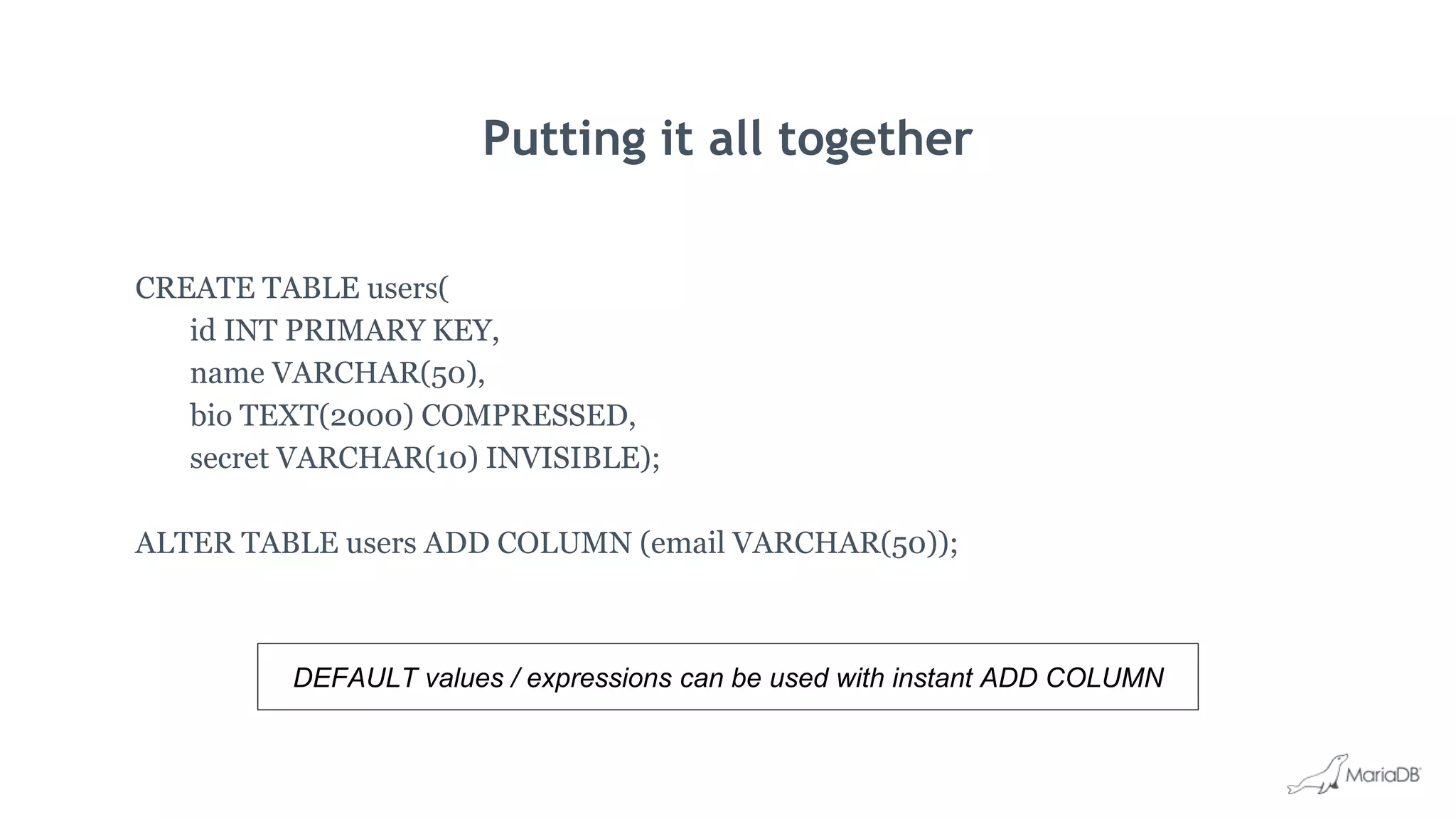

34. Putting it all together
CREATE TABLE users(
id INT PRIMARY KEY,
name VARCHAR(50),
bio TEXT(2000) COMPRESSED,
secret VARCHAR(10) INVISIBLE);
ALTER TABLE users ADD COLUMN (email VARCHAR(50));
DEFAULT values / expressions can be used with instant ADD COLUMN

35. Temporal tables and queries
What’s new in MariaDB TX 3.0

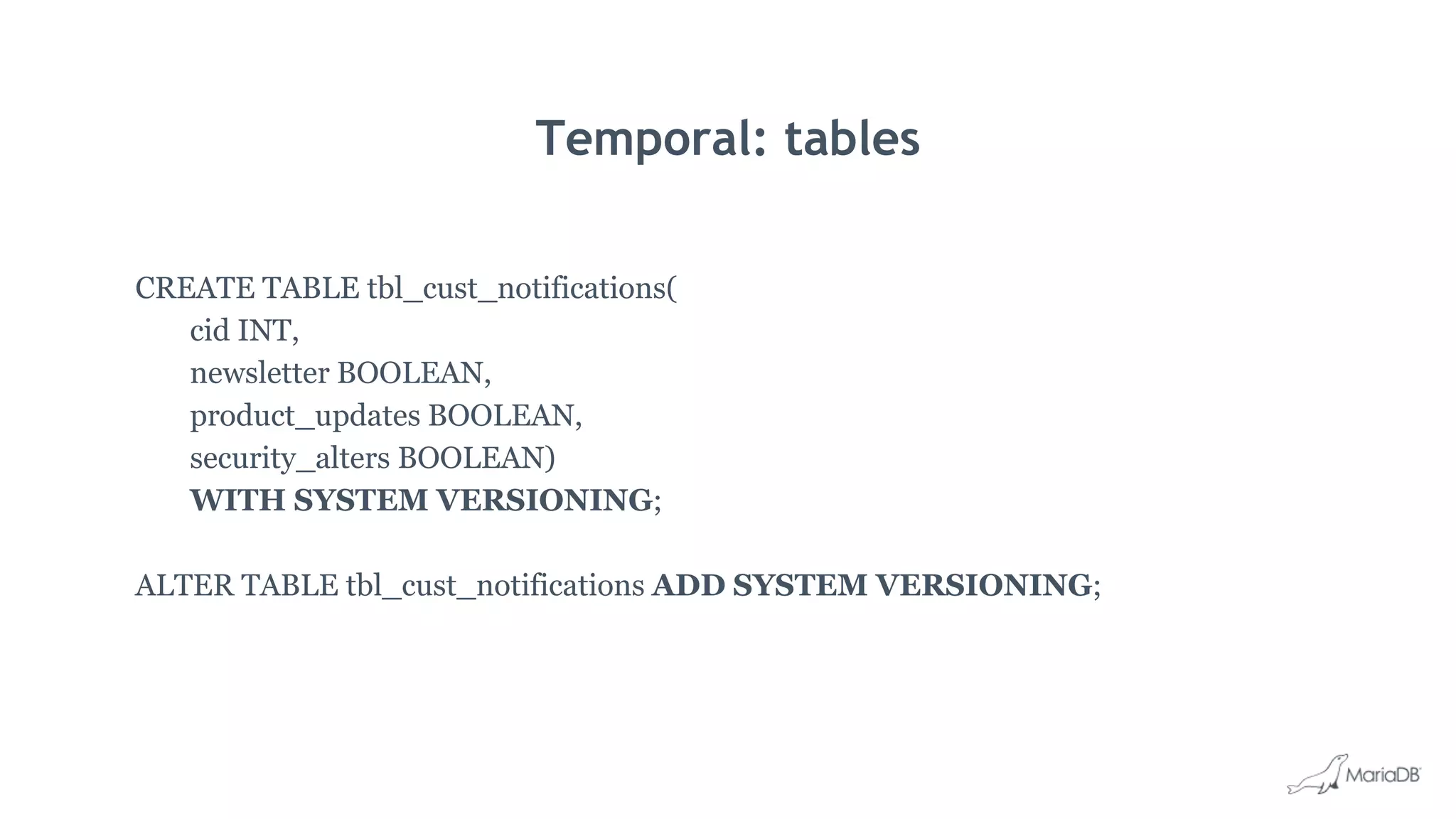

36. Temporal: tables
CREATE TABLE tbl_cust_notifications(
cid INT,
newsletter BOOLEAN,
product_updates BOOLEAN,
security_alters BOOLEAN)
WITH SYSTEM VERSIONING;
ALTER TABLE tbl_cust_notifications ADD SYSTEM VERSIONING;

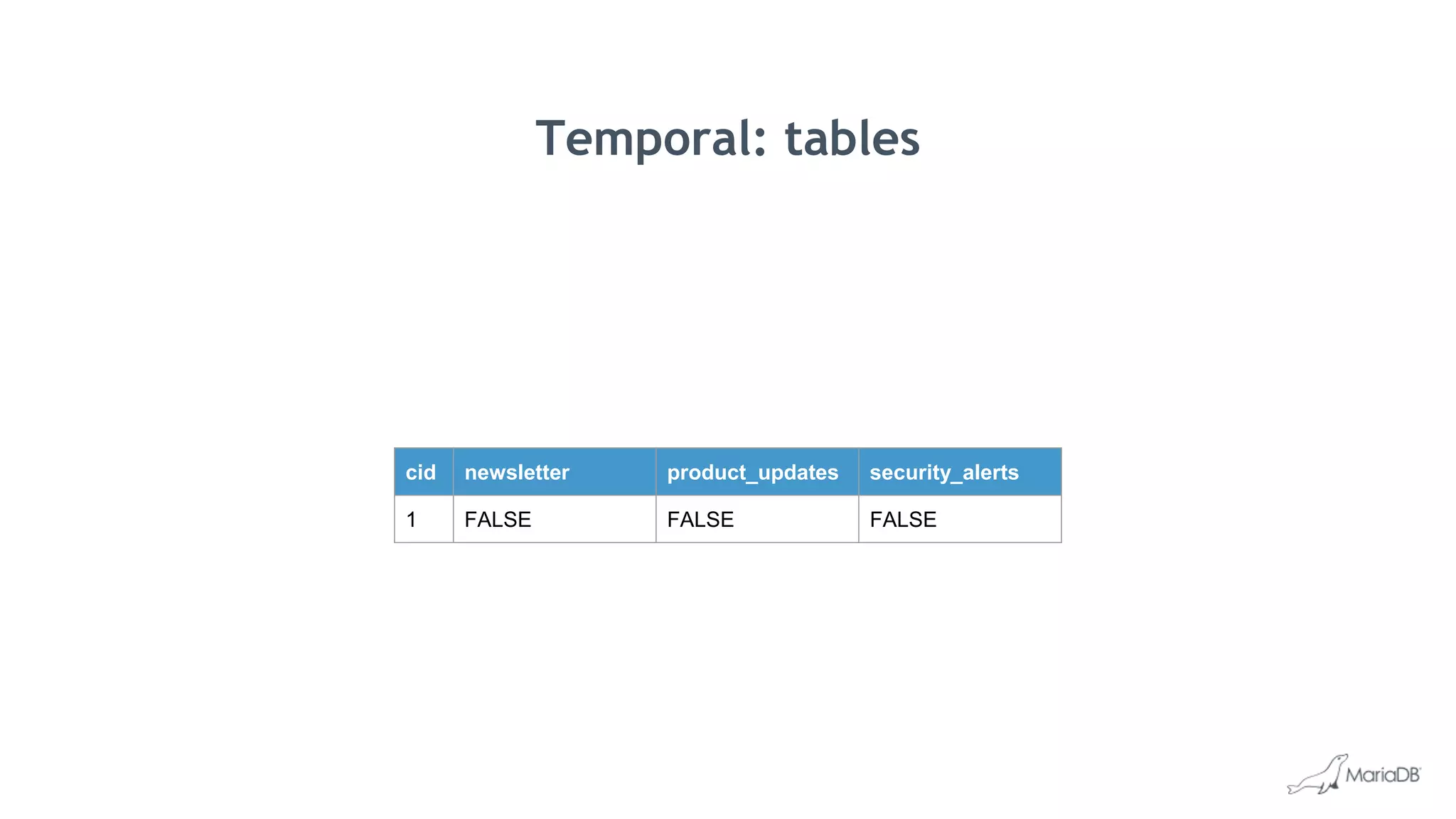

37. Temporal: tables
cid newsletter product_updates security_alerts
1 FALSE FALSE FALSE

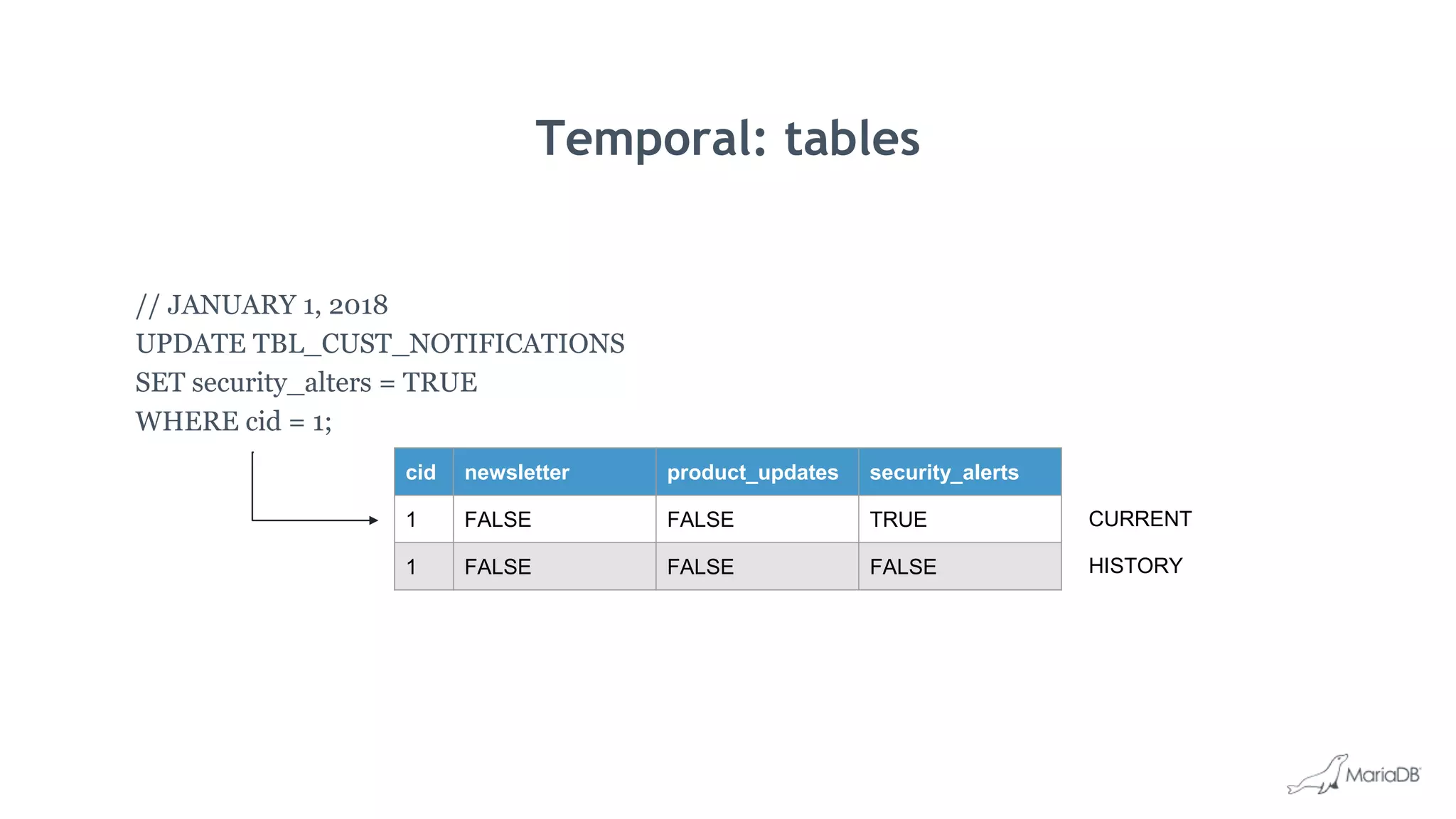

38. Temporal: tables
// JANUARY 1, 2018
UPDATE TBL_CUST_NOTIFICATIONS
SET security_alters = TRUE
WHERE cid = 1;
cid newsletter product_updates security_alerts
1 FALSE FALSE TRUE
1 FALSE FALSE FALSE
CURRENT
HISTORY

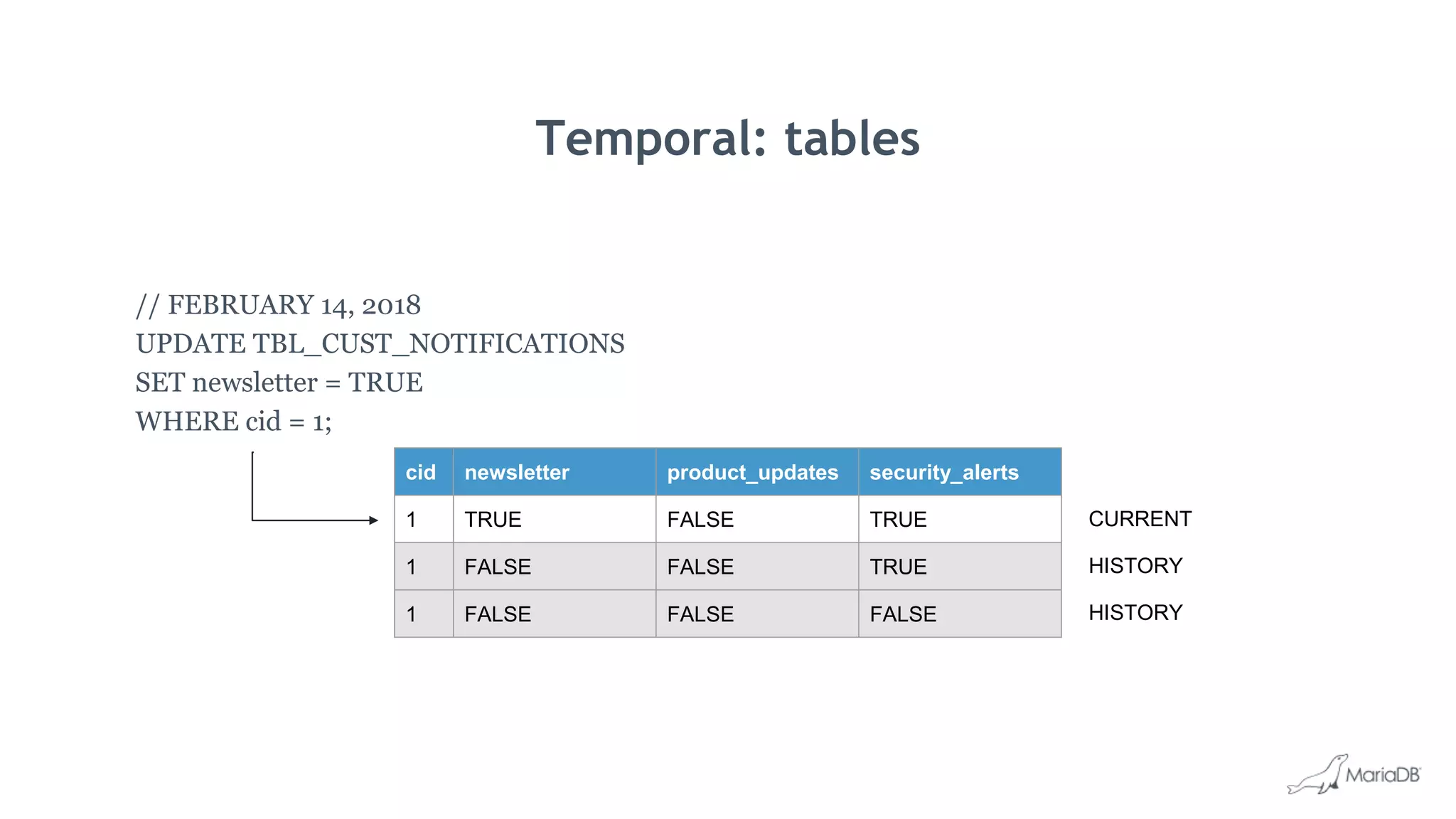

39. Temporal: tables
// FEBRUARY 14, 2018
UPDATE TBL_CUST_NOTIFICATIONS
SET newsletter = TRUE
WHERE cid = 1;
cid newsletter product_updates security_alerts
1 TRUE FALSE TRUE
1 FALSE FALSE TRUE
1 FALSE FALSE FALSE
CURRENT
HISTORY
HISTORY

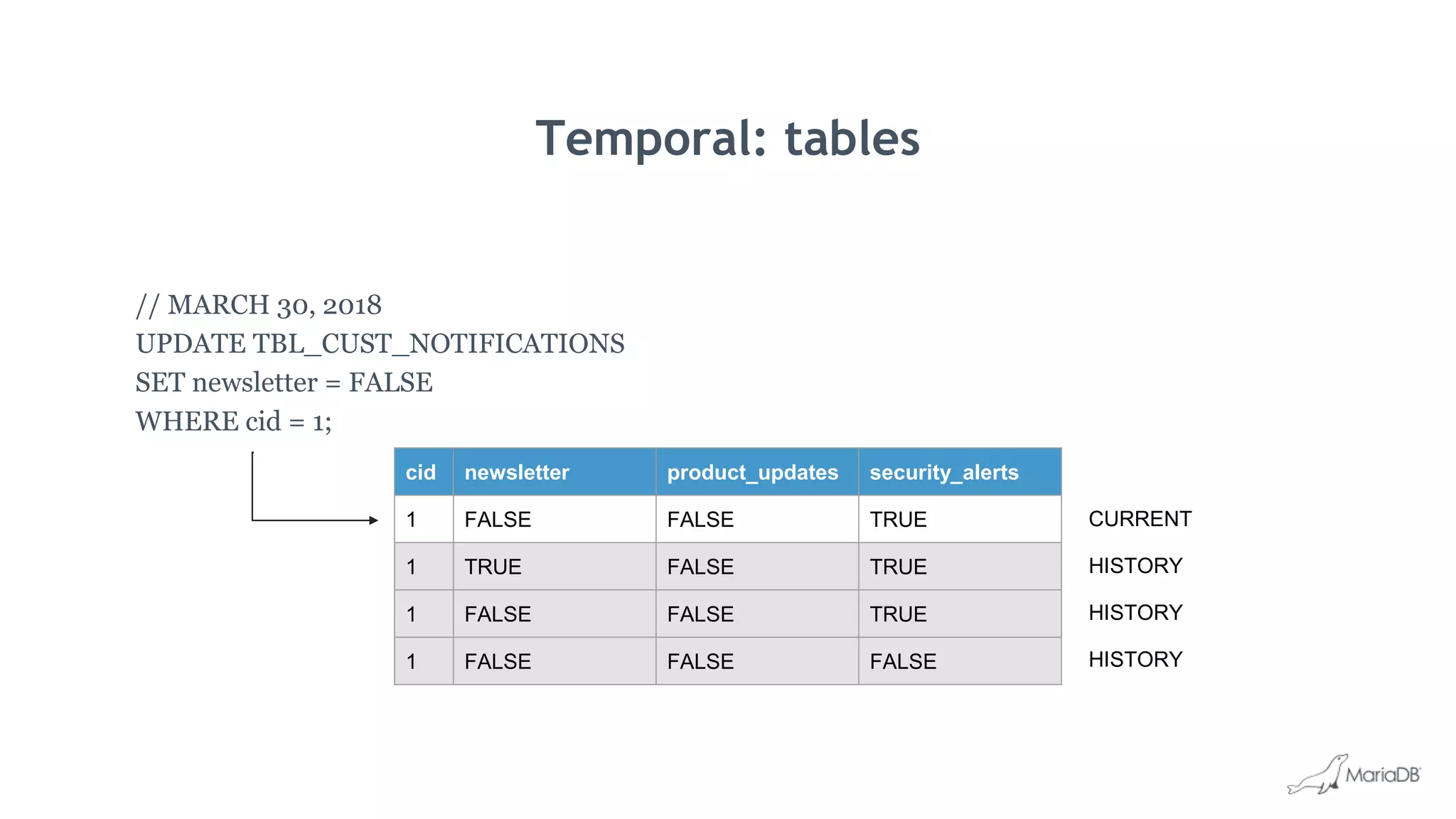

40. Temporal: tables
// MARCH 30, 2018
UPDATE TBL_CUST_NOTIFICATIONS
SET newsletter = FALSE
WHERE cid = 1;
cid newsletter product_updates security_alerts
1 FALSE FALSE TRUE
1 TRUE FALSE TRUE
1 FALSE FALSE TRUE
1 FALSE FALSE FALSE
CURRENT
HISTORY
HISTORY
HISTORY

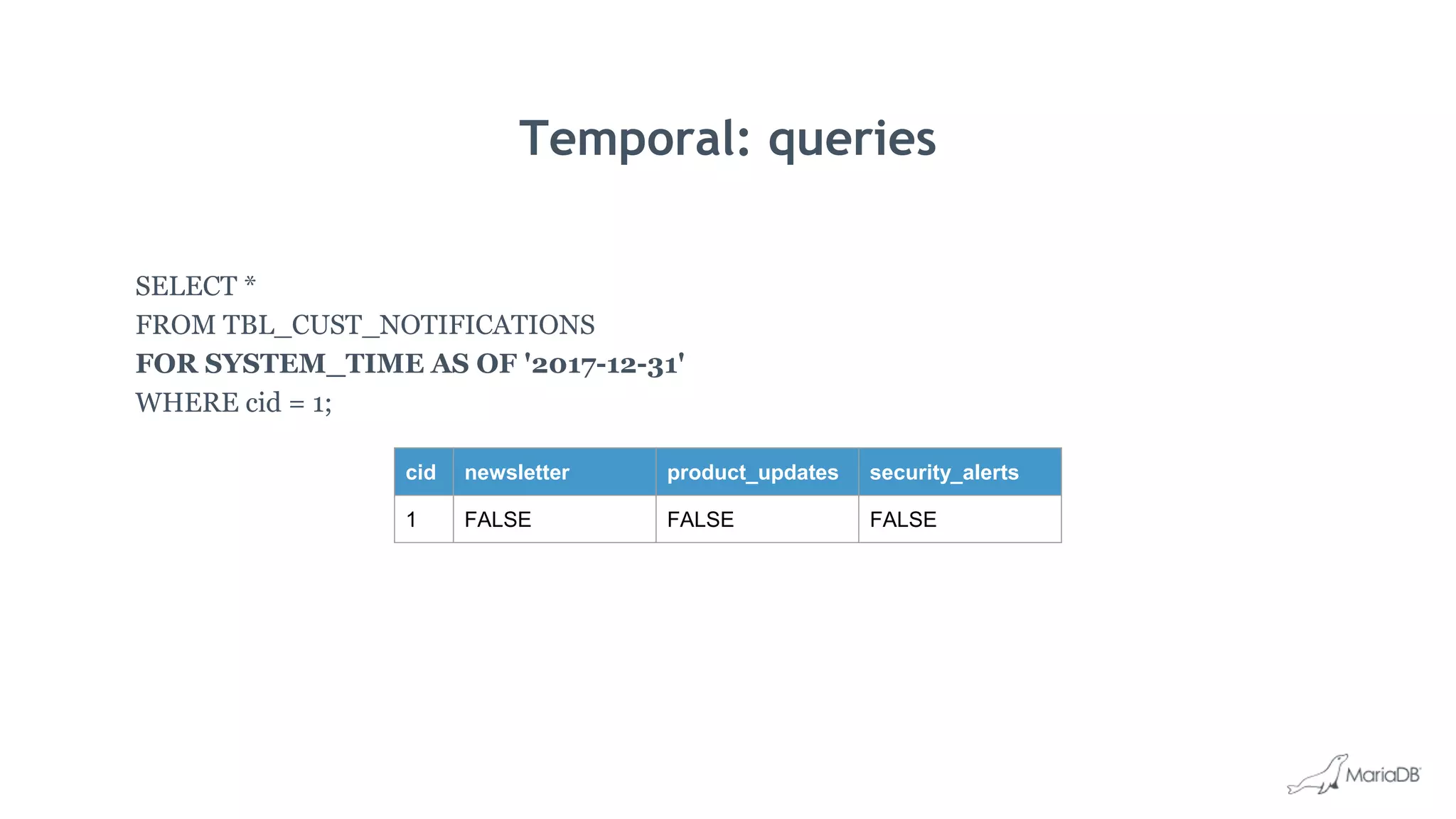

41. Temporal: queries
SELECT *
FROM TBL_CUST_NOTIFICATIONS
FOR SYSTEM_TIME AS OF '2017-12-31'
WHERE cid = 1;
cid newsletter product_updates security_alerts
1 FALSE FALSE FALSE

42. Temporal: queries
SELECT *
FROM TBL_CUST_NOTIFICATIONS
FOR SYSTEM_TIME BETWEEN '2018-02-01' AND '2018-03-30'
WHERE cid = 1;
cid newsletter product_updates security_alerts
1 FALSE FALSE TRUE
1 TRUE FALSE TRUE
BETWEEN includes the start and end

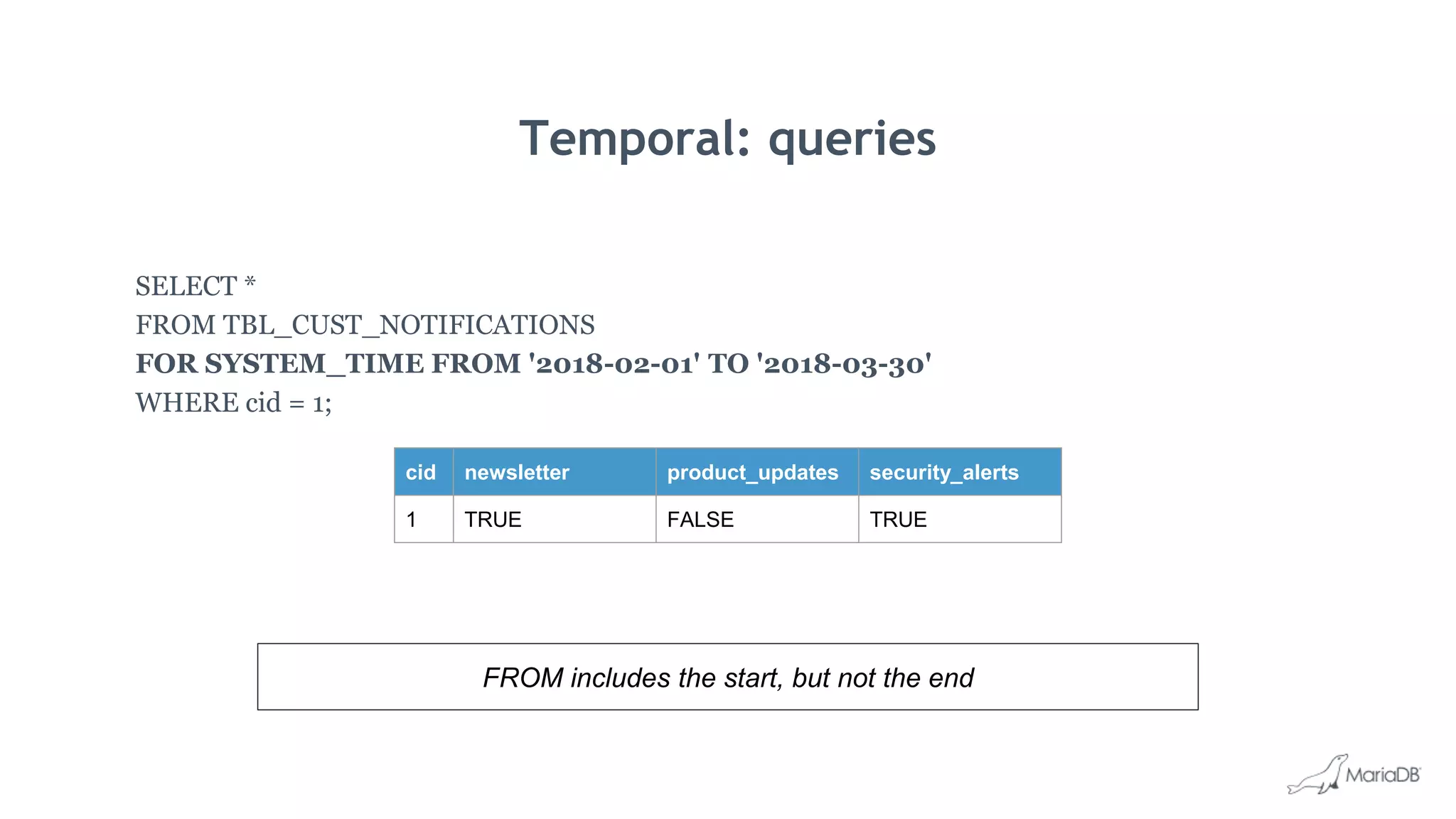

43. Temporal: queries
SELECT *
FROM TBL_CUST_NOTIFICATIONS
FOR SYSTEM_TIME FROM '2018-02-01' TO '2018-03-30'
WHERE cid = 1;
cid newsletter product_updates security_alerts
1 TRUE FALSE TRUE
FROM includes the start, but not the end

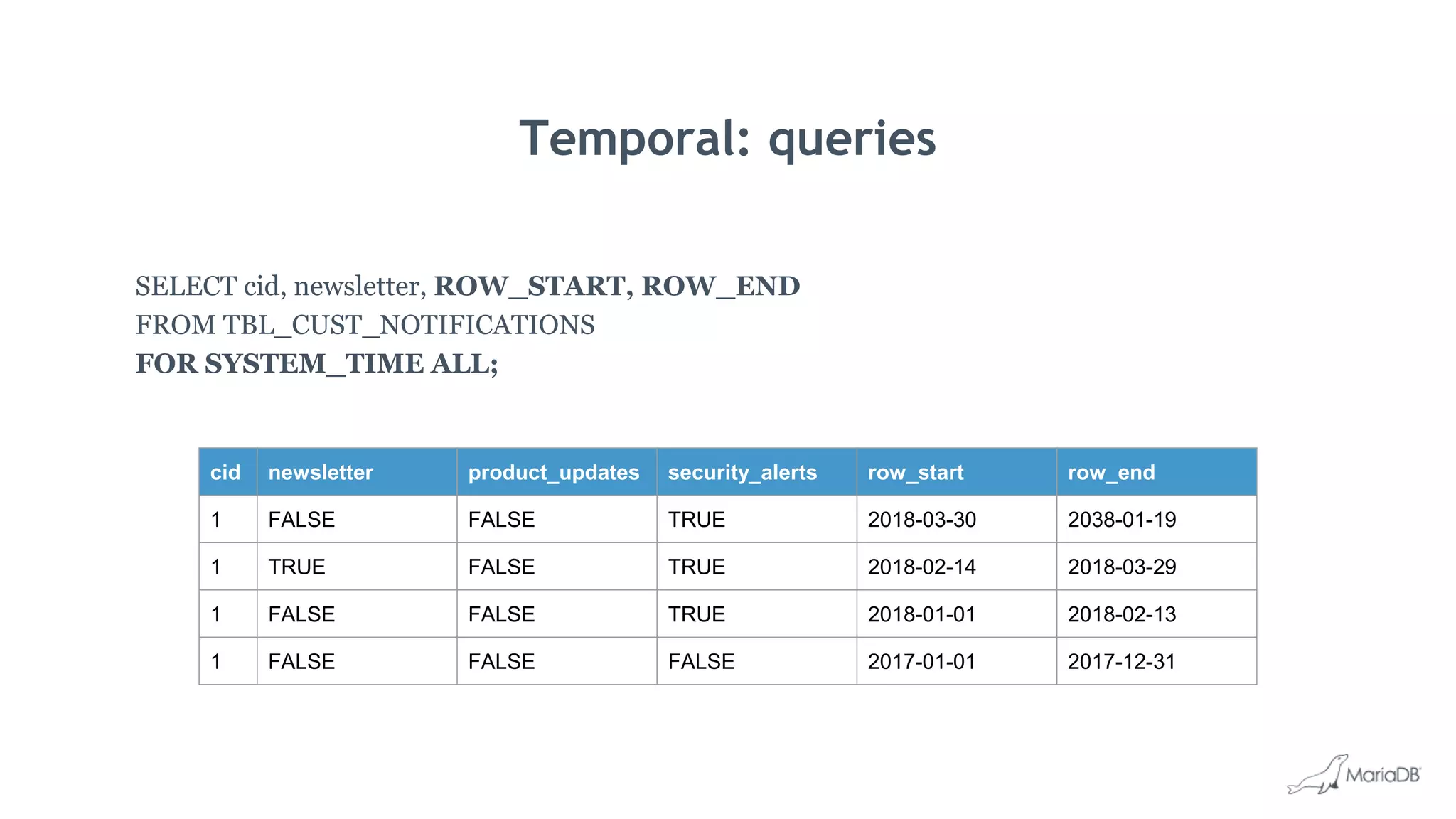

44. Temporal: queries
SELECT cid, newsletter, ROW_START, ROW_END
FROM TBL_CUST_NOTIFICATIONS
FOR SYSTEM_TIME ALL;
cid newsletter product_updates security_alerts row_start row_end
1 FALSE FALSE TRUE 2018-03-30 2038-01-19
1 TRUE FALSE TRUE 2018-02-14 2018-03-29
1 FALSE FALSE TRUE 2018-01-01 2018-02-13
1 FALSE FALSE FALSE 2017-01-01 2017-12-31

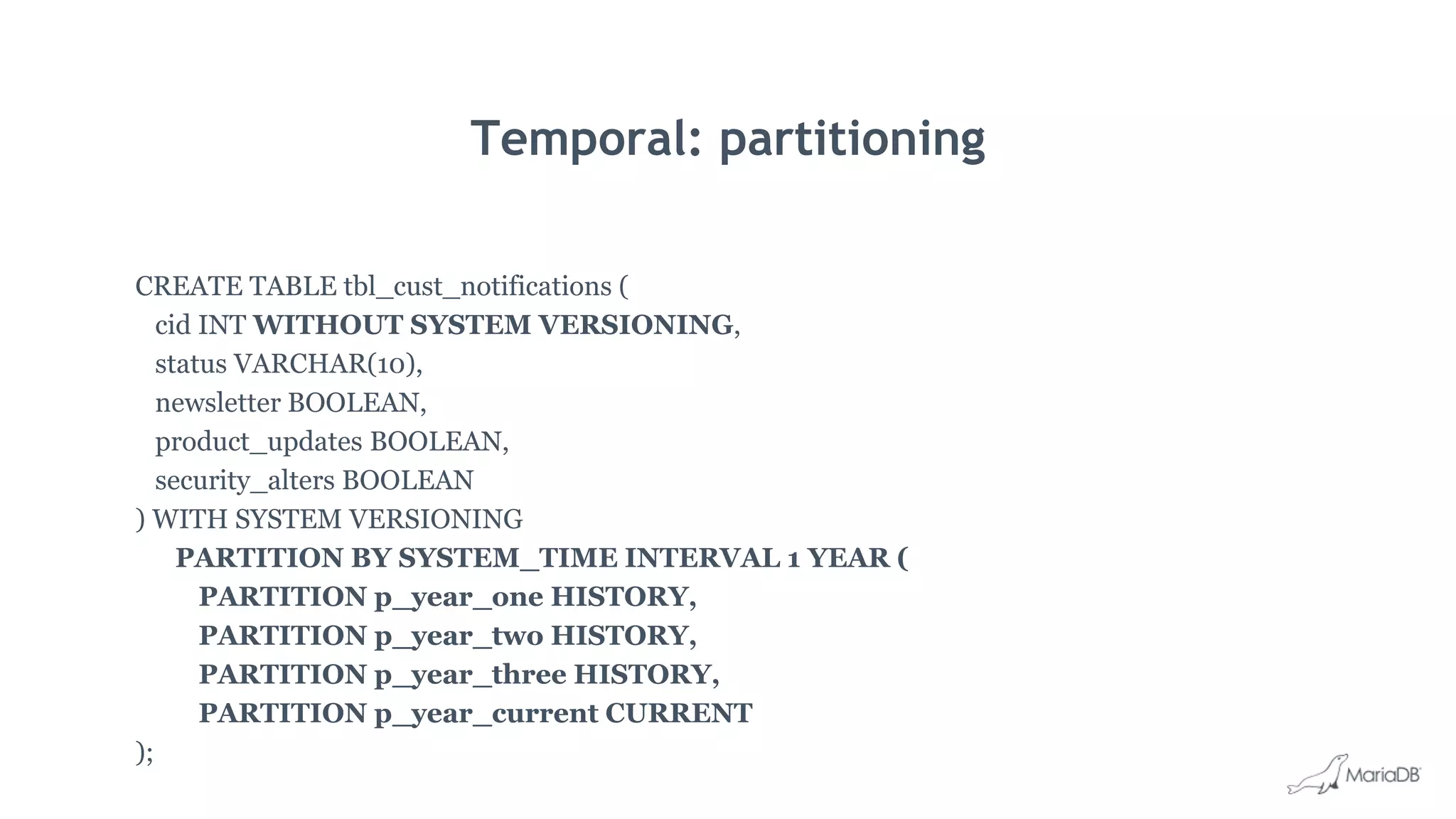

45. Temporal: partitioning
CREATE TABLE tbl_cust_notifications (
cid INT WITHOUT SYSTEM VERSIONING,
status VARCHAR(10),
newsletter BOOLEAN,
product_updates BOOLEAN,
security_alters BOOLEAN
) WITH SYSTEM VERSIONING
PARTITION BY SYSTEM_TIME INTERVAL 1 YEAR (
PARTITION p_year_one HISTORY,
PARTITION p_year_two HISTORY,
PARTITION p_year_three HISTORY,
PARTITION p_year_current CURRENT
);

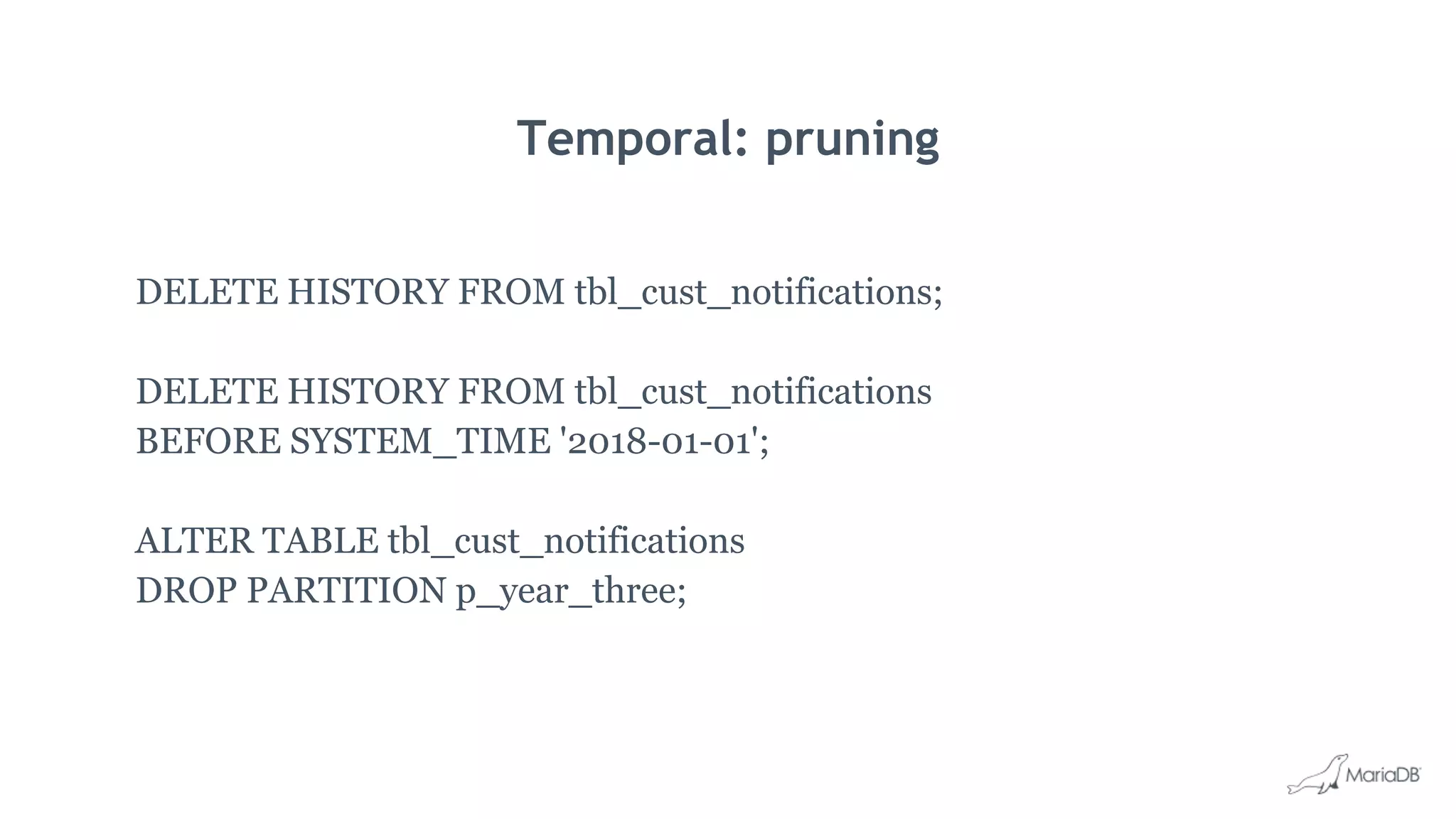

46. Temporal: pruning
DELETE HISTORY FROM tbl_cust_notifications;
DELETE HISTORY FROM tbl_cust_notifications
BEFORE SYSTEM_TIME '2018-01-01';
ALTER TABLE tbl_cust_notifications
DROP PARTITION p_year_three;

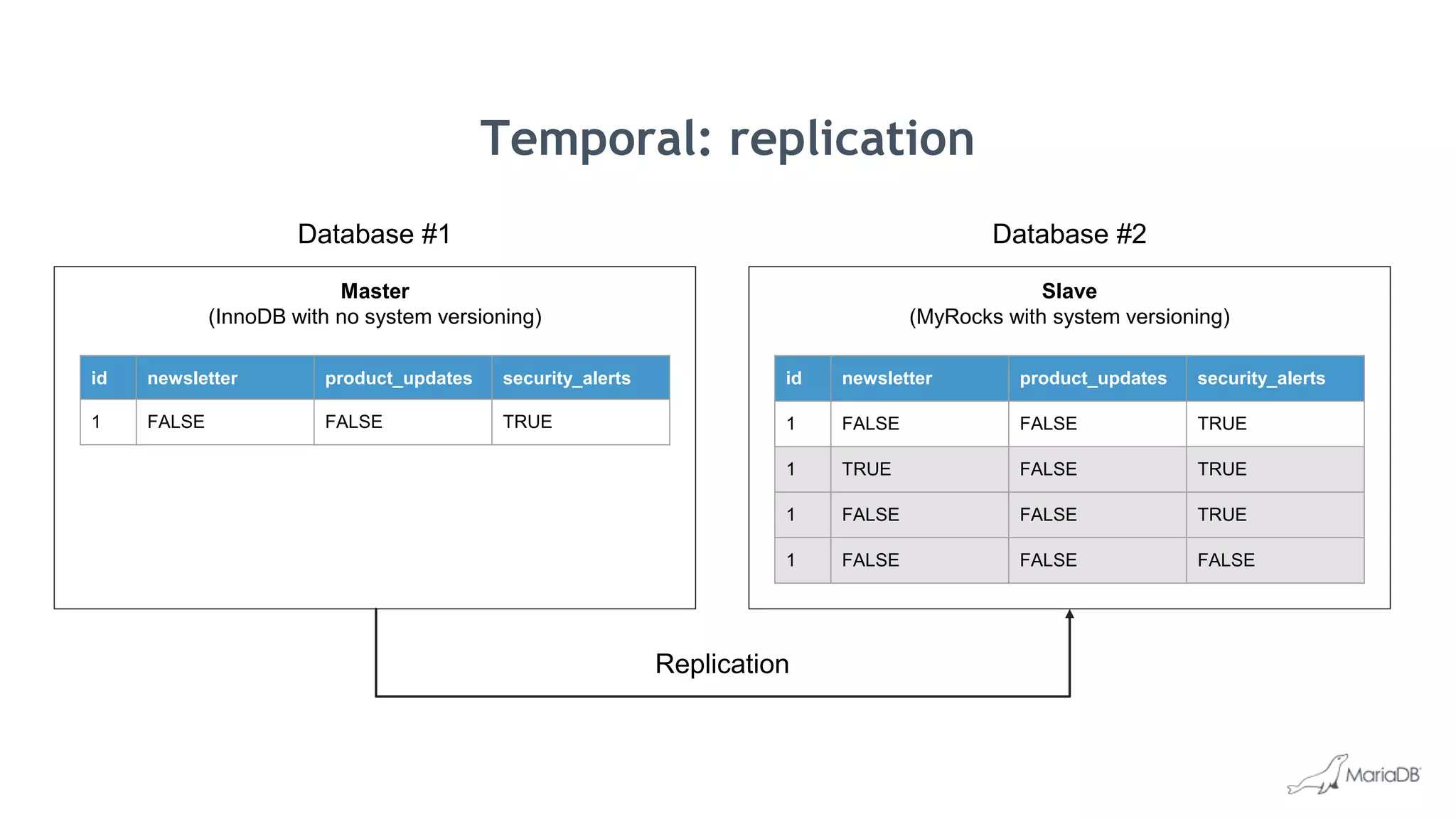

47. Slave
(MyRocks with system versioning)
Master
(InnoDB with no system versioning)
id newsletter product_updates security_alerts
1 FALSE FALSE TRUE
id newsletter product_updates security_alerts
1 FALSE FALSE TRUE
1 TRUE FALSE TRUE
1 FALSE FALSE TRUE
1 FALSE FALSE FALSE
Replication
Temporal: replication
Database #1 Database #2

48. Oracle compatibility
What’s new in MariaDB TX 3.0

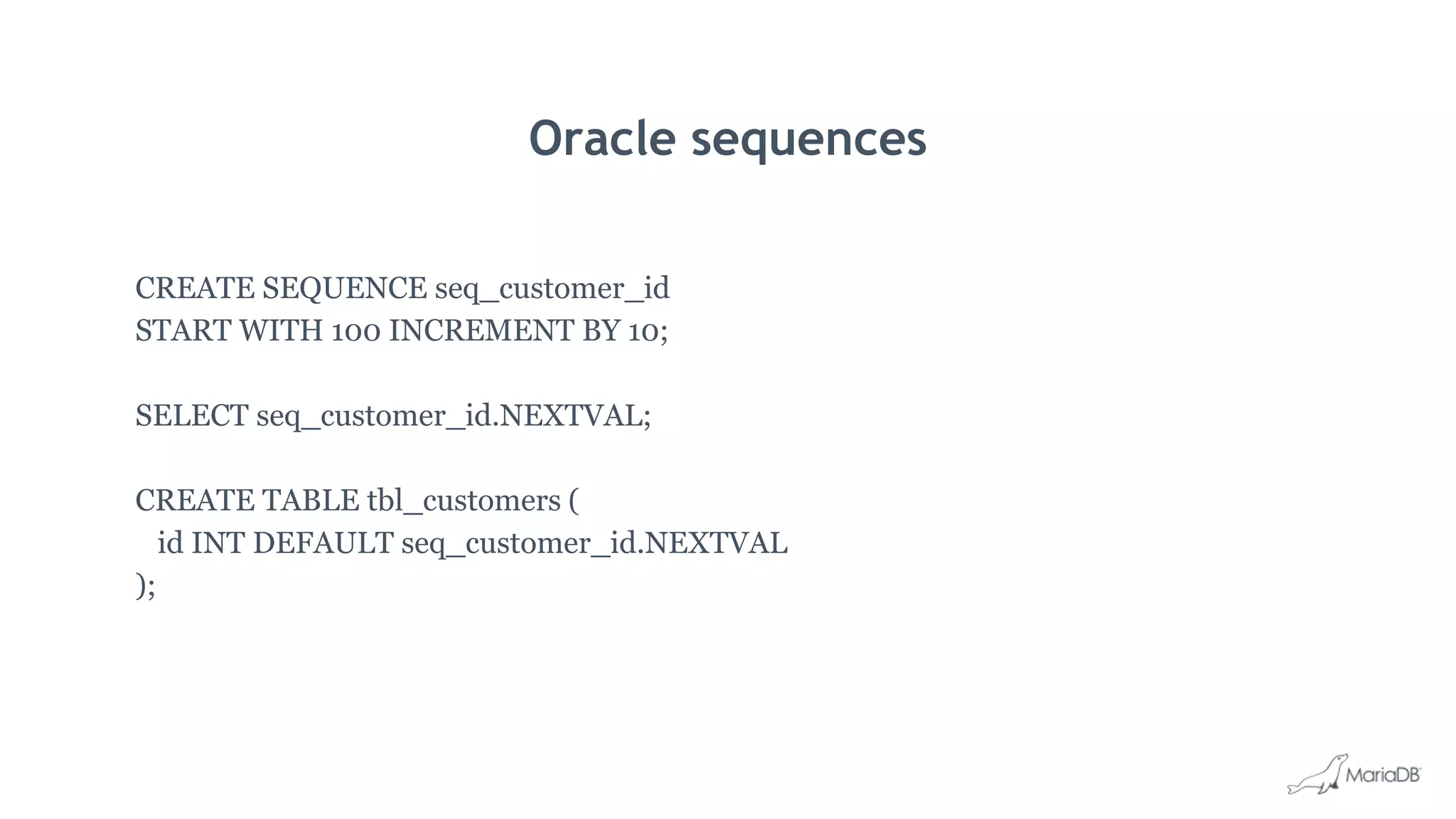

49. Oracle sequences
CREATE SEQUENCE seq_customer_id
START WITH 100 INCREMENT BY 10;
SELECT seq_customer_id.NEXTVAL;
CREATE TABLE tbl_customers (
id INT DEFAULT seq_customer_id.NEXTVAL
);

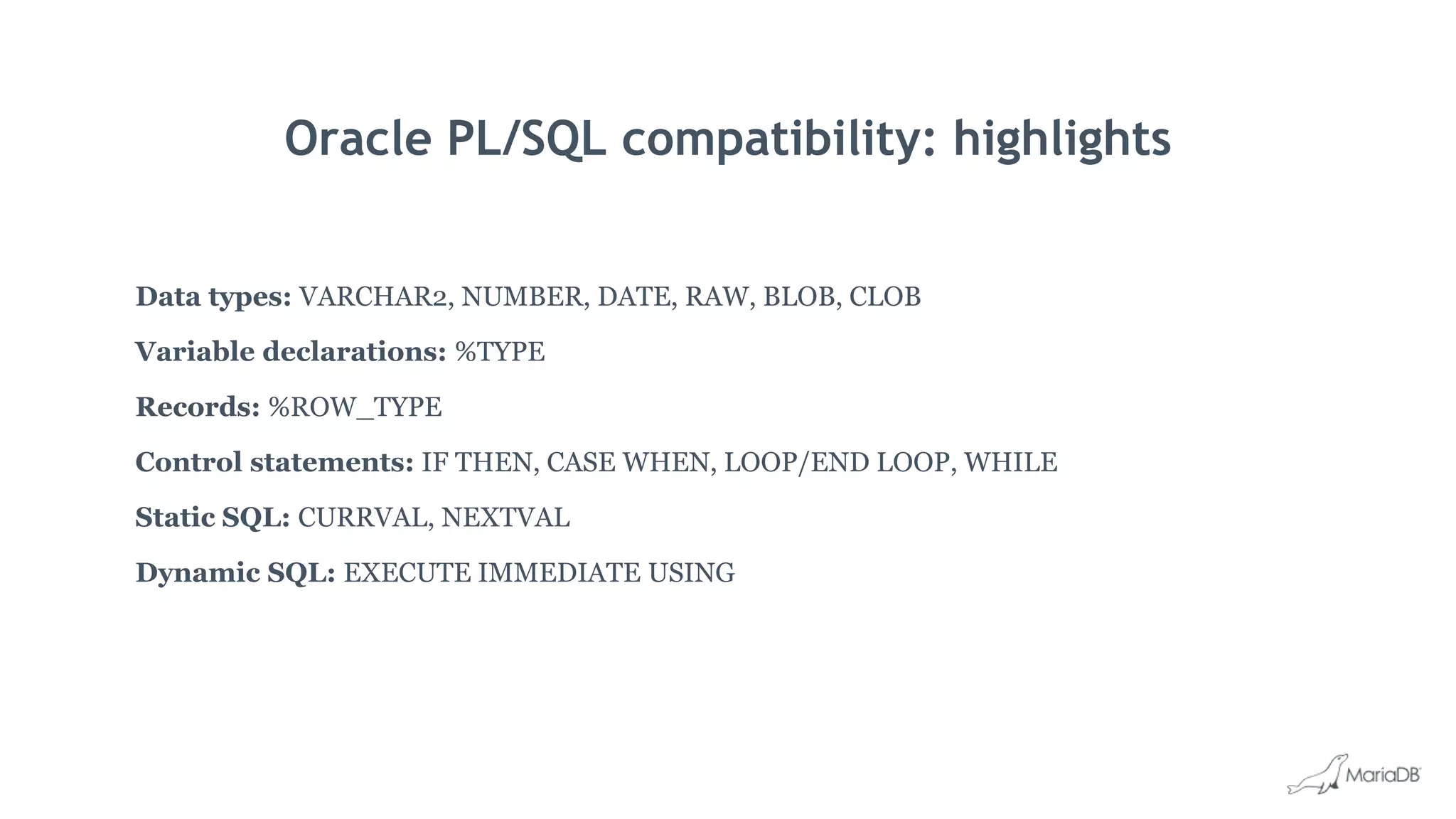

50. Oracle PL/SQL compatibility: highlights
Data types: VARCHAR2, NUMBER, DATE, RAW, BLOB, CLOB
Variable declarations: %TYPE
Records: %ROW_TYPE
Control statements: IF THEN, CASE WHEN, LOOP/END LOOP, WHILE
Static SQL: CURRVAL, NEXTVAL
Dynamic SQL: EXECUTE IMMEDIATE USING

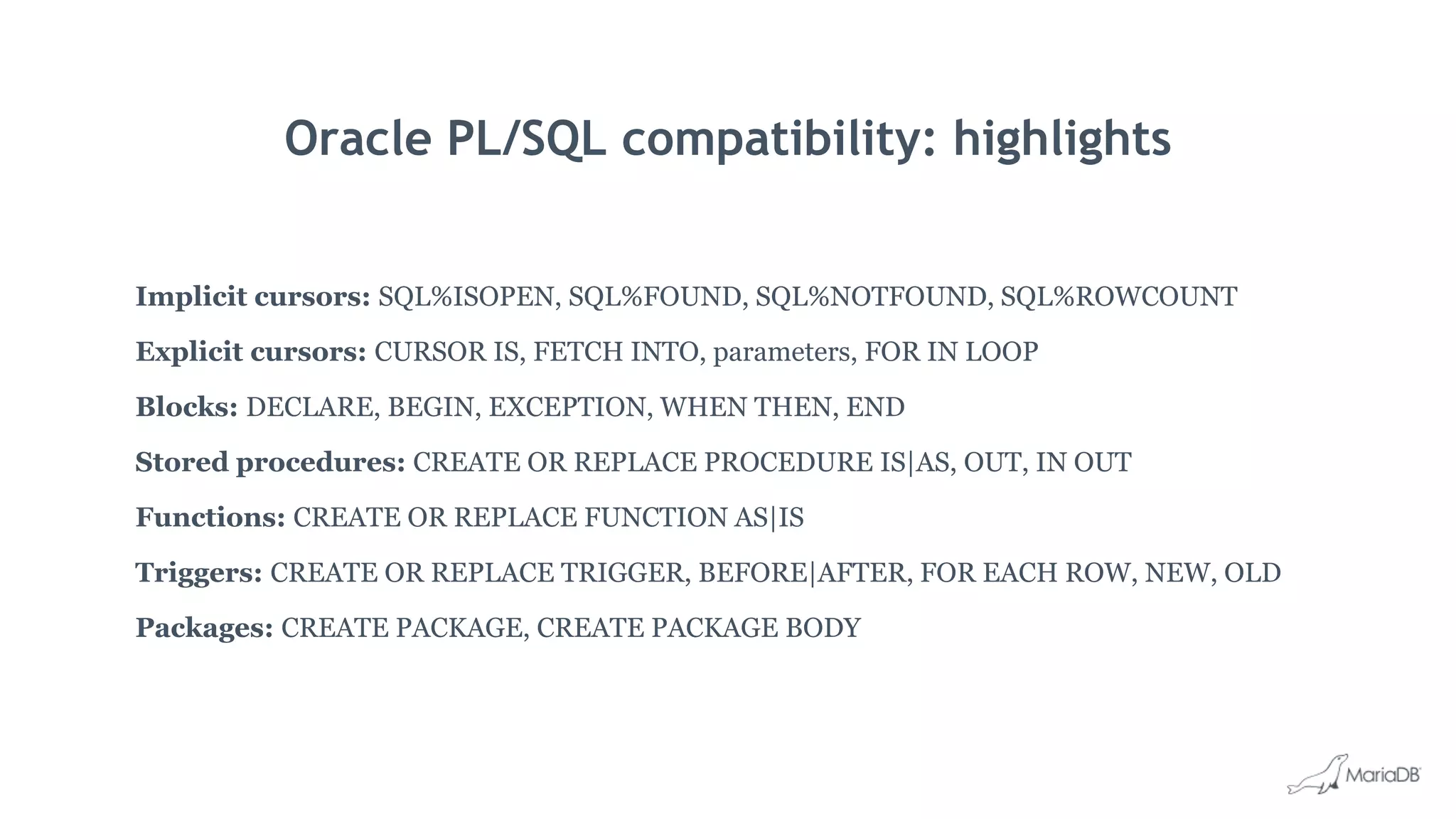

51. Oracle PL/SQL compatibility: highlights
Implicit cursors: SQL%ISOPEN, SQL%FOUND, SQL%NOTFOUND, SQL%ROWCOUNT
Explicit cursors: CURSOR IS, FETCH INTO, parameters, FOR IN LOOP
Blocks: DECLARE, BEGIN, EXCEPTION, WHEN THEN, END
Stored procedures: CREATE OR REPLACE PROCEDURE IS|AS, OUT, IN OUT
Functions: CREATE OR REPLACE FUNCTION AS|IS
Triggers: CREATE OR REPLACE TRIGGER, BEFORE|AFTER, FOR EACH ROW, NEW, OLD
Packages: CREATE PACKAGE, CREATE PACKAGE BODY

52. Advanced security
What’s new in MariaDB TX 3.0

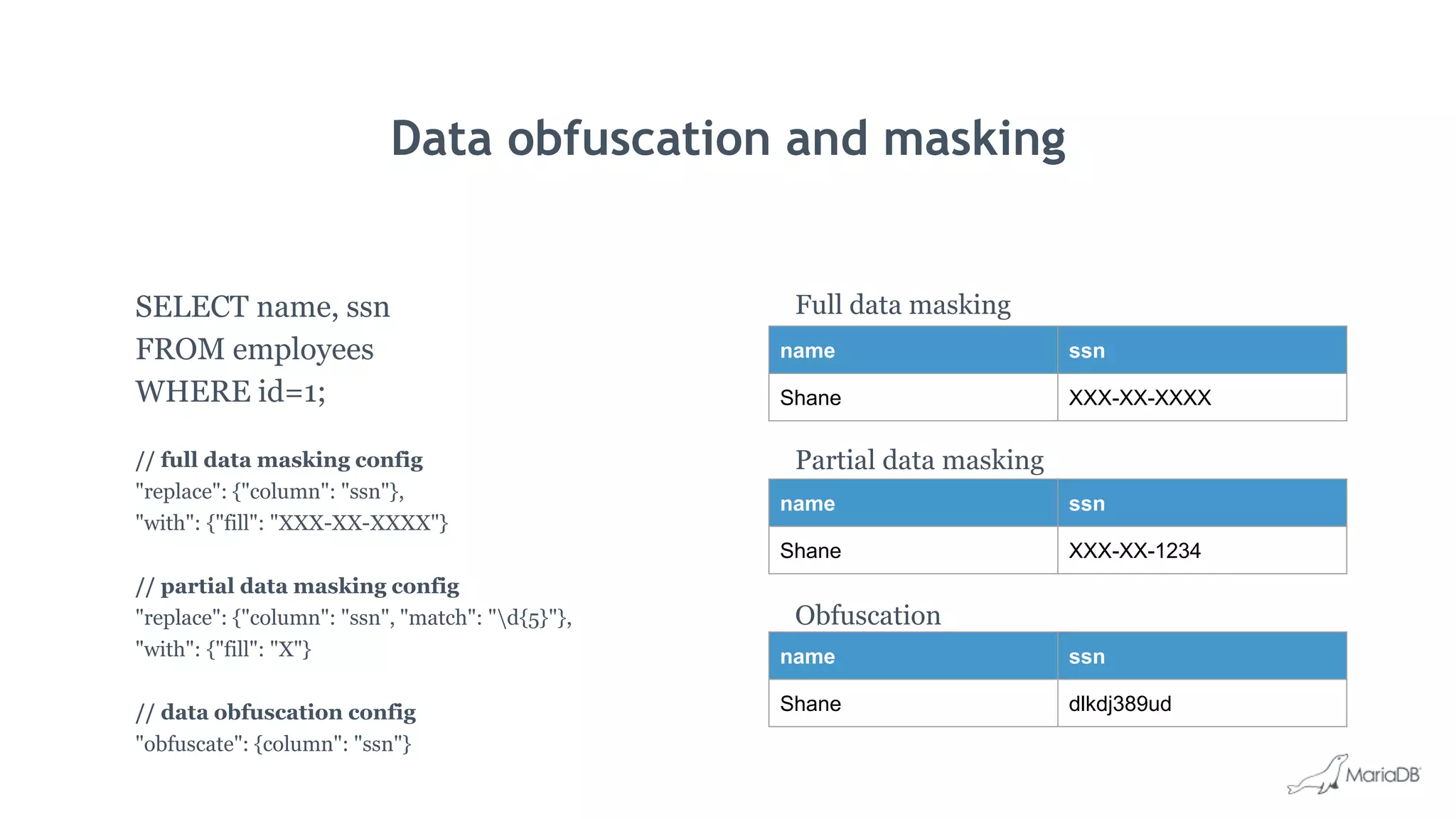

53. Data obfuscation and masking
SELECT name, ssn
FROM employees
WHERE id=1;
// full data masking config
"replace": {"column": "ssn"},
"with": {"fill": "XXX-XX-XXXX"}
// partial data masking config
"replace": {"column": "ssn", "match": "d{5}"},
"with": {"fill": "X"}
// data obfuscation config
"obfuscate": {column": "ssn"}
Full data masking
Partial data masking
Obfuscation
name ssn
Shane XXX-XX-XXXX
name ssn
Shane XXX-XX-1234
name ssn
Shane dlkdj389ud

54. Other
What’s new in MariaDB TX 3.0

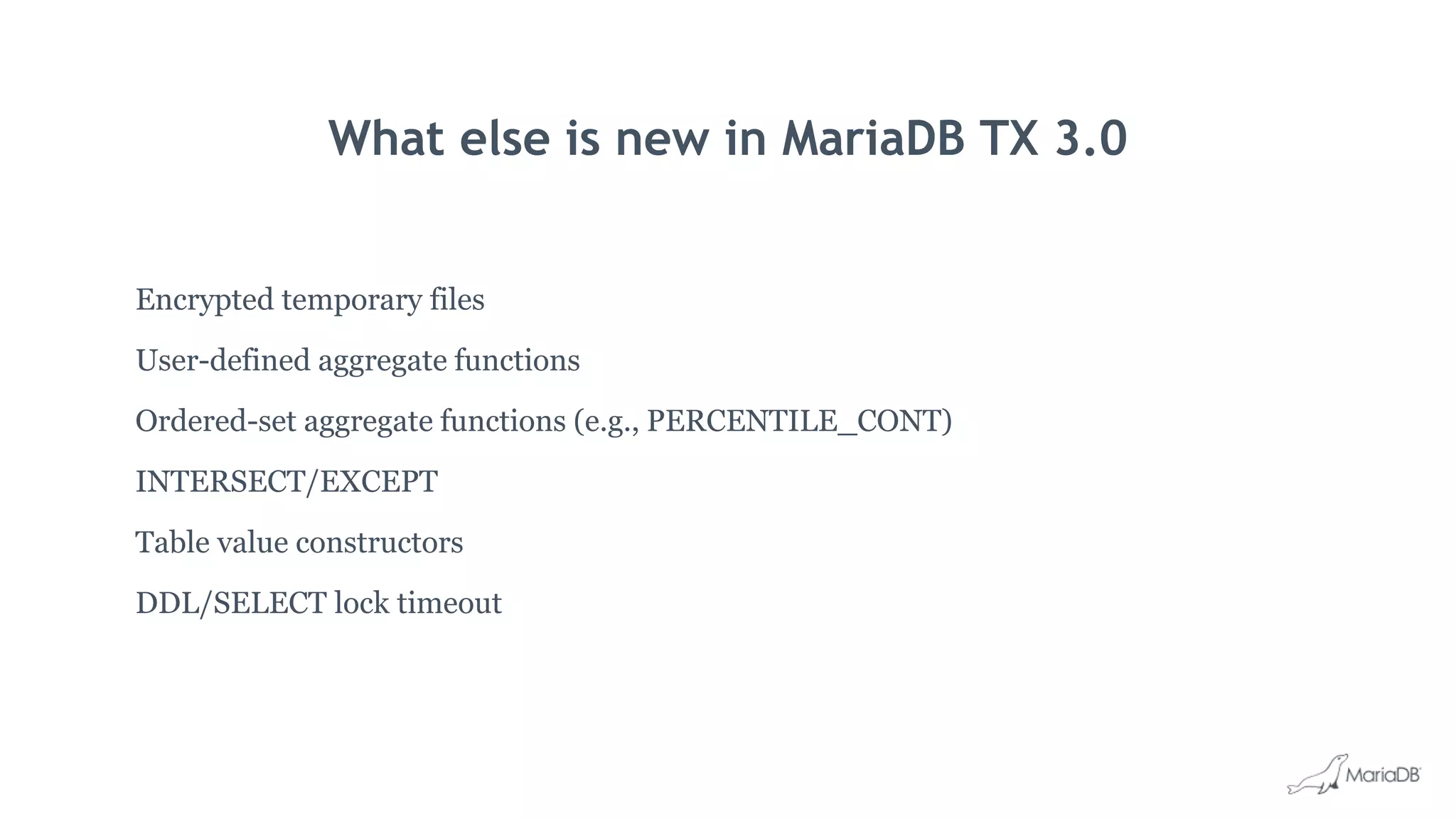

55. What else is new in MariaDB TX 3.0
Encrypted temporary files
User-defined aggregate functions
Ordered-set aggregate functions (e.g., PERCENTILE_CONT)
INTERSECT/EXCEPT
Table value constructors
DDL/SELECT lock timeout

56. Thank you
