Whats Inside These Gadgets
The document provides a teardown analysis of several popular electronic devices including the Sony PlayStation 3, Google Nexus One smartphone, various iPhone models, Apple iPad, and HTC Evo 4G smartphone. It details the key components found inside each device such as batteries, cameras, processors, memory chips, and other parts. The analysis of the HTC Evo 4G specifically calls out the large battery, liquid damage indicator, use of Broadcom, Sequans, Qualcomm, and Atmel chips, and 1.3 megapixel front-facing camera.
Whats Inside These Gadgets
- 1. What’s Inside TheseGadgets… By: Devanshu s.
- 2. Disclaimer Content ofthis presentation is solely based on the data available in public domain (mostly belongs to Web Reports from different IC/Product analysis companies), and does not intend to address any commercial interest by collating and re-publishing it. Also, the respective Copyrights are mentioned and maintained.

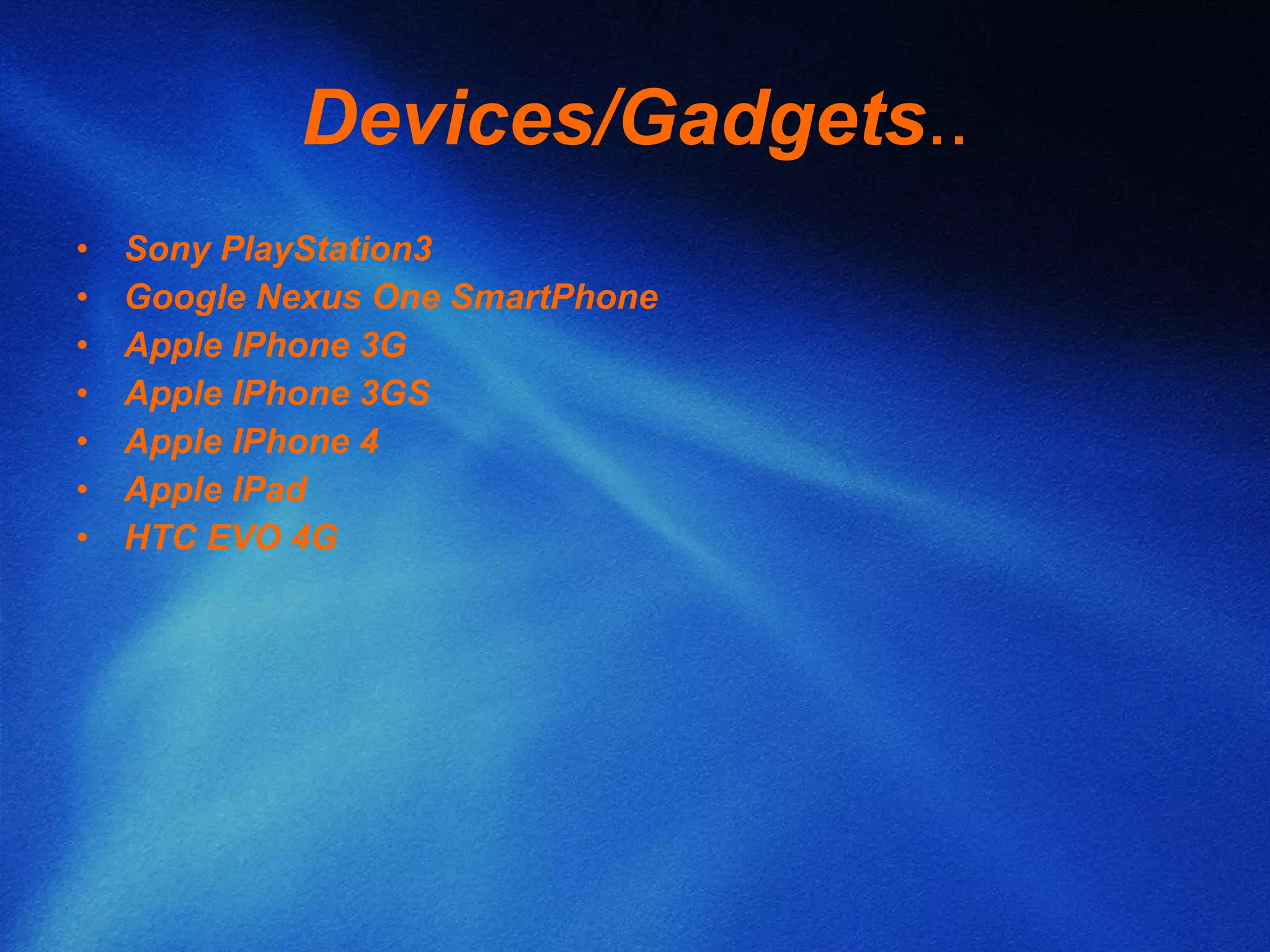

- 3. Devices/Gadgets .. SonyPlayStation3 Google Nexus One SmartPhone Apple IPhone 3G Apple IPhone 3GS Apple IPhone 4 Apple IPad HTC EVO 4G

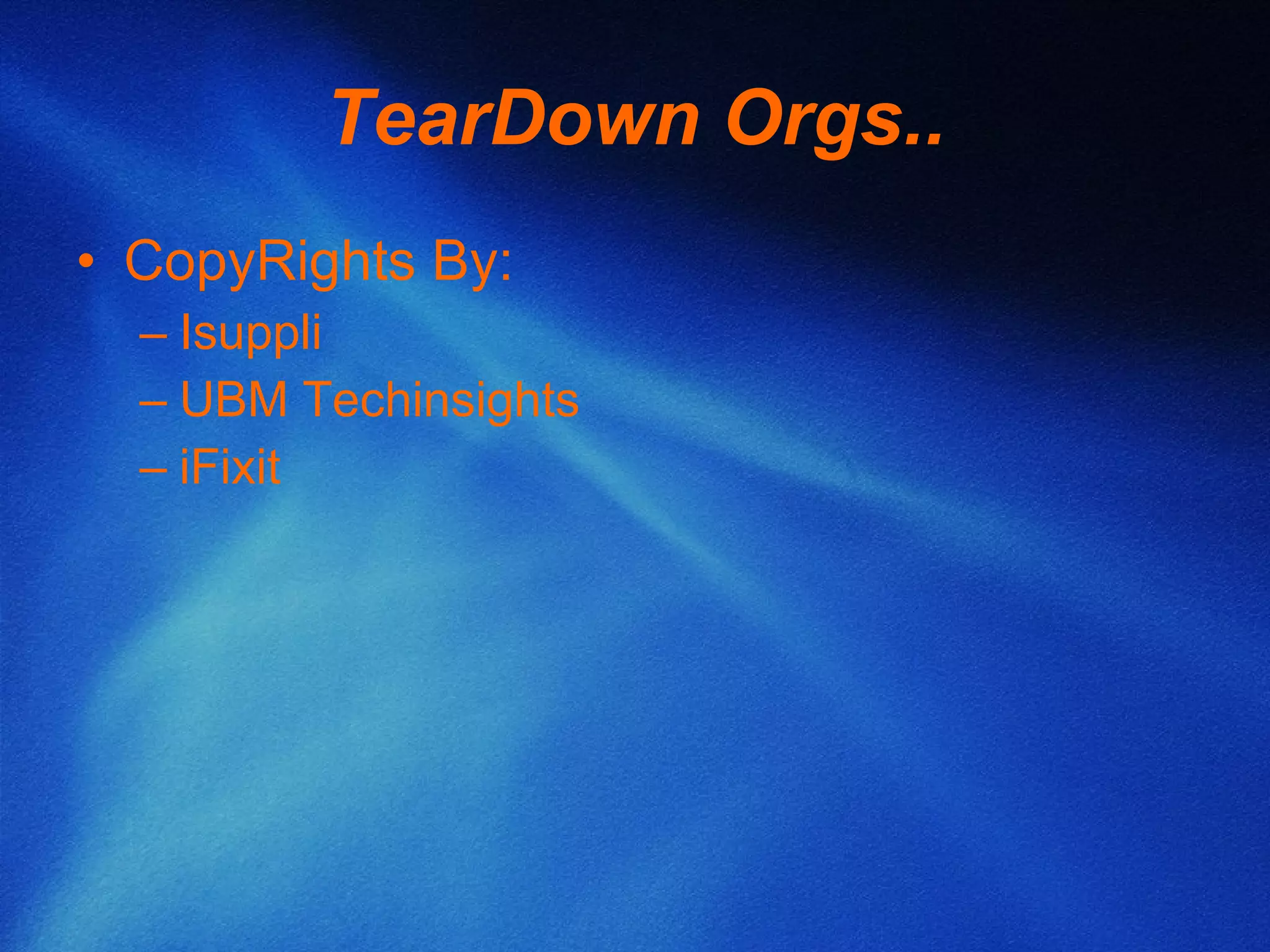

- 4. TearDown Orgs.. CopyRightsBy: Isuppli UBM Techinsights iFixit

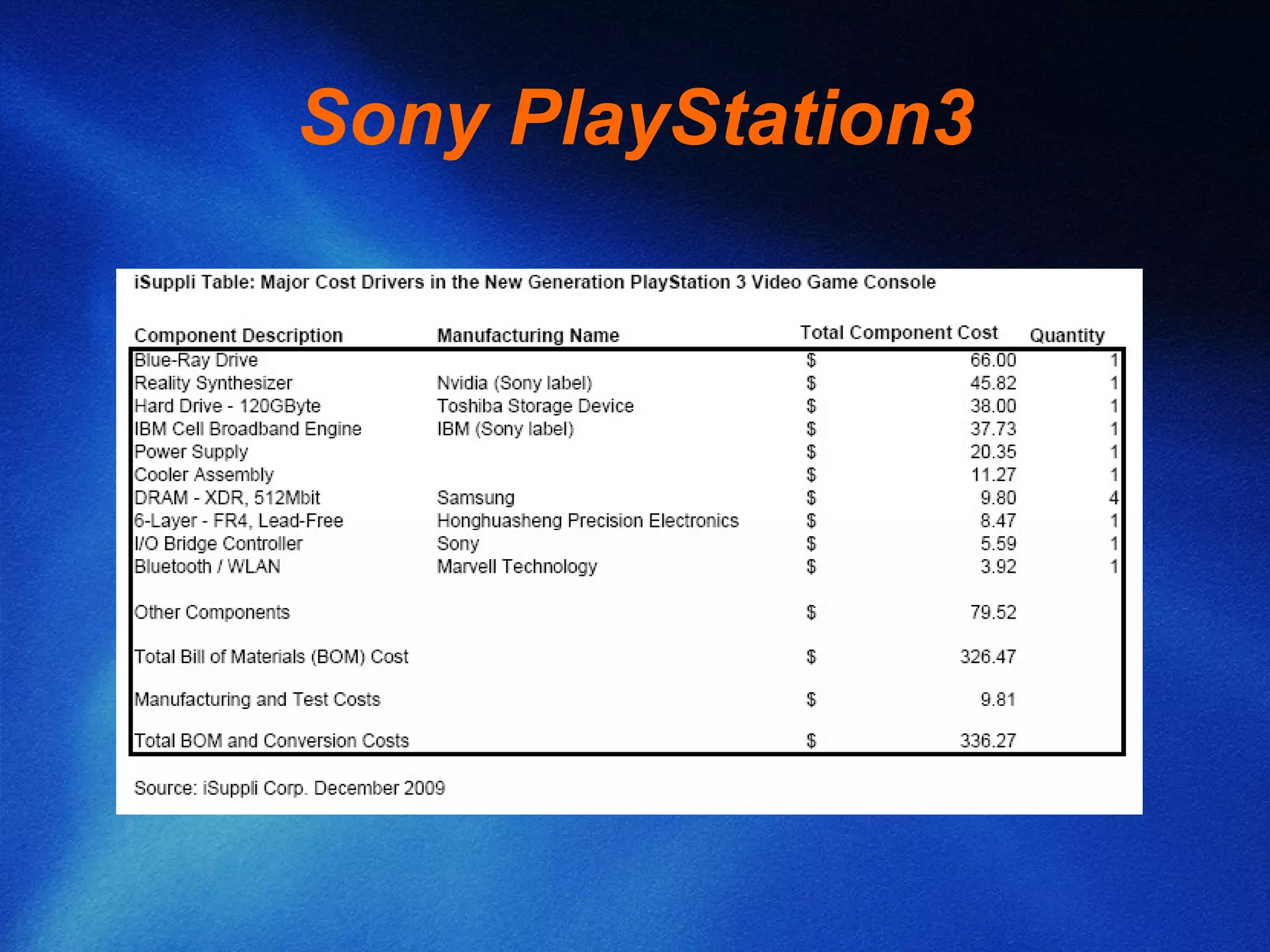

- 5.

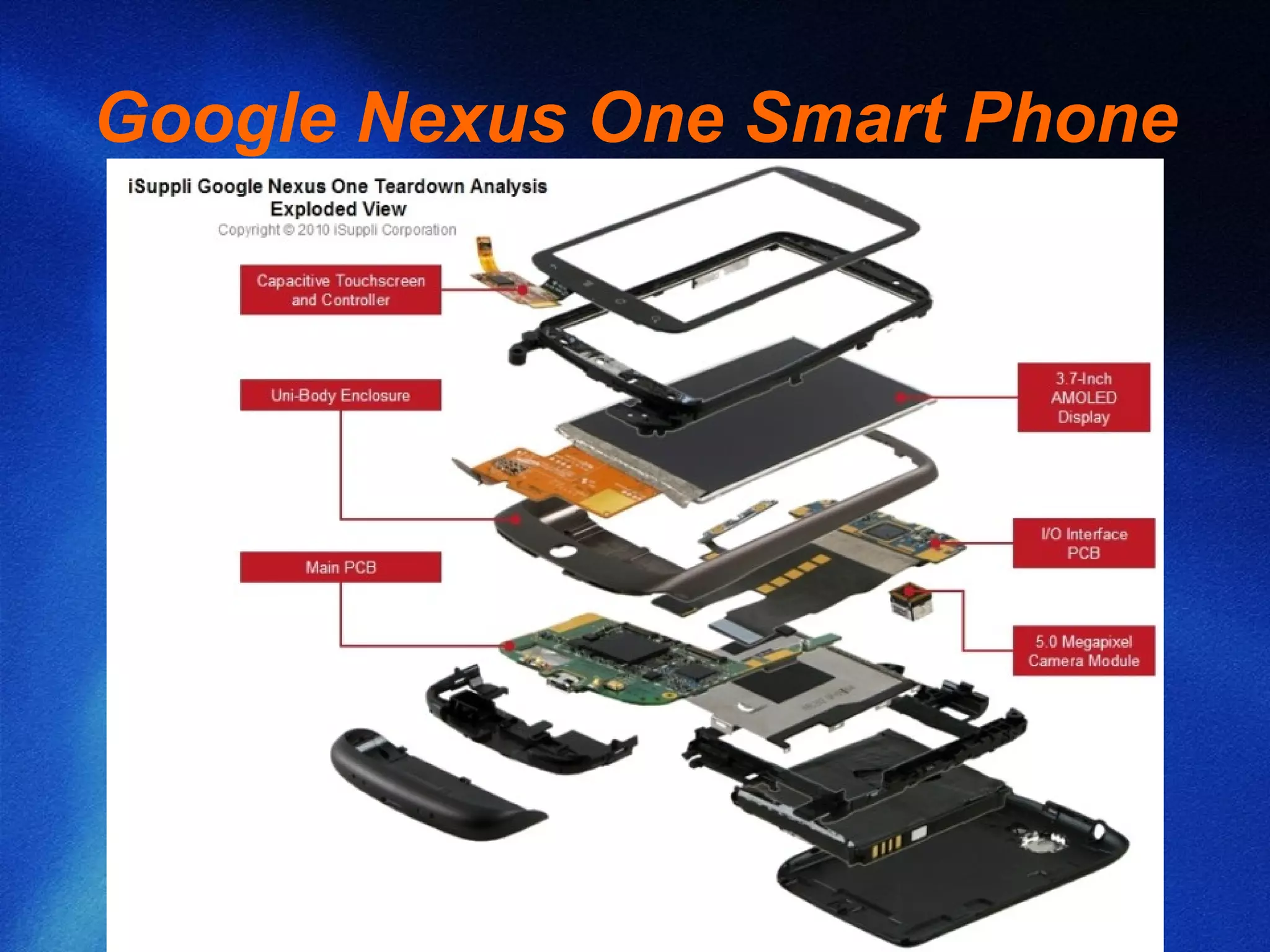

- 6. Google Nexus OneSmart Phone

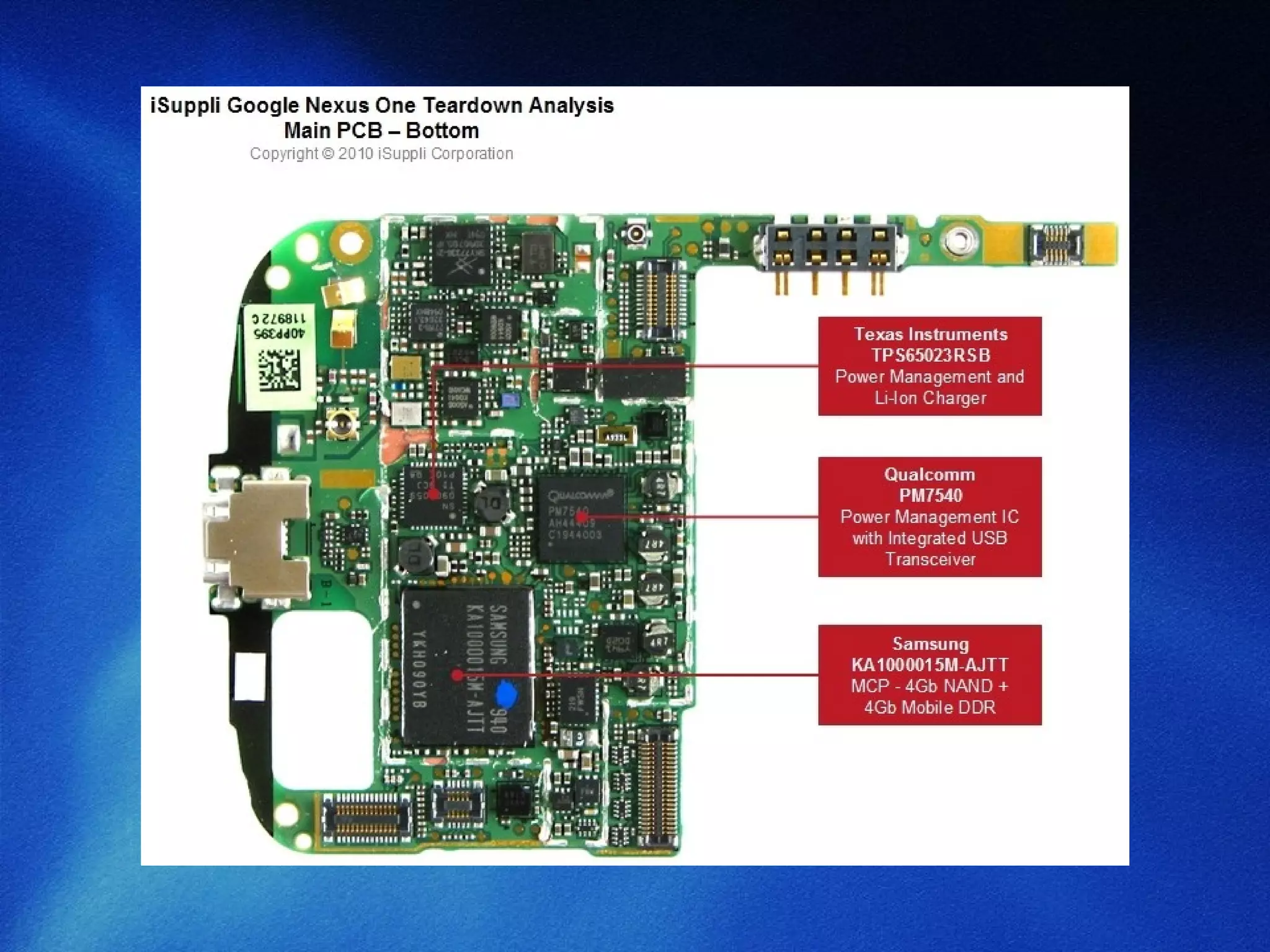

- 7.

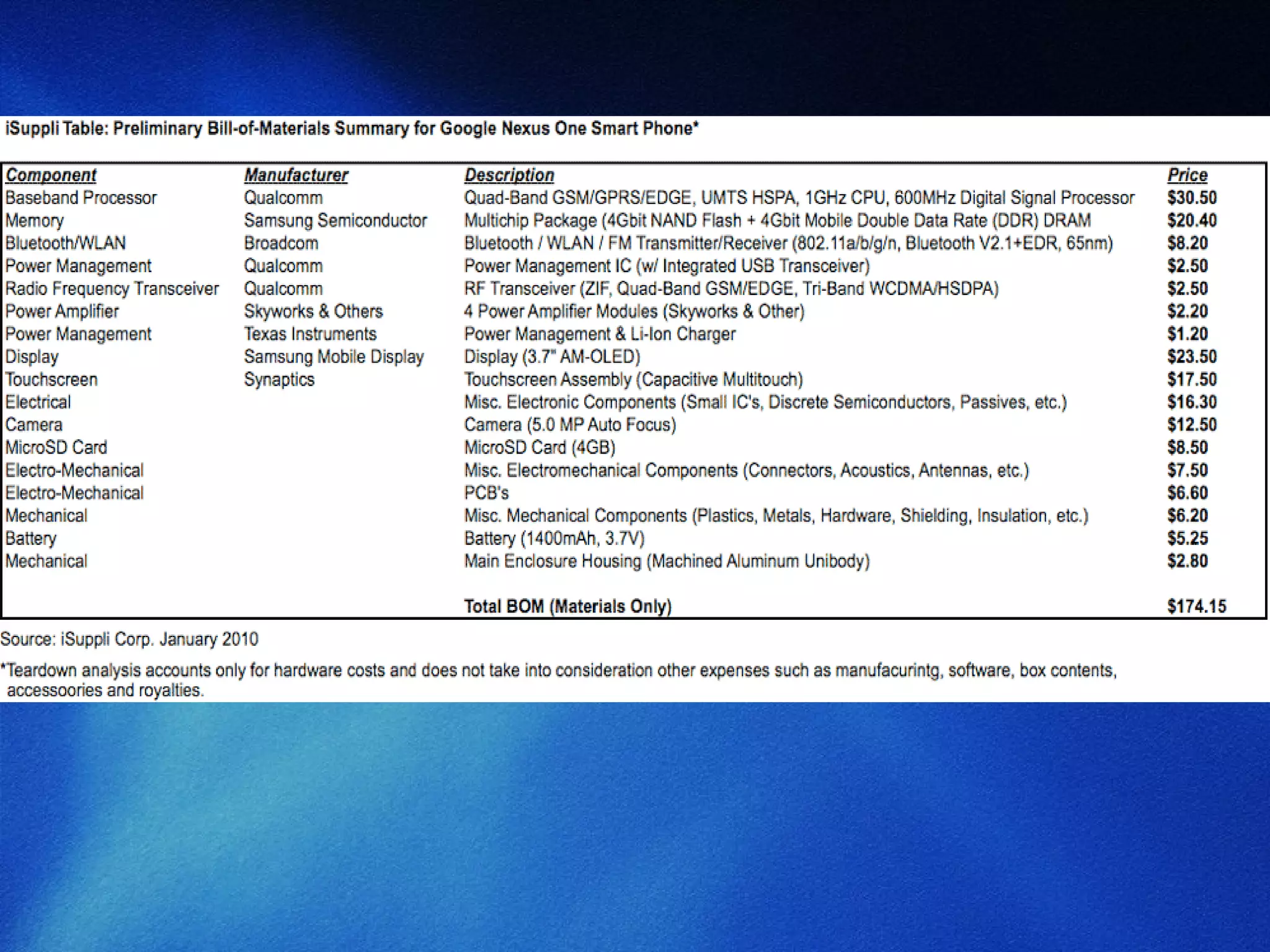

- 8.

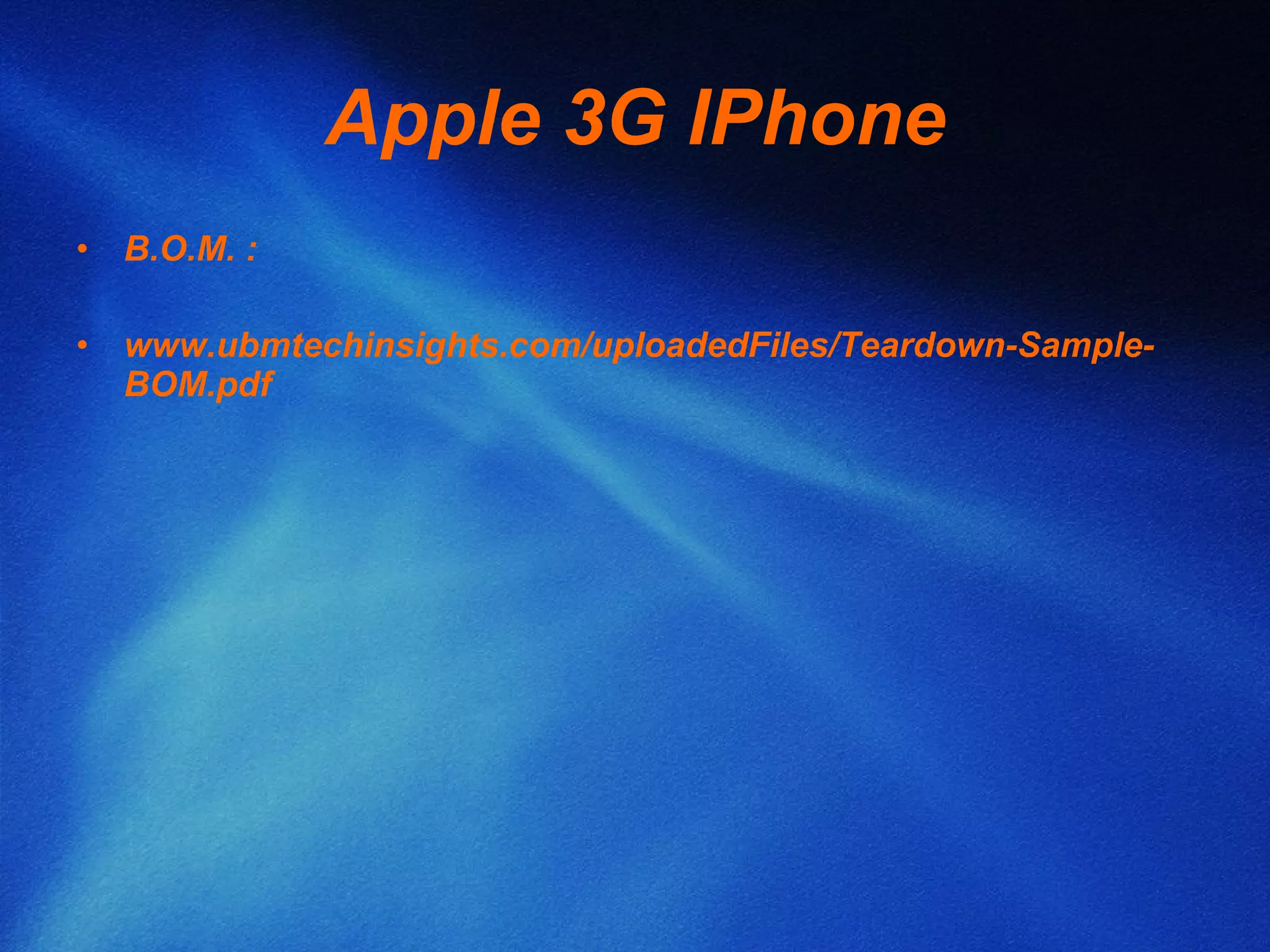

- 9. Apple 3G IPhoneB.O.M. : www.ubmtechinsights.com/uploadedFiles/Teardown-Sample-BOM.pdf

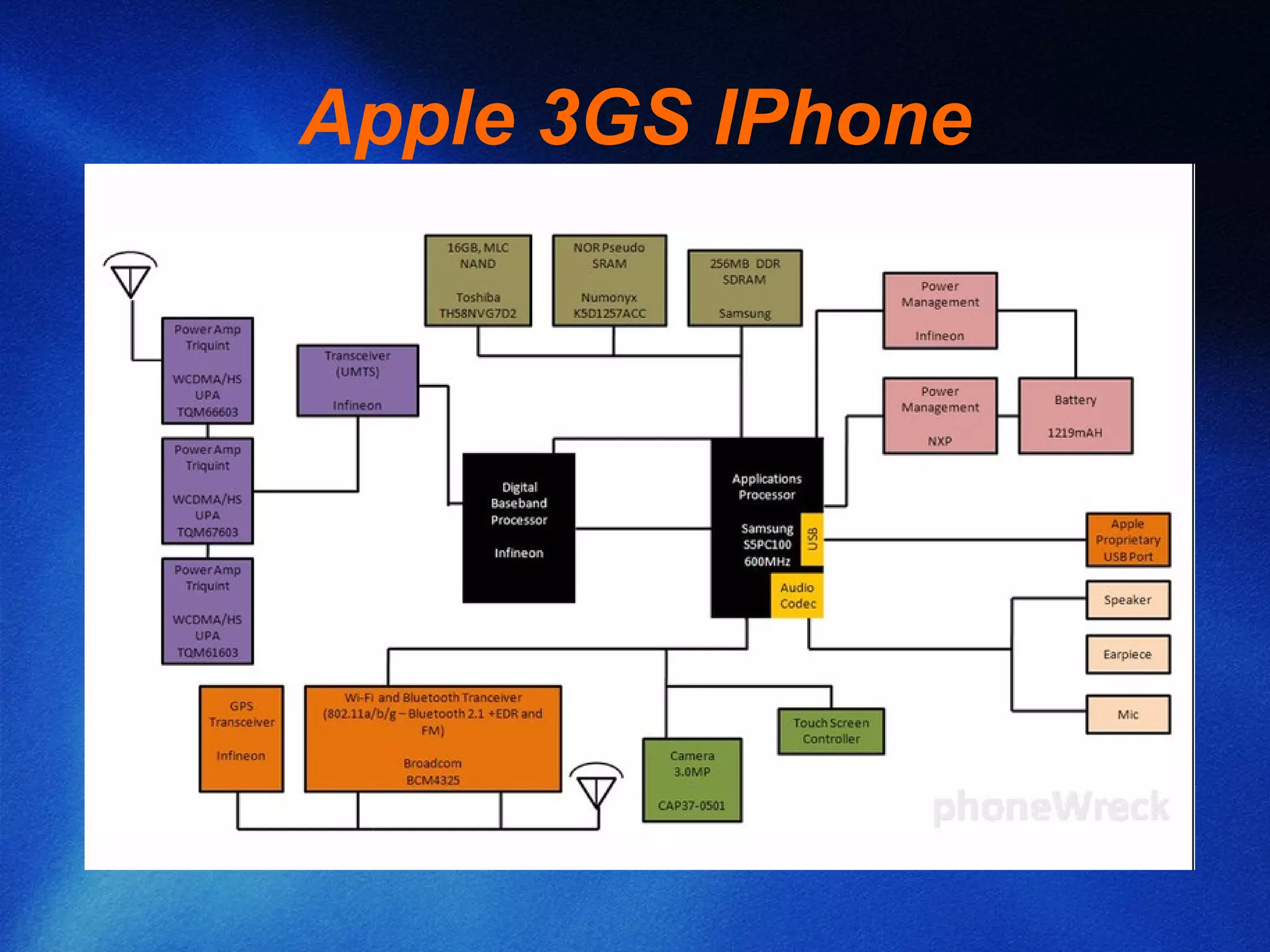

- 10.

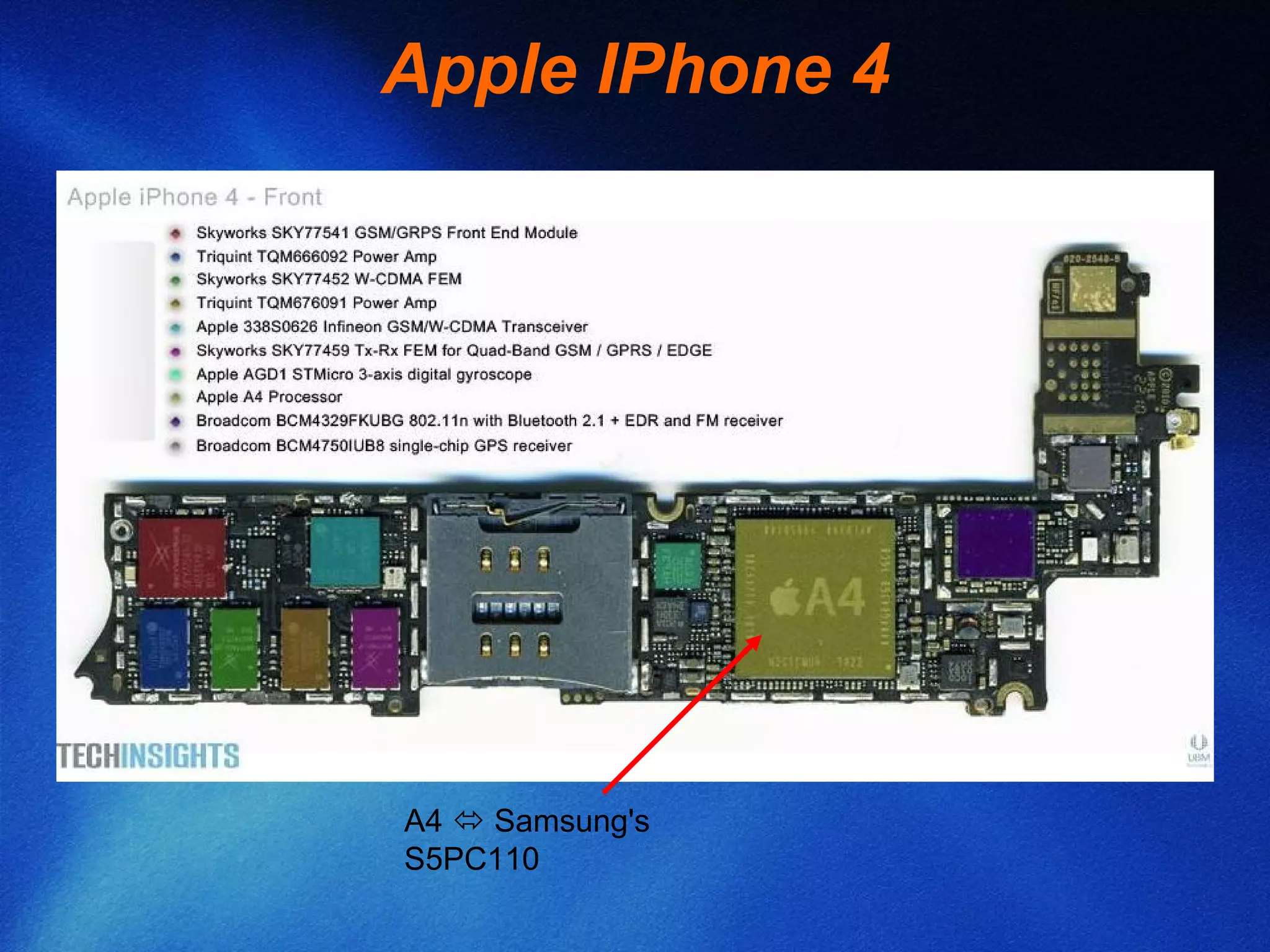

- 11. Apple IPhone 4A4 Samsung's S5PC110

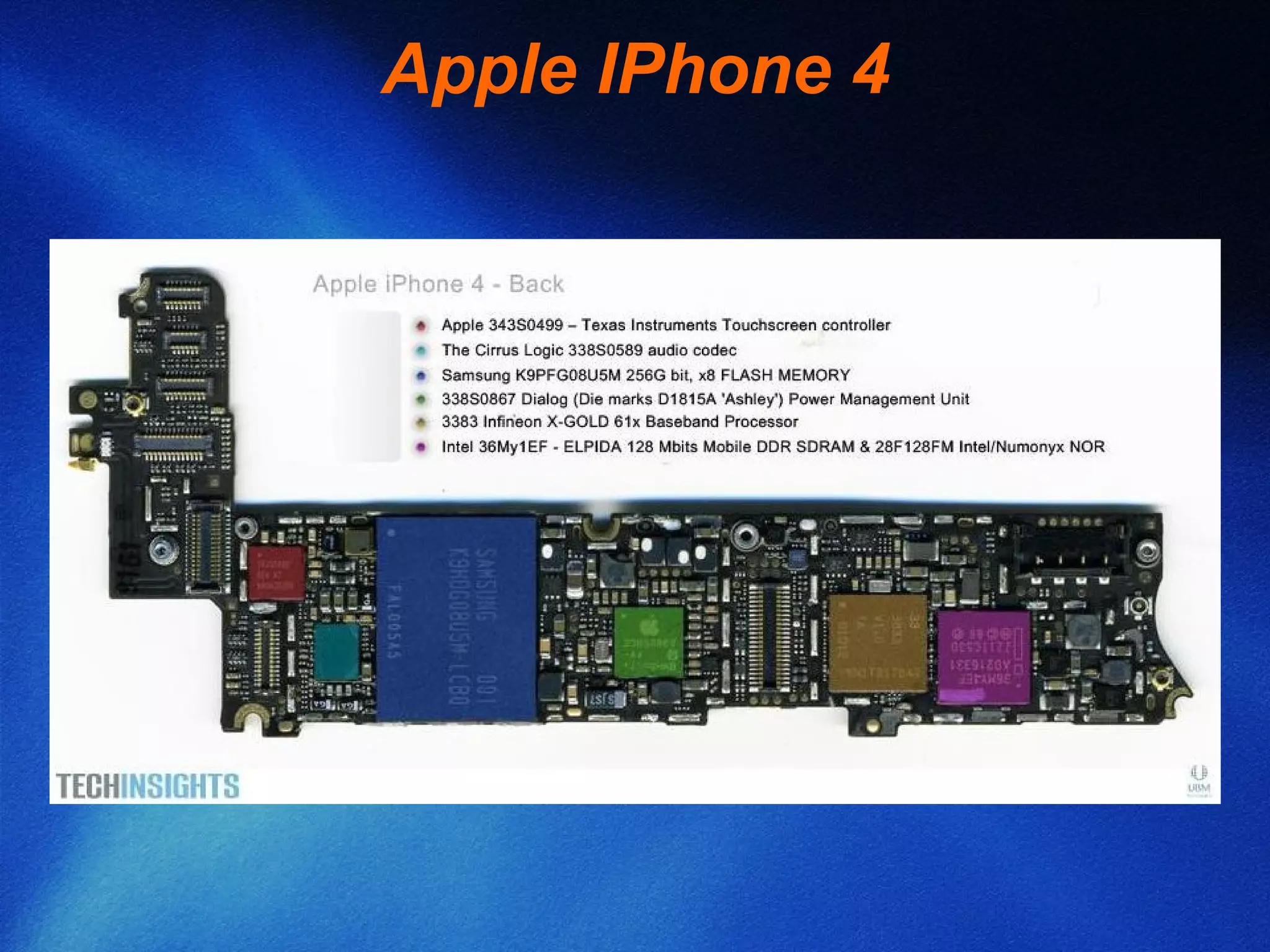

- 12.

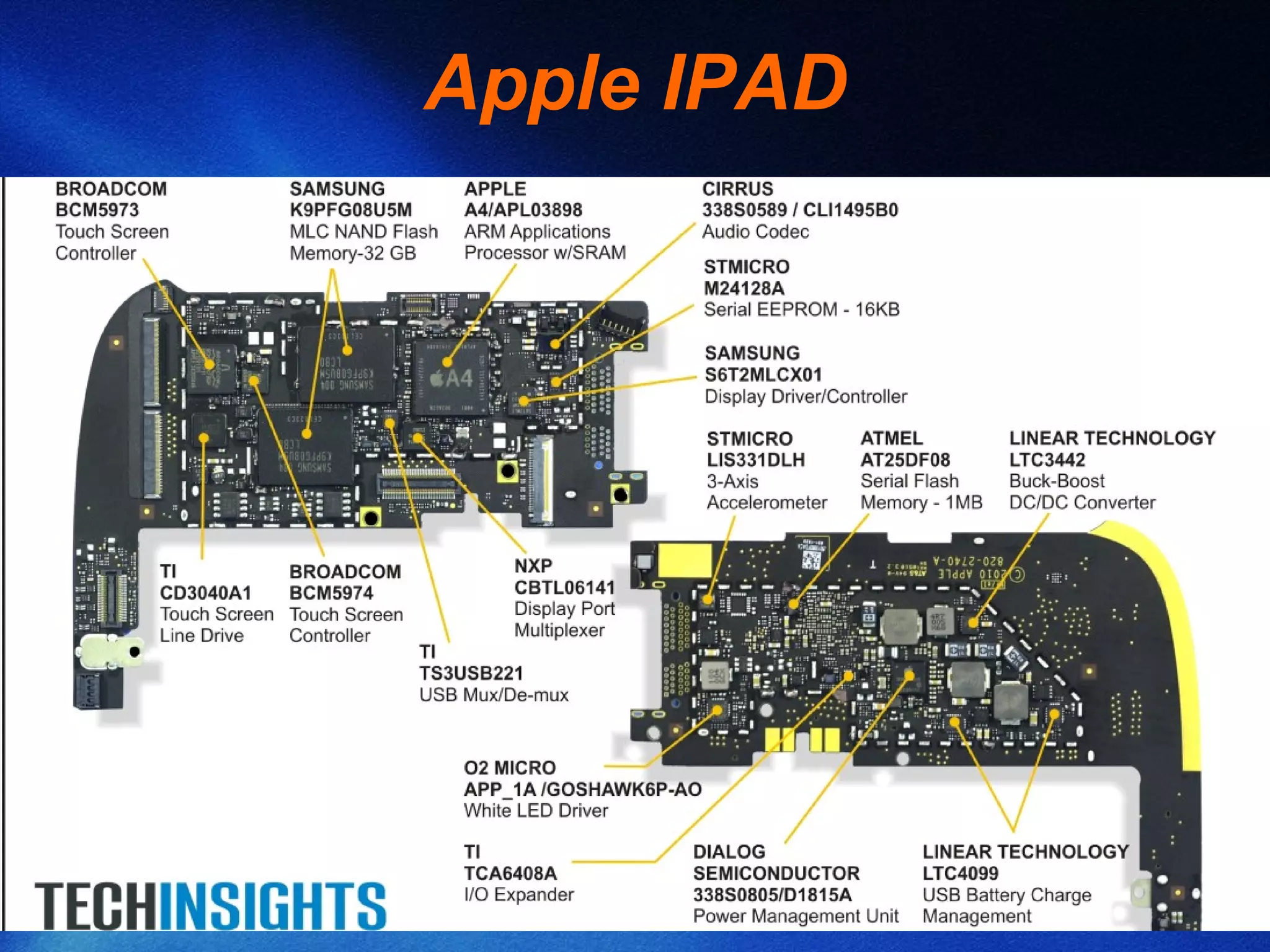

- 13.

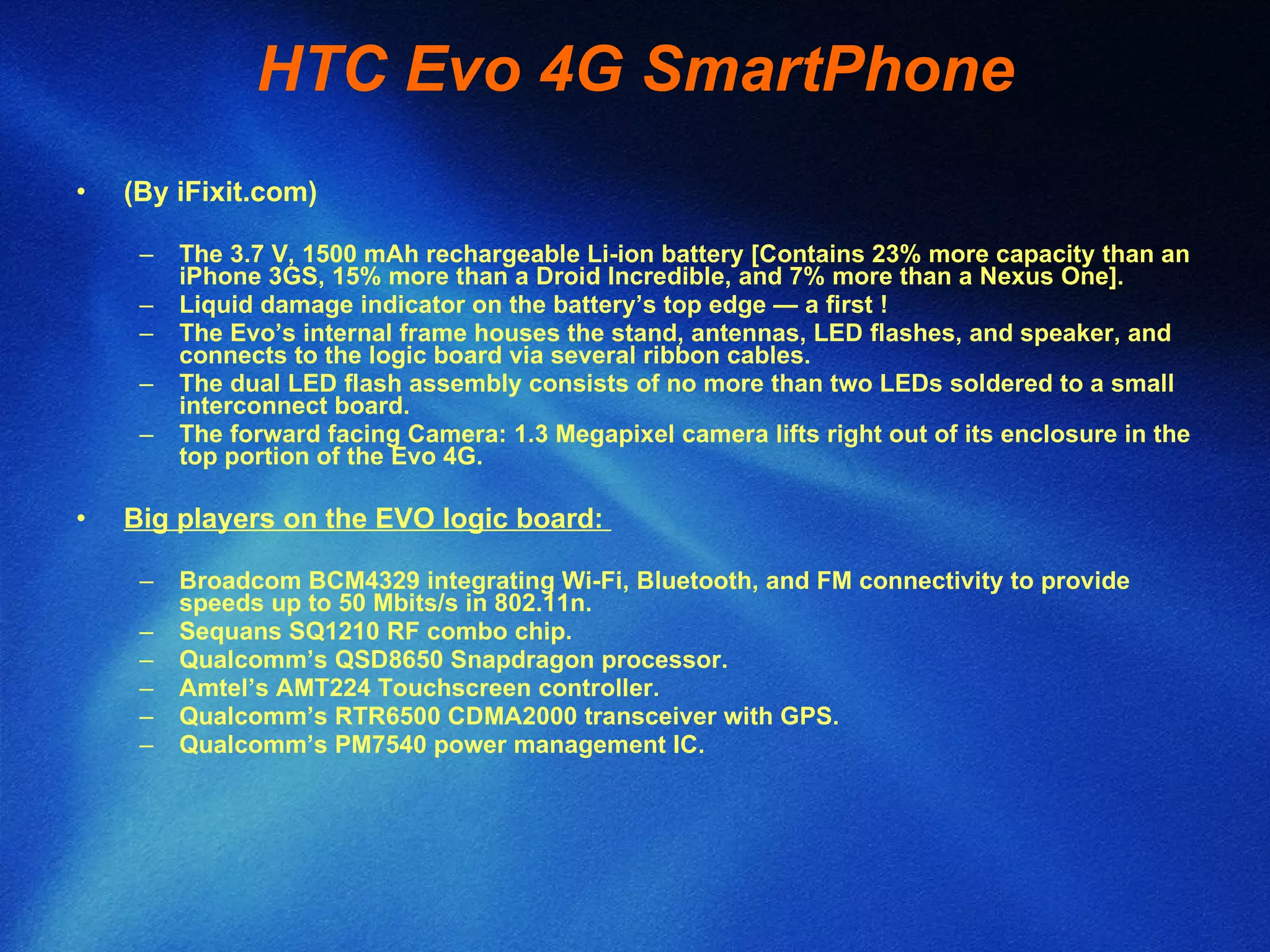

- 14. HTC Evo 4GSmartPhone (By iFixit.com) The 3.7 V, 1500 mAh rechargeable Li-ion battery [Contains 23% more capacity than an iPhone 3GS, 15% more than a Droid Incredible, and 7% more than a Nexus One]. Liquid damage indicator on the battery’s top edge — a first ! The Evo’s internal frame houses the stand, antennas, LED flashes, and speaker, and connects to the logic board via several ribbon cables. The dual LED flash assembly consists of no more than two LEDs soldered to a small interconnect board. The forward facing Camera: 1.3 Megapixel camera lifts right out of its enclosure in the top portion of the Evo 4G. Big players on the EVO logic board: Broadcom BCM4329 integrating Wi-Fi, Bluetooth, and FM connectivity to provide speeds up to 50 Mbits/s in 802.11n. Sequans SQ1210 RF combo chip. Qualcomm’s QSD8650 Snapdragon processor. Amtel’s AMT224 Touchscreen controller. Qualcomm’s RTR6500 CDMA2000 transceiver with GPS. Qualcomm’s PM7540 power management IC.
- 15. ~ THEEND ~
