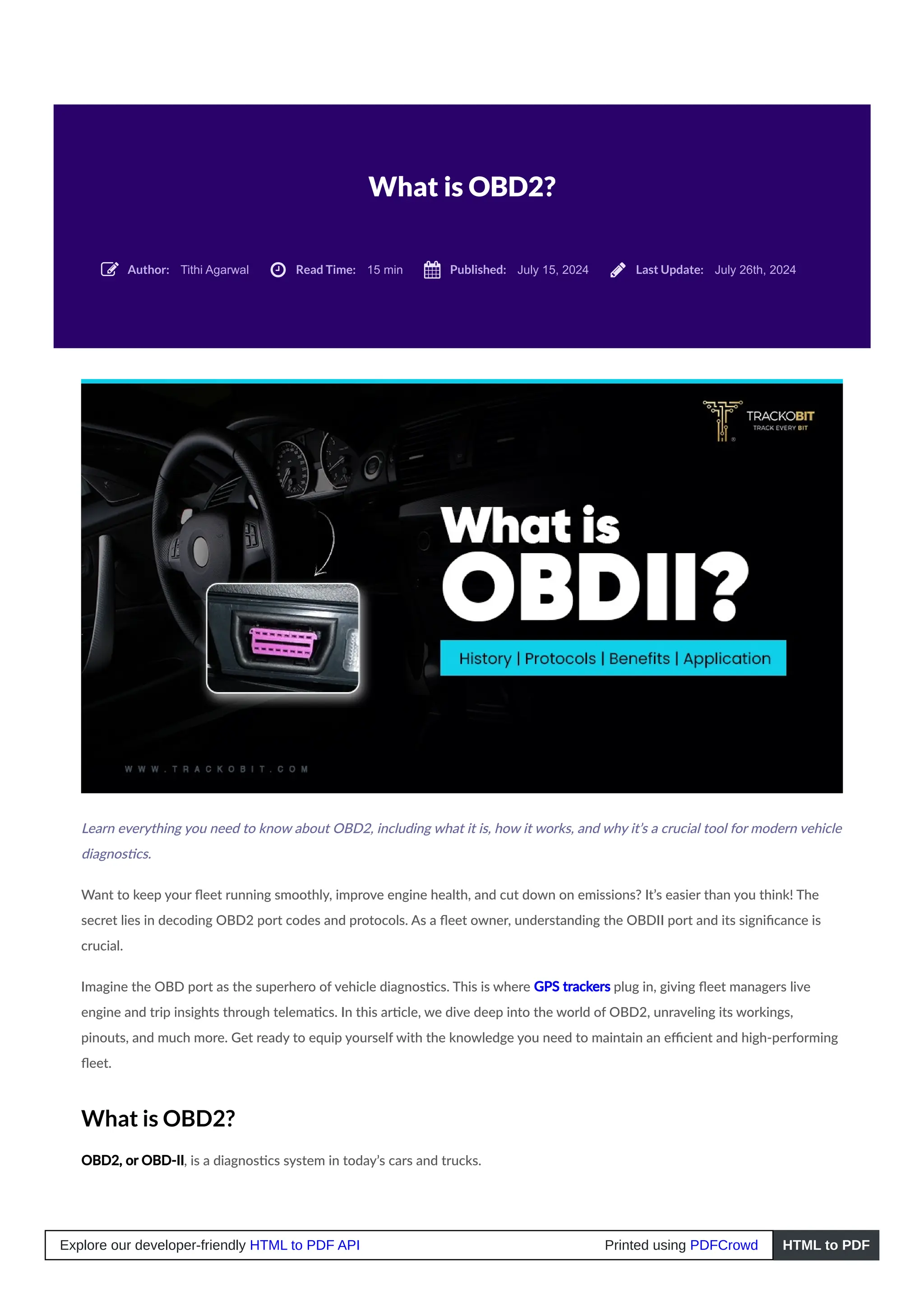

What is OBD2?
Tithi Agarwal 15 min July 15, 2024 July 26th, 2024
Learn everything you need to know about OBD2, including what it is, how it works, and why it’s a crucial tool for modern vehicle
diagnostics.
Want to keep your fleet running smoothly, improve engine health, and cut down on emissions? It’s easier than you think! The
secret lies in decoding OBD2 port codes and protocols. As a fleet owner, understanding the OBDII port and its significance is
crucial.
Imagine the OBD port as the superhero of vehicle diagnostics. This is where GPS trackers plug in, giving fleet managers live
engine and trip insights through telematics. In this article, we dive deep into the world of OBD2, unraveling its workings,
pinouts, and much more. Get ready to equip yourself with the knowledge you need to maintain an efficient and high-performing
fleet.
What is OBD2?
OBD2, or OBD-II, is a diagnostics system in today’s cars and trucks.
Author:
 Read Time:
 Published:
 Last Update:

Explore our developer-friendly HTML to PDF API Printed using PDFCrowd HTML to PDF

It’s like the vehicle’s health check mechanism, consistently monitoring different parts and systems. When its system detects a
potential problem, a light will pop up on your dashboard as an alert.
The OBDII system gathers crucial information from various sensors throughout the vehicle. The vehicle’s engine control unit
(ECU), acting as the vehicle’s brain, processes this information to pinpoint issues. These could range from problems with the
engine to exhaust emissions or even fuel efficiency.
For example, suppose you notice your fleet’s fuel consumption becoming less efficient. In that case, the OBDII might identify a
faulty oxygen sensor as the culprit, signaling you to address the issue before it worsens.
This is the vehicle’s way of telling you, that there is a problem within its system, by showing you the malfunction indicator light
on your dashboard.
Thanks to the OBD, fleets can:
Track wear trends and see what vehicle parts are wearing out faster than others
Instantly diagnose vehicle problems before they occur, supporting proactive rather than reactive management
Measure driving behaviour, speed, idling time, and so much more
What is an OBDII Connector?
The OBDII connector is not just a plug but an important component that gives you access to your vehicle’s real-time diagnostic
information and even allows you to reprogram its subsystems.
The OBD2 connector gives you vital information such as vehicle health status, performance, and fuel efficiency.
There are two types of OBD2 connectors:
Type A for cars (12v)
Type B for medium to heavy vehicles (24V)
The main difference lies in their baud rates—the speed at which they transmit data. Type A connectors have a baud rate of
approximately 500,00 bauds(bits per sec), while Type B connectors have a maximum baud rate of 250,000.
These baud rates facilitate efficient transmission of vehicular data, such as vehicle speed, fuel levels, etc. to the diagnostics tools
and devices.

Where is the powerful OBD2 connector located?
The OBDII port is generally located within two feet of the steering wheel or under the dashboard. This is the standard location,
giving drivers and mechanics easy access when diagnosing vehicle issues or performing routine maintenance.
Read Blog – 6 Types of Vehicle GPS Trackers
Decoding OBDII Pinouts
OBDII pinouts are key to understanding the data flowing through the vehicle’s OBD connector. There are two types: standard
pins for basic communication and manufacturer-specific pins for vehicle-specific information.
Decoding these pinouts allows you to access the right diagnostic information stored in the vehicle’s onboard computer system.
Standardized Pins
Standardized pins in the OBD2 connector follow specific protocols for communication with the vehicle’s main computer system.
These pins ensure compatibility with diagnostic tools and devices, allowing you to access information such as the vehicle’s make
and model.
For example, pins 4 and 5 serve as ground connections, whereas pin 16 provides power from the vehicle battery (often when the
ignition is off)
Manufacturer-specific Pins

Manufacturer-specific puns in the OBD2 connector convey vehicle-specific information for various vehicle manufacturers,
including engine status, diagnostic trouble codes, and other engine-related details unique to each vehicle’s make and model.
The link between OBD2 and CAN bus
One important means of communication for OBD 2 systems is the CAN bus. Its requirement in vehicles or cars since 1996 in the
US and 2001 in Europe proves its significance. Thanks to the Controller Area Network (CAN) bus, electronic control units (ECUs)
can connect with each other. The bus also acts as a central point of access for data logging, diagnostics, and communication with
network ECUs.
The California Air Resources Board has established criteria for vehicle diagnostics, and the CAN bus is one of the recommended
protocols because of its effective communication mechanism. Furthermore, all vehicles sold in the US since 2008 must have
OBD2 and use the CAN bus (ISO 15765) protocol.
The 5 OBD2 Protocols
Think of the OBD2 system as the lifeline of communication in your vehicle, a crucial link between your truck and diagnostic
tools. But here’s the twist: not every truck or vehicle speaks the same language. Under the OBD2 umbrella, there are five
distinct protocols, each with its own quirks and rules. It’s like choosing the right fuel for your ride; selecting the correct OBD2
protocol is key to ensuring smooth communication between your fleet vehicles and diagnostic gear, helping you understand your
truck’s health.
Why So Many Protocols?
The variety of OBD2 protocols stems from a blend of historical favorites and evolving technological needs. They mix old-school
cool with cutting-edge tech, ensuring that vehicles from different eras and regions can communicate effectively with diagnostic
tools.

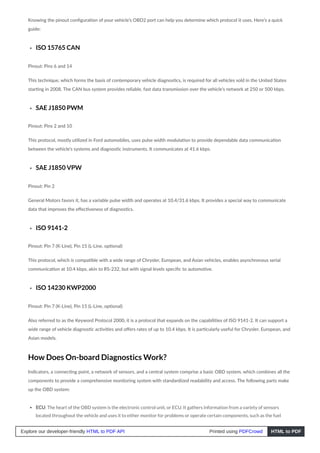

Knowing the pinout configuration of your vehicle’s OBD2 port can help you determine which protocol it uses. Here’s a quick
guide:
ISO 15765 CAN
Pinout: Pins 6 and 14
This technique, which forms the basis of contemporary vehicle diagnostics, is required for all vehicles sold in the United States
starting in 2008. The CAN bus system provides reliable, fast data transmission over the vehicle’s network at 250 or 500 kbps.
SAE J1850 PWM
Pinout: Pins 2 and 10
This protocol, mostly utilized in Ford automobiles, uses pulse width modulation to provide dependable data communication
between the vehicle’s systems and diagnostic instruments. It communicates at 41.6 kbps.
SAE J1850 VPW
Pinout: Pin 2
General Motors favors it, has a variable pulse width and operates at 10.4/31.6 kbps. It provides a special way to communicate
data that improves the effectiveness of diagnostics.
ISO 9141-2
Pinout: Pin 7 (K-Line), Pin 15 (L-Line, optional)
This protocol, which is compatible with a wide range of Chrysler, European, and Asian vehicles, enables asynchronous serial
communication at 10.4 kbps, akin to RS-232, but with signal levels specific to automotive.
ISO 14230 KWP2000
Pinout: Pin 7 (K-Line), Pin 15 (L-Line, optional)
Also referred to as the Keyword Protocol 2000, it is a protocol that expands on the capabilities of ISO 9141-2. It can support a
wide range of vehicle diagnostic activities and offers rates of up to 10.4 kbps. It is particularly useful for Chrysler, European, and
Asian models.
How Does On-board Diagnostics Work?
Indicators, a connecting point, a network of sensors, and a central system comprise a basic OBD system, which combines all the
components to provide a comprehensive monitoring system with standardized readability and access. The following parts make
up the OBD system:
ECU: The heart of the OBD system is the electronic control unit, or ECU. It gathers information from a variety of sensors
located throughout the vehicle and uses it to either monitor for problems or operate certain components, such as the fuel

injectors.
Sensors: Sensors cover every part of a vehicle, from the engine and chassis to the electronic system itself. Each sensor sends
codes to the ECU specifying the source and parameters of the signal. The ECU then “reads” and decodes this signal.
DTC: The ECU stores information as a code known as a Diagnostic Trouble Code, or DTC, whenever a sensor provides data
that deviates from the expected range. The DTC code is merely a string of characters representing the issue’s type and origin.
DTC codes can vary by manufacturer but are often standardized. Your indicator light receives a signal from the ECU informing
you that a problem has been detected when a DTC is saved. Another way to pull the DTC is to connect a sensor to the OBD
system connector.
MIL: When the vehicle’s dashboard receives a DTC code, the ECU signals the dashboard to activate the relevant indicator
lights. Formally referred to as Malfunction Indicator Lights or MILs, these lights serve as an early warning system for vehicle
faults. If the light comes on and remains on, there is usually a small issue. Should the light flicker, there is a major issue.
DLC: The Diagnostic Link Connector, often known as the DLC, provides access to all the data and DTC codes collected by the
ECU. The DLC port, the entry point for vehicles with OBD systems, is often positioned under the dashboard on the driver’s
side, though it can also be found in commercial vehicles. The OBDII system used in modern vehicles is standard, meaning that
any scan equipment with a type 2 cable can connect to the type 2 connector.
History of OBD2 or On-board Diagnostics
The California Air Resources Board (CARB) mandated OBD in all new vehicles made after 1991 to regulate emissions, which is
where OBD2 first appeared.
The Society of Automotive Engineers (SAE) recommended the OBD2 standard, which standardized DTCs and the OBD
connector for use by all manufacturers (SAE J1962).
Subsequently, the OBD2 standard was gradually implemented:
1996: OBD2 made mandatory in the USA for cars/light trucks
2001: Required in EU for gasoline cars
2003: Required in the EU also for diesel cars (EOBD)
2005: OBD2 was required in the US for medium-duty vehicles
2008: US cars must use ISO 15765-4 (CAN) as an OBD2 basis
2010: Finally, OBD2 was required in US heavy-duty vehicles
2013: India and Thailand made it mandatory for vehicles to have OBDII.

Difference Between OBDII and OBD
On-board diagnostics (OBD) systems, developed in the 1960s, have evolved significantly. OBD1, introduced in the early 1990s,
offers basic, manufacturer-specific diagnostics for emissions control, and OBD2, mandated since 1996, provides a standardized,
comprehensive system that monitors a wide range of vehicle functions.
OBD2 enhances compatibility across manufacturers, tracks various sensor data, stores fault codes for intermittent issues, and
facilitates precise real-time troubleshooting. The advantages of OBD systems include enhanced fuel efficiency, early
malfunction detection, cost savings through proactive maintenance, emission control compliance, and improved vehicle safety.
This technology advances, integrating more sophisticated features for better vehicle diagnostics.
What are the Applications of OBD
There are several applications for OBD2 data from cars and light trucks. These include:
OBD is widely utilized as a simple means of diagnosing issues with a variety of vehicle types. But especially in the last few years,
OBD’s use for vehicle monitoring and maintenance has grown to include more specialized fields. Among the most specialized
uses for OBD are:
Driver behavior monitoring: OBD systems are being utilized more often by automotive-related sectors to track driver
behavior. Certain auto insurance firms, for instance, provide lower rates to customers who demonstrate their safe driving
habits with vehicle data recorders. Similar data loggers can also be installed by businesses in their fleets or delivery vehicles to
monitor their drivers’ actions in real time, thereby lowering their responsibility in the event of an accident or traffic infraction.
Emissions testing: In those parts of the United States that mandate it, OBD-II testing is now a standard procedure for testing
vehicles for emissions. These systems closely monitor emissions as part of the OBD-II standard, so inspectors may easily verify
that the vehicle complies using a scan tool to look for emissions-related fault codes.
Supplementary instrumentation: OBD systems are frequently used by professional drivers and automobile enthusiasts to
track parameters that aren’t typically shown in stock cars. These measurements might be transmitted to the driver’s phone or
shown on specially installed panels within the vehicles.

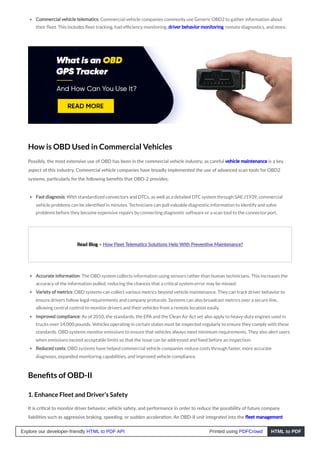

Commercial vehicle telematics: Commercial vehicle companies commonly use Generic OBD2 to gather information about
their fleet. This includes fleet tracking, fuel efficiency monitoring, driver behavior monitoring, remote diagnostics, and more.
How is OBD Used in Commercial Vehicles
Possibly, the most extensive use of OBD has been in the commercial vehicle industry, as careful vehicle maintenance is a key
aspect of this industry. Commercial vehicle companies have broadly implemented the use of advanced scan tools for OBD2
systems, particularly for the following benefits that OBD-2 provides:
Fast diagnosis: With standardized connectors and DTCs, as well as a detailed DTC system through SAE J1939, commercial
vehicle problems can be identified in minutes. Technicians can pull valuable diagnostic information to identify and solve
problems before they become expensive repairs by connecting diagnostic software or a scan tool to the connector port.
Read Blog – How Fleet Telematics Solutions Help With Preventive Maintenance?
Accurate information: The OBD system collects information using sensors rather than human technicians. This increases the
accuracy of the information pulled, reducing the chances that a critical system error may be missed.
Variety of metrics: OBD systems can collect various metrics beyond vehicle maintenance. They can track driver behavior to
ensure drivers follow legal requirements and company protocols. Systems can also broadcast metrics over a secure line,
allowing central control to monitor drivers and their vehicles from a remote location easily.
Improved compliance: As of 2010, the standards, the EPA and the Clean Air Act set also apply to heavy-duty engines used in
trucks over 14,000 pounds. Vehicles operating in certain states must be inspected regularly to ensure they comply with these
standards. OBD systems monitor emissions to ensure that vehicles always meet minimum requirements. They also alert users
when emissions exceed acceptable limits so that the issue can be addressed and fixed before an inspection.
Reduced costs: OBD systems have helped commercial vehicle companies reduce costs through faster, more accurate
diagnoses, expanded monitoring capabilities, and improved vehicle compliance.
Benefits of OBD-II
1. Enhance Fleet and Driver’s Safety
It is critical to monitor driver behavior, vehicle safety, and performance in order to reduce the possibility of future company
liabilities such as aggressive braking, speeding, or sudden acceleration. An OBD-II unit integrated into the fleet management

software tracks and generates reports on driver performance. Additionally, it creates a safety profile for every driver that serves
as a benchmark for them personally.
Moreover, fleets equipped with active vehicle monitoring and driver safety policies will likely get discounted insurance.
2. Early Diagnosis of Malfunctioning Becomes Handy
It is almost impossible for drivers to identify minor issues before manifesting symptoms. A small delay in resolving the concerns
occasionally leads to a complex situation requiring significant vehicle expenditure.
Here, OBD-2-equipped vehicles shine because they alert drivers to problems that require quick attention and resolution. Early
problem detection in the early stages helps make proactive decisions, such as repairing components under warranty, and
prevents subsequent faults, such as misfiring, before catalyst damage.
3. High Compatibility Across Vehicles
While OBD-2 systems vary based on the type of vehicle, code scanners do not since they have millions of codes stored in them.
Drivers can analyze any vehicle they are given to pick up and drop off passengers in by purchasing a single scanner. This saves
you from having to purchase new scanners to assess the condition of each new fleet you purchase.
Because the scanners are portable and can be transported anywhere, drivers can feel more at ease knowing that even with a
small fleet, they are aware of any problems. The warning light on the dashboard isn’t going to let you know whether the sensor
has failed, the vehicle might be misfiring, or you just need to oil the engine. It’s good to carry code readers for the ride.
4. Reduce Pollution
When does your cloud-based dispatch system become more environmentally friendly? It’s unquestionably incredible. The OBD-
2 system helps you recognize that emission control needs to be repaired and that the fleet is aging.

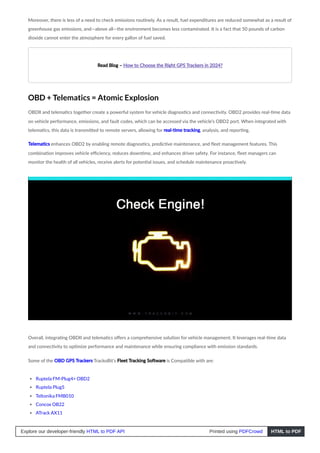

Moreover, there is less of a need to check emissions routinely. As a result, fuel expenditures are reduced somewhat as a result of
greenhouse gas emissions, and—above all—the environment becomes less contaminated. It is a fact that 50 pounds of carbon
dioxide cannot enter the atmosphere for every gallon of fuel saved.
Read Blog – How to Choose the Right GPS Trackers in 2024?
OBD + Telematics = Atomic Explosion
OBDII and telematics together create a powerful system for vehicle diagnostics and connectivity. OBD2 provides real-time data
on vehicle performance, emissions, and fault codes, which can be accessed via the vehicle’s OBD2 port. When integrated with
telematics, this data is transmitted to remote servers, allowing for real-time tracking, analysis, and reporting.
Telematics enhances OBD2 by enabling remote diagnostics, predictive maintenance, and fleet management features. This
combination improves vehicle efficiency, reduces downtime, and enhances driver safety. For instance, fleet managers can
monitor the health of all vehicles, receive alerts for potential issues, and schedule maintenance proactively.
Overall, integrating OBDII and telematics offers a comprehensive solution for vehicle management. It leverages real-time data
and connectivity to optimize performance and maintenance while ensuring compliance with emission standards.
Some of the OBD GPS Trackers TrackoBit’s Fleet Tracking Software is Compatible with are:
Ruptela FM-Plug4+ OBD2
Ruptela Plug5
Teltonika FMB010
Concox OB22

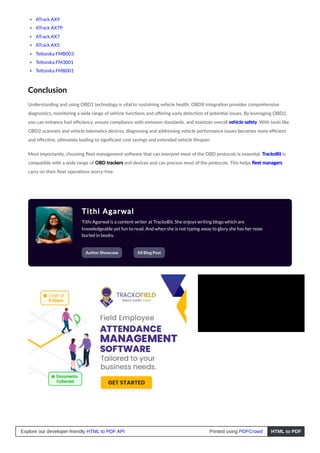

ATrack AX11

ATrack AX9
ATrack AX7P
ATrack AX7
ATrack AX5
Teltonika FMB003
Teltonika FM3001
Teltonika FMB001
Conclusion
Understanding and using OBD2 technology is vital to sustaining vehicle health. OBDII integration provides comprehensive
diagnostics, monitoring a wide range of vehicle functions and offering early detection of potential issues. By leveraging OBD2,
you can enhance fuel efficiency, ensure compliance with emission standards, and maintain overall vehicle safety. With tools like
OBD2 scanners and vehicle telematics devices, diagnosing and addressing vehicle performance issues becomes more efficient
and effective, ultimately leading to significant cost savings and extended vehicle lifespan.
Most importantly, choosing fleet management software that can interpret most of the OBD protocols is essential. TrackoBit is
compatible with a wide range of OBD trackers and devices and can process most of the protocols. This helps fleet managers
carry on their fleet operations worry-free.
Tithi Agarwal
Tithi Agarwal is a content writer at TrackoBit. She enjoys writing blogs which are
knowledgeable yet fun to read. And when she is not typing away to glory she has her nose
buried in books.
Author Showcase All Blog Post

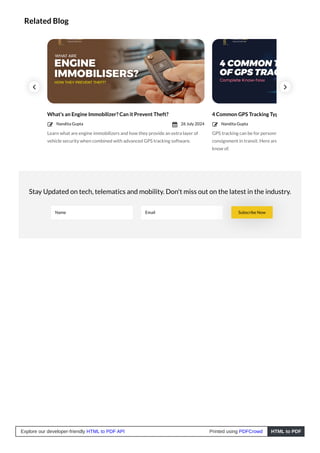

Related Blog
Stay Updated on tech, telematics and mobility. Don't miss out on the latest in the industry.
Name Email Subscribe Now
What’s an Engine Immobilizer? Can it Prevent Theft?
Learn what are engine immobilizers and how they provide an extra layer of
vehicle security when combined with advanced GPS tracking software.
4 Common GPS Tracking Typ
GPS tracking can be for personn
consignment in transit. Here are
know of.
Nandita Gupta
 26 July 2024
 Nandita Gupta




What is OBD2? You Should know everything.pdf

More Related Content

Similar to What is OBD2? You Should know everything.pdf

More from Trackobit

Recently uploaded

What is OBD2? You Should know everything.pdf
