educationgateway.org
Insertion-Sort

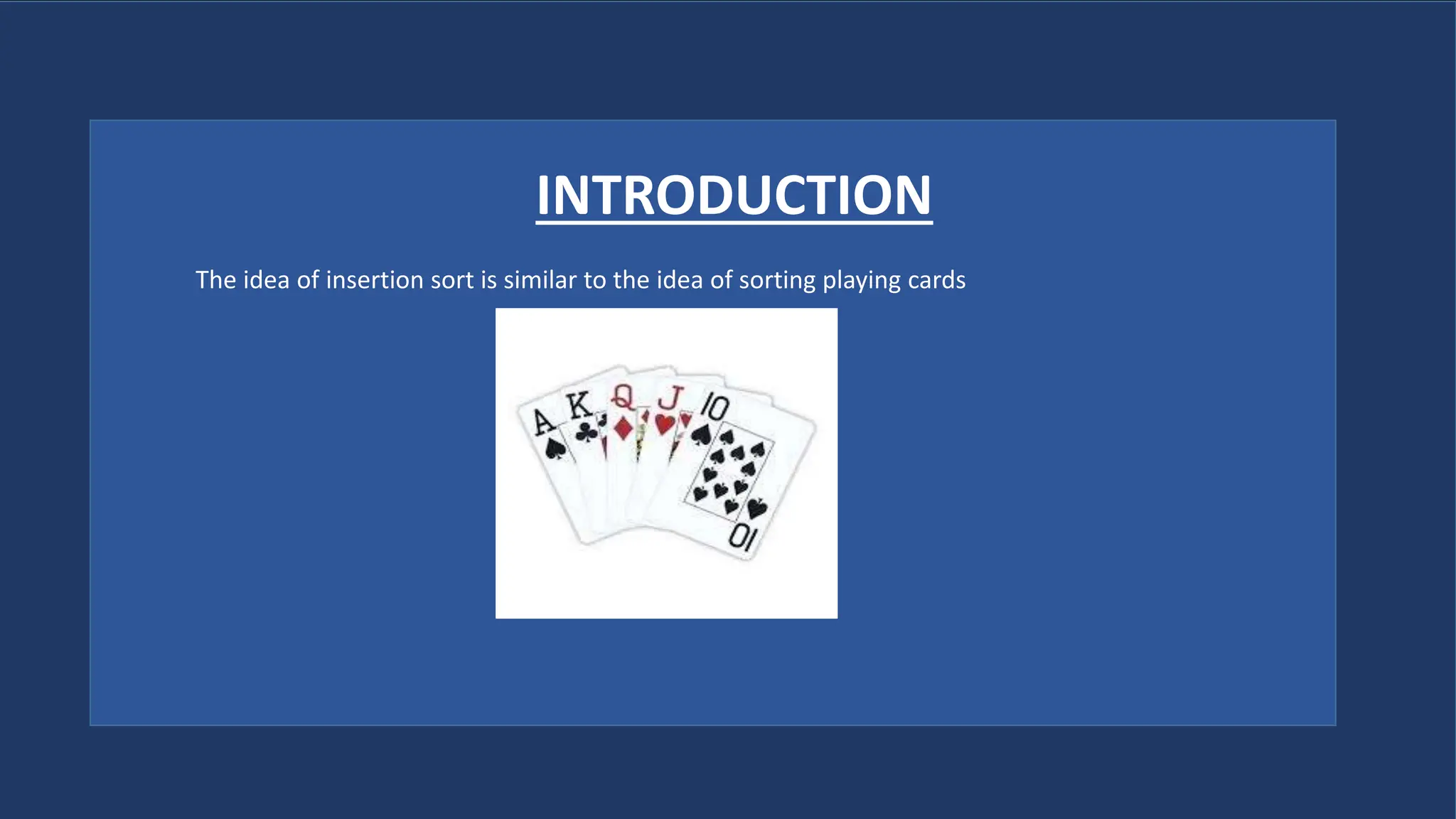

INTRODUCTION
The idea of insertion sort is similar to the idea of sorting playing cards

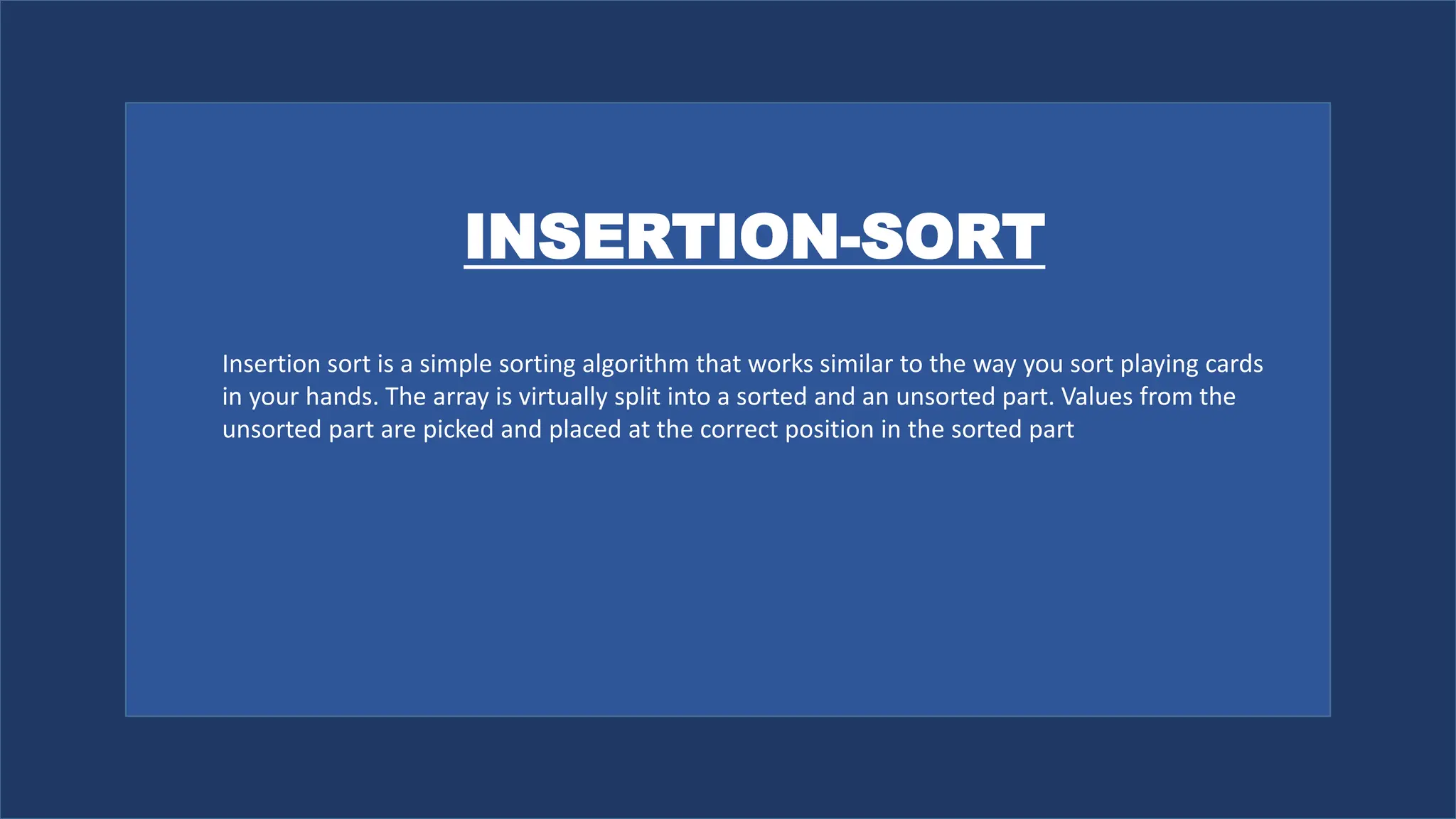

INSERTION-SORT
Insertion sort is a simple sorting algorithm that works similar to the way you sort playing cards
in your hands. The array is virtually split into a sorted and an unsorted part. Values from the
unsorted part are picked and placed at the correct position in the sorted part

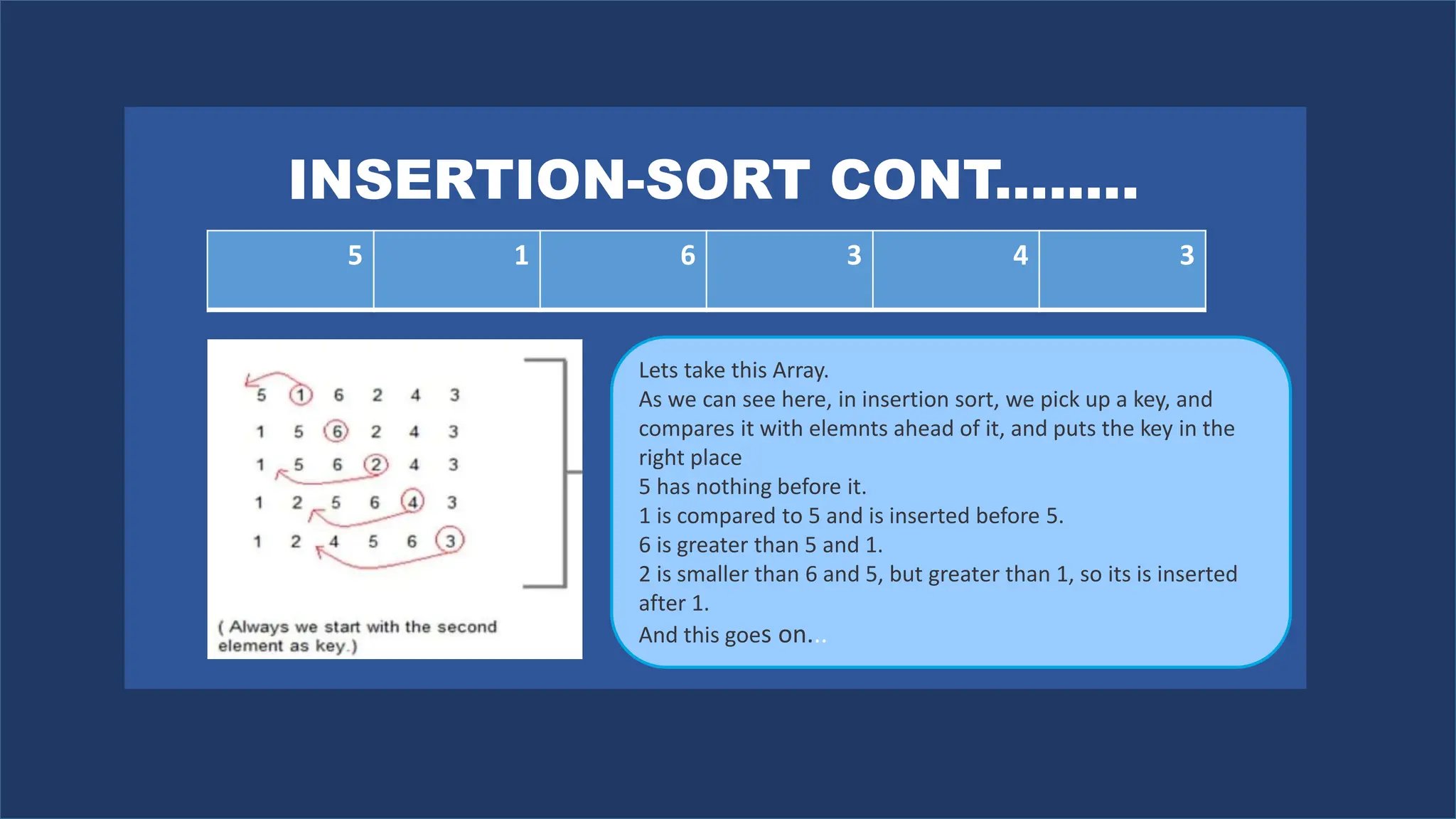

INSERTION-SORT CONT........
5 1 6 3 4 3
Lets take this Array.
As we can see here, in insertion sort, we pick up a key, and
compares it with elemnts ahead of it, and puts the key in the
right place
5 has nothing before it.
1 is compared to 5 and is inserted before 5.
6 is greater than 5 and 1.
2 is smaller than 6 and 5, but greater than 1, so its is inserted
after 1.
And this goes on...

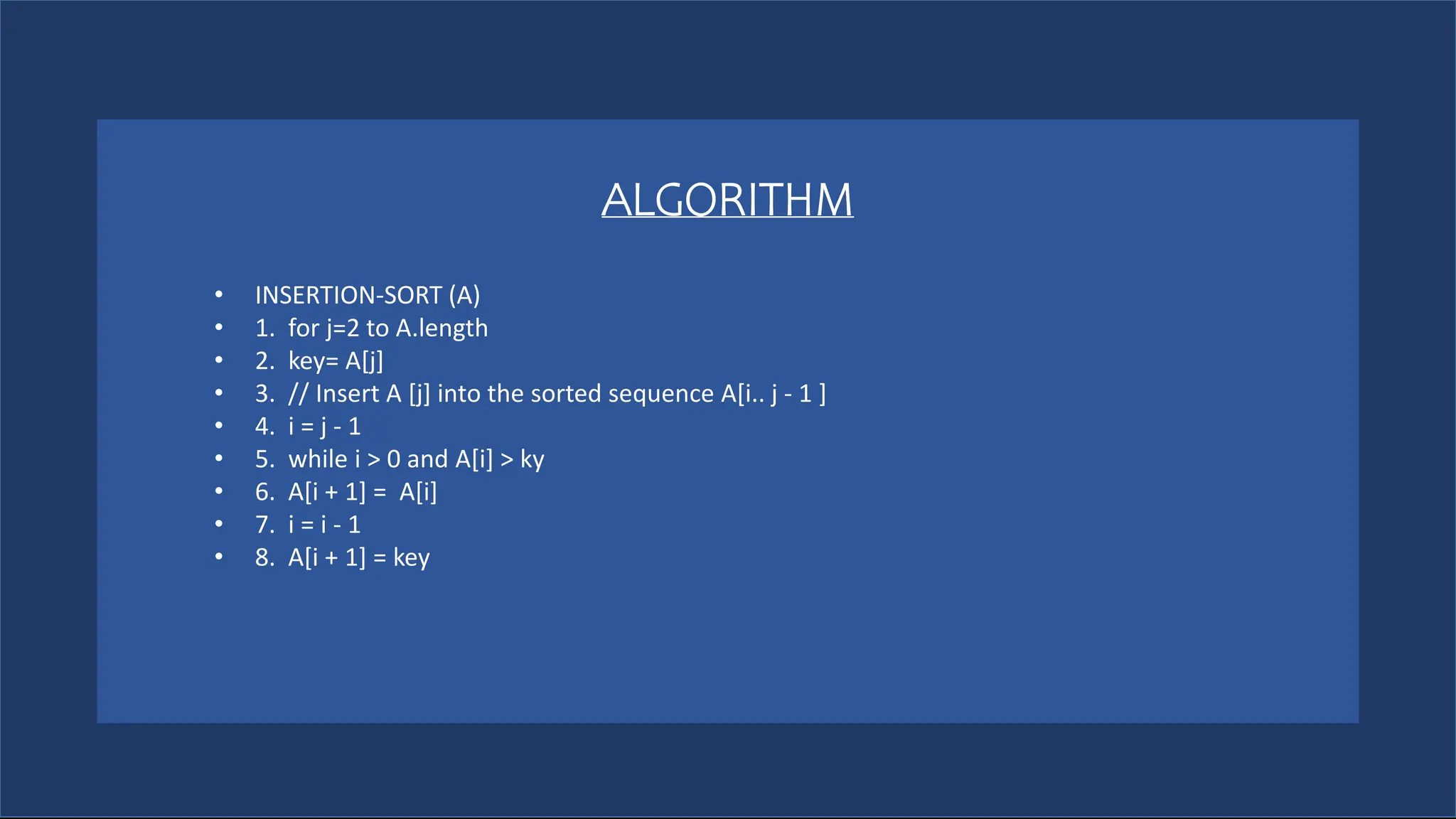

ALGORITHM
• INSERTION-SORT (A)
• 1. for j=2 to A.length
• 2. key= A[j]
• 3. // Insert A [j] into the sorted sequence A[i.. j - 1 ]
• 4. i = j - 1
• 5. while i > 0 and A[i] > ky
• 6. A[i + 1] = A[i]
• 7. i = i - 1
• 8. A[i + 1] = key

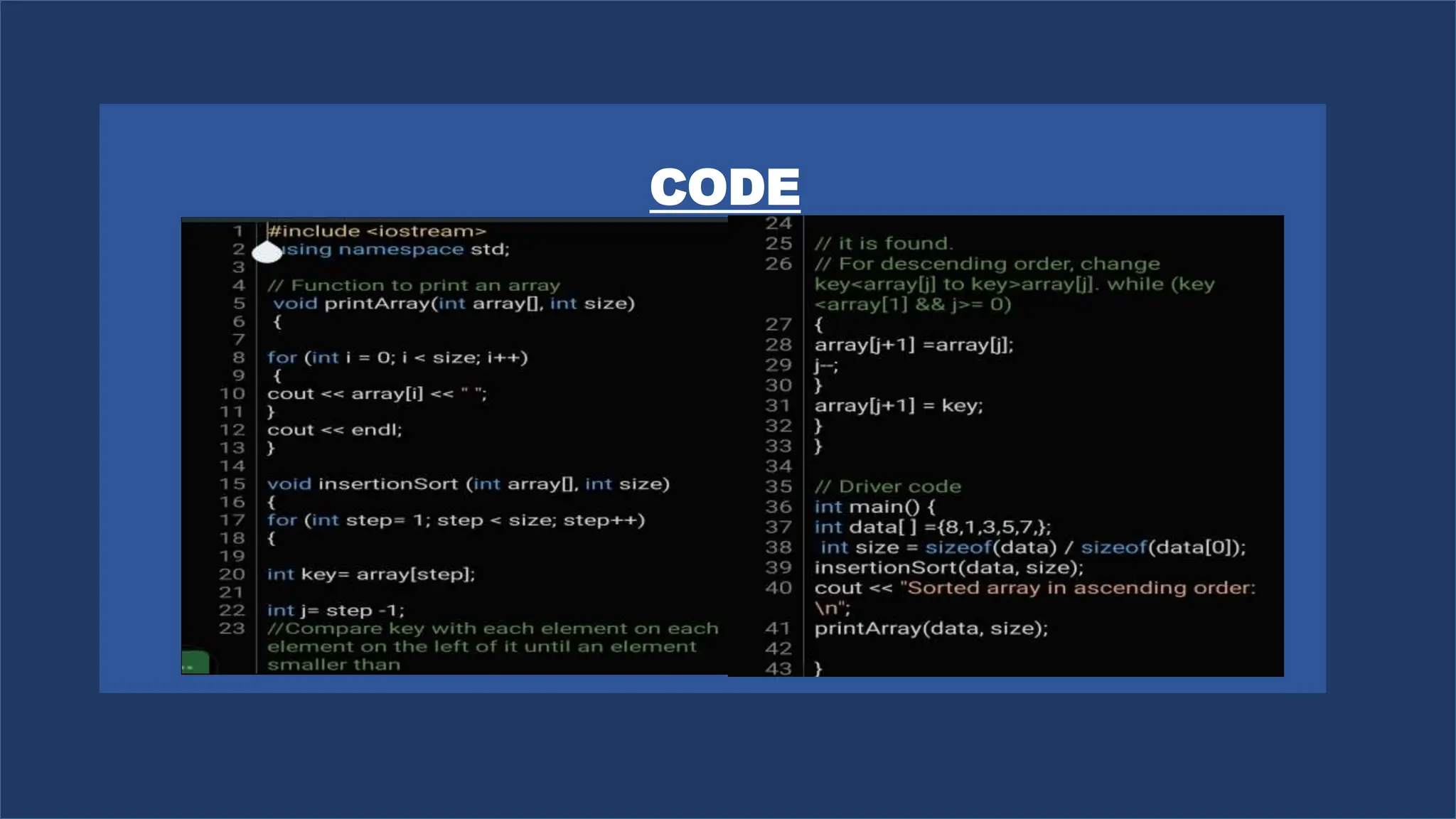

CODE

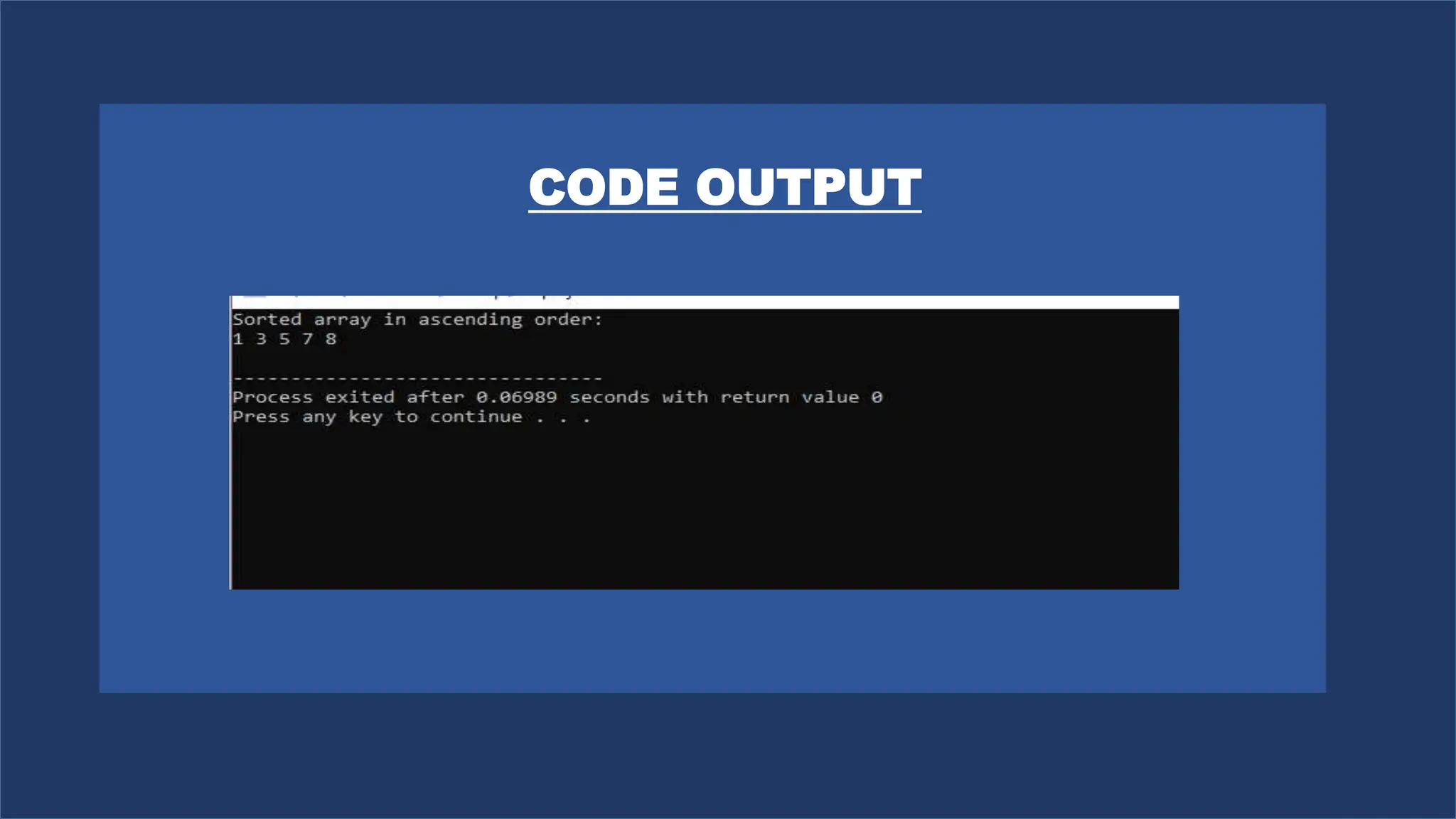

CODE OUTPUT

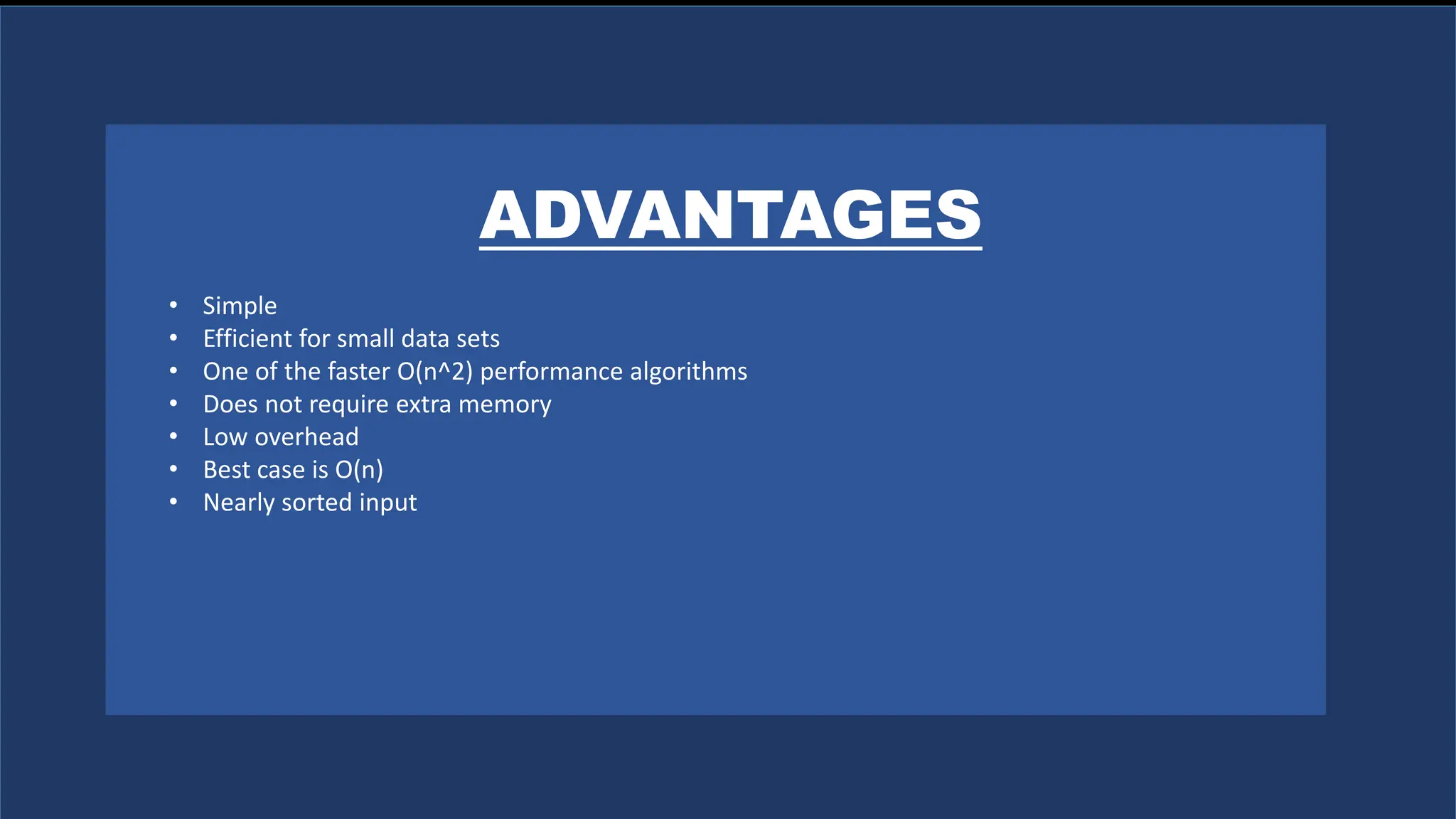

ADVANTAGES
• Simple
• Efficient for small data sets
• One of the faster O(n^2) performance algorithms
• Does not require extra memory
• Low overhead
• Best case is O(n)
• Nearly sorted input

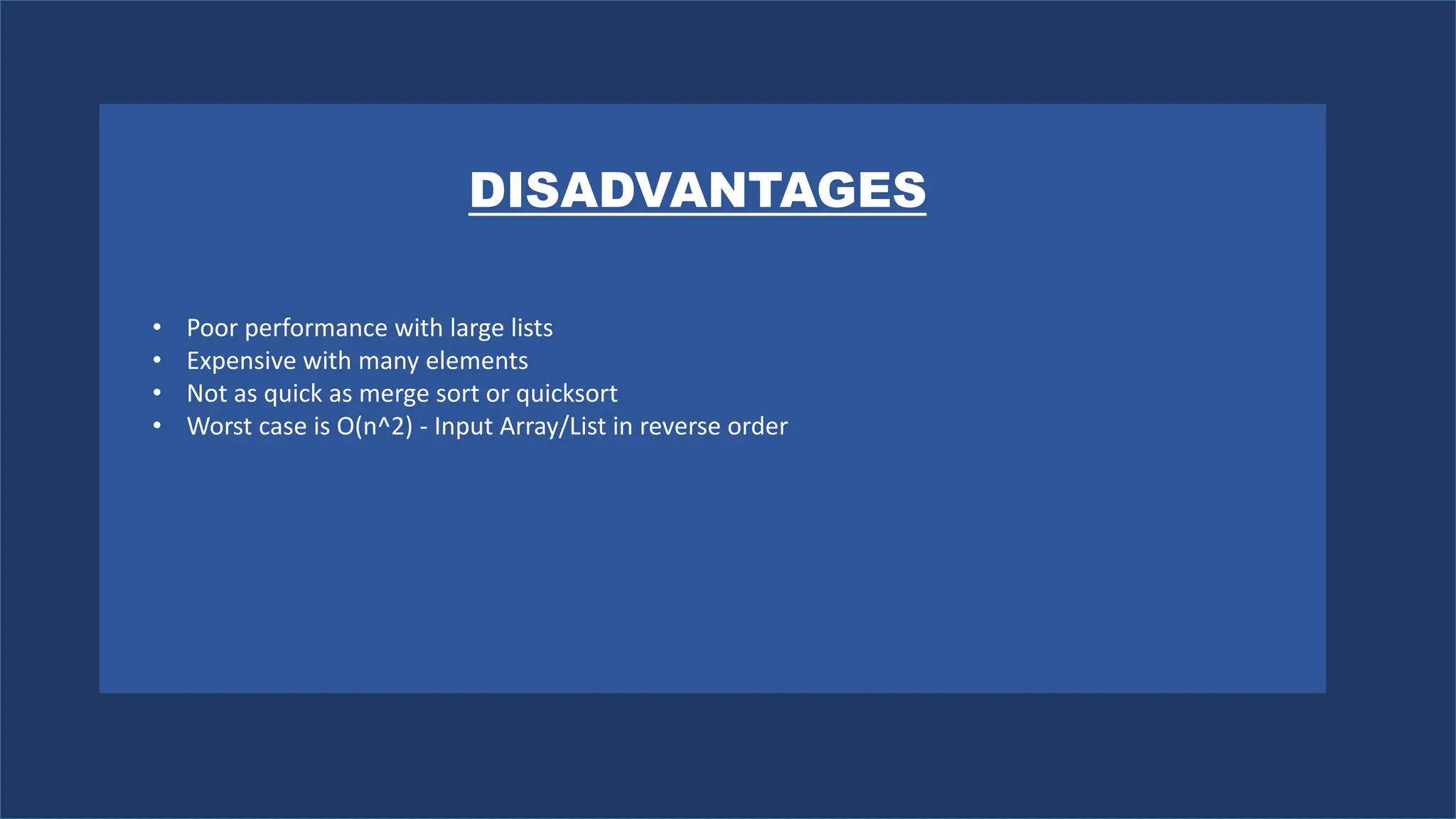

DISADVANTAGES
• Poor performance with large lists
• Expensive with many elements
• Not as quick as merge sort or quicksort
• Worst case is O(n^2) - Input Array/List in reverse order

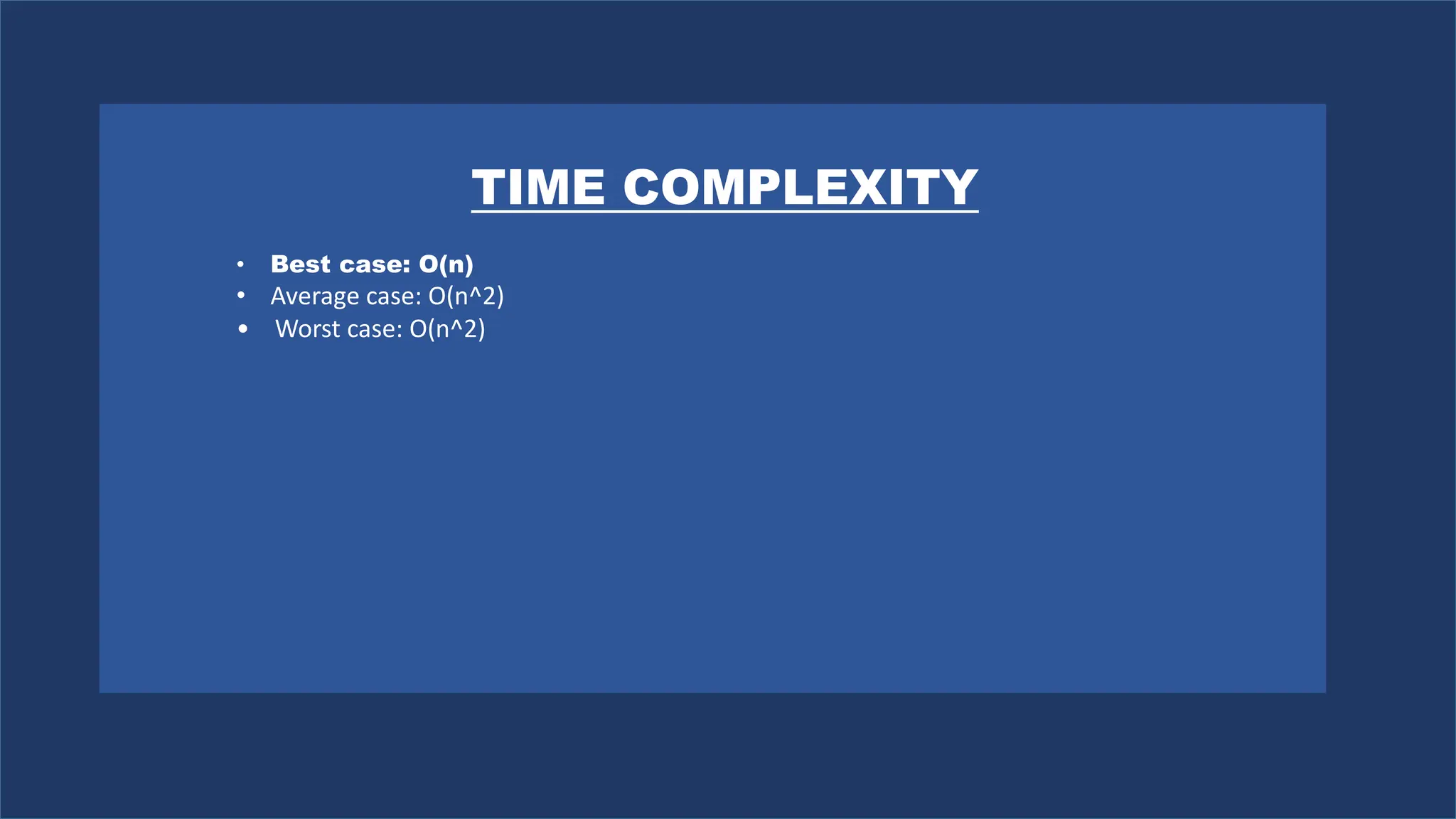

TIME COMPLEXITY
• Best case: O(n)
• Average case: O(n^2)
• Worst case: O(n^2)
Thanks
