This document discusses various options for integrating WebRTC with carrier IMS networks. A gateway is currently needed due to incompatibilities between WebRTC and IMS protocols and codecs. Possible integration architectures described include using SIP in the browser with an SBC, REST calls to a WebRTC gateway, and XMPP through a gateway. Issues around identity mapping, scalability of gateways, and the immaturity of WebRTC on mobile are also covered.
More Related Content
Westhawk integration
- 1. WEBRTC INTEGRATION OPTIONS Tim Panton, WesthawkLtd – @steely_glint

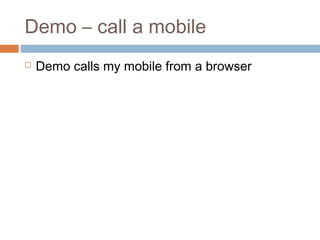

- 2. Demo – calla mobile Demo calls my mobile from a browser

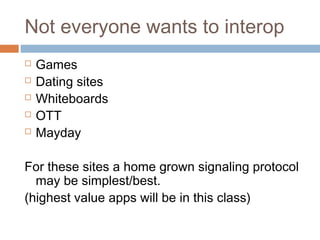

- 3. Not everyone wantsto interop Games Dating sites Whiteboards OTT Mayday For these sites a home grown signaling protocol may be simplest/best. (highest value apps will be in this class)

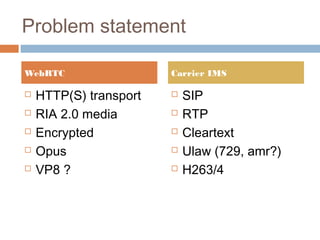

- 4. Problem statement WebRTC HTTP(S) transport RIA2.0 media Encrypted Opus VP8 ? Carrier IMS SIP RTP Cleartext Ulaw (729, amr?) H263/4

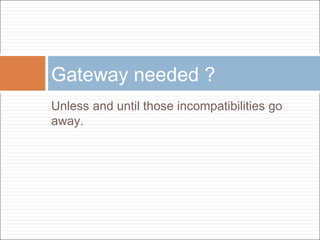

- 5. Gateway needed ? Unlessand until those incompatibilities go away.

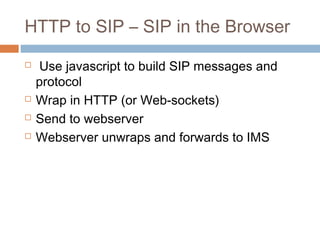

- 6. HTTP to SIP– SIP in the Browser Use javascript to build SIP messages and protocol Wrap in HTTP (or Web-sockets) Send to webserver Webserver unwraps and forwards to IMS
- 7. SIP in thebrowser Browser Browser JS SIP JS SIP SIP in HTTP SIP in HTTP WebSocket WebSocket Server Server UDP UDP SIP SIP IMS IMS

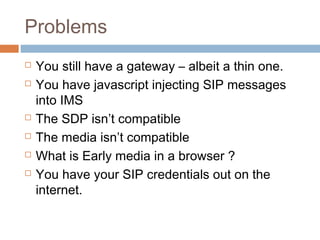

- 8. Problems You still havea gateway – albeit a thin one. You have javascript injecting SIP messages into IMS The SDP isn’t compatible The media isn’t compatible What is Early media in a browser ? You have your SIP credentials out on the internet.

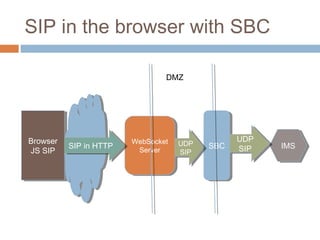

- 9. SIP in thebrowser with SBC DMZ Browser Browser JS SIP JS SIP SIP in HTTP SIP in HTTP WebSocket WebSocket Server Server UDP UDP SIP SIP SBC SBC UDP UDP SIP SIP IMS IMS
- 10. Remaining Problems The mediaisn’t compatible What is Early media in a browser ? You have SIP credentials out on the internet.

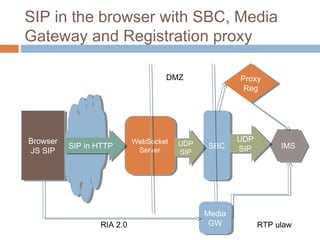

- 11. SIP in thebrowser with SBC, Media Gateway and Registration proxy DMZ Browser Browser JS SIP JS SIP SIP in HTTP SIP in HTTP RIA 2.0 WebSocket WebSocket Server Server UDP UDP SIP SIP Proxy Proxy Reg Reg SBC SBC Media Media GW GW UDP UDP SIP SIP IMS IMS RTP ulaw

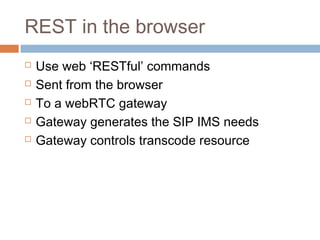

- 12. REST in thebrowser Use web ‘RESTful’ commands Sent from the browser To a webRTC gateway Gateway generates the SIP IMS needs Gateway controls transcode resource

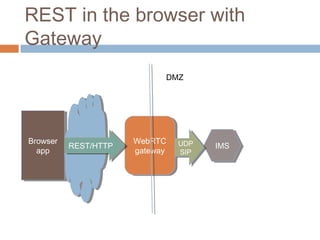

- 13. REST in thebrowser with Gateway DMZ Browser Browser app app REST/HTTP REST/HTTP WebRTC WebRTC gateway gateway UDP UDP SIP SIP IMS IMS

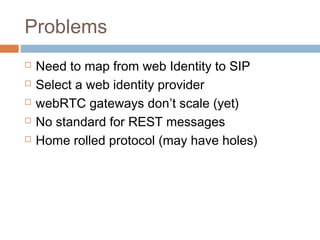

- 14. Problems Need to mapfrom web Identity to SIP Select a web identity provider webRTC gateways don’t scale (yet) No standard for REST messages Home rolled protocol (may have holes)

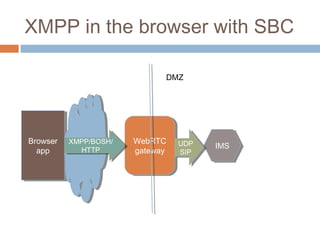

- 15. XMPP in thebrowser with SBC DMZ Browser Browser app app XMPP/BOSH/ XMPP/BOSH/ HTTP HTTP WebRTC WebRTC gateway gateway UDP UDP SIP SIP IMS IMS

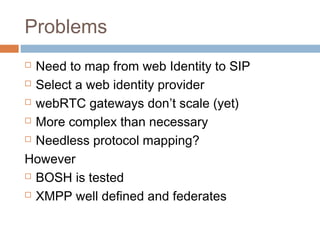

- 16. Problems Need to mapfrom web Identity to SIP Select a web identity provider webRTC gateways don’t scale (yet) More complex than necessary Needless protocol mapping? However BOSH is tested XMPP well defined and federates
- 17. Did we forgetmobile? WebRTC isn’t mobile first yet.

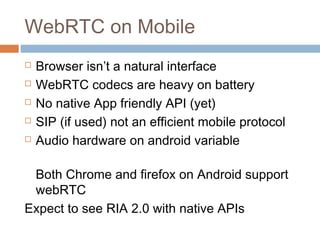

- 18. WebRTC on Mobile Browserisn’t a natural interface WebRTC codecs are heavy on battery No native App friendly API (yet) SIP (if used) not an efficient mobile protocol Audio hardware on android variable Both Chrome and firefox on Android support webRTC Expect to see RIA 2.0 with native APIs

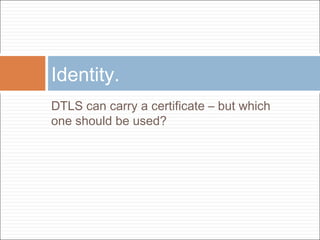

- 19. Identity. DTLS can carrya certificate – but which one should be used?

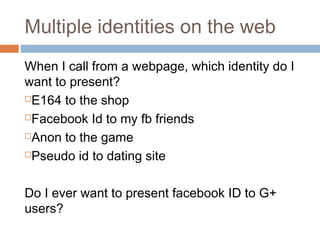

- 20. Multiple identities onthe web When I call from a webpage, which identity do I want to present? E164 to the shop Facebook Id to my fb friends Anon to the game Pseudo id to dating site Do I ever want to present facebook ID to G+ users?

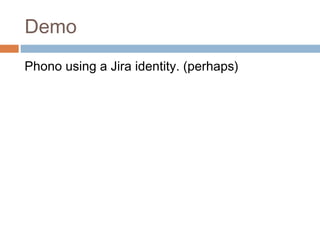

- 21. Demo Phono using aJira identity. (perhaps)
