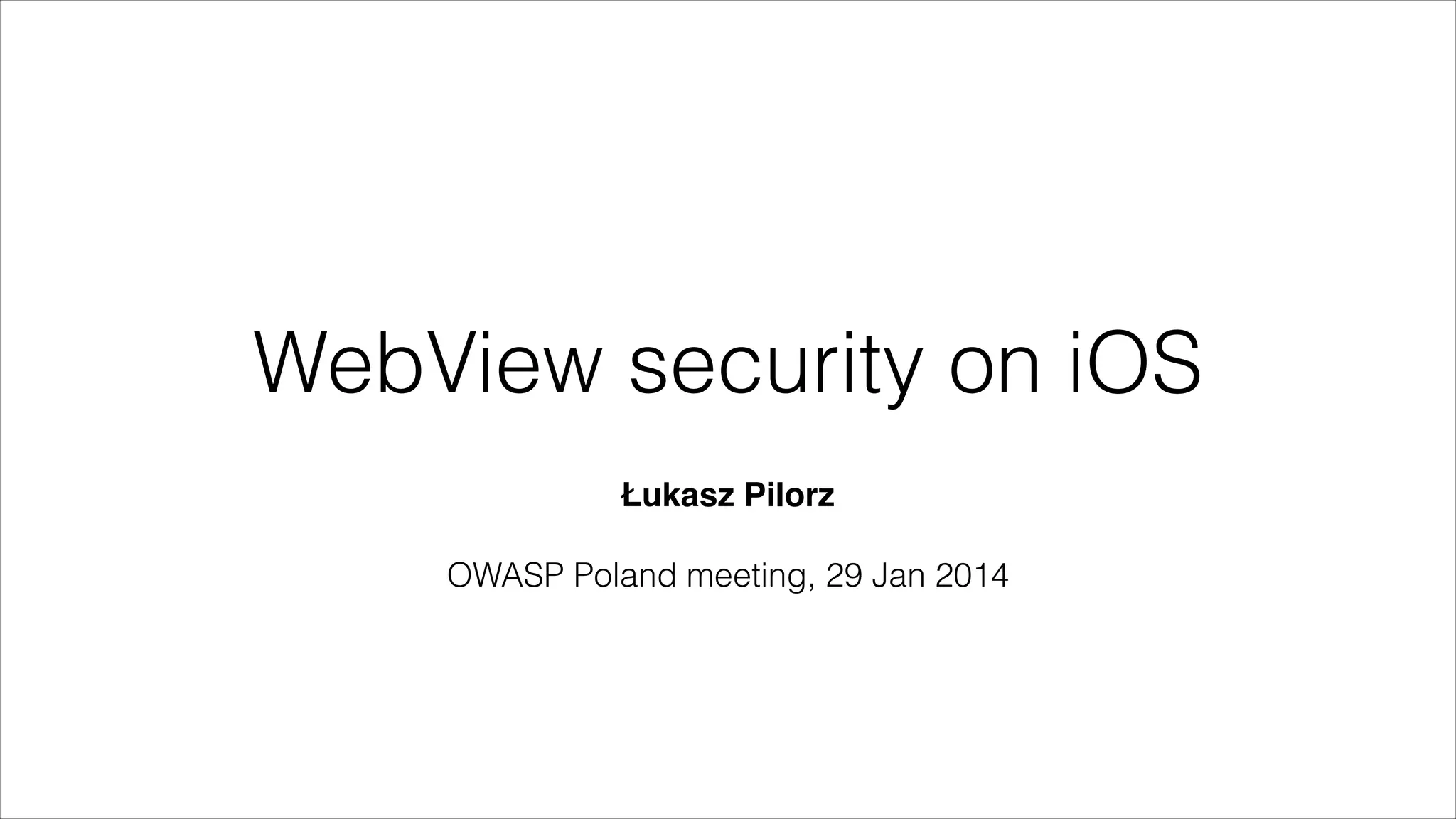

1. WebView security on iOS
Łukasz Pilorz"
!
OWASP Poland meeting, 29 Jan 2014

2. Thank you:
browser-shredders.blogspot.com
Mike Tigas

3. Theory

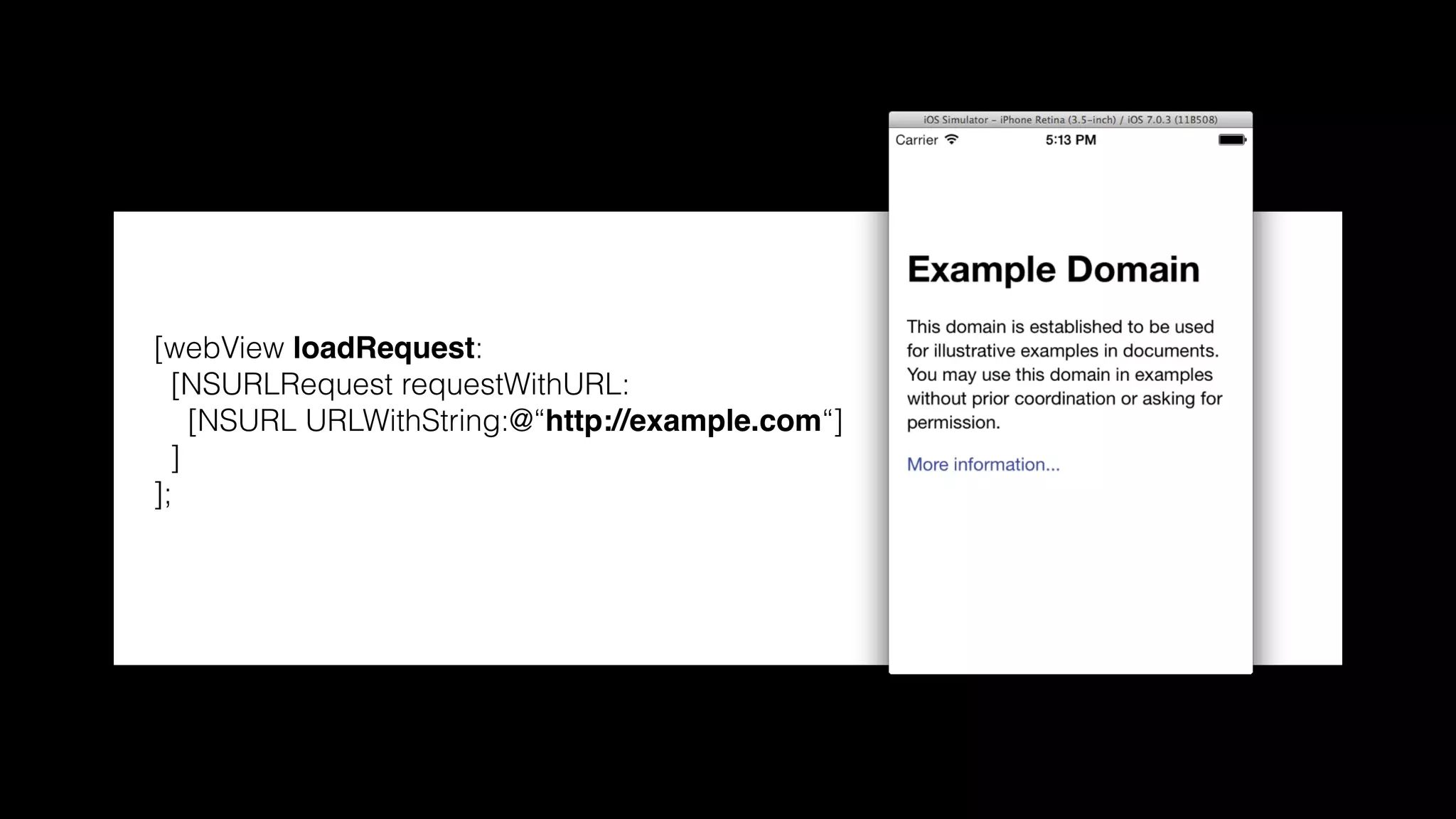

4. [webView loadRequest:
[NSURLRequest requestWithURL:
[NSURL URLWithString:@“http://example.com“]
]
];

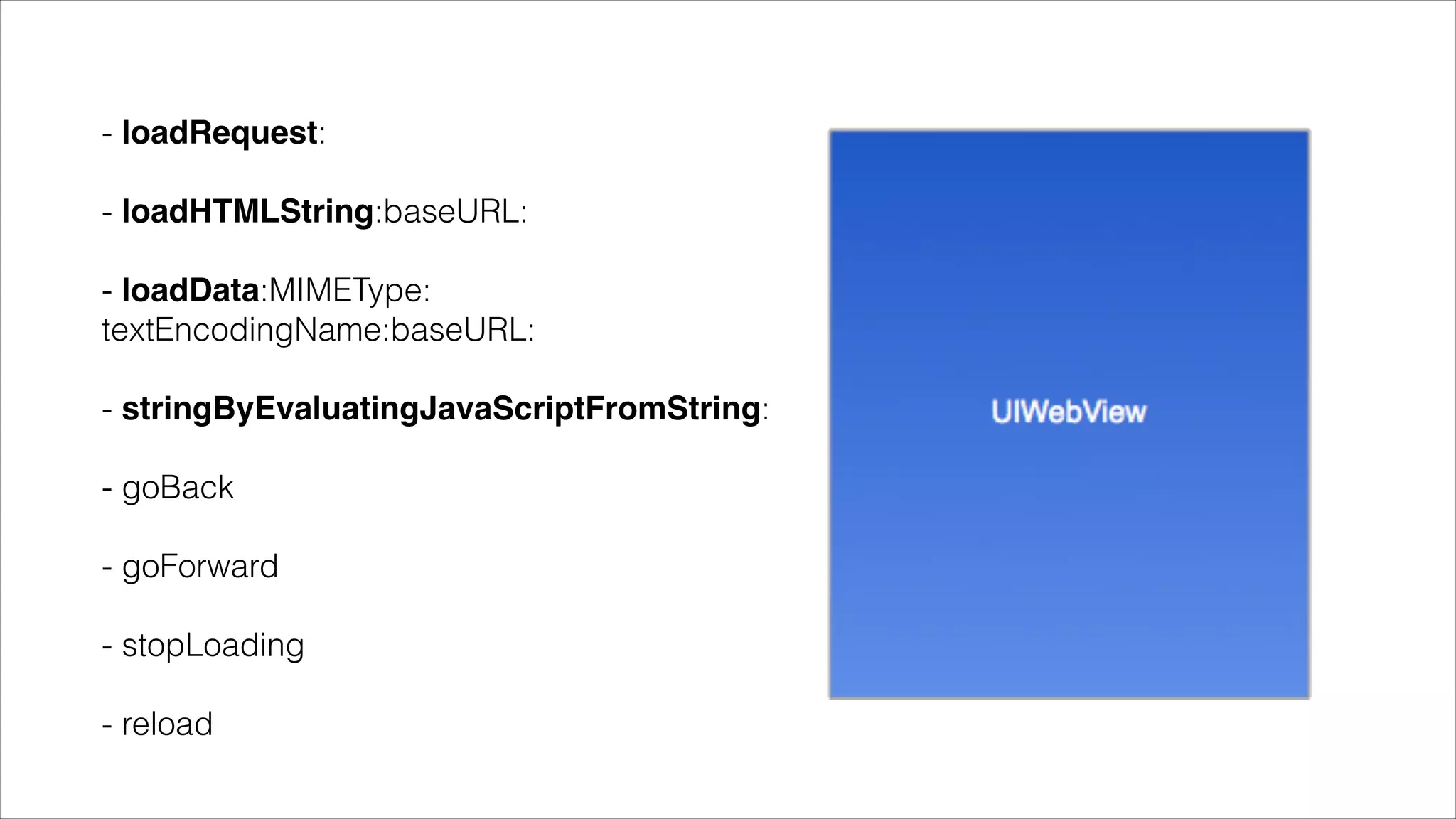

6. !
- loadRequest:
!
- loadHTMLString:baseURL:
!
- loadData:MIMEType:
textEncodingName:baseURL:
!
- stringByEvaluatingJavaScriptFromString:
!
- goBack
!
- goForward
!
- stopLoading
!
- reload

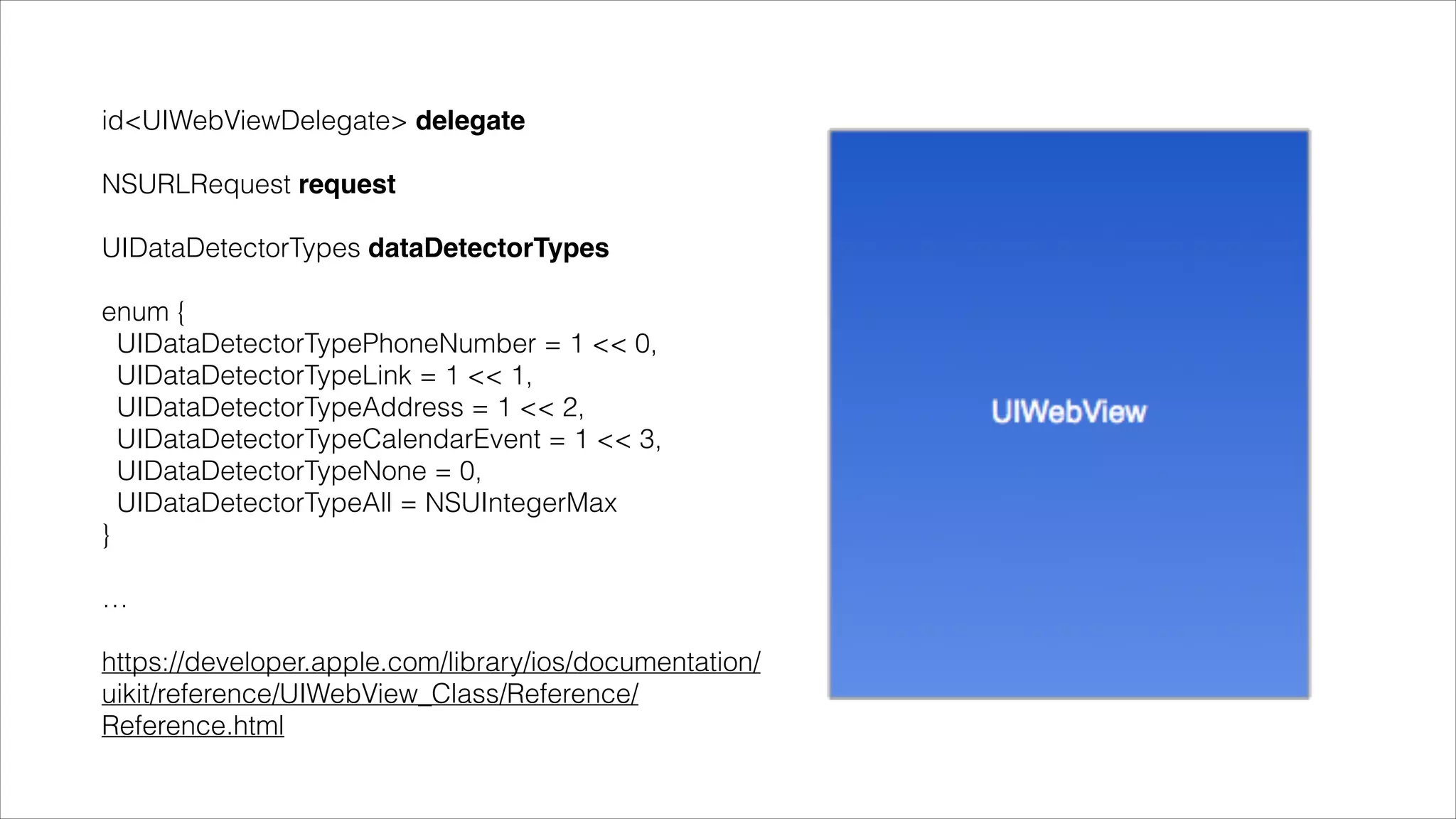

7. !
id<UIWebViewDelegate> delegate"
!
NSURLRequest request"
!
UIDataDetectorTypes dataDetectorTypes"
!
enum {
UIDataDetectorTypePhoneNumber = 1 << 0,
UIDataDetectorTypeLink = 1 << 1,
UIDataDetectorTypeAddress = 1 << 2,
UIDataDetectorTypeCalendarEvent = 1 << 3,
UIDataDetectorTypeNone = 0,
UIDataDetectorTypeAll = NSUIntegerMax
}
!
…
!
https://developer.apple.com/library/ios/documentation/
uikit/reference/UIWebView_Class/Reference/
Reference.html

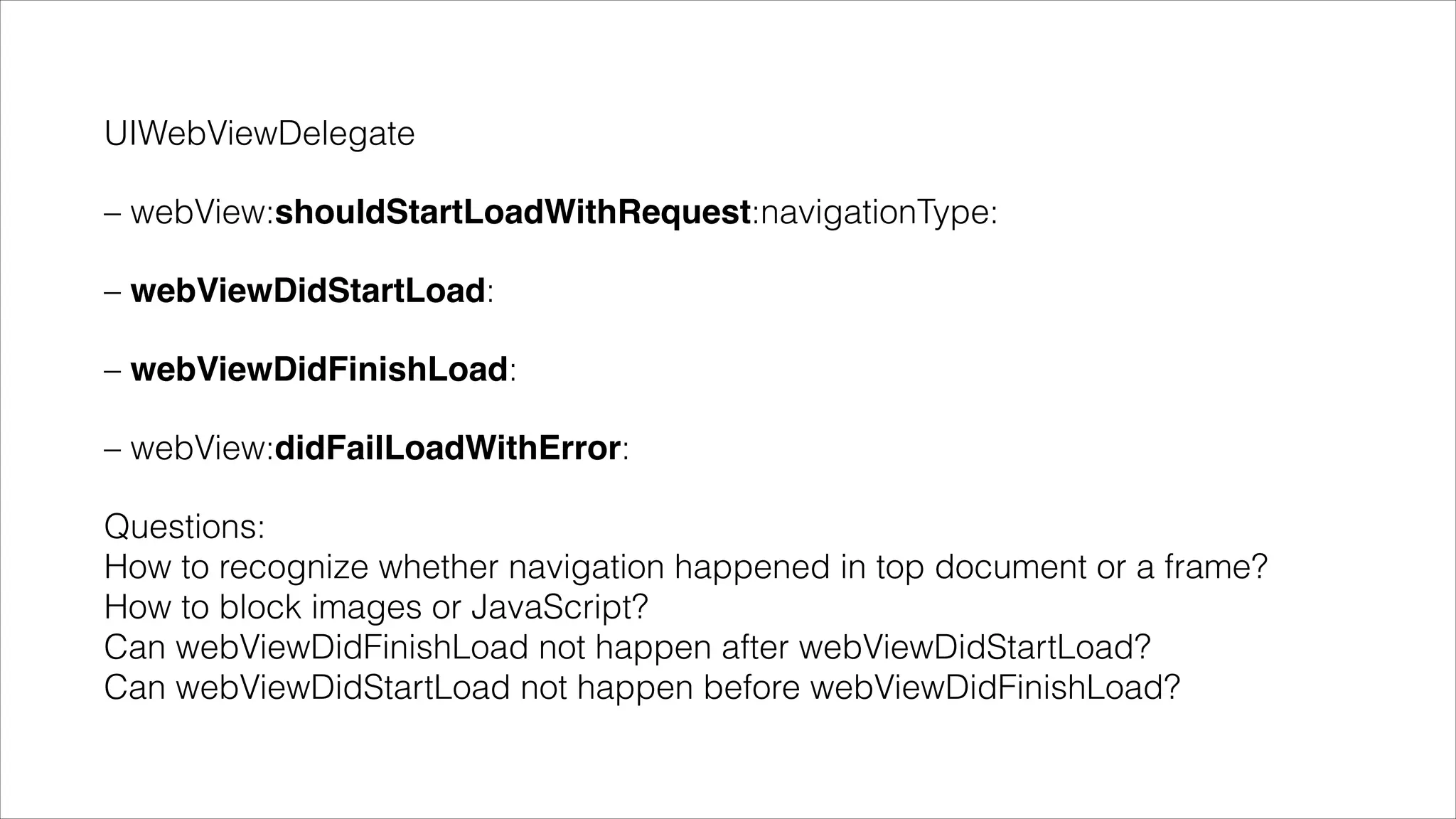

8. UIWebViewDelegate
– webView:shouldStartLoadWithRequest:navigationType:
– webViewDidStartLoad:
– webViewDidFinishLoad:
– webView:didFailLoadWithError:
Questions:
How to recognize whether navigation happened in top document or a frame?
How to block images or JavaScript?
Can webViewDidFinishLoad not happen after webViewDidStartLoad?
Can webViewDidStartLoad not happen before webViewDidFinishLoad?

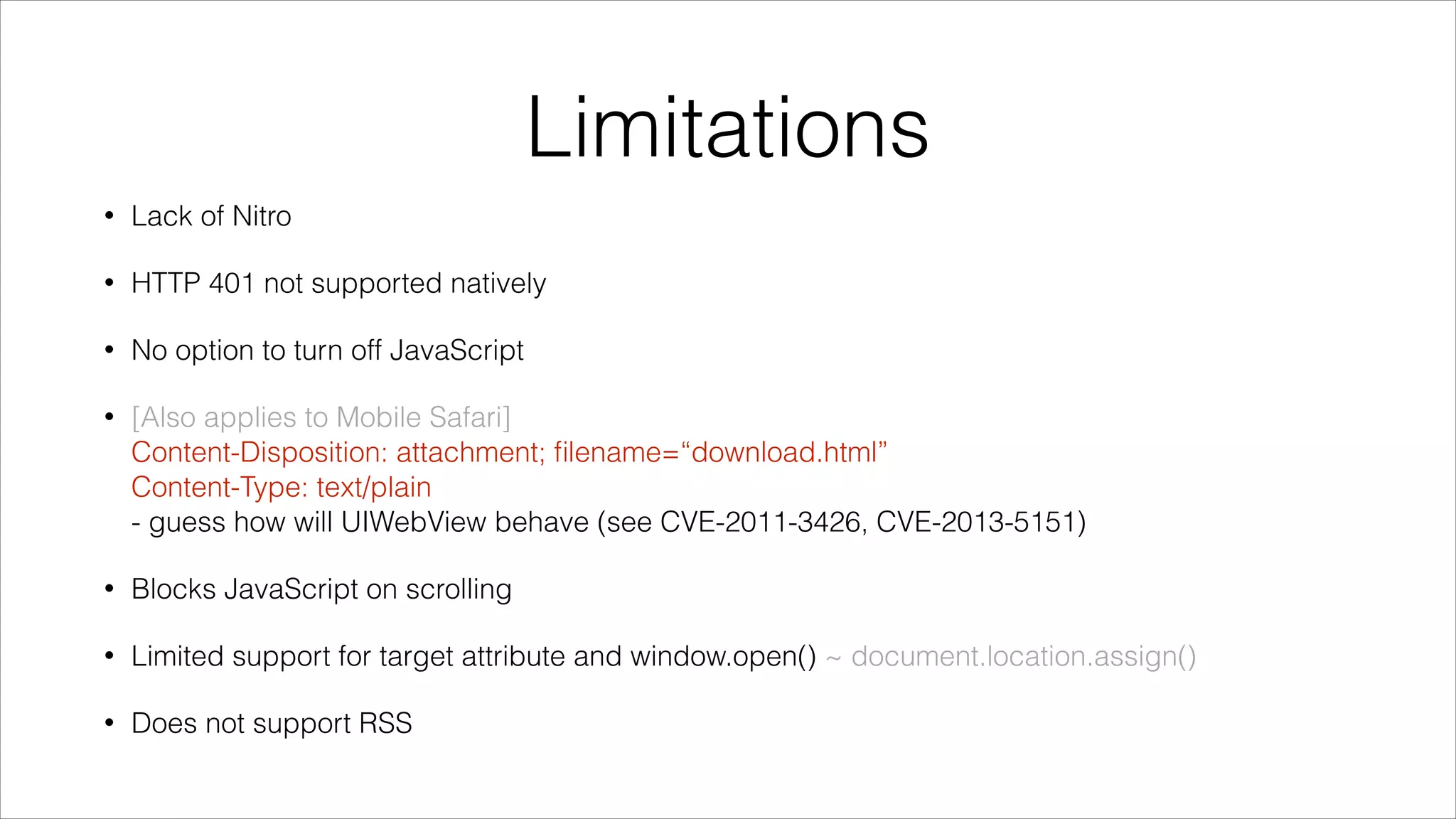

9. Limitations
• Lack of Nitro
• HTTP 401 not supported natively
• No option to turn off JavaScript
• [Also applies to Mobile Safari]
Content-Disposition: attachment; filename=“download.html”
Content-Type: text/plain
- guess how will UIWebView behave (see CVE-2011-3426, CVE-2013-5151)
• Blocks JavaScript on scrolling
• Limited support for target attribute and window.open() ~ document.location.assign()
• Does not support RSS

10. Practice

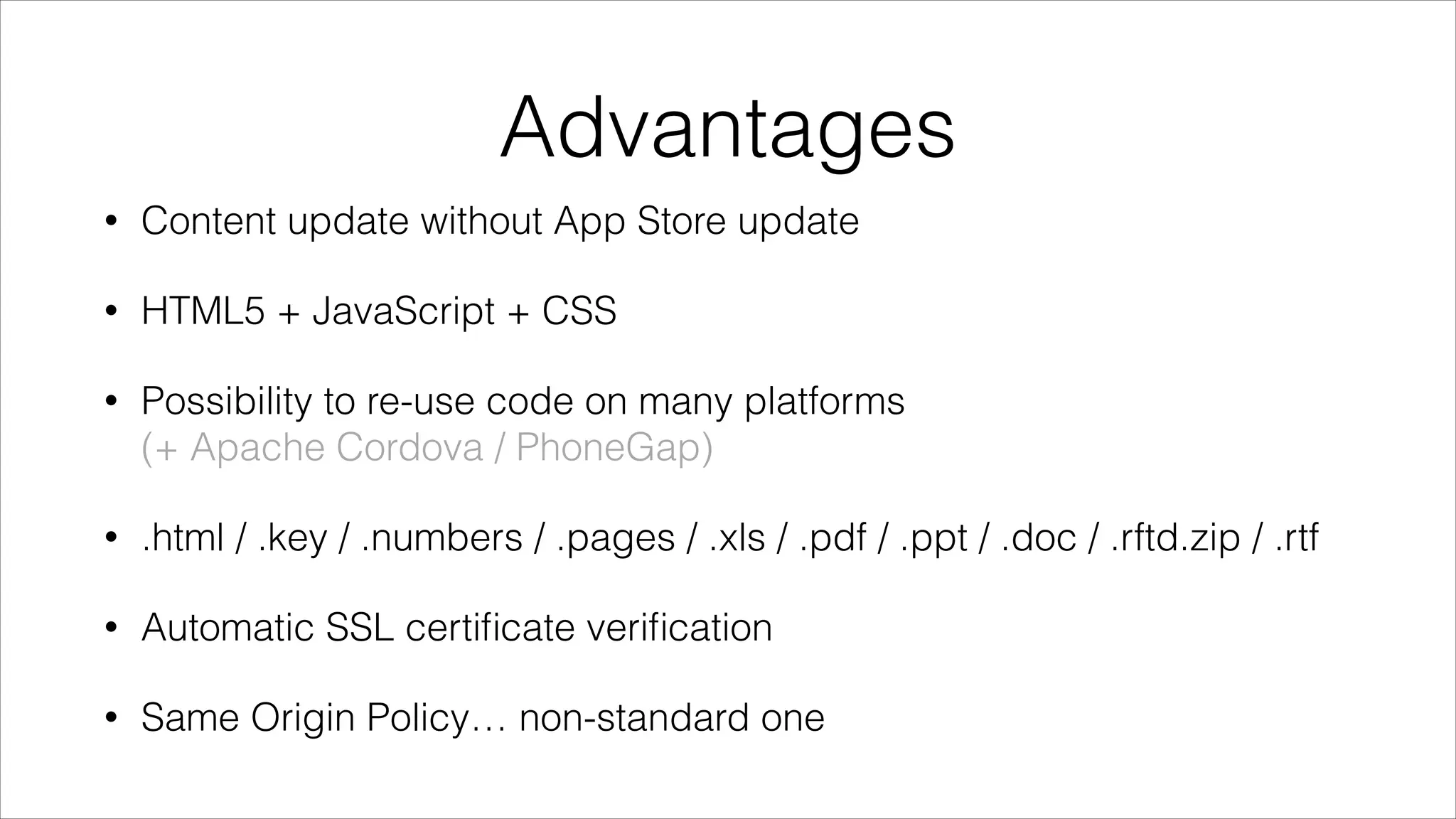

11. Advantages
• Content update without App Store update
• HTML5 + JavaScript + CSS
• Possibility to re-use code on many platforms
(+ Apache Cordova / PhoneGap)
• .html / .key / .numbers / .pages / .xls / .pdf / .ppt / .doc / .rftd.zip / .rtf
• Automatic SSL certificate verification
• Same Origin Policy… non-standard one

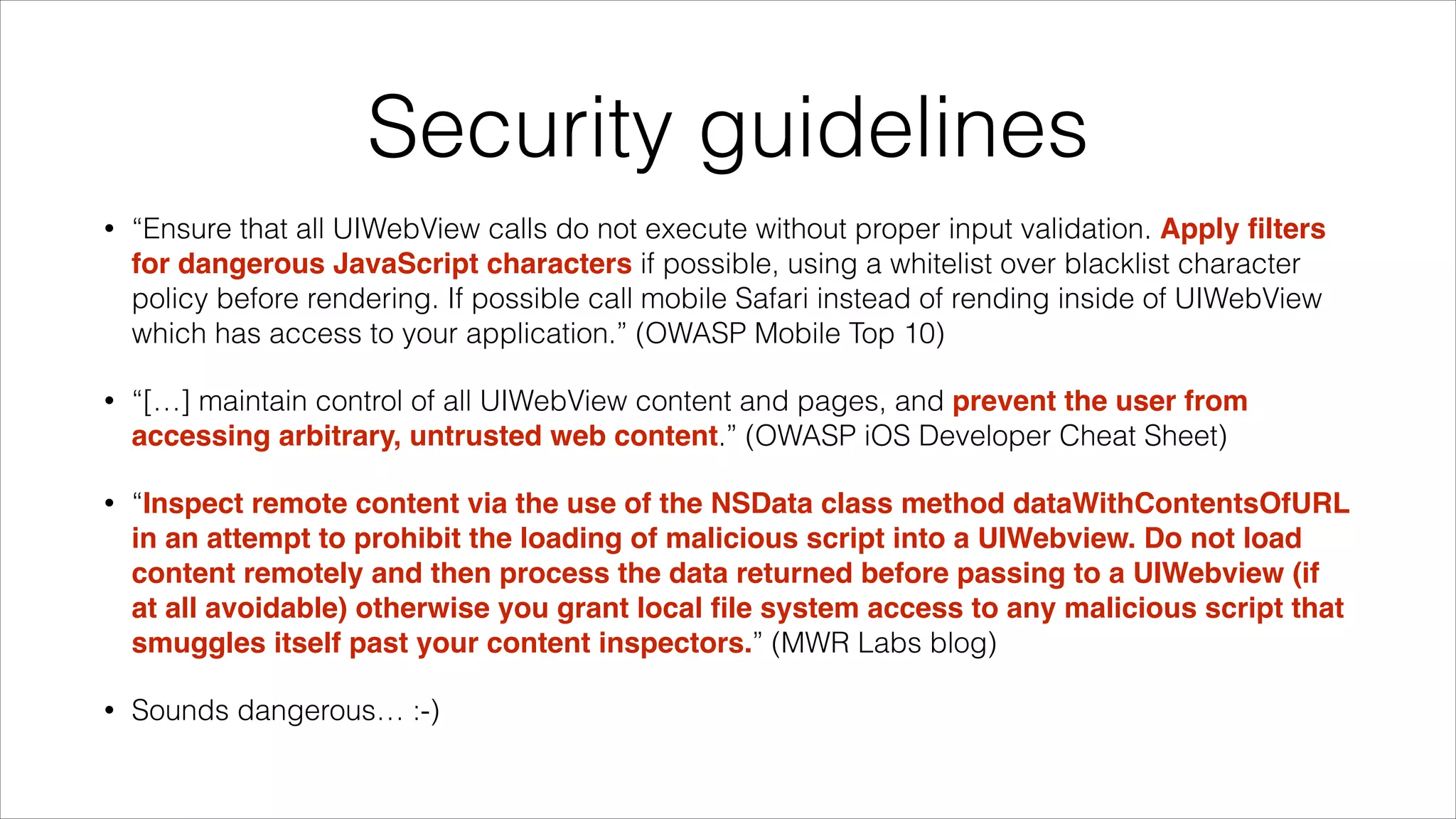

12. Security guidelines
• “Ensure that all UIWebView calls do not execute without proper input validation. Apply filters
for dangerous JavaScript characters if possible, using a whitelist over blacklist character
policy before rendering. If possible call mobile Safari instead of rending inside of UIWebView
which has access to your application.” (OWASP Mobile Top 10)
• “[…] maintain control of all UIWebView content and pages, and prevent the user from
accessing arbitrary, untrusted web content.” (OWASP iOS Developer Cheat Sheet)
• “Inspect remote content via the use of the NSData class method dataWithContentsOfURL
in an attempt to prohibit the loading of malicious script into a UIWebview. Do not load
content remotely and then process the data returned before passing to a UIWebview (if
at all avoidable) otherwise you grant local file system access to any malicious script that
smuggles itself past your content inspectors.” (MWR Labs blog)
• Sounds dangerous… :-)

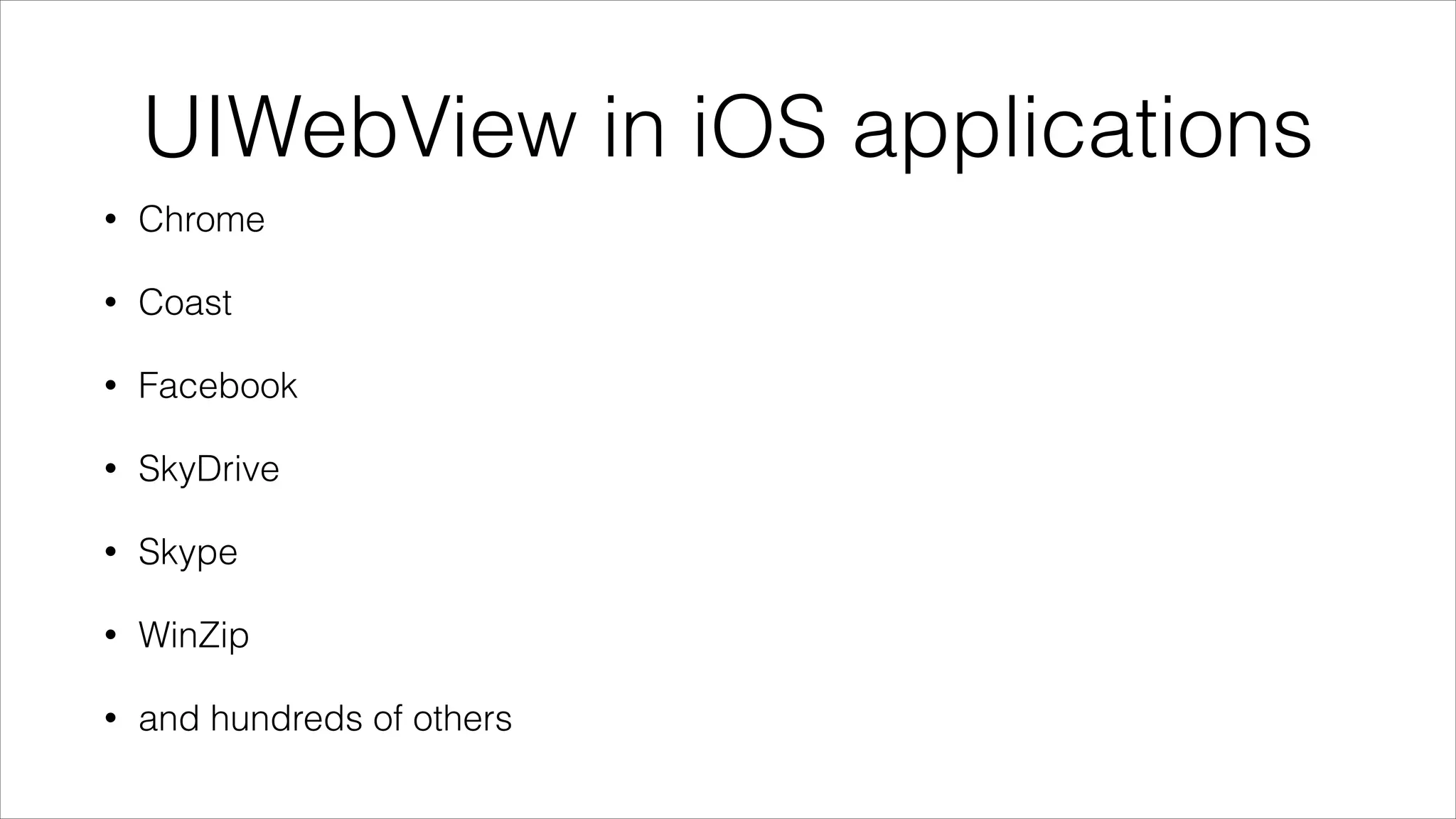

13. UIWebView in iOS applications
• Chrome
• Coast
• Facebook
• SkyDrive
• Skype
• WinZip
• and hundreds of others

14. Secure UIWebView - how to start?
Requirements:
• without reducing planned functionality
• without spending weeks on building content filters
(and further ones on maintenance and fixes)
• minimal amount of code added
• efficiently

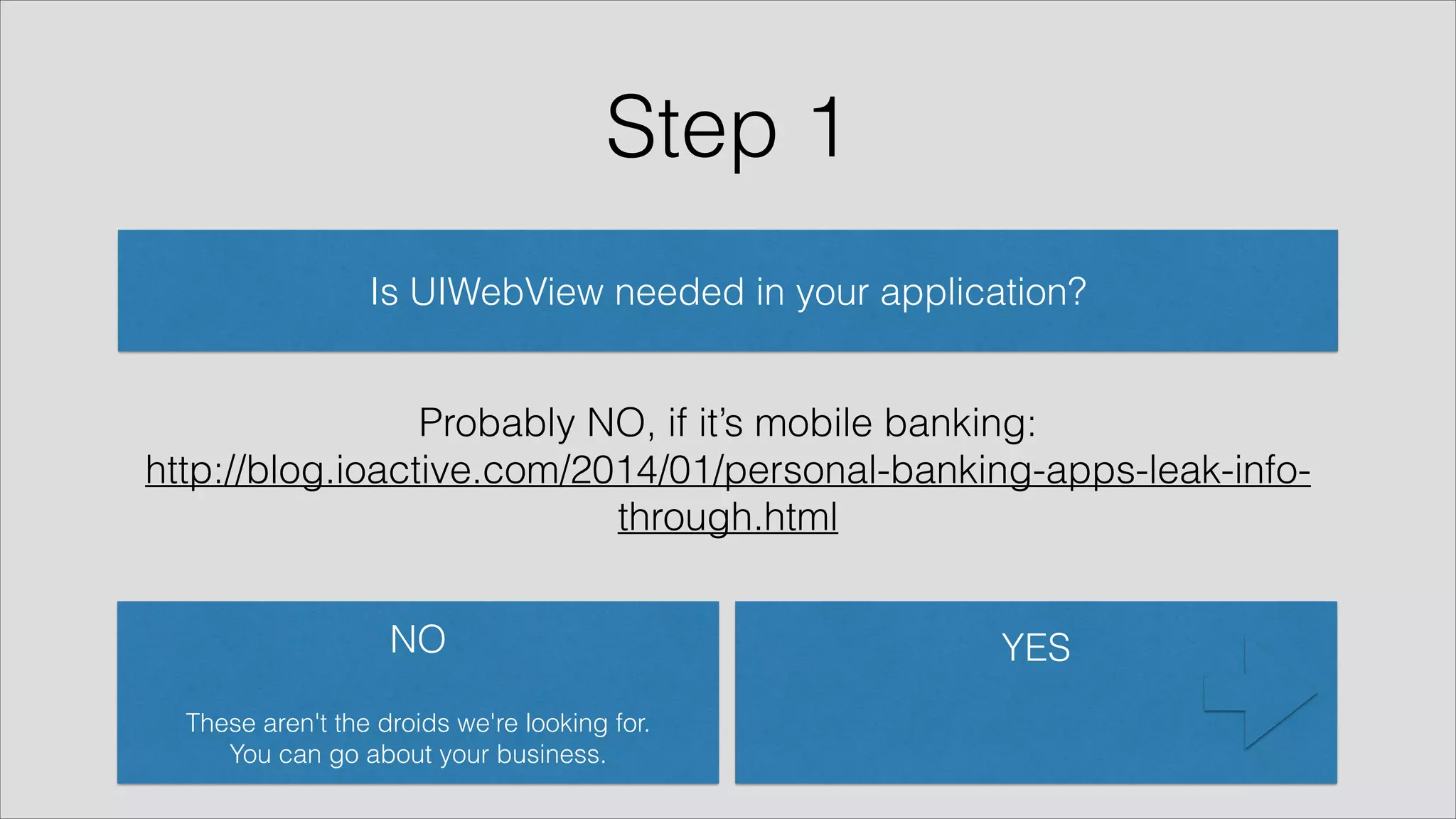

15. Step 1
Probably NO, if it’s mobile banking:
http://blog.ioactive.com/2014/01/personal-banking-apps-leak-info-
through.html
Is UIWebView needed in your application?
YES
!
NO
These aren't the droids we're looking for.
You can go about your business.

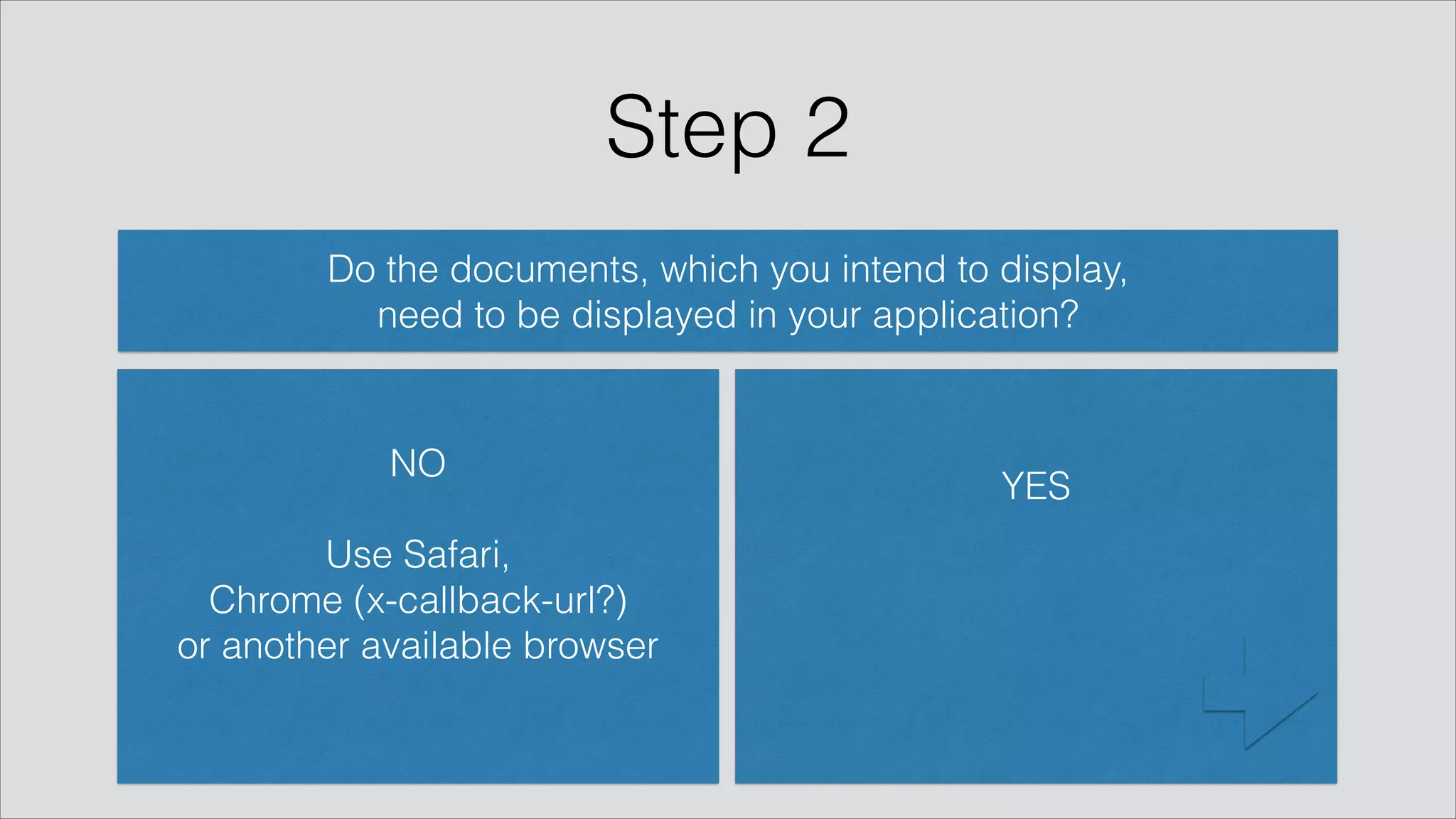

16. Step 2
Do the documents, which you intend to display,
need to be displayed in your application?
YES
!
!
!
NO
!
Use Safari,
Chrome (x-callback-url?)
or another available browser

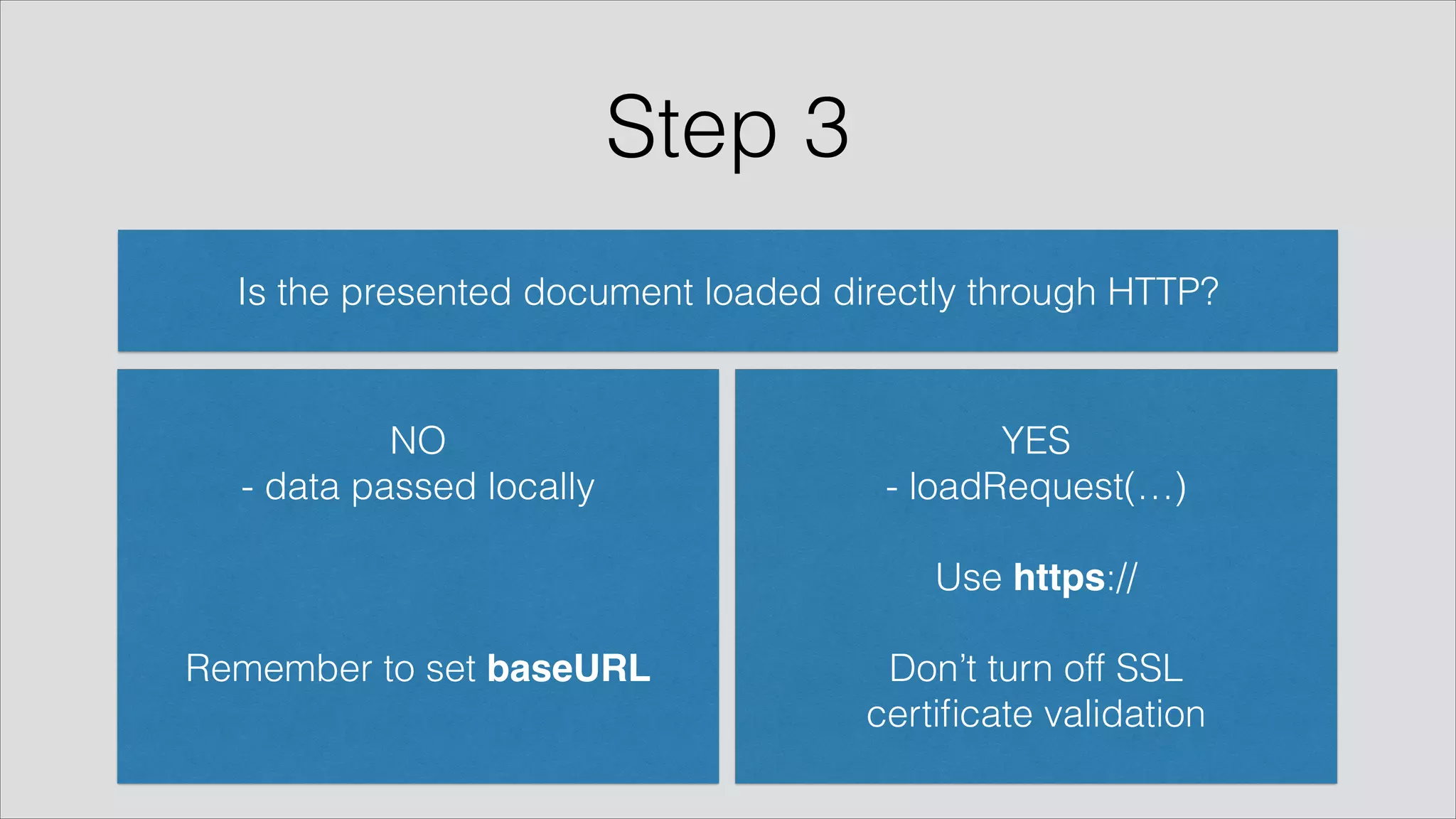

17. Step 3
Is the presented document loaded directly through HTTP?
YES
- loadRequest(…)
!
Use https://
!
Don’t turn off SSL
certificate validation
NO
- data passed locally
!
!
!
Remember to set baseURL"

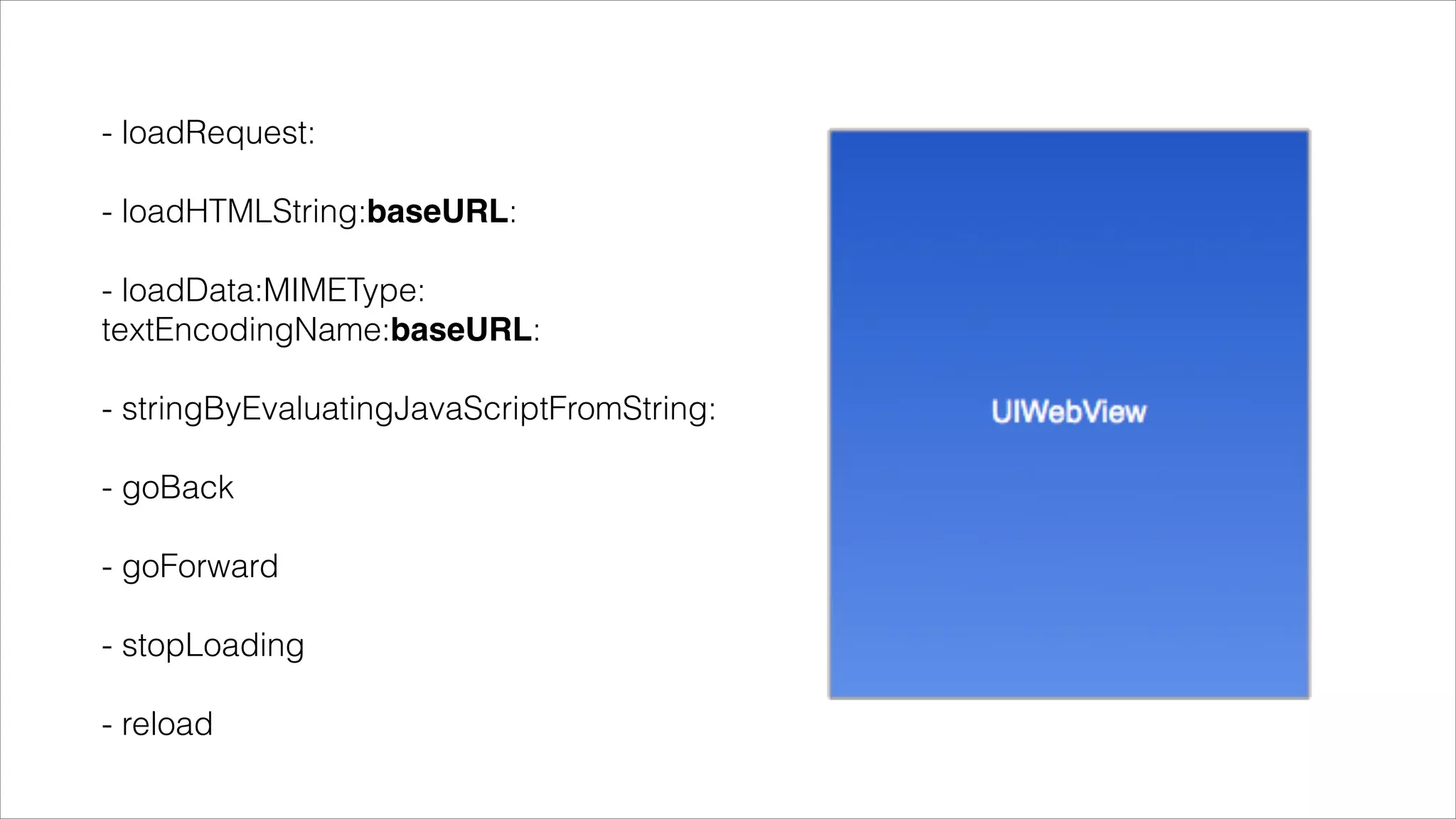

18. !
- loadRequest:
!
- loadHTMLString:baseURL:
!
- loadData:MIMEType:
textEncodingName:baseURL:
!
- stringByEvaluatingJavaScriptFromString:
!
- goBack
!
- goForward
!
- stopLoading
!
- reload

19. baseURL vs Same Origin Policy
• file:/// can read local files and any URLs - dangerous!
• nil/NULL == applewebdata:
same privileges as file: - dangerous!
• by default UIWebView assumes file://
(@“test” == @“file://test”)
• for http(s):// standard Same Origin Policy applies
• for about: and data: also, but with separate origin context

20. <script>
a = document.location.href.split('/');
if(a[0]==='file:') {
path = ‘file:///'+a[3]+'/'+a[4]+'/'+a[5]+'/'+a[6]+'/'+a[7]
+'/Library/Cookies/Cookies.binarycookies';
x = new XMLHttpRequest();
x.open('GET', path, false);
x.send();
alert(x.responseText);
}
</script>

21. [webView
loadHTMLString:
[NSString stringWithContentsOfFile:@“/sciezka/do/pliku.html”
encoding:NSUTF8StringEncoding
error:&error]
baseURL:[NSURL URLWithString:@“about:blank”]];
!
Potential problem: images, CSS etc. won’t be loaded from file:///

22. Example: Chrome for iOS

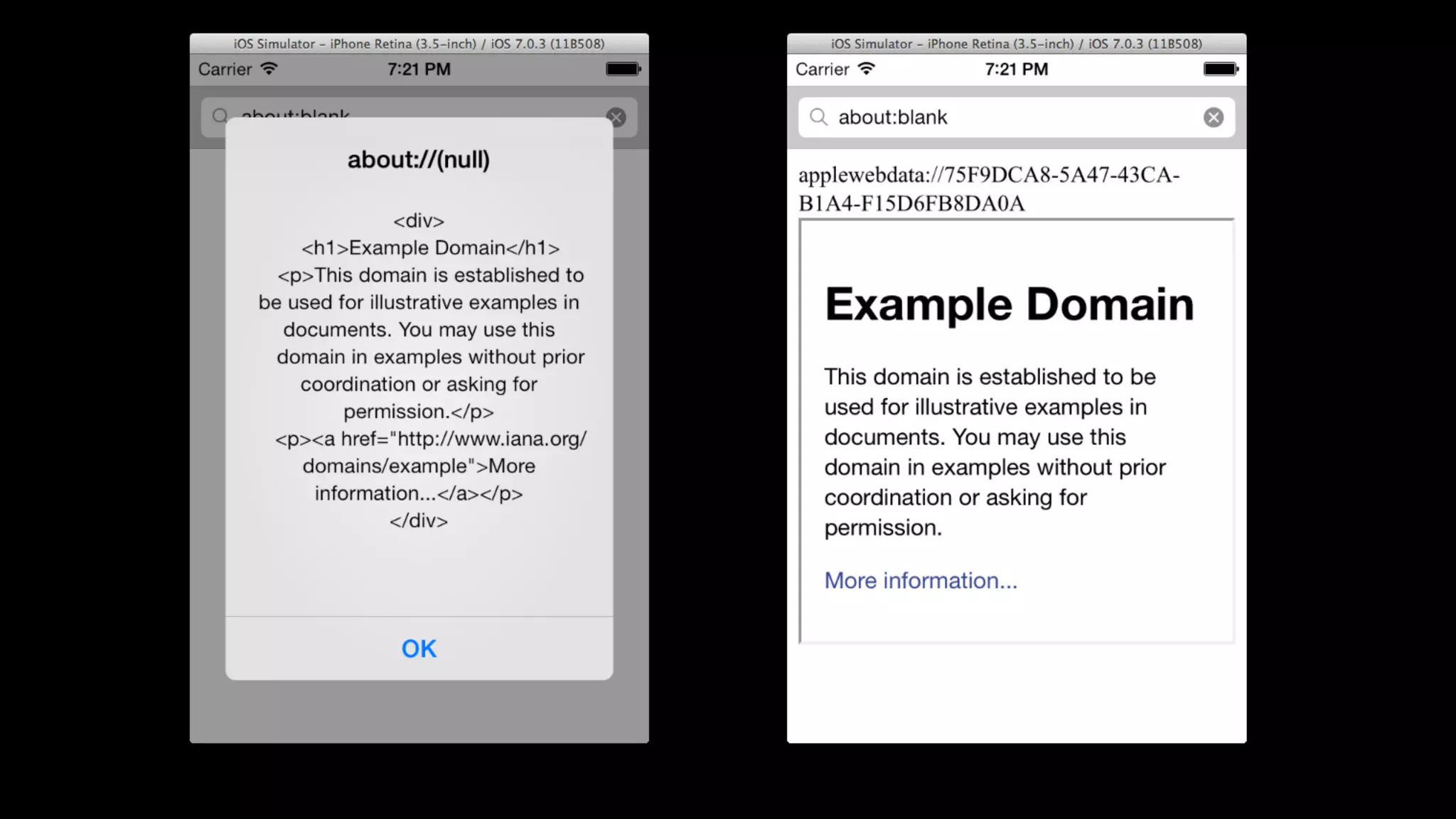

23. <!-- CVE-2012-2899 -->
!
<script>
function test() {
pop = window.open('about:blank', '_blank');
pop.document.write(
'<script>document.write(document.location)</scr'
+'ipt><br><iframe src=“http://example.com/“'
+'onload="alert(this.contentDocument.body.innerHTML)"></iframe>'
);
}
</script>
<input type="button" onclick="test()" value=“Click">

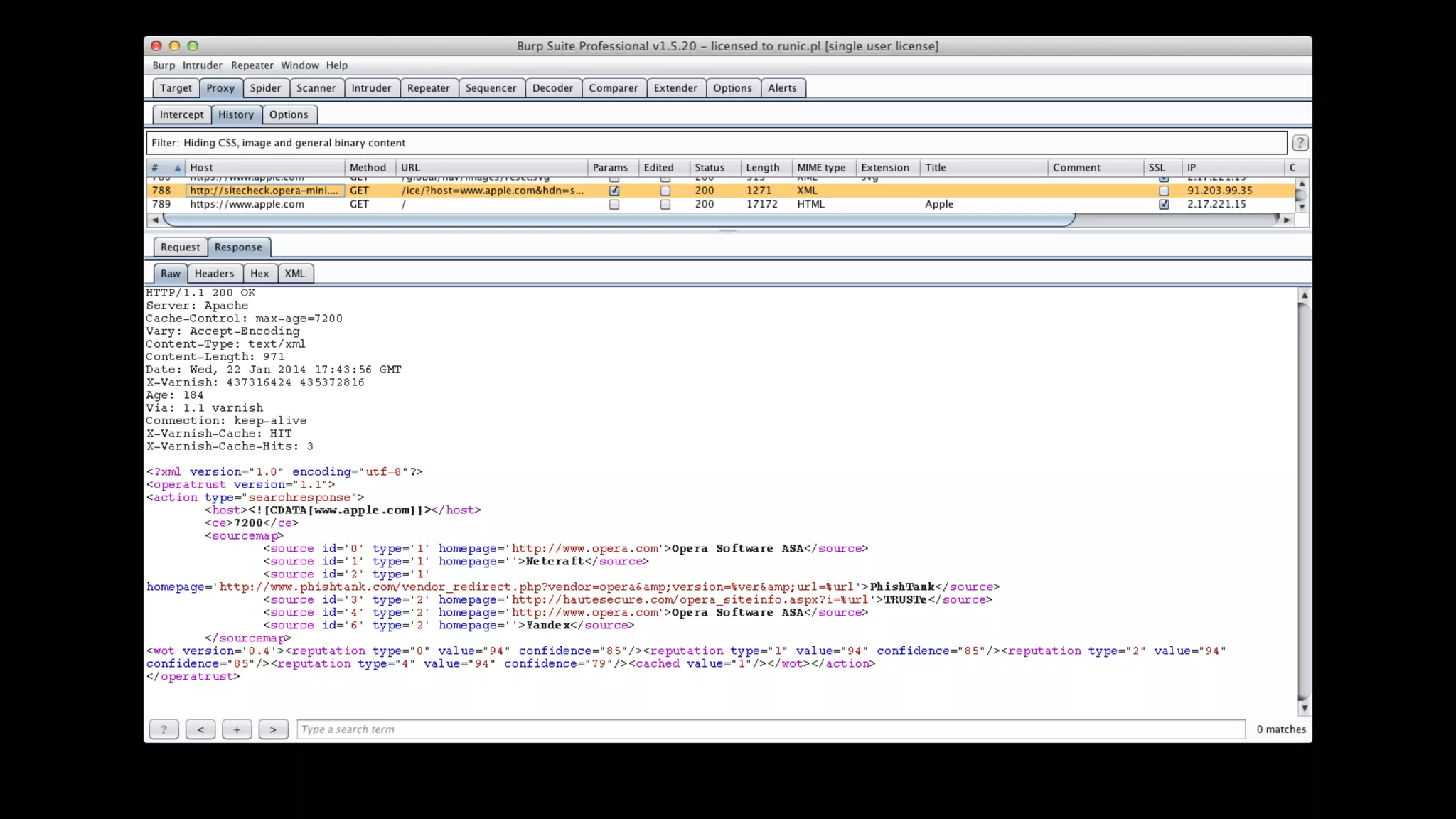

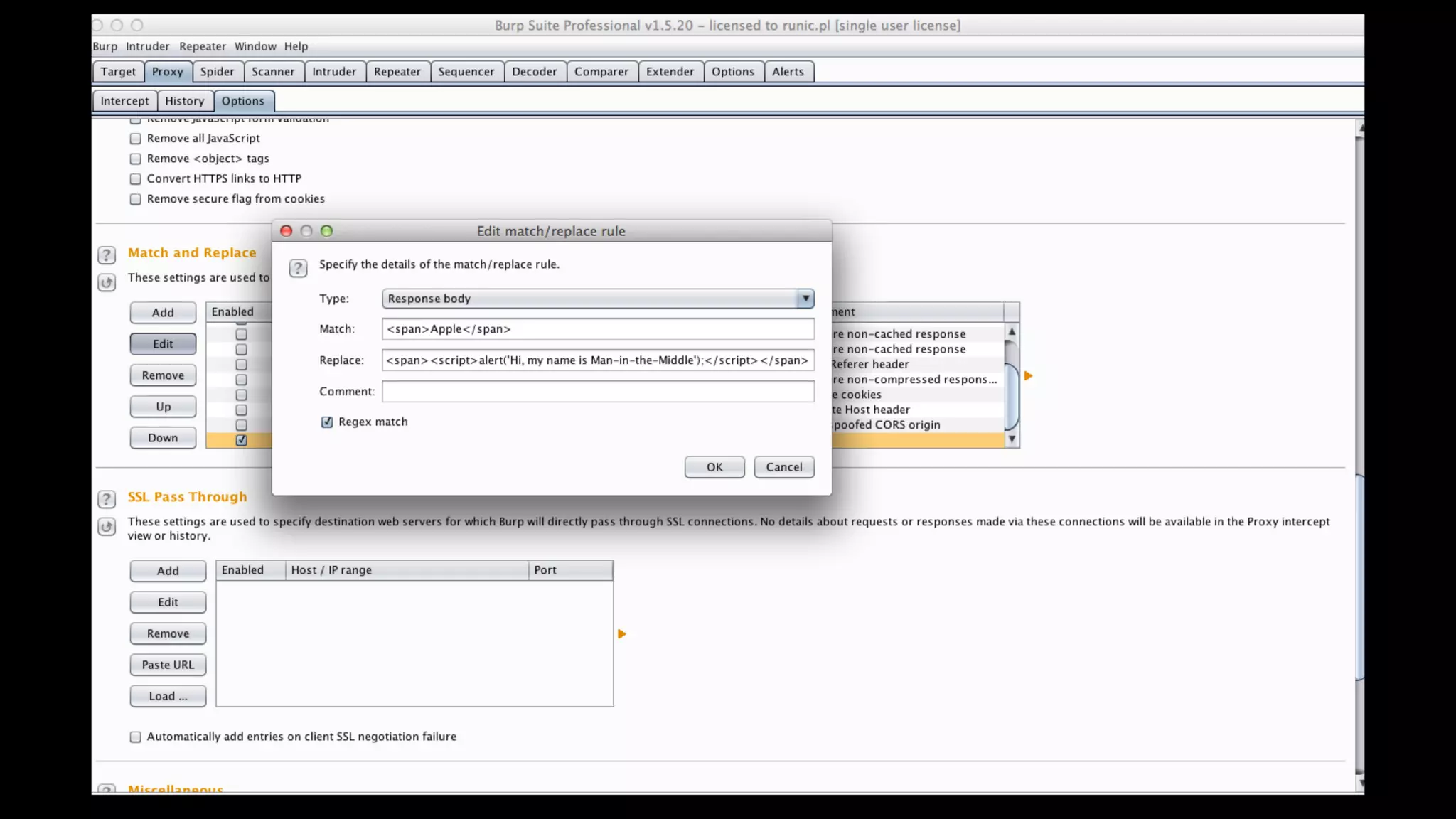

25. Example: Coast by Opera

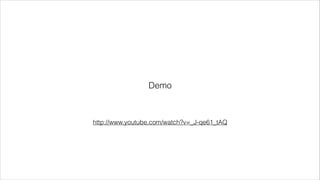

28. http://www.youtube.com/watch?v=_J-qe61_tAQ
Demo

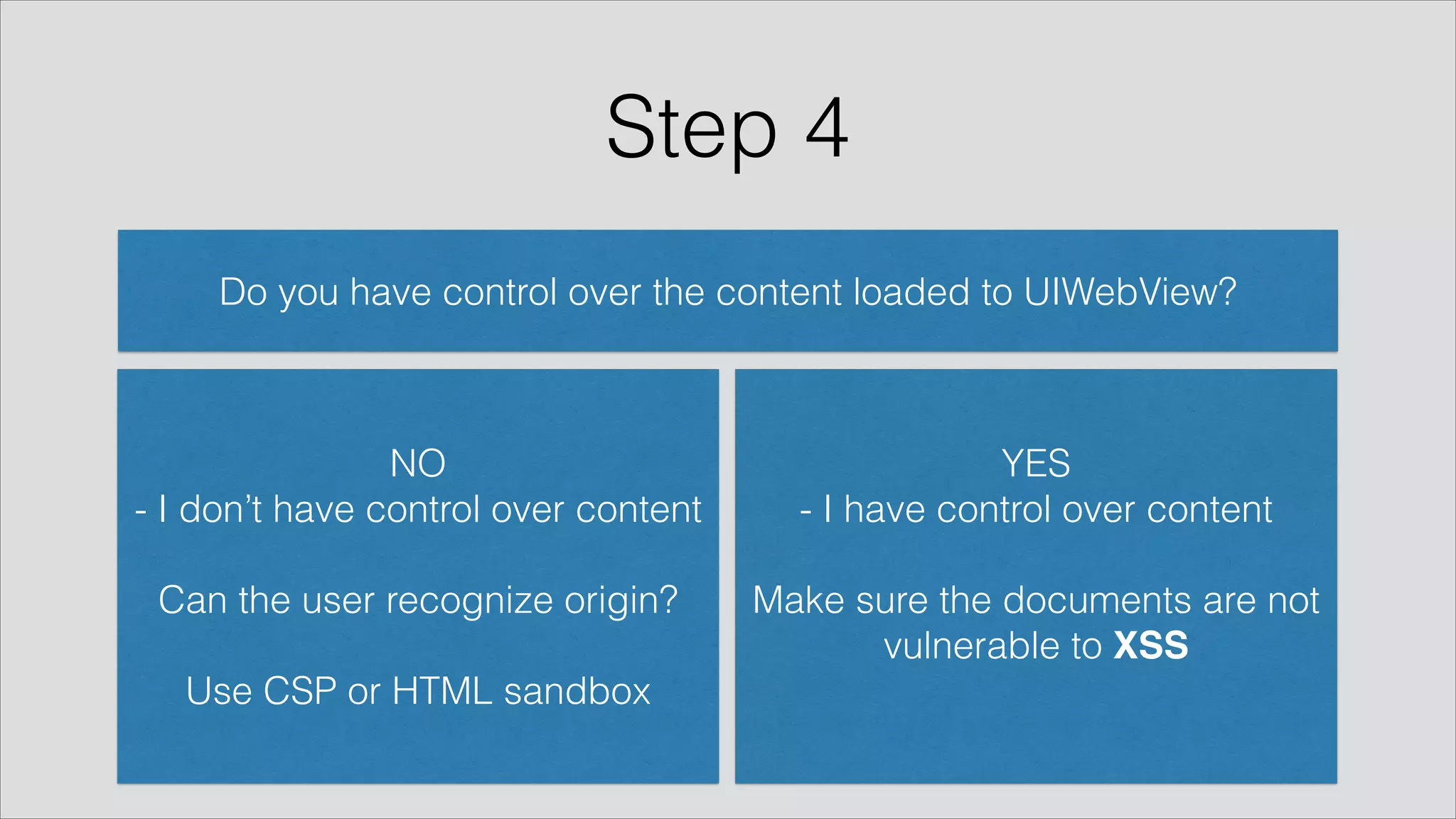

31. Step 4
Do you have control over the content loaded to UIWebView?
YES
- I have control over content
!
Make sure the documents are not
vulnerable to XSS
NO
- I don’t have control over content
!
Can the user recognize origin?
!
Use CSP or HTML sandbox

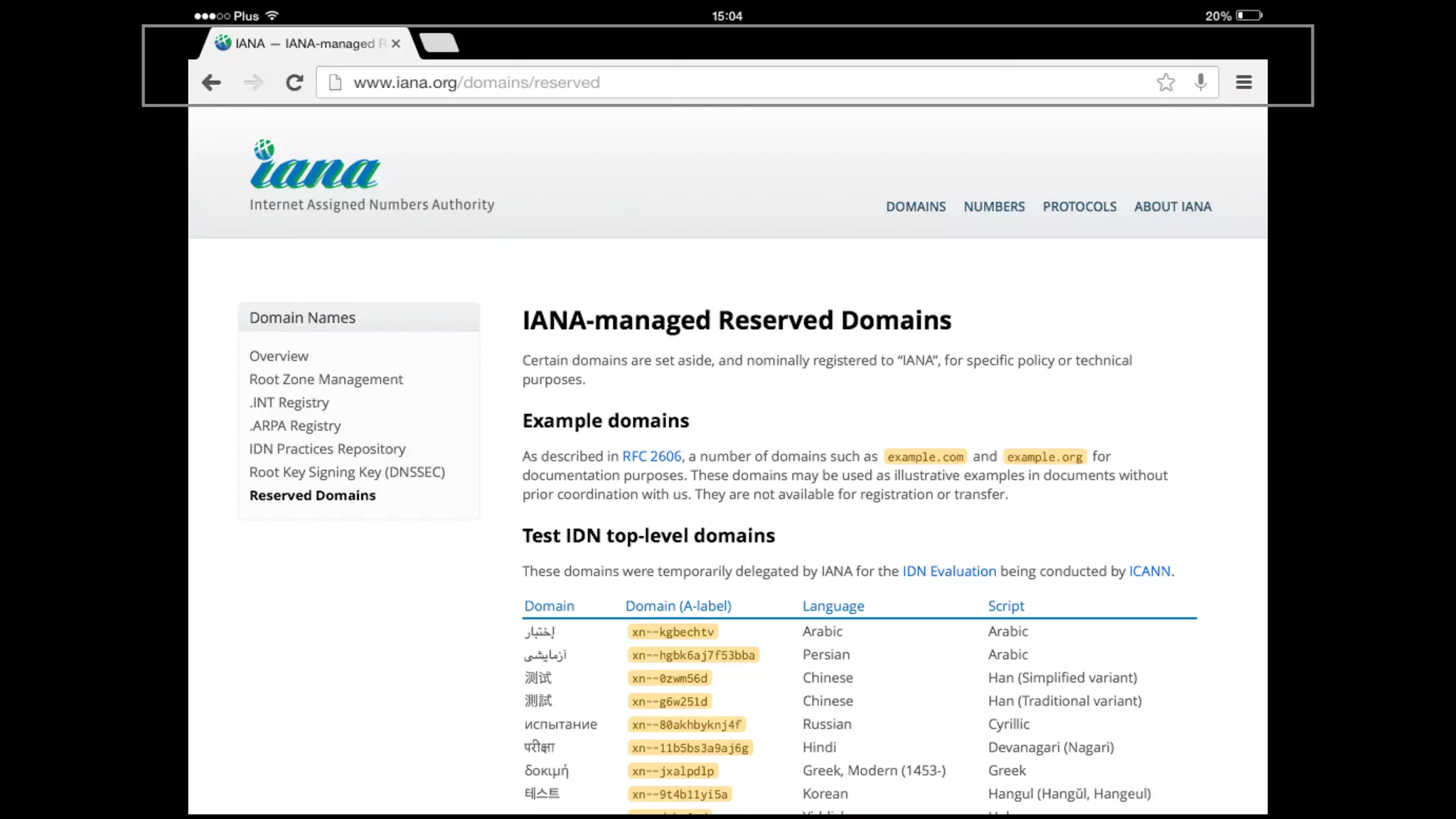

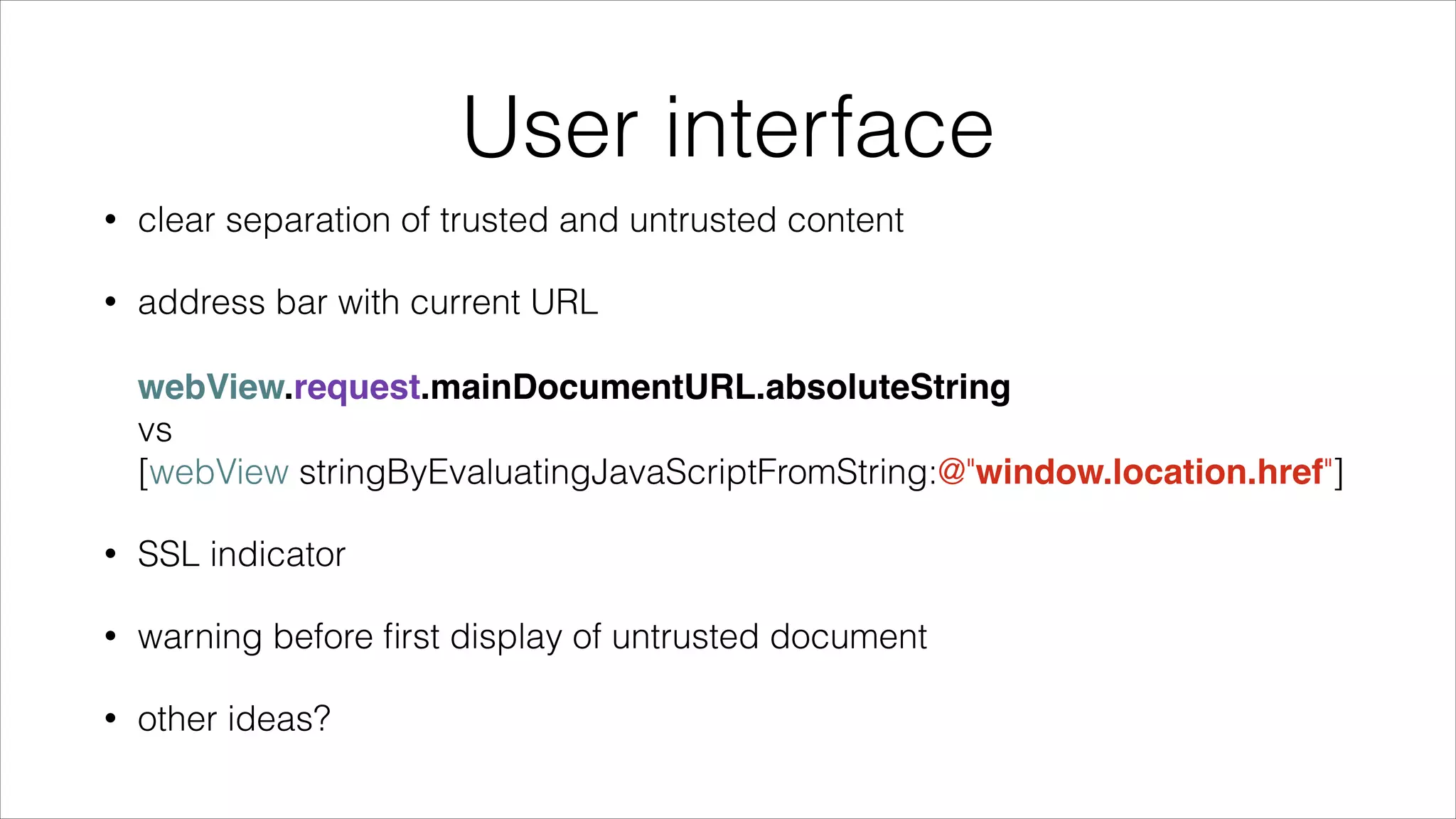

32. User interface
• clear separation of trusted and untrusted content
• address bar with current URL
webView.request.mainDocumentURL.absoluteString
vs
[webView stringByEvaluatingJavaScriptFromString:@"window.location.href"]
• SSL indicator
• warning before first display of untrusted document
• other ideas?

35. Cross-Site Scripting
• Stored (server-side or in the application)
• Reflected (watch for URL scheme handlers)
• DOM-based (!)
• [webView stringByEvaluatingJavaScriptFromString:[NSString
stringWithFormat:@"document.body.innerText='%@'", input]];

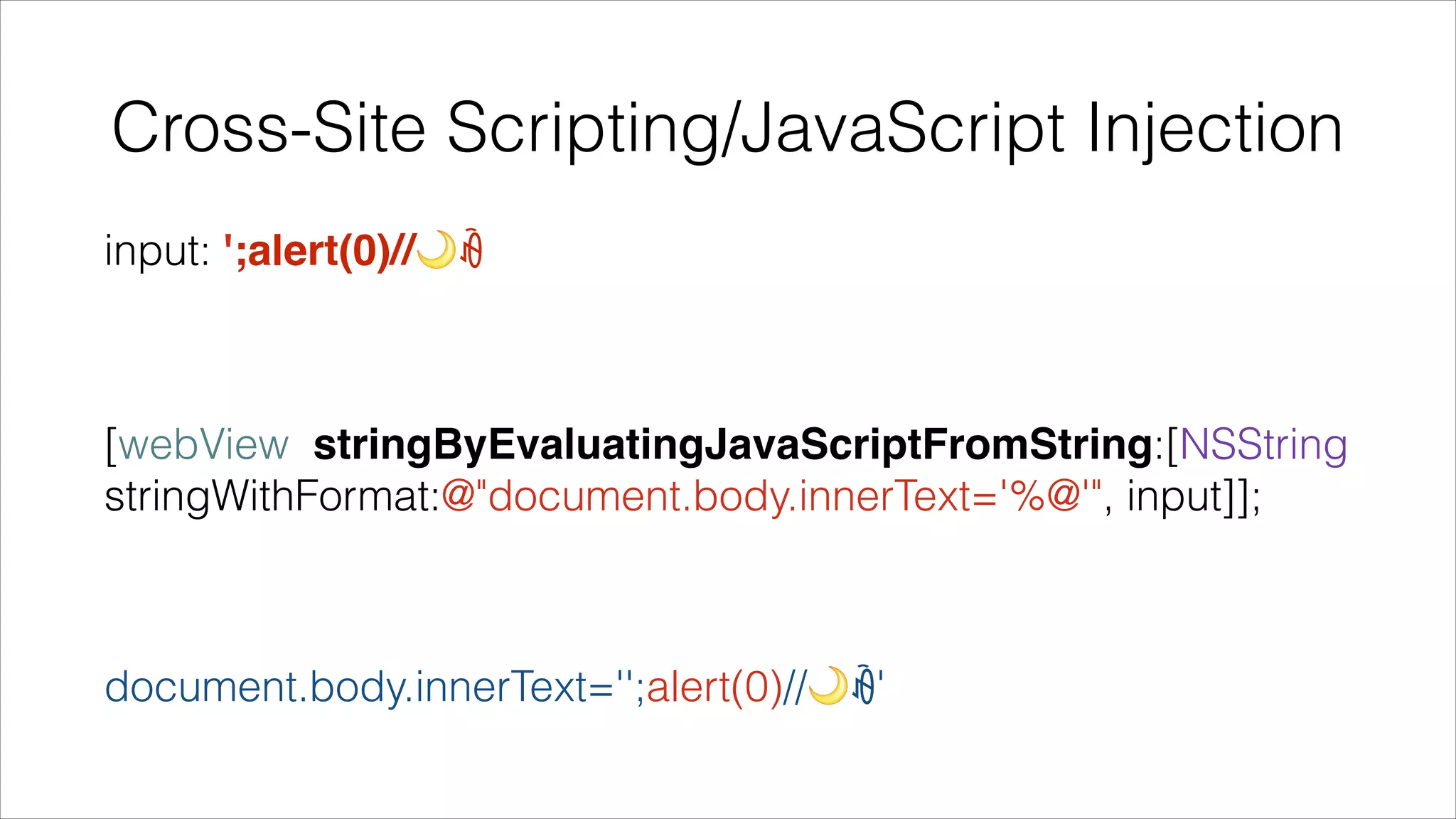

36. Cross-Site Scripting/JavaScript Injection

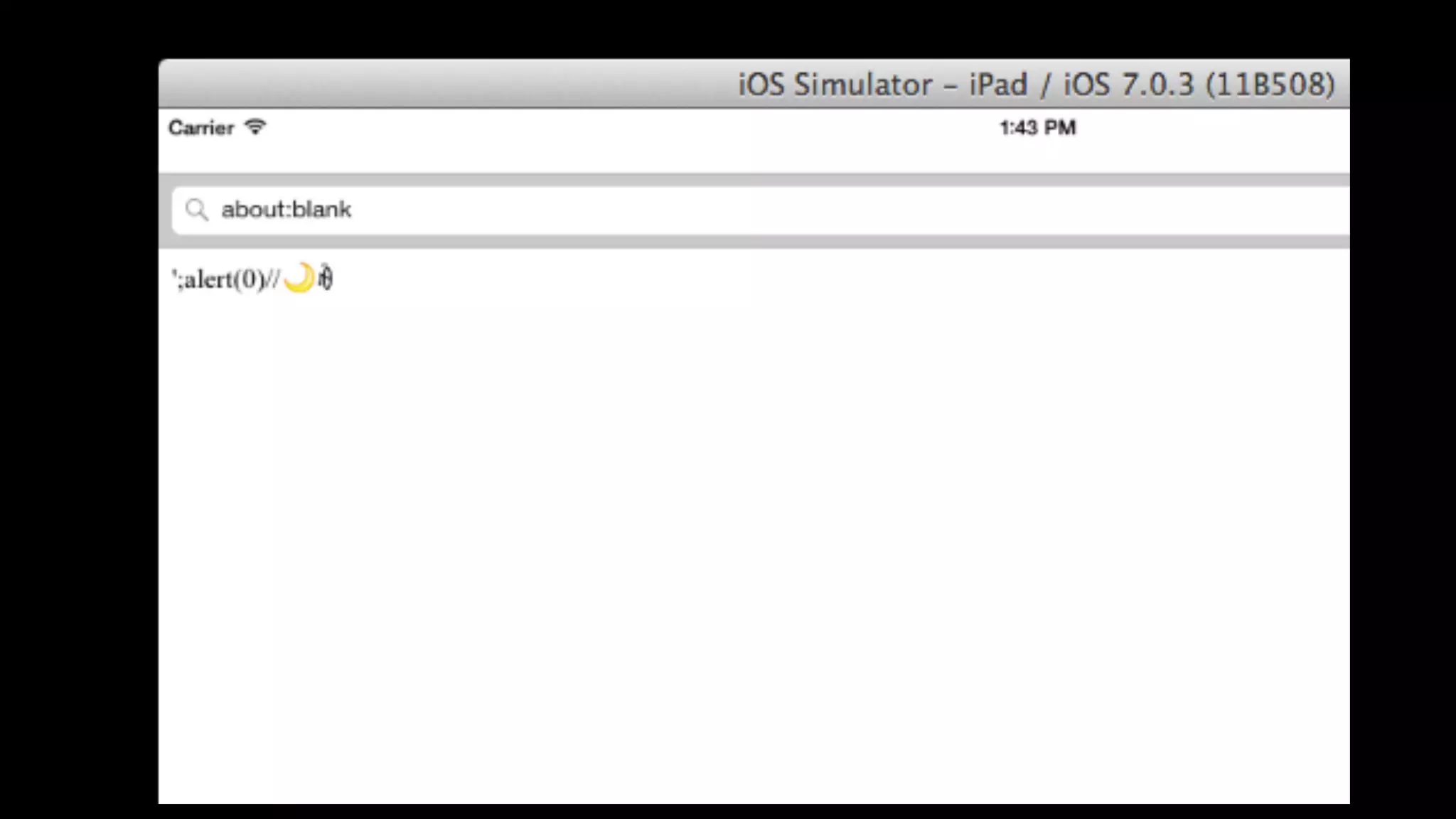

input: ';alert(0)//🌙ꆁ
!
[webView stringByEvaluatingJavaScriptFromString:[NSString
stringWithFormat:@"document.body.innerText='%@'", input]];
!
document.body.innerText='';alert(0)//🌙ꆁ'

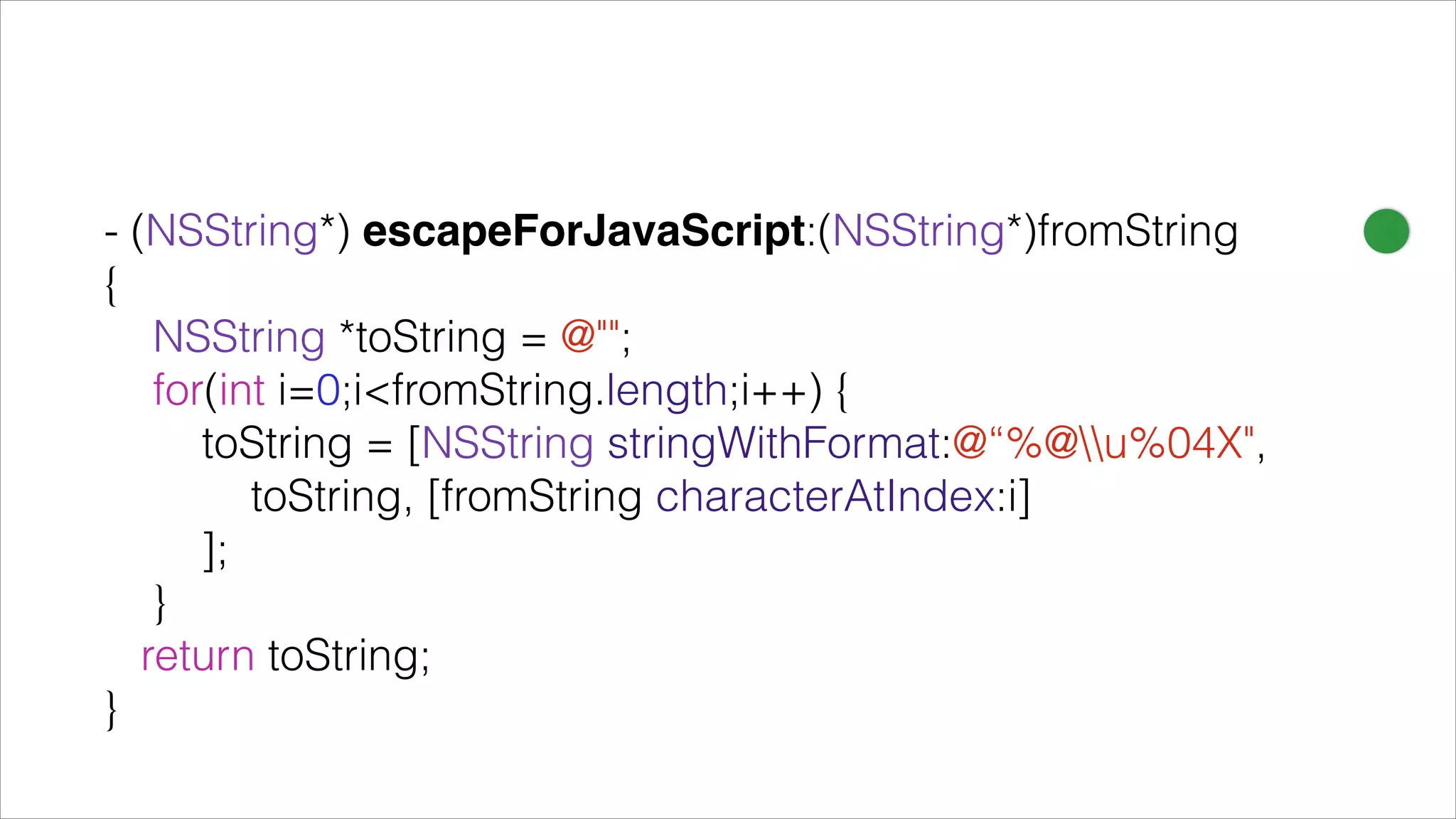

38. - (NSString*) escapeForJavaScript:(NSString*)fromString
{
NSString *toString = @"";
for(int i=0;i<fromString.length;i++) {
toString = [NSString stringWithFormat:@“%@u%04X",
toString, [fromString characterAtIndex:i]
];
}
return toString;
}

39. escapeForJavaScript
input: ‘;alert(0)//🌙ꆁ
!
[webView stringByEvaluatingJavaScriptFromString:[NSString
stringWithFormat:@"document.body.innerText='%@'",
[self escapeForJavaScript:input]
]];
document.body.innerText='u0027u003Bu0061u006C
u0065u0072u0074u0028u0030u0029u002Fu002FuD83C
uDF19uA181'

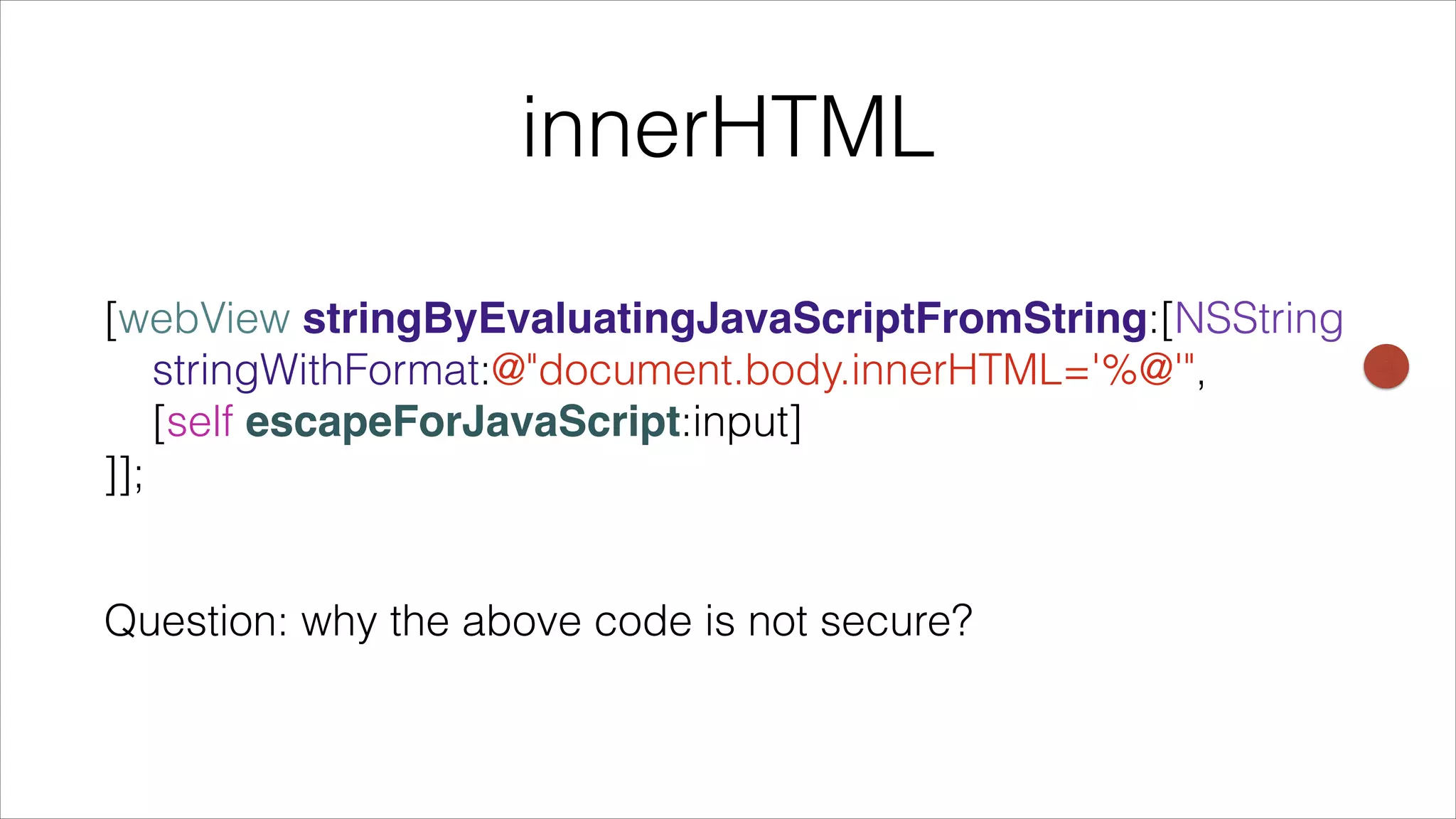

41. innerHTML
[webView stringByEvaluatingJavaScriptFromString:[NSString
stringWithFormat:@"document.body.innerHTML='%@'",
[self escapeForJavaScript:input]
]];
!
Question: why the above code is not secure?

42. innerHTML
input: <img src=x onerror=alert(0)>
!
[webView stringByEvaluatingJavaScriptFromString:[NSString
stringWithFormat:@"document.body.innerHTML='%@'",
[self escapeForJavaScript:input]
]];
document.body.innerHTML='u003Cu0069u006D
u0067u0020u0073u0072u0063u003Du0078u0020u006F
u006Eu0065u0072u0072u006Fu0072u003Du0061u006C
u0065u0072u0074u0028u0030u0029u003E'

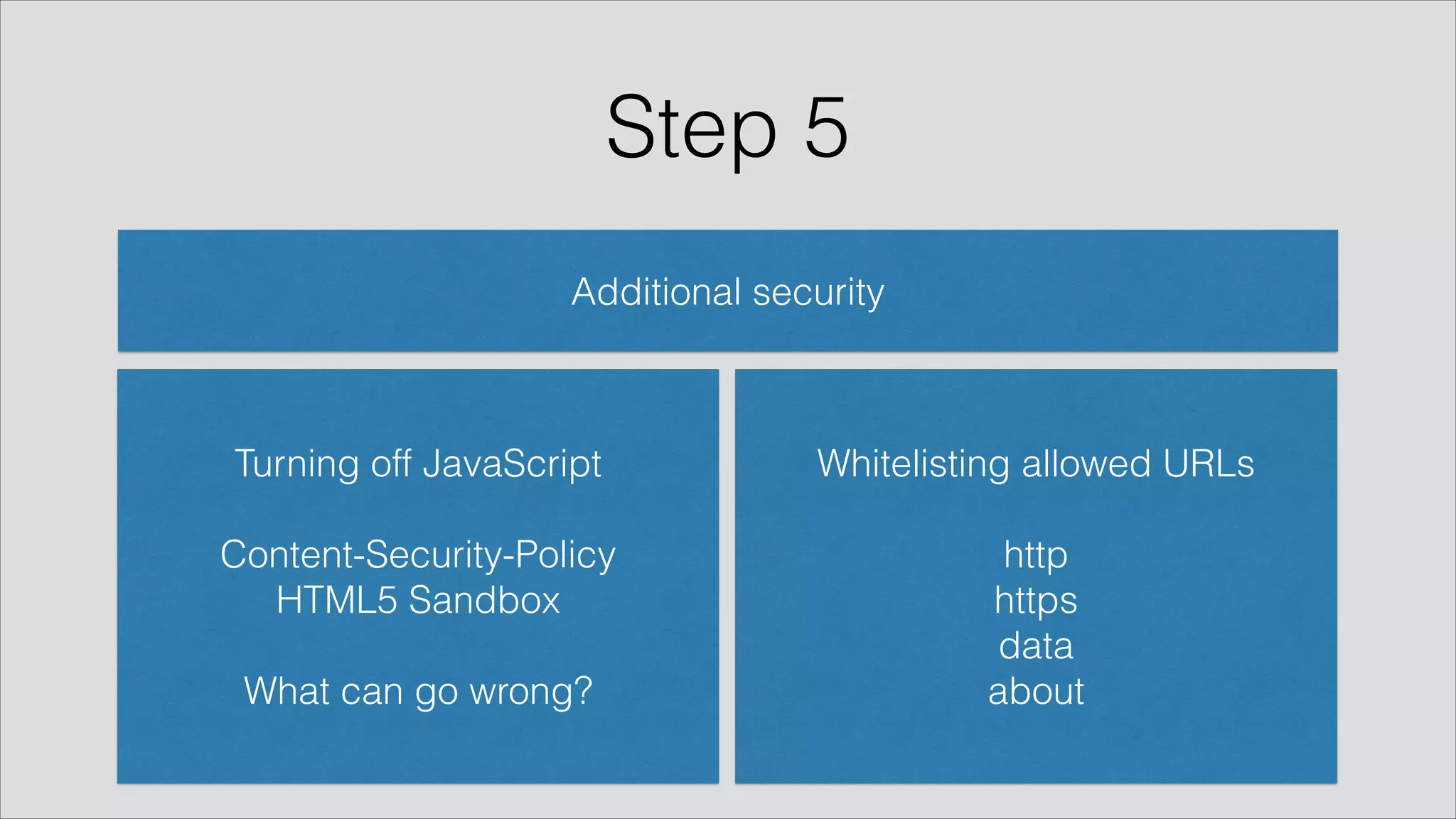

44. Step 5
Additional security
Whitelisting allowed URLs
!
http
https
data
about
Turning off JavaScript
!
Content-Security-Policy
HTML5 Sandbox
!
What can go wrong?

45. [webView loadRequest:
[NSURLRequest requestWithURL:
[NSURL URLWithString:@“https://unknown.tld/untrusted.php“]
]
];

46. - (void)connection:(NSURLConnection *)connection didReceiveResponse:(NSHTTPURLResponse *)response
{
NSMutableDictionary *mHeaders = [NSMutableDictionary dictionary];
NSString *CSP = @"default-src 'none'; img-src *;style-src 'unsafe-inline' *;child-src *;frame-src *;sandbox allow-
forms allow-top-navigation";
for(id h in response.allHeaderFields) {
if(![[h lowercaseString] isEqualToString:@"content-security-policy"]
&& ![[h lowercaseString] isEqualToString:@"x-webkit-csp"]) {
[mHeaders setObject:response.allHeaderFields[h] forKey:h];
}
}
[mHeaders setObject:CSP forKey:@"Content-Security-Policy"];
[mHeaders setObject:CSP forKey:@"X-Webkit-CSP"];
NSHTTPURLResponse *mResponse = [[NSHTTPURLResponse alloc]
initWithURL:response.URL statusCode:response.statusCode
HTTPVersion:@"HTTP/1.1" headerFields:mHeaders
];
[self.client URLProtocol:self didReceiveResponse:mResponse
cacheStoragePolicy:NSURLCacheStorageNotAllowed
];
}
?

47. //<UIWebViewDelegate>
- (BOOL)webView:(UIWebView *)webView
shouldStartLoadWithRequest:(NSURLRequest *)request
navigationType:(UIWebViewNavigationType)navigationType
{
if([request.URL.scheme isEqualToString:@"http"
|| [request.URL.scheme isEqualToString:@"https"]
|| [request.URL.scheme isEqualToString:@"about"]
|| [request.URL.scheme isEqualToString:@“data”]) {
return YES;
}
return NO;
}
Question: Will the above code block javascript: URLs? Where?

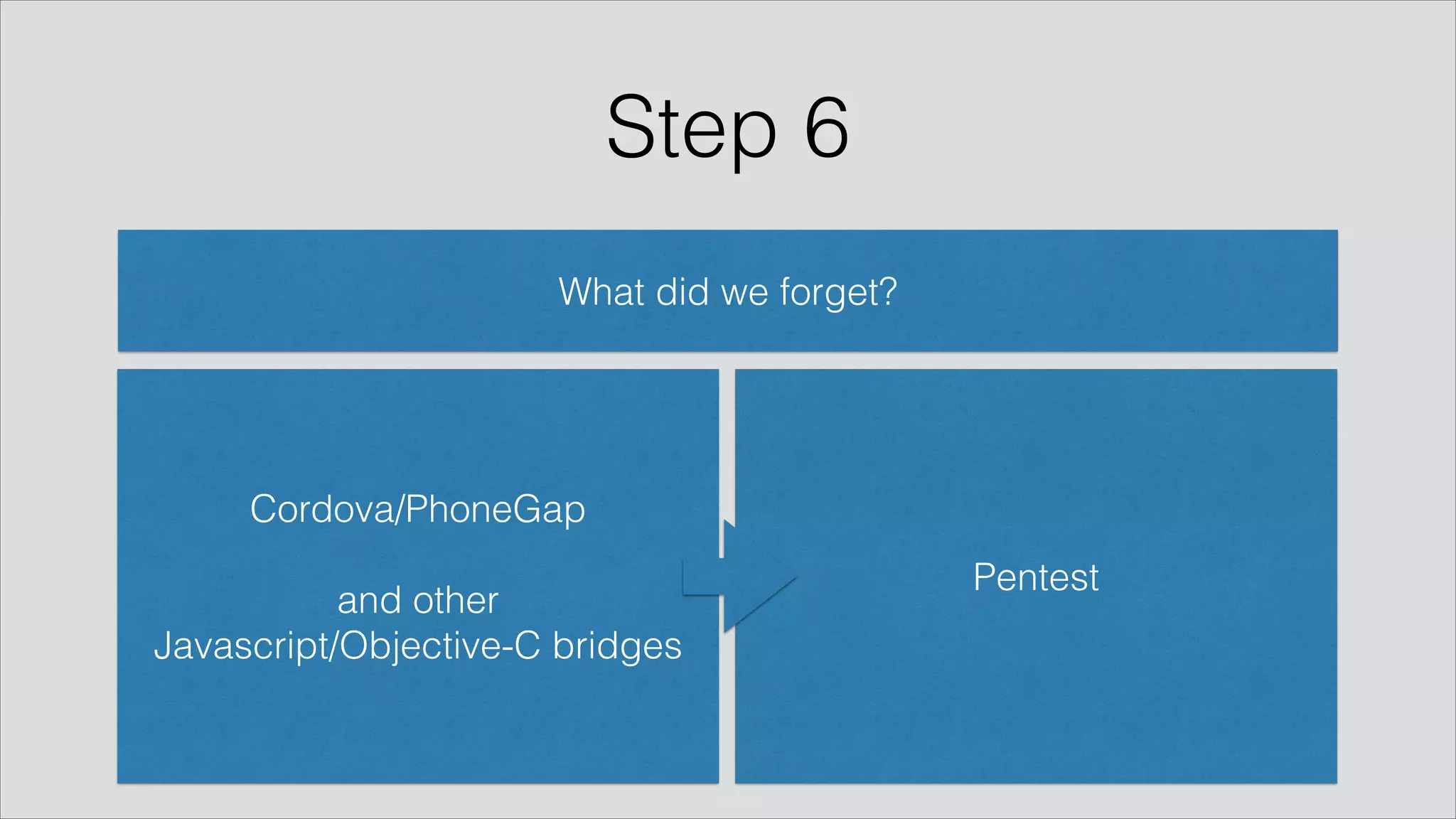

48. Step 6
What did we forget?
Pentest
Cordova/PhoneGap
!
and other
Javascript/Objective-C bridges

49. …

50. Links
(OWASP)
• https://www.owasp.org/index.php/IOS_Application_Security_Testing_Cheat_Sheet
• https://www.owasp.org/index.php/IOS_Developer_Cheat_Sheet
!
(iOS)
• http://www.apple.com/business/accelerator/develop/security.html & https://developer.apple.com/videos/wwdc/2010/
• http://stackoverflow.com/questions/3496505/differences-between-uiwebview-and-mobile-safari
!
(CSP)
• https://www.owasp.org/images/2/2b/Oxdef_csp_poland.pdf & http://niebezpiecznik.pl/OWASP2013-Krakow-CSP.pdf
• http://lists.w3.org/Archives/Public/public-webappsec/2012Mar/0043.html

52. http://browser-shredders.blogspot.com
Teaser: Breaking iOS browsers (before it will be cool ;-)

53. lukasz.pilorz@runic.pl
