WebSockets: Realtime Em Um Mundo Conectado
Bruno Borges
Principal Product Manager
Oracle Latin America
Agosto, 2014

Speaker
•Bruno Borges
–Principal Product Manager, Java Evangelist
–Oracle Latin America
–@brunoborges
–bruno.borges@oracle.com

WebSocket Overview

WebSocket Overview

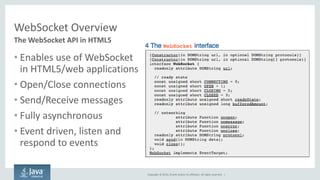

The WebSocket API in HTML5
•Enables use of WebSocket in HTML5/web applications
•Open/Close connections
•Send/Receive messages
•Fully asynchronous
•Event driven, listen and respond to events

WebSocket Overview

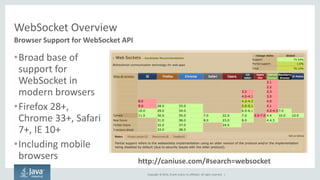

Browser Support for WebSocket API
•Broad base of support for WebSocket in modern browsers
•Firefox 28+, Chrome 33+, Safari 7+, IE 10+
•Including mobile browsers
http://caniuse.com/#search=websocket

WebSocket Overview
Common Use Cases
•Time critical data delivery
–Stocking monitoring, trading
–Ticket reservation, seat selection
•Applications that require true bi-directional exchanges with low latency
–IoT control systems, gaming, gambling
•High levels of interactivity
–Chat systems, online sales engagement tools, support systems for trouble shooting
•High throughput applications

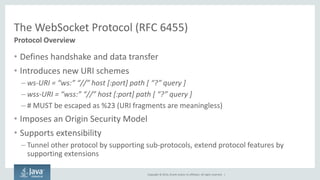

The WebSocket Protocol (RFC 6455)
Protocol Overview
•Defines handshake and data transfer
•Introduces new URI schemes
–ws-URI = “ws:” “//” host [:port] path [ “?” query ]
–wss-URI = “wss:” “//” host [:port] path [ “?” query ]
–# MUST be escaped as %23 (URI fragments are meaningless)
•Imposes an Origin Security Model
•Supports extensibility
–Tunnel other protocol by supporting sub-protocols, extend protocol features by supporting extensions

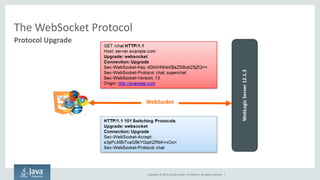

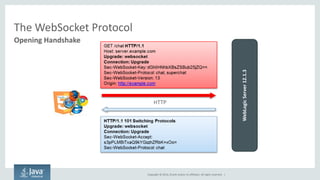

The WebSocket Protocol
Opening Handshake
WebLogic Server 12.1.3
HTTP

Protocol Upgrade
WebSocket

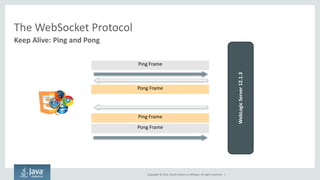

Keep Alive: Ping and Pong
Ping Frame
Pong Frame
Ping Frame
Pong Frame

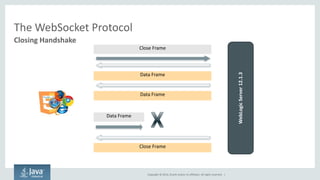

Closing Handshake
Close Frame
Data Frame
Data Frame
Data Frame
Close Frame

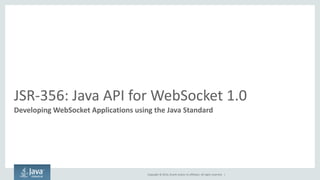

JSR-356: Java API for WebSocket 1.0
Developing WebSocket Applications using the Java Standard

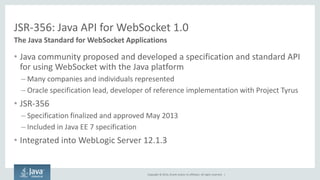

The Java Standard for WebSocket Applications
•Java community proposed and developed a specification and standard API for using WebSocket with the Java platform
–Many companies and individuals represented
–Oracle specification lead, developer of reference implementation with Project Tyrus
•JSR-356
–Specification finalized and approved May 2013
–Included in Java EE 7 specification
•Integrated into WebLogic Server 12.1.3

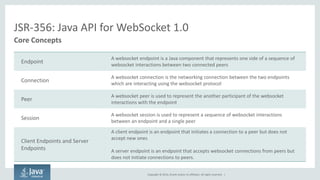

Core Concepts
Endpoint
A websocket endpoint is a Java component that represents one side of a sequence of websocket interactions between two connected peers
Connection
A websocket connection is the networking connection between the two endpoints which are interacting using the websocket protocol
Peer
A websocket peer is used to represent the another participant of the websocket interactions with the endpoint
Session
A websocket session is used to represent a sequence of websocket interactions between an endpoint and a single peer
Client Endpoints and Server Endpoints
A client endpoint is an endpoint that initiates a connection to a peer but does not accept new ones
A server endpoint is an endpoint that accepts websocket connections from peers but does not initiate connections to peers.

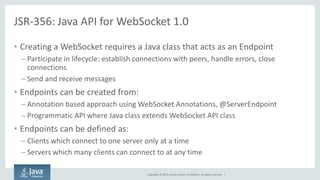

•Creating a WebSocket requires a Java class that acts as an Endpoint
–Participate in lifecycle: establish connections with peers, handle errors, close connections
–Send and receive messages
•Endpoints can be created from:
–Annotation based approach using WebSocket Annotations, @ServerEndpoint
–Programmatic API where Java class extends WebSocket API class
•Endpoints can be defined as:
–Clients which connect to one server only at a time
–Servers which many clients can connect to at any time

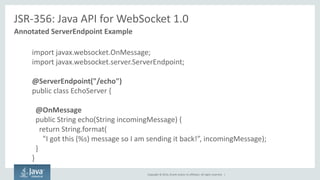

Annotated ServerEndpoint Example
import javax.websocket.OnMessage;
import javax.websocket.server.ServerEndpoint;
@ServerEndpoint("/echo")
public class EchoServer {
@OnMessage
public String echo(String incomingMessage) {
return String.format(
"I got this (%s) message so I am sending it back!”, incomingMessage);
}
}

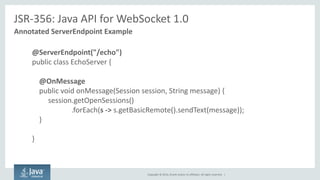

Annotated ServerEndpoint Example
@ServerEndpoint("/echo")
public class EchoServer {
@OnMessage
public void onMessage(Session session, String message) {
session.getOpenSessions() .forEach(s -> s.getBasicRemote().sendText(message));
}
}

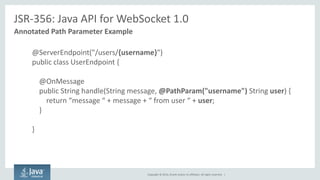

Annotated Path Parameter Example
@ServerEndpoint("/users/{username}")
public class UserEndpoint {
@OnMessage
public String handle(String message, @PathParam("username") String user) {
return “message “ + message + “ from user “ + user;
}
}

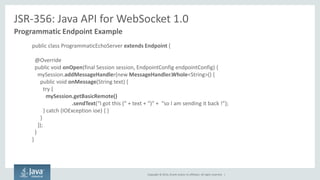

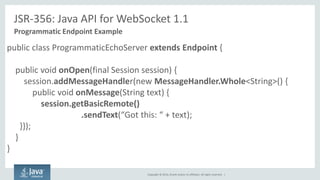

Programmatic Endpoint Example
public class ProgrammaticEchoServer extends Endpoint {
@Override
public void onOpen(final Session session, EndpointConfig endpointConfig) {
mySession.addMessageHandler(new MessageHandler.Whole<String>() {
public void onMessage(String text) {
try {
mySession.getBasicRemote() .sendText(“I got this (“ + text + “)” + “so I am sending it back !”);
} catch (IOException ioe) { }
}
});
}
}

Annotated ClientEndpoint Example
import java.io.IOException;
import javax.websocket.*;
@ClientEndpoint
public class HelloClient {
@OnOpen
public void init(Session session) {
try {
session.getBasicRemote().sendText("Hello you !");
} catch (IOException ioe) {
// error
}
}
}

Programmatic ClientEndpoint Example
public class HelloClient extends Endpoint {
@Override
public void onOpen(Session session, EndpointConfig EndpointConfig) {
try {
session.getBasicRemote().sendText("Hello you !");
} catch (IOException e) {
// error
}
}

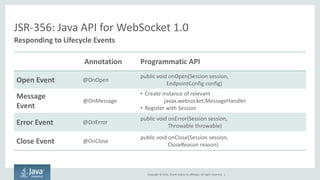

Responding to Lifecycle Events
Annotation
Programmatic API
Open Event
@OnOpen
public void onOpen(Session session, EndpointConfig config)
Message Event
@OnMessage
•Create instance of relevant javax.websocket.MessageHandler
•Register with Session
Error Event
@OnError
public void onError(Session session, Throwable throwable)
Close Event
@OnClose
public void onClose(Session session, CloseReason reason)

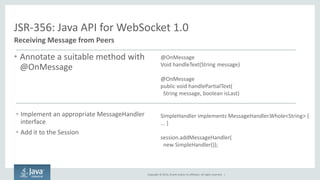

Receiving Message from Peers
•Annotate a suitable method with @OnMessage
•Implement an appropriate MessageHandler interface
•Add it to the Session
@OnMessage
Void handleText(String message)
@OnMessage
public void handlePartialText( String message, boolean isLast)
SimpleHandler implements MessageHandler.Whole<String> { ... }
session.addMessageHandler(
new SimpleHandler());

Receiving Message from Peer with @OnMessage
Message Type
Annotated Method Form
Text
public void handleText(String message)
public void handleReader(Reader r)
public void handleTextPieces(String message, boolean isLast)
Binary
public void handleBinary(ByteBuffer bytebuf)
public void handleStream(InputStream is)
public void handleBinaryPieces(ByteBuffer bytebuf, boolean isLast)
Any Object
public void handleObject(CustomObject co)

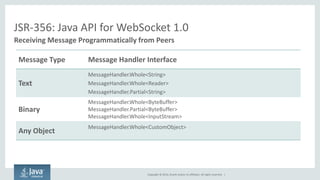

Receiving Message Programmatically from Peers
Message Type
Message Handler Interface
Text
MessageHandler.Whole<String>
MessageHandler.Whole<Reader>
MessageHandler.Partial<String>
Binary
MessageHandler.Whole<ByteBuffer>
MessageHandler.Partial<ByteBuffer>
MessageHandler.Whole<InputStream>
Any Object
MessageHandler.Whole<CustomObject>

Sending Messages to Peers
Return a value from the @OnMessage method
•Access the RemoteEndpoint interface from the Session object
•Call the relevant send method
@OnMessage public String echoToUppercase(String msg) { return msg.toUpperCase(); }
RemoteEndpoint remote = session.getBasicRemote();
remote.sendText(“This is a txt message”);

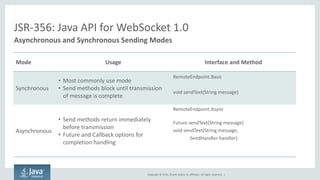

Asynchronous and Synchronous Sending Modes
Mode
Usage
Interface and Method
Synchronous
•Most commonly use mode
•Send methods block until transmission of message is complete
RemoteEndpoint.Basic
void sendText(String message)
Asynchronous
•Send methods return immediately before transmission
•Future and Callback options for completion handling
RemoteEndpoint.Async
Future sendText(String message)
void sendText(String message, SendHandler handler)

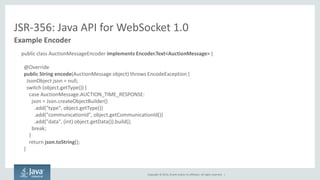

Example Encoder
public class AuctionMessageEncoder implements Encoder.Text<AuctionMessage> {
@Override
public String encode(AuctionMessage object) throws EncodeException {
JsonObject json = null;
switch (object.getType()) {
case AuctionMessage.AUCTION_TIME_RESPONSE:
json = Json.createObjectBuilder()
.add("type", object.getType())
.add("communicationId", object.getCommunicationId())
.add("data", (int) object.getData()).build();
break;
}
return json.toString();
}

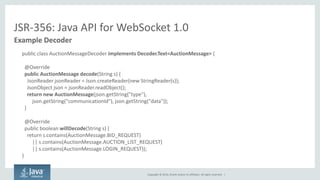

Example Decoder
public class AuctionMessageDecoder implements Decoder.Text<AuctionMessage> {
@Override
public AuctionMessage decode(String s) {
JsonReader jsonReader = Json.createReader(new StringReader(s));
JsonObject json = jsonReader.readObject();
return new AuctionMessage(json.getString("type"),
json.getString("communicationId"), json.getString("data"));
}
@Override
public boolean willDecode(String s) {
return s.contains(AuctionMessage.BID_REQUEST)
|| s.contains(AuctionMessage.AUCTION_LIST_REQUEST)
|| s.contains(AuctionMessage.LOGIN_REQUEST));
}

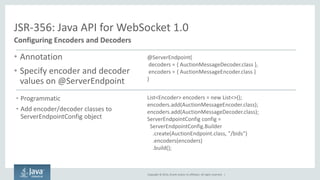

Configuring Encoders and Decoders
•Annotation
•Specify encoder and decoder values on @ServerEndpoint
•Programmatic
•Add encoder/decoder classes to ServerEndpointConfig object
@ServerEndpoint( decoders = { AuctionMessageDecoder.class }, encoders = { AuctionMessageEncoder.class }
)
List<Encoder> encoders = new List<>();
encoders.add(AuctionMessageEncoder.class);
encoders.add(AuctionMessageDecoder.class);
ServerEndpointConfig config = ServerEndpointConfig.Builder
.create(AuctionEndpoint.class, "/bids”)
.encoders(encoders)
.build();

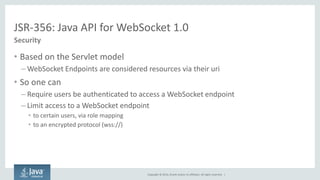

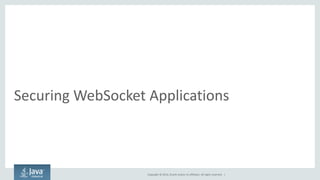

Securing WebSocket Applications

Security
•Based on the Servlet model
–WebSocket Endpoints are considered resources via their uri
•So one can
–Require users be authenticated to access a WebSocket endpoint
–Limit access to a WebSocket endpoint
•to certain users, via role mapping
•to an encrypted protocol (wss://)

Example secured configuration in web.xml
<security-constraint>
<web-resource-collection>
<web-resource-name>Secure Customer WebSocket Endpoint</web-resource-name>
<url-pattern>/customer/feed</url-pattern>
<http-method>GET</http-method>
</web-resource-collection>
<auth-constraint>
<role-name>CUSTOMERS</role-name>
</auth-constraint>
<user-data-constraint>
<transport-guarantee>CONFIDENTIAL</transport-guarantee>
</user-data-constraint>
</security-constraint>
<login-config> <auth-method>BASIC</auth-method> </login-config> <security-role> <role-name>CUSTOMERS</role-name> </security-role>

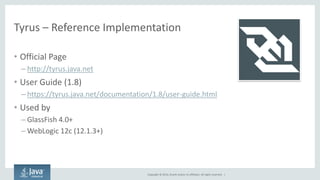

Tyrus – Reference Implementation
•Official Page
–http://tyrus.java.net
•User Guide (1.8)
–https://tyrus.java.net/documentation/1.8/user-guide.html
•Used by
–GlassFish 4.0+
–WebLogic 12c (12.1.3+)

Java EE 7 WebSocket API in WebLogic 12.1.3

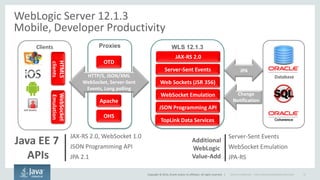

WebLogic Server 12.1.3 Mobile, Developer Productivity
WLS 12.1.3
Clients
HTML5 clients
ADF Mobile
Proxies
OTD
Apache
OHS
Web Sockets (JSR 356)
TopLink Data Services
Server-Sent Events
JAX-RS 2.0
WebSocket Emulation
WebSocket Emulation
JAX-RS 2.0, WebSocket 1.0 JSON Programming API JPA 2.1
Server-Sent Events
WebSocket Emulation
JPA-RS
JPA
Change Notification
Database
JSON Programming API
HTTP/S, JSON/XML
WebSocket, Server-Sent Events, Long polling
Java EE 7
APIs
Additional WebLogic Value-Add
Oracle Confidential – Internal/Restricted/Highly Restricted
37

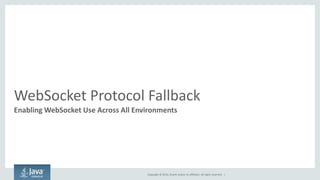

WebSocket Protocol Fallback
Enabling WebSocket Use Across All Environments

Happy HTML5 WebSockets
●HTML5 and the Java API for WebSocket
●Enables lots of new opportunities for developing highly interactive applications and rich user experiences
•Lightweight, fast, easy to program
•Standardizing across the industry
●But ...
●WebSockets are not universally supported across all current environments
●Most browsers support HTML5 and WebSockets - but - not all of them
●Firewalls or proxy servers may block the required frames and protocol

WebSocket Fallback
•Provides a behind-the-scenes fallback mechanism to emulate the WebSocket transport behavior
•Server side with an adapter to handle HTTP Long Polling for WebSocket messages when required
•Client side with JavaScript library - orasocket.js
●Developers
●Use the Java API for WebSocket to developer your application, enable fallback via web.xml context-param
●Use the HTML5 JavaScript WebSocket API on the client, Include OraSocket.js on client pages
●Same codebase for native WebSocket Protocol and fallback
●Transparent runtime behavior

Configure Web Applications for WebSockets Fallback Support
•Import orasocket.js in HTML
•Modify web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0">
<context-param>
<description>Enable fallback mechanism</description>
<param-name>com.oracle.tyrus.fallback.enabled</param-name>
<param-value>true</param-value>
</context-param>
</web-app>

WebSocket Connections with Fallback
Composed
Framed
Sent
// JS Client ws = new WebSocket(“ws://” + uri); ws.onmessage = function (evt) { … }; ws.open = function(evt) { ... } ws.onerror = function (evt) { ... }
Dispatcher
<html>
<head>
<link rel="stylesheet" href="css/ style.css" type="text/css"/>
<script type="text/javascript” src="js/orasocket.js"></script>
<script type="text/javascript” src="js/app_code.js">
...
</html>
WebSocket
HTTP Long Poll
Other ...
Received
De-framed
Read
Dispatcher
@ServerEndpoint(value = "/customer/{id}")
public class SuperSocketDemo {
@OnOpen
public void hello(Session remote) { ... }
@OnMessage
public void handleMessage( String message, @PathParam(“id") String userName, Session session) { ... }
@OnClose
public void bye(Session remote) { ... }
}

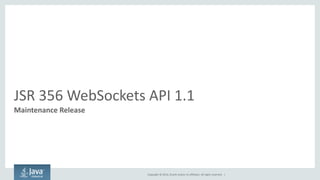

JSR 356 WebSockets API 1.1
Maintenance Release

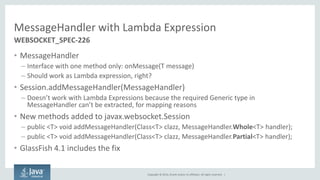

MessageHandler with Lambda Expression
•MessageHandler
–Interface with one method only: onMessage(T message)
–Should work as Lambda expression, right?
•Session.addMessageHandler(MessageHandler)
–Doesn’t work with Lambda Expressions because the required Generic type in MessageHandler can’t be extracted, for mapping reasons
•New methods added to javax.websocket.Session
–public <T> void addMessageHandler(Class<T> clazz, MessageHandler.Whole<T> handler);
–public <T> void addMessageHandler(Class<T> clazz, MessageHandler.Partial<T> handler);
•GlassFish 4.1 includes the fix
WEBSOCKET_SPEC-226

public void onOpen(final Session session) {
session.addMessageHandler(new MessageHandler.Whole<String>() {
public void onMessage(String text) {
session.getBasicRemote() .sendText(“Got this: “ + text);
}});
}
}

public void onOpen(final Session session) {
session.addMessageHandler( String.class, msg -> session.getBasicRemote() .sendText(“Got this: “ + msg));
}
}

WebSockets - Realtime em Mundo Conectado

More Related Content

What's hot

Similar to WebSockets - Realtime em Mundo Conectado

More from Bruno Borges

Recently uploaded

WebSockets - Realtime em Mundo Conectado
