Websockets at tossug

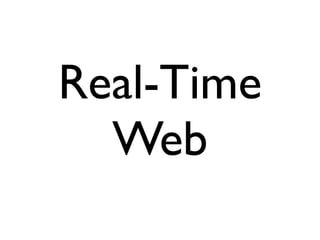

- 1. WebSockets and the Real-TimeWeb tossug 2010-07-06 Chia-liang Kao clkao@clkao.org
- 2.
- 4.
- 5. New information without refreshing the “web-page”
- 6.

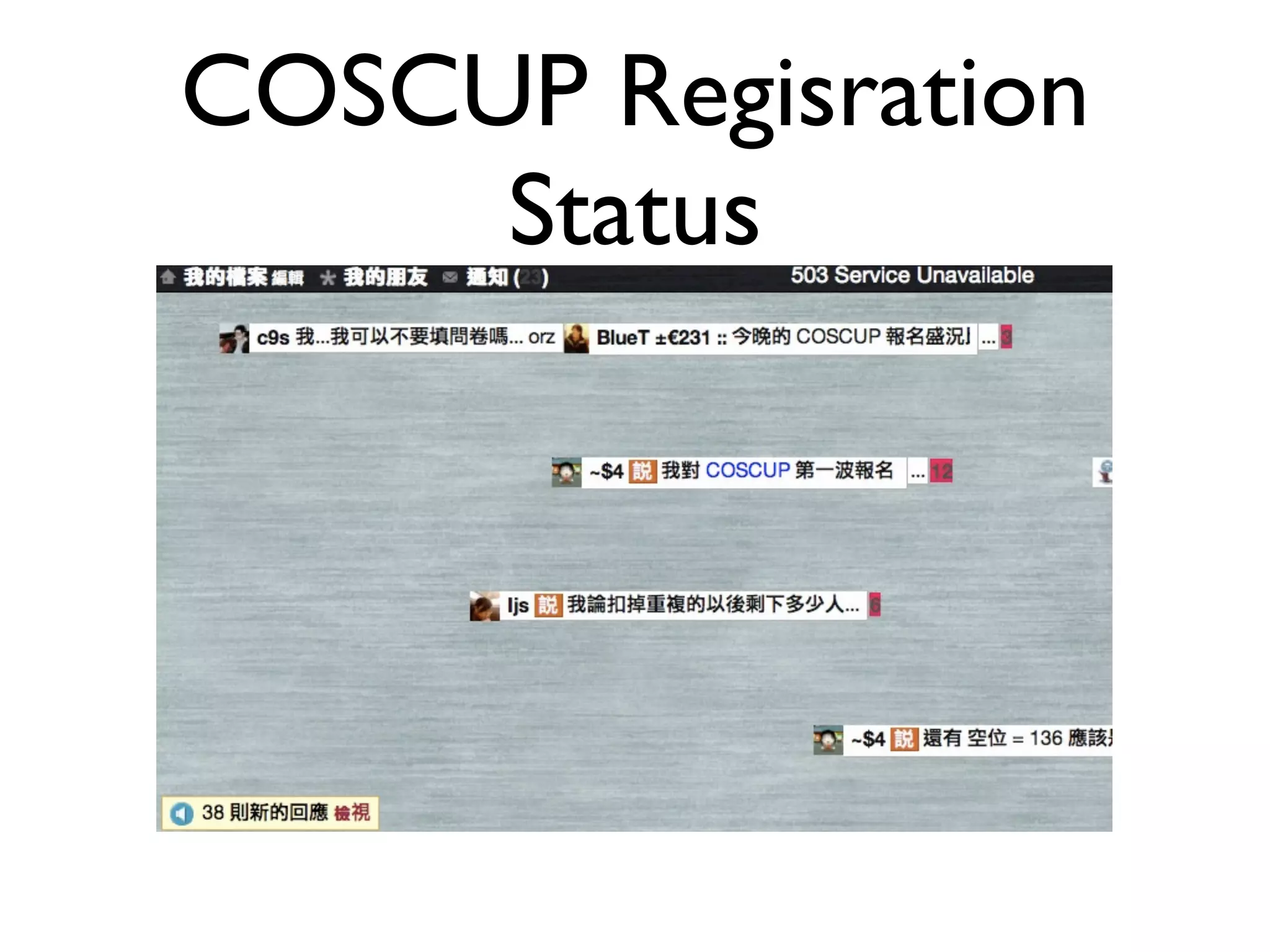

- 7. COSCUP Regisration Status

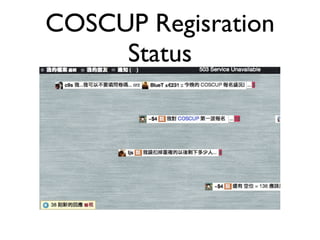

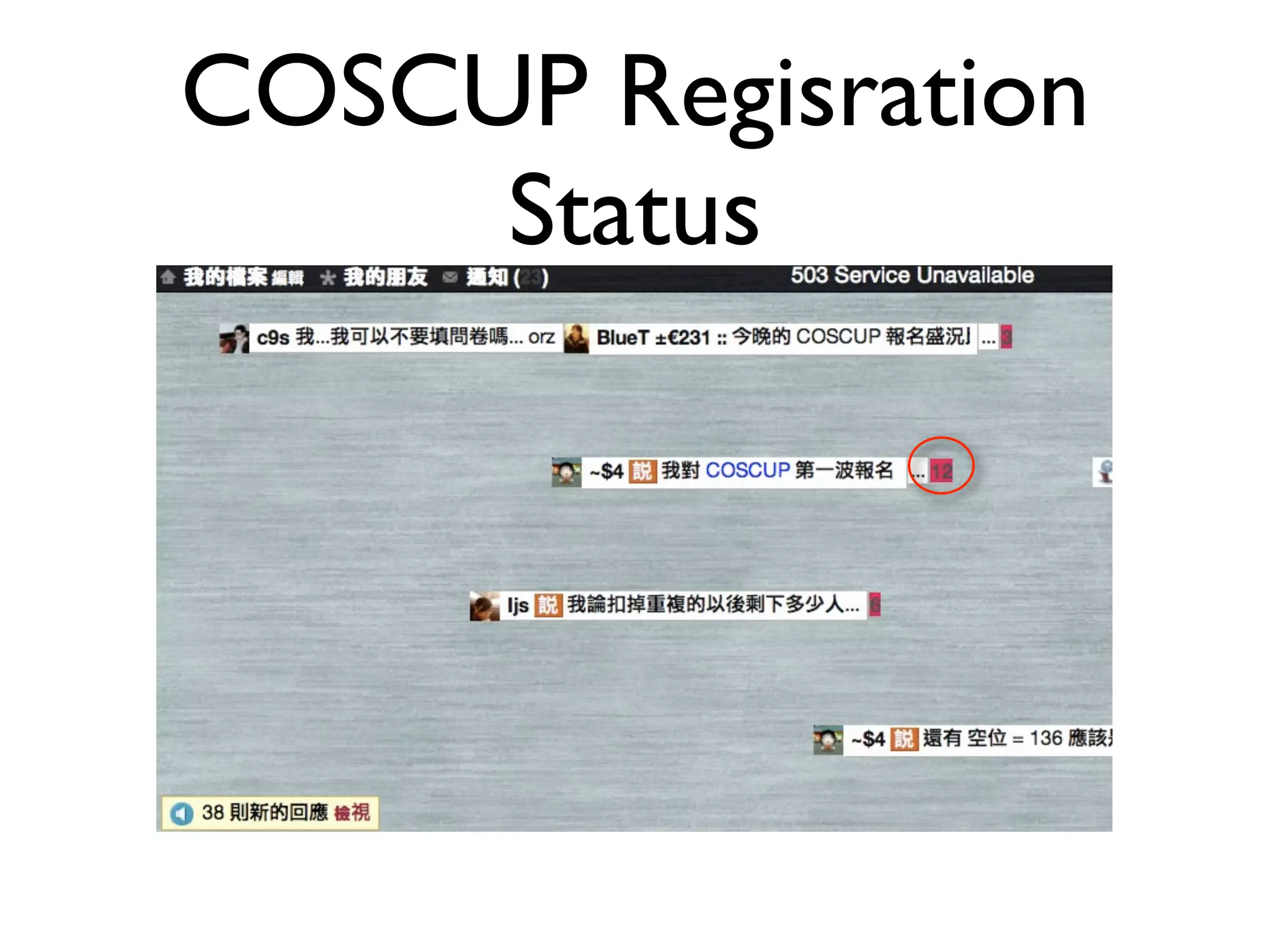

- 8. COSCUP Regisration Status
- 9.
- 10.
- 11.

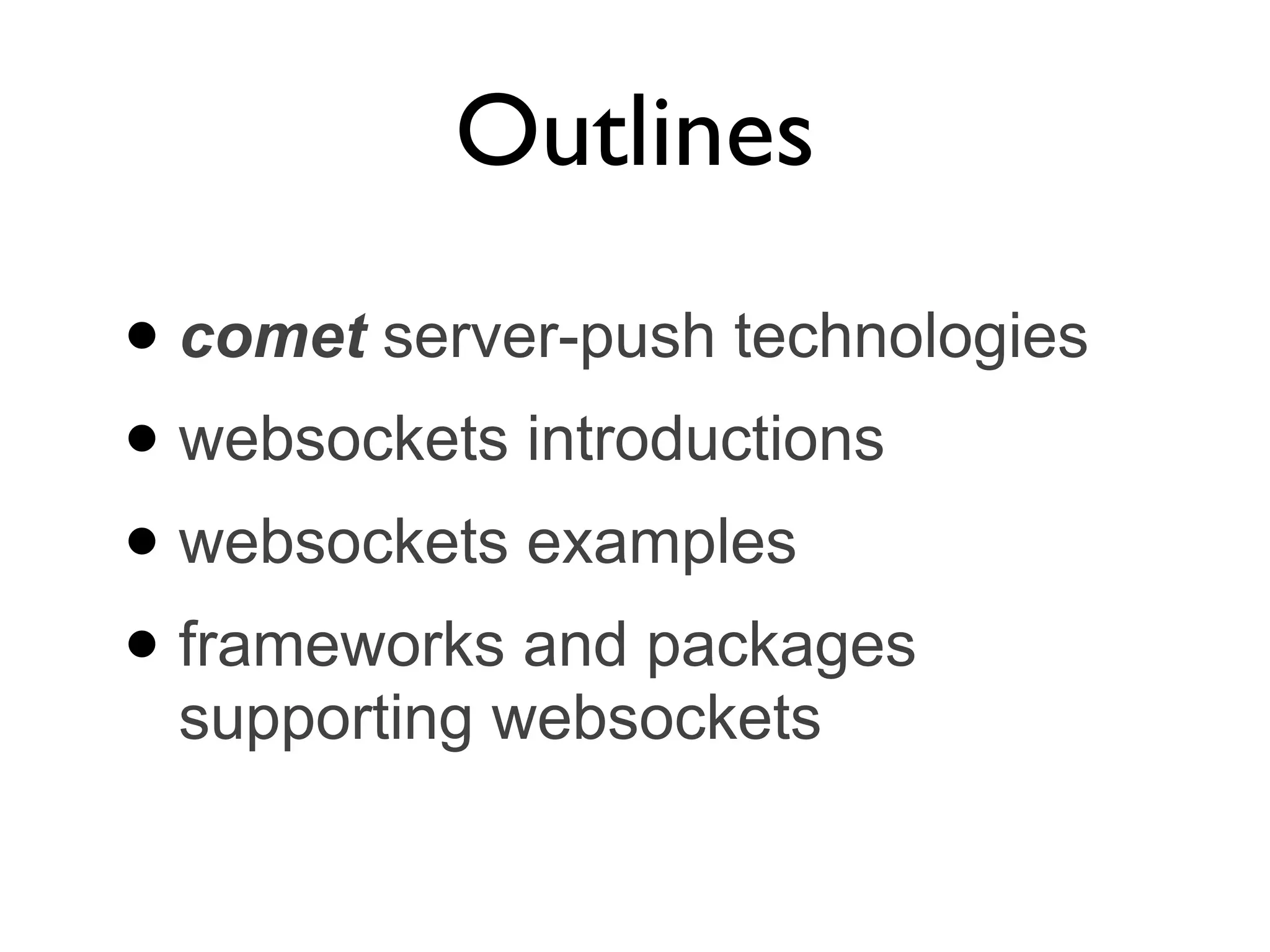

- 12. Outlines • comet server-pushtechnologies • websockets introductions • websockets examples • frameworks and packages supporting websockets

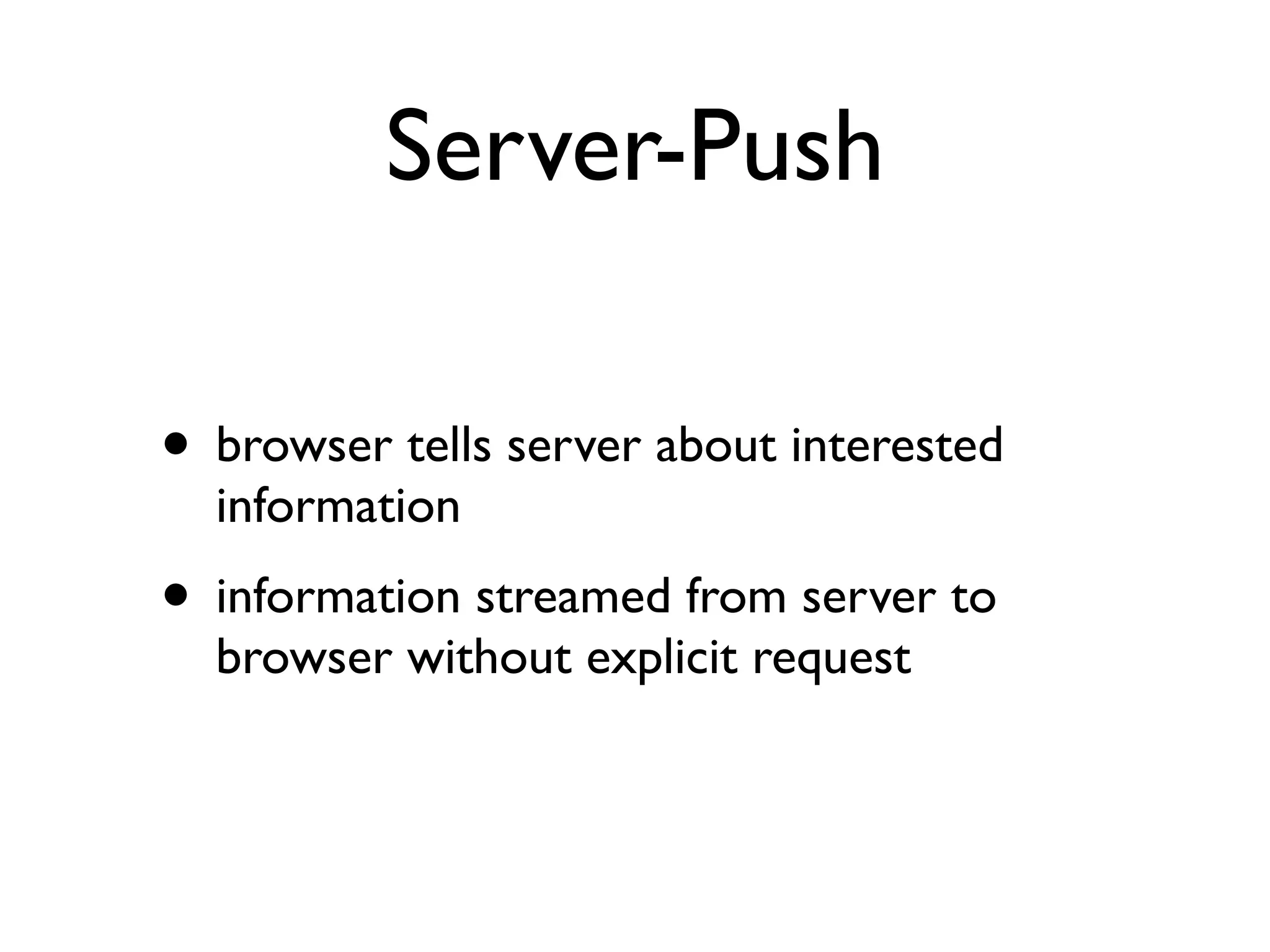

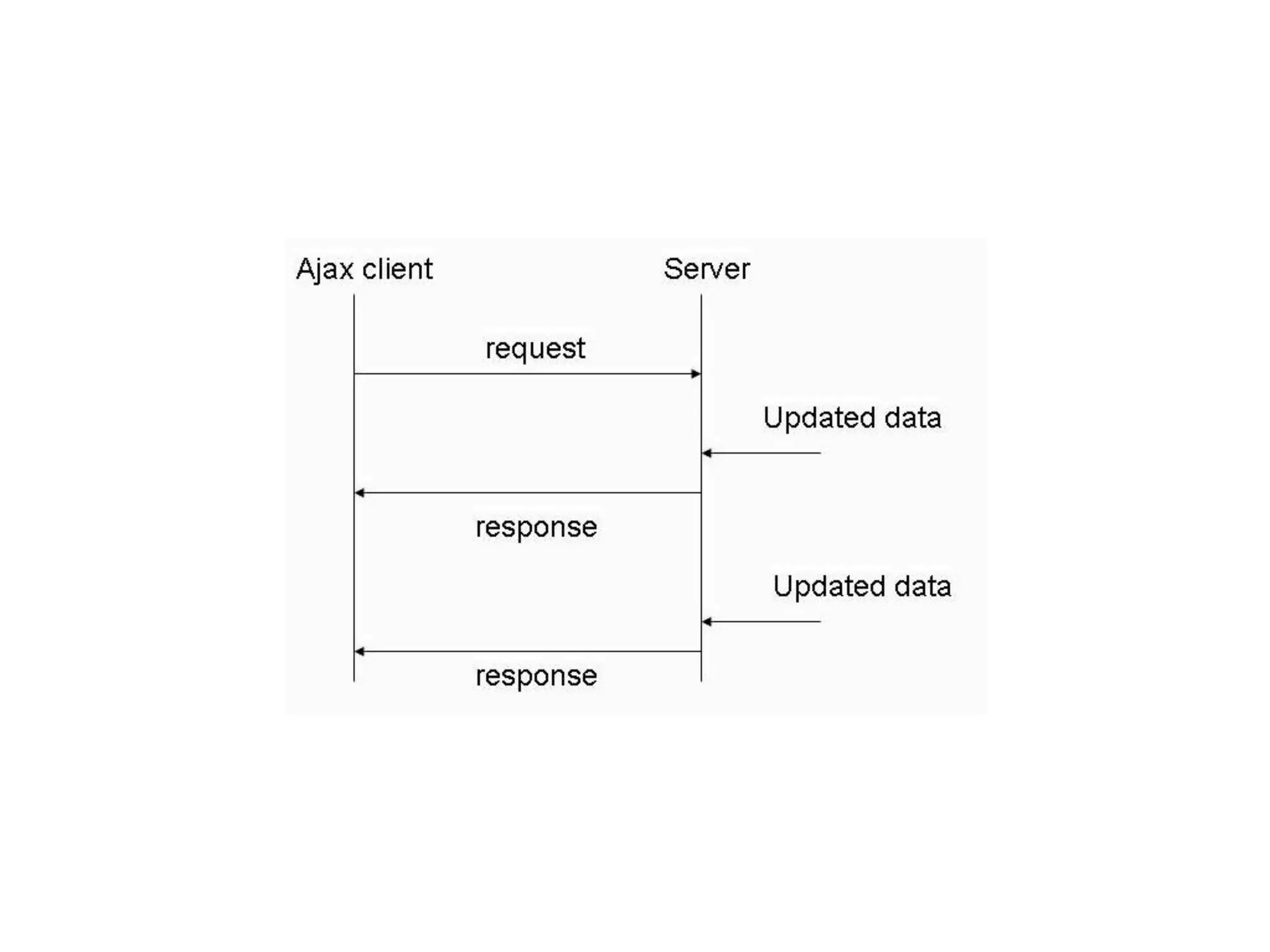

- 13. Server-Push • browser tellsserver about interested information • information streamed from server to browser without explicit request
- 16.

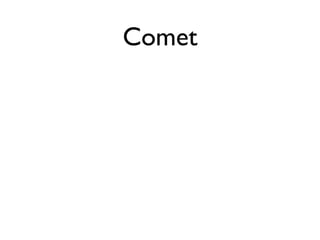

- 17.
- 18.

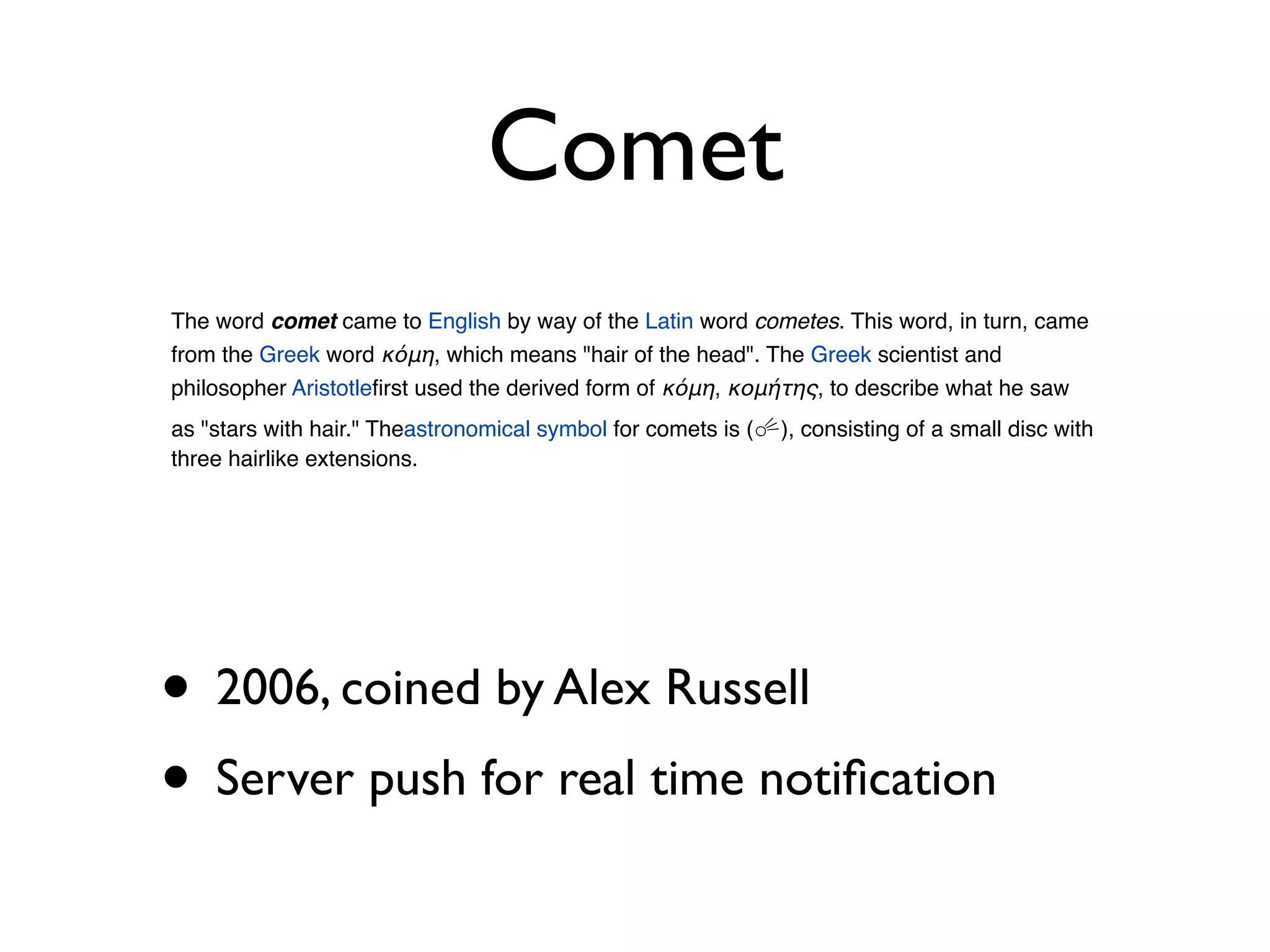

- 19. Comet The word cometcame to English by way of the Latin word cometes. This word, in turn, came from the Greek word κόμη, which means "hair of the head". The Greek scientist and philosopher Aristotlefirst used the derived form of κόμη, κομήτης, to describe what he saw as "stars with hair." Theastronomical symbol for comets is (☄), consisting of a small disc with three hairlike extensions. • 2006, coined by Alex Russell • Server push for real time notification

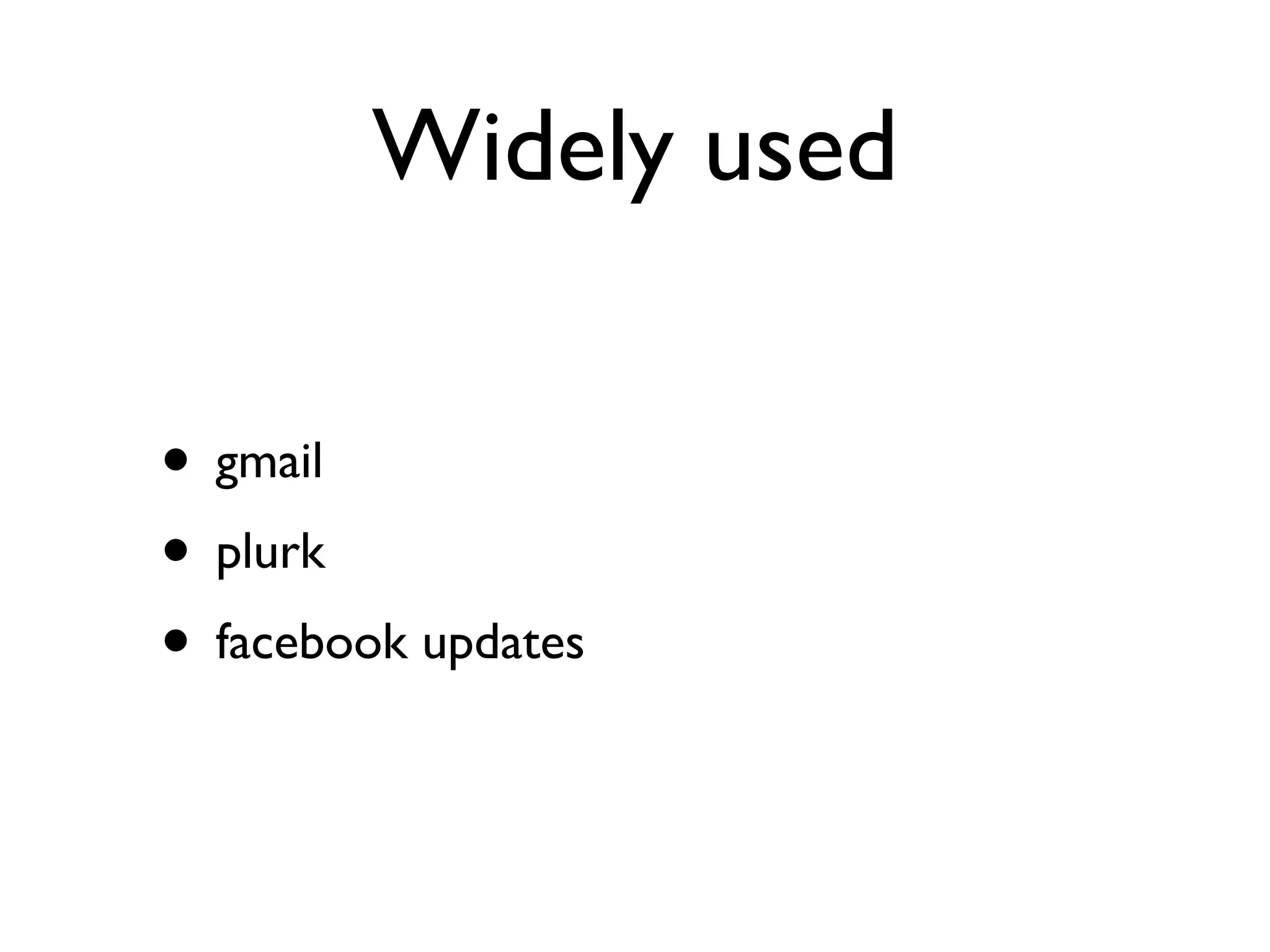

- 20. Widely used • gmail •plurk • facebook updates

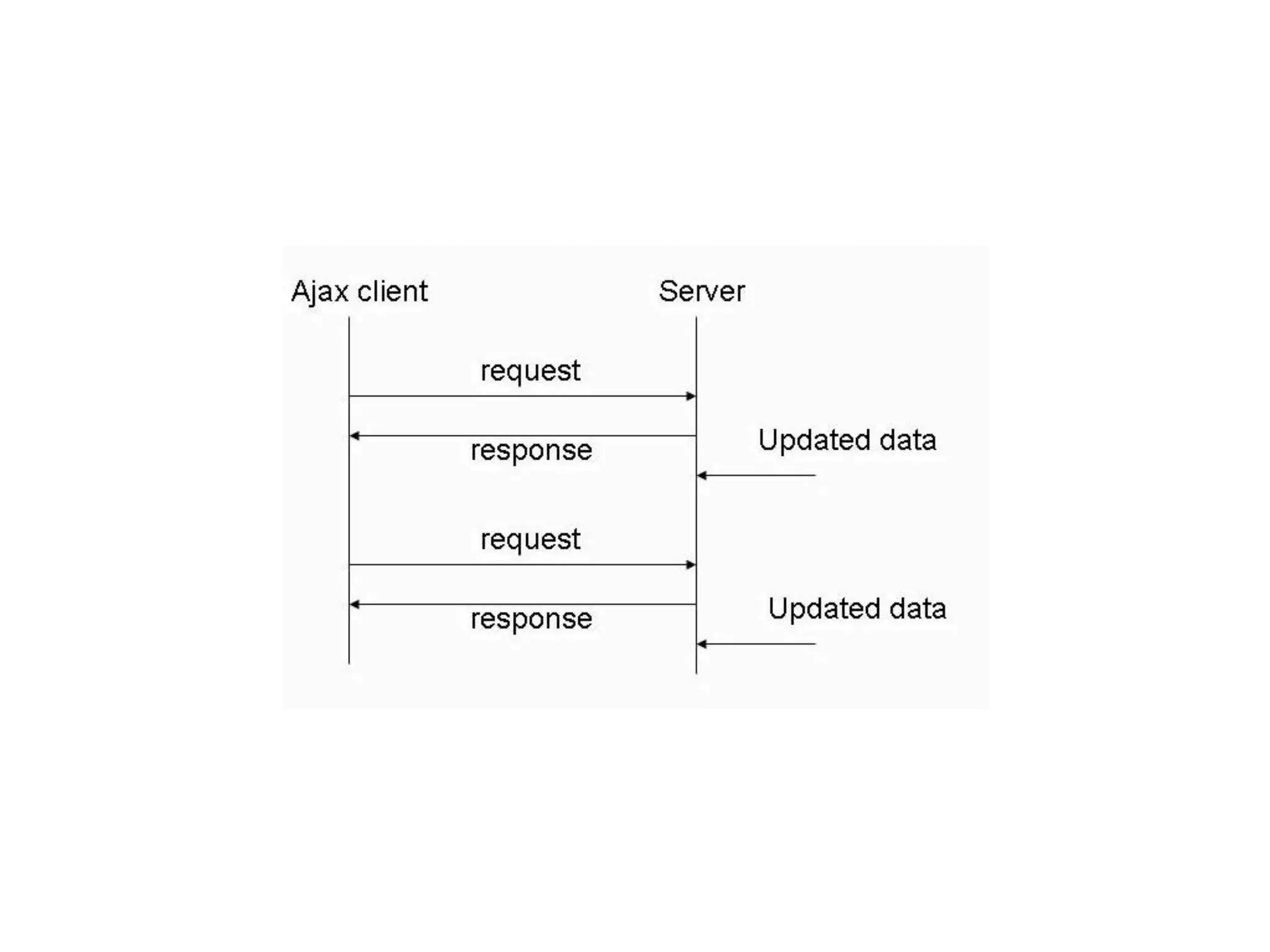

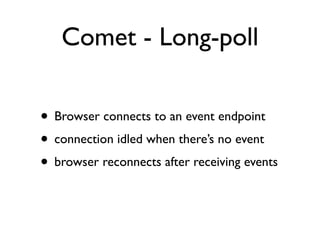

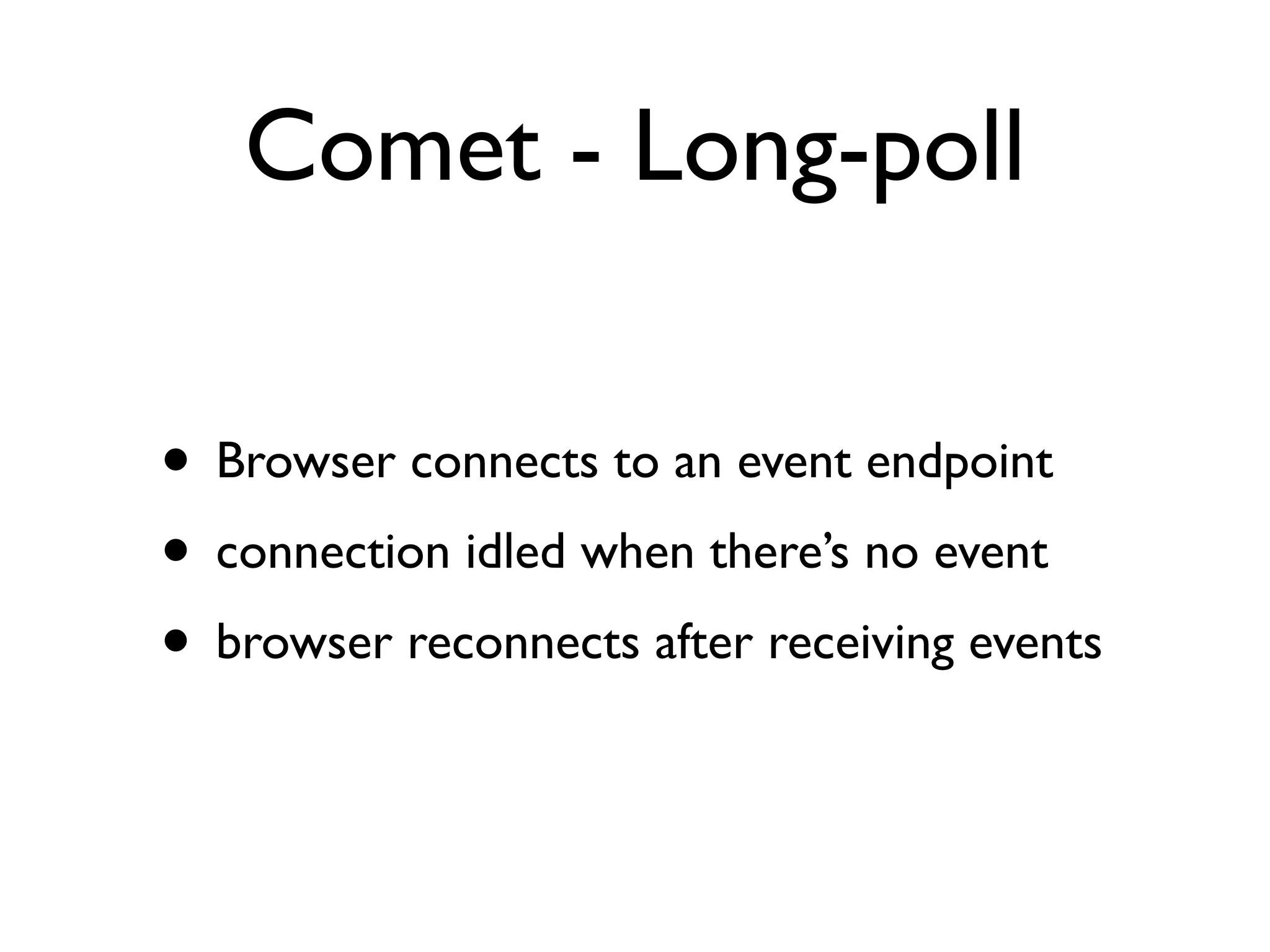

- 21. Comet - Long-poll •Browser connects to an event endpoint • connection idled when there’s no event • browser reconnects after receiving events

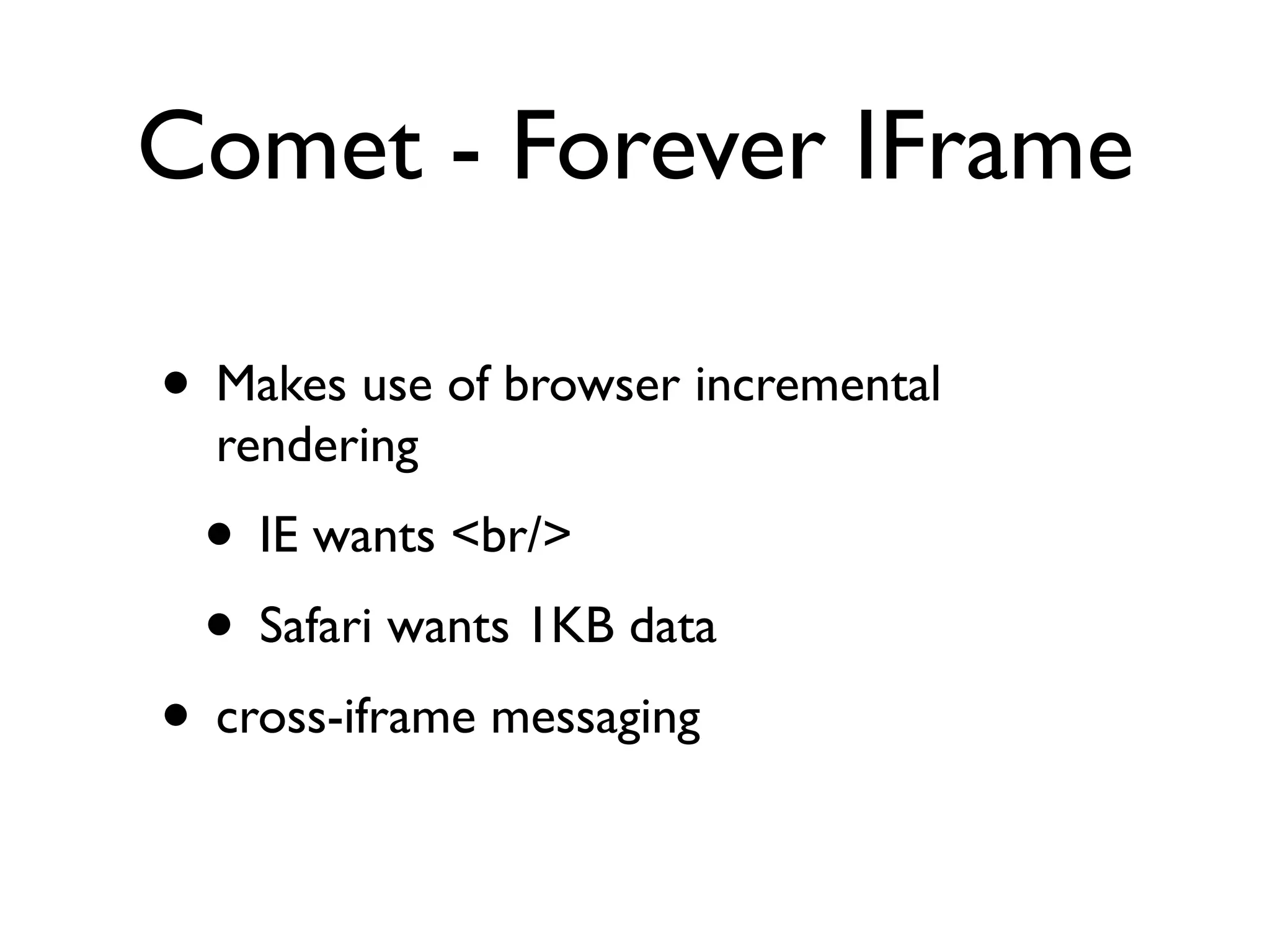

- 22. Comet - ForeverIFrame • Makes use of browser incremental rendering • IE wants <br/> • Safari wants 1KB data • cross-iframe messaging

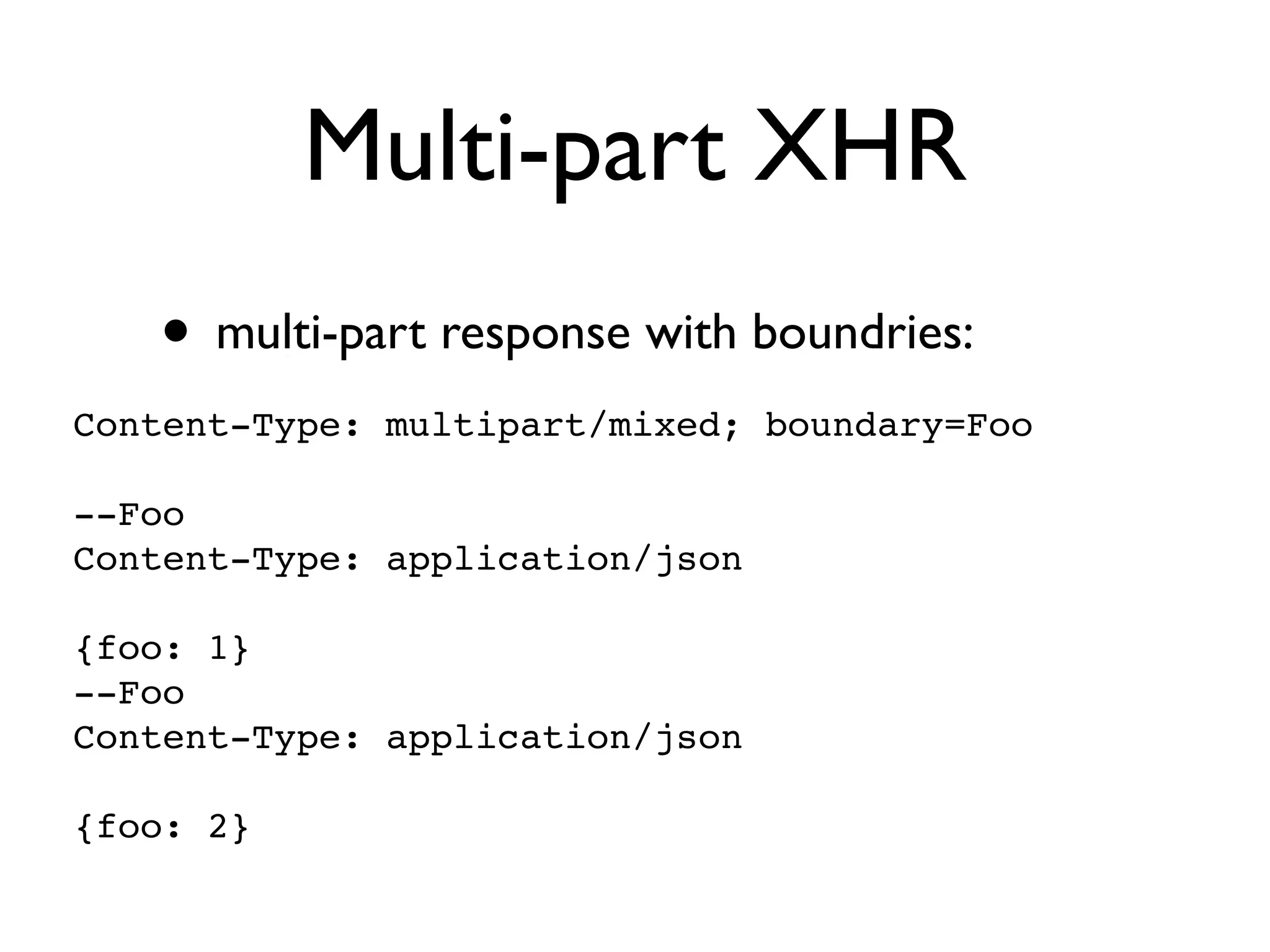

- 23. Multi-part XHR • multi-part response with boundries: Content-Type: multipart/mixed; boundary=Foo --Foo Content-Type: application/json {foo: 1} --Foo Content-Type: application/json {foo: 2}

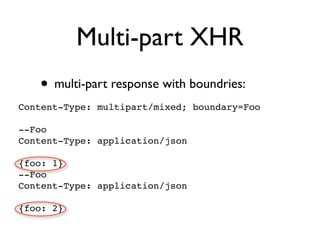

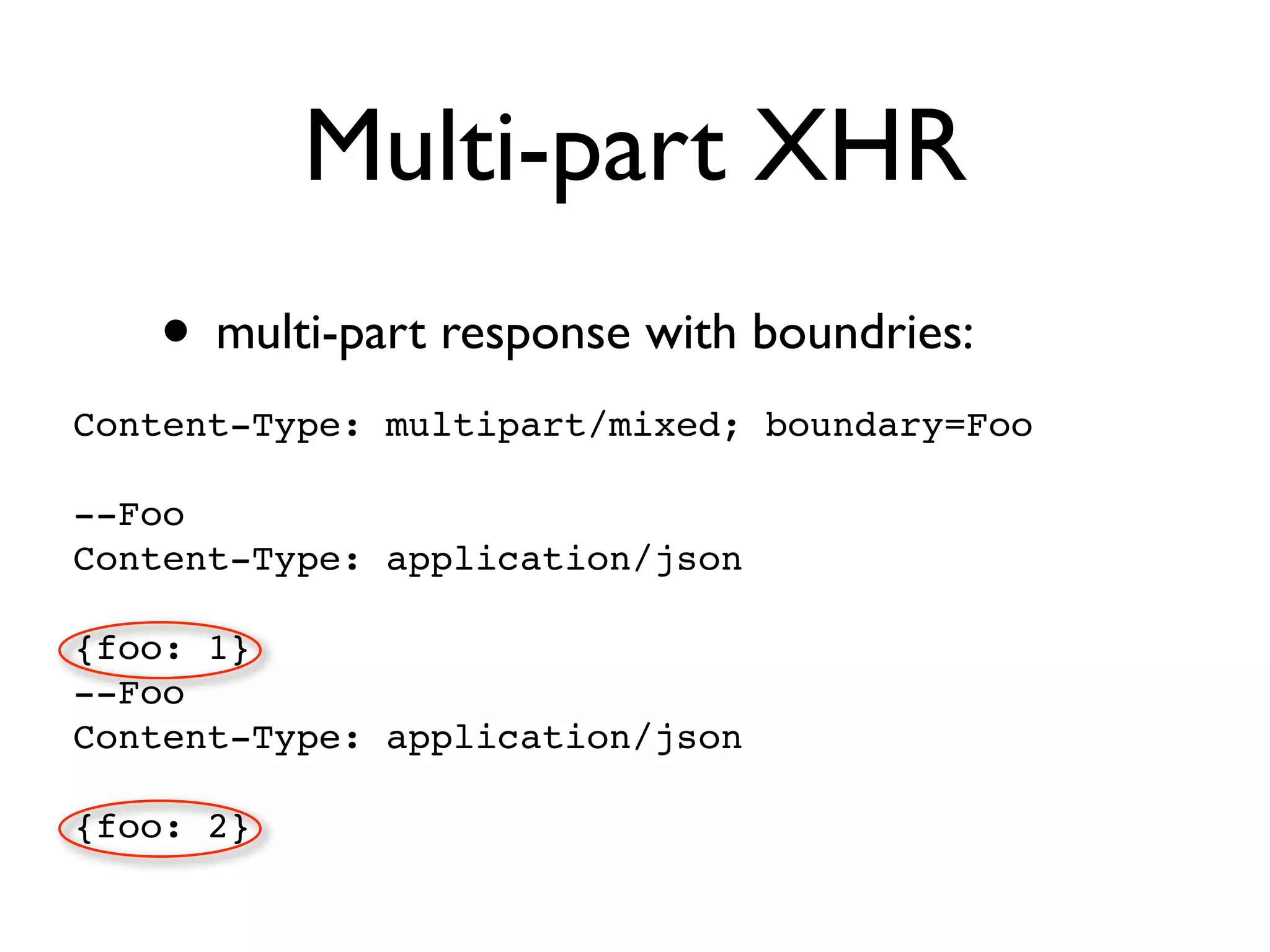

- 24. Multi-part XHR • multi-part response with boundries: Content-Type: multipart/mixed; boundary=Foo --Foo Content-Type: application/json {foo: 1} --Foo Content-Type: application/json {foo: 2}
- 25.

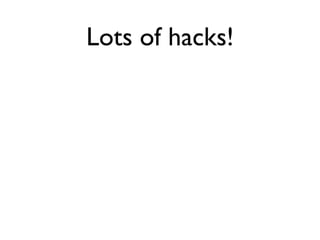

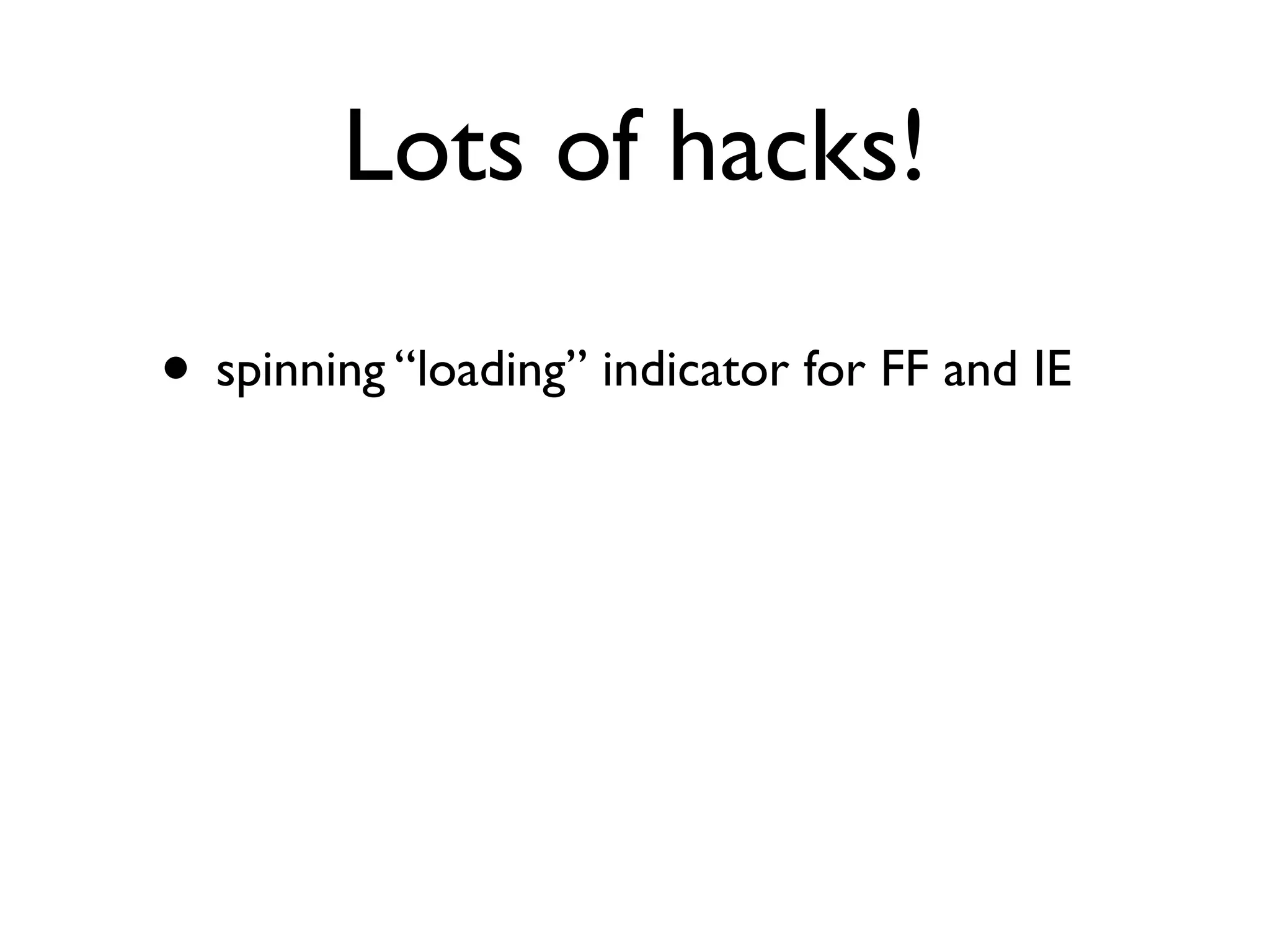

- 26. Lots of hacks! •spinning “loading” indicator for FF and IE

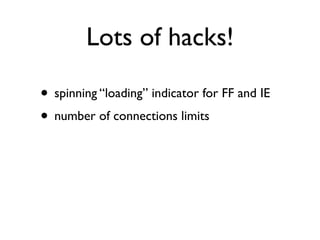

- 27. Lots of hacks! •spinning “loading” indicator for FF and IE • number of connections limits

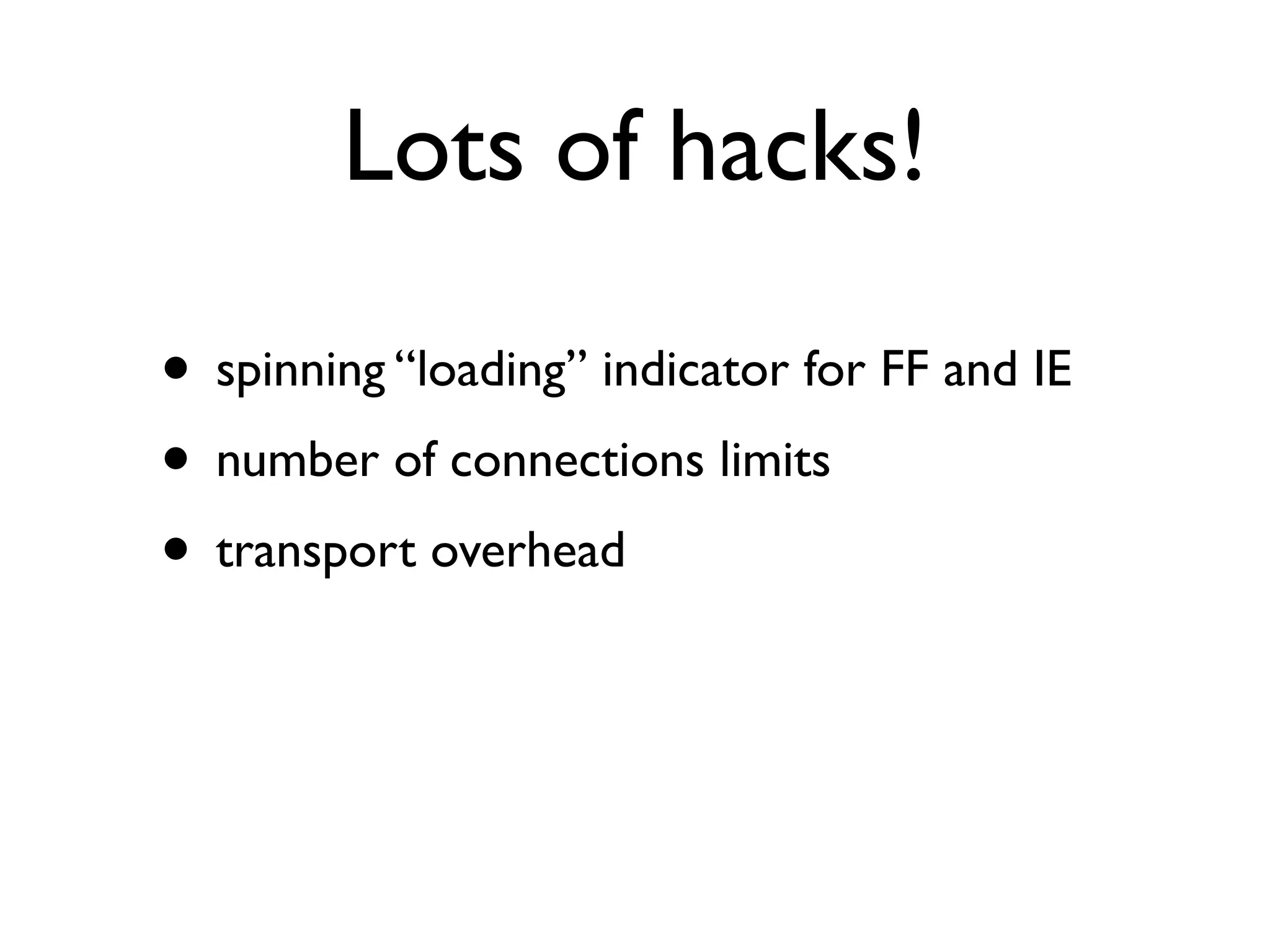

- 28. Lots of hacks! •spinning “loading” indicator for FF and IE • number of connections limits • transport overhead

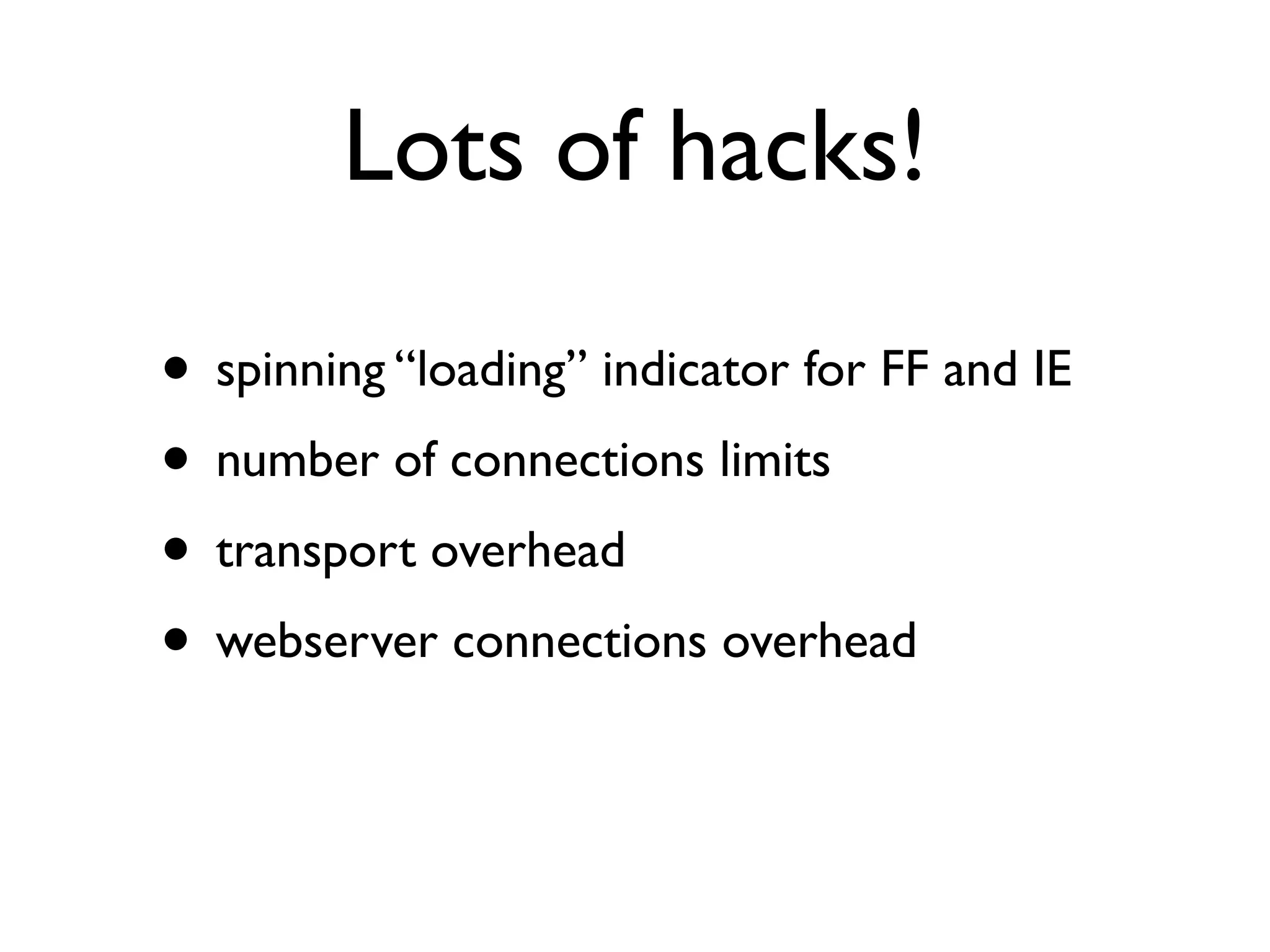

- 29. Lots of hacks! •spinning “loading” indicator for FF and IE • number of connections limits • transport overhead • webserver connections overhead

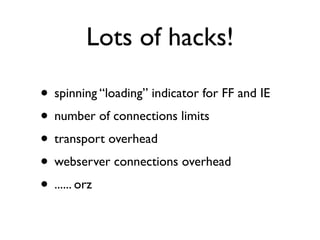

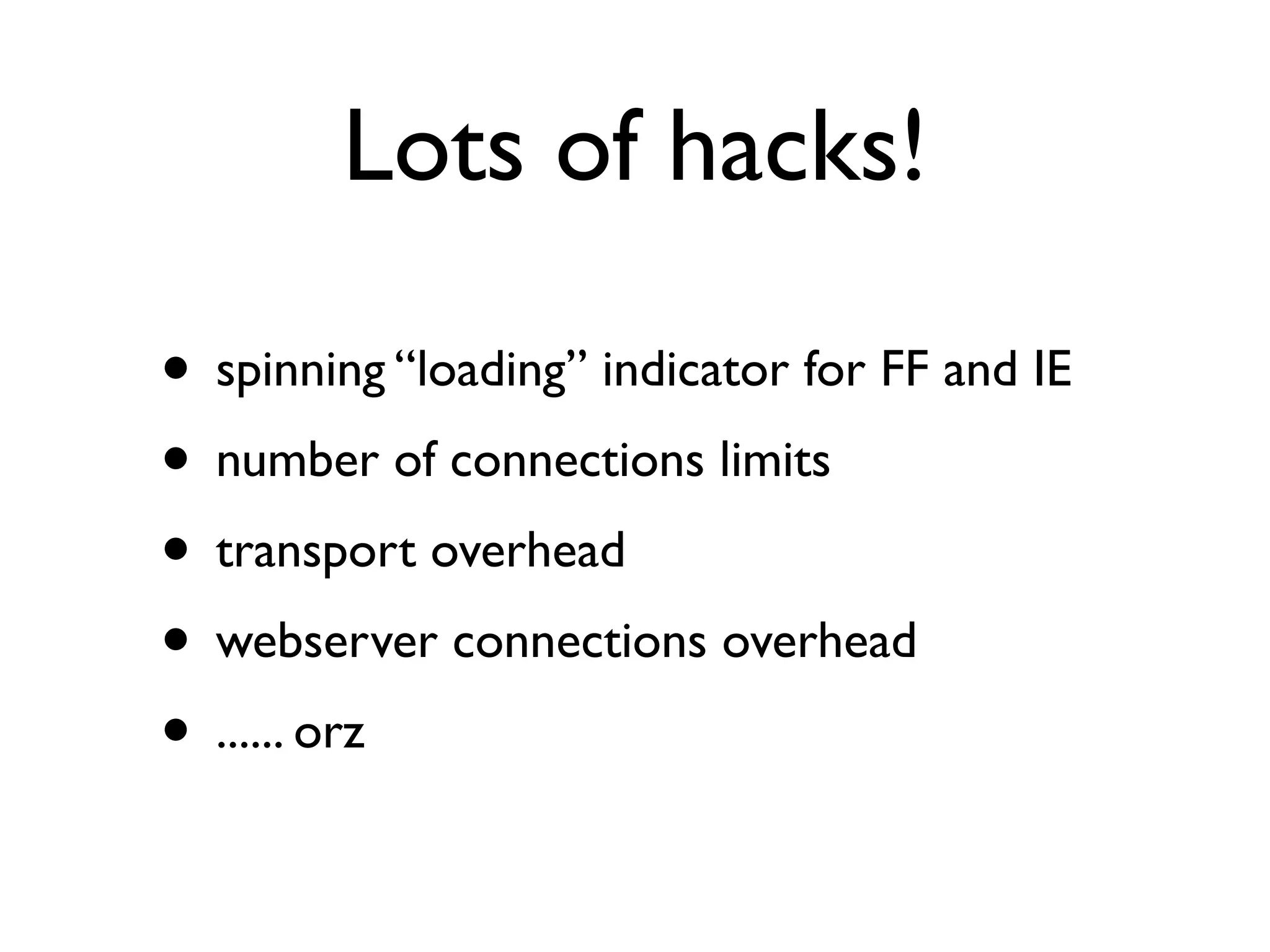

- 30. Lots of hacks! •spinning “loading” indicator for FF and IE • number of connections limits • transport overhead • webserver connections overhead • ...... orz
- 31.
- 33.
- 34.

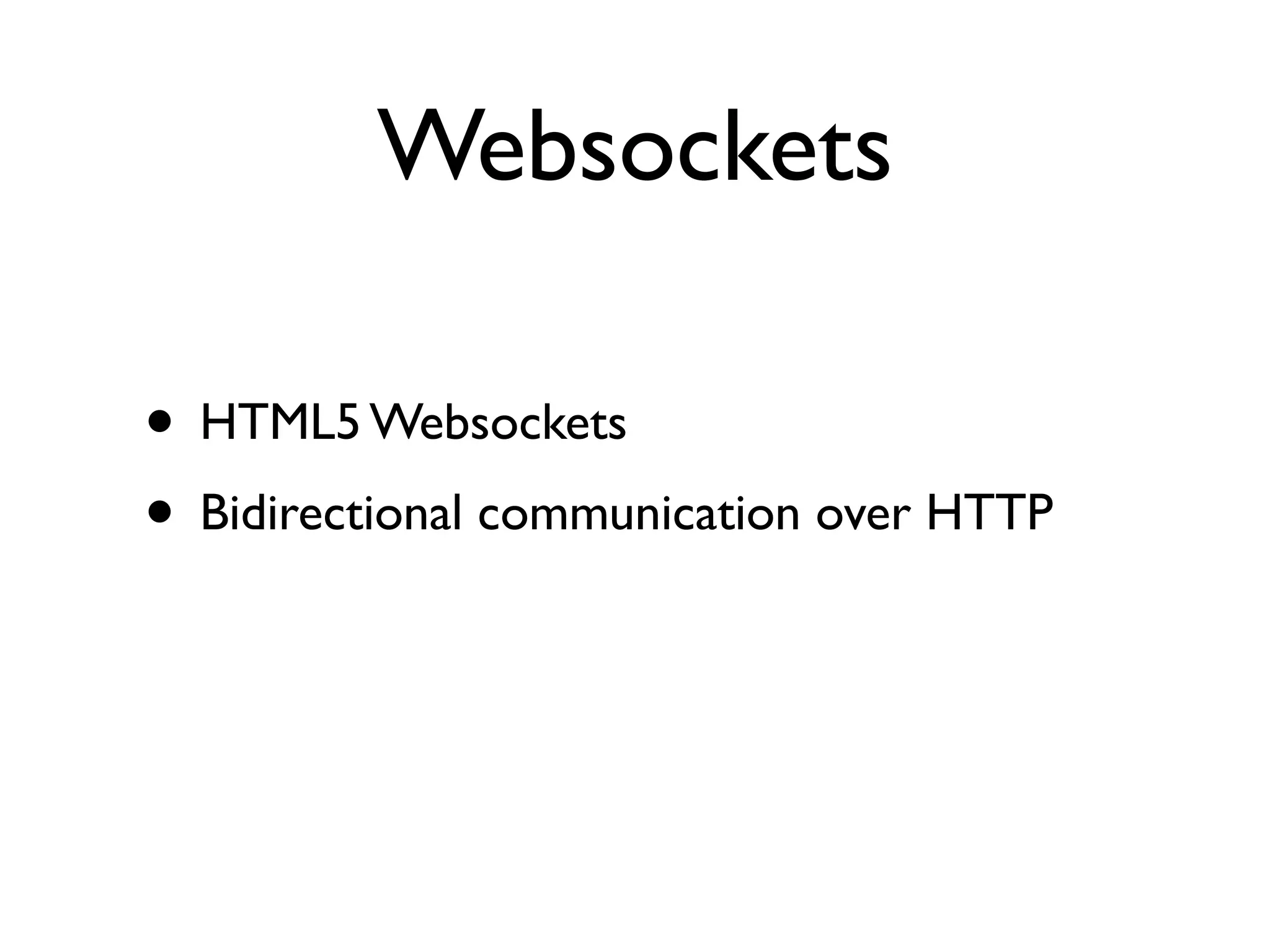

- 35. Websockets • HTML5 Websockets •Bidirectional communication over HTTP

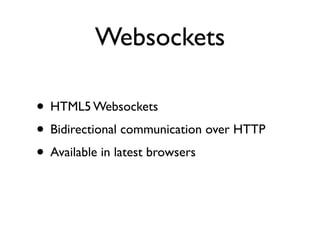

- 36. Websockets • HTML5 Websockets •Bidirectional communication over HTTP • Available in latest browsers

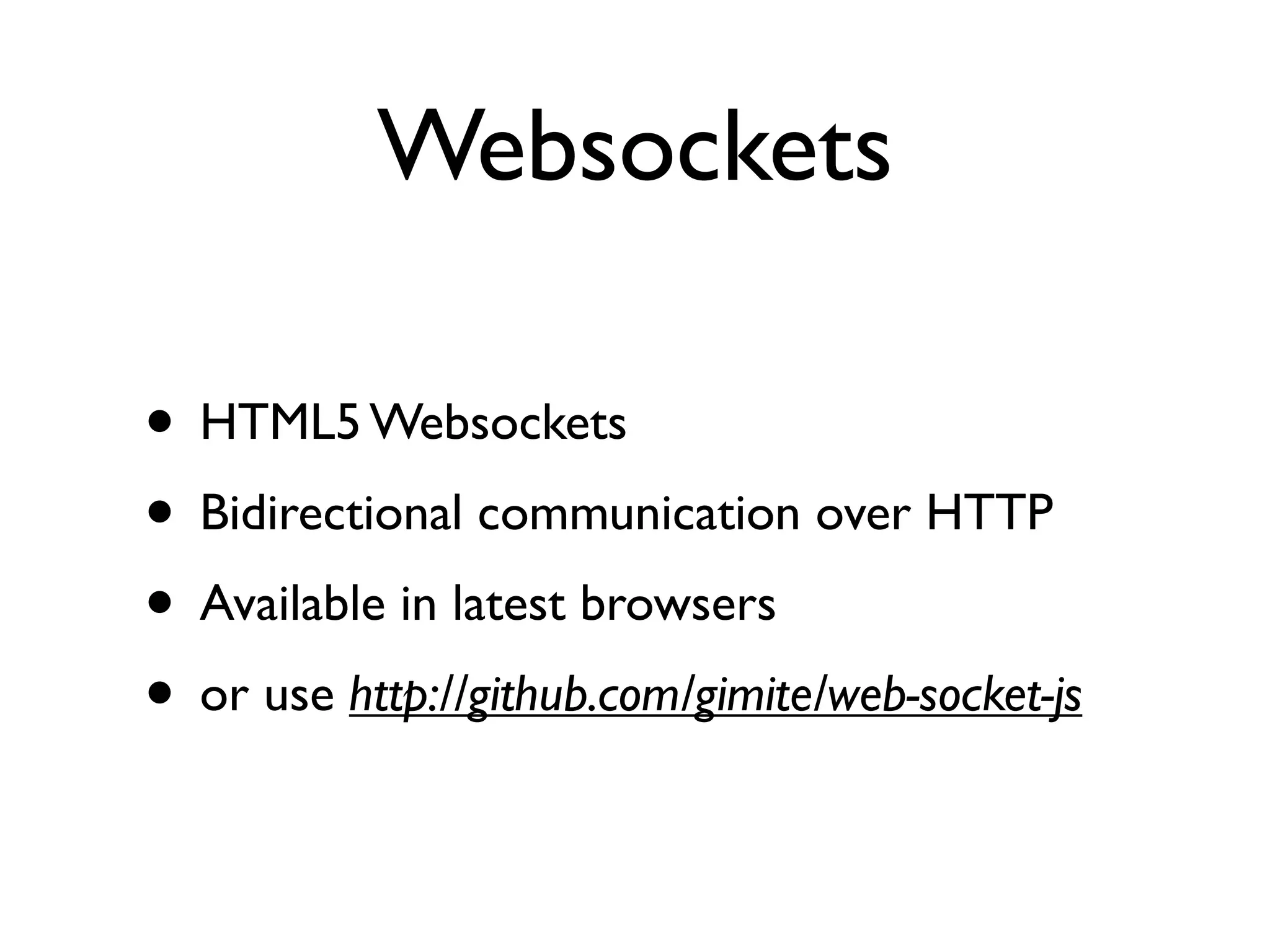

- 37. Websockets • HTML5 Websockets •Bidirectional communication over HTTP • Available in latest browsers • or use http://github.com/gimite/web-socket-js

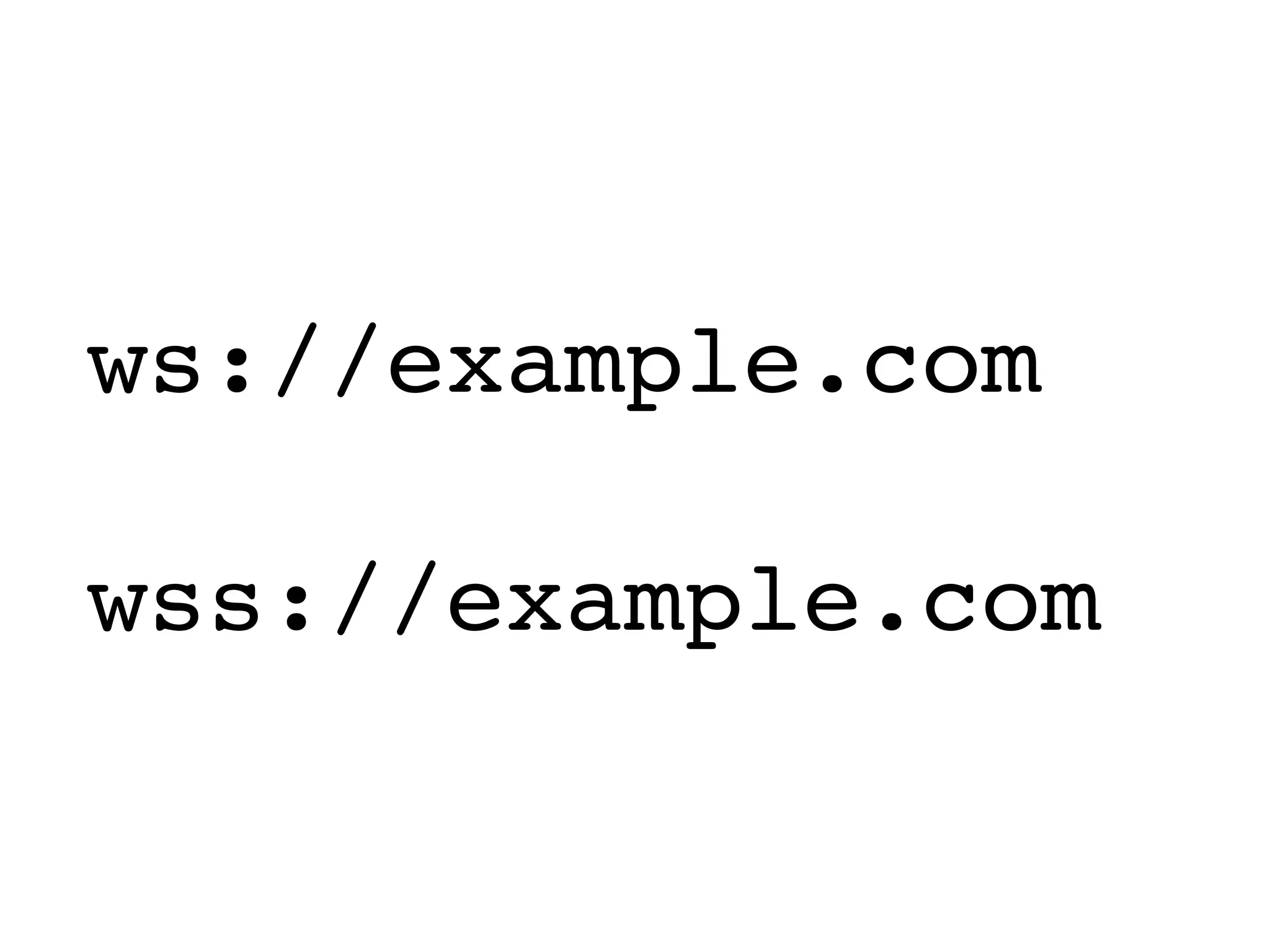

- 38.
- 39. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U

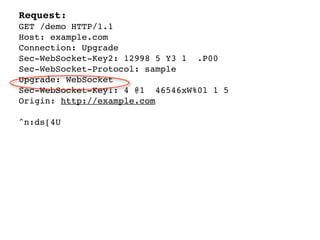

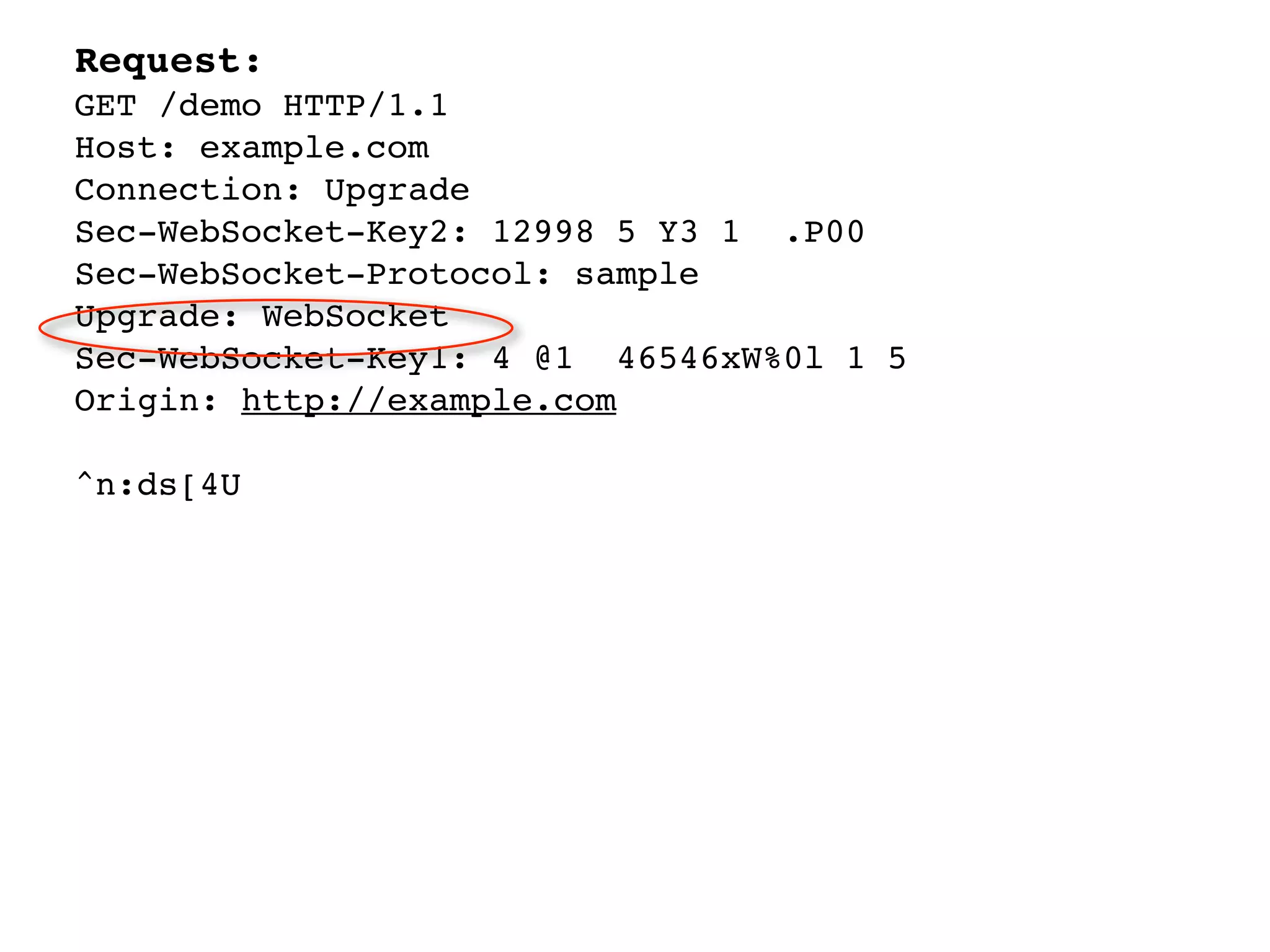

- 40. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U
- 41. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U
- 42. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U

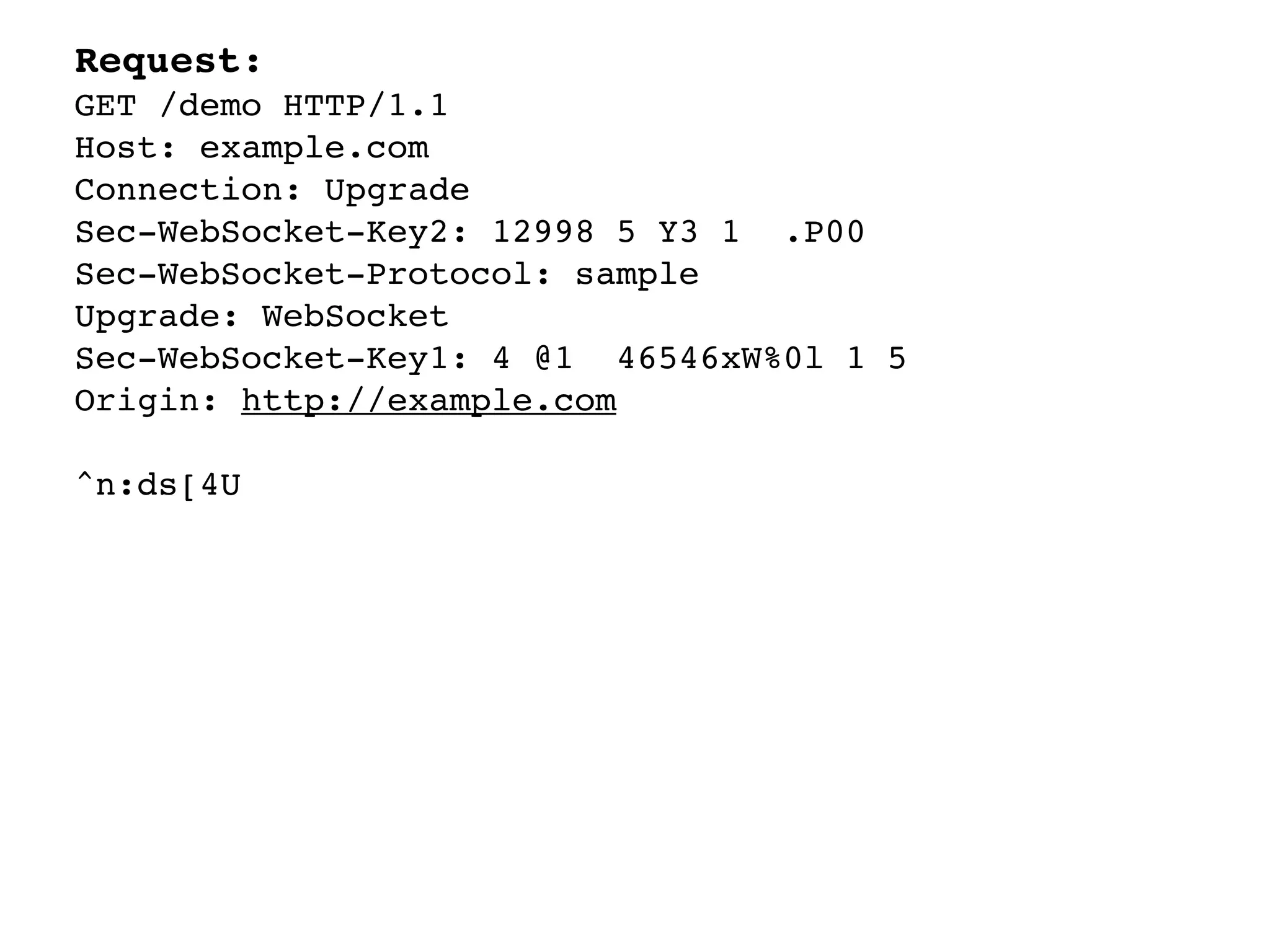

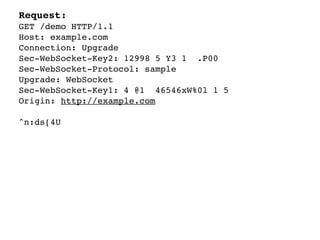

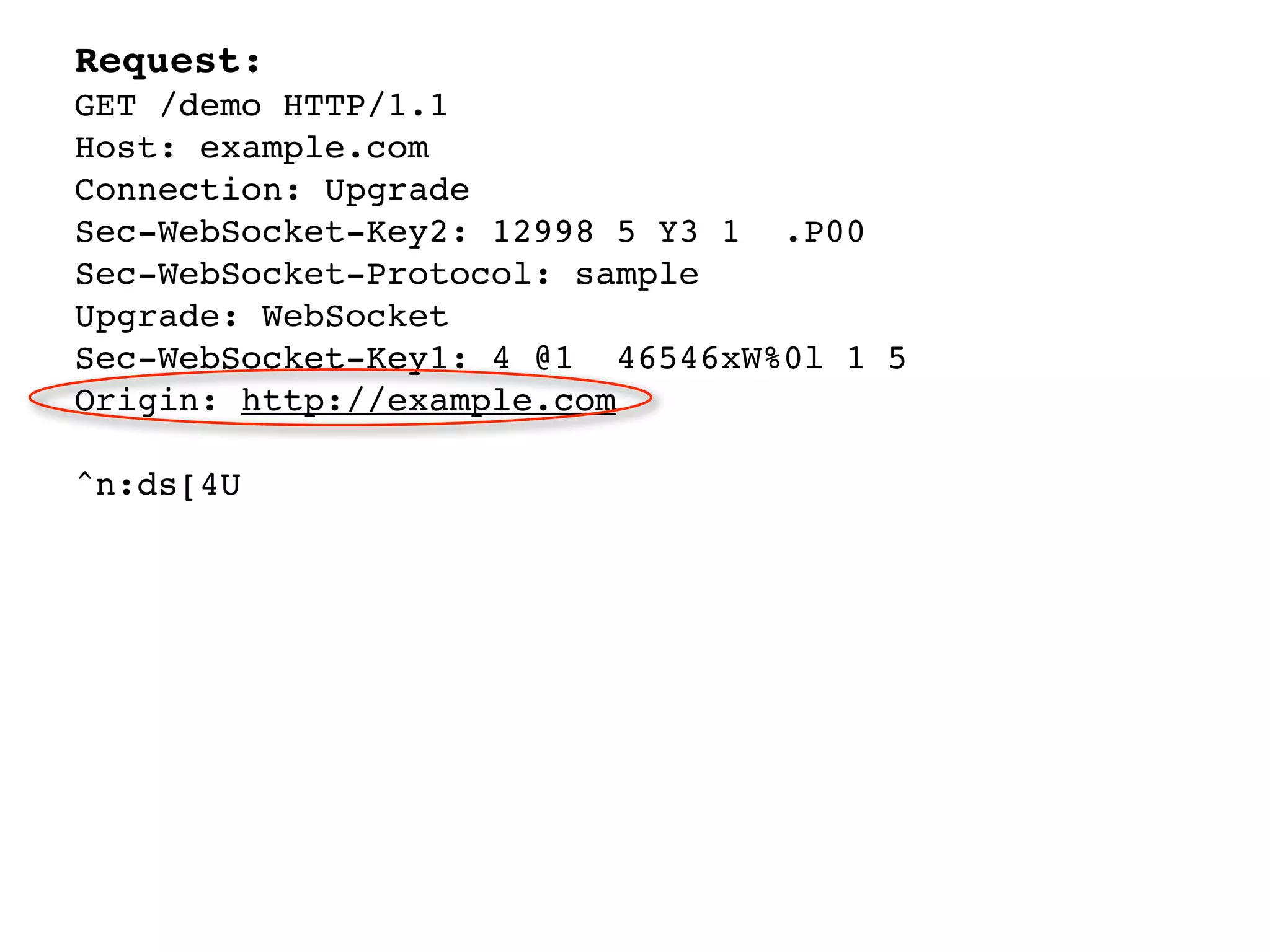

- 43. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U

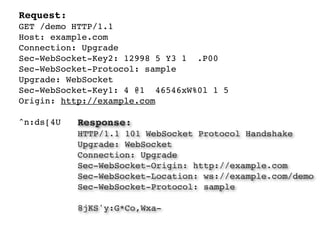

- 44. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U Response: HTTP/1.1 101 WebSocket Protocol Handshake Upgrade: WebSocket Connection: Upgrade Sec-WebSocket-Origin: http://example.com Sec-WebSocket-Location: ws://example.com/demo Sec-WebSocket-Protocol: sample 8jKS'y:G*Co,Wxa-

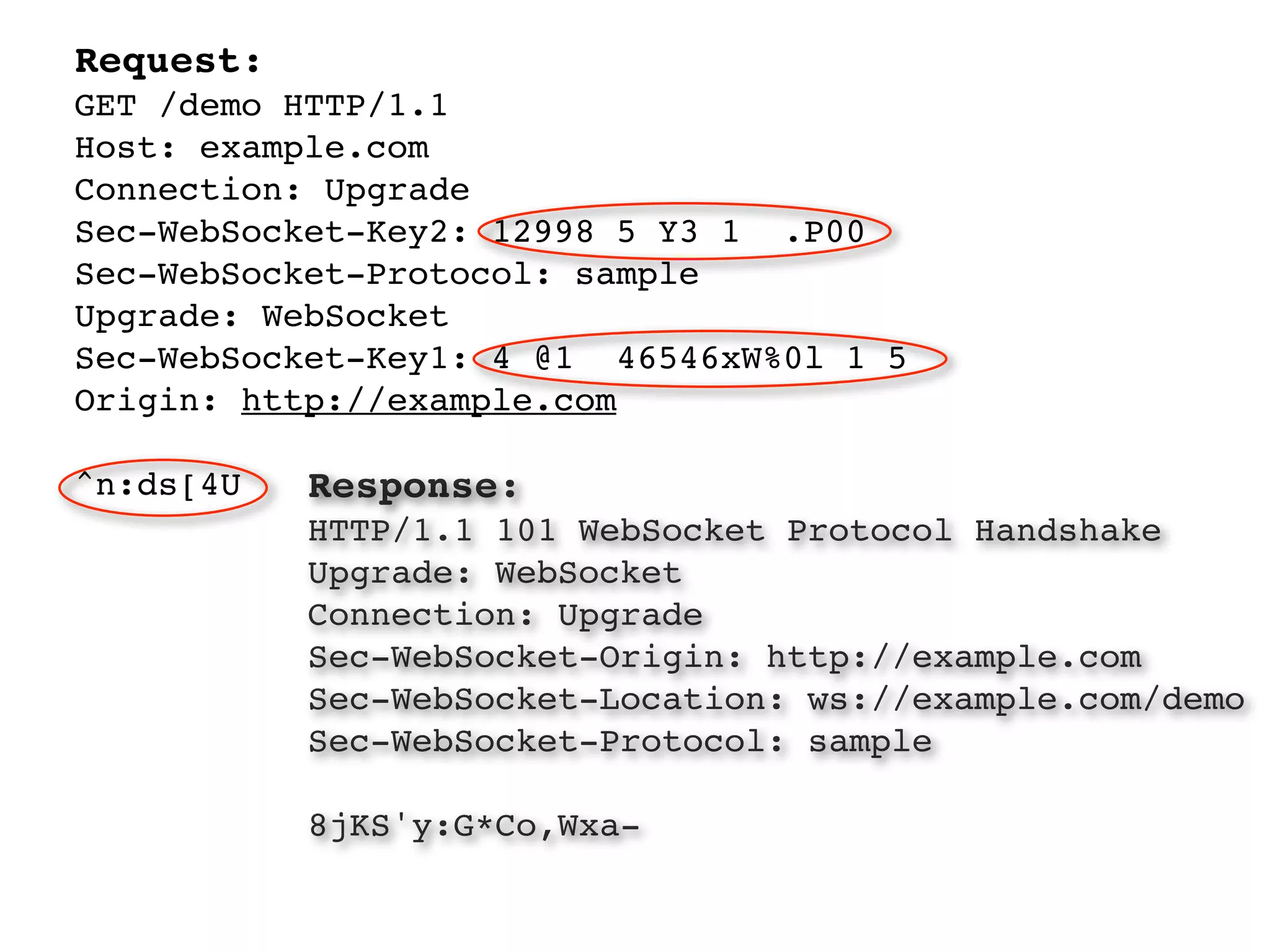

- 45. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U Response: HTTP/1.1 101 WebSocket Protocol Handshake Upgrade: WebSocket Connection: Upgrade Sec-WebSocket-Origin: http://example.com Sec-WebSocket-Location: ws://example.com/demo Sec-WebSocket-Protocol: sample 8jKS'y:G*Co,Wxa-

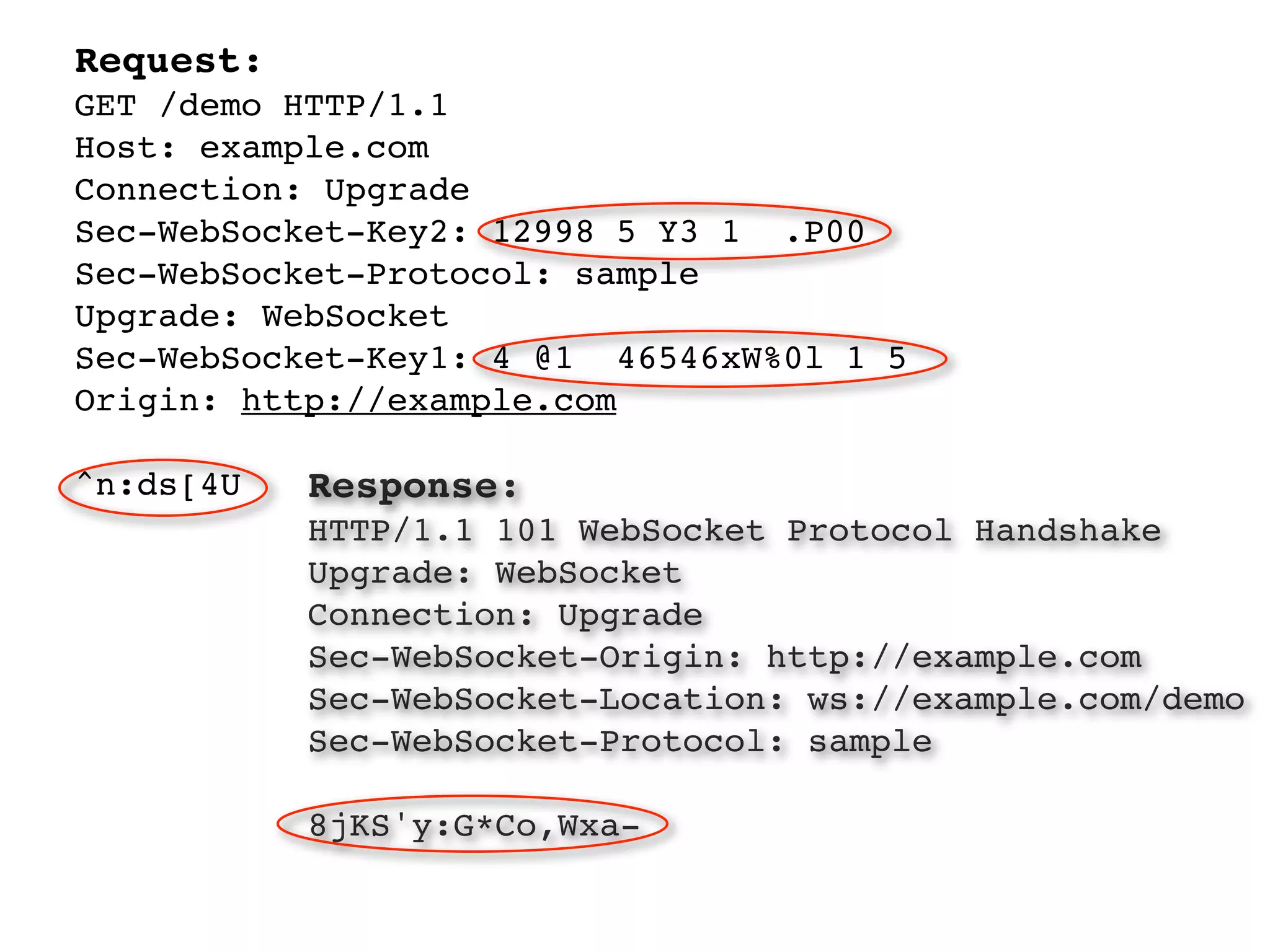

- 46. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com ^n:ds[4U Response: HTTP/1.1 101 WebSocket Protocol Handshake Upgrade: WebSocket Connection: Upgrade Sec-WebSocket-Origin: http://example.com Sec-WebSocket-Location: ws://example.com/demo Sec-WebSocket-Protocol: sample 8jKS'y:G*Co,Wxa-

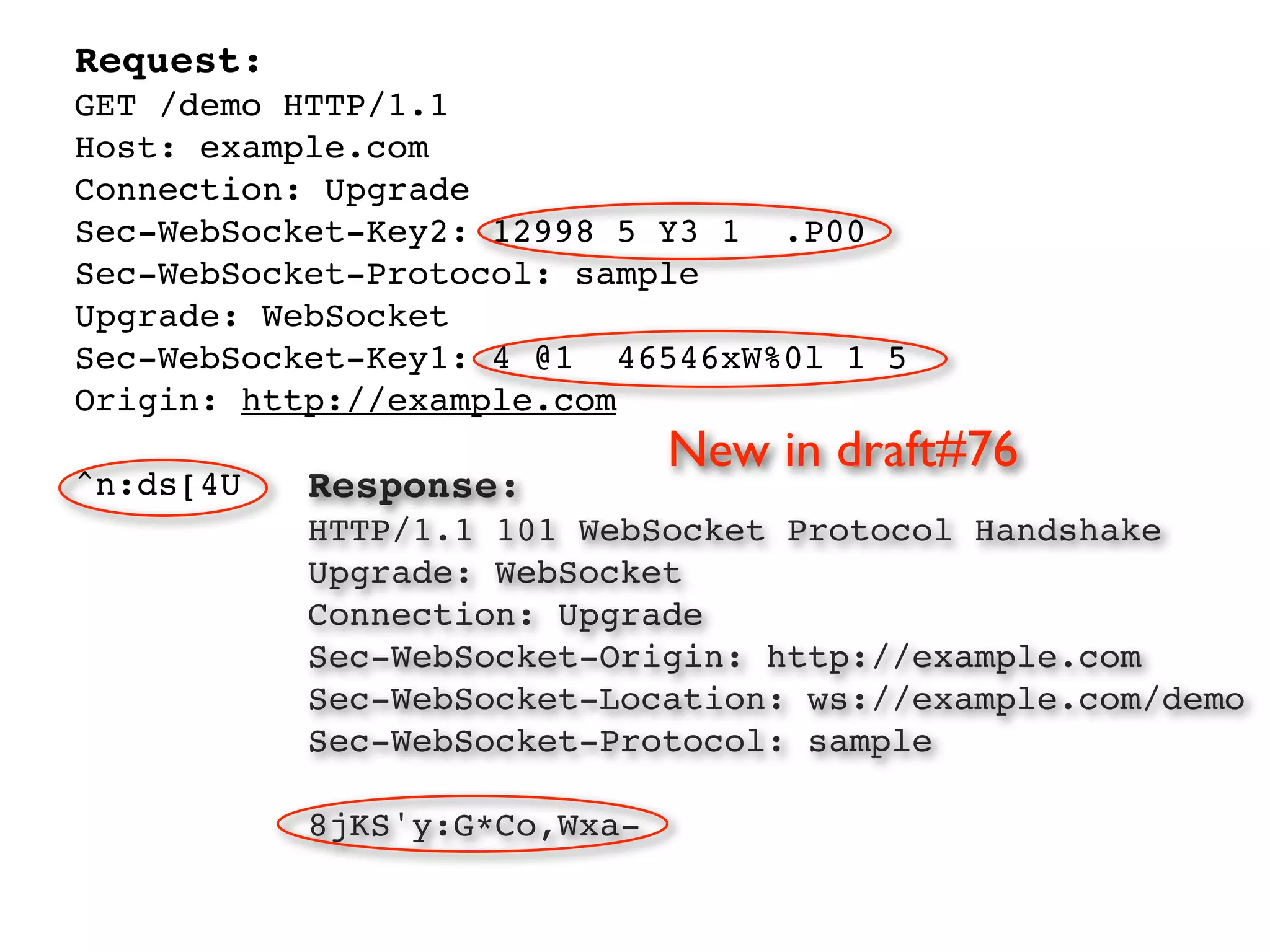

- 47. Request: GET /demo HTTP/1.1 Host:example.com Connection: Upgrade Sec-WebSocket-Key2: 12998 5 Y3 1 .P00 Sec-WebSocket-Protocol: sample Upgrade: WebSocket Sec-WebSocket-Key1: 4 @1 46546xW%0l 1 5 Origin: http://example.com New in draft#76 ^n:ds[4U Response: HTTP/1.1 101 WebSocket Protocol Handshake Upgrade: WebSocket Connection: Upgrade Sec-WebSocket-Origin: http://example.com Sec-WebSocket-Location: ws://example.com/demo Sec-WebSocket-Protocol: sample 8jKS'y:G*Co,Wxa-

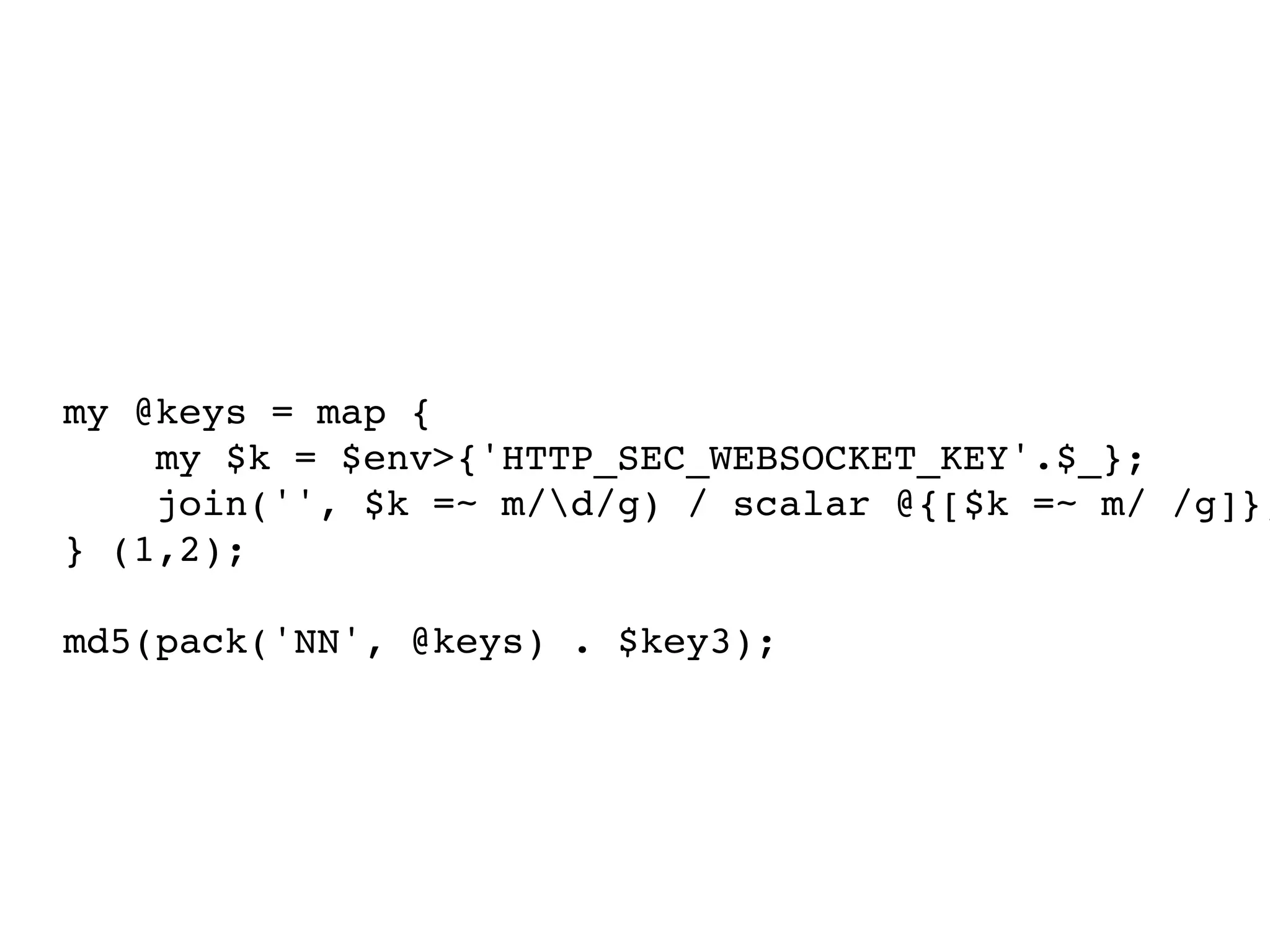

- 48. my @keys =map { my $k = $env>{'HTTP_SEC_WEBSOCKET_KEY'.$_}; join('', $k =~ m/d/g) / scalar @{[$k =~ m/ /g]}; } (1,2); md5(pack('NN', @keys) . $key3);

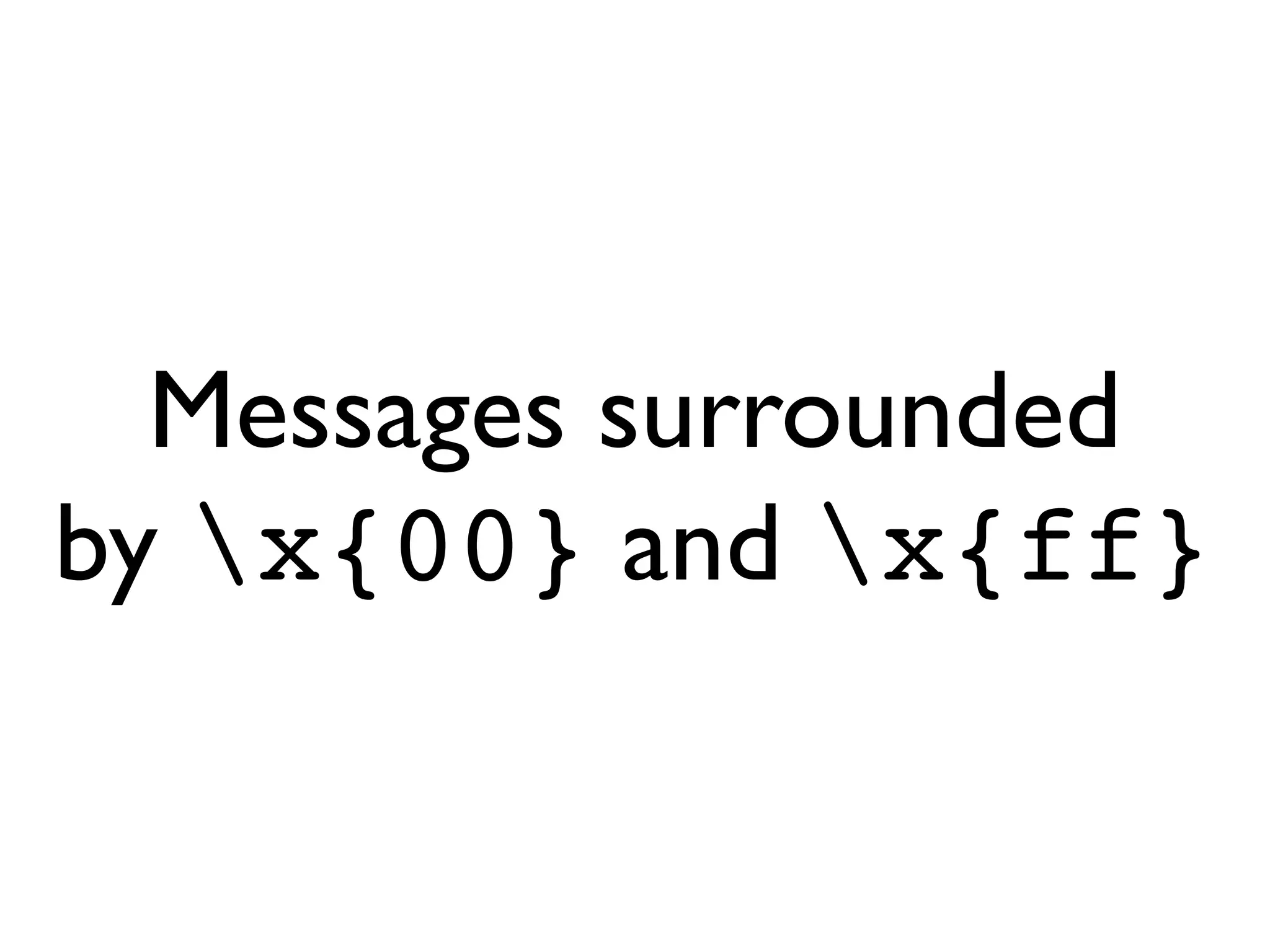

- 49. Messages surrounded by x{00}and x{ff}
- 50.

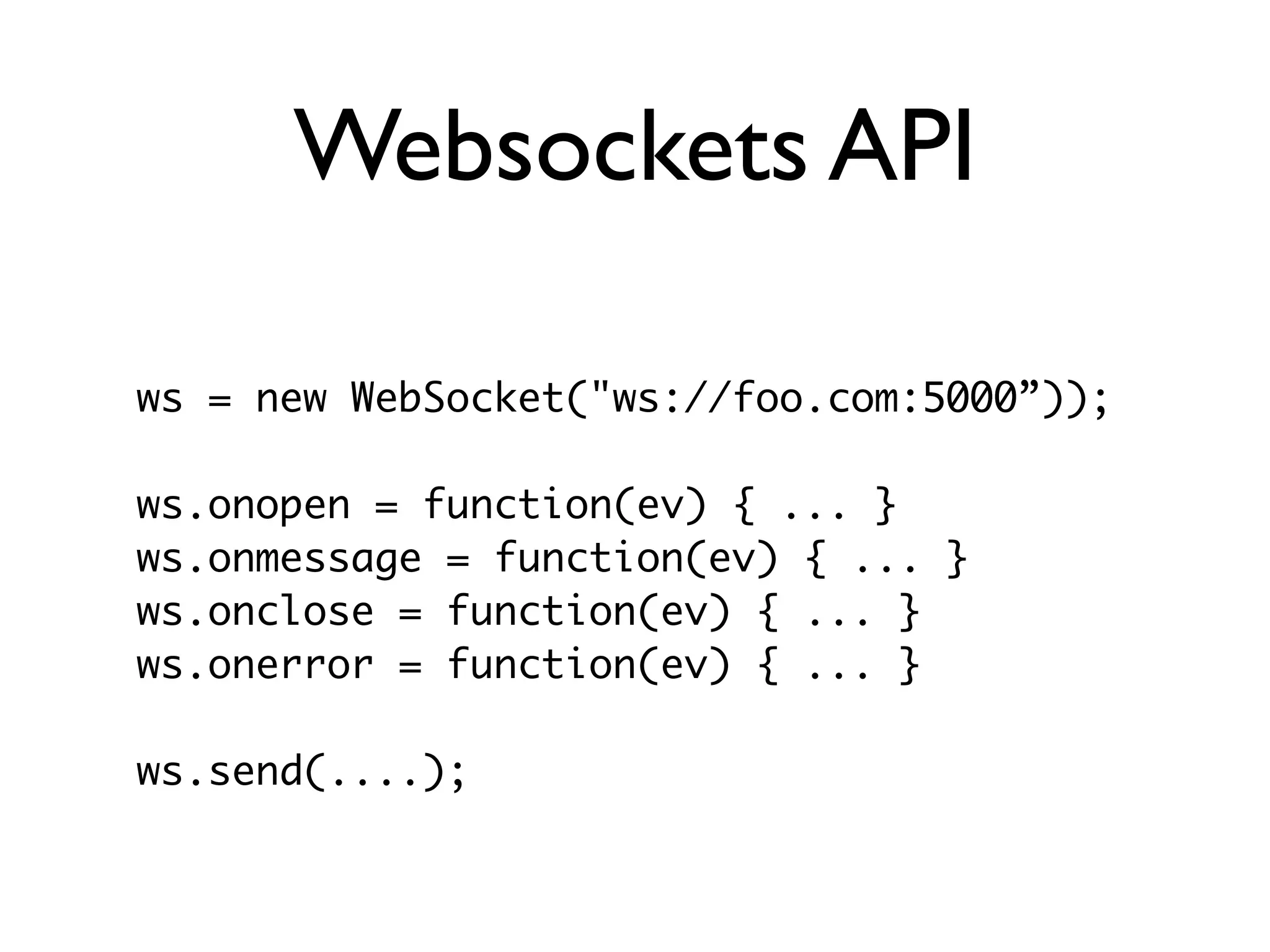

- 51. Websockets API ws =new WebSocket("ws://foo.com:5000”)); ws.onopen = function(ev) { ... } ws.onmessage = function(ev) { ... } ws.onclose = function(ev) { ... } ws.onerror = function(ev) { ... } ws.send(....);
- 52.
- 53.
- 54.

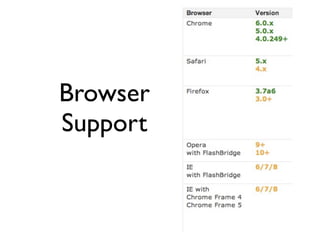

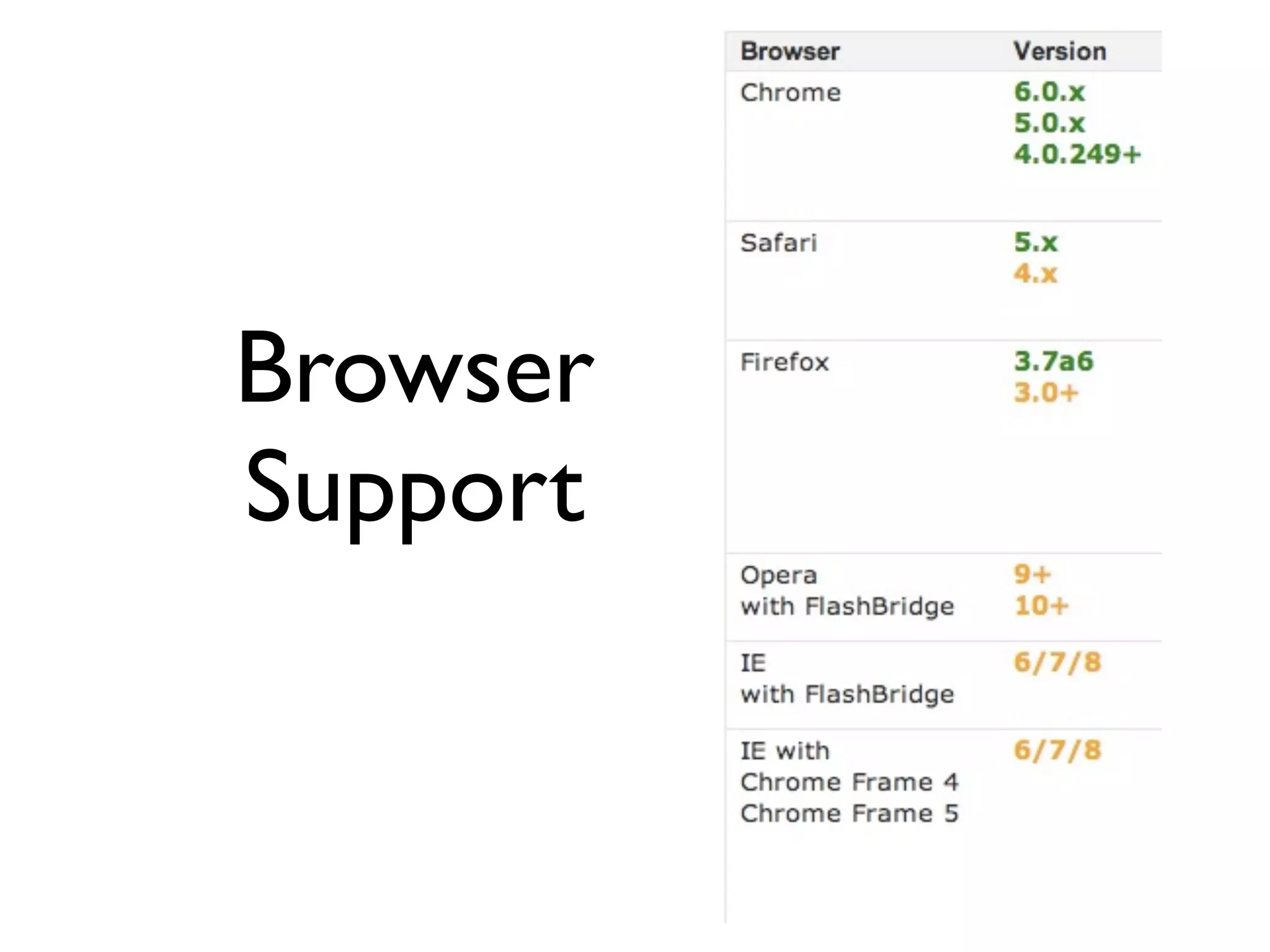

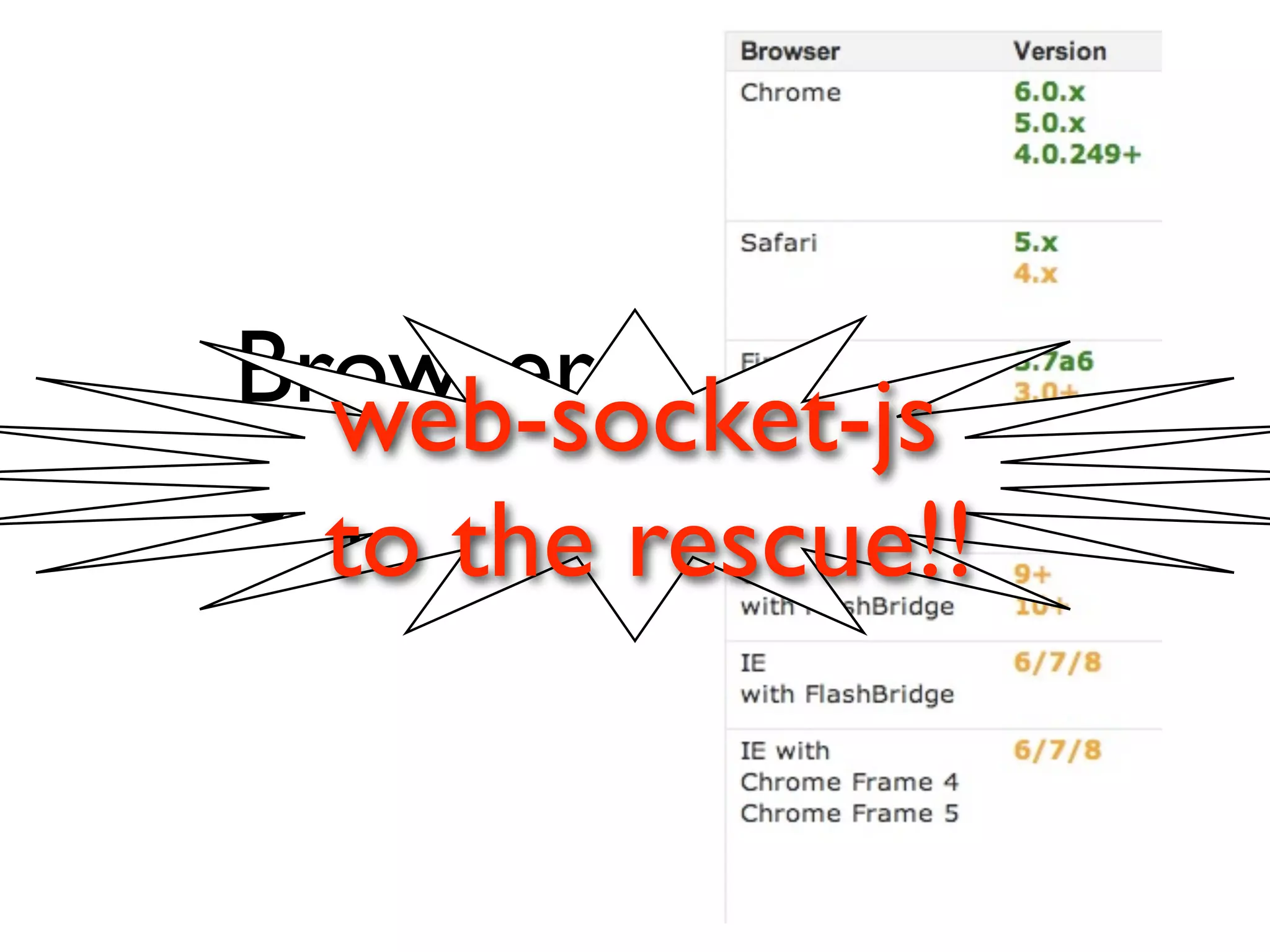

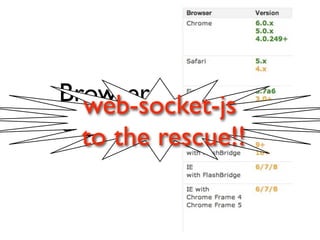

- 55. Browser web-socket-js Support to the rescue!!

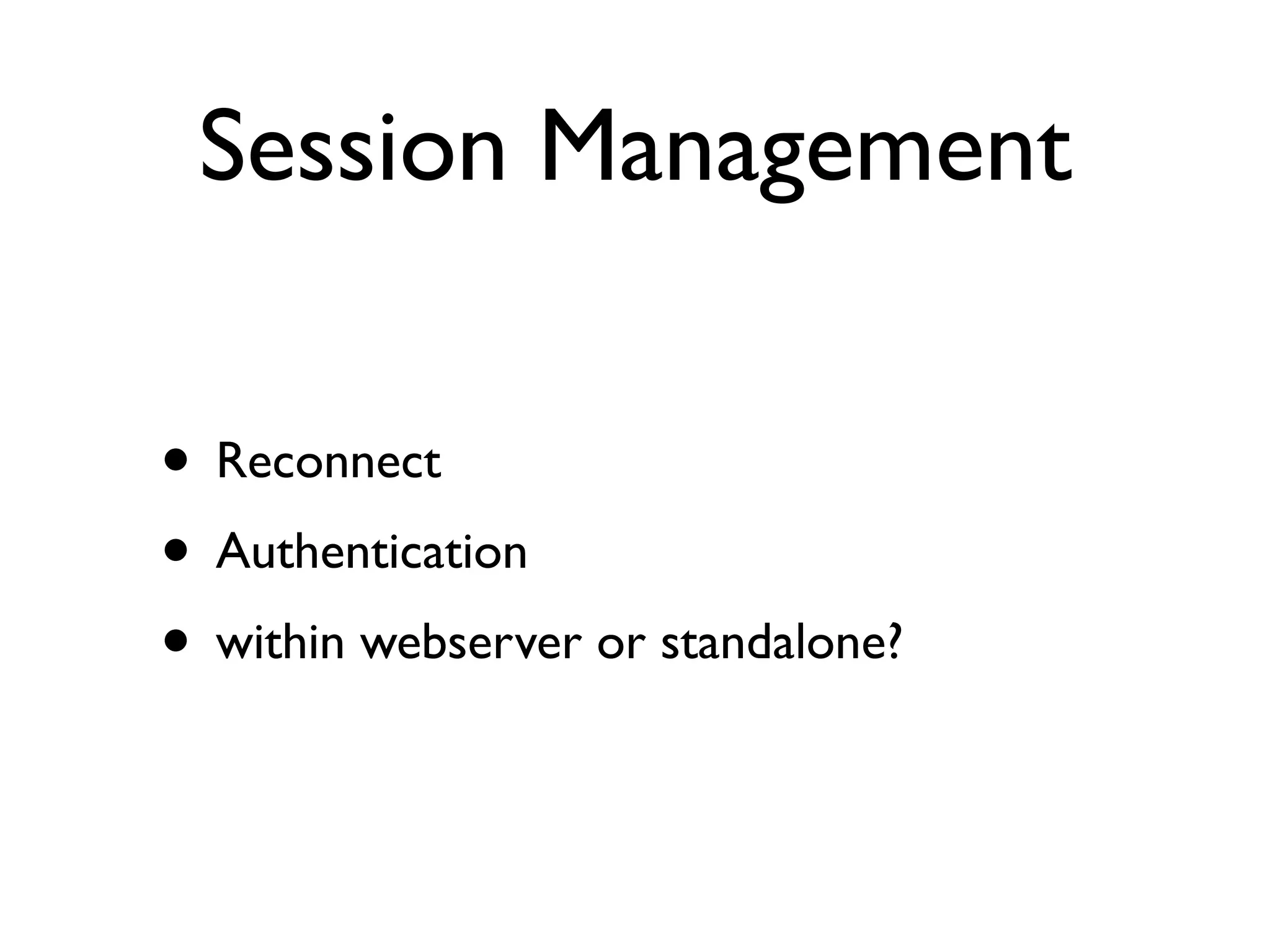

- 56. Session Management • Reconnect •Authentication • within webserver or standalone?
- 57.

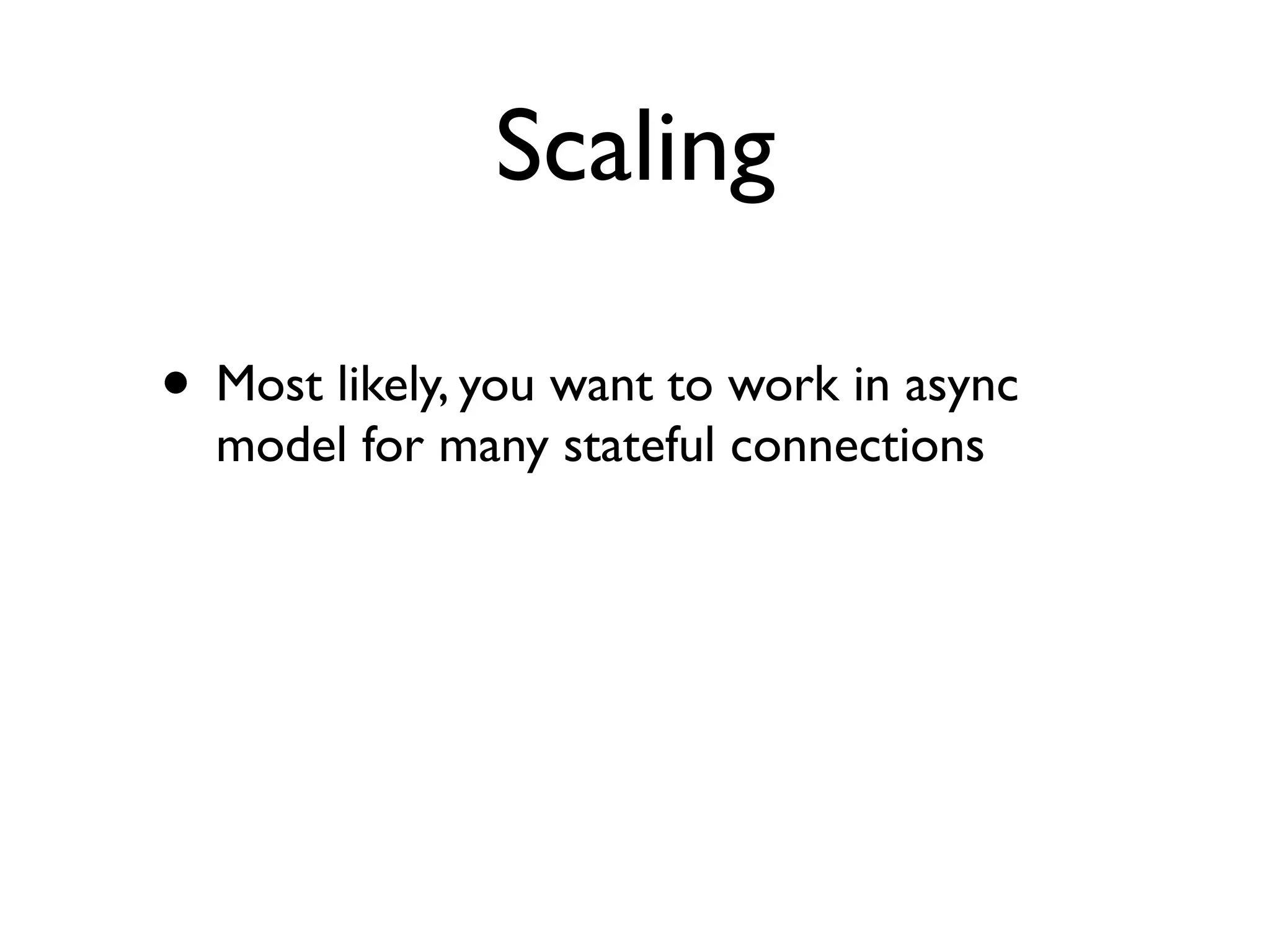

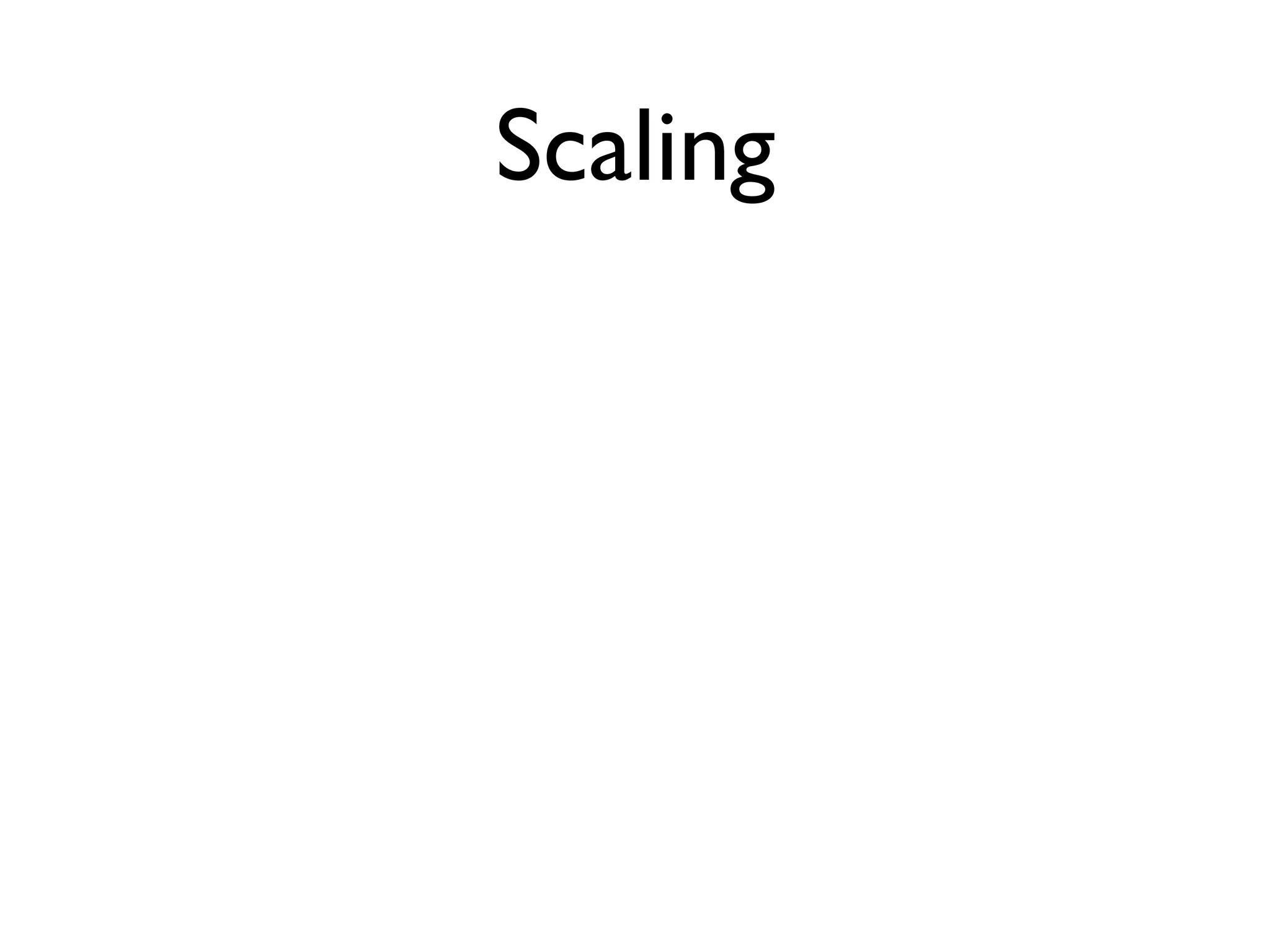

- 58. Scaling • Most likely,you want to work in async model for many stateful connections

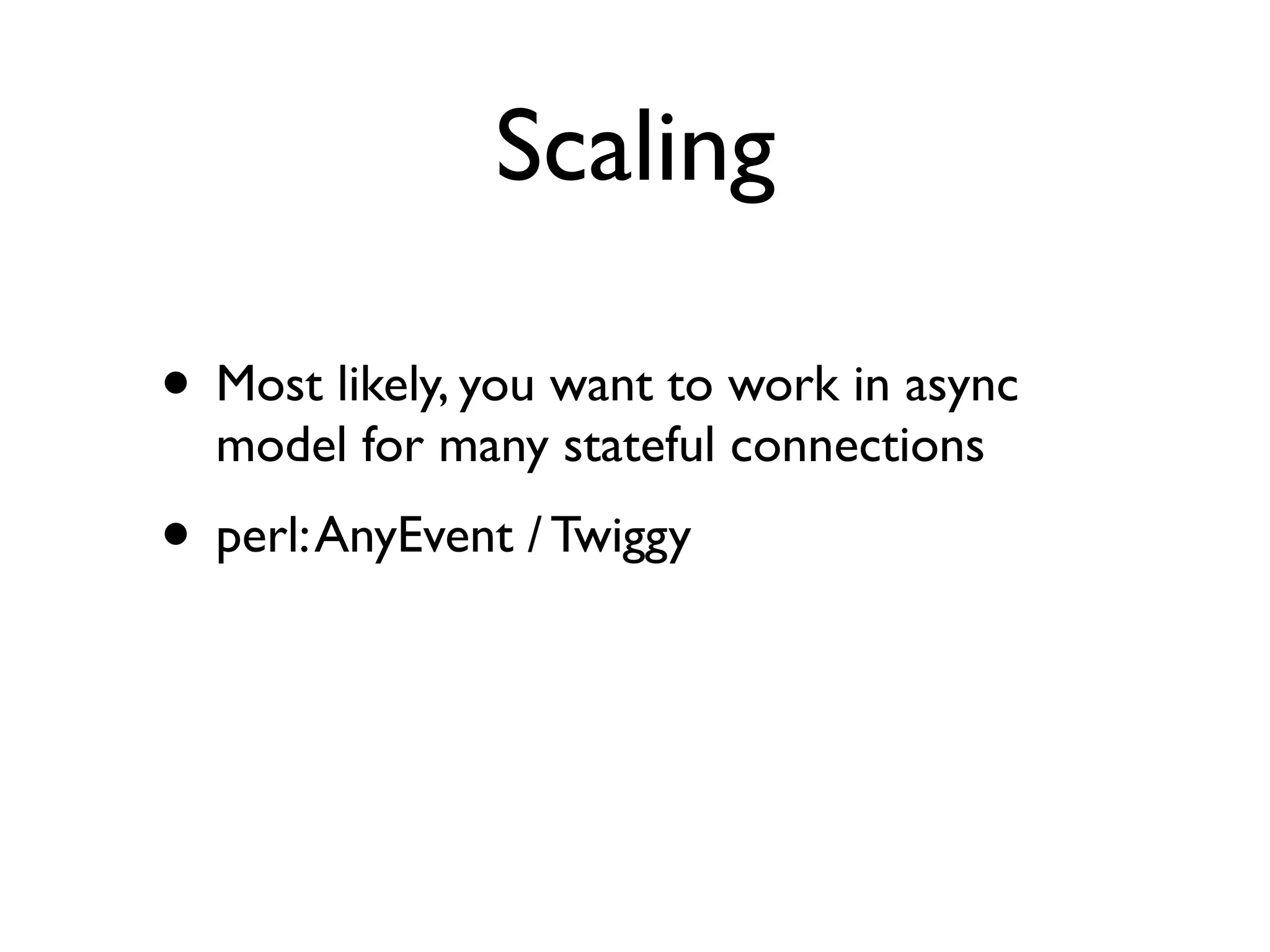

- 59. Scaling • Most likely,you want to work in async model for many stateful connections • perl: AnyEvent / Twiggy

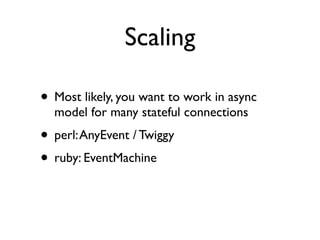

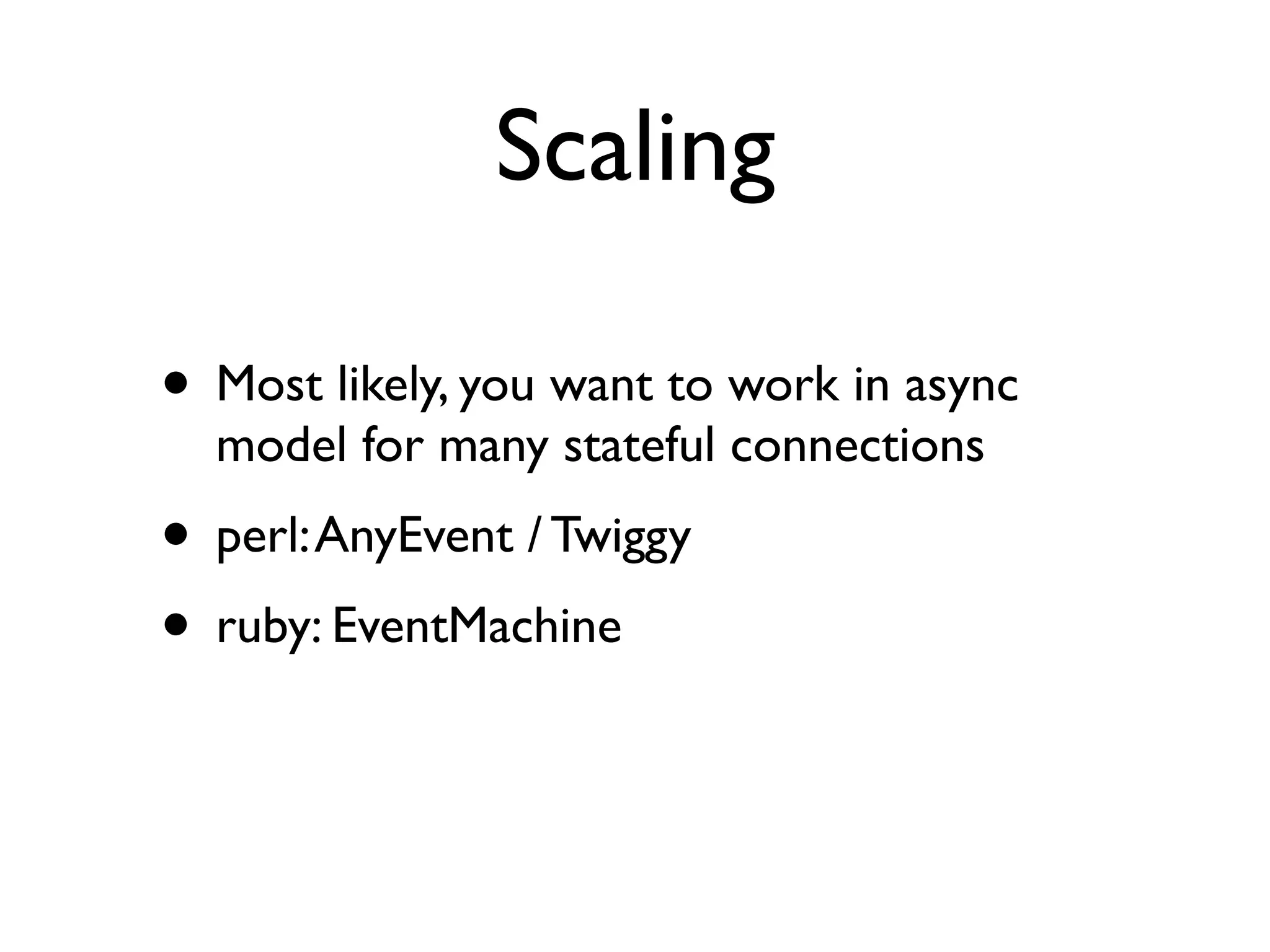

- 60. Scaling • Most likely,you want to work in async model for many stateful connections • perl: AnyEvent / Twiggy • ruby: EventMachine

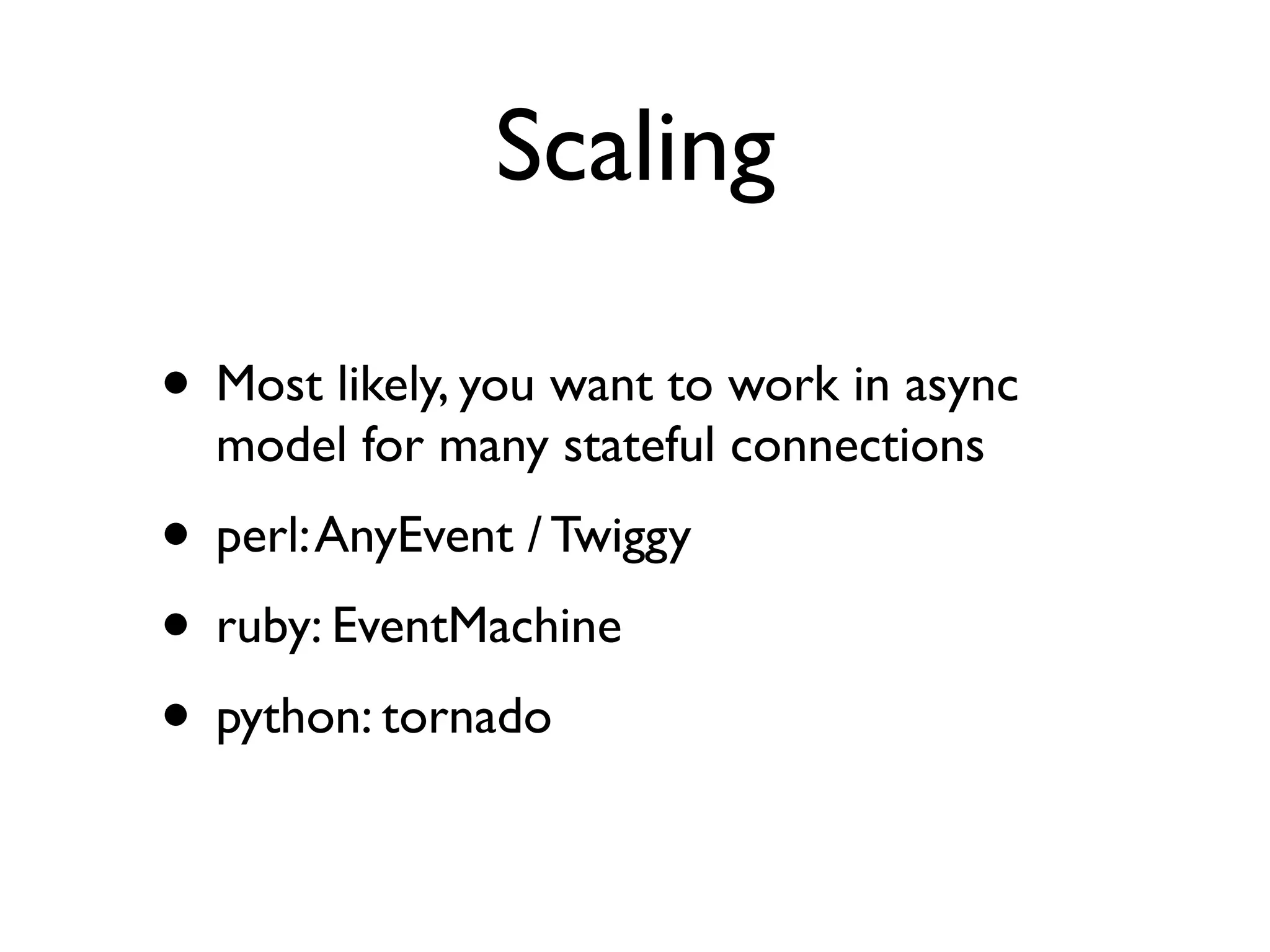

- 61. Scaling • Most likely,you want to work in async model for many stateful connections • perl: AnyEvent / Twiggy • ruby: EventMachine • python: tornado
- 62.

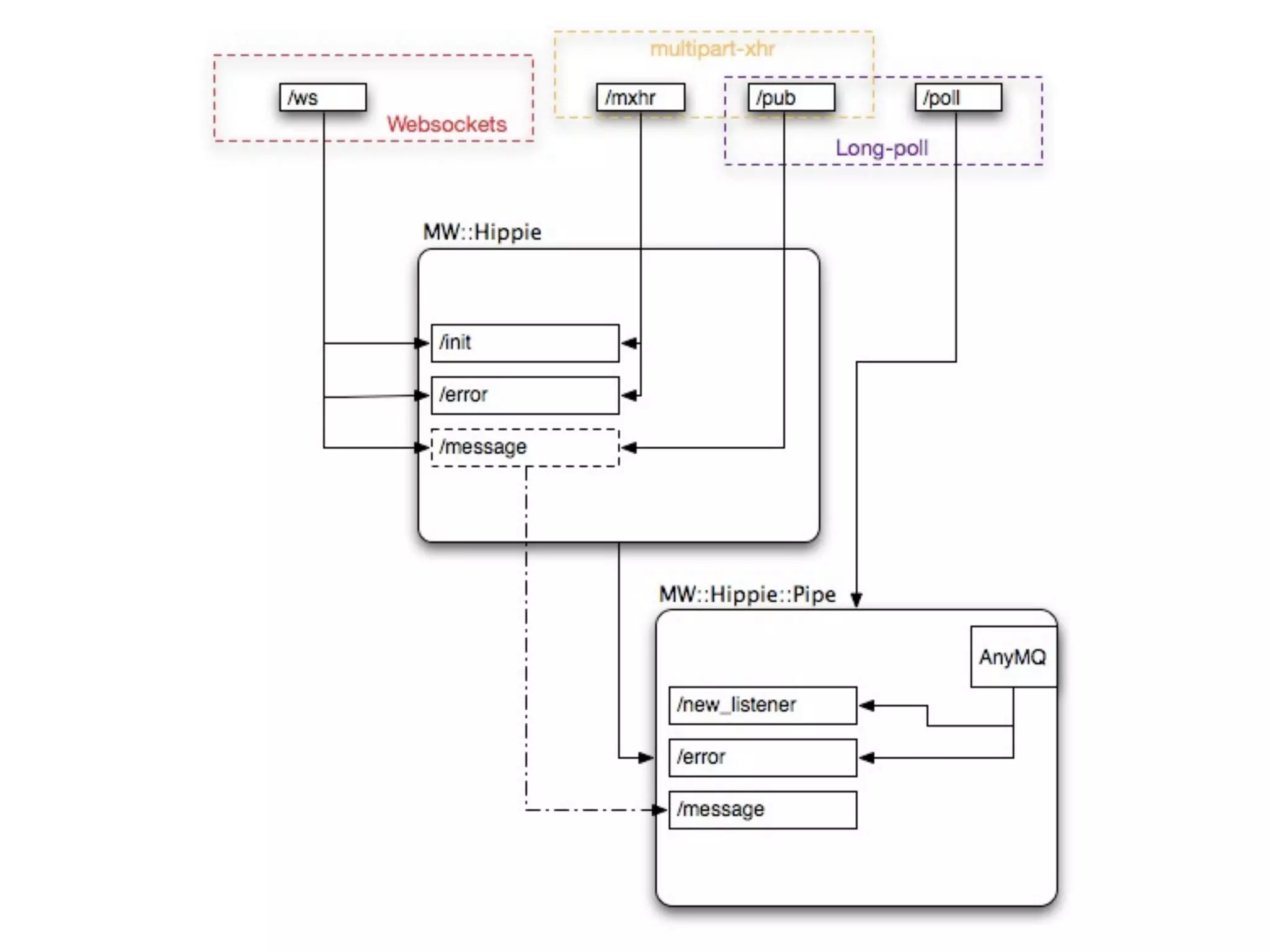

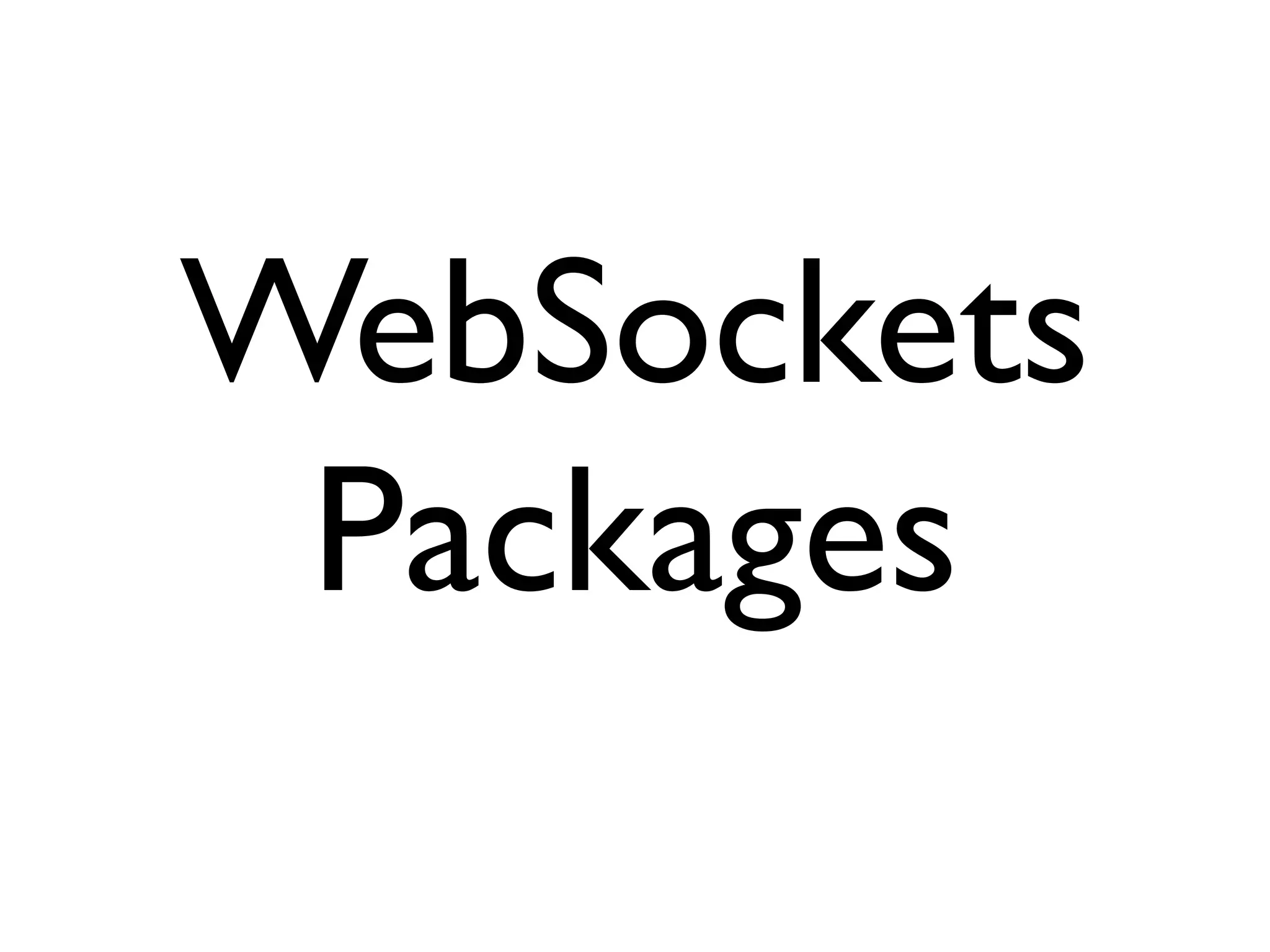

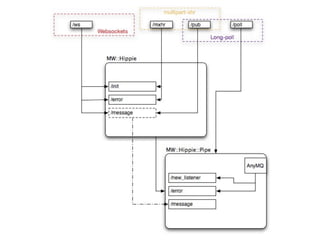

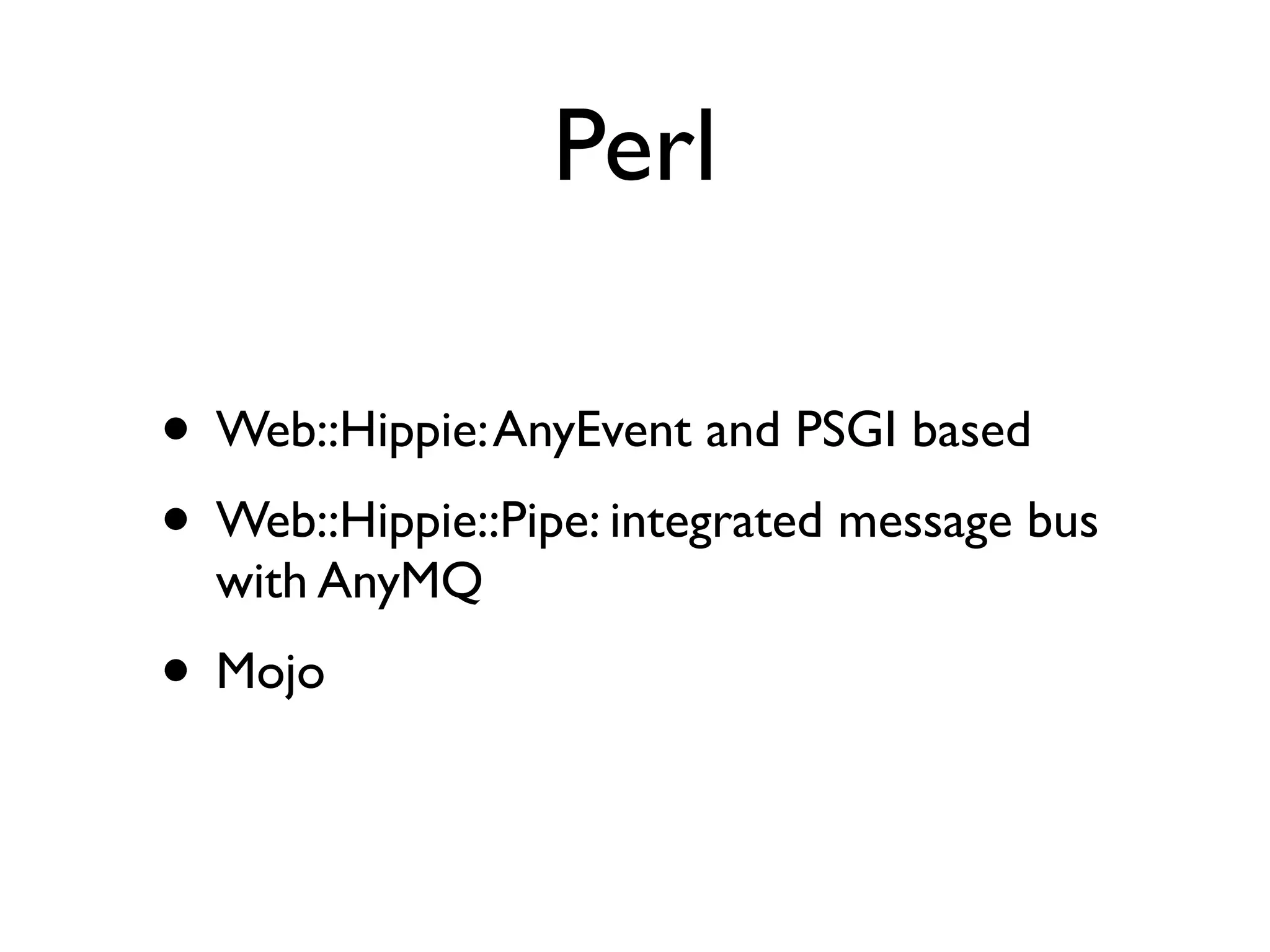

- 63. Perl • Web::Hippie: AnyEventand PSGI based • Web::Hippie::Pipe: integrated message bus with AnyMQ • Mojo
- 65.
- 66.
- 67. Others • phpwebsockets • Node.js •Erlang • Haskell
- 68.
- 69.

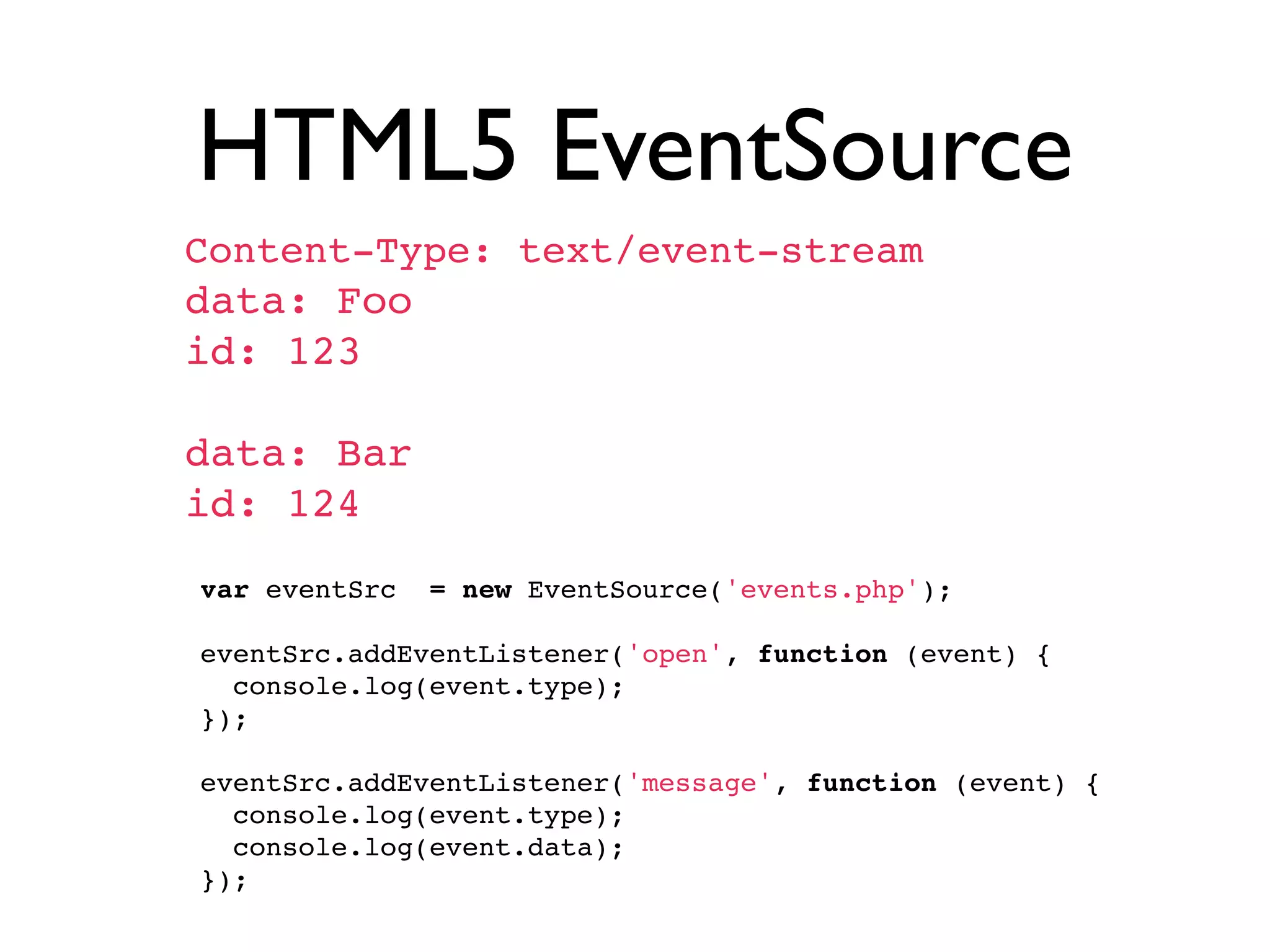

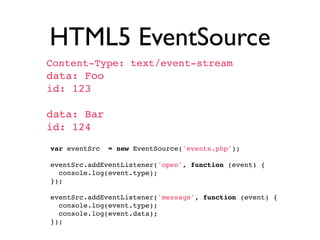

- 70. HTML5 EventSource Content-Type:text/event-stream data: Foo id: 123 data: Bar id: 124 var eventSrc = new EventSource('events.php'); eventSrc.addEventListener('open', function (event) { console.log(event.type); }); eventSrc.addEventListener('message', function (event) { console.log(event.type); console.log(event.data); });
