This document discusses the purpose, background, and implementation status of web sockets. It describes how web sockets enable bidirectional communication between web applications and servers through a single TCP connection. This overcomes limitations of traditional HTTP where communication was typically one-way from server to client using polling. The document outlines the web socket protocol specification process involving the W3C and IETF and lists some potential application areas.

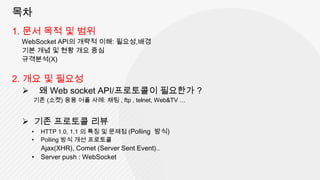

2. 1. 문서 목적 및 범위
2. 개요 및 필요성

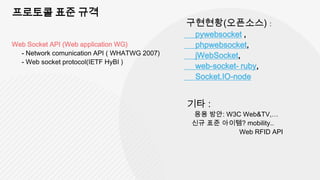

3. 구현현황(오픈소스) :
pywebsocket ,
Web Socket API (Web application WG) phpwebsocket,
jWebSocket,
web-socket- ruby,
Socket.IO-node
기타 :
응용 방안: W3C Web&TV,…
신규 표준 아이템? mobility..
Web RFID API

5. WebSockets
http://tools.ietf.org/wg/hybi/ http://www.w3.org/TR/websockets/

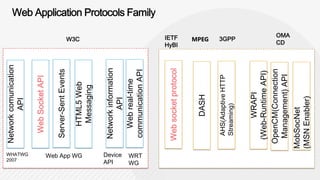

6. Network comunication
2007
API
WHATWG
Web Socket API
Server-Sent Events
W3C
Web App WG
HTML5 Web
Messaging
API
Network information
Device
API
Web real-time
WG
WRT
communication API
IETF
HyBI
Web socket protocol
DASH
MPEG
AHS(Adaptive HTTP
Streaming)
3GPP
WRAPI
(Web-Runtime API)
OpenCM(Connection
CD
Management) API
OMA
MobSocNet
(MSN Enabler)

7. 응용 분야 및 요구사항

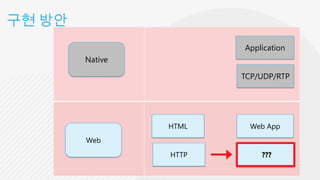

8. 구현 방안
Application
Native
TCP/UDP/RTP
HTML Web App
Web
HTTP ???

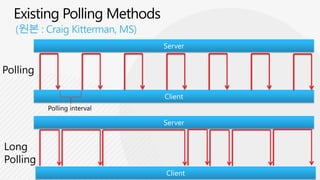

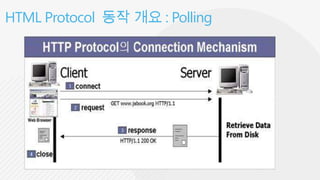

9. HTML Protocol 동작 개요 : Polling

10. HTML 1.0 vs HTML 1.1 : : Polling
Connectionless
Stateless -> (해결) Server-side

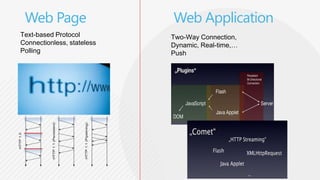

12. Web Page Web Application
Text-based Protocol Two-Way Connection,
Connectionless, stateless Dynamic, Real-time,…
Polling Push

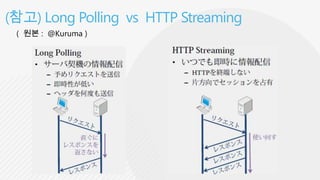

13. (참고) Long Polling vs HTTP Streaming
( 원본 : @Kuruma )

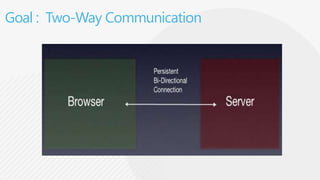

14. Goal : Two-Way Communication

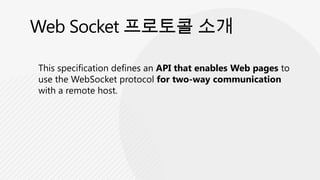

15. This specification defines an API that enables Web pages to
use the WebSocket protocol for two-way communication
with a remote host.

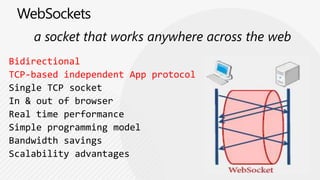

16. a socket that works anywhere across the web
Bidirectional
TCP-based independent App protocol

17. 1. Script Execution
2. HTTP Handshake
• Port80, 443
3. WebSocket Data Transfer
@Kuruma

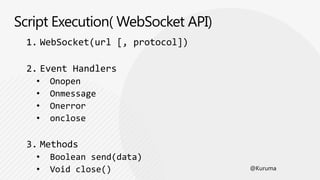

18. 1. WebSocket(url [, protocol])
2. Event Handlers
• Onopen
• Onmessage
• Onerror
• onclose
3. Methods
• Boolean send(data)
• Void close() @Kuruma

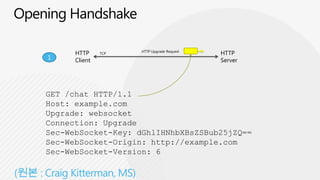

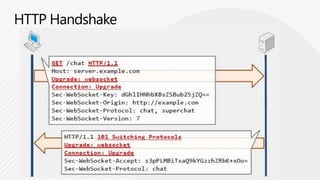

22. HTTP TCP
HTTP Upgrade Request
HTTP
1 Client Server
GET /chat HTTP/1.1
Host: example.com
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ==
Sec-WebSocket-Origin: http://example.com
Sec-WebSocket-Version: 6

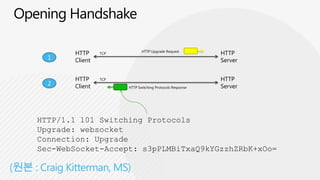

23. HTTP TCP
HTTP Upgrade Request
HTTP
1 Client Server
HTTP TCP HTTP
2 Client Server
HTTP Switching Protocols Response
HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: s3pPLMBiTxaQ9kYGzzhZRbK+xOo=

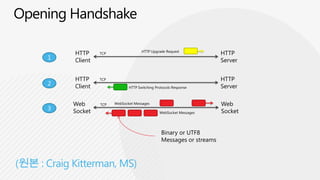

24. HTTP TCP
HTTP Upgrade Request
HTTP
1 Client Server
HTTP TCP HTTP
2 Client Server
HTTP Switching Protocols Response
Web TCP WebSocket Messages Web
3 Socket Socket
WebSocket Messages
Binary or UTF8
Messages or streams

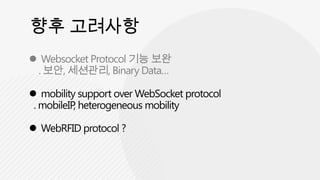

25.  Websocket Protocol 기능 보완
. 보안, 세션관리, Binary Data…

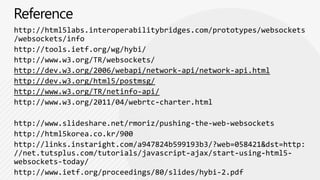

26. http://tools.ietf.org/wg/hybi/
http://www.w3.org/TR/websockets/
http://www.slideshare.net/rmoriz/pushing-the-web-websockets

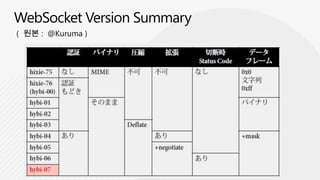

29. ( 원본 : @Kuruma )

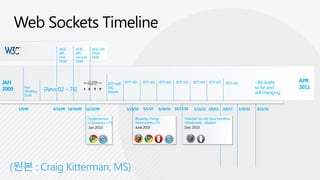

30. W3C W3C W3C API
API API Third
First Second Draft
Draft Draft
JAN IETF HyBi IETF v00 IETF v01 IETF v02 IETF v03 IETF v04 IETF v05 IETF v06 ~80 drafts APR
2009 First
[Revs 02 – 76] WG so far and 2011
Working Adopts still changing
Draft
1/9/09 4/23/09 10/29/09 12/22/09 5/23/10 9/1/10 9/24/10 10/17/10 1/11/11 2/8/11 2/9/11 2/25/11 3/11/11
Implemented Breaking change Potential Security Issue Identified
in browsers v.75 WebSockets v.76 WebSockets disabled
