Arrabiata Solutions is a digital agency founded in 2006 with offices in Munich and London. They offer full-service digital solutions from conception to realization. The document discusses various communication APIs for HTML5/JavaScript including status quo techniques like JSONP, CORS, and messaging APIs as well as newer techniques like Server-Sent Events and Web Sockets. It provides an overview of how each technique works and when to use each one based on factors like supporting cross-domain communication, returning data, using backchannels, handling long-running processes, and performance.

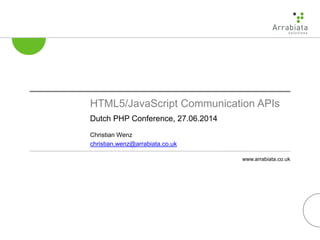

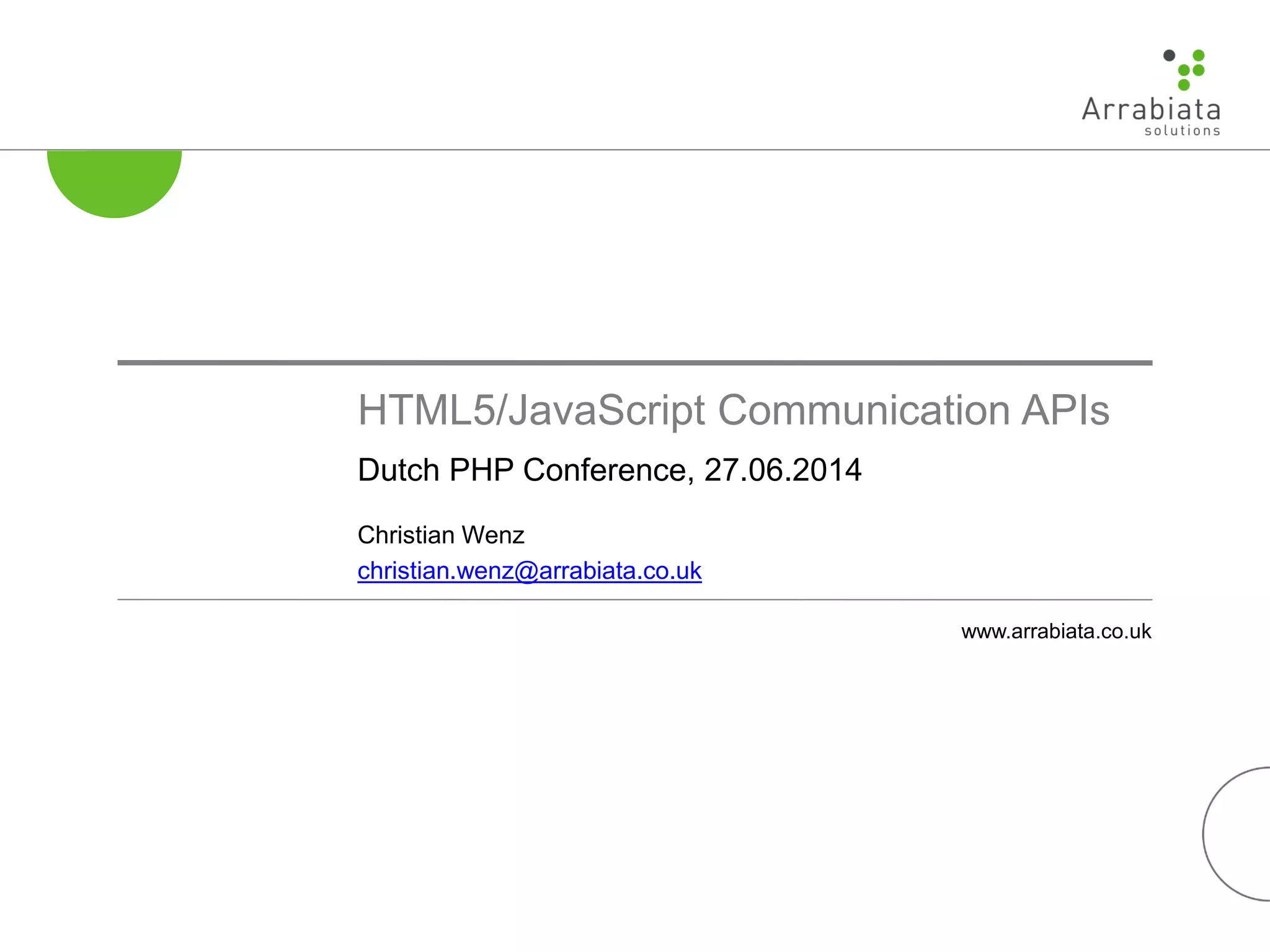

1. www.arrabiata.co.uk
HTML5/JavaScript Communication APIs
Dutch PHP Conference, 27.06.2014
Christian Wenz
christian.wenz@arrabiata.co.uk

2. Arrabiata Solutions
::
As a specialist for digital solutions we offer our clients all services from
conception to realization, support and optimization. Our focus is international
with offices in Munich and London. Arrabiata Solutions was founded in 2006
and has more than 30 employees with a combined experience of over 100
successful projects. ::
Arrabiata is a full-service digital agency.

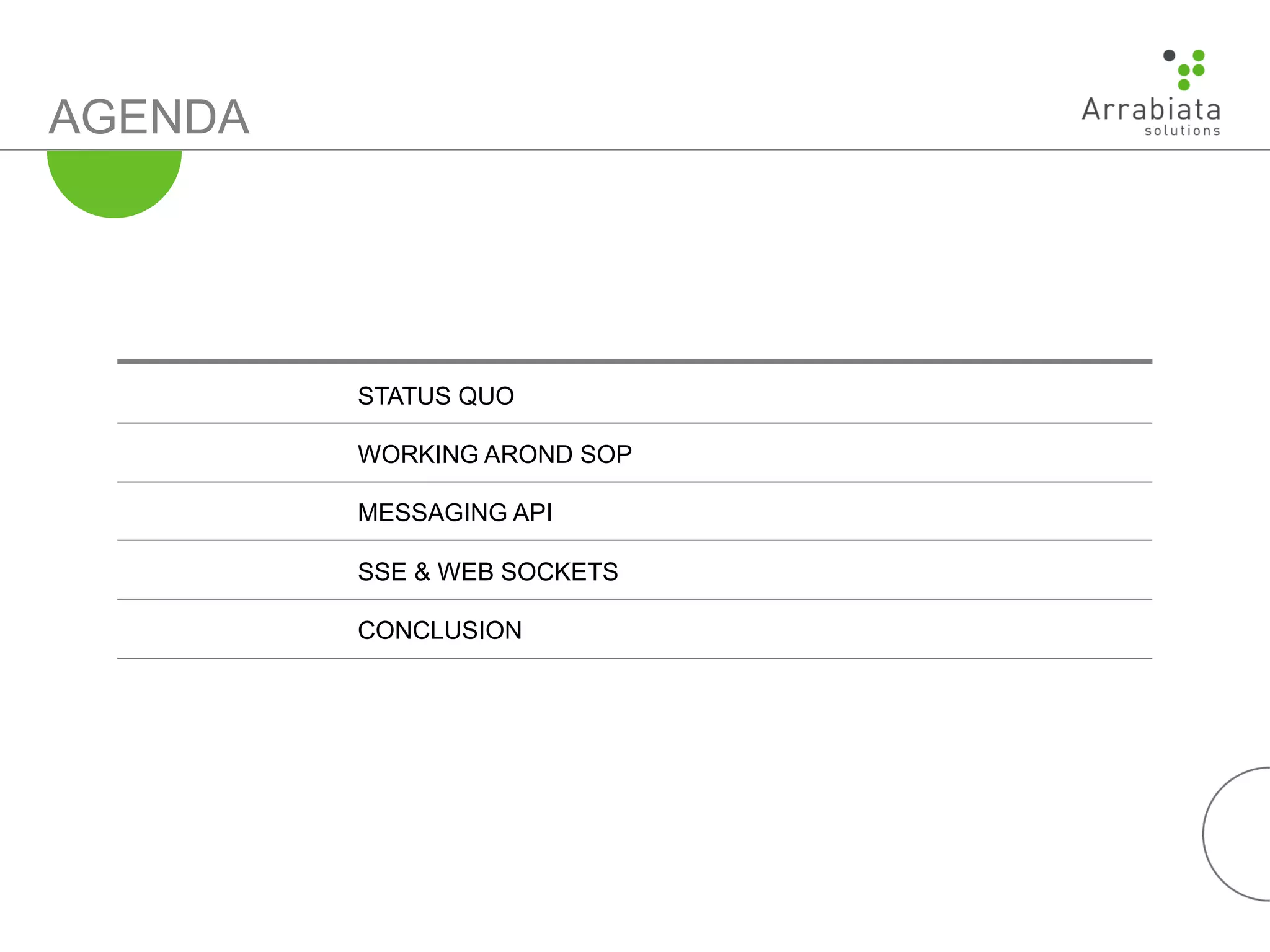

3. AGENDA
STATUS QUO
WORKING AROND SOP
MESSAGING API
SSE & WEB SOCKETS
CONCLUSION

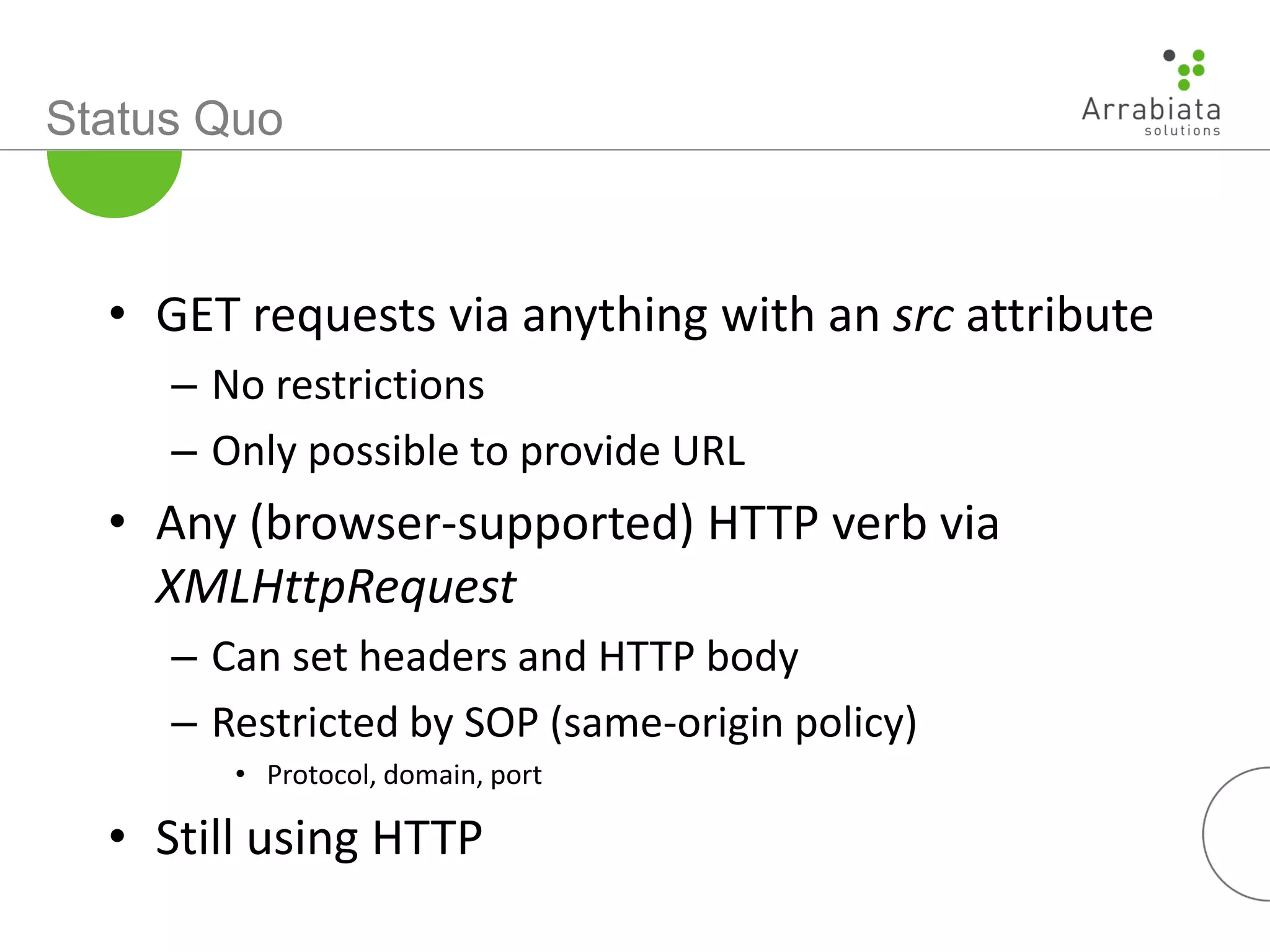

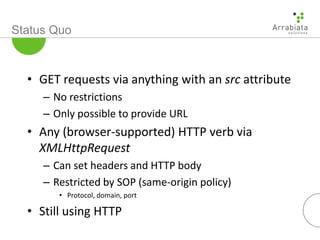

4. Status Quo
• GET requests via anything with an src attribute
– No restrictions
– Only possible to provide URL
• Any (browser-supported) HTTP verb via
XMLHttpRequest
– Can set headers and HTTP body
– Restricted by SOP (same-origin policy)
• Protocol, domain, port
• Still using HTTP

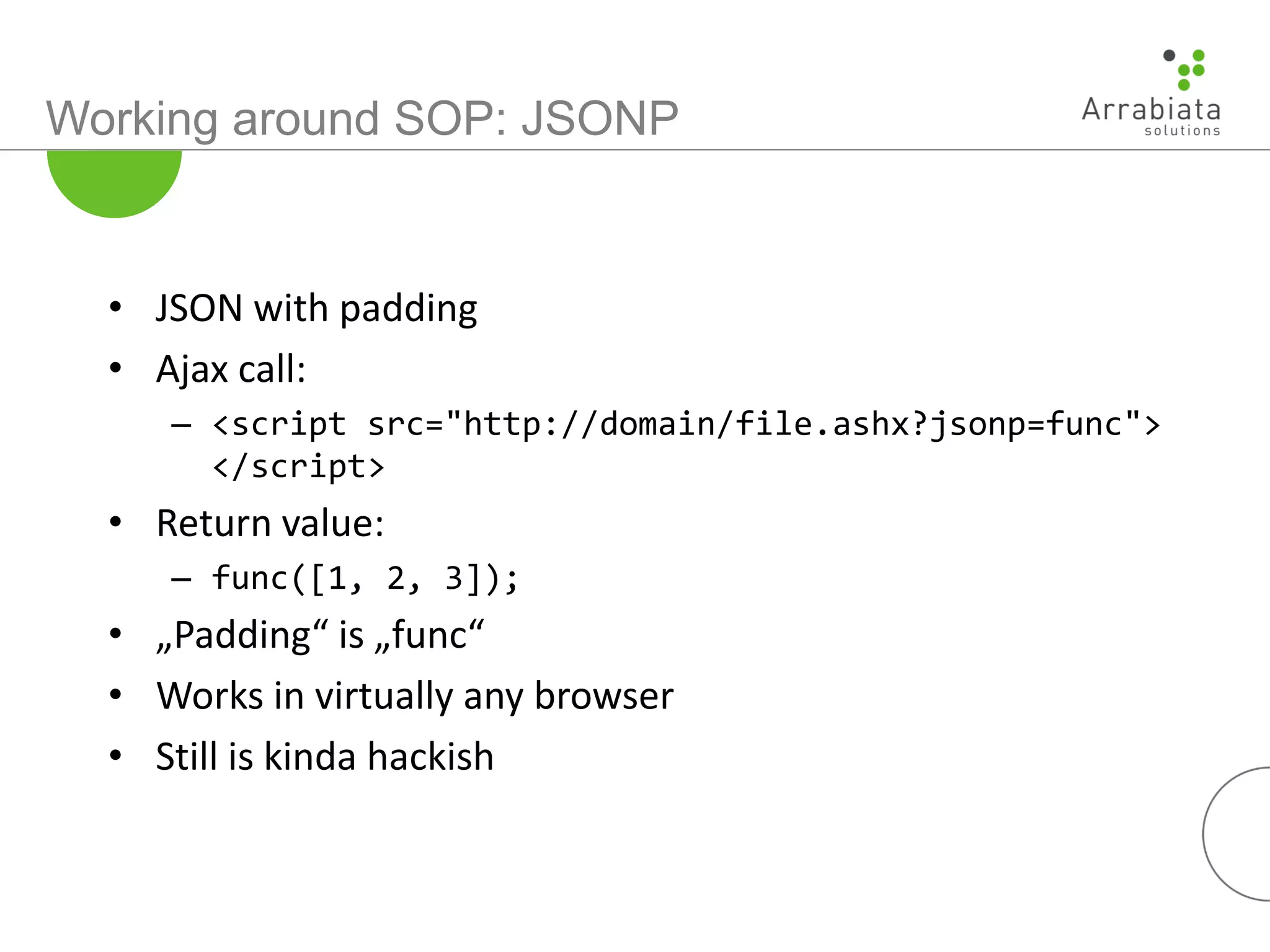

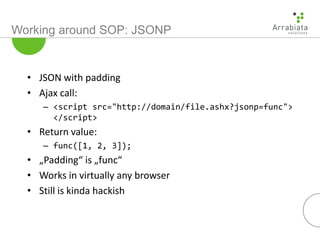

5. Working around SOP: JSONP
• JSON with padding
• Ajax call:
– <script src="http://domain/file.ashx?jsonp=func">
</script>
• Return value:
– func([1, 2, 3]);
• „Padding“ is „func“
• Works in virtually any browser
• Still is kinda hackish

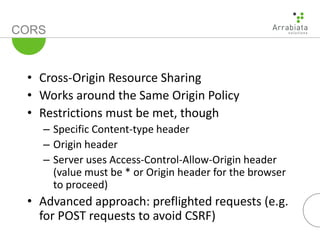

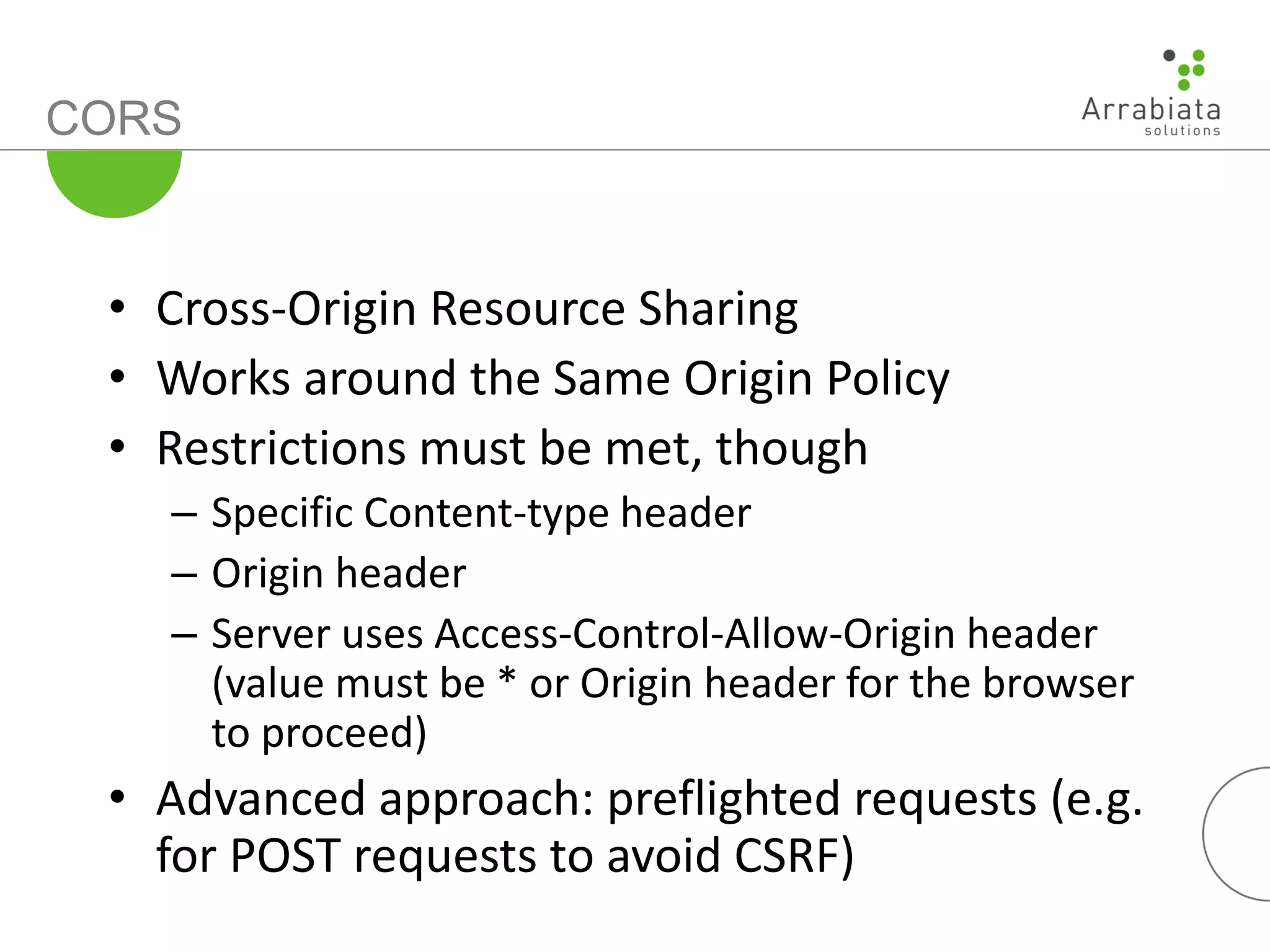

6. CORS
• Cross-Origin Resource Sharing
• Works around the Same Origin Policy
• Restrictions must be met, though
– Specific Content-type header
– Origin header
– Server uses Access-Control-Allow-Origin header
(value must be * or Origin header for the browser
to proceed)
• Advanced approach: preflighted requests (e.g.
for POST requests to avoid CSRF)

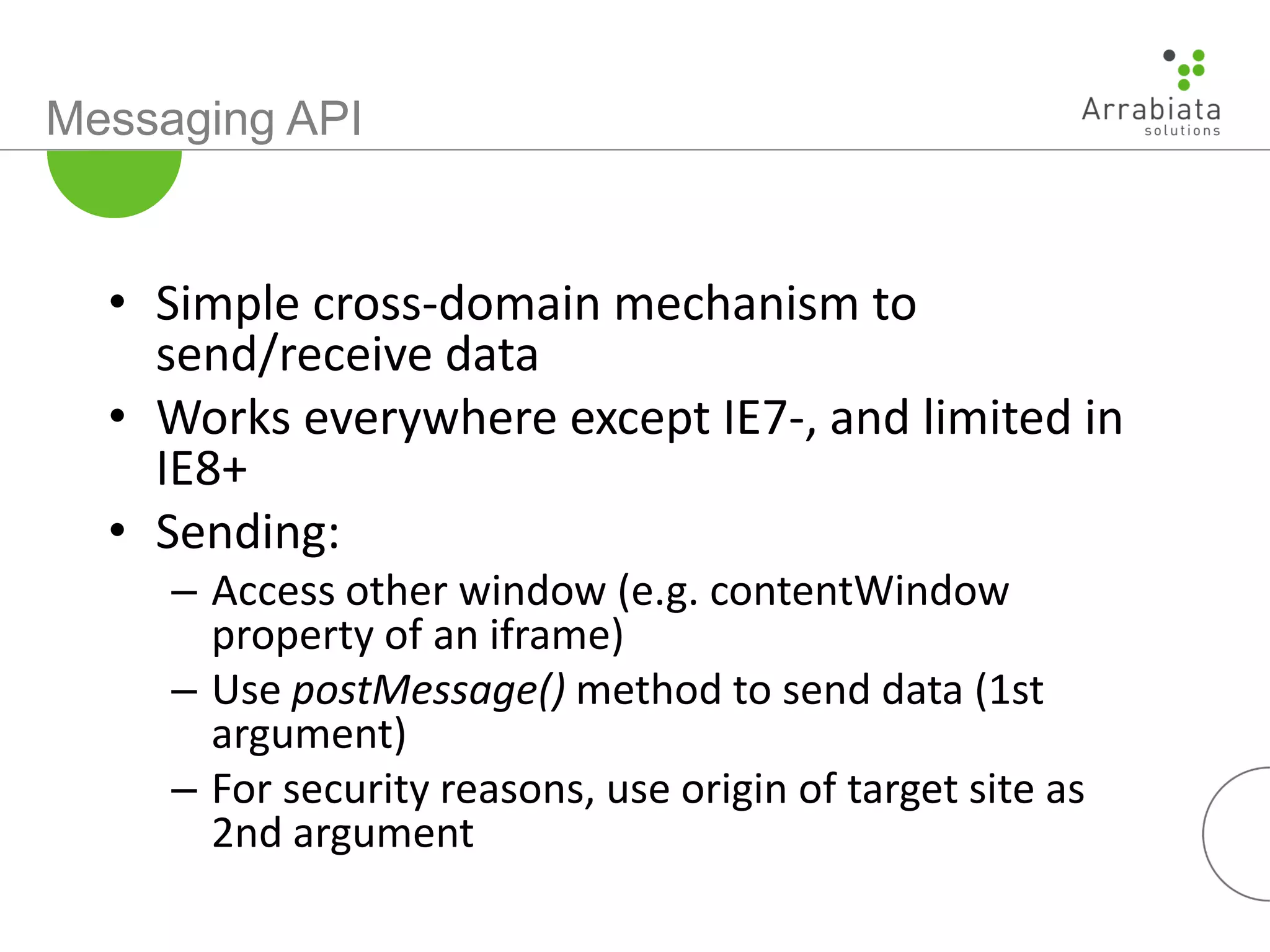

7. Messaging API
• Simple cross-domain mechanism to
send/receive data
• Works everywhere except IE7-, and limited in
IE8+
• Sending:
– Access other window (e.g. contentWindow
property of an iframe)
– Use postMessage() method to send data (1st
argument)
– For security reasons, use origin of target site as
2nd argument

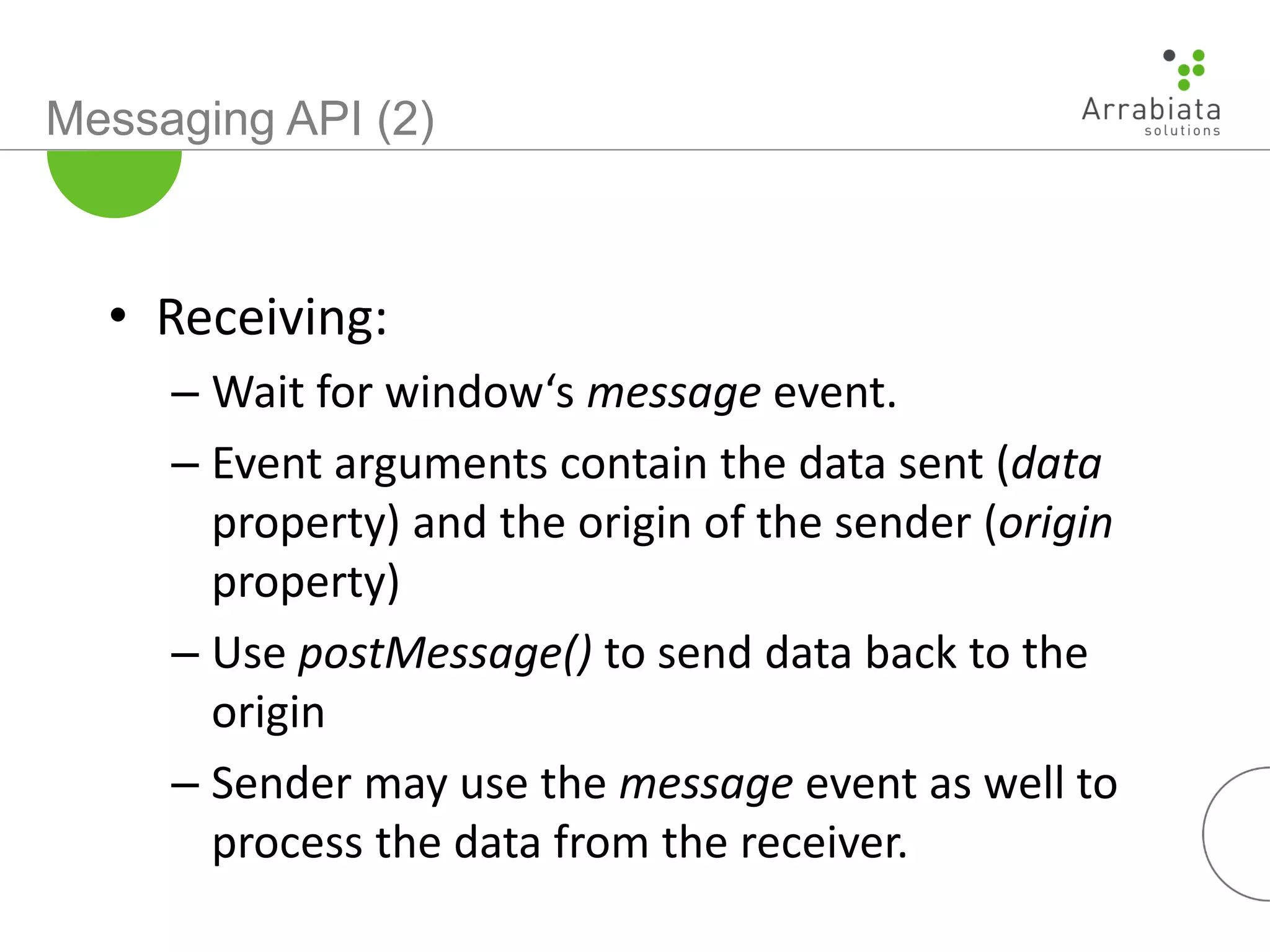

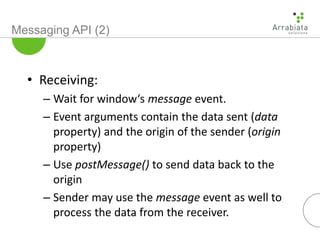

8. Messaging API (2)
• Receiving:
– Wait for window‘s message event.
– Event arguments contain the data sent (data
property) and the origin of the sender (origin
property)
– Use postMessage() to send data back to the
origin
– Sender may use the message event as well to
process the data from the receiver.

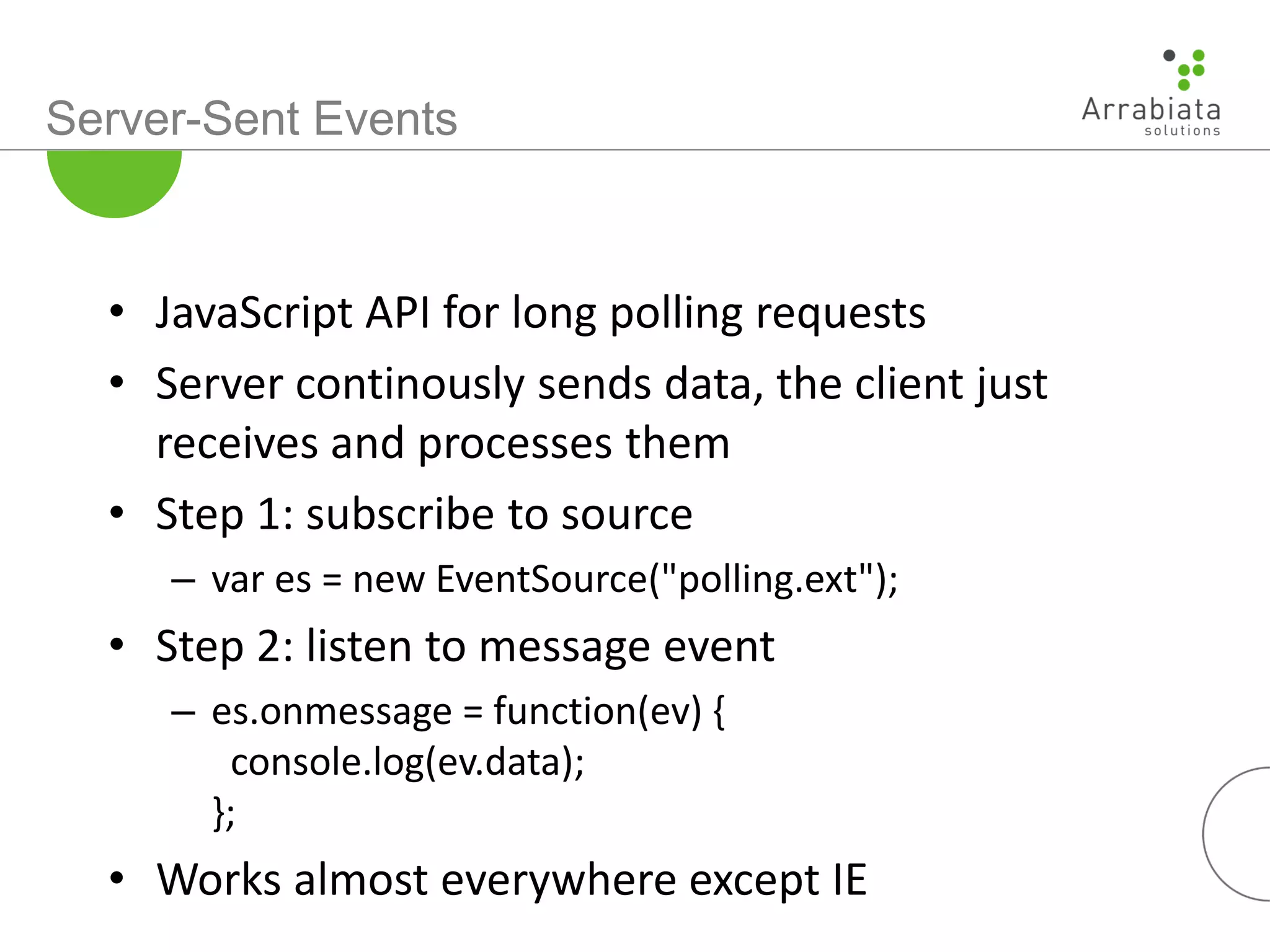

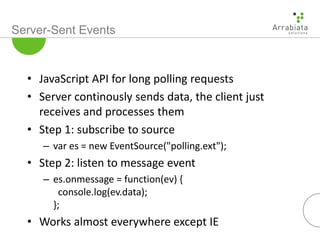

9. Server-Sent Events
• JavaScript API for long polling requests
• Server continously sends data, the client just
receives and processes them
• Step 1: subscribe to source
– var es = new EventSource("polling.ext");
• Step 2: listen to message event
– es.onmessage = function(ev) {
console.log(ev.data);
};
• Works almost everywhere except IE

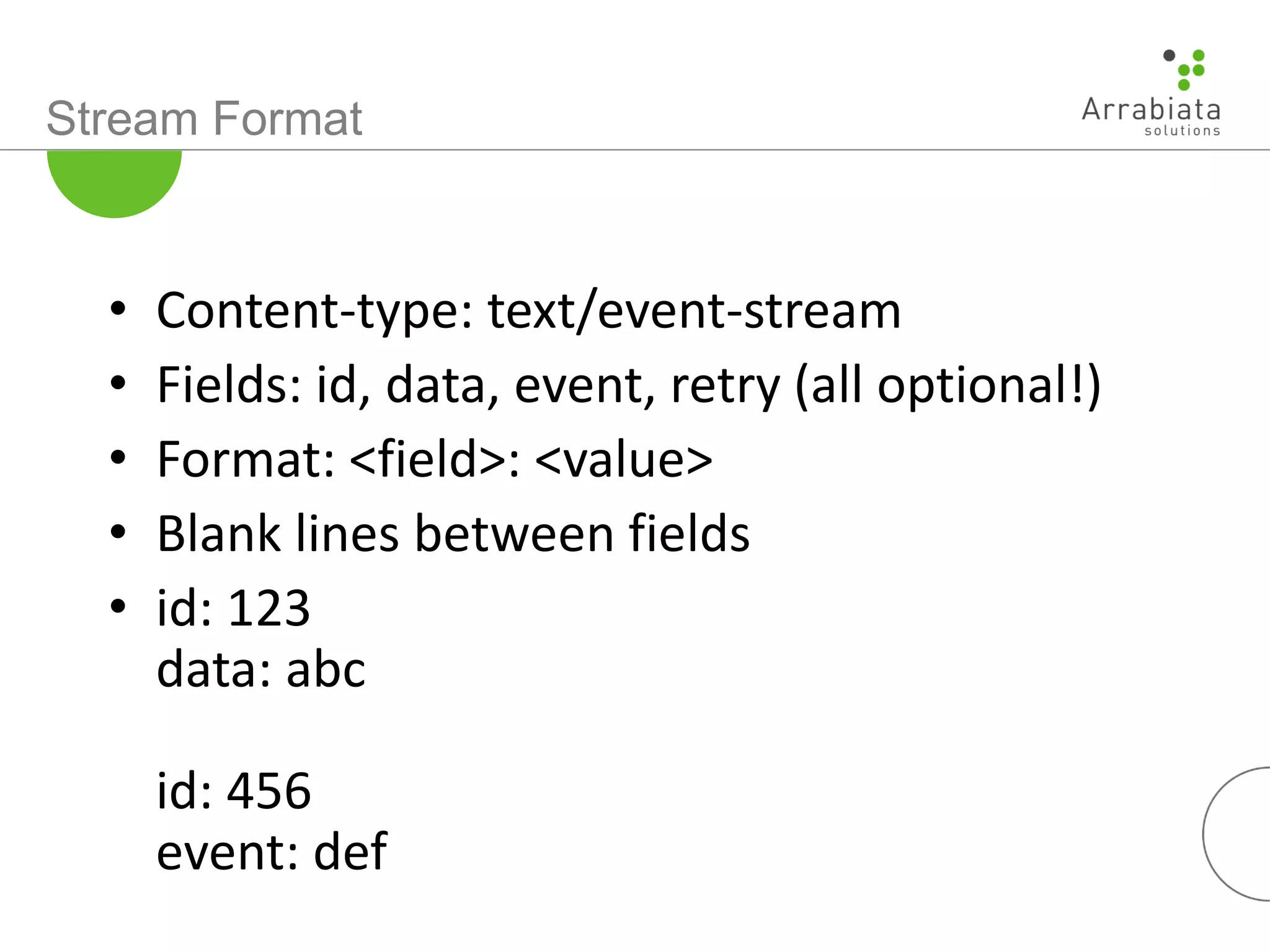

10. Stream Format
• Content-type: text/event-stream
• Fields: id, data, event, retry (all optional!)
• Format: <field>: <value>
• Blank lines between fields
• id: 123
data: abc
id: 456
event: def

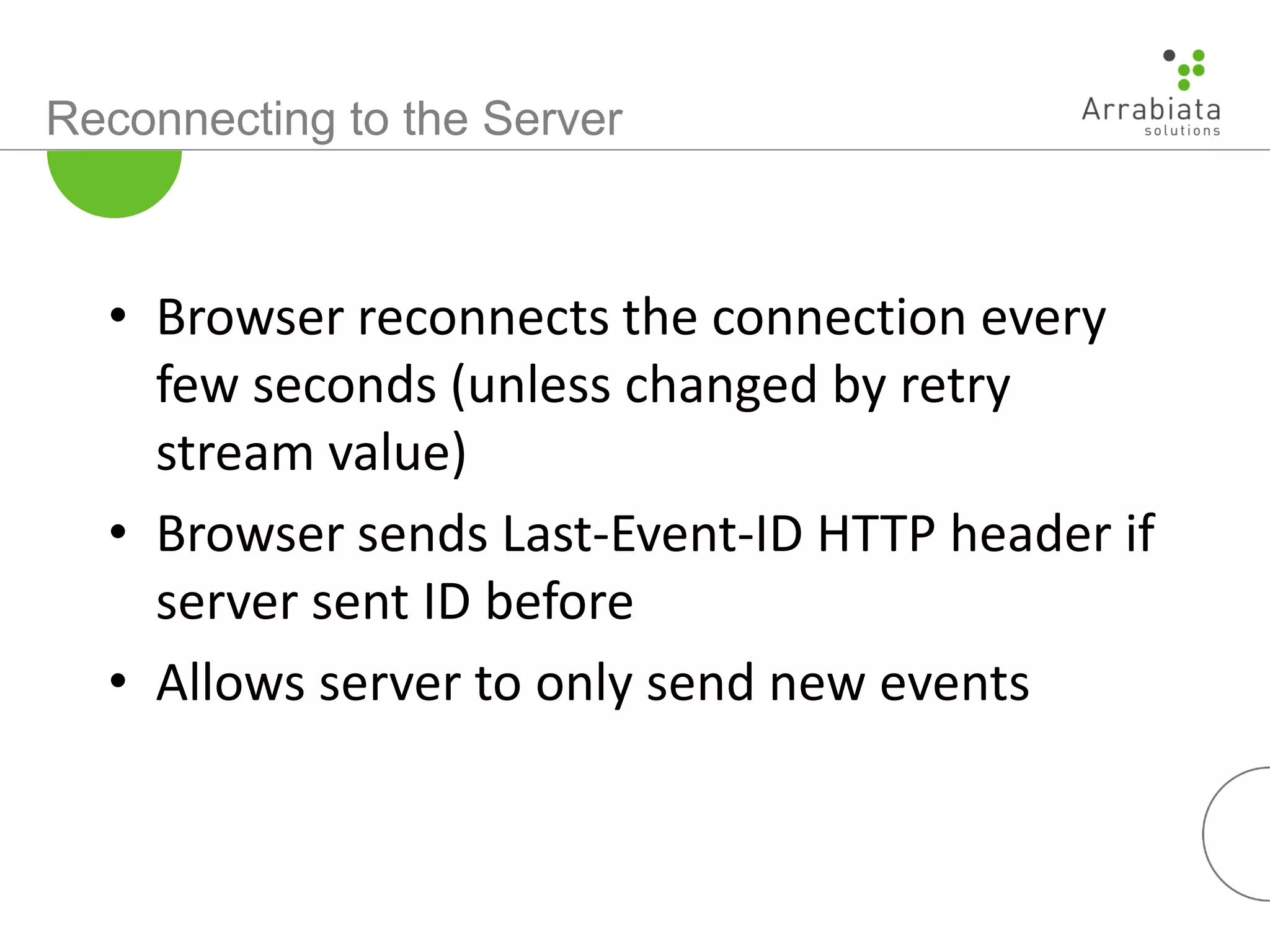

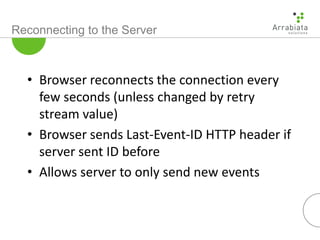

11. Reconnecting to the Server
• Browser reconnects the connection every
few seconds (unless changed by retry
stream value)
• Browser sends Last-Event-ID HTTP header if
server sent ID before
• Allows server to only send new events

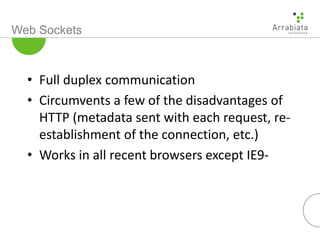

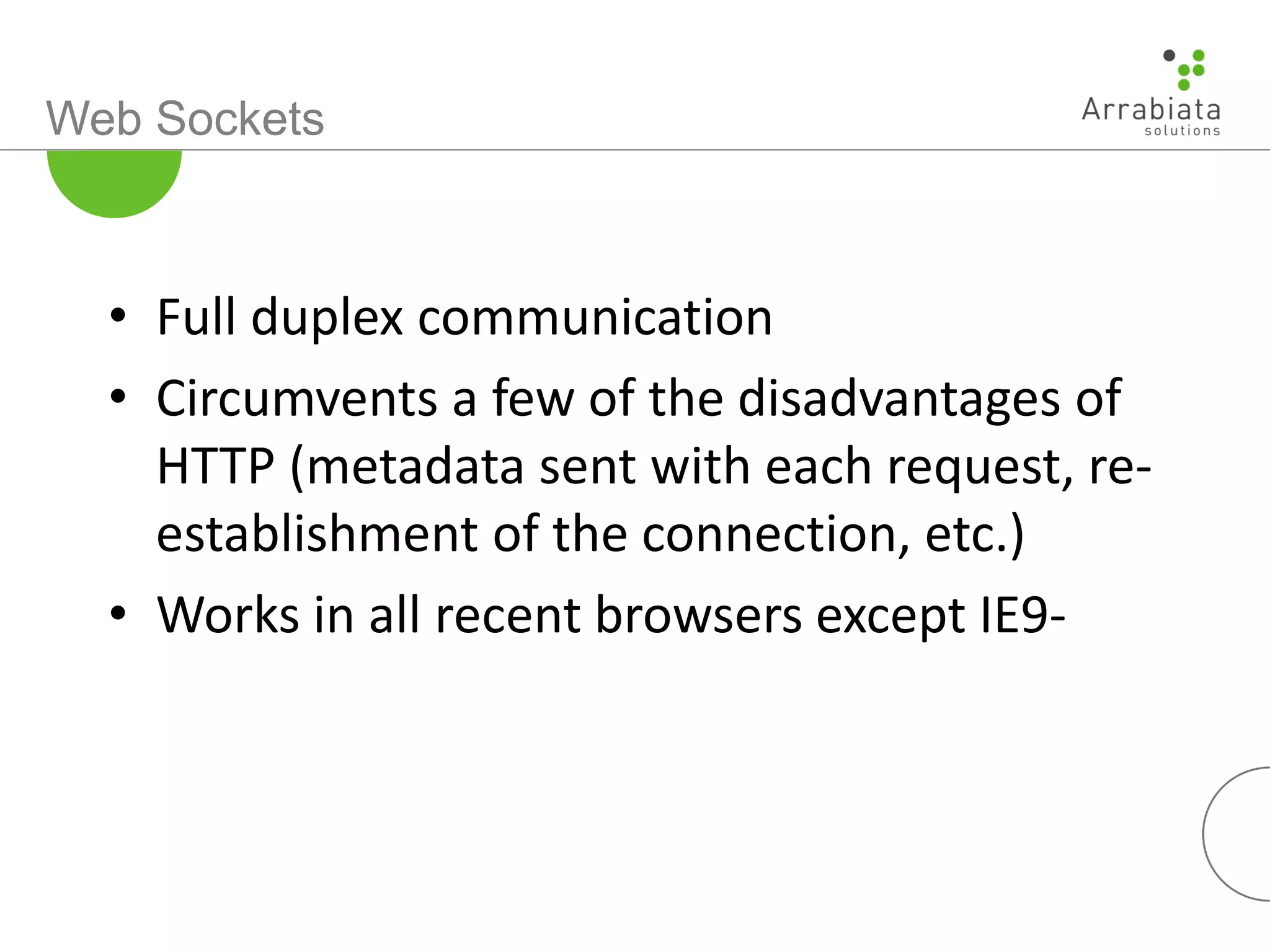

12. Web Sockets
• Full duplex communication
• Circumvents a few of the disadvantages of
HTTP (metadata sent with each request, re-
establishment of the connection, etc.)
• Works in all recent browsers except IE9-

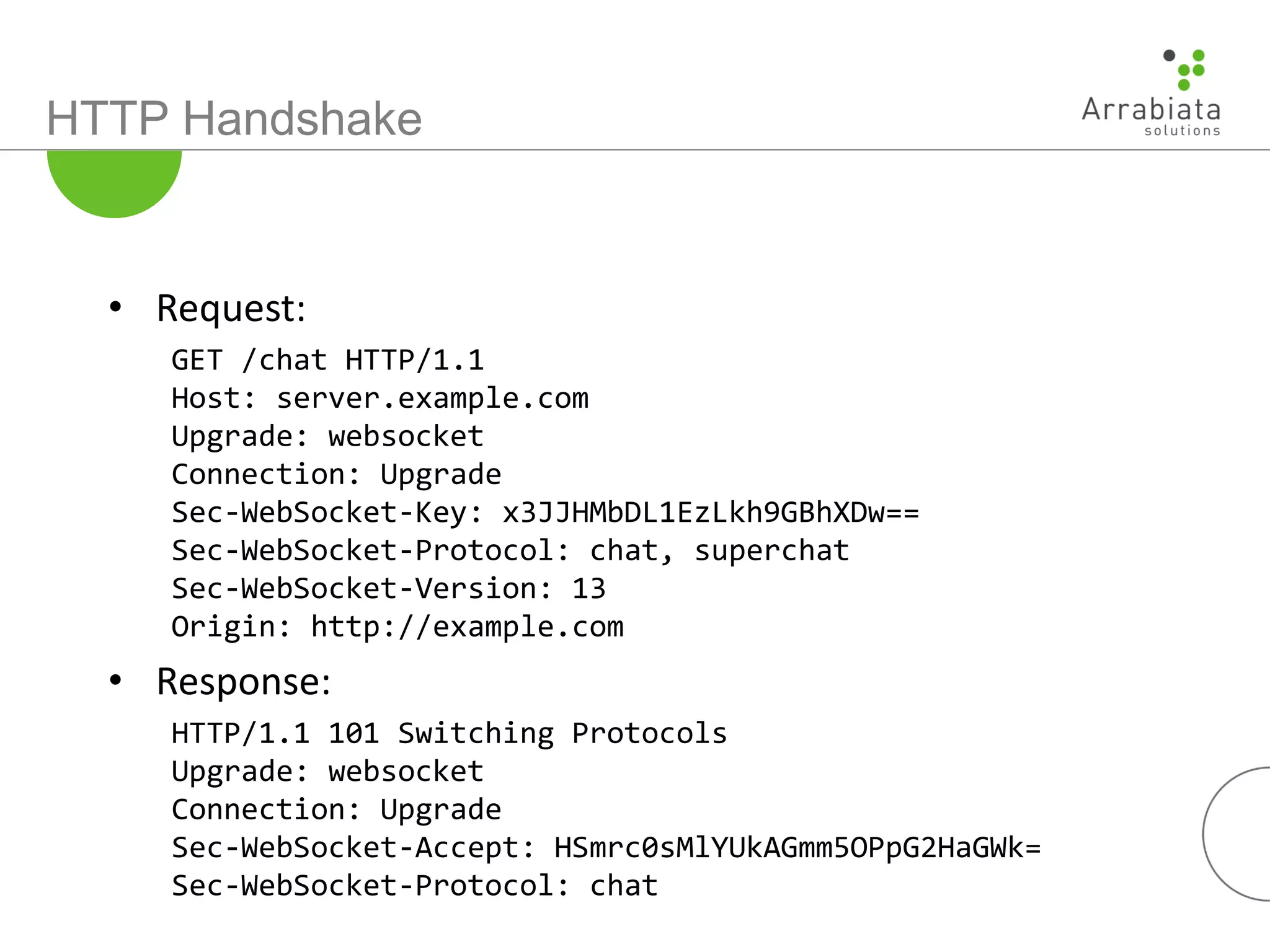

13. HTTP Handshake
• Request:
GET /chat HTTP/1.1
Host: server.example.com
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Key: x3JJHMbDL1EzLkh9GBhXDw==
Sec-WebSocket-Protocol: chat, superchat
Sec-WebSocket-Version: 13
Origin: http://example.com
• Response:
HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: HSmrc0sMlYUkAGmm5OPpG2HaGWk=
Sec-WebSocket-Protocol: chat

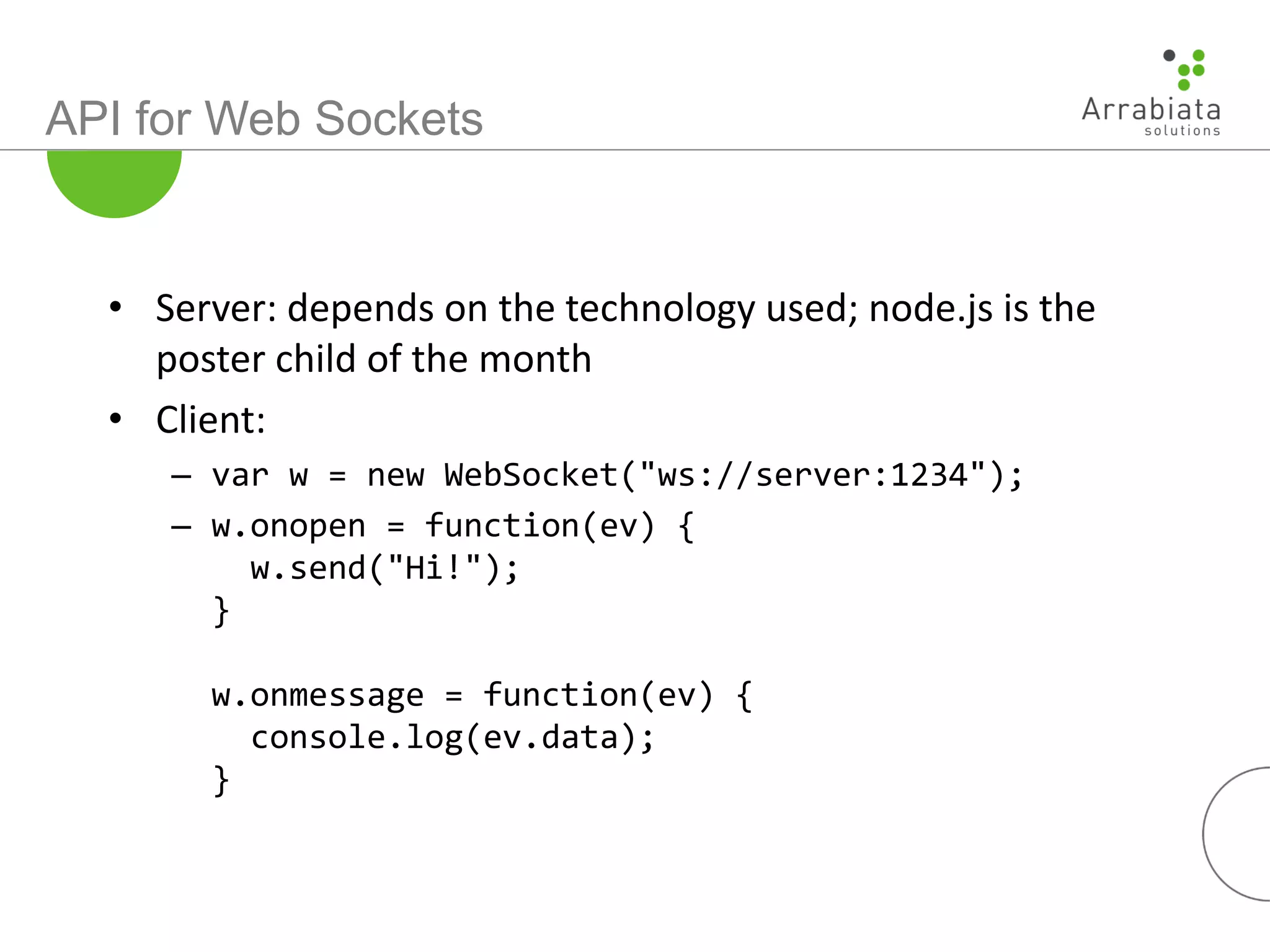

14. API for Web Sockets
• Server: depends on the technology used; node.js is the
poster child of the month
• Client:
– var w = new WebSocket("ws://server:1234");
– w.onopen = function(ev) {
w.send("Hi!");
}
w.onmessage = function(ev) {
console.log(ev.data);
}

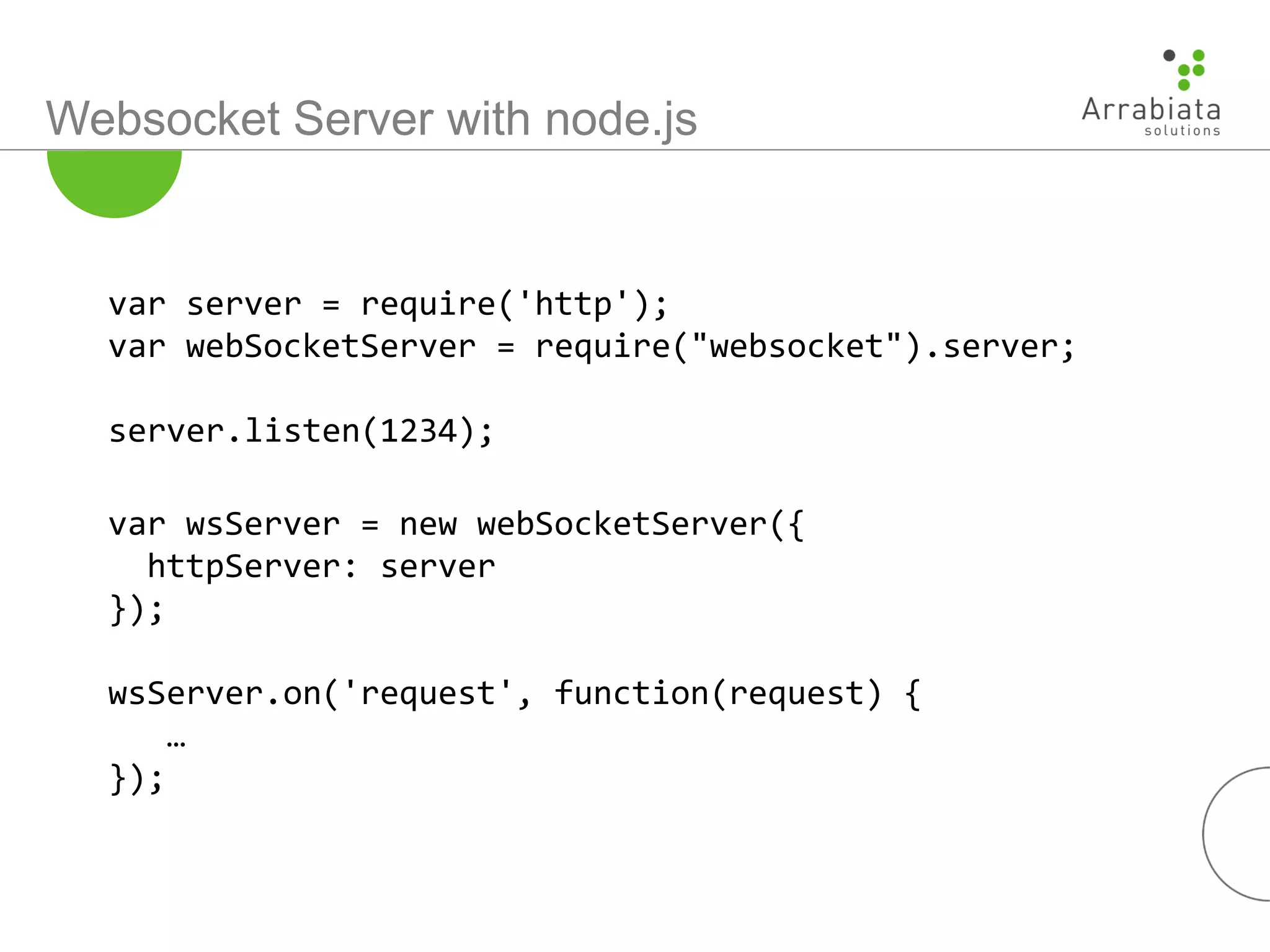

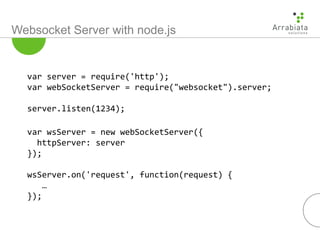

15. Websocket Server with node.js
var server = require('http');
var webSocketServer = require("websocket").server;
server.listen(1234);
var wsServer = new webSocketServer({
httpServer: server
});
wsServer.on('request', function(request) {
…
});

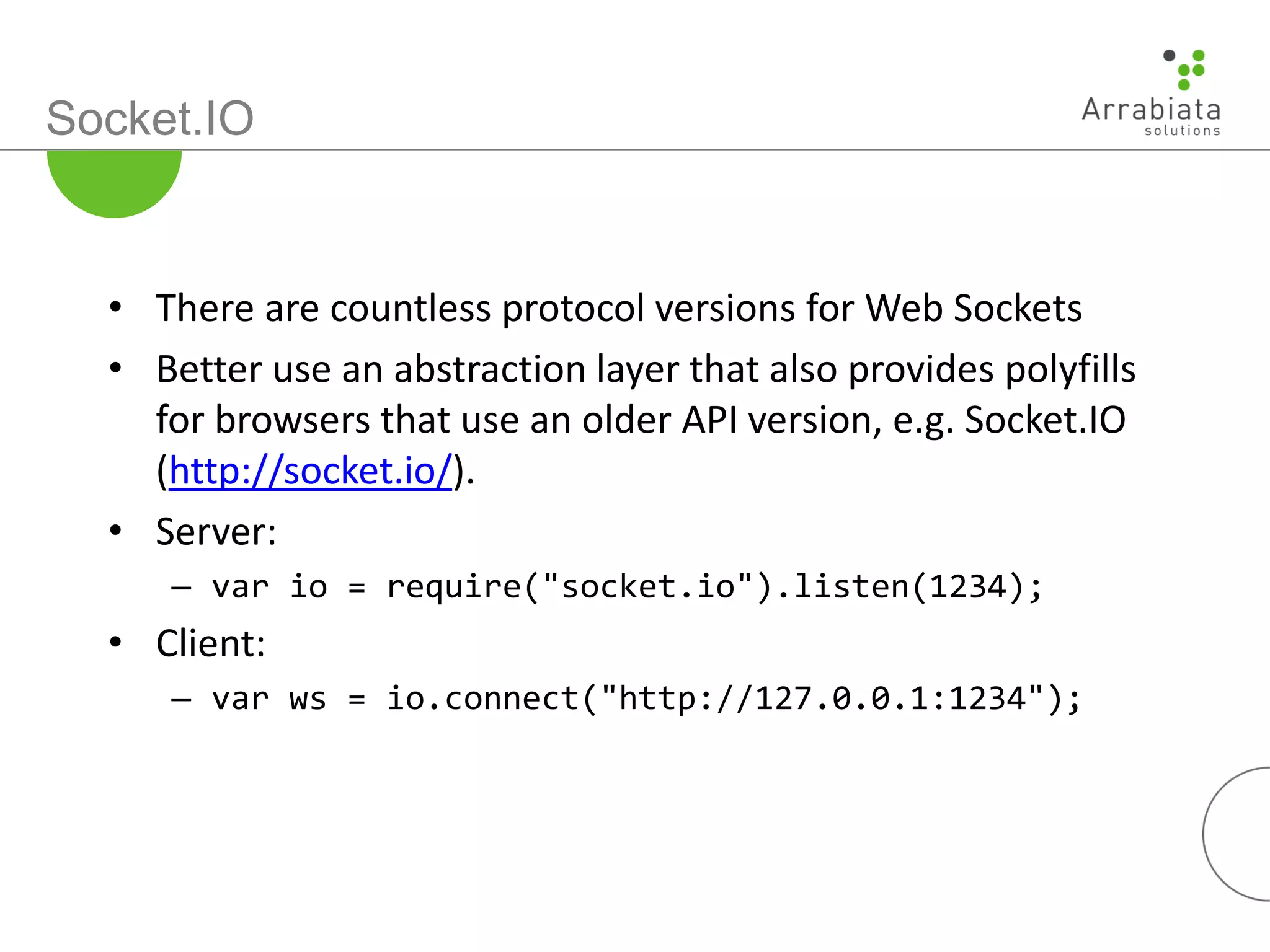

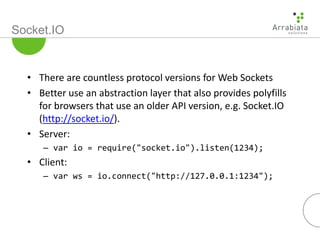

16. Socket.IO
• There are countless protocol versions for Web Sockets
• Better use an abstraction layer that also provides polyfills
for browsers that use an older API version, e.g. Socket.IO
(http://socket.io/).
• Server:
– var io = require("socket.io").listen(1234);
• Client:
– var ws = io.connect("http://127.0.0.1:1234");

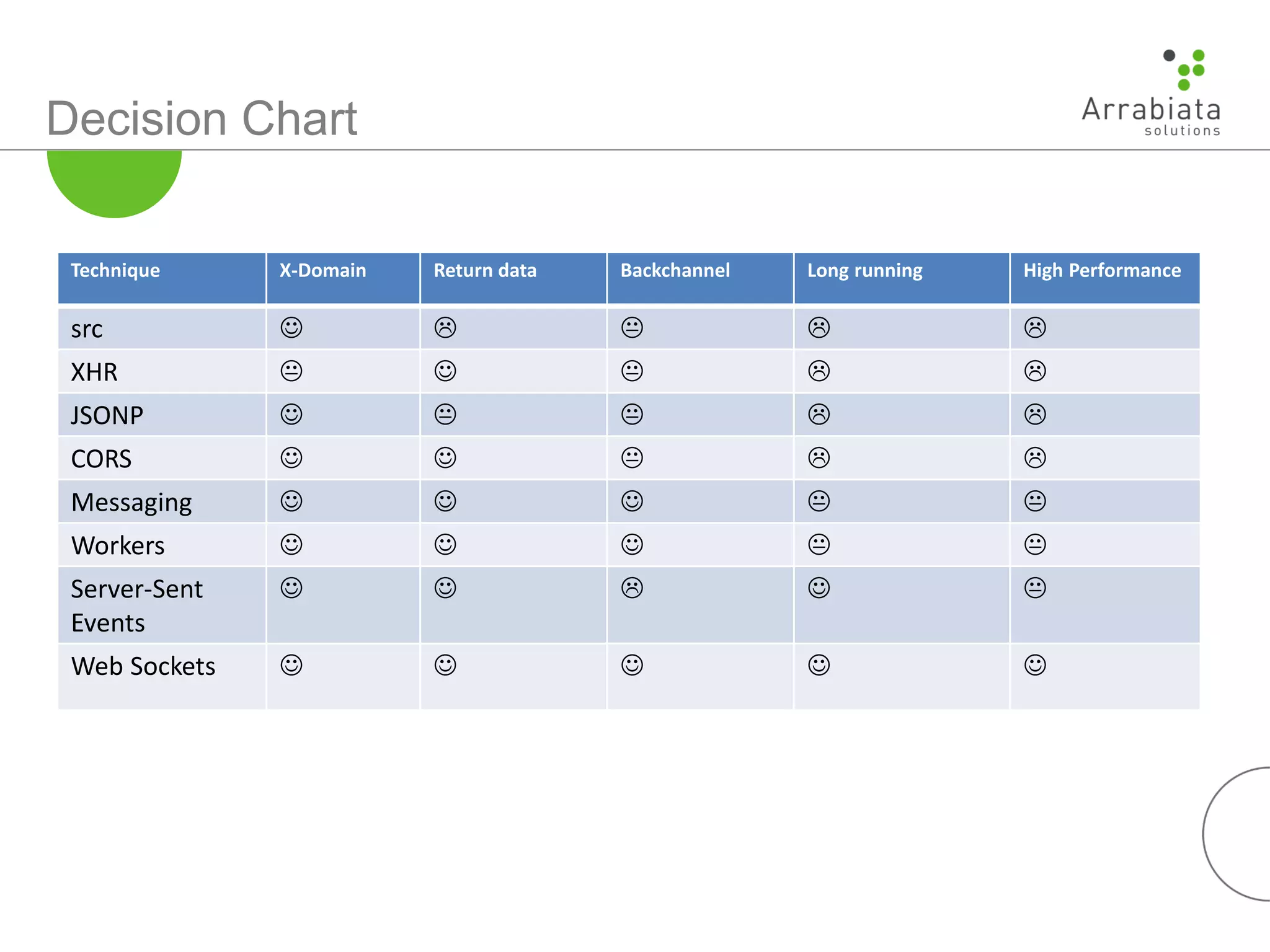

17. Decision Chart
Technique X-Domain Return data Backchannel Long running High Performance
src     
XHR     
JSONP     
CORS     
Messaging     
Workers     
Server-Sent
Events
    
Web Sockets     

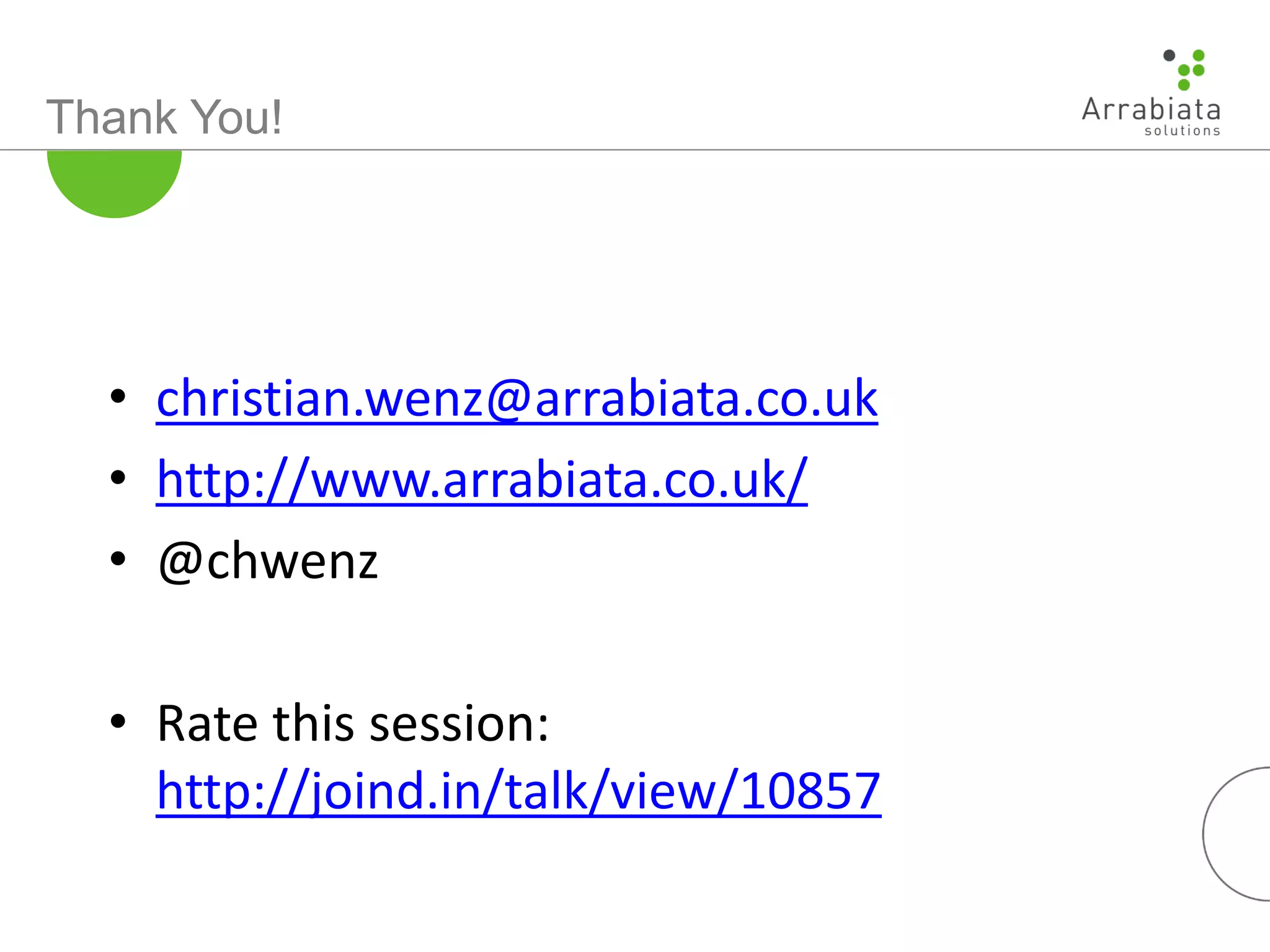

18. Thank You!
• christian.wenz@arrabiata.co.uk
• http://www.arrabiata.co.uk/
• @chwenz
• Rate this session:
http://joind.in/talk/view/10857
