This document discusses SAP Fiori, a user experience platform from SAP that provides mobile-first apps. It provides an overview of SAP Fiori architecture, app types, adoption steps, use cases and customization options. Key highlights include that SAP Fiori is optimized for SAP HANA, provides three types of apps, and organizations should focus on specific tasks and use cases when adopting SAP Fiori to drive user adoption. Customization can be done at the backend, gateway or user interface layers.

1. Upgrade to IBM Integration Broker v9.0
ProSoft Technology Group, Inc.
Butterfield Rd, Suite 305, Downers Grove, IL, 60515 # 630-725-1800 Fax : 630-729-9637 http://ProSoftGroup.com
SAP Fiori – Deep Dive

2. FOUNDED in 1995 Headquartered in Downers Grove, IL, among the Inc. 500 Fastest Growing Companies (2005, 2006, 2007, 2008, 2011). GLOBAL PRESENCE: Development and Support Offices in US, Canada and India. 350 ASSOCIATES GLOBALLY: with average Management Consulting and Technical delivery experience of 10+ years. AREAS OF PRACTICE: Enterprise Solutions, Business Process Management, Business Analytics, On Demand Application Support & Staff Supplementation. INDUSTRY FOCUS: Retail & AFS, Manufacturing and Strategic Customer Focus.
TECHNOLOGY PARTNERS: SAP Services Partner, IBM Premier Partner & Software AG Partner. STATT: ProSoft’s Project Management and Solution Delivery Methodology
ProSoft Highlights

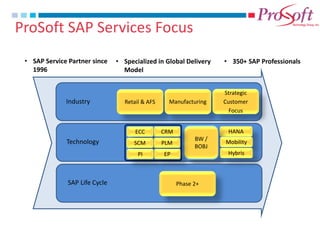

3. •SAP Service Partner since 1996
•Specialized in Global Delivery Model
•350+ SAP Professionals
Industry
Retail & AFS
Manufacturing
Technology
HANA
BW / BOBJ
ECC
CRM
SAP Life Cycle
Phase 2+
SCM
PLM
PI
EP
Mobility
Strategic Customer Focus
Hybris
ProSoft SAP Services Focus

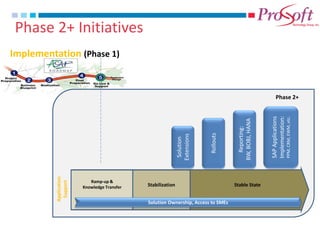

4. Implementation (Phase 1)
Phase 2+
Ramp-up &
Knowledge Transfer
Stabilization
Stable State
Application Support
Solution Extensions
Rollouts
Reporting:
BW, BOBJ, HANA
SAP Applications Implementation:
PPM, CRM, EWM, etc.
Solution Ownership, Access to SMEs
Phase 2+ Initiatives

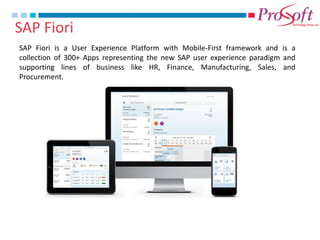

5. SAP Fiori
SAP Fiori is a User Experience Platform with Mobile-First framework and is a collection of 300+ Apps representing the new SAP user experience paradigm and supporting lines of business like HR, Finance, Manufacturing, Sales, and Procurement.

6. SAP Fiori: When to Consider?
Leverage an existing app quickly either by utilizing the standard or by enhancing
Quickly create an app from the scratch
Online access is sufficient
Would like to avoid app submission and deployment process
No complex/heavier use cases
Light weight data processing needs
Faster ROI
Responsive

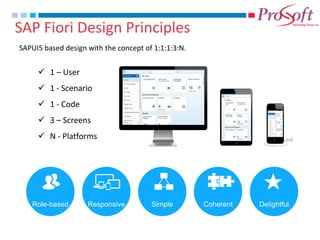

7. SAP Fiori Design Principles
SAPUI5 based design with the concept of 1:1:1:3:N.
1 – User
1 - Scenario
1 - Code
3 – Screens
N - Platforms
Responsive
Simple
Coherent
Delightful
Role-based

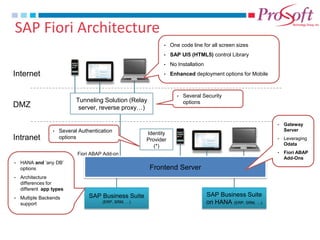

8. SAP Fiori Architecture
DMZ
Intranet
Internet
Tunneling Solution (Relay server, reverse proxy…)
SAP Business Suite (ERP, SRM, …)
SAP Business Suite on HANA (ERP, SRM, …)
•One code line for all screen sizes
•SAP UI5 (HTML5) control Library
•No Installation
•Enhanced deployment options for Mobile
•HANA and ‘any DB’ options
•Architecture differences for different app types
•Multiple Backends support
Frontend Server
Identity Provider (*)
•Several Security options
Fiori ABAP Add-on
•Several Authentication options
•Gateway Server
•Leveraging Odata
•Fiori ABAP Add-Ons

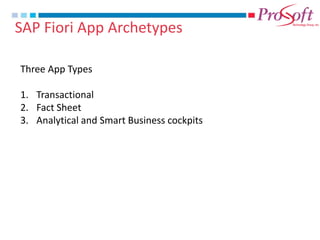

9. SAP Fiori App Archetypes
Three App Types
1.Transactional
2.Fact Sheet
3.Analytical and Smart Business cockpits

10. Transactional
Fact Sheet
Analytical
Shipment
RTC / available
Total # Apps
1
May 2013
25
2
Nov 2013
208
3
Feb 2014
218
4
May 2014
312
5
July 2014*
Wave 5
6
planned*
25
43
82
83
51
82
85
84
90
138
Q2’13
Self-service scenarios for employees, managers, and selected business tasks
Q1’14
Consolidation, extensibility for transactional apps
and selected new areas
Q4’13
Enhanced scope to more complex business tasks
Q2’14
Continuing core areas, starting industry coverage,
increasing focus for
Suite on HANA

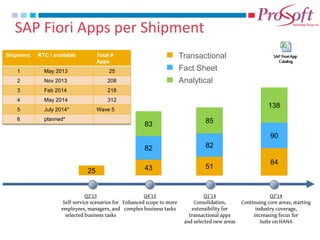

SAP Fiori Apps per Shipment

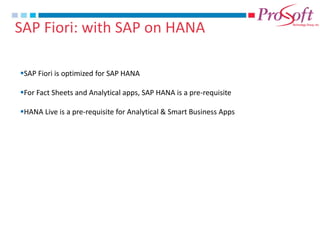

11. SAP Fiori: with SAP on HANA
SAP Fiori is optimized for SAP HANA
For Fact Sheets and Analytical apps, SAP HANA is a pre-requisite
HANA Live is a pre-requisite for Analytical & Smart Business Apps

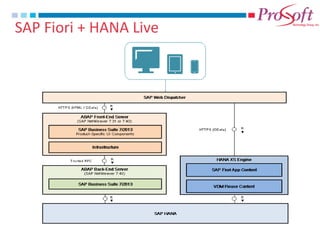

12. SAP Fiori + HANA Live

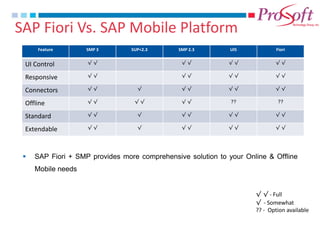

13. SAP Fiori Vs. SAP Mobile Platform
Feature
SMP 3
SUP<2.3
SMP 2.3
UI5
Fiori
UI Control
√ √
√ √
√ √
√ √
Responsive
√ √
√ √
√ √
√ √
Connectors
√ √
√
√ √
√ √
√ √
Offline
√ √
√ √
√ √
??
??
Standard
√ √
√
√ √
√ √
√ √
Extendable
√ √
√
√ √
√ √
√ √
√ √ - Full
√ - Somewhat
?? - Option available
SAP Fiori + SMP provides more comprehensive solution to your Online & Offline Mobile needs

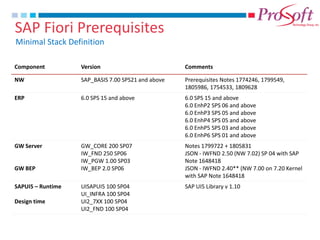

14. SAP Fiori Prerequisites
Component
Version
Comments
NW
SAP_BASIS 7.00 SPS21 and above
Prerequisites Notes 1774246, 1799549, 1805986, 1754533, 1809628
ERP
6.0 SPS 15 and above
6.0 SPS 15 and above
6.0 EnhP2 SPS 06 and above
6.0 EnhP3 SPS 05 and above
6.0 EnhP4 SPS 05 and above
6.0 EnhP5 SPS 03 and above
6.0 EnhP6 SPS 01 and above
GW Server
GW BEP
GW_CORE 200 SP07
IW_FND 250 SP06
IW_PGW 1.00 SP03
IW_BEP 2.0 SP06
Notes 1799722 + 1805831
JSON - IWFND 2.50 (NW 7.02) SP 04 with SAP Note 1648418
JSON - IWFND 2.40** (NW 7.00 on 7.20 Kernel with SAP Note 1648418
SAPUI5 – Runtime
Design time
UISAPUI5 100 SP04
UI_INFRA 100 SP04
UI2_7XX 100 SP04
UI2_FND 100 SP04
SAP UI5 Library v 1.10
Minimal Stack Definition

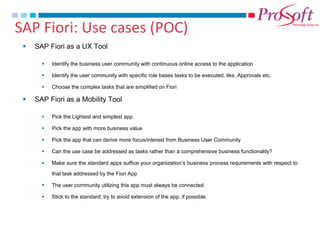

15. SAP Fiori: Use cases (POC)
SAP Fiori as a UX Tool
Identify the business user community with continuous online access to the application
Identify the user community with specific role bases tasks to be executed, like, Approvals etc.
Choose the complex tasks that are simplified on Fiori
SAP Fiori as a Mobility Tool
Pick the Lightest and simplest app
Pick the app with more business value
Pick the app that can derive more focus/interest from Business User Community
Can the use case be addressed as tasks rather than a comprehensive business functionality?
Make sure the standard apps suffice your organization’s business process requirements with respect to that task addressed by the Fiori App
The user community utilizing this app must always be connected
Stick to the standard; try to avoid extension of the app, if possible.

16. SAP NW Gateway
SAP Gateway is a technology that provides a simple way to connect devices, environments and platforms to SAP software based on market standards. Implementing Gateway has two options available:
Embedded Option
Good for POCs
No need for additional H/W
Hub Option
Good for Productive environment
One–time set up to use with any # of back end systems
Best option if there are multiple systems to be connected

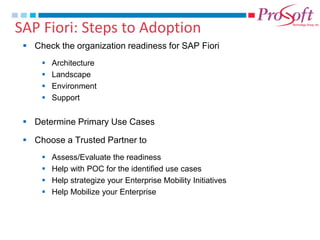

17. SAP Fiori: Steps to Adoption
Check the organization readiness for SAP Fiori
Architecture
Landscape
Environment
Support
Determine Primary Use Cases
Choose a Trusted Partner to
Assess/Evaluate the readiness
Help with POC for the identified use cases
Help strategize your Enterprise Mobility Initiatives
Help Mobilize your Enterprise

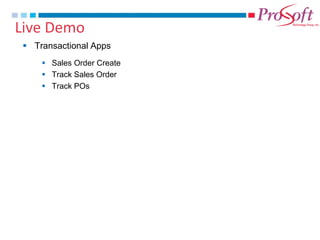

18. Live Demo
Transactional Apps
Sales Order Create
Track Sales Order
Track POs

19. SAP Fiori: Customize or Enhance
Customization/Enhancements are at three levels
Backend / Business Layer
Front End/ GW layer
User Interface Layer
Skillsets required for customization/enhancements:
Application Layer
ABAP
Business Suite
Gateway
OData
SAPUI5
HTML5 & JS
Business Layer
X
X
GW Layer
X
X
X
X
UI Layer
X
X

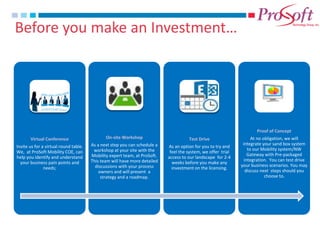

20. Before you make an Investment…
Virtual Conference Invite us for a virtual round table. We, at ProSoft Mobility COE, can help you identify and understand your business pain points and needs;
On-site Workshop
As a next step you can schedule a workshop at your site with the Mobility expert team, at ProSoft. This team will have more detailed discussions with your process owners and will present a strategy and a roadmap.
Test Drive
As an option for you to try and feel the system, we offer trial access to our landscape for 2-4 weeks before you make any investment on the licensing.
Proof of Concept
At no obligation, we will integrate your sand box system to our Mobility system/NW Gateway with Pre-packaged integration. You can test drive your business scenarios. You may discuss next steps should you choose to.

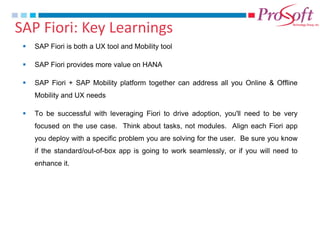

21. SAP Fiori: Key Learnings
SAP Fiori is both a UX tool and Mobility tool
SAP Fiori provides more value on HANA
SAP Fiori + SAP Mobility platform together can address all you Online & Offline Mobility and UX needs
To be successful with leveraging Fiori to drive adoption, you'll need to be very focused on the use case. Think about tasks, not modules. Align each Fiori app you deploy with a specific problem you are solving for the user. Be sure you know if the standard/out-of-box app is going to work seamlessly, or if you will need to enhance it.

22. Q & A

23. Thank you!!
We look forward to answer all your questions!!!
Praveen Sabbavarapu Delivery Manager – SAP Services ProSoft Technology Group, Inc. Phone: 720.326.9278 | Fax: 630.725.1900 psabbavarapu@prosoftgroup.com
