World Diamond Source, a family-owned company, celebrates its 15th anniversary with a commitment to providing value and exceptional customer service amid challenging economic times. The catalog highlights a wide range of diamond tooling and equipment, showcasing innovative products designed to improve cutting efficiency and reduce costs. The document also emphasizes the importance of choosing the right diamond blade based on specific application needs and includes warranty details and product specifications.

1. SINCE 1995
2009 World diamond Source
DiamonD tooling & equipment catalog
®
B u i l d i n g
Relationships
that last

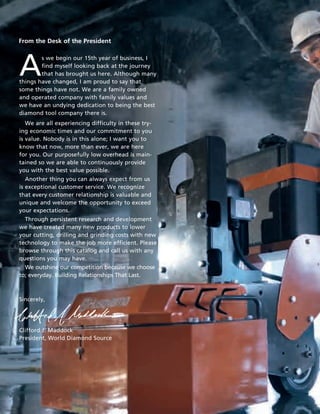

2. From the Desk of the President
A
s we begin our 15th year of business, I
find myself looking back at the journey
that has brought us here. Although many
things have changed, I am proud to say that
some things have not. We are a family owned
and operated company with family values and
we have an undying dedication to being the best
diamond tool company there is.
We are all experiencing difficulty in these try-
ing economic times and our commitment to you
is value. Nobody is in this alone; I want you to
know that now, more than ever, we are here
for you. Our purposefully low overhead is main-
tained so we are able to continuously provide
you with the best value possible.
Another thing you can always expect from us
is exceptional customer service. We recognize
that every customer relationship is valuable and
unique and welcome the opportunity to exceed
your expectations.
Through persistent research and development
we have created many new products to lower
your cutting, drilling and grinding costs with new
technology to make the job more efficient. Please
browse through this catalog and call us with any
questions you may have.
We outshine our competition because we choose
to; everyday. Building Relationships That Last.
Sincerely,
Clifford J. Maddock
President, World Diamond Source

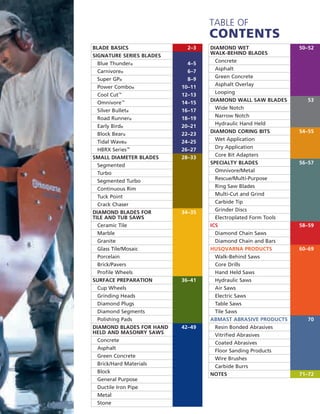

3. Table of
contents
Blade Basics 2–3 diamond wet 50–52
signature series Blades walk-BeHind Blades
Blue Thunder® 4–5 Concrete
Carnivore® 6–7 Asphalt
Super GP® 8–9 Green Concrete
Power Combo® 10–11 Asphalt Overlay
Cool Cut™ 12–13 Looping
Omnivore™ 14–15 diamond wall saw Blades 53
Silver Bullet® 16–17 Wide Notch
Road Runner® 18–19 Narrow Notch
Early Bird® 20–21 Hydraulic Hand Held
Block Bear® 22–23 diamond coring Bits 54–55
Tidal Wave® 24–25 Wet Application
HBRX Series™ 26–27 Dry Application

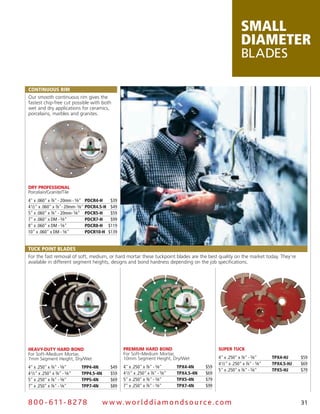

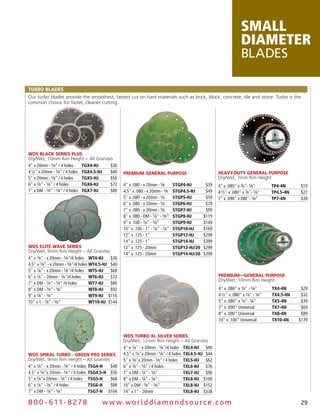

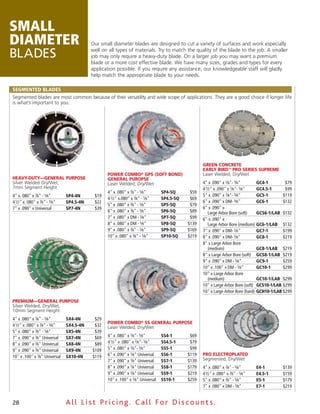

small diameter Blades 28–33 Core Bit Adapters

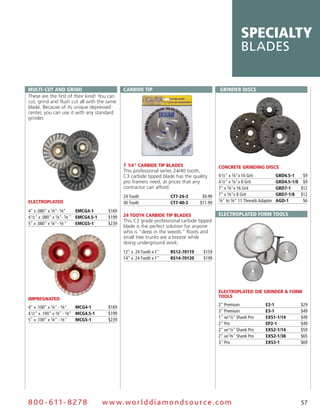

Segmented sPecialty Blades 56–57

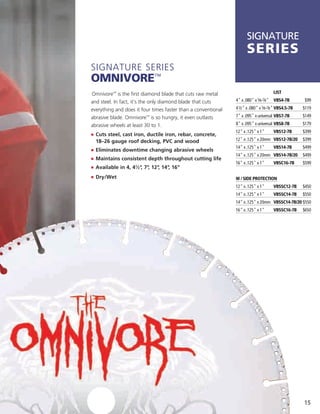

Turbo Omnivore/Metal
Segmented Turbo Rescue/Multi-Purpose
Continuous Rim Ring Saw Blades
Tuck Point Multi-Cut and Grind

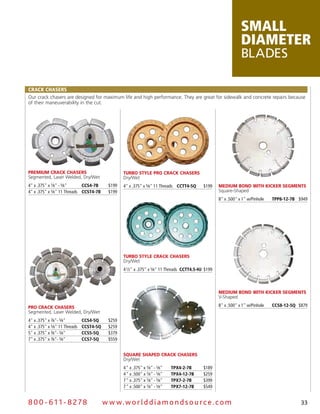

Crack Chaser Carbide Tip

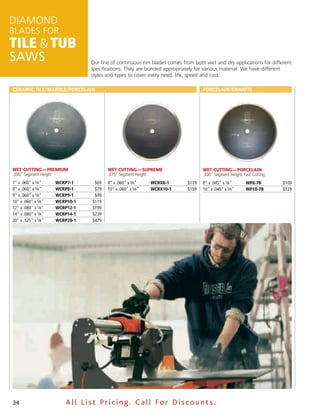

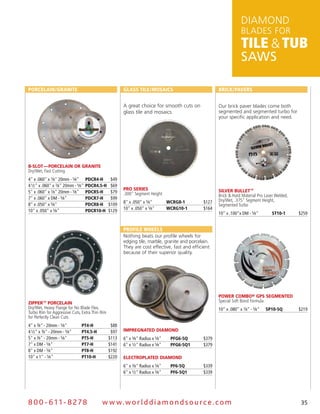

diamond Blades for 34–35 Grinder Discs
tile and tuB saws Electroplated Form Tools
Ceramic Tile ics 58–59
Marble Diamond Chain Saws
Granite Diamond Chain and Bars

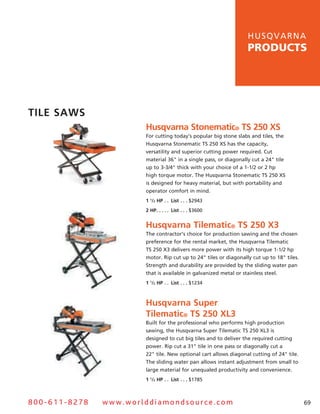

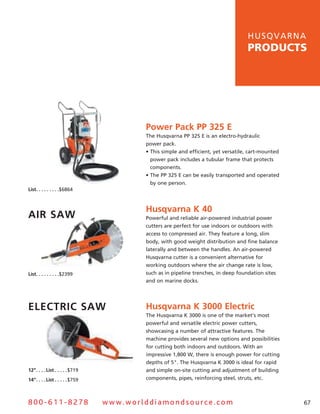

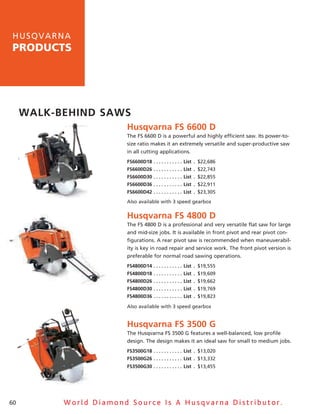

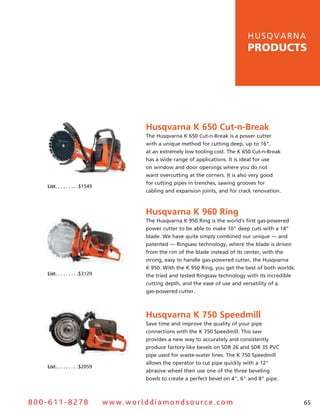

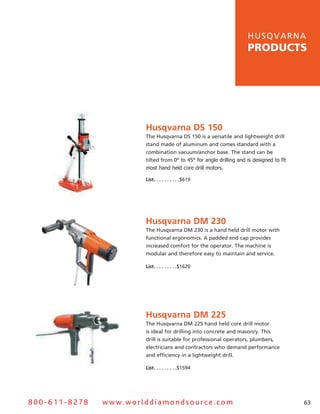

Glass Tile/Mosaic Husqvarna Products 60–69

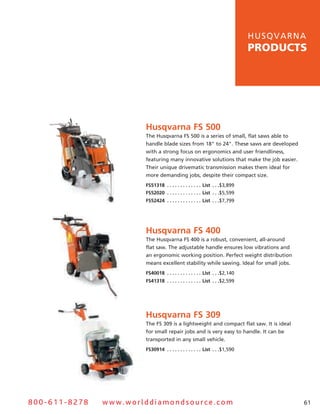

Porcelain Walk-Behind Saws

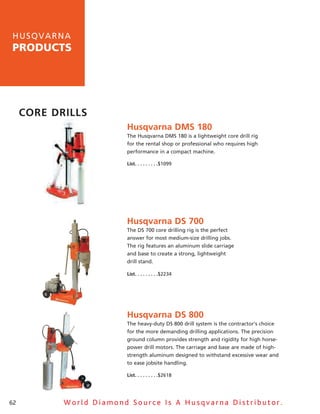

Brick/Pavers Core Drills
Profile Wheels Hand Held Saws

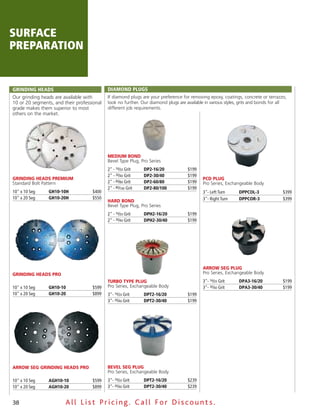

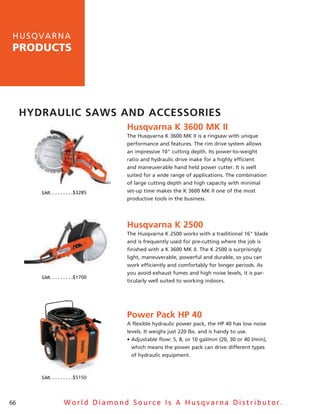

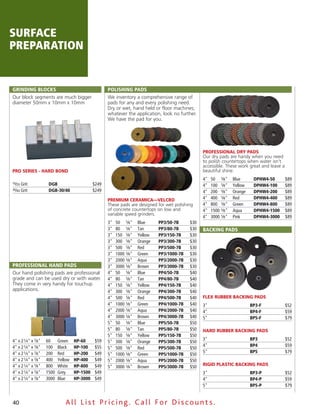

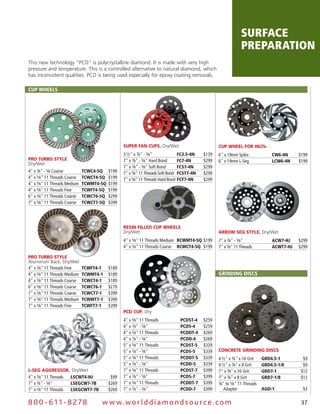

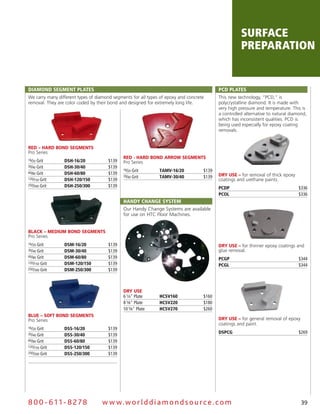

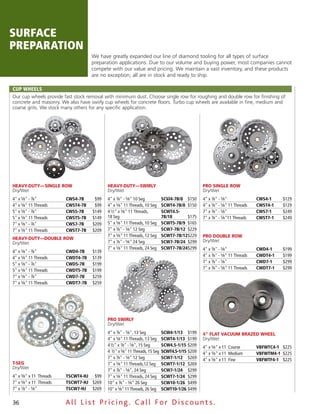

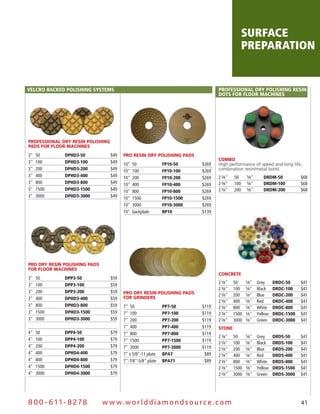

surface PreParation 36–41 Hydraulic Saws
Cup Wheels Air Saws
Grinding Heads Electric Saws
Diamond Plugs Table Saws
Diamond Segments Tile Saws

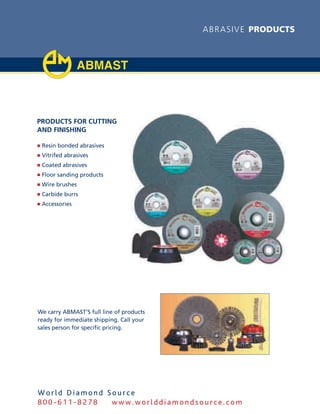

Polishing Pads aBmast aBrasive Products 70

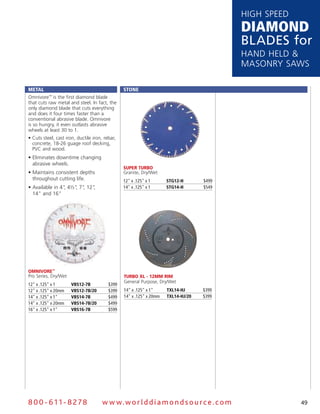

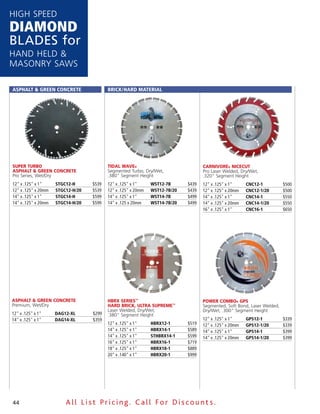

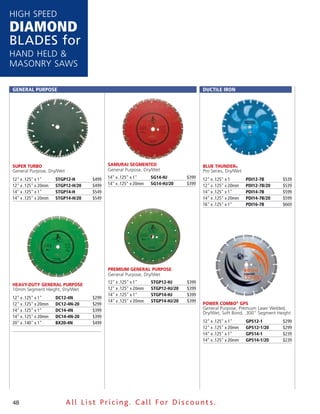

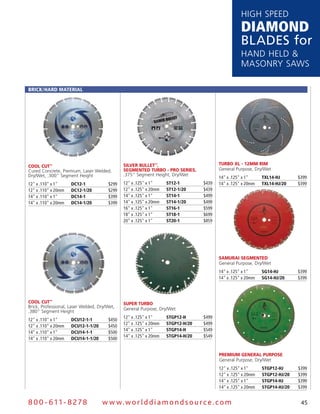

diamond Blades for Hand 42–49 Resin Bonded Abrasives
Held and masonry saws Vitrified Abrasives
Concrete Coated Abrasives
Asphalt Floor Sanding Products
Green Concrete Wire Brushes
Brick/Hard Materials Carbide Burrs
Block notes 71–72
General Purpose
Ductile Iron Pipe
Metal
Stone

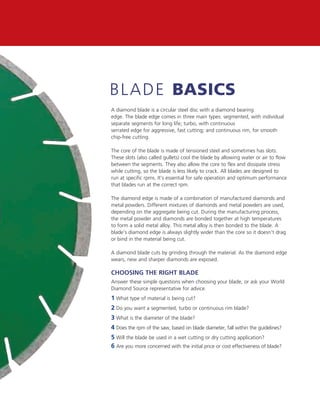

4. b l ADe basics
A diamond blade is a circular steel disc with a diamond bearing
edge. The blade edge comes in three main types: segmented, with individual
separate segments for long life; turbo, with continuous
serrated edge for aggressive, fast cutting; and continuous rim, for smooth
chip-free cutting.
The core of the blade is made of tensioned steel and sometimes has slots.
These slots (also called gullets) cool the blade by allowing water or air to flow
between the segments. They also allow the core to flex and dissipate stress
while cutting, so the blade is less likely to crack. All blades are designed to
run at specific rpms. It’s essential for safe operation and optimum performance
that blades run at the correct rpm.
The diamond edge is made of a combination of manufactured diamonds and
metal powders. Different mixtures of diamonds and metal powders are used,
depending on the aggregate being cut. During the manufacturing process,
the metal powder and diamonds are bonded together at high temperatures
to form a solid metal alloy. This metal alloy is then bonded to the blade. A
blade’s diamond edge is always slightly wider than the core so it doesn’t drag
or bind in the material being cut.
A diamond blade cuts by grinding through the material. As the diamond edge
wears, new and sharper diamonds are exposed.
Choosing the Right Blade
Answer these simple questions when choosing your blade, or ask your World
Diamond Source representative for advice.
1 What type of material is being cut?
2 Do you want a segmented, turbo or continuous rim blade?
3 What is the diameter of the blade?
4 Does the rpm of the saw, based on blade diameter, fall within the guidelines?
5 Will the blade be used in a wet cutting or dry cutting application?
6 Are you more concerned with the initial price or cost effectiveness of blade?

5. Visit us online at www.worlddiamondsource.com
blADE oPErATiNG SPEEDS
diaMeter recoMMended MaXiMuM
rPM rPM
4"
Wet BladeS Product Warranty 1900 15000
4 1⁄ 2" 8100 13300
Wet diamond blades must be used World Diamond Source warrants 5" 7200 12000
with a continuous flow of water to all its products against defects in 6" 6000 10185
7" 5200 8730
maximize performance and prevent workmanship and materials for a 8" 4500 7640
excessive heat buildup. Water helps period of one year from the date of 9" 4000 6970
clear dust and cuttings away from the purchase. The responsibility of World 10" 3600 6115
12" 3000 6300
blade and slot being cut. Using a wet Diamond Source under this warranty 14" 3000 5500
blade without adequate water, even is limited to replacement or repair of 16" 2300 3820
for a few seconds, can cause blade the defective parts, and action will 18" 2200 3395
20" 2000 3055
damage and pose a safety hazard. be determined on a case-by-case 22" 1800 2780
basis. Under no circumstances will 24" 1600 2550
26"
dry BladeS World Diamond Source be liable for 1600 2350
28" 1400 2185
Dry diamond blades are designed consequential or incidental damages 30" 1200 2040
to be cooled by airflow around the arising from misuse or improper 32" 1200 1910
36" 1100 1700
blade. They can be used either dry operation of any products. 42" 900 1455
or wet. Note that every 10 to 15 48" 800 1275
seconds it’s necessary to take pressure ShiPPing Policy
off the blade and back it out of the World Diamond Source pre-pays
cut, allowing it to run back up to freight on all orders via United Parcel
full speed for several seconds. This Service or FedEx - Ground within the MAXiMUM CUTTiNG DEPThS
technique cools the blade, maximizes United States and Canada. Special
performance and prevents excessive service requests, such as next-day air concrete SaW BladeS MaSonry SaW BladeS
heat buildup that causes damage. or second-day air, is payable by the diaMeter cutting
dePth
diaMeter cutting
dePth
customer. 12" 3 5⁄8" 14" 5"
14" 4 5⁄8" 20" 8"
16" 5 5⁄8"
AGGrEGATE ClASSiFiCATioN MAP oF ThE UNiTED STATES
18" 6 5⁄8"
20" 7 5⁄8"
24" 9 5⁄8" high SPeed SaW BladeS
26" 10 5⁄8" diaMeter cutting
30" 11 5⁄8" dePth
36" 14 5⁄8" 14" 5"
42" 17 5⁄8" 20" 8"
48" 19 5⁄8"
tile SaW BladeS PoWer hand
SaW BladeS
diaMeter cutting
dePth diaMeter cutting
dePth
6" 1 3⁄4"
7" 2 1⁄4" 4" 1"
8" 2 3⁄4" 4 1⁄2" 1 1⁄4"
10" 3 3⁄4" 5" 1 1⁄2"
6" 2"
7" 2 1⁄2"
8" 3"

6. 4

7. SIGNATURE
series
Signature SerieS

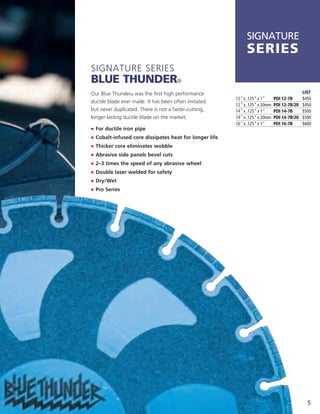

Blue thunder®
Our Blue thunder® was the first high performance LIST
12" x .125" x 1" PDI 12-7B $450
ductile blade ever made. it has been often imitated
12" x .125" x 20mm PDI 12-7B/20 $450
but never duplicated. there is not a faster-cutting, 14" x .125" x 1" PDI 14-7B $500
longer-lasting ductile blade on the market. 14" x .125" x 20mm PDI 14-7B/20 $500
16" x .125" x 1" PDI 16-7B $600
j For ductile iron pipe
j obalt-infused core dissipates heat for longer life
C
j hicker core eliminates wobble
T
j Abrasive side panels bevel cuts
j 2–3 times the speed of any abrasive wheel
j Double laser welded for safety
j Dry/Wet
j Pro Series
5

8. 6

9. SIGNATURE
series
Signature SerieS

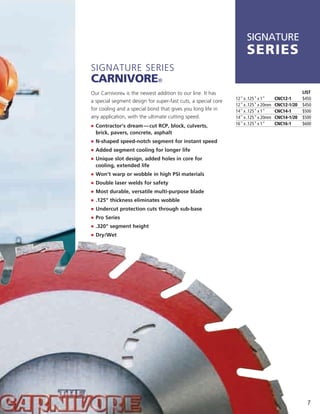

carnivore®
Our Carnivore® is the newest addition to our line. it has LIST
12" x .125" x 1" CNC12-1 $450
a special segment design for super-fast cuts, a special core
12" x .125" x 20mm CNC12-1/20 $450
for cooling and a special bond that gives you long life in 14" x .125" x 1" CNC14-1 $500
any application, with the ultimate cutting speed. 14" x .125" x 20mm CNC14-1/20 $500
j ontractor’s dream — cut RCP, block, culverts,
C 16" x .125" x 1" CNC16-1 $600
brick, pavers, concrete, asphalt
j -shaped speed-notch segment for instant speed
N
j Added segment cooling for longer life
j nique slot design, added holes in core for
U
cooling, extended life
j Won’t warp or wobble in high PSI materials
j Double laser welds for safety
j Most durable, versatile multi-purpose blade
j .125" thickness eliminates wobble
j Undercut protection cuts through sub-base
j Pro Series
j .320" segment height
j Dry/Wet
7

10. 8

11. SIGNATURE
SerieS
Signature SerieS

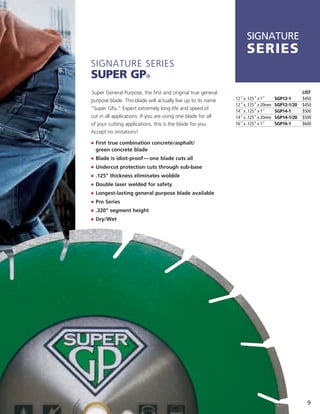

Super Gp®
Super general Purpose, the first and original true general LIST
purpose blade. this blade will actually live up to its name 12" x .125" x 1" SGP12-1 $450
12" x .125" x 20mm SGP12-1/20 $450
“Super gP®.” expect extremely long life and speed of
14" x .125" x 1" SGP14-1 $500
cut in all applications. if you are using one blade for all 14" x .125" x 20mm SGP14-1/20 $500
of your cutting applications, this is the blade for you. 16" x .125" x 1" SGP16-1 $600
accept no imitations!
j irst true combination concrete/asphalt/
F
green concrete blade
j lade is idiot-proof — one blade cuts all
B
j ndercut protection cuts through sub-base
U
j .125" thickness eliminates wobble
j Double laser welded for safety
j Longest-lasting general purpose blade available
j Pro Series
j .320" segment height
j Dry/Wet
9

12. 10

13. SIGNATURE
series
Signature SerieS

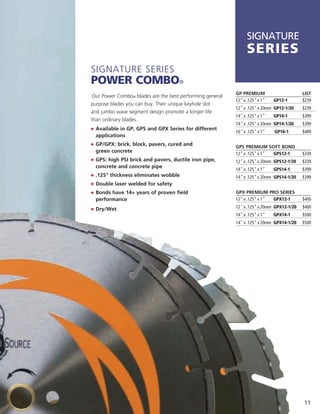

Power Combo®
GP PREMIUM LIST
Our Power Combo® blades are the best performing general
12" x .125" x 1" GP12-1 $239
purpose blades you can buy. their unique keyhole slot
12" x .125" x 20mm GP12-1/20 $239
and jumbo wave segment design promote a longer life
14" x .125" x 1" GP14-1 $399
than ordinary blades.
14" x .125" x 20mm GP14-1/20 $399
j vailable in GP, GPS and GPX Series for different
A
16" x .125" x 1" GP16-1 $489
applications
j P/GPX: brick, block, pavers, cured and
G GPS PREMIUM SOFT BOND
green concrete 12" x .125" x 1" GPS12-1 $339
j PS: high PSI brick and pavers, ductile iron pipe,
G 12" x .125" x 20mm GPS12-1/20 $339
concrete and concrete pipe
14" x .125" x 1" GPS14-1 $399
j 125" thickness eliminates wobble
. 14" x .125" x 20mm GPS14-1/20 $399
j ouble laser welded for safety
D
j onds have 14+ years of proven field
B GPX PREMIUM PRO SERIES
performance 12" x .125" x 1" GPX12-1 $400
j Dry/Wet 12" x .125" x 20mm GPX12-1/20 $400
14" x .125" x 1" GPX14-1 $500
14" x .125" x 20mm GPX14-1/20 $500
11

14. 12

15. SIGNATURE
series
Signature SerieS

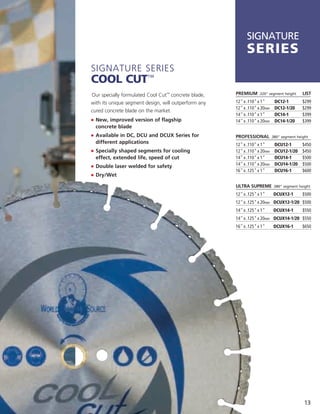

Cool Cut™
Our specially formulated Cool Cut™ concrete blade, PREMIUM .320" segment height LIST
with its unique segment design, will outperform any 12" x .110" x 1" DC12-1 $299
12" x .110" x 20mm DC12-1/20 $299
cured concrete blade on the market.
14" x .110" x 1" DC14-1 $399
j ew, improved version of flagship
N 14" x .110" x 20mm DC14-1/20 $399
concrete blade
j vailable in DC, DCU and DCUX Series for
A PROFESSIONAL .380" segment height
different applications 12" x .110" x 1" DCU12-1 $450
j pecially shaped segments for cooling
S 12" x .110" x 20mm DCU12-1/20 $450
effect, extended life, speed of cut 14" x .110" x 1" DCU14-1 $500
j ouble laser welded for safety
D 14" x .110" x 20mm DCU14-1/20 $500
16" x .125" x 1" DCU16-1 $600
j ry/Wet
D
ULTRA SUPREME .380" segment height
12" x .125" x 1" DCUX12-1 $500
12" x .125" x 20mm DCUX12-1/20 $500
14" x .125" x 1" DCUX14-1 $550
14" x .125" x 20mm DCUX14-1/20 $550
16" x .125" x 1" DCUX16-1 $650
13

16. 14

17. SIGNATURE
series
Signature SerieS
OmnivOre™
Omnivore™ is the first diamond blade that cuts raw metal LIST
and steel. in fact, it’s the only diamond blade that cuts 4" x .080" x 5⁄8-7⁄8" VBS4-7B $99
everything and does it four times faster than a conventional 4 1⁄2" x .080" x 5⁄8-7⁄8" VBS4.5-7B $119
abrasive blade. Omnivore™ is so hungry, it even outlasts 7" x .095" x universal VBS7-7B $149
abrasive wheels at least 30 to 1. 8" x .095" x universal VBS8-7B $179
12" x .125" x 1" VBS12-7B $399
j uts steel, cast iron, ductile iron, rebar, concrete,
C
18–26 gauge roof decking, PVC and wood 12" x .125" x 20mm VBS12-7B/20 $399
14" x .125" x 1" VBS14-7B $499
j liminates downtime changing abrasive wheels
E
14" x .125" x 20mm VBS14-7B/20 $499
j aintains consistent depth throughout cutting life
M
16" x .125" x 1" VBSC16-7B $599
j vailable in 4, 41⁄2" 7" 12" 14" 16"
A , , , ,
j ry/Wet
D w / SIde ProTeCTIon
12" x .125" x 1" VBSSC12-7B $450
14" x .125" x 1" VBSSC14-7B $550
14" x .125" x 20mm VBSSC14-7B/20 $550
16" x .125" x 1" VBSSC16-7B $650
15

18. 16

19. SIGNATURE
SerieS
Signature SerieS

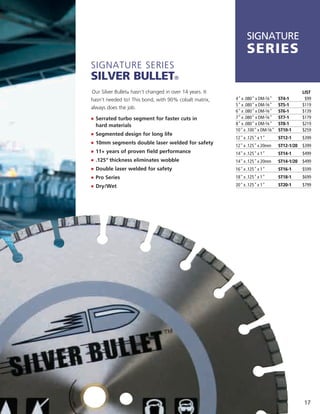

Silver Bullet®
Our Silver Bullet® hasn’t changed in over 14 years. it LIST
hasn’t needed to! this bond, with 90% cobalt matrix, 4" x .080" x DM-5⁄8" ST4-1 $99
5" x .080" x DM-5⁄8" ST5-1 $119
always does the job.
6" x .080" x DM-5⁄8" ST6-1 $139
j errated turbo segment for faster cuts in
S 7" x .080" x DM-5⁄8" ST7-1 $179
hard materials 8" x .080" x DM-5⁄8" ST8-1 $219
10" x .100" x DM-5⁄8" ST10-1 $259
j egmented design for long life
S
12" x .125" x 1" ST12-1 $399
j 0mm segments double laser welded for safety
1
12" x .125" x 20mm ST12-1/20 $399
j 1+ years of proven field performance
1 14" x .125" x 1" ST14-1 $499
j 125" thickness eliminates wobble
. 14" x .125" x 20mm ST14-1/20 $499
j ouble laser welded for safety
D 16" x .125" x 1" ST16-1 $599
j ro Series
P 18" x .125" x 1" ST18-1 $699
j ry/Wet
D 20" x .125" x 1" ST20-1 $799
17

20. 18

21. SIGNATURE
seRies
Signature SerieS

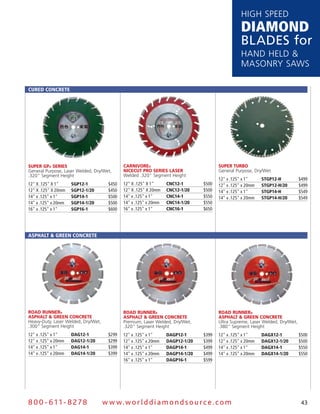

Road RunneR®
PREMIUM .320" segment height LIST
Our road runner® is asphalt’s worst enemy!
12" x .125" x 1" DAG12-1 $299
You can’t go wrong. the road can’t run from 12" x .125" x 20mm DAG12-1/20 $299
this blade. 14" x .125" x 1" DAG14-1 $399
j sphalt’s worst enemy
A 14" x .125" x 20mm DAG14-1/20 $399
j vailable in DAG, DAGP and DAGX
A
Series for different applications PROFESSIONAL .350" segment height
12" x .125" x 1" DAGP12-1 $399
j 440" dropped segment for
.
undercut protection 12" x .125" x 20mm DAGP12-1/20 $399
j ide gullets scoop away 14" x .125" x 1" DAGP14-1 $499
W
abrasive slurry from cuts 14" x .125" x 20mm DAGP14-1/20 $499
j ouble laser welded for safety 16" x .125" x 1" DAGP16-1 $599
D
j 125" thickness eliminates wobble
.
ULTRA SUPREME .380" segment height
j ry/Wet
D 12" x .125" x 1" DAGX12-1 $500
12" x .125" x 20mm DAGX12-1/20 $500
14" x .125" x 1" DAGX14-1 $550
14" x .125" x 20mm DAGX14-1/20 $550
19

22. 20

23. SIGNATURE
sEriEs
Signature SerieS
Early Bird®
Our early Bird® Series green concrete blades can be used on
all grinders, skill saws, hand held, walk-behind, and early
entry saws. We have bonds for all different aggregates when
sawing green concrete.
j vailable in GCS, GC and GCH Series for different
A
aggregates
LIST
j GCS — soft bond – Green 4" x .090" x 5⁄8-7⁄8" GC4-1 $79
j C — medium bond – Yellow
G 4 1⁄2" x .090" x 5⁄8-7⁄8" GC4.5-1 $99
5" x .090" x 5⁄8-7⁄8" GC5-1 $119
j CH — hard bond – Black
G 6" x .090" x DM-5⁄8" GC6-1 $132
j 320" segment height
. 6" x large arbor bore (soft) GCS6-1/LAB $132
6" x large arbor bore (medium) GC6-1/LAB $132
j ouble laser welded for safety
D
7" x .090" x DM-5⁄8" GC7-1 $179
j hicker core eliminates
T 8" x .090" x DM-5⁄8" GC8-1 $199
any wobble 8" x large arbor bore GC8-1/LAB $199
j ro Series
P 8" x large arbor bore (soft) GCS8-1/LAB $199
8" x large arbor bore (hard) GCH8-1/LAB $199
j ry/Wet
D 9" x .090" x DM-5⁄8" GC9-1 $219
10" x .100" x DM-5⁄8" GC10-1 $259
10" x large arbor bore (soft) GCS10-1/LAB $259
10" x large arbor bore (medium) GC10-1/LAB $259
10" x large arbor bore (hard) GCH10-1/LAB $259
12" x large arbor bore (soft) GCS12-1/LAB $399
12" x large arbor bore (medium) GC12-1/LAB $399
12" x large arbor bore (hard) GCH12-1/LAB $399
13 1⁄2" x .125" x large arbor bore (soft) GCS13.5-1/LAB $499
13 1⁄2" x .125" x large arbor bore (medium) GC13.5-1/LAB $499
13 1⁄2" x .250" x large arbor bore (soft) GCS13.5-2/LAB $599
13 1⁄2" x .250" x large arbor bore (medium) GC13.5-2/LAB $599
21

24. 22

25. SIGNATURE
series
Signature SerieS
Block Bear®
Block Bear® lives up to its name when cutting all types of PREMIUM LIST
block. use it on all large table saws to cut block in one pass 20" x .135" x 1" BP20-B51-5Q $599
without flipping over. available in different specs and bonds 20" x .135" x 1" B20-S22-5Q $599
or all different applications. 20" x .135" x 1" BX20-B51-5Q $699
20" x .135" x 1" BX20-S22-5Q $699
Premium
j 51 — soft/medium bond
B PROFESSIONAL
j 22 — hard bond
S 20" x .125" x 1" BP20-1 $650
j 0mm segment length for speed 20" x .140" x 1" BPX20-1 $789
4
j P — .300" segment height
B
j X — .300" segment height
B
Pro Series
j P — .320" segment height
B
j X — .380" segment height
B
j hicker core eliminates any wobble
T
23

26. 24

27. SIGNATURE
series
Signature SerieS
Tidal Wave®
tidal Wave® is a great choice for hand held or table saws LIST
12" x .125" x 1" WST12-7B $399
to cut pavers and brick if speed is what’s important to you.
12" x .125" x 20mm WST12-7B/20 $399
Hard materials are no match for this blade. 14" x .125" x 1" WST14-7B $499
j ew wave-shaped segment for instant speed of cut
N 14" x .125" x 20mm WSB14-7B/20 $499
j ouble-tensioned steel core prevents wobbling on
D
high HP saws
j taggered turbo segments for slicing effect,
S
unparalleled speed
j 0mm jumbo segments
1
j ouble laser welded for safety
D
j 125" thickness eliminates wobble
.
j ro Series
P
j ry/Wet
D
25

28. 26

29. SIGNATURE
SeRieS
Signature SerieS
HBRX SeRieS™
HrBX Series™ blades are the #1 blade in the industry for LIST
cutting extremely hard brick and materials. they feature 12" x .125" x 1" HBRX12-1 $519
uniquely designed wide gullets for cooling. the specially 14" x .125" x 1" HBRX14-1 $589
14" x .125" x 1" STHBRX14-1 $589
designed super-soft bond is made with the highest grade 16" x .125" x 1" HBRX16-1 $699
of diamond available, providing exceptionally fast and 18" x .125" x 1" HBRX18-1 $799
smooth cutting. 20" x .125" x 1" HBRX20-1 $899
j ard brick, high PSI materials
H
j 0mm jumbo segments yield
1
30% longer life
j ouble laser welded construction
D
for extra strength
j 125" thickness eliminates wobble
.
j ro Series
P
j ry/Wet
D
27

30. small
diameter Our small diameter blades are designed to cut a variety of surfaces and work especially
Blades well on all types of materials. Try to match the quality of the blade to the job. A smaller
job may only require a heavy-duty blade. On a larger job you may want a premium
blade or a more cost effective blade. We have many sizes, grades and types for every
application possible. If you require any assistance, our knowledgeable staff will gladly
help match the appropriate blade to your needs.
SeGmeNted BLAdeS
Segmented blades are most common because of their versatility and wide scope of applications. They are a good choice if longer life
is what’s important to you.
green ConCrete
early birD™ Pro series suPreme
Power Combo® gPs (soft bonD) Laser Welded, Dry/Wet
Heavy-Duty—general PurPose general PuroPse
Silver Welded Dry/Wet, Laser Welded, Dry/Wet 4" x .090" x 7⁄8"- 5⁄8" GC4-1 $79
7mm Segment Height 4 1⁄2" x .090" x 7⁄8"- 5⁄8" GC4.5-1 $99
4" x .080" x 7⁄8" - 5⁄8" SP4-5Q $59
4" x. 080" x 7⁄8" - 5⁄8" SP4-4N $19 5" x .090" x 7⁄8"- 5⁄8" GC5-1 $119
4 1⁄2" x.080" x 7⁄8" - 5⁄8" SP4.5-5Q $69
4 1⁄2" x. 080" x 7⁄8" - 5⁄8" SP4.5-4N $22 6" x .090" x DM- 5⁄8" GC6-1 $132
5" x .080" x 7⁄8" - 5⁄8" SP5-5Q $79
7" x .090" x Universal SP7-4N $39 6" x .090" x
6" x .080" x 7⁄8" - 5⁄8" SP6-5Q $89 Large Arbor Bore (soft) GCS6-1/LAB $132
7" x .080" x DM - 5⁄8" SP7-5Q $99 6" x .090" x
8" x .080" x DM - 5⁄8" SP8-5Q $139 Large Arbor Bore (medium) GC6-1/LAB $132
9" x .080" x 7⁄8" - 5⁄8" SP9-5Q $169 7" x .090" x DM- 5⁄8" GC7-1 $199
10" x .080" x 7⁄8" - 5⁄8" SP10-5Q $219 8" x .090" x DM- 5⁄8" GC8-1 $219
8" x Large Arbor Bore
(medium) GC8-1/LAB $219
8" x Large Arbor Bore (soft) GCS8-1/LAB $219
9" x .090" x DM - 5⁄8" GC9-1 $259
10" x .100" x DM - 5⁄8" GC10-1 $299
10" x Large Arbor Bore
(medium) GC10-1/LAB $299
10" x Large Arbor Bore (soft) GCS10-1/LAB $299
10" x Large Arbor Bore (hard) GCH10-1/LAB $299
Premium—general PurPose
Silver Welded, Dry/Wet,
10mm Segment Height
4" x .080" x 7⁄8" - 5⁄8" SX4-4N $29
Power Combo® ss general PurPose
4 1⁄2" x .080" x 7⁄8" - 5⁄8" SX4.5-4N $32 Laser Welded, Dry/Wet
5" x .080" x 7⁄8" - 5⁄8" SX5-4N $39
7" x .090" x 7⁄8" Universal SX7-4N $69 4" x .080" x 7⁄8"- 5⁄8" SS4-1 $69
8" x .090" x 7⁄8" Universal SX8-4N $89 4 1⁄2" x .080" x 7⁄8"- 5⁄8" SS4.5-1 $79
9" x .090" x 7⁄8" Universal SX9-4N $109 5" x .080" x 7⁄8"- 5⁄8" SS5-1 $99
10" x .100" x 7⁄8" Universal SX10-4N $119 6" x .090" x 7⁄8" Universal SS6-1 $119 Pro eleCtroPlateD
7" x .090" x 7⁄8" Universal SS7-1 $139 Segmented, Dry/Wet
8" x .090" x 7⁄8" Universal SS8-1 $179 4" x .080" x 7⁄8" - 5⁄8" e4-1 $139
9" x .090" x 7⁄8" Universal SS9-1 $219 4 1⁄2" x .080" x 7⁄8" - 5⁄8" e4.5-1 $159
10" x .100" x 7⁄8" Universal SS10-1 $259 5" x .080" x 7⁄8" - 5⁄8" e5-1 $179
7" x .080" x DM - 5⁄8" e7-1 $219
28 All List Pricing. Call For Discount s.

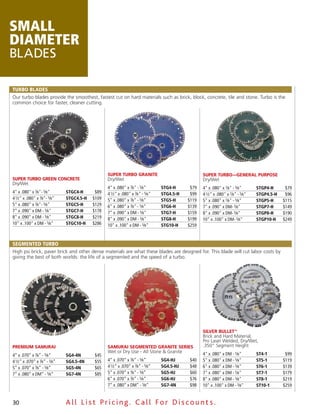

31. SMALL
DIAMETER
BLADES
TURBO BLADES
Our turbo blades provide the smoothest, fastest cut on hard materials such as brick, block, concrete, tile and stone. Turbo is the
common choice for faster, cleaner cutting.
WDS BLACK SERIES PLUS
Dry/Wet, 10mm Rim Height – All Granites
4" x 20mm - 5⁄8" / 4 holes TGX4-HJ $36
4 1⁄2" x 20mm - 5⁄8" / 4 holes TGX4.5-HJ $40 PREMIUM GENERAL PURPOSE HEAVY-DUTY GENERAL PURPOSE
5" x 20mm - 5⁄8" / 4 holes TGX5-HJ $56 Dry/Wet, 7mm Rim Height
6" x 7⁄8" - 5⁄8" / 4 holes TGX6-HJ $72 4" x .080 - x 20mm - 5⁄8 STGP4-HJ $39 4" x .080" x 7⁄8"- 5⁄8" TP4-4N $19
7" x DM - 7⁄8" - 5⁄8" / 4 holes TGX7-HJ $80 4.5" x .080 - x 20mm - 5⁄8 STGP4.5-HJ $49 4 1⁄2" x .080" x 7⁄8"- 5⁄8" TP4.5-4N $22
5" x .080 - x 20mm - 5⁄8 STGP5-HJ $59 7" x .090" x DM"- 5⁄8" TP7-4N $39
6" x .080 - x 20mm - 5⁄8 STGP6-HJ $79
7" x .080 - x 20mm - 5⁄8 STGP7-HJ $99
8" x .080 - DM - 7⁄8" - 5⁄8" STGP8-HJ $119
9" x .100 - 7⁄8" - 5⁄8" STGP9-HJ $149
10" x .100 - 1" - 7⁄8" - 5⁄8" STGP10-HJ $169
12" x .125 - 1" STGP12-HJ $299
14" x .125 - 1" STGP14-HJ $399
WDS ELITE WAVE SERIES 12" x .125 - 20mm STGP12-HJ/20 $299
Dry/Wet, 9mm Rim Height – All Granites
14" x .125 - 20mm STGP14-HJ/20 $399
4" x 7⁄8" - x 20mm - 5⁄8"/4 holes WT4-HJ $36
4.5" x 7⁄8" - x 20mm - 5⁄8"/4 holes WT4.5-HJ $40
5" x 7⁄8" - x 20mm - 5⁄8"/4 holes WT5-HJ $68
6" x 7⁄8" - 20mm - 5⁄8"/4 holes WT6-HJ $72 PREMIUM—GENERAL PURPOSE
Dry/Wet, 10mm Rim Height
7" x DM - 7⁄8" - 5⁄8" /4 holes WT7-HJ $80
8" x DM - 7⁄8" - 5⁄8" WT8-HJ $92 4" x .080" x 7⁄8" - 5⁄8" TX4-4N $29
9" x 7⁄8" - 5⁄8" WT9-HJ $116 4 1⁄2" x .080" x 7⁄8" - 5⁄8" TX4.5-4N $32
10" x 1 - 7⁄8" - 5⁄8" WT10-HJ $144 5" x .080" x 7⁄8"- 5⁄8" TX5-4N $39
7" x .090" Universal TX7-4N $69
8" x .090" Universal TX8-4N $89
10" x .100" Universal TX10-4N $179
WDS TURBO XL SILVER SERIES
Dry/Wet, 12mm Rim Height – All Granites
4" x 7⁄8" - x 20mm - 5⁄8"/4 holes TXL4-HJ $40
WDS SPIRAL TURBO - GREEN PRO SERIES 4.5" x 7⁄8"x 20mm - 5⁄8" / 4 holes TXL4.5-HJ $44
Dry/Wet, 9mm Rim Height – All Granites 5" x 7⁄8"x 20mm - 5⁄8" / 4 holes TXL5-HJ $62
4" x 7⁄8" - x 20mm - 5⁄8" / 4 holes TSG4-H $48 6" x 7⁄8" - 5⁄8" / 4 holes TXL6-HJ $76
4.5" x 7⁄8"x 20mm - 5⁄8" / 4 holes TSG4.5-H $56 7" x DM - 7⁄8" - 5⁄8" TXL7-HJ $90
5" x 7⁄8"x 20mm - 5⁄8" / 4 holes TSG5-H $68 8" x DM - 7⁄8" - 5⁄8" TXL8-HJ $100
6" x 7⁄8" - 5⁄8" / 4 holes TSG6-H $88 10" x DM - 7⁄8" - 5⁄8" TXL8-HJ $152
7" x DM - 7⁄8" - 5⁄8" TSG7-H $104 14" x 1" - 20mm TXL8-HJ $338
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 29

32. SMALL
DIAMETER
BLADES
TURBO BLADES
Our turbo blades provide the smoothest, fastest cut on hard materials such as brick, block, concrete, tile and stone. Turbo is the
common choice for faster, cleaner cutting.
SUPER TURBO GRANITE SUPER TURBO—GENERAL PURPOSE
SUPER TURBO GREEN CONCRETE Dry/Wet Dry/Wet
Dry/Wet
4" x .080" x 7⁄8" - 5⁄8" STG4-H $79 4" x .080" x 7⁄8" - 5⁄8" STGP4-H $79
4" x .080" x 7⁄8"- 5⁄8" STGC4-H $89 4 1⁄2" x .080" x 7⁄8" - 5⁄8" STG4.5-H $99 4 1⁄2" x .080" x 7⁄8" - 5⁄8" STGP4.5-H $96
4 1⁄2" x .080" x 7⁄8"- 5⁄8" STGC4.5-H $109 5" x .080" x 7⁄8" - 5⁄8" STG5-H $119 5" x .080" x 7⁄8" - 5⁄8" STGP5-H $115
5" x .080" x 7⁄8"- 5⁄8" STGC5-H $129 6" x .080" x 7⁄8" - 5⁄8" STG6-H $139 7" x .090" x DM- 5⁄8" STGP7-H $149
7" x .090" x DM - 5⁄8" STGC7-H $178 7" x .090" x DM - 5⁄8" STG7-H $159 8" x .090" x DM- 5⁄8" STGP8-H $190
8" x .090" x DM - 5⁄8" STGC8-H $219 8" x .090" x DM - 5⁄8" STG8-H $199 10" x .100" x DM- 5⁄8" STGP10-H $249
10" x .100" x DM - 5⁄8" STGC10-H $286 10" x .100" x DM - 5⁄8" STG10-H $259
SEGMENTED TURBO
High psi brick, paver brick and other dense materials are what these blades are designed for. This blade will cut labor costs by
giving the best of both worlds: the life of a segmented and the speed of a turbo.
SILVER BULLET™
Brick and Hard Material,
Pro Laser Welded, Dry/Wet,
PREMIUM SAMURAI SAMURAI SEGMENTED GRANITE SERIES .350" Segment Height
Wet or Dry Use - All Stone & Granite 4" x .080" x DM - 5⁄8" ST4-1 $99
4” x .070” x 7⁄8” - 5⁄8” SG4-4N $45
4 1⁄2” x .070” x 7⁄8” - 5⁄8” SG4.5-4N $55 4” x .070” x 7⁄8” - 5⁄8” SG4-HJ $40 5" x .080" x DM - 5⁄8" ST5-1 $119
5” x .070” x 7⁄8” - 5⁄8” SG5-4N $65 4 1⁄2” x .070” x 7⁄8” - 5⁄8” SG4.5-HJ $48 6" x .080" x DM - 5⁄8" ST6-1 $139
7” x .080” x DM” - 5⁄8” SG7-4N $85 5” x .070” x 7⁄8” - 5⁄8” SG5-HJ $60 7" x .080" x DM - 5⁄8" ST7-1 $179
6” x .070” x 7⁄8” - 5⁄8” SG6-HJ $76 8" x .080" x DM - 5⁄8" ST8-1 $219
7” x .080” x DM” - 5⁄8” SG7-4N $98 10" x .100" x DM - 5⁄8" ST10-1 $259
30 All List Pricing. Call For Discount s.

33. small
diameter
Blades
coNTiNuous Rim
Our smooth continuous rim gives the
fastest chip-free cut possible with both
wet and dry applications for ceramics,
porcelains, marbles and granites.
dry ProfeSSional
Porcelain/Granite/Tile
4" x .060" x 7⁄8" - 20mm - 5⁄8" PdcR4-H $39
4 1⁄2" x .060" x 7⁄8"- 20mm- 5⁄8" PdcR4.5-H $49
5" x .060" x 7⁄8" - 20mm- 5⁄8" PdcR5-H $59
7" x .060" x DM - 5⁄8" PdcR7-H $99
8" x .060" x DM - 5⁄8" PdcR8-H $119
10" x .060" x DM - 5⁄8" PdcR10-H $139
Tuck PoiNT Blades
For the fast removal of soft, medium, or hard mortar these tuckpoint blades are the best quality on the market today. They’re
available in different segment heights, designs and bond hardness depending on the job specifications.
Heavy-duty Hard Bond Premium Hard Bond SuPer tuck
For Soft–Medium Mortar, For Soft–Medium Mortar,
7mm Segment Height, Dry/Wet 10mm Segment Height, Dry/Wet 4" x .250" x 7⁄8" - 5⁄8" TPX4-HJ $59
4 1⁄2" x .250" x 7⁄8" - 5⁄8" TPX4.5-HJ $69
4" x .250" x 7⁄8" - 5⁄8" TPP4-4N $49 4" x .250" x 7⁄8" - 5⁄8" TPX4-4N $59
5" x .250" x 7⁄8" - 5⁄8" TPX5-HJ $79
4 1⁄2" x .250" x 7⁄8" - 5⁄8" TPP4.5-4N $59 4 1⁄2" x .250" x 7⁄8" - 5⁄8" TPX4.5-4N $69
5" x .250" x 7⁄8" - 5⁄8" TPP5-4N $69 5" x .250" x 7⁄8" - 5⁄8" TPX5-4N $79
7" x .250" x 7⁄8" - 5⁄8" TPP7-4N $89 7" x .250" x 7⁄8" - 5⁄8" TPX7-4N $99
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 31

34. small
diameter
Blades
Tuck PoinT Blades
Ultra Pro SPeed tUck
Laser Welded, Dry/Wet, dUPlex—Soft Bond Fast Cutting, 12mm Segment Height,
Bonded For Soft–Medium Mortar, For Hard Mortar, Dry/Wet Dry/Wet
New Jumbo 12mm Segment Height 4" x .250" x 7⁄8"- 5⁄8" dTP4-1 $89 4" x .250" x 7⁄8" - 5⁄8" sTPX4-4n $89
4" x .250" x 7⁄8" - 5⁄8" TPX4-1 $139 4 1⁄2" x .250" x 7⁄8"- 5⁄8" dTP4.5-1 $99 4 1⁄2" x .250" x 7⁄8" - 5⁄8" sTPX4.5-4n $99
4 1⁄2" x .250" x 7⁄8" - 5⁄8" TPX4.5-1 $179 5" x .250" x 7⁄8"- 5⁄8" dTP5-1 $109 5" x .250" x 7⁄8" - 5⁄8" sTPX5-4n $109
5" x .250" x 7⁄8" - 5⁄8" TPX5-1 $219 7" x .250" x 7⁄8"- 5⁄8" dTP7-1 $199
7" x .250" x 7⁄8" - 5⁄8" TPX7-1 $339
8" x .250" x 7⁄8"- 5⁄8" TPX8-1 $439
Ultra Pro SPecial Soft Bond
Laser Welded, Dry/Wet,
For Hard Mortar
New Jumbo 12mm Segment Height
4" x .250" x 7⁄8"- 5⁄8" TPXs4-1 $139
4 1⁄2" x .250" x 7⁄8"- 5⁄8" TPXs4.5-1 $179
5" x .250" x 7⁄8"- 5⁄8" TPXs5-1 $219
7" x .250" x 7⁄8"- 5⁄8" TPXs7-1 $339 triPlex—Soft Bond
8" x .250" x 7⁄8"- 5⁄8" TPXs8-1 $439 For Hard Mortar, Dry/Wet
4" x .250" x 7⁄8"- 5⁄8" TTP4-1 $139
4 1⁄2" x .250" x 7⁄8"- 5⁄8" TTP4.5-1 $179 SPeed tUck – 10mm
5" x .250" x 7⁄8"- 5⁄8" TTP5-1 $219
4" x .250" x 7⁄8" - 5⁄8" sTPP4-4n $69
4 1⁄2" x .250" x 7⁄8" - 5⁄8" sTPP4.5-4n $89
5" x .250" x 7⁄8" - 5⁄8" sTPP5-4n $99
dUPlex—x-Hi 10mm
Dry/Wet
4" x .250" x 7⁄8"- 5⁄8" dTP4-HJ $59
4 1⁄2" x .250" x 7⁄8"- 5⁄8" dTP4.5-HJ $69
5" x .250" x 7⁄8"- 5⁄8" dTP5-HJ $79
32 All List Pricing. Call For Discount s.

35. small
diameter
Blades
CraCk Chasers
Our crack chasers are designed for maximum life and high performance. They are great for sidewalk and concrete repairs because
of their maneuverability in the cut.
Premium CraCk Chasers Turbo sTyle Pro CraCk Chasers
Segmented, Laser Welded, Dry/Wet Dry/Wet
4" x .375" x 7⁄8" - 5⁄8" CCs4-7B $199 4" x .375" x 5⁄8" 11 Threads CCTT4-5Q $199 medium bond WiTh kiCker segmenTs
4" x .375" x 5⁄8" 11 Threads CCsT4-7B $199 Square-Shaped
8" x .500" x 1" w/Pinhole TPP8-12-7B $949
Turbo sTyle CraCk Chasers
Dry/Wet
4 1⁄2" x .375" x 5⁄8" 11 Threads CCTT4.5-hJ $199
medium bond WiTh kiCker segmenTs
V-Shaped
Pro CraCk Chasers 8" x .500" x 1" w/Pinhole CCs8-12-5Q $879
Segmented, Laser Welded, Dry/Wet
4" x .375" x 7⁄8"- 5⁄8" CCs4-5Q $259
4" x .375" x 5⁄8" 11 Threads CCsT4-5Q $259
5" x .375" x 7⁄8"- 5⁄8" CCs5-5Q $379
7" x .375" x 7⁄8"- 5⁄8" CCs7-5Q $559
square shaPed CraCk Chasers
Dry/Wet
4 " x .375" x 7⁄8" - 5⁄8" TPX4-2-7B $189
4 " x .500" x 7⁄8" - 5⁄8" TPX4-12-7B $259
7 " x .375" x 7⁄8" - 5⁄8" TPX7-2-7B $399
7 " x .500" x 7⁄8" - 5⁄8" TPX7-12-7B $549
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 33

36. DiamonD
BLaDES for
Tile & Tub
SAWS our line of continuous rim blades comes from both wet and dry applications for different
specifications. They are bonded appropriately for various material. We have different
styles and types to cover every need, life, speed and cost./
ceramic tile/marble/Porcelain Porcelain/Granite
Wet Cutting — Premium Wet Cutting — SuPreme Wet Cutting — PorCelain
.300" Segment Height .375” Segment Height .300" Segment Height, Fast Cutting
7" x .060" x 5⁄8" WcrP7-1 $69 8” x .060” x 5⁄8” WcrX8-1 $119 8" x .045" x 5⁄8" WP8-7b $109
8" x .060" x 5⁄8" WcrP8-1 $79 10” x .060” x 5⁄8” WcrX10-1 $159 10" x .045" x 5⁄8" WP10-7b $129
9" x .060" x 5⁄8" WcrP9-1 $99
10" x .060" x 5⁄8" WcrP10-1 $119
12" x .080" x 5⁄8" WcrP12-1 $199
14" x .080" x 5⁄8" WcrP14-1 $239
20" x .125" x 5⁄8" WcrP20-1 $479
34 All List Pricing. Call For Discount s.

37. DiamonD
BLaDES for
Tile & Tub
SAWS
Porcelain/Granite Glass tile/Mosaics Brick/Pavers
a great choice for smooth cuts on our brick paver blades come both
glass tile and mosaics. segmented and segmented turbo for
your specific application and need.
B-slot — Porcelain or Granite
Dry/Wet, Fast Cutting
4" x .060" x 7⁄8" 20mm - 5⁄8" PDcr4-H $49
4 1⁄2" x .060" x 7⁄8" 20mm - 5⁄8" PDcr4.5-H $69
Pro series silver Bullet™
5" x .060" x 7⁄8" 20mm - 5⁄8" PDcr5-H $79 .300" Segment Height Brick & Hard Material Pro Laser Welded,
7" x .060" x DM - 5⁄8" PDcr7-H $99 Dry/Wet, .375" Segment Height,
8" x .050" x 5⁄8" WcrG8-1 $127
8" x .050" x 5⁄8" PDcr8-H $109 Segmented Turbo
10" x .050" x 5⁄8" WcrG10-1 $164
10" x .050" x 5⁄8" PDcr10-H $129
10" x .100"x DM - 5⁄8" st10-1 $259
Profile WHeels
nothing beats our profile wheels for
edging tile, marble, granite and porcelain.
They are cost effective, fast and efficient
because of their superior quality.
PoWer comBo® GPs seGmented
ZiPPer™ Porcelain Special Soft Bond Formula
Dry/Wet, Heavy Flange for No Blade Flex, 10" x .080" x 7⁄8" - 5⁄8" sP10-5Q $219
Turbo Rim for Aggressive Cuts, Extra Thin Rim
for Perfectly Clean Cuts
4" x 7⁄8" - 20mm - 5⁄8" Pt4-H $88
4 1⁄2" x 7⁄8" - 20mm - 5⁄8" Pt4.5-H $97 imPreGnated diamond
5" x 7⁄8" - 20mm - 5⁄8" Pt5-H $113 6" x 3⁄8" Radius x 5⁄8" PfG6-5Q $379
7" x DM - 5⁄8" Pt7-H $141 6" x 1⁄2" Radius x 5⁄8" PfG6-5Q1 $379
8" x DM - 5⁄8" Pt8-H $192
10" x 1" - 5⁄8" Pt10-H $220 electroPlated diamond
6" x 3⁄8" Radius x 5⁄8" Pf6-5Q $339
6" x 1⁄2" Radius x 5⁄8" Pf6-5Q1 $339
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 35

38. surface
preparation
We have greatly expanded our line of diamond tooling for all types of surface
preparation applications. Due to our volume and buying power, most companies cannot
compete with our value and pricing. We maintain a vast inventory, and these products
are no exception; all are in stock and ready to ship.
Cup WheelS
Our cup wheels provide fast stock removal with minimum dust. Choose single row for roughing and double row for finishing of
concrete and masonry. We also have swirly cup wheels for concrete floors. Turbo cup wheels are available in fine, medium and
coarse grits. We stock many others for any specific application.
Heavy-Duty— Single Row Heavy-Duty— SwiRly PRo Single Row
Dry/Wet Dry/Wet Dry/Wet
4" x 5⁄8" - 7⁄8" CWS4-7B $99 4" x 7⁄8" - 5⁄8" 10 Seg SCW4-7B/8 $150 4" x 7⁄8" - 5⁄8" CWS4-1 $129
4" x 5⁄8" 11 Threads CWST4-7B $99 4" x 5⁄8" 11 Threads, 10 Seg SCWT4-7B/8 $150 4" x 7⁄8" - 5⁄8" 11 Threads CWST4-1 $129
5" x 5⁄8" - 7⁄8" CWS5-7B $149 4 1⁄2" x 5⁄8" 11 Threads, SCWT4.5- 7" x 7⁄8" - 5⁄8" CWS7-1 $249
5" x 5⁄8" 11 Threads CWST5-7B $149 18 Seg 7B/18 $175 7" x 7⁄8" - 5⁄8"11 Threads CWST7-1 $249
7" x 5⁄8" - 7⁄8" CWS7-7B $209 5" x 5⁄8" 11 Threads, 10 Seg SCWT5-7B/9 $165
7" x 5⁄8" 11 Threads CWST7-7B $209 7" x 7⁄8" - 5⁄8" 12 Seg SCW7-7B/12 $229
7" x 5⁄8" 11 Threads, 12 Seg SCWT7-7B/12$229 PRo Double Row
Heavy-Duty—Double Row
7" x 7⁄8" - 5⁄8" 24 Seg SCW7-7B/24 $299 Dry/Wet
Dry/Wet
7" x 5⁄8" 11 Threads, 24 Seg SCWT7-7B/24$299 4" x 7⁄8" - 5⁄8" CWD4-1 $199
4" x 5⁄8" - 7⁄8" CWD4-7B $139
4" x 7⁄8" - 5⁄8" 11 Threads CWDT4-1 $199
4" x 5⁄8" 11 Threads CWDT4-7B $139
7" x 7⁄8" - 5⁄8" CWD7-1 $299
5" x 5⁄8" - 7⁄8" CWD5-7B $199
7" x 7⁄8" - 5⁄8" 11 Threads CWDT7-1 $299
5" x 5⁄8" 11 Threads CWDT5-7B $199
7" x 5⁄8" - 7⁄8" CWD7-7B $259
7" x 5⁄8" 11 Threads CWDT7-7B $259
PRo SwiRly
Dry/Wet
4" x 7⁄8" - 5⁄8", 13 Seg SCW4-1/13 $199 4" Flat vacuum bRazeD wHeel
4" x 5⁄8" 11 Threads, 13 Seg SCWT4-1/13 $199 Dry/Wet
4 1⁄2" x 7⁄8" - 5⁄8", 15 Seg SCW4.5-1/15 $209 4" x 5⁄8" x 11 Course VBFWTC4-1 $225
4 1⁄2" x 5⁄8" 11 Threads, 15 Seg SCWT4.5-1/15 $209 4" x 5⁄8" x 11 Medium VBFWTM4-1 $225
7" x 7⁄8" - 5⁄8" 12 Seg SCW7-1/12 $269 4" x 5⁄8" x 11 Fine VBFWTF4-1 $225
t-Seg 7" x 5⁄8" 11 Threads,12 Seg SCWT7-1/12 $269
Dry/Wet
7" x 7⁄8" - 5⁄8", 24 Seg SCW7-1/24 $299
4" x 5⁄8" x 11 Threads TSCWT4-hJ $99 7" x 5⁄8" 11 Threads, 24 Seg SCWT7-1/24 $299
7" x 5⁄8" x 11 Threads TSCWT7-hJ $269 10" x 7⁄8" - 5⁄8" 26 Seg SCW10-1/26 $499
7" x 7⁄8" - 5⁄8" TSCW7-hJ $269 10" x 5⁄8" 11 Threads, 26 Seg SCWT10-1/26 $499
36 All List Pricing. Call For Discount s.

39. surface
preparation
This new technology “PCD" is polycrystalline diamond. It is made with very high
pressure and temperature. This is a controlled alternative to natural diamond, which
has inconsistent qualities. PCD is being used especially for epoxy coating removals.
cup wheels
Super Fan CupS, Dry/Wet Cup WheeL For hiLTi®
3 1⁄2" x 7⁄8" - 5⁄8" Fc3.5-4N $139 6" x 19mm Spike cw6-4N $199
pro Turbo STyLe 7" x 7⁄8" - 5⁄8" Hard Bond Fc7-4N $299 6" x 19mm L-Seg lcw6-4N $199
Dry/Wet
7" x 7⁄8" - 5⁄8" Soft Bond Fcs7-4N $299
4" x 7⁄8" - 5⁄8 Coarse Tcwc4-5Q $199 7" x 5⁄8" 11 Threads Soft Bond FcsT7-4N $299
4" x 5⁄8" 11 Threads Coarse TcwcT4-5Q $199 7" x 5⁄8" 11 Threads Hard Bond FcT7-4N $299
4" x 5⁄8" 11 Threads Medium TcwMT4-5Q $199
4" x 5⁄8" 11 Threads Fine TcwFT4-5Q $199
6" x 5⁄8" 11 Threads Coarse TcwcT6-5Q $299
7" x 5⁄8" 11 Threads Coarse TcwcT7-5Q $399
reSin FiLLed Cup WheeLS
Dry/Wet arroW Seg STyLe, Dry/Wet
4" x 5⁄8" 11 Threads Medium RcwMT4-5Q $199 7" x 7⁄8" - 5⁄8" Acw7-hJ $299
4" x 5⁄8" 11 Threads Coarse RcwcT4-5Q $199 7" x 5⁄8" 11 Threads AcwT7-hJ $299
pro Turbo STyLe
Aluminum Back, Dry/Wet
4" x 5⁄8" 11 Threads Fine TcwFT4-1 $189
4" x 5⁄8" 11 Threads Medium TcwMT4-1 $189 GRINDING DIscs
4" x 5⁄8" 11 Threads Coarse TcwcT4-1 $189
6" x 5⁄8" 11 Threads Coarse TcwcT6-1 $279
7" x 5⁄8" 11 Threads Coarse TcwcT7-1 $399
7" x 5⁄8" 11 Threads Medium TcwMT7-1 $399
7" x 5⁄8" 11 Threads Fine TcwFT7-1 $399
pCd Cup, Dry
4" x 5⁄8" 11 Threads pcDsT-4 $259
4" x 7⁄8" - 5⁄8" pcDs-4 $259
4" x 5⁄8" 11 Threads pcDDT-4 $269
4" x 7⁄8" - 5⁄8" pcDD-4 $269
5" x 5⁄8" 11 Threads pcDsT-5 $329
5" x 7⁄8" - 5⁄8" pcDs-5 $339 ConCreTe grinding diSCS
5" x 5⁄8" 11 Threads pcDDT-5 $339 4 1⁄2" x 7⁄8" x 16 Grit GRD4.5-1 $9
5" x 7⁄8" - 5⁄8" pcDD-5 $339 4 1⁄2" x 7⁄8" x 8 Grit GRD4.5-1/8 $9
L-Seg aggreSSor, Dry/Wet 7" x 5⁄8" 11 Threads pcDsT-7 $399 7" x 7⁄8" x 16 Grit GRD7-1 $12
4" x 5⁄8" 11 Threads lscwT4-hJ $99 7" x 7⁄8" - 5⁄8" pcDs-7 $399 7" x 7⁄8" x 8 Grit GRD7-1/8 $12
7" x 7⁄8" - 5⁄8" lseGcw7-7B $269 7" x 5⁄8" 11 Threads pcDDT-7 $399 7⁄8" to 5⁄8" 11 Threads
7" x 5⁄8" 11 Threads lseGcwT7-7B $269 7" x 7⁄8" - 5⁄8" pcDD-7 $399 Adapter AGD-1 $3
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 37

40. surface
preparation
GRINDING HEADS DIAmoND PluGS
Our grinding heads are available with If diamond plugs are your preference for removing epoxy, coatings, concrete or terrazzo,
10 or 20 segments, and their professional look no further. Our diamond plugs are available in various styles, grits and bonds for all
grade makes them superior to most different job requirements.
others on the market.
medium Bond
Bevel Type Plug, Pro Series
2" - 16⁄20 Grit DP2-16/20 $199
2" - 30⁄40 Grit DP2-30/40 $199
GrindinG Heads Premium PCd PluG
Standard Bolt Pattern 2" - 60⁄80 Grit DP2-60/80 $199 Pro Series, Exchangeable Body
2" - 80⁄100 Grit DP2-80/100 $199
10" x 10 Seg GH10-10H $400 3"- Left Turn DPPCol-3 $399
10" x 20 Seg GH10-20H $550 3"- Right Turn DPPCoR-3 $399
Hard Bond
Bevel Type Plug, Pro Series
2" - 16⁄20 Grit DPH2-16/20 $199
2" - 30⁄40 Grit DPH2-30/40 $199
arroW seG PluG
GrindinG Heads Pro Pro Series, Exchangeable Body
TurBo TyPe PluG 3"- 16⁄20 Grit DPA3-16/20 $199
10" x 10 Seg GH10-10 $599 Pro Series, Exchangeable Body 3"- 30⁄40 Grit DPA3-30/40 $199
10" x 20 Seg GH10-20 $899 3"- 16⁄20 Grit DPT2-16/20 $199
3"- 30⁄40 Grit DPT2-30/40 $199
arroW seG GrindinG Heads Pro Bevel seG PluG
Pro Series, Exchangeable Body
10" x 10 Seg AGH10-10 $599 3"- 16⁄20 Grit DPT2-16/20 $239
10" x 20 Seg AGH10-20 $899 3"- 30⁄40 Grit DPT2-30/40 $239
38 All List Pricing. Call For Discount s.

41. surface
preparation
DiaMOnD SeGMent PlateS PCD PlateS
We carry many different types of diamond segments for all types of epoxy and concrete This new technology, “PCD,“ is
removal. They are color coded by their bond and designed for extremely long life. polycrystalline diamond. It is made with
very high pressure and temperature. This is
a controlled alternative to natural diamond,
which has inconsistent qualities. PCD is
being used especially for epoxy coating
removals.
Red – HaRd Bond SegmentS
Pro Series
Red - HaRd Bond aRRow SegmentS
16⁄20 Grit DSH-16/20 $139 Pro Series
30⁄40 Grit DSH-30/40 $139
16⁄20 Grit taMV-16/20 $139
60⁄80 Grit DSH-60/80 $139 dRy uSe – for removal of thick epoxy
30⁄40 Grit taMV-30/40 $139
120⁄150 Grit DSH-120/150 $139 coatings and urethane paints.
250⁄300 Grit DSH-250/300 $139 PCDP $336
PCOl $336
HanDy CHanGe SySteM
Our Handy Change Systems are available
for use on HTC Floor Machines.
Black – medium Bond SegmentS
Pro Series
16/20 Grit DSM-16/20 $139 dRy uSe – for thinner epoxy coatings and
30/40 Grit DSM-30/40 $139 glue removal.
60/80 Grit DSM-60/80 $139 PCGP $344
120/150 Grit DSM-120/150 $139 PCGl $344
250/300 Grit DSM-250/300 $139
dRy uSe
6 1⁄4" Plate HCSV160 $160
8 5⁄8" Plate HCSV220 $180
10 5⁄8" Plate HCSV270 $260
Blue – Soft Bond SegmentS
Pro Series dRy uSe – for general removal of epoxy
coatings and paint.
16/20 Grit DSS-16/20 $139
DSPCG $269
30/40 Grit DSS-30/40 $139
60/80 Grit DSS-60/80 $139
120/150 Grit DSS-120/150 $139
250/300 Grit DSS-250/300 $139
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 39

42. surface
preparation
grinding Blocks PolisHing Pads
Our block segments are much bigger We inventory a comprehensive range of
diameter 50mm x 10mm x 10mm pads for any and every polishing need.
Dry or wet, hand held or floor machines;
whatever the application, look no further.
We have the pad for you.
ProFeSSioNal DrY PaDS
Our dry pads are handy when you need
to polish countertops when water isn’t
accessible. These work great and leave a
Pro SerieS - HarD boND beautiful shine.
4" 50 5⁄8" Blue dPHW4-50 $89
16⁄20 Grit dgB $249 4" 100 5⁄8" Yellow dPHW4-100 $89
30⁄40 Grit dgB-30/40 $249 4" 200 5⁄8" Orange dPHW4-200 $89
Premium CeramiCa—VelCro 4" 400 5⁄8" Red dPHW4-400 $89
These pads are designed for wet polishing 4" 800 5⁄8" Green dPHW4-800 $89
of concrete countertops on low and 4" 1500 5⁄8" Aqua dPHW4-1500 $89
variable speed grinders.
4" 3000 5⁄8" Pink dPHW4-3000 $89
3" 50 5⁄8" Blue PP3/50-7B $30
3" 80 5⁄8" Tan PP3/80-7B $30 Backing Pads
3" 150 5⁄8" Yellow PP3/150-7B $30
3" 300 5⁄8" Orange PP3/300-7B $30
3" 500 5⁄8" Red PP3/500-7B $30
3" 1000 5⁄8" Green PP3/1000-7B $30
3" 2000 5⁄8" Aqua PP3/2000-7B $30
Professional Hand Pads 3" 3000 5⁄8" Brown PP3/3000-7B $30
Our hand polishing pads are professional 4" 50 5⁄8" Blue PP4/50-7B $40
grade and can be used dry or with water. 4" 80 5⁄8" Tan PP4/80-7B $40
They come in very handy for touchup 4" 150 5⁄8" Yellow PP4/150-7B $40
applications. 4" 300 5⁄8" Orange PP4/300-7B $40
4" 500 5⁄8" Red PP4/500-7B $40 Flex rubber baCkiNg PaDS
4" 1000 5⁄8" Green PP4/1000-7B $40 3" BP3-f $52
4" 2000 5⁄8" Aqua PP4/2000-7B $40 4" BP4-f $59
4" 3000 5⁄8" Brown PP4/3000-7B $40 5" BP5-f $79
5" 50 5⁄8" Blue PP5/50-7B $50
5" 80 5⁄8" Tan PP5/80-7B $50 HarD rubber baCkiNg PaDS
5" 150 5⁄8" Yellow PP5/150-7B $50
4" x 2 1⁄4" x 7⁄8" 60 Green HP-60 $59 3" BP3 $52
5" 300 5⁄8" Orange PP5/300-7B $50
4" x 2 1⁄4" x 7⁄8" 100 Black HP-100 $55 4" BP4 $59
5" 500 5⁄8" Red PP5/500-7B $50
4" x 2 1⁄4" x 7⁄8" 200 Red HP-200 $49 5" BP5 $79
5" 1000 5⁄8" Green PP5/1000-7B $50
4" x 2 1⁄4" x 7⁄8" 400 Yellow HP-400 $49 5" 2000 5⁄8" Aqua PP5/2000-7B $50
4" x 2 1⁄4" x 7⁄8" 800 White HP-800 $49 rigiD PlaStiC baCkiNg PaDS
5" 3000 5⁄8" Brown PP5/3000-7B $50
4" x 2 1⁄4" x 7⁄8" 1500 Grey HP-1500 $49 3" BP3-P $52
4" x 2 1⁄4" x 7⁄8" 3000 Blue HP-3000 $49 4" BP4-P $59
5" BP5-P $79
40 All List Pricing. Call For Discount s.

43. surface
preparation
velCRo baCkeD PoliSHing SySteMS PRofeSSional DRy PoliSHing ReSin
DotS foR flooR MaCHineS
Professional Dry resin Polishing
PaDs for floor Machines
3" 50 DPHD3-50 $49 Pro resin Dry Polishing PaDs
coMbo
3" 100 DPHD3-100 $49 10" 50 fP10-50 $269 High performance of speed and long life,
3" 200 DPHD3-200 $49 10" 100 fP10-100 $269 combination resin/metal bond.
3" 400 DPHD3-400 $49 10" 200 fP10-200 $269 2 3⁄8" 50 5⁄8" DRDM-50 $68
3" 800 DPHD3-800 $49 10" 400 fP10-400 $269 2 3⁄8" 100 5⁄8" DRDM-100 $68
3" 1500 DPHD3-1500 $49 10" 800 fP10-800 $269 2 3⁄8" 200 5⁄8" DRDM-200 $68
3" 3000 DPHD3-3000 $49 10" 1500 fP10-1500 $269
10" 3000 fP10-3000 $269
10" backplate bP10 $139
Pro Dry resin Polishing PaDs
for floor Machines
concrete
3" 50 DPP3-50 $59
2 3⁄8" 50 5⁄8" Grey DRDC-50 $41
3" 100 DPP3-100 $59
2 3⁄8" 100 5⁄8" Black DRDC-100 $41
3" 200 DPP3-200 $59 Pro Dry resin Polishing PaDs 2 3⁄8" 200 5⁄8" Blue DRDC-200 $41
3" 400 DPHD3-400 $59 for grinDers
2 3⁄8" 400 5⁄8" Red DRDC-400 $41
3" 800 DPHD3-800 $59 7" 50 PP7-50 $119 2 3⁄8" 800 5⁄8" White DRDC-800 $41
3" 1500 DPHD3-1500 $59 7" 100 PP7-100 $119 2 3⁄8" 1500 5⁄8" Yellow DRDC-1500 $41
3" 3000 DPHD3-3000 $59 7" 200 PP7-200 $119 2 3⁄8" 3000 5⁄8" Green DRDC-3000 $41
7" 400 PP7-400 $119 stone
4" 50 DPP4-50 $79 7" 800 PP7-800 $119
2 3⁄8" 50 5⁄8" Grey DRDS-50 $41
4" 100 DPP4-100 $79 7" 1500 PP7-1500 $119
2 3⁄8" 100 5⁄8" Black DRDS-100 $41
4" 200 DPP4-200 $79 7" 3000 PP7-3000 $119 2 3⁄8" 200 5⁄8" Blue DRDS-200 $41
4" 400 DPHD4-400 $79 7" x 5/8"-11 plate bPa7 $89 2 3⁄8" 400 5⁄8" Red DRDS-400 $41
4" 800 DPHD4-800 $79 7"-7/8"-5/8" plate bPa71 $89 2 3⁄8" 800 5⁄8" White DRDS-800 $41
4" 1500 DPHD4-1500 $79 2 3⁄8" 1500 5⁄8" Yellow DRDS-1500 $41
4" 3000 DPHD4-3000 $79 2 3⁄8" 3000 5⁄8" Green DRDS-3000 $41
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 41

44. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws our high speed segmented blades are available in 12",14", 16", 18" and 20". These
blades come in different bonds depending on the aggregate or material being cut.
Quality varies from economy to ultra supreme pro.
Cured ConCrete
Cool Cut ™ Cool Cut™ Power Combo® GPx
Cured Concrete, premium, laser welded, Cured Concrete, Ultra supreme™, laser pro series, general purpose, laser welded,
dry/wet, .300" segment Height welded, dry/wet, .380" segment Height dry/wet, .380" segment Height
12" x .110" x 1" dC12-1 $299 12" x .125" x 1" dCuX12-1 $500 12" x .125" x 1" GPX-1 $400
12" x .110" - 20mm dC12-1/20 $299 12" x .125" x 20mm dCuX12-1/20 $500 12" x .125" x 20mm GPX12-1/20 $400
14" x .110" x 1" dC14-1 $399 14" x .125" x 1" dCuX14-1 $550 14" x .125" x 1" GPX14-1 $500
14" x .110" - 20mm dC14-1/20 $399 14" x .125" x 20mm dCuX14-1/20 $550 14" x .125" x 20mm GPX14-1/20 $500
16" x .125" x 1" dCu16-1 $600 16" x .125" x 1" dCuX16-1 $650
Cool Cut™ Power Combo® GP Power Combo® GPs
Cured Concrete, professional, laser premium, general purpose, laser welded, premium, general purpose, laser welded,
welded, dry/wet, .380" segment Height dry/wet, .300" segment Height dry/wet, soft Bond, .300" segment Height
12" x .110" x 1" dCu12-1-1 $450 12" x .125" x 1" GP12-1 $339 12" x .125" x 1" GPS12-1 $339
12" x .110" x - 20mm dCu12-1-1/20 $450 12" x .125" x 20mm GP12-1/20 $339 12" x .125" x 20mm GPS12-1/20 $339
14" x .110" x 1" dCu14-1-1 $500 14" x .125" x 1" GP14-1 $399 14" x .125" x 1" GPS14-1 $399
14" x .110" x - 20mm dCu14-1-1/20 $500 14" x .125" x 20mm GP14-1/20 $399 14" x .125" x 20mm GPS14-1/20 $399
16" x .125" x 1" GP16-1 $489
42 All List Pricing. Call For Discount s.

45. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
Cured ConCrete
Super Gp® SerieS CArNiVOre® Super TurbO
general purpose, laser welded, dry/wet, NiCeCuT prO SerieS LASer general purpose, dry/wet
.320" segment Height welded .320" segment Height
12" x .125" x 1" StGP12-H $499
12" X .125" X 1" SGP12-1 $450 12" X .125" X 1" CnC12-1 $500 12" x .125" x 20mm StGP12-H/20 $499
12" X .125" X 20mm SGP12-1/20 $450 12" X .125" X 20mm CnC12-1/20 $500 14" x .125" x 1" StGP14-H $549
14" x .125" x 1" SGP14-1 $500 14" x .125" x 1" CnC14-1 $550 14" x .125" x 20mm StGP14-H/20 $549
14" x .125" x 20mm SGP14-1/20 $500 14" x .125" x 20mm CnC14-1/20 $550
16" x .125" x 1" SGP16-1 $600 16" x .125" x 1" CnC16-1 $650
ASPHAlt & Green ConCrete
rOAd ruNNer® rOAd ruNNer® rOAd ruNNer®
ASphALT & GreeN CONCreTe ASphALT & GreeN CONCreTe ASphALT & GreeN CONCreTe
Heavy-duty, laser welded, dry/wet, premium, laser welded, dry/wet, Ultra supreme, laser welded, dry/wet,
.300" segment Height .320" segment Height .380" segment Height
12" x .125" x 1" dAG12-1 $299 12" x .125" x 1" dAGP12-1 $399 12" x .125" x 1" dAGX12-1 $500
12" x .125" x 20mm dAG12-1/20 $299 12" x .125" x 20mm dAGP12-1/20 $399 12" x .125" x 20mm dAGX12-1/20 $500
14" x .125" x 1" dAG14-1 $399 14" x .125" x 1" dAGP14-1 $499 14" x .125" x 1" dAGX14-1 $550
14" x .125" x 20mm dAG14-1/20 $399 14" x .125" x 20mm dAGP14-1/20 $499 14" x .125" x 20mm dAGX14-1/20 $550
16" x .125" x 1" dAGP16-1 $599
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 43

46. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
AsphAlt & Green ConCrete BriCk/hArd MAteriAl
Super Turbo TidAl WAve® cArnivore® nicecuT
ASphAlT & green concreTe segmented Turbo, dry/wet, pro laser welded, dry/wet,
pro series, wet/dry .380" segment Height .320" segment Height
12" x .125" x 1" stGC12-h $539 12" x .125" x 1" Wst12-7B $439 12" x .125" x 1" CnC12-1 $500
12" x .125" x 20mm stGC12-h/20 $539 12" x .125" x 20mm Wst12-7B/20 $439 12" x .125" x 20mm CnC12-1/20 $500
14" x .125" x 1" stGC14-h $599 14" x .125" x 1" Wst14-7B $499 14" x .125" x 1" CnC14-1 $550
14" x .125" x 20mm stGC14-h/20 $599 14" x .125 x 20mm Wst14-7B/20 $499 14" x .125" x 20mm CnC14-1/20 $550
16" x .125" x 1" CnC16-1 $650
ASphAlT & green concreTe hbrx SerieS™ poWer combo® gpS
premium, wet/dry hArd brick, ulTrA Supreme™ segmented, soft Bond, laser welded,
laser welded, dry/wet, dry/wet, .300" segment Height
12" x .125" x 1" dAG12-Xl $299 .380" segment Height
14" x .125" x 1" dAG14-Xl $359 12" x .125" x 1" Gps12-1 $339
12" x .125" x 1" hBrX12-1 $519 12" x .125" x 20mm Gps12-1/20 $339
14" x .125" x 1" hBrX14-1 $589 14" x .125" x 1" Gps14-1 $399
14" x .125" x 1" sthBrX14-1 $599 14" x .125" x 20mm Gps14-1/20 $399
16" x .125" x 1" hBrX16-1 $719
18" x .125" x 1" hBrX18-1 $889
20" x .140" x 1" hBrX20-1 $999
44 All List Pricing. Call For Discount s.

47. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
Brick/Hard Material
Silver Bullet™, turBo Xl - 12mm rim
Cool Cut™
Cured Concrete, premium, laser welded, Segmented turBo - Pro SerieS, general purpose, dry/wet
dry/wet, .300" segment Height .375" segment Height, dry/wet
14" x .125" x 1" tXl14-HJ $399
12" x .110" x 1" dc12-1 $299 12" x .125" x 1" St12-1 $439 14" x .125" x 20mm tXl14-HJ/20 $399
12" x .110" x 20mm dc12-1/20 $299 12" x .125" x 20mm St12-1/20 $439
14" x .110" x 1" dc14-1 $399 14" x .125" x 1" St14-1 $499
14" x .110" x 20mm dc14-1/20 $399 14" x .125" x 20mm St14-1/20 $499
16" x .125" x 1" St16-1 $599
18" x .125" x 1" St18-1 $699
20" x .125" x 1" St20-1 $859
Samurai Segmented
general purpose, dry/wet
14" x .125" x 1" SG14-HJ $399
14" x .125" x 20mm SG14-HJ/20 $399
Cool Cut™ SuPer turBo
Brick, professional, laser welded, dry/wet, general purpose, dry/wet
.380" segment Height
12" x .125" x 1" StGP12-H $499
12" x .110" x 1" dcU12-1-1 $450
12" x .125" x 20mm StGP12-H/20 $499
12" x .110" x 20mm dcU12-1-1/20 $450
14" x .125" x 1" StGP14-H $549
14" x .110" x 1" dcU14-1-1 $500
14" x .125" x 20mm StGP14-H/20 $549
14" x .110" x 20mm dcU14-1-1/20 $500
Premium general PurPoSe
general purpose, dry/wet
12" x .125" x 1" StGP12-HJ $399
12" x .125" x 20mm StGP12-HJ/20 $399
14" x .125" x 1" StGP14-HJ $399
14" x .125" x 20mm StGP14-HJ/20 $399
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 45

48. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
Block
Power Combo® GP Power Combo® GPs bloCk bear® suPreme bloCk
general purpose, premium, laser welded, general purpose, premium, laser welded, laser welded, dry/wet,
dry/wet, .300" segment Height dry/wet, soft Bond, .300" segment Height Bp series .300" segment Height,
BX series .350" segment Height
12" x .125" x 1" GP12-1 $339 12" x .125" x 1" GPS12-1 $339
12" x .125" x 20mm GP12-1/20 $339 12" x .125" x 20mm GPS12-1/20 $339 20" x .135" x 1" BP20-S22-5Q $599
14" x .125" x 1" GP14-1 $399 14" x .125" x 1" GPS14-1 $399 20" x .135" x 1" BP20-B51-5Q $599
14" x .125" x 20mm GP14-1/20 $399 14" x .125" x 20mm GPS14-1/20 $399 20" x .135" x 1" BX20-B51-5Q $799
16" x .125" x 1" GP16-1 $489 20" x .135" x 1" BX20-B51-5Q $799
Available in 2 Bonds
s22 – light weight Block
b51 – Concrete/Heavy-weight Block
bloCk bear® Pro bloCk
laser welded, dry/wet,
Bp series .320" segment Height,
BX series .380" segment Height
20" x .135" x 1" BP20-1 $699
20" x .140" x 1" BX20-1 $759
Power Combo® GPx suPer GP®
general purpose, Ultra supreme, laser general purpose, pro series, laser welded,
welded, dry/wet, .380" segment Height dry/wet, .320" segment Height
12" x .125" x 1" GPX12-1 $400 12" x .125" x 1" SGP12-1 $450
12" x .125" x 20mm GPX12-1/20 $400 12" x .125" x 20mm SGP12-1/20 $450
14" x .125" x 1" GPX14-1 $500 14" x .125" x 1" SGP14-1 $500
14" x .125" x 20mm GPX14-1/20 $500 14" x .125" x 20mm SGP14-1/20 $500
16" x .125" x 1" SGP16-1 $600
Heavy-Duty bloCk
10mm segment Height, dry/wet
12" x .125" x 1" Dc12-4N $299
12" x .125" x 20mm Dc12-4N-20 $299
14" x .125" x 1" Dc14-4N $399
14" x .125" x 20mm Dc14-4N-20 $399
20" x .140" x 1" B X 20-4N $499
46 All List Pricing. Call For Discount s.

49. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
General PurPose
Power Combo® GP Power Combo® GPs suPer GP®
general purpose, premium, laser welded, general purpose, premium, laser welded, general purpose, pro laser welded,
dry/wet, .300" segment Height dry/wet, soft Bond, .300" segment Height dry/wet, .320" segment Height
12" x .125" x 1" GP12-1 $339 12" x .125" x 1" GPs12-1 $339 12" x .125" x 1" sGP12-1 $500
12" x .125" x 20mm GP12-1/20 $339 12" x .125" x 20mm GPs12-1/20 $339 12" x .125" x 20mm sGP12-1/20 $500
14" x .125" x 1" GP14-1 $399 14" x .125" x 1" GPs14-1 $399 14" x .125" x 1" sGP14-1 $550
14" x .125" x 20mm GP14-1/20 $399 14" x .125" x 20mm GPs14-1/20 $399 14" x .125" x 20mm sGP14-1/20 $550
16" x .125" x 1" GP16-1 $489 16" x .125" x 1" sGP16-1 $600
Power Combo® GPx sabertooth™ Carnivore® niCeCut
general purpose, Ultra supreme, laser general purpose, dry/wet pro series, .315" segment Height, dry/wet
welded, dry/wet, .380" segment Height 15mm segment Height
12" x .125" x 1" CnC12-1 $500
12" x .125" x 1" GPX12-1 $400 12" x .125" x 1" GPXsT12-4n $299 12" x .125" x 20mm CnC12-20 $500
12" x .125" x 20mm GPX12-1/20 $400 14" x .125" x 1" GPXsT14-4n $399 14" x .125" x 1" CnC14-1 $550
14" x .125" x 1" GPX14-1 $500 14" x .125" x 20mm CnC14-20 $550
14" x .125" x 20mm GPX14-1/20 $500 16" x .125" x 1" CnC16-1 $650
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 47

50. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
General PurPose DuCTile iron
Super Turbo Samurai SeGmenTed blue THunder®
general purpose, dry/wet general purpose, dry/wet pro series, dry/wet
12" x .125" x 1" sTGP12-H $499 14" x .125" x 1" sG14-HJ $399 12" x .125" x 1 PDi12-7B $539
12" x .125" x 20mm sTGP12-H/20 $499 14" x .125" x 20mm sG14-HJ/20 $399 12" x .125" x 20mm PDi12-7B/20 $539
14" x .125" x 1" sTGP14-H $549 14" x .125" x 1" PDi14-7B $599
14" x .125" x 20mm sTGP14-H/20 $549 14" x .125" x 20mm PDi14-7B/20 $599
16" x .125" x 1" PDi16-7B $669
premium General purpoSe
general purpose, dry/wet
12" x .125" x 1" sTGP12-HJ $399
Heavy-duTy General purpoSe
10mm segment Height, dry/wet 12" x .125" x 20mm sTGP12-HJ/20 $399
14" x .125" x 1" sTGP14-HJ $399
12" x .125" x 1" DC12-4n $299
14" x .125" x 20mm sTGP14-HJ/20 $399
12" x .125" x 20mm DC12-4n-20 $299 power Combo® GpS
14" x .125" x 1" DC14-4n $399 general purpose, premium laser welded,
dry/wet, soft Bond, .300" segment Height
14" x .125" x 20mm DC14-4n-20 $399
20" x .140" x 1" BX20-4n $499 12" x .125" x 1" GPs12-1 $299
12" x .125" x 20mm GPs12-1/20 $299
14" x .125" x 1" GPs14-1 $239
14" x .125" x 20mm GPs14-1/20 $239
48 All List Pricing. Call For Discount s.

51. HigH speed
DiamonD
Blades for
Hand Held &
Masonry saws
Metal Stone
omnivore™ is the first diamond blade
that cuts raw metal and steel. in fact, the
only diamond blade that cuts everything
and does it four times faster than a
conventional abrasive blade. omnivore
is so hungry, it even outlasts abrasive
wheels at least 30 to 1.
• Cuts steel, cast iron, ductile iron, rebar,
concrete, 18-26 guage roof decking,
PVC and wood.
• Eliminates downtime changing
abrasive wheels.
Super TurbO
• Maintains consistent depths granite, dry/wet
throughout cutting life. 12" x .125" x 1 StG12-H $499
• Available in 4" 4½" 7" 12"
, , , , 14" x .125" x 1 StG14-H $549
14" and 16"
OmnivOre™
pro series, dry/wet TurbO XL - 12mm rim
General Purpose, Dry/Wet
12" x .125" x 1 VBS12-7B $399
12" x .125" x 20mm VBS12-7B/20 $399 14" x .125" x 1" tXl14-HJ $399
14" x .125" x 1" VBS14-7B $499 14" x .125" x 20mm tXl14-HJ/20 $399
14" x .125" x 20mm VBS14-7B/20 $499
16" x .125" x 1" VBS16-7B $599
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 49

52. diamond
walk-behind
blades
our wet walk-behind blades are all custom-made to your specifications. Sizes from
12" to 60" are available in different bonds and grades. other sizes and specs are
available upon request. most common bonds and specs are in stock.
Cured ConCrete Blade thiCkness
Pro 300 Super Pro Ultra 900 Code index
Size Series 600 Series Series 1 0.110"
12" x .125" $276 $318 $433 2 0.125"
12" x .187" $359 $422 $576 3 0.142"/0.145"
12" x .250" $417 $504 $685 4 0.155"
12" x .375" $561 $692 $844 5 0.165"
14" x .125" $342 $396 $535 6 0.175"
14" x .187" $441 $522 $656 7 0.187"
14" x .250" $516 $626 $815 14 0.197"
14" x .375" $731 $893 $1,050 8 0.210"
16" x .125" $404 $477 $644 9 0.220"
18" x .125" $458 $493 $668 10 0.250"
18" x .155" $516 $626 $734 13 0.312"
18" x .165" $540 $594 $789 11 0.375"
18" x .187" $588 $692 $901 12 0.500"
18" x .250" $686 $825 $998
20" x .125" $470 $540 $690
24" x .155" $650 $758 $971
24" x .165" $678 $797 $1,010
24" x .187" $747 $877 $1,079
24" x .220" $810 $963 $1,171
24" x .250" $869 $1,041 $1,276
26" x .165" $705 $818 $965
30" x .155" $803 $929 $1,110
30" x .165" $828 $966 $1,209
30" x .187" $912 $1,065 $1,273
30" x .220" $1,022 $1,200 $1,439
30" x .250" $1,088 $1,293 $1,504
36" x .165" $1,061 $1,226 $1,451
36" x .187" $1,172 $1,310 $1,575
36" x .250" $1,130 $1,605 $1,901
all with kicker segments for undercut protection.
PC: .315" Segment Height
PCU: .394" Segment Height
PCX: .472" Segment Height
Cured ConCrete bonds
• 30 Soft Aggregate
• 25 Soft to Medium Aggregate
• 20 Medium Aggregate
• 15 Medium to Hard Aggregate
• 10 Critically Hard Aggregate
50 All List Pricing. Call For Discount s.

53. DiAMonD
walk-
behind
blades
AsphAlt/Green ConCrete AsphAlt over ConCrete BlAde thiCkness
Pro 300 Super Pro Ultra 900 Code index
Size Series 600 Series Series Size Super Pro 550S
1 0.110"
12" x .125" $326 $368 $483 18" x .125" pAC18-550s-2 $583 2 0.125"
12" x .187" $409 $472 $626 18" x .187" pAC18-550s-7 $654 3 0.142"/0.145"
12" x .250" $467 $554 $735 18" x .250" pAC18-550s-10 $752 4 0.155"
12" x .375" $611 $742 $894 18" x .375" pAC18-550s-11 $845 5 0.165"
14" x .125" $392 $446 $585 20" x .125" pAC20-550s-2 $668 6 0.175"
14" x .187" $791 $572 $706 24" x .165" pAC24-550s-5 $1,100 7 0.187"
14" x .250" $566 $676 $865 26" x .165" pAC26-550s-5 $1,450 14 0.197"
14" x .375" $781 $943 $1,100 30" x .165" pAC30-550s-5 $1,670 8 0.210"
16" x .125" $464 $537 $704 30" x .187" pAC30-550s-7 $1,976 9 0.220"
18" x .125" $518 $553 $728 36" x .187" pAC36-550s-7 $2,298 10 0.250"
18" x .155" $576 $665 $794 All with slant segments and kicker 13 0.312"
18" x .165" $600 $654 $849 segments for undercut protection. 11 0.375"
18" x .187" $648 $752 $961 PAC: .350" Segment Height 12 0.500"
18" x .250" $746 $885 $1,058
20" x .125" $530 $600 $750
24" x .155" $725 $833 $1,046
24" x .165" $753 $872 $1,085
24" x .187" $822 $951 $1,154
24" x .250" $944 $1,116 $1,351
26" x .165" $780 $893 $1,040
30" x .155" $903 $1,029 $1,210
30" x .165" $928 $1,066 $1,303
30" x .187" $1,012 $1,165 $1,373
30" x .220" $1,122 $1,300 $1,539
30" x .250" $1,188 $1,393 $1,604
36" x .165" $1,211 $1,376 $1,601
36" x .187" $1,322 $1,460 $1,725
36" x .250" $1,455 $1,746 $2,002
All with 3 step kicker or slanted segments for
undercut protection.
PA: .335" Segment Height
PGC: .335" Segment Height
AsphAlt Bonds
• 90 Long Life
• 70 Fast Cut
Green ConCrete Bonds
• 60 Soft Aggregate
• 50 Medium to Hard Aggregate
• 40 Hard Aggregate
51

54. DiamonD
walk-
behind
blades
Looping BLades
our looping blades can be used on all
types of hand held and walk-behind
saws. Their superior quality makes their
cutting speed and life unmatchable.
They will exceed your expectations!
Readily available in .187", .250", .312",
.375" and .500" thicknesses. other
thicknesses are available by special order
ConCrete looping BlAdes
upon request. Pro Series, Laser Welded, Dry/Wet
.380" Segment Height
12" x .250" x 1" LCX12-10-1 $799
12" x .375" x 1" LCX12-11-1 $899
14" x .250" x 1" LCX14-10-1 $899
14" x .312" x 1" LCX14-13-1 $900
14" x .375" x 1" LCX14-11-1 $959
14" x .500" x 1" LCX14-12-1 $1,195
AsphAlt looping BlAde
Pro Series, Laser Welded, Dry/Wet,
.380" Segment Height
12" x .250" x 1" LaX12-10-1 $799
12" x .312" x 1" LaX12-13-1 $850
12" x .375" x 1" LaX12-11-1 $899
14" x .187" x 1" LaX14-7-1 $699
14" x .250" x 1" LaX14-10-1 $899
14" x .312" x 1" LaX14-13-1 $950
14" x .375" x 1" LaX14-11-1 $999
14" x .500" x 1" LaX14-12-1 $1,095
16"x x 500" x 1" LaX16-12-1 $1,340
52 All List Pricing. Call For Discount s.

55. DiAmoND
Wall SaW
Blades
Wall SaW BladeS
All standard wall saw cores are machined
to fit the 360 flush cut flanges.
Additional arbor sizes and flush cut
patterns available upon request.
Size Narrow Notch Wide Notch
Narrow Notch BoNds:
18" x .187" $1,673 $1,355
18" x .220" $1,775 $1,437
1 Very Hard
18" x .250" $2,264 $1,875
Non-abrasive hard concrete, general
24" x .187" $2,126 $1,778
purpose, air saws, fast cutting,
24" x .220" $2,336 $1,900
hydraulic saws
24" x .250" $3,048 $2,512
26" x .187" $2,439 $2,019 3 Hard–Hard to Medium
26" x .220" $2,633 $2,172 Hard reinforced concrete, longer life,
26" x .250" $3,248 $2,795 air saws, hydraulic saws
30" x .187" $2,780 $2,240
30" x .220" $2,991 $2,441 5 Medium
30" x .250" $3,767 $3,159 Concrete with dense limestone
32 x .187" - $2,645 aggregate, hydraulic saws
32 x .220" - $2,714
32 x .250" - $3,180 wide Notch BoNds:
36" x .187" $3,470 $2,891
36" x .220" $3,729 $3,092 10 Very Hard:
36" x .250" $4,511 $3,833 Non-abrasive hard concrete, general
40" x .187" - $4,760 purpose, air saws, fast cutting,
40" x .220" - $4,913 hydraulic saws
40" x .250" - $5,189
42" x .187" - $4,425 20 Hard–Hard to Medium:
42" x .220" - $4,725 Hard reinforced concrete, longer life,
42" x .250" - $5,063 air saws, hydraulic saws
48" x .187" - $6,188
48" x .220" - $6,398 30 Medium:
48" x .250" - $6,539 Concrete with dense limestone
54" x .220" - $8,612 aggregate, hydraulic saws
54" x .250" - $8,880
hydraulic haNd held
60" x .220" - $11,682
60" x .250" - $12,186 MediuM Bond
20" x .140" HHPWS20-H $459
24" x .155" HHPWS24-H $659
soft Bond
20" x .140" HHPWS20S-H $459
24" x .155" HHPWS24S-H $659
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 53

56. DiamonD
coring
bits
When fast drilling is as important as dependability, our core bits stand up to the test.
They provide long life at lower drilling costs. The precision-machined barrel ensures
that each bit runs true and vibration-free.
WET CorE BiTs
all wet bits under 1" have 5⁄8"-11 threads. one-inch and larger have 1 1⁄4"-7 threads. other sizes, lengths and adapters are readily
available. Custom specs available include: open end, spoke back, nonstandard length and threaded tubing for deep drilling. 3⁄8" – 11⁄2"
have a 5⁄8"-11 threaded adapter. all sizes above have a 11⁄2"-7 threaded adapter.
STANDARD:
.300" segment height
General purpose drilling of concrete, masonry
and brick, including concrete with soft to
hard aggregate and light to medium steel
reinforcing.
High Maximum
Size Heavy-Duty Professional Performance Prestressed Performance
3⁄8"
PROFESSIONAL:
$152 - $180 $180 $200 .320" segment height
1⁄2" $153 - $181 $181 $201
5⁄8" $155 - $183 $183 $204 Bonds:
SOFT: Drilling critically hard concrete
3⁄4" $156 - $183 $183 $207 with heavy steel.
7⁄8" $158 - $186 $186 $209
MEDIUM: Good balance of speed and life
1" $140 $170 $188 $188 $228 for drilling medium-hard to hard concrete
11⁄8" $159 $185 $206 $206 $237 with medium to heavy steel reinforcing.
1 1⁄4" $164 $192 $213 $213 $254 HARD: asphalt and concrete with soft,
1 3⁄8" $179 - $228 $228 $266 abrasive aggregate. also for drilling
11⁄2" $186 $215 $239 $239 $283 air-cured refractories.
1 3⁄4" $219 $230 $255 $255 $294
HIGH PERFORMANCE:
1 7⁄8" $227 $239 $264 $264 $299 .400" segment height
2" $231 $251 $269 $317 $344
Bonds:
2 1⁄4" $252 $278 $309 $363 $373
TURBO: Extremely fast drilling of medium-hard
2 1⁄2" $284 $303 $336 $396 $410 to hard concrete with heavy steel.
2 3⁄4" $299 $332 $369 $434 $428
SOFT: Fast drilling of medium-hard to hard
3" $312 $347 $385 $453 $513 concrete with heavy steel.
3 1⁄4" $338 - $435 $512 -
MEDIUM: Drilling cured concrete with medium
3 1⁄2" $366 $416 $462 $543 $513 to soft aggregates with or without steel.
4" $414 $452 $501 $590 $557 PRESTRESSED: Drilling prestressed concrete
4 1⁄4" $450 $534 $593 $698 $659 and concrete with stressed rebar.
4 1⁄2" $479 $572 $635 $747 $705
5" $522 $597 $663 $780 $737 MAXIMUM PERFORMANCE:
.400" segment height
5 1⁄2" $576 $675 $750 $882 $833
6" $624 $726 $806 $948 $896 Bonds:
6 1⁄4" $656 $788 $875 $1,029 $972 TURBO: Fastest possible drilling on critically
hard materials like concrete with heavy
7" $746 $912 $1,013 $1,191 $1,125
reinforcing. also effective on granite, marble
8" $882 $945 $1,050 $1,236 $1,167 and other stone material.
9" $1,020 $1,124 $1,250 $1,469 $1,388 STANDARD: Longest life and lowest per hole
10" $1,161 $1,206 $1,340 $1,575 $1,488 when drilling a wide range of critically hard
11" $1,304 $1,395 - - $1,672 materials with steel reinforcing.
12" $1,445 $1,514 $1,682 $1,979 $1,869 LIMESTONE: Longest life and lowest per hole
13" 1572$ $1,700 $1,889 $2,222 $2,099 when drilling a wide range of medium to
14" $1,697 $1,887 $2,097 $2,466 $2,330 medium soft materials with or without steel
reinforcing. also for brick and block.
54 All List Pricing. Call For Discount s.

57. DiamonD
coring
bits
Wet cutting Dry cutting
PREmIum PRO - TuRbO bIT 1" DcB1-H $224
1" cBP1-1 $172 1 1⁄4" DcB114-H $266
1" cBX1-1 $191
1 1⁄8" cBP118-1 $183 1 1⁄2" DcB112-H $298
1 1⁄8" cBX118-1 $207
1 1⁄4" cBP114-1 $195 1 3⁄4" DcB134-H $304
1 1⁄4" cBX114-1 $215
1 1⁄2" cBP112-1 $219 2" DcB2-H $309
1 1⁄2" cBX112-1 $236
1 3⁄4" cBP134-1 $235 2 1⁄4" DcB214-H $324
1 3⁄4" cBX134-1 $261
2" cBP2-1 $256 2 1⁄2" DcB212-H $342
2" cBX2-1 $277
2 1⁄2" cBP212-1 $309 3" DcB3-H $392
2 1⁄2" cBX212-1 $331
2" cBP2-1 $324 3 1⁄2" DcB312-H $414
2" cBX2-1 $324
3" cBP3-1 $355 4" DcB4-H $442
3" cBX3-1 $389
3 1⁄2" cBP312-1 $425 4 1⁄2" DcB412-H $506
3 1⁄2" cBX312-1 $461
4" cBP4-1 $460 5" DcB5-H $592
4" cBX4-1 $493
4 1⁄2" cBP412-1 $581 6" DcB6-H $674
4 1⁄2" cBX412-1 $510
5" cBP5-1 $608 5" cBX5-1 $668
6" cBP6-1 $735 6" cBX6-1 $771
7" cBP7-1 $925 7" cBX7-1 $982
8" cBP8-1 $969 8" cBX8-1 $1,034
9" cBP9-1 $1,150 9" cBX9-1 $1,250
10" cBP10-1 $1,229 10" cBX10-1 $1,335
12" cBP12-1 $1,530 12" cBX12-1 $1,702
coreBit ADAPterS
DRY HOLE SAW TILE
ALL HILTI® 1" tB1-7B $119
ADAPTORS AvAILAbLE
11⁄8" tB118-7B $126
11⁄4" tB114-7B $139
13⁄8" tB138-7B $148
11⁄2" tB112-7B $159
15⁄8" tB158-7B $164
13⁄4" tB134-7B $179
5⁄8"-11 male to 3⁄8" shank DcBA-38 $59 2" tB2-7B $188
5⁄8"-11 male to 1⁄2" shank DcBA-12 $59 2 1⁄2" tB212-7B $199
1 1⁄4" male to 5⁄8"-11 female BSA-1 $69 2 3⁄4" tB234-7B $224
5⁄8"-11 male to 11⁄4" female BSA-2 $69 3" tB3-7B $248
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 55

58. specialty
blades
OmnivOre™/metal reScue/multi-PurPOSe ring Saw
Omnivore™ is the first diamond blade This is a true rescue blade. Used by • Fast cutting with depths to 10"
that cuts raw metal and steel. In fact, fire departments, demo and wrecking • All blades come with rollers
it’s the only diamond blade that cuts companies, and city municipalities, this
everything and does it four times faster blade always gets the job done. • DC: segmented, general purpose
than a conventional abrasive blade. • DCS: notched segments, soft bond for
Omnivore™ is so hungry, it even outlasts hard materials
abrasive wheels at least 30 to 1.
• Cuts steel, cast iron, ductile iron, rebar,
concrete, 18-26 gauge roof decking,
PVC and wood
• Eliminates downtime changing wheels
• Maintains consistent depth thru
cutting life
• Available in 4", 4 1⁄2", 5", 7", 12", 14"
CARBIDE CHUNK GRINDER
4" x .250"x 7⁄8" x 5⁄8" trSc-4 $199
7" x .250"x 7⁄8" x 5⁄8" trSc-7 $299
12" x 1" trSc-12 $399
14" x 9mm x 4mm Dc14-3 $499
12" x 20mm trSc-12/20 $399
14" x 9mm x 4mm DcSn14-3 $499
14" x 1" trSc-14 $499
14" x 9mm x 5.6mm Dc14-3/9 $699
14" x 20mm trSc-14/20 $499
OMNIVORE™ PRO SERIES
Dry/Wet
4" x .080"x 7⁄8" - 5⁄8" vBS4-7B $99
4 1⁄2" x .080"x 7⁄8’’ - 5⁄8" vBS4.5-7B $119
7" x .095"x Universal vBS7-7B $149
12" x .125"x 1" vBS12-7B $399
12" x .125"x 20mm vBS12-7B/20 $399
14" x .125"x 1" vBS14-7B $499
14" x .125"x 20mm vBS14-7B/20 $499
16" x .125"x 1" vBS16-7B $599
56 All List Pricing. Call For Discount s.

59. specialty
blades
Multi-cut and grind carbidE tip grindEr diScS
These are the first of their kind! You can
cut, grind and flush cut all with the same
blade. Because of its unique depressed
center, you can use it with any standard
grinder.
7 1/4" CARBIDE TIP BLADES CONCRETE GRINDING DISCS
This professional series 24/40 tooth,
C3 carbide tipped blade has the quality 4 1⁄2" x 7⁄8"x 16 Grit grd4.5-1 $9
pro framers need, at prices that any 4 1⁄2" x 7⁄8"x 8 Grit grd4.5-1/8 $9
contractor can afford. 7" x 7⁄8"x 16 Grit grd7-1 $12
24 Tooth ct7-24-3 $9.99 7" x 7⁄8"x 8 Grit grd7-1/8 $12
ELECTROPLATED 40 Tooth ct7-40-3 $11.99
7⁄8" to 5⁄8" 11 Threads Adapter agd-1 $6
4" x .080" x 7⁄8"- 5⁄8" EMcg4-1 $169
24 TOOTH CARBIDE TIP BLADES ElEctroplatEd forM toolS
4 1⁄2" x .080" x 7⁄8"- 5⁄8 " EMcg4.5-1 $199
This C3 grade professional carbide tipped
5" x .080" x 7⁄8"- 5⁄8 " EMcg5-1 $239
blade is the perfect solution for anyone
who is “deep in the weeds.” Roots and
small tree trunks are a breeze while
doing underground work.
12" x 24 Tooth x 1" rS12-70119 $159
14" x 24 Tooth x 1" rS14-70120 $199
ELECTROPLATED DIE GRINDER & FORM
TOOLS
IMPREGNATED
2" Premium E2-1 $29
4" x .100" x 7⁄8" - 5⁄8" Mcg4-1 $169
3" Premium E3-1 $49
4 1⁄2" x .100" x 7⁄8" - 5⁄8" Mcg4.5-1 $199
1" w/ 1⁄4" Shank Pro EXS1-1/14 $49
5" x .100" x 7⁄8" - 5⁄8" Mcg5-1 $239
2" Pro Ep2-1 $49
2" w/ 1⁄4" Shank Pro EXS2-1/14 $59
2" w/ 3⁄8" Shank Pro EXS2-1/38 $65
3" Pro EXS3-1 $69
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 57

60. ICS DIamonD ChaIn SawS
GaS PowERED
680GC
MSRP $1,595 – 12" 633F4 (NEW)
$1,695 – 14" MSRP $2,695 – 14"
MSRP $2,795 – 16"
hYDRaULIC
633GC (NEW)
MSRP $2,395 – 14"
$2,495 – 16"
880 F4 (NEW)
MSRP $4,195 – 15"
603GC
MSRP $1,195 – 10"
814 Pro
MSRP $2,695 – 13"
Call World Diamond Source for accessories,
recommendations and discounts: 800-611-8278.
58

61. iCs Guide Bars and diamond Chains
Guide Bars diamond Chains
Gas Powered
Size Part # MSRP Gas Powered hydraulic
10" 517689 $100 Size Part # MSRP Size Part # MSRP
12" 71395 $130 10" Twin Max 71493 $295 11" Twin Pro 74721 $580
14" 513122 $180 10" Twin Max Plus 517869 $395 11" Premium Pro 74715 $705
14" 73600 $180 12" Twin Max 71400 $355 13" Twin Pro 74719 $510
14" 525872 $190 12" Twin Max Plus 71704 $465 13" Premium Pro 74713 $640
16" 71600 $230 14" Twin Max 71486 $395 15" Twin Pro 74723 $665
16" 524490 $240 14" Twin Max Plus 71705 $515 15" Premium Pro 74717 $835
14" Pro Force 531755 $675 15" Pro Force 523342 $725
14" Pro Force Premium L 531757 $775 15" Pro Force Premium L 525343 $835
14" Pro Force Premium S 531761 $775 15" Pro Force Premium S 531735 $835
14" Pro Force Abrasive 531759 $675 15" Pro Force Abrasive 525344 $725
hydraulic 16" Twin Max 71607 $435 19" Twin Pro 74724 $790
Size Part # MSRP 16" Twin Max Plus 71706 $565 19" Premium Pro 74718 $990
11" 72269 $125 16" Pro Force 531763 $725 20" Pro Force 531749 $865
13" 525741 $160 16" Pro Force Premium L 351765 $835 20" Pro Force Premium L 531751 $995
15" 523080 $225 16" Pro Force Premium S 531769 $835 20" Pro Force Premium S 531741 $995
15" 72176 $185 16" Pro Force Abrasive 531767 $725 20" Pro Force Abrasive 531753 $865
19" 72177 $235 24" Twin Pro 70679 $995
20" 529767 $245 24" Premium Pro 70680 $1,220
24" 70646 $500 25" Pro Force 525345 $1,320
25" 525320 $375 25" Pro Force Premium 525346 $1,065
25" Pro Force Premium L 525346 $1,225
25" Pro Force Premium S 531737 $1,225
25" Pro Force Abrasive 525347 $1,065
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 59

62. h u sq v a rna
products
walk-behind saws
husqvarna Fs 6600 d
The Fs 6600 D is a powerful and highly efficient saw. Its power-to-
size ratio makes it an extremely versatile and super-productive saw
in all cutting applications.
Fs6600d18 . . . . . . . . . . . list . $22,686
Fs6600d26 . . . . . . . . . . . list . $22,743
Fs6600d30 . . . . . . . . . . . list . $22,855
Fs6600d36 . . . . . . . . . . . list . $22,911
Fs6600d42 . . . . . . . . . . . list . $23,305
also available with 3 speed gearbox
husqvarna Fs 4800 d
The Fs 4800 D is a professional and very versatile flat saw for large
and mid-size jobs. It is available in front pivot and rear pivot con-
figurations. a rear pivot saw is recommended when maneuverabil-
ity is key in road repair and service work. The front pivot version is
preferable for normal road sawing operations.
Fs4800d14 . . . . . . . . . . . list . $19,555
Fs4800d18 . . . . . . . . . . . list . $19,609
Fs4800d26 . . . . . . . . . . . list . $19,662
Fs4800d30 . . . . . . . . . . . list . $19,769
Fs4800d36 . . . . . . . . . . . list . $19,823
also available with 3 speed gearbox
husqvarna Fs 3500 G
The husqvarna Fs 3500 G features a well-balanced, low profile
design. The design makes it an ideal saw for small to medium jobs.
Fs3500G18 . . . . . . . . . . . list . $13,020
Fs3500G26 . . . . . . . . . . . list . $13,332
Fs3500G30 . . . . . . . . . . . list . $13,455
60 World Diamond Source Is A Husqvarna Distributor.

63. hu s q v a r n a
products
Husqvarna FS 500
The husqvarna Fs 500 is a series of small, flat saws able to
handle blade sizes from 18" to 24". These saws are developed
with a strong focus on ergonomics and user friendliness,
featuring many innovative solutions that make the job easier.
Their unique drivematic transmission makes them ideal for
more demanding jobs, despite their compact size.
FS51318 . . . . . . . . . . . . . List . . .$3,899
FS52020 . . . . . . . . . . . . . List . . .$5,599
FS52424 . . . . . . . . . . . . . List . . .$7,799
Husqvarna FS 400
The husqvarna Fs 400 is a robust, convenient, all-around
flat saw. The adjustable handle ensures low vibrations and
an ergonomic working position. Perfect weight distribution
means excellent stability while sawing. Ideal for small jobs.
FS40018 . . . . . . . . . . . . . List . . .$2,140
FS41318 . . . . . . . . . . . . . List . . .$2,599
Husqvarna FS 309
The Fs 309 is a lightweight and compact flat saw. It is ideal
for small repair jobs and is very easy to handle. It can be
transported in any small vehicle.
FS30914 . . . . . . . . . . . . . List . . .$1,590
800-611-8278 www.worlddiamondsource.com 61

64. h u sq v a rna
products
Core Drills
Husqvarna DMs 180
The husqvarna DMs 180 is a lightweight core drill rig
for the rental shop or professional who requires high
performance in a compact machine.
list . . . . . . . . .$1099
Husqvarna Ds 700
The Ds 700 core drilling rig is the perfect
answer for most medium-size drilling jobs.
The rig features an aluminum slide carriage
and base to create a strong, lightweight
drill stand.
list . . . . . . . . .$2234
Husqvarna Ds 800
The heavy-duty Ds 800 drill system is the contractor’s choice
for the more demanding drilling applications. The precision
ground column provides strength and rigidity for high horse-
power drill motors. The carriage and base are made of high-
strength aluminum designed to withstand excessive wear and
to ease jobsite handling.
list . . . . . . . . .$2618
62 World Diamond Source Is A Husqvarna Distributor.

65. hu s q v a r n a
products
Husqvarna DS 150
The husqvarna Ds 150 is a versatile and lightweight drill
stand made of aluminum and comes standard with a
combination vacuum/anchor base. The stand can be
tilted from 0º to 45° for angle drilling and is designed to fit
most hand held core drill motors.
List . . . . . . . . . .$619
Husqvarna DM 230
The husqvarna DM 230 is a hand held drill motor with
functional ergonomics. a padded end cap provides
increased comfort for the operator. The machine is
modular and therefore easy to maintain and service.
List . . . . . . . . .$1620
Husqvarna DM 225
The husqvarna DM 225 hand held core drill motor
is ideal for drilling into concrete and masonry. This
drill is suitable for professional operators, plumbers,
electricians and contractors who demand performance
and efficiency in a lightweight drill.
List . . . . . . . . .$1594
800-611-8278 www.worlddiamondsource.com 63

66. h u sq v a rna
products
Hand Held saws
Husqvarna K 750
The husqvarna K 750 belongs to the new generation
of power cutters — a machine, developed from the
ground up, inside and out. Our unique engine
technology, DualCharge, brings you a powerful 5 hp
engine with low emissions and good fuel economy. It’s
simply a cleaner, more efficient engine. The K 750 is
also equipped with a large, effective muffler and a
12” . . . .list . . . . $1010
newly developed vibration dampening system that
14” . . . .list . . . . $1060
makes the machine extra quiet and easy to use.
Husqvarna K 960
The husqvarna K 960 has the exclusive DualCharge
engine technology, providing extreme power, low
emissions and excellent fuel economy. higher torque
means more usable power and higher productivity
than other saws in its class. able to cut up to 6" deep
with a 16" blade, the K960 boasts an impressive
14” . . . .list . . . . $1329
6.1 hp motor and the market’s best power-to-
16” . . . .list . . . . $1429 weight-ratio.
Husqvarna K 1250
When it comes to hand held gas-driven cutters for
power-hungry jobs with blades up to 16" and cutting
depths up to 6", the husqvarna K 1250, our largest
model, is in a class of its own. With a large and powerful
engine, this full-size machine is also easy to operate.
14” . . . .list . . . . $1579 The husqvarna K 1250, with an impressive 7.8 hp
16” . . . .list . . . . $1629 output, is the market’s most powerful cutter.
64 World Diamond Source Is A Husqvarna Distributor.

67. hu s q v a r n a
products
Husqvarna K 650 Cut-n-Break
The husqvarna K 650 Cut-n-Break is a power cutter
with a unique method for cutting deep, up to 16",
at an extremely low tooling cost. The K 650 Cut-n-Break
has a wide range of applications. It is ideal for use
on window and door openings where you do not
want overcutting at the corners. It is also very good
for cutting pipes in trenches, sawing grooves for
List . . . . . . . . .$1549
cabling and expansion joints, and for crack renovation.
Husqvarna K 960 Ring
The husqvarna K 950 ring is the world’s first gas-powered
power cutter to be able to make 10" deep cuts with a 14"
blade. We have quite simply combined our unique — and
patented — ringsaw technology, where the blade is driven
from the rim of the blade instead of its center, with the
strong, easy to handle gas-powered cutter, the husqvarna
K 950. With the K 950 ring, you get the best of both worlds:
List . . . . . . . . .$3129 the tried and tested ringsaw technology with its incredible
cutting depth, and the ease of use and versatility of a
gas-powered cutter.
Husqvarna K 750 Speedmill
save time and improve the quality of your pipe
connections with the K 750 speedmill. This saw
provides a new way to accurately and consistently
produce factory-like bevels on sDr 26 and sDr 35 PvC
pipe used for waste-water lines. The K 750 speedmill
allows the operator to cut pipe quickly with a 12"
List . . . . . . . . .$2059
abrasive wheel then use one of the three beveling
bowls to create a perfect bevel on 4", 6" and 8" pipe.
800-611-8278 www.worlddiamondsource.com 65

68. h u sq v a rna
products
Hydraulic SawS and acceSSorieS
Husqvarna K 3600 MK ii
The husqvarna K 3600 MK II is a ringsaw with unique
performance and features. The rim drive system allows
an impressive 10" cutting depth. Its power-to-weight
ratio and hydraulic drive make for a highly efficient
and maneuverable hand held power cutter. It is well
suited for a wide range of applications. The combination
of large cutting depth and high capacity with minimal
list . . . . . . . . .$3285 set-up time makes the K 3600 MK II one of the most
productive tools in the business.
Husqvarna K 2500
The husqvarna K 2500 works with a traditional 16" blade
and is frequently used for pre-cutting where the job is
finished with a K 3600 MK II. The K 2500 is surprisingly
light, maneuverable, powerful and durable, so you can
work efficiently and comfortably for longer periods. as
you avoid exhaust fumes and high noise levels, it is par-
list . . . . . . . . .$1700
ticularly well suited to working indoors.
Power Pack HP 40
a flexible hydraulic power pack, the hP 40 has low noise
levels. It weighs just 220 lbs. and is handy to use.
• Adjustable flow: 5, 8, or 10 gal/min (20, 30 or 40 l/min),
which means the power pack can drive different types
of hydraulic equipment.
list . . . . . . . . .$5150
66 World Diamond Source Is A Husqvarna Distributor.

69. hu s q v a r n a
products
Power Pack PP 325 E
The husqvarna PP 325 E is an electro-hydraulic
power pack.
• This simple and efficient, yet versatile, cart-mounted
power pack includes a tubular frame that protects
components.
• The PP 325 E can be easily transported and operated
by one person.
list . . . . . . . . .$6864
Husqvarna K 40
air Saw Powerful and reliable air-powered industrial power
cutters are perfect for use indoors or outdoors with
access to compressed air. They feature a long, slim
body, with good weight distribution and fine balance
laterally and between the handles. an air-powered
Husqvarna cutter is a convenient alternative for
working outdoors where the air change rate is low,
list . . . . . . . . .$2399 such as in pipeline trenches, in deep foundation sites
and on marine docks.
ElEctric Saw Husqvarna K 3000 Electric
The Husqvarna K 3000 is one of the market’s most
powerful and versatile electric power cutters,
showcasing a number of attractive features. The
machine provides several new options and possibilities
for cutting both indoors and outdoors. With an
impressive 1,800 W, there is enough power for cutting
depths of 5". The Husqvarna K 3000 is ideal for rapid
12” . . . .list . . . . .$719 and simple on-site cutting and adjustment of building
14” . . . .list . . . . .$759 components, pipes, reinforcing steel, struts, etc.
800-611-8278 www.worlddiamondsource.com 67

70. h u sq v a rna
products
Table SawS
Husqvarna Guardmatic® TS 510
This saw proves its value daily on the job, and many of them have
been on the job for over 25 years. If you need a production mason-
ry saw you can count on year after year, the reliable husqvarna
Guardmatic Ts 510 is the saw for the job.
list . . . . . . . . .$3372
Husqvarna Portasaw® TS 355
The industry’s best-built, longest-lasting portable masonry
saw is now even better with standard carrying handles. The
removable handles make the husqvarna Portasaw Ts 355
easy to carry and easy to store. The most reliable saw in the
market is easy to set up and transport.
list . . . . . . . . .$1615
Husqvarna brickie TS 355 b
The husqvarna Brickie Ts 355 B is a compact, dry-cutting
masonry saw capable of cutting a wide range of brick
and block. at 47 pounds with cart, the Ts 355 B can
easily be transported around the jobsite by one person.
list . . . . . . . . . .$953
68 World Diamond Source Is A Husqvarna Distributor.

71. hu s q v a r n a
products
TiLe SawS
Husqvarna Stonematic® TS 250 XS
For cutting today’s popular big stone slabs and tiles, the
husqvarna stonematic Ts 250 Xs has the capacity,
versatility and superior cutting power required. Cut
material 36" in a single pass, or diagonally cut a 24" tile
up to 3-3/4" thick with your choice of a 1-1/2 or 2 hp
high torque motor. The husqvarna stonematic Ts 250 Xs
is designed for heavy material, but with portability and
operator comfort in mind.
1 1/2 HP . . List . . . $2943
2 HP . . . . . List . . . $3600
Husqvarna Tilematic® TS 250 X3
The contractor’s choice for production sawing and the chosen
preference for the rental market, the husqvarna Tilematic
Ts 250 X3 delivers more power with its high torque 1-1/2 hp
motor. rip cut up to 24" tiles or diagonally cut up to 18" tiles.
strength and durability are provided by the sliding water pan
that is available in galvanized metal or stainless steel.
1 1/2 HP . . List . . . $1234
Husqvarna Super
Tilematic® TS 250 XL3
Built for the professional who performs high production
sawing, the husqvarna super Tilematic Ts 250 XL3 is
designed to cut big tiles and to deliver the required cutting
power. rip cut a 31" tile in one pass or diagonally cut a
22" tile. new optional cart allows diagonal cutting of 24" tile.
The sliding water pan allows instant adjustment from small to
large material for unequaled productivity and convenience.
1 1/2 HP . . List . . . $1785
800-611-8278 www.worlddiamondsource.com 69

72. abras ive products
Products for cutting
and finishing
j Resin bonded abrasives
j Vitrifed abrasives
j Coated abrasives
j Floor sanding products
j Wire brushes
j Carbide burrs
j Accessories
We carry ABMAST’S full line of products
ready for immediate shipping. Call your
sales person for specific pricing.
World Diamond Source
800-611-8278 www.worlddiamondsource.com

73. Notes
8 0 0 - 611 - 8 2 7 8 w w w.wo r ld d ia m o n d s o u rc e .c o m 71

74. Notes
72

75. World Diamond Source is proud to be associated with companies that represent the best in their industries.
Visit us online at www.worlddiamondsource.com

76. Toll-free: 800-611-8278
Local: 954-783-5300
Fax: 954-786-1126
Online: www.worlddiamondsource.com
E-mail: wds@worlddiamondsource.com
WORLD DIAMOND SOURCE
Sales Headquarters
2560-2590 n.e. 5th ave
pompano Beach, Fl 33064
Corporate Headquarters
2987 Center port Circle, suite 4 & 5
pompano Beach, Fl 33064
© WoRld diamond souRCe 2009
Building Relationships that last
