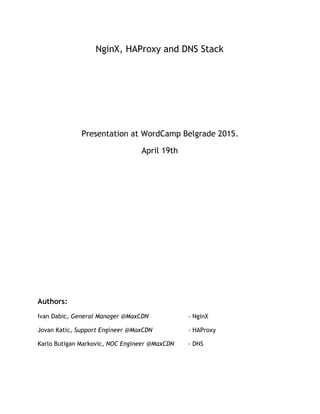

1. NginX, HAProxy and DNS Stack
Presentation at WordCamp Belgrade 2015.
April 19th
Authors:
Ivan Dabic, ​General Manager @MaxCDN - NginX
Jovan Katic, ​Support Engineer @MaxCDN - HAProxy
Karlo Butigan Markovic, ​NOC Engineer @MaxCDN - DNS

2. NginX
Nginx is a free open source web server which is highly recognized as a good reverse proxy
solution as well as imap and pop3 proxy. What distinguishes it from other web servers is the
method of handling requests. It doesn’t use threading, rather, it has more asynchronous
system that uses small predictable allocations of memory. This is the main reason for largest
services to switch or choose nginx over other web servers on the market.
It is particularly interesting for us because CDN systems must anticipate large load and traffic
being pushed through their servers. Additionally, we are showing the live configuring of one
sample nginx that is planned to be the reverse proxy and act as a part of CDN cluster.
First of, we need to define logging for our reverse proxy and so we need the main nginx.conf
file:
~$ nano /etc/nginx/nginx.conf
What we want to use in log output is:
1. source IP address
2. timestamp (local)
3. requested file (uri)
4. bytes sent to source (requester)
5. cache status
6. status code
log_format vps2 '$remote_addr $remote_user [$time_local] $request_uri
$status $upstream_cache_status';
And apply the log format to our access log by adding name of the log format (in this case it is
“vps2”):
access_log /var/log/nginx/access.log vps2;
Additionally, since this is going to be reverse proxy nginx installation, we’ll want to define
cache location (/etc/nginx/nginx.conf):
proxy_cache_path /var/cache/nginx/ keys_zone=idabic:10m;
What we did here is:
1. defined cache location: ​proxy_cache_path /var/cache/nginx/
2. defined the name for our caching zone and it’s size: ​keys_zone=idabic:10m
1

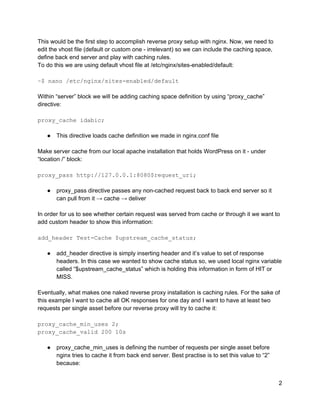

3. This would be the first step to accomplish reverse proxy setup with nginx. Now, we need to
edit the vhost file (default or custom one ­ irrelevant) so we can include the caching space,
define back end server and play with caching rules.
To do this we are using default vhost file at /etc/nginx/sites­enabled/default:
~$ nano /etc/nginx/sites­enabled/default
Within “server” block we will be adding caching space definition by using “proxy_cache”
directive:
proxy_cache idabic;
● This directive loads cache definition we made in nginx.conf file
Make server cache from our local apache installation that holds WordPress on it ­ under
“location /” block:
proxy_pass http://127.0.0.1:8080$request_uri;
● proxy_pass directive passes any non­cached request back to back end server so it
can pull from it → cache → deliver
In order for us to see whether certain request was served from cache or through it we want to
add custom header to show this information:
add_header Test­Cache $upstream_cache_status;
● add_header directive is simply inserting header and it’s value to set of response
headers. In this case we wanted to show cache status so, we used local nginx variable
called “$upstream_cache_status” which is holding this information in form of HIT or
MISS.
Eventually, what makes one naked reverse proxy installation is caching rules. For the sake of
this example I want to cache all OK responses for one day and I want to have at least two
requests per single asset before our reverse proxy will try to cache it:
proxy_cache_min_uses 2;
proxy_cache_valid 200 10s
● proxy_cache_min_uses is defining the number of requests per single asset before
nginx tries to cache it from back end server. Best practise is to set this value to “2”
because:
2

4. ○ we don’t want to have “wild” requests cached even though they will never be
requested again
○ we assume whatever is requested two times is valid request as it’s probably
going to be requested 3rd, 4th,... time.
● proxy_cache_valid defines status code we treat as valid and how long we want to
cache it in nginx cache. In this case ­ status codes 200 and we’ll cache it for 10
seconds (NOT a good practise but, for the same of showing the load balancing
method below we wanted short caching time). You’ll usually set this to at least one
week or more.
What we may want to deal with separately is the cache key. To show the purpose of it I am
setting the cache key to following:
proxy_cache_key $request_uri$http_accept_encoding;
This will, basically, define caching parameters that distinguish cached asset by:
1. Requested asset (uri)
2. Accept­Encoding request header
What showe to be the perfect setup is:
proxy_cache_key $scheme$request_uri$http_accept_encoding$param$args;
Above setup defines:
1. $scheme​: Local nginx variable that holds the value of protocol used to access/request
cached asset (http, https,...)
2. $request_uri​: Same as in default example, it’s the nginx variable holding the value
of requested asset ­ uri
3. $http_accept_encoding​: variable holding the value of request header
“Accept­Encoding”
4. $param​: Custom variable we can use to alter the cache key in certain scenarios ­ use
it with caution! Changing cache key may affect cache clearing!
5. $args​: Query strings in request
So, let’s show an example of cache affection by cache_key. We have defined the cache_key
“distinguisher” by usign “$http_accept_encoding” variable. This means that any request with
different Accept­Encoding request header value for the same file will result in different cache
entry:
~$ curl ­I http://vps2.net/index.html
HTTP/1.1 200 OK
Server: nginx/1.4.6 (Ubuntu)
Date: Sun, 26 Apr 2015 22:56:13 GMT
3

5. Content­Type: text/html; charset=UTF­8
Content­Length: 7204
Connection: keep­alive
X­Powered­By: PHP/5.5.9­1ubuntu4.7
X­Pingback: http://95.85.50.33:8080/xmlrpc.php
Vary: Accept­Encoding
Test­Cache: HIT

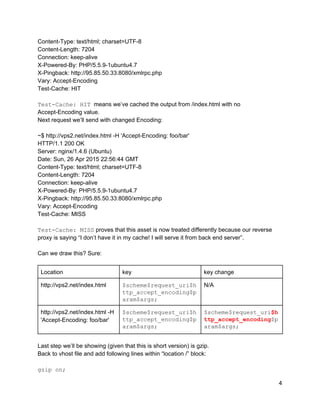

Test­Cache: HIT​ means we’ve cached the output from /index.html with no
Accept­Encoding value.
Next request we’ll send with changed Encoding:
~$ http://vps2.net/index.html ­H 'Accept­Encoding: foo/bar'
HTTP/1.1 200 OK
Server: nginx/1.4.6 (Ubuntu)
Date: Sun, 26 Apr 2015 22:56:44 GMT
Content­Type: text/html; charset=UTF­8
Content­Length: 7204
Connection: keep­alive
X­Powered­By: PHP/5.5.9­1ubuntu4.7
X­Pingback: http://95.85.50.33:8080/xmlrpc.php
Vary: Accept­Encoding
Test­Cache: MISS
Test­Cache: MISS​ proves that this asset is now treated differently because our reverse
proxy is saying “I don’t have it in my cache! I will serve it from back end server”.
Can we draw this? Sure:
Location key key change
http://vps2.net/index.html $scheme$request_uri$h
ttp_accept_encoding$p
aram$args;
N/A
http://vps2.net/index.html ­H
'Accept­Encoding: foo/bar'
$scheme$request_uri$h
ttp_accept_encoding$p
aram$args;
$scheme$request_uri​$h
ttp_accept_encoding​$p
aram$args;

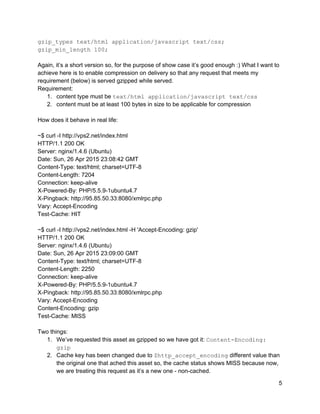

Last step we’ll be showing (given that this is short version) is gzip.
Back to vhost file and add following lines within “location /” block:
gzip on;
4

6. gzip_types text/html application/javascript text/css;
gzip_min_length 100;
Again, it’s a short version so, for the purpose of show case it’s good enough :) What I want to
achieve here is to enable compression on delivery so that any request that meets my
requirement (below) is served gzipped while served.
Requirement:
1. content type must be ​text/html application/javascript text/css
2. content must be at least 100 bytes in size to be applicable for compression
How does it behave in real life:
~$ curl ­I http://vps2.net/index.html
HTTP/1.1 200 OK
Server: nginx/1.4.6 (Ubuntu)
Date: Sun, 26 Apr 2015 23:08:42 GMT
Content­Type: text/html; charset=UTF­8
Content­Length: 7204
Connection: keep­alive
X­Powered­By: PHP/5.5.9­1ubuntu4.7
X­Pingback: http://95.85.50.33:8080/xmlrpc.php
Vary: Accept­Encoding
Test­Cache: HIT
~$ curl ­I http://vps2.net/index.html ­H 'Accept­Encoding: gzip'
HTTP/1.1 200 OK
Server: nginx/1.4.6 (Ubuntu)
Date: Sun, 26 Apr 2015 23:09:00 GMT
Content­Type: text/html; charset=UTF­8
Content­Length: 2250
Connection: keep­alive
X­Powered­By: PHP/5.5.9­1ubuntu4.7
X­Pingback: http://95.85.50.33:8080/xmlrpc.php
Vary: Accept­Encoding
Content­Encoding: gzip
Test­Cache: MISS
Two things:
1. We’ve requested this asset as gzipped so we have got it: ​Content­Encoding:
gzip
2. Cache key has been changed due to ​$http_accept_encoding​ different value than
the original one that ached this asset so, the cache status shows MISS because now,
we are treating this request as it’s a new one ­ non­cached.
5

7.
6

8. HAProxy
As you might have already read in our blog post (​HAProxy Blog​), HAProxy is an open source,
fast and reliable load balancing solution filled with variety of options, from custom response
pages to different load balancing algorithms. Let's see what this powerful software can do for
your high traffic website in this quick step­by­step guide.
To install HAProxy on Ubuntu Linux distribution, you need to run the following command:
~$ apt­get install haproxy
To install it on a different Linux distribution please run the appropriate install command for that
distribution.
We can get the HAProxy version by running:
~$ haproxy ­v
HA­Proxy version 1.5.4 2014/09/02
Copyright 2000­2014 Willy Tarreau <w@1wt.eu>
In order to allow ourselves to start HAProxy service via an init script, we need to add
ENABLED=1 line to /etc/default/haproxy file, like so:
nano /etc/default/haproxy
# Defaults file for HAProxy
#
# This is sourced by both, the initscript and the systemd unit file,
so do not
# treat it as a shell script fragment.
# Change the config file location if needed
# CONFIG="/etc/haproxy/haproxy.cfg"
# Add extra flags here, see haproxy(1) for a few options
# EXTRAOPTS="­de ­m 16"
ENABLED=1
Now we can try starting the HAProxy service from from the command line by running the
following command:
~$service haproxy start
* Starting haproxy haproxy [ OK ]
With this init script we can also restart, reload, stop or get the status of the service.
7

9.
~$ service haproxy restart
* Restarting haproxy haproxy [ OK ]
service haproxy reload
* Reloading haproxy haproxy [ OK ]
service haproxy status
haproxy is running.
service haproxy stop
* Stopping haproxy haproxy [ OK ]
service haproxy status
haproxy not running.
To be honest, you won't be able to do anything with the init script before you configure the
load load balancer itself. So let's check what do we get “out of the box”:
~$cat /etc/haproxy/haproxy.cfg
global
log /dev/log local0
log /dev/log local1 notice
chroot /var/lib/haproxy
maxconn 2000
user haproxy
group haproxy
daemon
defaults
log global
mode http
option httplog
option dontlognull
timeout connect 5000ms
timeout client 50000ms
timeout server 50000ms
errorfile 400 /etc/haproxy/errors/400.http
errorfile 403 /etc/haproxy/errors/403.http
errorfile 408 /etc/haproxy/errors/408.http
errorfile 500 /etc/haproxy/errors/500.http
errorfile 502 /etc/haproxy/errors/502.http
8

10. errorfile 503 /etc/haproxy/errors/503.http
errorfile 504 /etc/haproxy/errors/504.http

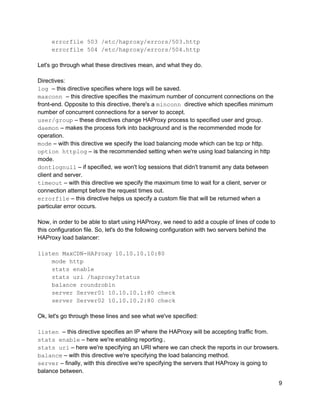

Let's go through what these directives mean, and what they do.
Directives:
log ​– this directive specifies where logs will be saved.
maxconn ​– this directive specifies the maximum number of concurrent connections on the
front­end. Opposite to this directive, there's a ​minconn ​directive which specifies minimum
number of concurrent connections for a server to accept.
user/group​ – these directives change HAProxy process to specified user and group.
daemon​ – makes the process fork into background and is the recommended mode for
operation.
mode​ – with this directive we specify the load balancing mode which can be tcp or http.
option httplog​ – is the recommended setting when we're using load balancing in http
mode.
dontlognull​ – if specified, we won't log sessions that didn't transmit any data between
client and server.
timeout​ – with this directive we specify the maximum time to wait for a client, server or
connection attempt before the request times out.
errorfile​ – this directive helps us specify a custom file that will be returned when a
particular error occurs.
Now, in order to be able to start using HAProxy, we need to add a couple of lines of code to
this configuration file. So, let's do the following configuration with two servers behind the
HAProxy load balancer:
listen MaxCDN­HAProxy 10.10.10.10:80
mode http
stats enable
stats uri /haproxy?status
balance roundrobin
server Server01 10.10.10.1:80 check
server Server02 10.10.10.2:80 check
Ok, let's go through these lines and see what we've specified:
listen ​– this directive specifies an IP where the HAProxy will be accepting traffic from.
stats enable​ – here we're enabling reporting​.
stats uri​ – here we're specifying an URI where we can check the reports in our browsers.
balance​ – with this directive we're specifying the load balancing method.
server​ – finally, with this directive we're specifying the servers that HAProxy is going to
balance between.
9

11.
The check directive is used to check the 'health' of the server, so if one of the servers is down,
it will not be used for load balancing, as it would return 503 Service Unavailable which would
defeat the usage of HAProxy, since we're using it precisely to avoid these types of errors.
After the configuration has been completed, we can run a couple of tests. First we need to
restart HAProxy so that it can pick up these changes.
Since both of the servers are live, RoundRobin is going to dedicate one server per each
request, and upon checking, we will get the following output:
10

12.

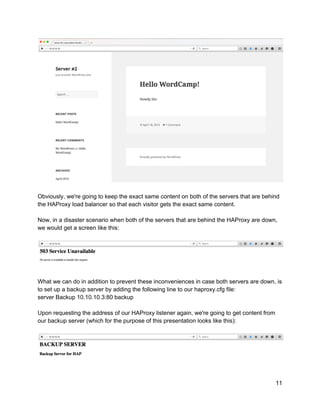

Obviously, we're going to keep the exact same content on both of the servers that are behind
the HAProxy load balancer so that each visitor gets the exact same content.
Now, in a disaster scenario when both of the servers that are behind the HAProxy are down,
we would get a screen like this:
What we can do in addition to prevent these inconveniences in case both servers are down, is
to set up a backup server by adding the following line to our haproxy.cfg file:
server Backup 10.10.10.3:80 backup
Upon requesting the address of our HAProxy listener again, we're going to get content from
our backup server (which for the purpose of this presentation looks like this):
11

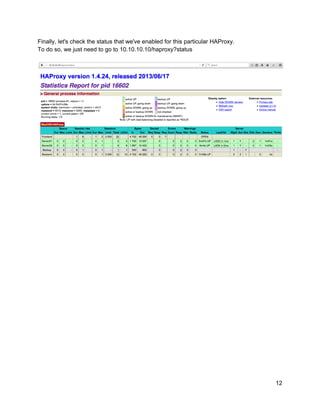

13. Finally, let's check the status that we've enabled for this particular HAProxy.
To do so, we just need to go to 10.10.10.10/haproxy?status
12

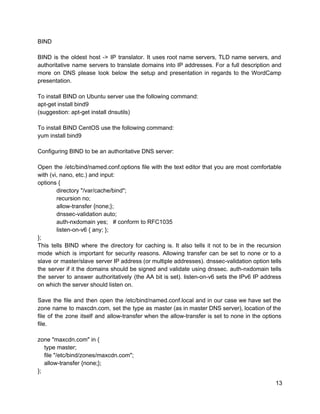

14. BIND
BIND is the oldest host ­> IP translator. It uses root name servers, TLD name servers, and
authoritative name servers to translate domains into IP addresses. For a full description and
more on DNS please look below the setup and presentation in regards to the WordCamp
presentation.
To install BIND on Ubuntu server use the following command:
apt­get install bind9
(suggestion: apt­get install dnsutils)
To install BIND CentOS use the following command:
yum install bind9
Configuring BIND to be an authoritative DNS server:
Open the /etc/bind/named.conf.options file with the text editor that you are most comfortable
with (vi, nano, etc.) and input:
options {
directory "/var/cache/bind";
recursion no;
allow­transfer {none;};
dnssec­validation auto;
auth­nxdomain yes; # conform to RFC1035
listen­on­v6 { any; };
};
This tells BIND where the directory for caching is. It also tells it not to be in the recursion
mode which is important for security reasons. Allowing transfer can be set to none or to a
slave or master/slave server IP address (or multiple addresses). dnssec­validation option tells
the server if it the domains should be signed and validate using dnssec. auth­nxdomain tells
the server to answer authoritatively (the AA bit is set). listen­on­v6 sets the IPv6 IP address
on which the server should listen on.
Save the file and then open the /etc/bind/named.conf.local and in our case we have set the
zone name to maxcdn.com, set the type as master (as in master DNS server), location of the
file of the zone itself and allow­transfer when the allow­transfer is set to none in the options
file.
zone "maxcdn.com" in {
type master;
file "/etc/bind/zones/maxcdn.com";
allow­transfer {none;};
};
13

15.

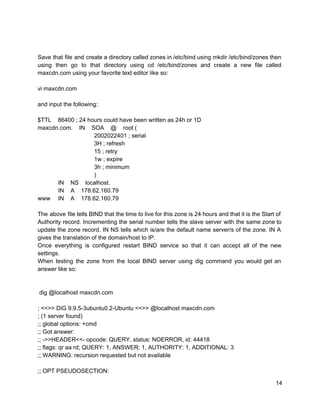

Save that file and create a directory called zones in /etc/bind using mkdir /etc/bind/zones then
using then go to that directory using cd /etc/bind/zones and create a new file called
maxcdn.com using your favorite text editor like so:
vi maxcdn.com
and input the following:
$TTL 86400 ; 24 hours could have been written as 24h or 1D
maxcdn.com. IN SOA @ root (
2002022401 ; serial
3H ; refresh
15 ; retry
1w ; expire
3h ; minimum
)
IN NS localhost.
IN A 178.62.160.79
www IN A 178.62.160.79
The above file tells BIND that the time to live for this zone is 24 hours and that it is the Start of
Authority record. Incrementing the serial number tells the slave server with the same zone to
update the zone record. IN NS tells which is/are the default name server/s of the zone. IN A
gives the translation of the domain/host to IP.
Once everything is configured restart BIND service so that it can accept all of the new
settings.
When testing the zone from the local BIND server using dig command you would get an
answer like so:
dig @localhost maxcdn.com
; <<>> DiG 9.9.5­3ubuntu0.2­Ubuntu <<>> @localhost maxcdn.com
; (1 server found)
;; global options: +cmd
;; Got answer:
;; ­>>HEADER<<­ opcode: QUERY, status: NOERROR, id: 44418
;; flags: qr aa rd; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 3
;; WARNING: recursion requested but not available
;; OPT PSEUDOSECTION:
14

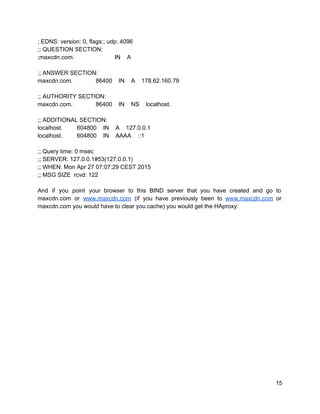

16. ; EDNS: version: 0, flags:; udp: 4096
;; QUESTION SECTION:
;maxcdn.com. IN A
;; ANSWER SECTION:
maxcdn.com. 86400 IN A 178.62.160.79
;; AUTHORITY SECTION:
maxcdn.com. 86400 IN NS localhost.
;; ADDITIONAL SECTION:
localhost. 604800 IN A 127.0.0.1
localhost. 604800 IN AAAA ::1
;; Query time: 0 msec
;; SERVER: 127.0.0.1#53(127.0.0.1)
;; WHEN: Mon Apr 27 07:07:29 CEST 2015
;; MSG SIZE rcvd: 122
And if you point your browser to this BIND server that you have created and go to
maxcdn.com or ​www.maxcdn.com (if you have previously been to ​www.maxcdn.com or
maxcdn.com you would have to clear you cache) you would get the HAproxy:
15

17.
and if you press CTRL+F5 you would get the second Nginx:
16

18. DNS - bind
1) DNS brief background
­ Paul Mockapetris designed the Domain Name System in 1983 at the University of California
­ Jon Postel was the person who actually asked Paul to write the first implementation for DNS
­ The Stanford Research Institute was the one who held the largest HOSTS.TXT file at that
time and that file was taken
­ UC Berkeley students Douglas Terry, Mark Painter, David Riggle and Songnian Zhou are
the first people to write the code for Unix DNS implementation and they called it BIND
(Berkeley Internet Name Domain) (1984)
­ Kevin Dunlap of DEC substantially revised the DNS implementation in 1985
­ Mike Karels, Phil Almquist, and Paul Vixie have maintained BIND since then.
­ In 1987, RFC822 and RFC823 get supressed by RFC1034, RFC1035 and a few more. (For
more details look in the links section)
In the days before DNS either you remembered all of the IPs that you needed to visit, you had
your own hosts file written or you downloaded the hosts.txt file from Stanford Research
Institute.
(Basically you had to ask the person for their IP address so that you can visit their website)
Host file locations that can still be used and are used in some cases:
/etc/hosts ­ Unix based systems
%WinDir%HOSTS ­ Win 3.1
%WinDir%hosts ­ Win 95, 98, ME
%SystemRoot%System32driversetchosts ­ all versions above, and including, Win NT.
Short version:
­ People around the world who had access to the Internet were using hosts file to store all of
the
host­> IP translations
­ You would have to call the person and ask them for their IP address to get to their website
­ US government advanced research agency decided to invest in the DNS project
­ 1983 first implementation was written
­ BIND came to life in 1984
2) What is BIND/PDNS (PowerDNS) and differences between the two
BIND/pdns is a Domain Name System software that communicates with the root servers to
get a translation of a hostname (to an IP address) or acts as a authoritative master/slave
server depending on the configuration.
The difference between BIND and PowerDNS:
­ BIND is the first a is the most widely used Domain Name System (DNS) software on the
Internet
­ Uses flat files (only)
17

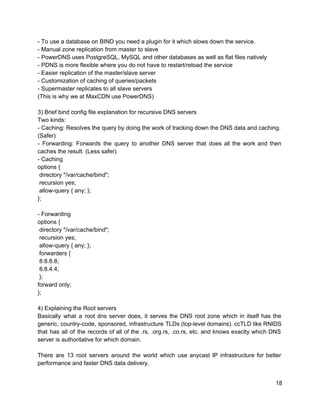

19. ­ To use a database on BIND you need a plugin for it which slows down the service.
­ Manual zone replication from master to slave
­ PowerDNS uses PostgreSQL, MySQL and other databases as well as flat files natively
­ PDNS is more flexible where you do not have to restart/reload the service
­ Easier replication of the master/slave server
­ Customization of caching of queries/packets
­ Supermaster replicates to all slave servers
(This is why we at MaxCDN use PowerDNS)
3) Brief bind config file explanation for recursive DNS servers
Two kinds:
­ Caching: Resolves the query by doing the work of tracking down the DNS data and caching.
(Safer)
­ Forwarding: Forwards the query to another DNS server that does all the work and then
caches the result. (Less safer)
­ Caching
options {
directory "/var/cache/bind";
recursion yes;
allow­query { any; };
};
­ Forwarding
options {
directory "/var/cache/bind";
recursion yes;
allow­query { any; };
forwarders {
8.8.8.8;
8.8.4.4;
};
forward only;
};
4) Explaining the Root servers
Basically what a root dns server does, it serves the DNS root zone which in itself has the
generic, country­code, sponsored, infrastructure TLDs (top­level domains). ccTLD like RNIDS
that has all of the records of all of the .rs, .org.rs, .co.rs, etc. and knows exaclty which DNS
server is authoritative for which domain.
There are 13 root servers around the world which use anycast IP infrastructure for better
performance and faster DNS data delivery.
18

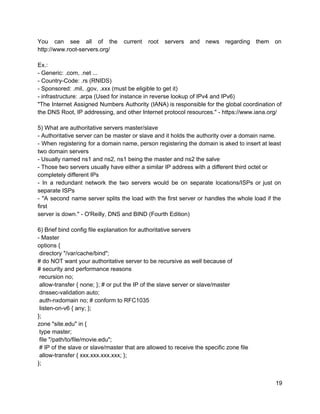

20. You can see all of the current root servers and news regarding them on
http://www.root­servers.org/
Ex.:
­ Generic: .com, .net ...
­ Country­Code: .rs (RNIDS)
­ Sponsored: .mil, .gov, .xxx (must be eligible to get it)
­ infrastructure: .arpa (Used for instance in reverse lookup of IPv4 and IPv6)
"The Internet Assigned Numbers Authority (IANA) is responsible for the global coordination of
the DNS Root, IP addressing, and other Internet protocol resources." ­ https://www.iana.org/
5) What are authoritative servers master/slave
­ Authoritative server can be master or slave and it holds the authority over a domain name.
­ When registering for a domain name, person registering the domain is aked to insert at least
two domain servers
­ Usually named ns1 and ns2, ns1 being the master and ns2 the salve
­ Those two servers usually have either a similar IP address with a different third octet or
completely different IPs
­ In a redundant network the two servers would be on separate locations/ISPs or just on
separate ISPs
­ "A second name server splits the load with the first server or handles the whole load if the
first
server is down." ­ O'Reilly, DNS and BIND (Fourth Edition)
6) Brief bind config file explanation for authoritative servers
­ Master
options {
directory "/var/cache/bind";
# do NOT want your authoritative server to be recursive as well because of
# security and performance reasons
recursion no;
allow­transfer { none; }; # or put the IP of the slave server or slave/master
dnssec­validation auto;
auth­nxdomain no; # conform to RFC1035
listen­on­v6 { any; };
};
zone "site.edu" in {
type master;
file "/path/to/file/movie.edu";
# IP of the slave or slave/master that are allowed to receive the specific zone file
allow­transfer { xxx.xxx.xxx.xxx; };
};
19

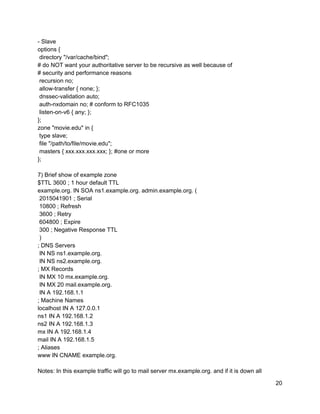

21. ­ Slave
options {
directory "/var/cache/bind";
# do NOT want your authoritative server to be recursive as well because of
# security and performance reasons
recursion no;
allow­transfer { none; };
dnssec­validation auto;
auth­nxdomain no; # conform to RFC1035
listen­on­v6 { any; };
};
zone "movie.edu" in {
type slave;
file "/path/to/file/movie.edu";
masters { xxx.xxx.xxx.xxx; }; #one or more
};
7) Brief show of example zone
$TTL 3600 ; 1 hour default TTL
example.org. IN SOA ns1.example.org. admin.example.org. (
2015041901 ; Serial
10800 ; Refresh
3600 ; Retry
604800 ; Expire
300 ; Negative Response TTL
)
; DNS Servers
IN NS ns1.example.org.
IN NS ns2.example.org.
; MX Records
IN MX 10 mx.example.org.
IN MX 20 mail.example.org.
IN A 192.168.1.1
; Machine Names
localhost IN A 127.0.0.1
ns1 IN A 192.168.1.2
ns2 IN A 192.168.1.3
mx IN A 192.168.1.4
mail IN A 192.168.1.5
; Aliases
www IN CNAME example.org.
Notes: In this example traffic will go to mail server mx.example.org. and if it is down all
20

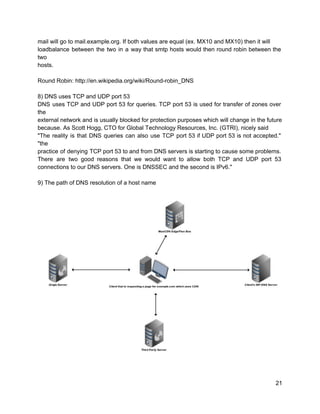

22. mail will go to mail.example.org. If both values are equal (ex. MX10 and MX10) then it will
loadbalance between the two in a way that smtp hosts would then round robin between the
two
hosts.
Round Robin: http://en.wikipedia.org/wiki/Round­robin_DNS
8) DNS uses TCP and UDP port 53
DNS uses TCP and UDP port 53 for queries. TCP port 53 is used for transfer of zones over
the
external network and is usually blocked for protection purposes which will change in the future
because. As Scott Hogg, CTO for Global Technology Resources, Inc. (GTRI), nicely said
"The reality is that DNS queries can also use TCP port 53 if UDP port 53 is not accepted."
"the
practice of denying TCP port 53 to and from DNS servers is starting to cause some problems.
There are two good reasons that we would want to allow both TCP and UDP port 53
connections to our DNS servers. One is DNSSEC and the second is IPv6."
9) The path of DNS resolution of a host name
21

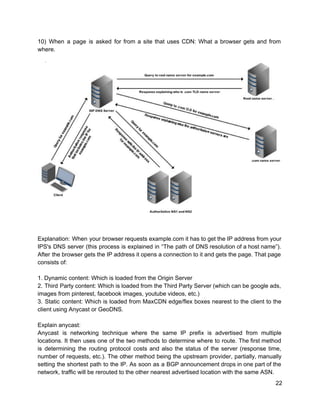

23. 10) When a page is asked for from a site that uses CDN: What a browser gets and from
where.
Explanation: When your browser requests example.com it has to get the IP address from your
IPS's DNS server (this process is explained in “The path of DNS resolution of a host name”).
After the browser gets the IP address it opens a connection to it and gets the page. That page
consists of:
1. Dynamic content: Which is loaded from the Origin Server
2. Third Party content: Which is loaded from the Third Party Server (which can be google ads,
images from pinterest, facebook images, youtube videos, etc.)
3. Static content: Which is loaded from MaxCDN edge/flex boxes nearest to the client to the
client using Anycast or GeoDNS.
Explain anycast:
Anycast is networking technique where the same IP prefix is advertised from multiple
locations. It then uses one of the two methods to determine where to route. The first method
is determining the routing protocol costs and also the status of the server (response time,
number of requests, etc.). The other method being the upstream provider, partially, manually
setting the shortest path to the IP. As soon as a BGP announcement drops in one part of the
network, traffic will be rerouted to the other nearest advertised location with the same ASN.
22

24.

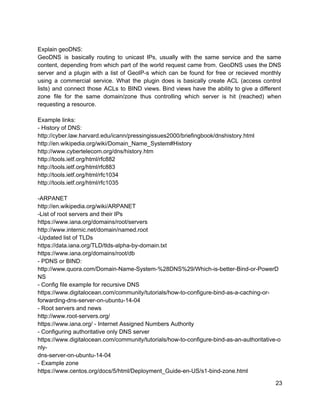

Explain geoDNS:
GeoDNS is basically routing to unicast IPs, usually with the same service and the same
content, depending from which part of the world request came from. GeoDNS uses the DNS
server and a plugin with a list of GeoIP­s which can be found for free or recieved monthly
using a commercial service. What the plugin does is basically create ACL (access control
lists) and connect those ACLs to BIND views. Bind views have the ability to give a different
zone file for the same domain/zone thus controlling which server is hit (reached) when
requesting a resource.
Example links:
­ History of DNS:
http://cyber.law.harvard.edu/icann/pressingissues2000/briefingbook/dnshistory.html
http://en.wikipedia.org/wiki/Domain_Name_System#History
http://www.cybertelecom.org/dns/history.htm
http://tools.ietf.org/html/rfc882
http://tools.ietf.org/html/rfc883
http://tools.ietf.org/html/rfc1034
http://tools.ietf.org/html/rfc1035
­ARPANET
http://en.wikipedia.org/wiki/ARPANET
­List of root servers and their IPs
https://www.iana.org/domains/root/servers
http://www.internic.net/domain/named.root
­Updated list of TLDs
https://data.iana.org/TLD/tlds­alpha­by­domain.txt
https://www.iana.org/domains/root/db
­ PDNS or BIND:
http://www.quora.com/Domain­Name­System­%28DNS%29/Which­is­better­Bind­or­PowerD
NS
­ Config file example for recursive DNS
https://www.digitalocean.com/community/tutorials/how­to­configure­bind­as­a­caching­or­
forwarding­dns­server­on­ubuntu­14­04
­ Root servers and news
http://www.root­servers.org/
https://www.iana.org/ ­ Internet Assigned Numbers Authority
­ Configuring authoritative only DNS server
https://www.digitalocean.com/community/tutorials/how­to­configure­bind­as­an­authoritative­o
nly­
dns­server­on­ubuntu­14­04
­ Example zone
https://www.centos.org/docs/5/html/Deployment_Guide­en­US/s1­bind­zone.html
23

25. https://www.freebsd.org/doc/handbook/network­dns.html
­ Round Robin
http://en.wikipedia.org/wiki/Round­robin_DNS
­ TCP and UPD port 53
http://www.networkworld.com/article/2231682/cisco­subnet/cisco­subnet­allow­both­tcp­and­u
dp­
port­53­to­your­dns­servers.html
­ Image taken for section 8) and edited
http://resources.infosecinstitute.com/dangerous­ddos­distributed­denial­of­service­on­the­rise/
­ Anycast
http://serverfault.com/questions/14985/what­is­anycast­and­how­is­it­helpful
http://www.slashroot.in/what­anycast­and­how­it­works
­ GeoDSN
http://phix.me/geodns/
­ Centr.org created a great How the DNS works video
https://www.youtube.com/watch?v=2ZUxoi7YNgs
24
