Impact of Soft Errors in Silicon on Reliability and Availability of Servers
This document discusses the impact of soft errors on the reliability and availability of servers used for internet computing. It outlines how soft errors can lead to silent data corruption or unscheduled system interruptions. While memory is a major source of soft errors, the number of logic gates and pipelines in processors is increasing, thereby increasing their potential soft error rate over time. Techniques like error correction codes help mitigate soft errors but ongoing improvements are needed to meet high reliability targets for internet infrastructure.
Impact of Soft Errors in Silicon on Reliability and Availability of Servers
- 1. Impact of SoftErrors on Reliability and Availability of Servers in the Internet Computing Era Ishwar Parulkar Sun Microsystems, Inc. VTS 2006 Slide 1
- 2. Outline • Servers for the Internet Era • Server Reliability and Availability – Impact to customers – Metrics and typical targets • Soft Errors in Silicon Components – Classification at system level – Sensitivity of system metrics • Chip Soft Error Trends and Solutions • Conclusions VTS 2006 Slide 2
- 3. Categorizing Internet EraWorkloads Highly Threaded Storage Network Intensive Intensive Single Threaded VTS 2006 Slide 3
- 4. Categorizing Internet EraWorkloads Highly Threaded Meteorology/Climate Simulation Nuclear Simulation/Weapons Modeling Seismic Analysis, Reservoir Modeling Thermodynamics Storage Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Monte Carlo Simulation Genomics, Cheminformatics Technical Single Threaded VTS 2006 Slide 4
- 5. Categorizing Internet EraWorkloads Highly Threaded Data Warehousing Proxy Caching Meteorology/Climate Simulation Data Analysis Web Serving Nuclear Simulation/Weapons Modeling Streaming Media OLTP Database Security File Server Seismic Analysis, ERP (SAP R3) Directory Reservoir Modeling Thermodynamics J2EE Application Servers Storage Batch Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Monte Carlo Simulation Genomics, Cheminformatics Commercial Technical Single Threaded VTS 2006 Slide 5
- 6. Categorizing Internet EraWorkloads Highly Threaded Data Warehousing Proxy Caching Meteorology/Climate Simulation Data Analysis Web Serving Data Nuclear Simulation/Weapons Modeling Streaming Media OLTP Database Security File Server Seismic Analysis, ERP (SAP R3) Directory Reservoir Modeling Thermodynamics J2EE Application Servers Storage Batch Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Monte Carlo Simulation Genomics, Cheminformatics Commercial Technical Single Threaded VTS 2006 Slide 6
- 7. Categorizing Internet EraWorkloads Highly Threaded Data Warehousing Proxy Caching Meteorology/Climate Simulation Data Analysis Web Web Serving Data Nuclear Simulation/Weapons Modeling Streaming Media OLTP Database Security File Server Seismic Analysis, ERP (SAP R3) Directory Reservoir Modeling Thermodynamics J2EE Application Servers Storage Batch Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Monte Carlo Simulation Genomics, Cheminformatics Commercial Technical Single Threaded VTS 2006 Slide 7

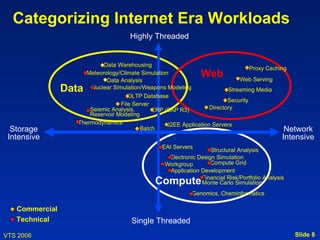

- 8. Categorizing Internet EraWorkloads Highly Threaded Data Warehousing Proxy Caching Meteorology/Climate Simulation Data Analysis Web Web Serving Data Nuclear Simulation/Weapons Modeling Streaming Media OLTP Database Security File Server Seismic Analysis, ERP (SAP R3) Directory Reservoir Modeling Thermodynamics J2EE Application Servers Storage Batch Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Compute Monte Carlo Simulation Genomics, Cheminformatics Commercial Technical Single Threaded VTS 2006 Slide 8
- 9. Categorizing Internet EraWorkloads Highly Threaded Data Warehousing Proxy Caching Meteorology/Climate Simulation Data Analysis Web Web Serving Data Nuclear Simulation/Weapons Modeling Streaming Media OLTP Database Security File Server Seismic Analysis, ERP (SAP R3) Directory Reservoir Modeling Application Thermodynamics J2EE Application Servers Storage Batch Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Compute Monte Carlo Simulation Genomics, Cheminformatics Commercial Technical Single Threaded VTS 2006 Slide 9
- 10. Categorizing Internet EraWorkloads Highly Threaded Data Warehousing Proxy Caching Meteorology/Climate Simulation Data Analysis Web Web Serving Data Nuclear Simulation/Weapons Modeling Streaming Media OLTP Database Security File Server Seismic Analysis, ERP (SAP R3) Directory Reservoir Modeling Application Thermodynamics J2EE Application Servers Storage HPC Batch Network Intensive Intensive EAI Servers Structural Analysis Electronic Design Simulation Workgroup Compute Grid Application Development Financial Risk/Portfolio Analysis Compute Monte Carlo Simulation Genomics, Cheminformatics Commercial Technical Single Threaded VTS 2006 Slide 10
- 11. Optimizing Servers forWorkloads • Three primary server design points – Data centric servers – Web centric servers – Compute centric servers • Application centric servers leverage design point of Data and Web centric • HPC centric servers leverage design point of Data centric VTS 2006 Slide 11
- 12. Server Reliability andAvailability Basic Concepts System System Available Down System Available Restart Failure Restart Failure Occurs Occurs MTTR MTTF • Reliability = MTBF = MTTF + MTTR • Availability = MTTF/MTBF = 1 - (MTTR/MTBF) VTS 2006 Slide 12
- 13. Cost of UnReliabilityand UnAvailability • Ebay outages – Estimated $3-5 million lost in revenue because of returned fees and lost business – $5 billion drop in market capitalization • Ameritrade, Schwab, E*Trade outages – Class action lawsuit for intermittent service • Akamai outage – Akamai handles 15% of world's Internet traffic – Google, Yahoo, Ebay, etc. affected by this outage Note: All outages were not hardware related VTS 2006 Slide 13
- 14. Cost of UnReliabilityand UnAvailability Customer behavior after an Internet server/site outage No change in 9% behavior Found a new site, used it 24% once Found a new 53% site, continued to use both 13% Stopped using site altogether Source: Jupiter Communications – Internet Research Firm VTS 2006 Slide 14
- 15. VTS 2006 K$ Per Hour 100 10 Brokerage 1,000 10,000 6,450 Credit Card 2,600 Source: InternetWeek 4/3/2000 Ebay 225 Amazon 180 Package Shipping 150 Home Shopping 113 90 Catalog Sales 89 Airline Reservation 41 Cellular Service 25 On-line Network 14 ATM Service Cost of UnReliability and UnAvailability Slide 15
- 16. Server Reliability andAvailability Customer Perspective • Impacts felt by customers – Silent data corruption (SDC) – Unscheduled system interruptions (USI) – Service or repair rate – Downtime (or Uptime) • Metrics – Mean time between SDC (MTBSDC) – Mean time between USI (MTBUSI) – Mean time between repair (MTBR) – Availability VTS 2006 Slide 16
- 17. Server Reliability andAvailability Typical Targets Server Type MTBSDC MTBUSI Availability Data Centric 100-1000 years 10-25 years 99.999 Web Centric 10-100 years 10-25 years 99.999-99.9999 Compute Centric 100-1000 years 2-10 years 99.990 MTBF in years = 109 / (FIT * 24 Hours * 365 Days) VTS 2006 Slide 17
- 18. A Typical DataCentric Server Component Approx. Count Comments Processors 8-64 8-64 way systems ASICs 320 Memory controllers, IO bridges, Crypto, etc. Memory DIMMs 640 Depends on memory capacity AC/DC 8-10 Main power supply Power Supplies DC/DC 640 High and low voltage supplies Power Supplies Clocking 64 Clock synthesizers and distribution Service Processor 4 Small processors, FPGA Miscellaneous 1000-10000 Resistors, Capacitors, Pins, Connectors Small Components VTS 2006 Slide 18

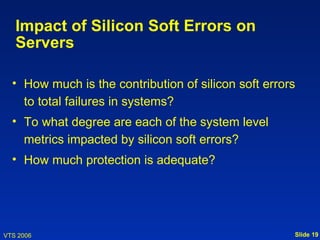

- 19. Impact of SiliconSoft Errors on Servers • How much is the contribution of silicon soft errors to total failures in systems? • To what degree are each of the system level metrics impacted by silicon soft errors? • How much protection is adequate? VTS 2006 Slide 19
- 20. Classification of SiliconSoft Errors Universe of Soft Errors in a Server Chip VTS 2006 Slide 20
- 21. Classification of SiliconSoft Errors C U Corrected Uncorrected VTS 2006 Slide 21
- 22. Classification of SiliconSoft Errors Silent SC SU Reported RC RU Corrected Uncorrected VTS 2006 Slide 22
- 23. Classification of SiliconSoft Errors Silent Data Corruption (MTBSDC) Silent SC SU Reported RC RU Corrected Uncorrected VTS 2006 Slide 23
- 24. Classification of SiliconSoft Errors Silent Data Corruption (MTBSDC) Silent SC SU Reported RC RU System Crash (MTBUSI) Corrected Uncorrected VTS 2006 Slide 24
- 25. Classification of SiliconSoft Errors Customer Silent Data does not care or Corruption need not know (MTBSDC) Silent SC SU Reported RC RU System Crash (MTBUSI) Corrected Uncorrected VTS 2006 Slide 25
- 26. Classification of SiliconSoft Errors Customer Silent Data does not care or Corruption need not know (MTBSDC) Silent SC SU Reported RC RU System Crash (MTBUSI) Required by Corrected Uncorrected Service/Customer to monitor health VTS 2006 Slide 26
- 27. Silent Data Corruption Total Server FIT A: Without any protection 2% 18% 80% - Memory - Proc. + ASICs - Misc. VTS 2006 Slide 27
- 28. Silent Data Corruption Total Server FIT A: Without any protection B: With SEC-DED on Memory 2% 1% 9% 18% 89% 80% - Memory - Proc. + ASICs - Misc. Note: Total FIT in A > Total FIT in B VTS 2006 Slide 28
- 29. Sensitivity to SiliconSoft Errors (Silent Data Corruption) Sensitivity of Server to Processor SU Rate 120 110 100 Server MTBSDC (Years) 90 80 70 60 50 40 30 20 10 0 100 200 300 400 500 600 700 Processor SU (Silent Uncorrected) FIT VTS 2006 Slide 29

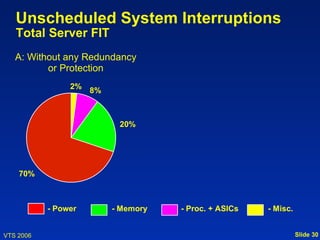

- 30. Unscheduled System Interruptions Total Server FIT A: Without any Redundancy or Protection 2% 8% 20% 70% - Power - Memory - Proc. + ASICs - Misc. VTS 2006 Slide 30
- 31. Unscheduled System Interruptions Total Server FIT A: Without any Redundancy B: With Power Redundancy or Protection and SEC-DED on Memory 2% 12% 8% 20% 35% 52% 1% 70% - Power - Memory - Proc. + ASICs - Misc. Note: Total FIT in A > Total FIT in B VTS 2006 Slide 31
- 32. Sensitivity to SiliconSoft Errors (Unscheduled System Inpterruptions) Server Sensitivity to Processor RU Rate 20 17.5 Server MTBUSI (Years) 15 12.5 10 7.5 5 2.5 0 100 200 300 400 500 600 700 Processor RU (Reported Uncorrected) FIT VTS 2006 Slide 32
- 33. Server Processor Trends(Memory) On-chip memory trend* 50 45 Memory bits (million) 40 40 35 30 30 20 10 0 64b, 130nm, Dual core 8-core (2nd Next genera- Single Core (1st Gen Gen CMT) tion CMT CMT) *Assuming 2-4MB on-chip level-2 cache • Typically memories >8KB protected with SEC-DED, 2Kb-8KB protected with variants of parity • Contribution of memories to chip level FIT rate has been fairly constant over time VTS 2006 Slide 33
- 34. Server Processor Trends(Flops) On-chip flop trend 1200 Flops per chip (K) 1000 1000 800 600 500 400 200 200 80 0 64b 130nm Dual core 8-core (2nd Next genera- Single Core (1st Gen Gen CMT) tion CMT CMT) • With chip multi-threading (CMT), more pipelines on a chip, hence more logic VTS 2006 Slide 34
- 35. Server Processor Trends(Flops) • Flop soft error FIT is typically 0.001 FIT/bit * • 30% of flop bit flips contribute to chip failure ** Chip level FIT contribution of flops 500 450 400 FIT per chip 350 300 300 250 200 150 150 100 60 50 24 0 64b 130nm Dual core 8-cores (2nd Next genera- Single Core (1st Gen Gen CMT) tion CMT CMT) * SELSE II (Workshop on System Effects of Logic Soft Errors) ** Fault injection with architectural trace simulation VTS 2006 Slide 35
- 36. Sensitivity to ProcessorFlop FIT Sensitivity to Processor SU Rate Sensitivity to Processor RU Rate 120 20 110 17.5 17 years 100 Server MTBSDC (Years) Server MTBUSI (Years) 90 89 years 15 14 years 80 12.5 70 60 10 50 42 years 7.5 40 30 5 20 2.5 10 0 0 100 200 300 400 500 600 700 100 200 300 400 500 600 700 Processor SU (Silent Uncorrected) FIT Processor RU (Reported Uncorrected) FIT • A 150 FIT increase in processor implies: – 52.8% degradation of MTBSDC – 17.7% degradation of MTBUSI VTS 2006 Slide 36

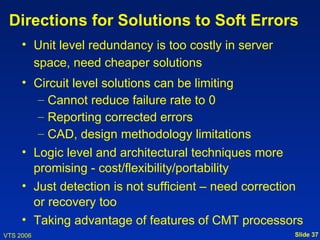

- 37. Directions for Solutionsto Soft Errors • Unit level redundancy is too costly in server space, need cheaper solutions • Circuit level solutions can be limiting – Cannot reduce failure rate to 0 – Reporting corrected errors – CAD, design methodology limitations • Logic level and architectural techniques more promising - cost/flexibility/portability • Just detection is not sufficient – need correction or recovery too • Taking advantage of features of CMT processors VTS 2006 Slide 37

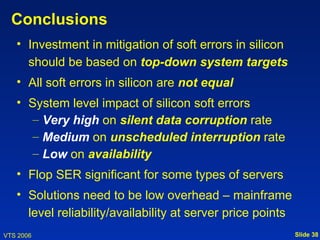

- 38. Conclusions • Investment in mitigation of soft errors in silicon should be based on top-down system targets • All soft errors in silicon are not equal • System level impact of silicon soft errors – Very high on silent data corruption rate – Medium on unscheduled interruption rate – Low on availability • Flop SER significant for some types of servers • Solutions need to be low overhead – mainframe level reliability/availability at server price points VTS 2006 Slide 38
