1. 1
Search, Time Series, and Graph Analysis in the Cloud
Dave Erickson
dave@elastic.co
Visualizing Data in
Elasticsearch

2. 2
Dave Erickson – Developer
• Biotech
• Electronic Archives & Libraries
• Geospatial
• Healthcare
• Air Traffic Control
• Financial Services

3. 3

4. 4

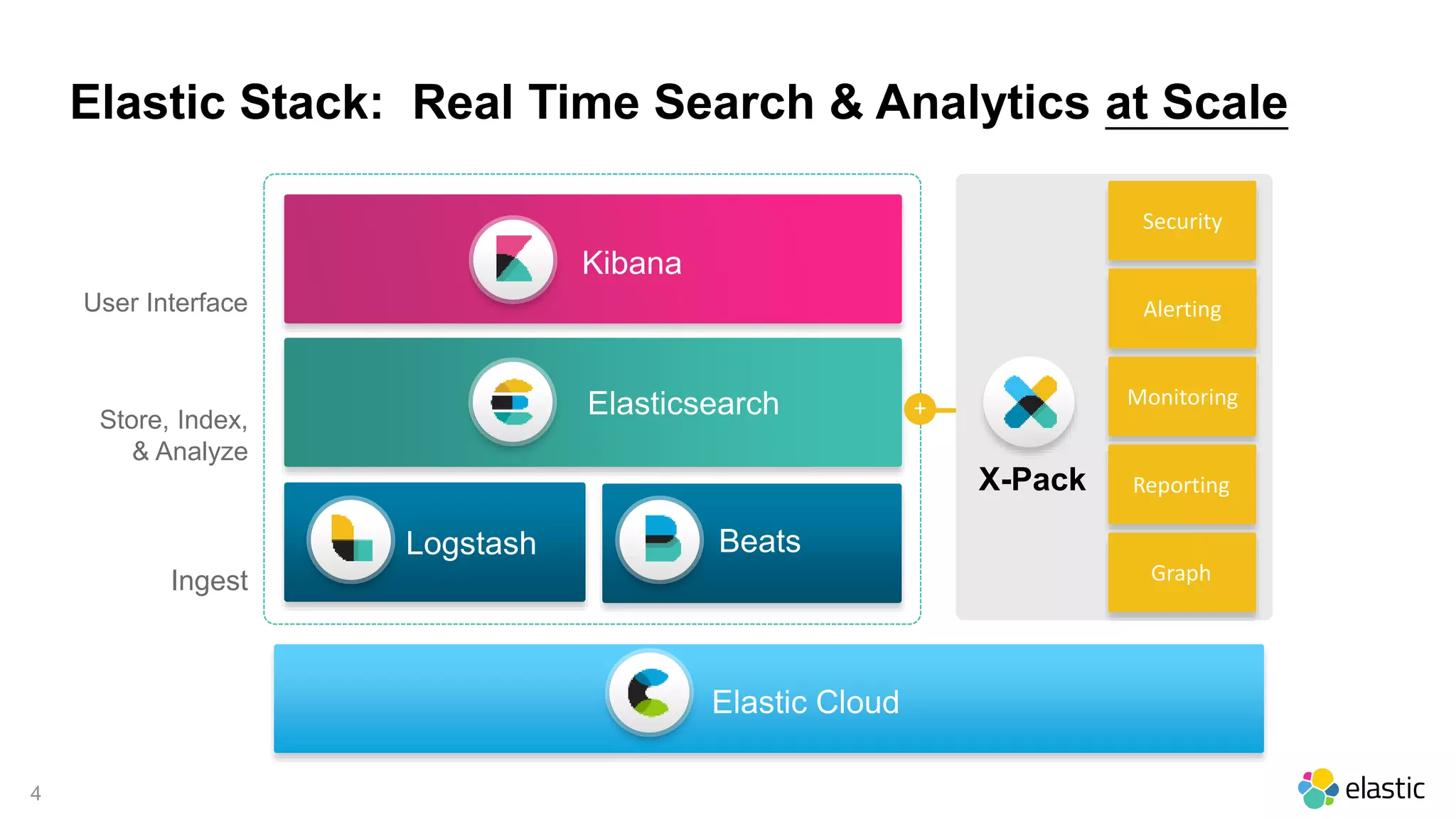

Elastic Stack: Real Time Search & Analytics at Scale
Elastic Cloud
Security
X-Pack
Kibana
User Interface
ElasticsearchStore, Index,
& Analyze
Ingest
Logstash Beats
+
Alerting
Monitoring
Reporting
Graph

5. 5

6. 6

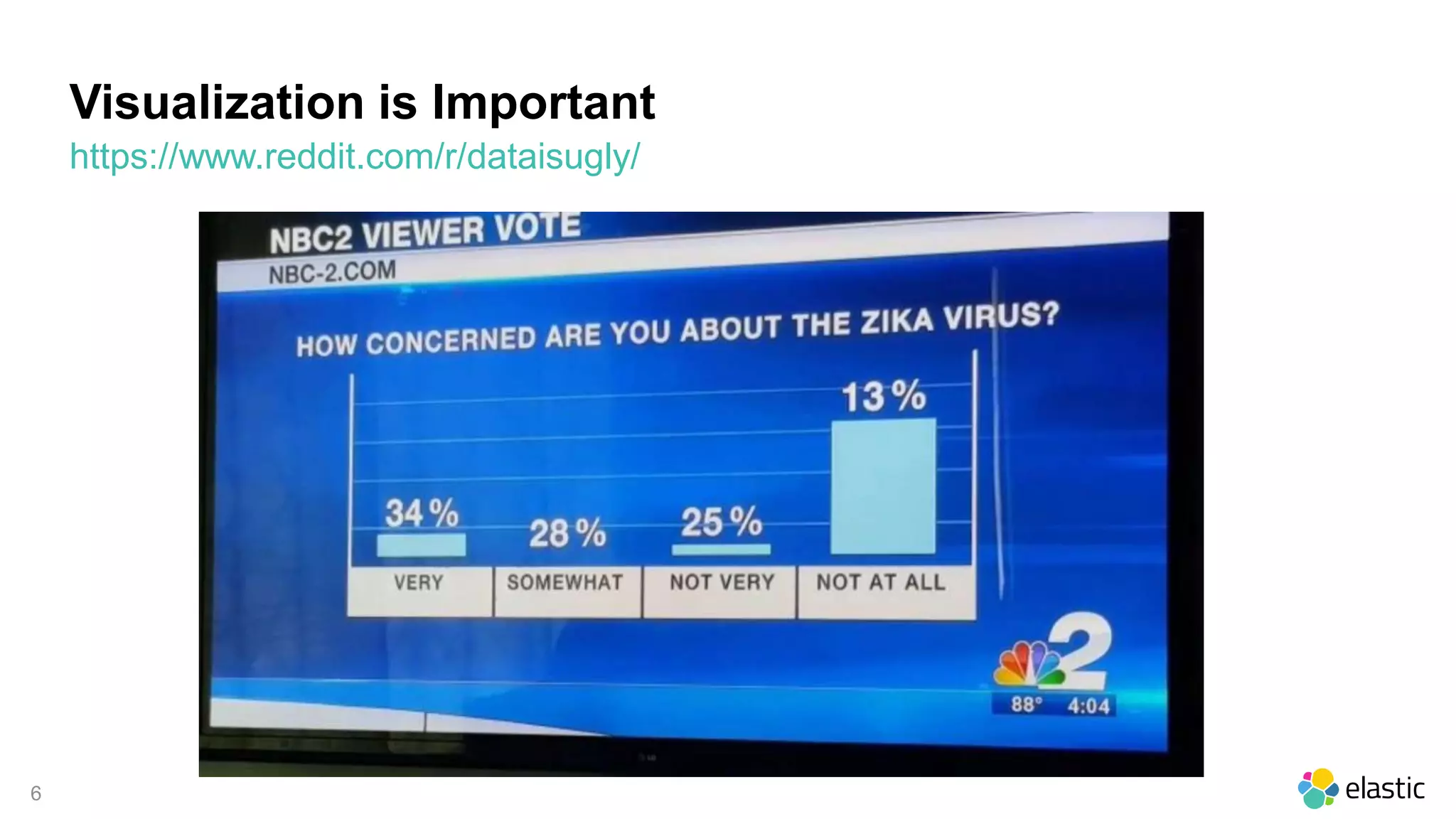

Visualization is Important
https://www.reddit.com/r/dataisugly/

7. 7

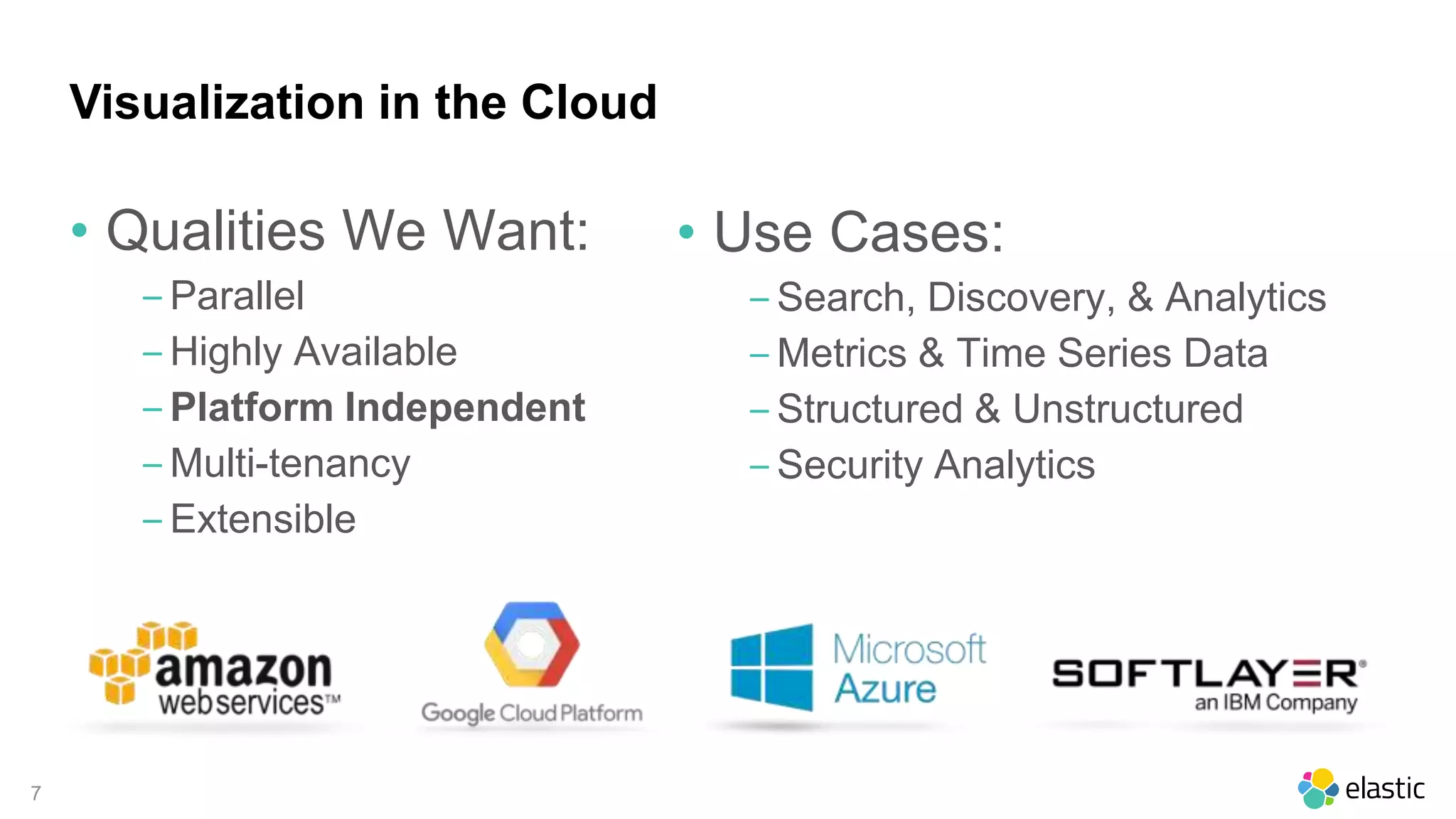

Visualization in the Cloud
• Qualities We Want:
‒ Parallel
‒ Highly Available
‒ Platform Independent
‒ Multi-tenancy
‒ Extensible
• Use Cases:
‒ Search, Discovery, & Analytics
‒ Metrics & Time Series Data
‒ Structured & Unstructured
‒ Security Analytics

8. 8

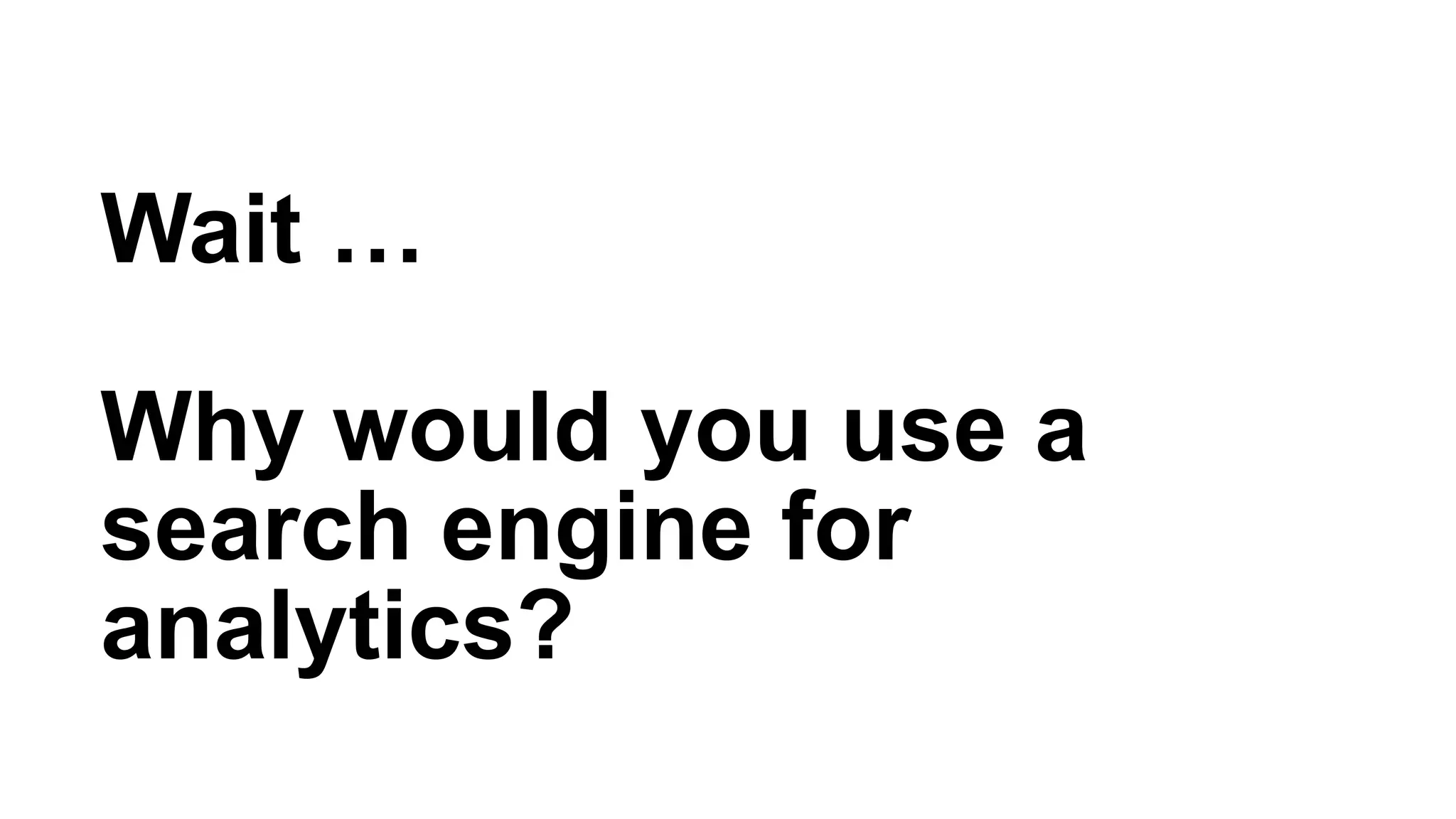

Wait …
Why would you use a
search engine for
analytics?

9. 9
Search indexes have been around for a long time

10. 10
Scaled, distributed search indexes have been around
for a long time

11. 11
Electronic search engines have been around for a
long time

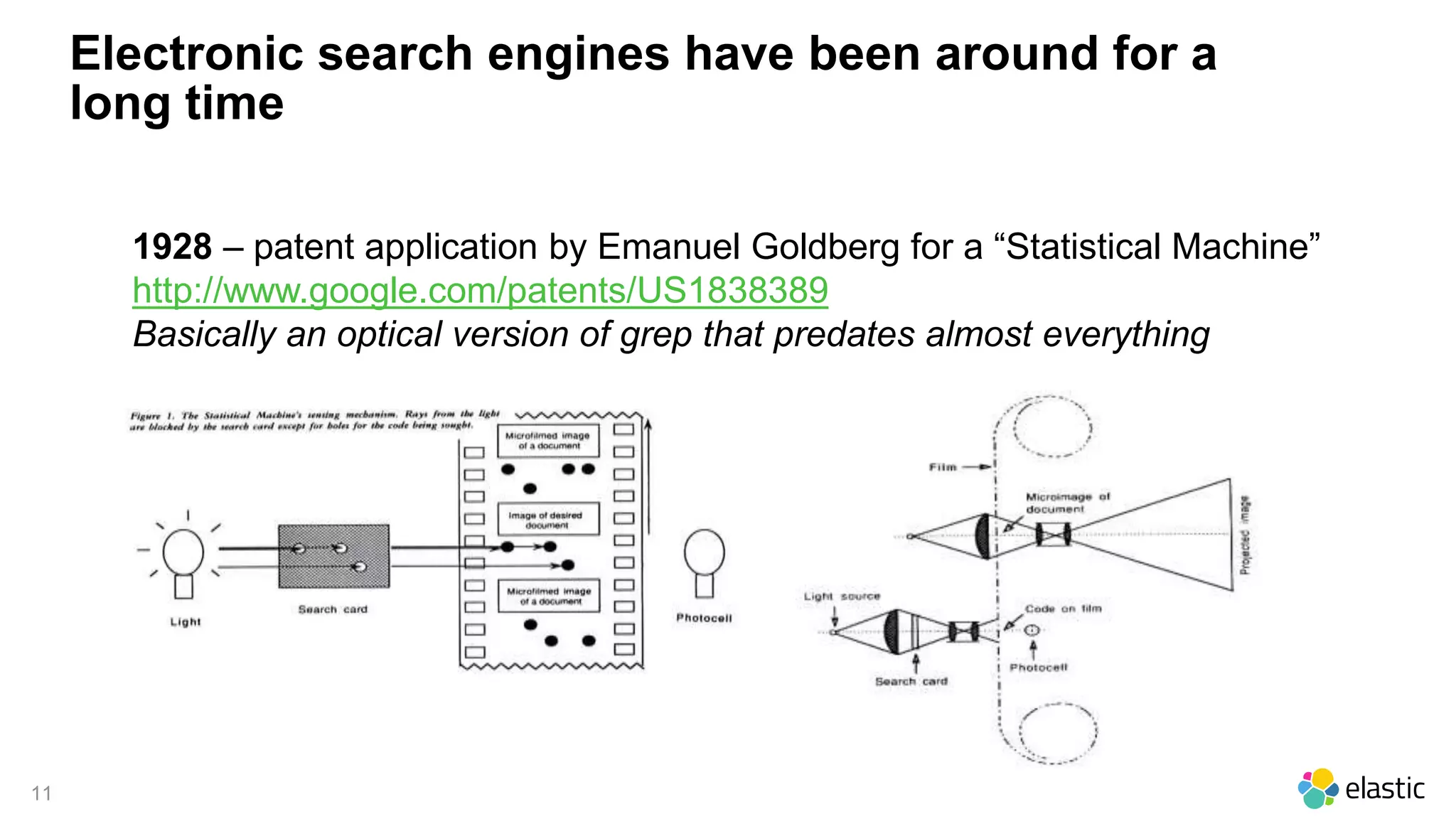

1928 – patent application by Emanuel Goldberg for a “Statistical Machine”
http://www.google.com/patents/US1838389
Basically an optical version of grep that predates almost everything

12. 12

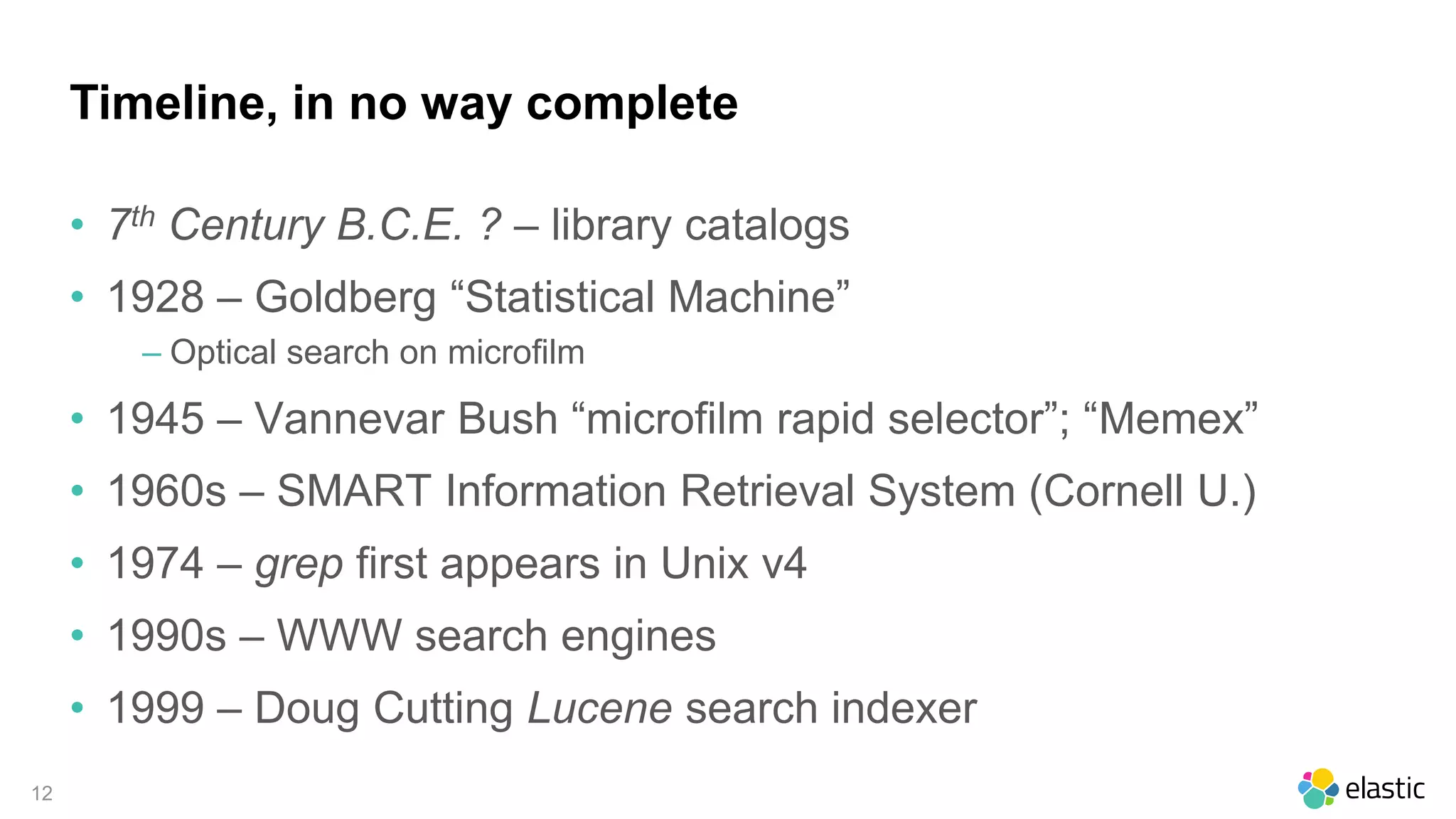

Timeline, in no way complete
• 7th Century B.C.E. ? – library catalogs
• 1928 – Goldberg “Statistical Machine”
– Optical search on microfilm
• 1945 – Vannevar Bush “microfilm rapid selector”; “Memex”
• 1960s – SMART Information Retrieval System (Cornell U.)
• 1974 – grep first appears in Unix v4
• 1990s – WWW search engines
• 1999 – Doug Cutting Lucene search indexer

13. 13

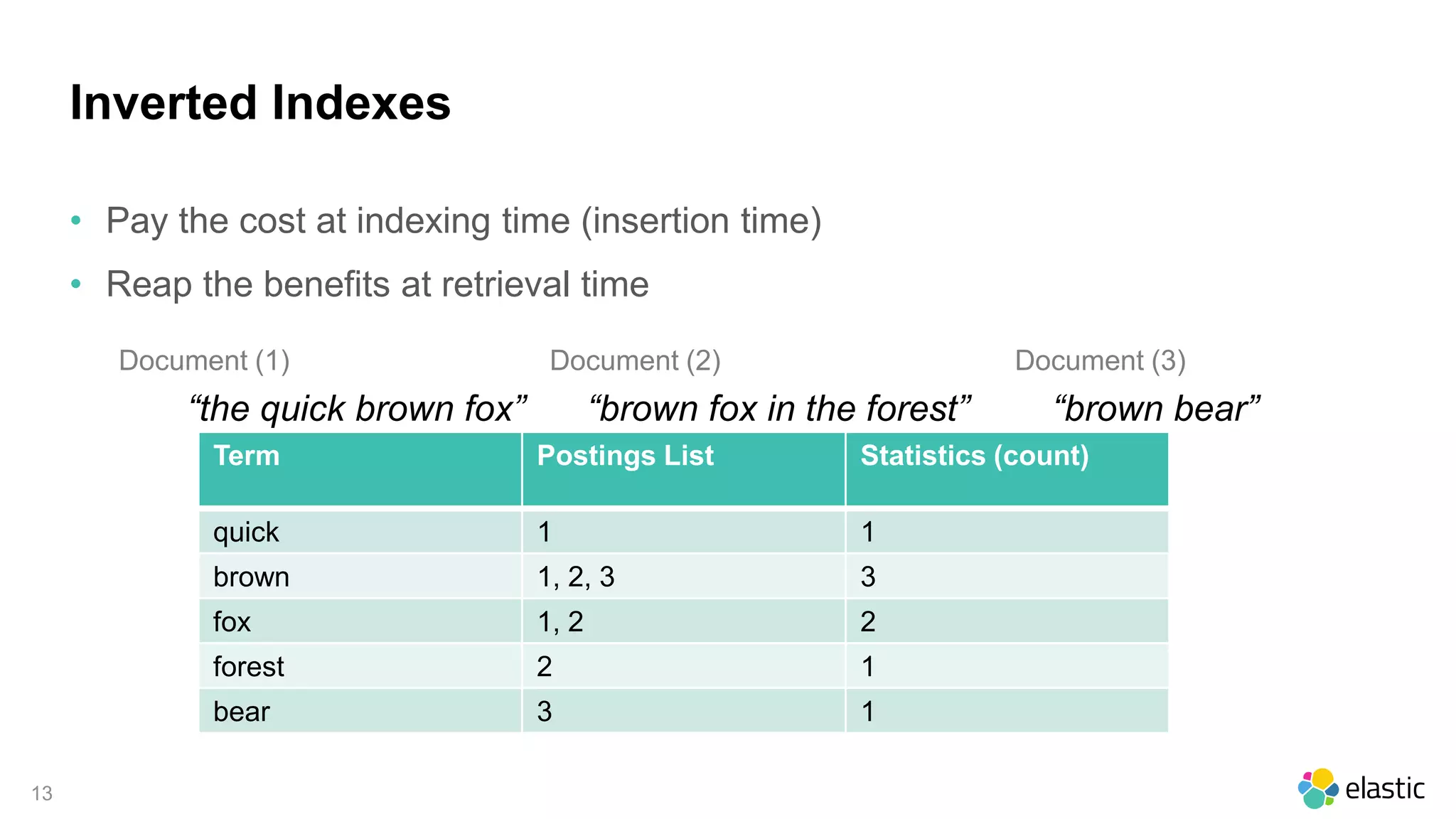

Inverted Indexes
• Pay the cost at indexing time (insertion time)
• Reap the benefits at retrieval time
“the quick brown fox” “brown fox in the forest”
Document (1) Document (2)
“brown bear”
Document (3)
Term Postings List Statistics (count)
quick 1 1
brown 1, 2, 3 3
fox 1, 2 2
forest 2 1
bear 3 1

14. 14

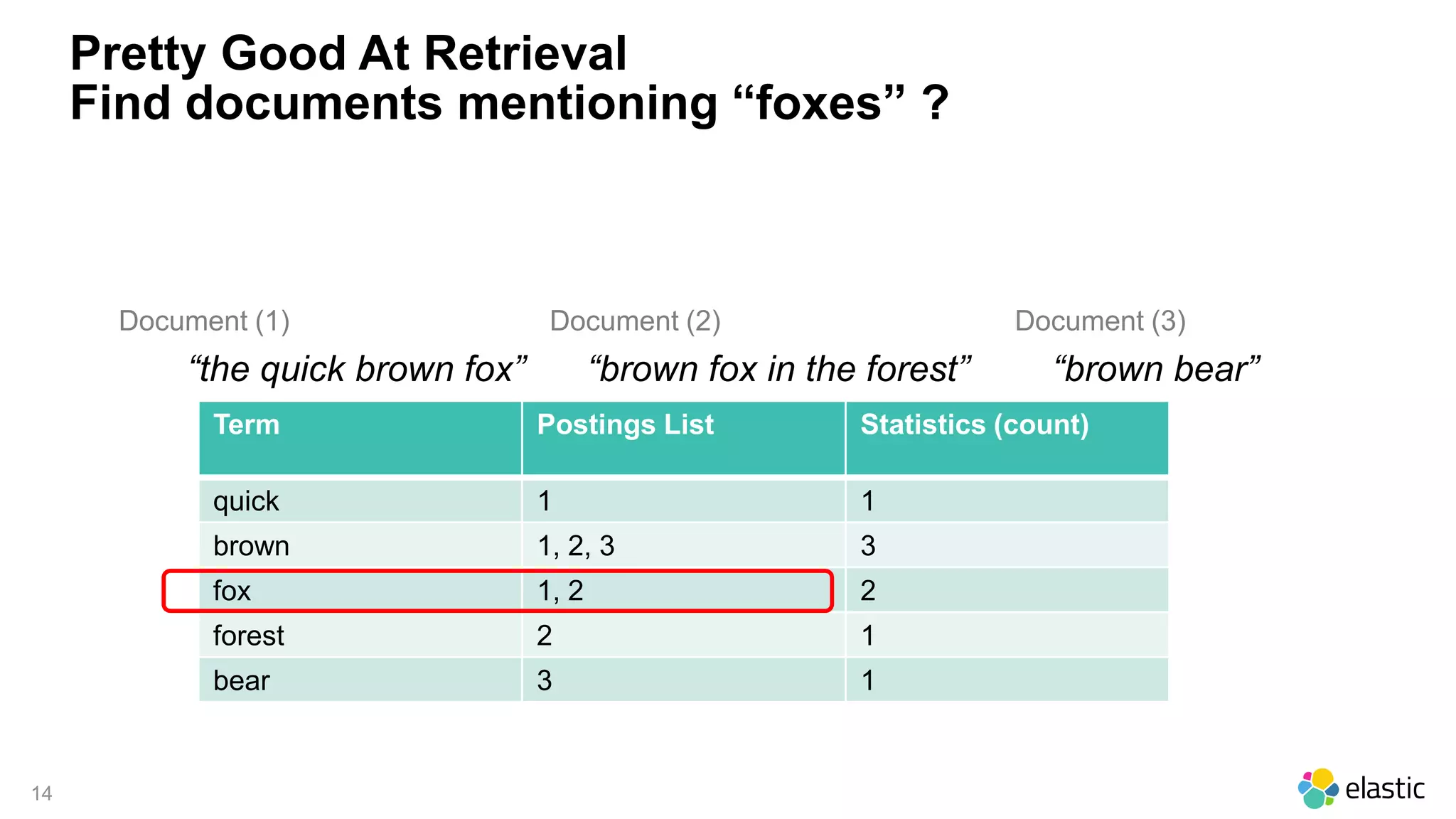

Pretty Good At Retrieval
Find documents mentioning “foxes” ?
Term Postings List Statistics (count)
quick 1 1
brown 1, 2, 3 3
fox 1, 2 2
forest 2 1
bear 3 1
“the quick brown fox” “brown fox in the forest”
Document (1) Document (2)
“brown bear”
Document (3)

15. 15

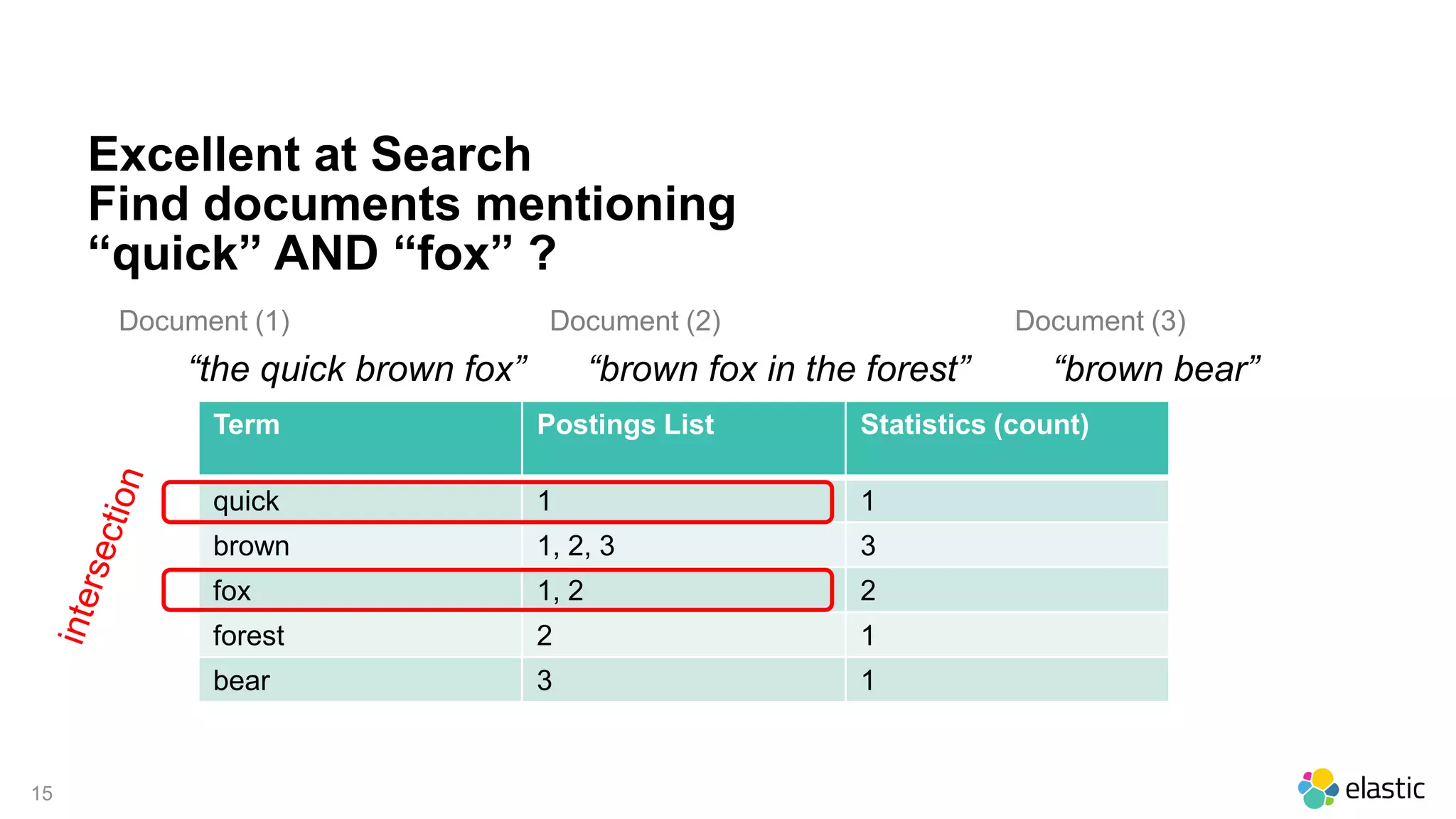

Excellent at Search
Find documents mentioning
“quick” AND “fox” ?
Term Postings List Statistics (count)
quick 1 1
brown 1, 2, 3 3
fox 1, 2 2
forest 2 1
bear 3 1
“the quick brown fox” “brown fox in the forest”
Document (1) Document (2)
“brown bear”
Document (3)

16. 16
“the quick brown fox” “brown fox in the forest”
Document (1) Document (2)
“brown bear”
Document (3)

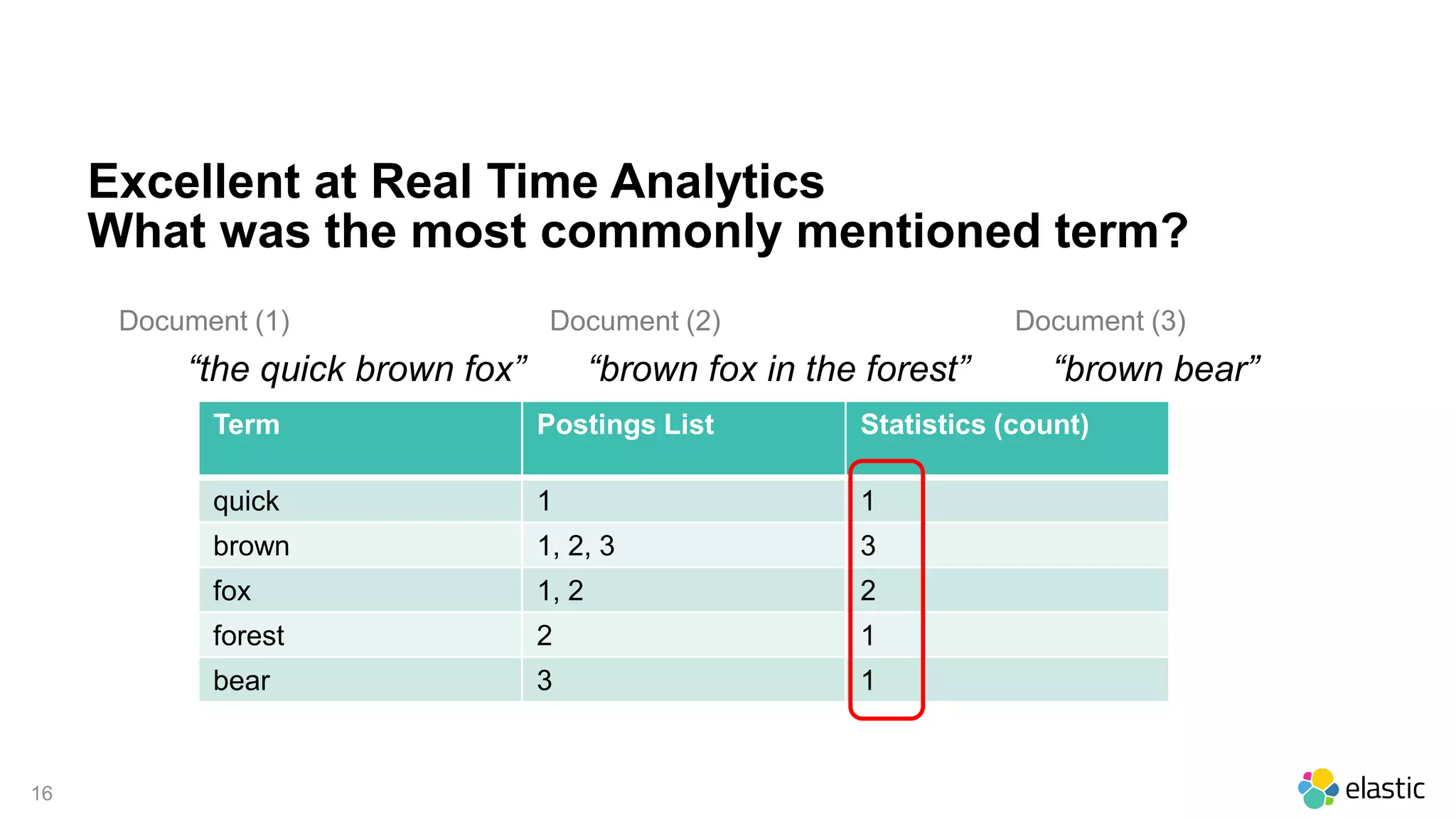

Excellent at Real Time Analytics
What was the most commonly mentioned term?
Term Postings List Statistics (count)
quick 1 1
brown 1, 2, 3 3
fox 1, 2 2
forest 2 1
bear 3 1

17. 17
“the quick brown fox” “brown fox in the forest”
Document (1) Document (2)
“brown bear”
Document (3)

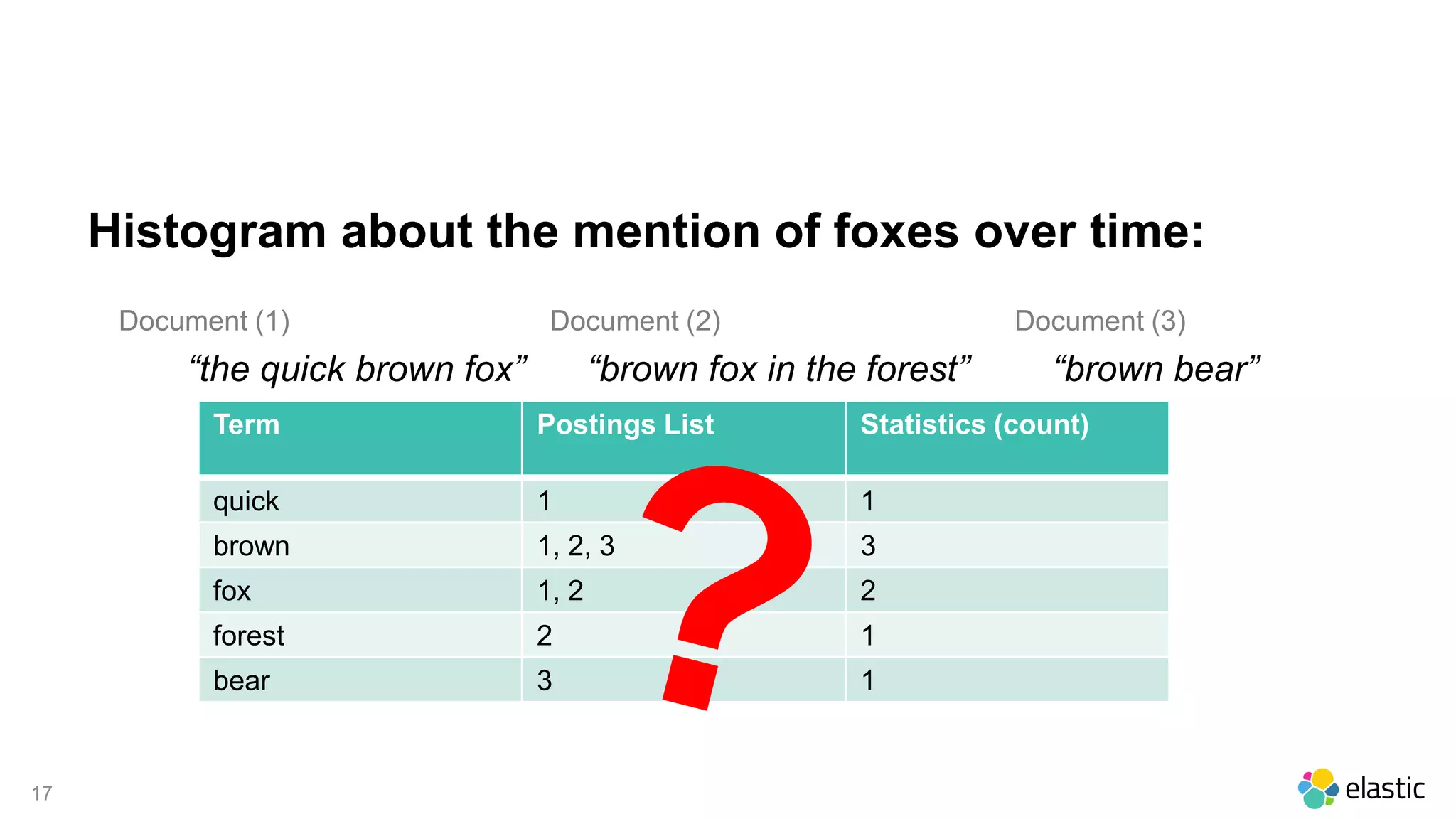

Histogram about the mention of foxes over time:
Term Postings List Statistics (count)
quick 1 1
brown 1, 2, 3 3
fox 1, 2 2
forest 2 1
bear 3 1

18. 18

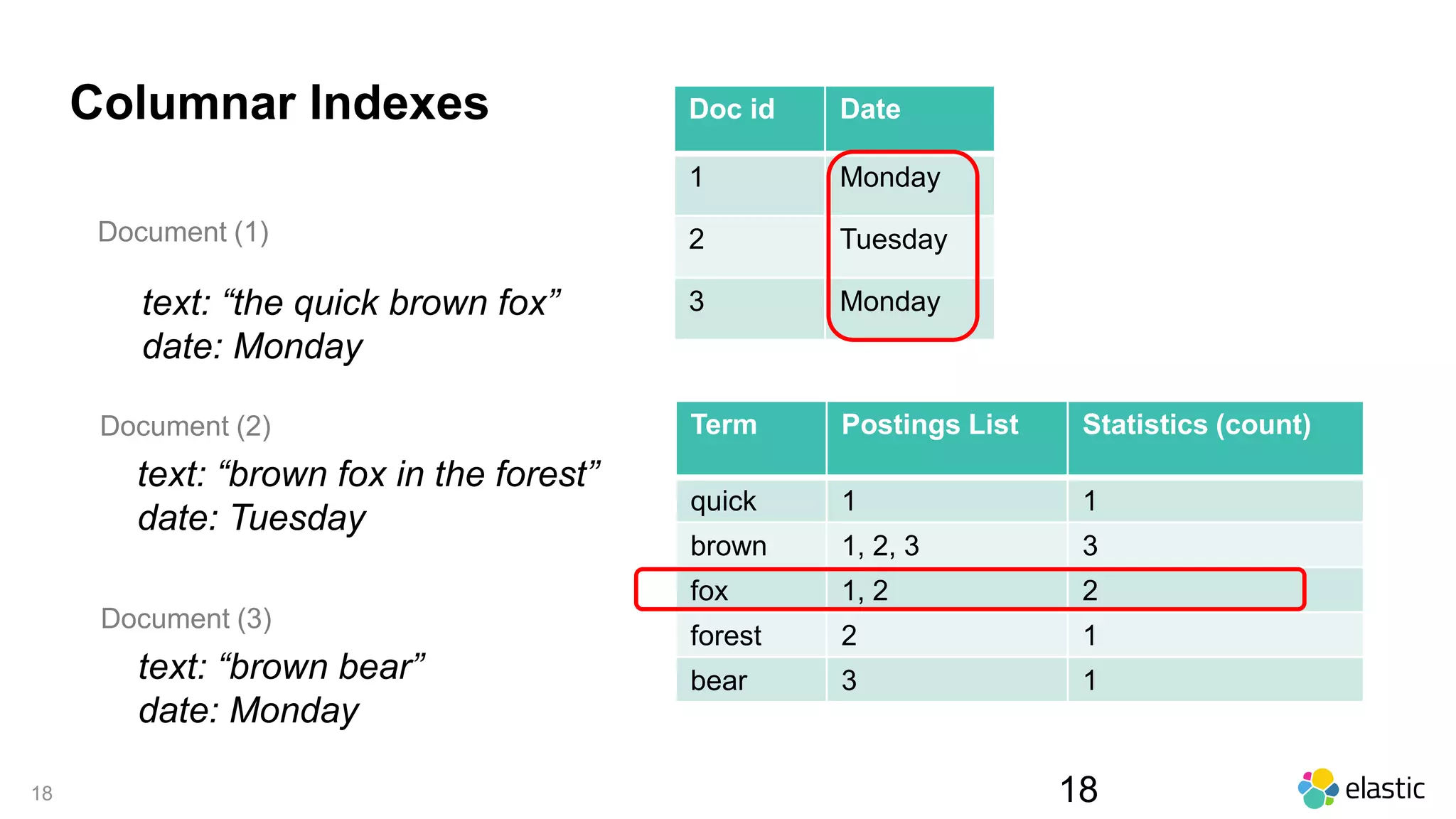

Columnar Indexes
18
text: “the quick brown fox”
date: Monday
text: “brown fox in the forest”
date: Tuesday
Document (1)
Document (2)
text: “brown bear”
date: Monday
Document (3)
Doc id Date
1 Monday
2 Tuesday
3 Monday
Term Postings List Statistics (count)
quick 1 1
brown 1, 2, 3 3
fox 1, 2 2
forest 2 1
bear 3 1

19. 19

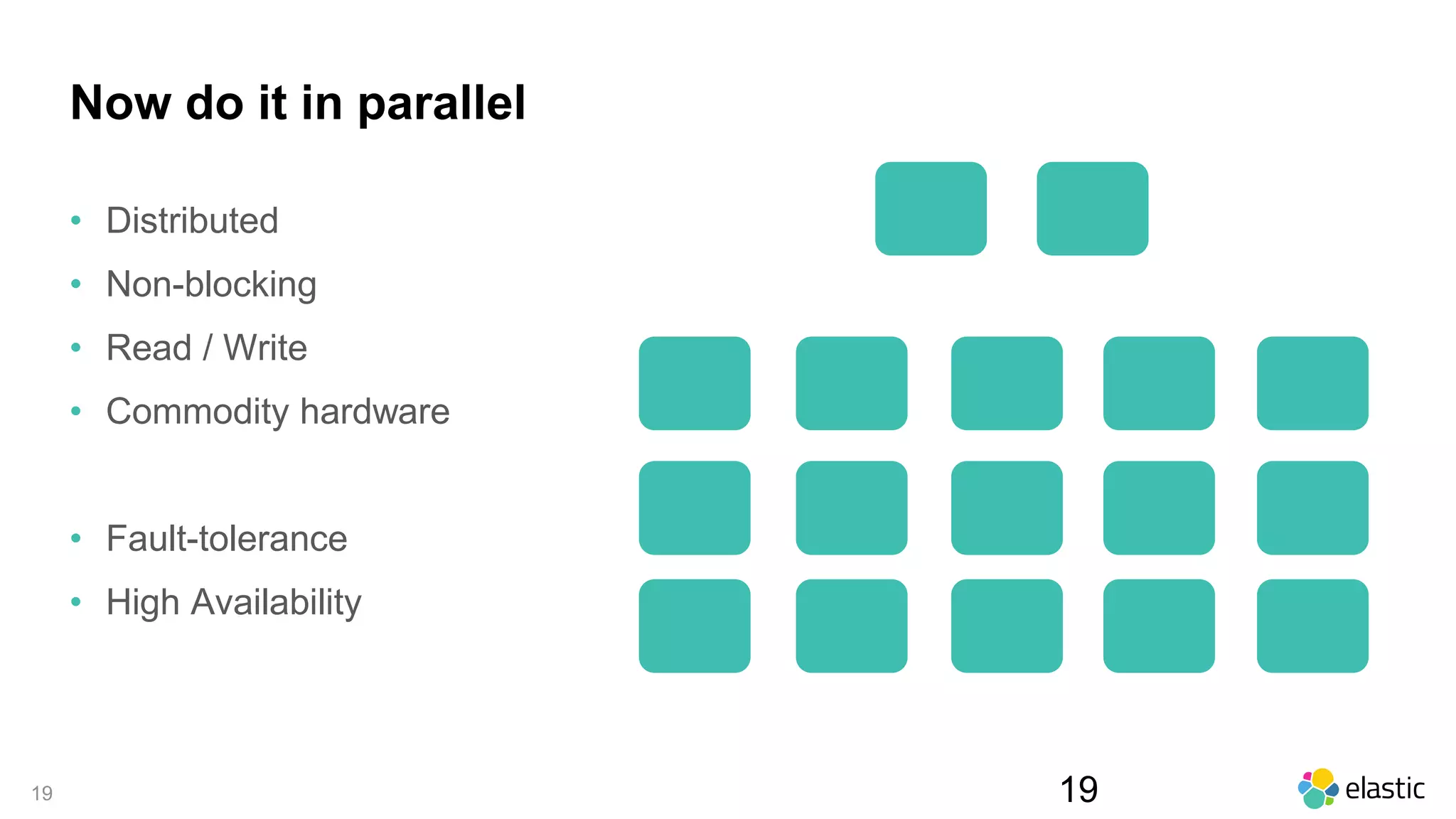

Now do it in parallel
• Distributed
• Non-blocking
• Read / Write
• Commodity hardware
• Fault-tolerance
• High Availability
19

20. 20
Use Cases
20

21. 21

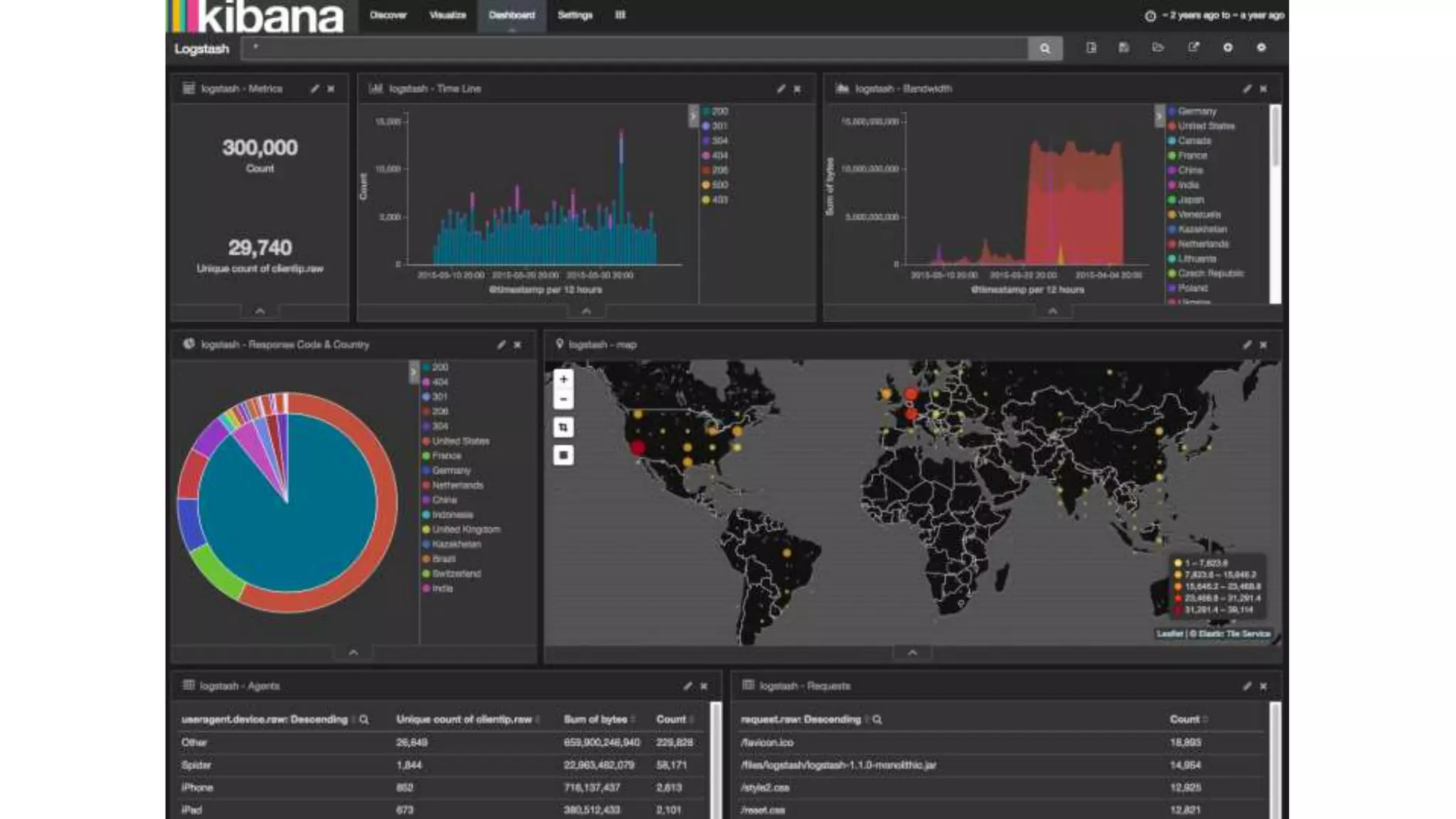

22. 22

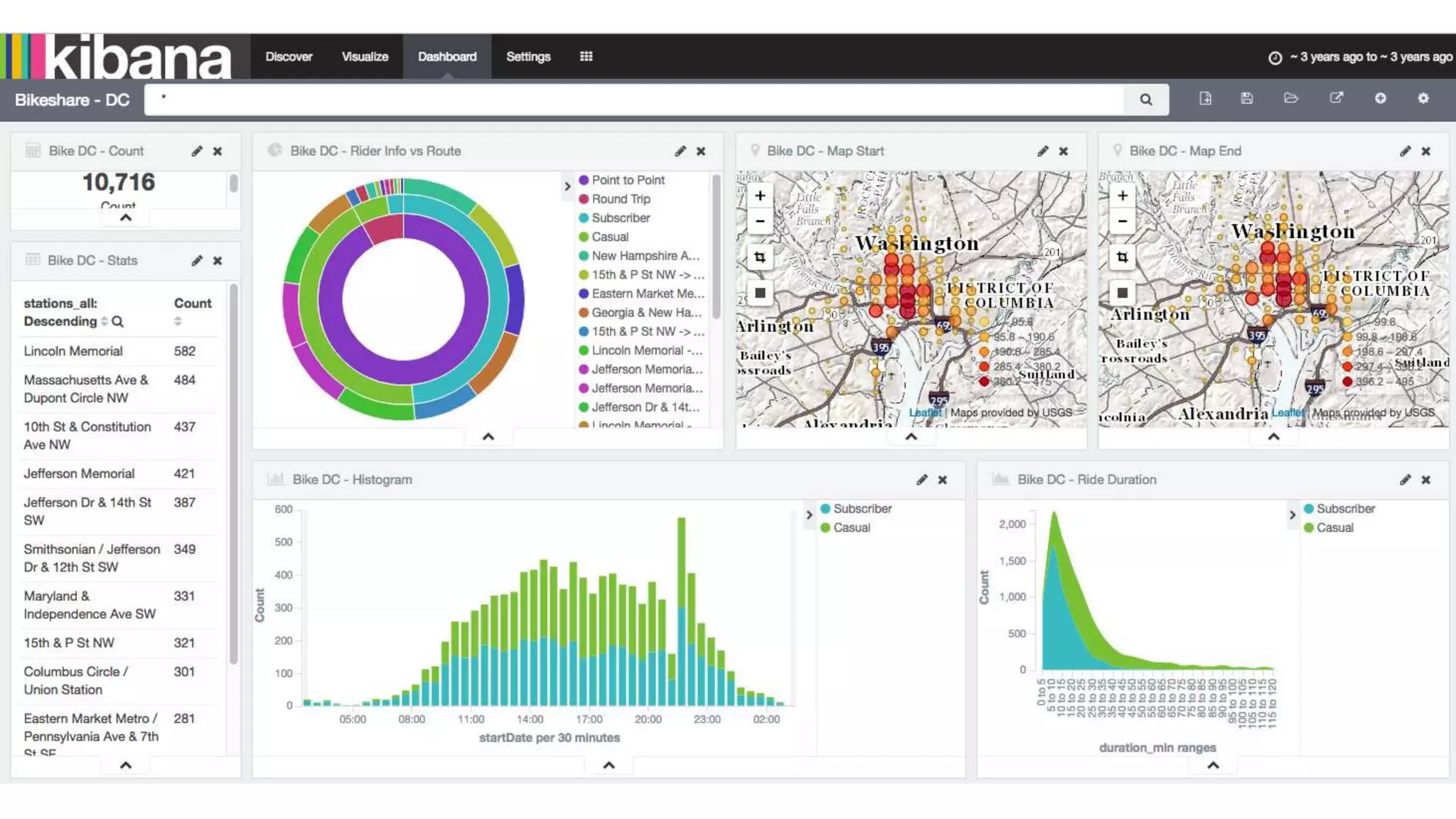

23. 23

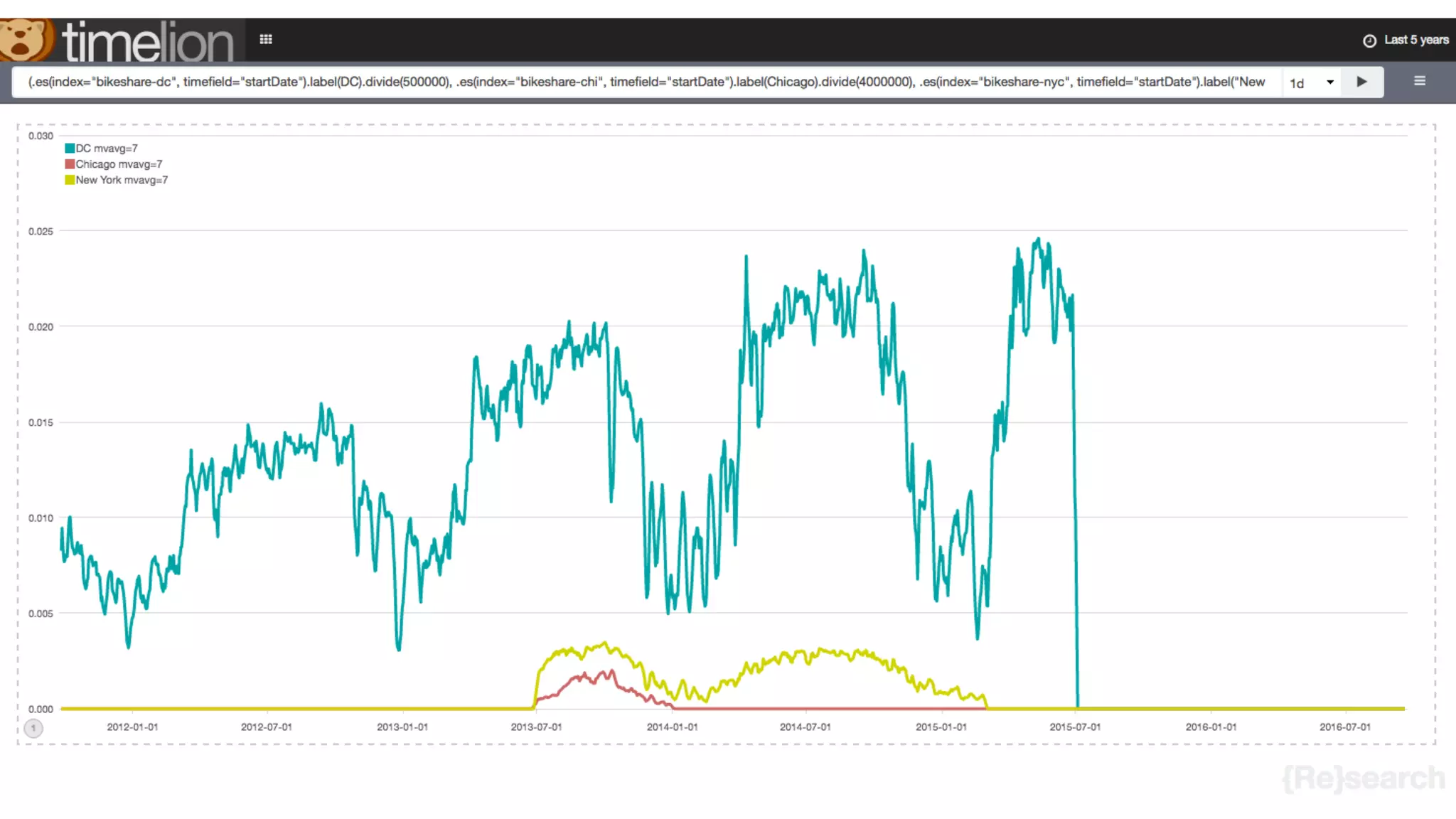

24. 24

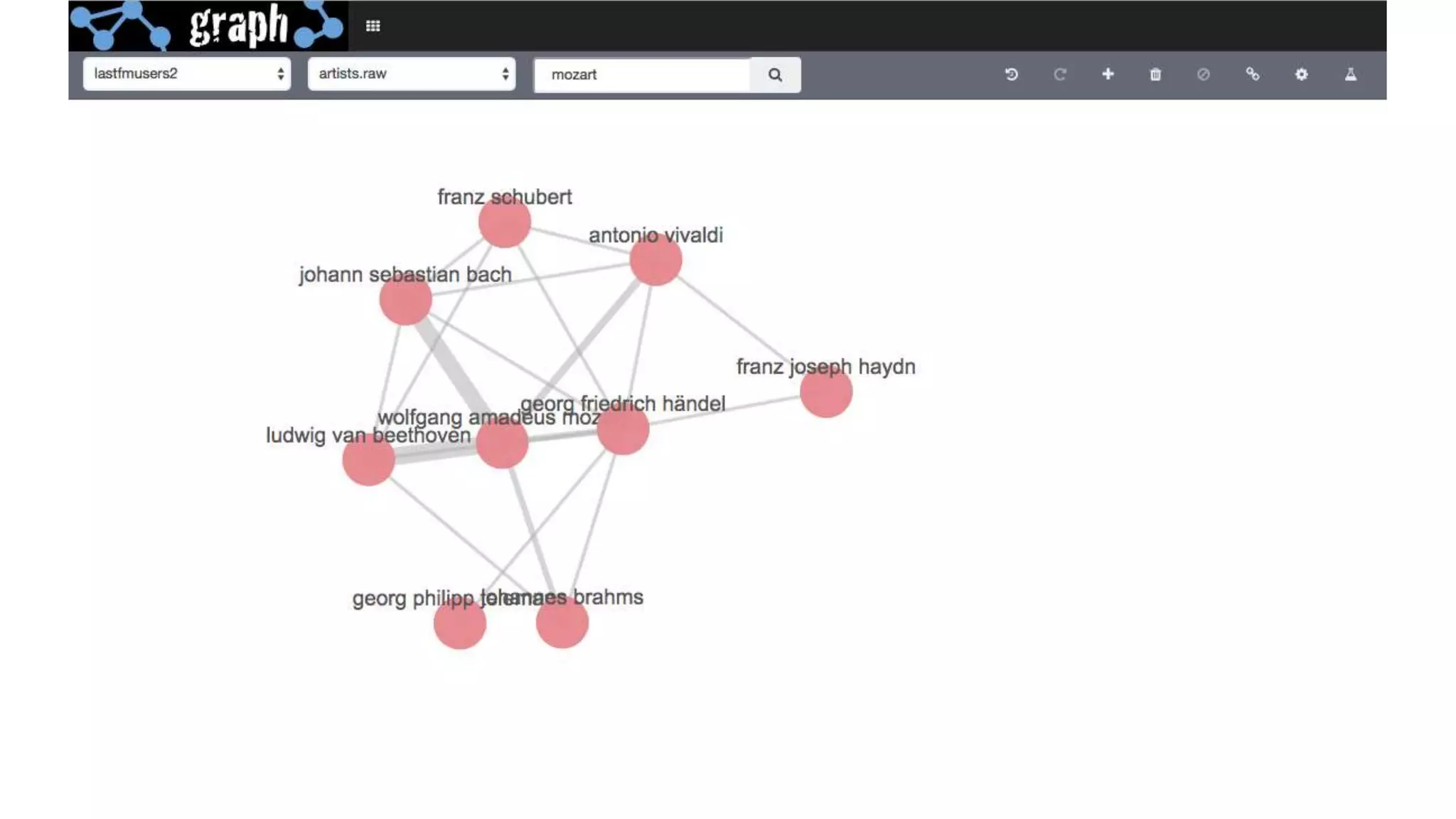

25. 25

26. 26
Thank You!
