This document provides an overview of Apache Apex and real-time data visualization. Apache Apex is a platform for developing scalable streaming applications that can process billions of events per second with millisecond latency. It uses YARN for resource management and includes connectors, compute operators, and integrations. The document discusses using Apache Apex to build real-time dashboards and widgets using the App Data Framework, which exposes application data sources via topics. It also covers exporting and packaging dashboards to include in Apache Apex application packages.

1. Visualizing Big Data in Realtime
Sasha Parfenov
sashap@apache.org
June 15, 2017

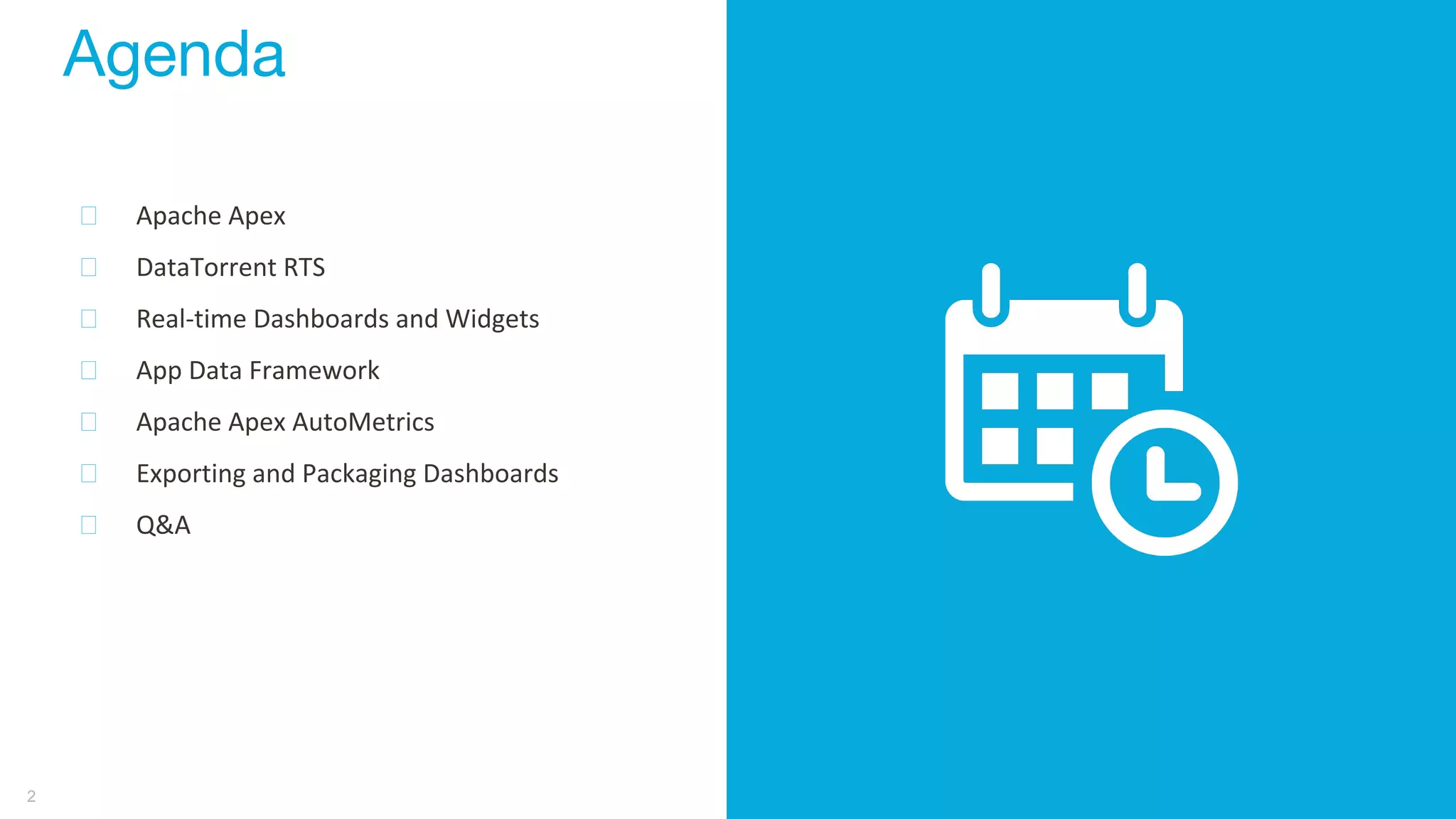

2. Agenda
Apache Apex
DataTorrent RTS
Real-time Dashboards and Widgets
App Data Framework
Apache Apex AutoMetrics
Exporting and Packaging Dashboards
Q&A
2

3. 3
What is Apache Apex?
✓ Platform and Runtime Engine - enables development of scalable and
fault-tolerant distributed applications for processing streaming and batch data
✓ Highly Scalable - linear scalability to billions of events per second
✓ Highly Performant - millisecond end-to-end latency
✓ Fault Tolerant - automatically recovers from failures
✓ Stateful - guarantees that application state is preserved
✓ YARN Native - Uses Hadoop YARN for resource management
✓ Developer Friendly - Exposes an easy API for developing Operators, which
can include any custom logic written in Java
✓ Malhar Library - library of many popular operators and application examples
○ Input / Output Connectors - File Systems, RDBMS, NoSQL, Messaging, Social, …
○ Compute Operators - Parsers, Transforms, Stats, ML, Scripting, …
✓ Integrations - Calcite, SAMOA, Beam, Nifi, Geode, Bigtop, etc.
apex.apache.org

4. 4
Apache Apex Use Cases
Data Sources
Op1
Hadoop (YARN + HDFS)
Real-time
Analytics &
Visualizations
Op3
Op2
Op4
Streaming Computation Actions & Insights
Data Targets

5. 5
Apache Apex Enables “Shift Left”

6. 6
Apex Application Development
Application DAG is made up of connected
operators and streams
Stream is a sequence of data tuples
Operator takes one or more input streams,
performs computations & emits one or more
output streams
● Each Operator is YOUR custom business logic
in java, or built-in operator from our open
source library
● Operator has many instances that run in
parallel and each instance is single-threaded

7. 7
Apache Apex & DataTorrent RTS
Ingestion &
Data Prep
Solutions for
Business
Awesome
Visual Tools GUI Application AssemblyManagement & Monitoring Real-Time Data Visualization
Hadoop 2.x - YARN + HDFS | On Prem & Cloud
FileSync | Kafka-to-HDFS | JDBC-to-HDFS | HDFS-to-HDFS | S3-to-HDFS
Application
Templates
Apex-Malhar Operator Library
Apache Apex Core
Big Data
Infrastructure
Core
High-level API
Transformation ML & Score SQL Analytics
Dev Framework
Batch
Support
Apache
Apex
Fraud &
Security
Ad Tech ETL Pipelines IoT & Industrial

8. 8
DataTorrent RTS Visualization Demo

9. 9
Realtime App Visualizations
● Apex App Visualizations
○ Events & Logs
○ Logical & Physical DAGs
○ Tuple Recordings
○ Stats & Metrics
○ Data Queries & Results
● Dashboards
○ Configurable
○ Export/Import via Apex app packages
● Widgets
○ Real-time data streams
○ Visualizations include tables, charts, maps, ...
○ Configurable
○ Support external development and dynamic
loading from Apex app packages.

10. 10
Connecting Dashboards to App Data
Apex Applications with AppData Support
DataTorrent RTS Dashboard & Widgets
DataTorrent RTS Gateway
dtGateway
resultsquery

11. 11
App Data Framework
App Data Framework Documentation
http://docs.datatorrent.com/app_data_framework/
Data Sources are Query + Source + Result
operators exposed via Gateway Topics
App Data Framework Schema & Data Queries
Enables Real-time Visualization Widgets
Console Gateway
Schema Subscribe
Data Subscribe
Data Publish
Schema Publish
Data Query
Data Renew
Schema Query

12. 12
App Data Framework Schema Queries
1. Request application data sources
http://<gateway-host:port>/ws/v2/applications/<appId>
{
...
"appDataSources": [
{
"name": "SnapshotServer.queryResult",
"context": {...},
"query": {
"topic": "TwitterHashtagQueryDemo",
...
},
"result": {
"topic": "TwitterHashtagQueryResultDemo",
...
}
}
]
}
2. Subscribe to schema result on a unique topic
ws://<gateway-host:port>/pubsub
{
"type": "subscribe",
"topic": "TwitterHashtagQueryResultDemo.0.20716154835833223"
}
3. Request schema from published DataSource topic
ws://<gateway-host:port>/pubsub
{
"type": "publish",
"topic": "TwitterHashtagQueryDemo",
"data": {
"id": 0.20716154835833223,
"type": "schemaQuery",
"context": {...}
}
}
4. DataSource responds on unique topic
{
"topic": "TwitterHashtagQueryResultDemo.0.20716154835833223",
"data": {
"id": "0.20716154835833223",
"type": "schemaResult",
"data": [
{
"values": [{
"name": "hashtag",
"type": "string"
},{
"name": "count",
"type": "integer"
}
],
"schemaType": "snapshot",
"schemaVersion": "1.0"
}
]
},
"type": "data"
}

13. 3. Data is published on the unique result topic
{
"topic": "TwitterHashtagQueryResultDemo.0.6760250790172551",
"data": {
"id": "0.6760250790172551",
"type": "dataResult",
"data": [
{
"count": "1398",
"hashtag": "iHeartApache"
},
{
"count": "1415",
"hashtag": "ApexBigDataWorld"
},
{
"count": "1498",
"hashtag": "StreamingBigData"
},
{
"count": "1521",
"hashtag": "ApacheApex"
},
{
"count": "1728",
"hashtag": "DataTorrentRTS"
},
...
],
"countdown": "29"
},
"type": "data"
}
13
App Data Framework Data Queries
1. Subscribe to data result on a unique topic
ws://<gateway-host:port>/pubsub
{
"type": "subscribe",
"topic": "TwitterHashtagQueryResultDemo.0.6760250790172551"
}
2. Request data on query topic with matching id
ws://<gateway-host:port>/pubsub
{
"type": "publish",
"topic": "TwitterHashtagQueryDemo",
"data": {
"id": 0.6760250790172551,
"type": "dataQuery",
"data": {
"fields": [
"hashtag",
"count"
]
},
"countdown": 30,
"incompleteResultOK": true
}
}

14. 14
Easiest way to expose custom data in Apache Apex apps
import com.datatorrent.api.AutoMetric;
public class LineReceiver extends BaseOperator
{
@AutoMetric
long evalsPerWindow;
@AutoMetric
long evalsTotal;
public final transient DefaultInputPort<String> input = new DefaultInputPort<String>()
{
@Override
public void process(String s)
{
evalsPerWindow ++;
evalsTotal++;
}
};
@Override
public void beginWindow(long windowId)
{
evalsPerWindow = 0;
}
}
Apache Apex App Data with AutoMetrics
Example Operators with @AutoMetric
JsonParser.java, PojoToAvro.java, POJOKafkaOutputOperator.java
Custom Aggregators for non-numeric fields
Apache Apex - Building Custom Aggregators
Requesting AutoMetrics Data via StrAM API
http://<appMasterTrackingUrl>/ws/v2/stram/physicalPlan
{
"operators": [{
"name": "picalc",
"metrics": {
"evalsPerWindow": "23000",
"evalsTotal": "1005787500"
}
}]
}
Get StrAM URL with Apex CLI
$ apex
apex> connect <appId>
apex (appId)> get-app-info
... "appMasterTrackingUrl": "node24.datatorrent.com:40466" …

15. Key Operators Enabling TopN Computation and Visualization
WindowedTopCounter<String> topCounts = dag.addOperator("TopCounter", new WindowedTopCounter<String>());
AppDataSnapshotServerMap snapshotServer = dag.addOperator("SnapshotServer", new AppDataSnapshotServerMap());
snapshotServer.setSnapshotSchemaJSON(SNAPSHOT_SCHEMA);
snapshotServer.setTableFieldToMapField(conversionMap);
PubSubWebSocketAppDataQuery wsQuery = new PubSubWebSocketAppDataQuery();
wsQuery.setUri(uri);
snapshotServer.setEmbeddableQueryInfoProvider(wsQuery);
PubSubWebSocketAppDataResult wsResult = dag.addOperator("QueryResult", new PubSubWebSocketAppDataResult());
wsResult.setUri(uri);
Operator.InputPort<String> queryResultPort = wsResult.input;
Snapshot Schema for SnapshotServer Operator
{
"values": [{"name": "url", "type": "string"},
{"name": "count", "type": "integer"}]
}
15
Snapshot Schema Apps
Available SnapshotServer Implementations
AppDataSnapshotServerMap.java
AppDataSnapshotServerPOJO.java
Example Applications with Snapshot Schema
TwitterTopCounterApplication.java (twitter)
ApplicationAppData.java (pi demo)
Twitter Demo Logical Plan with Snapshot Schema

16. Dimensions Schema for DimensionsComputation Operator
{
"keys":[{"name":"channel","type":"string","enumValues":["Mobile","Online","Store"]},
{"name":"region","type":"string","enumValues":["Dallas","New York","San Francisco", ... ]},
{"name":"product","type":"string","enumValues":["Laptops","Printers","Routers", ...]}],
"timeBuckets":["1m", "1h", "1d", "5m"],
"values":
[{"name":"sales","type":"double","aggregators":["SUM"]},
{"name":"discount","type":"double","aggregators":["SUM"]},
{"name":"tax","type":"double","aggregators":["SUM"]}],
"dimensions":
[{"combination":[]},
{"combination":["region"]},
{"combination":["product"]},
{"combination":["channel","product"]},
{"combination":["channel","region","product"]}]
}
// full schema -> salesGenericEventSchema.json
16
Dimensions Schema Apps
Key Operators Enabling Dimensions Computation and
Visualization
DimensionsComputationFlexibleSingleSchemaMap dimensions =
dag.addOperator("DimensionsComputation", DimensionsComputationFlexibleSingleSchemaMap.class);
AppDataSingleSchemaDimensionStoreHDHT store = dag.addOperator("Store",
AppDataSingleSchemaDimensionStoreHDHT.class);
PubSubWebSocketAppDataQuery wsIn = new PubSubWebSocketAppDataQuery();
store.setEmbeddableQueryInfoProvider(wsIn);
PubSubWebSocketAppDataResult wsOut = dag.addOperator("QueryResult", new
PubSubWebSocketAppDataResult());
Example Applications with Dimensions Schema
CDRDemoV2.java
SalesDemo.java
Sales Demo Logical Plan with Dimensions Schema

17. 3. Create ui.json in Apex app project folder under
<Apex App>/src/main/resources/resources/ui/ui.json
{
"dashboards": [
{
"file": "TwitterDemo.dtdashboard"
},
{
"name": "Sales Dimensions Demo",
"file": "SalesDemo.dtdashboard",
"appNames": ["SalesDemo-Sasha", "SalesDemo"]
}
]
}
// "appNames" is used to auto-associate packaged dashboards with running apps
4. Compile Apex app project and verify .apa package has
myApp.apa
+ resources/
+ ui/
- ui.json
+ dashboards/
- TwitterDemo.dtdashboard
- SalesDemo.dtdashboard
17
Exporting and Packaging Dashboards
1. Create and download dashboard from UI Console
2. Copy dashboards to Apex app project folder under
<Apex App>/src/main/resources/resources/ui/dashboards/
- TwitterDemo.dtdashboard
- SalesDemo.dtdashboard

18. Questions?
18

19. Sasha Parfenov
sashap@apache.org
@utdsasha
Thank You!
19

20. Resources
• Apache Apex - http://apex.apache.org/
• Subscribe to forums
ᵒ Apex - http://apex.apache.org/community.html
ᵒ DataTorrent - https://groups.google.com/forum/#!forum/dt-users
• Download - https://datatorrent.com/download/
• Twitter
ᵒ @ApacheApex; Follow - https://twitter.com/apacheapex
ᵒ @DataTorrent; Follow – https://twitter.com/datatorrent
• Meetups - http://meetup.com/topics/apache-apex
• Webinars - https://datatorrent.com/webinars/
• Videos - https://youtube.com/user/DataTorrent
• Slides - http://slideshare.net/DataTorrent/presentations
• Startup Accelerator Program - Full featured enterprise product
ᵒ https://datatorrent.com/product/start-up-accelerator/
• Big Data Application Templates/Examples – https://datatorrent.com/apphub
20
