The document outlines various industrial flooring and coating solutions designed for applications in environments such as hospitals, laboratories, and oil refineries, focusing on features like chemical resistance, durability, and ease of application. Products mentioned include Sealerkote, Chemkote, Insulkote, and multiple specialized coatings, each serving distinct purposes like sealing, protection against corrosion, and electrical insulation. Additionally, it highlights the use of UV coatings, anti-skid coatings, and fire-resistant cable coatings in enhancing safety and performance in critical settings.

1. Single Source Solutions for Cooling, Coating, Cleaning, Chemical Injection and More…

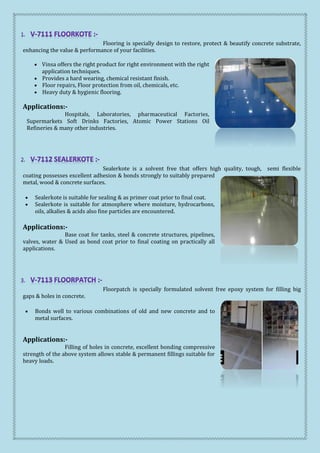

3. Flooring is specially design to restore, protect & beautify concrete substrate,
enhancing the value & performance of your facilities.
 Vinsa offers the right product for right environment with the right
application techniques.
 Provides a hard wearing, chemical resistant finish.
 Floor repairs, Floor protection from oil, chemicals, etc.
 Heavy duty & hygienic flooring.
Applications:-
Hospitals, Laboratories, pharmaceutical Factories,
Supermarkets Soft Drinks Factories, Atomic Power Stations Oil
Refineries & many other industries.
Sealerkote is a solvent free that offers high quality, tough, semi flexible
coating possesses excellent adhesion & bonds strongly to suitably prepared
metal, wood & concrete surfaces.
 Sealerkote is suitable for sealing & as primer coat prior to final coat.
 Sealerkote is suitable for atmosphere where moisture, hydrocarbons,
oils, alkalies & acids also fine particles are encountered.
Applications:-
Base coat for tanks, steel & concrete structures, pipelines,
valves, water & Used as bond coat prior to final coating on practically all
applications.
Floorpatch is specially formulated solvent free epoxy system for filling big
gaps & holes in concrete.
 Bonds well to various combinations of old and new concrete and to
metal surfaces.
Applications:-
Filling of holes in concrete, excellent bonding compressive
strength of the above system allows stable & permanent fillings suitable for
heavy loads.

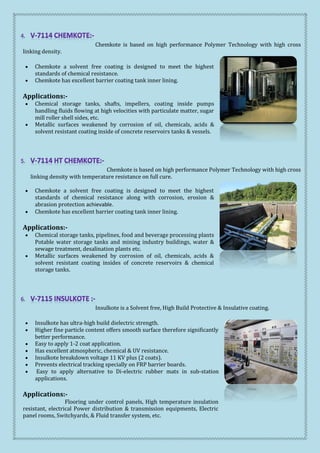

4. Chemkote is based on high performance Polymer Technology with high cross
linking density.
 Chemkote a solvent free coating is designed to meet the highest
standards of chemical resistance.
 Chemkote has excellent barrier coating tank inner lining.
Applications:-
 Chemical storage tanks, shafts, impellers, coating inside pumps
handling fluids flowing at high velocities with particulate matter, sugar
mill roller shell sides, etc.
 Metallic surfaces weakened by corrosion of oil, chemicals, acids &
solvent resistant coating inside of concrete reservoirs tanks & vessels.
Chemkote is based on high performance Polymer Technology with high cross
linking density with temperature resistance on full cure.
 Chemkote a solvent free coating is designed to meet the highest
standards of chemical resistance along with corrosion, erosion &
abrasion protection achievable.
 Chemkote has excellent barrier coating tank inner lining.
Applications:-
 Chemical storage tanks, pipelines, food and beverage processing plants
Potable water storage tanks and mining industry buildings, water &
sewage treatment, desalination plants etc.
 Metallic surfaces weakened by corrosion of oil, chemicals, acids &
solvent resistant coating insides of concrete reservoirs & chemical
storage tanks.
Insulkote is a Solvent free, High Build Protective & Insulative coating.
 Insulkote has ultra-high build dielectric strength.
 Higher fine particle content offers smooth surface therefore significantly
better performance.
 Easy to apply 1-2 coat application.
 Has excellent atmospheric, chemical & UV resistance.
 Insulkote breakdown voltage 11 KV plus (2 coats).
 Prevents electrical tracking specially on FRP barrier boards.
 Easy to apply alternative to Di-electric rubber mats in sub-station
applications.
Applications:-
Flooring under control panels, High temperature insulation
resistant, electrical Power distribution & transmission equipments, Electric
panel rooms, Switchyards, & Fluid transfer system, etc.

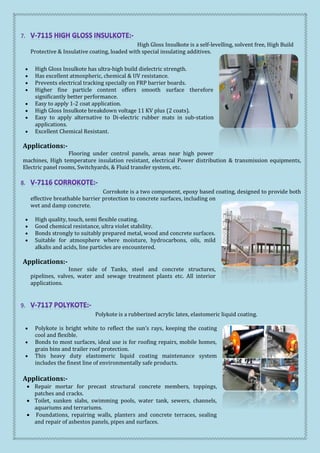

5. High Gloss Insulkote is a self-levelling, solvent free, High Build
Protective & Insulative coating, loaded with special insulating additives.
 High Gloss Insulkote has ultra-high build dielectric strength.
 Has excellent atmospheric, chemical & UV resistance.
 Prevents electrical tracking specially on FRP barrier boards.
 Higher fine particle content offers smooth surface therefore
significantly better performance.
 Easy to apply 1-2 coat application.
 High Gloss Insulkote breakdown voltage 11 KV plus (2 coats).
 Easy to apply alternative to Di-electric rubber mats in sub-station
applications.
 Excellent Chemical Resistant.
Applications:-
Flooring under control panels, areas near high power
machines, High temperature insulation resistant, electrical Power distribution & transmission equipments,
Electric panel rooms, Switchyards, & Fluid transfer system, etc.
Corrokote is a two component, epoxy based coating, designed to provide both
effective breathable barrier protection to concrete surfaces, including on
wet and damp concrete.
 High quality, touch, semi flexible coating.
 Good chemical resistance, ultra violet stability.
 Bonds strongly to suitably prepared metal, wood and concrete surfaces.
 Suitable for atmosphere where moisture, hydrocarbons, oils, mild
alkalis and acids, line particles are encountered.
Applications:-
Inner side of Tanks, steel and concrete structures,
pipelines, valves, water and sewage treatment plants etc. All interior
applications.
Polykote is a rubberized acrylic latex, elastomeric liquid coating.
 Polykote is bright white to reflect the sun’s rays, keeping the coating
cool and flexible.
 Bonds to most surfaces, ideal use is for roofing repairs, mobile homes,
grain bins and trailer roof protection.
 This heavy duty elastomeric liquid coating maintenance system
includes the finest line of environmentally safe products.
Applications:-
 Repair mortar for precast structural concrete members, toppings,
patches and cracks.
 Toilet, sunken slabs, swimming pools, water tank, sewers, channels,
aquariums and terrariums.
 Foundations, repairing walls, planters and concrete terraces, sealing
and repair of asbestos panels, pipes and surfaces.

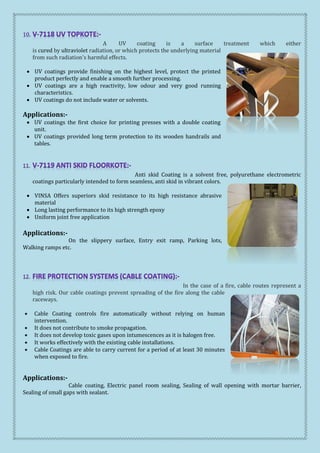

6. A UV coating is a surface treatment which either
is cured by ultraviolet radiation, or which protects the underlying material
from such radiation's harmful effects.
 UV coatings provide finishing on the highest level, protect the printed
product perfectly and enable a smooth further processing.
 UV coatings are a high reactivity, low odour and very good running
characteristics.
 UV coatings do not include water or solvents.
Applications:-
 UV coatings the first choice for printing presses with a double coating
unit.
 UV coatings provided long term protection to its wooden handrails and
tables.
Anti skid Coating is a solvent free, polyurethane electrometric
coatings particularly intended to form seamless, anti skid in vibrant colors.
 VINSA Offers superiors skid resistance to its high resistance abrasive
material
 Long lasting performance to its high strength epoxy
 Uniform joint free application
Applications:-
On the slippery surface, Entry exit ramp, Parking lots,
Walking ramps etc.
In the case of a fire, cable routes represent a
high risk. Our cable coatings prevent spreading of the fire along the cable
raceways.
 Cable Coating controls fire automatically without relying on human
intervention.
 It does not contribute to smoke propagation.
 It does not develop toxic gases upon intumescences as it is halogen free.
 It works effectively with the existing cable installations.
 Cable Coatings are able to carry current for a period of at least 30 minutes
when exposed to fire.
Applications:-
Cable coating, Electric panel room sealing, Sealing of wall opening with mortar barrier,
Sealing of small gaps with sealant.

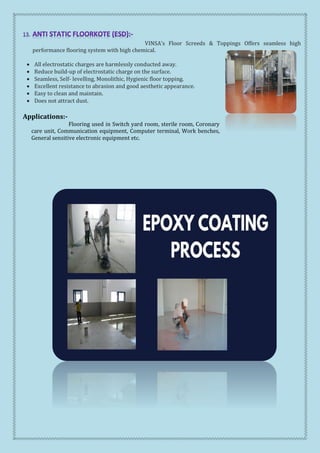

7. VINSA’s Floor Screeds & Toppings Offers seamless high
performance flooring system with high chemical.
 All electrostatic charges are harmlessly conducted away.
 Reduce build-up of electrostatic charge on the surface.
 Seamless, Self- levelling, Monolithic, Hygienic floor topping.
 Excellent resistance to abrasion and good aesthetic appearance.
 Easy to clean and maintain.
 Does not attract dust.
Applications:-
Flooring used in Switch yard room, sterile room, Coronary
care unit, Communication equipment, Computer terminal, Work benches,
General sensitive electronic equipment etc.
