1. Video Coding for Large-Scale
HTTP Adaptive Streaming
Deployments: State of the Art
and Challenges Ahead
O C T O B E R 2 0 1 8

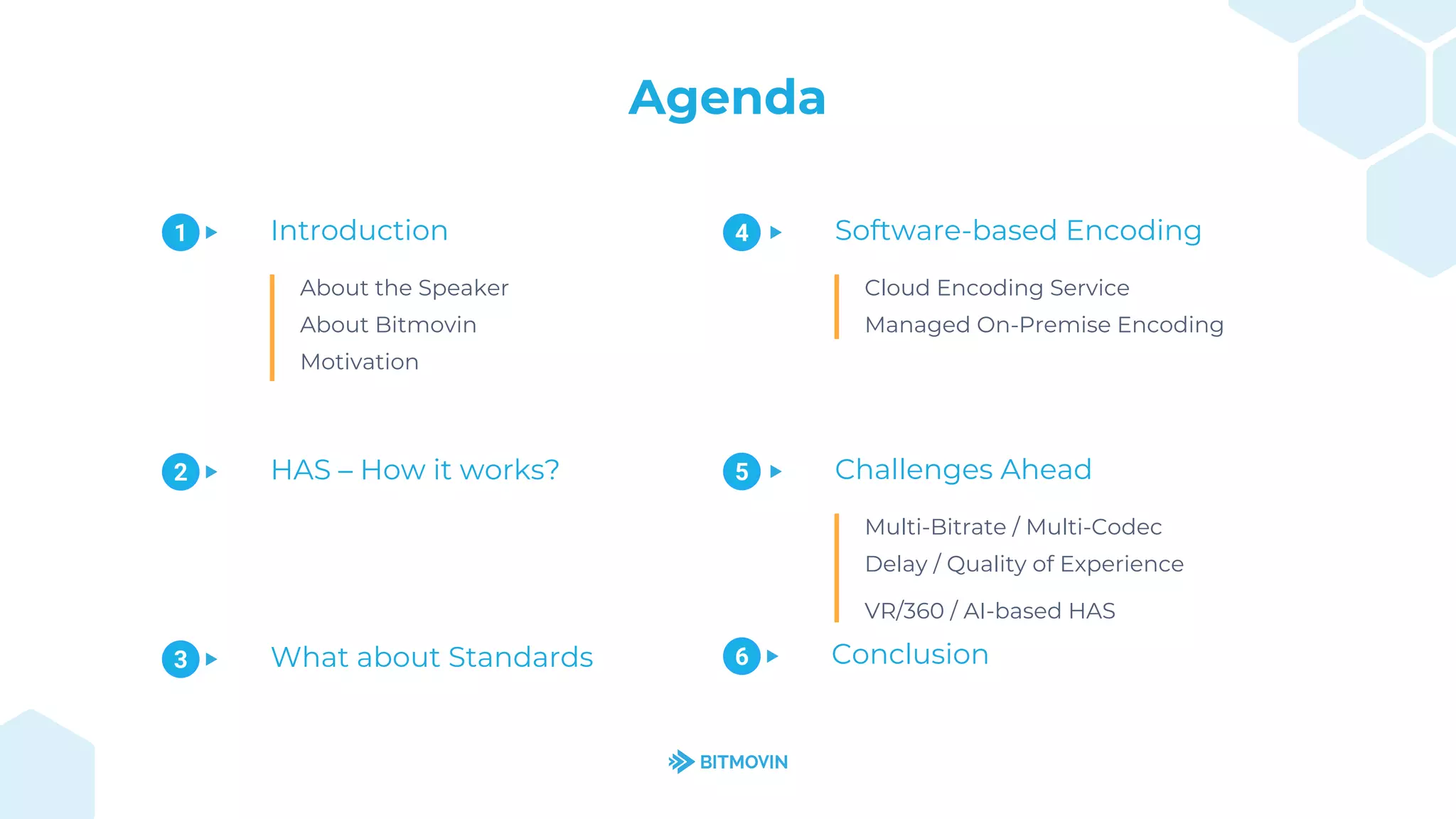

2. 1 Introduction
About the Speaker
About Bitmovin
Motivation
HAS – How it works?
Software-based Encoding
Cloud Encoding Service
Managed On-Premise Encoding
Challenges Ahead
Multi-Bitrate / Multi-Codec
Delay / Quality of Experience
VR/360 / AI-based HAS
2 5
4
Agenda
What about Standards3 Conclusion6

3. Associate Professor at the Institute of Information Technology
(ITEC), Multimedia Communication Group (MMC), Alpen-Adria-
Universität Klagenfurt, Austria; Web: http://itec.aau.at/
Co-founder and CIO | Head of Research and Standardization at
Bitmovin; Web: https://bitmovin.com/
Research Interests: immersive multimedia communication,
streaming, adaptation, and Quality of experience (QoE)
Blog: http://blog.timmerer.com/
Twitter: @timse7
LinkedIn: https://www.linkedin.com/in/christiantimmerer/
SlideShare: https://www.slideshare.net/christian.timmerer
About the Speaker
3

4. Software to Solve Complex Video Problems
https://bitmovin.com/
About Bitmovin
4
Encoding
Player
Analytics
Massively distributed video encoding
that runs everywhere
Deliver High Quality Video everywhere
Control and present your data the way
your team needs it

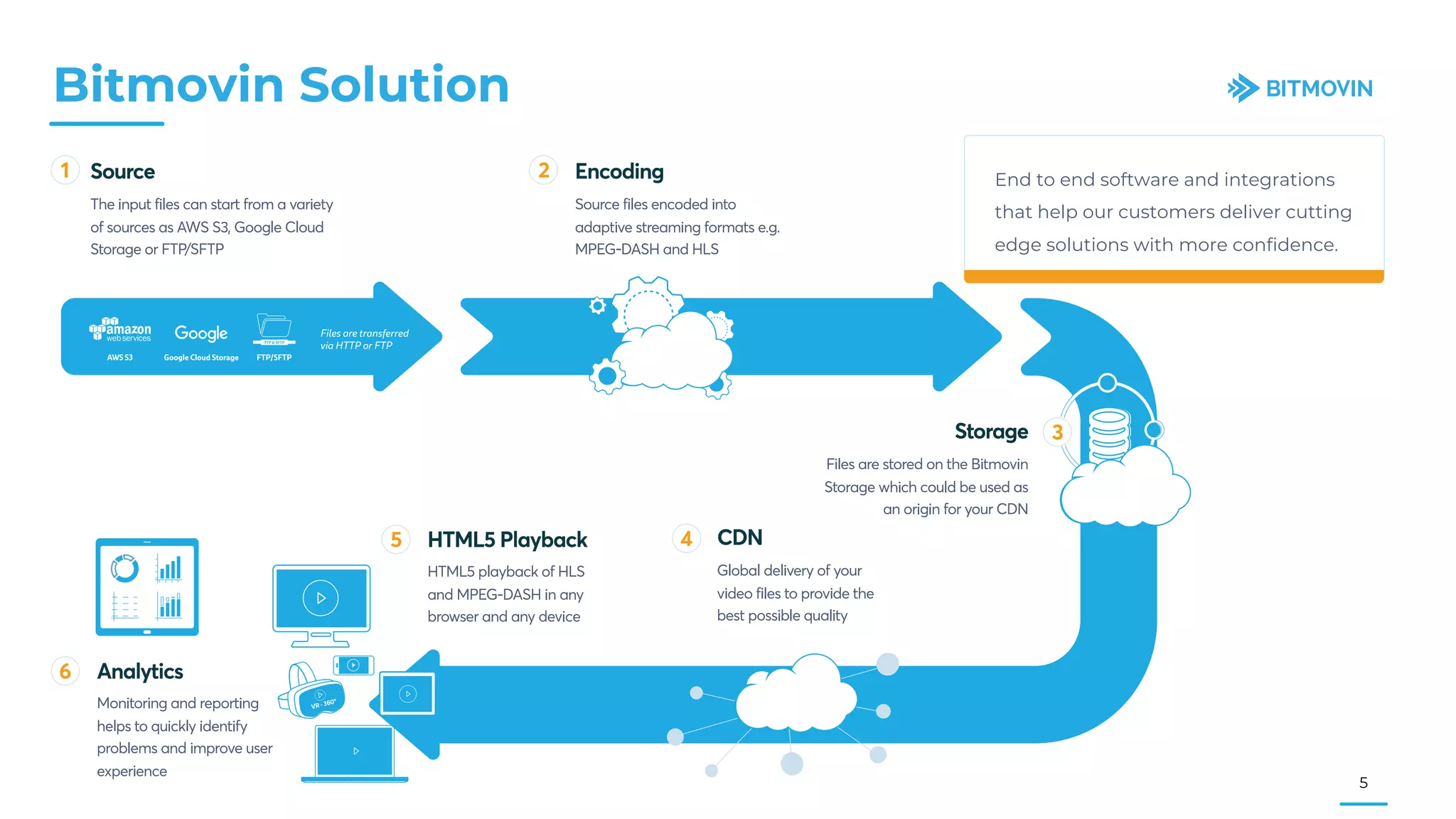

5. Bitmovin Solution
5
End to end software and integrations
that help our customers deliver cutting
edge solutions with more confidence.

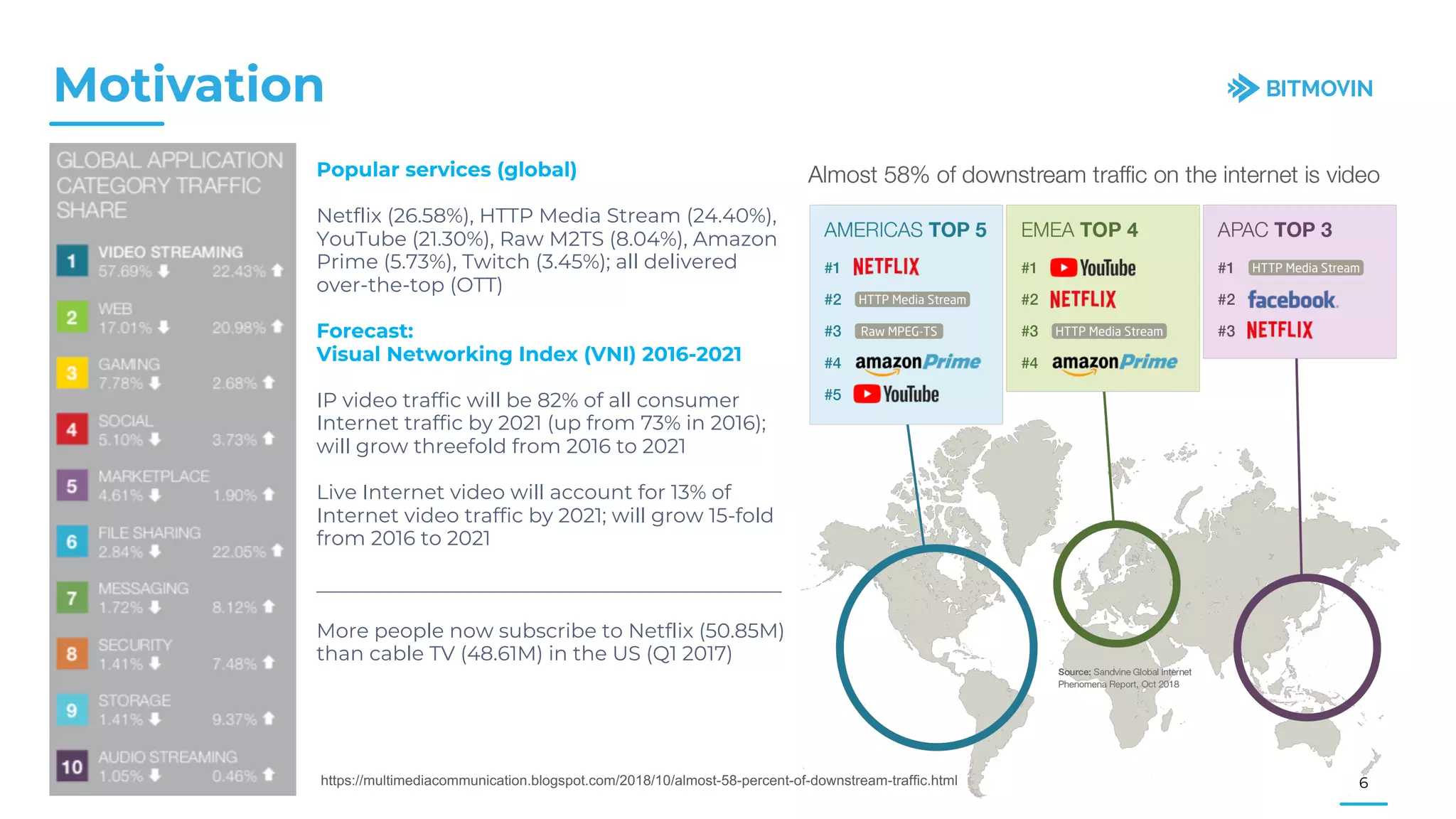

6. Popular services (global)
Netflix (26.58%), HTTP Media Stream (24.40%),
YouTube (21.30%), Raw M2TS (8.04%), Amazon
Prime (5.73%), Twitch (3.45%); all delivered
over-the-top (OTT)
Forecast:
Visual Networking Index (VNI) 2016-2021
IP video traffic will be 82% of all consumer
Internet traffic by 2021 (up from 73% in 2016);
will grow threefold from 2016 to 2021
Live Internet video will account for 13% of
Internet video traffic by 2021; will grow 15-fold
from 2016 to 2021
______________________________________________
More people now subscribe to Netflix (50.85M)
than cable TV (48.61M) in the US (Q1 2017)
Motivation
6https://multimediacommunication.blogspot.com/2018/10/almost-58-percent-of-downstream-traffic.html

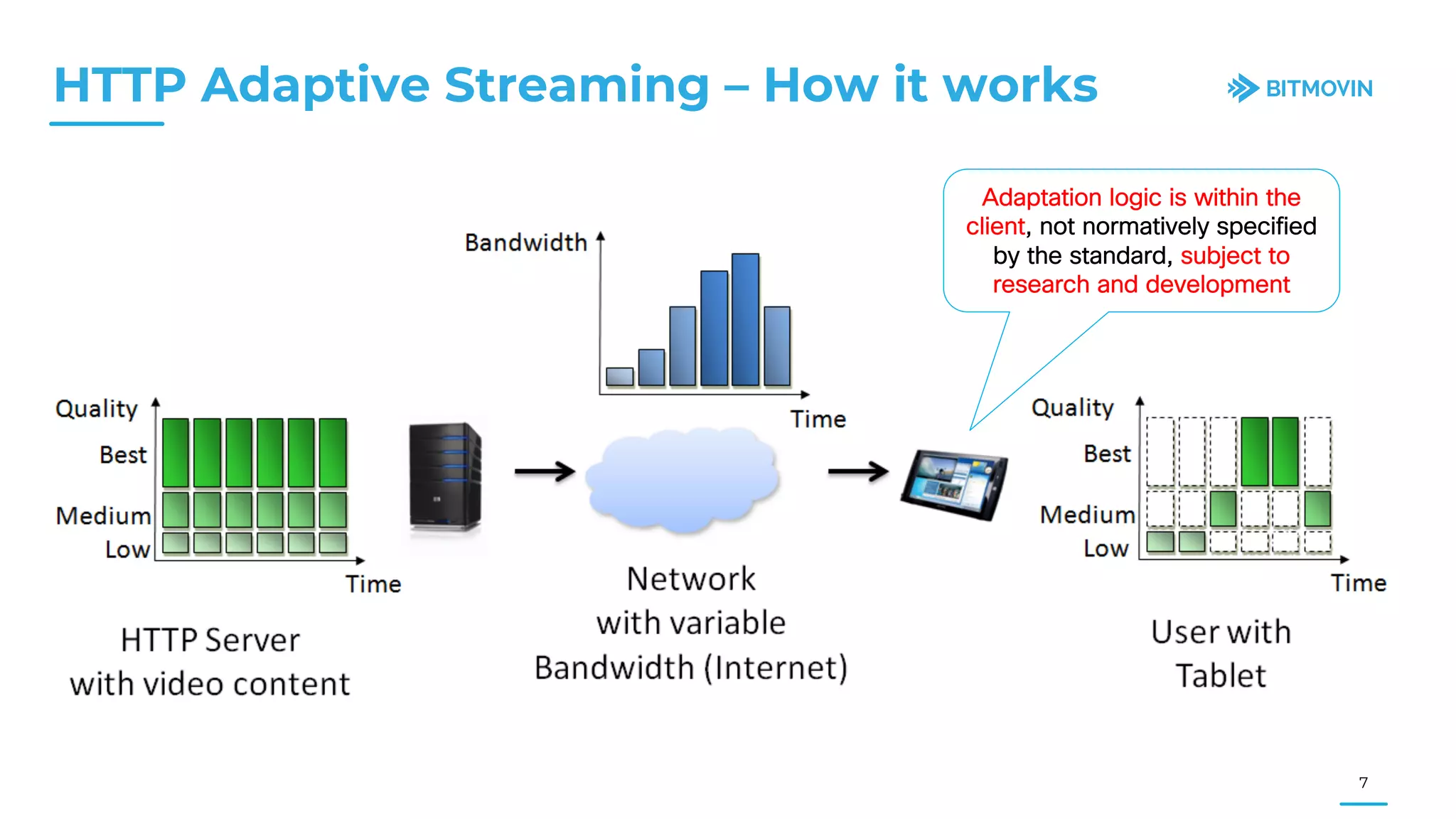

7. HTTP Adaptive Streaming – How it works
7
Adaptation logic is within the
client, not normatively specified
by the standard, subject to
research and development

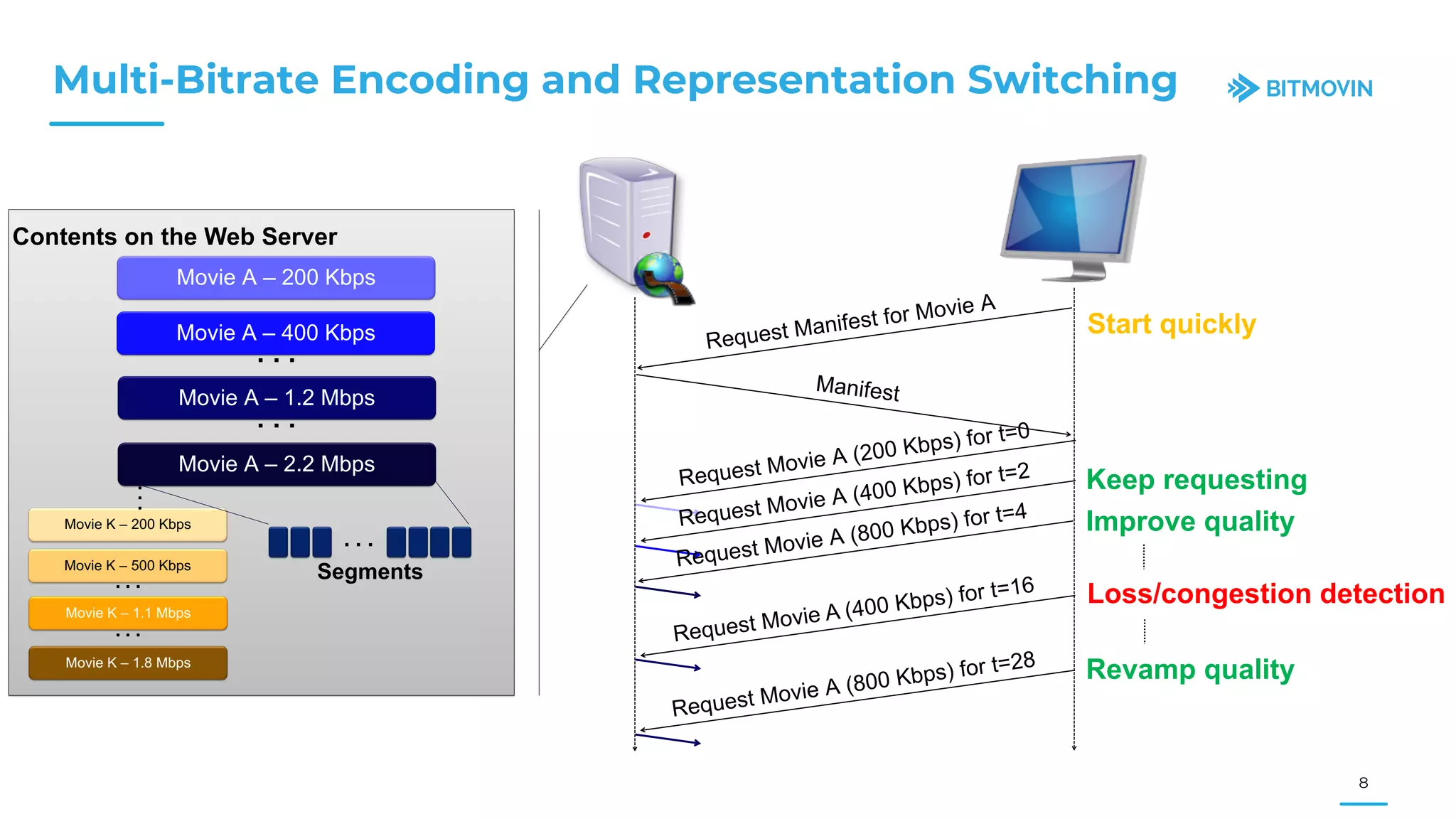

8. Multi-Bitrate Encoding and Representation Switching
8
Contents on the Web Server
Request Movie A (200 Kbps) for t=0
Movie A – 200 Kbps
Movie A – 400 Kbps
Movie A – 1.2 Mbps
Movie A – 2.2 Mbps
. . .
. . .
Request Movie A (400 Kbps) for t=16
Request Movie A (800 Kbps) for t=28
Request Manifest for Movie A
Movie K – 200 Kbps
Movie K – 500 Kbps
Movie K – 1.1 Mbps
Movie K – 1.8 Mbps
. . .
. . .
Start quickly
Keep requesting
Improve quality
Loss/congestion detection
Revamp quality
...
. . .
Segments
Manifest
Request Movie A (400 Kbps) for t=2
Request Movie A (800 Kbps) for t=4

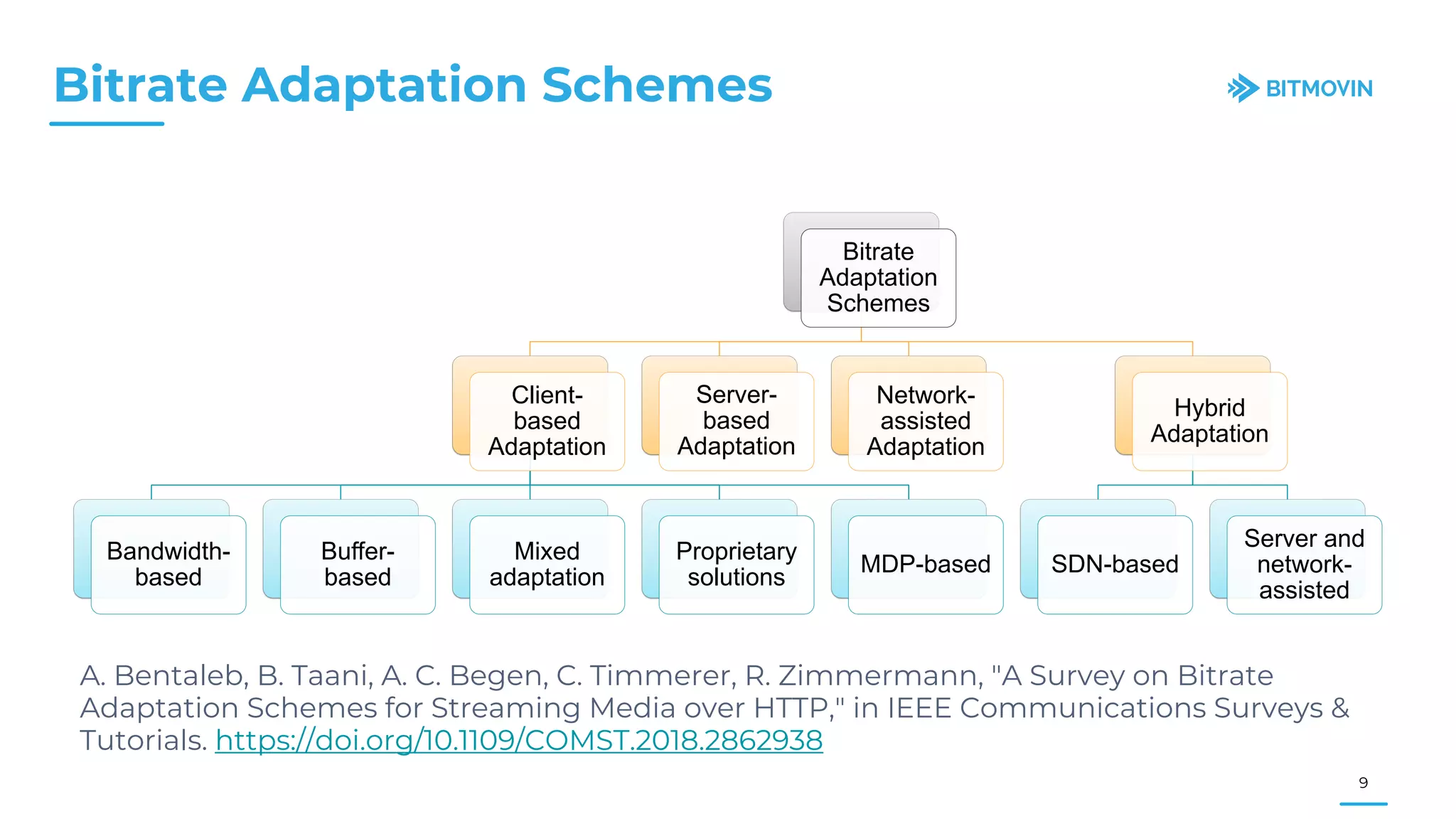

9. A. Bentaleb, B. Taani, A. C. Begen, C. Timmerer, R. Zimmermann, "A Survey on Bitrate
Adaptation Schemes for Streaming Media over HTTP," in IEEE Communications Surveys &
Tutorials. https://doi.org/10.1109/COMST.2018.2862938
Bitrate Adaptation Schemes
9
Bitrate
Adaptation
Schemes
Client-
based
Adaptation
Bandwidth-
based
Buffer-
based
Mixed
adaptation
Proprietary
solutions
MDP-based
Server-
based
Adaptation
Network-
assisted
Adaptation
Hybrid
Adaptation
SDN-based
Server and
network-
assisted

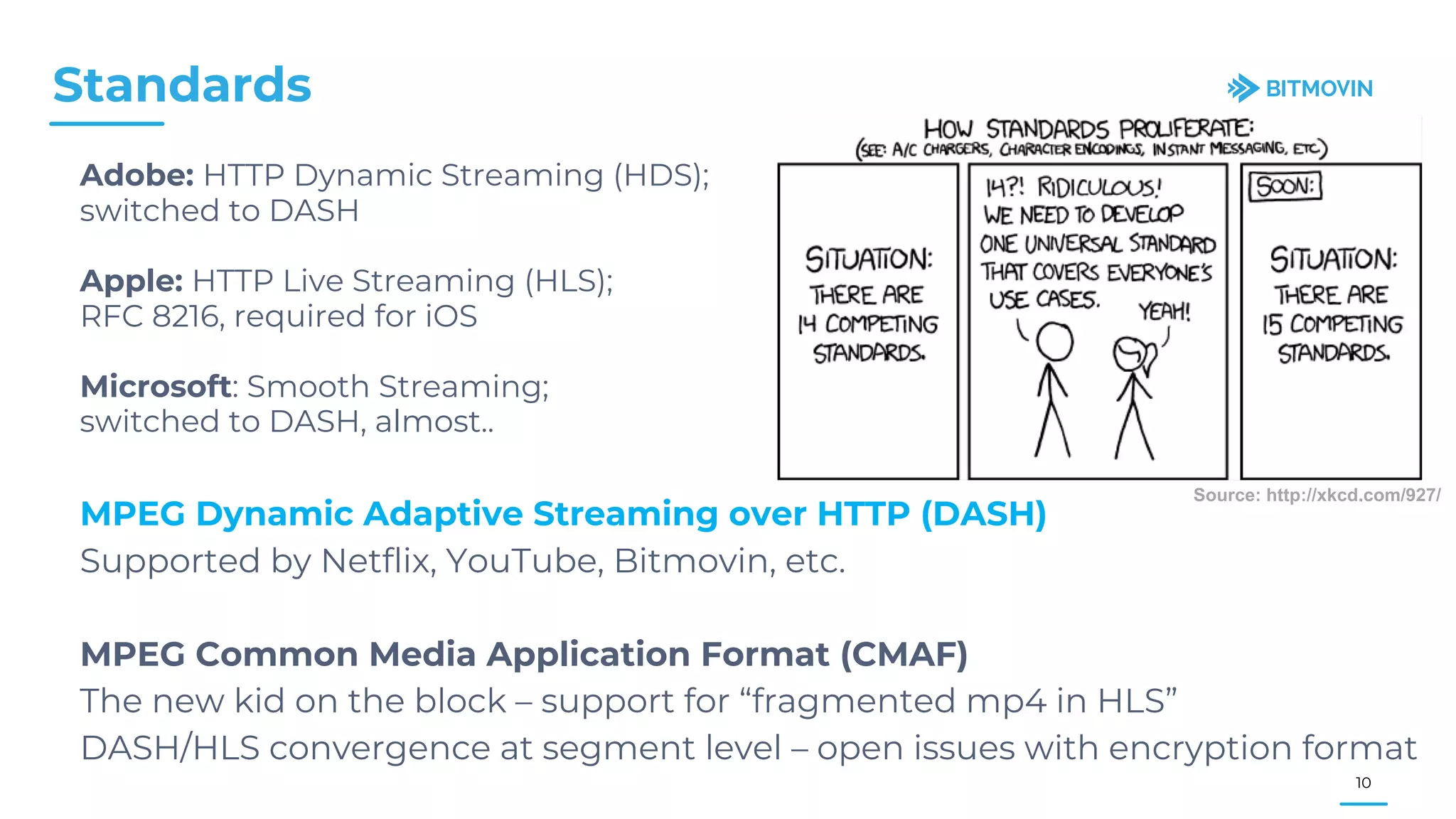

10. Adobe: HTTP Dynamic Streaming (HDS);
switched to DASH
Apple: HTTP Live Streaming (HLS);
RFC 8216, required for iOS
Microsoft: Smooth Streaming;
switched to DASH, almost..
Standards
10
Source: http://xkcd.com/927/
MPEG Dynamic Adaptive Streaming over HTTP (DASH)
Supported by Netflix, YouTube, Bitmovin, etc.
MPEG Common Media Application Format (CMAF)
The new kid on the block – support for “fragmented mp4 in HLS”
DASH/HLS convergence at segment level – open issues with encryption format

11. Scalability, speed & control
Cloud Encoding Service
11

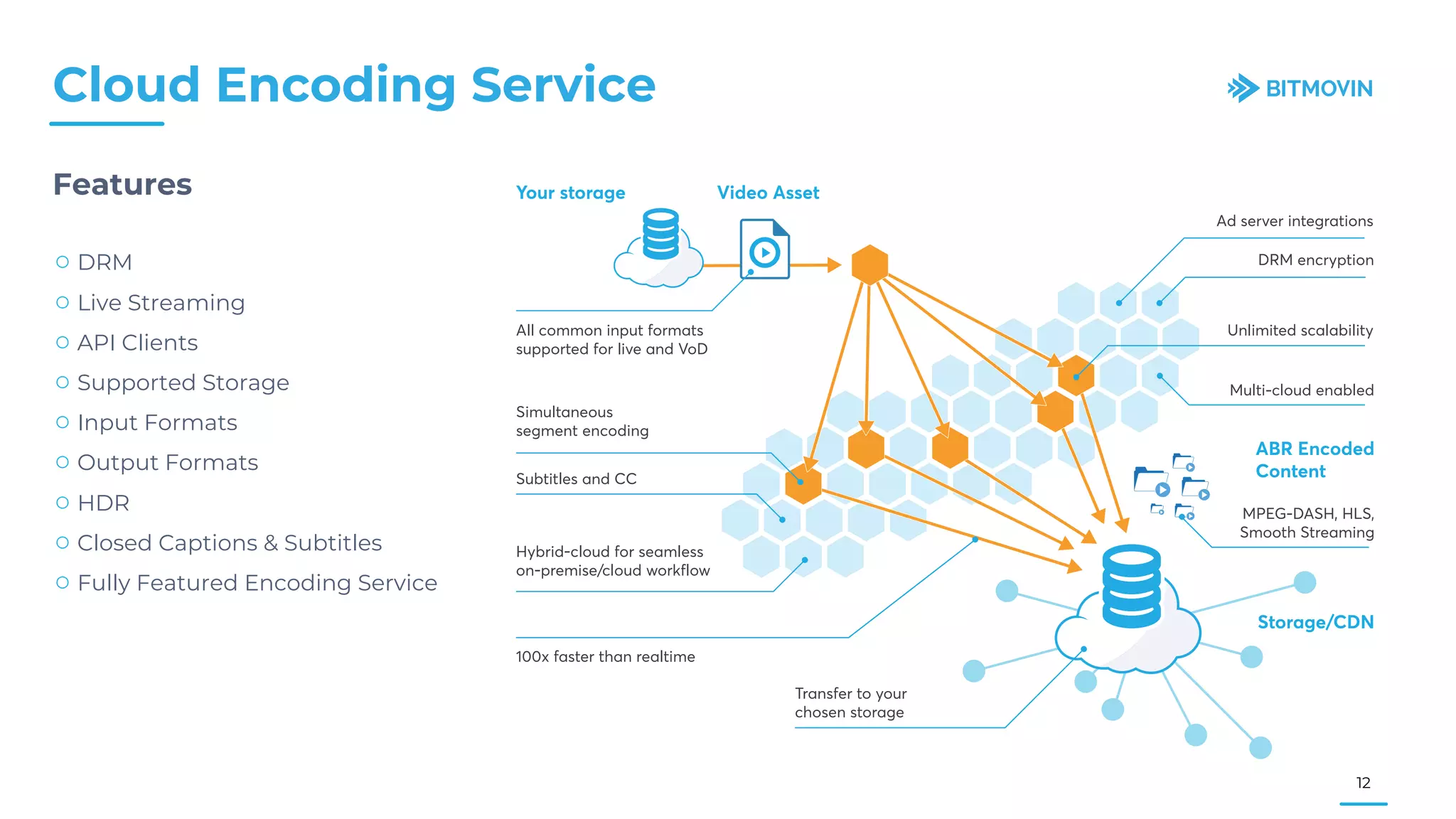

12. Cloud Encoding Service
Features
○ DRM
○ Live Streaming
○ API Clients
○ Supported Storage
○ Input Formats
○ Output Formats
○ HDR
○ Closed Captions & Subtitles
○ Fully Featured Encoding Service
12

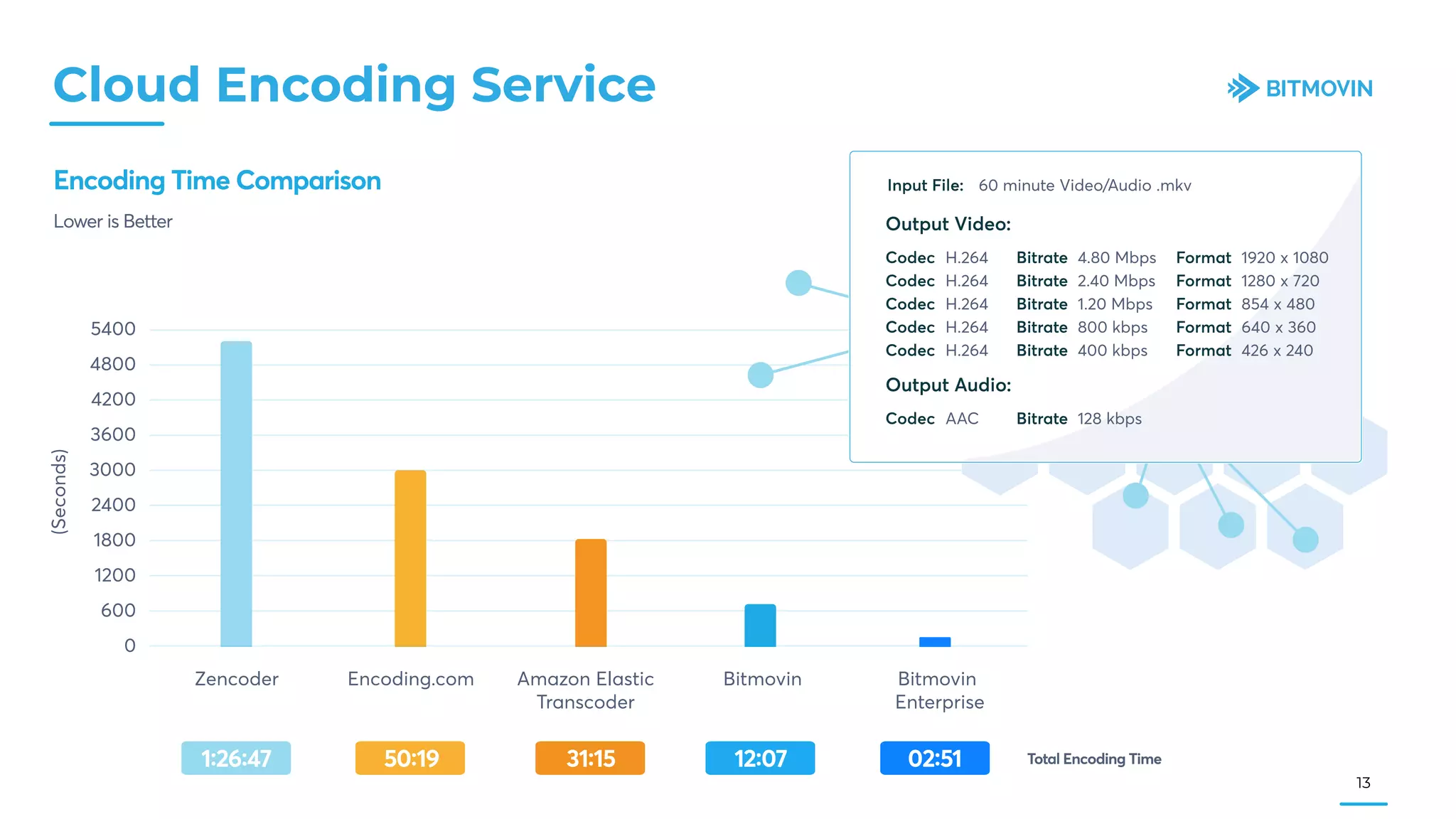

13. Cloud Encoding Service
13

14. Massively distributed video encoding that runs anywhere
Managed On-Premise Encoding
14

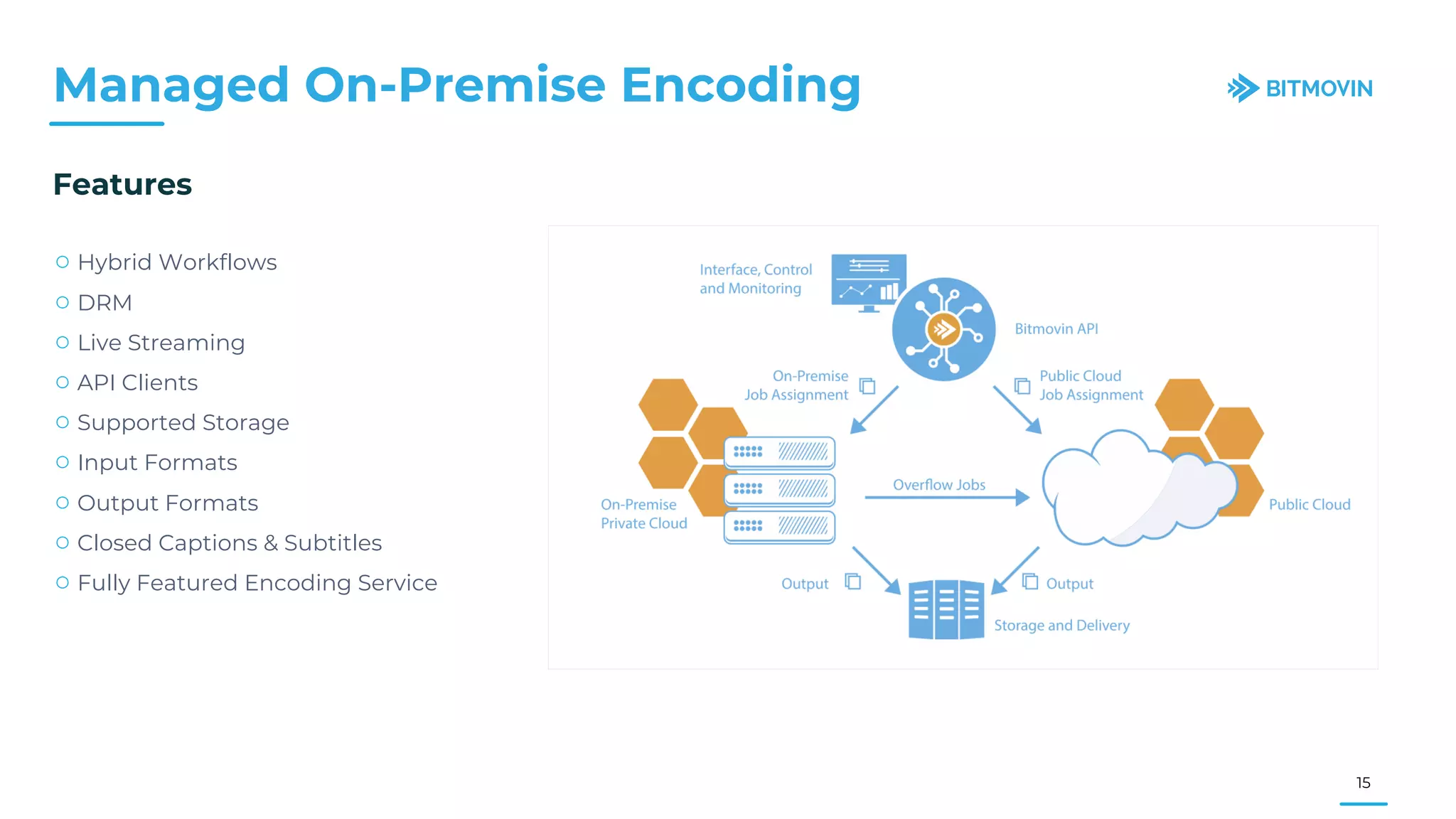

15. Managed On-Premise Encoding
○ Hybrid Workflows
○ DRM
○ Live Streaming
○ API Clients
○ Supported Storage
○ Input Formats
○ Output Formats
○ Closed Captions & Subtitles
○ Fully Featured Encoding Service
Features
15

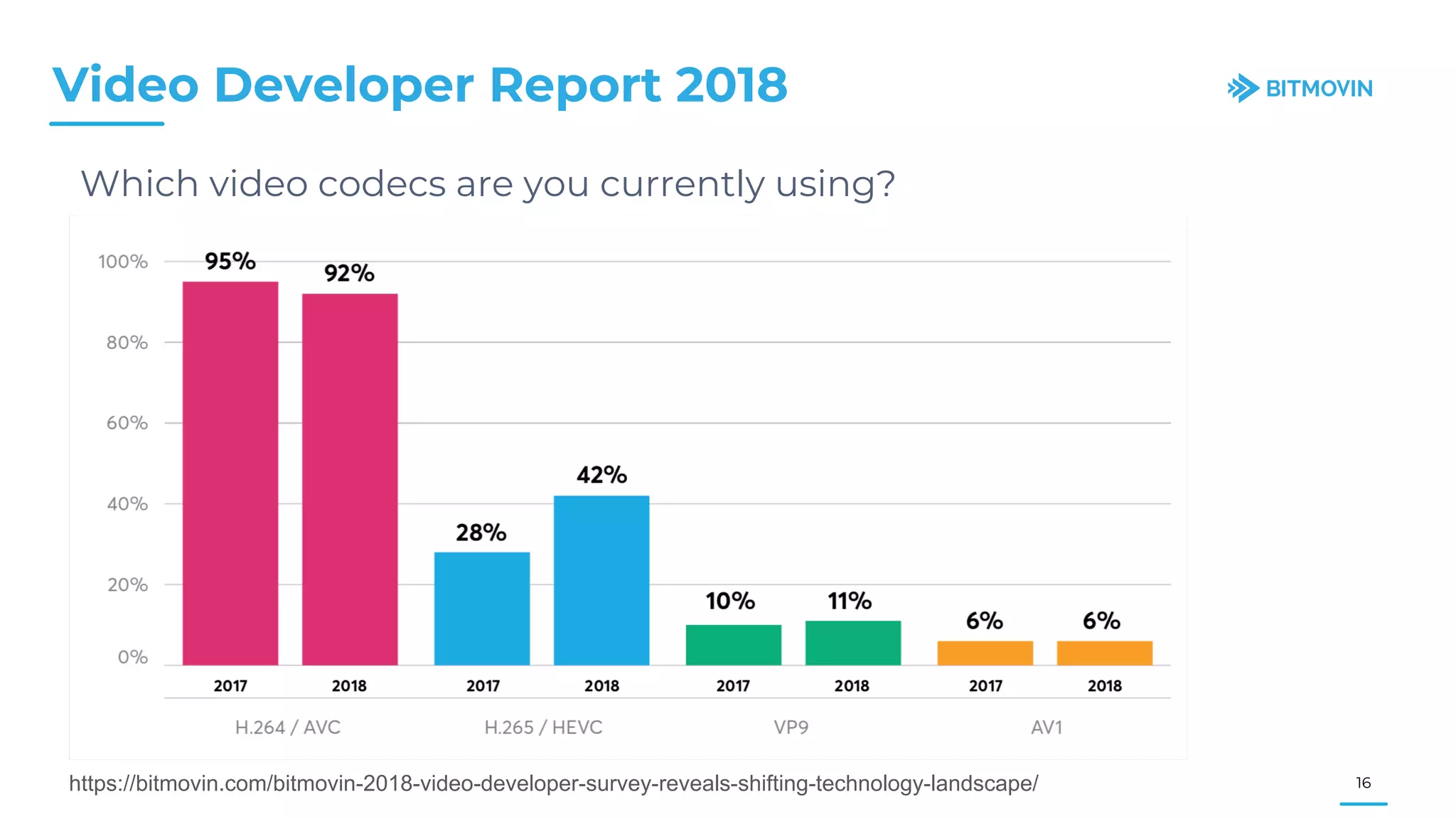

16. Which video codecs are you currently using?
Video Developer Report 2018
16https://bitmovin.com/bitmovin-2018-video-developer-survey-reveals-shifting-technology-landscape/

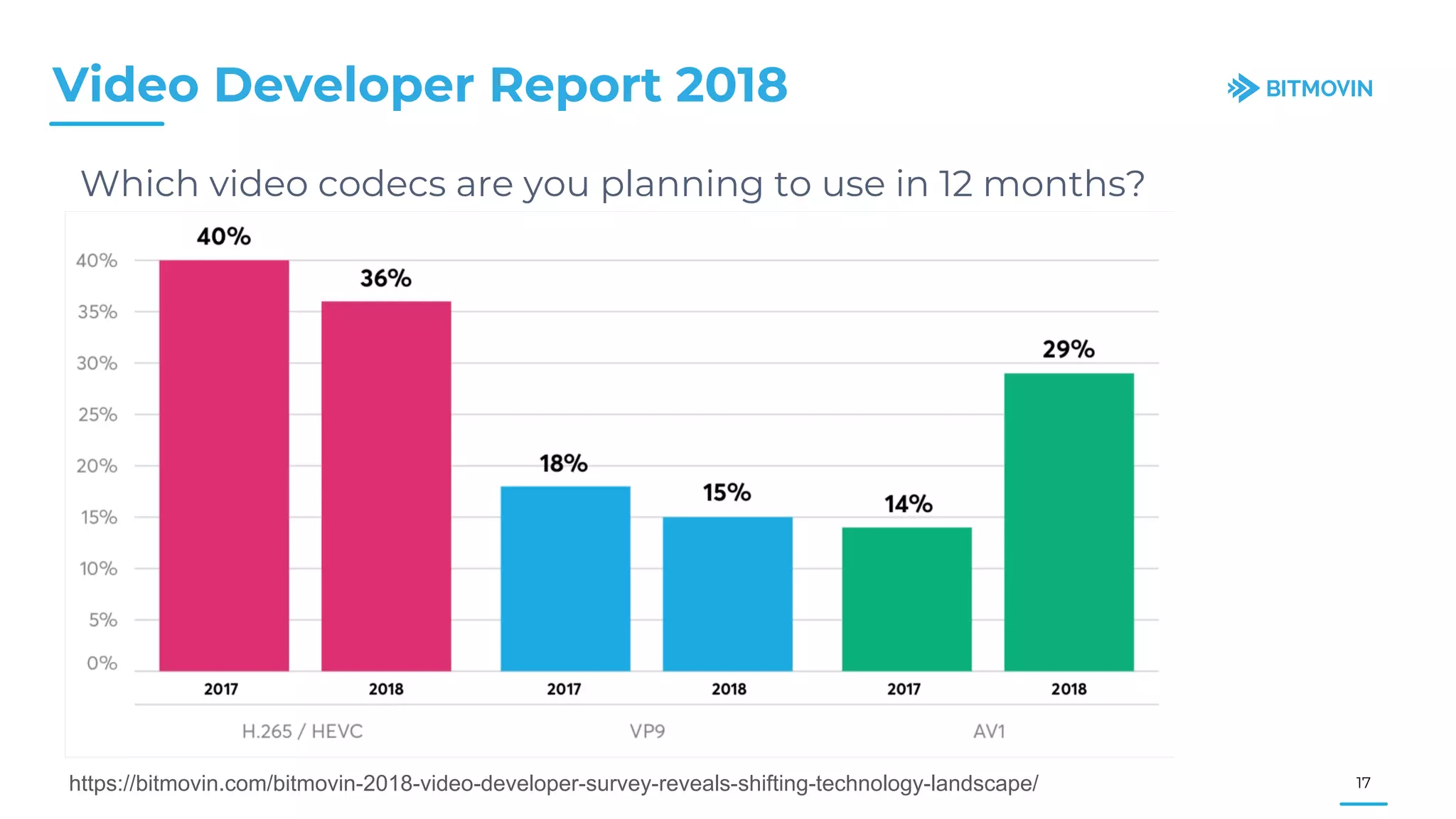

17. Which video codecs are you planning to use in 12 months?
Video Developer Report 2018
17https://bitmovin.com/bitmovin-2018-video-developer-survey-reveals-shifting-technology-landscape/

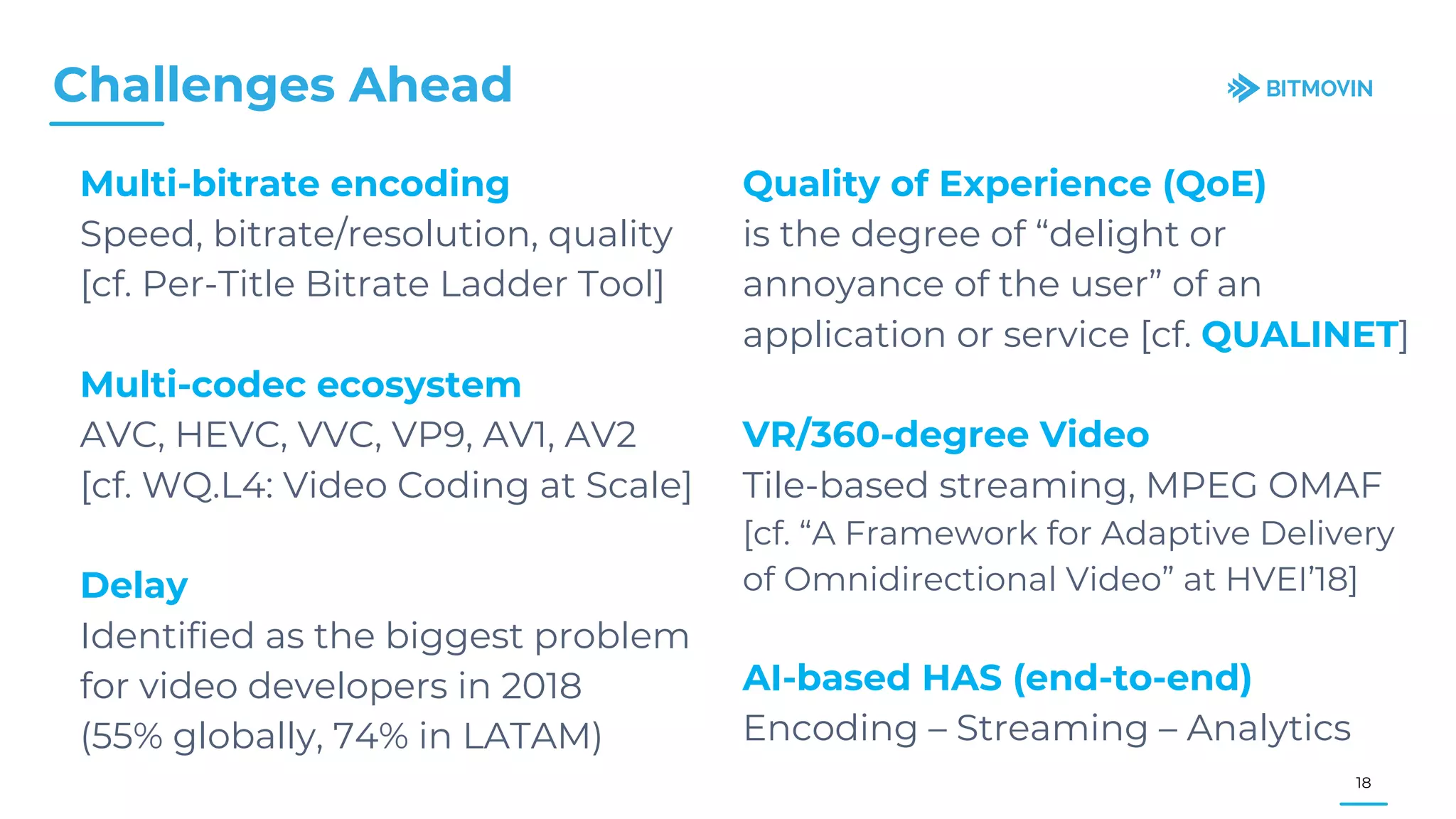

18. Multi-bitrate encoding
Speed, bitrate/resolution, quality
[cf. Per-Title Bitrate Ladder Tool]
Multi-codec ecosystem
AVC, HEVC, VVC, VP9, AV1, AV2
[cf. WQ.L4: Video Coding at Scale]
Delay
Identified as the biggest problem
for video developers in 2018
(55% globally, 74% in LATAM)
Challenges Ahead
18
Quality of Experience (QoE)
is the degree of “delight or
annoyance of the user” of an
application or service [cf. QUALINET]
VR/360-degree Video
Tile-based streaming, MPEG OMAF
[cf. “A Framework for Adaptive Delivery
of Omnidirectional Video” at HVEI’18]
AI-based HAS (end-to-end)
Encoding – Streaming – Analytics

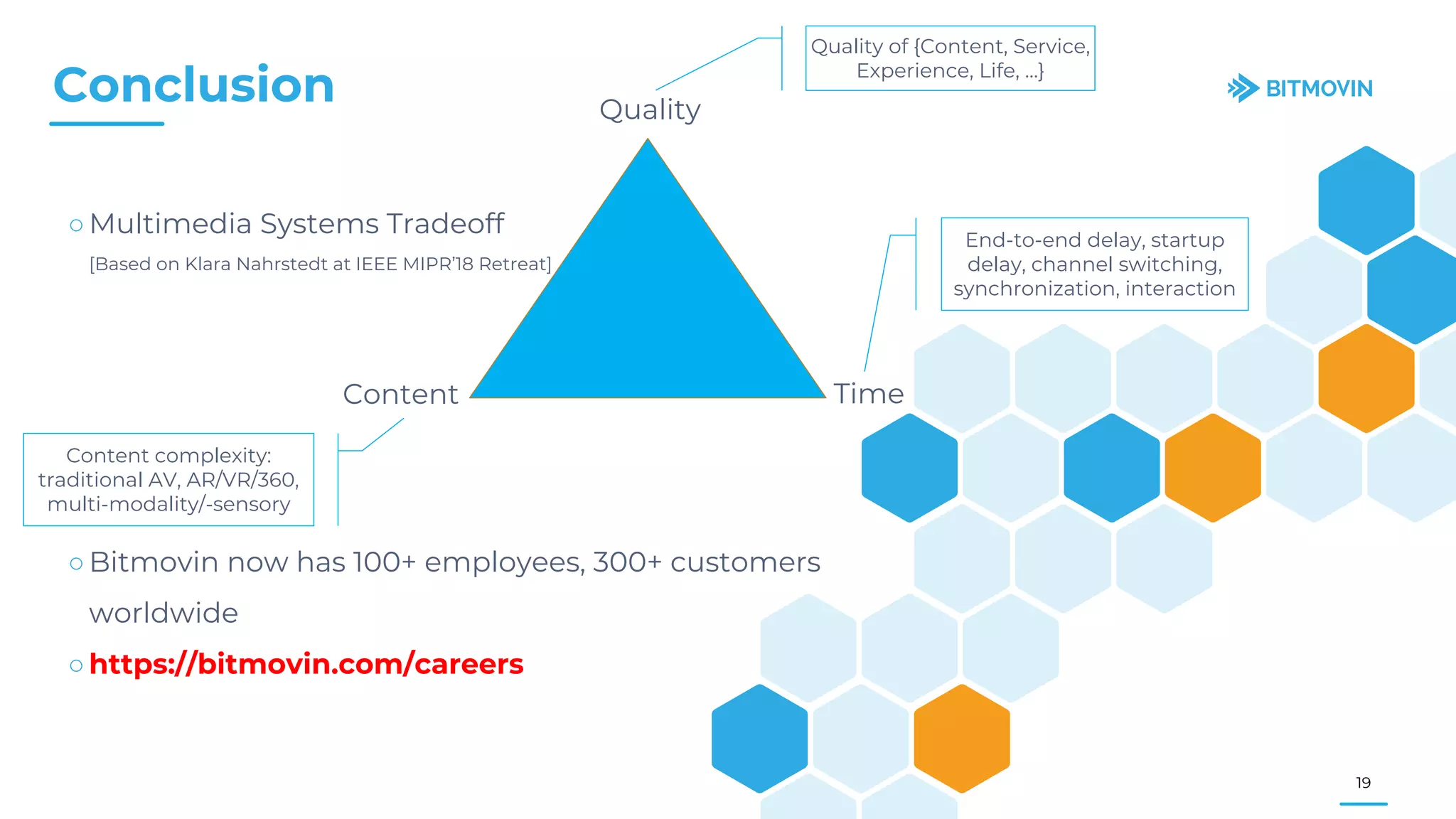

19. ○Multimedia Systems Tradeoff
[Based on Klara Nahrstedt at IEEE MIPR’18 Retreat]
○Bitmovin now has 100+ employees, 300+ customers
worldwide
○https://bitmovin.com/careers
Conclusion
19
Quality
Content Time
Quality of {Content, Service,
Experience, Life, …}
Content complexity:
traditional AV, AR/VR/360,
multi-modality/-sensory
End-to-end delay, startup
delay, channel switching,
synchronization, interaction

20. THANK YOU
QUESTIONS?
christian.timmerer@bitmovin.com
Christian Timmerer
Find Bitmovin on:

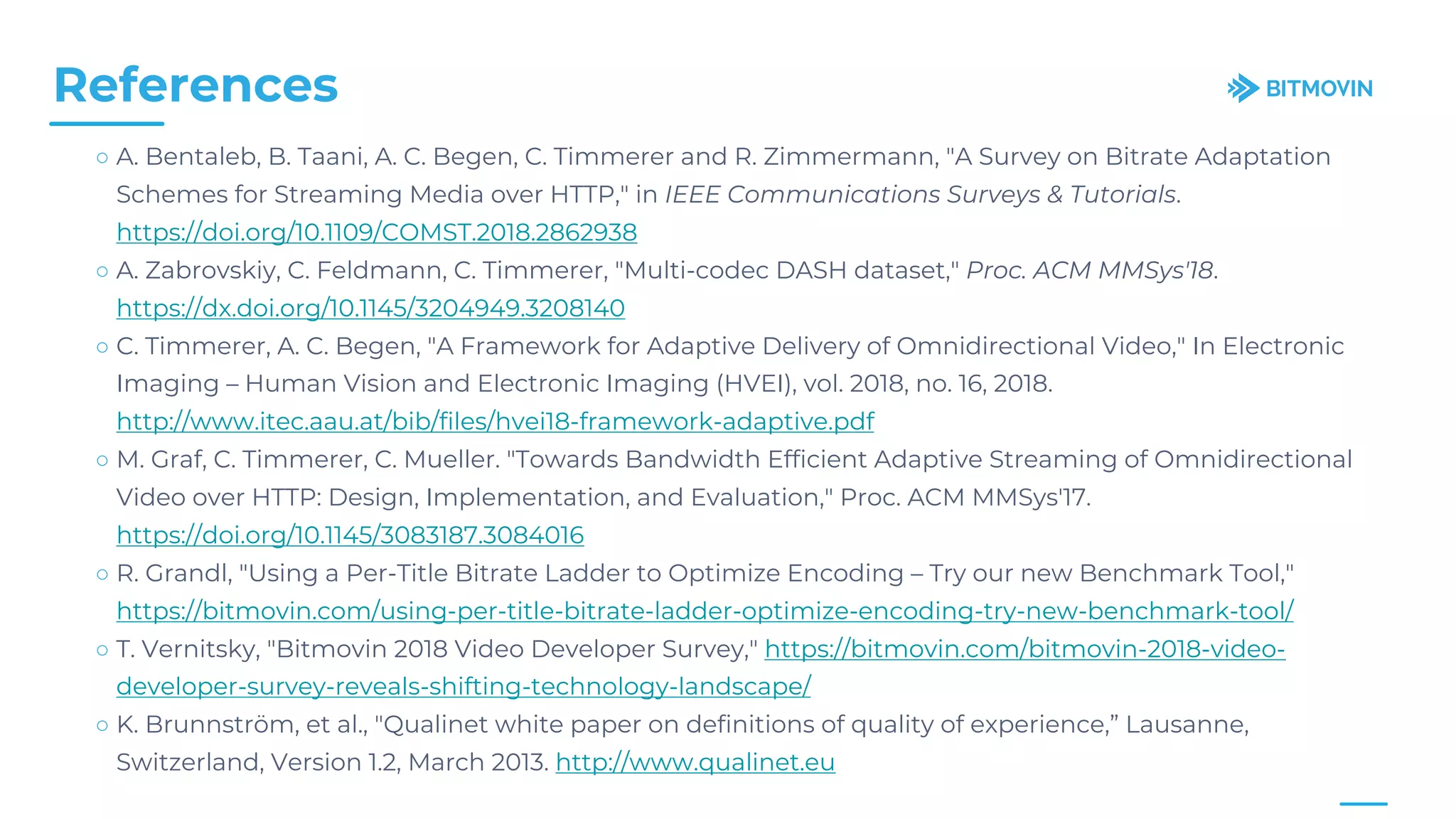

21. References
○ A. Bentaleb, B. Taani, A. C. Begen, C. Timmerer and R. Zimmermann, "A Survey on Bitrate Adaptation
Schemes for Streaming Media over HTTP," in IEEE Communications Surveys & Tutorials.
https://doi.org/10.1109/COMST.2018.2862938
○ A. Zabrovskiy, C. Feldmann, C. Timmerer, "Multi-codec DASH dataset," Proc. ACM MMSys'18.
https://dx.doi.org/10.1145/3204949.3208140
○ C. Timmerer, A. C. Begen, "A Framework for Adaptive Delivery of Omnidirectional Video," In Electronic
Imaging – Human Vision and Electronic Imaging (HVEI), vol. 2018, no. 16, 2018.
http://www.itec.aau.at/bib/files/hvei18-framework-adaptive.pdf
○ M. Graf, C. Timmerer, C. Mueller. "Towards Bandwidth Efficient Adaptive Streaming of Omnidirectional
Video over HTTP: Design, Implementation, and Evaluation," Proc. ACM MMSys'17.
https://doi.org/10.1145/3083187.3084016
○ R. Grandl, "Using a Per-Title Bitrate Ladder to Optimize Encoding – Try our new Benchmark Tool,"
https://bitmovin.com/using-per-title-bitrate-ladder-optimize-encoding-try-new-benchmark-tool/
○ T. Vernitsky, "Bitmovin 2018 Video Developer Survey," https://bitmovin.com/bitmovin-2018-video-
developer-survey-reveals-shifting-technology-landscape/
○ K. Brunnström, et al., "Qualinet white paper on definitions of quality of experience,” Lausanne,
Switzerland, Version 1.2, March 2013. http://www.qualinet.eu
