The vertical pressure leaf filter provides an efficient and compact filtration system. It uses a stainless steel mesh and filter aid to filter materials without the need for filter cloth or paper. Materials are automatically discharged from the filter through vibration. The mesh and filter aid form a filtering layer under pressure to continuously filter process materials. It is commonly used in food, chemical and pharmaceutical industries to recover activated carbon, filter molten sulphur or catalyst.

1. “Vertical Pressure Leaf Filter”

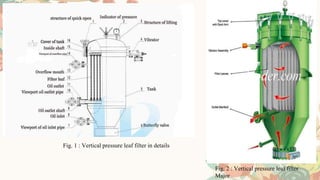

2. Fig. 1 : Vertical pressure leaf filter in details
Fig. 2 : Vertical pressure leaf filter
Major

3. Feature and Advantage
1.Reasonable structure, covering less area.
2.Efficient filtration, higher precision, lower loss of material (no need the filter cloth, filter paper or paper
element, but only consume the filter aid)
3.Discharging the slag by automatic vibrating. Easy operation and reduce the labor intensity.
4.The mesh is made of stainless steel. No need to be changed. The production can be continuous.

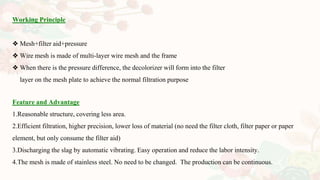

Working Principle
❖ Mesh+filter aid+pressure
❖ Wire mesh is made of multi-layer wire mesh and the frame
❖ When there is the pressure difference, the decolorizer will form into the filter
layer on the mesh plate to achieve the normal filtration purpose

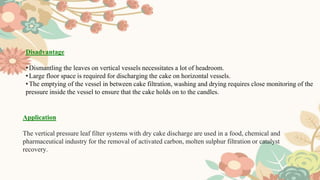

4. Disadvantage
•Dismantling the leaves on vertical vessels necessitates a lot of headroom.
•Large floor space is required for discharging the cake on horizontal vessels.
•The emptying of the vessel in between cake filtration, washing and drying requires close monitoring of the
pressure inside the vessel to ensure that the cake holds on to the candles.
Application
The vertical pressure leaf filter systems with dry cake discharge are used in a food, chemical and
pharmaceutical industry for the removal of activated carbon, molten sulphur filtration or catalyst
recovery.
