This document discusses inserting WAN optimization services into OpenStack. It introduces Cisco vWAAS, a virtual WAN optimization appliance that can be deployed on hypervisors. Use cases are described where the cloud service provider offers infrastructure only, infrastructure and services like vWAAS, or infrastructure and vWAAS but allows customers to use their own WAN optimization licenses. The document proposes collaborating to define APIs for WAN optimization as a service and developing a Cisco-specific plugin to extend vWAAS features in OpenStack.

1. WAN Optimization in Open Stack
Mani Ramasamy, Cisco Systems
Nat Chidambaram, Cisco Systems
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 1

2. • Need for WAN Optimization in Cloud
• Introduction to Cisco vWAAS
• Use Cases
• Insertion of WAN Optimization service in Open Stack
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2

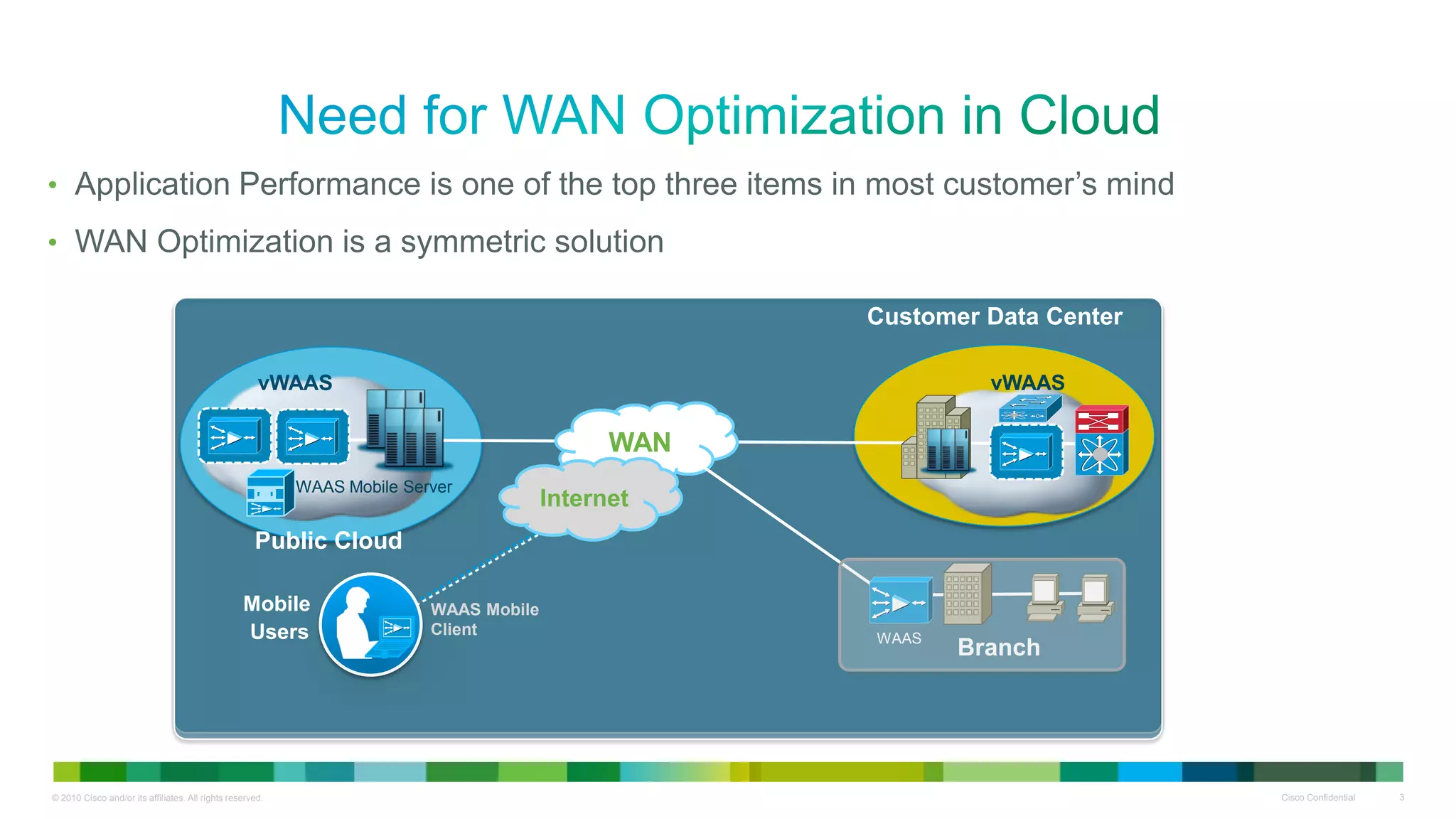

3. • Application Performance is one of the top three items in most customer‟s mind
• WAN Optimization is a symmetric solution
Customer Data Center
vWAAS vWAAS
WAN
WAAS Mobile Server
Internet
Public Cloud
Mobile WAAS Mobile
Users Client WAAS
Branch
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

4. Cloud-ready WAN Optimization

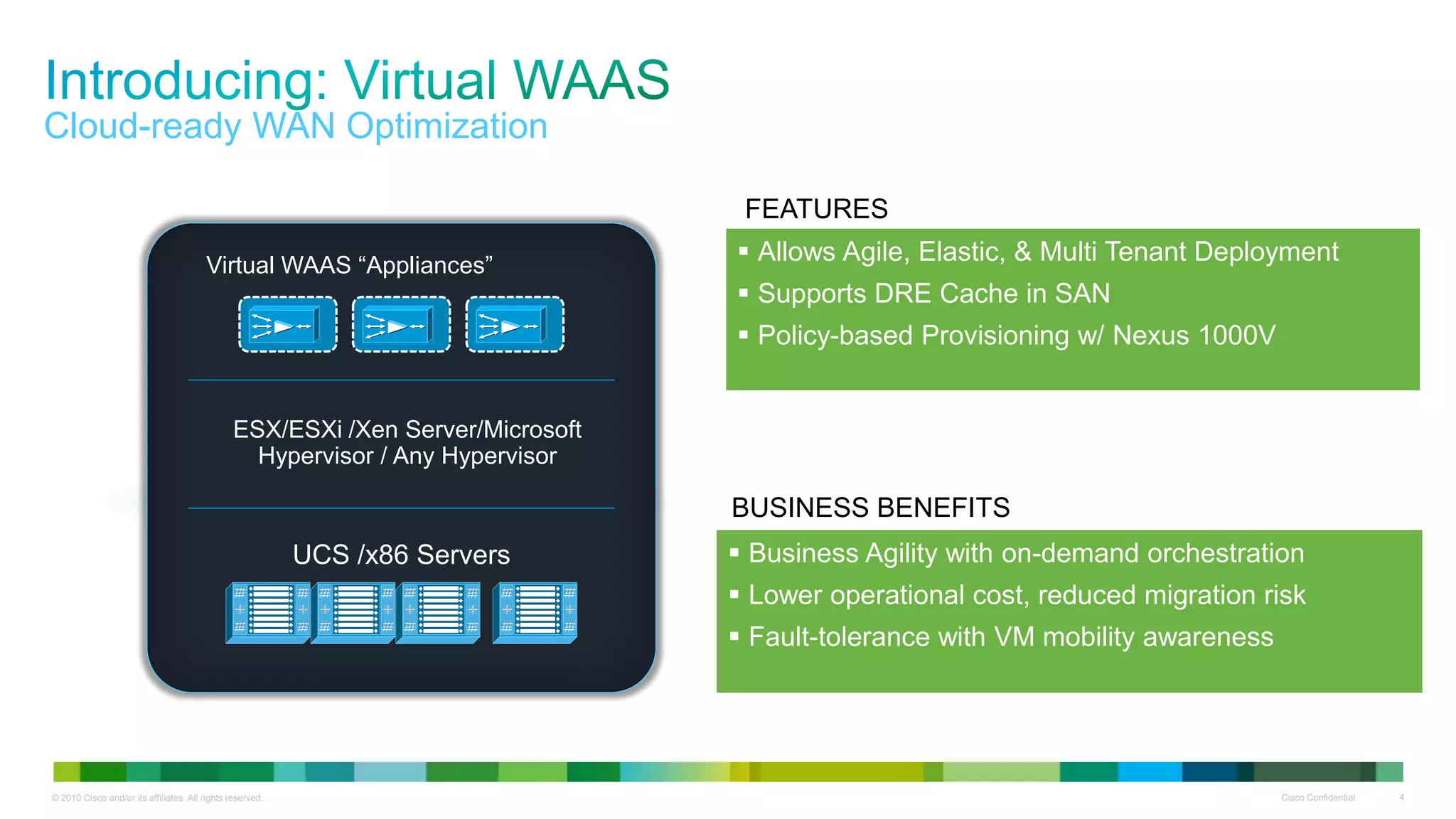

FEATURES
Virtual WAAS “Appliances”
 Allows Agile, Elastic, & Multi Tenant Deployment
 Supports DRE Cache in SAN
 Policy-based Provisioning w/ Nexus 1000V
ESX/ESXi /Xen Server/Microsoft
Hypervisor / Any Hypervisor
BUSINESS BENEFITS
UCS /x86 Servers  Business Agility with on-demand orchestration
 Lower operational cost, reduced migration risk
 Fault-tolerance with VM mobility awareness
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

5. 1. The CSP provides infrastructure only. So, it is end customer‟s responsibility to deploy and
manage applications and other services like WAN Optimization
2. The CSP provides infrastructure and services like WAN Optimization. In this case, the end
customer will have to choose the WAN Optimization vendor as provided by the CSP
3. The CSP provides infrastructure and WAN Optimization service. However, end customer wants
to use their own WAN Optimization. For example, customer may have their „enterprise‟ license
from the WAN Op vendor. So, there is no need for them to pay separately to use CSP provided
WAN Optimization VM/service.
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

6. Gateway
Connect to Gateway
Private Net-1
Connect to LAN
VMs
VMs

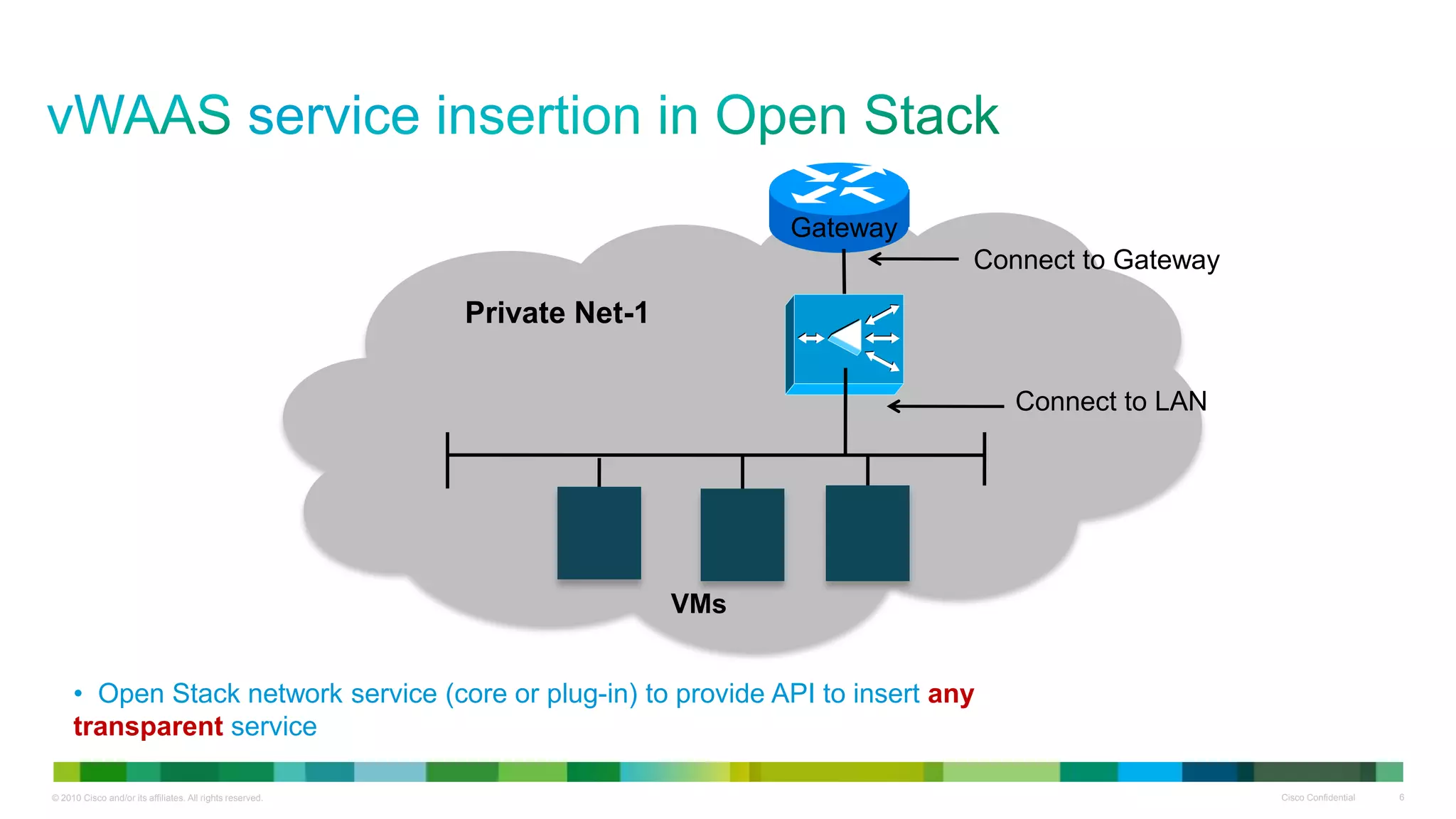

• Open Stack network service (core or plug-in) to provide API to insert any
transparent service
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6

7. • Collaborate in defining the APIs for WAN Optimization as a Service
• Cisco specific plug-in to extend the WAN Optimization service features
© 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

8. © 2010 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8
