1. Using Windows Azure for Solving
Identity Management Challenges
Michael S. Collier

2. Michael S. Collier
• Principal Cloud Architect, Aditi
• michaelc@aditi.com
• @MichaelCollier
• www.MichaelSCollier.com

3. Platinum Sponsors
Gold Sponsors

5. What We’re Talking About
• Identity - Current State and in The Cloud
• Windows Azure solutions
• Mobile Services
• Access Control Service (ACS)
• Windows Azure Active Directory
6

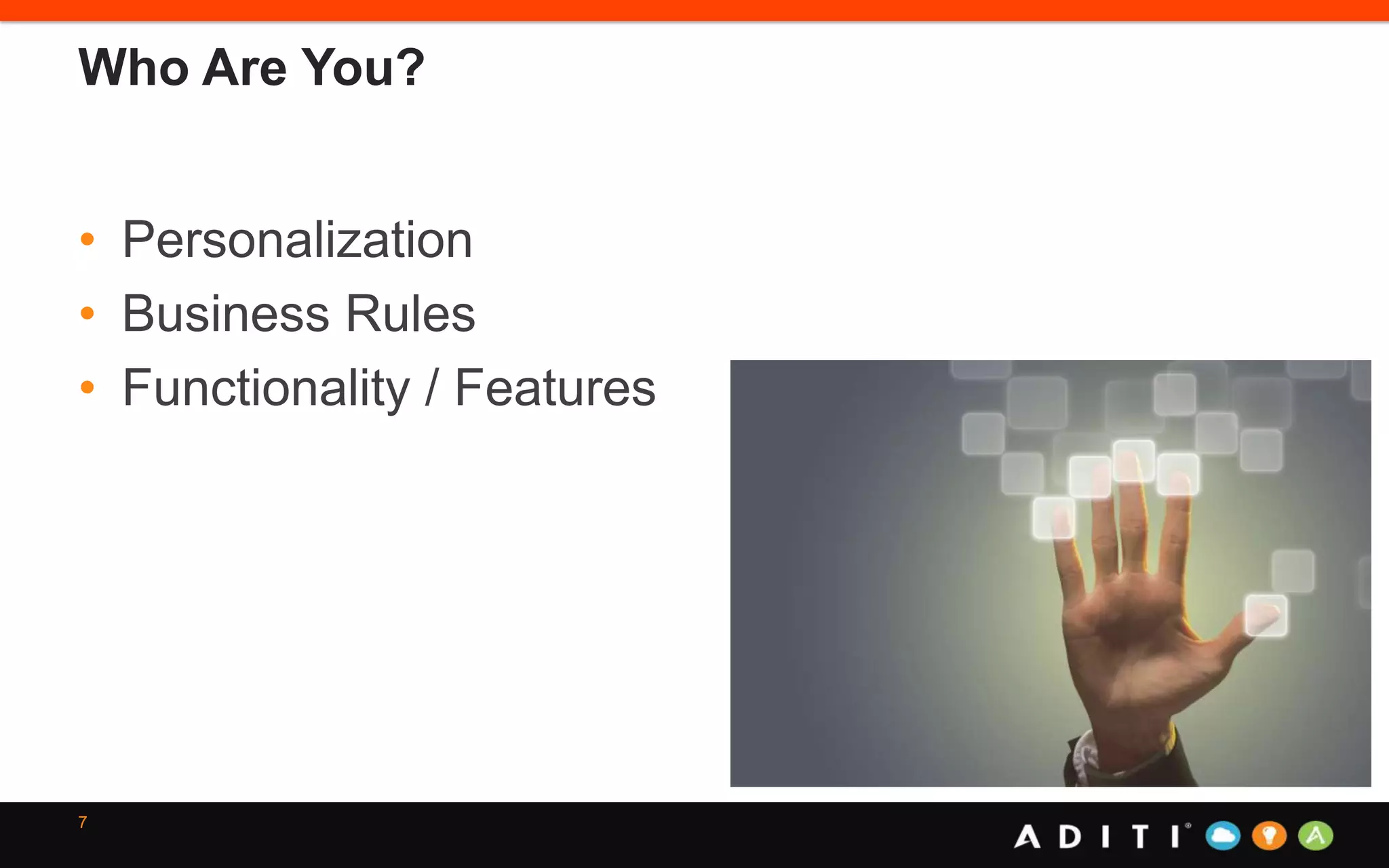

6. Who Are You?
• Personalization
• Business Rules
• Functionality / Features
7

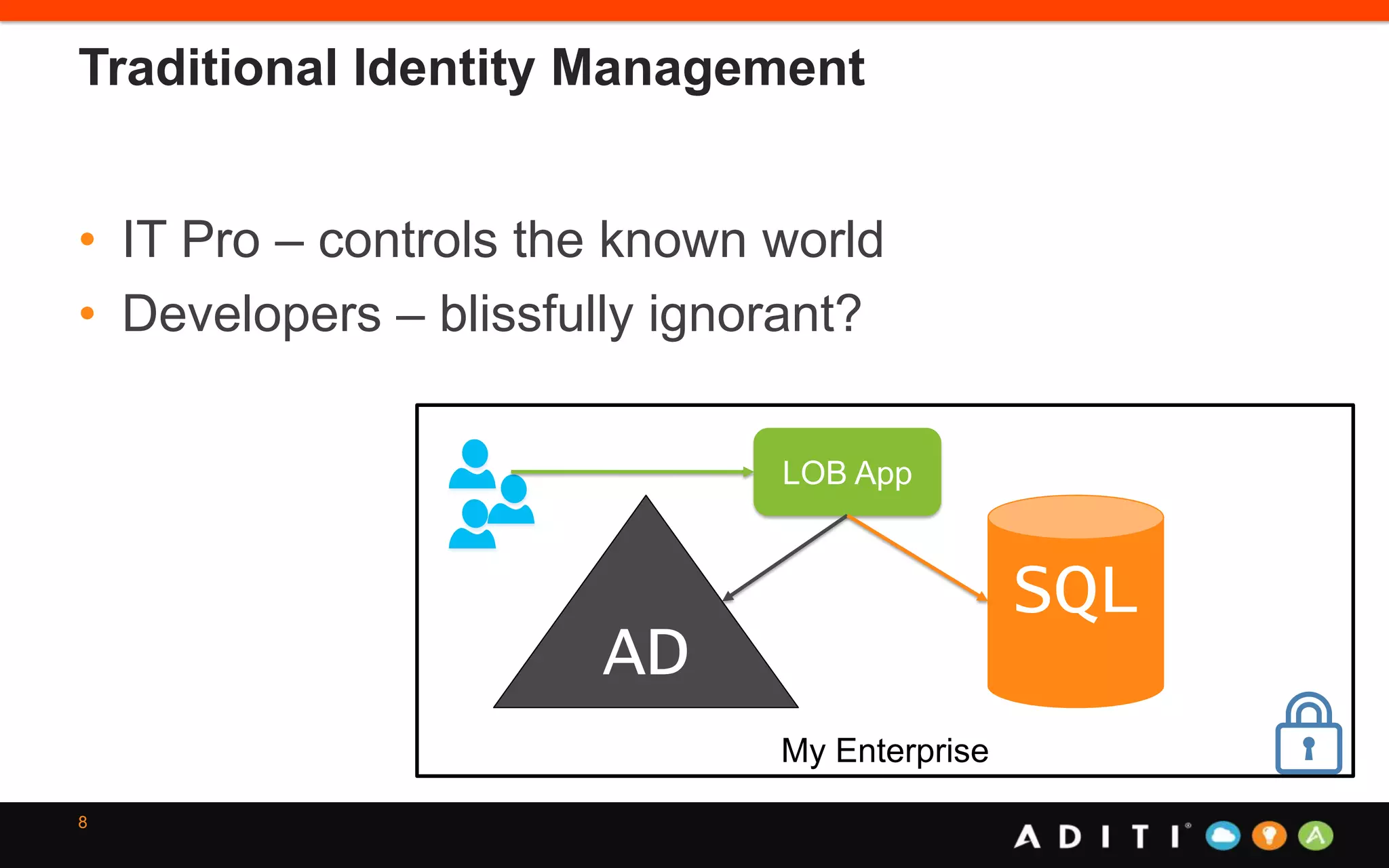

7. Traditional Identity Management
• IT Pro – controls the known world
• Developers – blissfully ignorant?
8
AD
SQL
My Enterprise
LOB App

8. Cloud . . . A New Challenge
• Move the application & data
• Islands of identity
• Outside of “traditional” IT world
• External users / partners
• BYOD
• Developers ignorant no more
• Developers + IT Pros
9

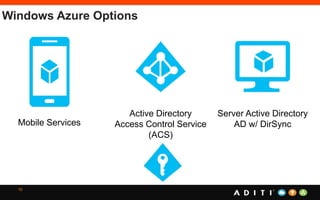

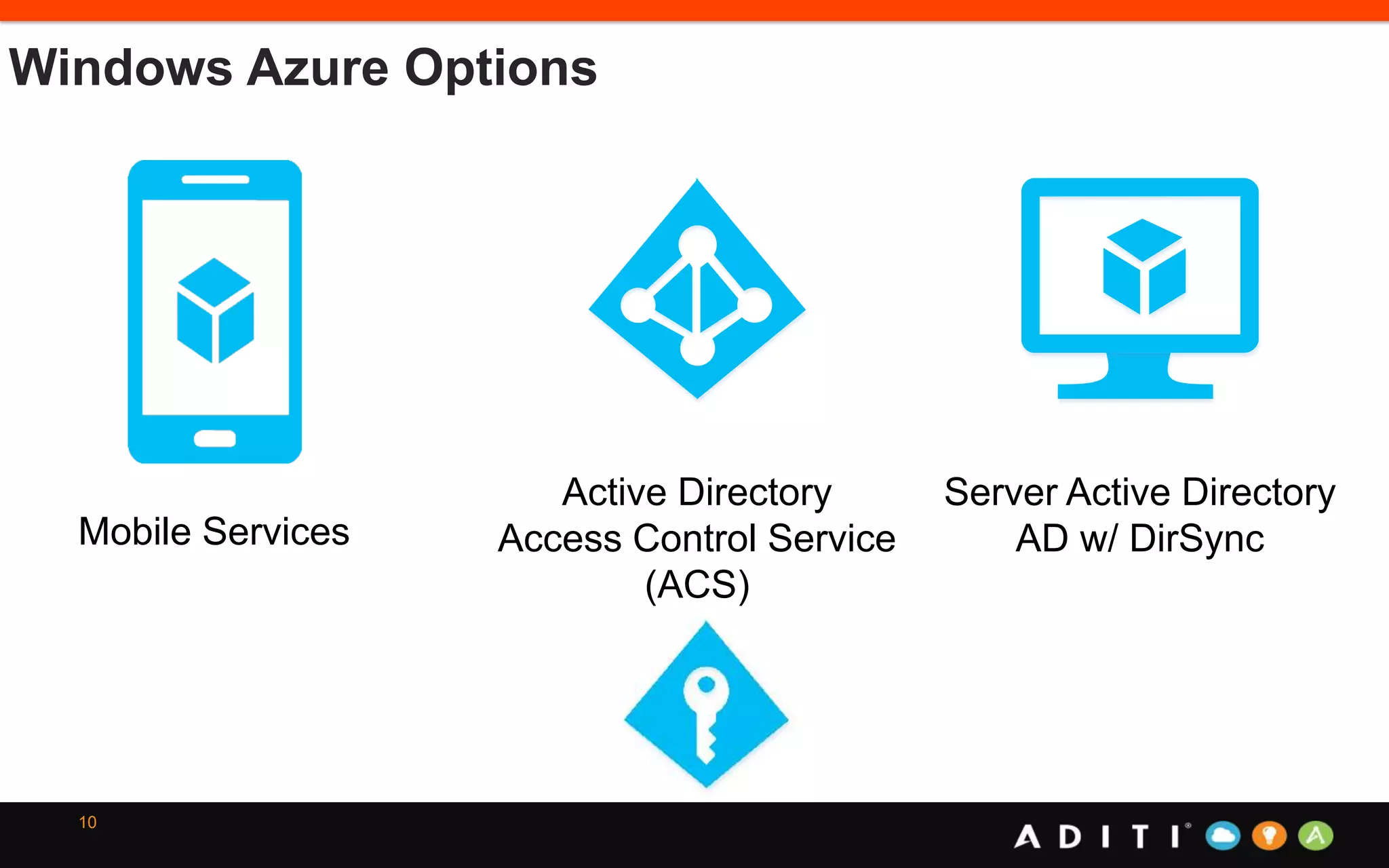

9. 10
Windows Azure Options
Mobile Services
Active Directory
Access Control Service
(ACS)
Server Active Directory
AD w/ DirSync

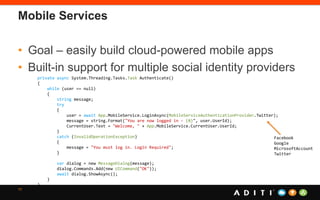

10. Mobile Services
• Goal – easily build cloud-powered mobile apps
• Built-in support for multiple social identity providers
11
private async System.Threading.Tasks.Task Authenticate()
{
while (user == null)
{
string message;
try
{
user = await App.MobileService.LoginAsync(MobileServiceAuthenticationProvider.Twitter);
message = string.Format("You are now logged in - {0}", user.UserId);
CurrentUser.Text = "Welcome, " + App.MobileService.CurrentUser.UserId;
}
catch (InvalidOperationException)
{
message = "You must log in. Login Required";
}
var dialog = new MessageDialog(message);
dialog.Commands.Add(new UICommand("OK"));
await dialog.ShowAsync();
}
}
Facebook
Google
MicrosoftAccount
Twitter

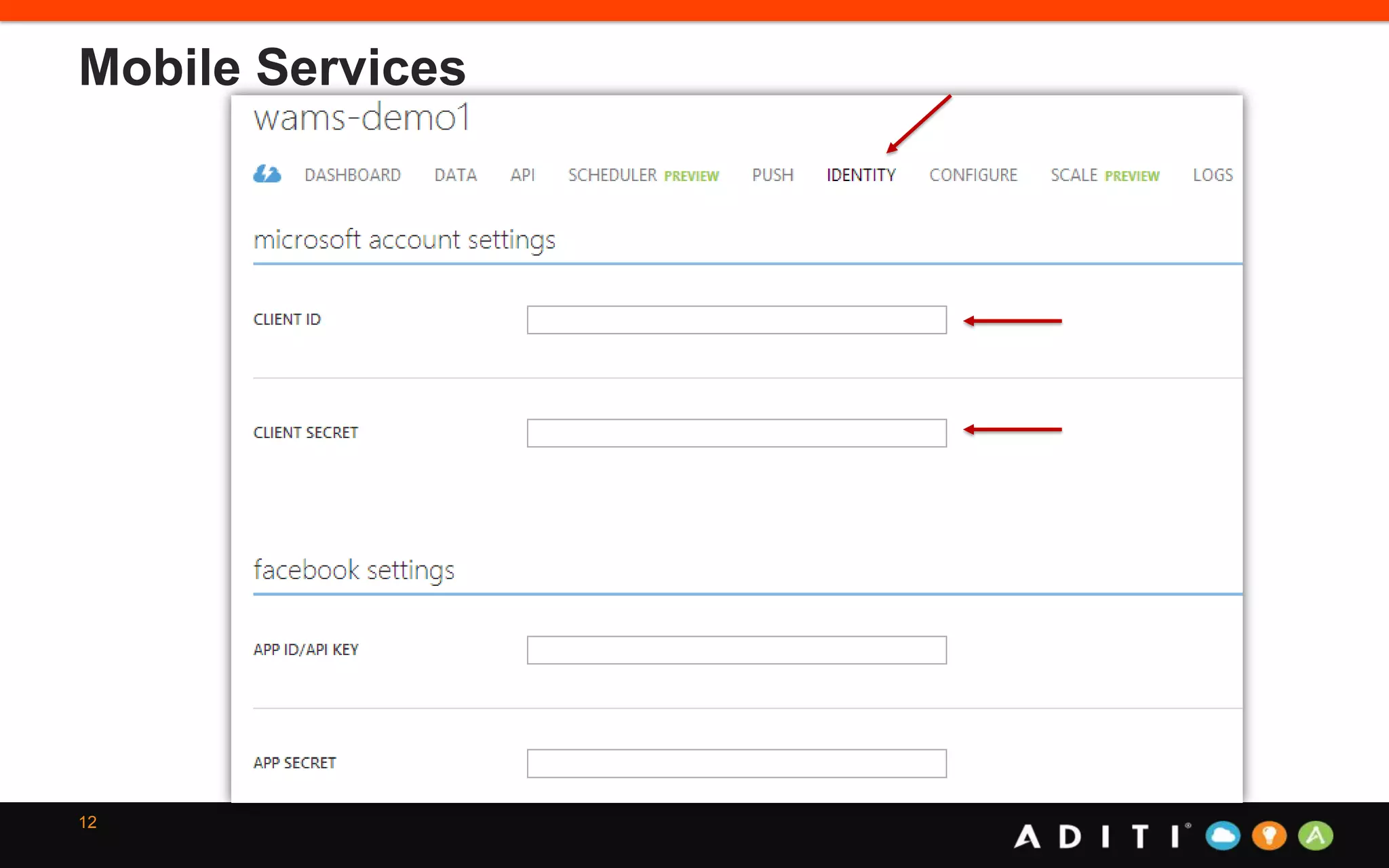

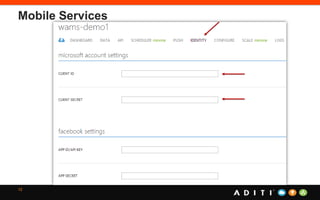

11. Mobile Services
12

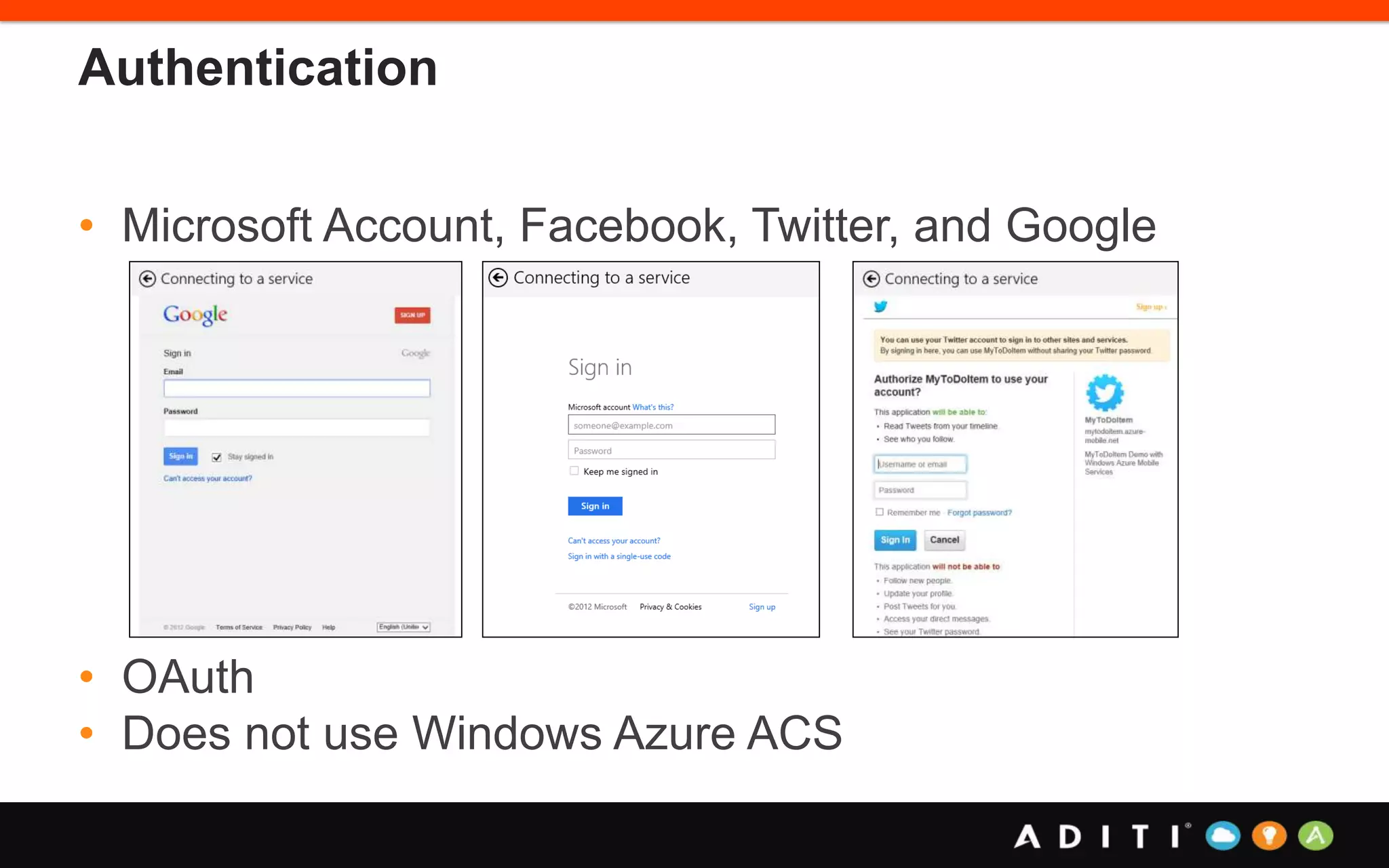

12. Authentication
• Microsoft Account, Facebook, Twitter, and Google
• OAuth
• Does not use Windows Azure ACS

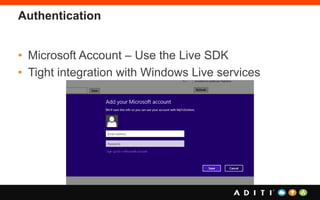

13. Authentication
• Microsoft Account – Use the Live SDK
• Tight integration with Windows Live services

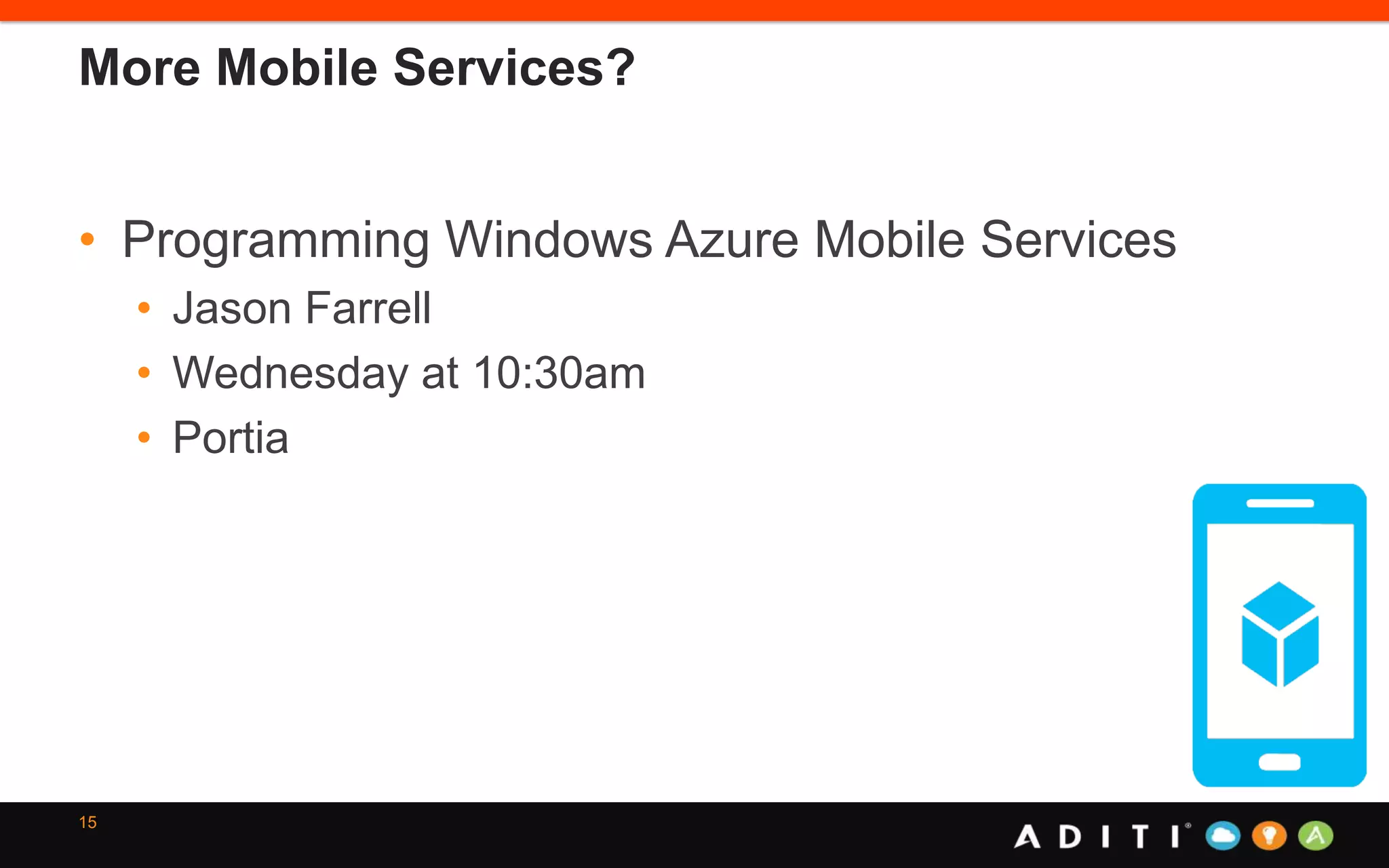

14. More Mobile Services?
• Programming Windows Azure Mobile Services
• Jason Farrell
• Wednesday at 10:30am
• Portia
15

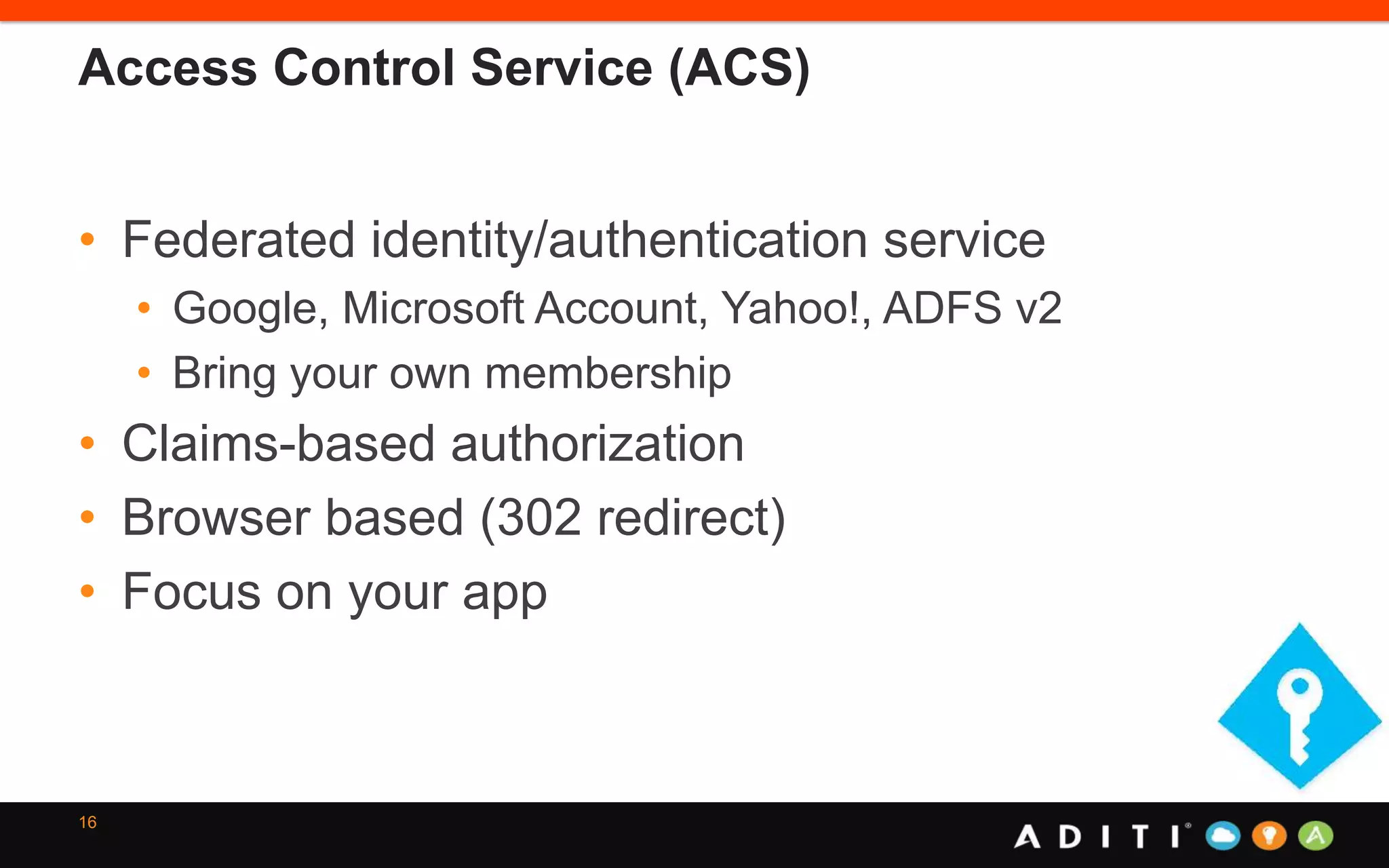

15. Access Control Service (ACS)
• Federated identity/authentication service
• Google, Microsoft Account, Yahoo!, ADFS v2
• Bring your own membership
• Claims-based authorization
• Browser based (302 redirect)
• Focus on your app
16

16. DEMO TIME!!!
Access Control Service (ACS)

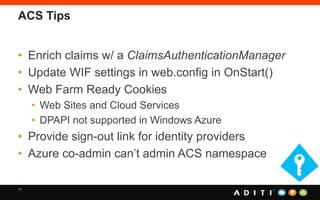

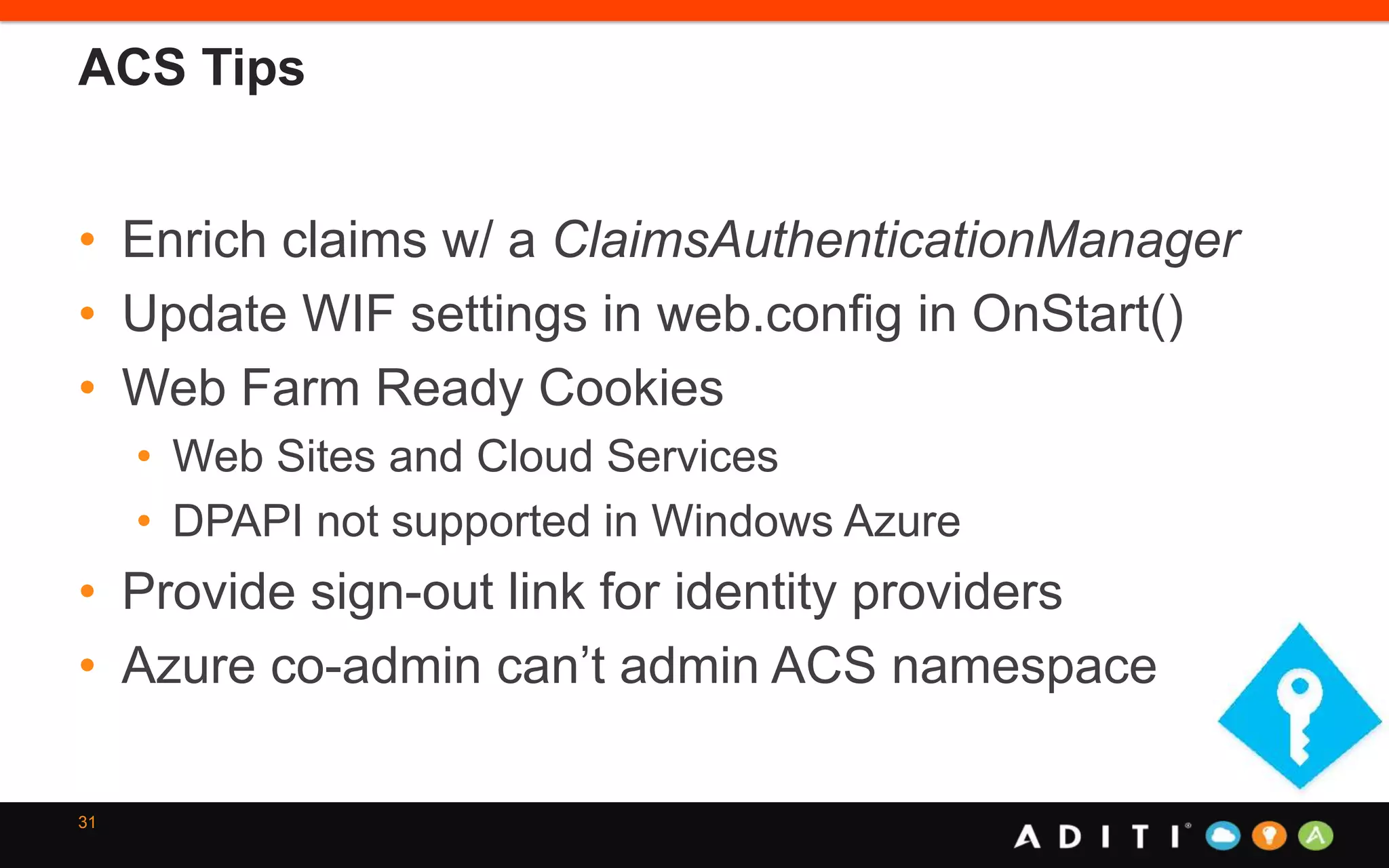

17. ACS Tips
• Enrich claims w/ a ClaimsAuthenticationManager
• Update WIF settings in web.config in OnStart()
• Web Farm Ready Cookies
• Web Sites and Cloud Services
• DPAPI not supported in Windows Azure
• Provide sign-out link for identity providers
• Azure co-admin can’t admin ACS namespace
31

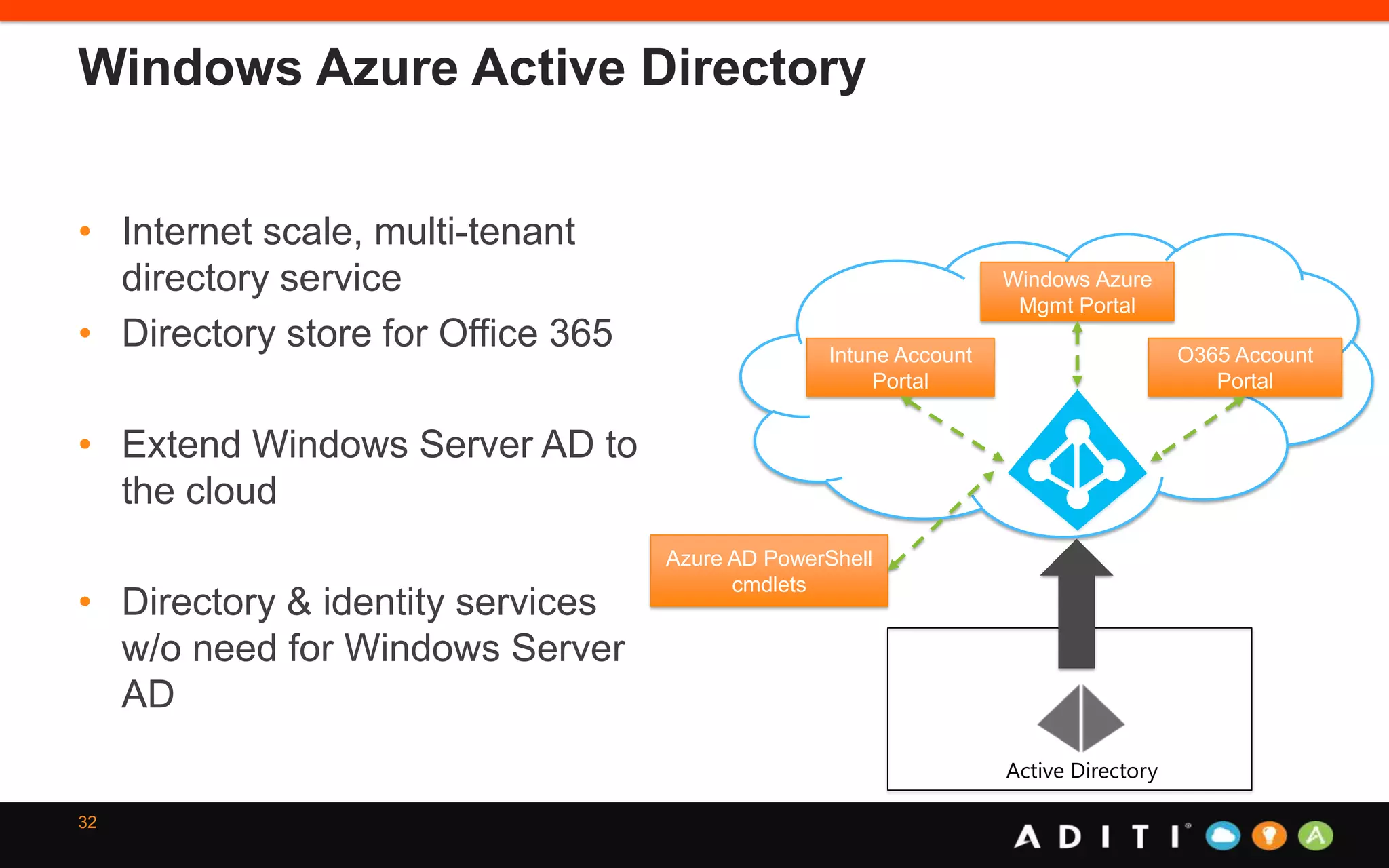

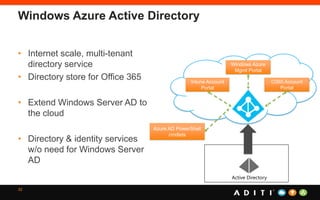

18. Windows Azure Active Directory
• Internet scale, multi-tenant
directory service
• Directory store for Office 365
• Extend Windows Server AD to
the cloud
• Directory & identity services
w/o need for Windows Server
AD
32
Active Directory
O365 Account
Portal
Intune Account
Portal
Windows Azure
Mgmt Portal
Azure AD PowerShell
cmdlets

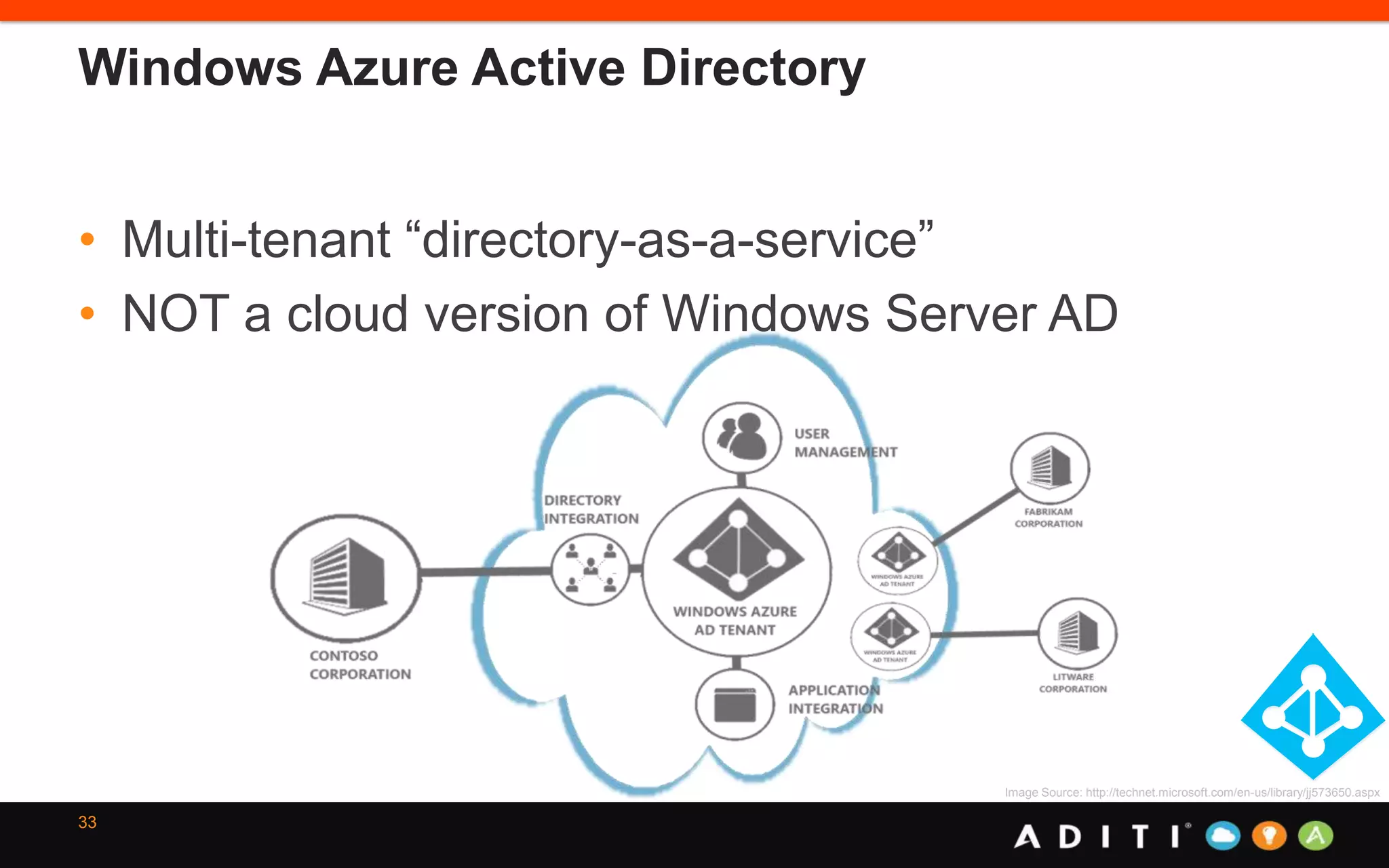

19. Windows Azure Active Directory
• Multi-tenant “directory-as-a-service”
• NOT a cloud version of Windows Server AD
33
Image Source: http://technet.microsoft.com/en-us/library/jj573650.aspx

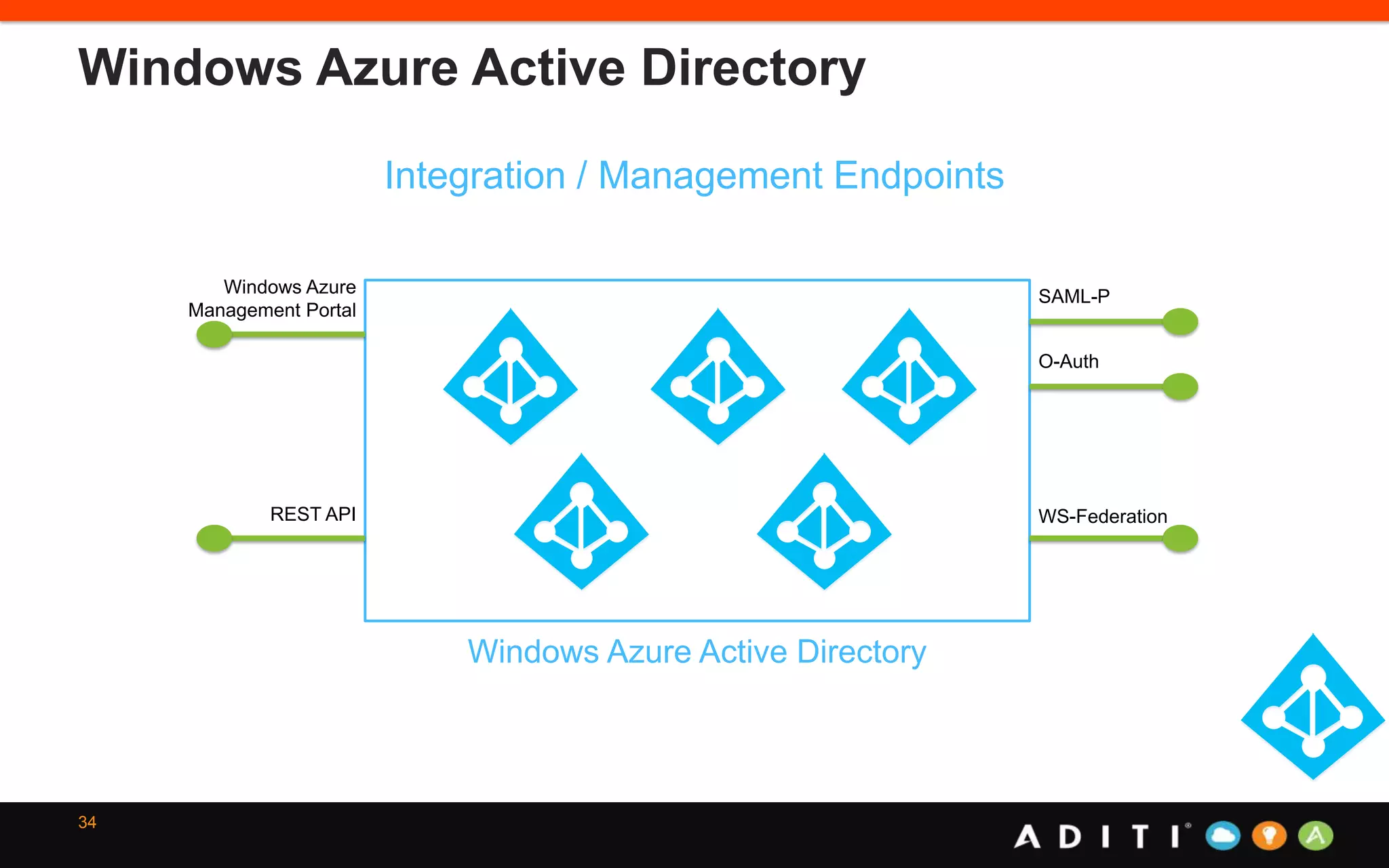

20. Windows Azure Active Directory
34
Windows Azure
Management Portal
REST API
SAML-P
O-Auth
WS-Federation
Integration / Management Endpoints
Windows Azure Active Directory

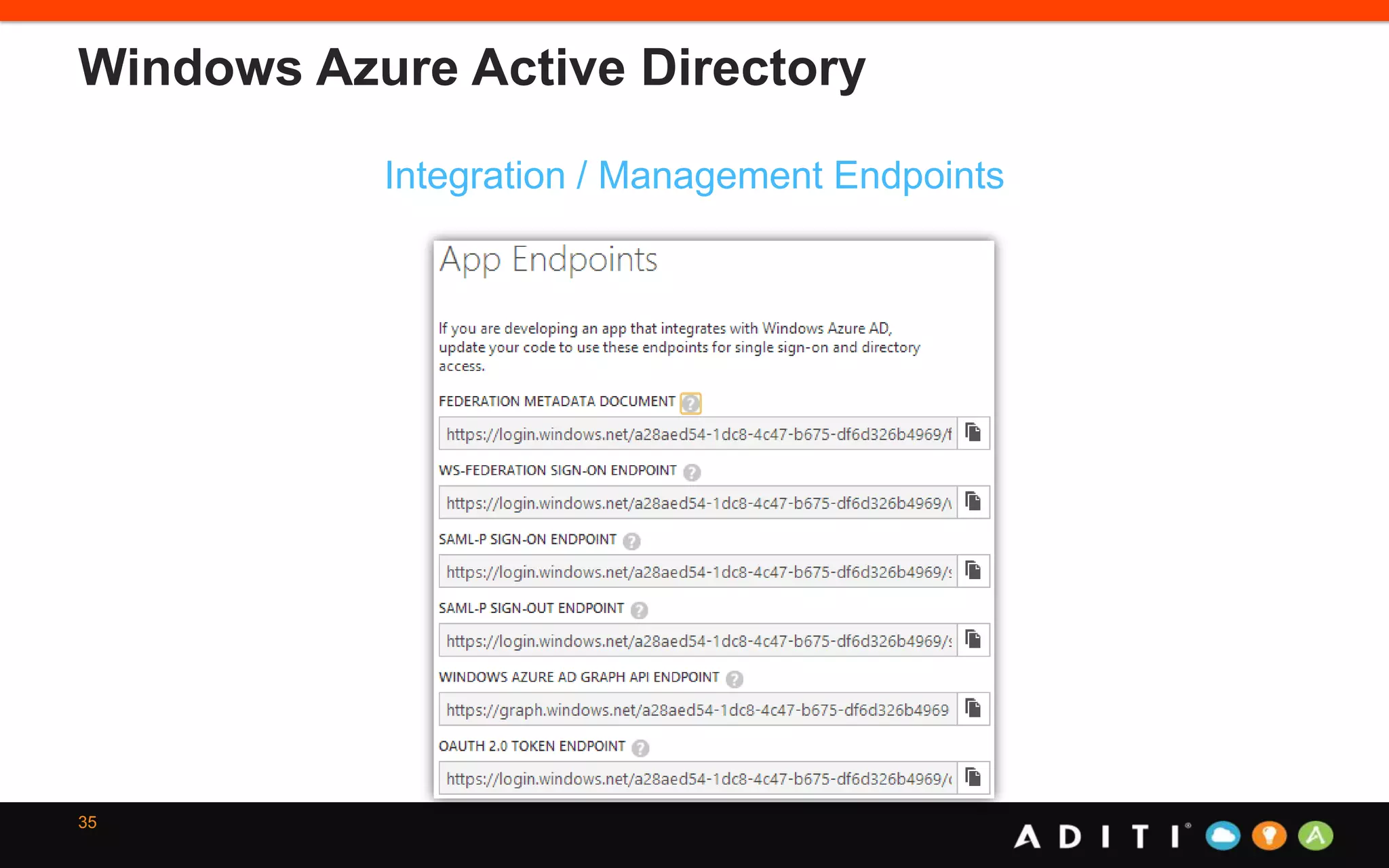

21. Windows Azure Active Directory
35
Integration / Management Endpoints

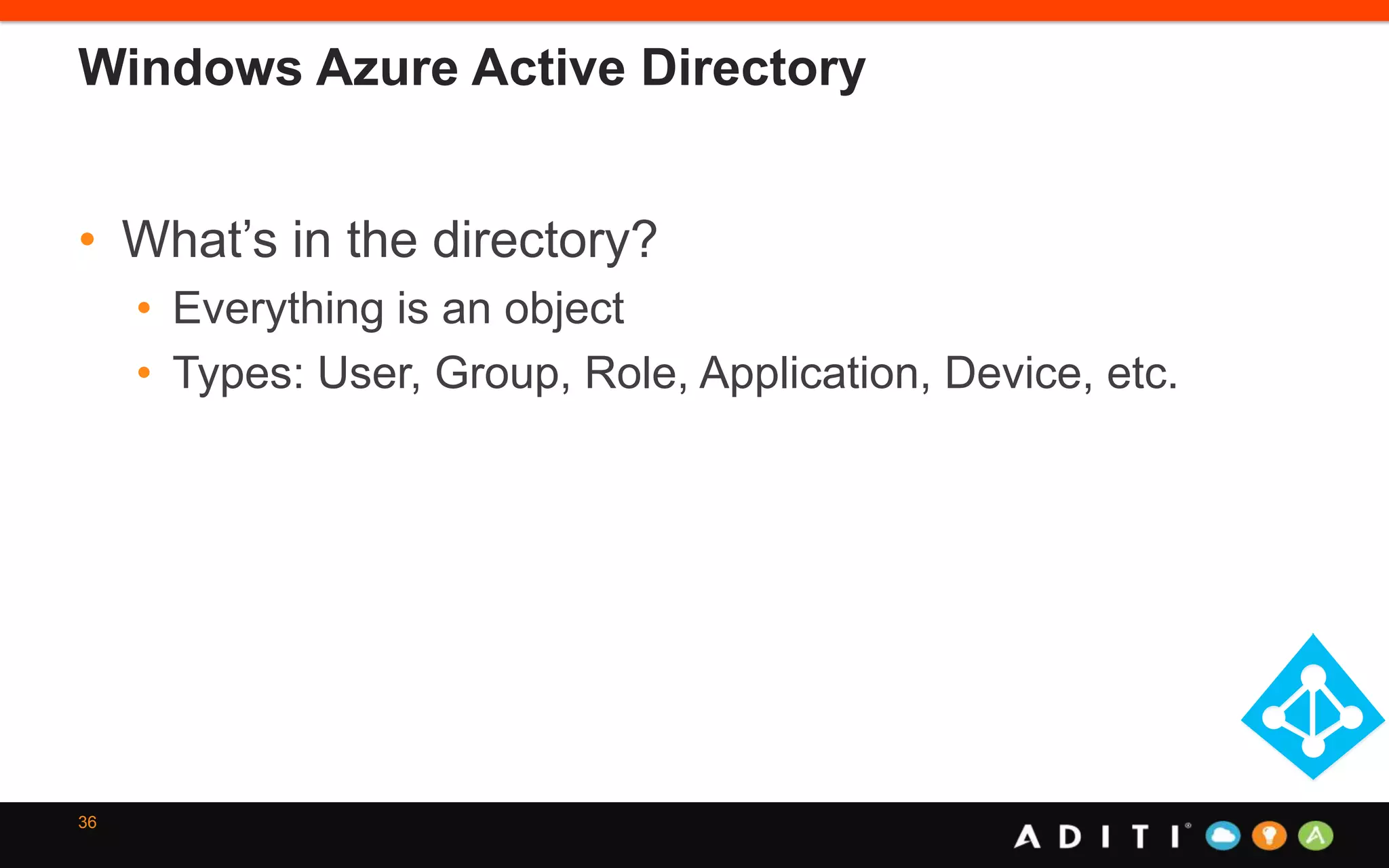

22. Windows Azure Active Directory
• What’s in the directory?
• Everything is an object
• Types: User, Group, Role, Application, Device, etc.
36

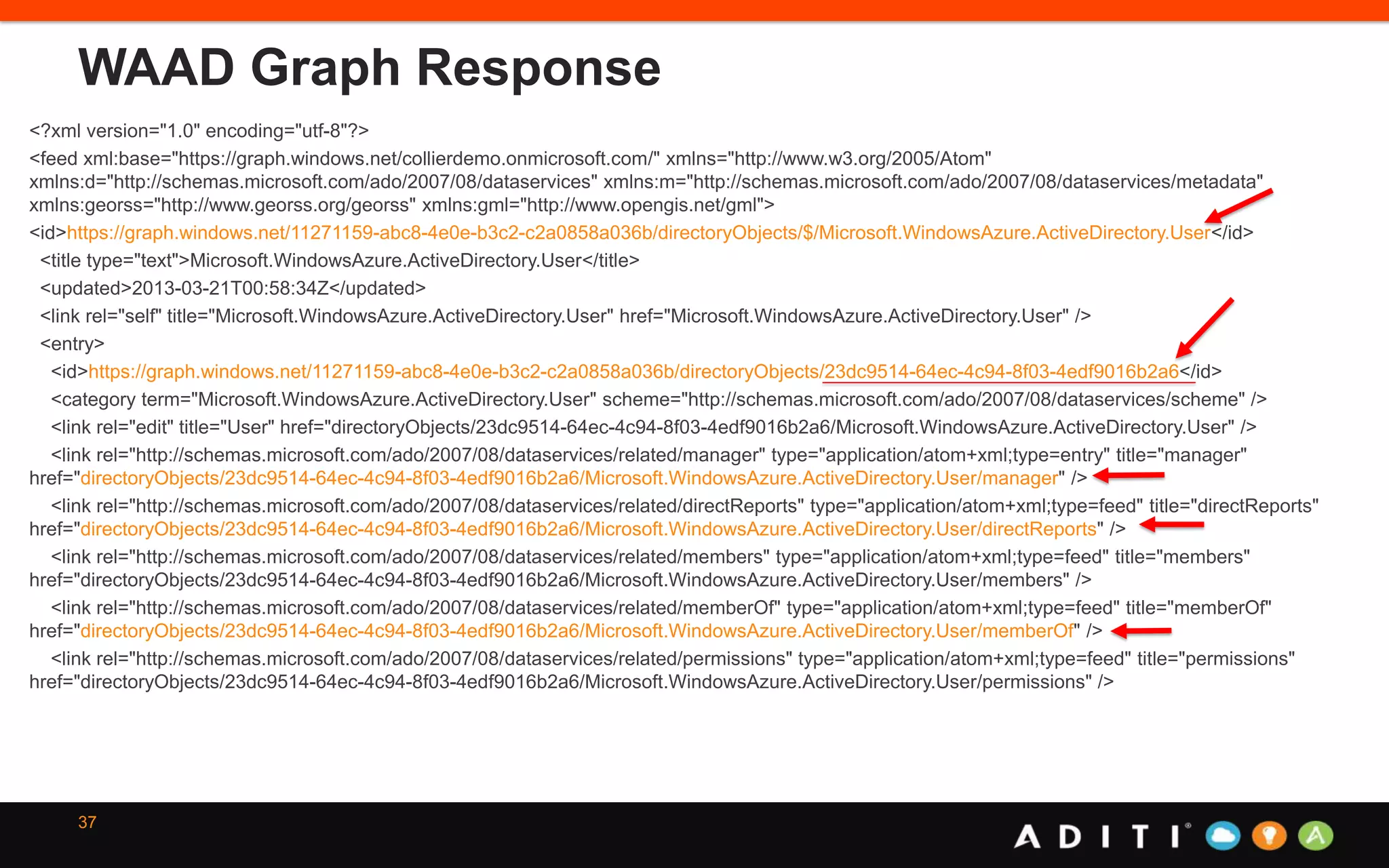

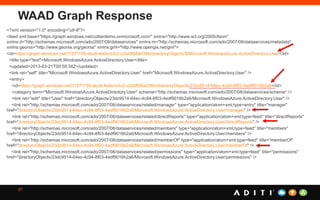

23. WAAD Graph Response
<?xml version="1.0" encoding="utf-8"?>
<feed xml:base="https://graph.windows.net/collierdemo.onmicrosoft.com/" xmlns="http://www.w3.org/2005/Atom"
xmlns:d="http://schemas.microsoft.com/ado/2007/08/dataservices" xmlns:m="http://schemas.microsoft.com/ado/2007/08/dataservices/metadata"
xmlns:georss="http://www.georss.org/georss" xmlns:gml="http://www.opengis.net/gml">
<id>https://graph.windows.net/11271159-abc8-4e0e-b3c2-c2a0858a036b/directoryObjects/$/Microsoft.WindowsAzure.ActiveDirectory.User</id>
<title type="text">Microsoft.WindowsAzure.ActiveDirectory.User</title>
<updated>2013-03-21T00:58:34Z</updated>
<link rel="self" title="Microsoft.WindowsAzure.ActiveDirectory.User" href="Microsoft.WindowsAzure.ActiveDirectory.User" />
<entry>
<id>https://graph.windows.net/11271159-abc8-4e0e-b3c2-c2a0858a036b/directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6</id>
<category term="Microsoft.WindowsAzure.ActiveDirectory.User" scheme="http://schemas.microsoft.com/ado/2007/08/dataservices/scheme" />
<link rel="edit" title="User" href="directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User" />
<link rel="http://schemas.microsoft.com/ado/2007/08/dataservices/related/manager" type="application/atom+xml;type=entry" title="manager"
href="directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/manager" />
<link rel="http://schemas.microsoft.com/ado/2007/08/dataservices/related/directReports" type="application/atom+xml;type=feed" title="directReports"
href="directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/directReports" />
<link rel="http://schemas.microsoft.com/ado/2007/08/dataservices/related/members" type="application/atom+xml;type=feed" title="members"
href="directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/members" />
<link rel="http://schemas.microsoft.com/ado/2007/08/dataservices/related/memberOf" type="application/atom+xml;type=feed" title="memberOf"
href="directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/memberOf" />
<link rel="http://schemas.microsoft.com/ado/2007/08/dataservices/related/permissions" type="application/atom+xml;type=feed" title="permissions"
href="directoryObjects/23dc9514-64ec-4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/permissions" />
37

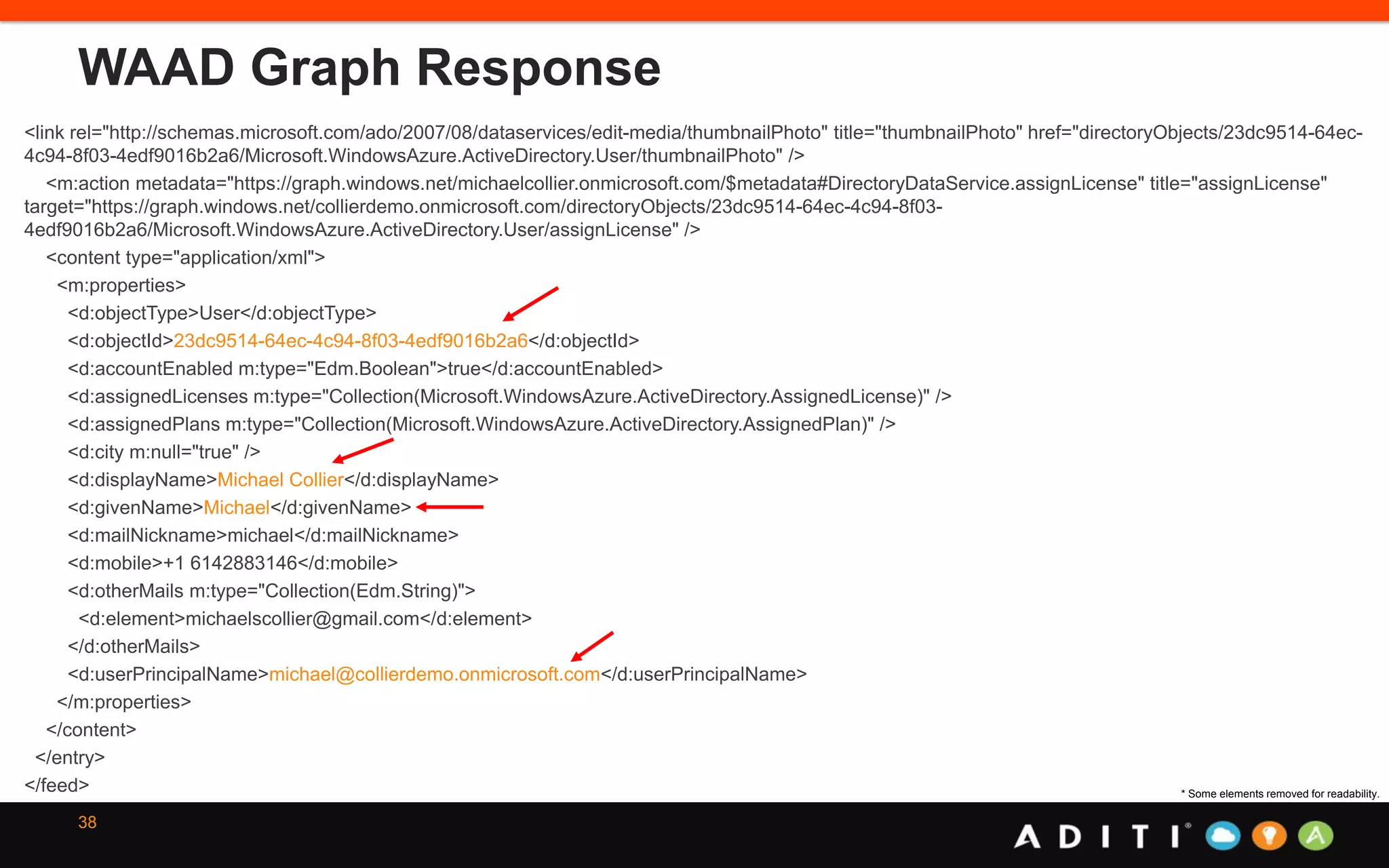

24. WAAD Graph Response
38
<link rel="http://schemas.microsoft.com/ado/2007/08/dataservices/edit-media/thumbnailPhoto" title="thumbnailPhoto" href="directoryObjects/23dc9514-64ec-
4c94-8f03-4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/thumbnailPhoto" />
<m:action metadata="https://graph.windows.net/michaelcollier.onmicrosoft.com/$metadata#DirectoryDataService.assignLicense" title="assignLicense"
target="https://graph.windows.net/collierdemo.onmicrosoft.com/directoryObjects/23dc9514-64ec-4c94-8f03-
4edf9016b2a6/Microsoft.WindowsAzure.ActiveDirectory.User/assignLicense" />
<content type="application/xml">
<m:properties>
<d:objectType>User</d:objectType>
<d:objectId>23dc9514-64ec-4c94-8f03-4edf9016b2a6</d:objectId>
<d:accountEnabled m:type="Edm.Boolean">true</d:accountEnabled>
<d:assignedLicenses m:type="Collection(Microsoft.WindowsAzure.ActiveDirectory.AssignedLicense)" />
<d:assignedPlans m:type="Collection(Microsoft.WindowsAzure.ActiveDirectory.AssignedPlan)" />
<d:city m:null="true" />
<d:displayName>Michael Collier</d:displayName>
<d:givenName>Michael</d:givenName>
<d:mailNickname>michael</d:mailNickname>
<d:mobile>+1 6142883146</d:mobile>
<d:otherMails m:type="Collection(Edm.String)">
<d:element>michaelscollier@gmail.com</d:element>
</d:otherMails>
<d:userPrincipalName>michael@collierdemo.onmicrosoft.com</d:userPrincipalName>
</m:properties>
</content>
</entry>
</feed> * Some elements removed for readability.

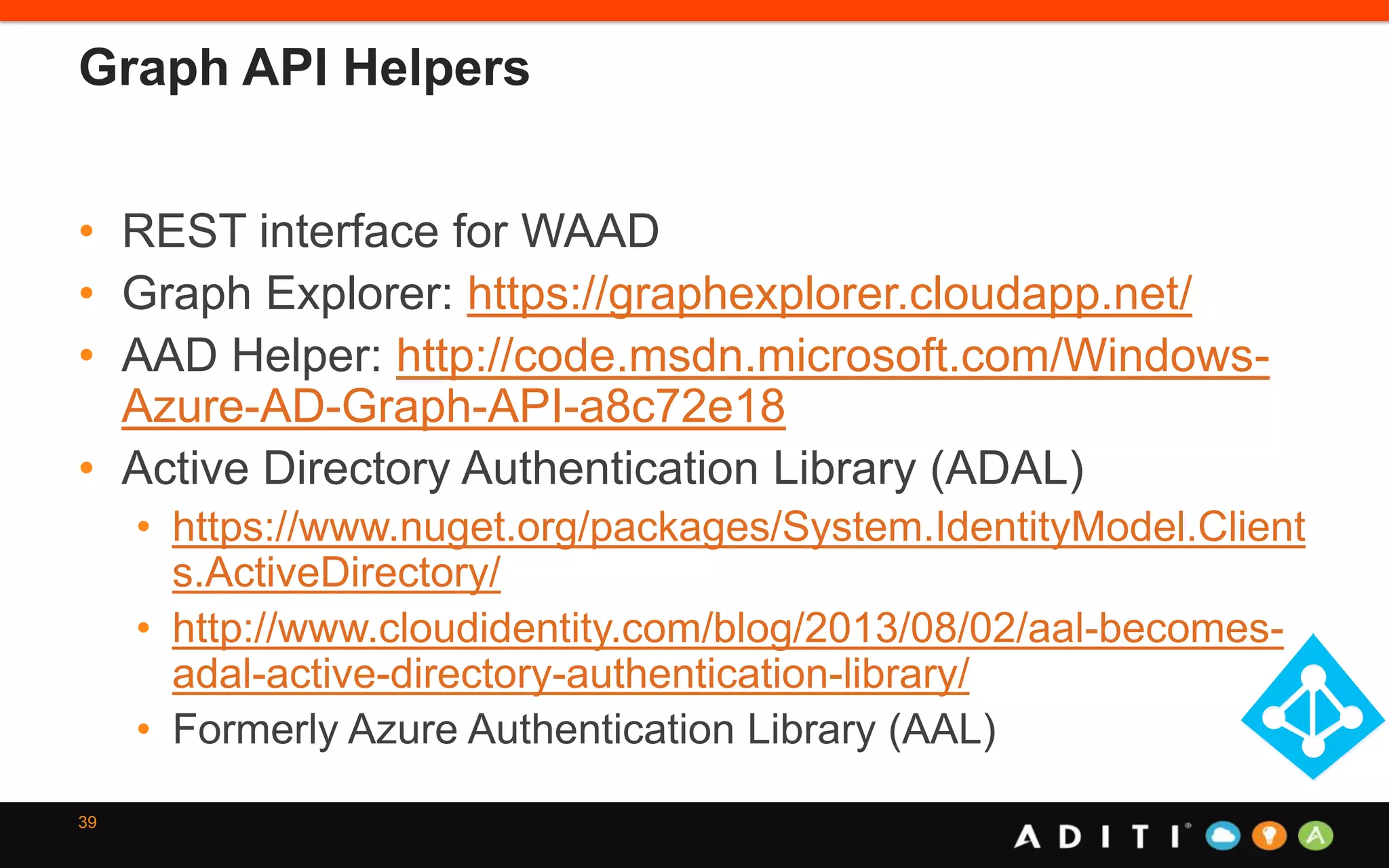

25. Graph API Helpers
• REST interface for WAAD
• Graph Explorer: https://graphexplorer.cloudapp.net/
• AAD Helper: http://code.msdn.microsoft.com/Windows-
Azure-AD-Graph-API-a8c72e18
• Active Directory Authentication Library (ADAL)
• https://www.nuget.org/packages/System.IdentityModel.Client
s.ActiveDirectory/
• http://www.cloudidentity.com/blog/2013/08/02/aal-becomes-
adal-active-directory-authentication-library/
• Formerly Azure Authentication Library (AAL)
39

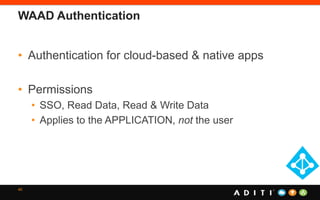

26. WAAD Authentication
• Authentication for cloud-based & native apps
• Permissions
• SSO, Read Data, Read & Write Data
• Applies to the APPLICATION, not the user
40

27. DEMO TIME!!!
Windows Azure AD – Single Sign-On, Web API, and Windows Store

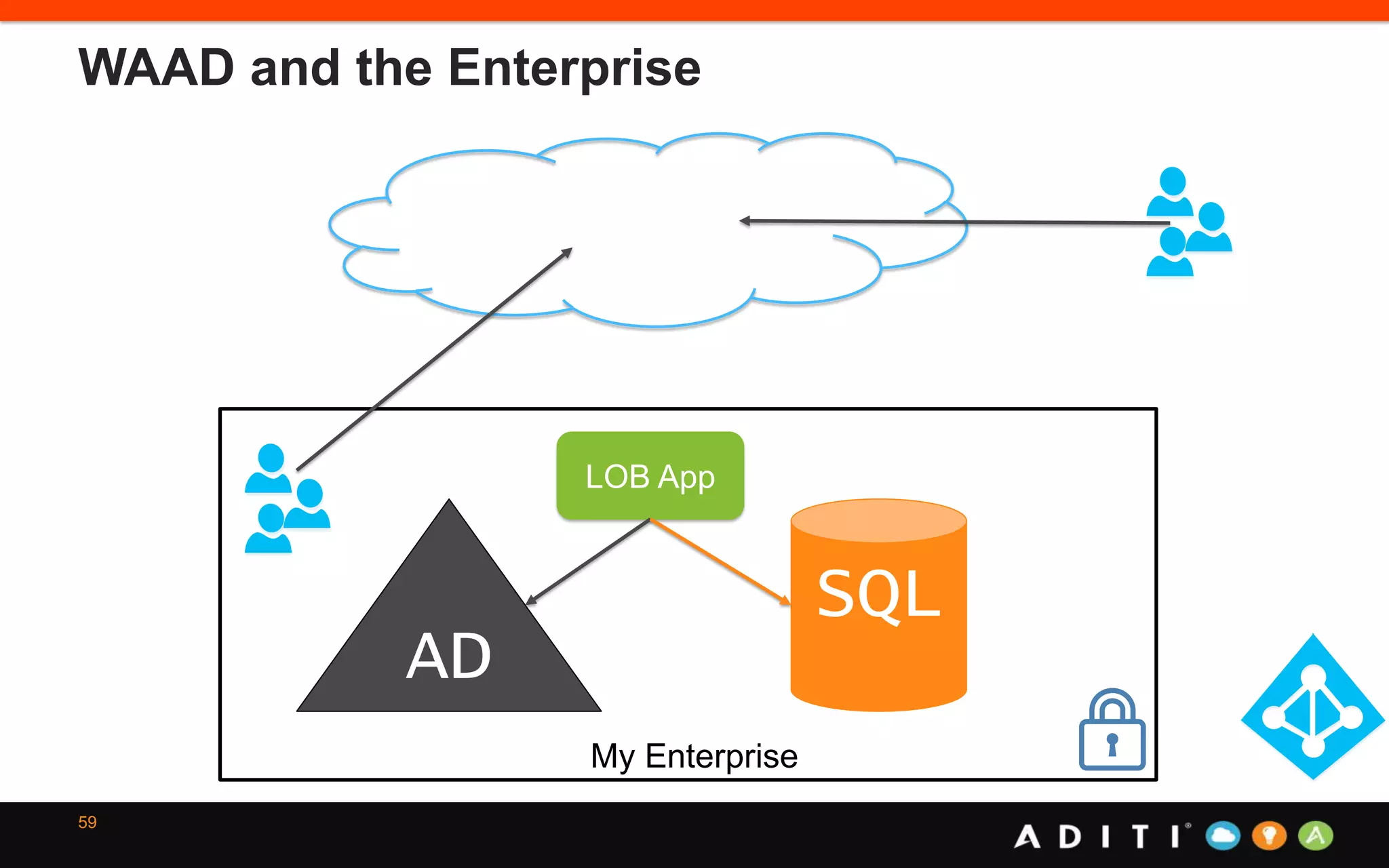

28. WAAD and the Enterprise
59
AD
SQL
My Enterprise
LOB App

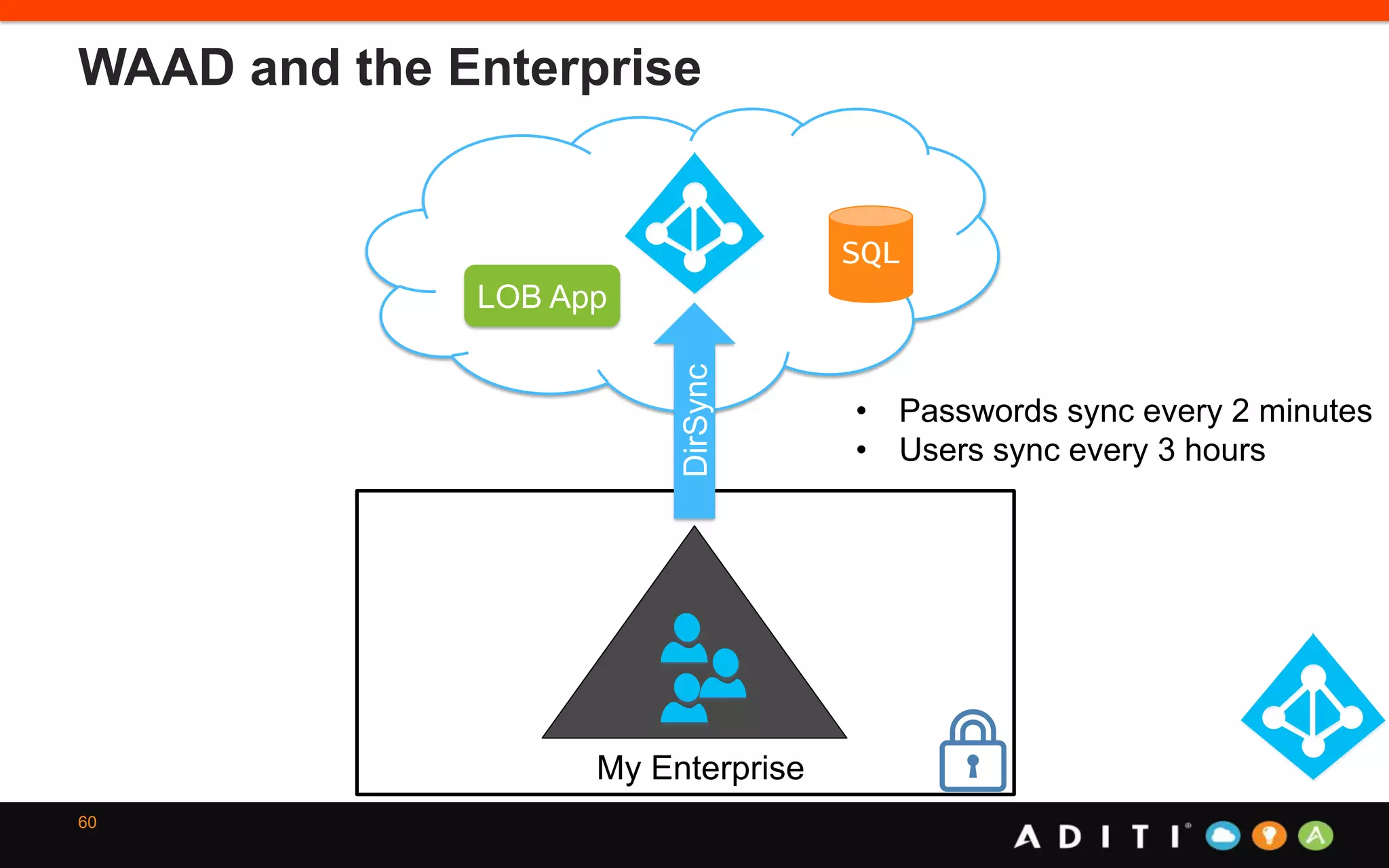

29. WAAD and the Enterprise
60
• Passwords sync every 2 minutes
• Users sync every 3 hours
My Enterprise
DirSync
LOB App
SQL

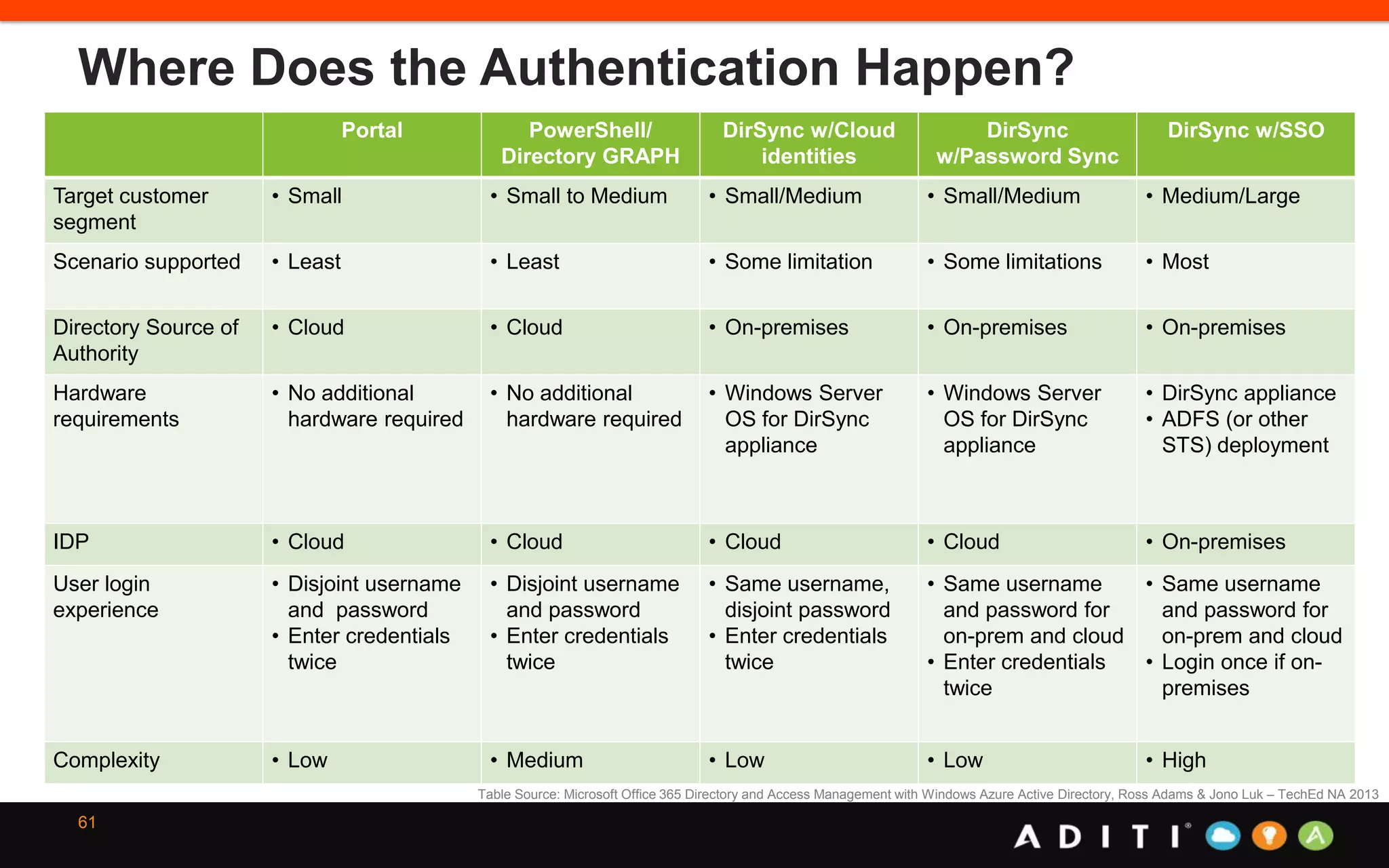

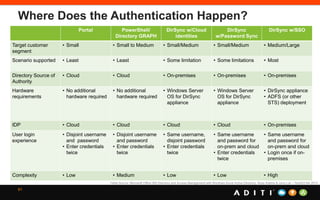

30. Where Does the Authentication Happen?
61
Portal PowerShell/
Directory GRAPH
DirSync w/Cloud
identities
DirSync
w/Password Sync
DirSync w/SSO
Target customer
segment
• Small • Small to Medium • Small/Medium • Small/Medium • Medium/Large
Scenario supported • Least • Least • Some limitation • Some limitations • Most
Directory Source of
Authority
• Cloud • Cloud • On-premises • On-premises • On-premises
Hardware
requirements
• No additional
hardware required
• No additional
hardware required
• Windows Server
OS for DirSync
appliance
• Windows Server
OS for DirSync
appliance
• DirSync appliance
• ADFS (or other
STS) deployment
IDP • Cloud • Cloud • Cloud • Cloud • On-premises
User login
experience
• Disjoint username
and password
• Enter credentials
twice
• Disjoint username
and password
• Enter credentials
twice
• Same username,
disjoint password
• Enter credentials
twice
• Same username
and password for
on-prem and cloud
• Enter credentials
twice
• Same username
and password for
on-prem and cloud
• Login once if on-
premises
Complexity • Low • Medium • Low • Low • High
Table Source: Microsoft Office 365 Directory and Access Management with Windows Azure Active Directory, Ross Adams & Jono Luk – TechEd NA 2013

31. DEMO TIME!!!
Windows Azure Active Directory w/ DirSync

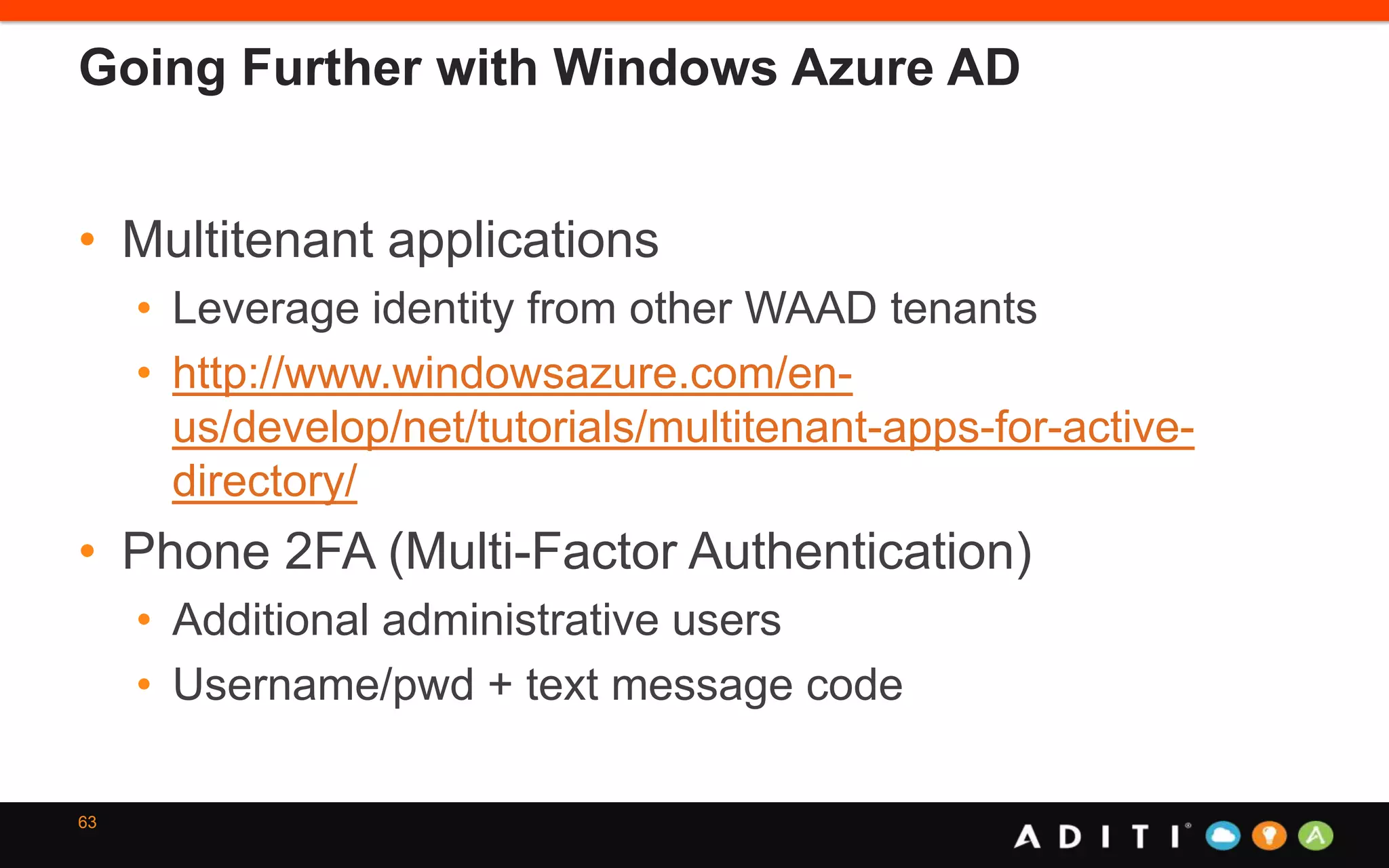

32. Going Further with Windows Azure AD
• Multitenant applications
• Leverage identity from other WAAD tenants
• http://www.windowsazure.com/en-
us/develop/net/tutorials/multitenant-apps-for-active-
directory/
• Phone 2FA (Multi-Factor Authentication)
• Additional administrative users
• Username/pwd + text message code
63

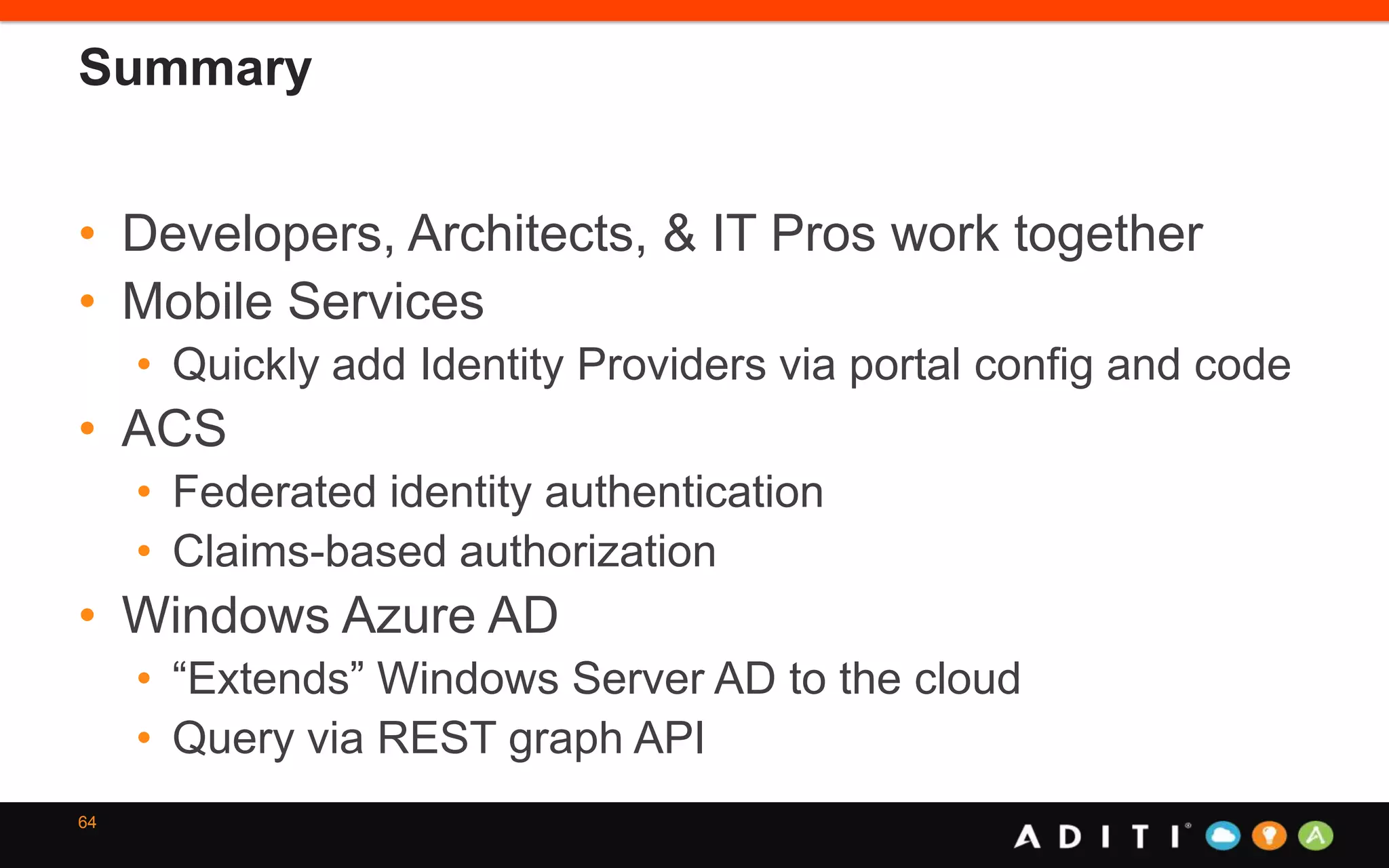

33. Summary
• Developers, Architects, & IT Pros work together
• Mobile Services
• Quickly add Identity Providers via portal config and code
• ACS
• Federated identity authentication
• Claims-based authorization
• Windows Azure AD
• “Extends” Windows Server AD to the cloud
• Query via REST graph API
64

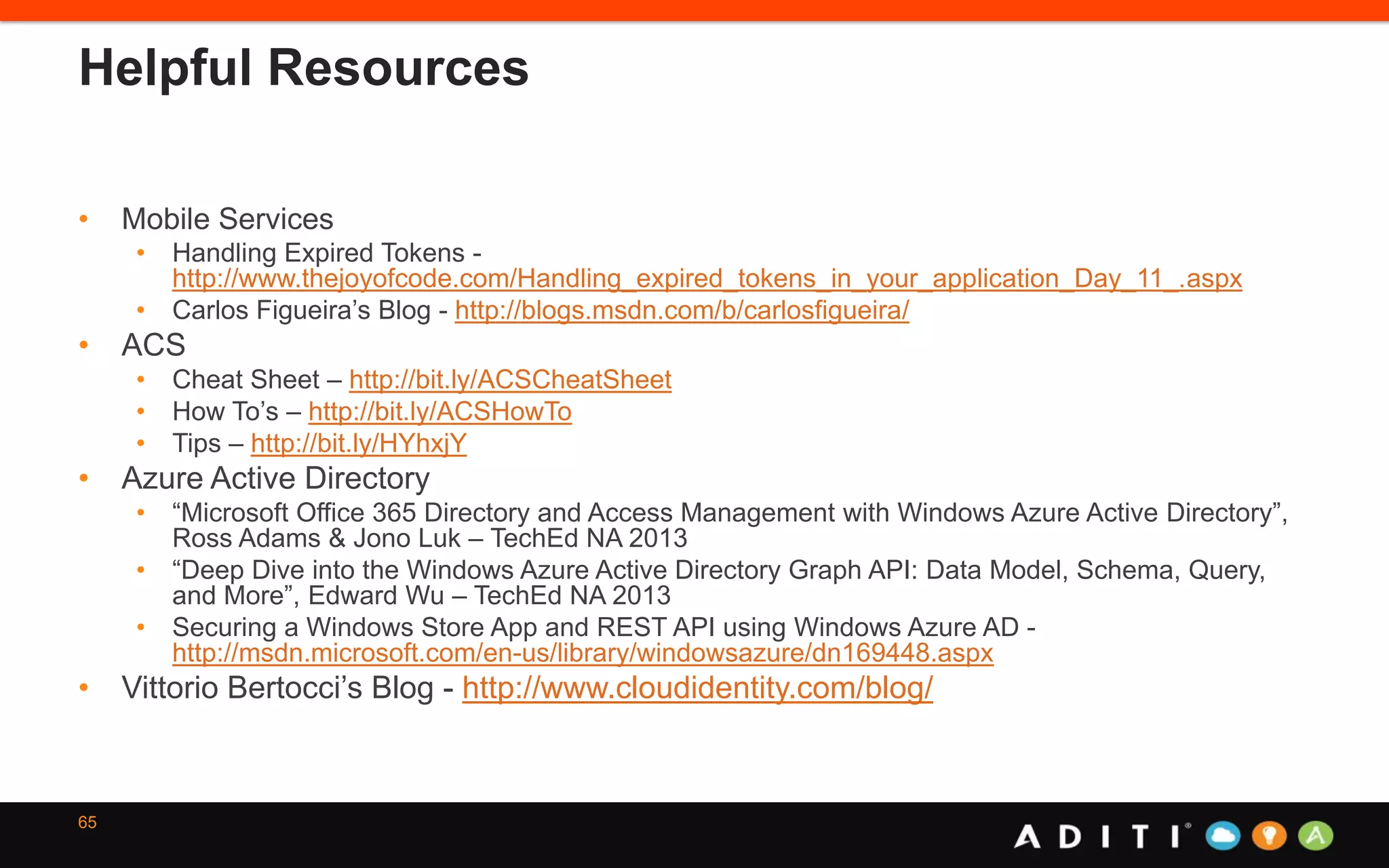

34. Helpful Resources
• Mobile Services
• Handling Expired Tokens -
http://www.thejoyofcode.com/Handling_expired_tokens_in_your_application_Day_11_.aspx
• Carlos Figueira’s Blog - http://blogs.msdn.com/b/carlosfigueira/
• ACS
• Cheat Sheet – http://bit.ly/ACSCheatSheet
• How To’s – http://bit.ly/ACSHowTo
• Tips – http://bit.ly/HYhxjY
• Azure Active Directory
• “Microsoft Office 365 Directory and Access Management with Windows Azure Active Directory”,
Ross Adams & Jono Luk – TechEd NA 2013
• “Deep Dive into the Windows Azure Active Directory Graph API: Data Model, Schema, Query,
and More”, Edward Wu – TechEd NA 2013
• Securing a Windows Store App and REST API using Windows Azure AD -
http://msdn.microsoft.com/en-us/library/windowsazure/dn169448.aspx
• Vittorio Bertocci’s Blog - http://www.cloudidentity.com/blog/
65

35. Ask your questions
