Using HTML5
 sensibly




Christian Heilmann, London Ajax User Meetup, February 2011
This will be a change from
my normal talks.

Instead of giving you the
facts, it is my turn to ask
some questions.
But first, let me tell you a
story. As stories are
important!

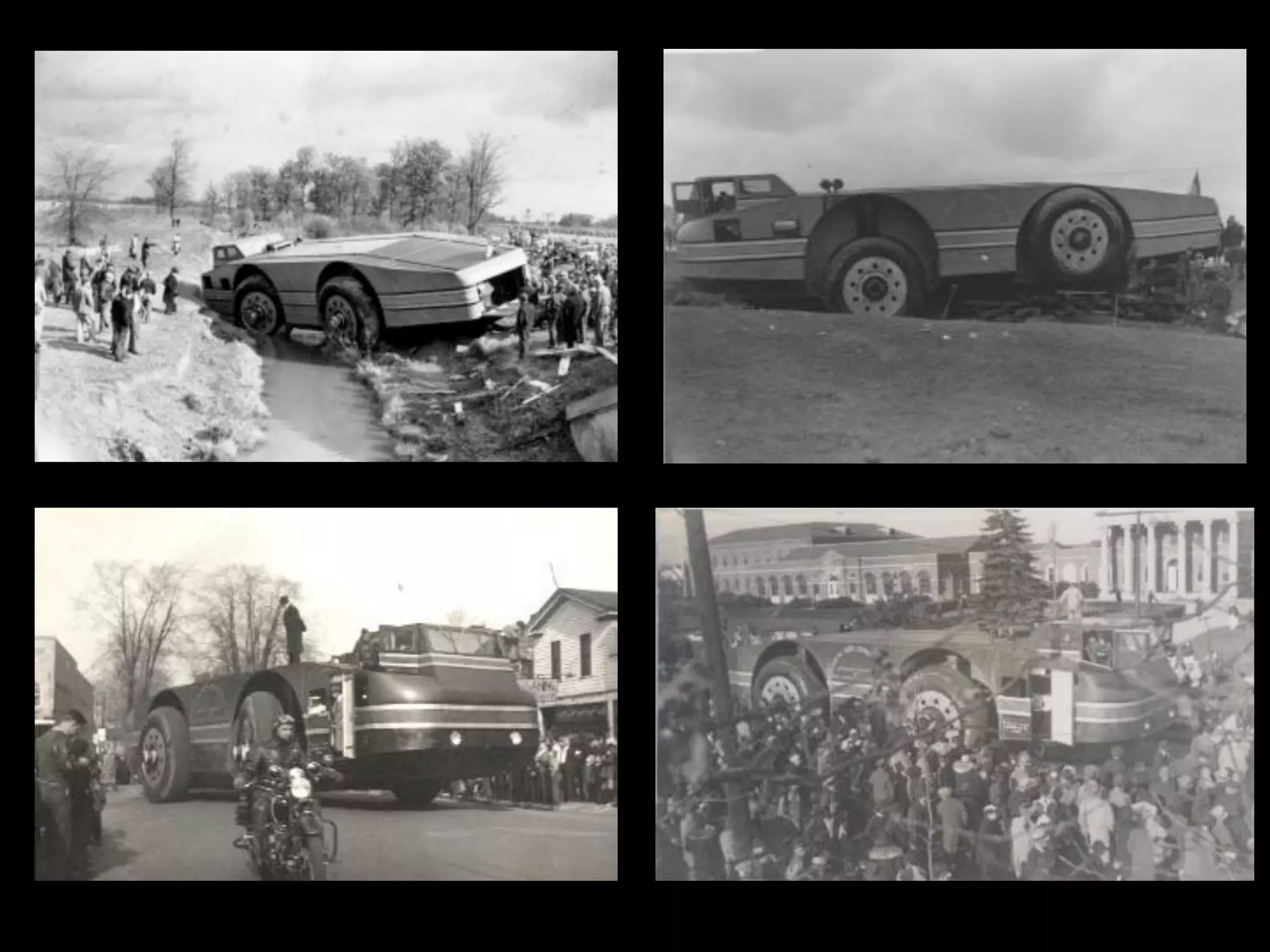

Back in 1939...




...Antarctica needed exploring

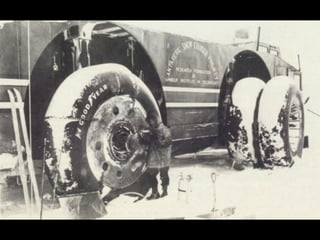

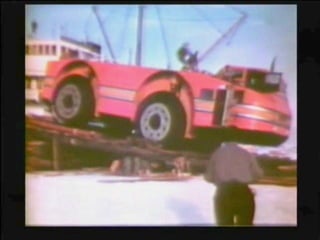

The Antarctic Explorer

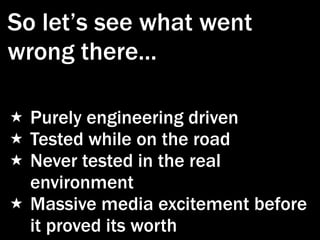

So let’s see what went
wrong there...

★   Purely engineering driven
★   Tested while on the road
★   Never tested in the real
    environment
★   Massive media excitement before
    it proved its worth
HTML5 is the new hotness!

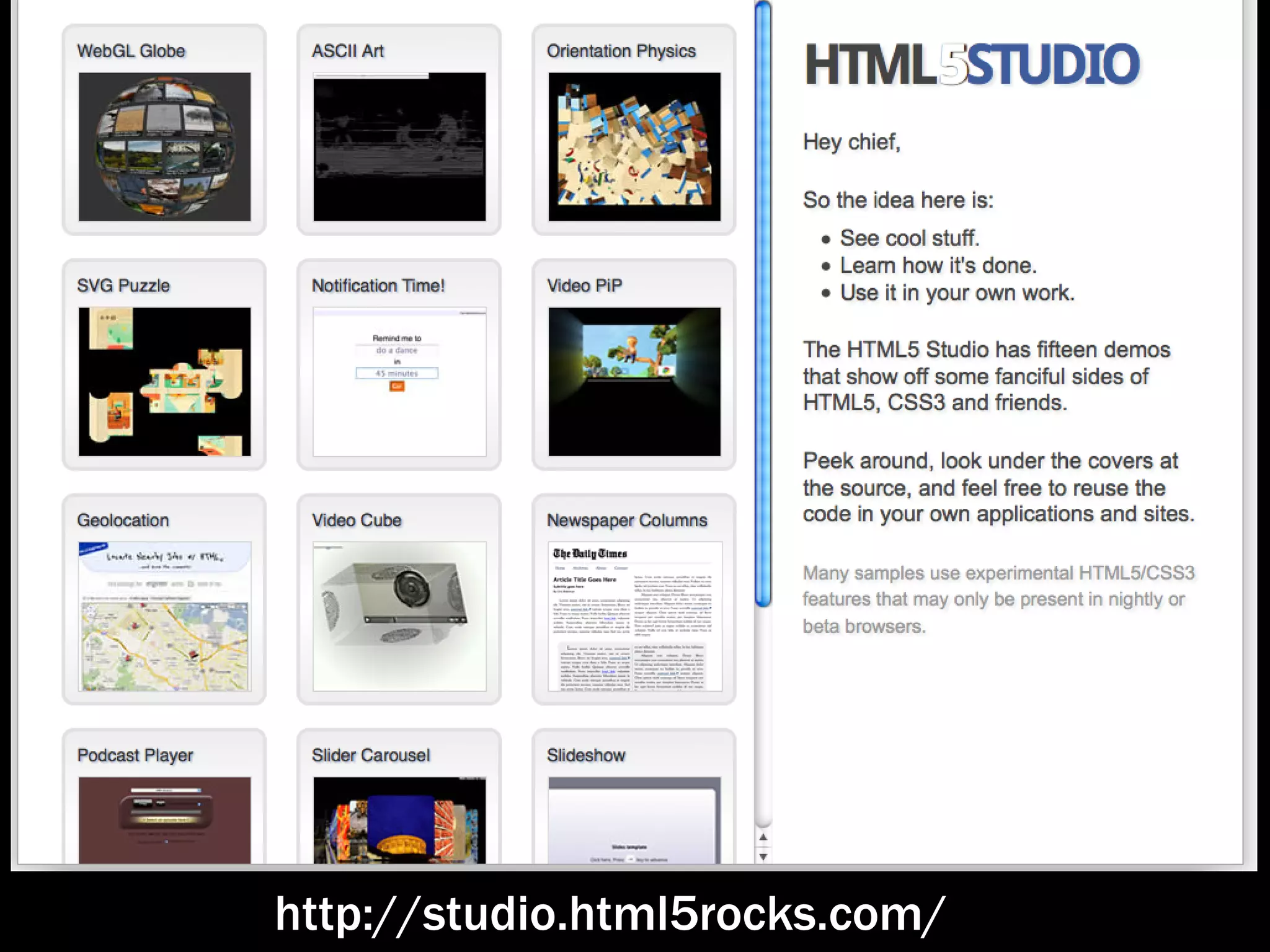

http://studio.html5rocks.com/

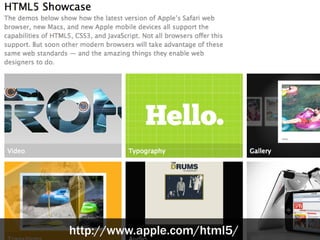

http://www.apple.com/html5/

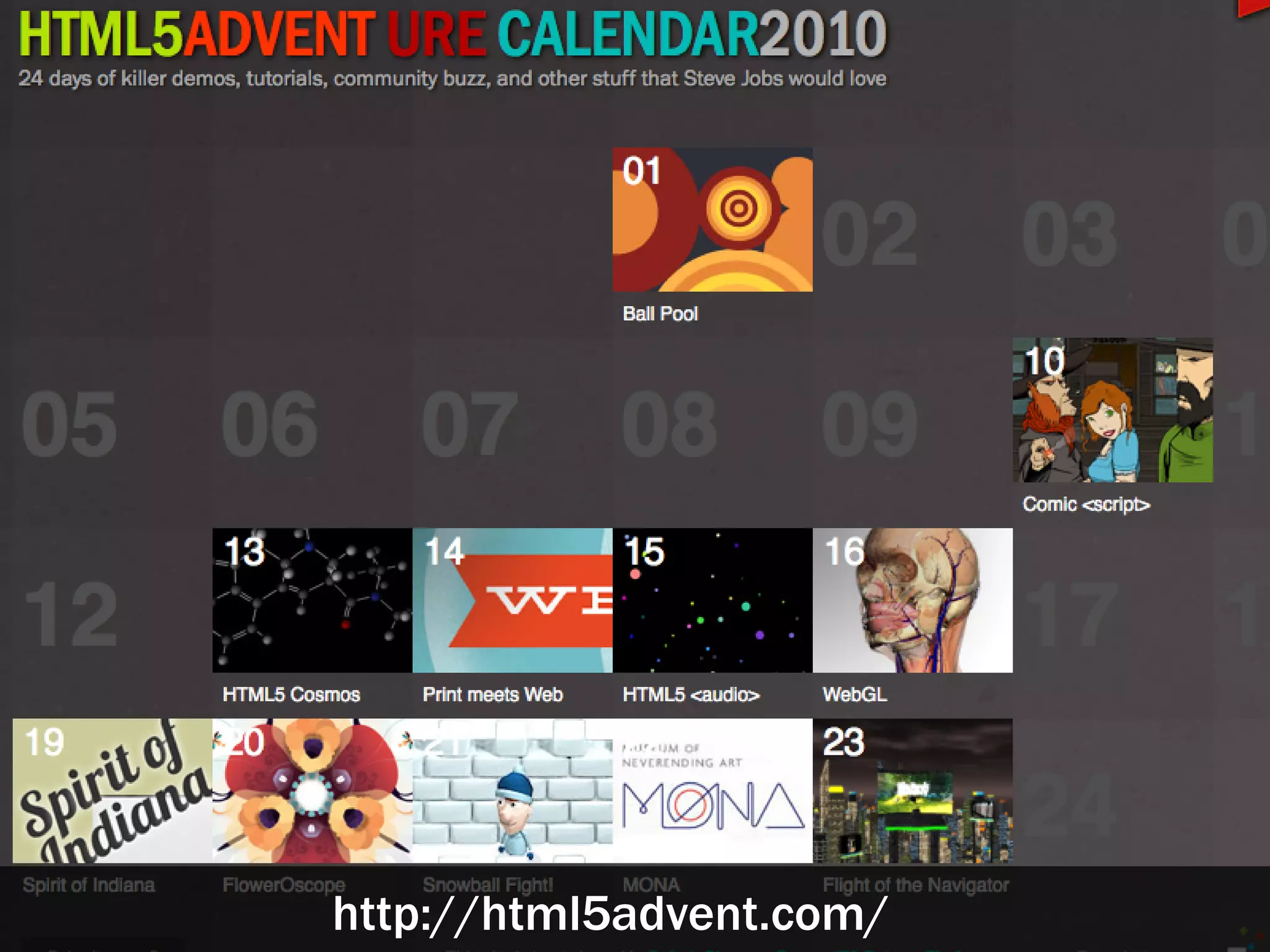

http://html5advent.com/
Everything is HTML5 -
including browser specific
tricks.
To a degree this is
understandable.

There is a lot of confusion
about the players and the
specs.

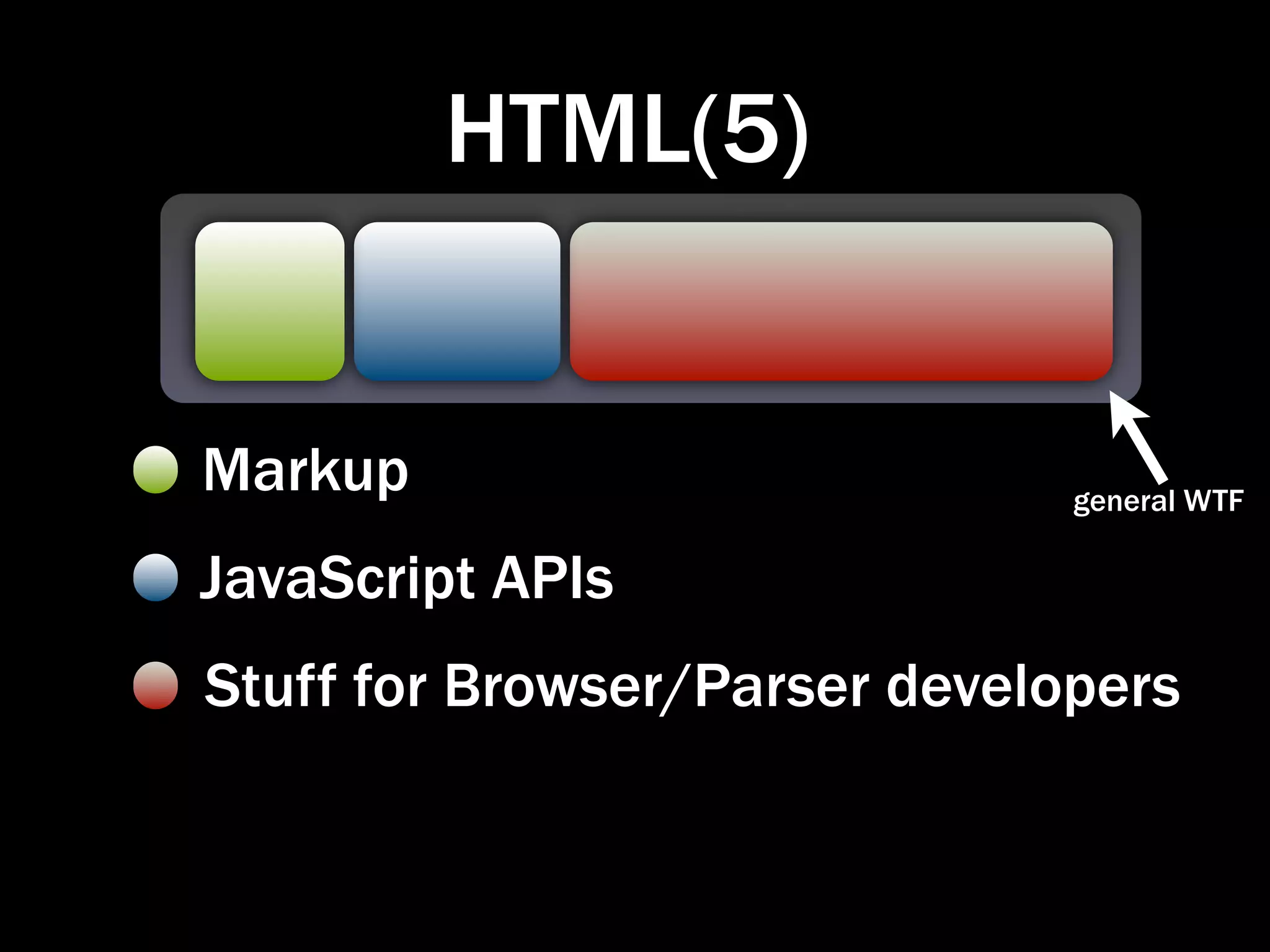

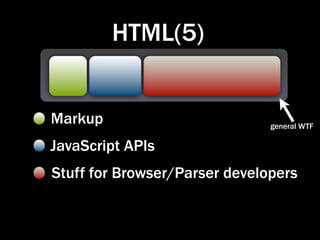

HTML(5)


Markup                         general WTF

JavaScript APIs
Stuff for Browser/Parser developers
This gives people lots of
space for interpretation
and focus - and the
opportunity to rant.

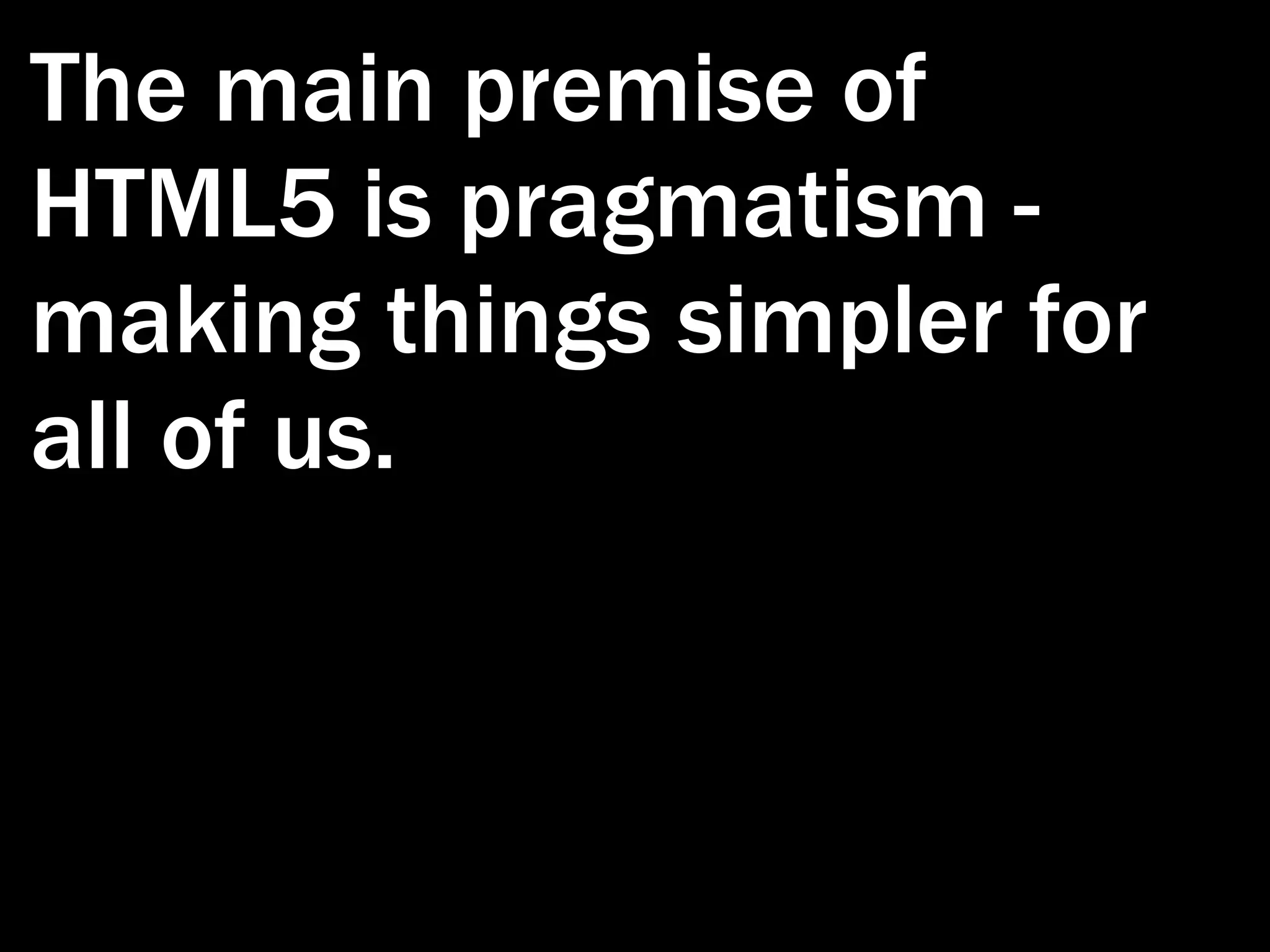

The main premise of
HTML5 is pragmatism -
making things simpler for
all of us.

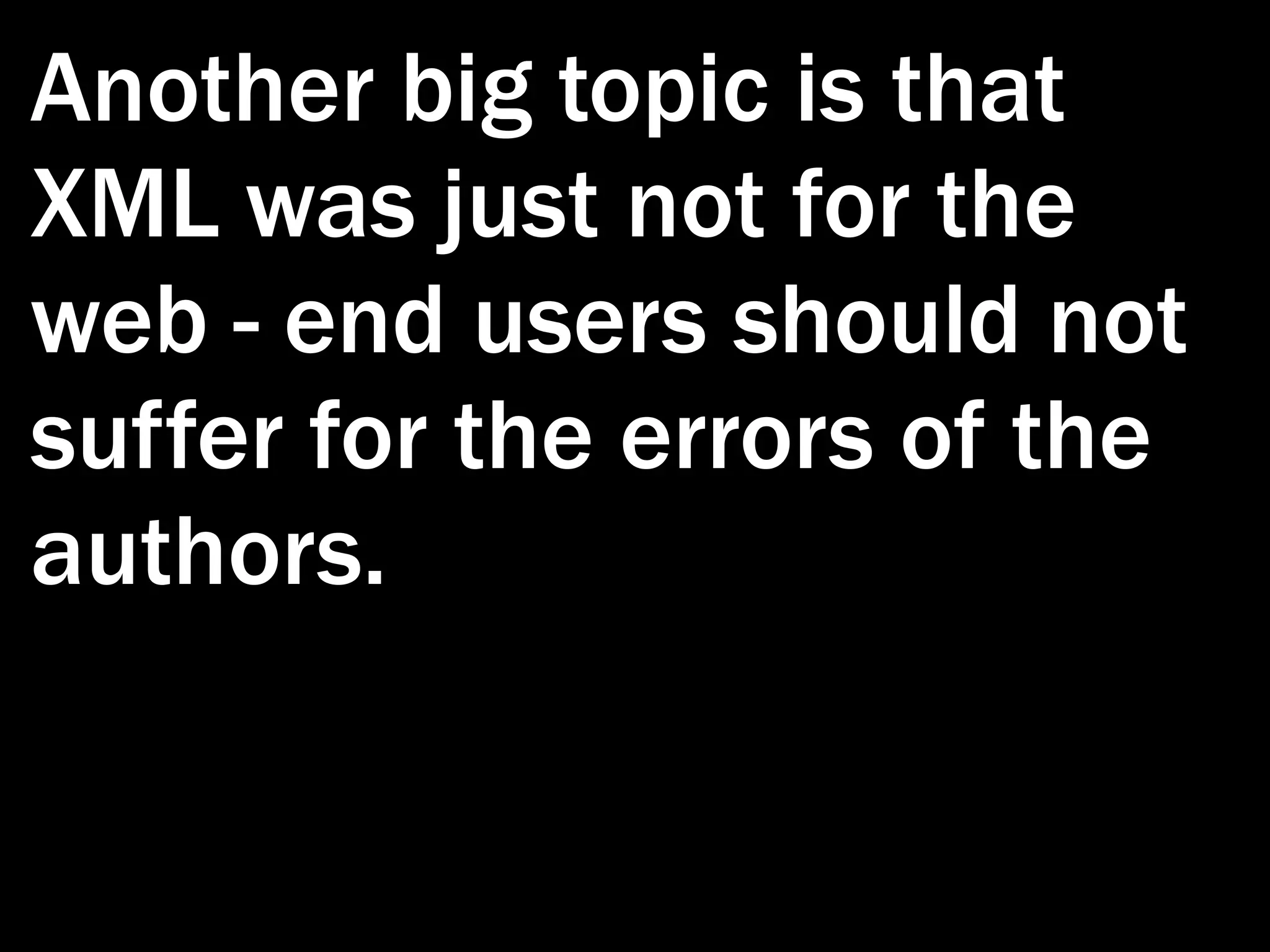

Another big topic is that
XML was just not for the
web - end users should not
suffer for the errors of the
authors.

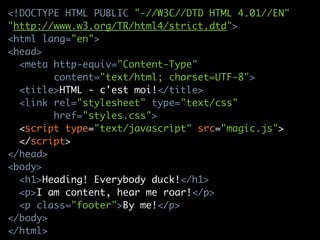

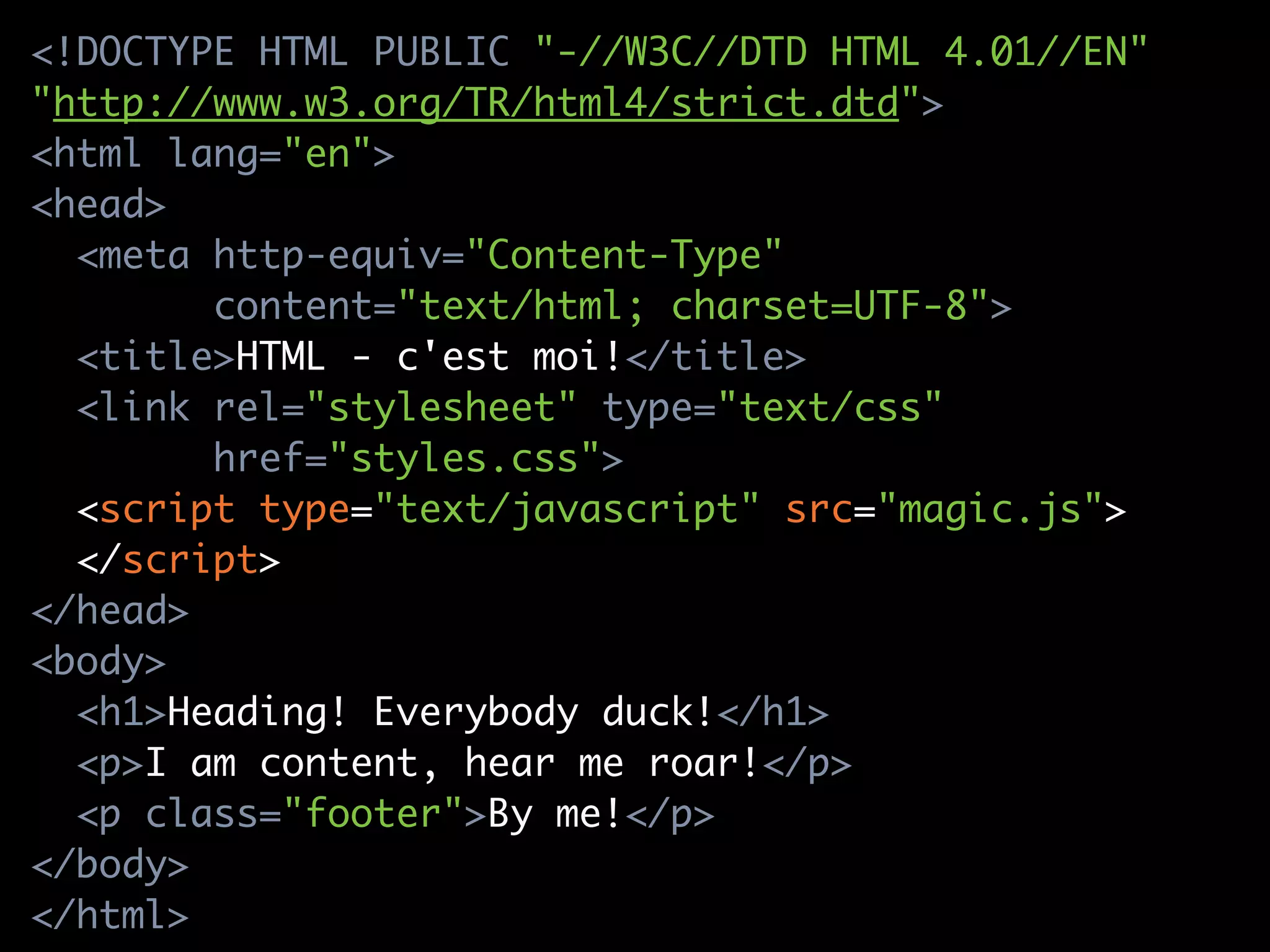

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN"
"http://www.w3.org/TR/html4/strict.dtd">
<html lang="en">
<head>
  <meta http-equiv="Content-Type"
        content="text/html; charset=UTF-8">
  <title>HTML - c'est moi!</title>
  <link rel="stylesheet" type="text/css"
        href="styles.css">
  <script type="text/javascript" src="magic.js">
  </script>
</head>
<body>
  <h1>Heading! Everybody duck!</h1>
  <p>I am content, hear me roar!</p>
  <p class="footer">By me!</p>
</body>
</html>

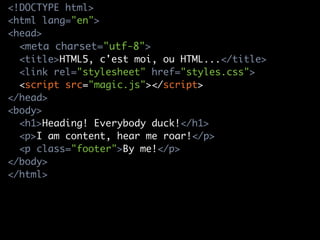

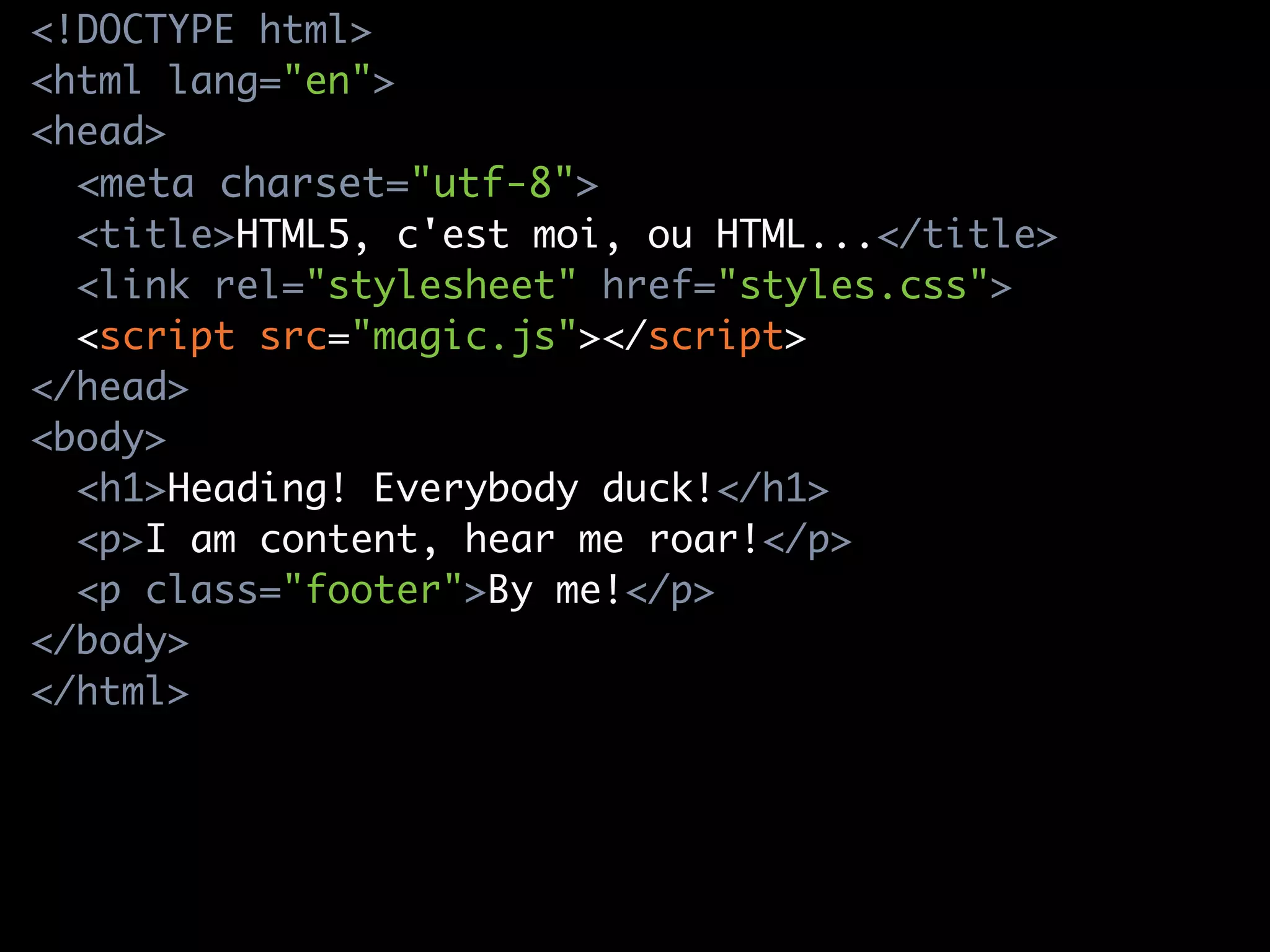

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <title>HTML5, c'est moi, ou HTML...</title>
  <link rel="stylesheet" href="styles.css">
  <script src="magic.js"></script>
</head>
<body>
  <h1>Heading! Everybody duck!</h1>
  <p>I am content, hear me roar!</p>
  <p class="footer">By me!</p>
</body>
</html>
HTML5 also includes new
semantic elements (based
on class names in use) that
structure our documents
much better than before.

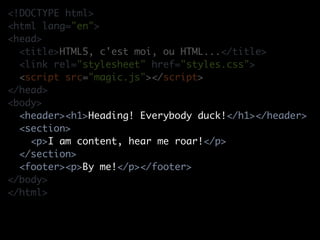

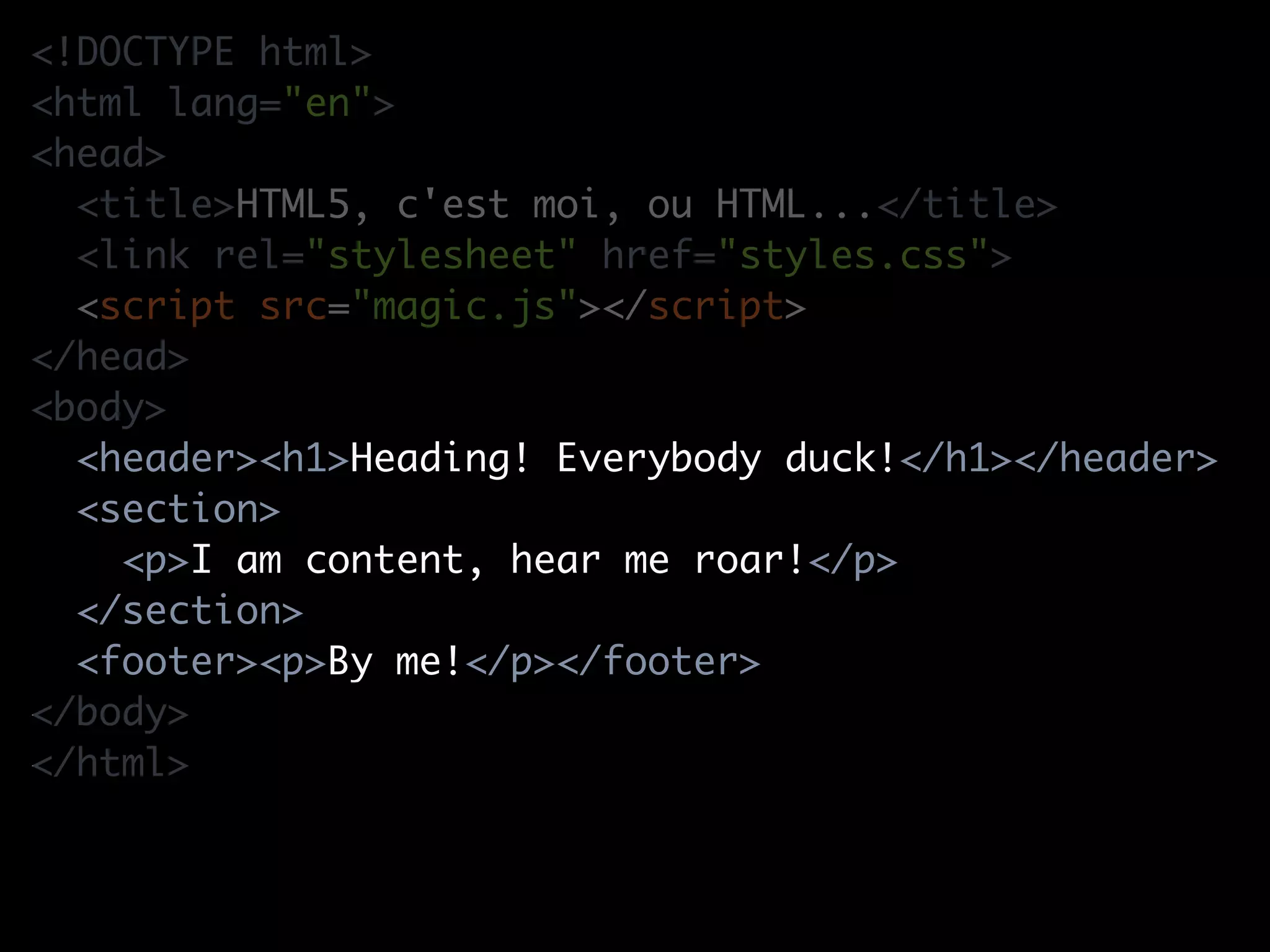

<!DOCTYPE html>
<html lang="en">
<head>
  <title>HTML5, c'est moi, ou HTML...</title>
  <link rel="stylesheet" href="styles.css">
  <script src="magic.js"></script>
</head>
<body>
  <header><h1>Heading! Everybody duck!</h1></header>
  <section>
    <p>I am content, hear me roar!</p>
  </section>
  <footer><p>By me!</p></footer>
</body>
</html>
HTML5 defines
and expects
browsers to fix
omissions for
us - and
doesn’t mind
case or quotes.
<!DOCTYPE html>
<html lang=en>
  <TITLE>HTML5, c'est moi, ou HTML...</title>
  <LINK rel=stylesheet href=styles.css>
  <script src=magic.js></SCRIPT>
<body>
  <HEADER><h1>Heading! Everybody duck!</h1></header>
  <section>
    <p>I am content, hear me roar!</p>
  </SECTION>
  <footer><p>By me!</p></FOOTER>
</body>
</HTML>
The reason is that browsers
do that anyways - just
check the generated code
of a document like that.

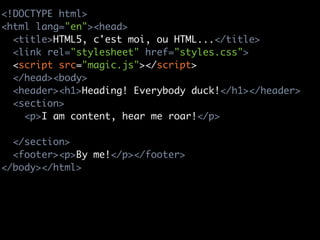

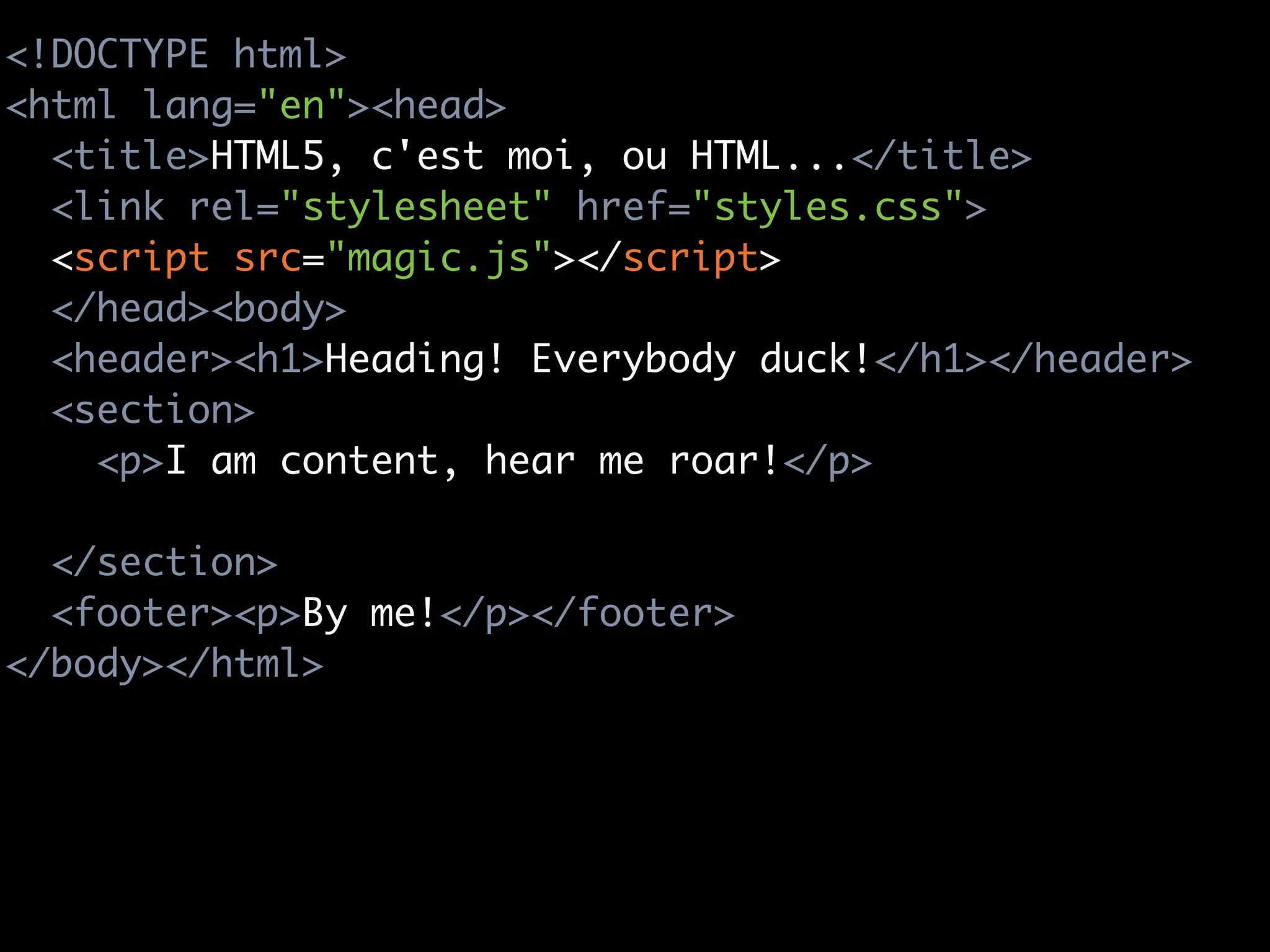

<!DOCTYPE html>
<html lang="en"><head>
  <title>HTML5, c'est moi, ou HTML...</title>
  <link rel="stylesheet" href="styles.css">
  <script src="magic.js"></script>
  </head><body>
  <header><h1>Heading! Everybody duck!</h1></header>
  <section>
    <p>I am content, hear me roar!</p>

  </section>
  <footer><p>By me!</p></footer>
</body></html>

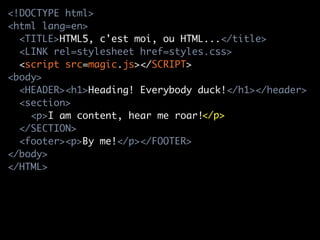

<!DOCTYPE html>
<html lang=en>
  <TITLE>HTML5, c'est moi, ou HTML...</title>
  <LINK rel=stylesheet href=styles.css>
  <script src=magic.js></SCRIPT>
<body>
  <HEADER><h1>Heading! Everybody duck!</h1></header>
  <section>
    <p>I am content, hear me roar!</p>
  </SECTION>
  <footer><p>By me!</p></FOOTER>
</body>
</HTML>

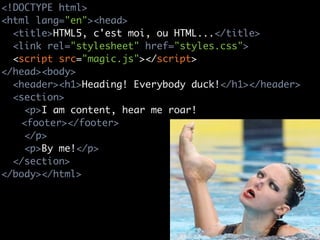

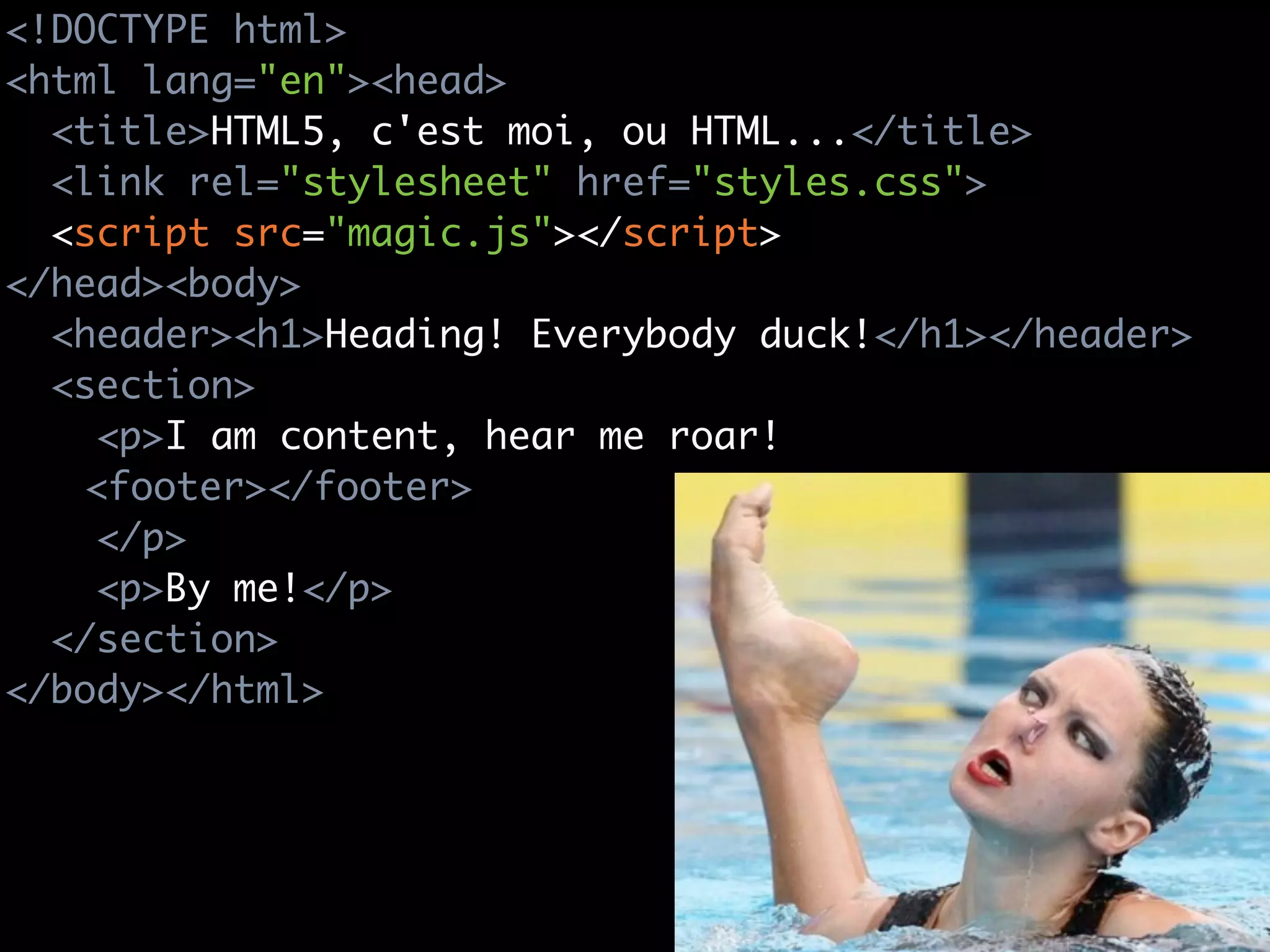

<!DOCTYPE html>
<html lang="en"><head>
  <title>HTML5, c'est moi, ou HTML...</title>
  <link rel="stylesheet" href="styles.css">
  <script src="magic.js"></script>
</head><body>
  <header><h1>Heading! Everybody duck!</h1></header>
  <section>
     <p>I am content, hear me roar!
  	 <footer></footer>
     </p>
     <p>By me!</p>
  </section>
</body></html>
Browsers fix a lot of stuff
for us, this has always been
the case.
?
Can innovation be based on
“people never did this
correctly anyways”?
?
Is it HTML or BML?
?
Should HTML be there only
for browsers?

What about conversion
Services? Search bots?
Content scrapers?
Internet Explorer 6
Internet Explorer doesn’t
allow styling for elements it
doesn’t understand as part
of HTML.

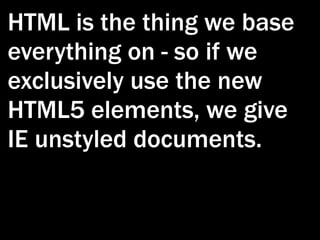

HTML is the thing we base
everything on - so if we
exclusively use the new
HTML5 elements, we give
IE unstyled documents.
Time to apply
some fixes!

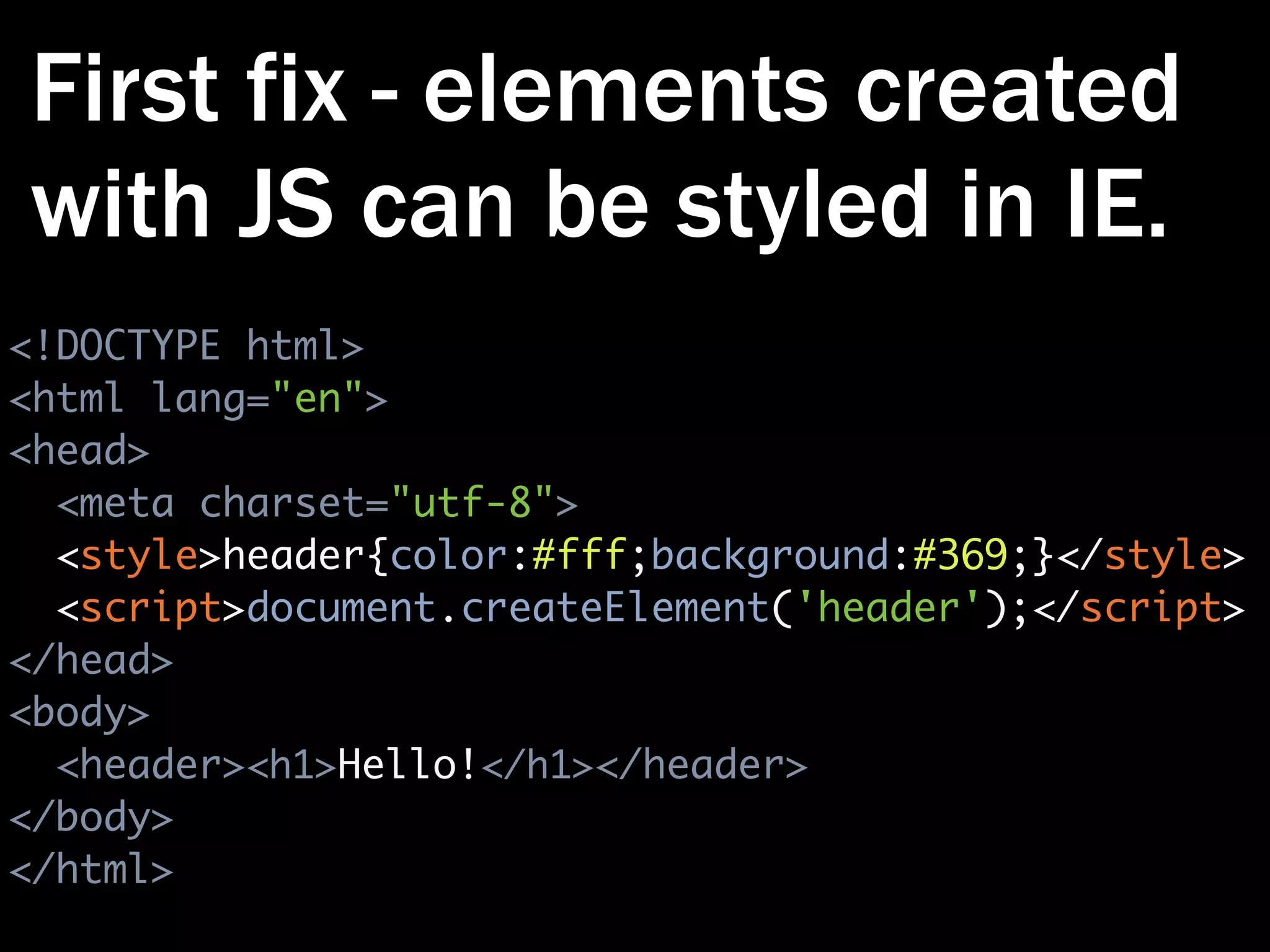

First fix - elements created
with JS can be styled in IE.
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <style>header{color:#fff;background:#369;}</style>
  <script>document.createElement('header');</script>
</head>
<body>
  <header><h1>Hello!</h1></header>
</body>
</html>

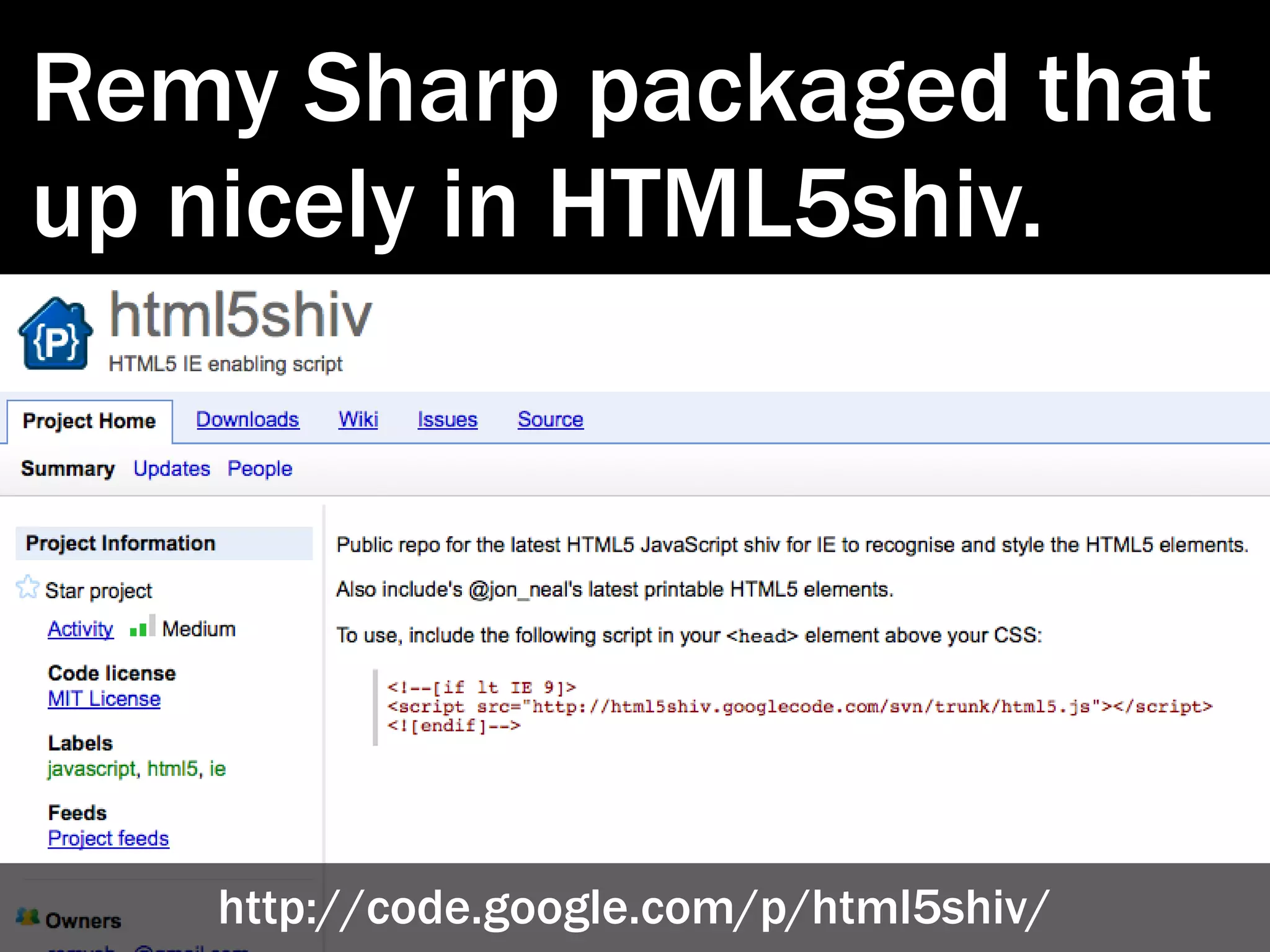

Remy Sharp packaged that
up nicely in HTML5shiv.




   http://code.google.com/p/html5shiv/
Cue the purists of the web.
“HTML should work without
JavaScript!”

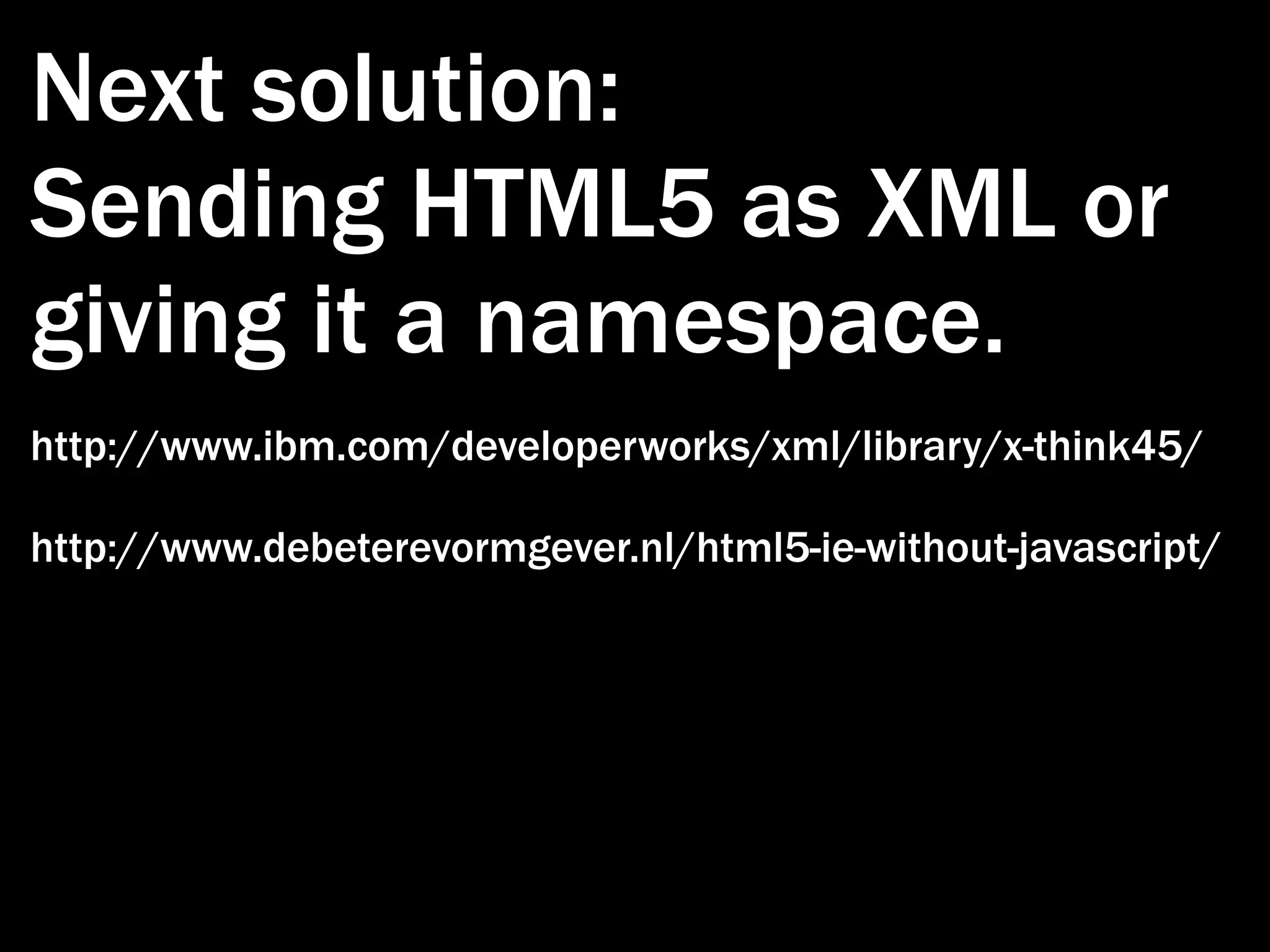

Next solution:
Sending HTML5 as XML or
giving it a namespace.
http://www.ibm.com/developerworks/xml/library/x-think45/

http://www.debeterevormgever.nl/html5-ie-without-javascript/

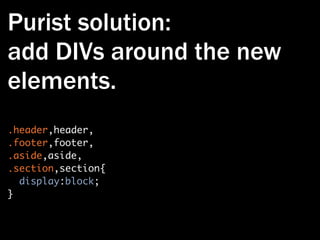

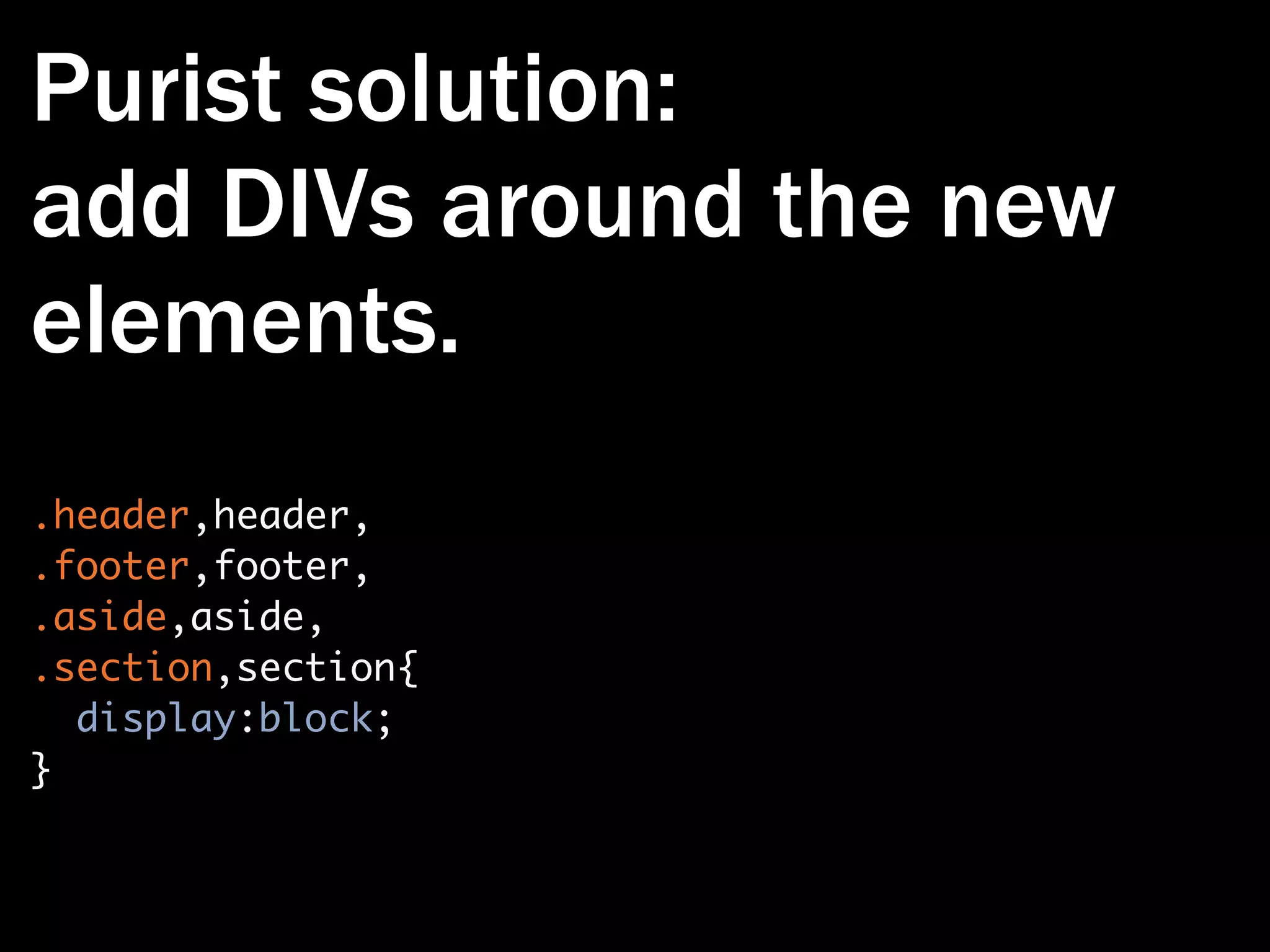

Purist solution:
add DIVs around the new
elements.
.header,header,
.footer,footer,
.aside,aside,
.section,section{
  display:block;
}

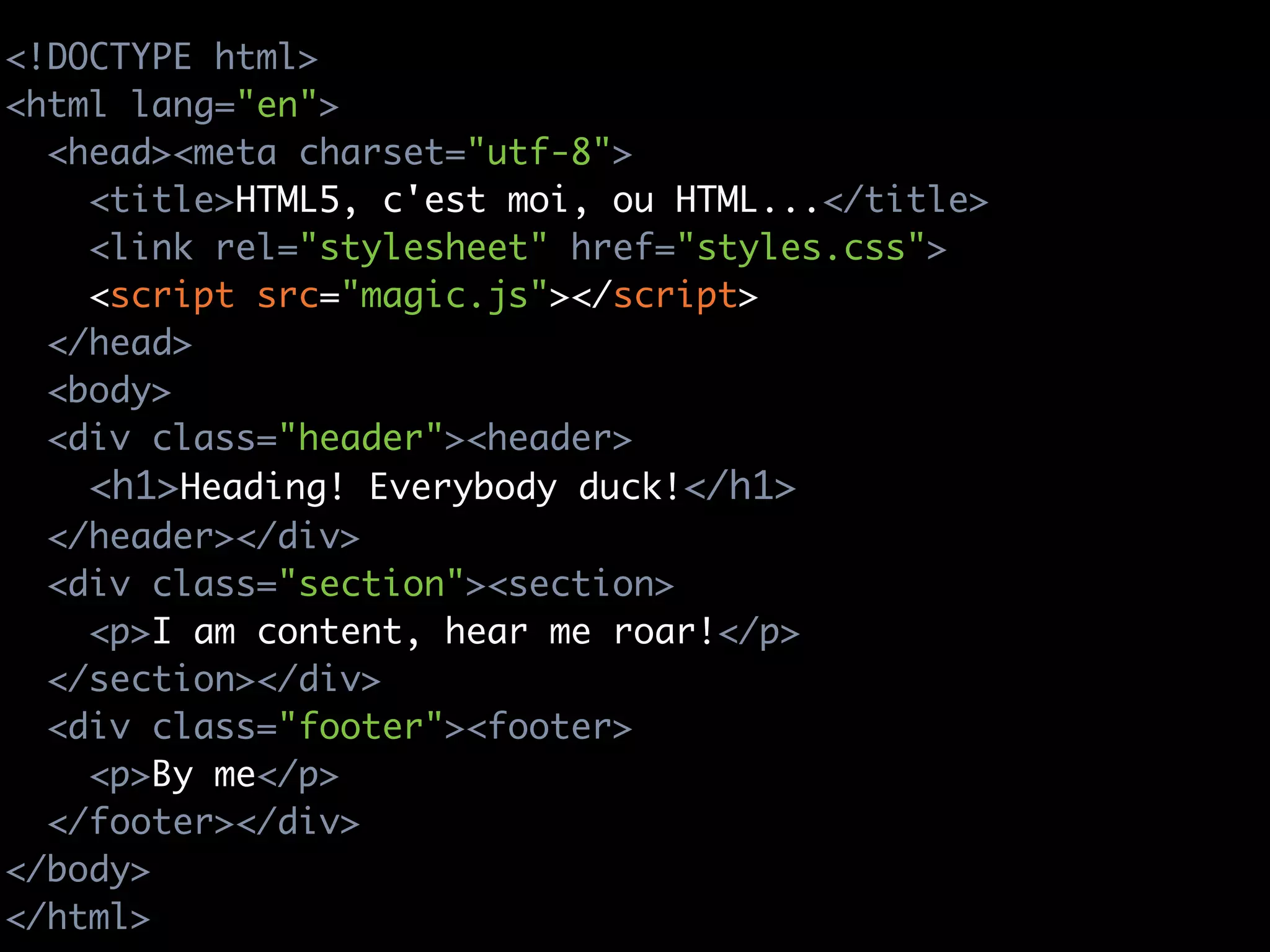

<!DOCTYPE html>
<html lang="en">
  <head><meta charset="utf-8">
    <title>HTML5, c'est moi, ou HTML...</title>
    <link rel="stylesheet" href="styles.css">
    <script src="magic.js"></script>
  </head>
  <body>
  <div class="header"><header>
    <h1>Heading! Everybody duck!</h1>
  </header></div>
  <div class="section"><section>
    <p>I am content, hear me roar!</p>
  </section></div>
  <div class="footer"><footer>
    <p>By me</p>
  </footer></div>
</body>
</html>

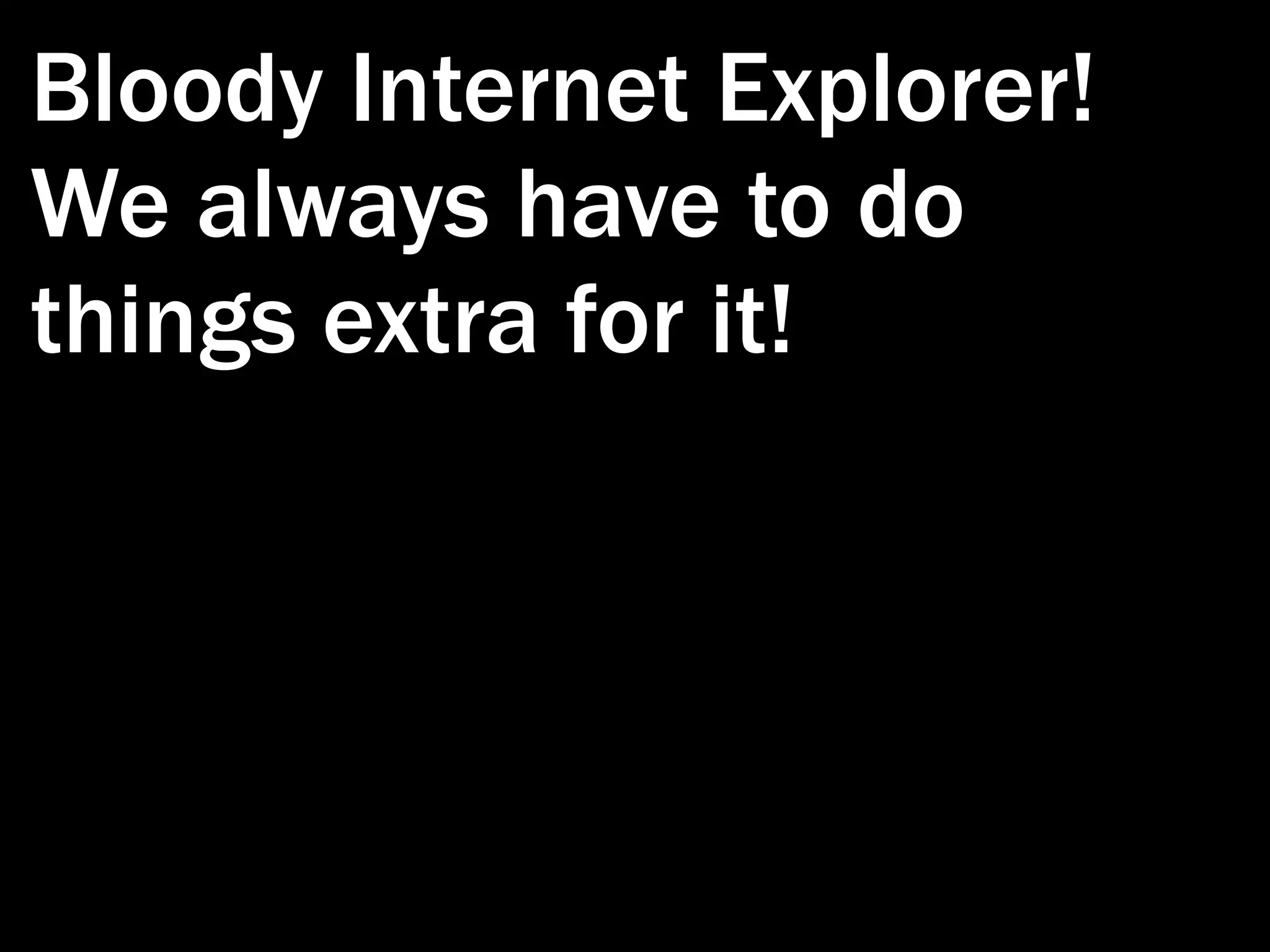

Bloody Internet Explorer!
We always have to do
things extra for it!
All browsers fail in one way
or another and need
patches. Our job is to know
them.

Luckily, there is help.

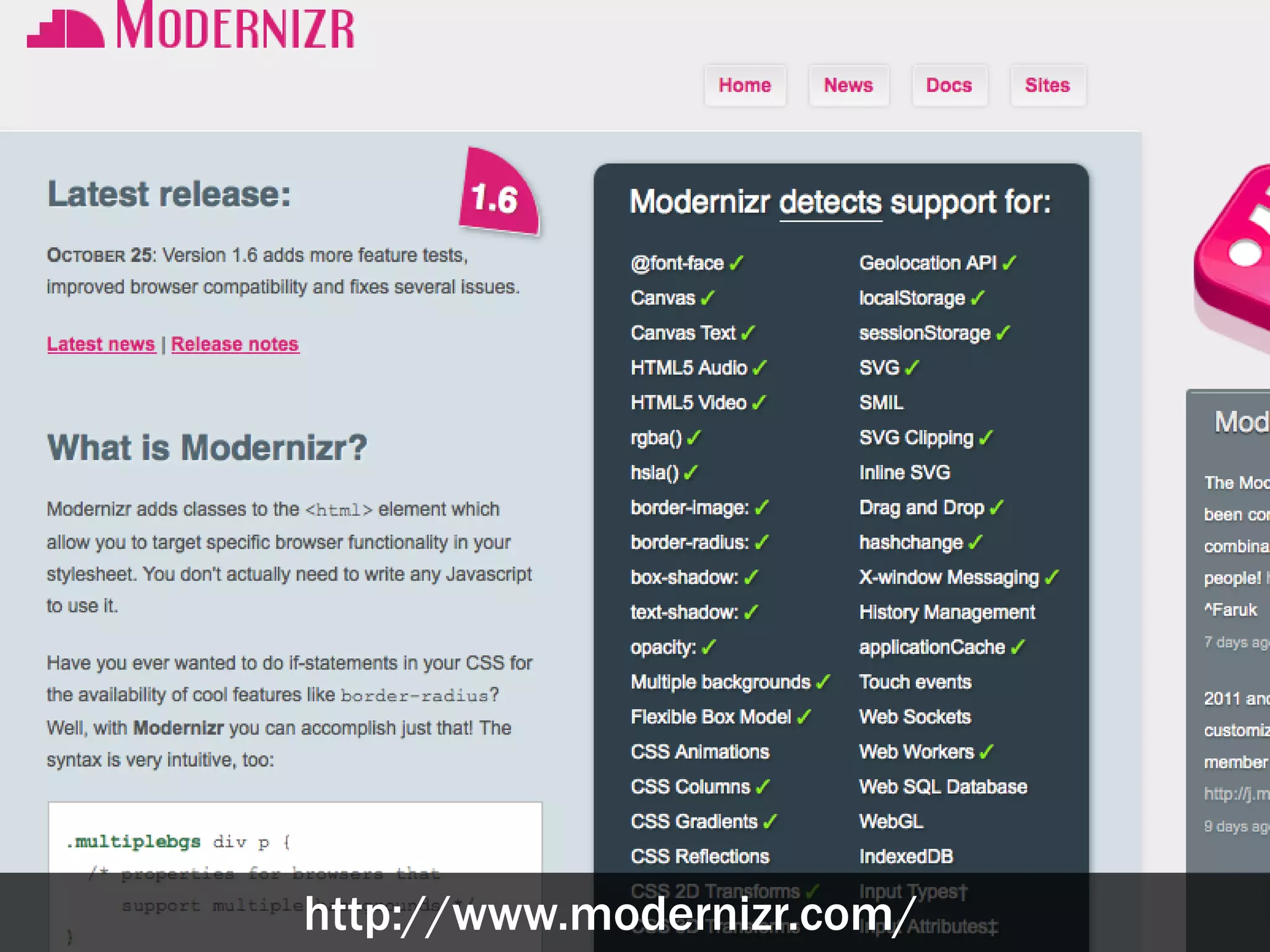

http://www.modernizr.com/

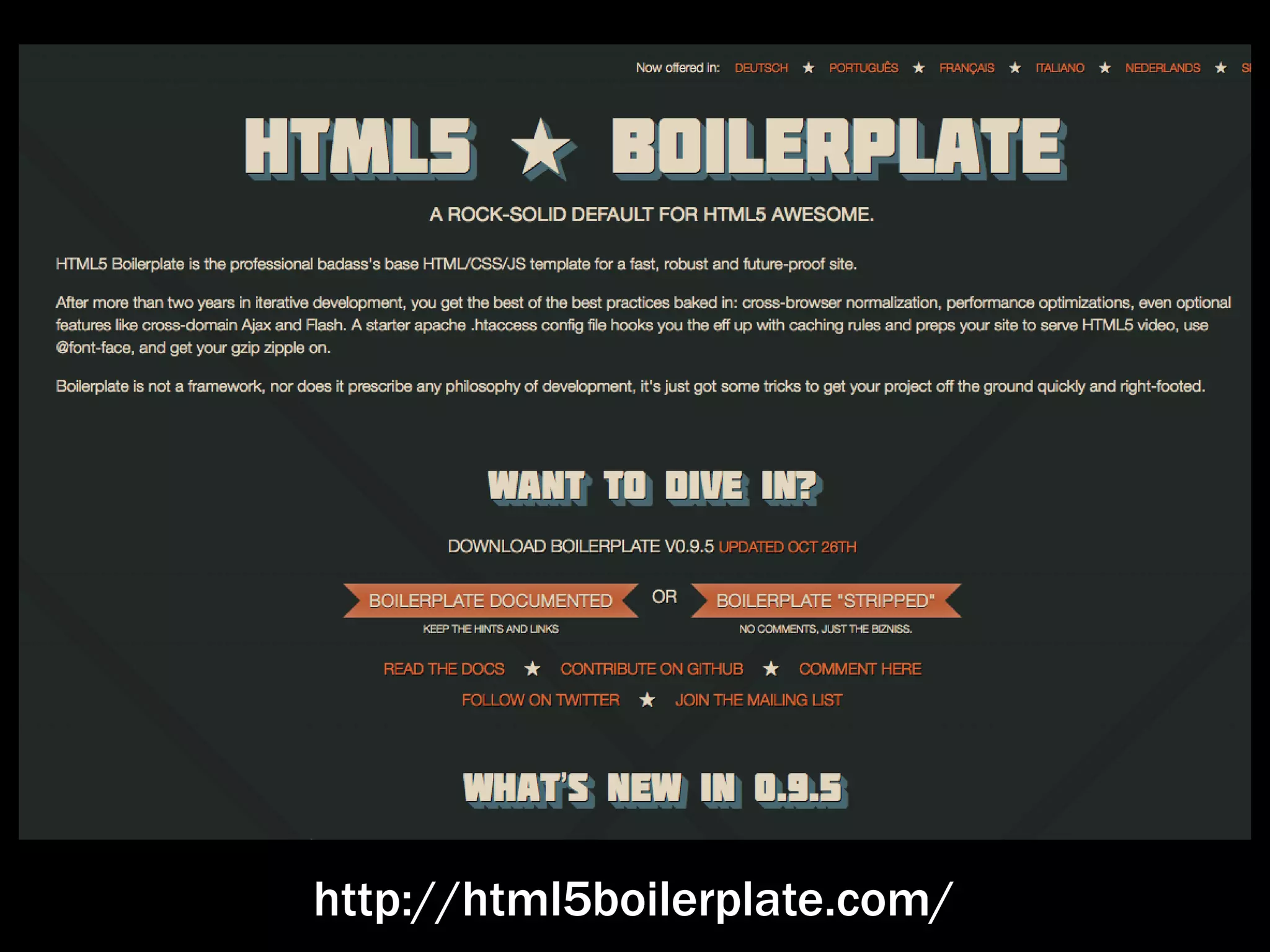

http://html5boilerplate.com/

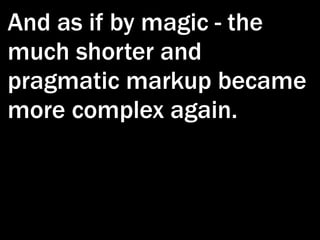

And as if by magic - the
much shorter and
pragmatic markup became
more complex again.

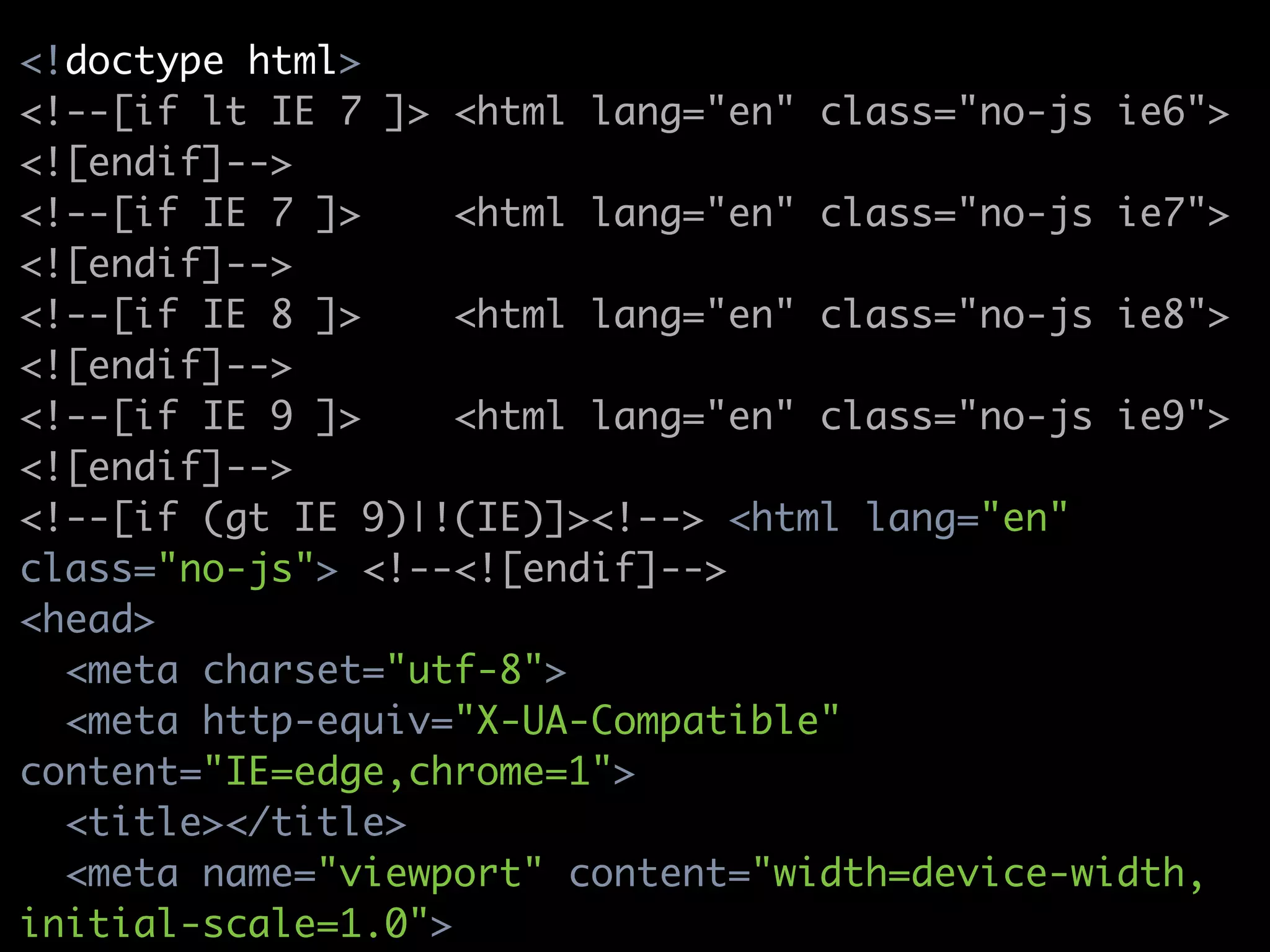

<!doctype html>
<!--[if lt IE 7 ]> <html lang="en" class="no-js ie6">
<![endif]-->
<!--[if IE 7 ]>     <html lang="en" class="no-js ie7">
<![endif]-->
<!--[if IE 8 ]>     <html lang="en" class="no-js ie8">
<![endif]-->
<!--[if IE 9 ]>     <html lang="en" class="no-js ie9">
<![endif]-->
<!--[if (gt IE 9)|!(IE)]><!--> <html lang="en"
class="no-js"> <!--<![endif]-->
<head>
  <meta charset="utf-8">
  <meta http-equiv="X-UA-Compatible"
content="IE=edge,chrome=1">
  <title></title>
  <meta name="viewport" content="width=device-width,
initial-scale=1.0">

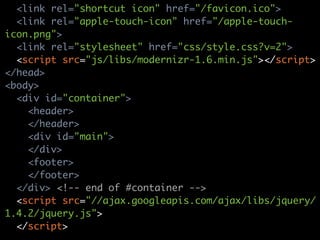

<link rel="shortcut icon" href="/favicon.ico">
  <link rel="apple-touch-icon" href="/apple-touch-
icon.png">
  <link rel="stylesheet" href="css/style.css?v=2">
  <script src="js/libs/modernizr-1.6.min.js"></script>
</head>
<body>
  <div id="container">
    <header>
    </header>
    <div id="main">
    </div>
    <footer>
    </footer>
  </div> <!-- end of #container -->
  <script src="//ajax.googleapis.com/ajax/libs/jquery/
1.4.2/jquery.js">
  </script>

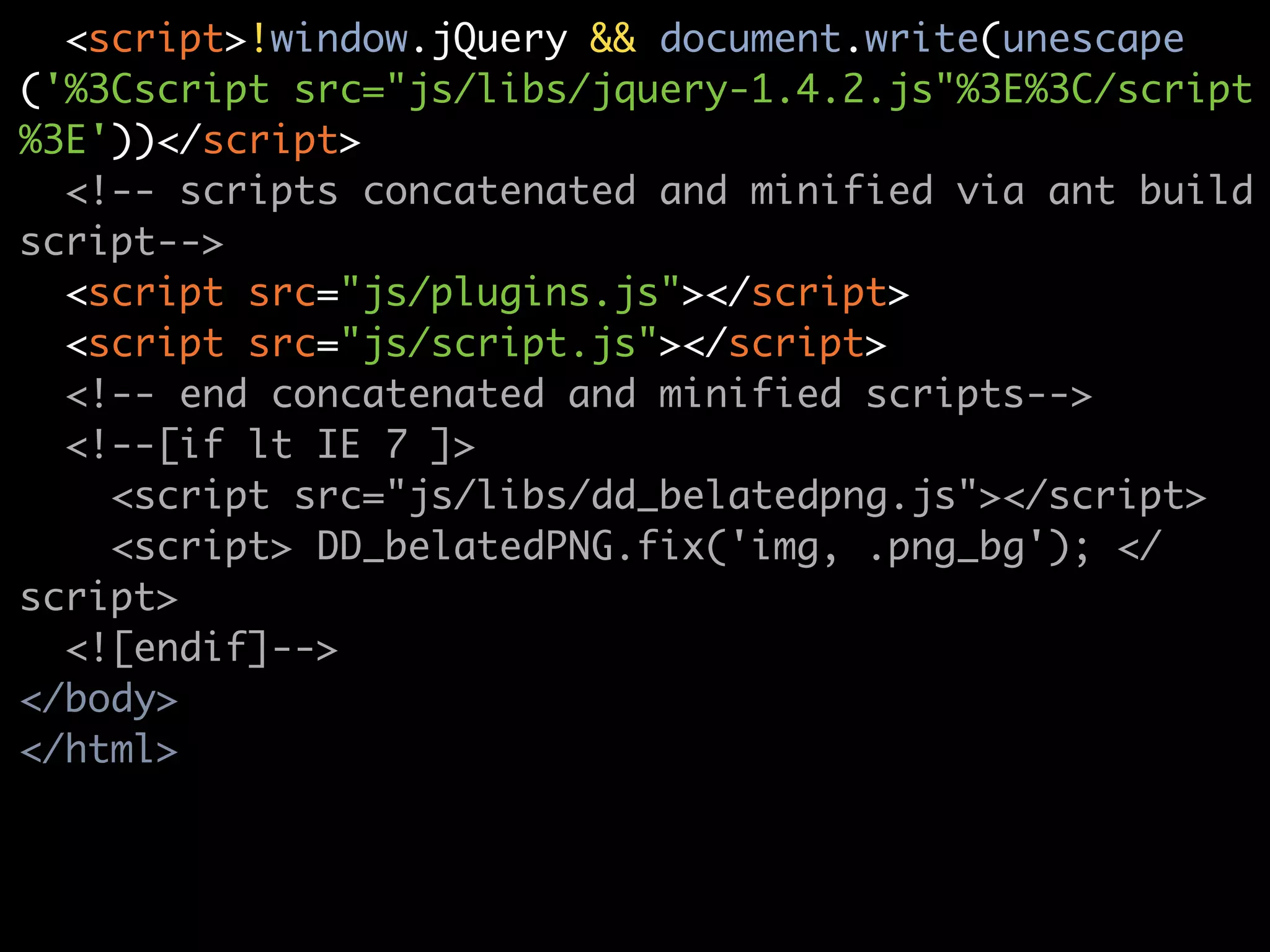

<script>!window.jQuery && document.write(unescape
('%3Cscript src="js/libs/jquery-1.4.2.js"%3E%3C/script
%3E'))</script>
  <!-- scripts concatenated and minified via ant build
script-->
  <script src="js/plugins.js"></script>
  <script src="js/script.js"></script>
  <!-- end concatenated and minified scripts-->
  <!--[if lt IE 7 ]>
    <script src="js/libs/dd_belatedpng.js"></script>
    <script> DD_belatedPNG.fix('img, .png_bg'); </
script>
  <![endif]-->
</body>
</html>

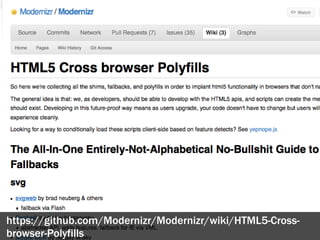

One solution to use HTML5
APIs with legacy browsers
is using polyfills.
https://github.com/Modernizr/Modernizr/wiki/HTML5-Cross-
browser-Polyfills
?

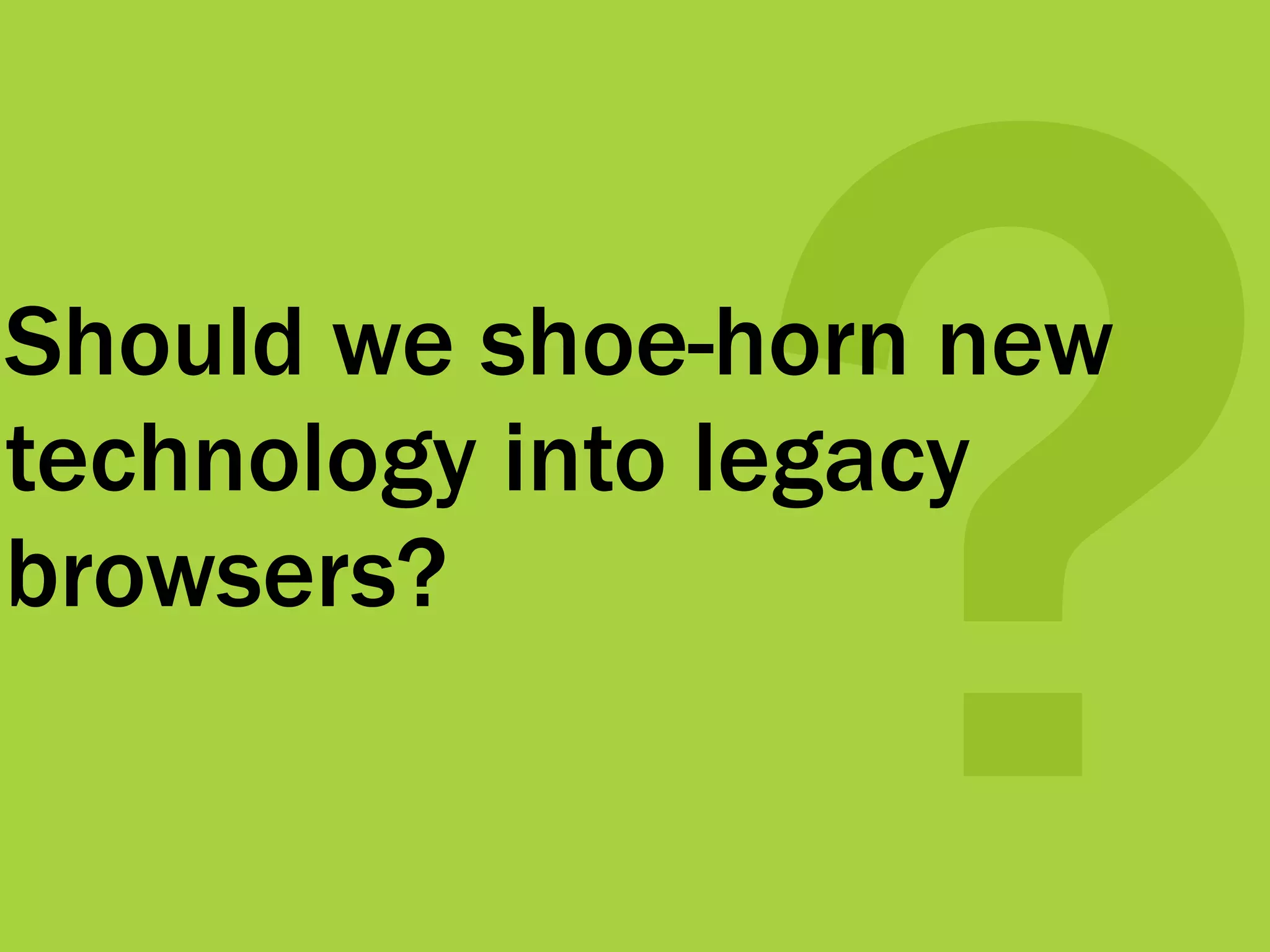

Should we shoe-horn new
technology into legacy
browsers?
?
Do patches add complexity
as we need to test their
performance?
?
How about moving IE<9
fixes to the server side?
Padding with DIVs with
classes and no JS for IE?
Making video and audio
simpler.
Embedding audio and video
is easy in HTML5
<video src="interview.ogv" controls>
  <a href="interview.ogv">Download the video</a>
</video>

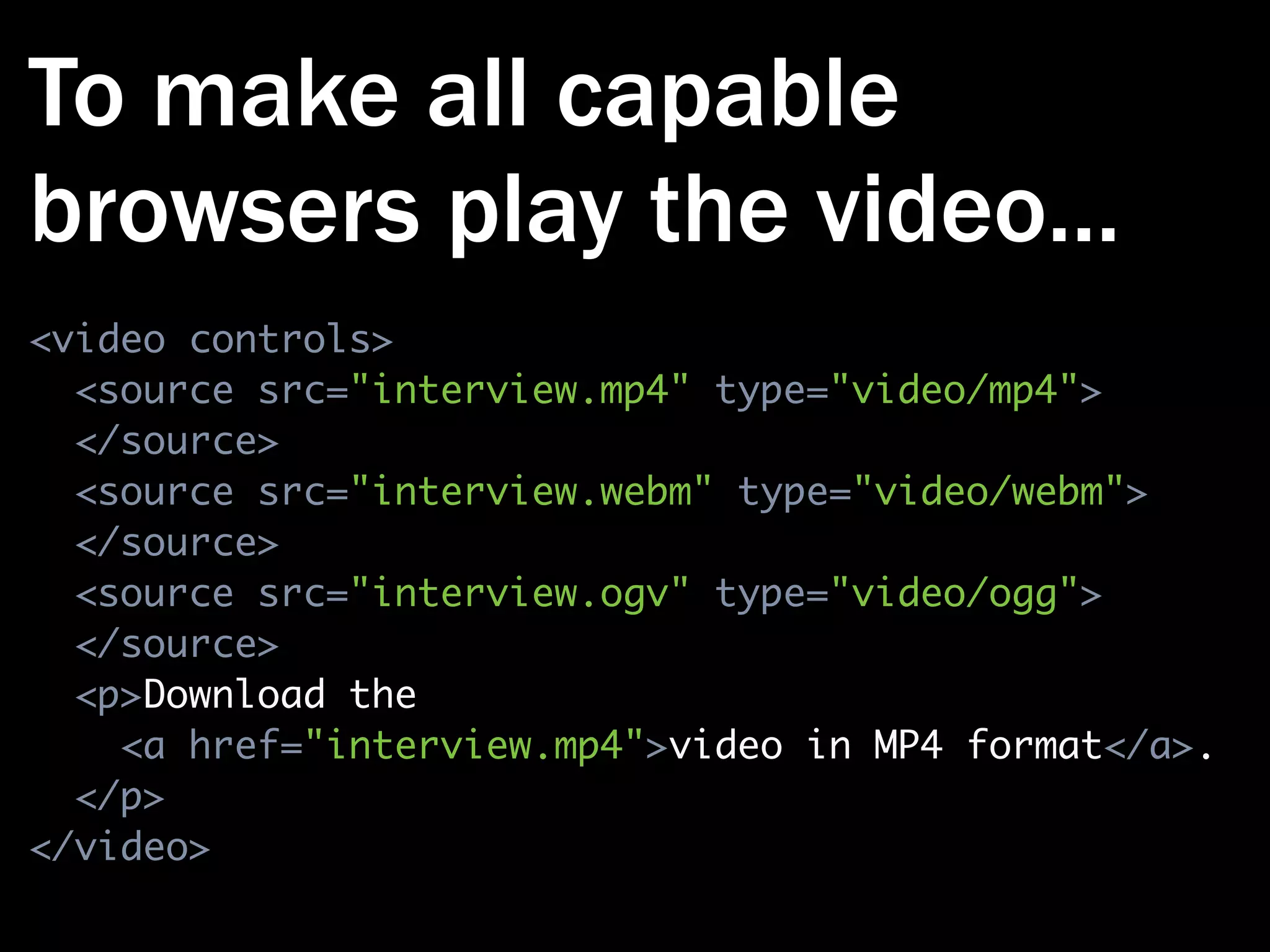

To make all capable
browsers play the video...
<video controls>
  <source src="interview.mp4" type="video/mp4">
  </source>
  <source src="interview.webm" type="video/webm">
  </source>
  <source src="interview.ogv" type="video/ogg">
  </source>
  <p>Download the
    <a href="interview.mp4">video in MP4 format</a>.
  </p>
</video>

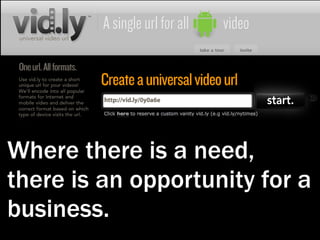

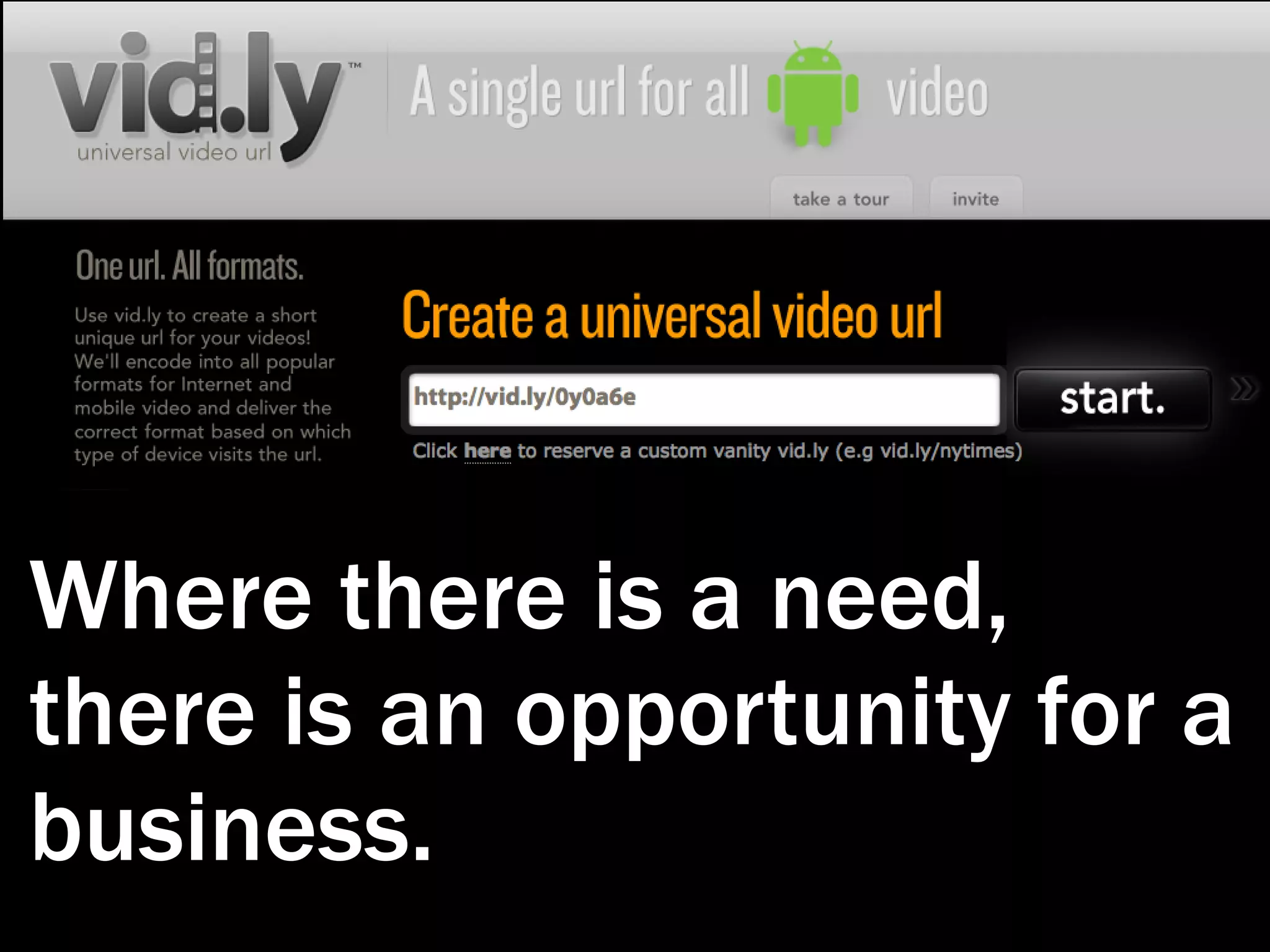

Where there is a need,
there is an opportunity for a
business.
However, there is a real
problem for businesses.

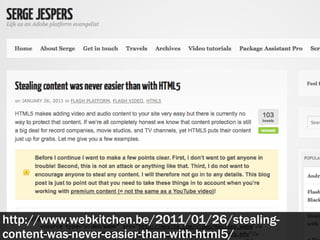

http://www.webkitchen.be/2011/01/26/stealing-
content-was-never-easier-than-with-html5/
?

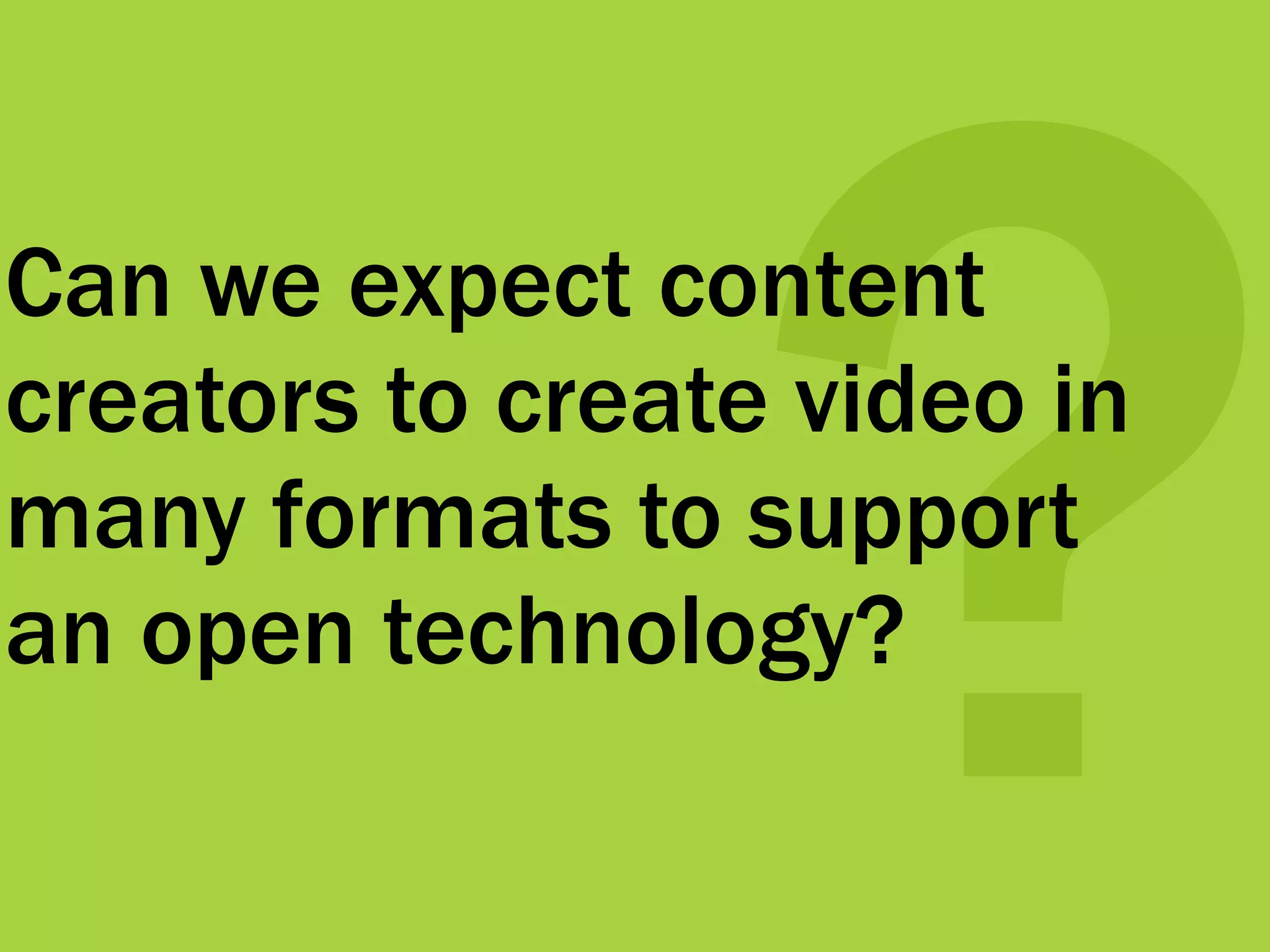

Can we expect content
creators to create video in
many formats to support
an open technology?
?
Can a service like vid.ly be
trusted for content creation
and storage?
?
Is HTML5 not applicable for
premium content?
It is time for all of us to
take initiative and make
this work.
Question authority and call
out wrong messaging.

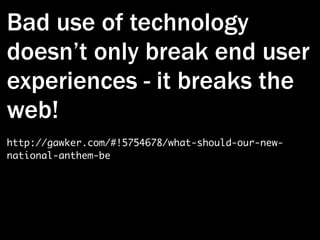

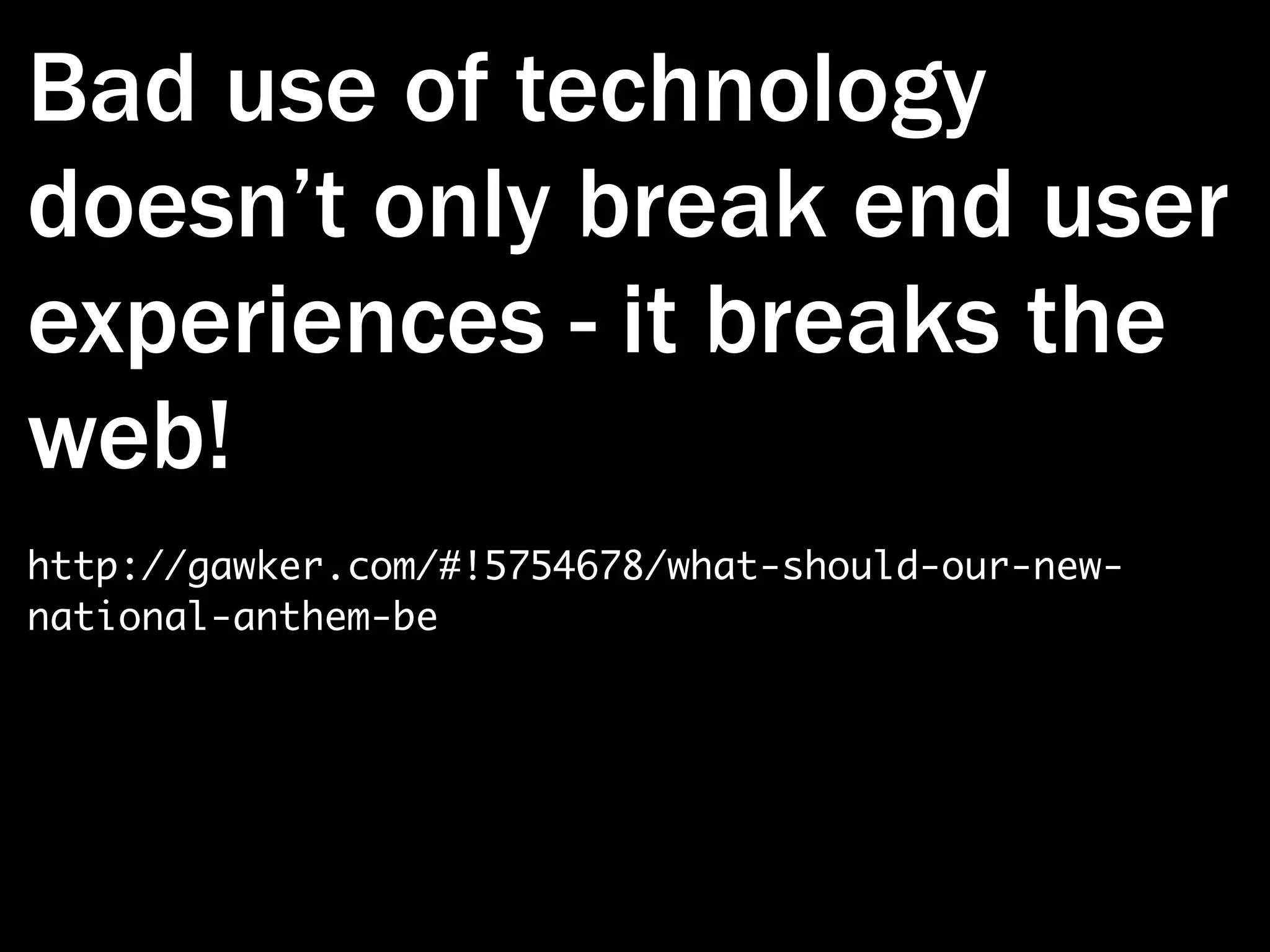

Bad use of technology
doesn’t only break end user
experiences - it breaks the
web!
http://gawker.com/#!5754678/what-should-our-new-
national-anthem-be

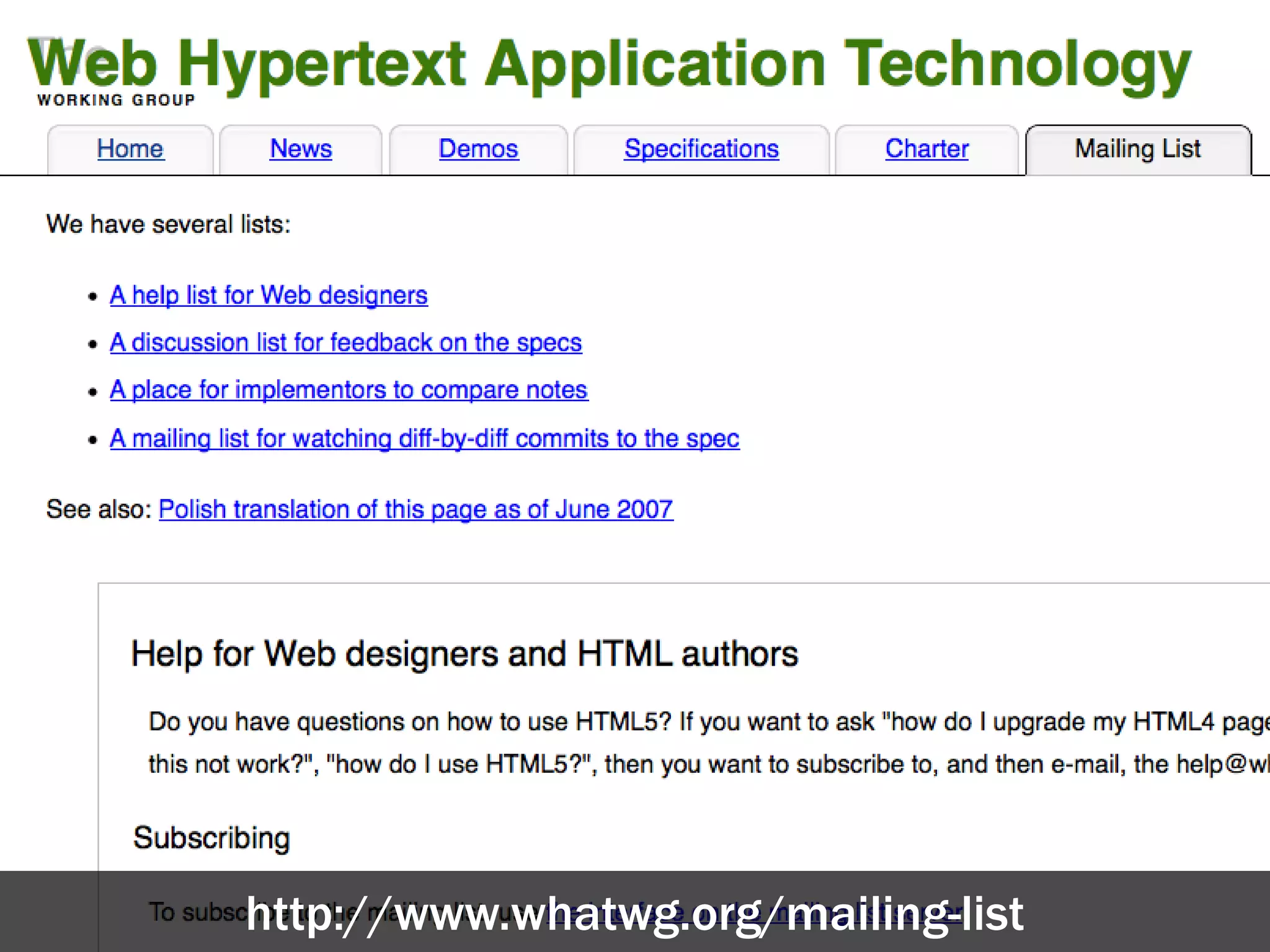

http://www.whatwg.org/mailing-list

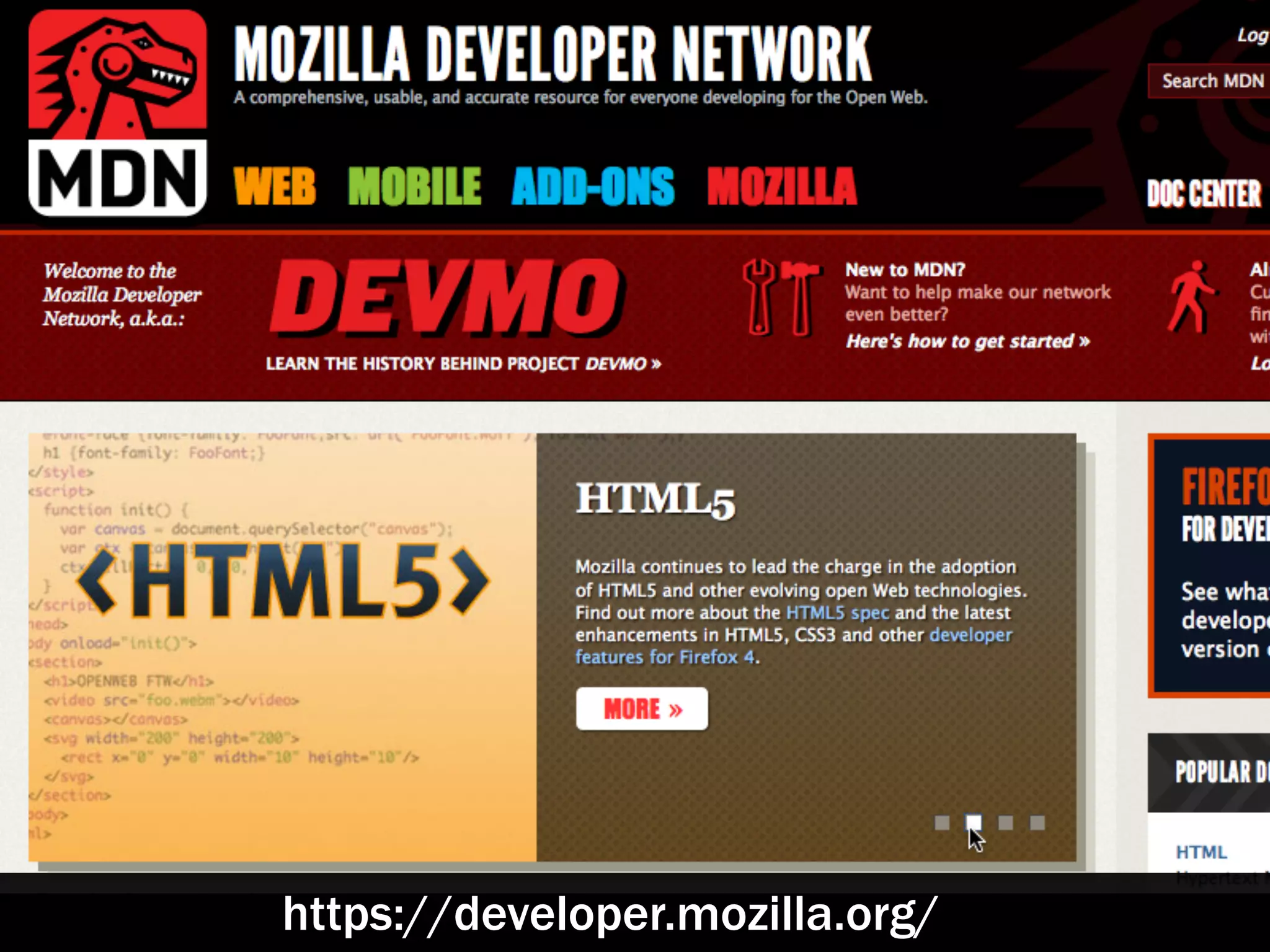

https://developer.mozilla.org/
Thanks!

Chris Heilmann
@codepo8
http://icant.co.uk

Using HTML5 sensibly

  • 1.
    Using HTML5 sensibly ChristianHeilmann, London Ajax User Meetup, February 2011
  • 2.
    This will bea change from my normal talks. Instead of giving you the facts, it is my turn to ask some questions.
  • 3.
    But first, letme tell you a story. As stories are important!
  • 4.
  • 5.
  • 9.
    So let’s seewhat went wrong there... ★ Purely engineering driven ★ Tested while on the road ★ Never tested in the real environment ★ Massive media excitement before it proved its worth
  • 11.
    HTML5 is thenew hotness!
  • 12.
  • 13.
  • 14.
  • 15.
    Everything is HTML5- including browser specific tricks.
  • 16.
    To a degreethis is understandable. There is a lot of confusion about the players and the specs.
  • 17.
    HTML(5) Markup general WTF JavaScript APIs Stuff for Browser/Parser developers
  • 18.
    This gives peoplelots of space for interpretation and focus - and the opportunity to rant.
  • 19.
    The main premiseof HTML5 is pragmatism - making things simpler for all of us.
  • 20.
    Another big topicis that XML was just not for the web - end users should not suffer for the errors of the authors.
  • 21.
    <!DOCTYPE HTML PUBLIC"-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd"> <html lang="en"> <head> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8"> <title>HTML - c'est moi!</title> <link rel="stylesheet" type="text/css" href="styles.css"> <script type="text/javascript" src="magic.js"> </script> </head> <body> <h1>Heading! Everybody duck!</h1> <p>I am content, hear me roar!</p> <p class="footer">By me!</p> </body> </html>
  • 22.
    <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <title>HTML5, c'est moi, ou HTML...</title> <link rel="stylesheet" href="styles.css"> <script src="magic.js"></script> </head> <body> <h1>Heading! Everybody duck!</h1> <p>I am content, hear me roar!</p> <p class="footer">By me!</p> </body> </html>
  • 23.
    HTML5 also includesnew semantic elements (based on class names in use) that structure our documents much better than before.
  • 24.
    <!DOCTYPE html> <html lang="en"> <head> <title>HTML5, c'est moi, ou HTML...</title> <link rel="stylesheet" href="styles.css"> <script src="magic.js"></script> </head> <body> <header><h1>Heading! Everybody duck!</h1></header> <section> <p>I am content, hear me roar!</p> </section> <footer><p>By me!</p></footer> </body> </html>
  • 25.
    HTML5 defines and expects browsersto fix omissions for us - and doesn’t mind case or quotes.
  • 26.
    <!DOCTYPE html> <html lang=en> <TITLE>HTML5, c'est moi, ou HTML...</title> <LINK rel=stylesheet href=styles.css> <script src=magic.js></SCRIPT> <body> <HEADER><h1>Heading! Everybody duck!</h1></header> <section> <p>I am content, hear me roar!</p> </SECTION> <footer><p>By me!</p></FOOTER> </body> </HTML>
  • 27.
    The reason isthat browsers do that anyways - just check the generated code of a document like that.
  • 28.
    <!DOCTYPE html> <html lang="en"><head> <title>HTML5, c'est moi, ou HTML...</title> <link rel="stylesheet" href="styles.css"> <script src="magic.js"></script> </head><body> <header><h1>Heading! Everybody duck!</h1></header> <section> <p>I am content, hear me roar!</p> </section> <footer><p>By me!</p></footer> </body></html>
  • 29.
    <!DOCTYPE html> <html lang=en> <TITLE>HTML5, c'est moi, ou HTML...</title> <LINK rel=stylesheet href=styles.css> <script src=magic.js></SCRIPT> <body> <HEADER><h1>Heading! Everybody duck!</h1></header> <section> <p>I am content, hear me roar!</p> </SECTION> <footer><p>By me!</p></FOOTER> </body> </HTML>
  • 30.
    <!DOCTYPE html> <html lang="en"><head> <title>HTML5, c'est moi, ou HTML...</title> <link rel="stylesheet" href="styles.css"> <script src="magic.js"></script> </head><body> <header><h1>Heading! Everybody duck!</h1></header> <section> <p>I am content, hear me roar! <footer></footer> </p> <p>By me!</p> </section> </body></html>
  • 31.
    Browsers fix alot of stuff for us, this has always been the case.
  • 32.
    ? Can innovation bebased on “people never did this correctly anyways”?
  • 33.
    ? Is it HTMLor BML?
  • 34.
    ? Should HTML bethere only for browsers? What about conversion Services? Search bots? Content scrapers?
  • 35.
  • 36.
    Internet Explorer doesn’t allowstyling for elements it doesn’t understand as part of HTML.
  • 37.
    HTML is thething we base everything on - so if we exclusively use the new HTML5 elements, we give IE unstyled documents.
  • 38.
  • 39.
    First fix -elements created with JS can be styled in IE. <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <style>header{color:#fff;background:#369;}</style> <script>document.createElement('header');</script> </head> <body> <header><h1>Hello!</h1></header> </body> </html>
  • 40.
    Remy Sharp packagedthat up nicely in HTML5shiv. http://code.google.com/p/html5shiv/
  • 41.
    Cue the puristsof the web. “HTML should work without JavaScript!”
  • 42.
    Next solution: Sending HTML5as XML or giving it a namespace. http://www.ibm.com/developerworks/xml/library/x-think45/ http://www.debeterevormgever.nl/html5-ie-without-javascript/
  • 43.
    Purist solution: add DIVsaround the new elements. .header,header, .footer,footer, .aside,aside, .section,section{ display:block; }
  • 44.
    <!DOCTYPE html> <html lang="en"> <head><meta charset="utf-8"> <title>HTML5, c'est moi, ou HTML...</title> <link rel="stylesheet" href="styles.css"> <script src="magic.js"></script> </head> <body> <div class="header"><header> <h1>Heading! Everybody duck!</h1> </header></div> <div class="section"><section> <p>I am content, hear me roar!</p> </section></div> <div class="footer"><footer> <p>By me</p> </footer></div> </body> </html>
  • 45.
    Bloody Internet Explorer! Wealways have to do things extra for it!
  • 46.
    All browsers failin one way or another and need patches. Our job is to know them. Luckily, there is help.
  • 47.
  • 48.
  • 49.
    And as ifby magic - the much shorter and pragmatic markup became more complex again.
  • 51.
    <!doctype html> <!--[if ltIE 7 ]> <html lang="en" class="no-js ie6"> <![endif]--> <!--[if IE 7 ]> <html lang="en" class="no-js ie7"> <![endif]--> <!--[if IE 8 ]> <html lang="en" class="no-js ie8"> <![endif]--> <!--[if IE 9 ]> <html lang="en" class="no-js ie9"> <![endif]--> <!--[if (gt IE 9)|!(IE)]><!--> <html lang="en" class="no-js"> <!--<![endif]--> <head> <meta charset="utf-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1"> <title></title> <meta name="viewport" content="width=device-width, initial-scale=1.0">
  • 52.
    <link rel="shortcut icon"href="/favicon.ico"> <link rel="apple-touch-icon" href="/apple-touch- icon.png"> <link rel="stylesheet" href="css/style.css?v=2"> <script src="js/libs/modernizr-1.6.min.js"></script> </head> <body> <div id="container"> <header> </header> <div id="main"> </div> <footer> </footer> </div> <!-- end of #container --> <script src="//ajax.googleapis.com/ajax/libs/jquery/ 1.4.2/jquery.js"> </script>
  • 53.
    <script>!window.jQuery && document.write(unescape ('%3Cscriptsrc="js/libs/jquery-1.4.2.js"%3E%3C/script %3E'))</script> <!-- scripts concatenated and minified via ant build script--> <script src="js/plugins.js"></script> <script src="js/script.js"></script> <!-- end concatenated and minified scripts--> <!--[if lt IE 7 ]> <script src="js/libs/dd_belatedpng.js"></script> <script> DD_belatedPNG.fix('img, .png_bg'); </ script> <![endif]--> </body> </html>
  • 54.
    One solution touse HTML5 APIs with legacy browsers is using polyfills.
  • 55.
  • 56.
    ? Should we shoe-hornnew technology into legacy browsers?
  • 57.
    ? Do patches addcomplexity as we need to test their performance?
  • 58.
    ? How about movingIE<9 fixes to the server side? Padding with DIVs with classes and no JS for IE?
  • 59.
    Making video andaudio simpler.
  • 60.
    Embedding audio andvideo is easy in HTML5 <video src="interview.ogv" controls> <a href="interview.ogv">Download the video</a> </video>
  • 61.
    To make allcapable browsers play the video... <video controls> <source src="interview.mp4" type="video/mp4"> </source> <source src="interview.webm" type="video/webm"> </source> <source src="interview.ogv" type="video/ogg"> </source> <p>Download the <a href="interview.mp4">video in MP4 format</a>. </p> </video>
  • 62.

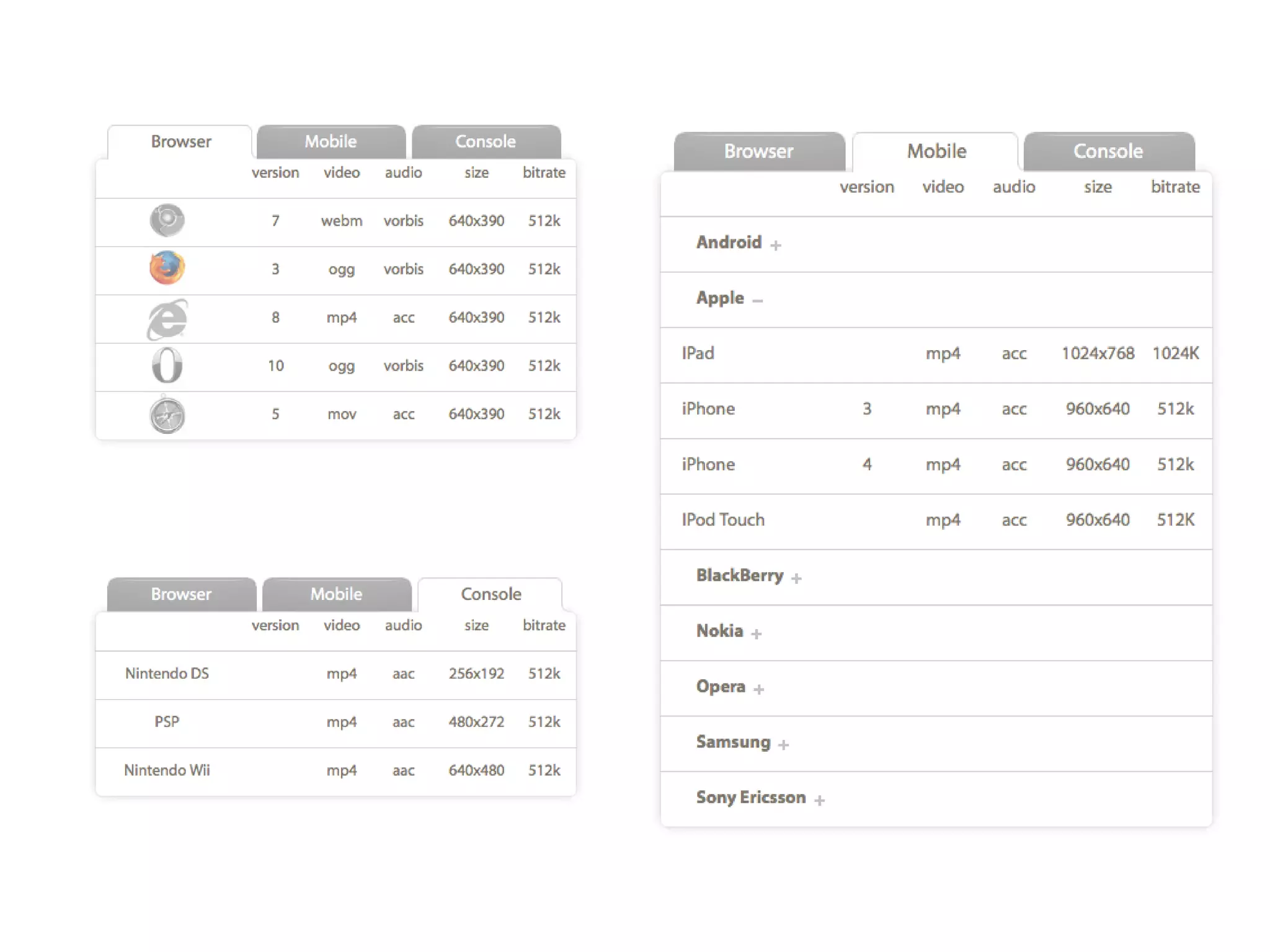

    Where there isa need, there is an opportunity for a business.
  • 64.
    However, there isa real problem for businesses.
  • 65.
  • 66.
    ? Can we expectcontent creators to create video in many formats to support an open technology?
  • 67.
    ? Can a servicelike vid.ly be trusted for content creation and storage?
  • 68.
    ? Is HTML5 notapplicable for premium content?
  • 69.
    It is timefor all of us to take initiative and make this work.
  • 70.
    Question authority andcall out wrong messaging.
  • 71.
    Bad use oftechnology doesn’t only break end user experiences - it breaks the web! http://gawker.com/#!5754678/what-should-our-new- national-anthem-be
  • 72.
  • 73.
  • 74.
