Traverse City Light & Power (TCL&P), a municipal electric utility, uses FME for data integration due to their many different data sources. TCL&P centralized data into SQL Server and used views to consolidate business logic. FME is used to centralize data, translate between formats, and schedule data movement tasks from sources like an AS/400 system and between different network domains. This integration solution allows TCL&P to support various data formats and movement schedules while standardizing business logic and optimizing performance.

1. Using FME for Data Integration
at a Municipal Electric Utility
FME World Tour, 10 Apr 2018
Scott Menhart, TCL&P
Brooks E. Kelley, InfoGeographics, Inc.
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA

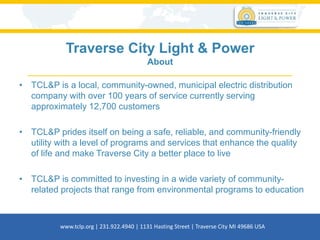

2. Traverse City Light & Power
About
• TCL&P is a local, community-owned, municipal electric distribution
company with over 100 years of service currently serving
approximately 12,700 customers
• TCL&P prides itself on being a safe, reliable, and community-friendly
utility with a level of programs and services that enhance the quality
of life and make Traverse City a better place to live
• TCL&P is committed to investing in a wide variety of community-
related projects that range from environmental programs to education
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA

3. Traverse City Light & Power
Data, Data, Everywhere!
• As with many organizations, TCL&P’s IT environment grew
organically over time.
• This resulted in an assortment of highly specialized applications and
databases scattered throughout the enterprise:
– SQL Server-based GIS
– SQL Server-based Asset Management System
– AS/400-based CMS/Billing System
– Milsoft-based Engineering System
– SQL Server-based Work Order System
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA

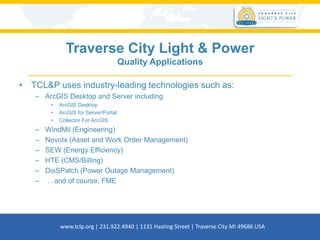

4. Traverse City Light & Power
Quality Applications
• TCL&P uses industry-leading technologies such as:
– ArcGIS Desktop and Server including
• ArcGIS Desktop
• ArcGIS for Server/Portal
• Collector For ArcGIS
– WindMil (Engineering)
– Novotx (Asset and Work Order Management)
– SEW (Energy Efficiency)
– HTE (CMS/Billing)
– DisSPatch (Power Outage Management)
– …and of course, FME
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA

5. Traverse City Light & Power
Integration Challenges/Requirements
• Needed to support many data formats
• Needed to schedule certain data movement tasks (from once every
15 minutes to once a day)
• Standardize Business Logic
• Performance was important (sometimes)
• IBM Power7 (AS/400) (DB2)
• TCL&P and the City are on different domains and different subnets
TCL&P and the City have established domain trusts but
performance is still sub par as a result of County hardware that is
scheduled to be upgraded
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA

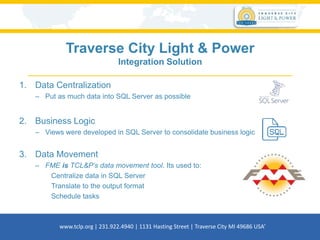

6. Traverse City Light & Power
Integration Solution
1. Data Centralization
– Put as much data into SQL Server as possible
2. Business Logic
– Views were developed in SQL Server to consolidate business logic
3. Data Movement
– FME is TCL&P’s data movement tool. Its used to:
Centralize data in SQL Server
Translate to the output format
Schedule tasks
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA’

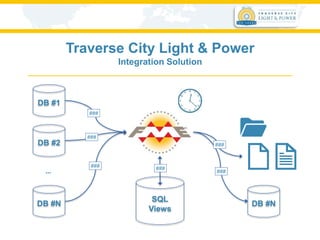

7. Traverse City Light & Power
Integration Solution
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA
DB #1
DB #N
DB #2
SQL
Views
…
###
###
### ###
DB #N
###
###

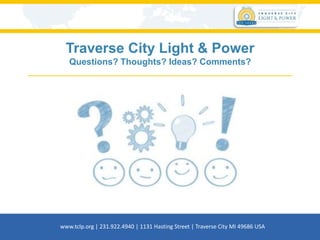

8. Traverse City Light & Power
Questions? Thoughts? Ideas? Comments?
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA

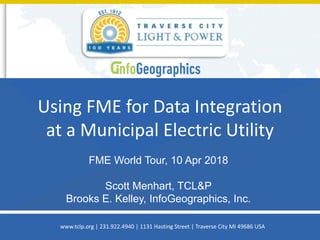

9. Using FME for Data Integration
at a Municipal Electric Utility
FME World Tour, 10 Apr 2018
Scott Menhart, TCL&P
Brooks E. Kelley, InfoGeographics, Inc.
www.tclp.org | 231.922.4940 | 1131 Hasting Street | Traverse City MI 49686 USA
