1. Using Diversity for Automated Boundary
Value Testing
Felix Dobslaw
#TestVikings
Crest open Workshop (CoW) 2019

2. 2/77
Boundary Value Analysis/Testing

3. 3/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent

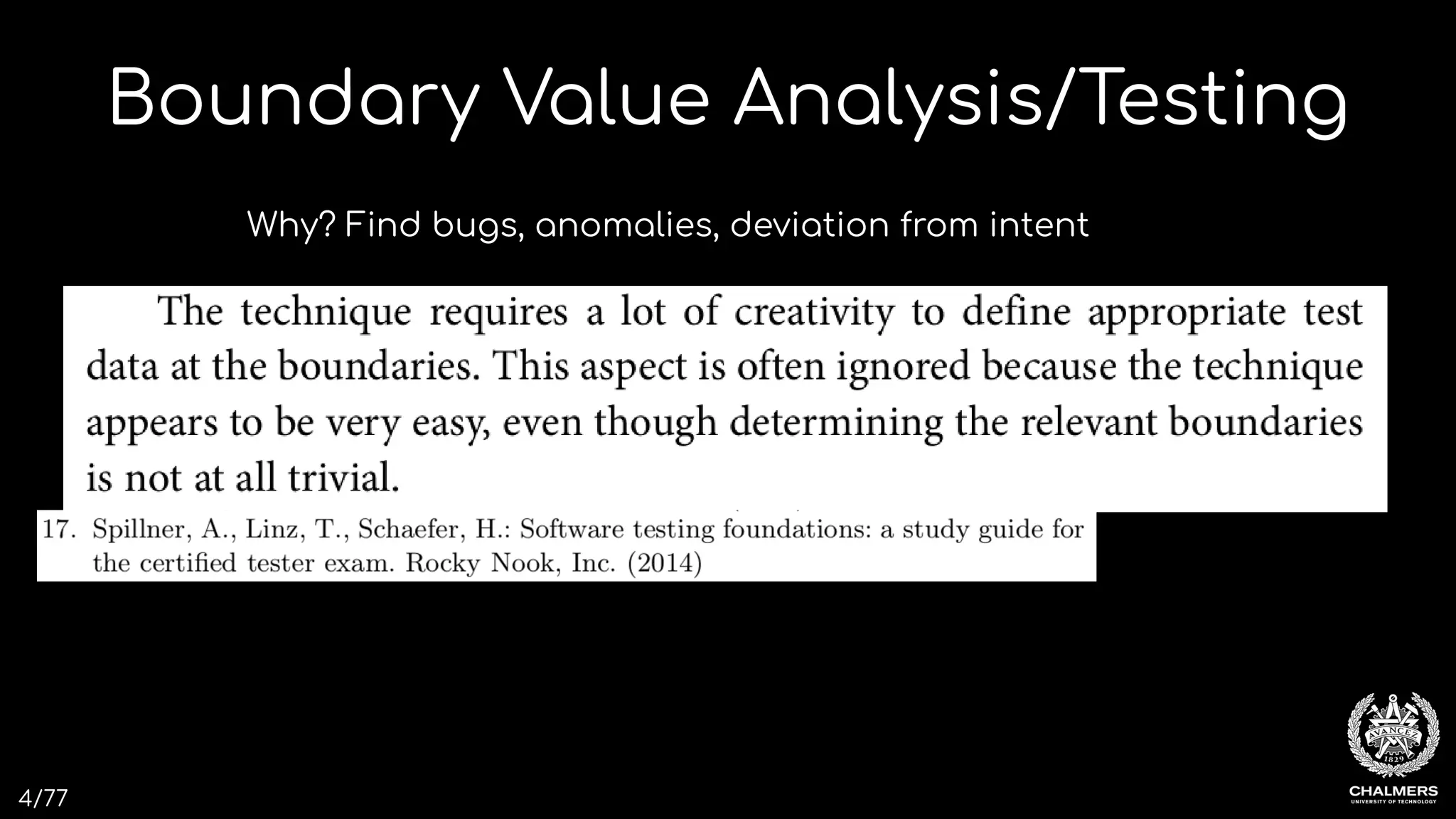

4. 4/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent

5. 5/77

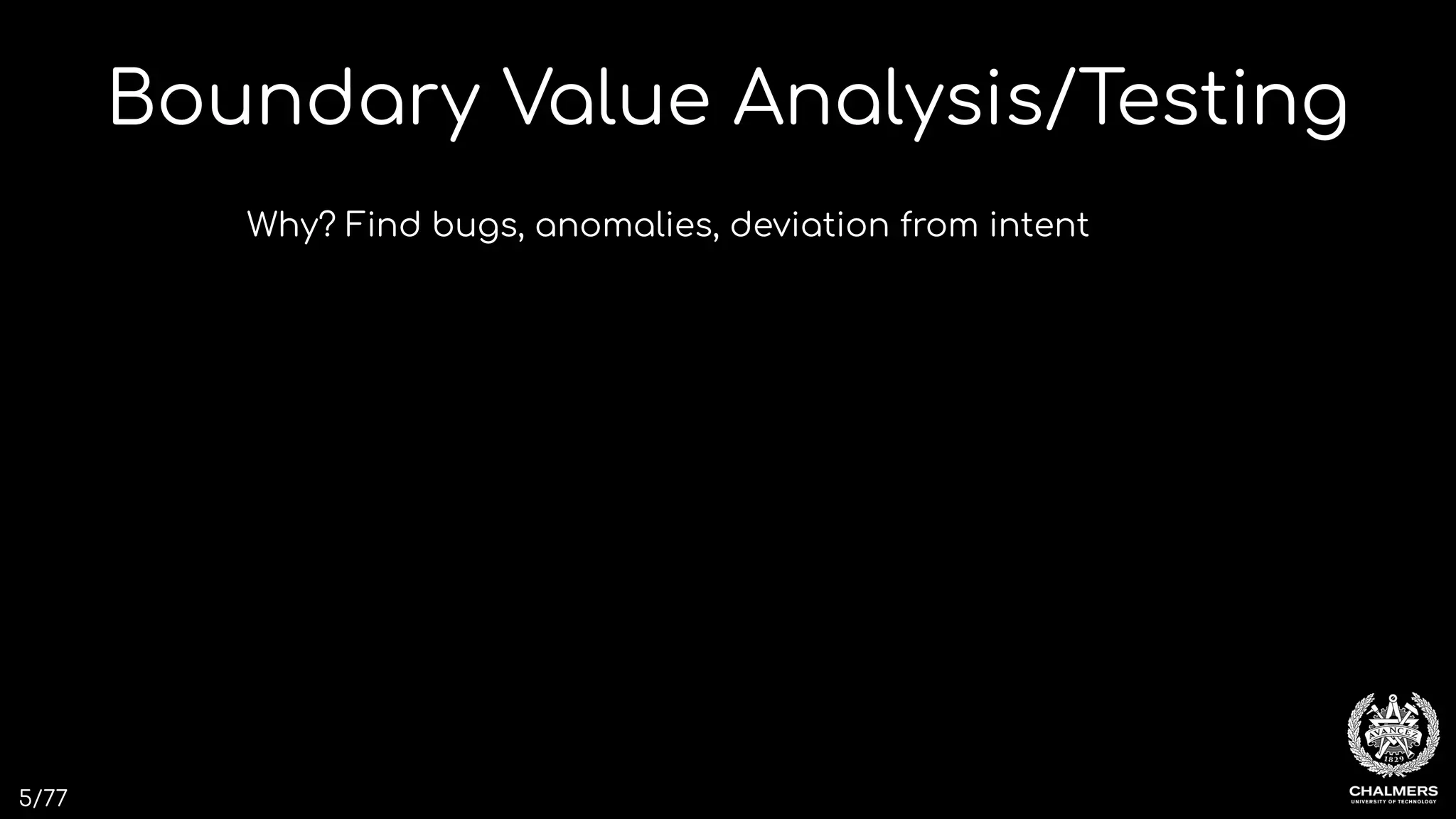

Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent

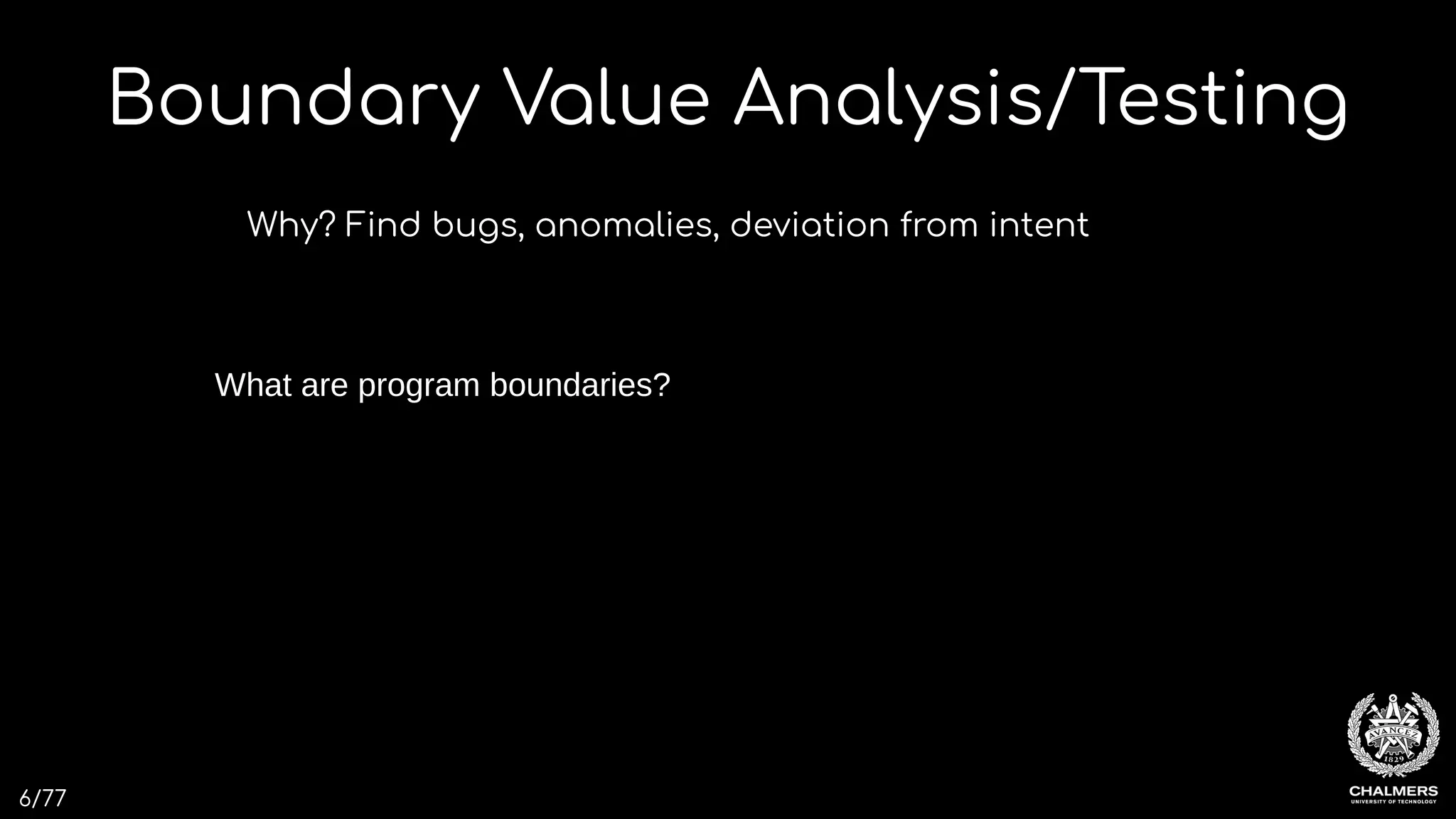

6. 6/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?

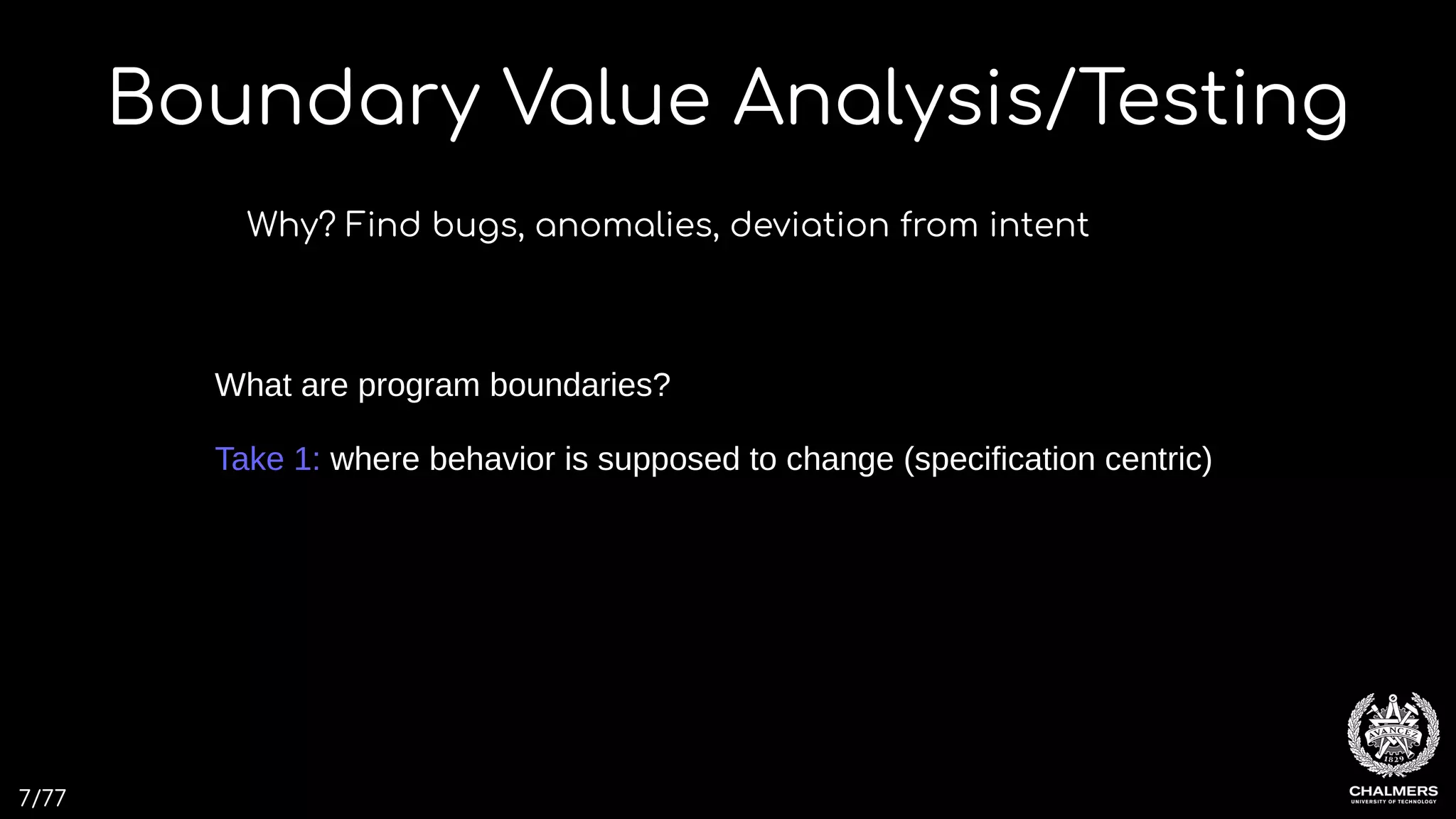

7. 7/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)

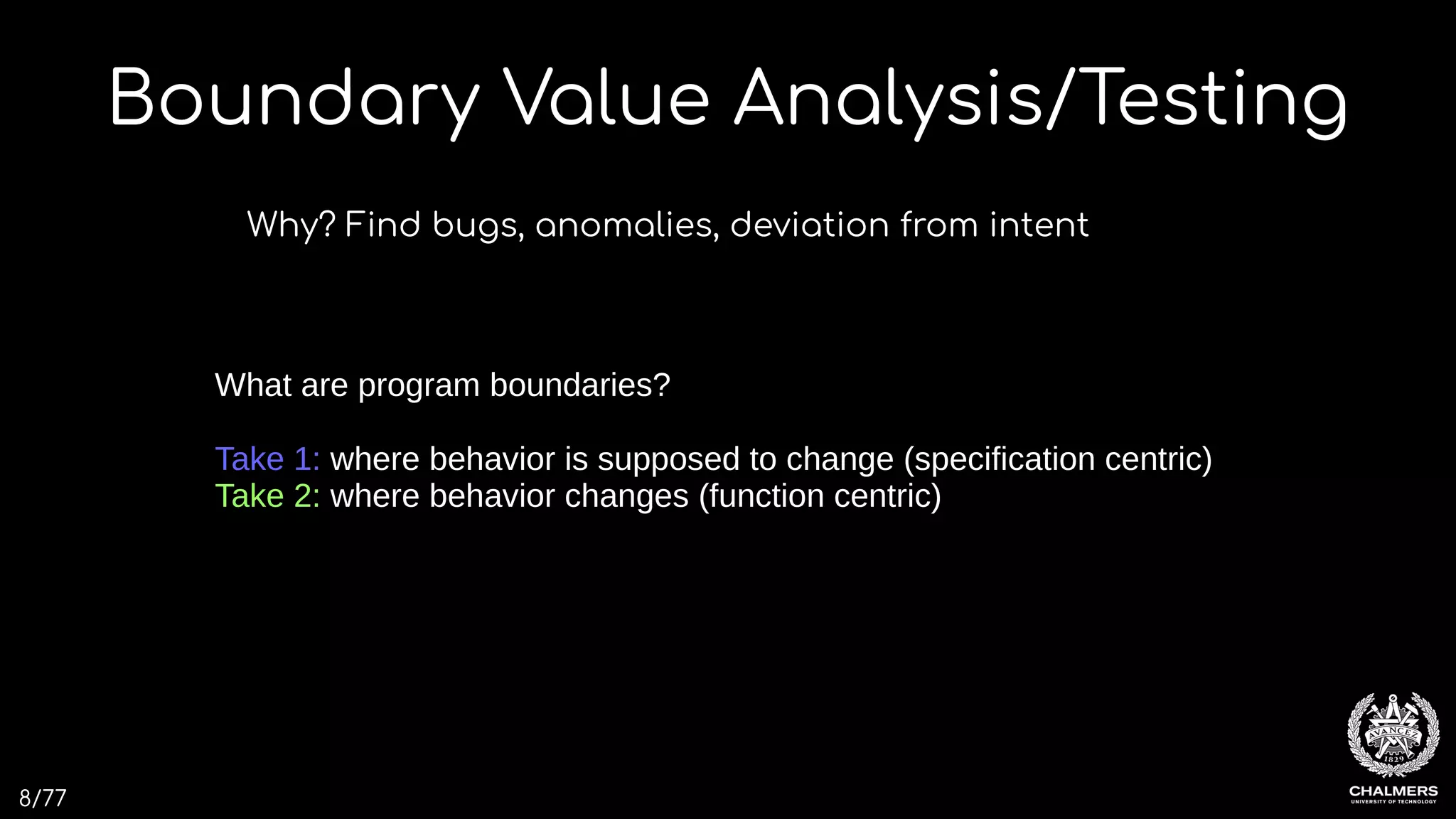

8. 8/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)
Take 2: where behavior changes (function centric)

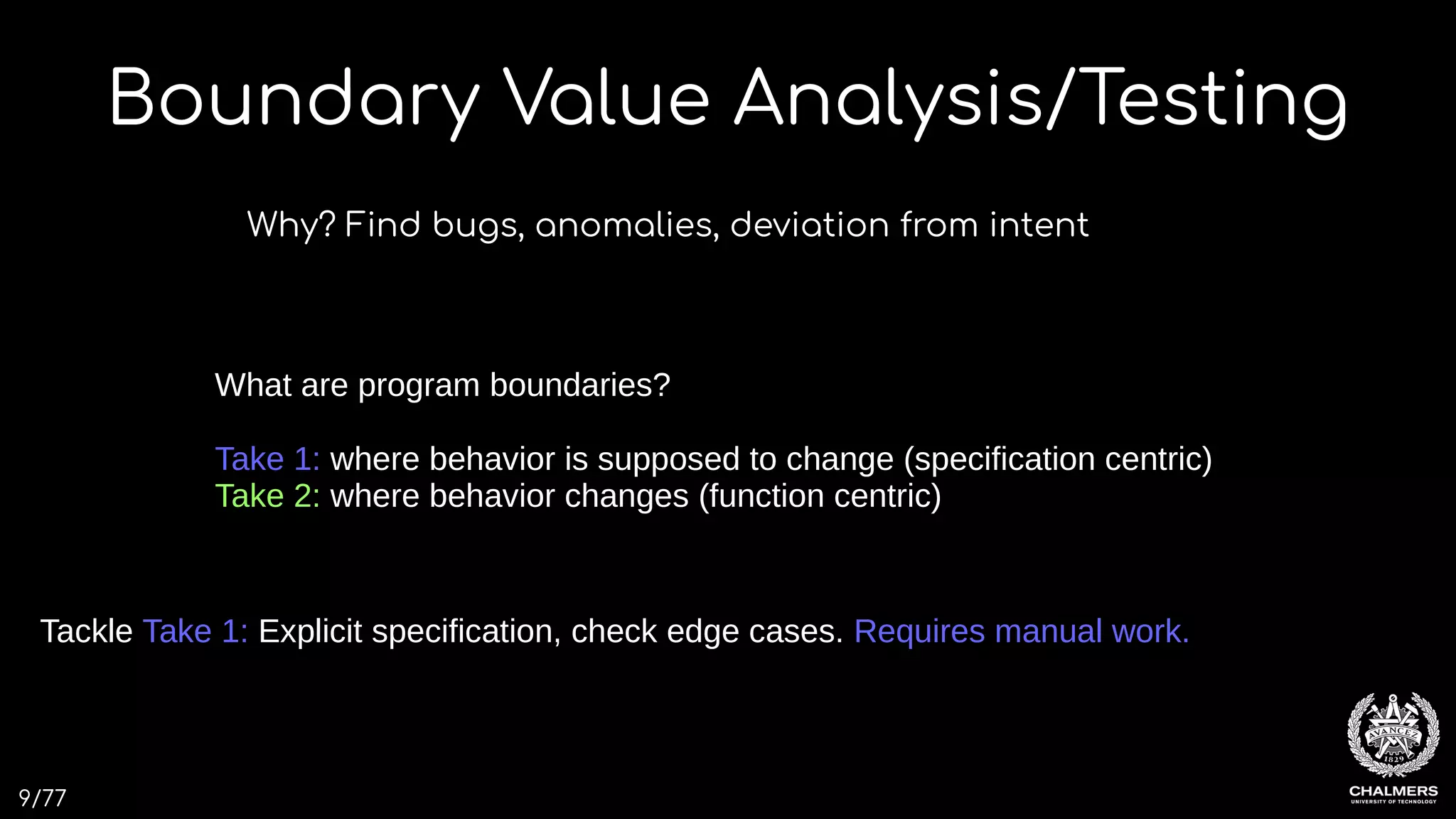

9. 9/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)
Take 2: where behavior changes (function centric)
Tackle Take 1: Explicit specification, check edge cases. Requires manual work.

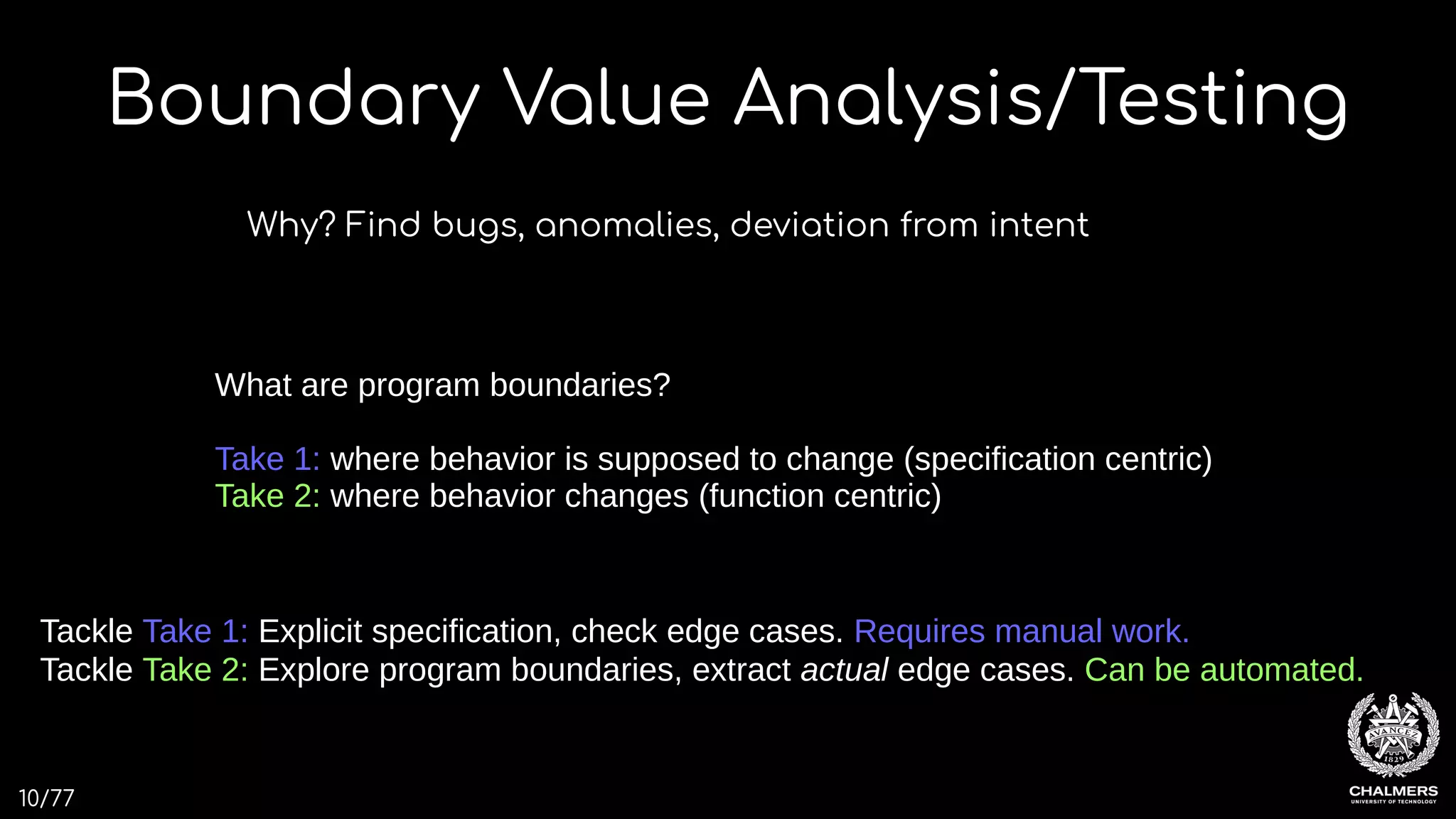

10. 10/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)
Take 2: where behavior changes (function centric)
Tackle Take 1: Explicit specification, check edge cases. Requires manual work.
Tackle Take 2: Explore program boundaries, extract actual edge cases. Can be automated.

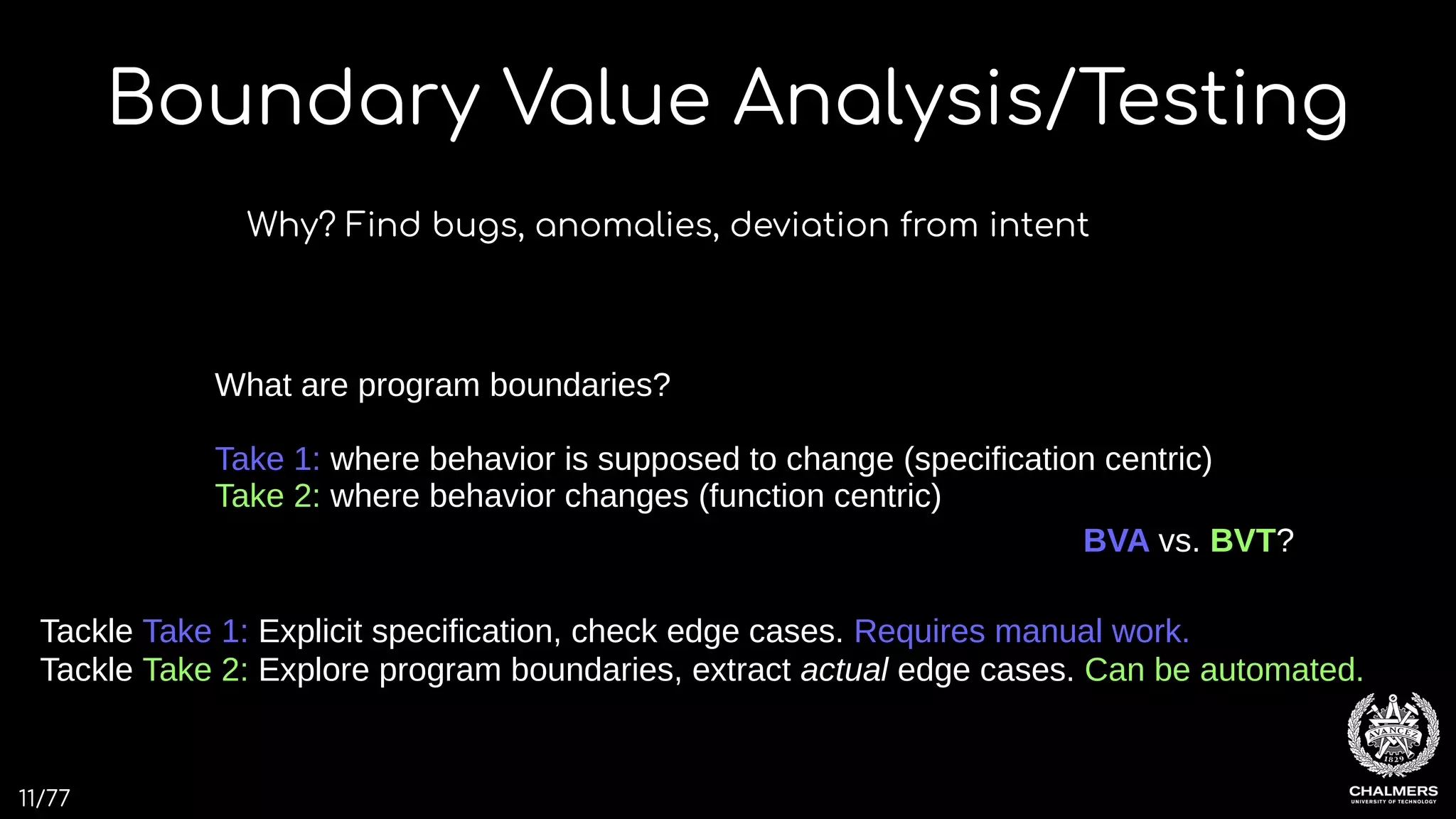

11. 11/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)
Take 2: where behavior changes (function centric)
Tackle Take 1: Explicit specification, check edge cases. Requires manual work.
Tackle Take 2: Explore program boundaries, extract actual edge cases. Can be automated.
BVA vs. BVT?

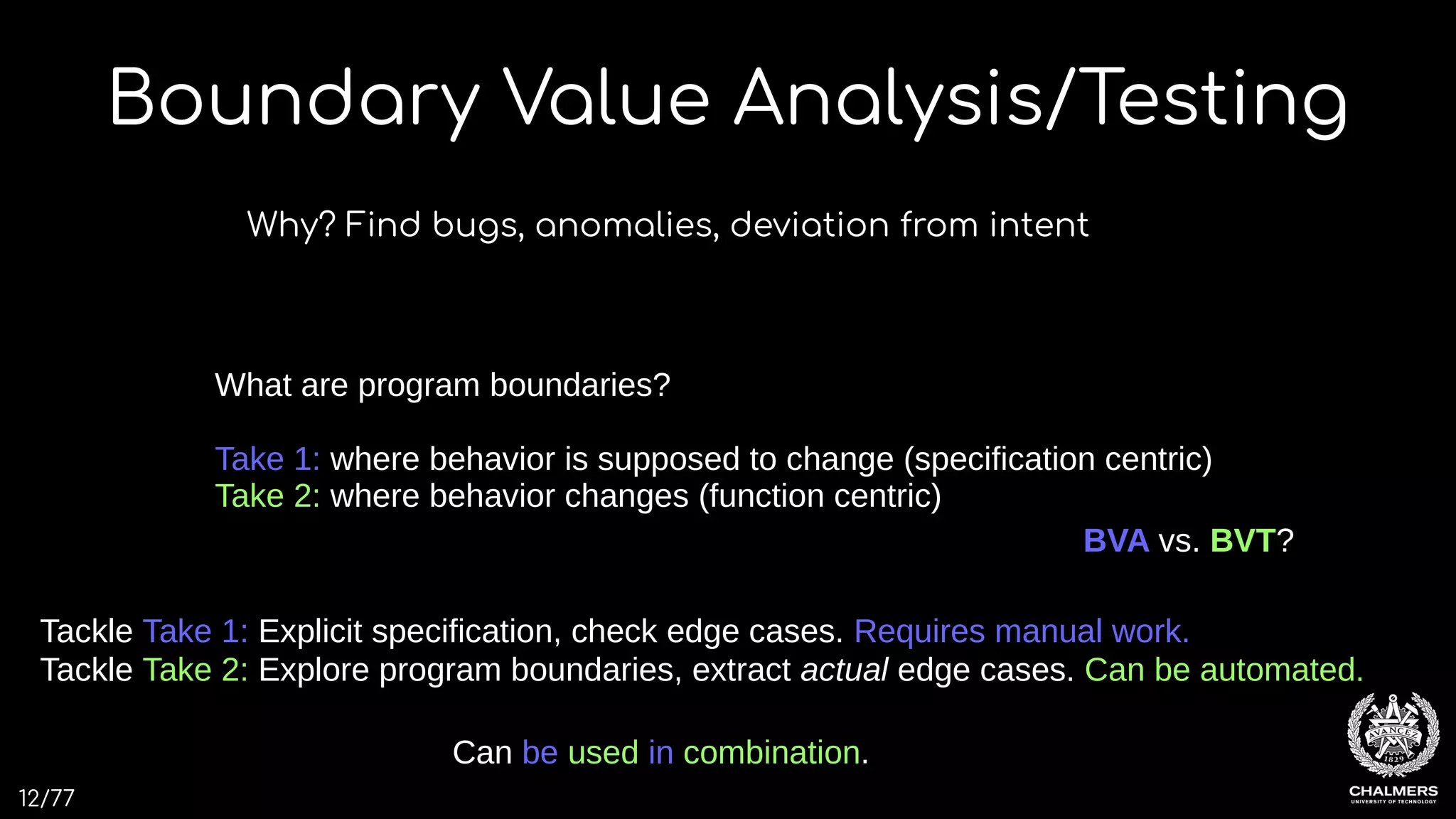

12. 12/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)
Take 2: where behavior changes (function centric)
Tackle Take 1: Explicit specification, check edge cases. Requires manual work.
Can be used in combination.
Tackle Take 2: Explore program boundaries, extract actual edge cases. Can be automated.
BVA vs. BVT?

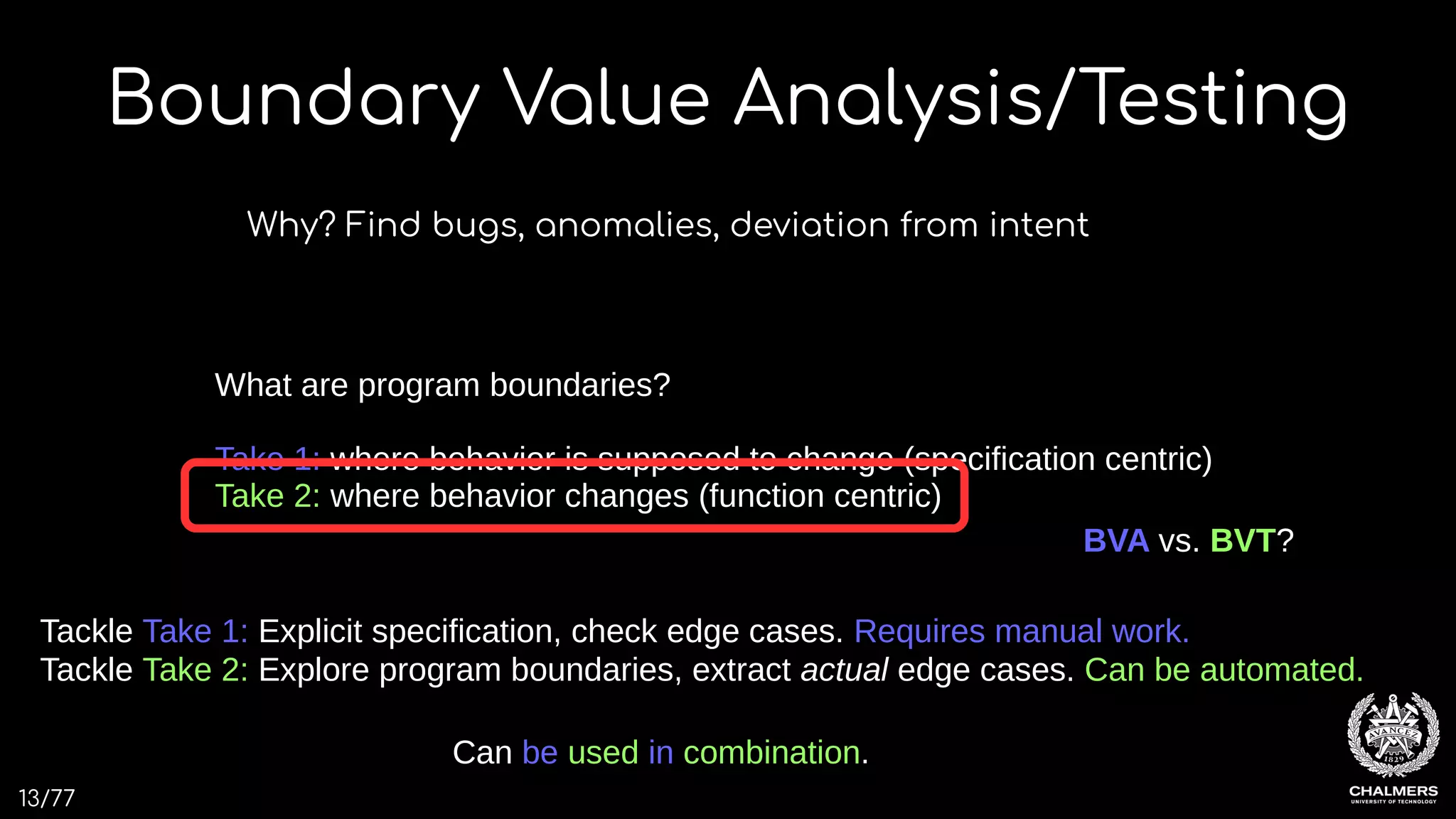

13. 13/77
Boundary Value Analysis/Testing
Why? Find bugs, anomalies, deviation from intent
What are program boundaries?
Take 1: where behavior is supposed to change (specification centric)
Take 2: where behavior changes (function centric)
Tackle Take 1: Explicit specification, check edge cases. Requires manual work.
Can be used in combination.
Tackle Take 2: Explore program boundaries, extract actual edge cases. Can be automated.
BVA vs. BVT?

14. Why Automated Boundary Value Testing?
14/77

15. Why Automated Boundary Value Testing?
$ sudo -u# -1 id -u
15/77

16. Why Automated Boundary Value Testing?
$ sudo -u# -1 id -u
It is at the boundaries where interesting things
happen...
16/77

17. 17/77

18. 18/77

19. 19/77

20. 20/77
aBVA/aBVT literature

21. 21/77

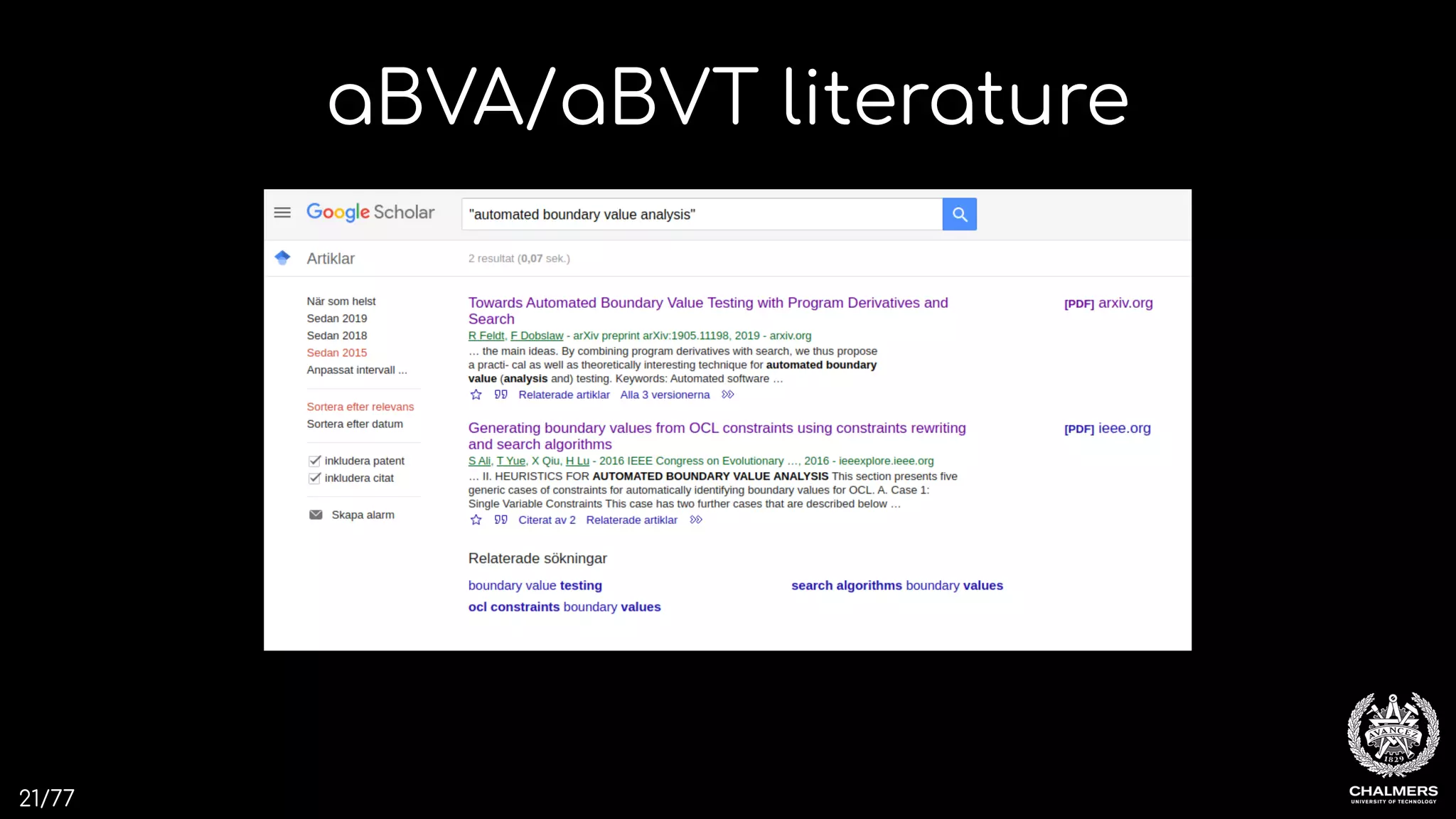

aBVA/aBVT literature

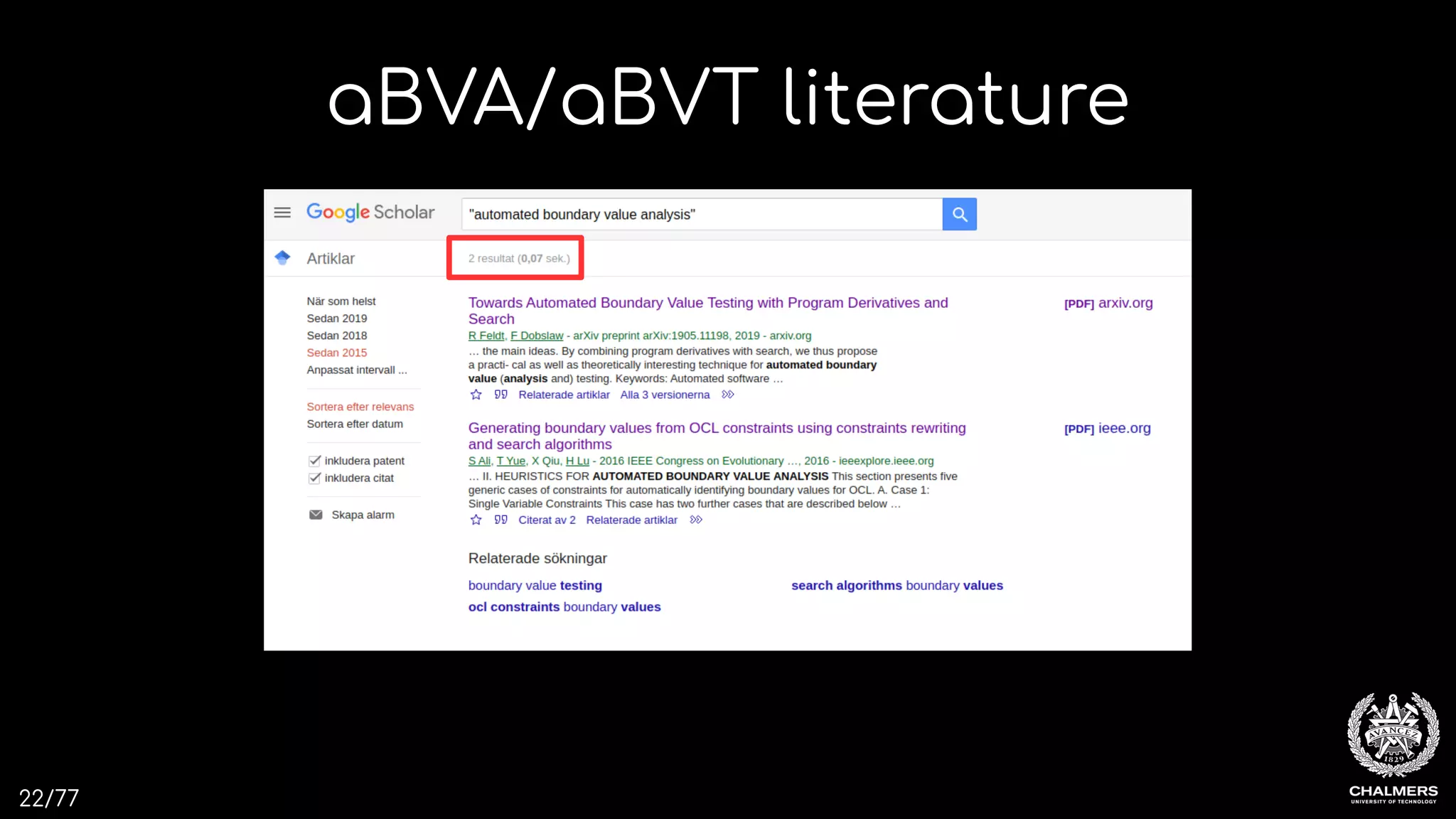

22. 22/77
aBVA/aBVT literature

23. 23/77

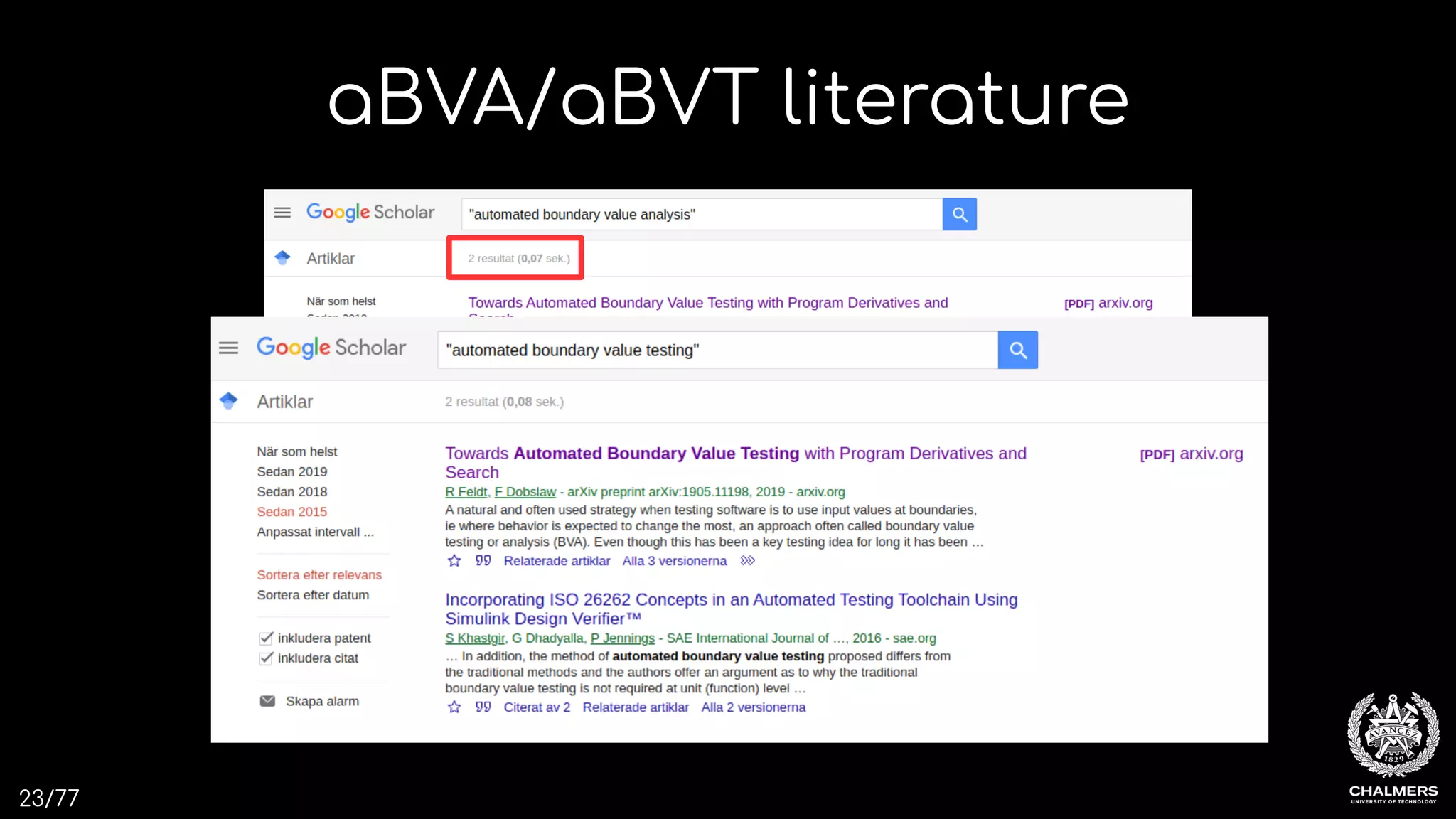

aBVA/aBVT literature

24. 24/77

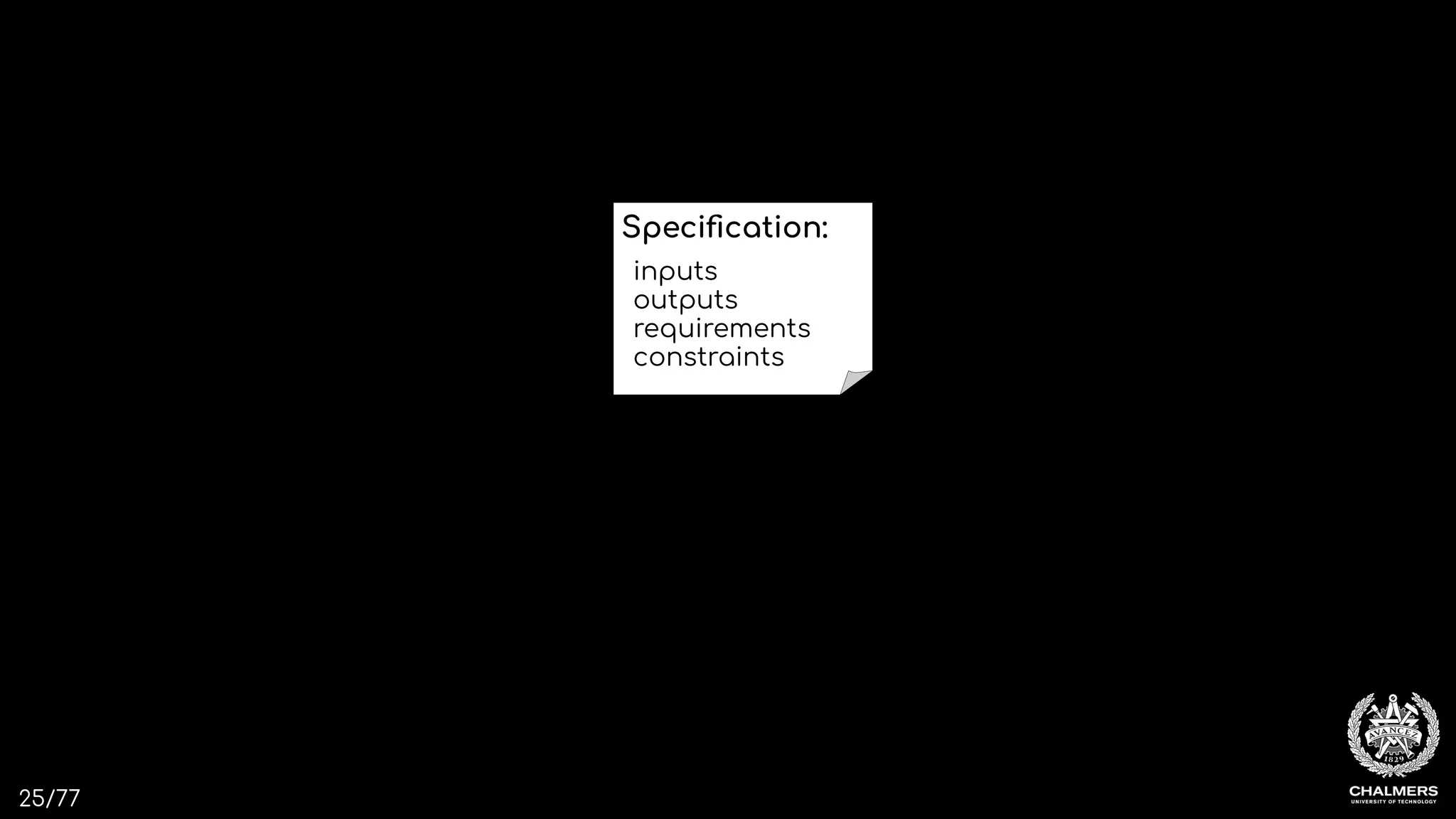

25. 25/77
Specification:
inputs
outputs
requirements
constraints

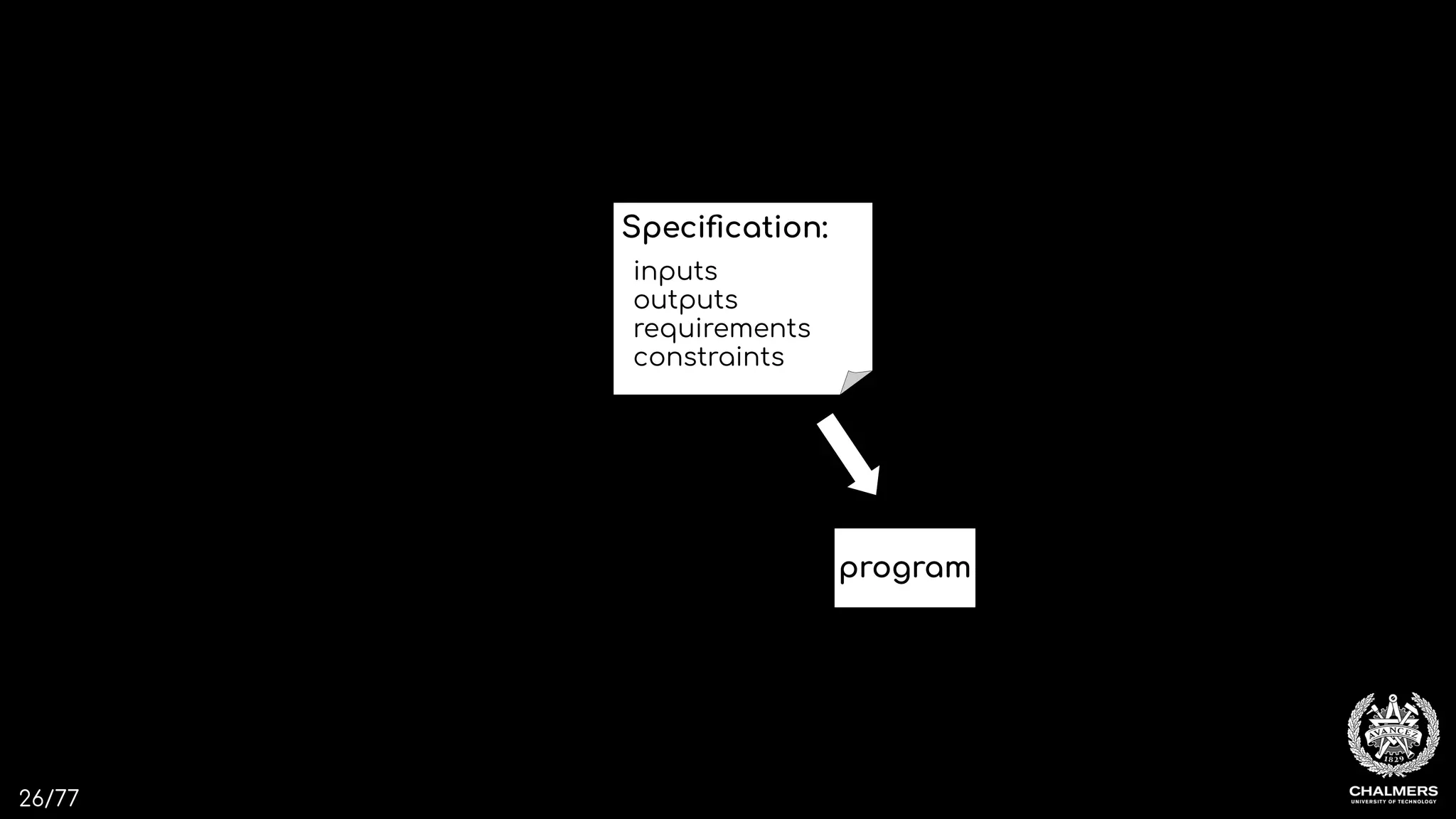

26. 26/77
program
Specification:
inputs
outputs
requirements
constraints

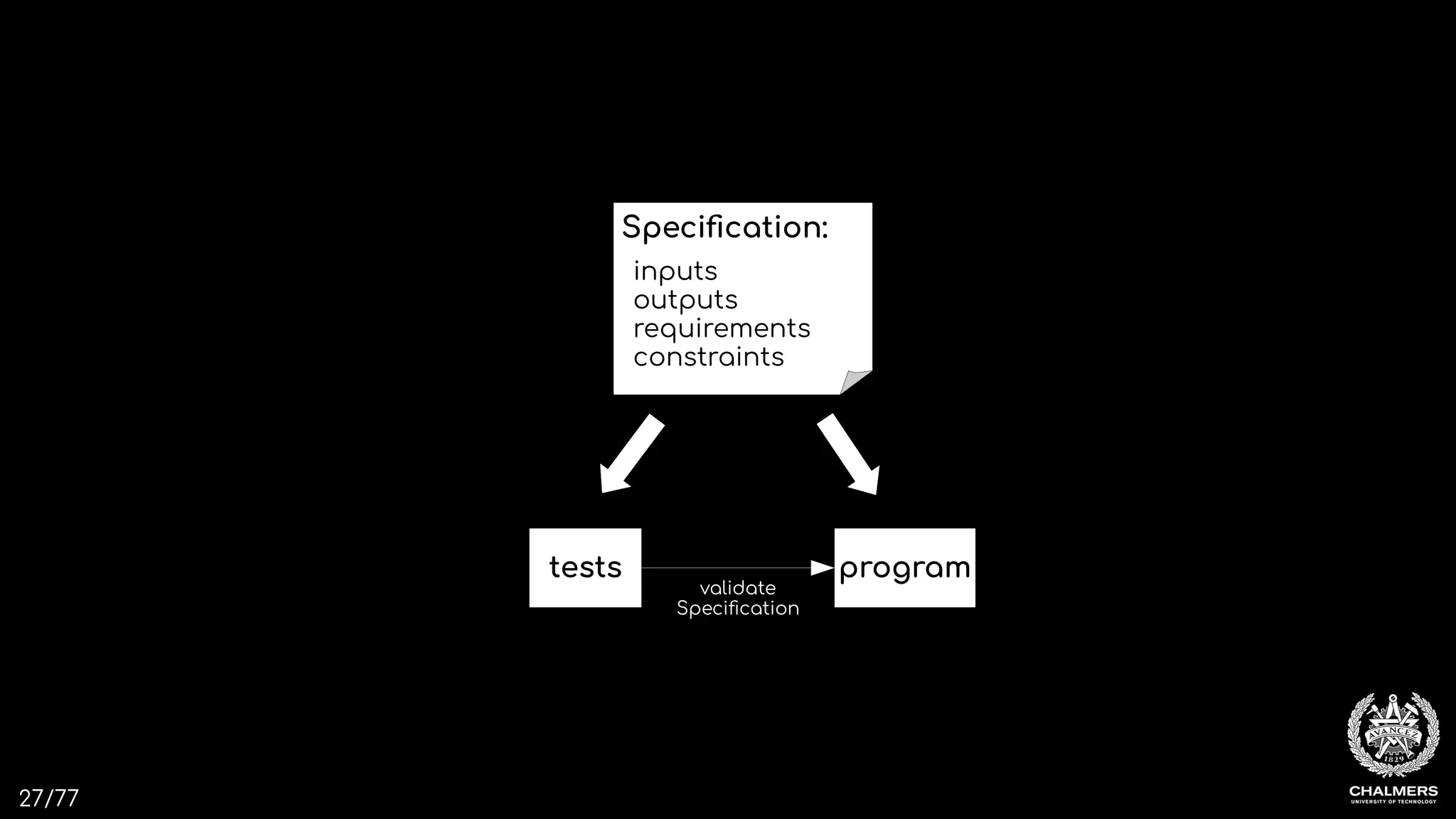

27. 27/77
program
Specification:
tests
validate
Specification
inputs
outputs
requirements
constraints

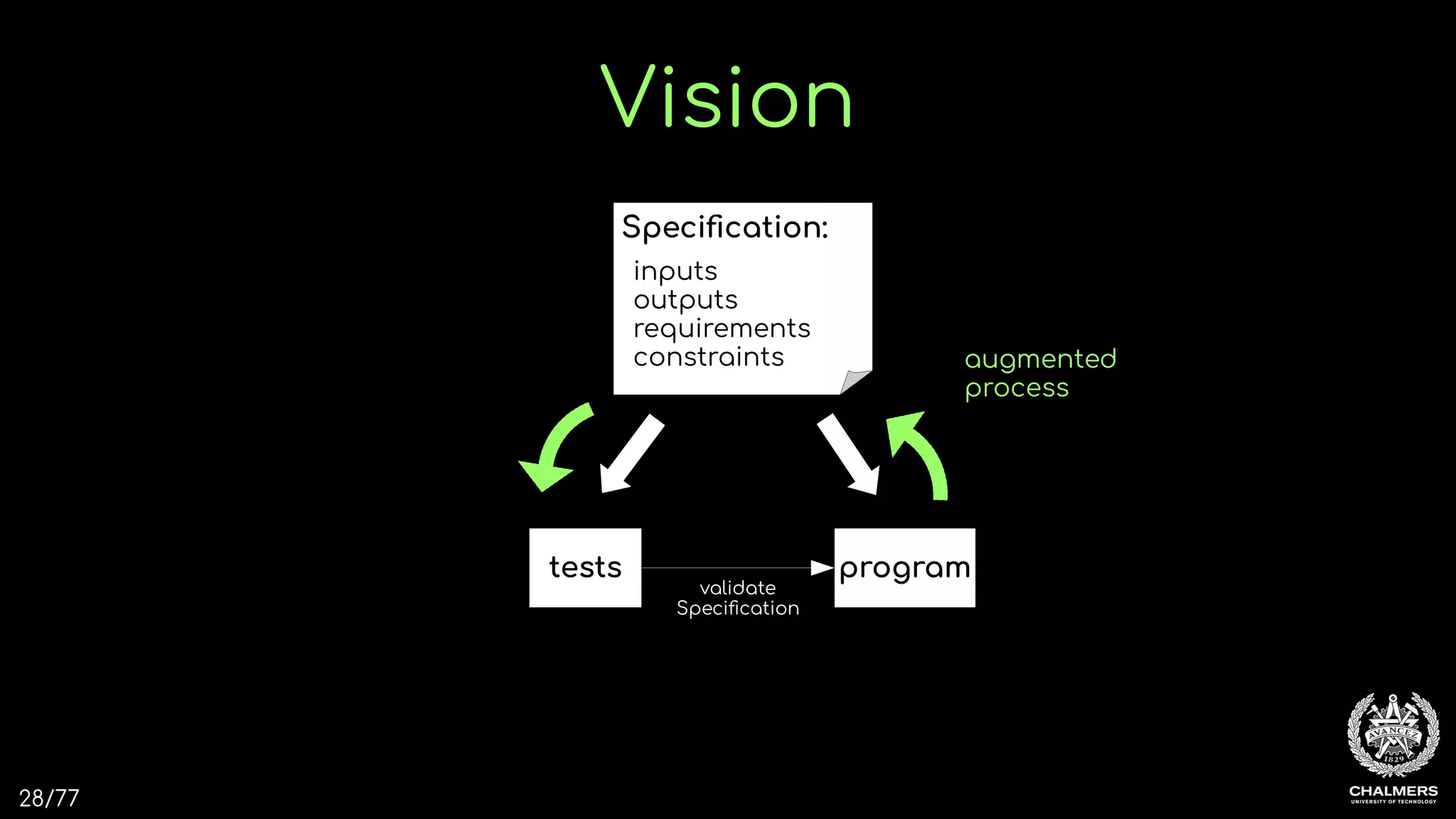

28. 28/77
Vision
program
Specification:
tests
validate
Specification
inputs
outputs
requirements
constraints augmented
process

29. 29/77
Absolute vs. Relative Assessment

30. 30/77
SUTx y
Absolute vs. Relative Assessment

31. 31/77
SUTx y
Assert y == yexp
Absolute vs. Relative Assessment

32. 32/77

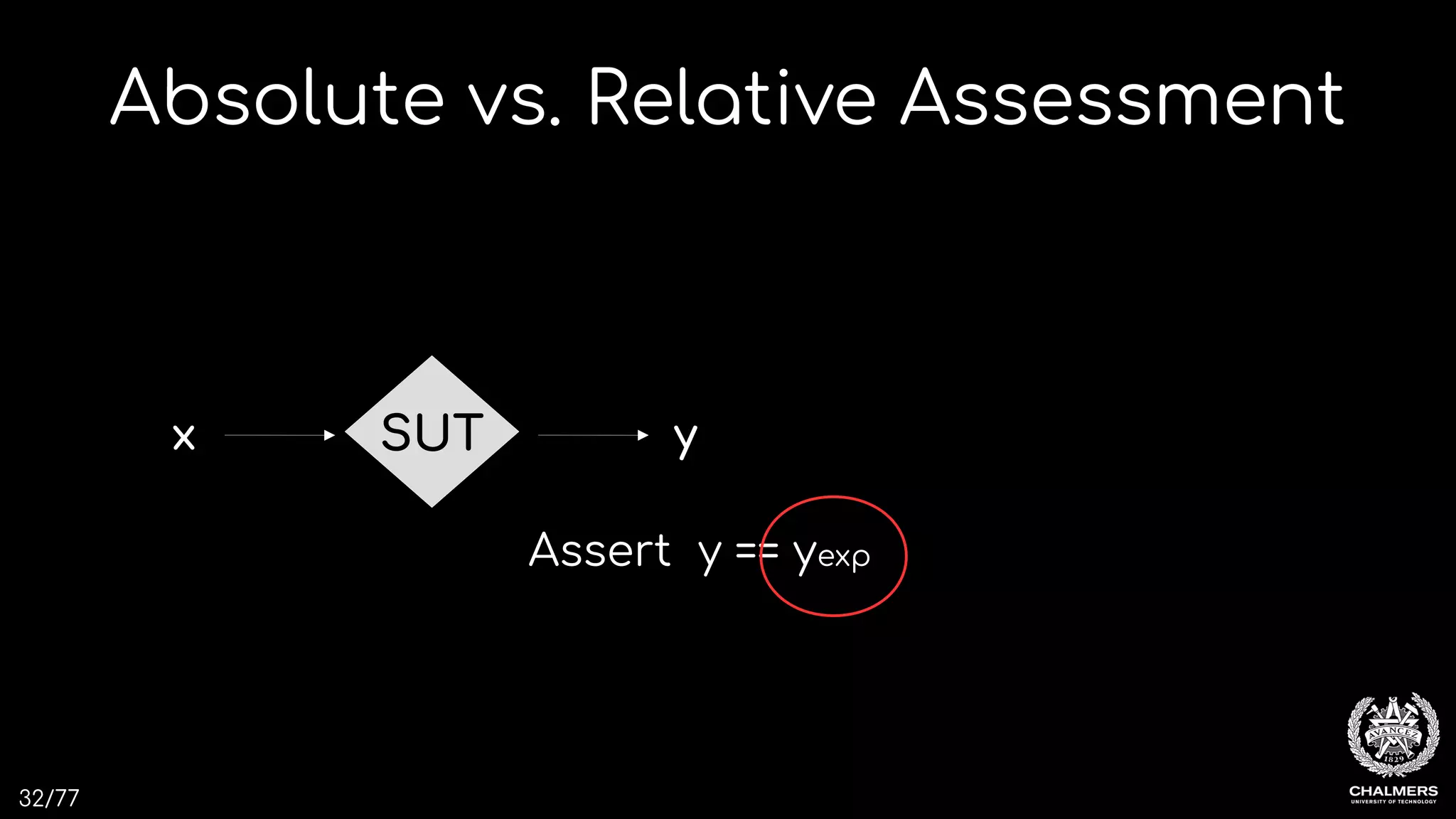

SUTx y
Assert y == yexp
Absolute vs. Relative Assessment

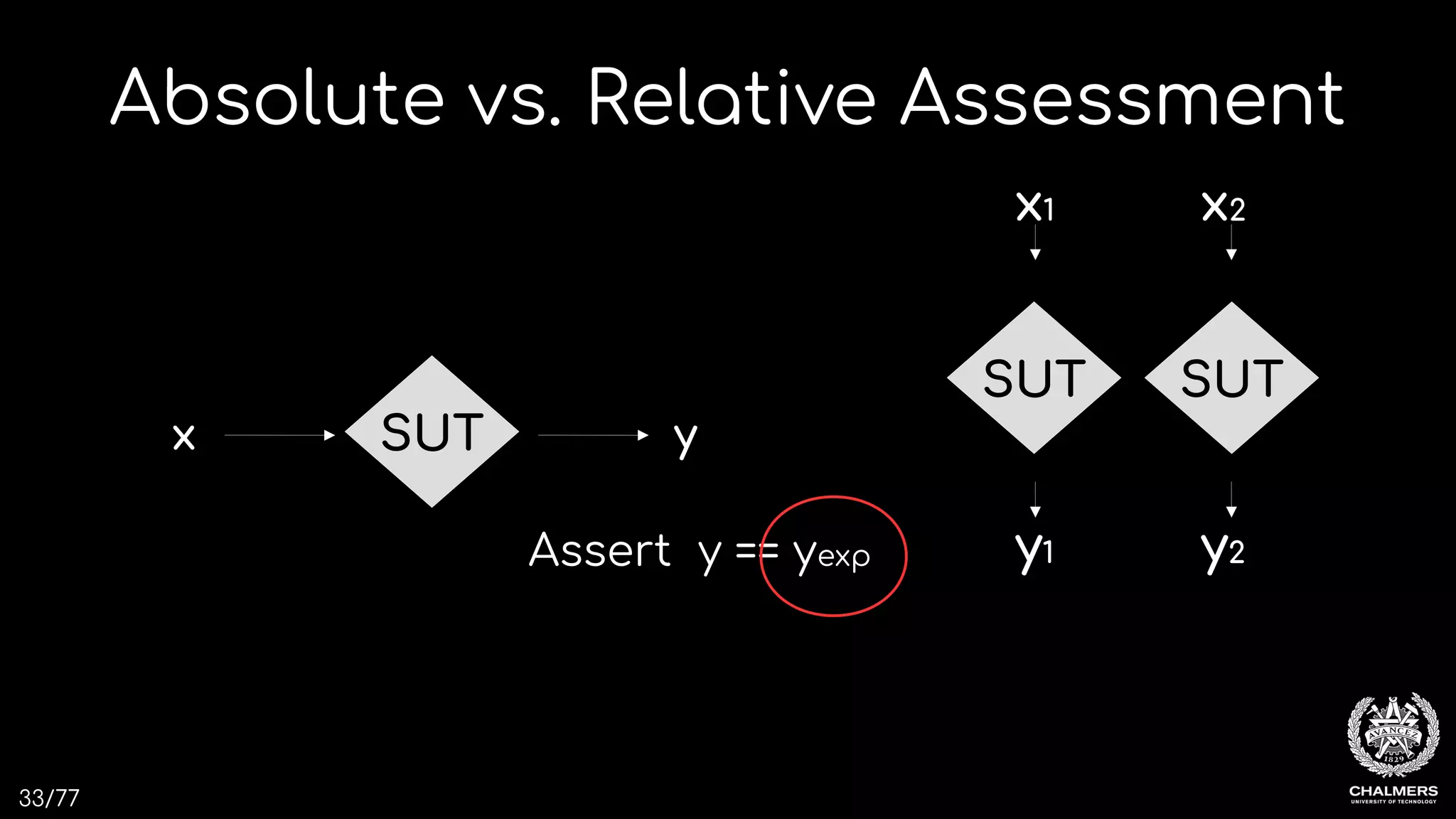

33. 33/77
SUTx y
x1 x2
y1 y2
SUT SUT
Assert y == yexp
Absolute vs. Relative Assessment

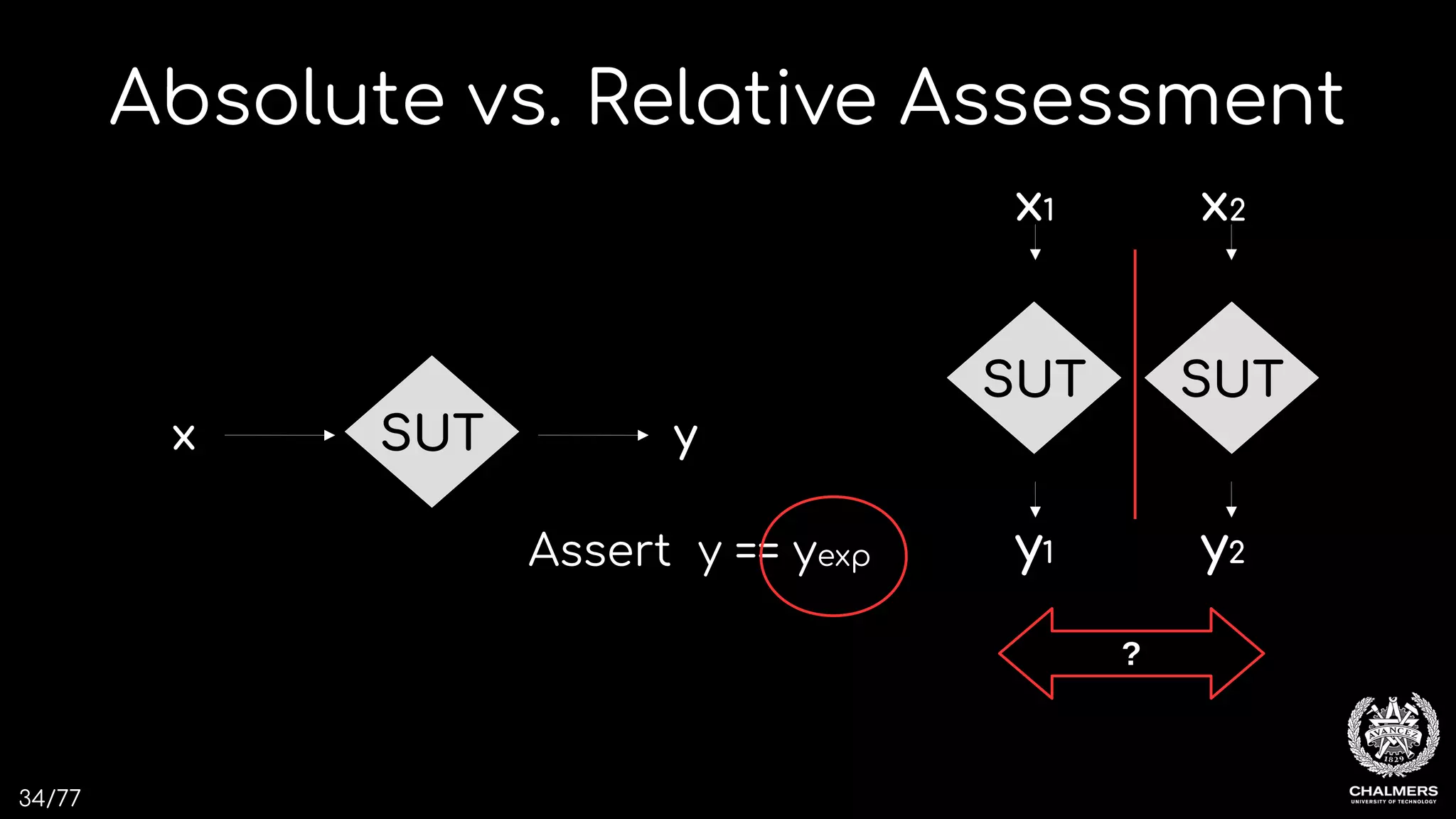

34. 34/77
SUTx y
x1 x2
y1 y2
?
SUT SUT
Assert y == yexp
Absolute vs. Relative Assessment

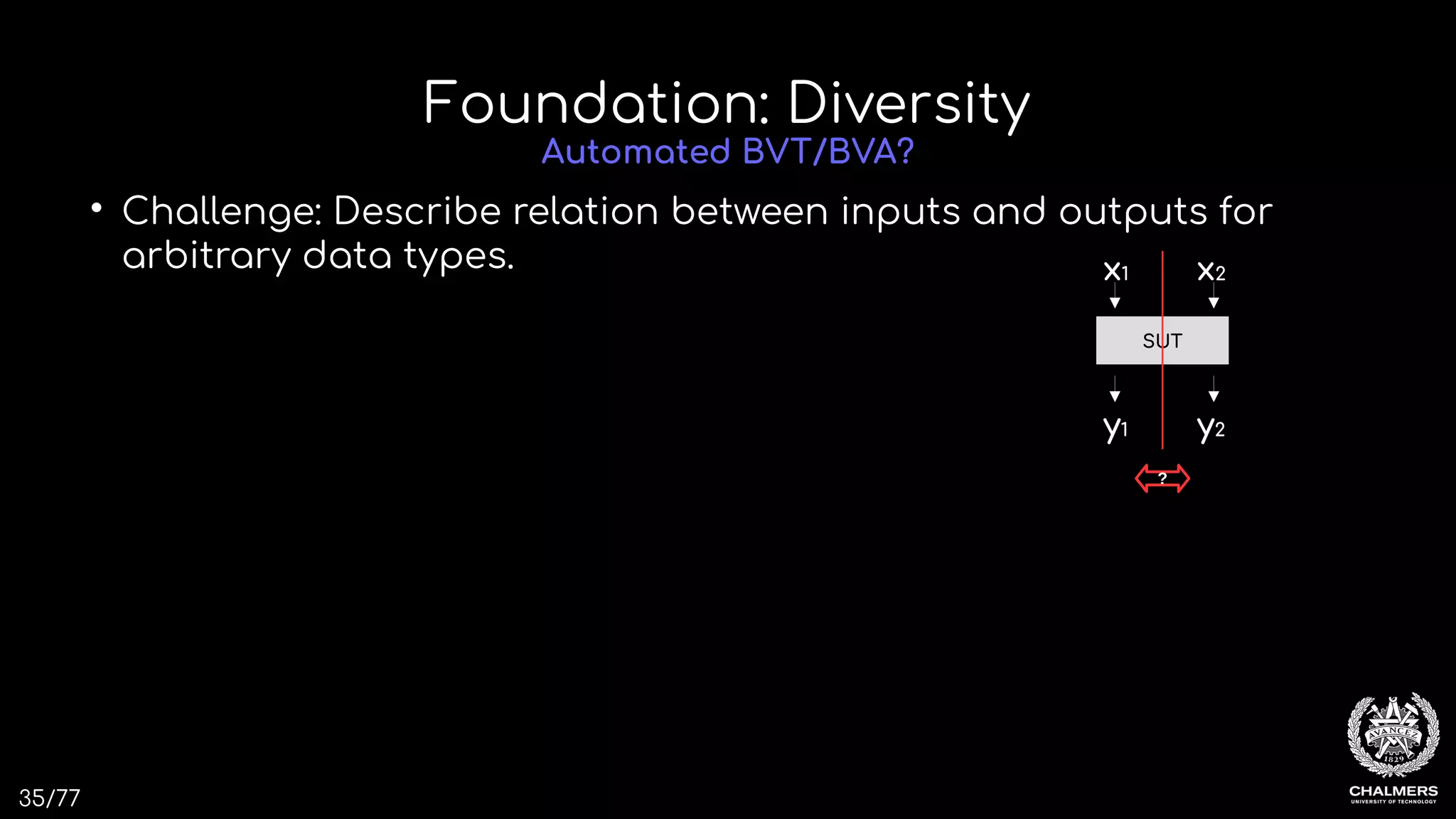

35. 35/77
Foundation: Diversity

Challenge: Describe relation between inputs and outputs for
arbitrary data types.
Automated BVT/BVA?
x1 x2
SUT
y1 y2
?

36. 36/77
Foundation: Diversity

Challenge: Describe relation between inputs and outputs for
arbitrary data types.
Automated BVT/BVA?
x1 x2
SUT
y1 y2
?

37. 37/77

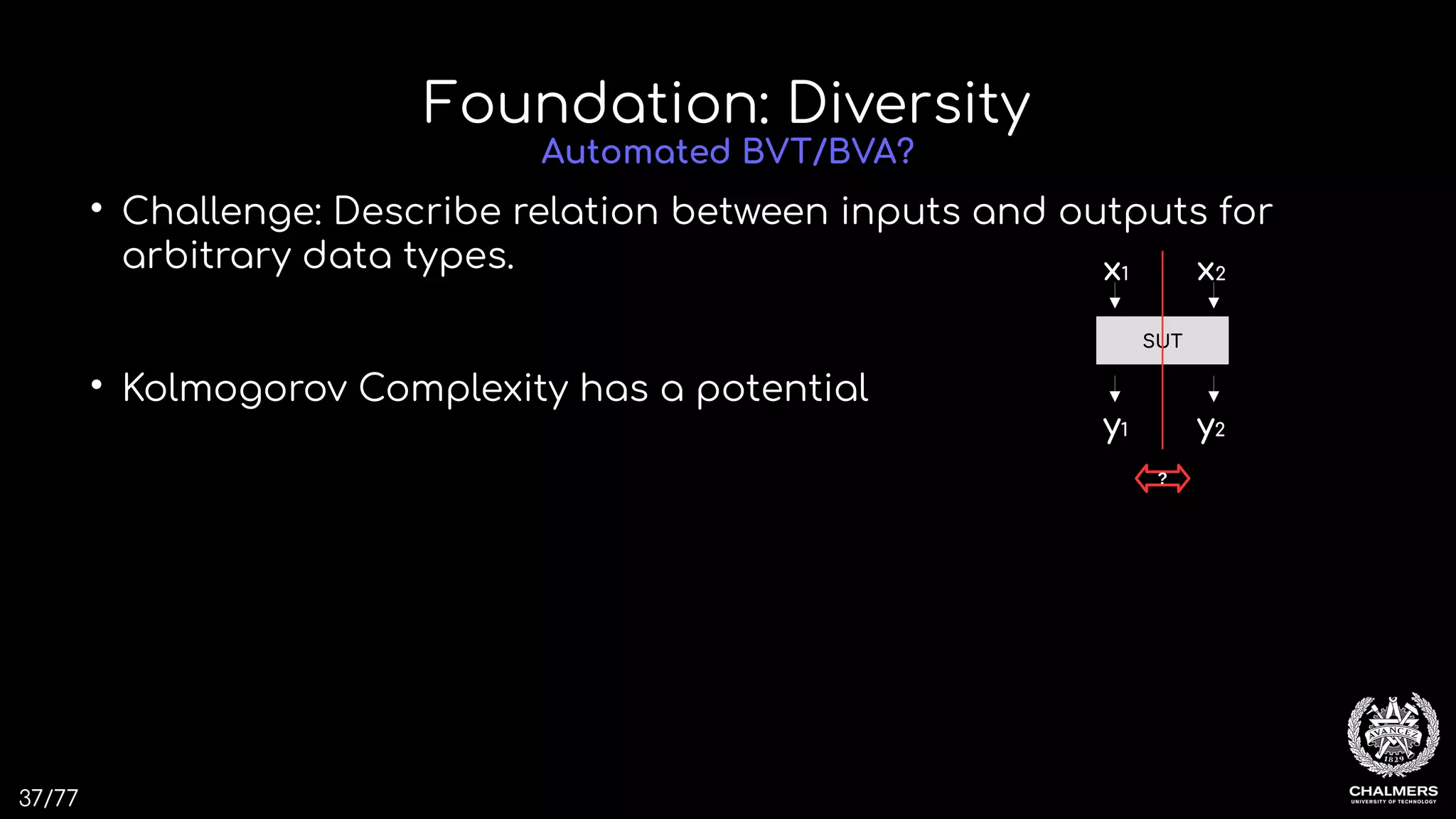

Foundation: Diversity

Challenge: Describe relation between inputs and outputs for
arbitrary data types.

Kolmogorov Complexity has a potential
Automated BVT/BVA?
x1 x2
SUT
y1 y2
?

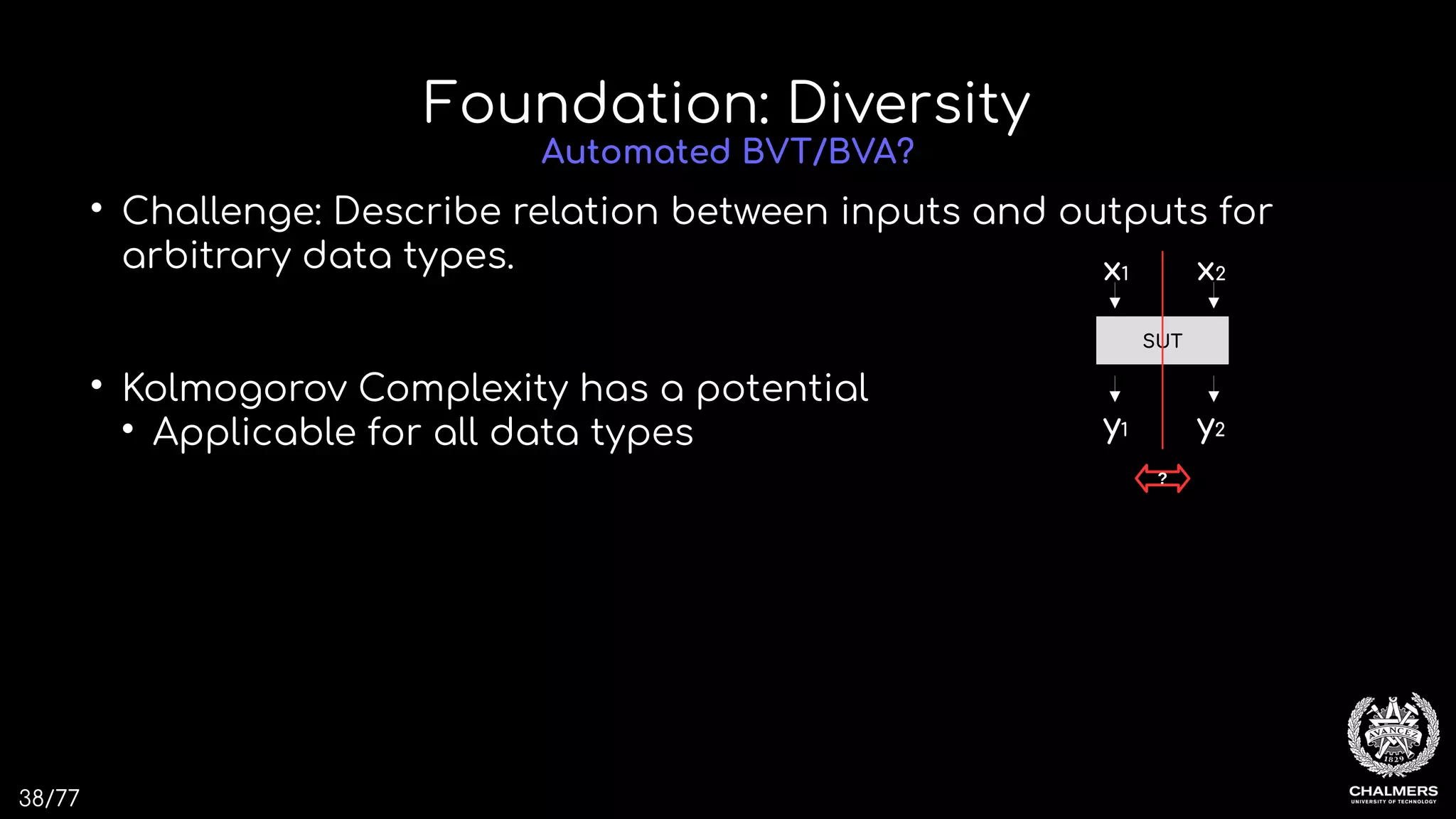

38. 38/77
Foundation: Diversity

Challenge: Describe relation between inputs and outputs for
arbitrary data types.

Kolmogorov Complexity has a potential

Applicable for all data types
Automated BVT/BVA?
x1 x2
SUT
y1 y2
?

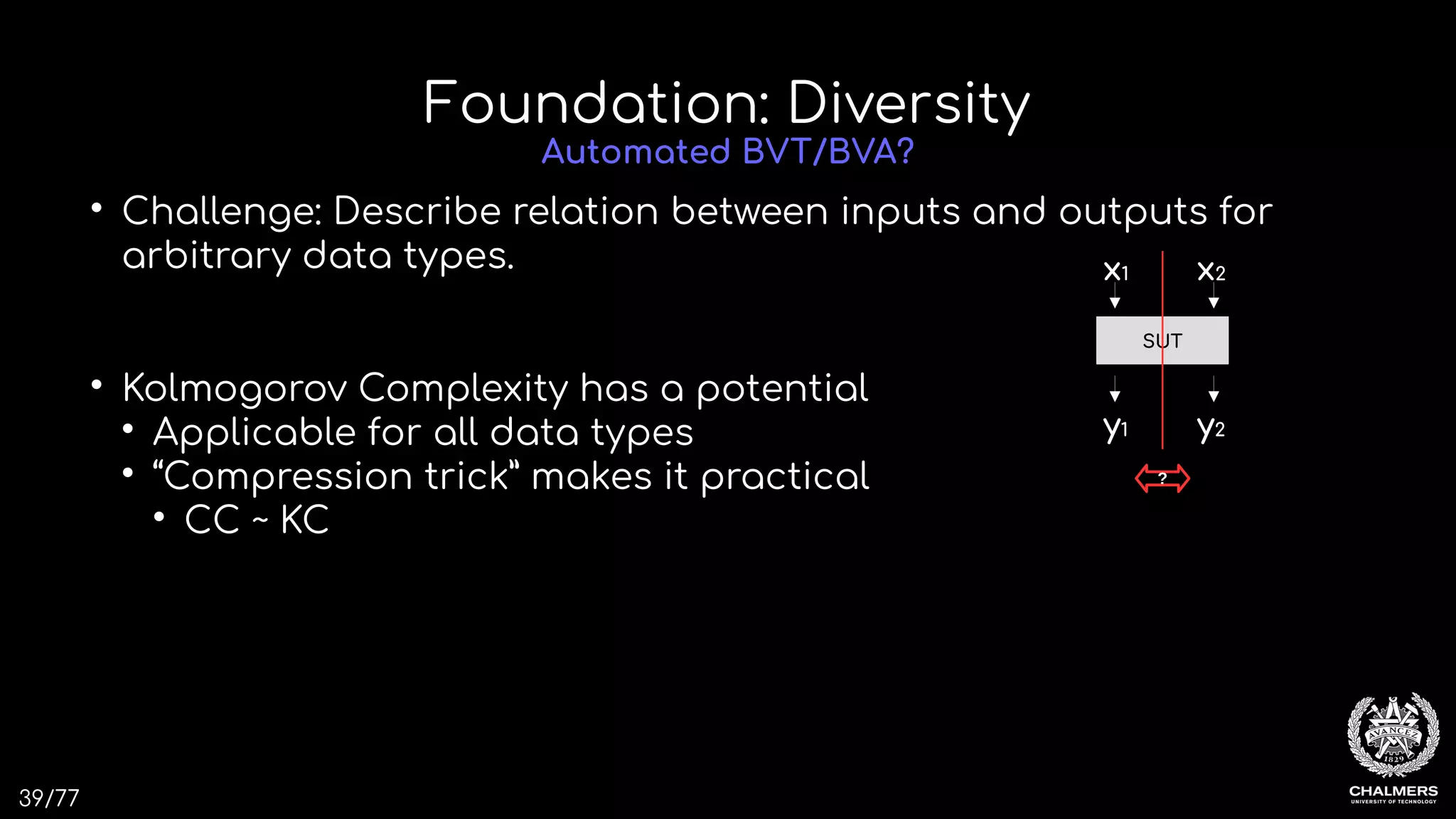

39. 39/77
Foundation: Diversity

Challenge: Describe relation between inputs and outputs for
arbitrary data types.

Kolmogorov Complexity has a potential

Applicable for all data types

“Compression trick” makes it practical

CC ~ KC
Automated BVT/BVA?
x1 x2
SUT
y1 y2
?

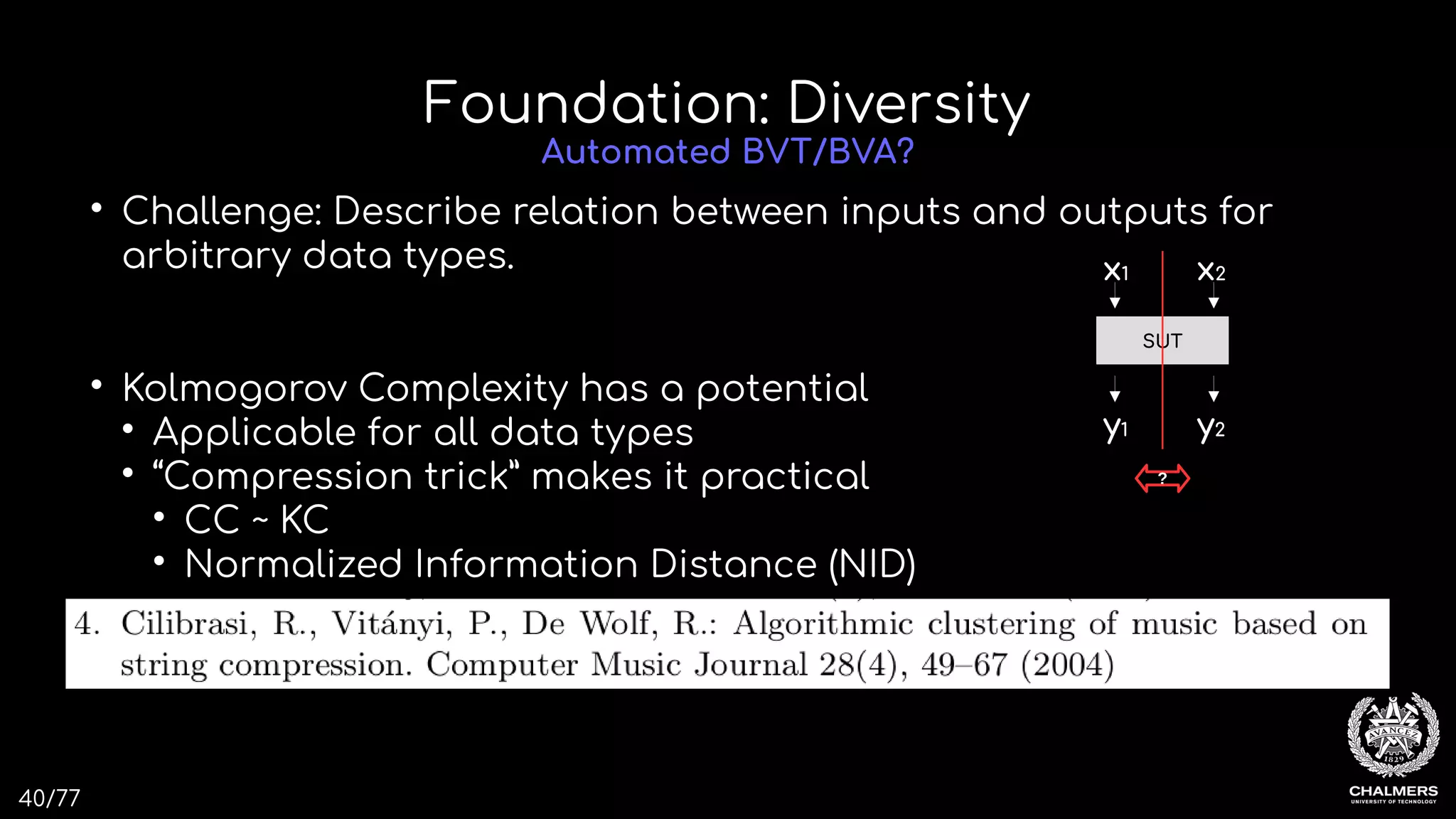

40. 40/77
Foundation: Diversity

Challenge: Describe relation between inputs and outputs for
arbitrary data types.

Kolmogorov Complexity has a potential

Applicable for all data types

“Compression trick” makes it practical

CC ~ KC

Normalized Information Distance (NID)
Automated BVT/BVA?
x1 x2
SUT
y1 y2
?

41. 41/77
Diversity Corridor

42. 42/77
Diversity Corridor

43. 43/77
Diversity Corridor

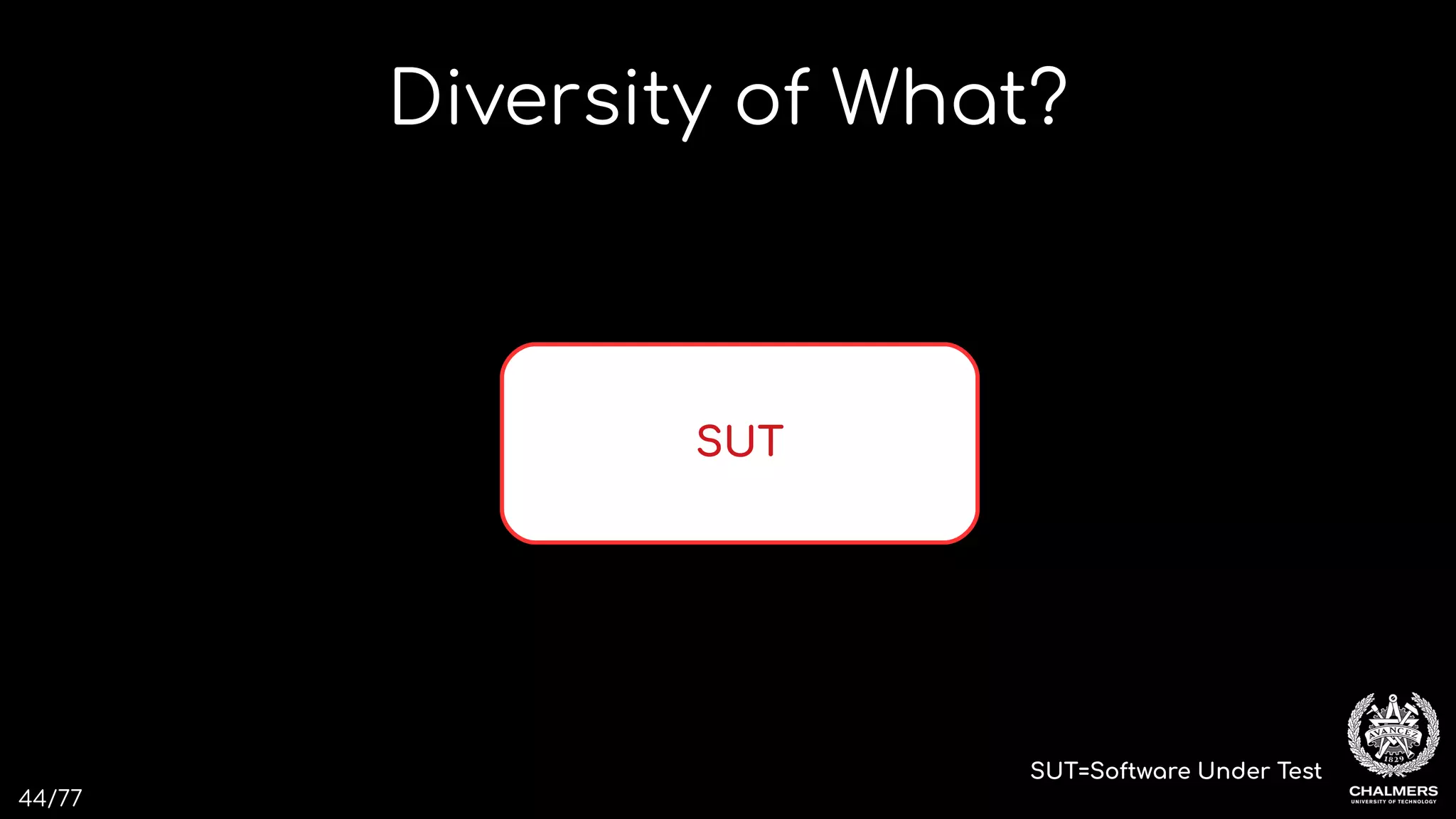

44. 44/77
Diversity of What?
SUT
SUT=Software Under Test

45. 45/77

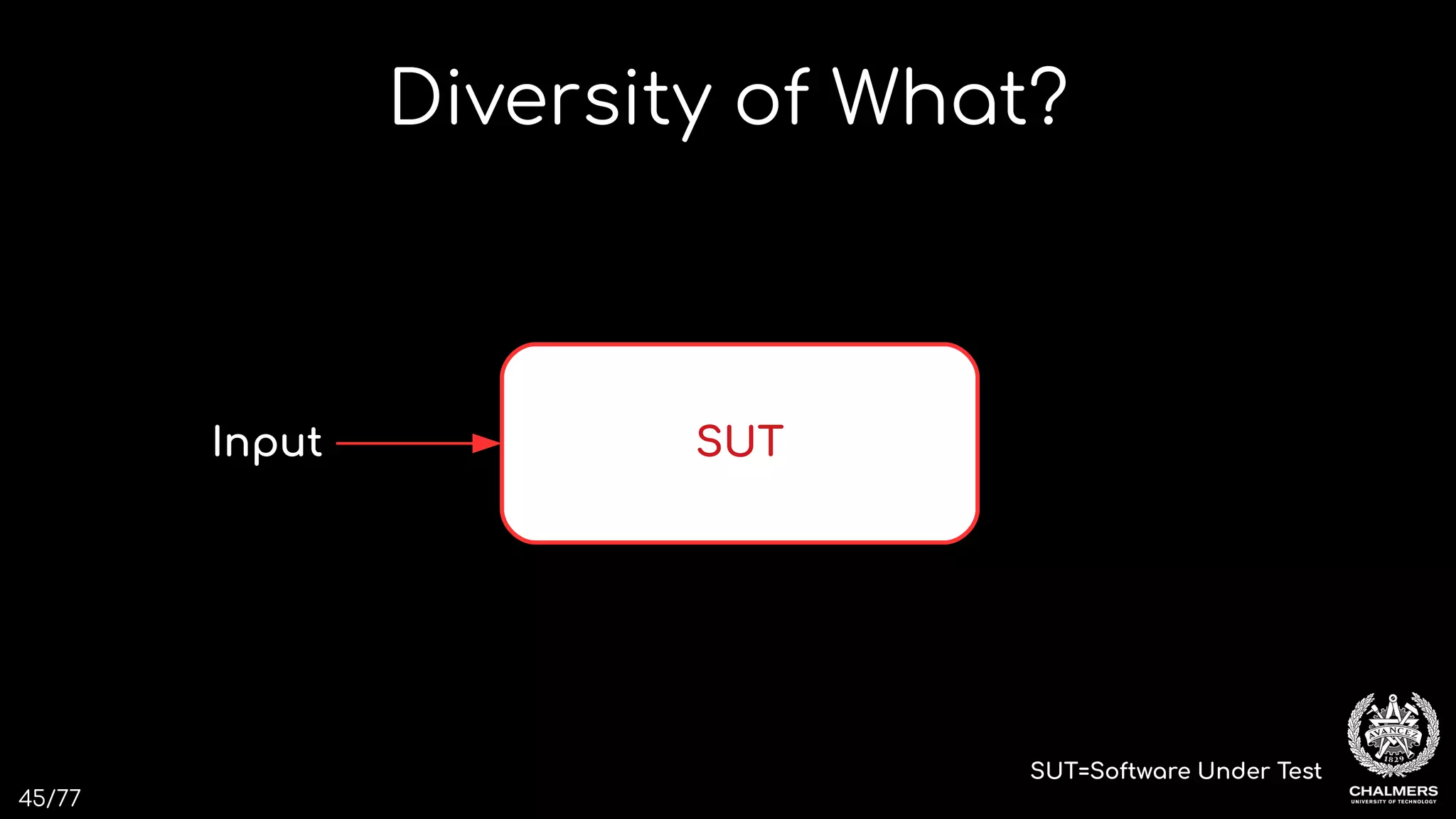

Diversity of What?
SUTInput
SUT=Software Under Test

46. 46/77

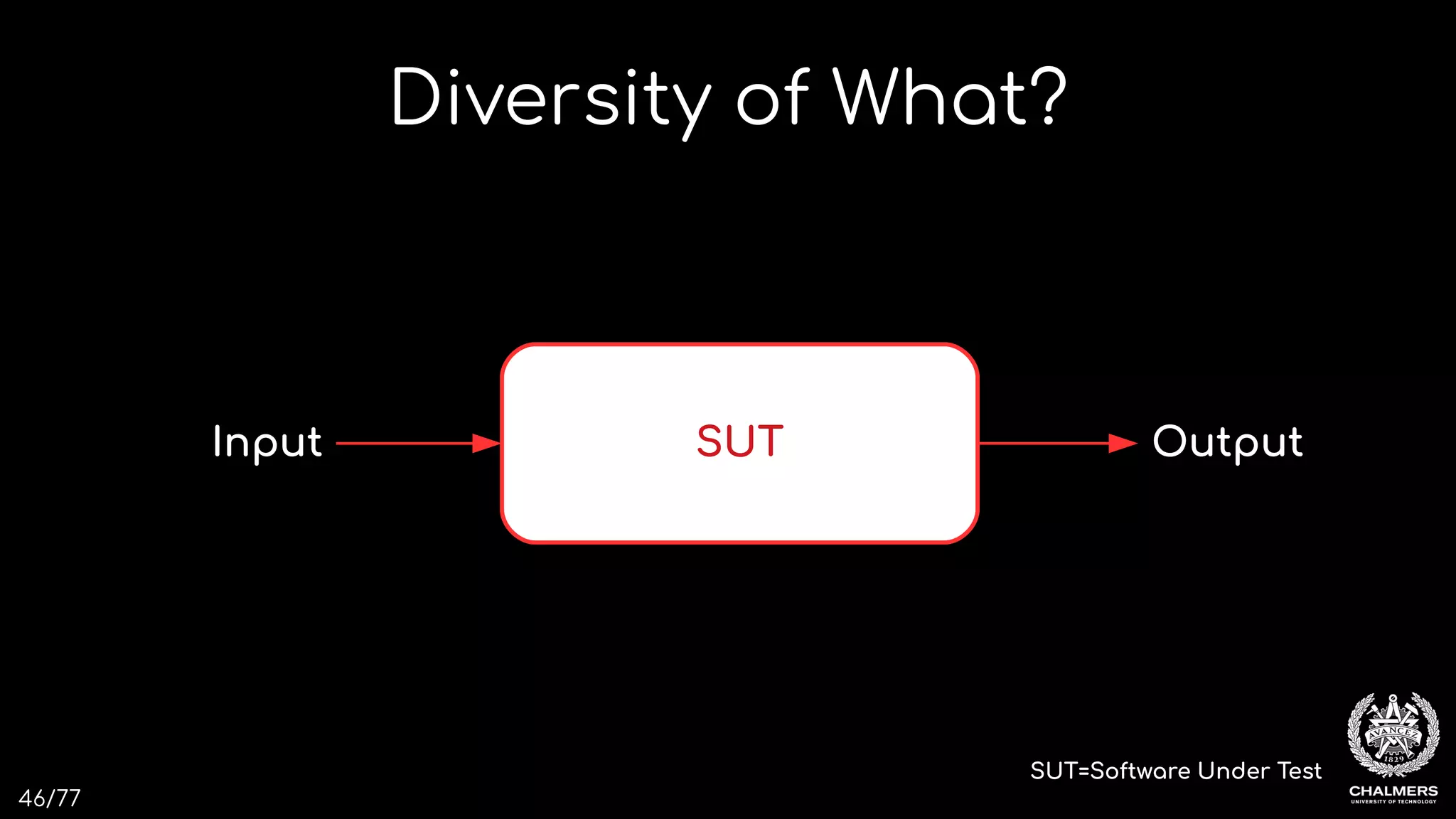

Diversity of What?
SUTInput Output
SUT=Software Under Test

47. 47/77

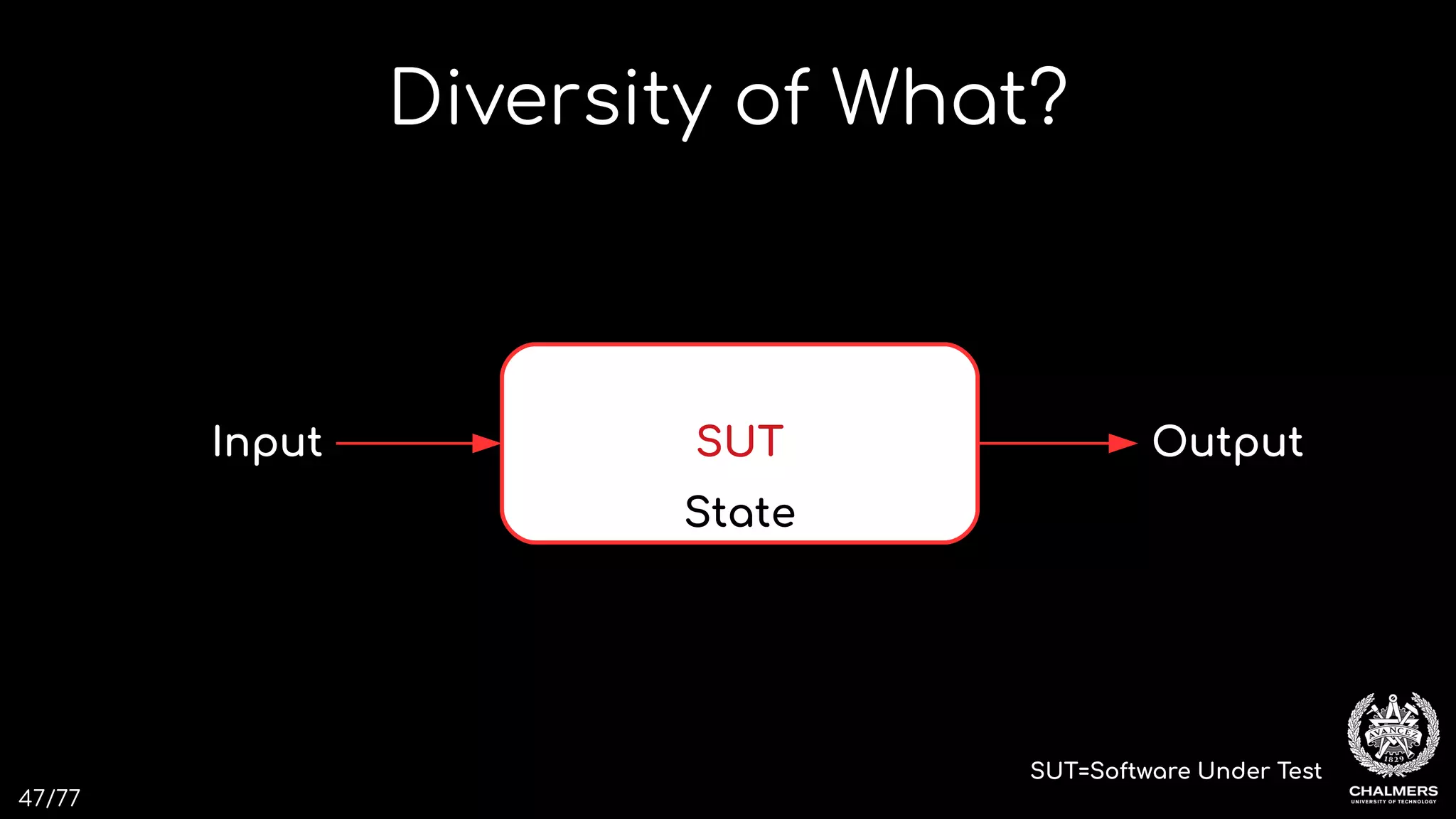

Diversity of What?
SUTInput Output
State
SUT=Software Under Test

48. 48/77
Diversity of What?
SUTInput Output
State
SUT=Software Under Test

49. 49/77
Diversity of What?
SUTInput Output
State
SUT=Software Under Test

50. 50/77

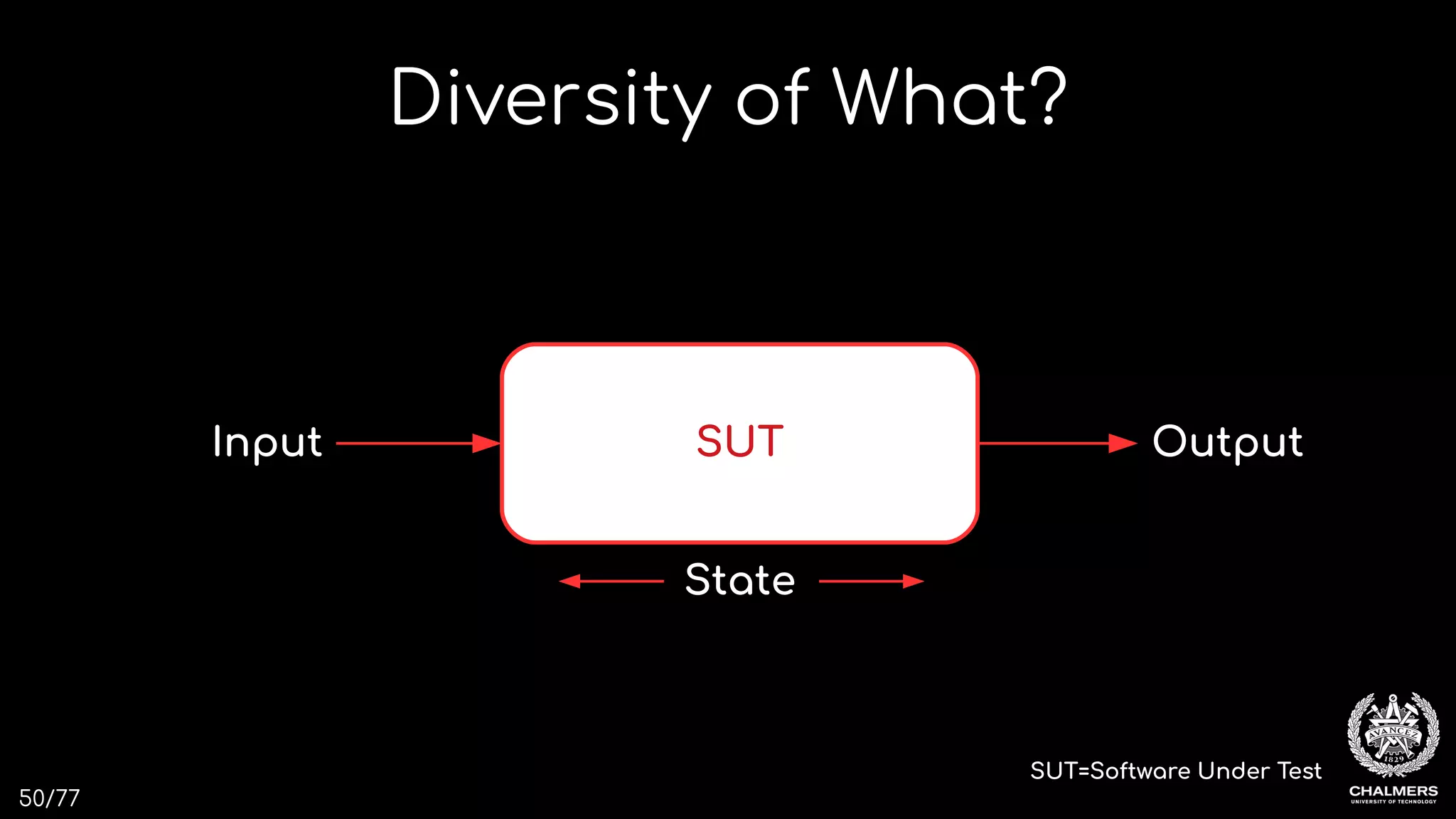

Diversity of What?
SUTInput Output
State
SUT=Software Under Test

51. 51/77
Diversity of What?
SUTInput Output
State
x
SUT=Software Under Test

52. 52/77
Diversity of What?
SUTInput Output
State
x
Diversity(Execution1, Execution2) → A x B x C...
SUT=Software Under Test

53. 53/77

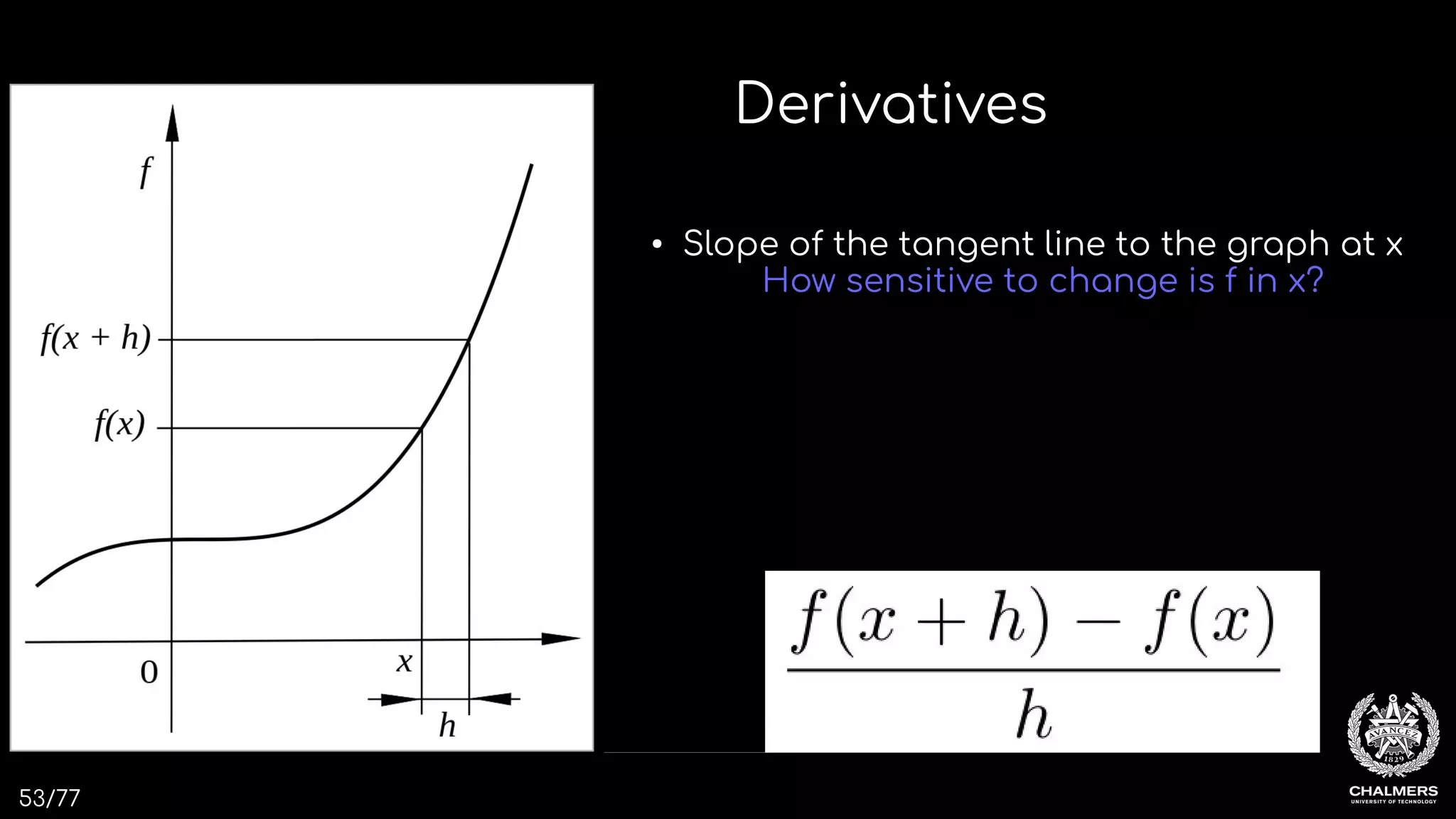

Derivatives
● Slope of the tangent line to the graph at x
How sensitive to change is f in x?

54. 54/77
Derivatives
● Slope of the tangent line to the graph at x
How sensitive to change is f in x?
secant

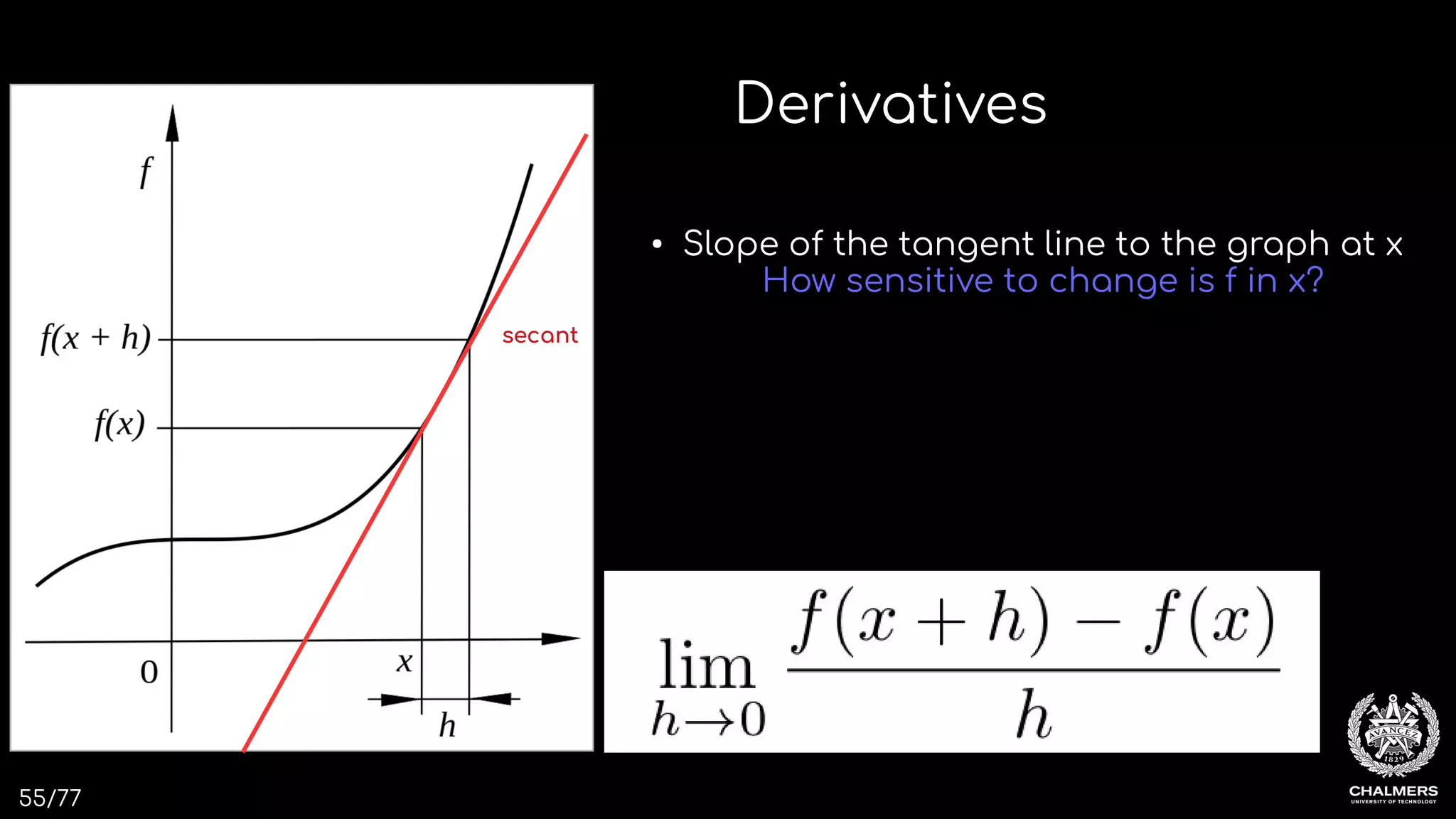

55. 55/77
Derivatives
● Slope of the tangent line to the graph at x
How sensitive to change is f in x?
secant

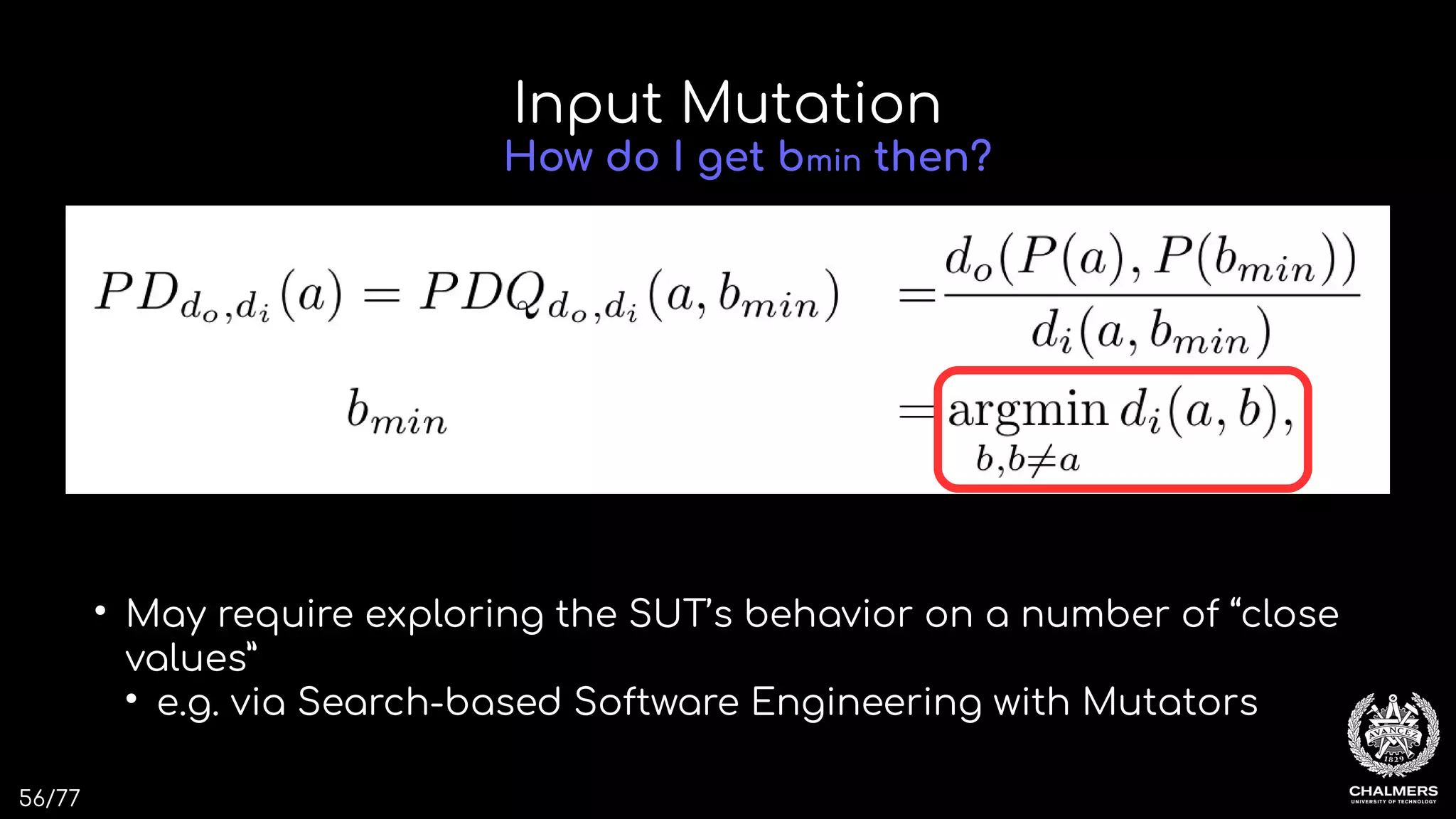

56. 56/77
Input Mutation
How do I get bmin then?

May require exploring the SUT’s behavior on a number of “close
values”

e.g. via Search-based Software Engineering with Mutators

57. 57/77

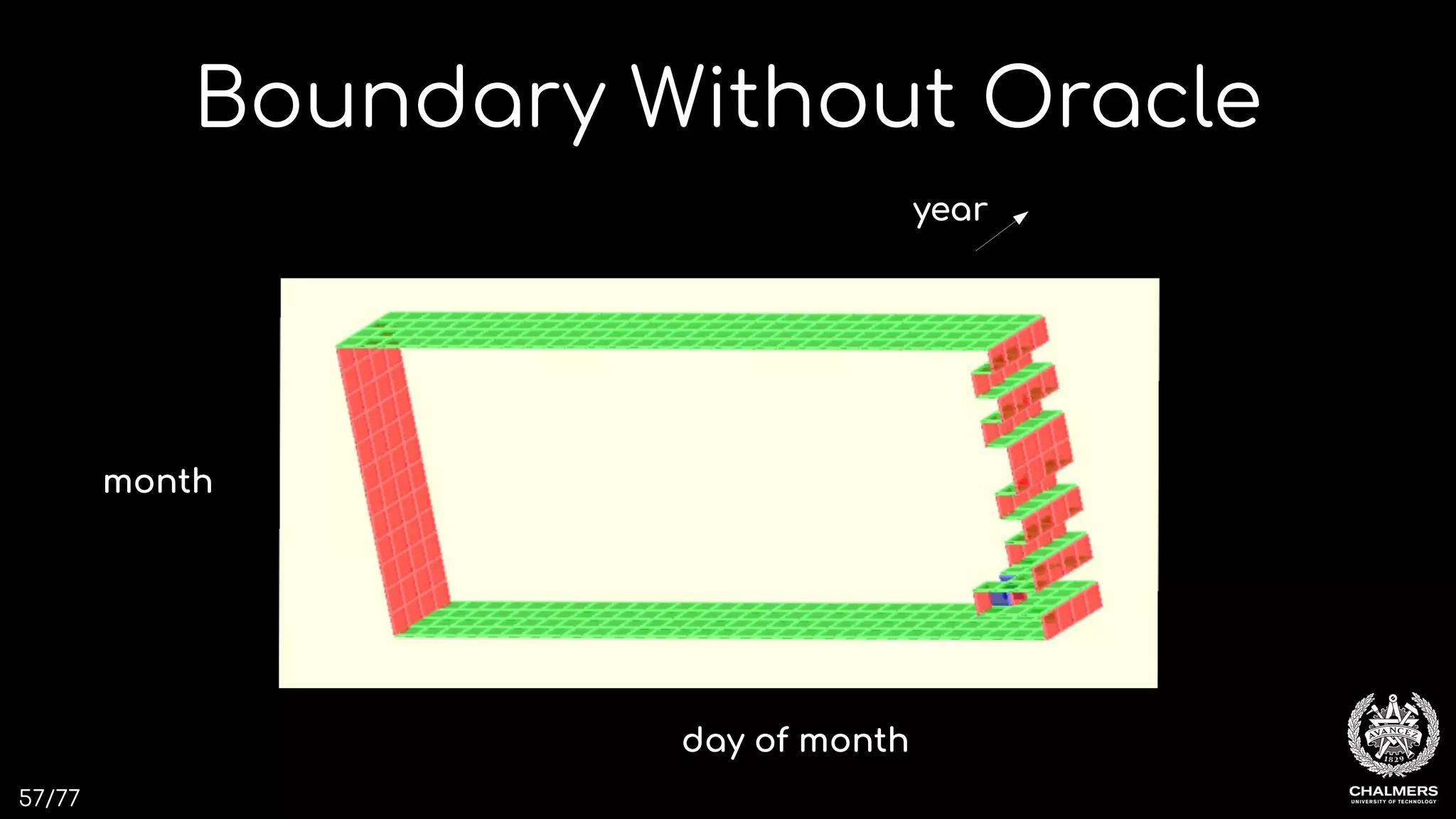

Boundary Without Oracle
month
day of month
year

58. 58/77

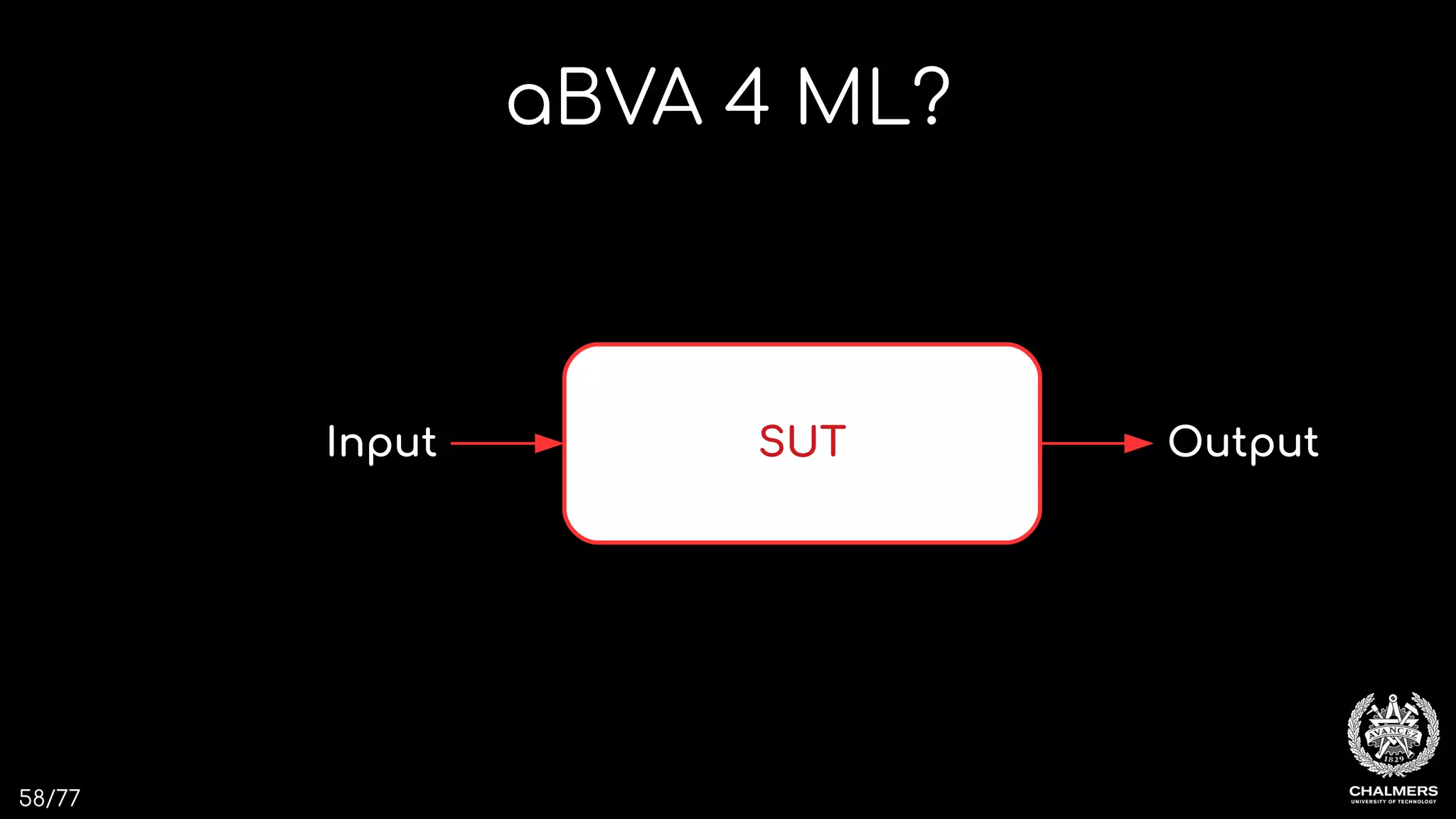

aBVA 4 ML?
SUTInput Output

59. 59/77
aBVA 4 ML?
anything anything
SUTInput Output
Domain:

60. 60/77
aBVA 4 ML?
anything anything
SUTInput Output
Domain:

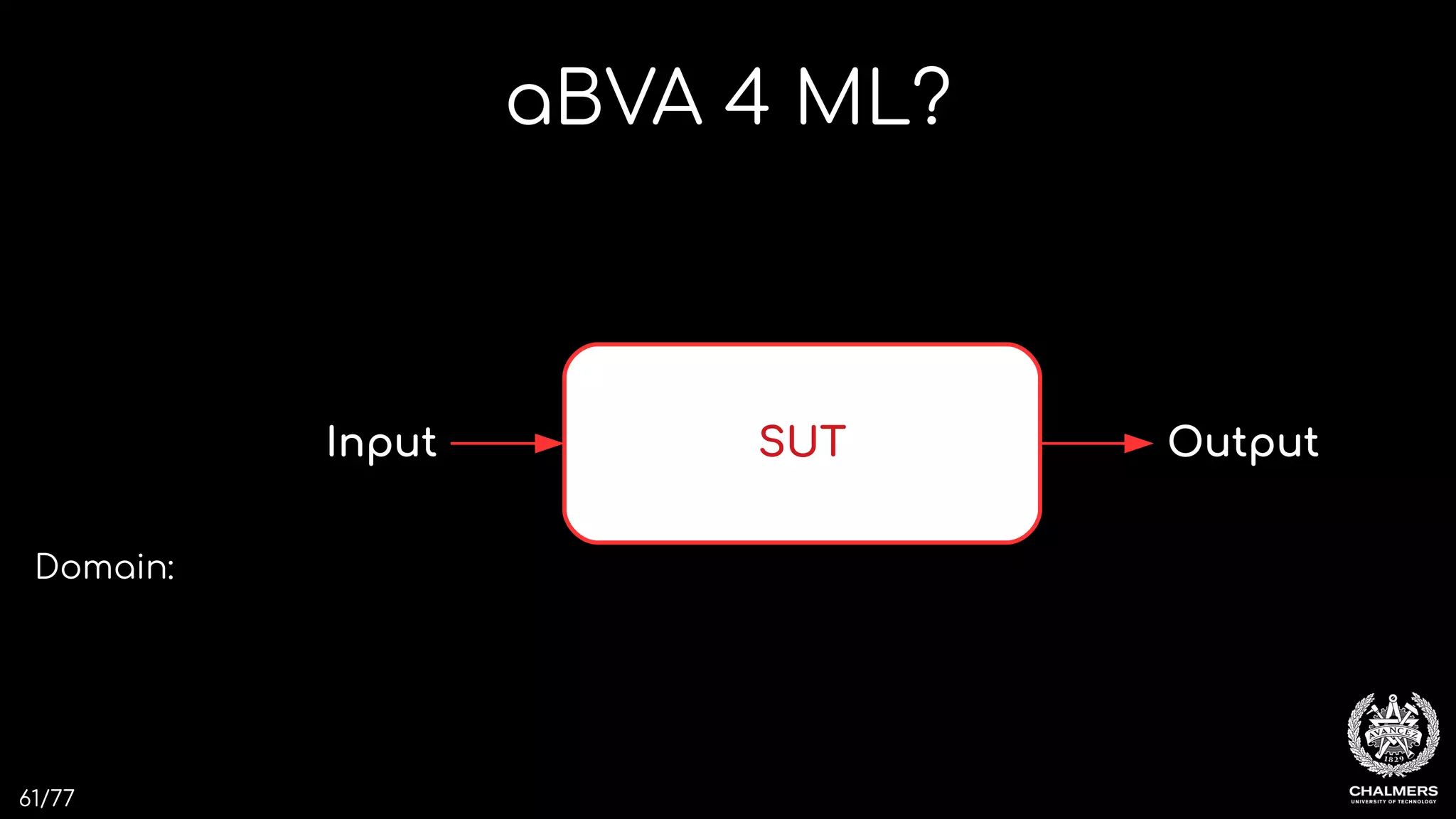

61. 61/77
aBVA 4 ML?
SUTInput Output
Domain:

62. 62/77
aBVA 4 ML?
Input Output
Domain:

63. 63/77

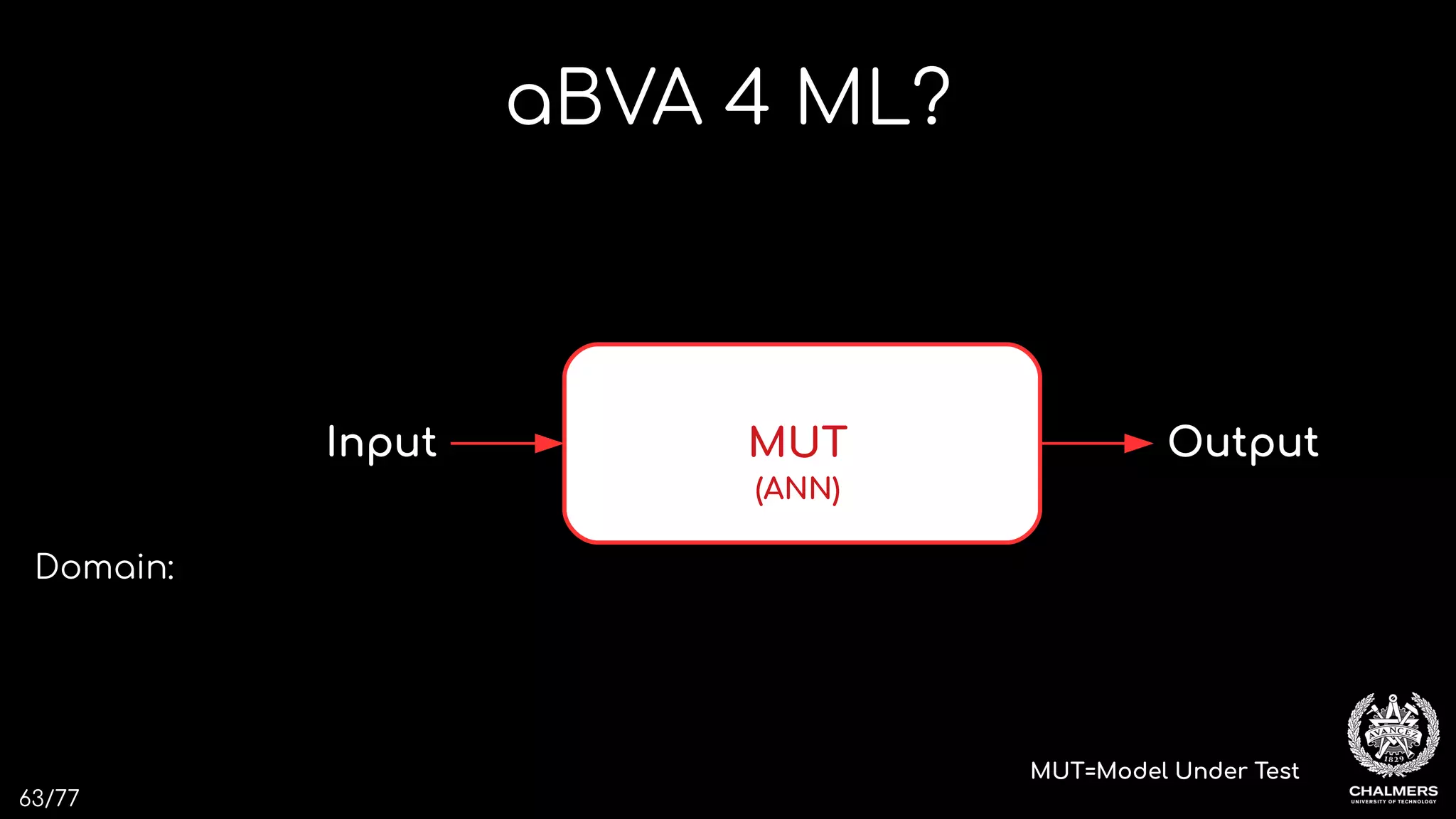

aBVA 4 ML?
MUT=Model Under Test
Input Output
Domain:
MUT
(ANN)

64. 64/77

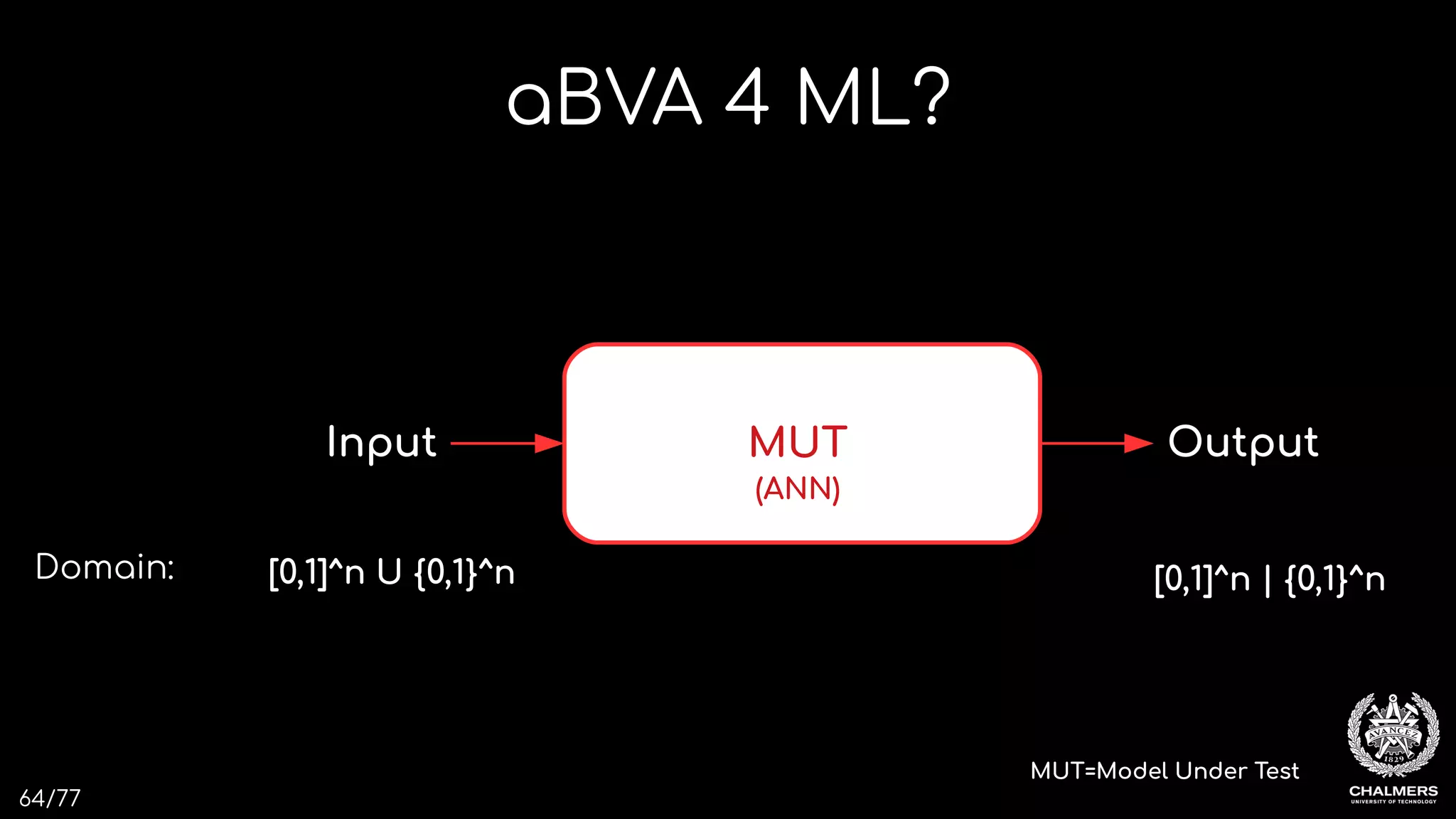

aBVA 4 ML?
[0,1]^n U {0,1}^n [0,1]^n | {0,1}^n
MUT=Model Under Test
Input Output
Domain:
MUT
(ANN)

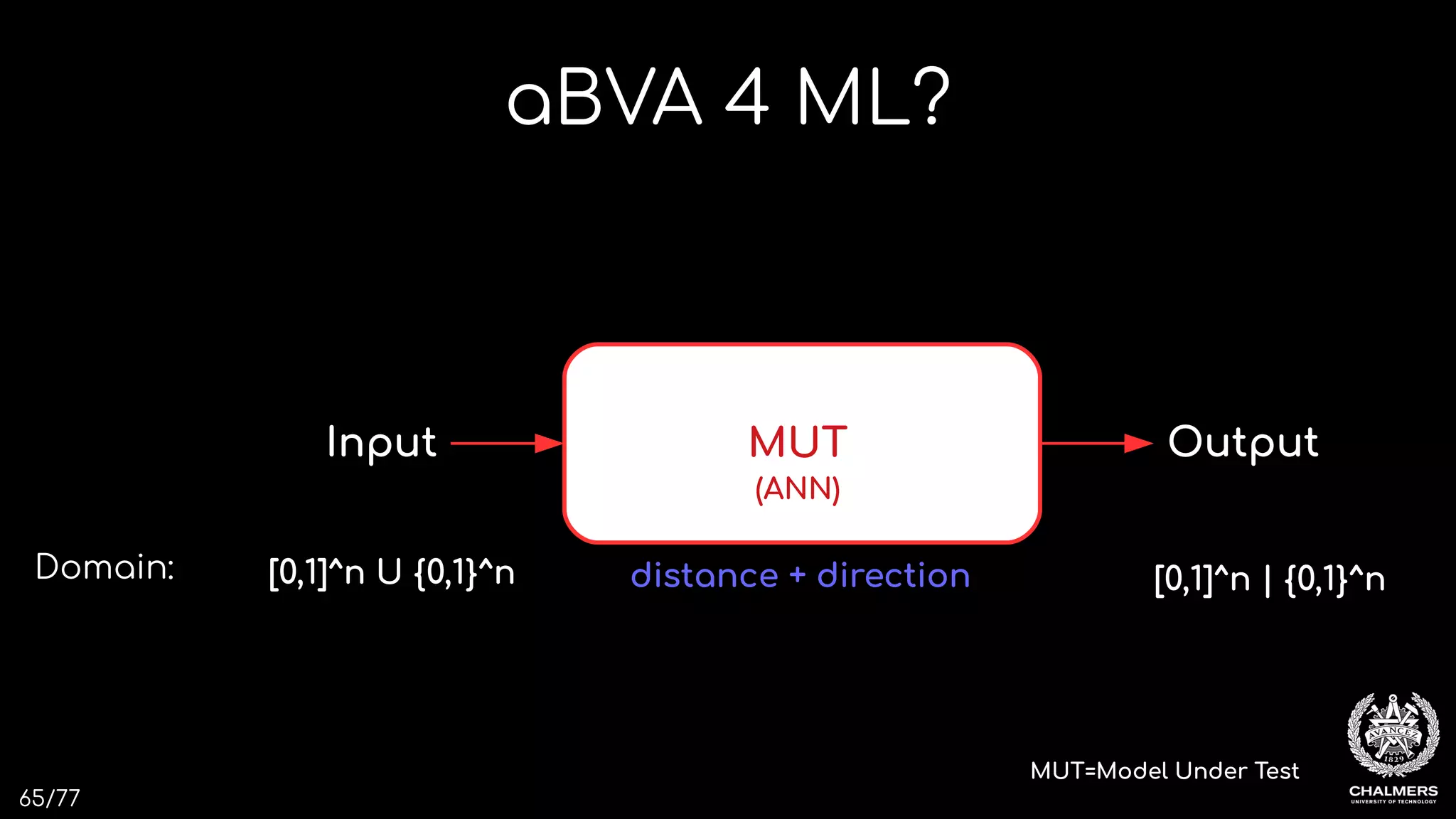

65. 65/77
aBVA 4 ML?
[0,1]^n U {0,1}^n [0,1]^n | {0,1}^ndistance + direction
MUT=Model Under Test
Input Output
Domain:
MUT
(ANN)

66. 66/77
This is where we are...

67. 67/77
This is where we are...
● All diversity measures may not be practical

68. 68/77
This is where we are...
● All diversity measures may not be practical
● deterministic vs stochastic

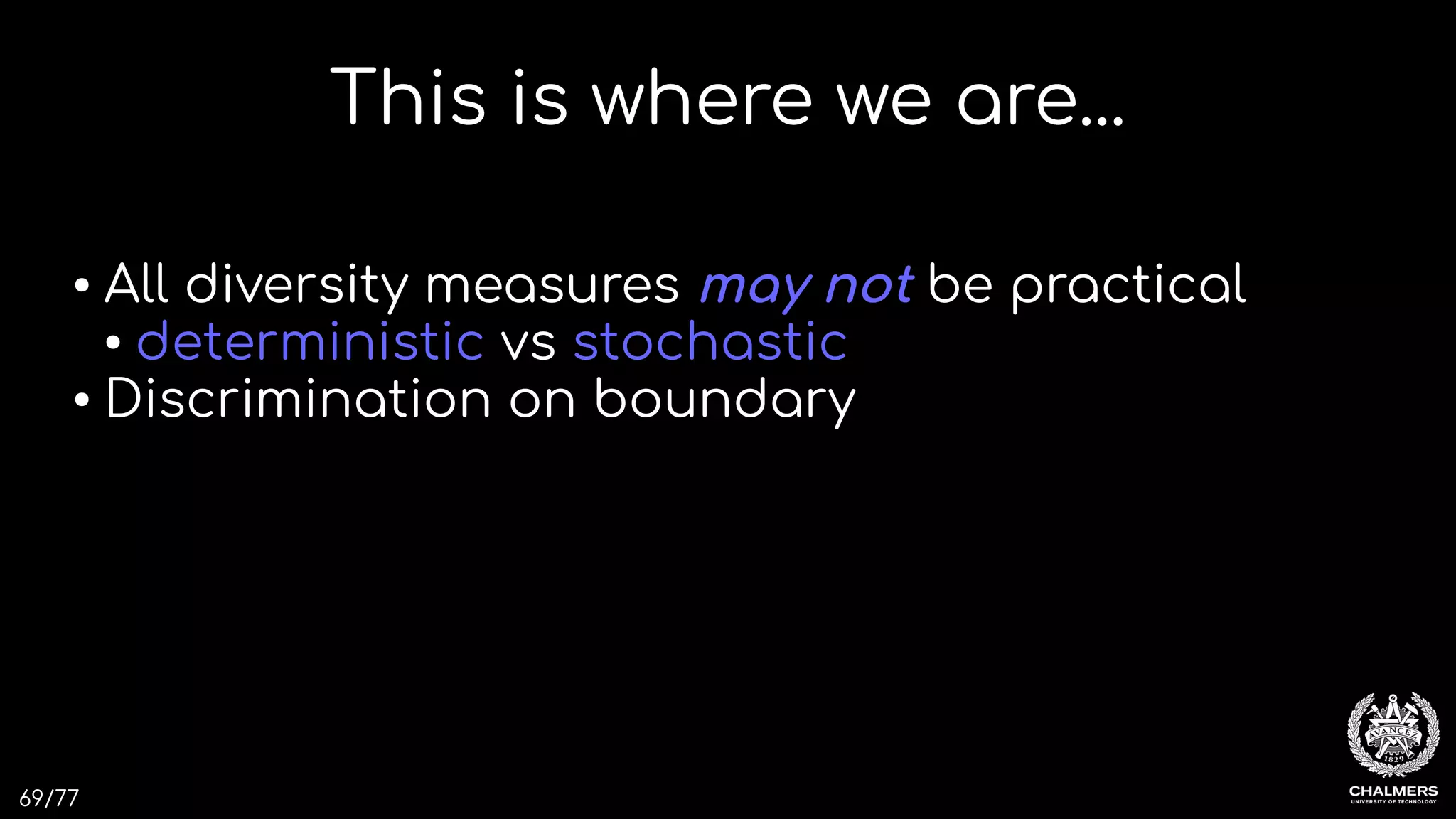

69. 69/77

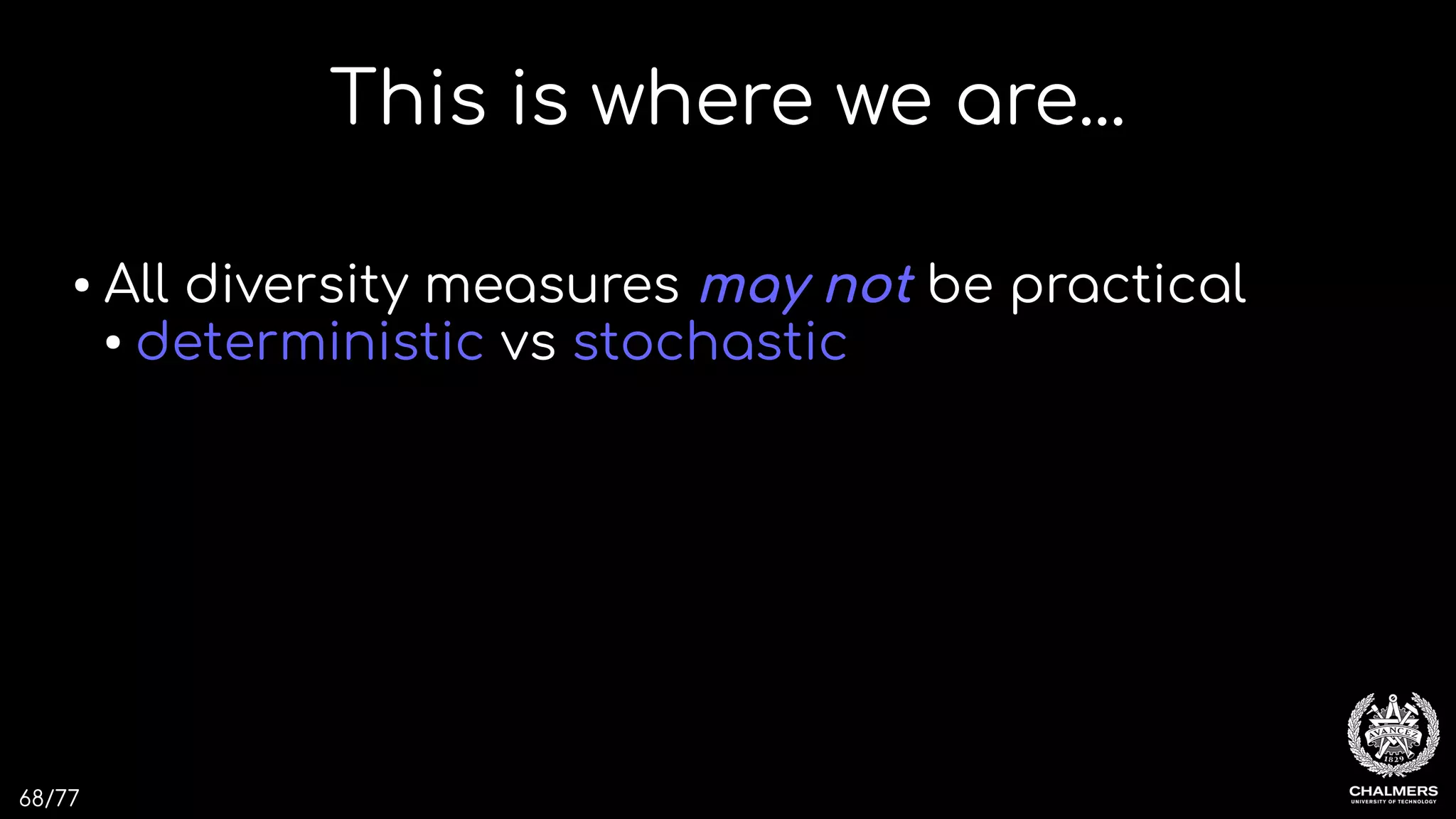

This is where we are...
● All diversity measures may not be practical
● deterministic vs stochastic
● Discrimination on boundary

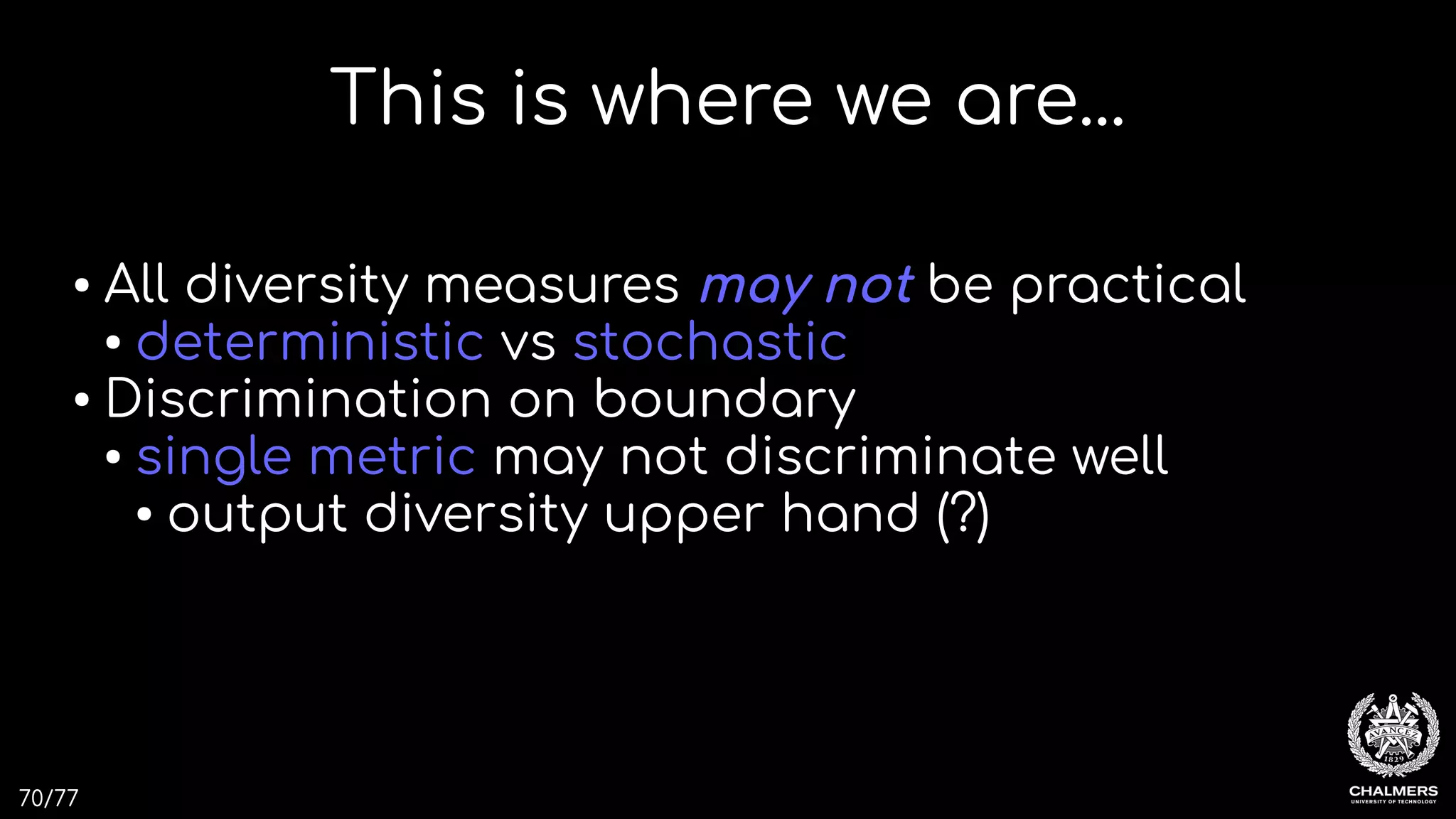

70. 70/77
This is where we are...
● All diversity measures may not be practical
● deterministic vs stochastic
● Discrimination on boundary
● single metric may not discriminate well
● output diversity upper hand (?)

71. 71/77

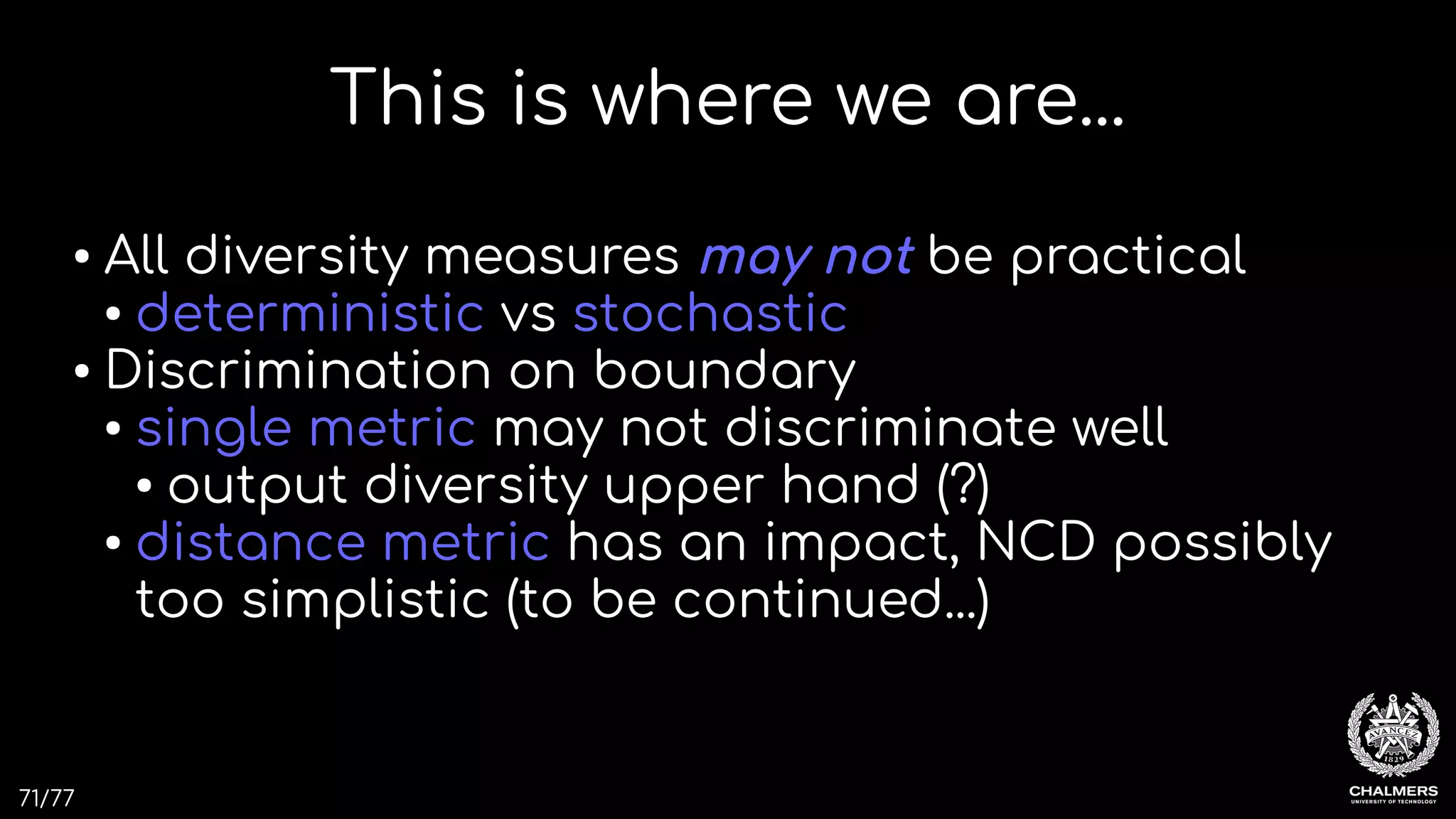

This is where we are...
● All diversity measures may not be practical
● deterministic vs stochastic
● Discrimination on boundary
● single metric may not discriminate well
● output diversity upper hand (?)
● distance metric has an impact, NCD possibly
too simplistic (to be continued...)

72. 72/77
Challenges

73. 73/77

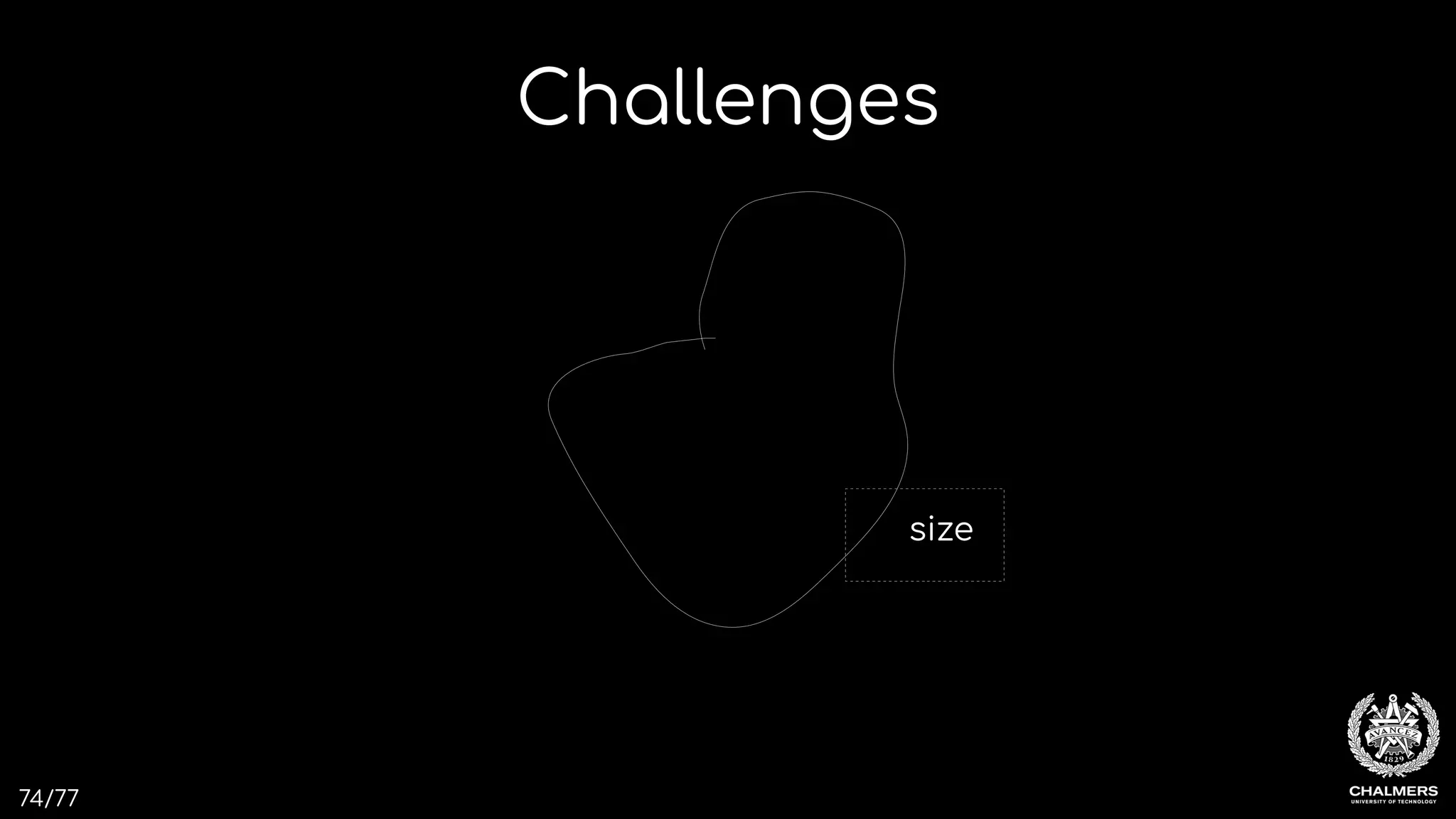

Challenges

74. 74/77
Challenges
size

75. 75/77

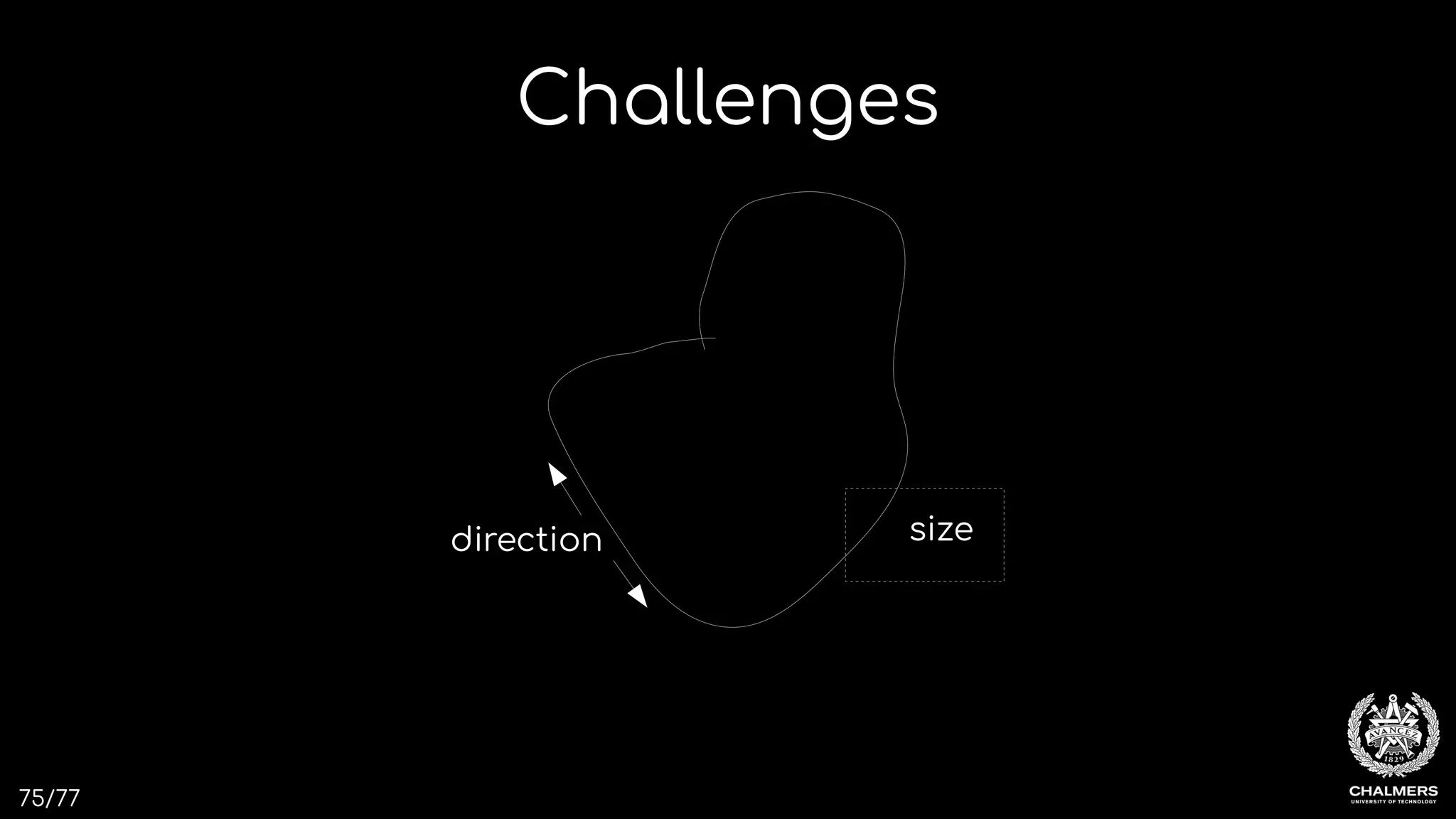

Challenges
sizedirection

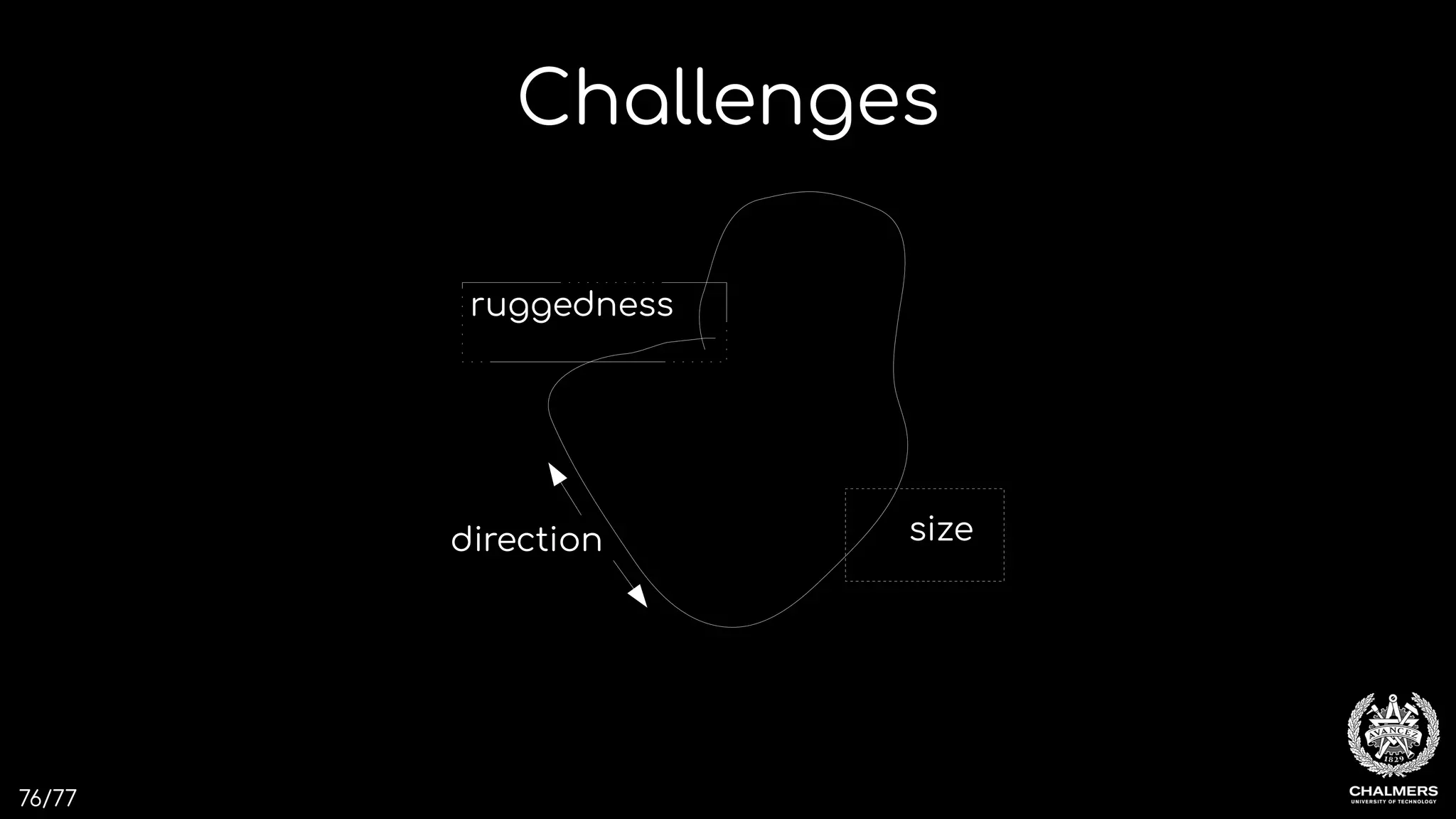

76. 76/77
Challenges
sizedirection
ruggedness

77. 77/77
TestVikings

“We come over land and sea to break your code”
Find us at: https://testvikings.github.io/
I don’t tweet but post on LinkedIn (Felix Dobslaw)
