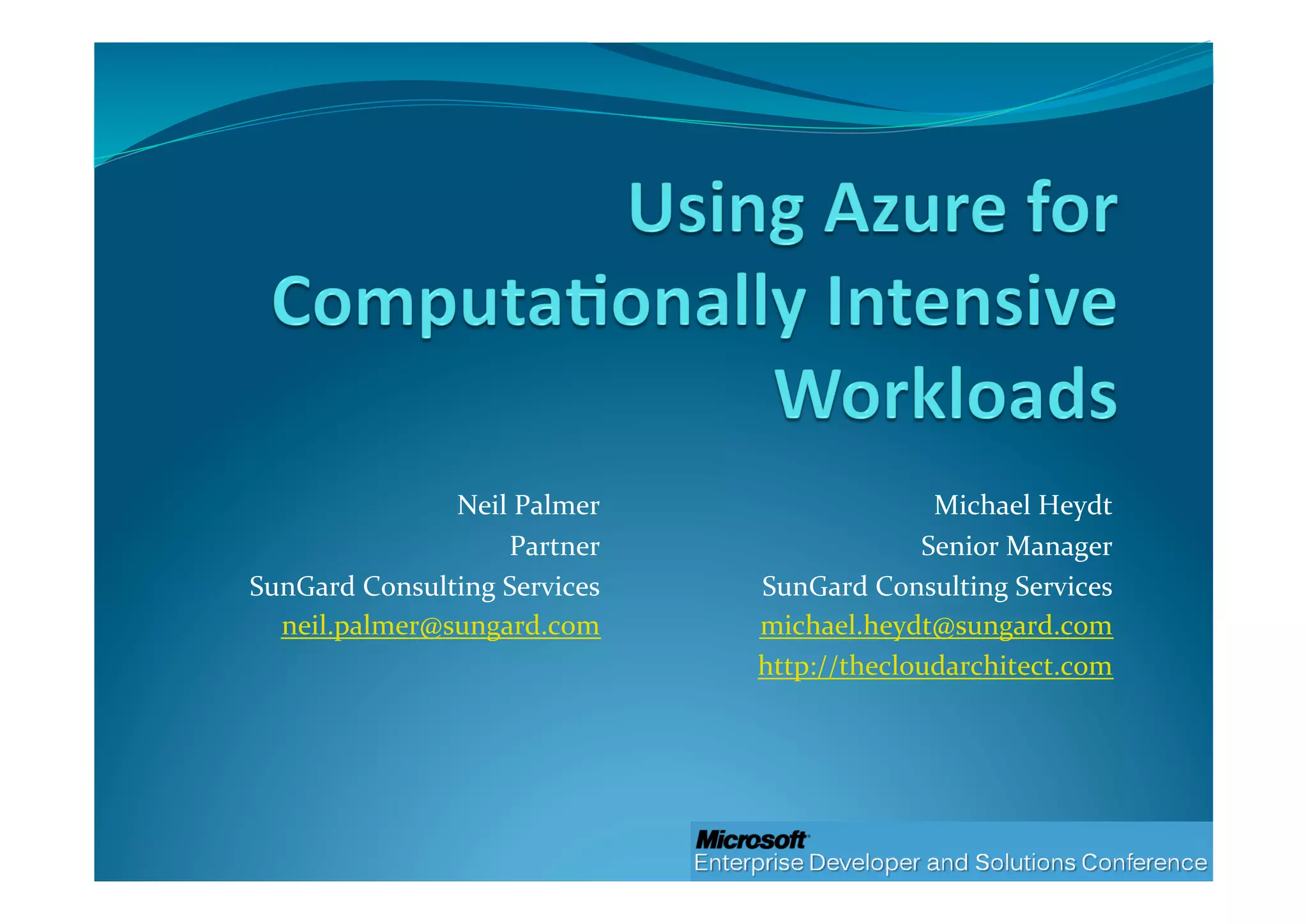

1. Neil Palmer
Partner
SunGard Consulting Services
neil.palmer@sungard.com
Michael Heydt
Senior Manager
SunGard Consulting Services
michael.heydt@sungard.com
http://thecloudarchitect.com

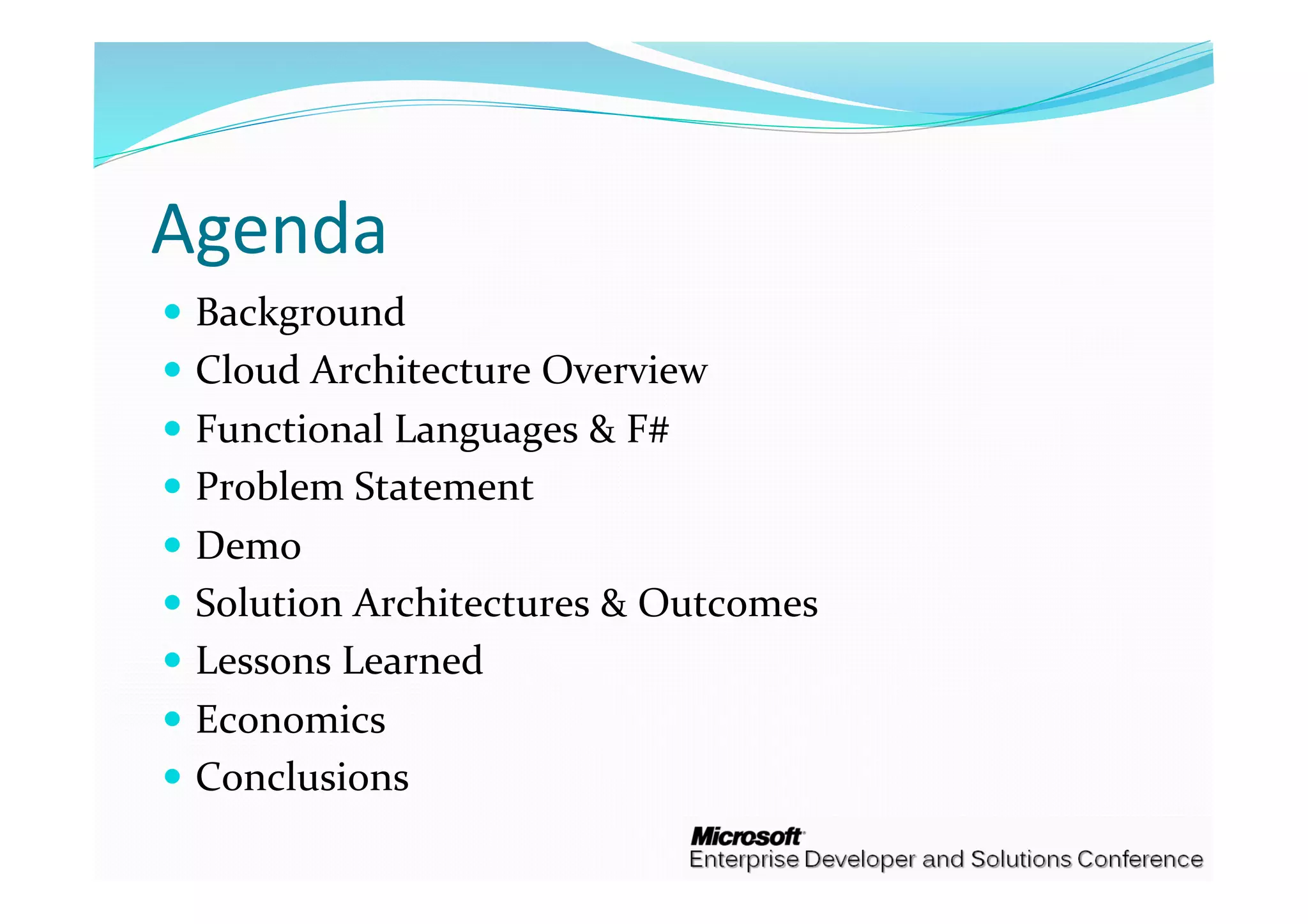

2. Agenda
 Background
 Cloud Architecture Overview
 Functional Languages & F#
 Problem Statement
 Demo
 Solution Architectures & Outcomes
 Lessons Learned
 Economics
 Conclusions

3. Background
 This is a period of intense change with many
disruptive technologies:
 Cloud computing
 Functional languages
 Large data set processing
 Which have a large impact on applications since
storage and compute power is practically unlimited
 Leads to questions:
 What types of applications are technically feasible?
 And economically feasible?

4. Cloud Compu2ng Stack
Applications (Salesforce)
Services (Google Maps)
Platforms (Azure)
Infrastructure (EC2) Storage (S3)

5. Cloud Compu2ng Overview
 Common components for cloud computing:
 CPU and Data managed by another provider
 Redundant storage for availability
 Dynamically allocated CPU based upon demand
 Pay for use and as you go model (no capital investment)
 Additional application services provided to systems in
the cloud (e.g. SQL services, payment processing…)
 Operational support for failover

6. Cloud Benefits
Internal IT Managed services The cloud
Capital investment Significant Moderate Negligible
On‐going costs Moderate Significant Based on Usage
Provisioning time Significant Moderate None
Scalability Limited Moderate Flexible
Staff expertise
requirements
Significant Limited Moderate
Reliability Varies High
Moderate to High

7. Applica2ons suitable for the cloud
 Web applications
 Load testing
 Monte Carlo Simulation
 Financial Portfolio Analysis
 Energy Demand Forecasting
 Algorithmic Trading
 Parallel / concurrent processing
 Processing pipelines

8. Func2onal Programming
 What is functional programming?
 Facilitates Parallelism
 Treat computation as the evaluation of functions
 Avoids state and mutable data, which greatly simplifies
parallel execution
 Runtime handles parallelism instead of through explicit
coding
 Take better advantage of growing # of cores available to
you
 Functional decomposition may be a better answer to
leveraging the architecture of tomorrow
 Beginning to think this way needs to start now

9. Problem Statement
 Compute historic price volatility correlations for stocks
over many years.
 Goal is to test the usefulness of cloud computing for:
 Manipulating a large data set
 Handle a solution that would otherwise be slow & expensive
with dedicated servers
 To determine:
 What is the scalability of cloud architectures?
 Cost effectiveness of scale out (many roles in the cloud) vs.
scale up (high CPU, threading)
 How does the solution differ from a non‐cloud solution?

10. Cloud Applica2on Architecture

11. Cloud Applica2on Architecture
 Horsepower
 In Azure, these are the
web and worker roles

12. Cloud Applica2on Architecture
 Ingress – How to talk to the cloud
 In Azure,
 HTTP/s to web roles
 .NET Service Bus and queues to worker
roles

13. Cloud Applica2on Architecture
 Cloud Storage Services
 Fundamentally three types
 Tables
 Blobs
 Volumes (EC2)

14. Cloud Applica2on Architecture
 Intra‐cloud communications
 Queues
 .NET Service Bus

15. Cloud Applica2on Architecture
 Cloud provided services
 Value add from your cloud provider
 You can also use these from other
providers
 Azure using EC2 nodes, AWS payment
services
 Google API using REST interfaces into
Azure

16. Solu2on Architecture
Key points:
• Scalability is goal #1
• Partitioned dataset
• Multiple workers
• Work item based
• Competitive processing
• All asynchronous

17. Demo
 Show the portal deployments
 Explain web and worker roles
 Show client doing volatilities
 Explain parts of the application and interop with Azure
 Show / delete existing blobs
 Calculate some volatilities
 Show messages received, blobs being created
 Show data in one of the blobs

18. Solu2on Architecture
 Architecture was evolutionary
 Started with EC2, evolved into a hybrid Azure / EC2,
and then full Azure
 This was valuable to see the differences in cloud
platforms

19. Solu2on Architecture
Version 1.0
100% EC2

20. Version 1.0 Outcome
 Linear scalability. Double the nodes, half the time to
complete
 Took time to image and manage AMI’s
 Feels like you manage the servers in their entirety
 No automatic failover or restarts provided by EC2
 Bandwidth costs – must watch them
 Security is on your own
 Table storage was considered too limited in max size to
use
 Cost effective for the problem, but minimum billing is per
hour, so that can burn you

21. Solu2on Architecture
Version 2.0
100% Azure
with Table
Data

22. Version 2.0 Outcome
 Table data did not perform well
 Gave up before even getting historical data into the
cloud
 REST performance for table data was ~1000 puts per
50 seconds
 4.7 million historical price points to load
 Multi‐threading did not help
 Scrapped and went for a blob model with ticker data
blobs (version 3.0)

23. Solu2on Architecture
Version 2.5
Azure and
EC2 Hybrid

24. Version 2.5 Outcome
 Easy port of .Net code to Azure from EC2
 Just pointed data layer to existing EC2 database image
 Execution time about the same as with EC2, even with
the database across the Internet
 Not as much headache since you are not managing as
many virtual servers
 But is having an RDBMS in the cloud “cloudy”?

25. Solu2on Architecture
Version 3.0
100% Azure

26. Version 3.0 Outcome
 Same benefits of 2.5
 No need for SQL Server
 Blobs solved REST problems
 Migration of data to Azure blobs did take took some
work and redesign
 Physical partitioning of data into blobs
 Indexes to data also stored in blobs
 Binary serialization of objects into blobs

27. Code Review
 Lets look at some code
 WCF service API
 Silverlight service bridge
 Web role – looks just like ASP.NET and Silverlight
 Silverlight – show what happens when you press “start”
 WCF service – show hooks to azure (storage accounts)
 Worker role, show how processing is done

28. Poten2al Enhancements
 Table data storage for statuses
 .Net Service bus integration for monitoring and
communications to non‐cloud systems
 Multicast .Net Service Bus for broadcasting to all
worker roles
 Eventual use of SQL data services in cloud
 Build F# libraries for quantitative analysis
 Build locally, test against local data
 Deploy to cloud
 Connect as required

29. Lessons Learned
 Queues and Asynchronicity
 Queues work on a different model than MSMQ
 Retrieve with a delete window and then explicitly delete
 Polling model (no blocking)
 Get used to asynchronous processing
 Scalability is obtained through asynchronous model
 Queue based communication between web and worker roles
 Asynchronous communications from Silverlight to Azure

30. Lessons Learned
 EC2 vs Azure
 Dynamic allocation in Azure is not as good as with EC2
 Ec2 billing is by the hour, so not too good for quick needs
 .NET code was very portable between EC2 and Azure
 Watch the bandwidth between storage zones
 Management is difficult in both
 But Azure management is easier than EC2
 Azure monitors your roles and restarts them (EC2 doesn’t)
 EC2 feels a lot heavier than Azure
 Seems great for appliances
 But if you are doing .NET, best to go Azure

31. Lessons Learned
 Data
 Getting data into the cloud can be a lot of work
 REST does is not performant for large #’s of small
records
 Designing data for non‐relational storage is
cumbersome and requires a change of mindset

32. Lessons Learned
 Programming
 URLs for WCF services must be rewritten in the various
environments
 .NET code for web and workers is very similar to
normal .NET code
 Lack of full trust can be a pain; many libraries caused failures
 F# needs to be linked into the solution due to not being
available in the Azure GAC / full trust
 Can’t talk directly to Azure easily from Silverlight
 Debugging is difficult: logs, writing to queues, or to SQL

33. Things to look for in the future
 Concern about Azure pricing for unutilized workers
 Dynamic / API based allocation of roles
 Management API’s and user interfaces
 Caps on # of instances / roles available

34. Economics
 EC2
 Ran a subset of the overall task
 Used five instances as baseline
 100 units of work
 50 volatility blocks of work
 50 correlation blocks of work
 Each instance handled 10 blocks of work for both volatility
and correlation
 Volatilities took 6.9 minutes per block
 Correlations took 4.6 minutes per block

35. Economics – Subset of Solu2on
Calculation Time # Blocks Total Time
Volatility 6.9 10 69
Correlation 4.6 10 46
Total Time 115
Cost / Billable Hour $0.125
Cost/Node $0.25
Total Cost (5 Nodes) $1.25

36. Economics – Full Solu2on
Calculation Time # Blocks Total Time
Volatility 6.9 10 69
Correlation 4.6 500 2300
Total Time 2369
Cost / Billable Hour $0.125
Cost/Node $5.00
Total Cost (5 Nodes) $25.00

37. Economics – Single System
Calculation Time # Blocks Total Time
Volatility 6.9 50 345
Correlation 4.6 2500 11,500
Total Time (mins) 11,845
Total Time (days) 8.25

38. Economics – 2500 Nodes
Calculation Time # Blocks Total Time
Volatility 6.9 1 6.9
Correlation 4.6 1 4.6
Total Time 11.5
Cost / Billable Hour $0.125
Cost/Node $0.125
Total Cost (2500 Nodes) $312.50

39. Economics
 There is a cross over of speed vs. cost:
 $312.50 (quickest) versus $25.00 (most cost effective)
 Minimum billing hour granularity of EC2 introduces a
fixed cost component
 Isn’t necessarily cheaper compared to the cost of
‘fixed’ hardware over a long period of time
 Compute time not the only cost to take into account
 Data transfer in & out of cloud is equally as costly

40. Conclusions
 What is the scalability of cloud architecture?
 This problem was linearly scalable; double the nodes,
roughly half the time
 Cost structure – is it economical?
 The numbers look good compared to investing in capital and
humans
 Make sure you don’t get billed for non‐utilized time
 Bandwidth still costs you, and could be significant
 Watch for minimum billing times
 How does the solution differ from a non‐cloud solution?
 With Azure, it’s very similar coding (more in lessons
learned)
 But you must learn to partition the problem set for scale out

41. Q&A

42. The conversa2on doesn’t stop here!
 Sign in on www.entdevcon.com not only to watch the
sessions, but to also discuss the content!
 Create your own blogs, wikis, conversations and
special interest groups– watch content – all for FREE!
 Make a industry connections with your peers and
Microsoft experts online!
 Comments? Email EntDevCon@live.com

43. EDC online!
 Join the community of enterprise developers! at
www.entdevcon.com
 Share your stories today and beyond the event!
 Tweet directly to #EntDevCon Twitter
 Share your pictures on our Facebook group!
 Discussion of the community

44. Fill out your evalua2ons!
 Day 1 – Tonight’s reception requires tickets. In order to
receive your ticket, you must complete an evaluation form
for Day 1, and return to registration desk.
 Day 2 – We will hold a prize raffle during the closing
keynote. Please hand in your Day 2 evaluations prior to
the keynote. Prizes include:
 Xbox360
 Zune music players
 Windows Mobile device, complete with mouse enabled
pointer and keyboard.
 Microsoft Wireless Laser Desktop
 Lego Mindstorm kits
