1. Using Asterisk
to create “Her”

2. CAN YOU SPEAK MAGIC?
2
Allison Smith Ben Klang
as “Her”

3. CAN YOU SPEAK MAGIC?
3

4. CAN YOU SPEAK MAGIC?
3

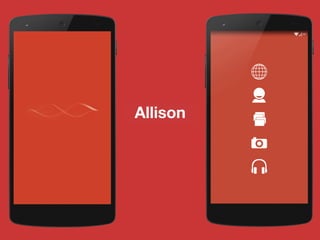

5. CAN YOU SPEAK MAGIC?
ALL ABOUT “HER”
4
Allison

6. CAN YOU SPEAK MAGIC?
5

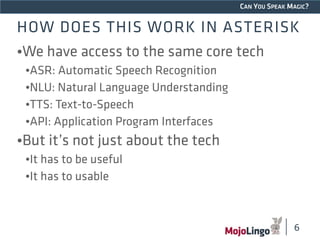

7. CAN YOU SPEAK MAGIC?
HOW DOES THIS WORK IN ASTERISK
•We have access to the same core tech
•ASR: Automatic Speech Recognition
•NLU: Natural Language Understanding
•TTS: Text-to-Speech
•API: Application Program Interfaces
•But it’s not just about the tech
•It has to be useful
•It has to usable
6

8. CAN YOU SPEAK MAGIC?
USABILITY: “HER” PERSONALITY
7

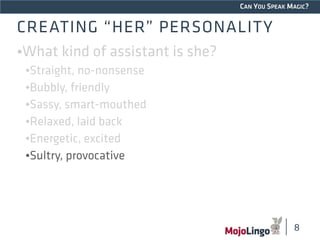

9. CAN YOU SPEAK MAGIC?
CREATING “HER” PERSONALITY
•What kind of assistant is she?
•Straight, no-nonsense
•Bubbly, friendly
•Sassy, smart-mouthed
•Relaxed, laid back
•Energetic, excited
•Sultry, provocative
8

10. CAN YOU SPEAK MAGIC?
WHY PERSONALITY MATTERS
9

11. CAN YOU SPEAK MAGIC?
HOW DOES “SHE” WORK?
10

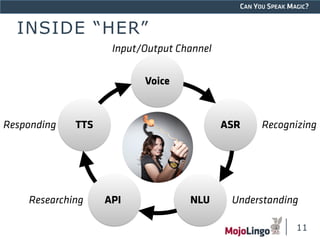

12. CAN YOU SPEAK MAGIC?
INSIDE “HER”
ASR Recognizing
Researching API NLU Understanding
11
Responding TTS
Input/Output Channel
Voice

13. CAN YOU SPEAK MAGIC?
INSIDE “HER”
ASR Recognizing
Researching API NLU Understanding
12
Responding TTS
Input/Output Channel
Voice

14. CAN YOU SPEAK MAGIC?
RECOGNIZING
•Different kinds of ASR
•Dictation / Transcription
•Grammar-based
•Hotword
•Biometrics / Identity
•DTMF has its place
•The Media Connection
•MRCP
•HTTP APIs
13

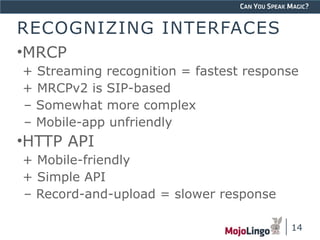

15. CAN YOU SPEAK MAGIC?
RECOGNIZING INTERFACES
•MRCP
+ Streaming recognition = fastest response
+ MRCPv2 is SIP-based
– Somewhat more complex
– Mobile-app unfriendly
•HTTP API
+ Mobile-friendly
+ Simple API
– Record-and-upload = slower response
14

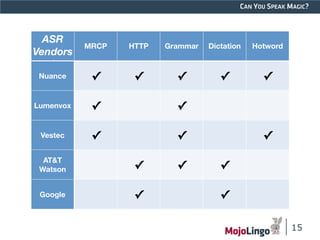

16. CAN YOU SPEAK MAGIC?
15
ASR
Vendors
/
MRCP HTTP Grammar Dictation Hotword
Nuance ✓ ✓ ✓ ✓ ✓
Lumenvox ✓ ✓
Vestec ✓ ✓ ✓
AT&T
Watson ✓ ✓ ✓
Google ✓ ✓

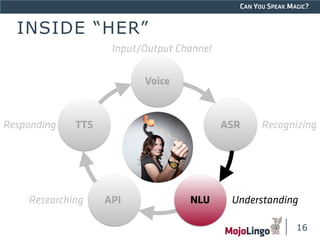

17. CAN YOU SPEAK MAGIC?
INSIDE “HER”
ASR Recognizing
Researching API NLU Understanding
16
Responding TTS
Input/Output Channel
Voice

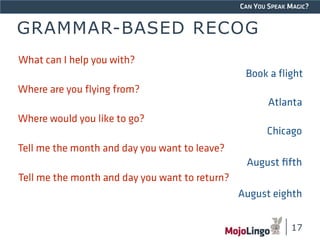

18. CAN YOU SPEAK MAGIC?
GRAMMAR-BASED RECOG
17
Where would you like to go?
Chicago
Tell me the month and day you want to leave?
August fifth
Tell me the month and day you want to return?
August eighth
What can I help you with?
Book a flight
Where are you flying from?
Atlanta

19. CAN YOU SPEAK MAGIC?
NATURAL LANGUAGE
“Hm, I want to go to AstriCon in Las Vegas on
October 21st for three days, and I want the last flight out.”
✓ Destination
✓ Departing Date
✓ Returning Date
+ Extra Constraint
18
? Origin

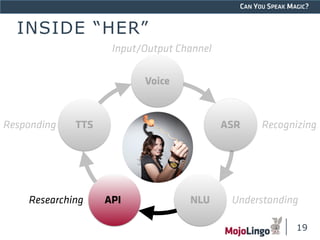

20. CAN YOU SPEAK MAGIC?
INSIDE “HER”
ASR Recognizing
Researching API NLU Understanding
19
Responding TTS
Input/Output Channel
Voice

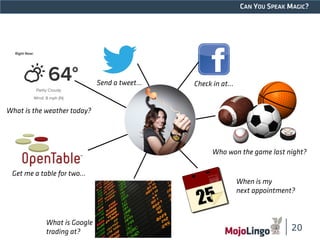

21. CAN YOU SPEAK MAGIC?
20
Send a tweet… Check in at…
What is the weather today?
Get me a table for two…
Who won the game last night?
What is Google
trading at?
When is my
next appointment?

22. CAN YOU SPEAK MAGIC?
ZZZZZZzzzzzz……
20
Send a tweet… Check in at…
What is the weather today?
Get me a table for two…
Who won the game last night?
What is Google
trading at?
When is my
next appointment?

23. CAN YOU SPEAK MAGIC?
21
How much have we sold
so far this month?
How many sales reps
are still in homes?
How many callers
are in the queue
right now?
Add my manager to this call
When is my next open
appointment slot?

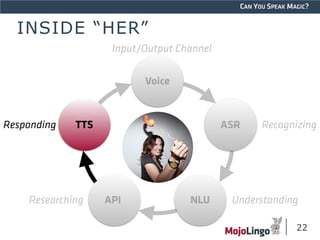

24. CAN YOU SPEAK MAGIC?
INSIDE “HER”
ASR Recognizing
Researching API NLU Understanding
22
Responding TTS
Input/Output Channel
Voice

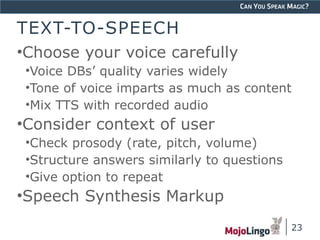

25. CAN YOU SPEAK MAGIC?
TEXT-TO-SPEECH
•Choose your voice carefully
•Voice DBs’ quality varies widely
•Tone of voice imparts as much as content
•Mix TTS with recorded audio
•Consider context of user
•Check prosody (rate, pitch, volume)
•Structure answers similarly to questions
•Give option to repeat
•Speech Synthesis Markup
23

26. CAN YOU SPEAK MAGIC?
INSIDE “HER”
ASR Recognizing
Researching API NLU Understanding
24
Responding TTS
Input/Output Channel
Voice

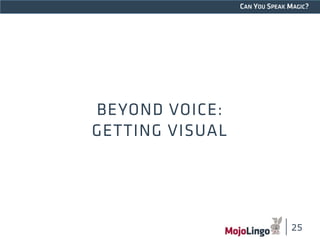

27. CAN YOU SPEAK MAGIC?
BEYOND VOICE:
GETTING VISUAL
25

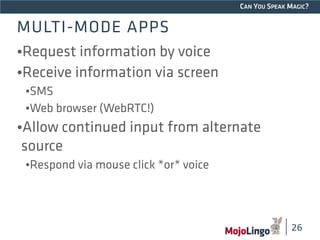

28. CAN YOU SPEAK MAGIC?
MULTI-MODE APPS
•Request information by voice
•Receive information via screen
•SMS
•Web browser (WebRTC!)
•Allow continued input from alternate
source
•Respond via mouse click *or* voice
26

29. CAN YOU SPEAK MAGIC?
27

30. CAN YOU SPEAK MAGIC?
QUESTIONS?
PS: ALLISON WANTS TO BE THE
NEXT SIRI!
28
