1. Enhancing FreePBX with Adhearsion
Luca Pradovera
Voice Application Developer, Mojo Lingo

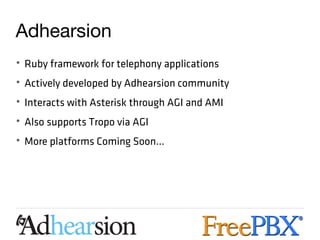

2. Adhearsion
• Ruby framework for telephony applications
• Actively developed by Adhearsion community
• Interacts with Asterisk through AGI and AMI
• Also supports Tropo via AGI
• More platforms Coming Soon...

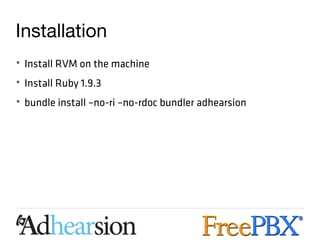

3. Installation
• Install RVM on the machine
• Install Ruby 1.9.3
• bundle install –no-ri –no-rdoc bundler adhearsion

4. Your new application
• ahn create <appname>
• Important files are dialplan.rb and config/startup.rb
Edit startup.rb to set the correct argument delimiter
• Build a simple dialplan:
fosdem {
play “tt-monkeys”
}

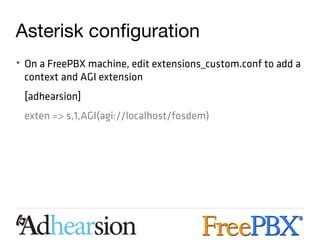

5. Asterisk configuration
• On a FreePBX machine, edit extensions_custom.conf to add a
context and AGI extension
[adhearsion]
exten => s,1,AGI(agi://localhost/fosdem)

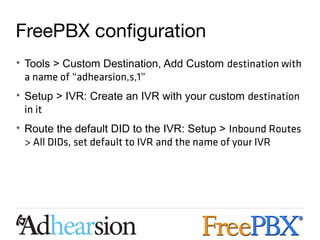

6. FreePBX configuration
• Tools > Custom Destination, Add Custom destination with
a name of “adhearsion,s,1”
• Setup > IVR: Create an IVR with your custom destination
in it
• Route the default DID to the IVR: Setup > Inbound Routes
> All DIDs, set default to IVR and the name of your IVR

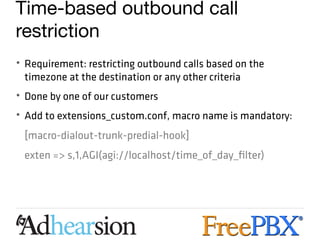

7. Time-based outbound call
restriction
• Requirement: restricting outbound calls based on the
timezone at the destination or any other criteria
• Done by one of our customers
• Add to extensions_custom.conf, macro name is mandatory:
[macro-dialout-trunk-predial-hook]
exten => s,1,AGI(agi://localhost/time_of_day_filter)

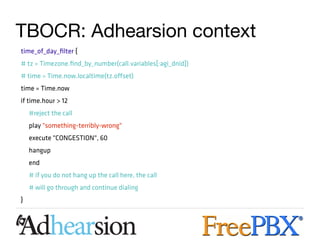

8. TBOCR: Adhearsion context
time_of_day_filter {
# tz = Timezone.find_by_number(call.variables[:agi_dnid])
# time = Time.now.localtime(tz.offset)
time = Time.now
if time.hour > 12
#reject the call
play "something-terribly-wrong"
execute "CONGESTION", 60
hangup
end
# if you do not hang up the call here, the call
# will go through and continue dialing
}

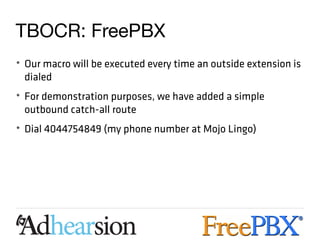

9. TBOCR: FreePBX
• Our macro will be executed every time an outside extension is
dialed
• For demonstration purposes, we have added a simple
outbound catch-all route
• Dial 4044754849 (my phone number at Mojo Lingo)

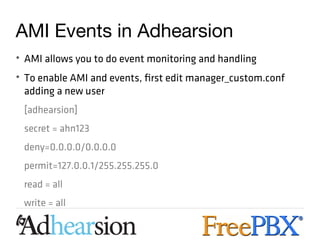

10. AMI Events in Adhearsion
• AMI allows you to do event monitoring and handling
• To enable AMI and events, first edit manager_custom.conf
adding a new user
[adhearsion]
secret = ahn123
deny=0.0.0.0/0.0.0.0
permit=127.0.0.1/255.255.255.0
read = all
write = all

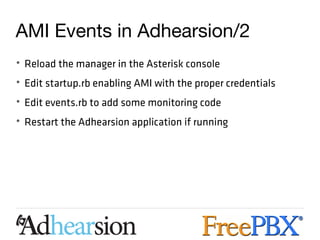

11. AMI Events in Adhearsion/2
• Reload the manager in the Asterisk console
• Edit startup.rb enabling AMI with the proper credentials
• Edit events.rb to add some monitoring code
• Restart the Adhearsion application if running

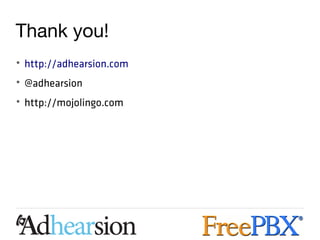

12. Thank you!
• http://adhearsion.com
• @adhearsion
• http://mojolingo.com
