1. www.all4inc.com | Philadelphia | Atlanta | Houston | Washington DC
U.S. EPA’s Electronic Reporting Tool and Compliance
and Emissions Data Reporting Interface:
Kayla Turney| kturney@all4inc.com | (610) 933-5246 x143
With support from Steve Sherk, American Refining Group
AFPM/API Refinery Sector Rule Workshop
February 3, 2016
Presented by All4 Inc.
What Do the Requirements REALLY Mean for
Petroleum Refineries?

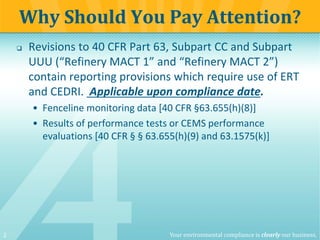

2. 2 Your environmental compliance is clearly our business.
 Revisions to 40 CFR Part 63, Subpart CC and Subpart
UUU (“Refinery MACT 1” and “Refinery MACT 2”)
contain reporting provisions which require use of ERT
and CEDRI. Applicable upon compliance date.
• Fenceline monitoring data [40 CFR §63.655(h)(8)]
• Results of performance tests or CEMS performance
evaluations [40 CFR § § 63.655(h)(9) and 63.1575(k)]
Why Should You Pay Attention?

3. 3 Your environmental compliance is clearly our business.
Background
 U.S. EPA promulgating regulations under 40 CFR Part
60 (NSPS) and Part 63 (NESHAPs) which require
electronic reporting, or “E-Reporting”.
 E-Reporting completed using U.S. EPA’s Compliance
and Emissions Data Reporting Interface (CEDRI).
 CEDRI is located on U.S. EPA’s Central Data Exchange
(CDX).
 Some reports (e.g., stack test results) must be
compiled using the Electronic Reporting Tool (ERT)
before being uploaded to CEDRI.
• Two separate entities

4. 4 Your environmental compliance is clearly our business.
 E-Reporting includes the following:
• Performance test results
• Monitoring data
• Ongoing compliance reports
• Emissions reports
• Notifications [e.g., Notification of Compliance Status
(NOCS)]
 Performance tests and CEMS RATA results
• Compile using ERT
• Upload to CEDRI
E-Reporting Basics

5. 5 Your environmental compliance is clearly our business.
 Four main sections:
• Test Plan
• Run Data
• Process Data
• Attachments/Comments
 Majority of effort is with ERT
• U.S. EPA estimates 60-80
hours from start to finish of
stack test/RATA report
 Issues with software/nuances
with data entry
 Must create “.zip” file
Using ERT

6. 6 Your environmental compliance is clearly our business.
 Although performance test plans are not yet required under E-
Reporting, they must completed in ERT before you can enter test
report.
Using ERT – Test Plan
 Examples of data entered:
• Basic facility information
• Emissions unit information
• Testing location description
• Regulatory information
• Lab data
• Control devices/parameters
monitored
• Calibration gas
concentrations
• Deviations/description of
sampling methods

7. 7 Your environmental compliance is clearly our business.
 Certain data fields must have
values entered for report to
compile (not necessarily fields
with asterisks)
• Dummy values must be
entered (typically as “0”)
• Trial and error
 Option to upload spreadsheet
for point data instead of
entering directly into ERT
 Emissions are calculated by ERT
• May not exactly match stack
test report (~5% error is okay)
Using ERT – Run Data

8. 8 Your environmental compliance is clearly our business.
Using ERT – Run Data Cont.

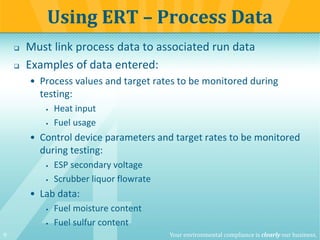

9. 9 Your environmental compliance is clearly our business.
 Must link process data to associated run data
 Examples of data entered:
• Process values and target rates to be monitored during
testing:
 Heat input
 Fuel usage
• Control device parameters and target rates to be monitored
during testing:
 ESP secondary voltage
 Scrubber liquor flowrate
• Lab data:
 Fuel moisture content
 Fuel sulfur content
Using ERT – Process Data

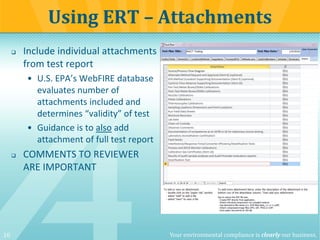

10. 10 Your environmental compliance is clearly our business.
 Include individual attachments
from test report
• U.S. EPA’s WebFIRE database
evaluates number of
attachments included and
determines “validity” of test
• Guidance is to also add
attachment of full test report
 COMMENTS TO REVIEWER
ARE IMPORTANT
Using ERT – Attachments

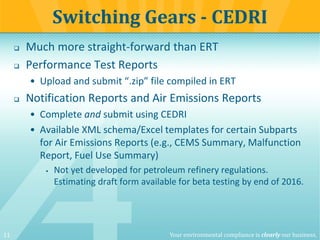

11. 11 Your environmental compliance is clearly our business.
 Much more straight-forward than ERT
 Performance Test Reports
• Upload and submit “.zip” file compiled in ERT
 Notification Reports and Air Emissions Reports
• Complete and submit using CEDRI
• Available XML schema/Excel templates for certain Subparts
for Air Emissions Reports (e.g., CEMS Summary, Malfunction
Report, Fuel Use Summary)
 Not yet developed for petroleum refinery regulations.
Estimating draft form available for beta testing by end of 2016.
Switching Gears - CEDRI

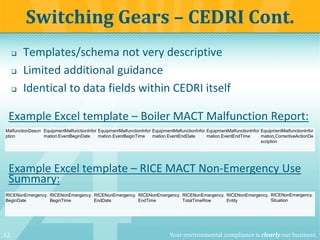

12. 12 Your environmental compliance is clearly our business.
 Templates/schema not very descriptive
 Limited additional guidance
 Identical to data fields within CEDRI itself
Switching Gears – CEDRI Cont.
Example Excel template – Boiler MACT Malfunction Report:
MalfunctionDescri
ption
EquipmentMalfunctionInfor
mation.EventBeginDate
EquipmentMalfunctionInfor
mation.EventBeginTime
EquipmentMalfunctionInfor
mation.EventEndDate
EquipmentMalfunctionInfor
mation.EventEndTime
EquipmentMalfunctionInfor
mation.CorrectiveActionDe
scription
Example Excel template – RICE MACT Non-Emergency Use
Summary:
RICENonEmergency.
BeginDate
RICENonEmergency.
BeginTime
RICENonEmergency.
EndDate
RICENonEmergency.
EndTime
RICENonEmergency.
TotalTimeRow
RICENonEmergency.
Entity
RICENonEmergency.
Situation

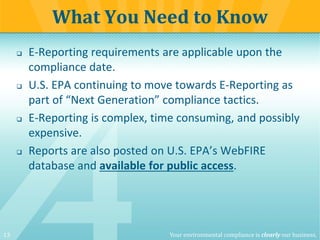

13. 13 Your environmental compliance is clearly our business.
 E-Reporting requirements are applicable upon the
compliance date.
 U.S. EPA continuing to move towards E-Reporting as
part of “Next Generation” compliance tactics.
 E-Reporting is complex, time consuming, and possibly
expensive.
 Reports are also posted on U.S. EPA’s WebFIRE
database and available for public access.
What You Need to Know

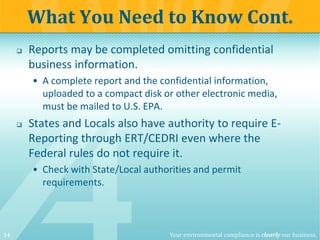

14. 14 Your environmental compliance is clearly our business.
 Reports may be completed omitting confidential
business information.
• A complete report and the confidential information,
uploaded to a compact disk or other electronic media,
must be mailed to U.S. EPA.
 States and Locals also have authority to require E-
Reporting through ERT/CEDRI even where the
Federal rules do not require it.
• Check with State/Local authorities and permit
requirements.
What You Need to Know Cont.
