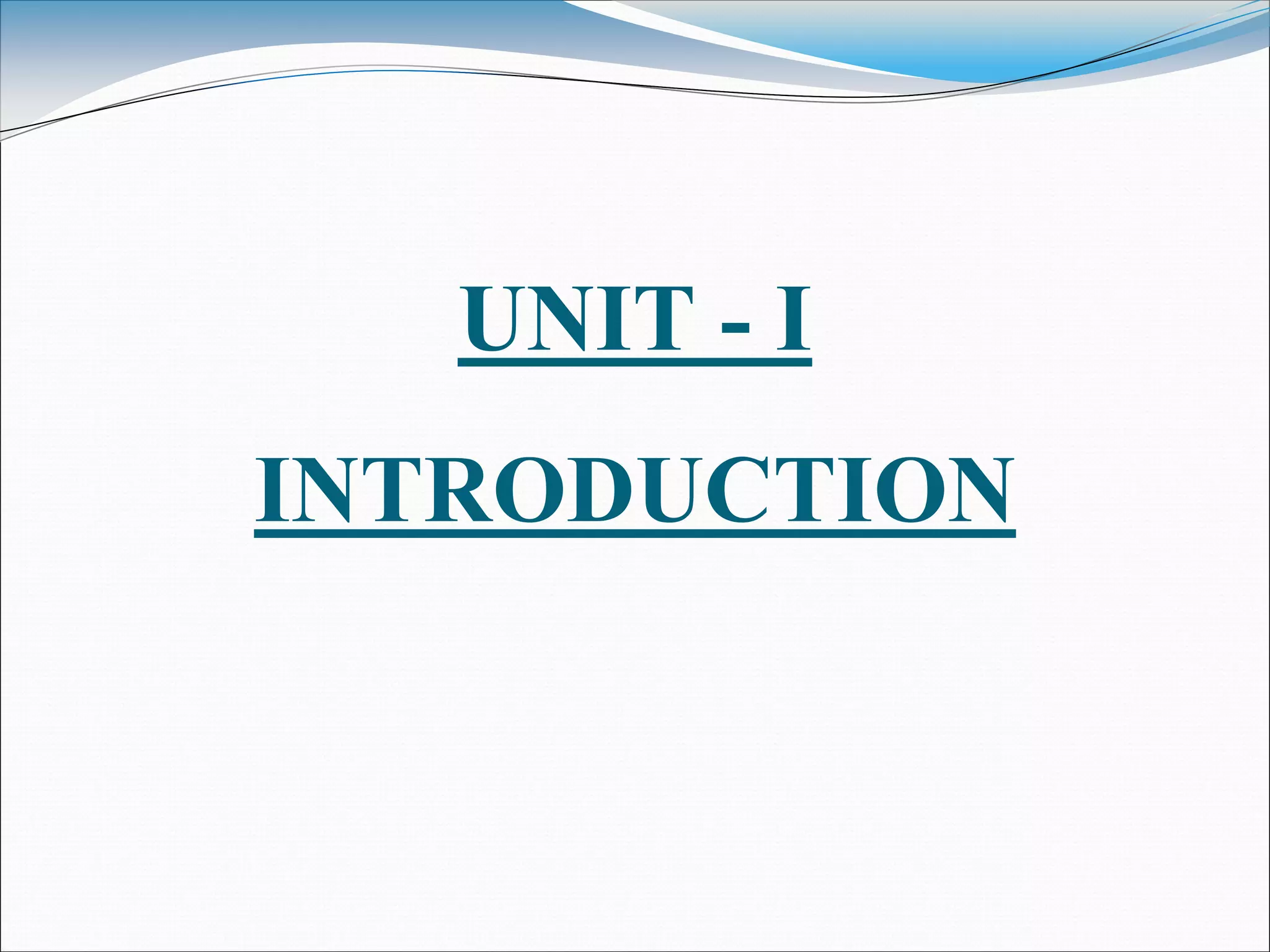

1. UNIT - I
INTRODUCTION

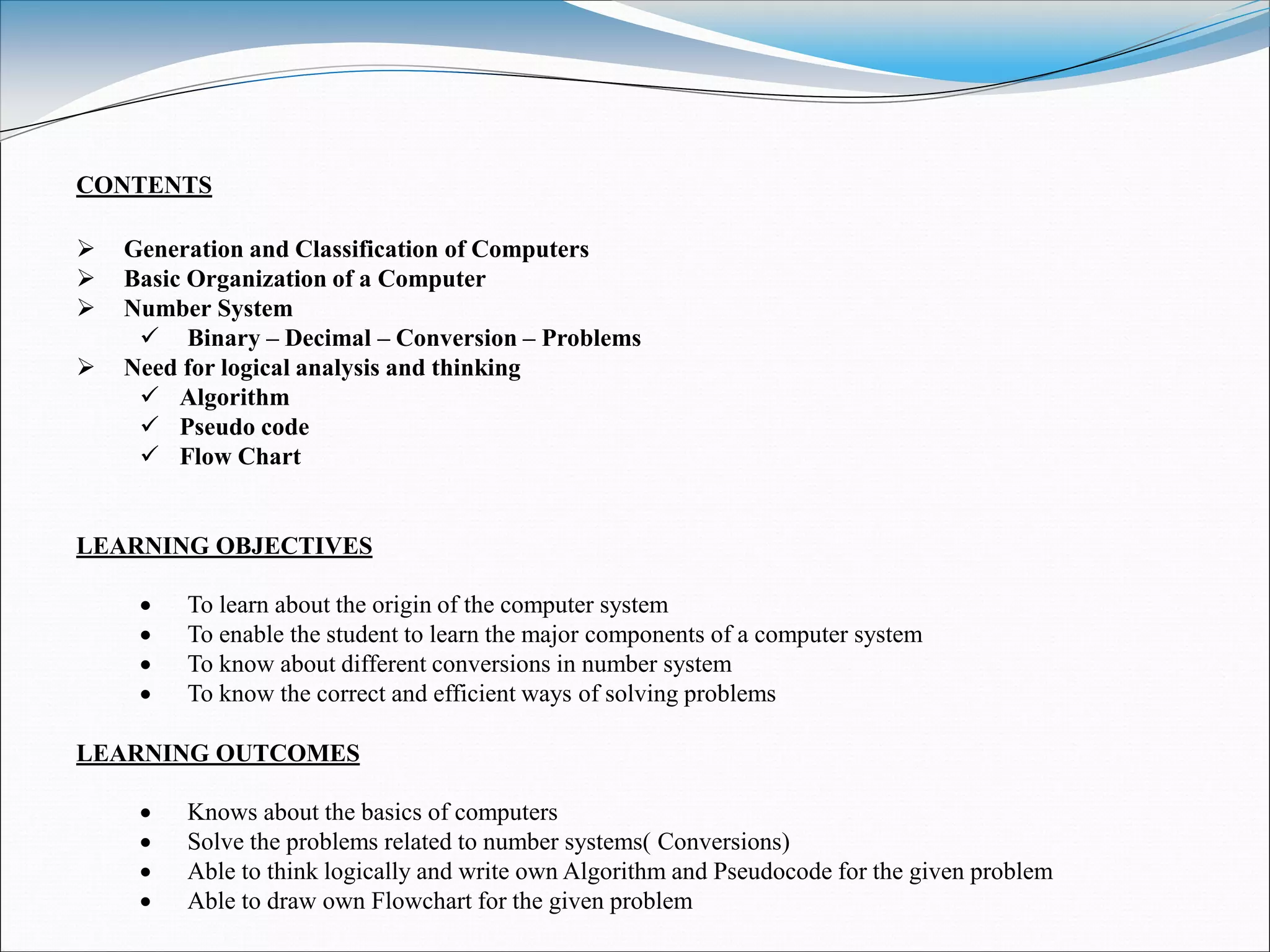

2. CONTENTS
 Generation and Classification of Computers
 Basic Organization of a Computer
 Number System
 Binary – Decimal – Conversion – Problems
 Need for logical analysis and thinking
 Algorithm
 Pseudo code
 Flow Chart
LEARNING OBJECTIVES
 To learn about the origin of the computer system
 To enable the student to learn the major components of a computer system
 To know about different conversions in number system
 To know the correct and efficient ways of solving problems
LEARNING OUTCOMES
 Knows about the basics of computers
 Solve the problems related to number systems( Conversions)
 Able to think logically and write own Algorithm and Pseudocode for the given problem
 Able to draw own Flowchart for the given problem

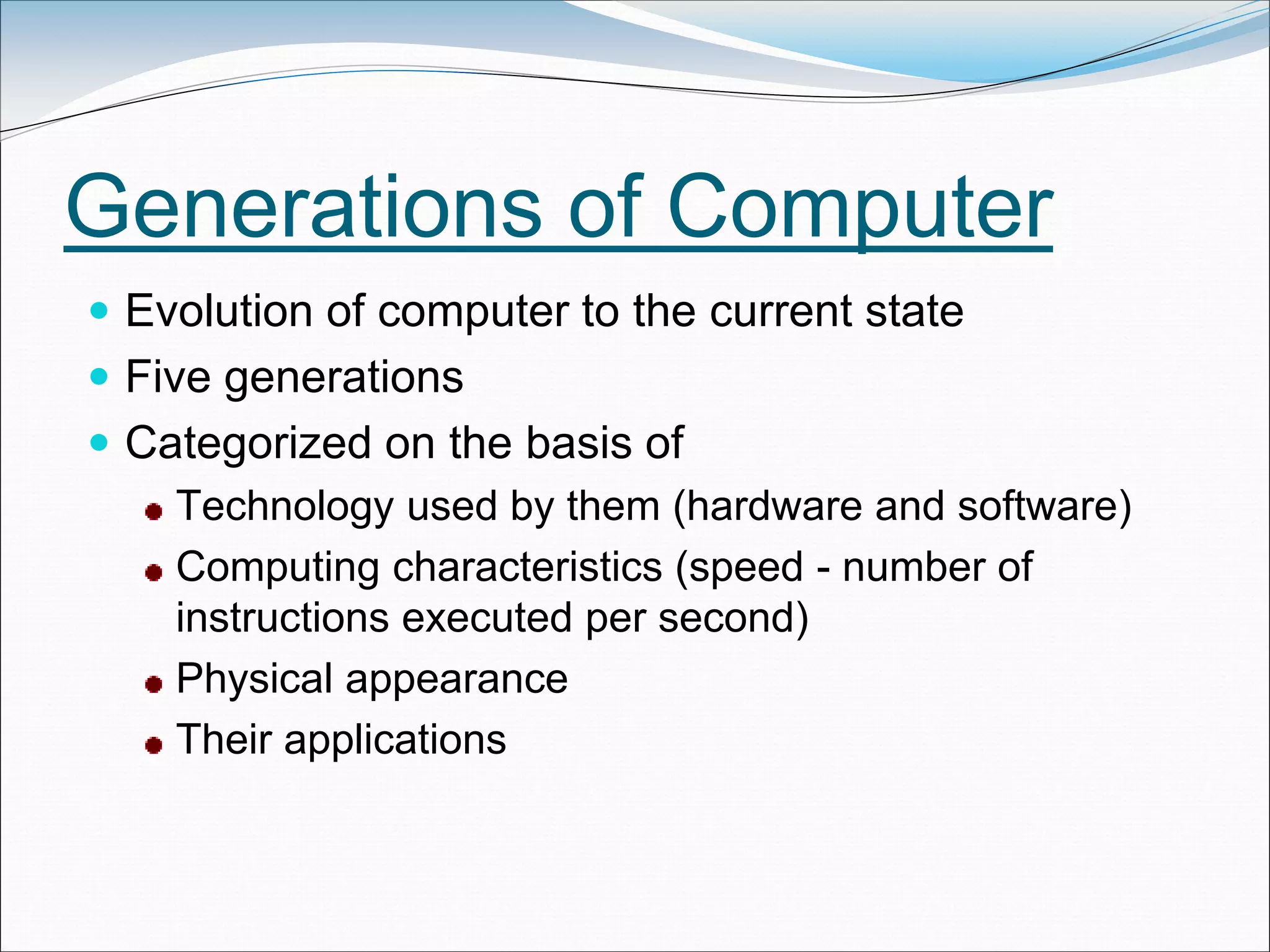

3. Generations of Computer
 Evolution of computer to the current state
 Five generations
 Categorized on the basis of
Technology used by them (hardware and software)
Computing characteristics (speed - number of
instructions executed per second)
Physical appearance
Their applications

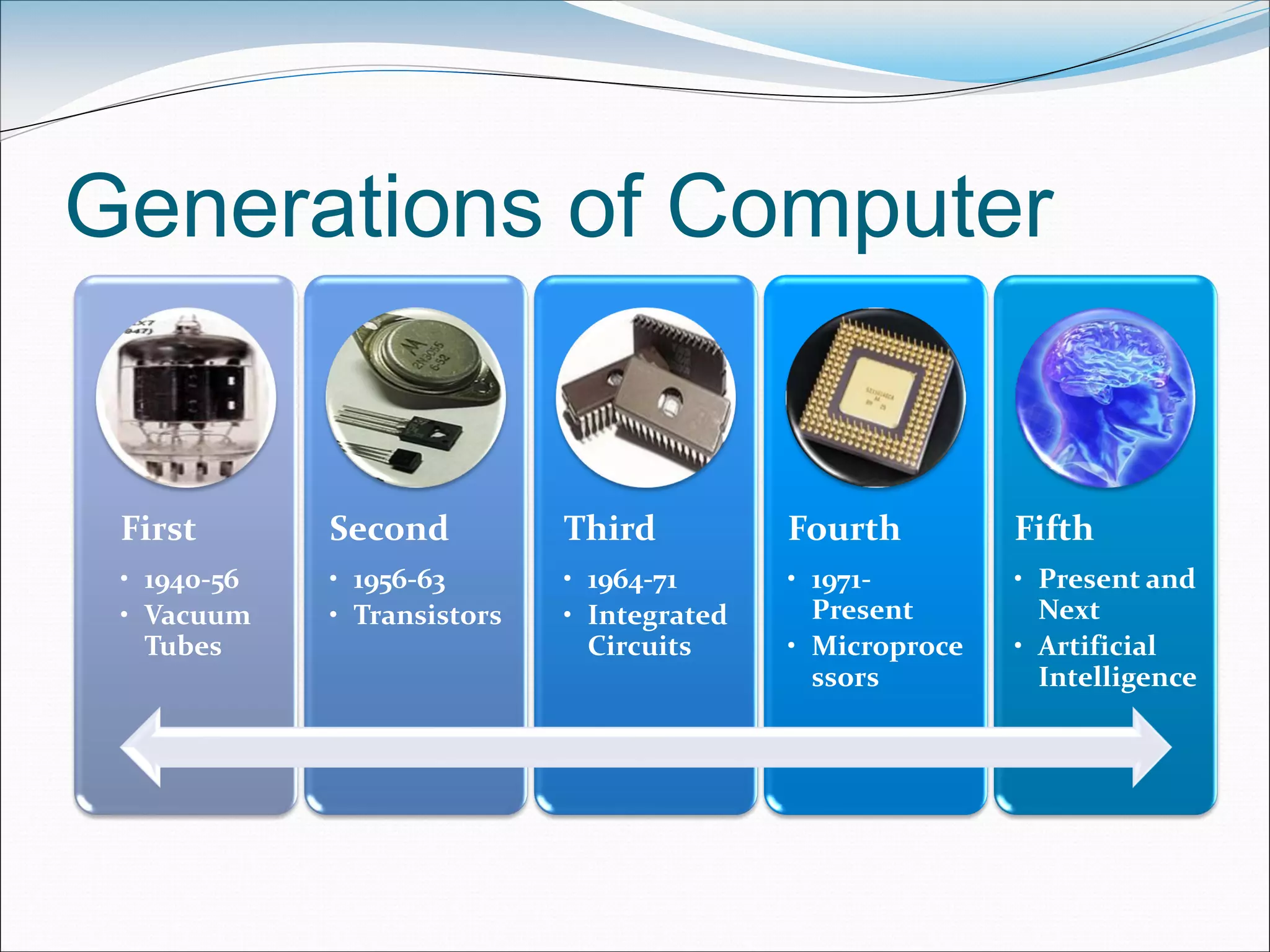

4. Generations of Computer
First
• 1940-56
• Vacuum
Tubes
Second
• 1956-63
• Transistors
Third
• 1964-71
• Integrated
Circuits
Fourth
• 1971-
Present
• Microproce
ssors
Fifth
• Present and
Next
• Artificial
Intelligence

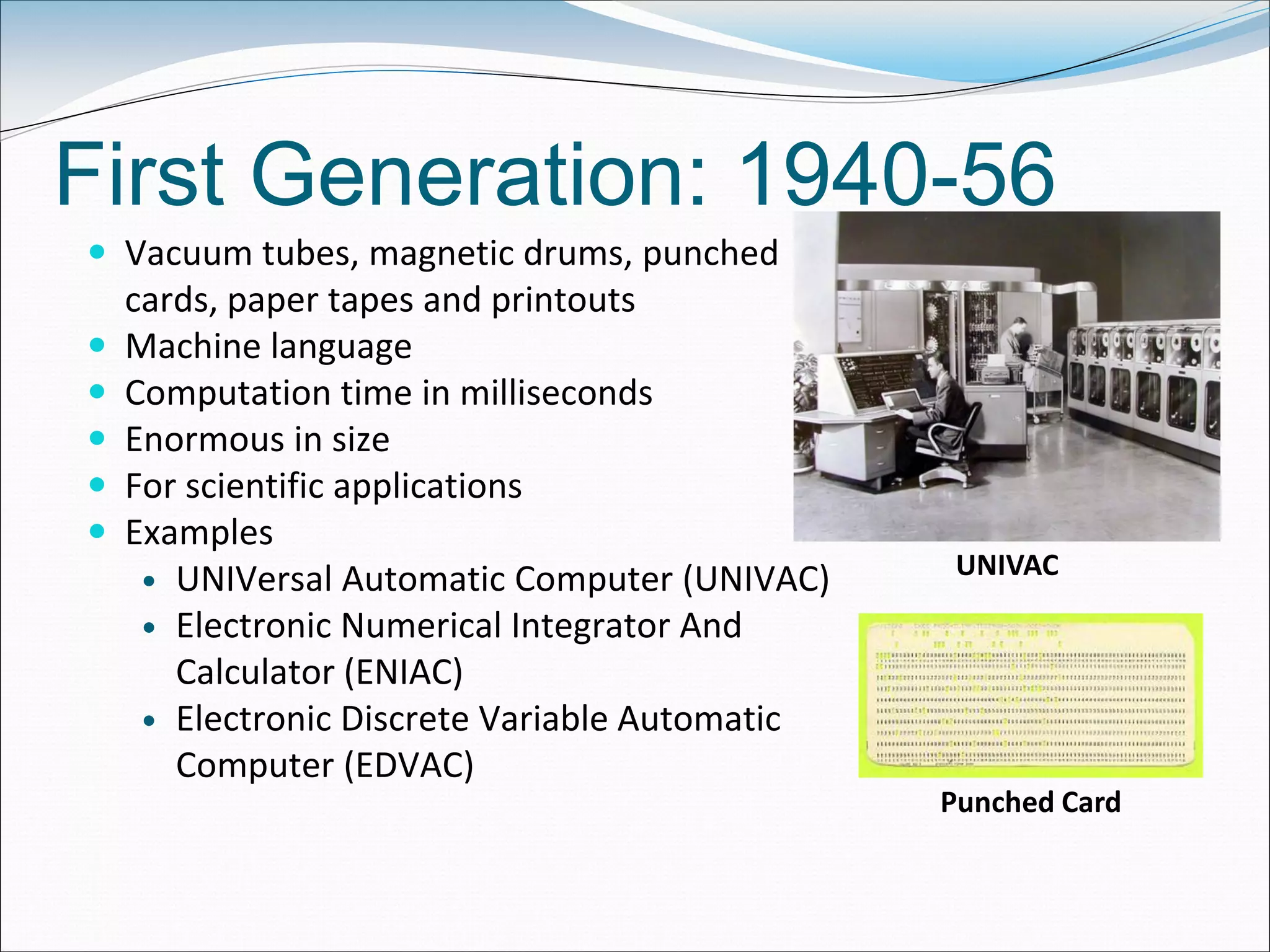

5. First Generation: 1940-56
 Vacuum tubes, magnetic drums, punched
cards, paper tapes and printouts
 Machine language
 Computation time in milliseconds
 Enormous in size
 For scientific applications
 Examples
 UNIVersal Automatic Computer (UNIVAC)
 Electronic Numerical Integrator And
Calculator (ENIAC)
 Electronic Discrete Variable Automatic
Computer (EDVAC)
UNIVAC
Punched Card

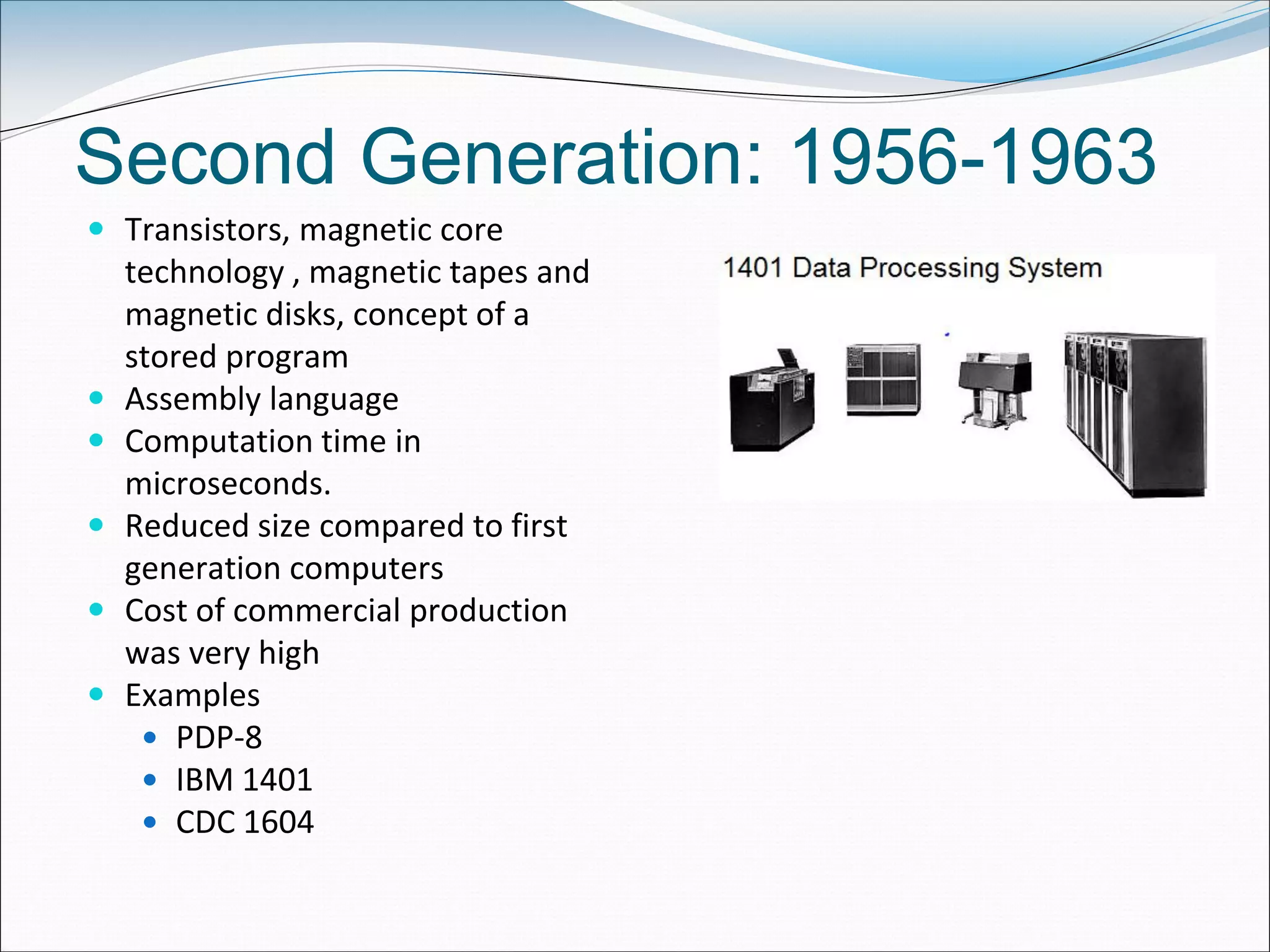

6. Second Generation: 1956-1963
 Transistors, magnetic core
technology , magnetic tapes and
magnetic disks, concept of a
stored program
 Assembly language
 Computation time in
microseconds.
 Reduced size compared to first
generation computers
 Cost of commercial production
was very high
 Examples
 PDP-8
 IBM 1401
 CDC 1604

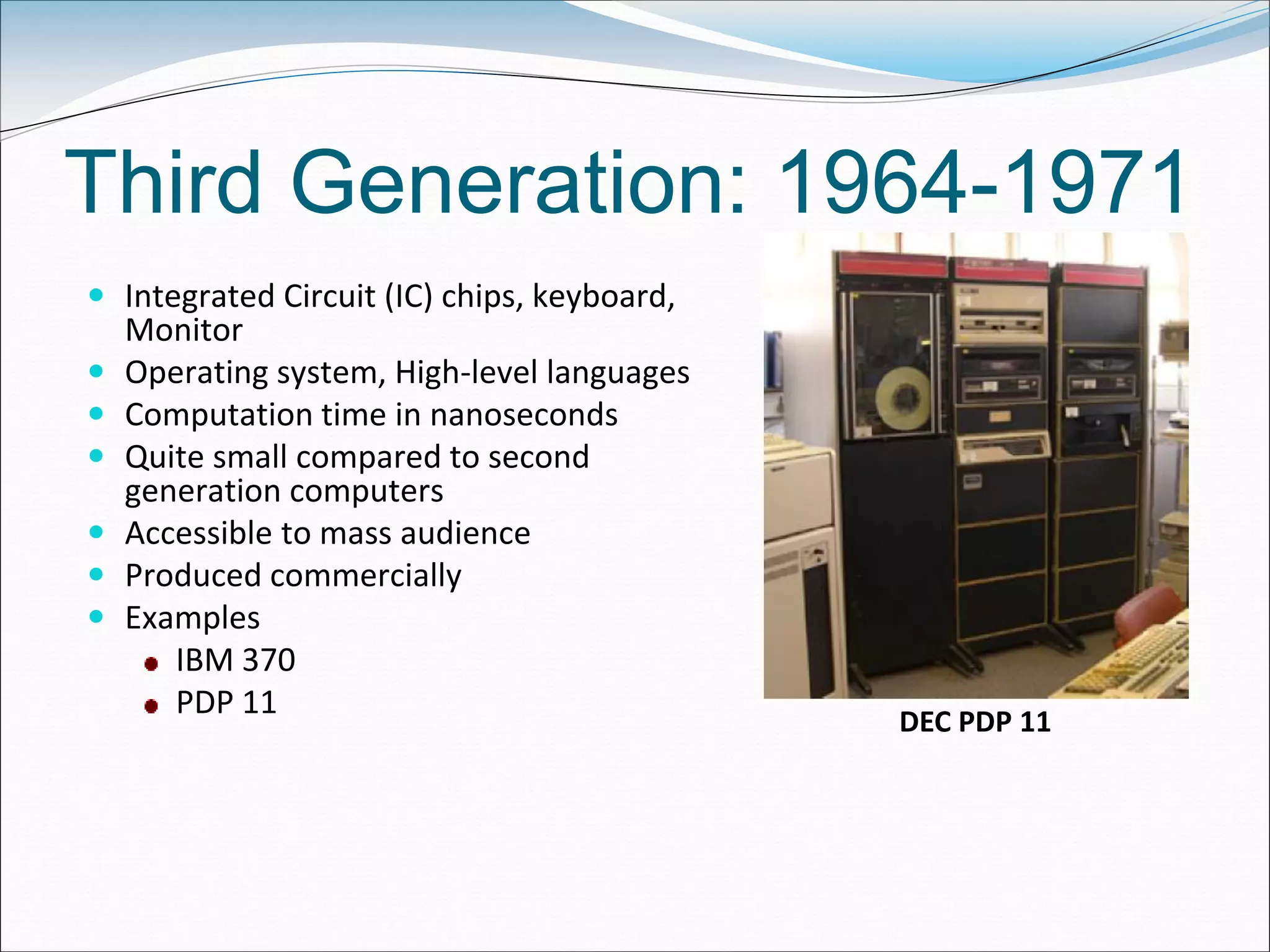

7. Third Generation: 1964-1971
 Integrated Circuit (IC) chips, keyboard,
Monitor
 Operating system, High-level languages
 Computation time in nanoseconds
 Quite small compared to second
generation computers
 Accessible to mass audience
 Produced commercially
 Examples
IBM 370
PDP 11
DEC PDP 11

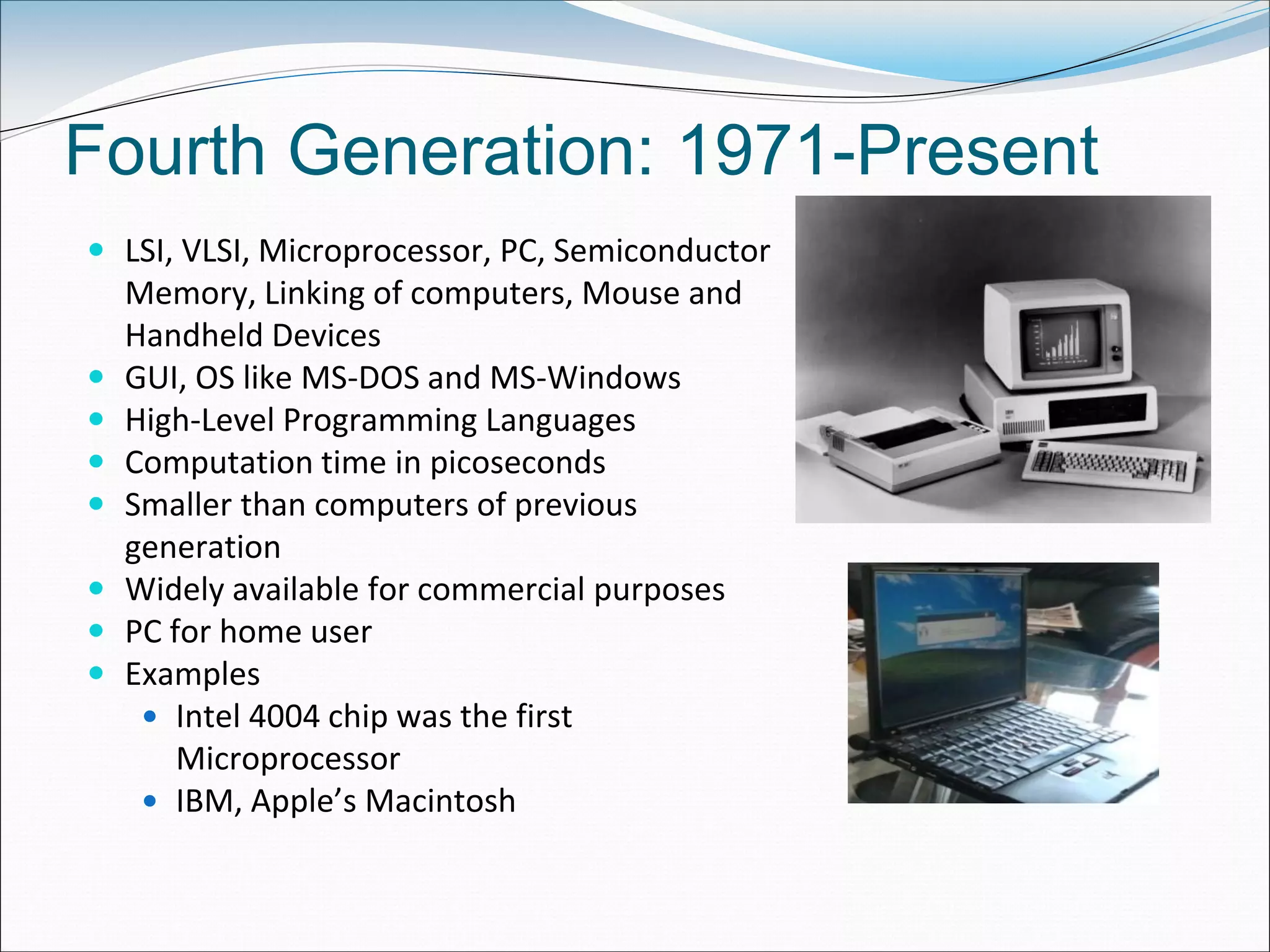

8. Fourth Generation: 1971-Present
 LSI, VLSI, Microprocessor, PC, Semiconductor
Memory, Linking of computers, Mouse and
Handheld Devices
 GUI, OS like MS-DOS and MS-Windows
 High-Level Programming Languages
 Computation time in picoseconds
 Smaller than computers of previous
generation
 Widely available for commercial purposes
 PC for home user
 Examples
 Intel 4004 chip was the first
Microprocessor
 IBM, Apple’s Macintosh

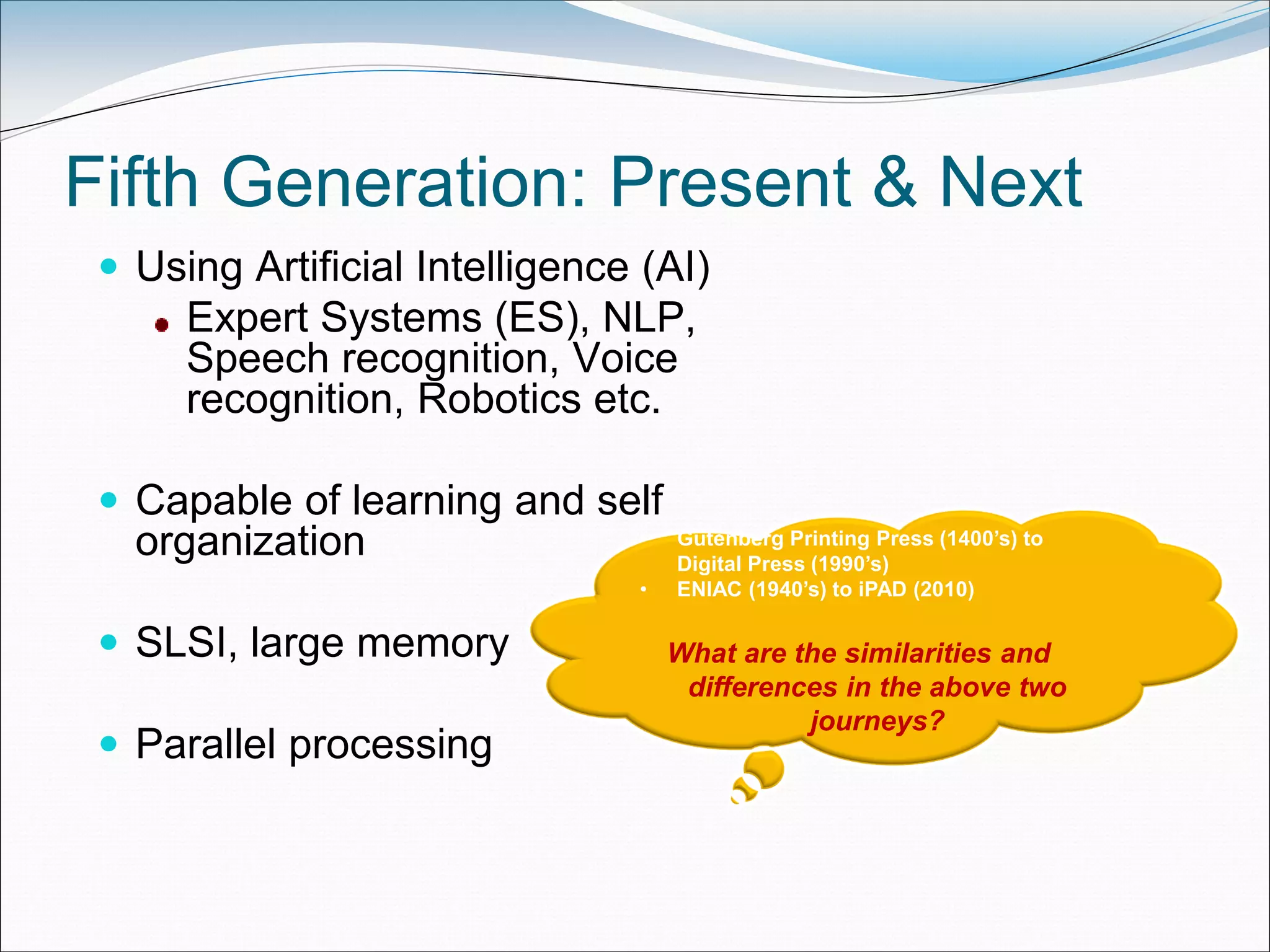

9. Fifth Generation: Present & Next
 Using Artificial Intelligence (AI)
Expert Systems (ES), NLP,
Speech recognition, Voice
recognition, Robotics etc.
 Capable of learning and self
organization
 SLSI, large memory
 Parallel processing
• Gutenberg Printing Press (1400’s) to
Digital Press (1990’s)
• ENIAC (1940’s) to iPAD (2010)
What are the similarities and
differences in the above two
journeys?

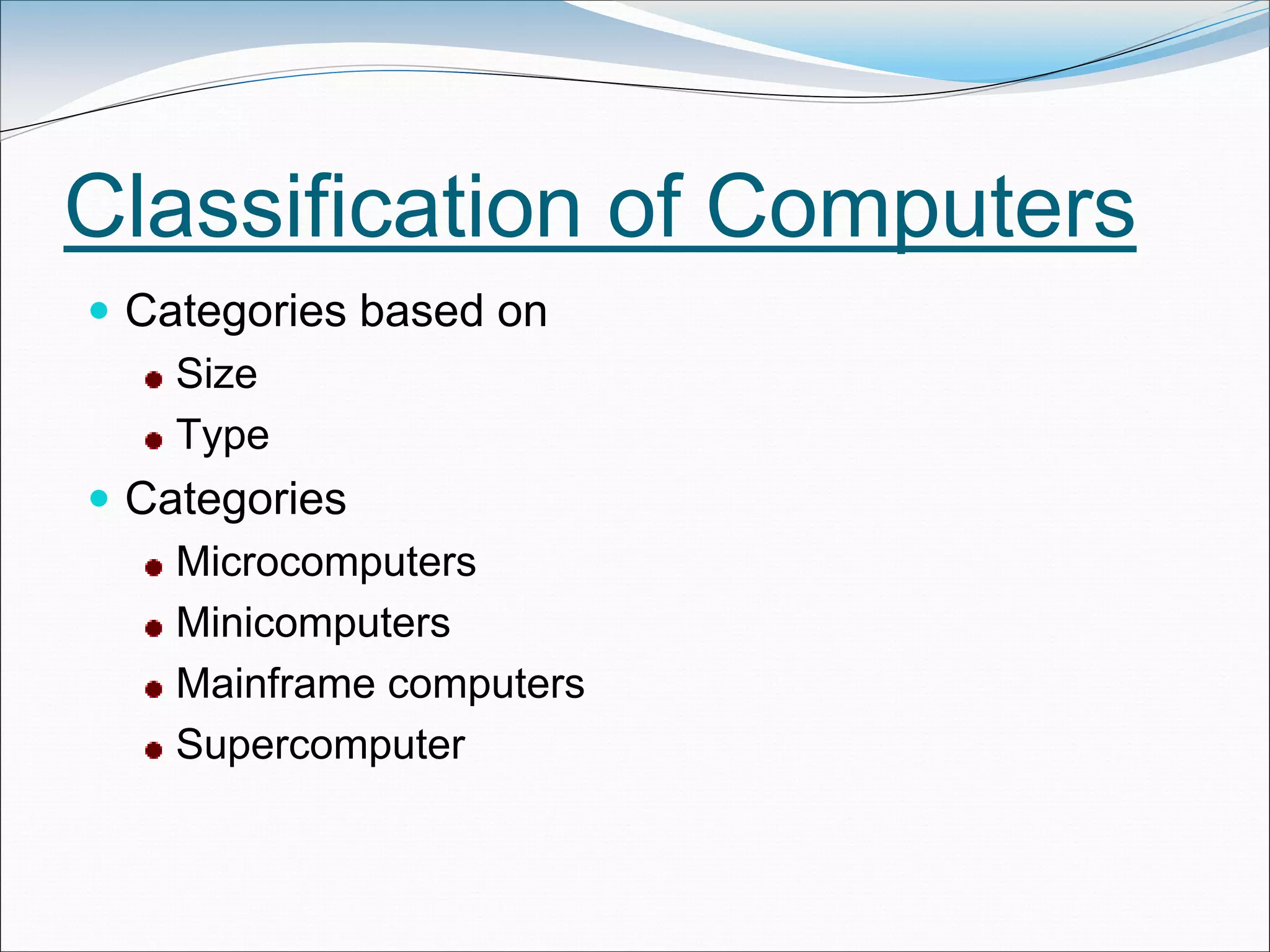

10. Classification of Computers
 Categories based on
Size
Type
 Categories
Microcomputers
Minicomputers
Mainframe computers
Supercomputer

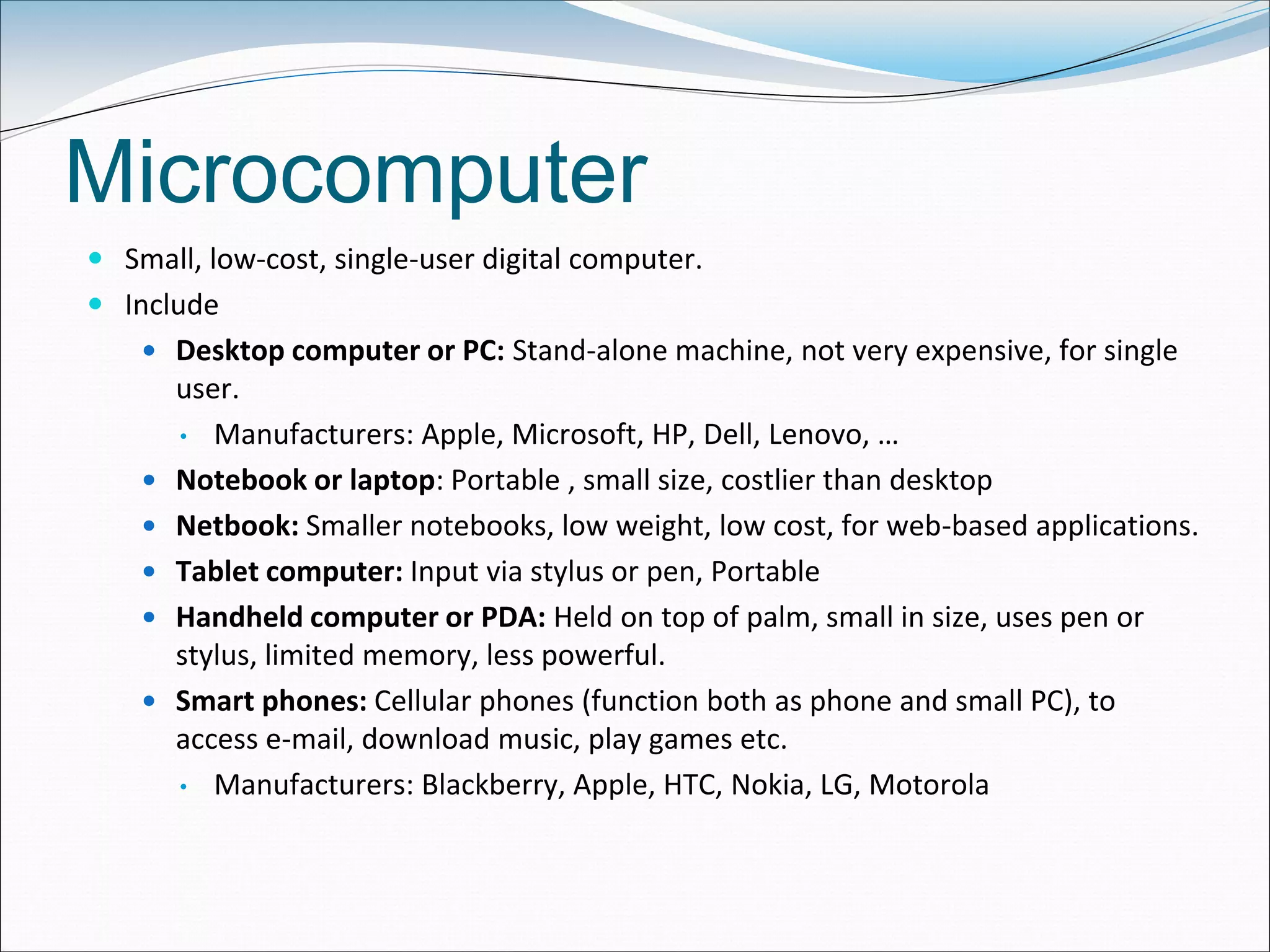

11. Microcomputer
 Small, low-cost, single-user digital computer.
 Include
 Desktop computer or PC: Stand-alone machine, not very expensive, for single
user.
• Manufacturers: Apple, Microsoft, HP, Dell, Lenovo, …
 Notebook or laptop: Portable , small size, costlier than desktop
 Netbook: Smaller notebooks, low weight, low cost, for web-based applications.
 Tablet computer: Input via stylus or pen, Portable
 Handheld computer or PDA: Held on top of palm, small in size, uses pen or
stylus, limited memory, less powerful.
 Smart phones: Cellular phones (function both as phone and small PC), to
access e-mail, download music, play games etc.
• Manufacturers: Blackberry, Apple, HTC, Nokia, LG, Motorola

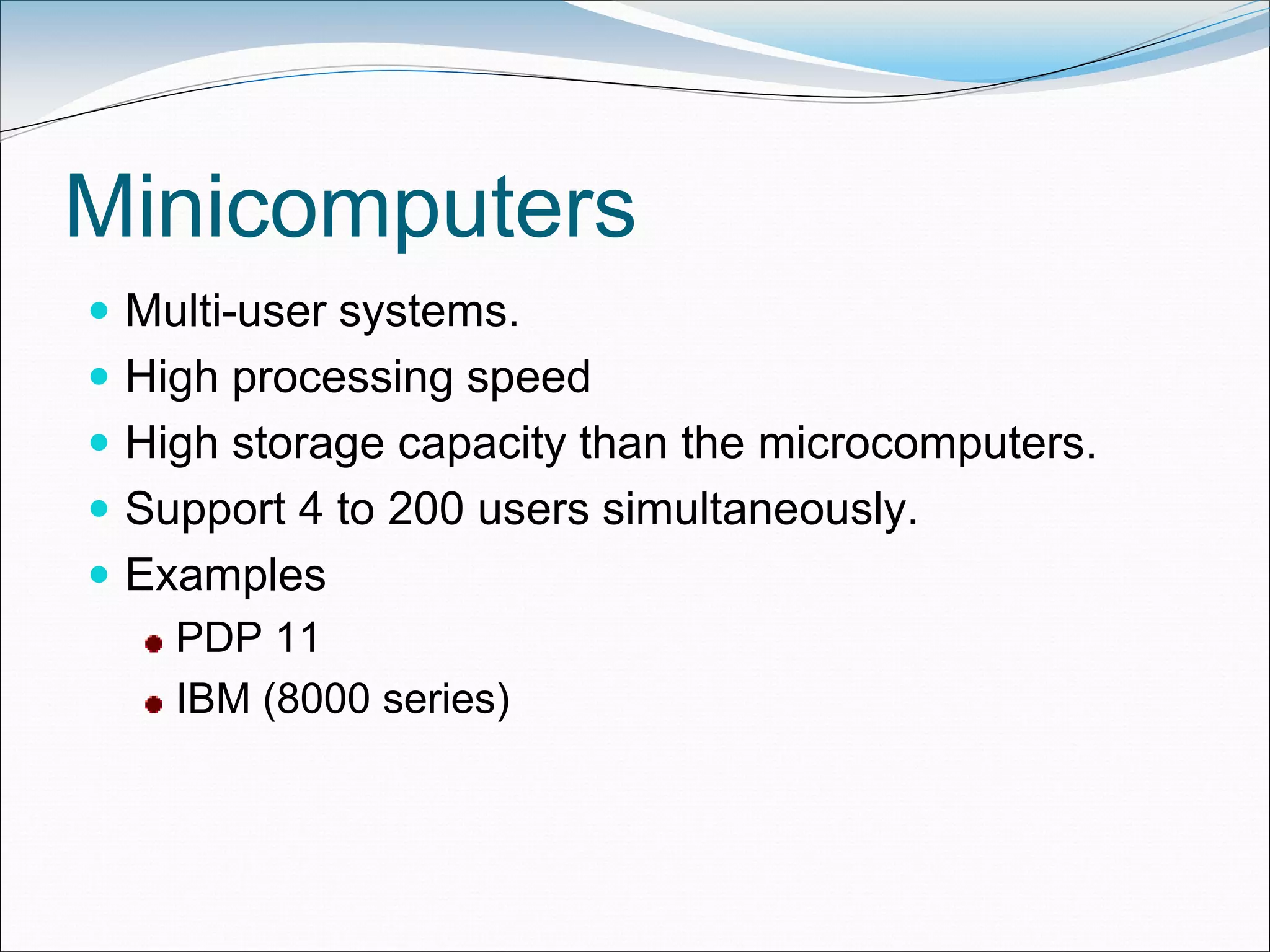

12. Minicomputers
 Multi-user systems.
 High processing speed
 High storage capacity than the microcomputers.
 Support 4 to 200 users simultaneously.
 Examples
PDP 11
IBM (8000 series)

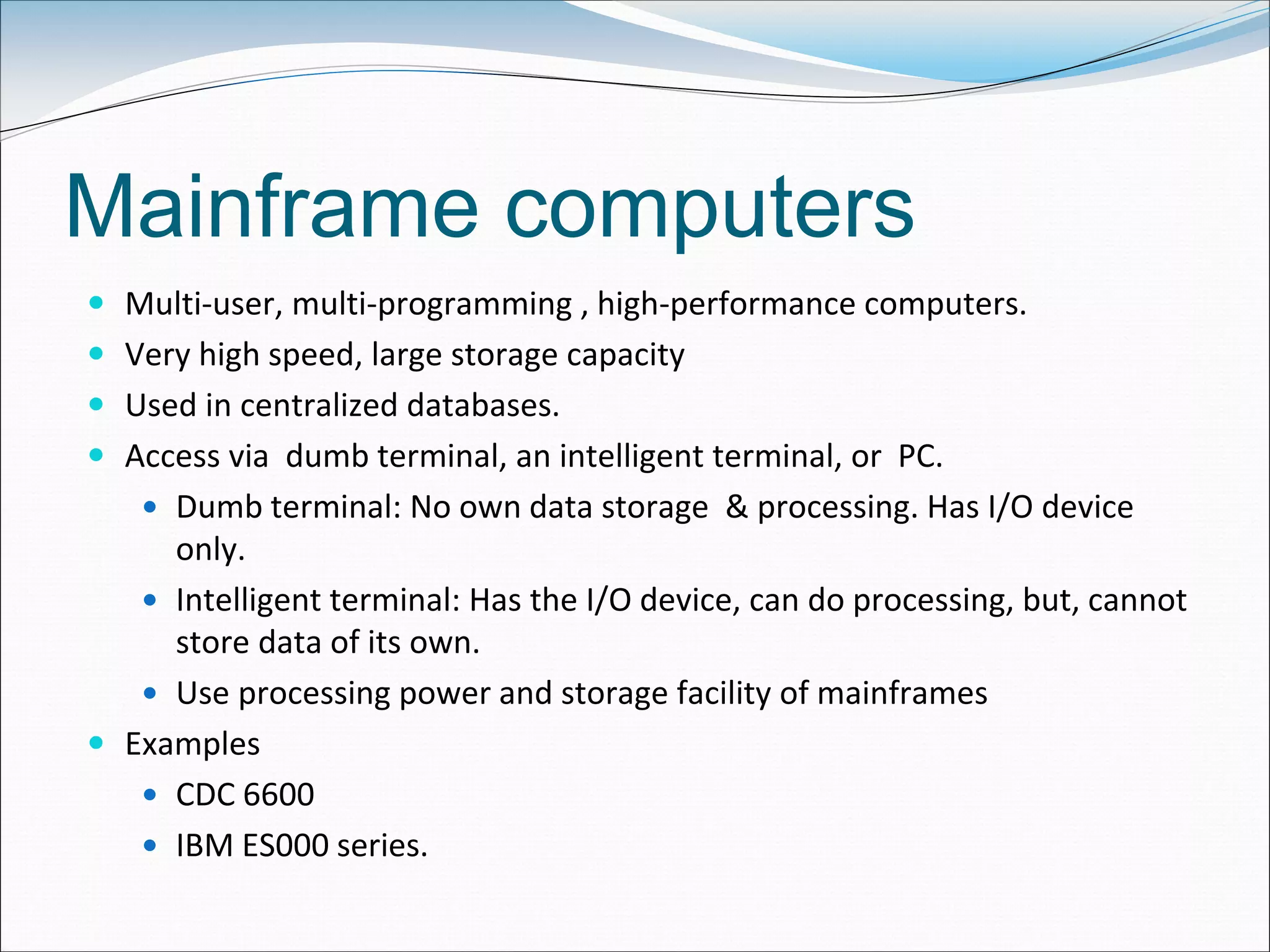

13. Mainframe computers
 Multi-user, multi-programming , high-performance computers.
 Very high speed, large storage capacity
 Used in centralized databases.
 Access via dumb terminal, an intelligent terminal, or PC.
 Dumb terminal: No own data storage & processing. Has I/O device
only.
 Intelligent terminal: Has the I/O device, can do processing, but, cannot
store data of its own.
 Use processing power and storage facility of mainframes
 Examples
 CDC 6600
 IBM ES000 series.

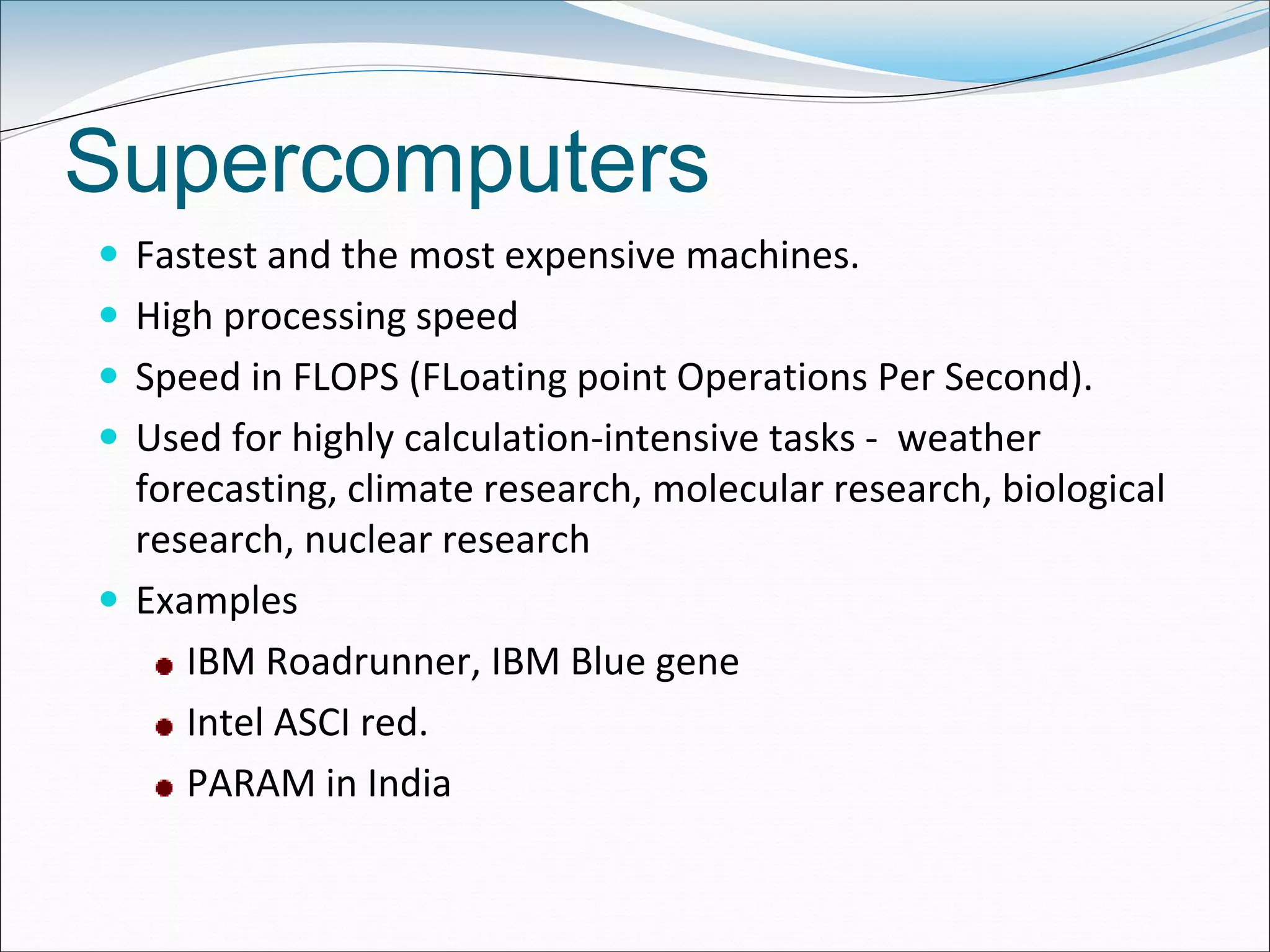

14. Supercomputers
 Fastest and the most expensive machines.
 High processing speed
 Speed in FLOPS (FLoating point Operations Per Second).
 Used for highly calculation-intensive tasks - weather
forecasting, climate research, molecular research, biological
research, nuclear research
 Examples
IBM Roadrunner, IBM Blue gene
Intel ASCI red.
PARAM in India

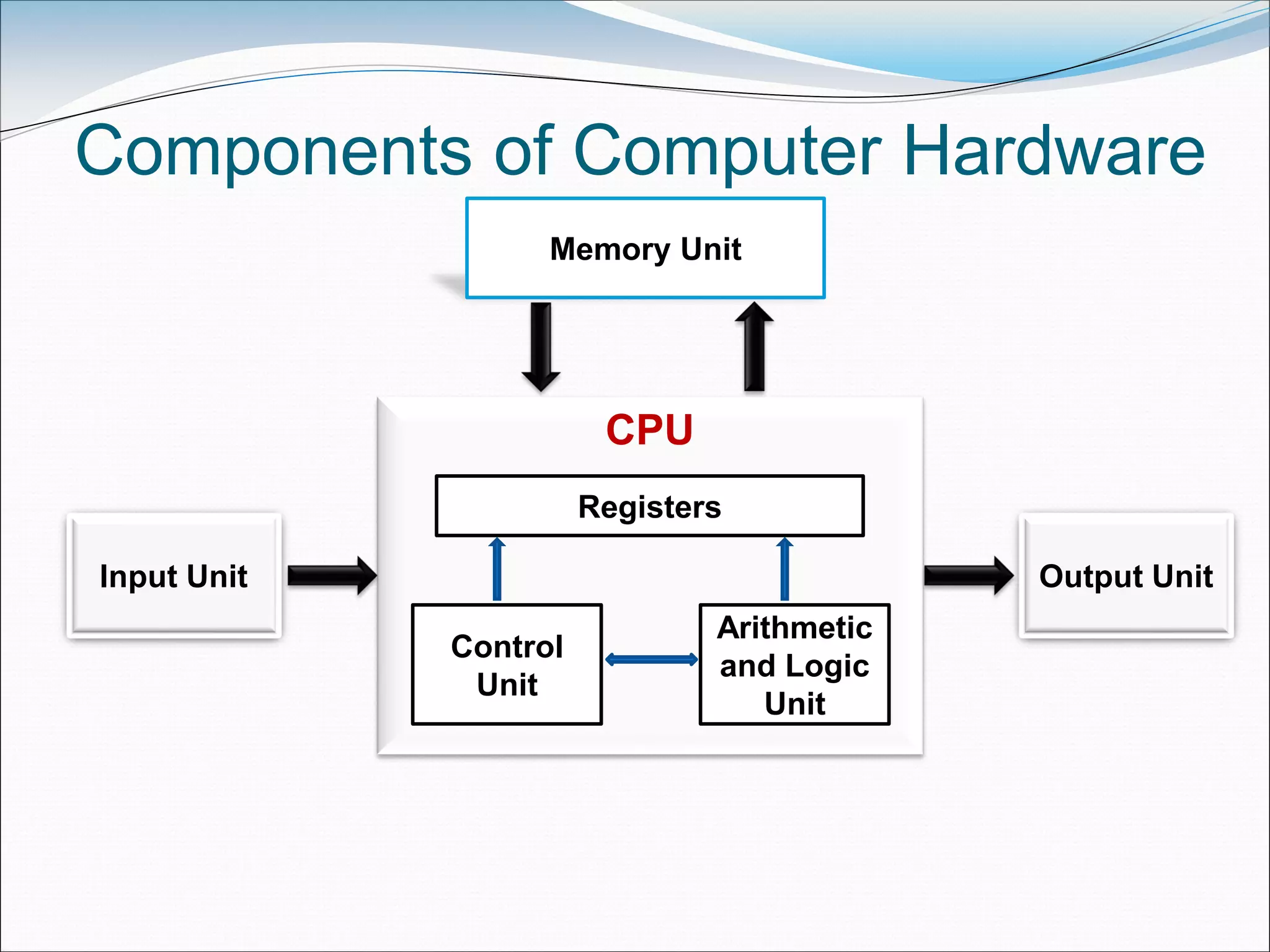

15. Components of Computer Hardware
CPU
Registers
Control
Unit
Arithmetic
and Logic
Unit
Input Unit Output Unit
Memory Unit

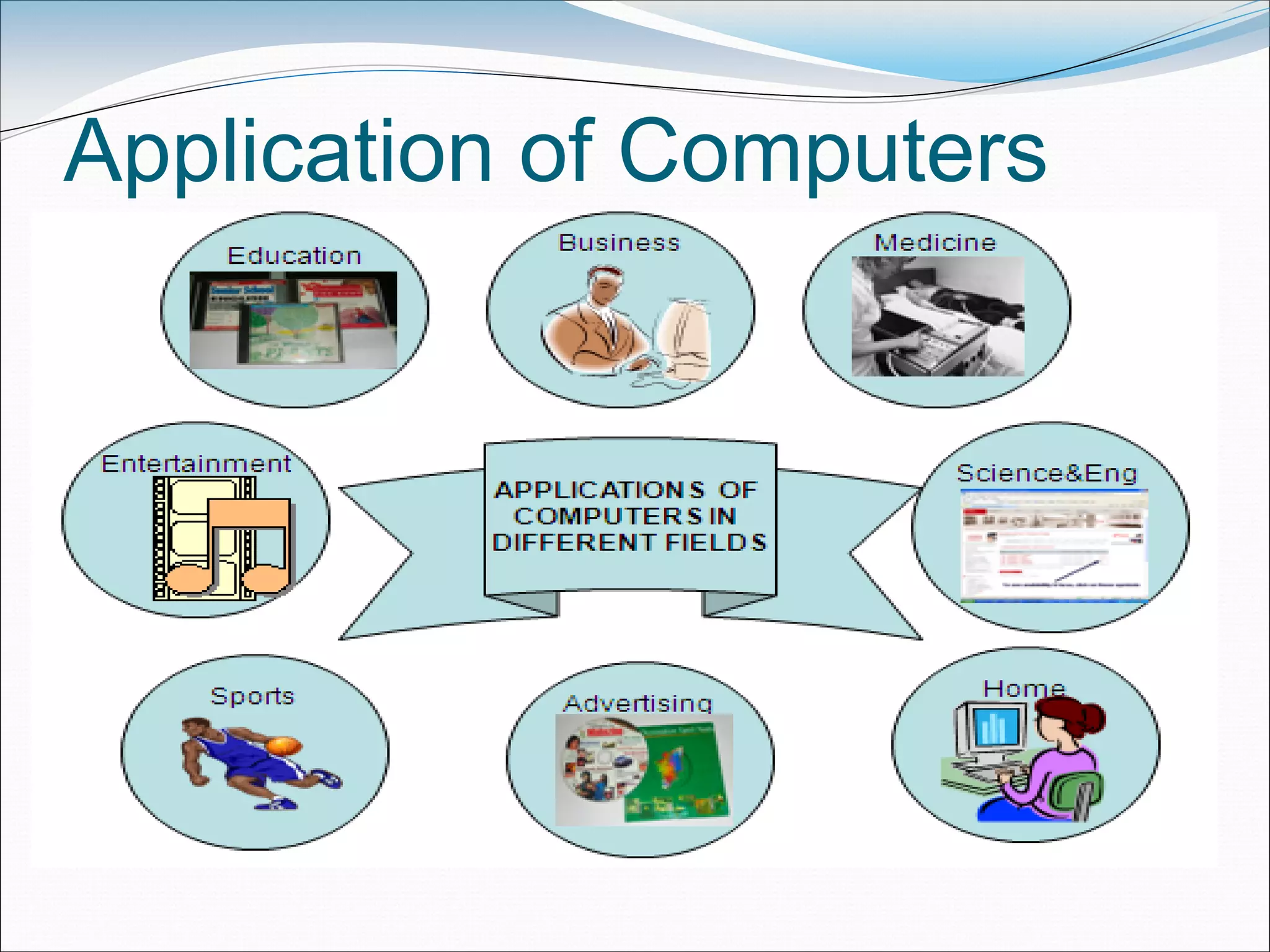

16. Application of Computers

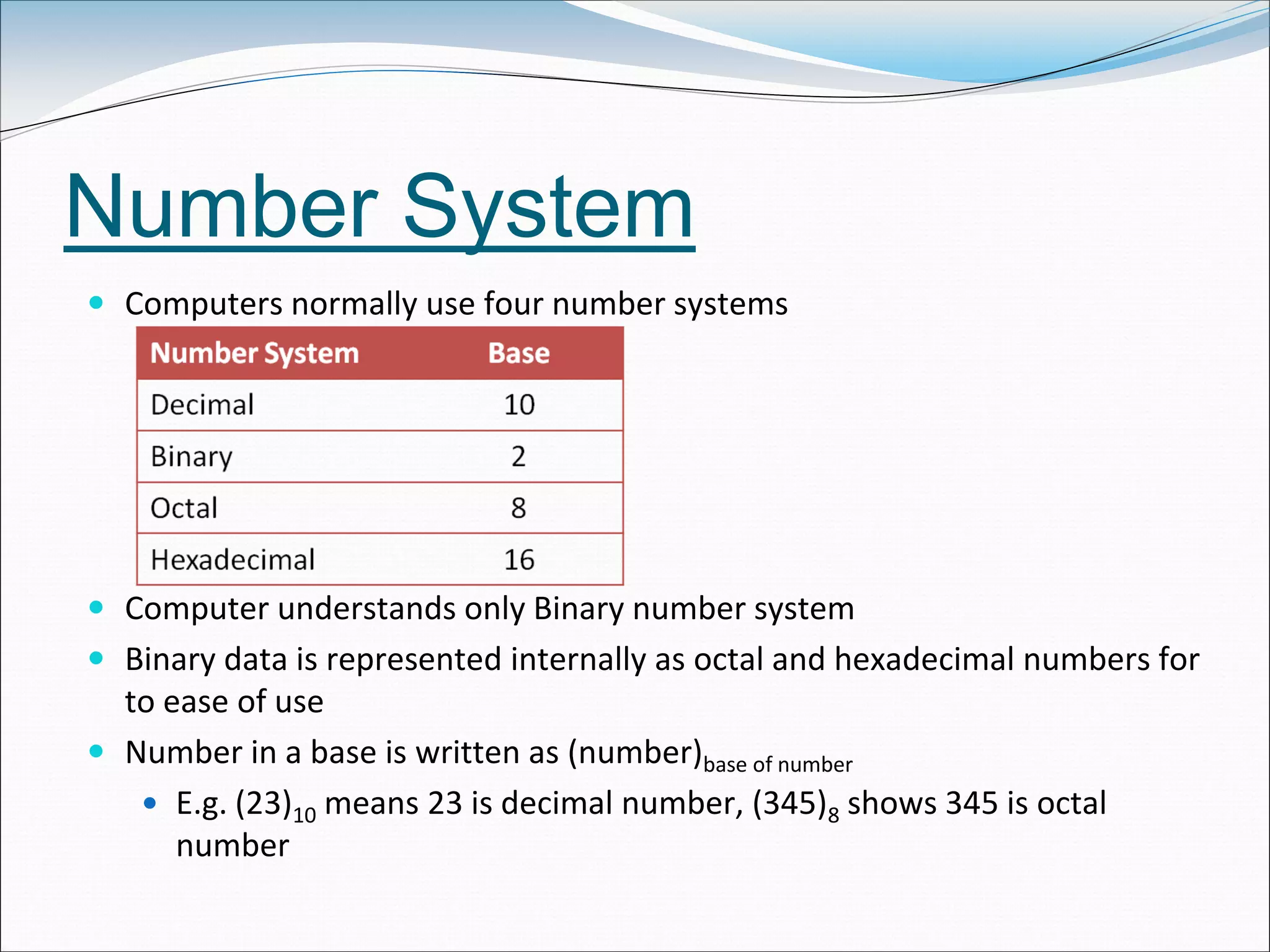

17. Number System
 Computers normally use four number systems
 Computer understands only Binary number system
 Binary data is represented internally as octal and hexadecimal numbers for
to ease of use
 Number in a base is written as (number)base of number
 E.g. (23)10 means 23 is decimal number, (345)8 shows 345 is octal
number

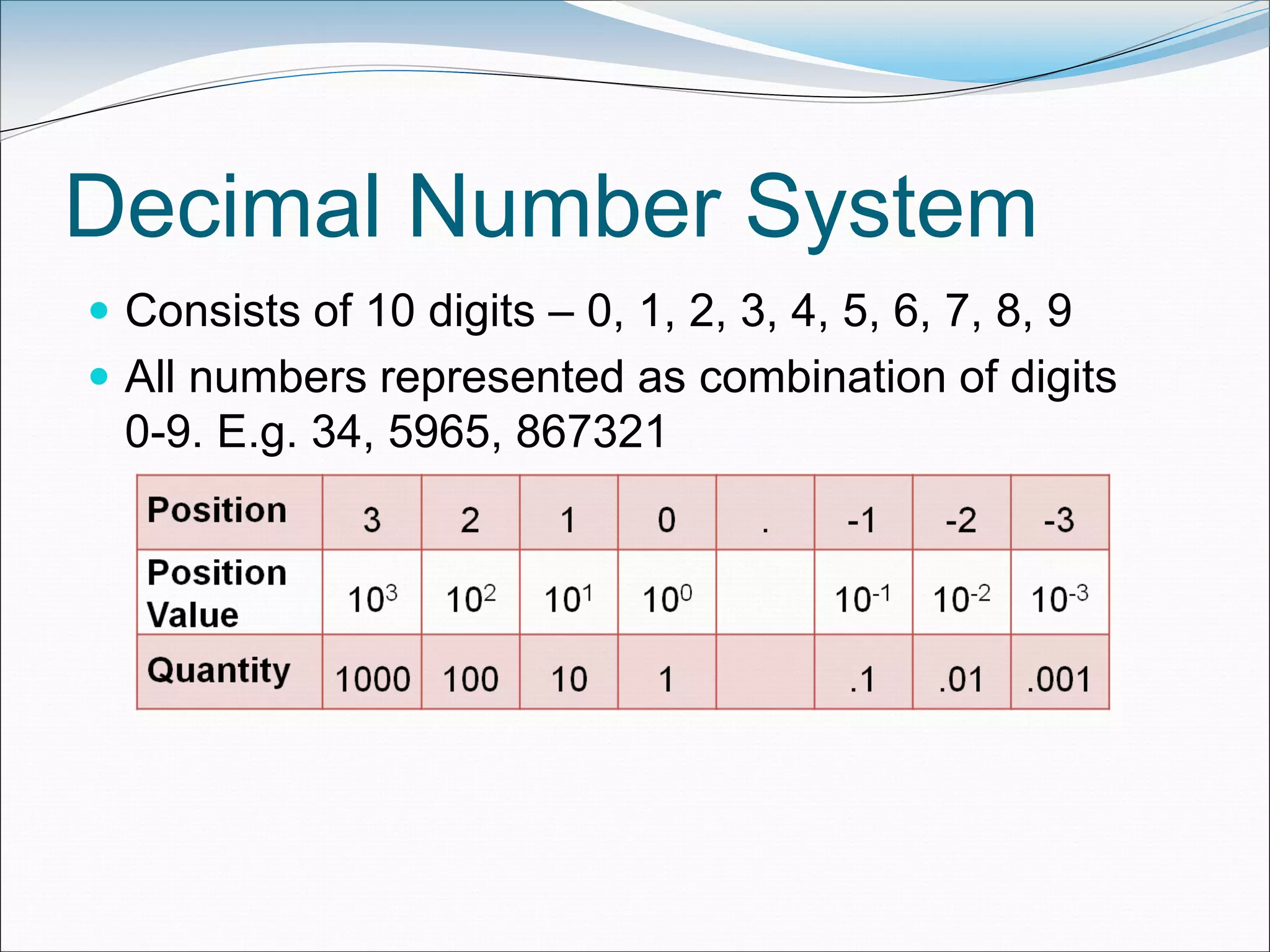

18. Decimal Number System
 Consists of 10 digits – 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
 All numbers represented as combination of digits
0-9. E.g. 34, 5965, 867321

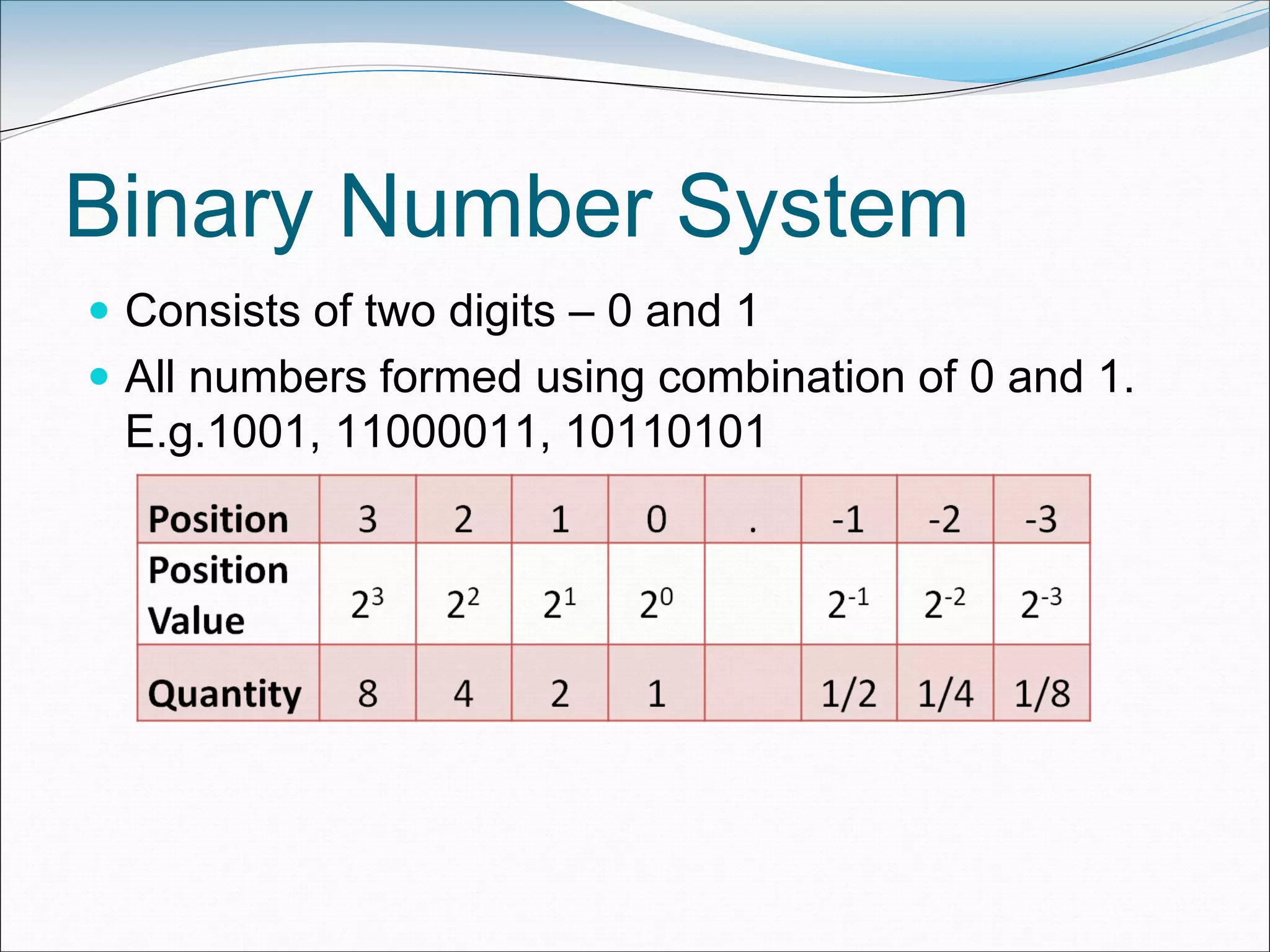

19. Binary Number System
 Consists of two digits – 0 and 1
 All numbers formed using combination of 0 and 1.
E.g.1001, 11000011, 10110101

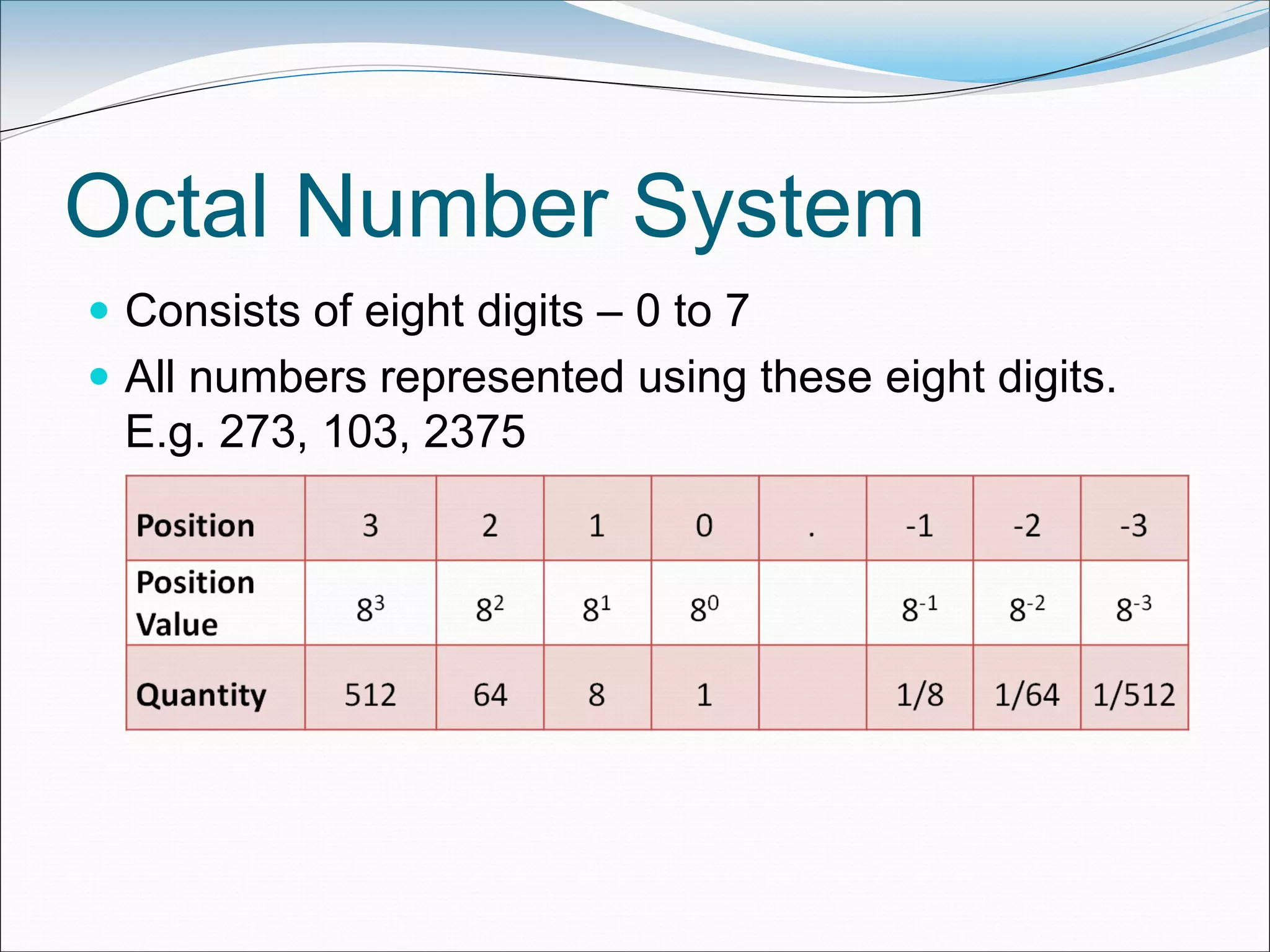

20. Octal Number System
 Consists of eight digits – 0 to 7
 All numbers represented using these eight digits.
E.g. 273, 103, 2375

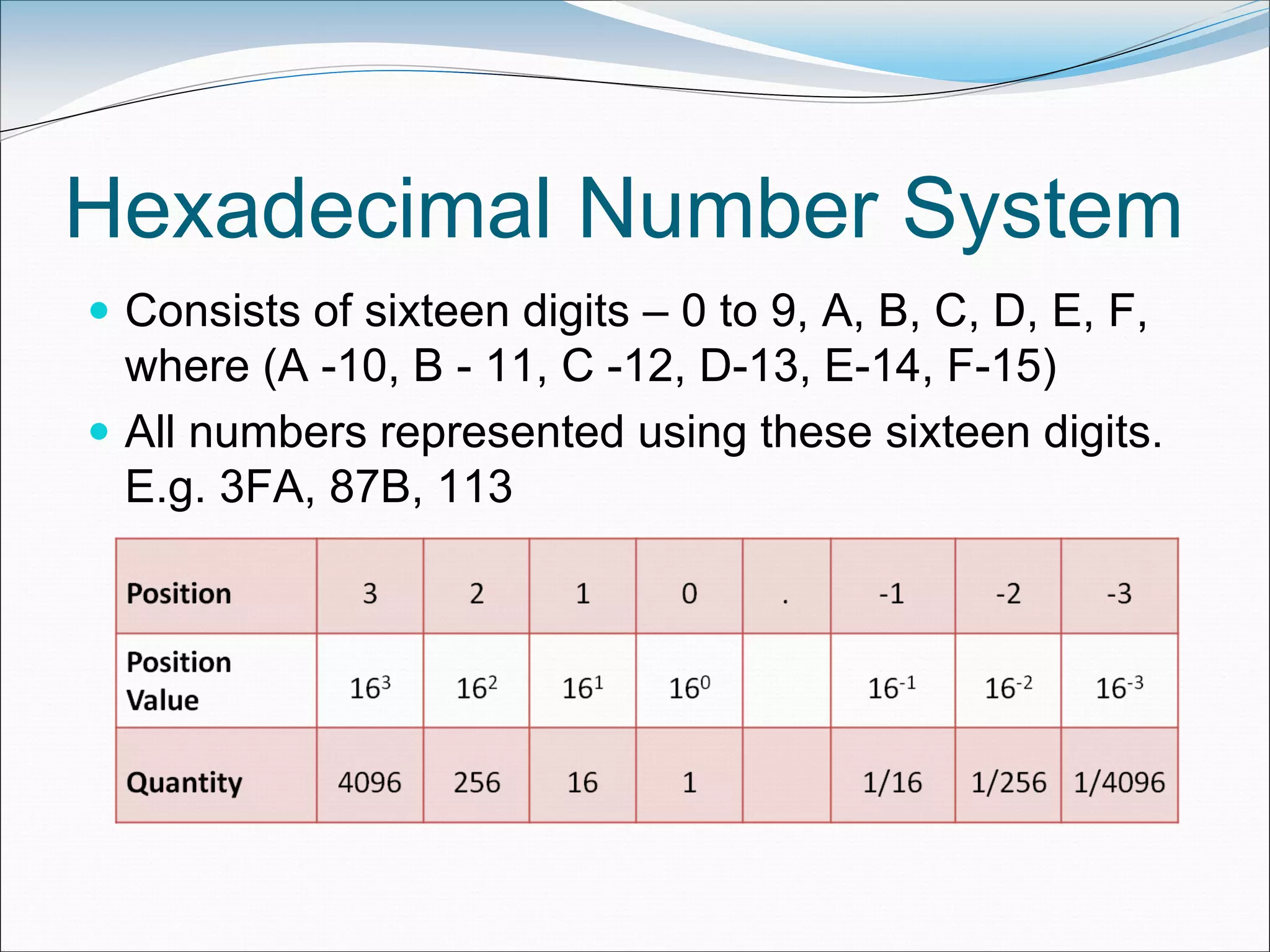

21. Hexadecimal Number System
 Consists of sixteen digits – 0 to 9, A, B, C, D, E, F,
where (A -10, B - 11, C -12, D-13, E-14, F-15)
 All numbers represented using these sixteen digits.
E.g. 3FA, 87B, 113

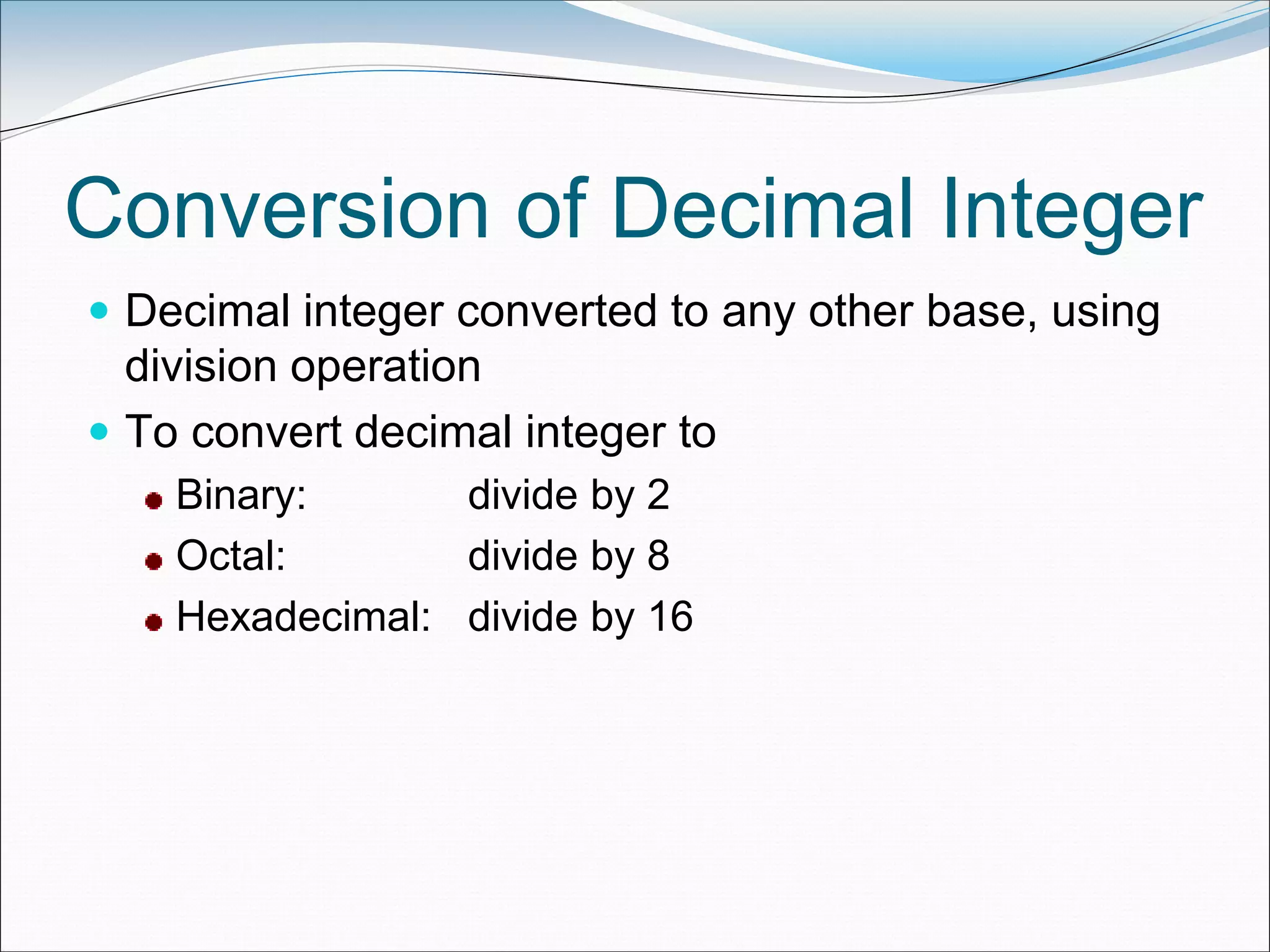

22. Conversion of Decimal Integer
 Decimal integer converted to any other base, using
division operation
 To convert decimal integer to
Binary: divide by 2
Octal: divide by 8
Hexadecimal: divide by 16

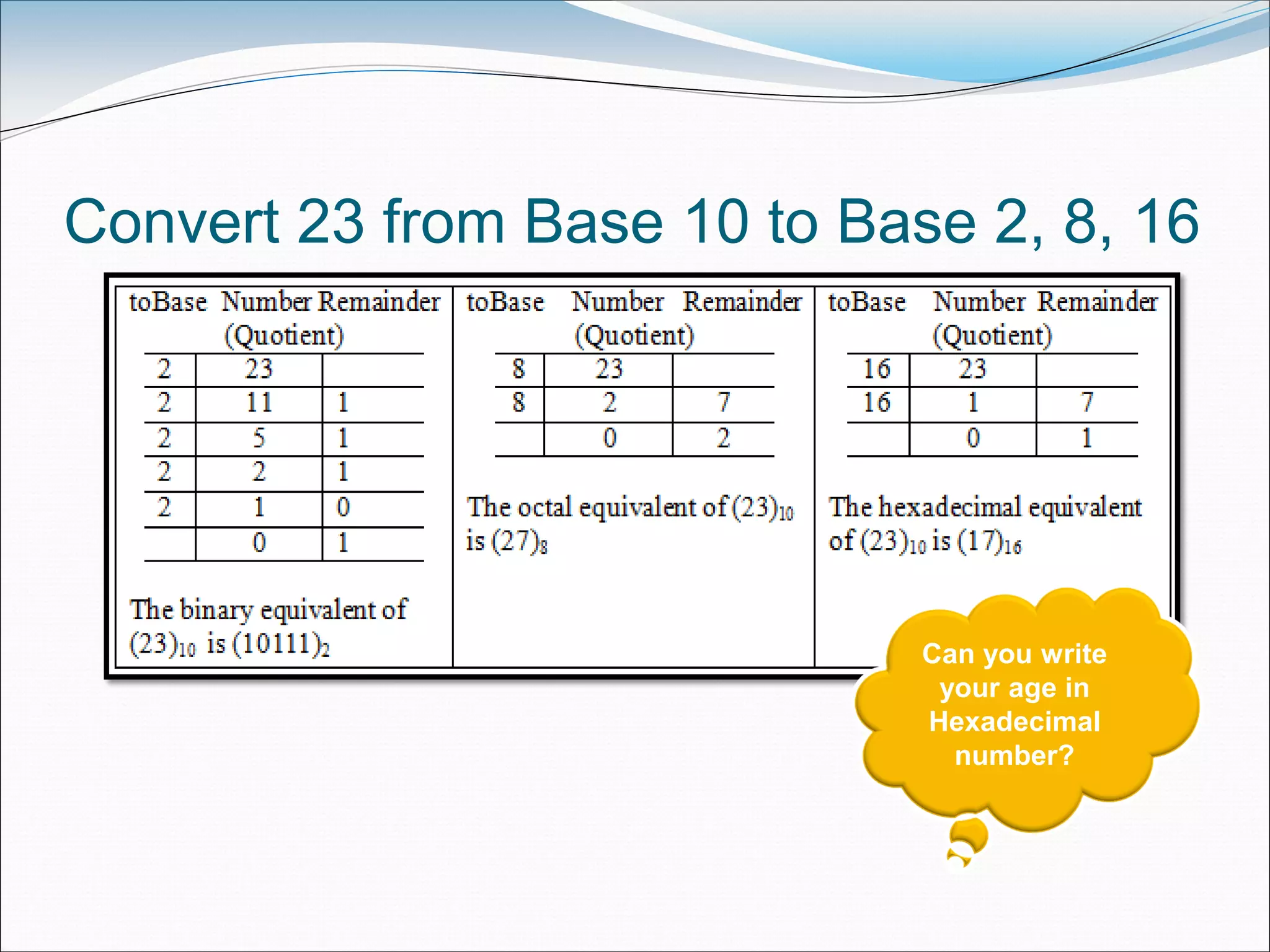

23. Convert 23 from Base 10 to Base 2, 8, 16
Can you write
your age in
Hexadecimal
number?

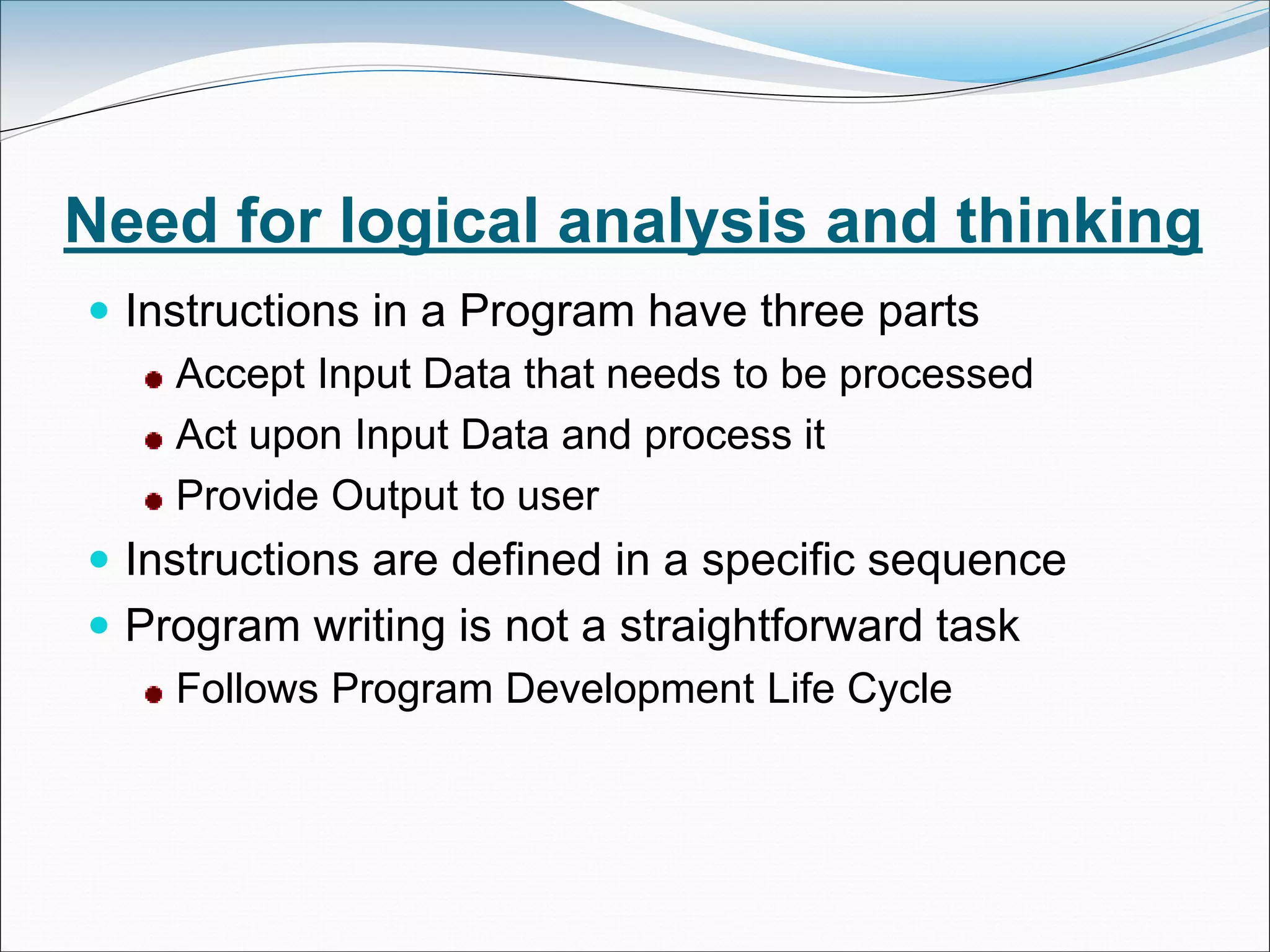

24. Need for logical analysis and thinking
 Instructions in a Program have three parts
Accept Input Data that needs to be processed
Act upon Input Data and process it
Provide Output to user
 Instructions are defined in a specific sequence
 Program writing is not a straightforward task
Follows Program Development Life Cycle

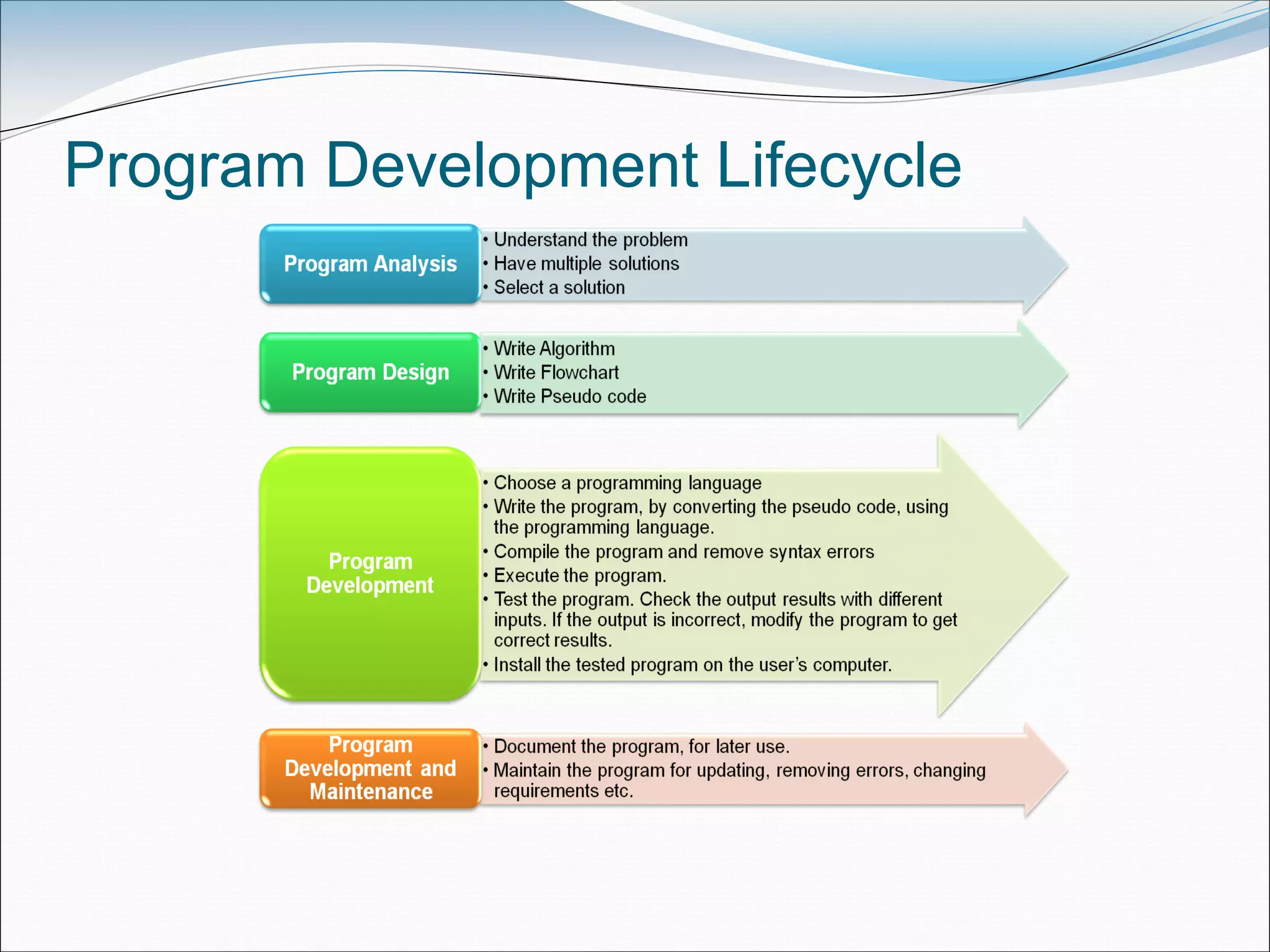

25. Program Development Lifecycle

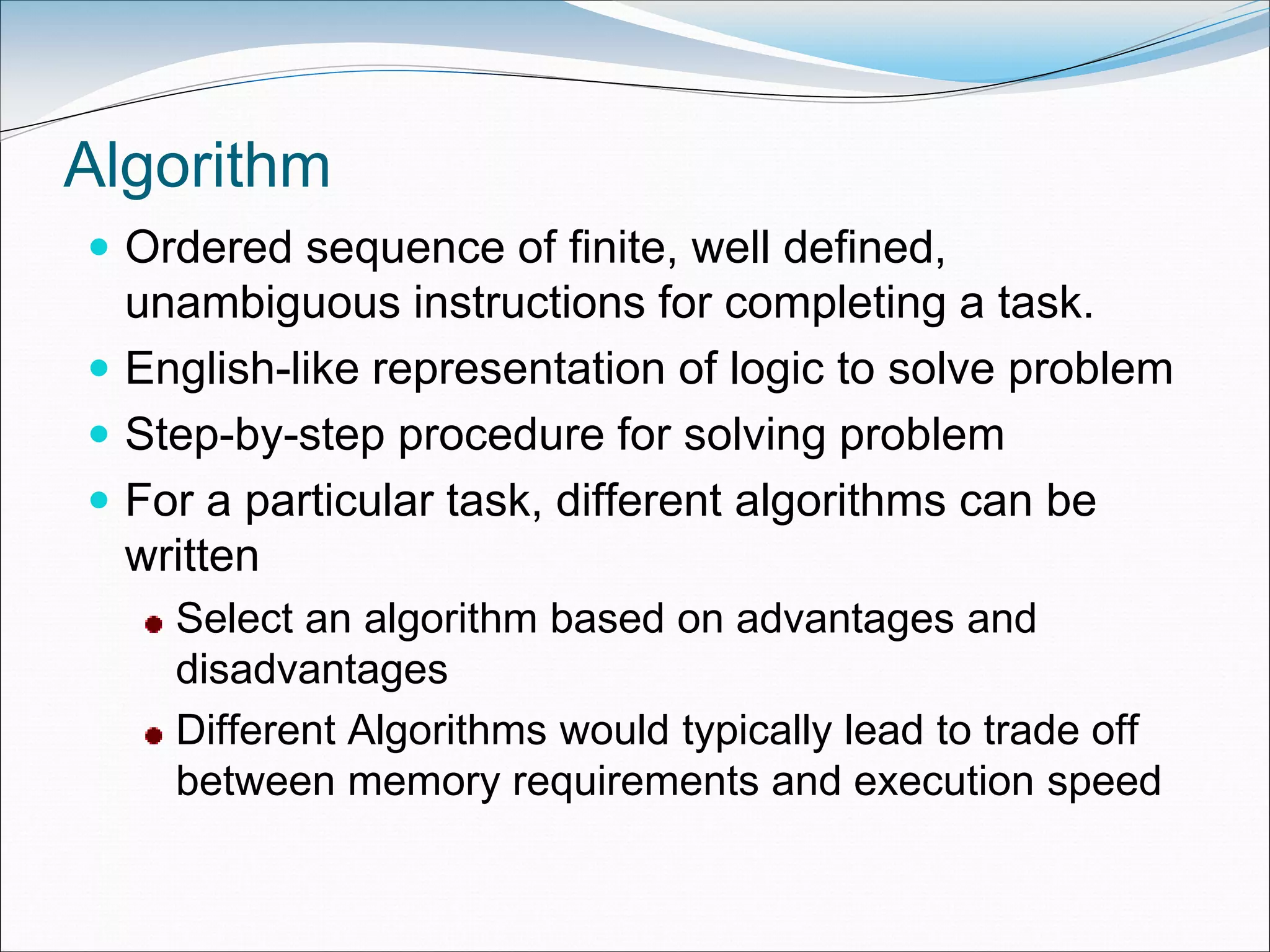

26. Algorithm
 Ordered sequence of finite, well defined,
unambiguous instructions for completing a task.
 English-like representation of logic to solve problem
 Step-by-step procedure for solving problem
 For a particular task, different algorithms can be
written
Select an algorithm based on advantages and
disadvantages
Different Algorithms would typically lead to trade off
between memory requirements and execution speed

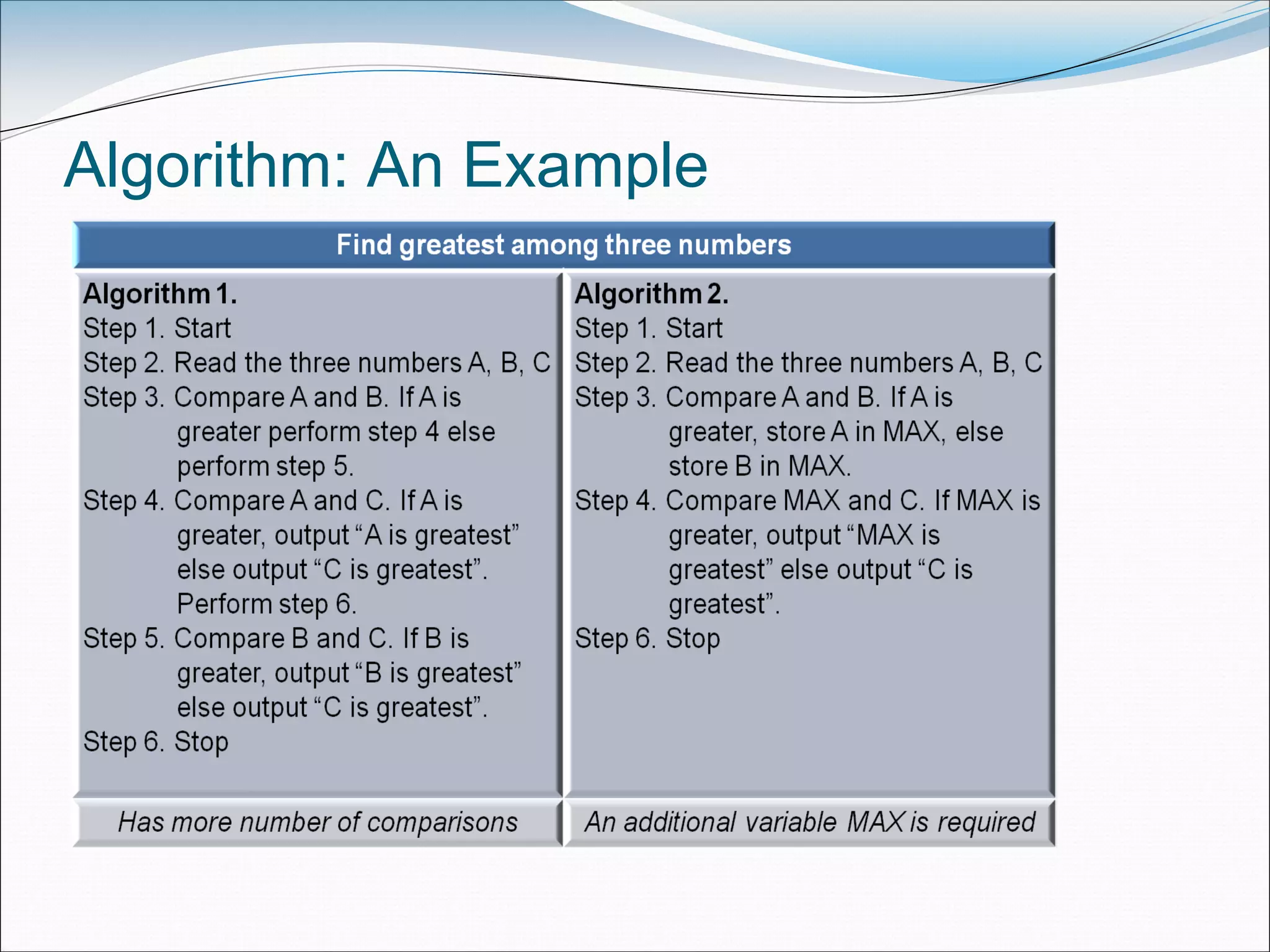

27. Algorithm: An Example

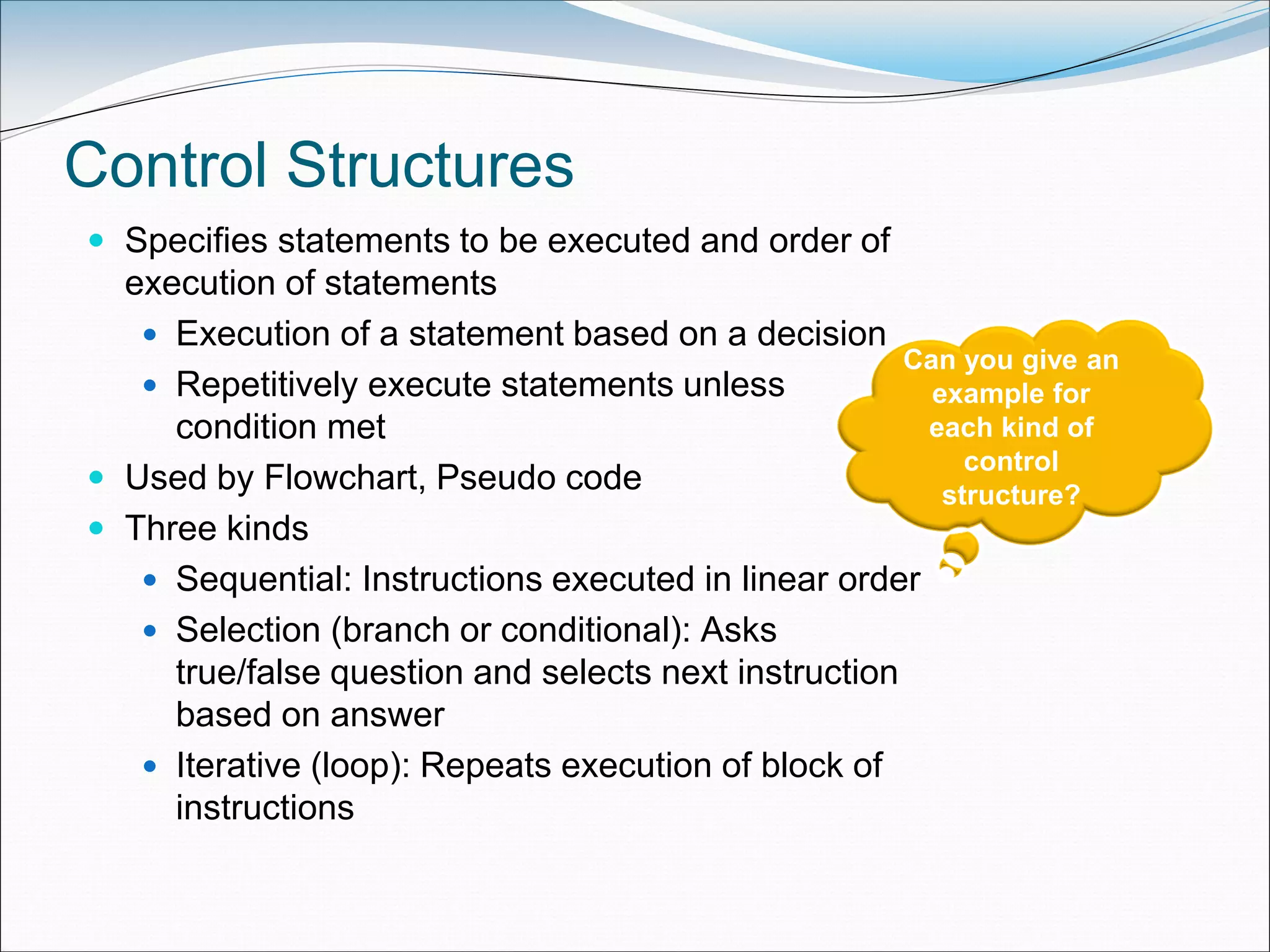

28. Control Structures
 Specifies statements to be executed and order of
execution of statements
 Execution of a statement based on a decision
 Repetitively execute statements unless
condition met
 Used by Flowchart, Pseudo code
 Three kinds
 Sequential: Instructions executed in linear order
 Selection (branch or conditional): Asks
true/false question and selects next instruction
based on answer
 Iterative (loop): Repeats execution of block of
instructions
Can you give an
example for
each kind of
control
structure?

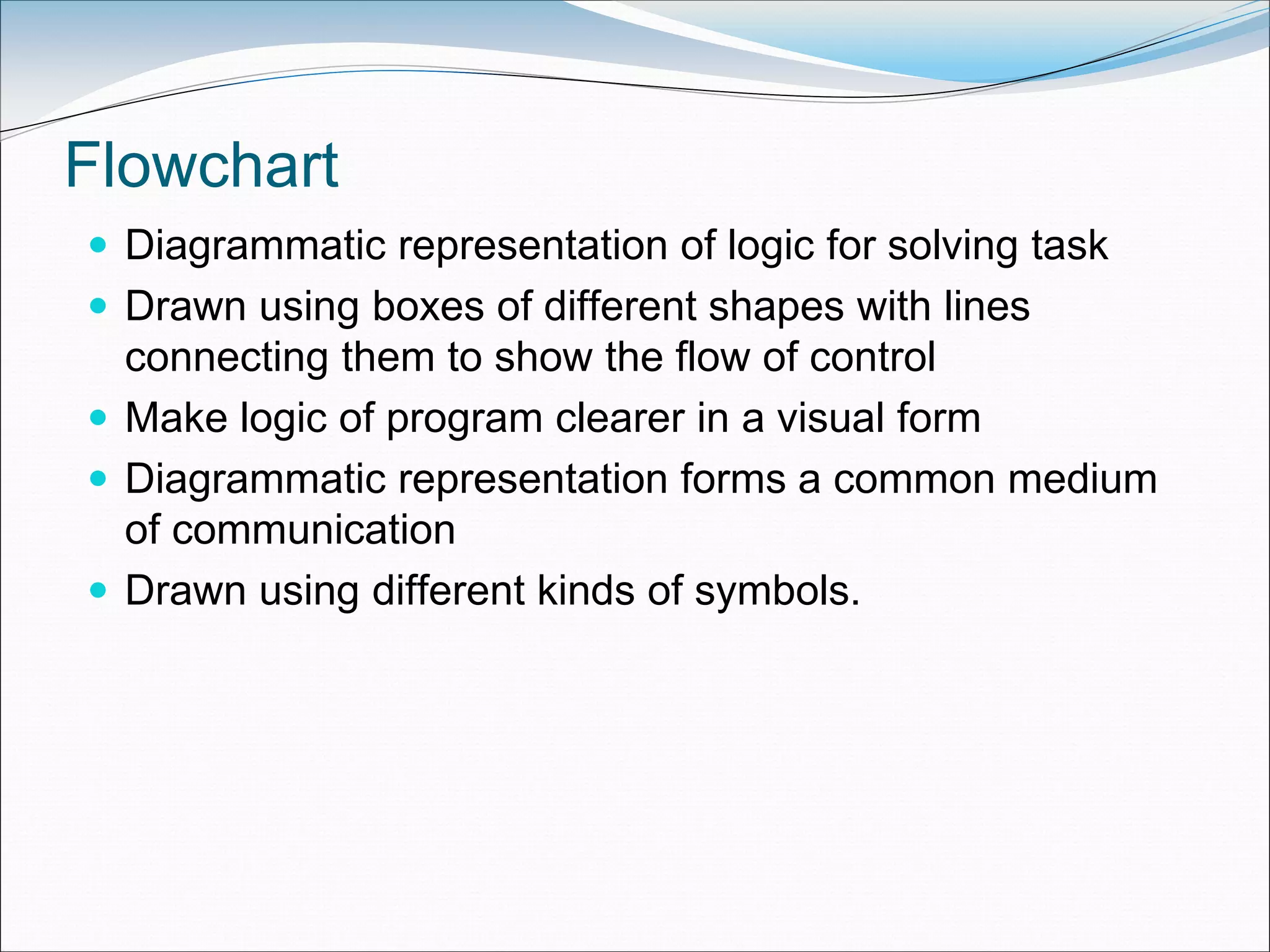

29. Flowchart
 Diagrammatic representation of logic for solving task
 Drawn using boxes of different shapes with lines
connecting them to show the flow of control
 Make logic of program clearer in a visual form
 Diagrammatic representation forms a common medium
of communication
 Drawn using different kinds of symbols.

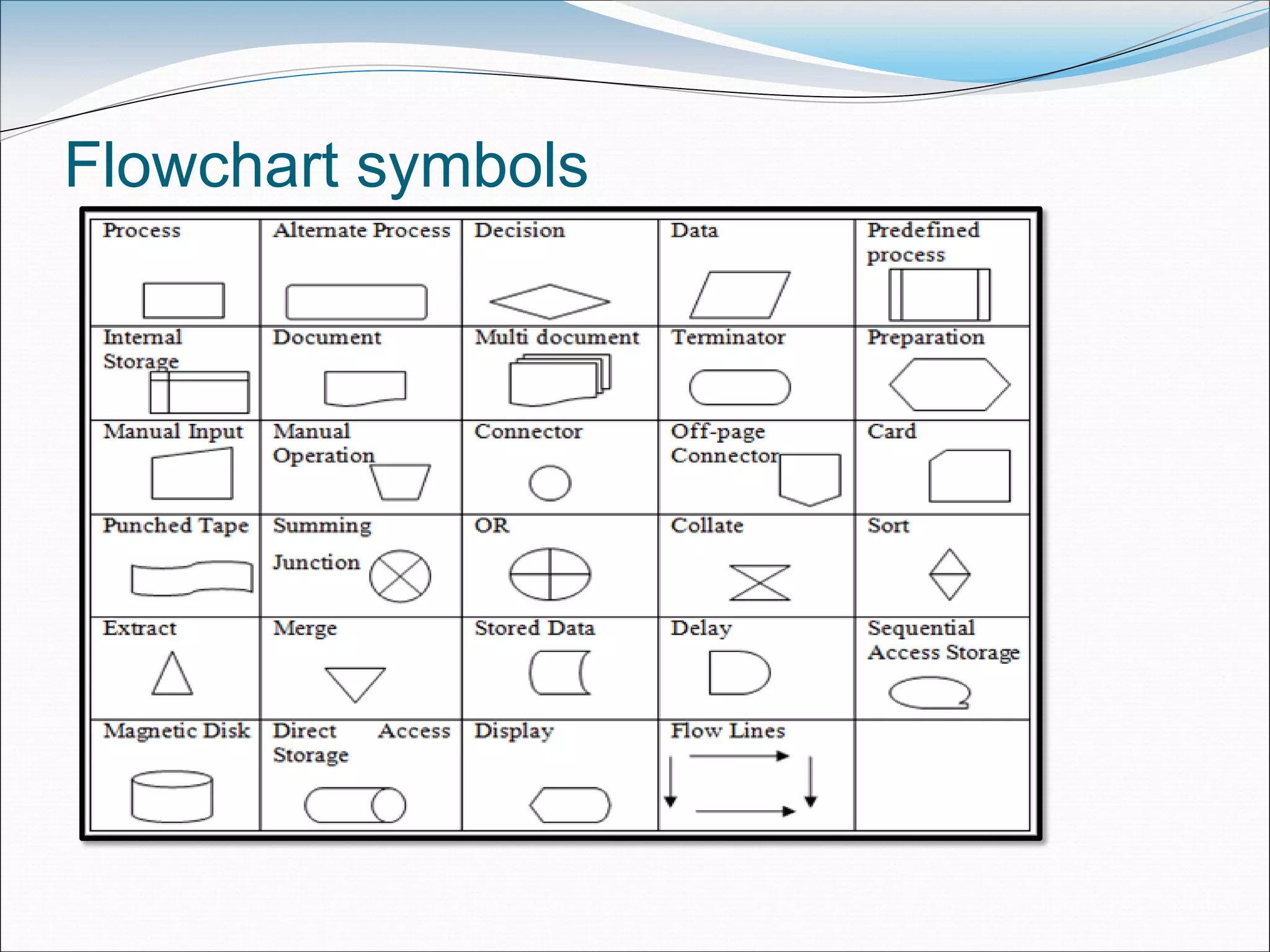

30. Flowchart symbols

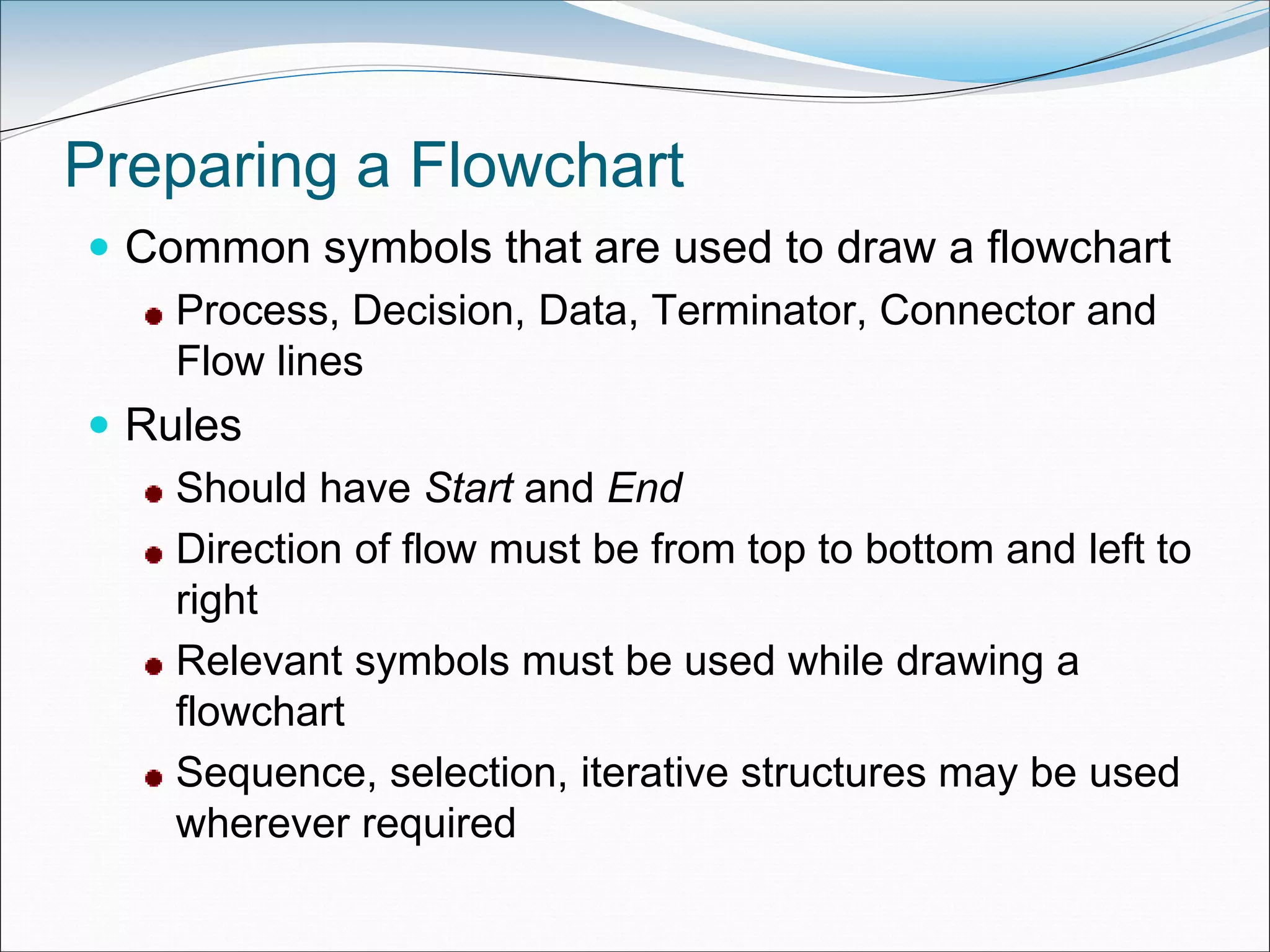

31. Preparing a Flowchart
 Common symbols that are used to draw a flowchart
Process, Decision, Data, Terminator, Connector and
Flow lines
 Rules
Should have Start and End
Direction of flow must be from top to bottom and left to
right
Relevant symbols must be used while drawing a
flowchart
Sequence, selection, iterative structures may be used
wherever required

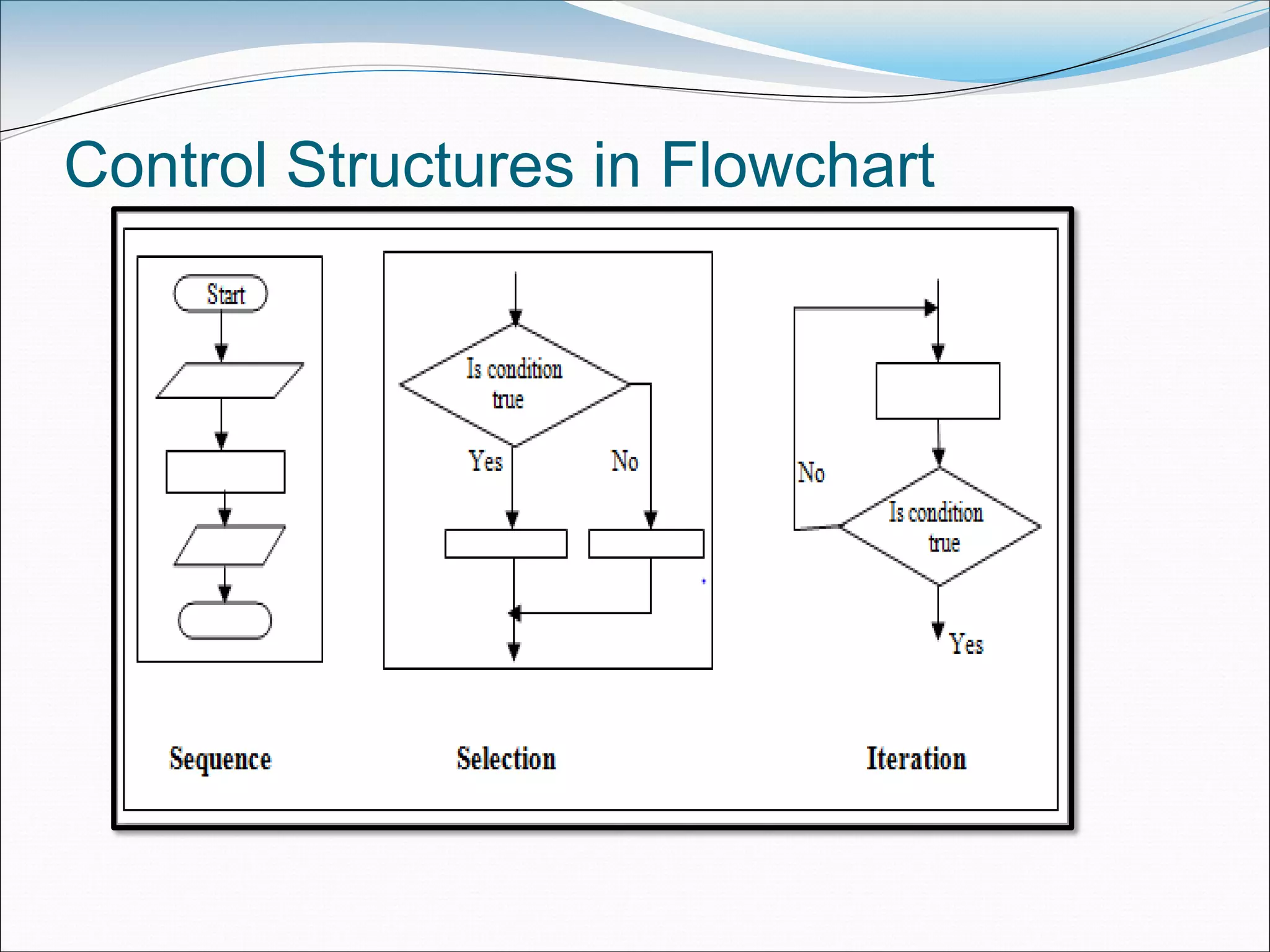

32. Control Structures in Flowchart

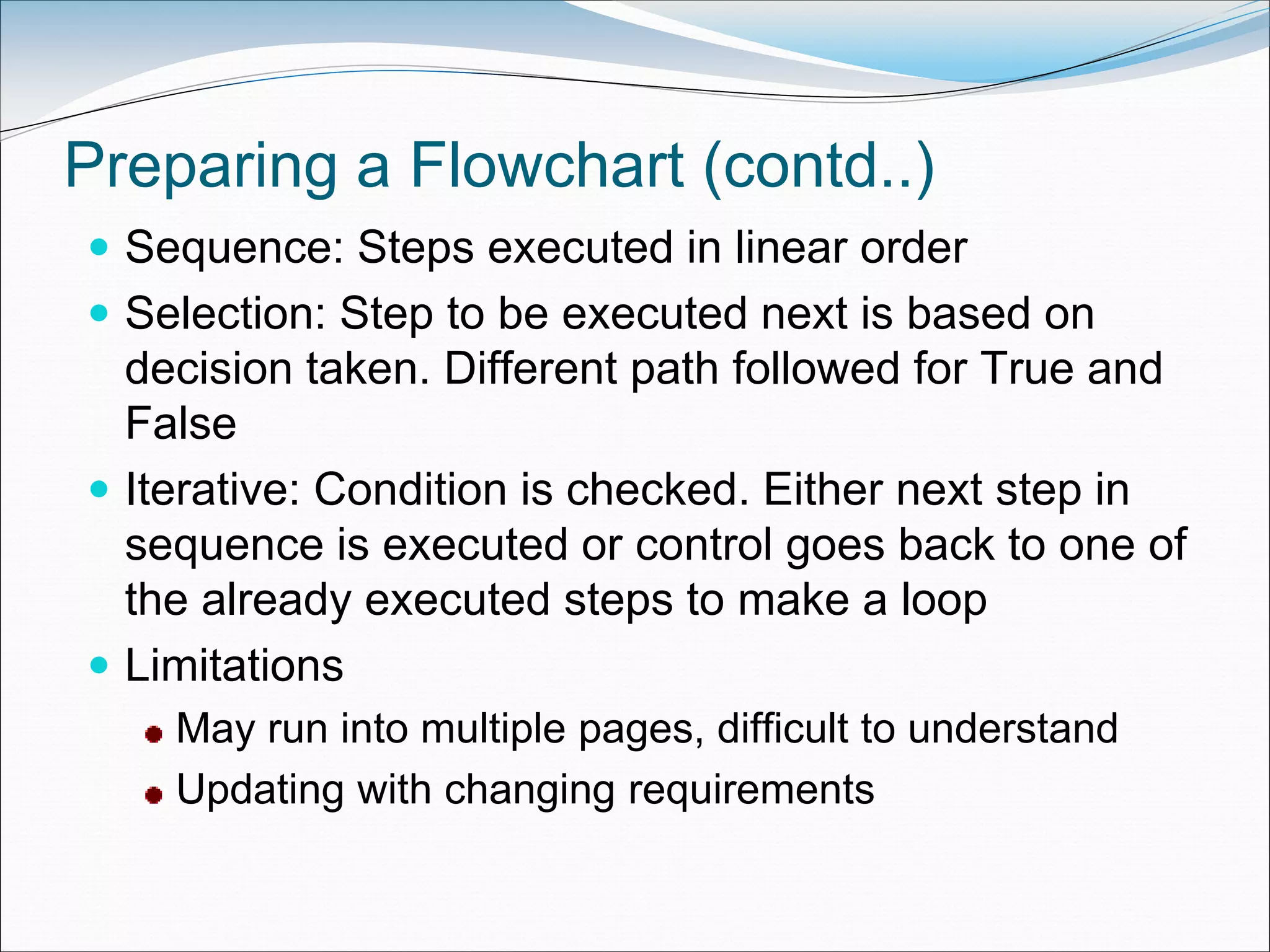

33. Preparing a Flowchart (contd..)
 Sequence: Steps executed in linear order
 Selection: Step to be executed next is based on
decision taken. Different path followed for True and
False
 Iterative: Condition is checked. Either next step in
sequence is executed or control goes back to one of
the already executed steps to make a loop
 Limitations
May run into multiple pages, difficult to understand
Updating with changing requirements

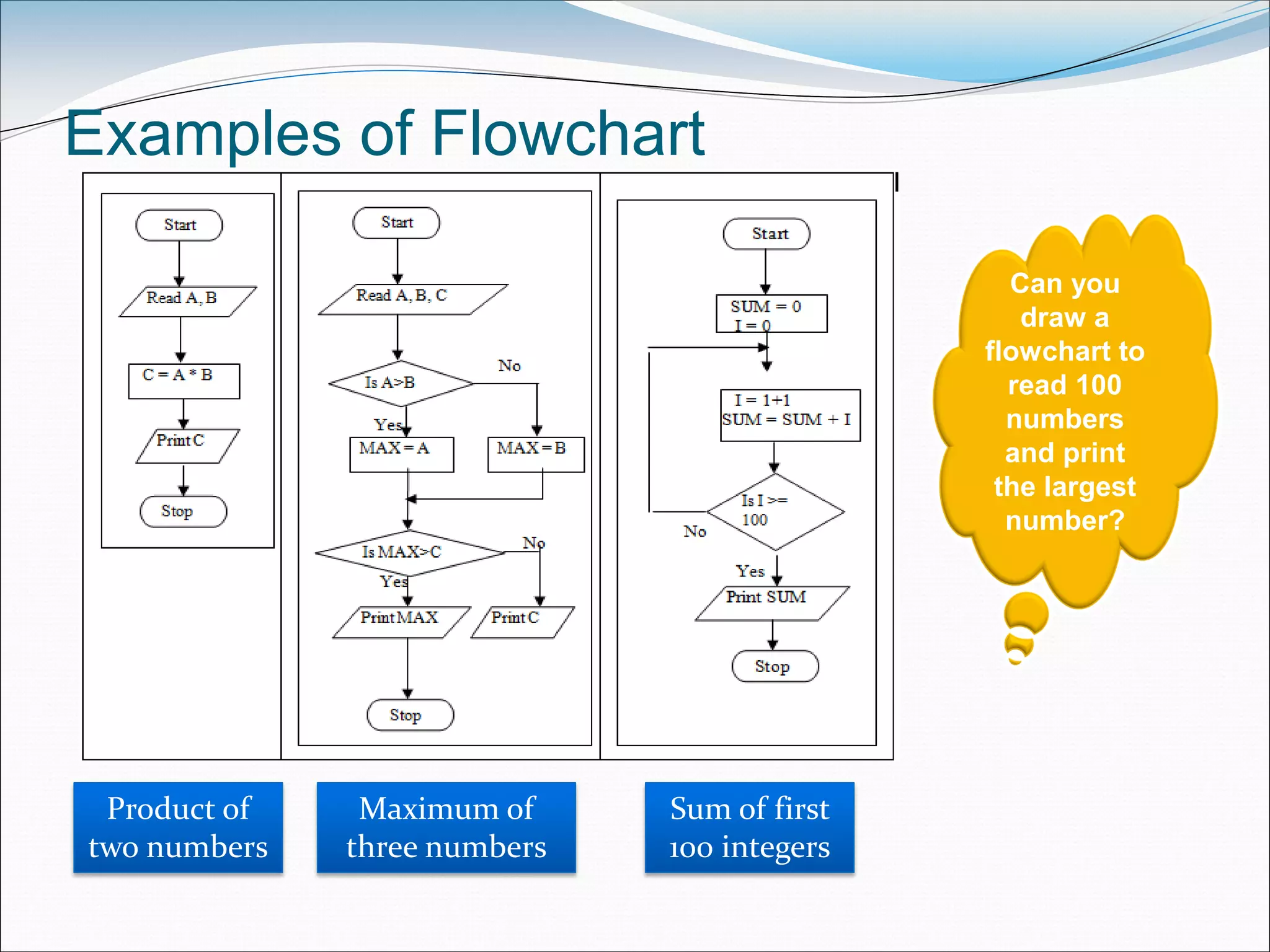

34. Examples of Flowchart
Product of
two numbers
Maximum of
three numbers
Sum of first
100 integers
Can you
draw a
flowchart to
read 100
numbers
and print
the largest
number?

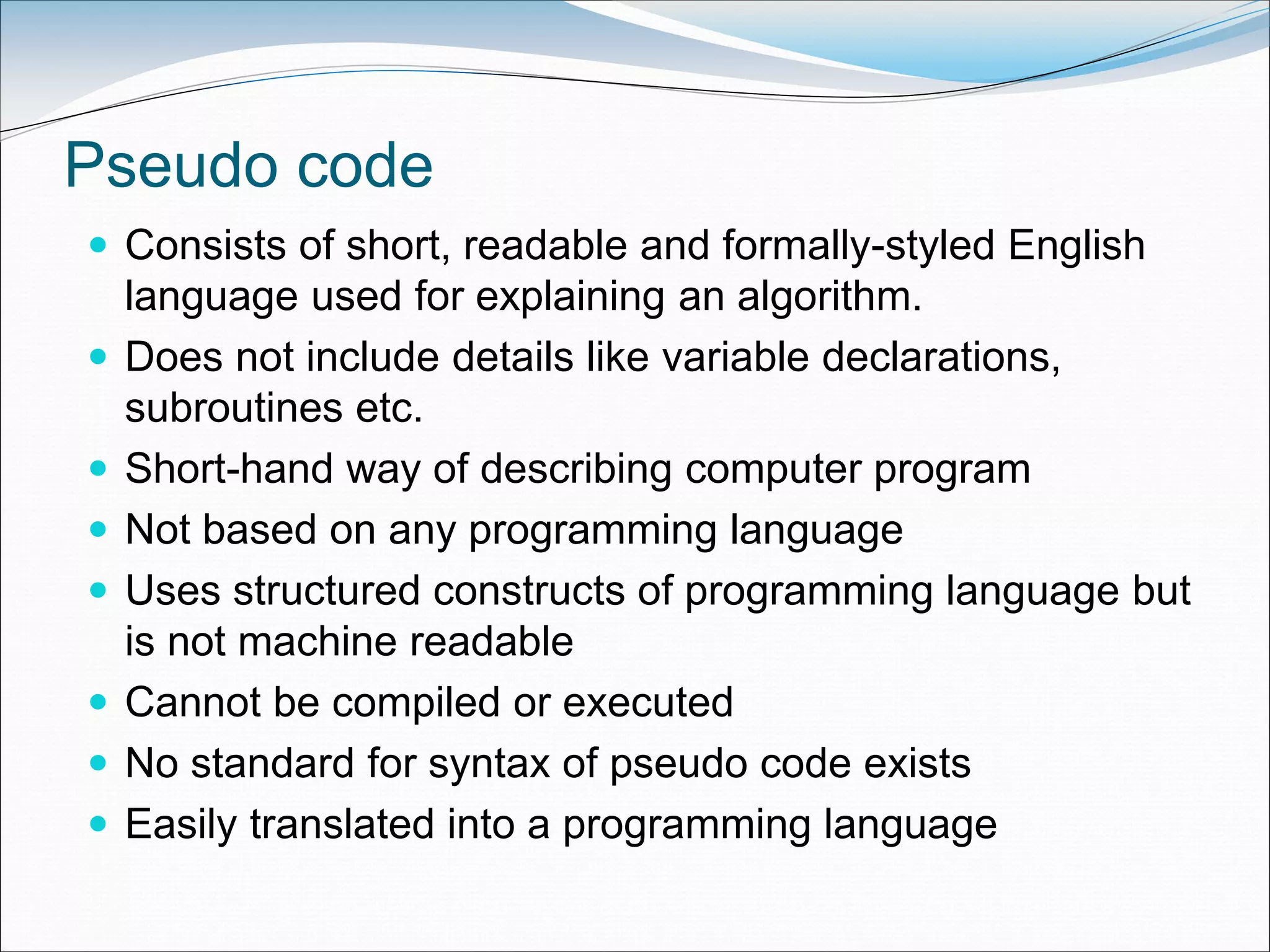

35. Pseudo code
 Consists of short, readable and formally-styled English
language used for explaining an algorithm.
 Does not include details like variable declarations,
subroutines etc.
 Short-hand way of describing computer program
 Not based on any programming language
 Uses structured constructs of programming language but
is not machine readable
 Cannot be compiled or executed
 No standard for syntax of pseudo code exists
 Easily translated into a programming language

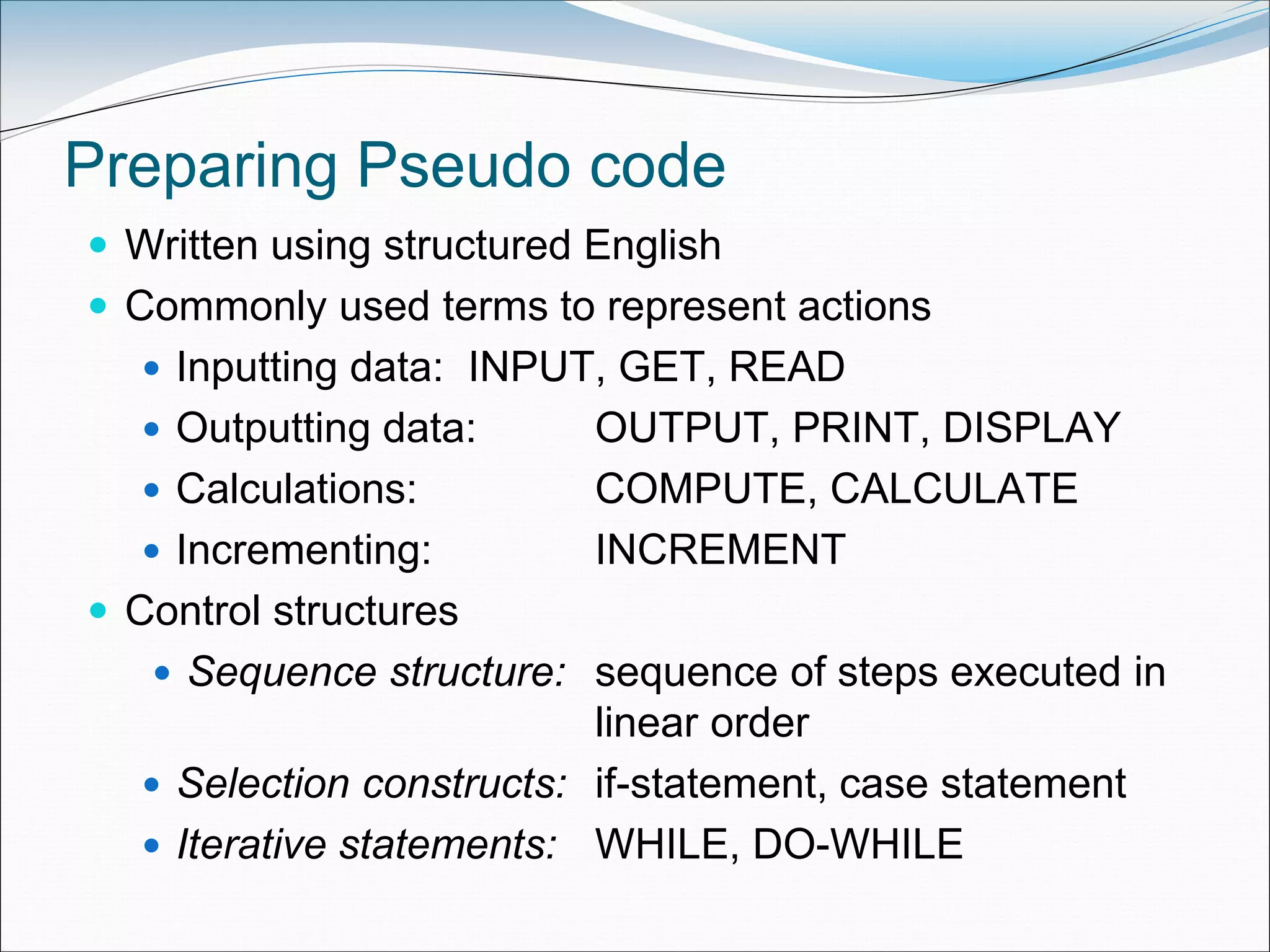

36. Preparing Pseudo code
 Written using structured English
 Commonly used terms to represent actions
 Inputting data: INPUT, GET, READ
 Outputting data: OUTPUT, PRINT, DISPLAY
 Calculations: COMPUTE, CALCULATE
 Incrementing: INCREMENT
 Control structures
 Sequence structure: sequence of steps executed in
linear order
 Selection constructs: if-statement, case statement
 Iterative statements: WHILE, DO-WHILE

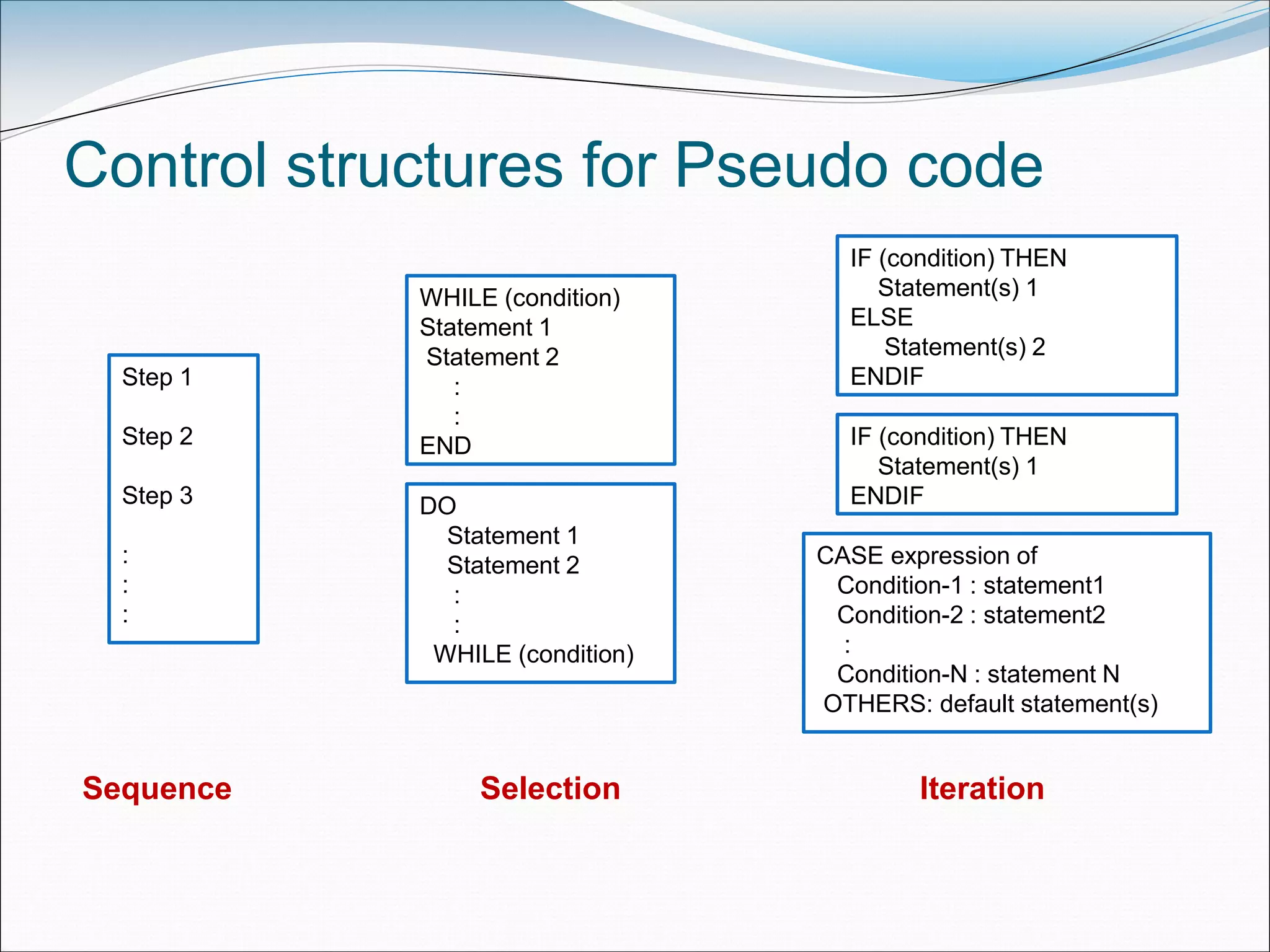

37. Control structures for Pseudo code
IF (condition) THEN
Statement(s) 1
ELSE
Statement(s) 2
ENDIFStep 1
Step 2
Step 3
:
:
:
WHILE (condition)
Statement 1
Statement 2
:
:
END
DO
Statement 1
Statement 2
:
:
WHILE (condition)
CASE expression of
Condition-1 : statement1
Condition-2 : statement2
:
Condition-N : statement N
OTHERS: default statement(s)
IF (condition) THEN
Statement(s) 1
ENDIF
Sequence Selection Iteration

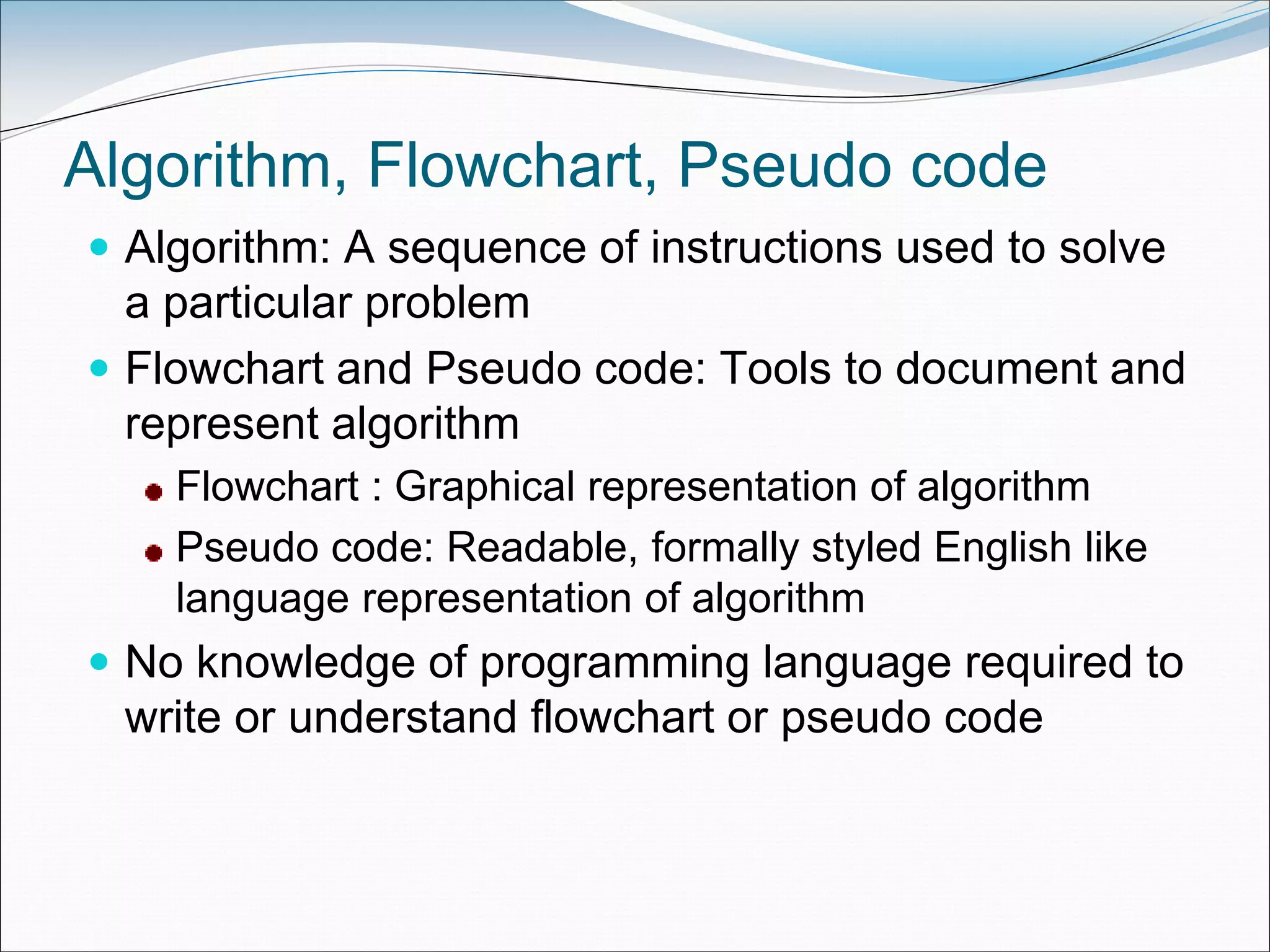

38. Algorithm, Flowchart, Pseudo code
 Algorithm: A sequence of instructions used to solve
a particular problem
 Flowchart and Pseudo code: Tools to document and
represent algorithm
Flowchart : Graphical representation of algorithm
Pseudo code: Readable, formally styled English like
language representation of algorithm
 No knowledge of programming language required to
write or understand flowchart or pseudo code

39. Thank You
