The document discusses unikernels, which are a platform for automating compilation and deployment, aimed at improving efficiency and security by isolating applications from unnecessary components and drivers. It contrasts unikernels with traditional stacks by emphasizing their minimal layers, single process, and no permission checks, leading to reduced attack surfaces and faster boot times. Additionally, it highlights the integration of unikernels with Docker and Kubernetes, making them suitable for various deployments, including IoT applications.
More Related Content
Unik Slides
- 1. 1 A PLATFORM FORAUTOMATING UNIKERNELS COMPILATION AND DEPLOYMENT UNIK

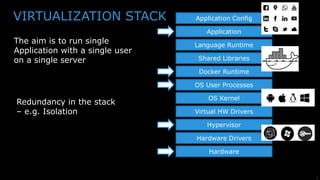

- 2. 2 VIRTUALIZATION STACK Redundancy inthe stack – e.g. Isolation Application Config Application Language Runtime Shared Libraries Docker Runtime OS User Processes OS Kernel Virtual HW Drivers Hypervisor Hardware Drivers Hardware The aim is to run single Application with a single user on a single server

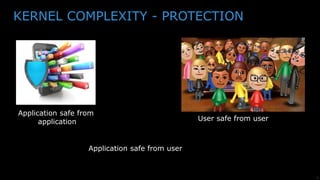

- 3. 3 KERNEL COMPLEXITY -PROTECTION Application safe from user Application safe from application User safe from user
- 4. 4 INEFFICIENCY • Needless permissioncheck, it is hard and an updated model from time sharing computer from the 50s, 60s • Microservices architecture duplicate what Linux did for us • Kernel include a lot of unnecessary drivers that not being used: floppy, USB … • Update and patches using yum bring a lot of unnecessary components

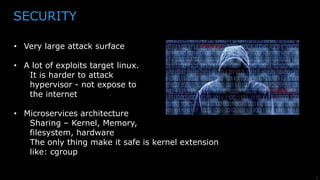

- 5. 5 SECURITY • Very largeattack surface • A lot of exploits target linux. It is harder to attack hypervisor - not expose to the internet • Microservices architecture Sharing – Kernel, Memory, filesystem, hardware The only thing make it safe is kernel extension like: cgroup
- 6.
- 7. 7 SOURCE LINES OFCODE Small Applications: 10Ks Medium to large applications: 100Ks Really huge applications: 1Ms

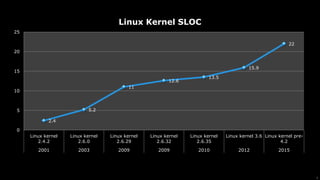

- 8. 8 2.4 5.2 11 12.6 13.5 15.9 22 0 5 10 15 20 25 Linux kernel 2.4.2 Linux kernel 2.6.0 Linuxkernel 2.6.29 Linux kernel 2.6.32 Linux kernel 2.6.35 Linux kernel 3.6 Linux kernel pre- 4.2 2001 2003 2009 2009 2010 2012 2015 Linux Kernel SLOC

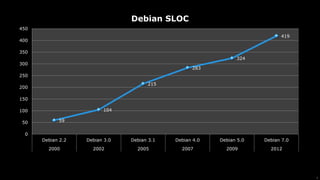

- 9. 9 59 104 215 283 324 419 0 50 100 150 200 250 300 350 400 450 Debian 2.2 Debian3.0 Debian 3.1 Debian 4.0 Debian 5.0 Debian 7.0 2000 2002 2005 2007 2009 2012 Debian SLOC

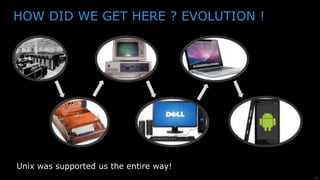

- 10. 10 HOW DID WEGET HERE ? EVOLUTION ! Unix was supported us the entire way!
- 11. 11 DECADES OF BACKWARDSCOMPATIBILITY What can linux run on ? What can run on linux ? Anything ! Anything !
- 12.
- 13. 13 Make it works. Makeit right. Make it fast.
- 14. 14 Or is it? But how ? What can we do to make it better ? Rewrite ? does it make sense to write one from scratch ? Probably not – it is too much work !

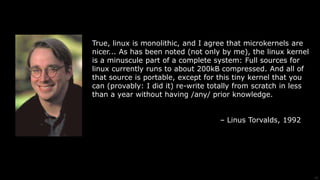

- 15. 15 True, linux ismonolithic, and I agree that microkernels are nicer... As has been noted (not only by me), the linux kernel is a minuscule part of a complete system: Full sources for linux currently runs to about 200kB compressed. And all of that source is portable, except for this tiny kernel that you can (provably: I did it) re-write totally from scratch in less than a year without having /any/ prior knowledge. – Linus Torvalds, 1992
- 16. 16 {uni-} {kernel} a bridgebetween applications and the actual data processing done at the hardware level. One; having or consisting of one.
- 17.
- 18.

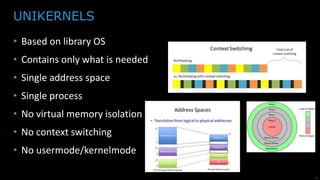

- 19. 19 • Based onlibrary OS • Contains only what is needed • Single process (micro services architecture) • Single address space • No virtual memory isolation • No context switching • No usermode/kernelmode • Real immutable infrastructure UNIKERNELS

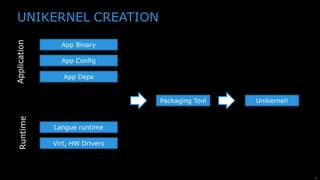

- 20. 20 App Binary App Config AppDeps Virt, HW Drivers Langue runtime ApplicationRuntime Packaging Tool Unikernel! UNIKERNEL CREATION

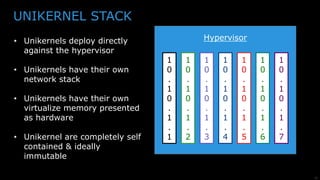

- 21. 21 UNIKERNEL STACK • Unikernelsdeploy directly against the hypervisor • Unikernels have their own network stack • Unikernels have their own virtualize memory presented as hardware • Unikernel are completely self contained & ideally immutable Hypervisor 1 0 . 1 0 . 1 . 1 1 0 . 1 0 . 1 . 2 1 0 . 1 0 . 1 . 3 1 0 . 1 0 . 1 . 4 1 0 . 1 0 . 1 . 5 1 0 . 1 0 . 1 . 6 1 0 . 1 0 . 1 . 7

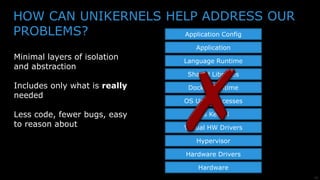

- 22. 22 HOW CAN UNIKERNELSHELP ADDRESS OUR PROBLEMS? Application Config Application Language Runtime Shared Libraries Docker Runtime OS User Processes OS Kernel Virtual HW Drivers Hypervisor Hardware Drivers Hardware Minimal layers of isolation and abstraction Includes only what is really needed Less code, fewer bugs, easy to reason about

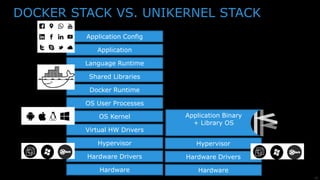

- 23. 23 DOCKER STACK VS.UNIKERNEL STACK Application Binary + Library OS Hypervisor Hardware Drivers Hardware Application Config Application Language Runtime Shared Libraries Docker Runtime OS User Processes OS Kernel Virtual HW Drivers Hypervisor Hardware Drivers Hardware
- 24. 24 DOCKER STACK VS.UNIKERNEL STACK Application Binary + Library OS Hypervisor Hardware Drivers Hardware Application Config Application Language Runtime Shared Libraries Docker Runtime OS User Processes OS Kernel Hardware Drivers Hardware Hardware isolation

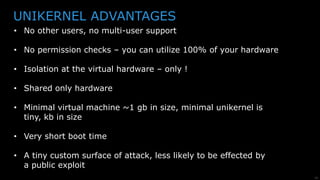

- 25. 25 UNIKERNEL ADVANTAGES • Noother users, no multi-user support • No permission checks – you can utilize 100% of your hardware • Isolation at the virtual hardware – only ! share only hardware • Minimal virtual machine ~1 gb in size, minimal unikernel is tiny, kb in size • Very short boot time • A tiny custom surface of attack, less likely to be effected by a public exploit • Real immutable infrastructure – perfect fit to micro services architecture

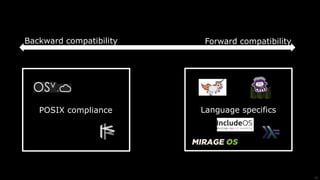

- 26. 26 Backward compatibility Forwardcompatibility POSIX compliance Language specifics
- 27.
- 28.

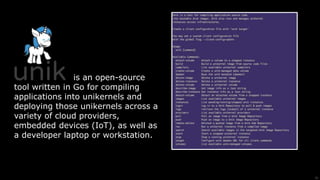

- 29. 31 is an open-source toolwritten in Go for compiling applications into unikernels and deploying those unikernels across a variety of cloud providers, embedded devices (IoT), as well as a developer laptop or workstation.

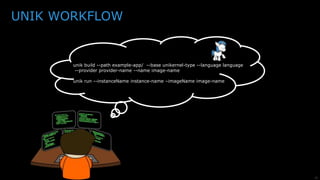

- 30. 32 unik build --pathexample-app/ --base unikernel-type --language language --provider provider-name --name image-name unik run --instanceName instance-name –imageName image-name UNIK WORKFLOW

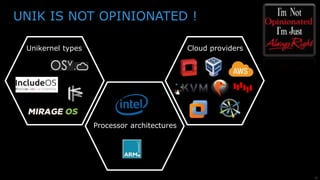

- 31. 33 UNIK IS NOTOPINIONATED ! Unikernel types Cloud providers Processor architectures
- 32.

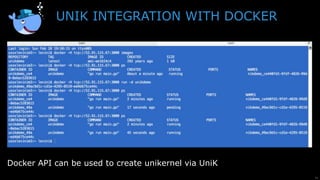

- 33. 35 UNIK INTEGRATION WITHDOCKER Docker API can be used to create unikernel via UniK
- 34. 36 UNIK INTEGRATION WITHKUBERNETES Unikernels support was added to Kubernetes by the UniK team by adding UniK as a container runtime to K8s - in the same way that Docker and rkt are container runtimes, UniK is now also available as a "container" runtime for k8s.
- 35. 37 UNIK KUBERNETES ARCHITECTURE unikernels Nowone can deploy a unikernel apps alongside regular kubernetes containerized apps.
- 36.
- 37.

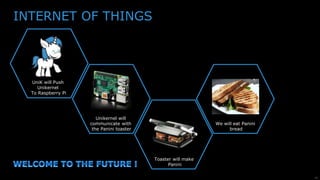

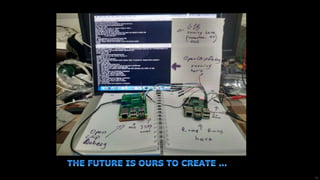

- 38. 42 INTERNET OF THINGS UniKwill Push Unikernel To Raspberry Pi Unikernel will communicate with the Panini toaster Toaster will make Panini We will eat Panini bread
- 39. 43 WORRIED ABOUT IOTDDOS? THINK UNIKERNELS Could such attacks be prevented if IoT devices were running bare metal unikernels? Read our blog !
- 40.
- 41.
- 42.
- 43.
- 44. 49 EMC-Advanced-Dev http://www.github.com/emc-advanced-dev Idit Levine CTO ofCloud Platform Team & Office of the CTO, EMC @idit_levine Scott Weiss Software Engineer, EMC @ilackarms Yuval Kohavi Software Engineer, EMC @uvgroovy
