1. Understanding Solid
Principles

2. About Me
● Babatunde Otaru
● Software Engineer @ Cotta & Cush
● Tourist
● Liverpool Fan
● Twitter: @mendizel

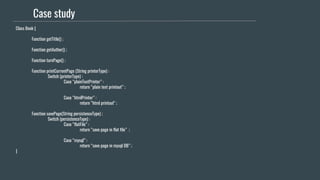

3. Case study
Class Book {
Function getTitle() ;
Function getAuthor() ;
Function turnPage() ;
Function printCurrentPage (String printerType) :
Switch (printerType) :
Case “plainTextPrinter” :
return “plain text printout” ;
Case “htmlPrinter” :
return “html printout" ;
Function savePage(String persistenceType) ;
Switch (persistenceType) :
Case “flatFile” :
return “save page in flat file” ;
Case “mysql” :
return “save page in mysql DB” ;
}

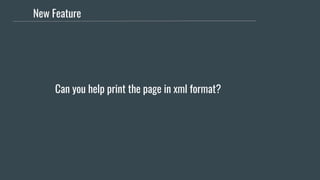

4. New Feature
Can you help print the page in xml format?

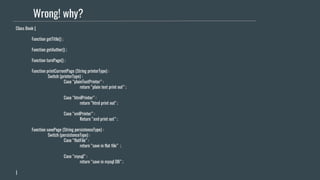

5. Wrong! why?
Class Book {
Function getTitle() ;
Function getAuthor() ;
Function turnPage() ;
Function printCurrentPage (String printerType) :
Switch (printerType) :
Case “plainTextPrinter” :
return “plain text print out” ;
Case “htmlPrinter” :
return “html print out" ;
Case “xmlPrinter” :
Return “xml print out” ;
Function savePage (String persistenceType) :
Switch (persistenceType) :
Case “flatFile” :
return “save in flat file” ;
Case “mysql” :
return “save in mysql DB” ;
}

6. Why these solid principles?
● System Maintainability
● Changes always happen
● Reduce time to add feature/fix bug
● Easier for other engineers or ‘a future you’ to quickly understand the
codebase

7. Solid Principles
S - single responsibility principle
O - open/closed principle
L - liskov substitution principle
I - interface segregation principle
D - dependency inversion principle

8. Solid Principles: Single Responsibility Principle
● Your class should have just one reason to change
● Look for actors in your system
● An actor should have a single job description
● Don’t be confused with a single person acting multiple roles
● Create a class/module for each actor

9. Solid Principles: Single Responsibility Principle
● Three actors
○ Book Reader
○ Printer Man
○ Records Man

10. Solid Principles: Single Responsibility Principle
Class Book {
Function getTitle() ;
Function getAuthor() ;
Function turnPage() ;
Function getCurrentPage() ;
Function getNextPage() ;
}
Class Database {
Function saveBook(String databaseType) ;
Switch (databaseType) :
Case “flatFile” :
return “save in flat file” ;
Case “mysql” :
return “save in mysql DB” ;
}
Class Printer {
Function printBookPage (String printerType) :
Switch (printerType) :
Case “plainTextPrinter” :
return “plain text printout” ;
Case “htmlPrinter” :
return “html printout" ;
}

11. Solid Principles: Open/Closed Principle
● Classes should be open to extension but closed to modifications
● Do not modify classes to add a type of actor in your system

12. Solid Principles: Open/Closed Principle
Printer Class Case Study:
Class Printer {
Function printBookPage (Printer printer) :
printer.print() ;
}
Interface PrinterInterface {
print() ;
}
Class HtmlPrinter implements PrinterInterface {
Function print() :
return “html print out” ;
}
Class PlainTextPrinter implements PrinterInterface {
Function print() :
return “plain text print out” ;
}

13. New Feature
Can you help print the page in xml format?

14. Solid Principles: Liskov Substitution Principle
● Subclasses can substitute parent classes without breaking functionality
(or changing behaviour)
○ New exceptions shouldn’t be thrown in the derived classes
○ Pre conditions cannot be strengthened in the derived classes : integer only
negative example
○ Post conditions cannot be weakened : DB open/close example

15. Solid Principles: Liskov Substitution Principle
Class Printer {
Function printBookPage (PrinterInterface printer) :
printer.print() ;
}
Interface PrinterInterface {
print() ;
}
Class HtmlPrinter implements PrinterInterface {
Function print() :
return “html print out” ;
}
Class BrowserPrinter extends HtmlPrinter {
Function print() :
If (internet explorer) {
Throw IHateInternetExplorerException();
}
return “print browser page” ;
}

16. Solid Principles: Interface Segregation Principle
● Interface should represent one discrete cohesive behaviour
● All methods in an interface should be implemented

17. Solid Principles: Interface Segregation Principle
Interface PrinterInterface {
print() ;
removeInk();
}
Class POSPrinter implements PrinterInterface {
Function print() :
return “POS print out” ;
Function removeInk()
Throw new doesNotHaveInkException;
}
Interface InkableInterface() {
Function removeInk();
}

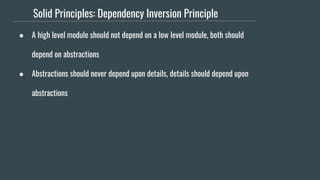

18. Solid Principles: Dependency Inversion Principle
● A high level module should not depend on a low level module, both should
depend on abstractions
● Abstractions should never depend upon details, details should depend upon
abstractions

19. Solid Principles: Dependency Inversion Principle
Class Library {
HtmlPrinter printer = new HtmlPrinter;
Books[] book;
Function printBook (Book) :
Foreach (bookPage) {
This.printer.print(currentPage) ;
}
}
}
Class Library {
PrinterInterface printer;
Books[] book;
Init (PrinterInterface printer) {
This.printer = printer;
}
Function printBook (Book) :
Foreach (bookPage) {
This.printer.print(currentPage) ;
}
}
}

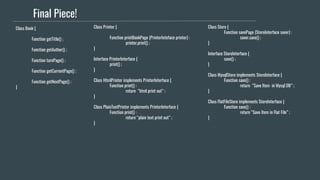

20. Final Piece!
Class Book {
Function getTitle() ;
Function getAuthor() ;
Function turnPage() ;
Function getCurrentPage() ;
Function getNextPage() ;
}
Class Printer {
Function printBookPage (PrinterInteface printer) :
printer.print() ;
}
Interface PrinterInterface {
print() ;
}
Class HtmlPrinter implements PrinterInterface {
Function print() :
return “html print out” ;
}
Class PlainTextPrinter implements PrinterInterface {
Function print() :
return “plain text print out” ;
}
Class Store {
Function savePage (StoreInterface saver) :
saver.save() ;
}
Interface StoreInterface {
save() ;
}
Class MysqlStore implements StoreInterface {
Function save() :
return “Save Item in Mysql DB” ;
}
Class FlatFileStore implements StoreInterface {
Function save() :
return “Save Item in Flat File” ;
}

21. Questions….

22. Kahoot!https://play.kahoot.it/#/k/309f004e-e52e-4f14-bef6-8a2f471e3da8

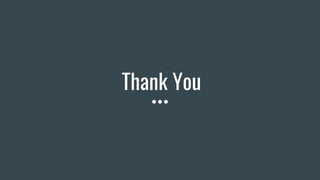

23. Thank You
