1. ExtraRFID Technology Co., Ltd. UHF RFID Long Range Integrated Reader—ER-Lion101
UHF RFID Long Range Integrated Reader—ER-Lion101
Introduction
ER-Lion101 features a high performance-to-price ratio in the current UHF Integrated field,
especially in the long rang reading /reading sector. Based on proprietary efficient digital signal
processing algorithm, it supports fast tag read/write operation without affection of high
identification rate.
Excellent performance and generous feature help it own many loyalty fonders and users in many
different applications, especially in the following given vertical markets: RFID Logistics Tracking,
RFID Automatic Access Control, RFID Auomatic Vehicle Tracking, RFID Intelligent Parking Solution,
RFID Anti-Counterfeit Solution and RFID Industrial Manufacturing Solution.
Features
1. Totally state-of-art technology in-house RFID Reader
2. Support Both Passive UHF Protocol Tag: ISO18000-6B, ISO18000-6C/EPC C1 G2
3. 902~928MHz OR 865~868MHz frequency band(Custom Frequency)
4. FHSS or Fix Frequency transmission
5. RF output power up to 30dbm(adjustable)
6. Internal one 12dbi antenna optional with effect distance up to 15m
7. Support auto-running, interactive and trigger-activating work mode
8. Low power dissipation/output with single +9 DC power supply
9. Support RS232, RS485, Wiegand interface, RJ45(TCP/IP optional), Wi-Fi (optional)
10. Provide DLL and Demonstration Software Source code to facilitate further development
Jimmy Wilson Your Business Partner jimmy.wilson2012@hotmail.com

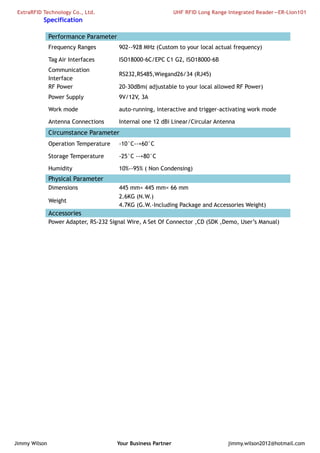

2. ExtraRFID Technology Co., Ltd. UHF RFID Long Range Integrated Reader—ER-Lion101
Specification
Performance Parameter
Frequency Ranges 902--928 MHz (Custom to your local actual frequency)
Tag Air Interfaces ISO18000-6C/EPC C1 G2, ISO18000-6B
Communication
RS232,RS485,Wiegand26/34 (RJ45)
Interface
RF Power 20-30dBm( adjustable to your local allowed RF Power)
Power Supply 9V/12V, 3A
Work mode auto-running, interactive and trigger-activating work mode
Antenna Connections Internal one 12 dBi Linear/Circular Antenna
Circumstance Parameter
Operation Temperature -10°C--+60°C
Storage Temperature -25°C --+80°C
Humidity 10%--95% ( Non Condensing)
Physical Parameter
Dimensions 445 mm× 445 mm× 66 mm
Weight
2.6KG (N.W.)
4.7KG (G.W.-Including Package and Accessories Weight)
Accessories
Power Adapter, RS-232 Signal Wire, A Set Of Connector ,CD (SDK ,Demo, User’s Manual)
Jimmy Wilson Your Business Partner jimmy.wilson2012@hotmail.com
3. ExtraRFID Technology Co., Ltd. UHF RFID Mid-Range Integrated Reader—ER-Tiger101
UHF RFID Mid-Range Integrated Reader—ER-Tiger101
Introduction
ER-Tiger101 features a high performance-to-price ratio in the current UHF Integrated field,
especially in the long rang reading /reading sector. Based on proprietary efficient digital signal
processing algorithm, it supports fast tag read/write operation without affection of high
identification rate.
Excellent performance and generous feature help it own many loyalty fonder and users in many
different applications, especially in the following given vertical markets: RFID Logistics Tracking,
RFID Automatic Access Control, RFID Automatic Vehicle Tracking, RFID Intelligent Parking Solution,
RFID Anti-Counterfeit Solution and RFID Industrial Manufacturing Solution.
Features
1. Totally state-of-art technology in-house RFID Reader
2. Support Both Passive UHF Protocol Tag: ISO18000-6B, ISO18000-6C/EPC C1 G2
3. 902~928MHz OR 865~868MHz frequency band(Custom Frequency)
4. FHSS or Fix Frequency transmission
5. RF output power up to 30dbm(adjustable)
6. 8dbi antenna optional with effect distance up to 6m*
7. Support auto-running, interactive and trigger-activating work mode
8. Low power dissipation/output with single +9 DC power supply
9. Support RS232, RS485, Wiegand interface, RJ45(TCP/IP optional), Wi-Fi (optional)
10. Provide DLL and Demonstration Software Source code to facilitate further development
Jimmy Wilson Your Business Partner jimmy.wilson2012@hotmail.com

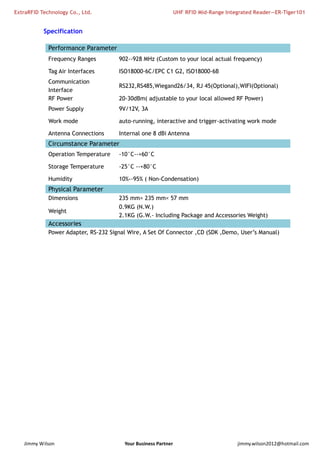

4. ExtraRFID Technology Co., Ltd. UHF RFID Mid-Range Integrated Reader—ER-Tiger101
Specification
Performance Parameter
Frequency Ranges 902--928 MHz (Custom to your local actual frequency)
Tag Air Interfaces ISO18000-6C/EPC C1 G2, ISO18000-6B
Communication
Interface
RS232,RS485,Wiegand26/34, RJ 45(Optional),WIFI(Optional)
RF Power 20-30dBm( adjustable to your local allowed RF Power)
Power Supply 9V/12V, 3A
Work mode auto-running, interactive and trigger-activating work mode
Antenna Connections Internal one 8 dBi Antenna
Circumstance Parameter
Operation Temperature -10°C--+60°C
Storage Temperature -25°C --+80°C
Humidity 10%--95% ( Non-Condensation)
Physical Parameter
Dimensions 235 mm× 235 mm× 57 mm
Weight
0.9KG (N.W.)
2.1KG (G.W.- Including Package and Accessories Weight)
Accessories
Power Adapter, RS-232 Signal Wire, A Set Of Connector ,CD (SDK ,Demo, User’s Manual)
Jimmy Wilson Your Business Partner jimmy.wilson2012@hotmail.com
5. ExtraRFID Technology Co.,Ltd. UHF RFID Four channels Reader-Centipede104
UHF RFID Four channels Reader-Centipede104
Introduction
Centipede104 delivers high reliability and performance in its lifecycle. It can at max connect with
four independent antennas. Its high sensitivity, anti-collision and anti-interference characteristics
allow it identify objects with high speed in a long enough range. It is allowed to connect with RS232,
RS485 even with TCP/IP interfaces which convenient users in most applications. Low profile makes it
attach to any place possible.
Provide SDK, User Manual and Demo for your secondary development which makes the reader adapt
to your application. Built-in LED, Buzzer, GIPO and Relay make it easy to observe the reader/system
work situation.
Specification
Performance Parameter
Frequency Ranges 902--928 MHz (Custom to your local actual frequency)
Protocol ISO18000-6C/EPC C1 G2, ISO18000-6B
Communication
RS232,RS485, TCP/IP(Optional)
Interface
RF Power 0-30dBm( adjustable to your local allowed RF Power)
Power Supply 9V/12V, 3A
Work mode auto-running, interactive and trigger-activating work mode
Antenna Connections 4 TNC antenna ports
Built-in LED, Buzzer, GPIO and Relay
Circumstance Parameter
Operation Temperature -10°C--+60°C
Storage Temperature -25°C --+80°C
Humidity 10%--95% ( Non- Condensation)
Physical Parameter
Dimensions 230mmx170mmx40mm
Weight 1.28KG(N.W), 3.0KG (G.W)
Accessories
Power Adapter, RS-232 Signal Wire, A Set Of Connector ,CD (SDK ,Demo, User Manual)
