RFID Mount On-Metal Tags
The document details various types of RFID tags, specifically designed for on-metal and anti-metal applications, including specifications such as operating frequency (865-867 MHz), dimensions, materials (ABS, PC, PVC), and read ranges. It highlights several models with different mounting options and features, such as passive RFID tags and adhesive types for curved surfaces. Additionally, contact information for the manufacturer, Encstore.com Private Limited, is provided.
RFID Mount On-Metal Tags
- 1.

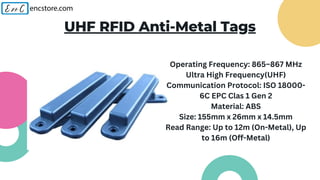

- 2. UHF RFID Anti-MetalTags Operating Frequency: 865–867 MHz Ultra High Frequency(UHF) Communication Protocol: ISO 18000- 6C EPC Clas 1 Gen 2 Material: ABS Size: 155mm x 26mm x 14.5mm Read Range: Up to 12m (On-Metal), Up to 16m (Off-Metal)
- 3. Passive RFID MountOn Metal Tags Material: ABS Dimensions: 85mm x 25mm Mounting: rivets or screw Memory: chip dependent IP rating: IP68
- 4. Long Range AntiMetal RFID Tag Material: PC Size: 87mm x 24mm Mounting: Adhesive, Screw Read Range(by Fixed Reader): 9.8m Read Range(by Handheld Reader): 6m
- 5. UHF RFID PCBAnti-Metal Tag Material: PCB Size: 95mm x 25mm Thickness: 3mm Operating Frequency: 865–867 MHz Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
- 6. ABS UHF RFIDAnti Metal Tag Operating Frequency: 865–867 MHz UHF Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2 Material: ABS Size: 155mm x 26mm x 14.5mm Read Range: Up to 12m (On-Metal), Up to 16m (Off-Metal)
- 7. Operating Frequency: 865–867MHz UHF Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2 Material: PET Size: 45mm x 18mm Adhesive Type: Self-adhesive suitable for curved surfaces UHF RFID Flexi-On Metal Tags

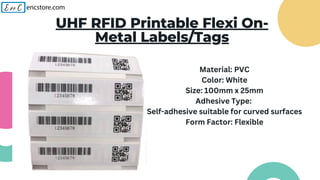

- 8. UHF RFID PrintableFlexi On- Metal Labels/Tags Material: PVC Color: White Size: 100mm x 25mm Adhesive Type: Self-adhesive suitable for curved surfaces Form Factor: Flexible
- 9. Contact Us EnCstore.com PrivateLimited 16D, First Floor, Mahaluxmi Metro Tower, Sector-4, Vaishali, Ghaziabad, Uttar Pradesh-201010 (India) Call us at: +91-8130501143 Email: info@encstore.com Website: https://www.encstore.com/
