This document provides instructions for embedding various multimedia elements into web pages, including sound clips, videos, background sounds, Java applets, and scrolling text marquees. It describes the required HTML tags and attributes to embed media clips and applets, create background sounds, and style and control marquees. Tips are also provided for optimizing multimedia use, such as providing multiple file formats and testing across browsers.

1. Creating a Multimedia
Web Page
Tutorial 9

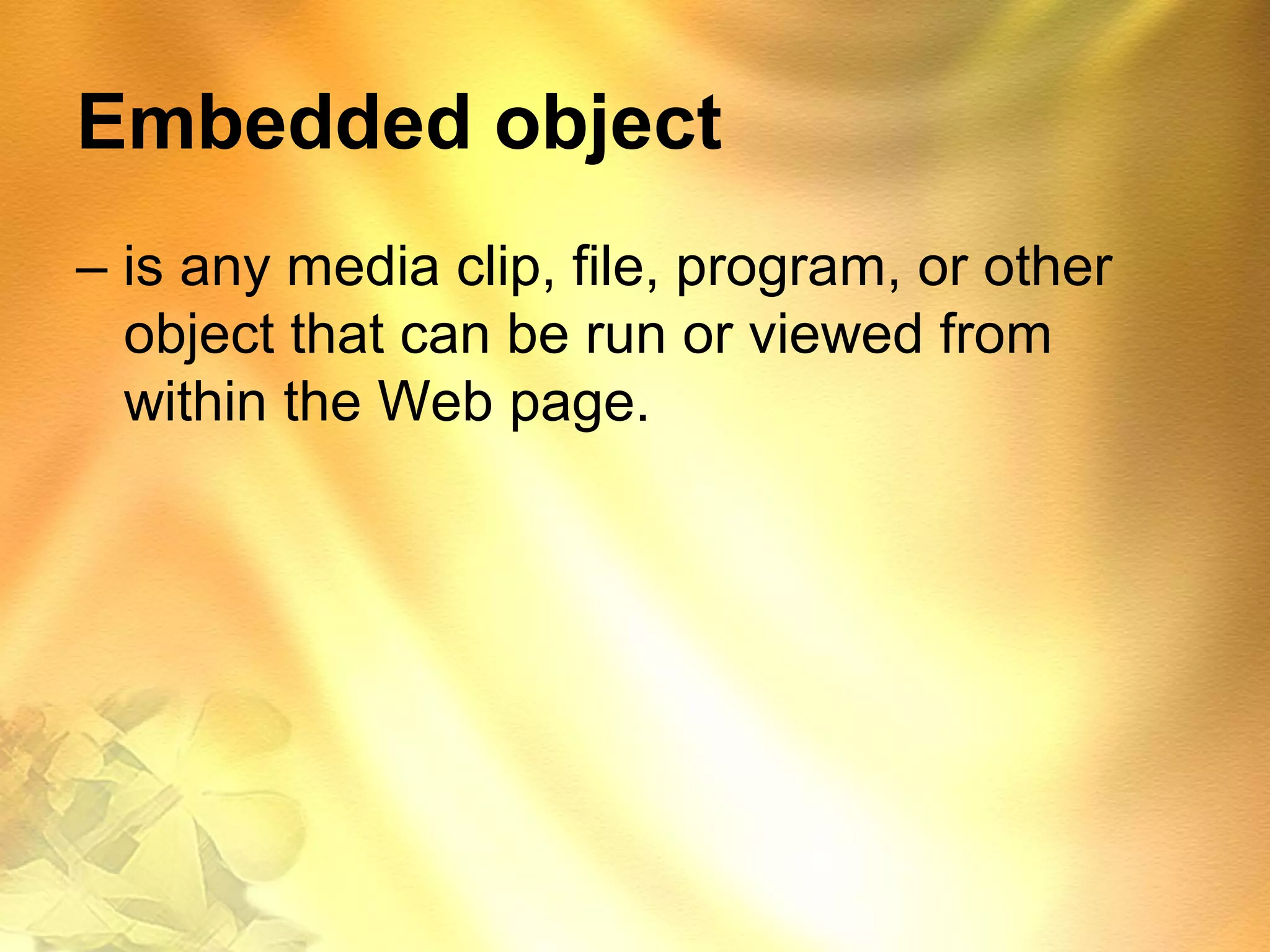

2. Embedded object
– is any media clip, file, program, or other
object that can be run or viewed from
within the Web page.

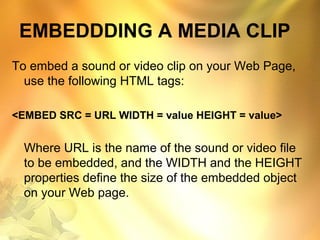

3. EMBEDDDING A MEDIA CLIP
To embed a sound or video clip on your Web Page,
use the following HTML tags:
<EMBED SRC = URL WIDTH = value HEIGHT = value>
Where URL is the name of the sound or video file
to be embedded, and the WIDTH and the HEIGHT
properties define the size of the embedded object
on your Web page.

4. To start the media clip automatically when
the page loads, use the following property
within the <EMBED> tag:
AUTOSTART = “true”

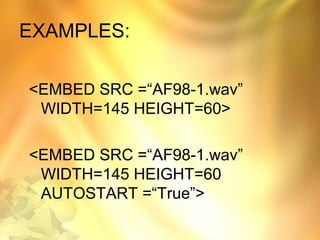

5. EXAMPLES:
<EMBED SRC =“AF98-1.wav”
WIDTH=145 HEIGHT=60>
<EMBED SRC =“AF98-1.wav”
WIDTH=145 HEIGHT=60
AUTOSTART =“True”>

6. CREATING A BACKGROUND
SOUND
To create a background sound ( a sound that is
played automatically when the browser opens
the Web page), use the following tag for Internet
Explorer:
<BGSOUND SRC = URL LOOP = value>
Where URL is the filename or location of the
sound file, and the LOOP parameter determines
how may times the sound file should be played.
Loop can be either a digit or INFINITE.

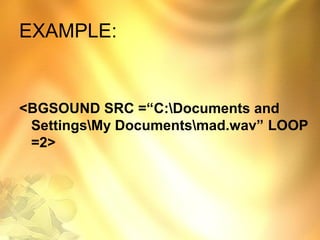

7. EXAMPLE:
<BGSOUND SRC =“C:Documents and
SettingsMy Documentsmad.wav” LOOP
=2>

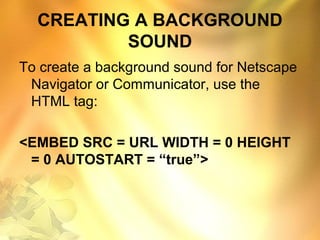

8. CREATING A BACKGROUND
SOUND
To create a background sound for Netscape
Navigator or Communicator, use the
HTML tag:
<EMBED SRC = URL WIDTH = 0 HEIGHT
= 0 AUTOSTART = “true”>

9. EXAMPLE:
<EMBED SRC =“C:Documents and
SettingsMy Documentsmad.wav”
WIDTH=0 HEIGHT=0
AUTOSTART=True”>

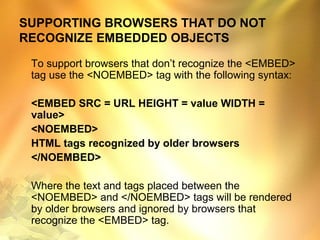

10. SUPPORTING BROWSERS THAT DO NOT
RECOGNIZE EMBEDDED OBJECTS
To support browsers that don’t recognize the <EMBED>
tag use the <NOEMBED> tag with the following syntax:
<EMBED SRC = URL HEIGHT = value WIDTH =
value>
<NOEMBED>
HTML tags recognized by older browsers
</NOEMBED>
Where the text and tags placed between the
<NOEMBED> and </NOEMBED> tags will be rendered
by older browsers and ignored by browsers that
recognize the <EMBED> tag.

11. TIPS FOR USING MULTIMEDIA IN
YOUR WEB PAGE
• Avoid embedding large files on your Web page if the
page will be accessed by users with slow Internet
connections. Use hyperlinks instead.
• Always indicate the size of the media clip when creating
a hyperlink to it, so that your users know how large the
file is before committing to retrieving it.
• Provide different media formats to your users. Provide
both AVI and QuickTime versions of your video files.
Provide both WAV and AU versions of your audio files.
• Test your media clips on different browsers and browser
versions.

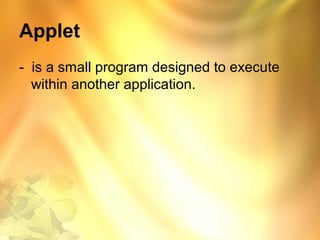

12. Applet
- is a small program designed to execute
within another application.

13. INSERTING A JAVA APPLET
To insert a Java applet, use the following syntax:
<APPLET CODE = file.class WIDTH = value HEIGHT = value>
<PARAM>
<PARAM>
….
<PARAM>
</APPLET>
Where file.class is the name of the applet that is called by the browser, and the
WIDTH and HEIGHT properties define the size of the applet window a it appears
on the Web page.
If the applet requires some parameters in order to function, enter the parameter
values with the following syntax:
<PARAM NAME = text VALUE = value>
where the NAME property is the name of the particular parameter, and the
VALUE property is the value that you want to assign to it.

14. INSERTING A JAVA APPLET
To access a Java applet located in a
different folder from the one that contains
the current HTML file, insert the following
property in the <APPLET> tag:
CODEBASE = URL
Where URL is the location of the file.class
file.

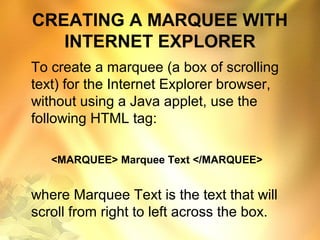

15. CREATING A MARQUEE WITH
INTERNET EXPLORER
To create a marquee (a box of scrolling
text) for the Internet Explorer browser,
without using a Java applet, use the
following HTML tag:
<MARQUEE> Marquee Text </MARQUEE>
where Marquee Text is the text that will
scroll from right to left across the box.

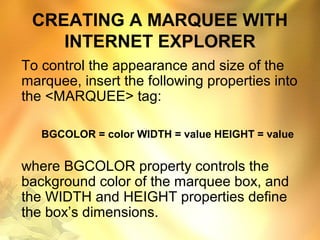

16. CREATING A MARQUEE WITH
INTERNET EXPLORER
To control the appearance and size of the
marquee, insert the following properties into
the <MARQUEE> tag:
BGCOLOR = color WIDTH = value HEIGHT = value
where BGCOLOR property controls the
background color of the marquee box, and
the WIDTH and HEIGHT properties define
the box’s dimensions.

17. CREATING A MARQUEE WITH
INTERNET EXPLORER
To create a marquee (a box of scrolling
text) for the Internet Explorer browser,
without using a Java applet, use the
following HTML tag:
<MARQUEE> Marquee Text </MARQUEE>
where Marquee Text is the text that will
scroll from right to left across the box.

18. CREATING A MARQUEE WITH
INTERNET EXPLORER
To control the placement of the marquee with
the surrounding text, use the properties:
HSPACE = value VSPACE = value ALIGN = alignment
where the HSPACE and VSPACE properties
define the amount of horizontal and vertical
space around the box (in pixels), and the ALIGN
property determines the alignment of the box
with the surrounding text.

19. CREATING A MARQUEE WITH
INTERNET EXPLORER
To control the behavior of text within the marquee, use
the properties:
BEHAVIOR = item DIRECTION = item LOOP = value
where BEHAVIOR is either SCROLL (to continuously
scroll the text across the box), SLIDE (to slide the text
across the box, or ALTERNATE (to bounce the text back
and forth across the box). The DIRECTION property is
either LEFT or RIGHT, defining in which direction the
text moves. The LOOP value determines how often the
text moves across the box, and either a digit or
INFINITE.

20. CREATING A MARQUEE WITH
INTERNET EXPLORER
To control the speed of the text within the
marquee, use the properties:
SCROLLAMOUNT = value SCROLLDELAY =
value
Where SCROLLAMOUNT is the amount of
space (in pixels) that the text moves each time it
advances across the page, and SCROLLDELAY
is the amount of time, in milliseconds, between
text advances.

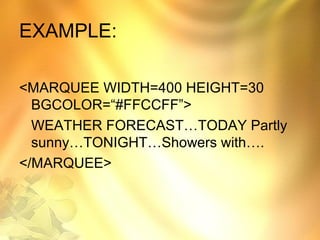

21. EXAMPLE:
<MARQUEE WIDTH=400 HEIGHT=30
BGCOLOR=“#FFCCFF”>
WEATHER FORECAST…TODAY Partly
sunny…TONIGHT…Showers with….
</MARQUEE>

22. Fin
