1. Structure Identification Approaches Using the
US-EPA CompTox Chemicals Dashboard to
Support Mass Spectrometry Analyses
Triangle Area Mass Spectrometry
RTP, January 2020
http://www.orcid.org/0000-0002-2668-4821
The views expressed in this presentation are those of the author and do not necessarily reflect the views or policies of the U.S. EPA
Antony Williams
Center for Computational Toxicology and Exposure, US-EPA, RTP, NC
…and an enormous cast of characters

2. Outline
• Quick overview of the dashboard
• Specific data of interest to this audience
(it’s not just Computational Toxicology)
• Support for Mass Spectrometry
• Data quality in the public domain
• Work in progress – prototypes
• A request for help
1

3. 2
SEARCH
TOX DATA
BIOACTIVITY
SIMILARITY
READ-ACROSS
PUBMED
BATCH SEARCH

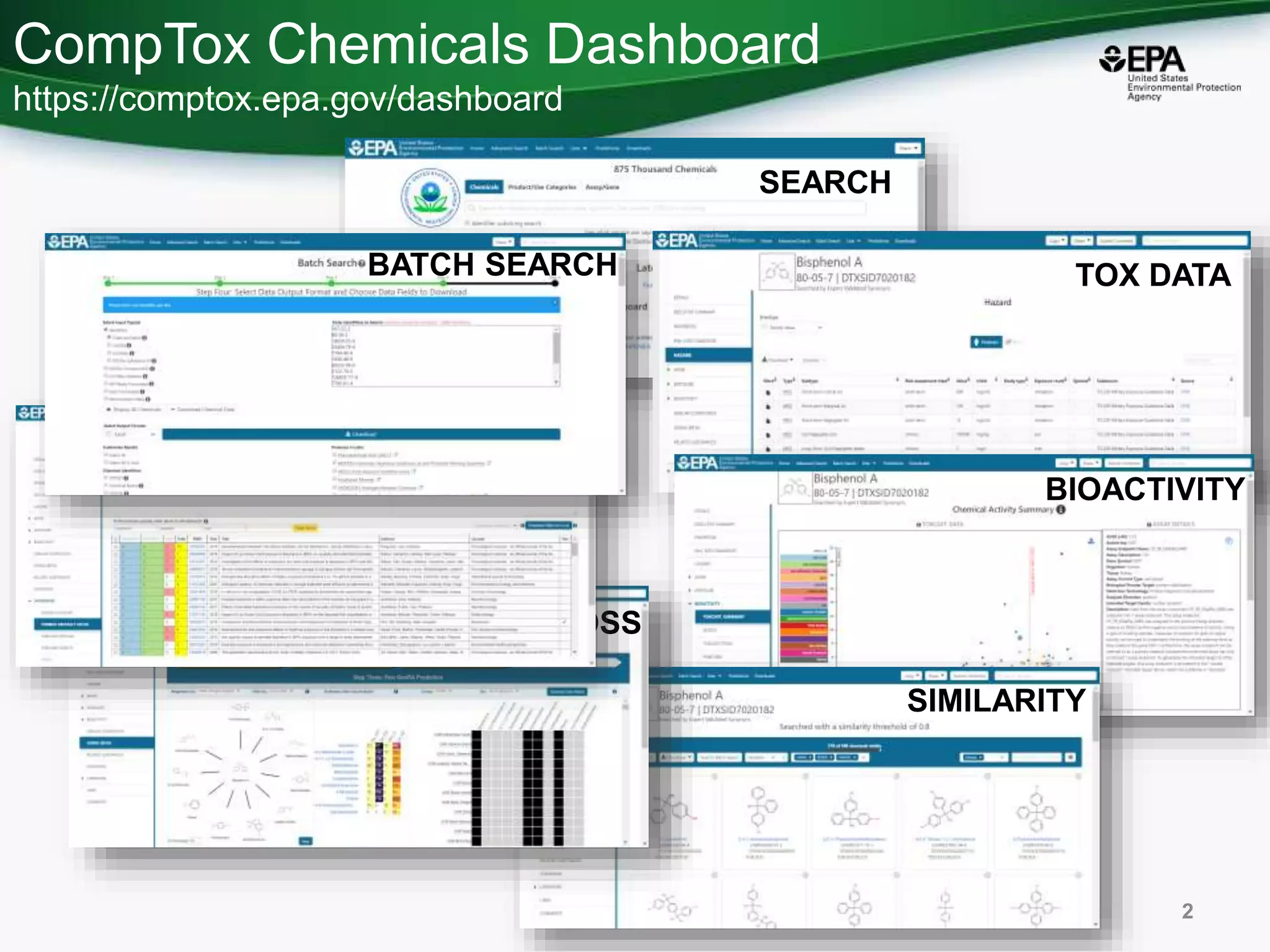

CompTox Chemicals Dashboard
https://comptox.epa.gov/dashboard

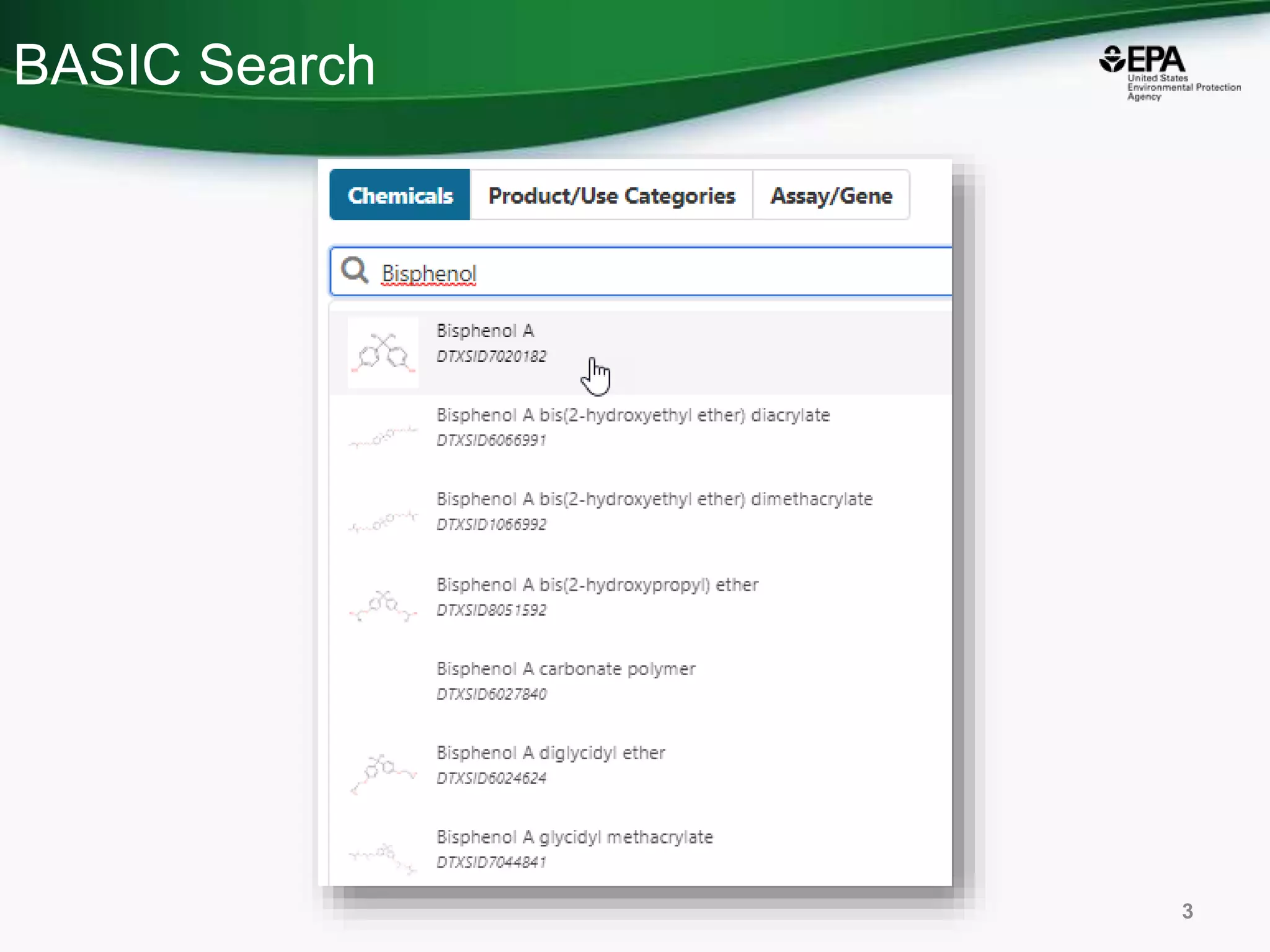

4. BASIC Search
3

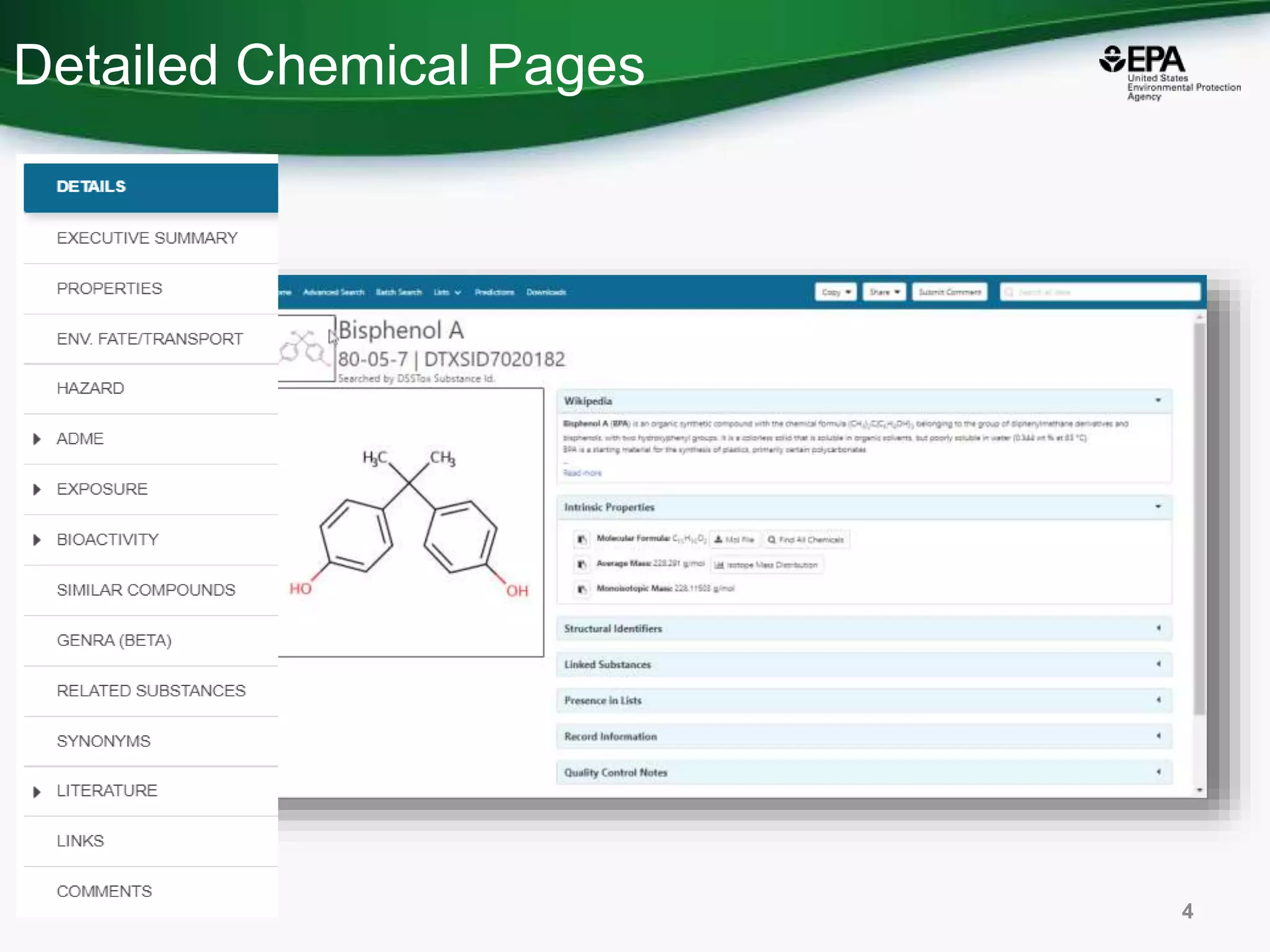

5. Detailed Chemical Pages
4

6. Properties, Fate and Transport
5

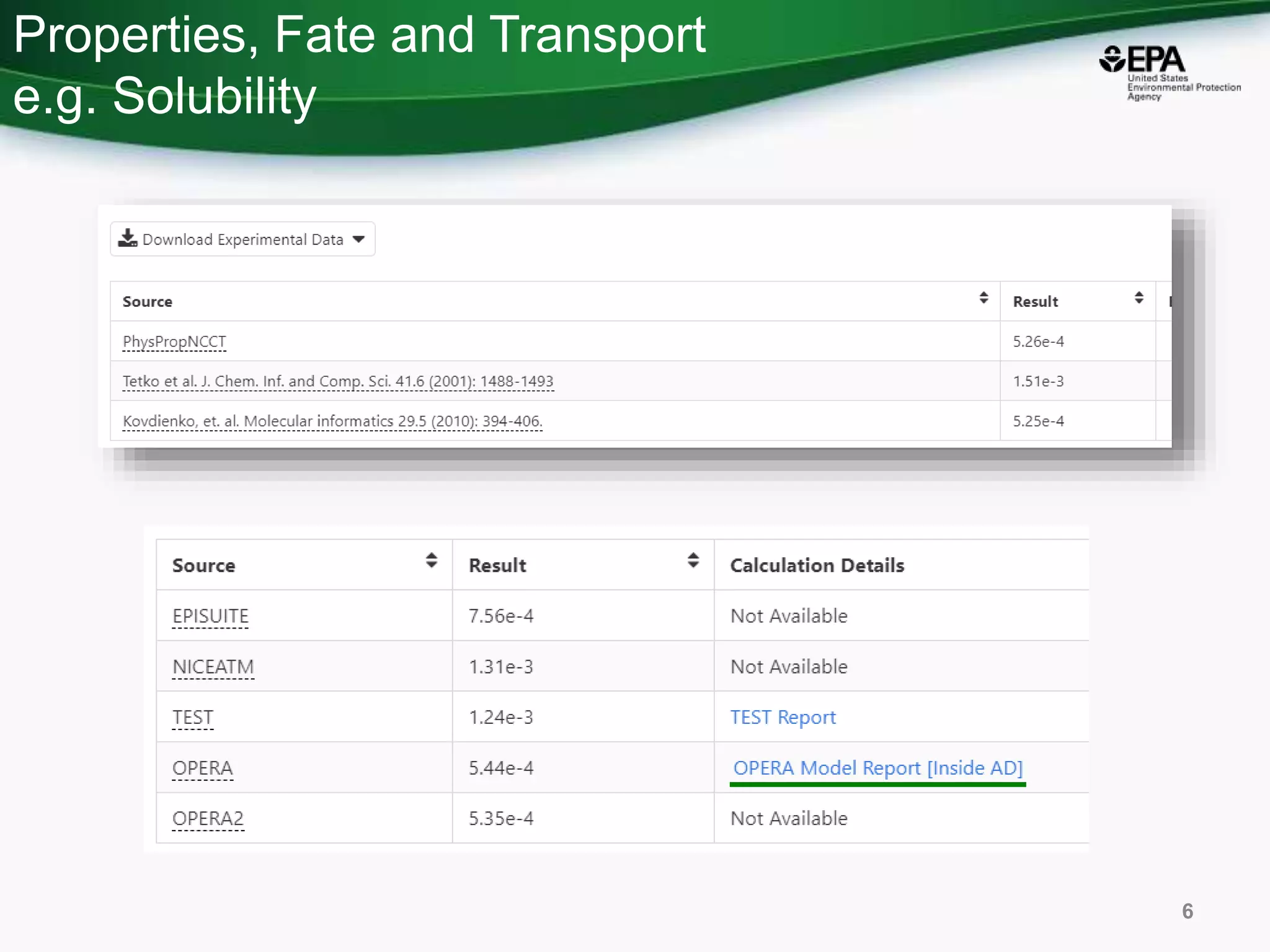

7. Properties, Fate and Transport
e.g. Solubility
6

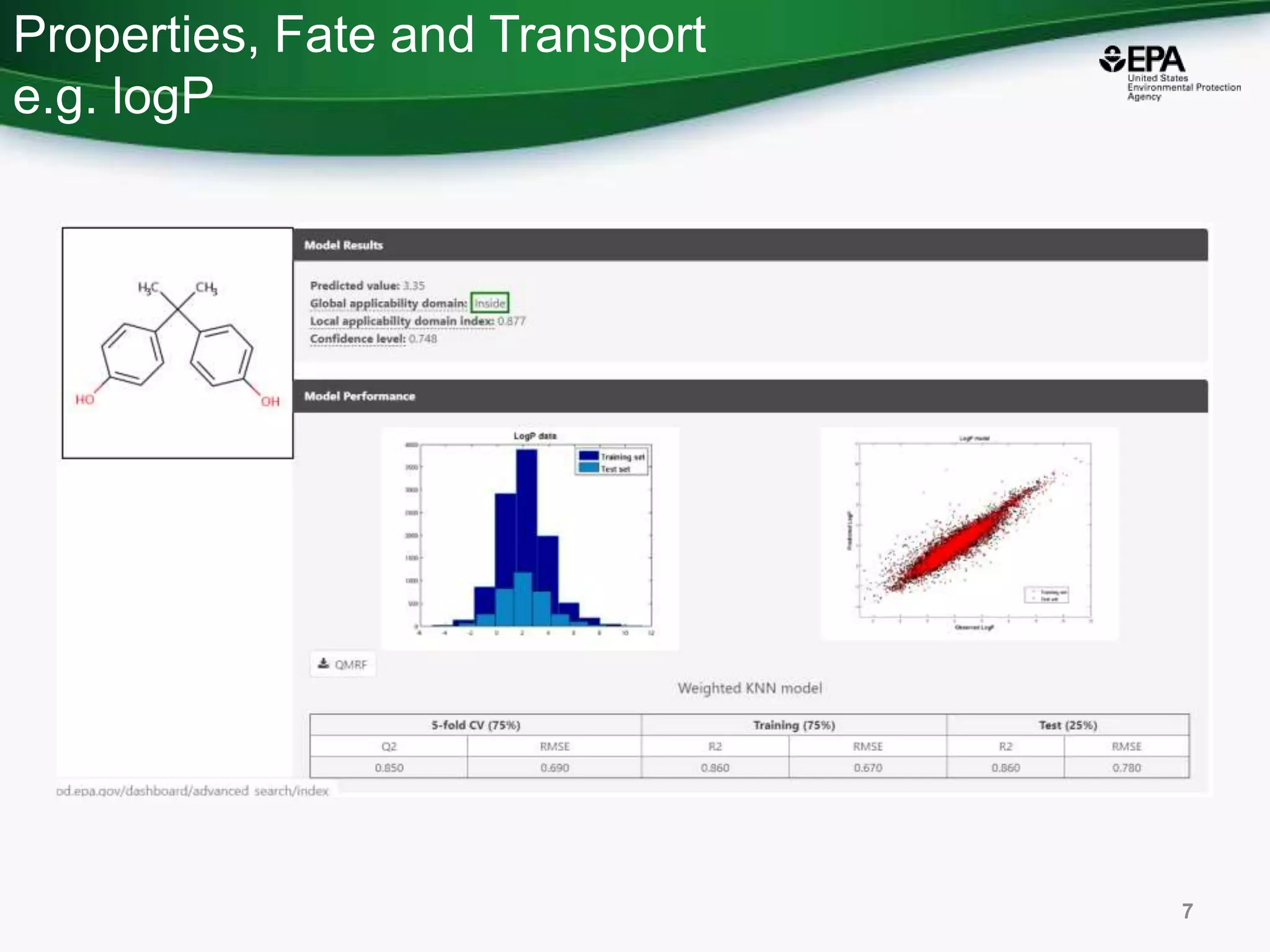

8. Properties, Fate and Transport
e.g. logP
7

9. Sources of Exposure to Chemicals
8

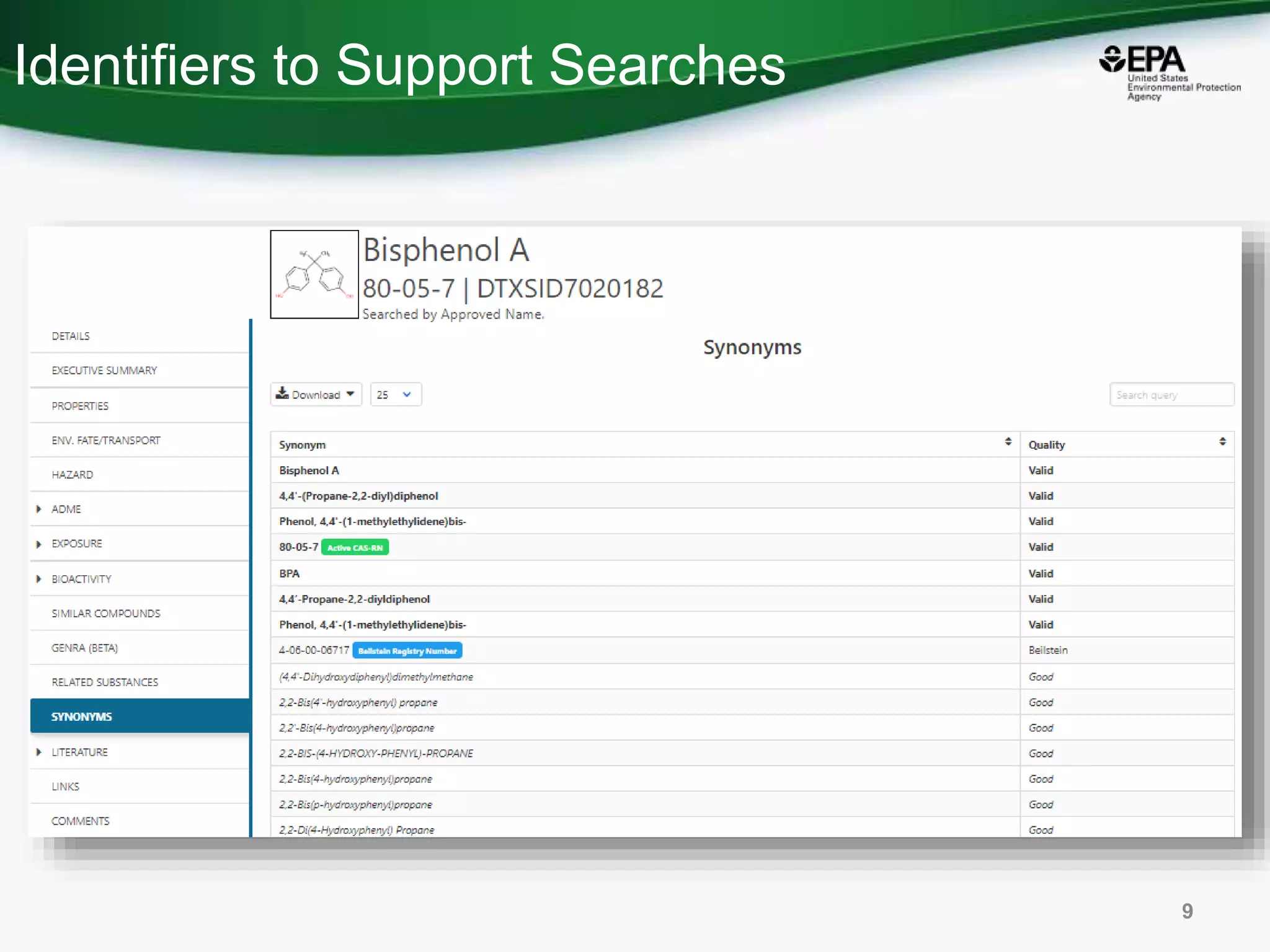

10. Identifiers to Support Searches
9

11. Link Access
10

12. Mass Spec Links
11

13. NIST WebBook
https://webbook.nist.gov/chemistry/
12

14. MassBank of North America
https://mona.fiehnlab.ucdavis.edu
13

15. Batch
Searching
14

16. Aggregate data for a list of chemicals
15

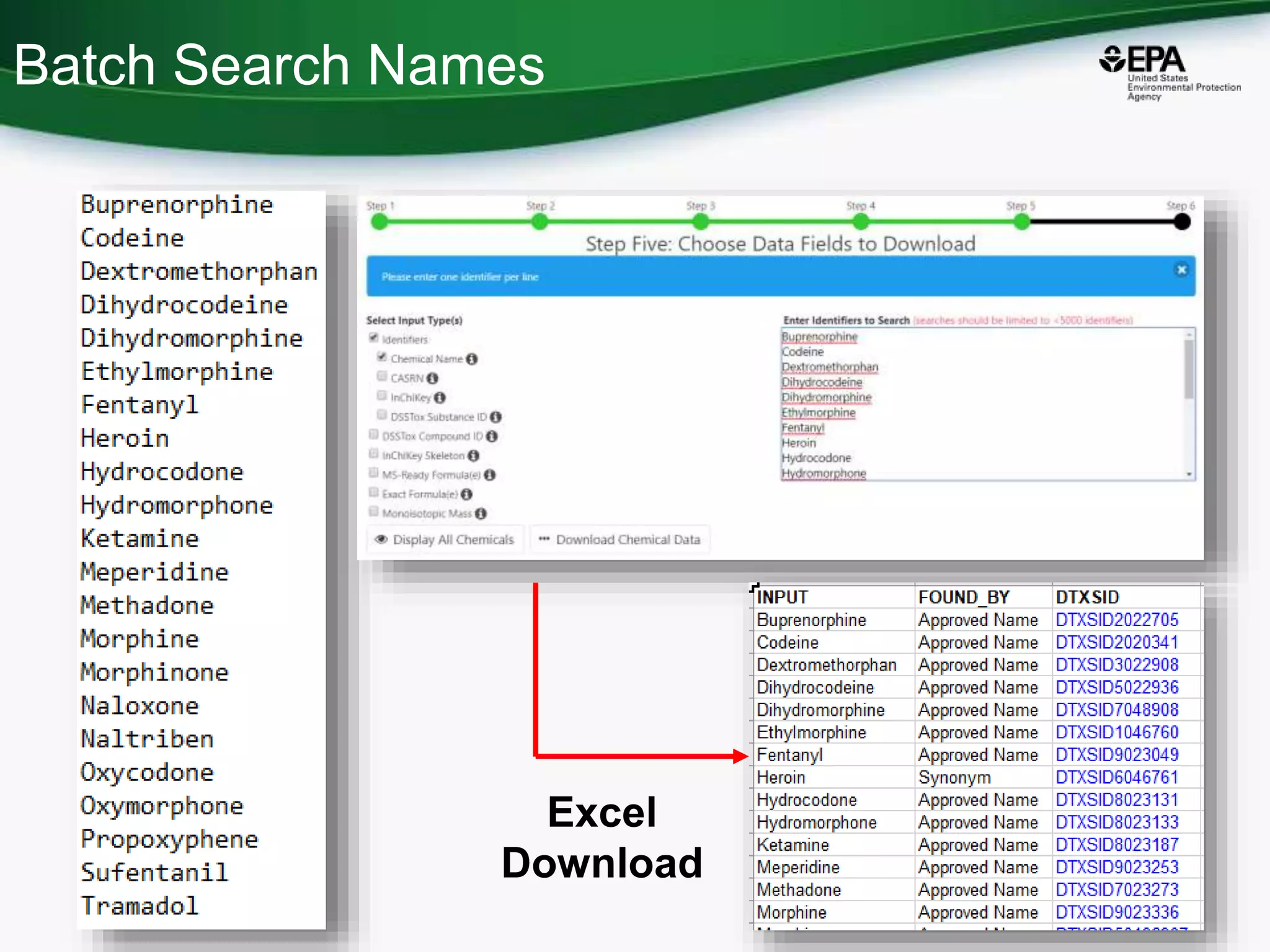

17. Batch Search Names
16
Excel
Download

18. Add Other Data of Interest
17

19. Chemical Lists of
Interest…
18

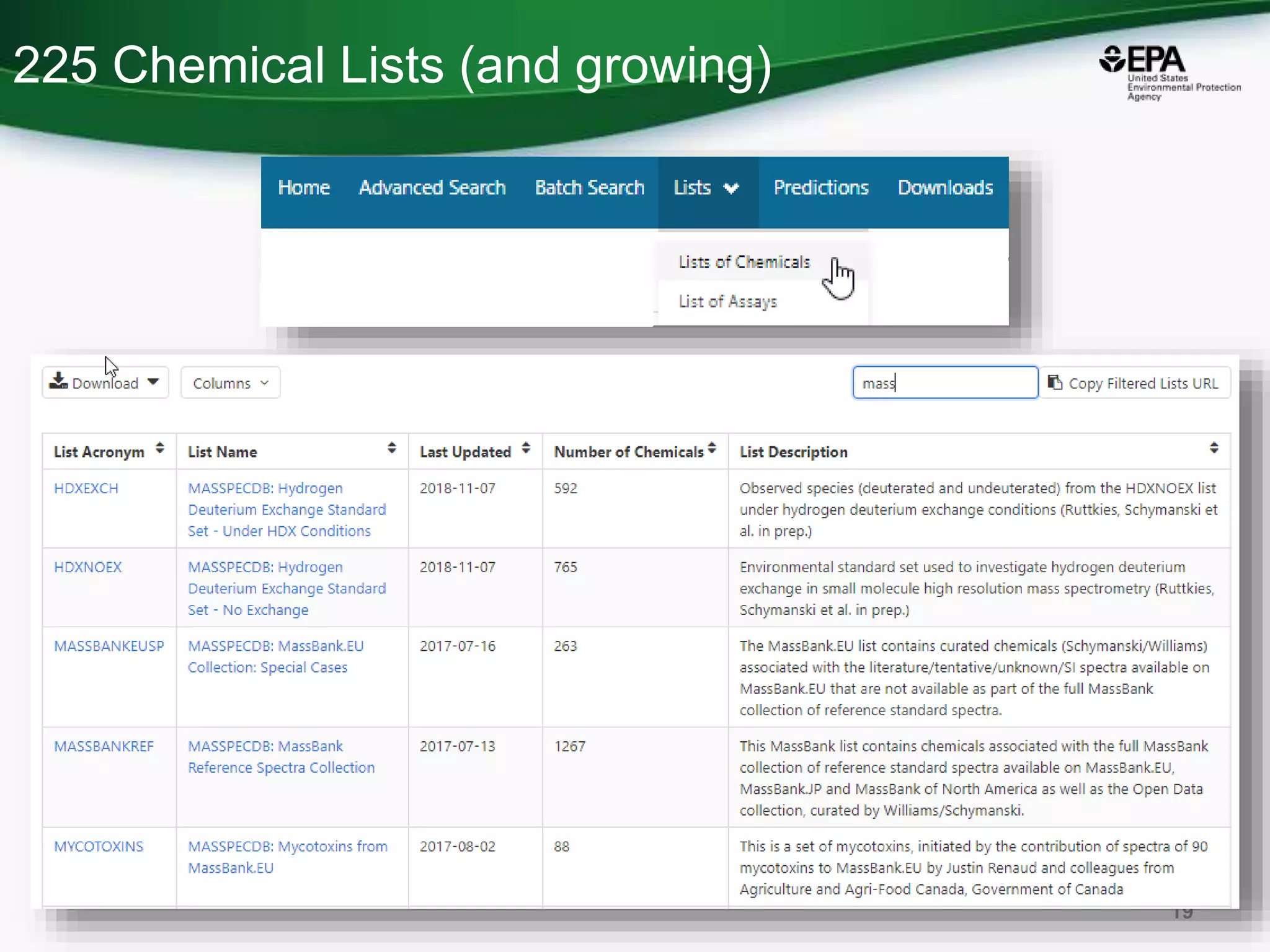

20. 225 Chemical Lists (and growing)
19

21. “Volatilome” Human Breath

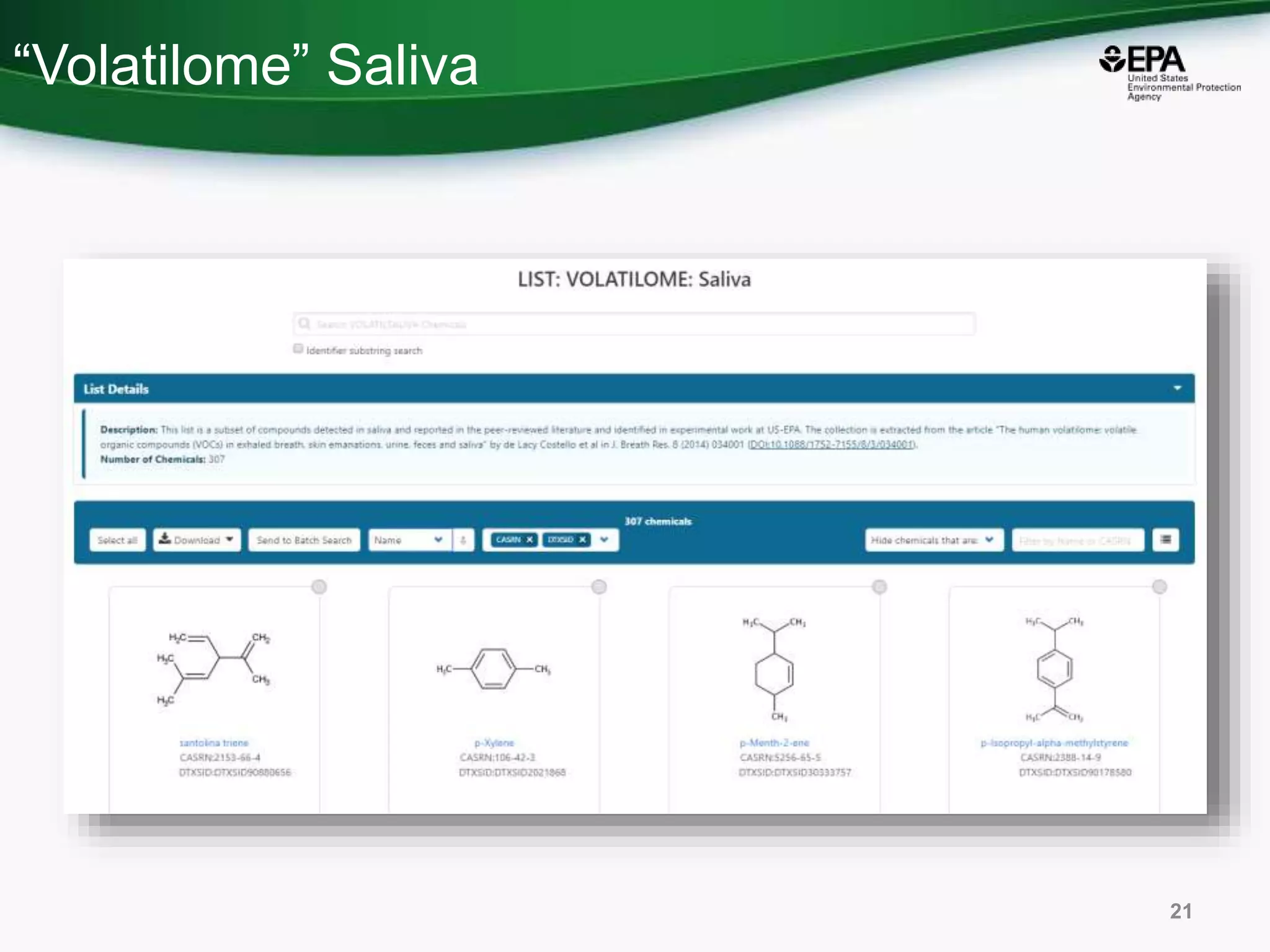

20

22. “Volatilome” Saliva
21

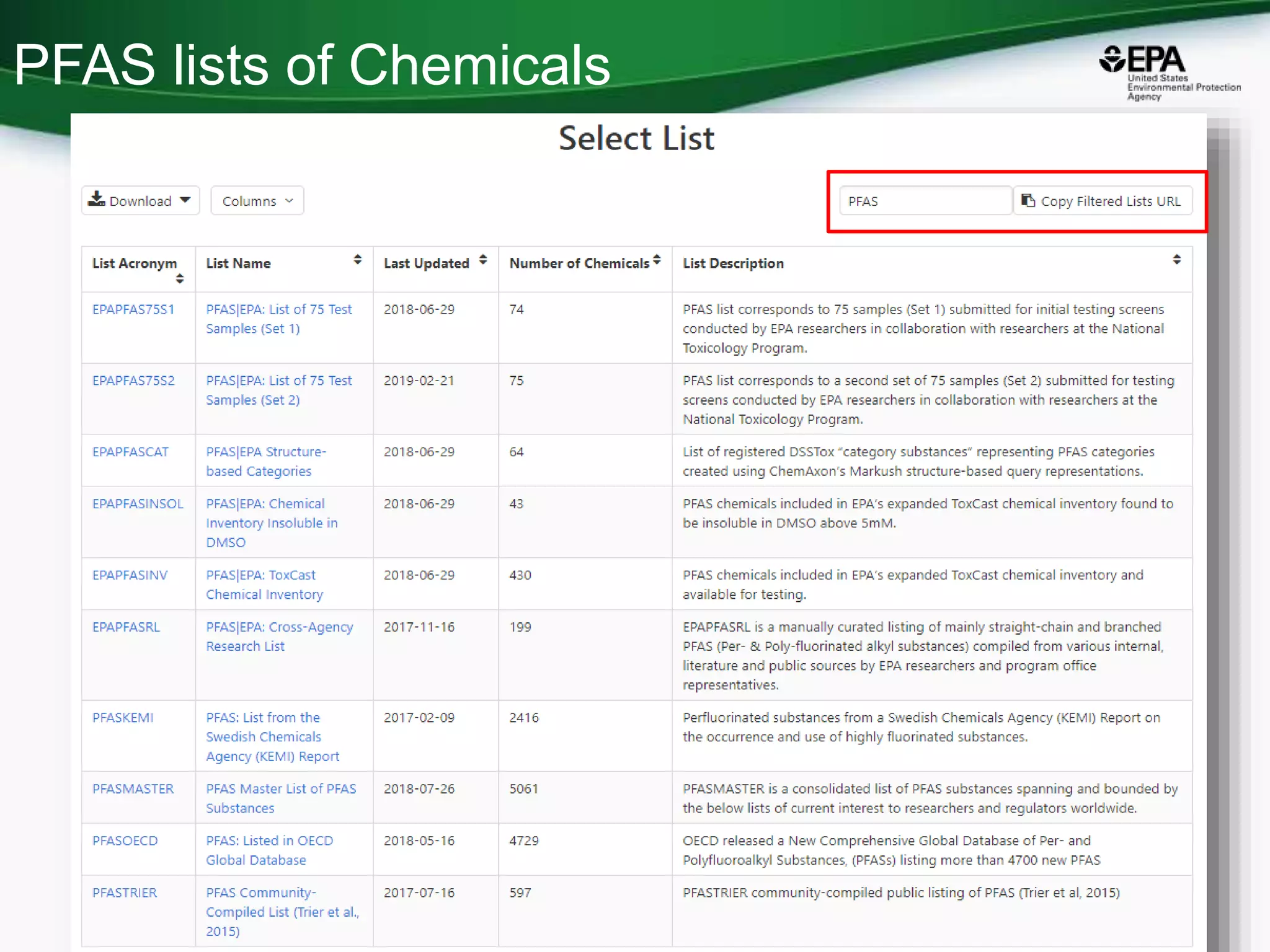

23. PFAS lists of Chemicals
22

24. Building a “reference” PFAS list
• PFAS structure list (PFASSTRUCT)
is expanded from public databases, EPA
agency lists and literature
• Approaching ~7000 structures – 98.8% have
associated CAS Numbers
• Compare with PubChem 220,720 structures
23

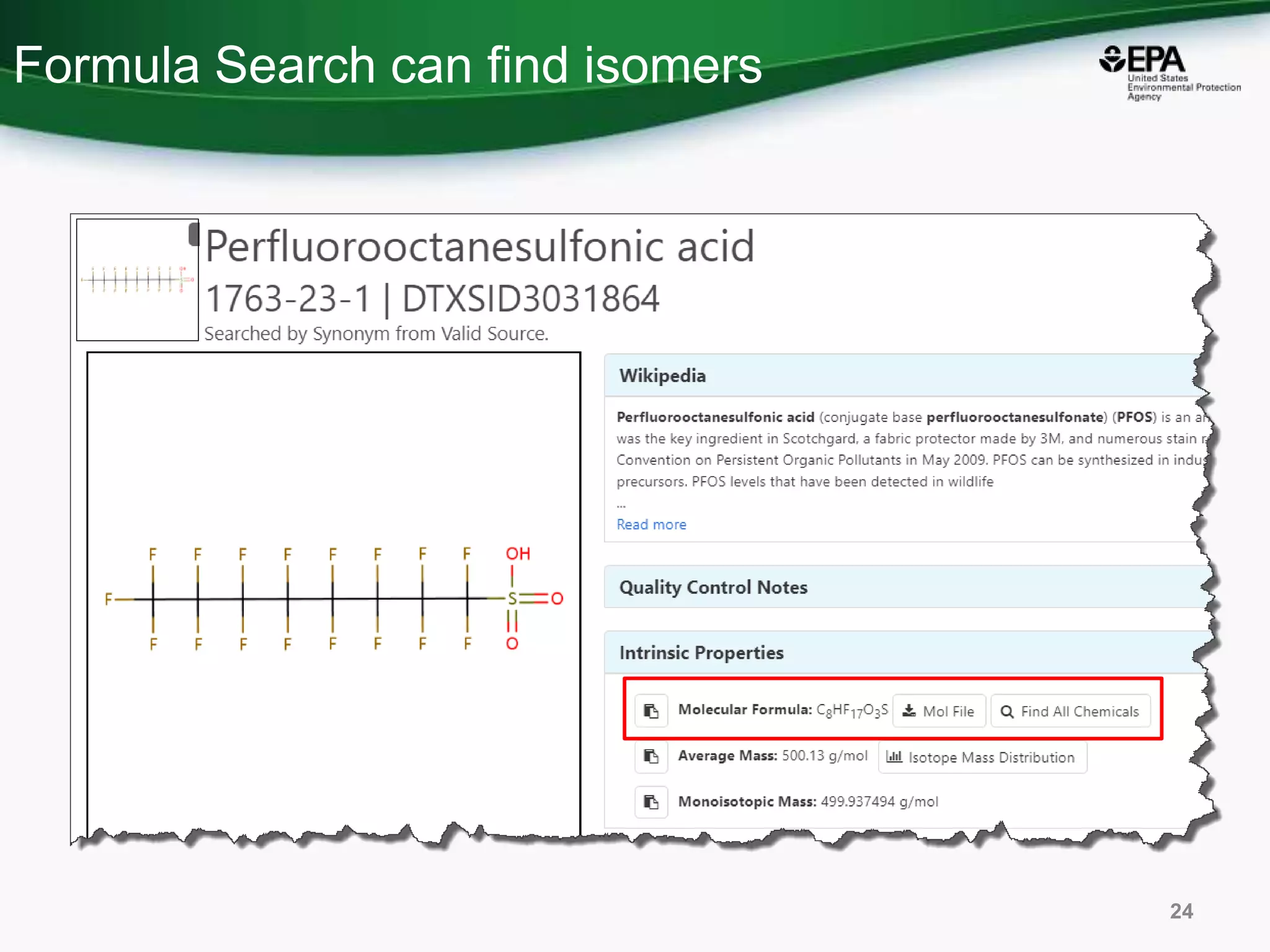

25. Formula Search can find isomers
24

26. Active expansion of the PFAS list
From 2 to 8 variants of PFOS
25

27. Disinfection By-Products
26

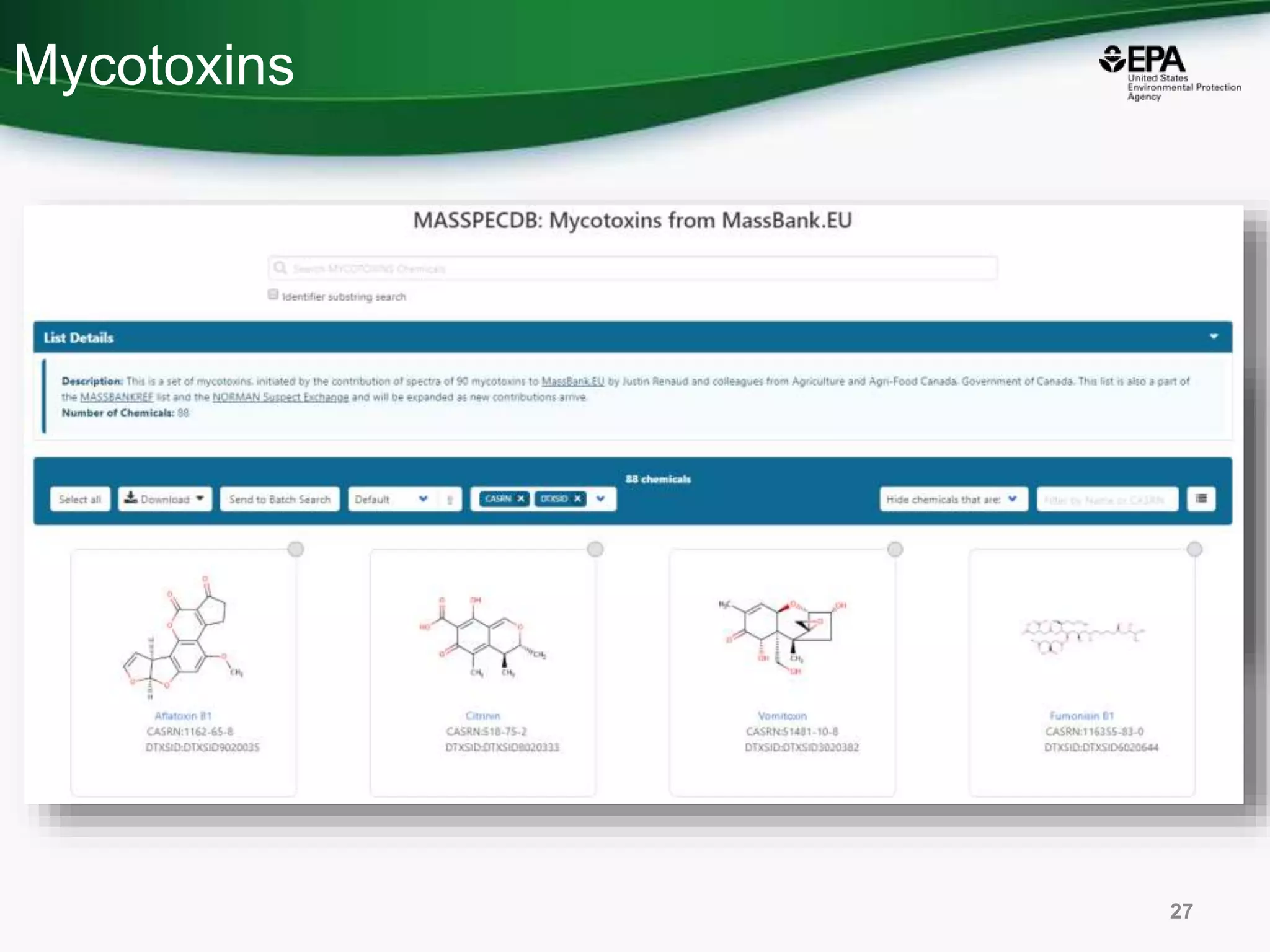

28. Mycotoxins
• Two lists: 328 and 88 members
27

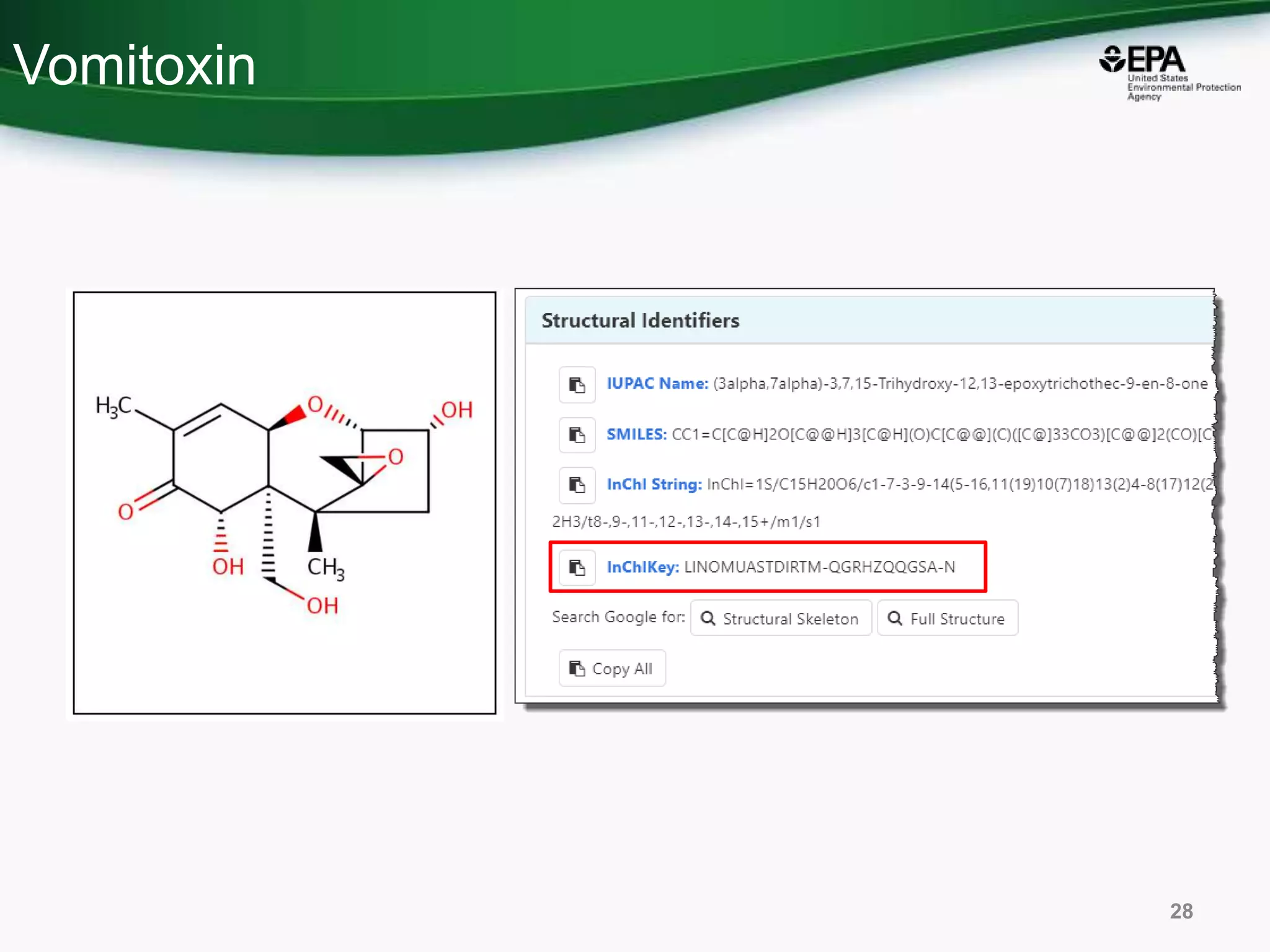

29. Vomitoxin
28

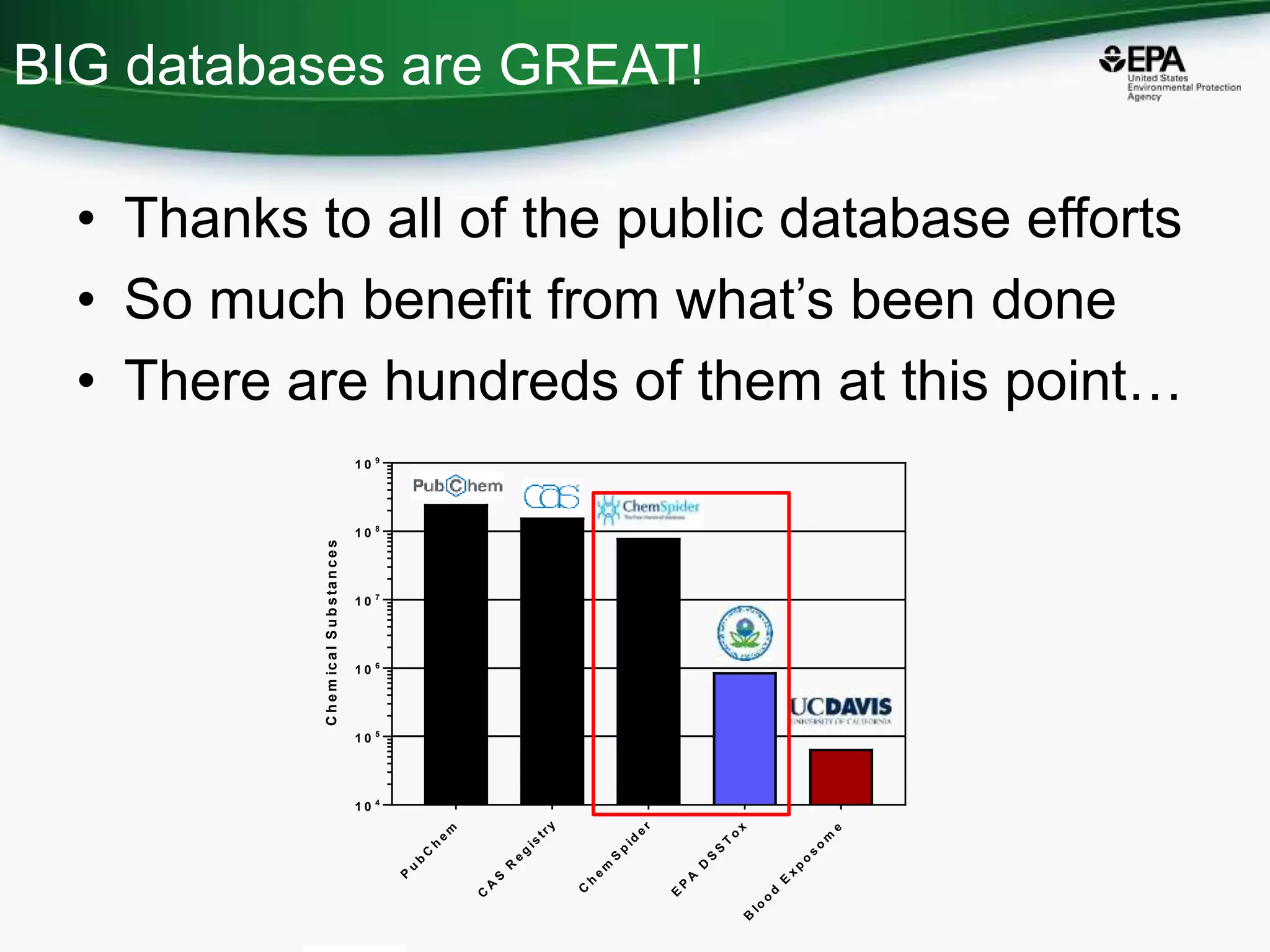

30. BIG databases are GREAT!
P
u
b
C
h
e
m
C
A
S
R
e
g
is
try
C
h
e
m
S
p
id
e
r
E
P
A
D
S
S
T
o
x
B
lo
o
d
E
x
p
o
s
o
m
e
1 0 4
1 0 5
1 0 6
1 0 7
1 0 8
1 0 9
ChemicalSubstances
• Thanks to all of the public database efforts
• So much benefit from what’s been done
• There are hundreds of them at this point…

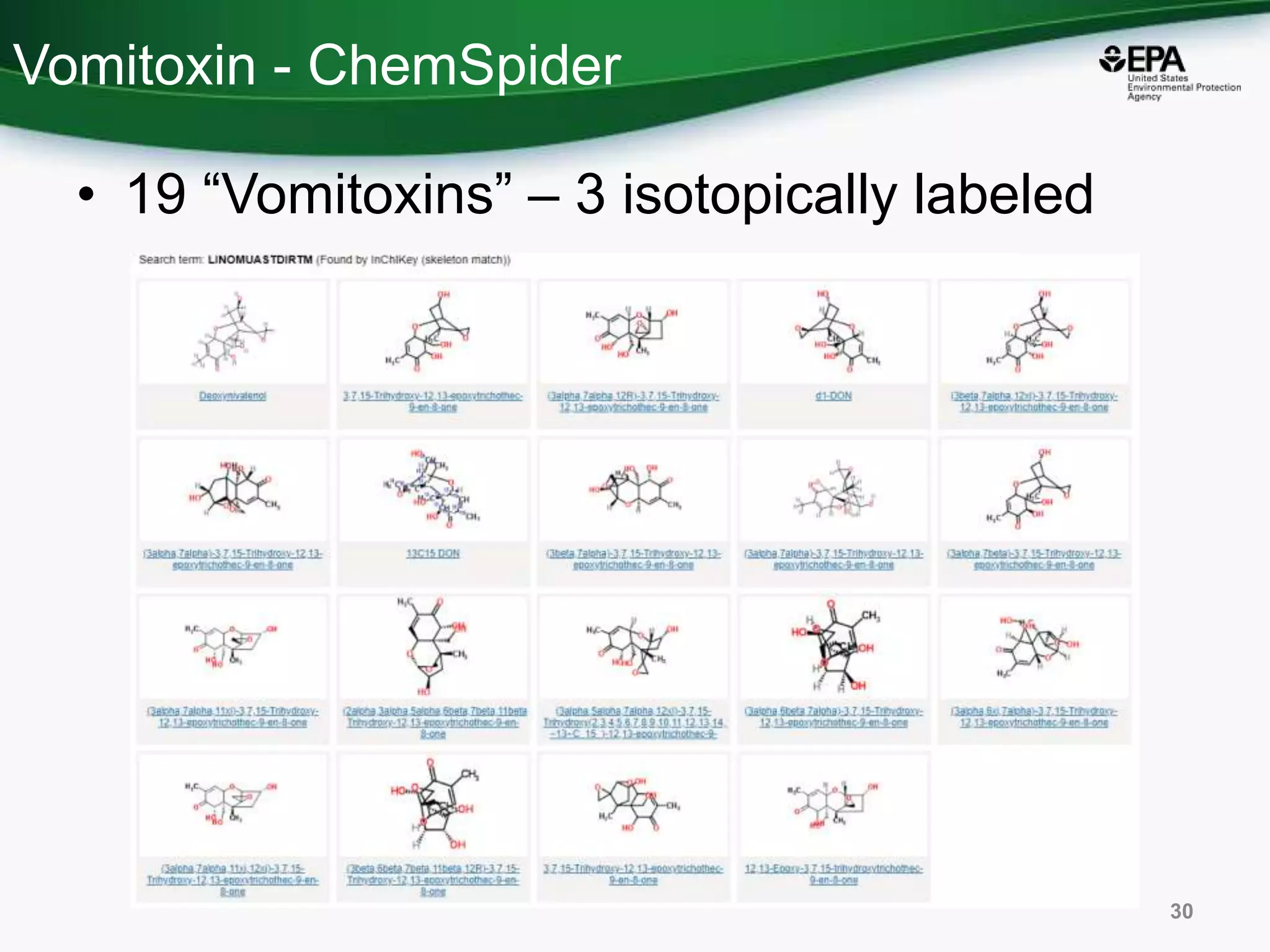

31. Vomitoxin - ChemSpider
• 19 “Vomitoxins” – 3 isotopically labeled
30

32. Vomitoxin – PubChem
31
• 33 unique InChI Keys

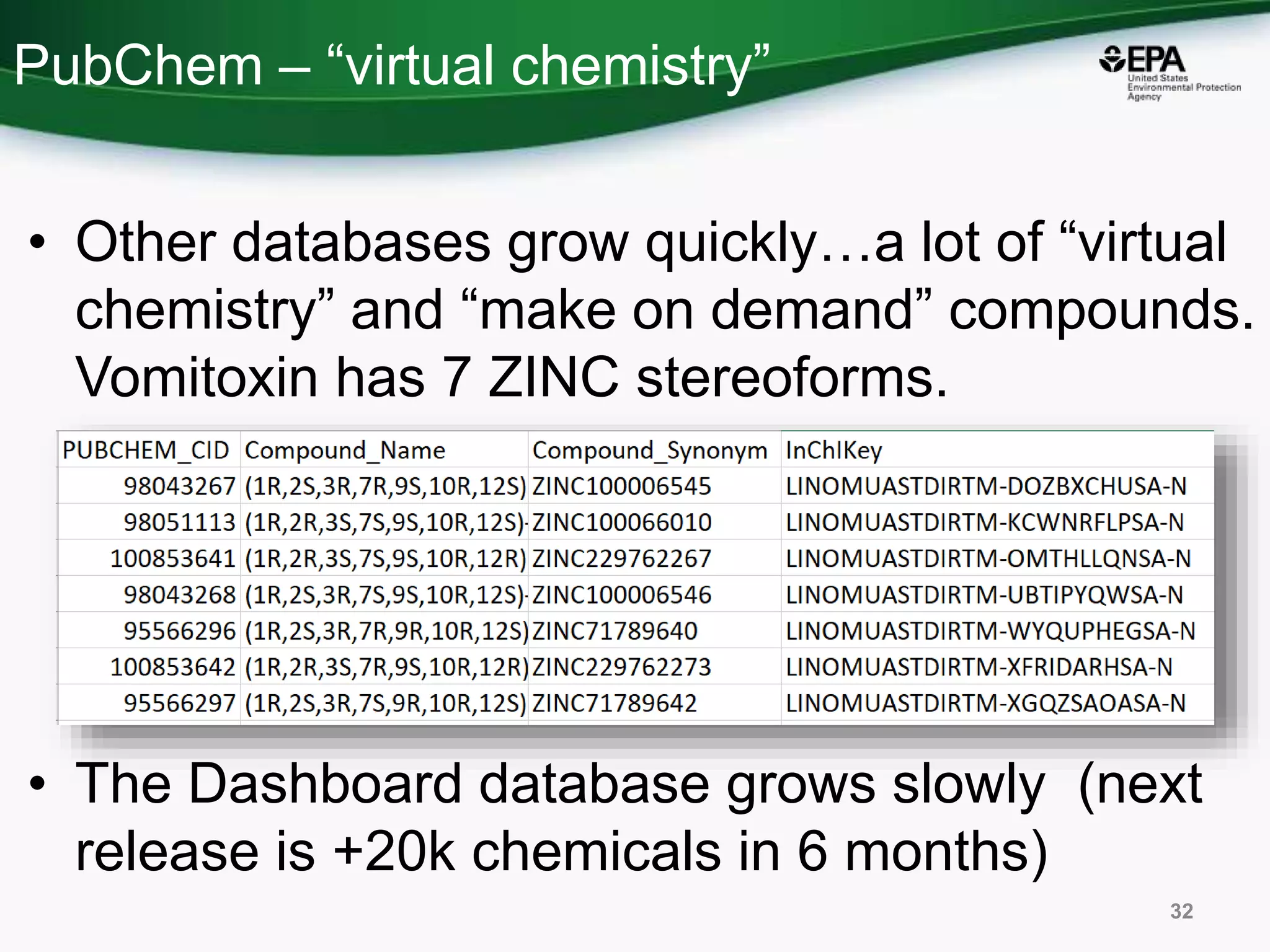

33. PubChem – “virtual chemistry”
• Other databases grow quickly…a lot of “virtual
chemistry” and “make on demand” compounds.
Vomitoxin has 7 ZINC stereoforms.
• The Dashboard database grows slowly (next
release is +20k chemicals in 6 months)
32

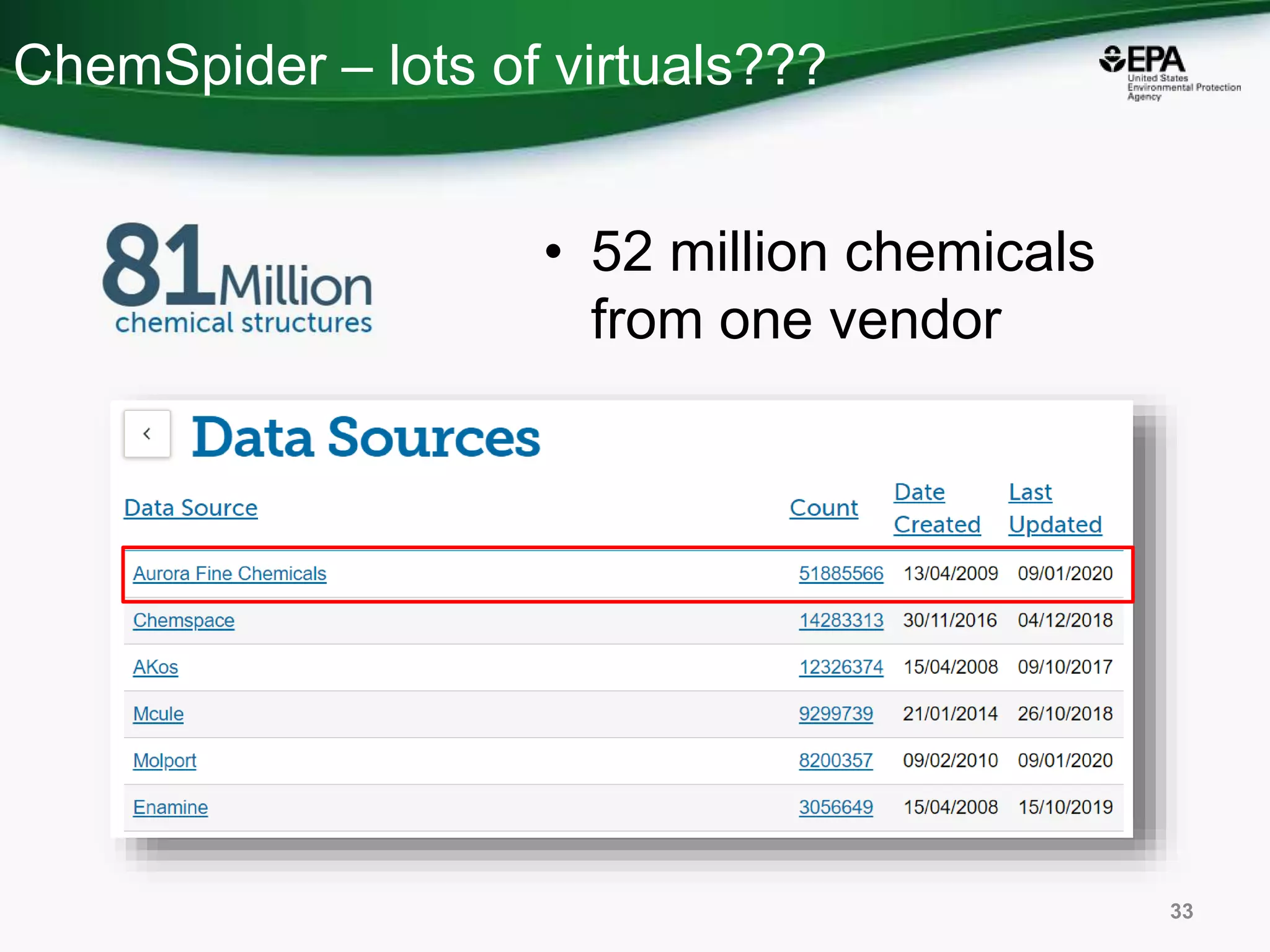

34. ChemSpider – lots of virtuals???
33
• 52 million chemicals
from one vendor

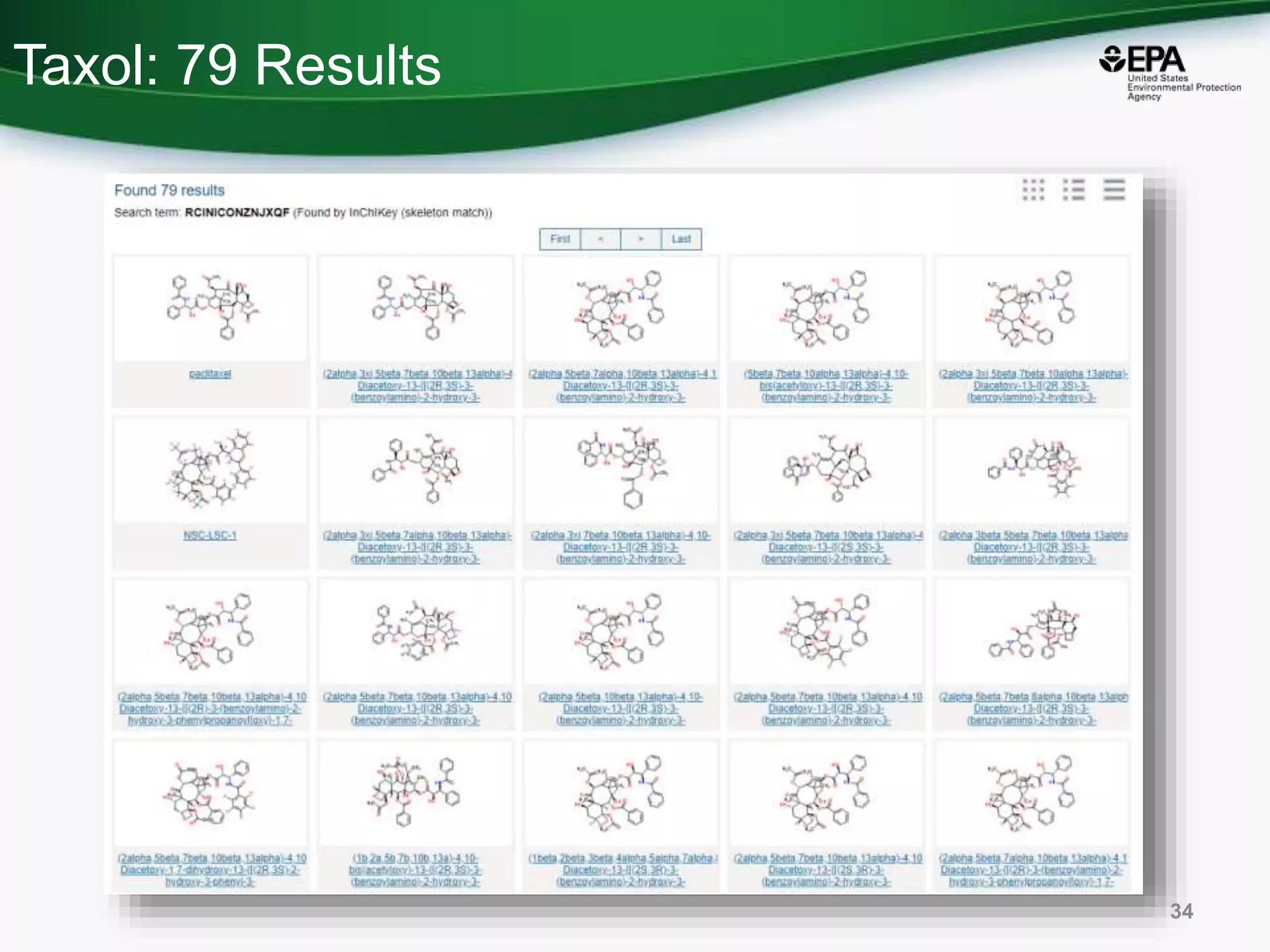

35. Taxol: 79 Results
34

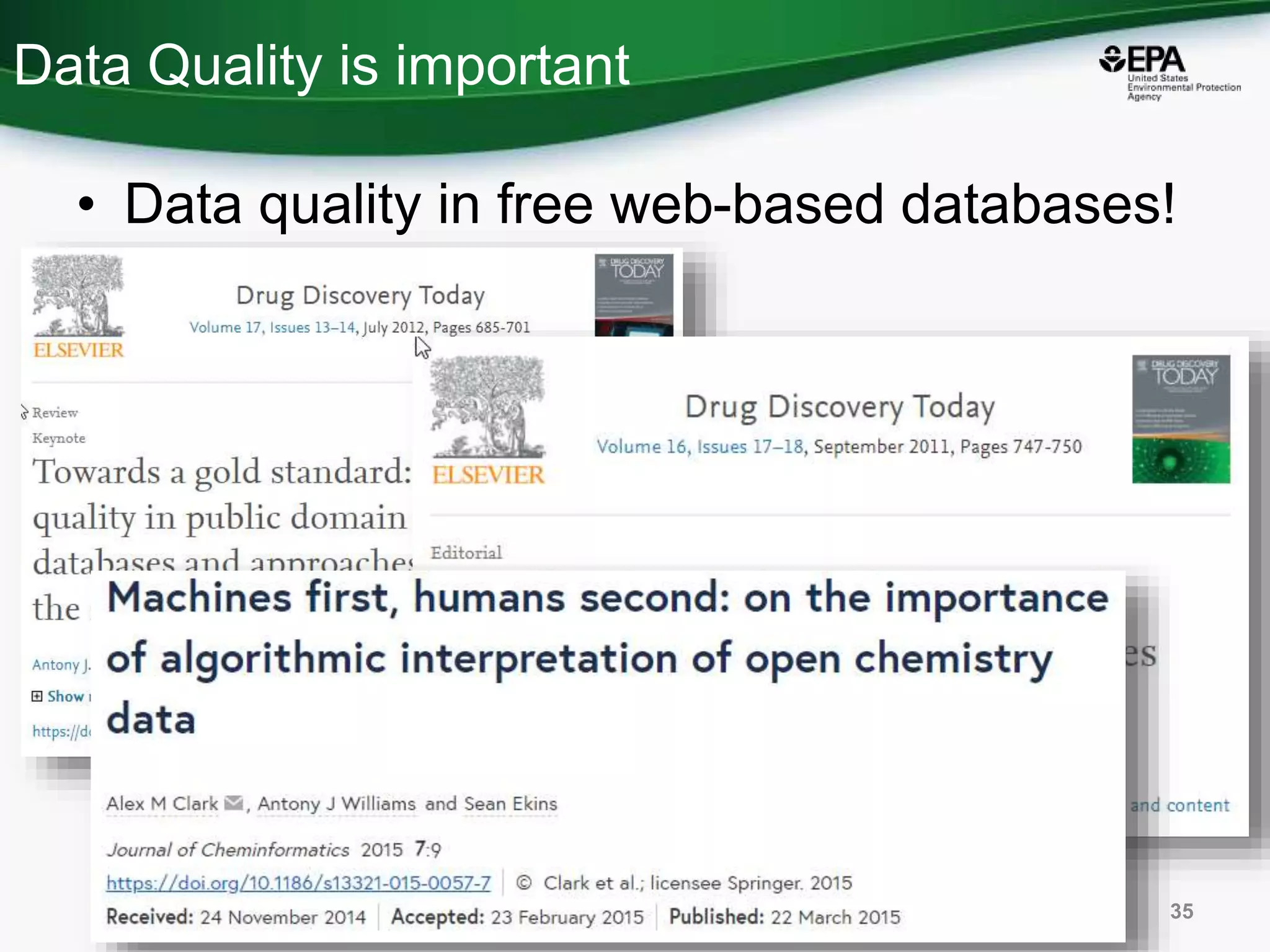

36. Data Quality is important
• Data quality in free web-based databases!
35

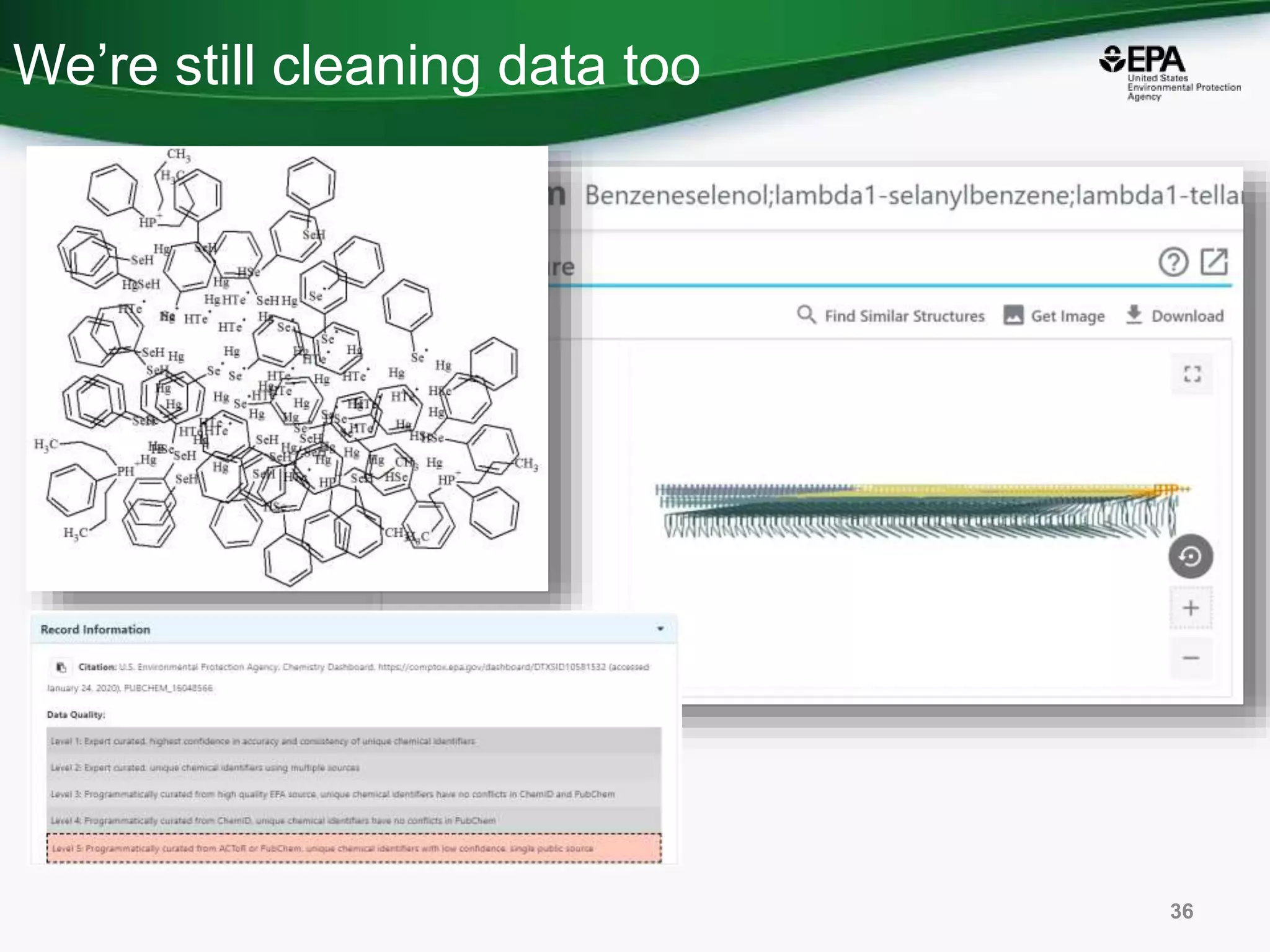

37. We’re still cleaning data too
36

38. Tire Crumb Rubber (298)
37

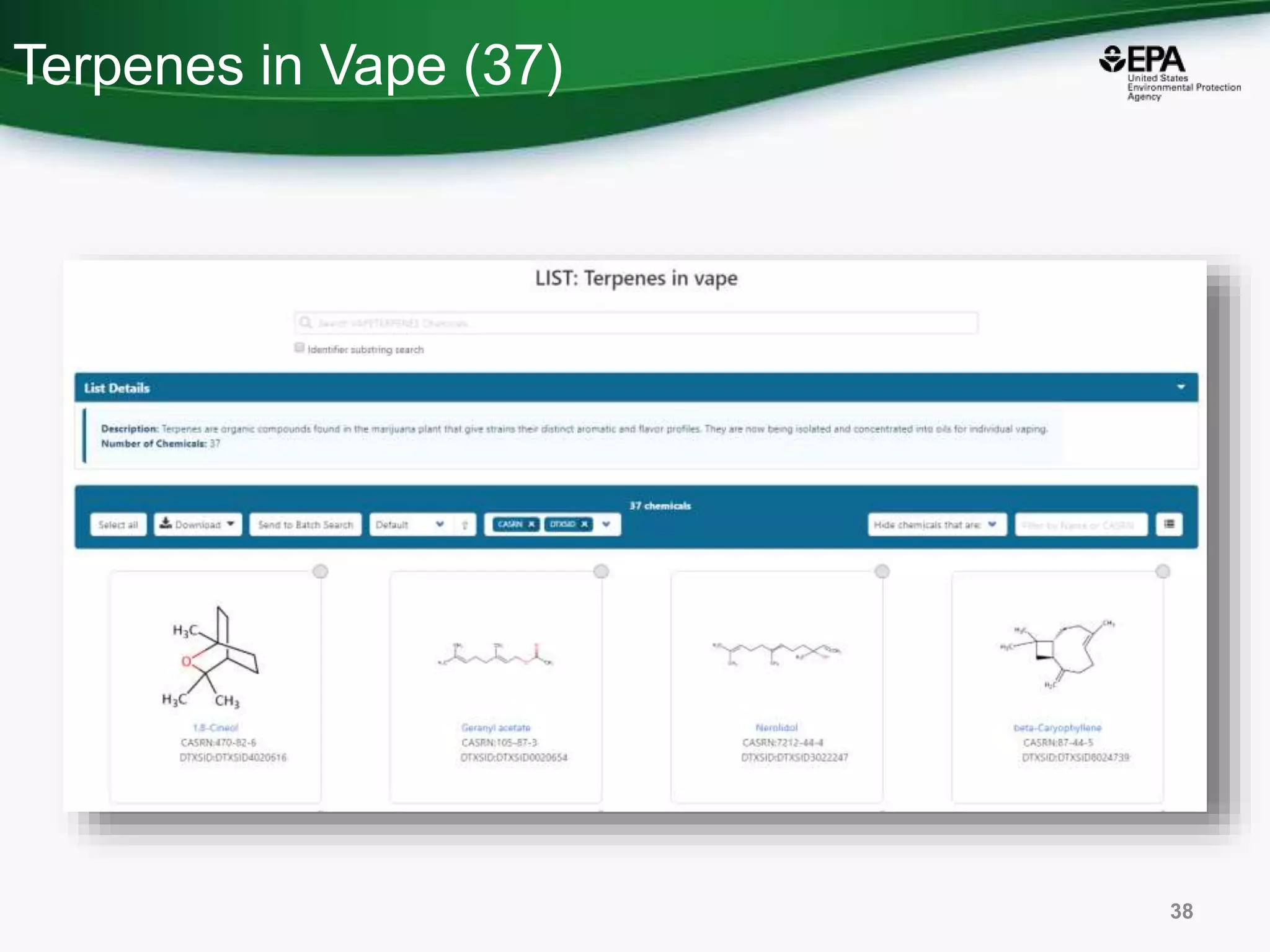

39. Terpenes in Vape (37)
38

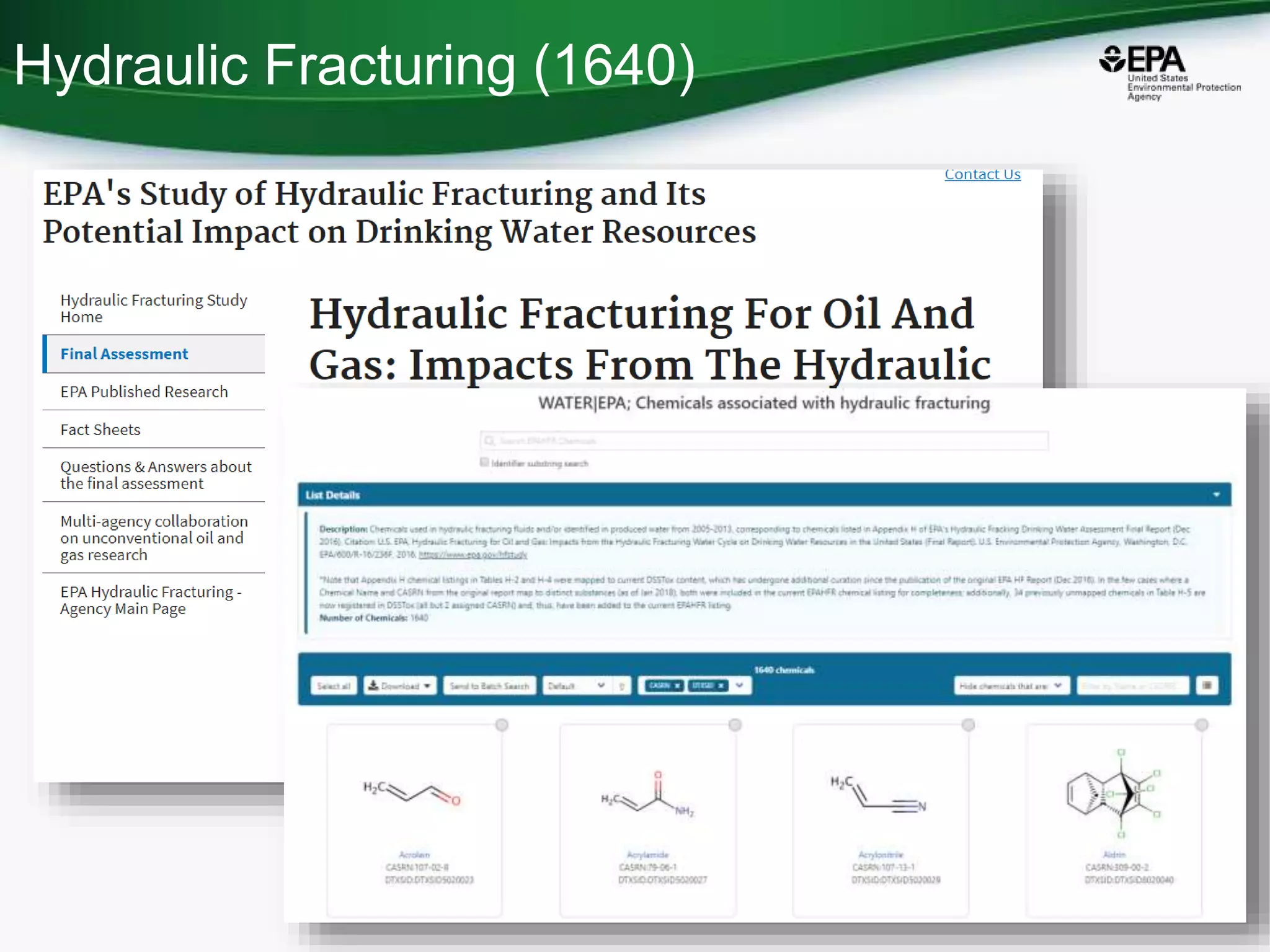

40. Hydraulic Fracturing (1640)

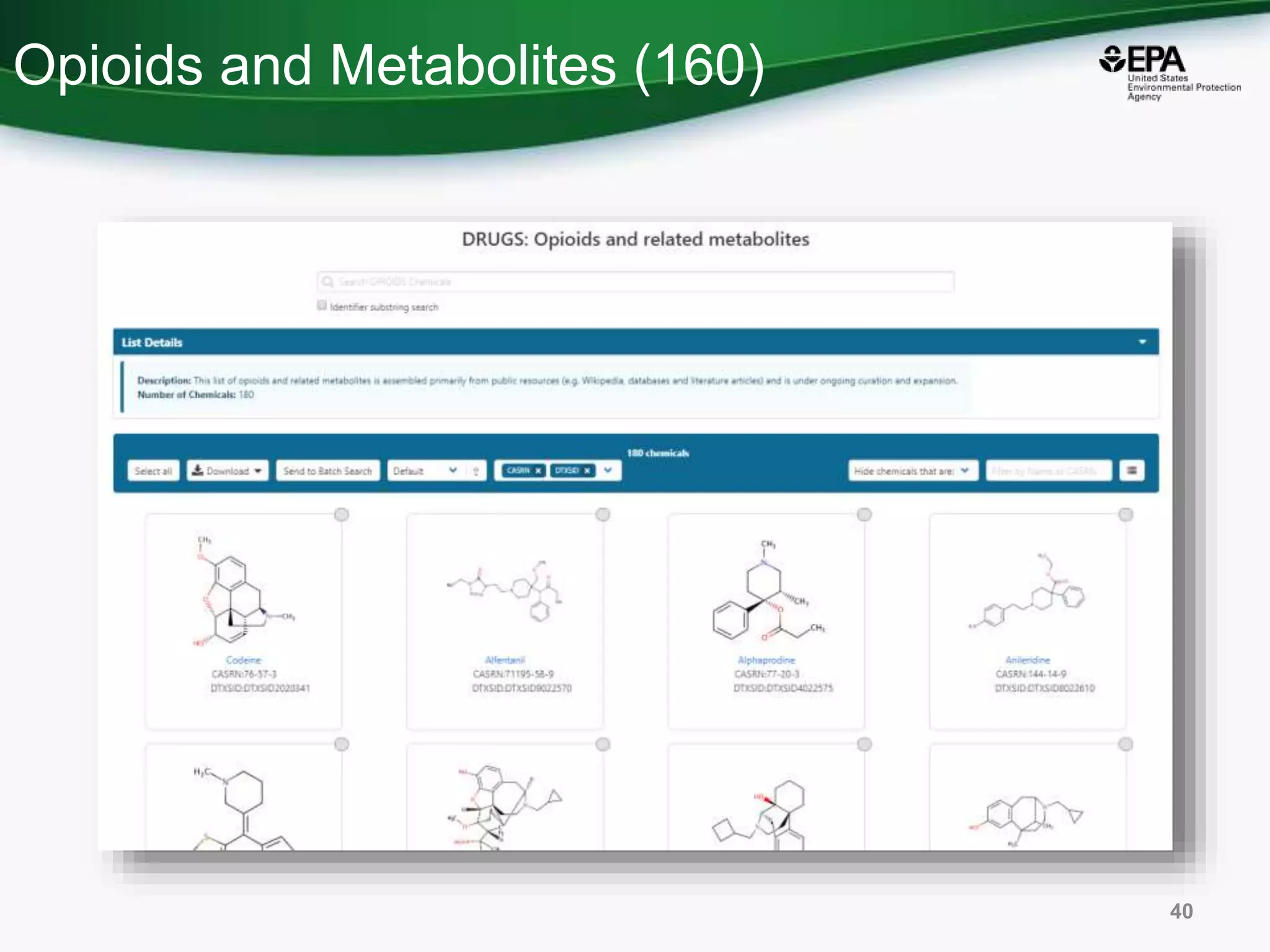

39

41. Opioids and Metabolites (160)
40

42. “MS-ready”
structures
41

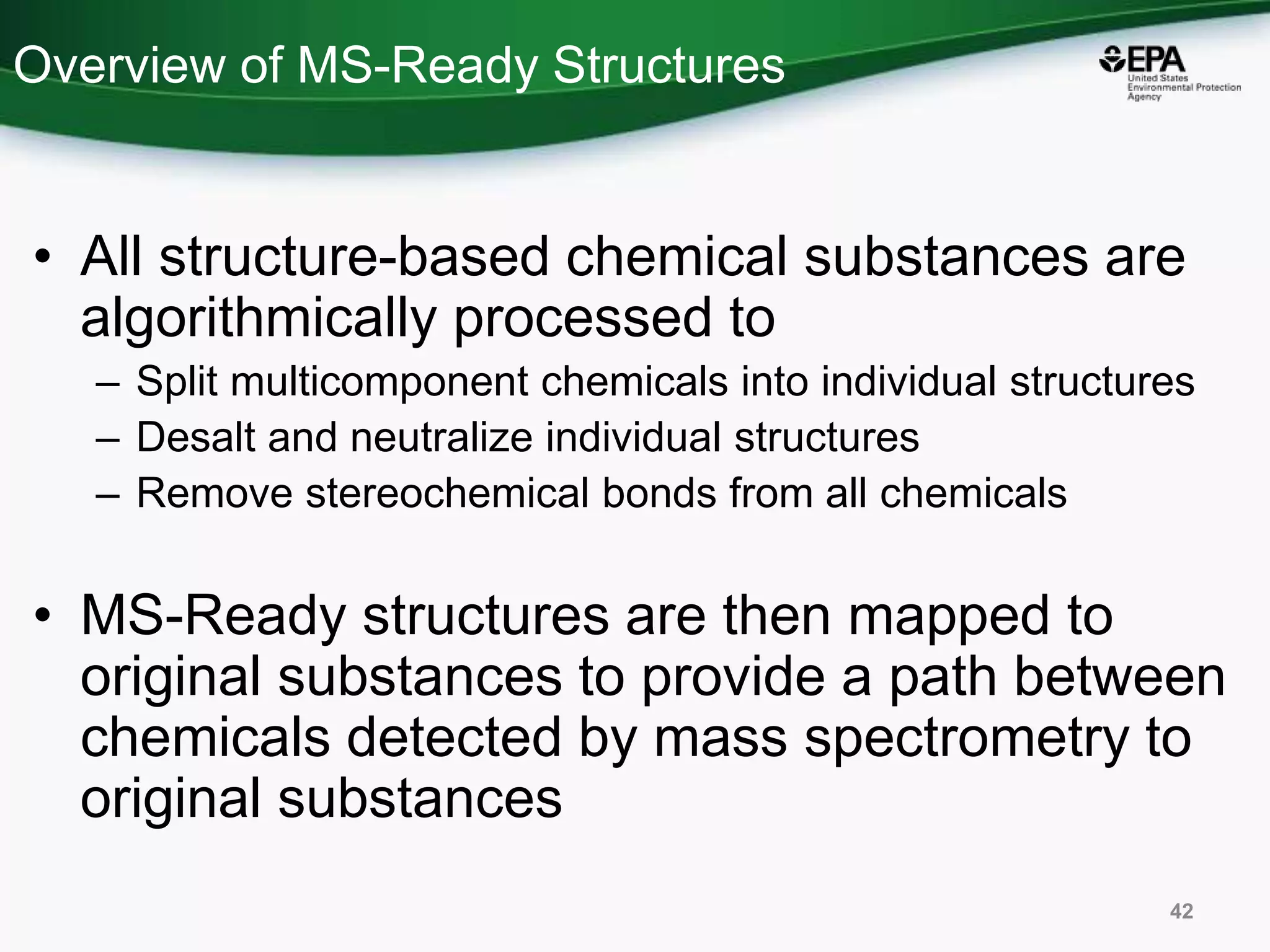

43. Overview of MS-Ready Structures
• All structure-based chemical substances are
algorithmically processed to
– Split multicomponent chemicals into individual structures
– Desalt and neutralize individual structures
– Remove stereochemical bonds from all chemicals
• MS-Ready structures are then mapped to
original substances to provide a path between
chemicals detected by mass spectrometry to
original substances
42

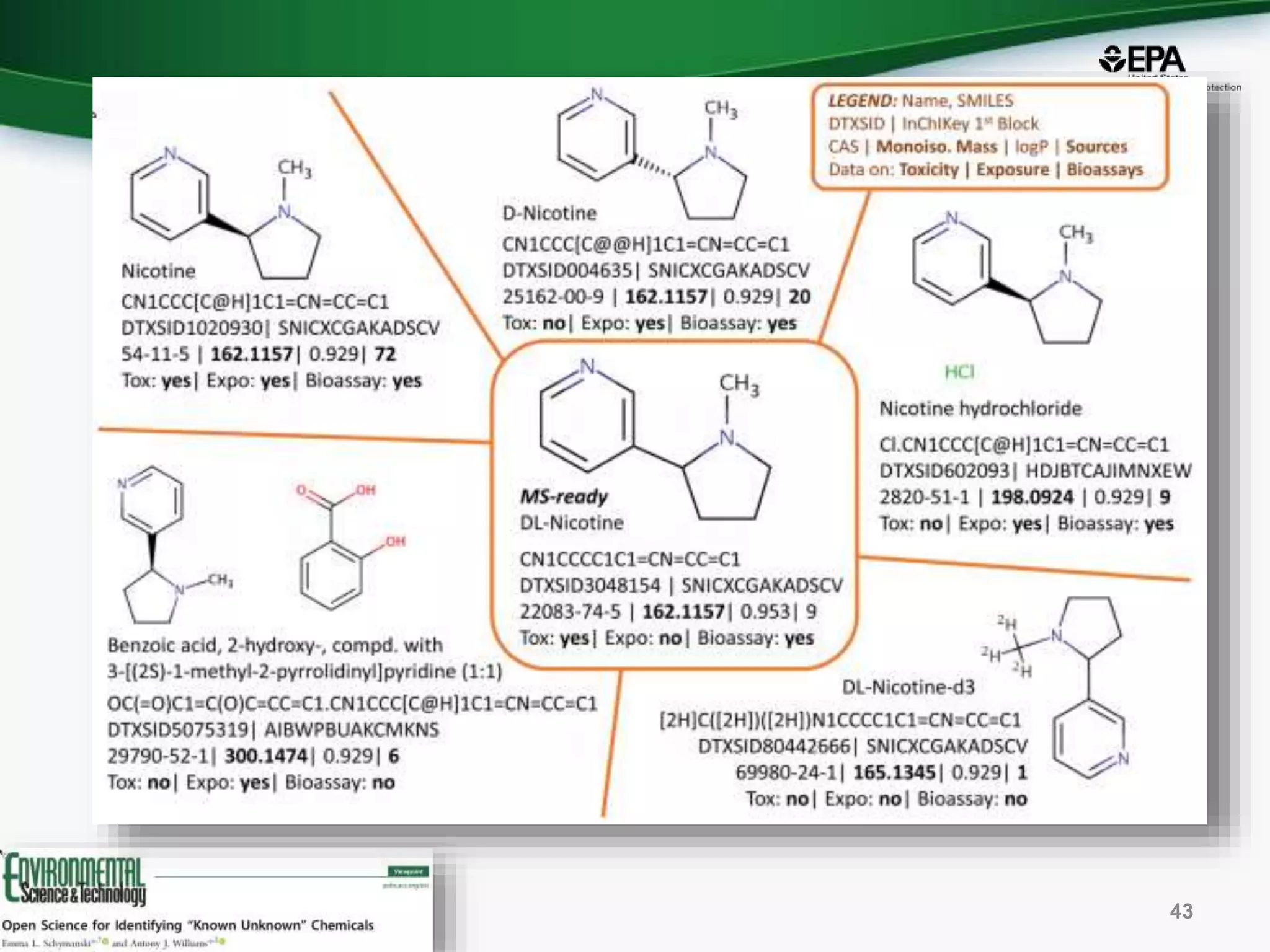

44. 43

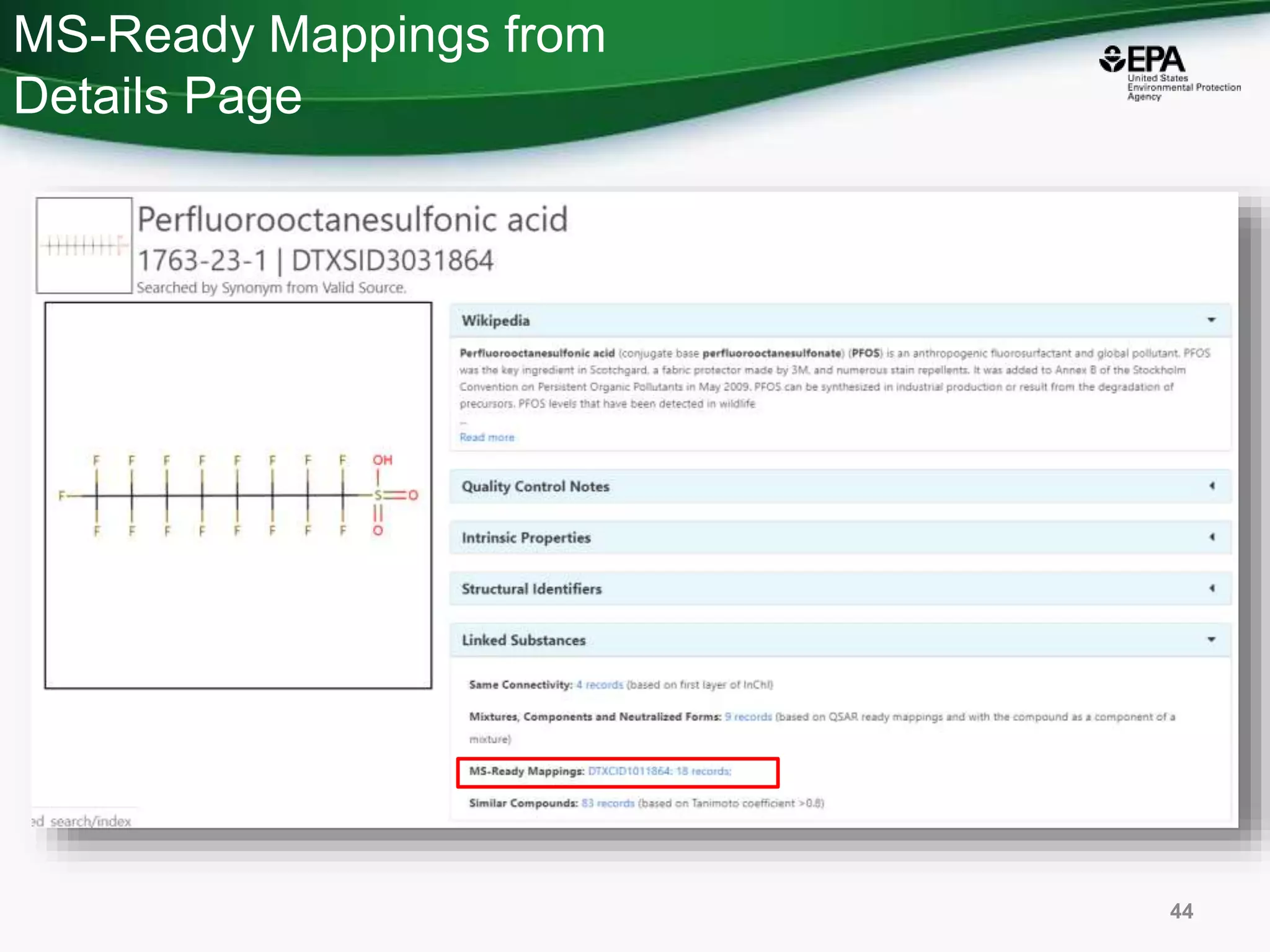

45. MS-Ready Mappings from
Details Page
44

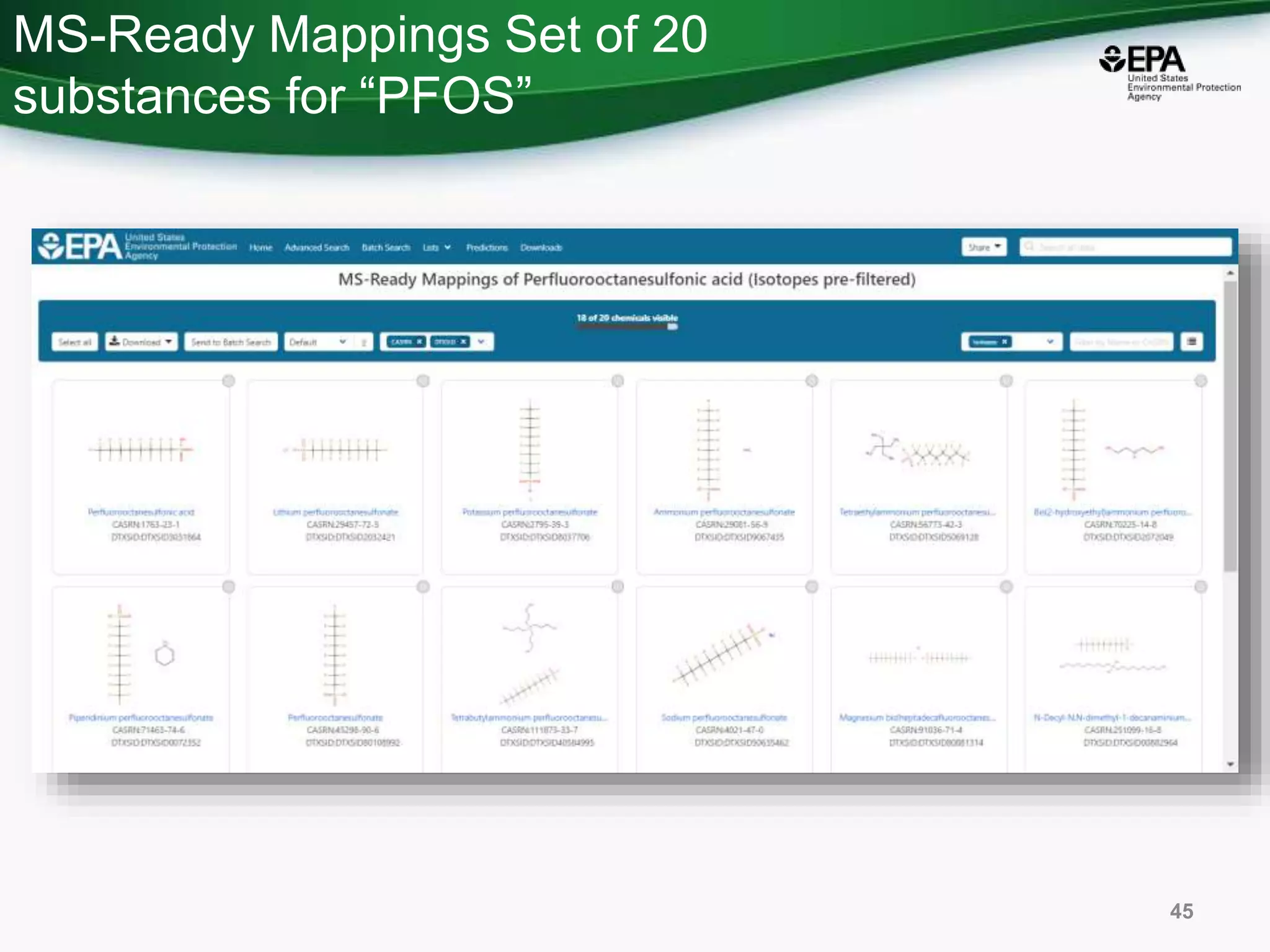

46. MS-Ready Mappings Set of 20
substances for “PFOS”
45

47. Mass and Formula
Searching
46

48. Advanced Searches

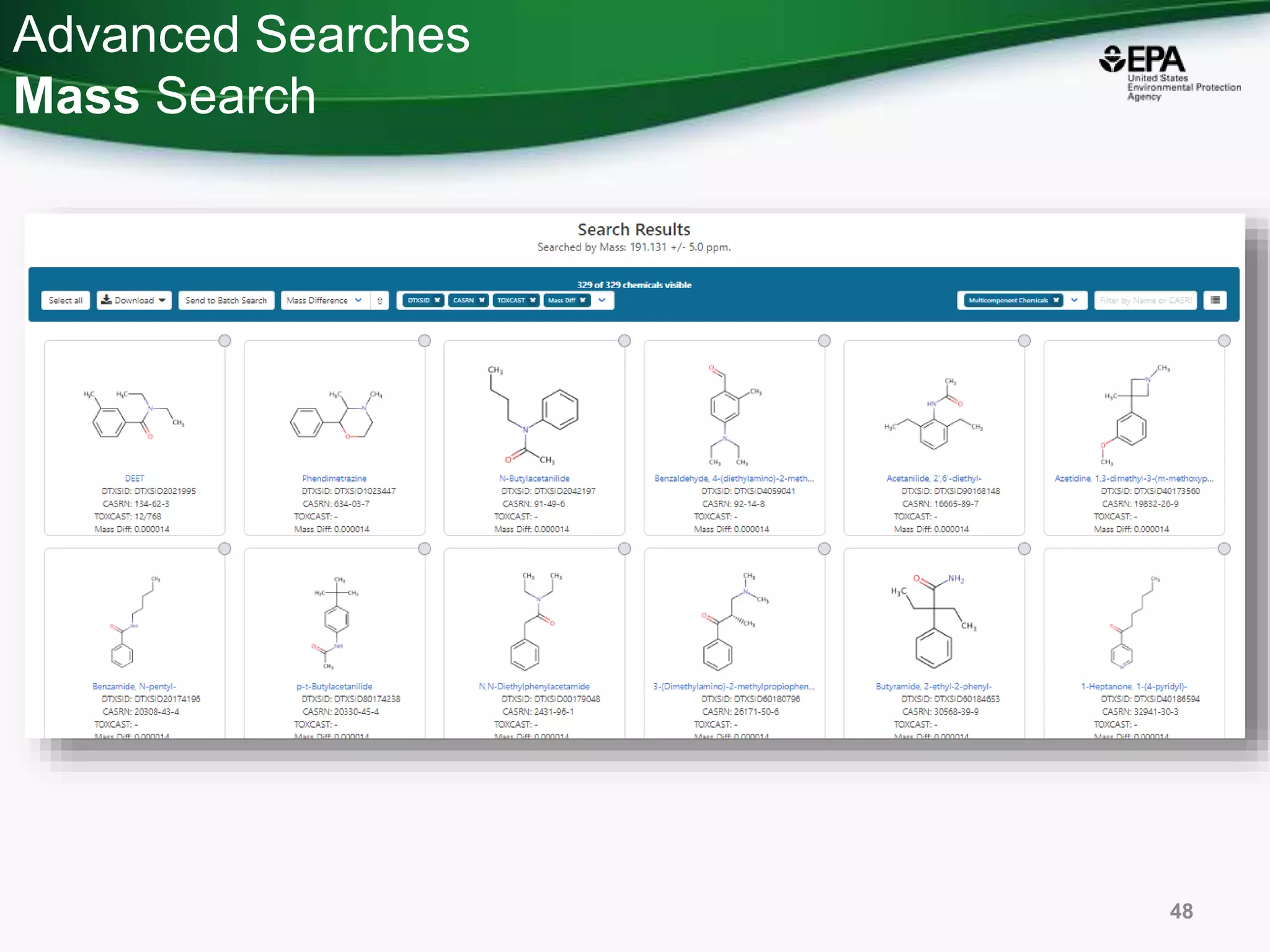

Mass Search
47

49. Advanced Searches
Mass Search
48

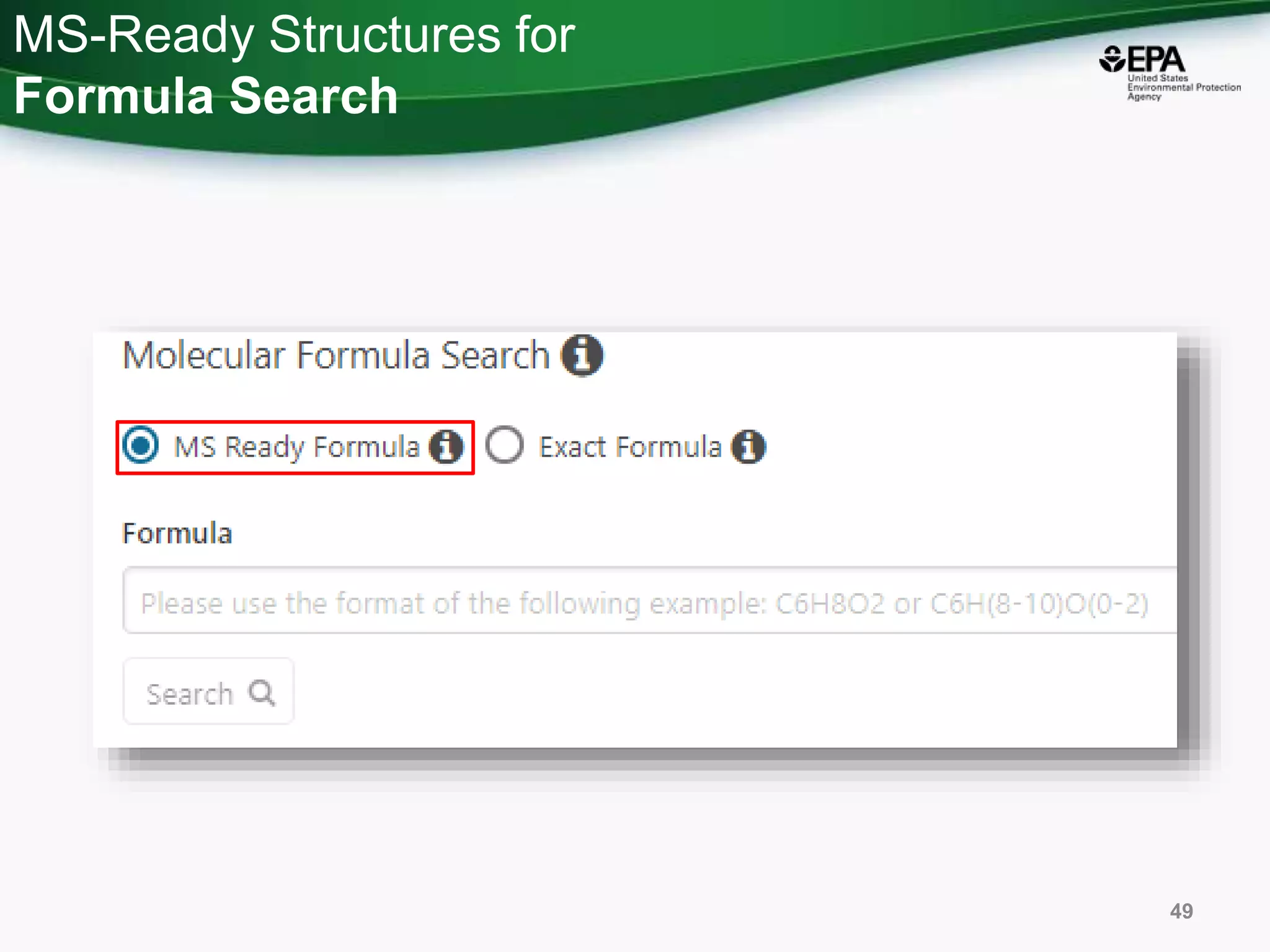

50. MS-Ready Structures for
Formula Search
49

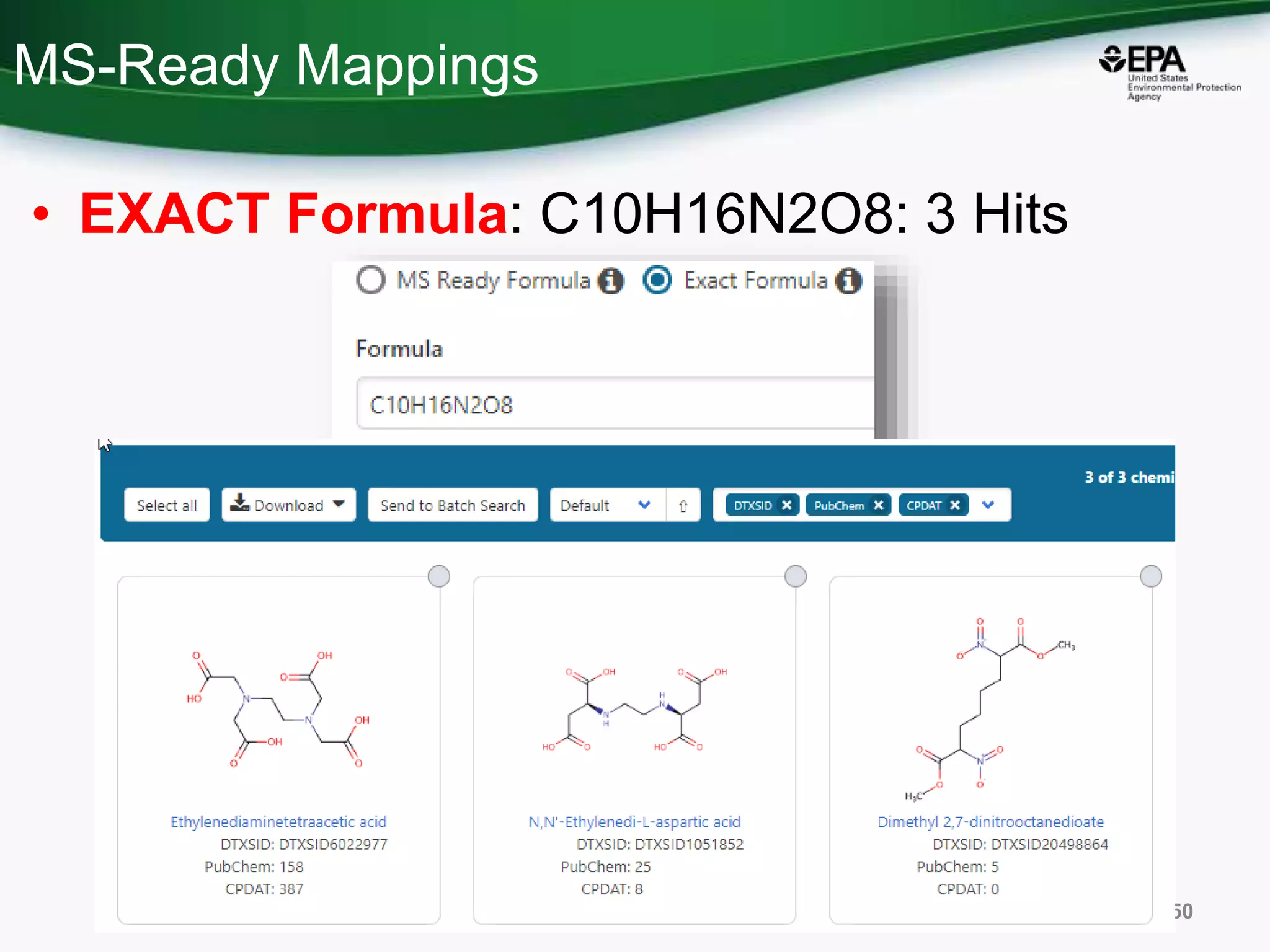

51. MS-Ready Mappings
• EXACT Formula: C10H16N2O8: 3 Hits
50

52. MS-Ready Mappings
• Same Input Formula: C10H16N2O8
• MS Ready Formula Search: 125 Chemicals
51

53. MS-Ready Mappings
• 125 chemicals returned in total
– 8 of the 125 are single component chemicals
– 3 of the 8 are isotope-labeled
– 3 are neutral compounds and 2 are charged
• Multiple components, stereo, isotopes and
charge all collapsed and mapped through
MS-Ready
52

54. Batch Searching
mass and formula
53

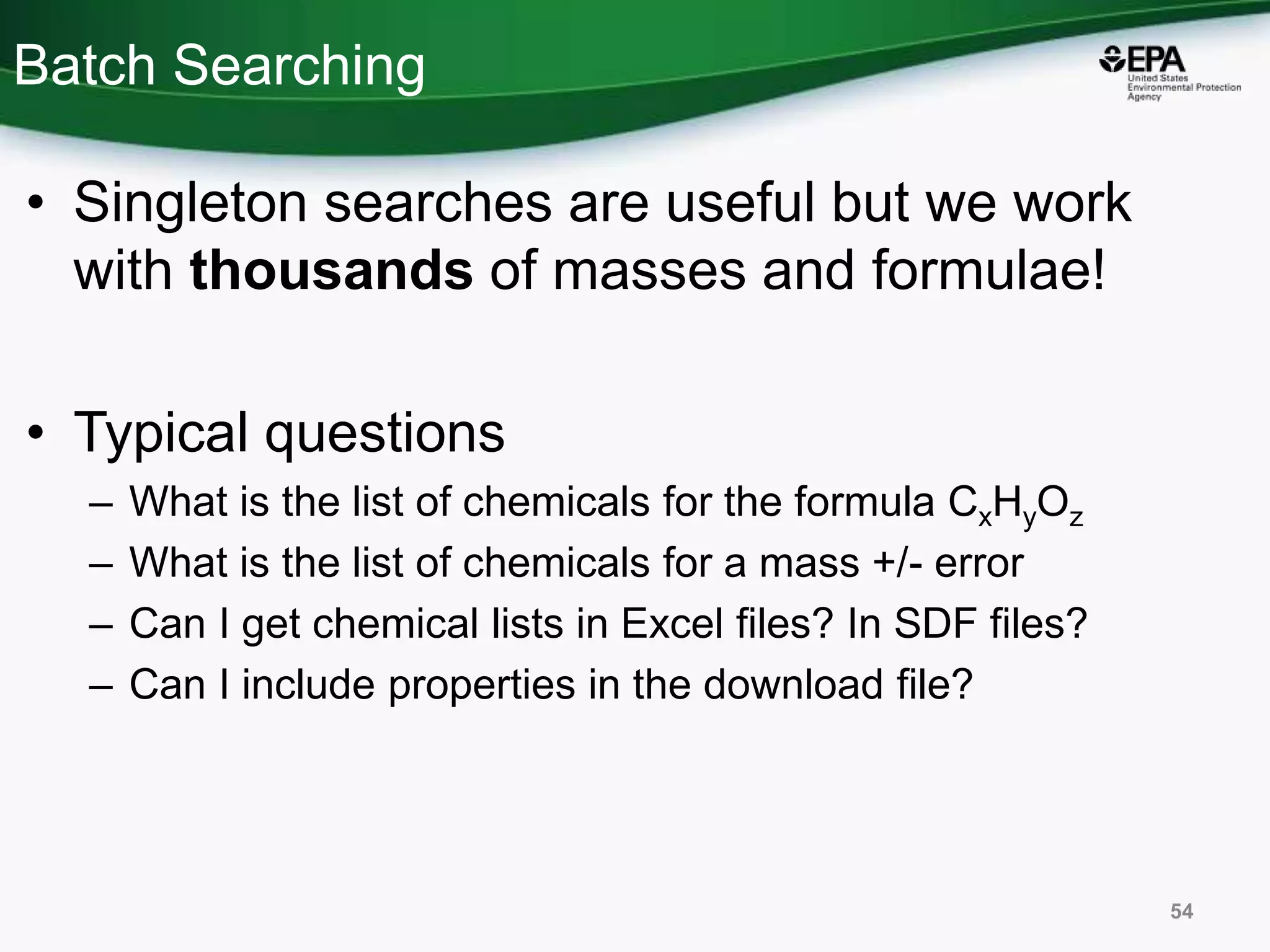

55. Batch Searching
• Singleton searches are useful but we work
with thousands of masses and formulae!
• Typical questions
– What is the list of chemicals for the formula CxHyOz
– What is the list of chemicals for a mass +/- error
– Can I get chemical lists in Excel files? In SDF files?
– Can I include properties in the download file?
54

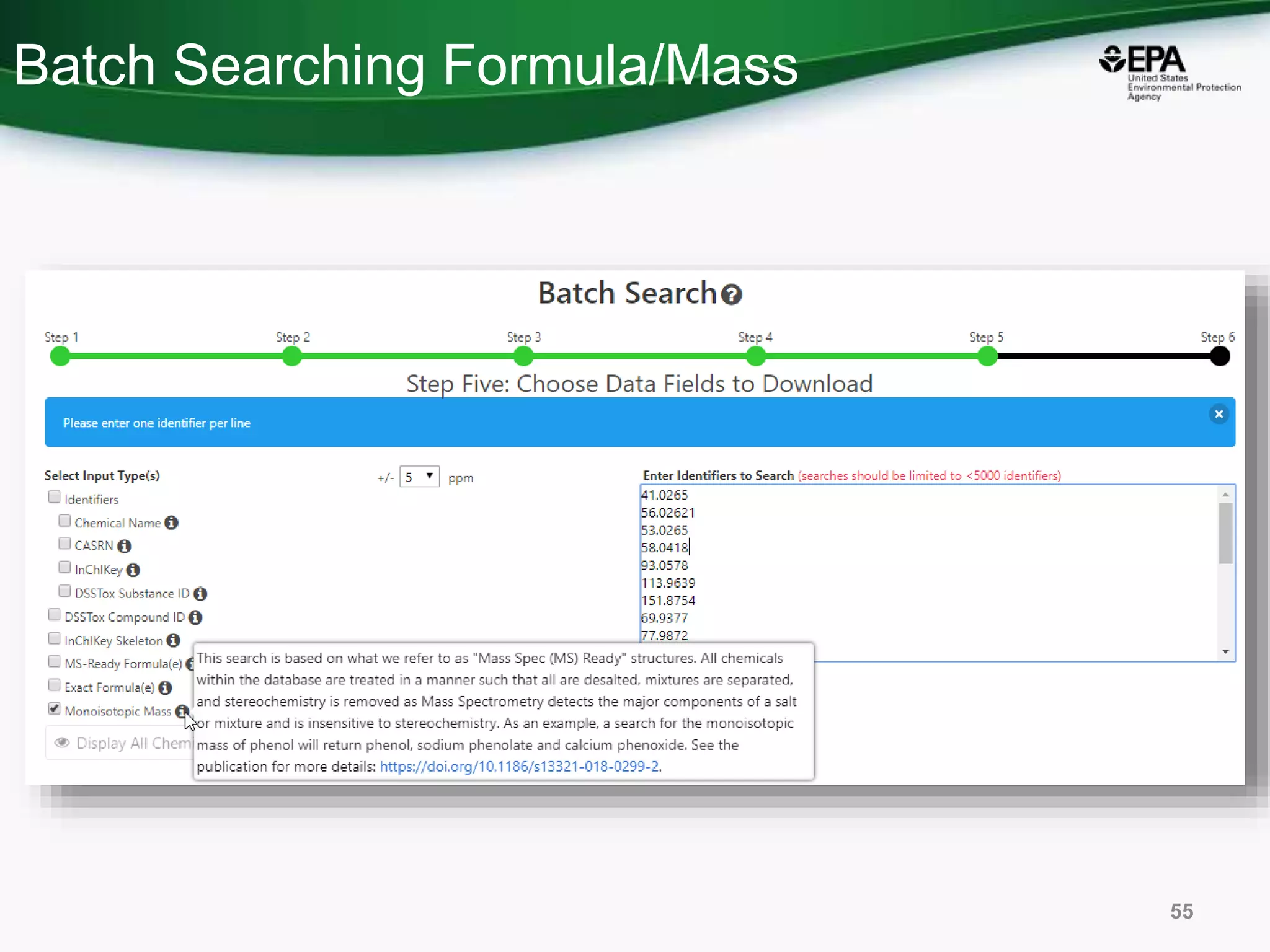

56. Batch Searching Formula/Mass
55

57. Searching batches using MS-Ready
Formula (or mass) searching
56

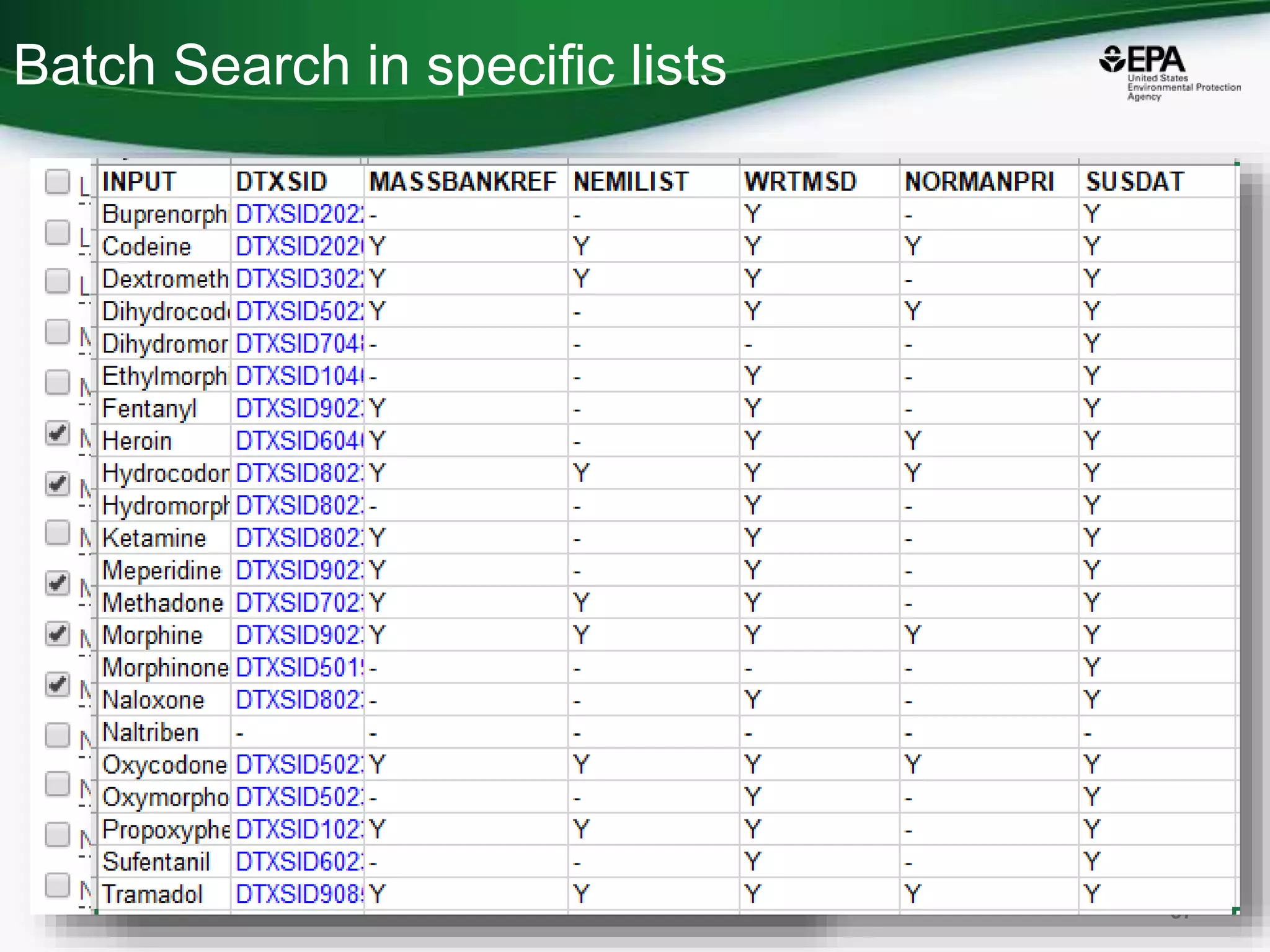

58. Batch Search in specific lists
57

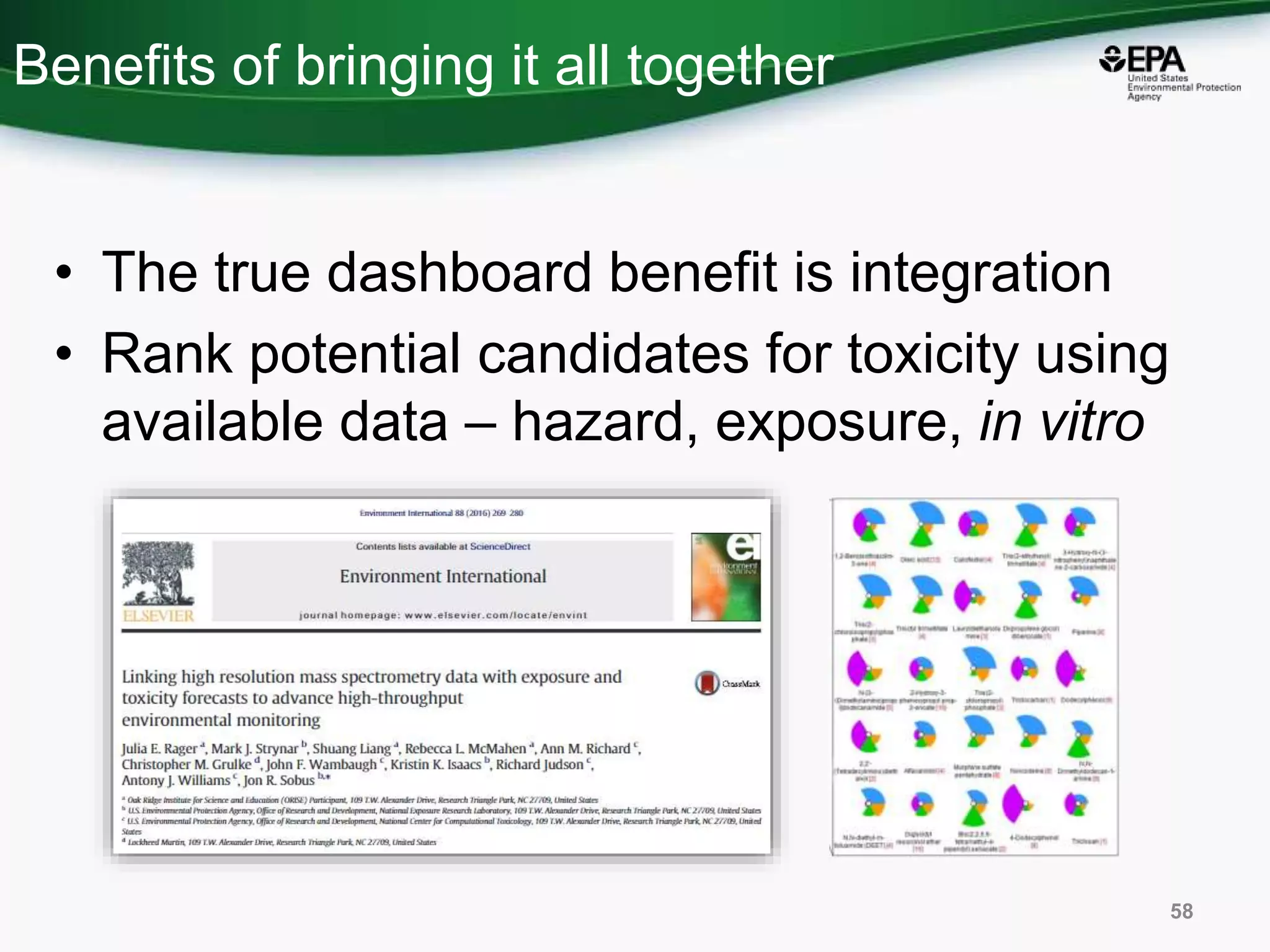

59. Benefits of bringing it all together
• The true dashboard benefit is integration
• Rank potential candidates for toxicity using
available data – hazard, exposure, in vitro
58

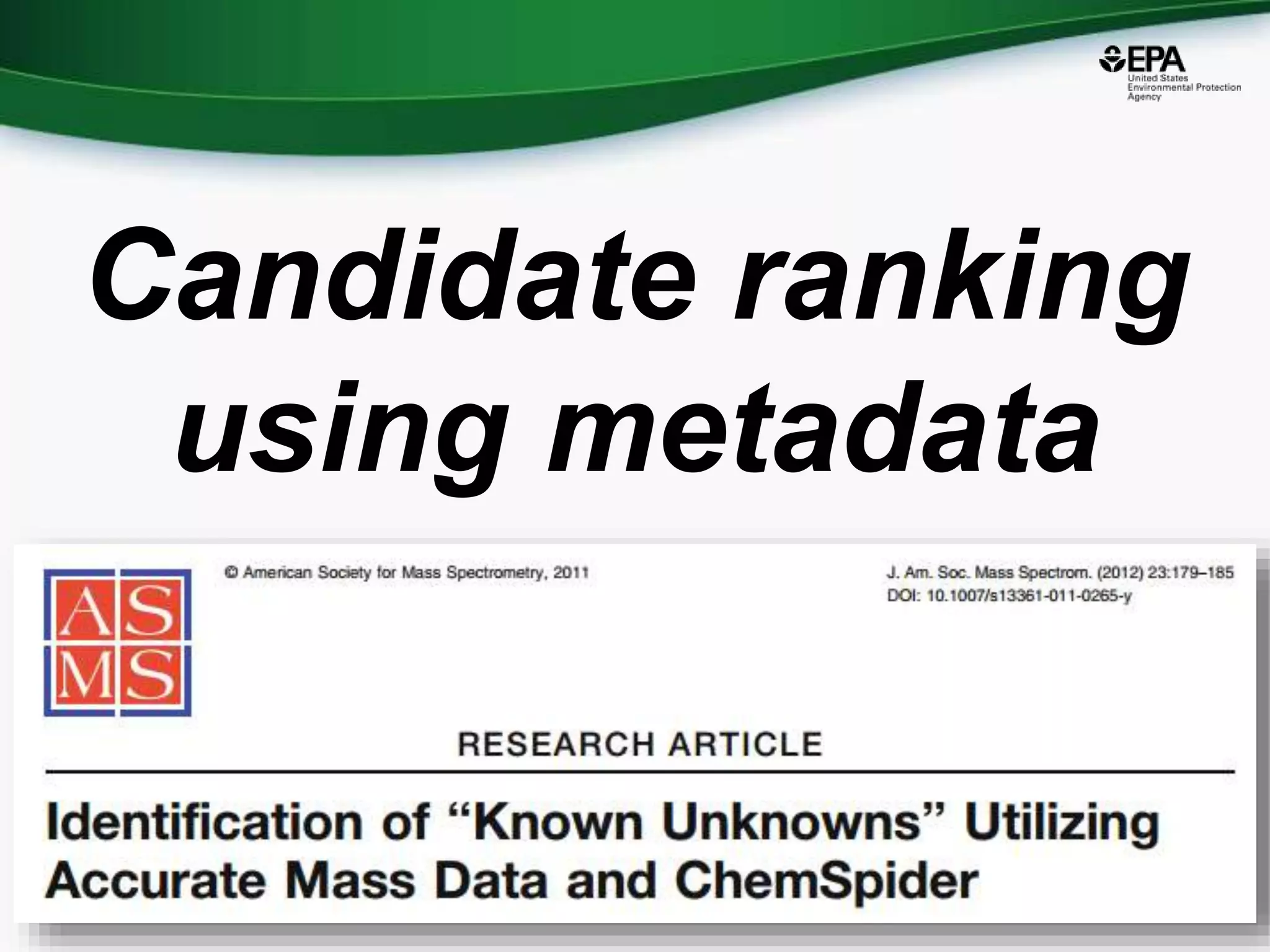

60. Candidate ranking
using metadata
59

61. Data Source Ranking of
“known unknowns”
60
• A mass and/or formula search is
for an unknown chemical but it
is a known chemical contained
within a reference database
• Most likely candidate chemicals
have the most associated data
sources, most associated
literature articles or both
C14H22N2O3
266.16304
Chemical
Reference
Database
Sorted candidate
structures

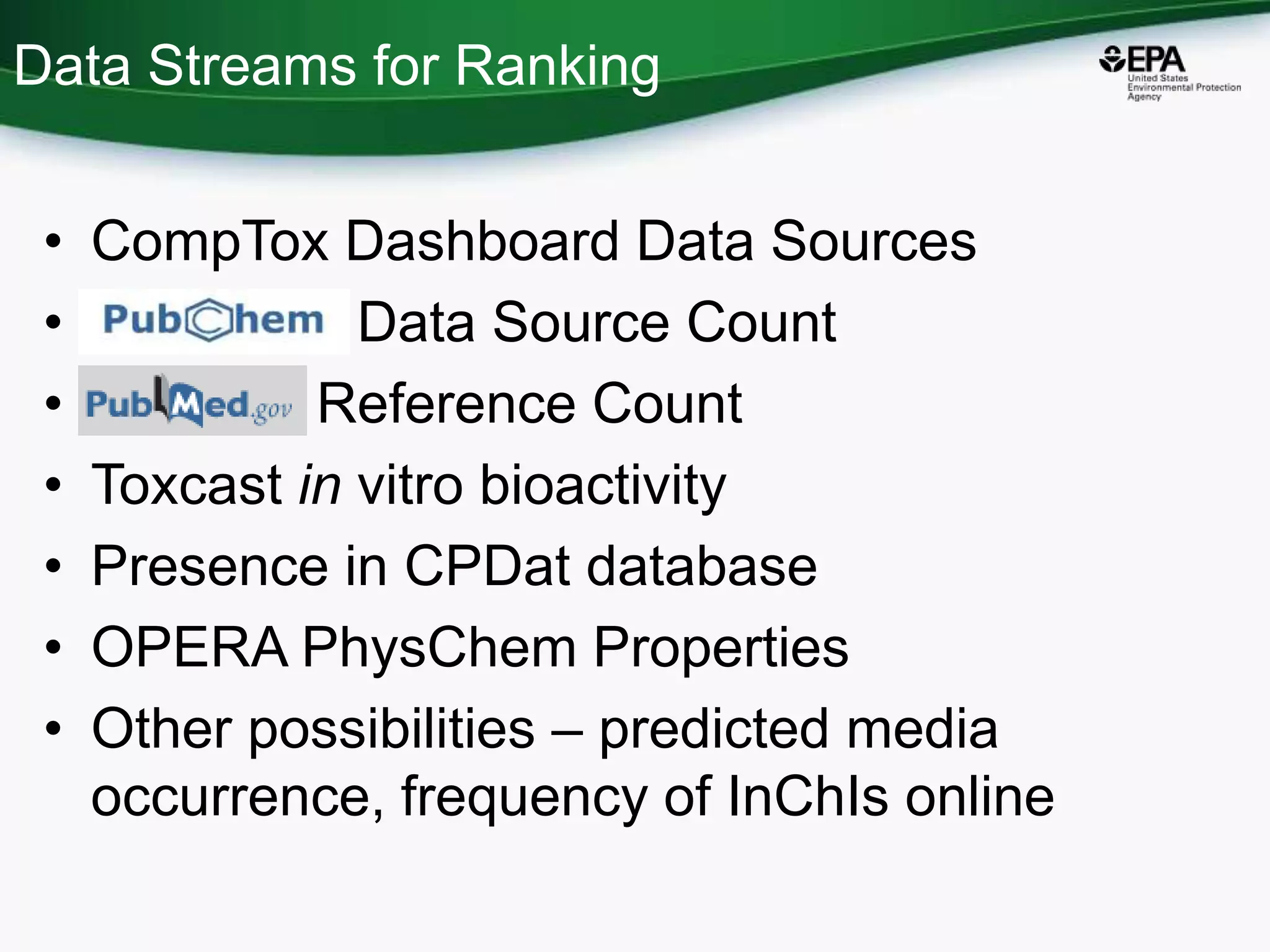

62. Data Streams for Ranking
• CompTox Dashboard Data Sources
• PubChem Data Source Count
• PubMed Reference Count
• Toxcast in vitro bioactivity
• Presence in CPDat database
• OPERA PhysChem Properties
• Other possibilities – predicted media
occurrence, frequency of InChIs online

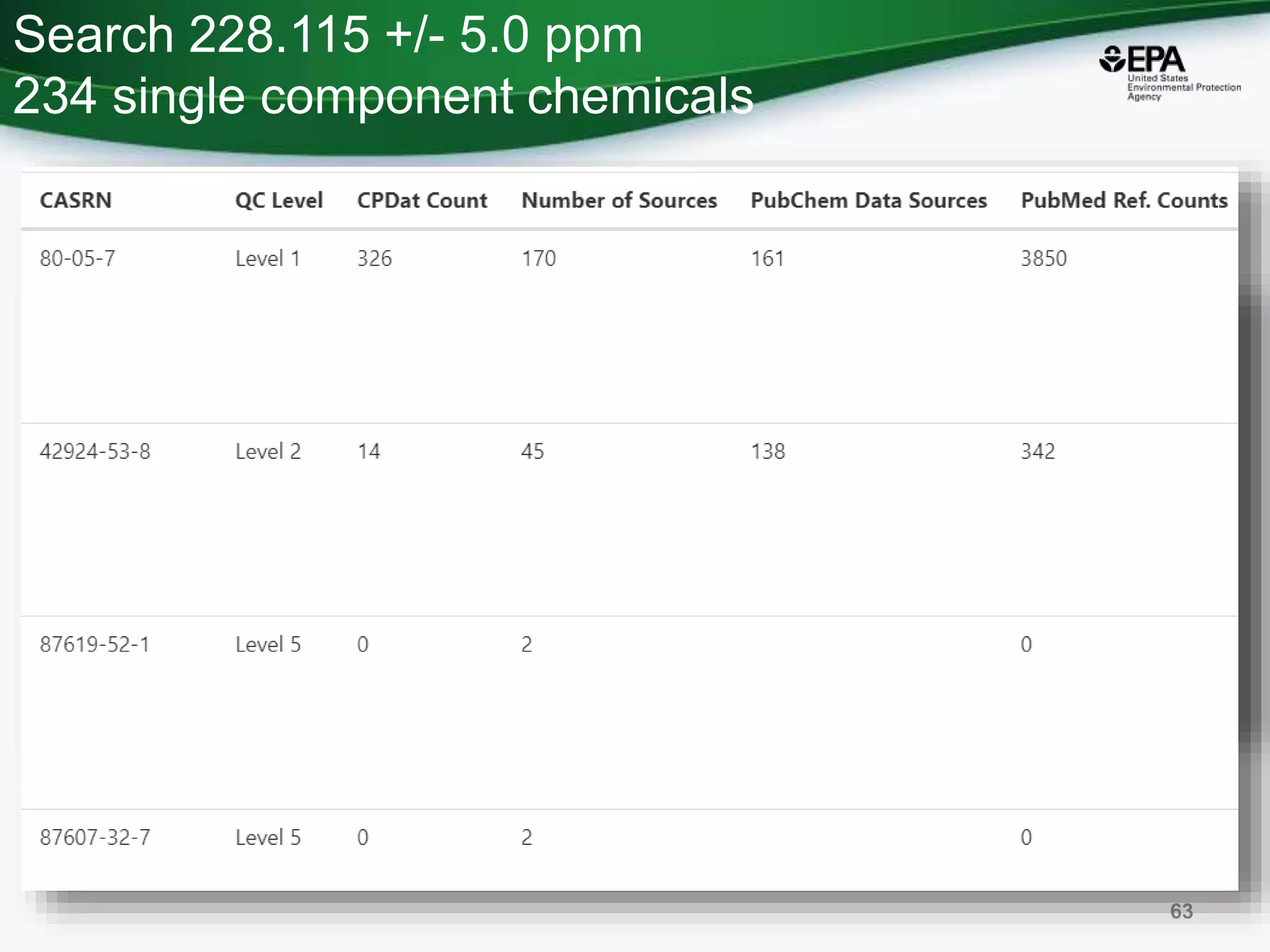

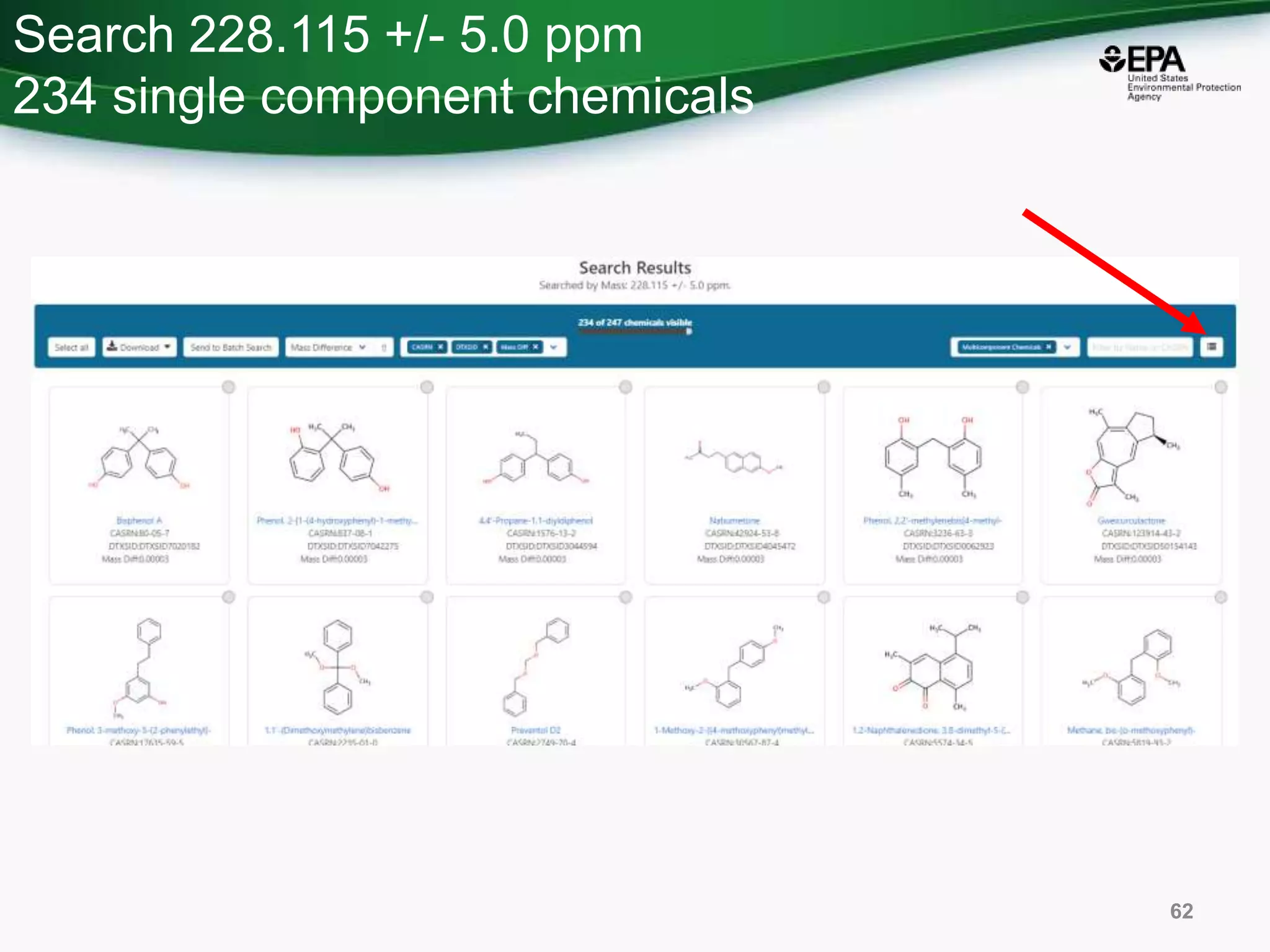

63. Search 228.115 +/- 5.0 ppm
234 single component chemicals
62

64. Search 228.115 +/- 5.0 ppm
234 single component chemicals
63

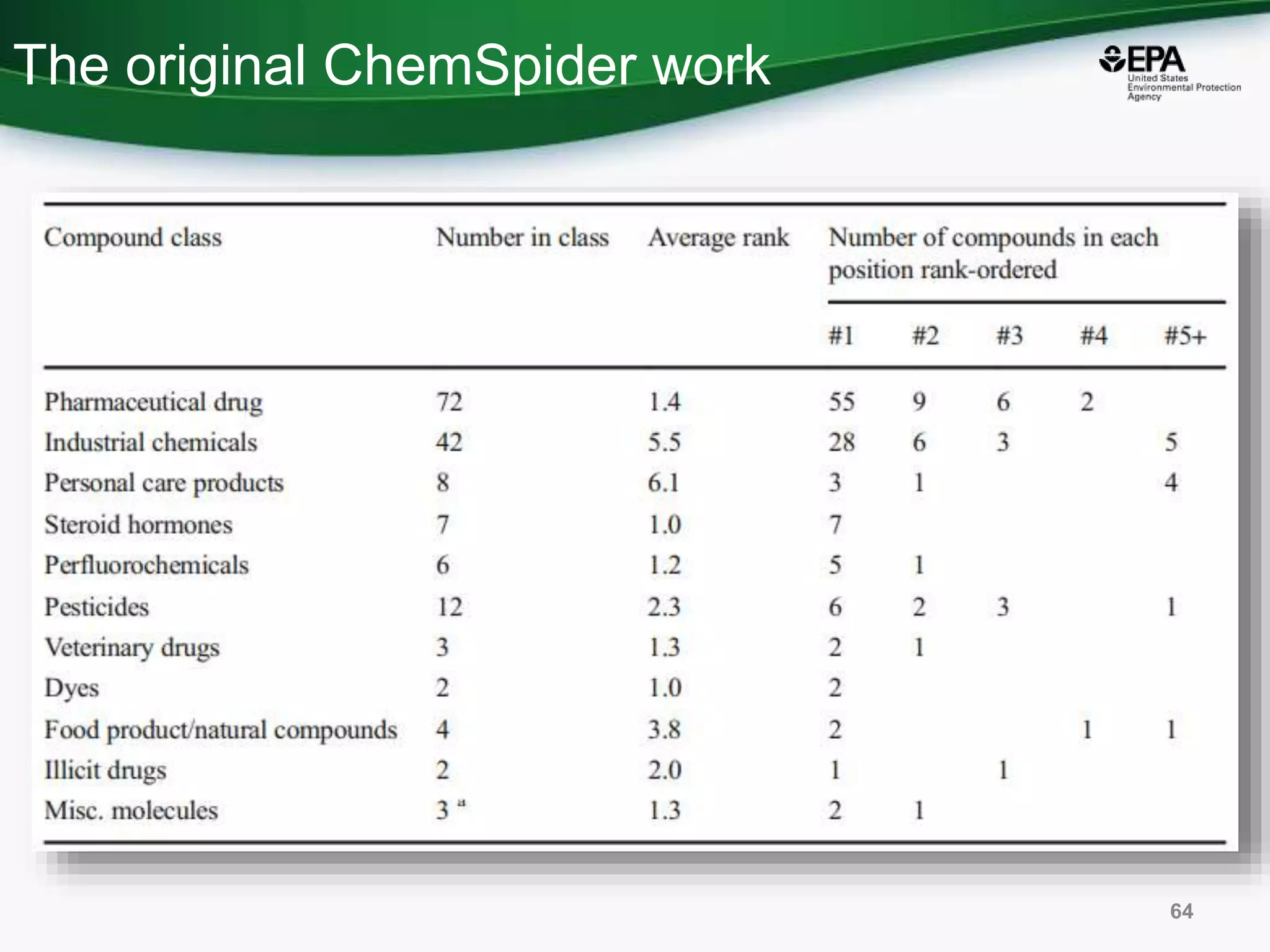

65. The original ChemSpider work
64

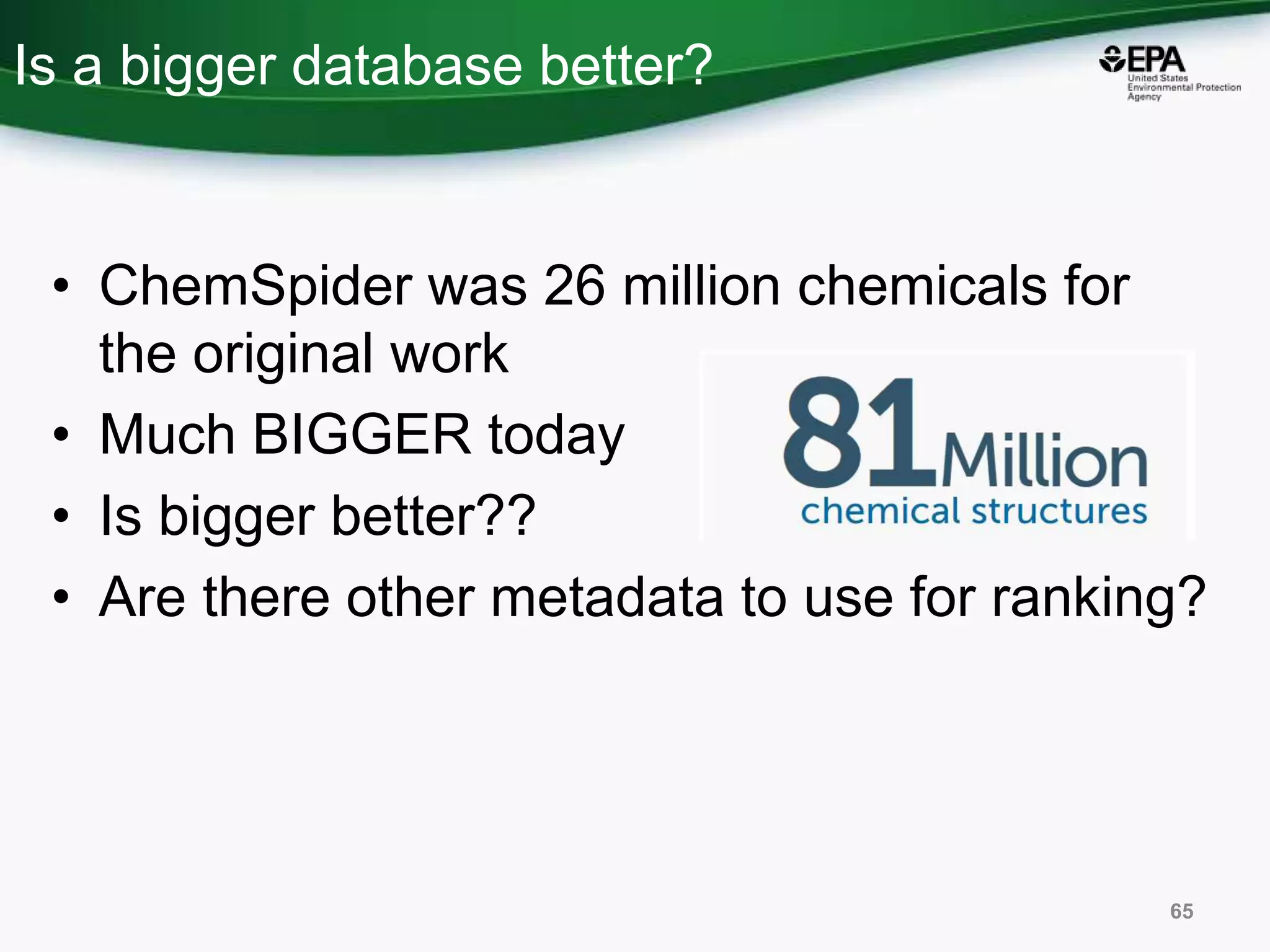

66. Is a bigger database better?
65
• ChemSpider was 26 million chemicals for
the original work
• Much BIGGER today
• Is bigger better??
• Are there other metadata to use for ranking?

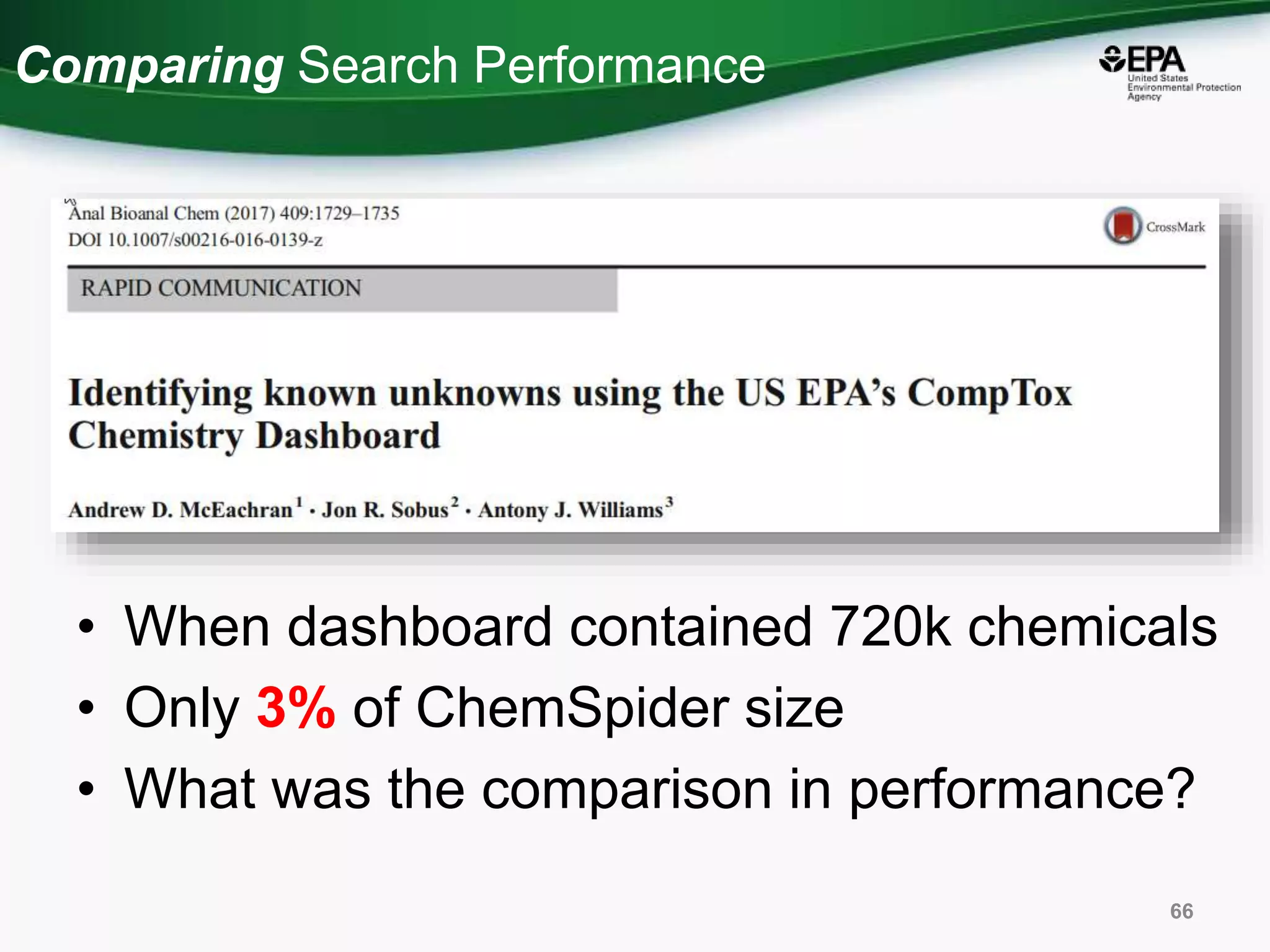

67. Comparing Search Performance
66
• When dashboard contained 720k chemicals
• Only 3% of ChemSpider size
• What was the comparison in performance?

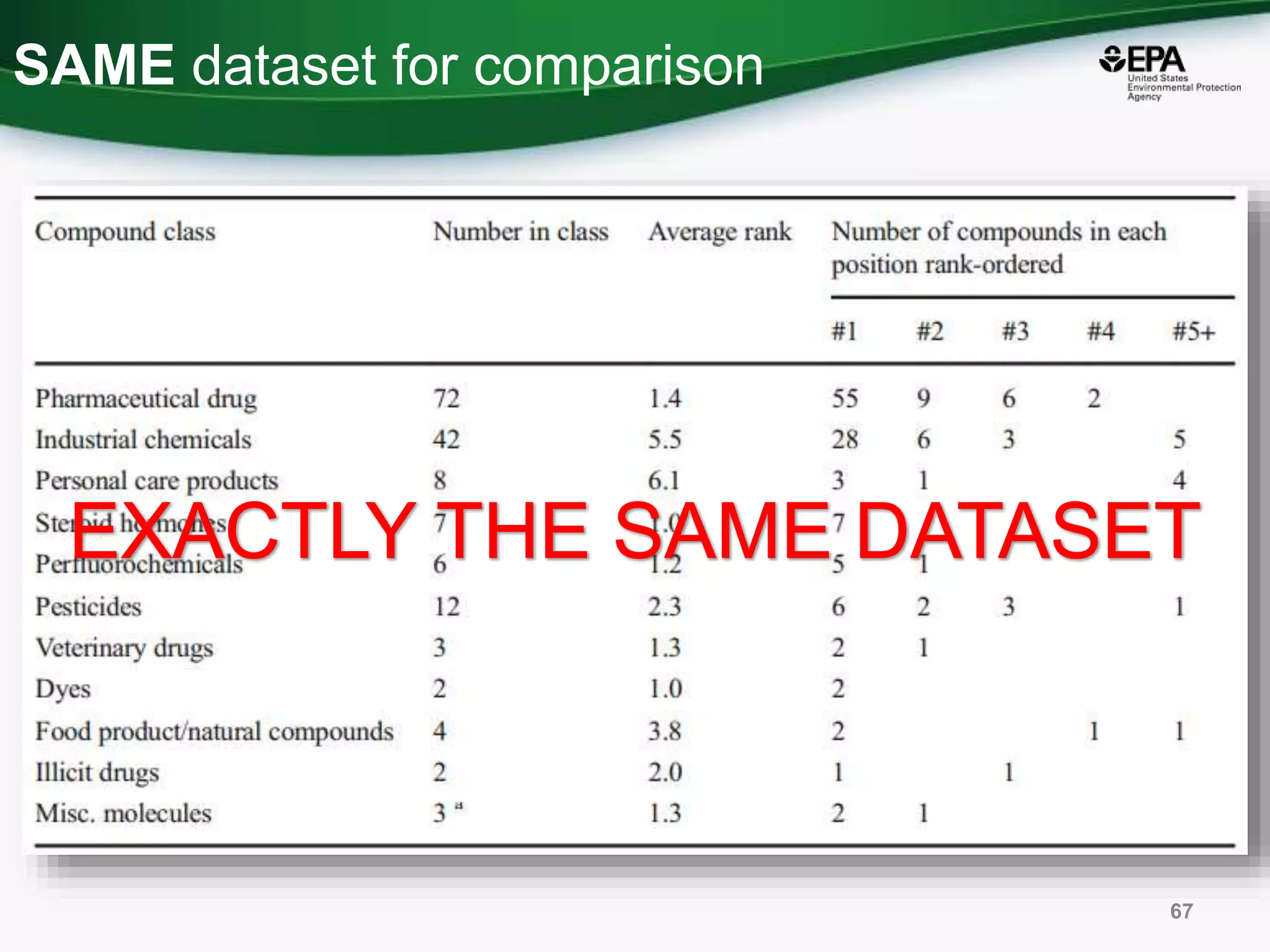

68. SAME dataset for comparison
67

69. How did performance compare?

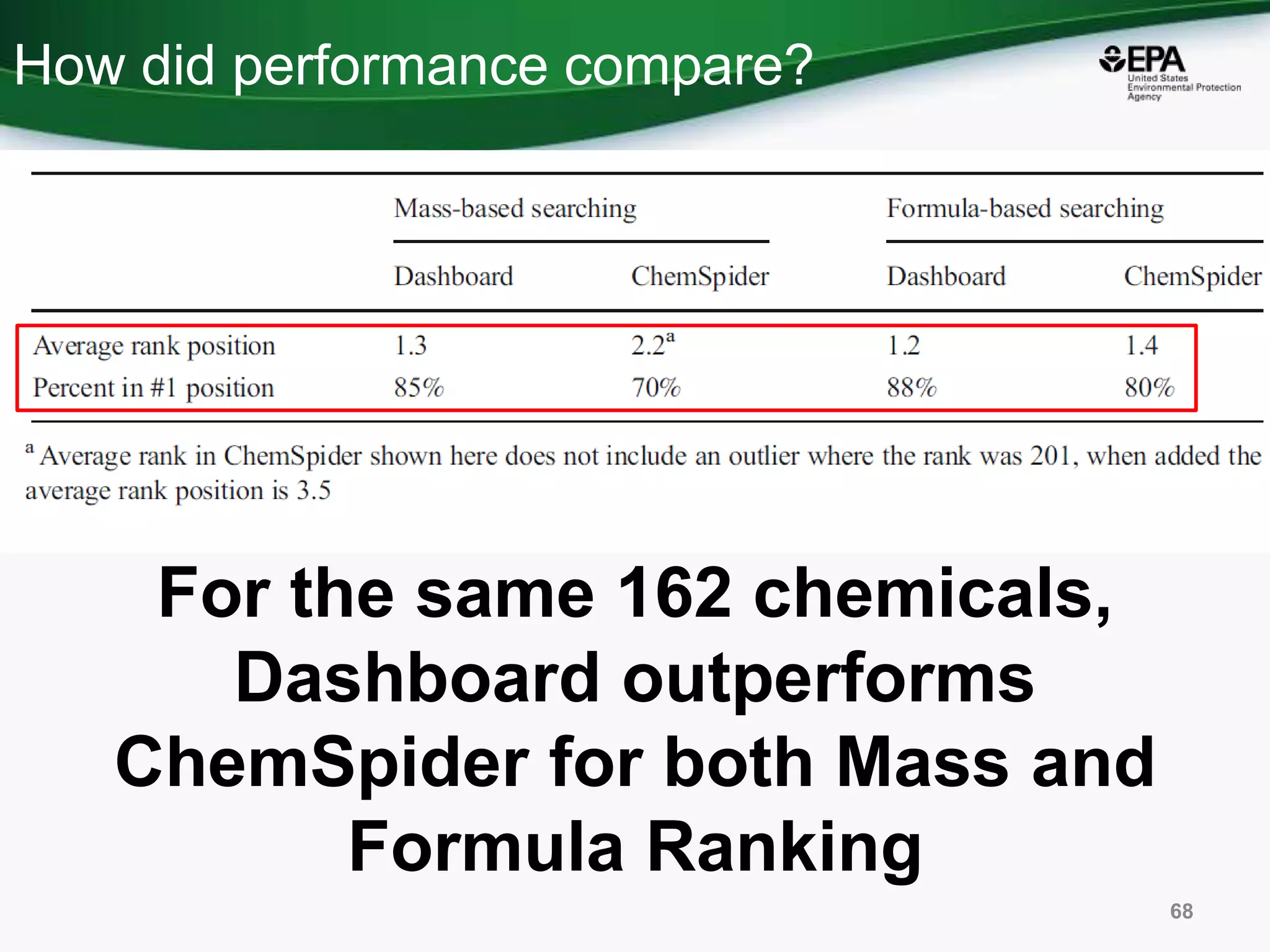

68
For the same 162 chemicals,
Dashboard outperforms
ChemSpider for both Mass and
Formula Ranking

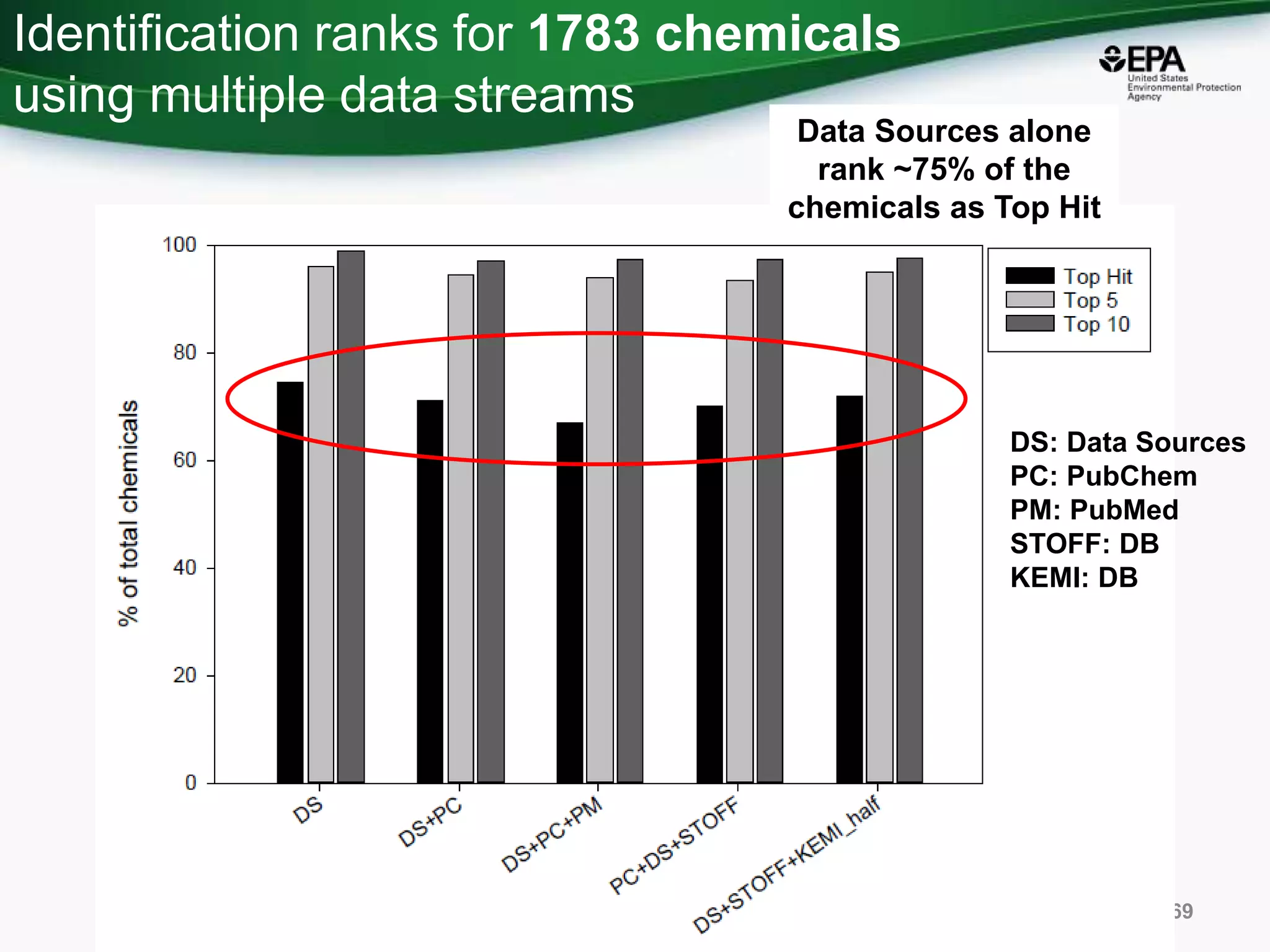

70. Identification ranks for 1783 chemicals
using multiple data streams
69
DS: Data Sources
PC: PubChem
PM: PubMed
STOFF: DB
KEMI: DB
Data Sources alone
rank ~75% of the
chemicals as Top Hit

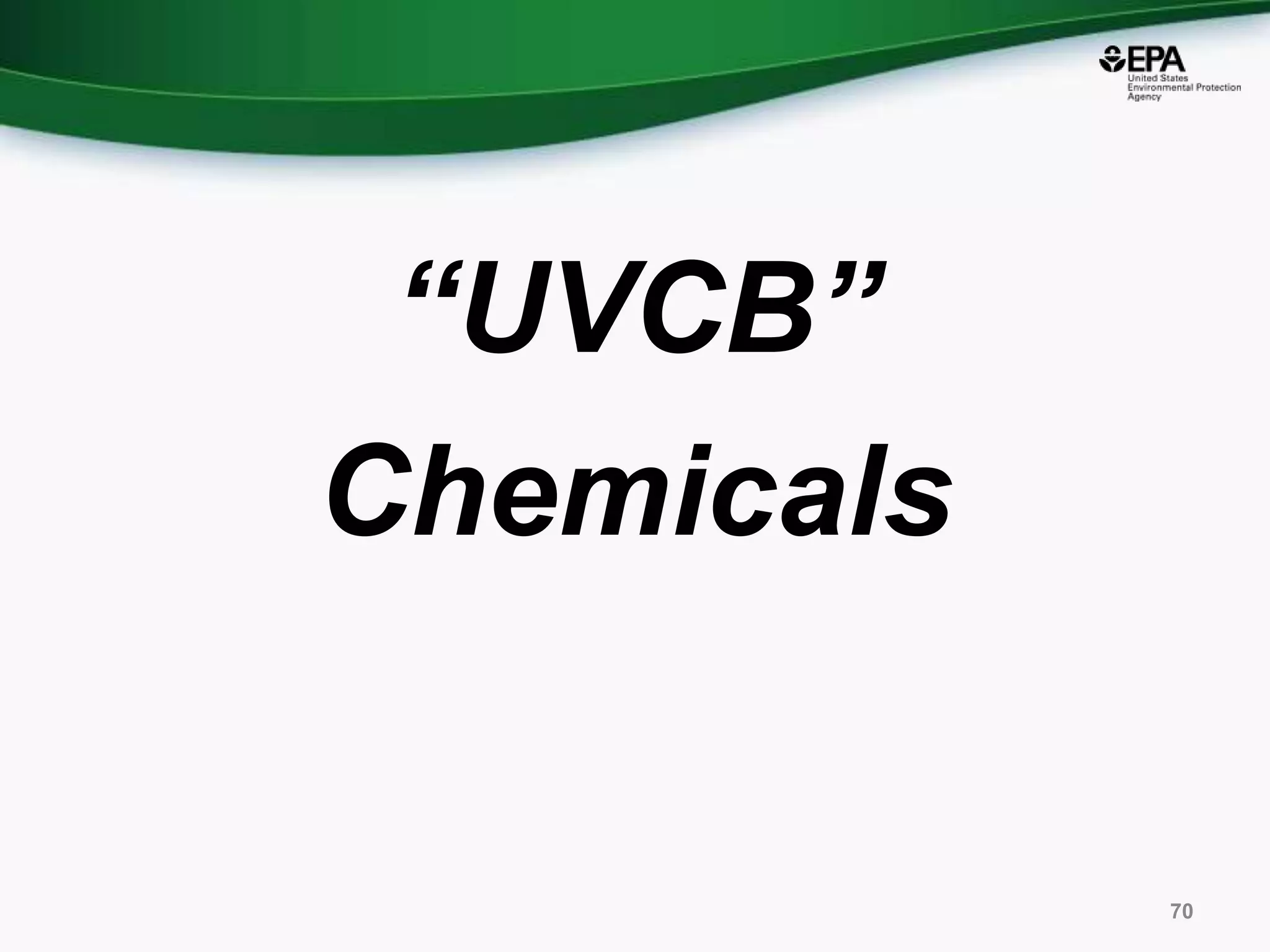

71. “UVCB”
Chemicals
70

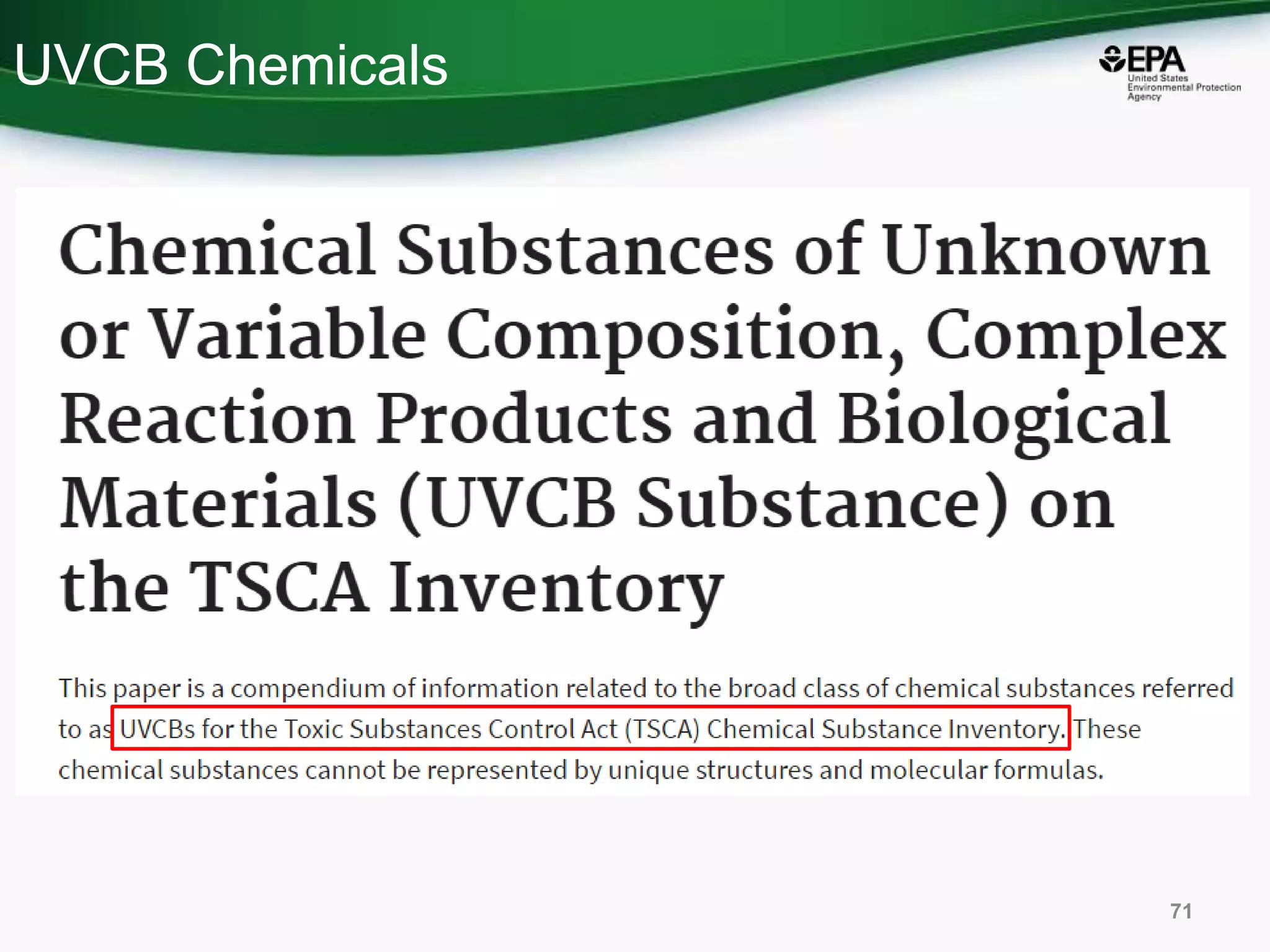

72. UVCB Chemicals
71

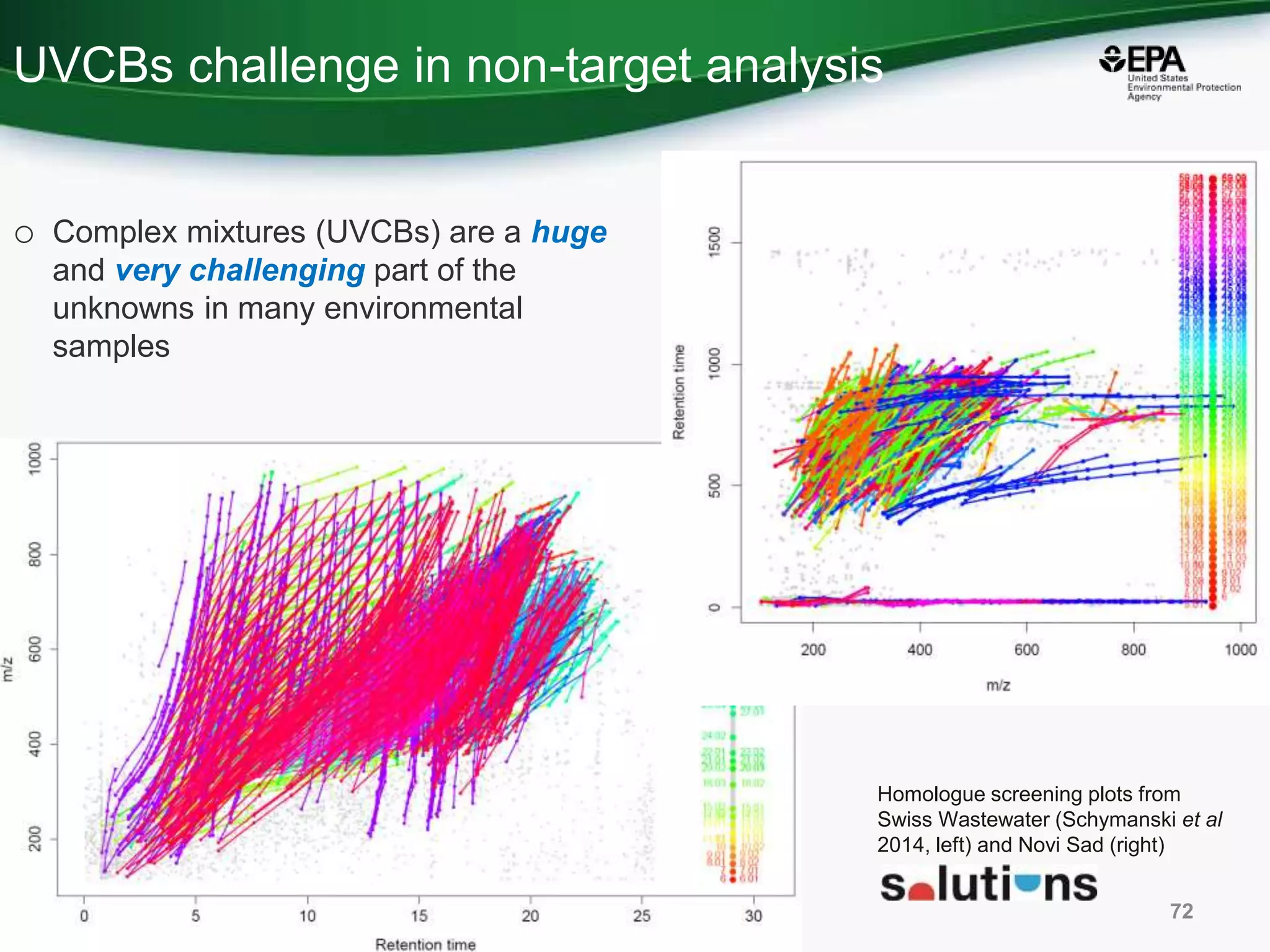

73. UVCBs challenge in non-target analysis
72
Homologue screening plots from
Swiss Wastewater (Schymanski et al
2014, left) and Novi Sad (right)
o Complex mixtures (UVCBs) are a huge
and very challenging part of the
unknowns in many environmental
samples

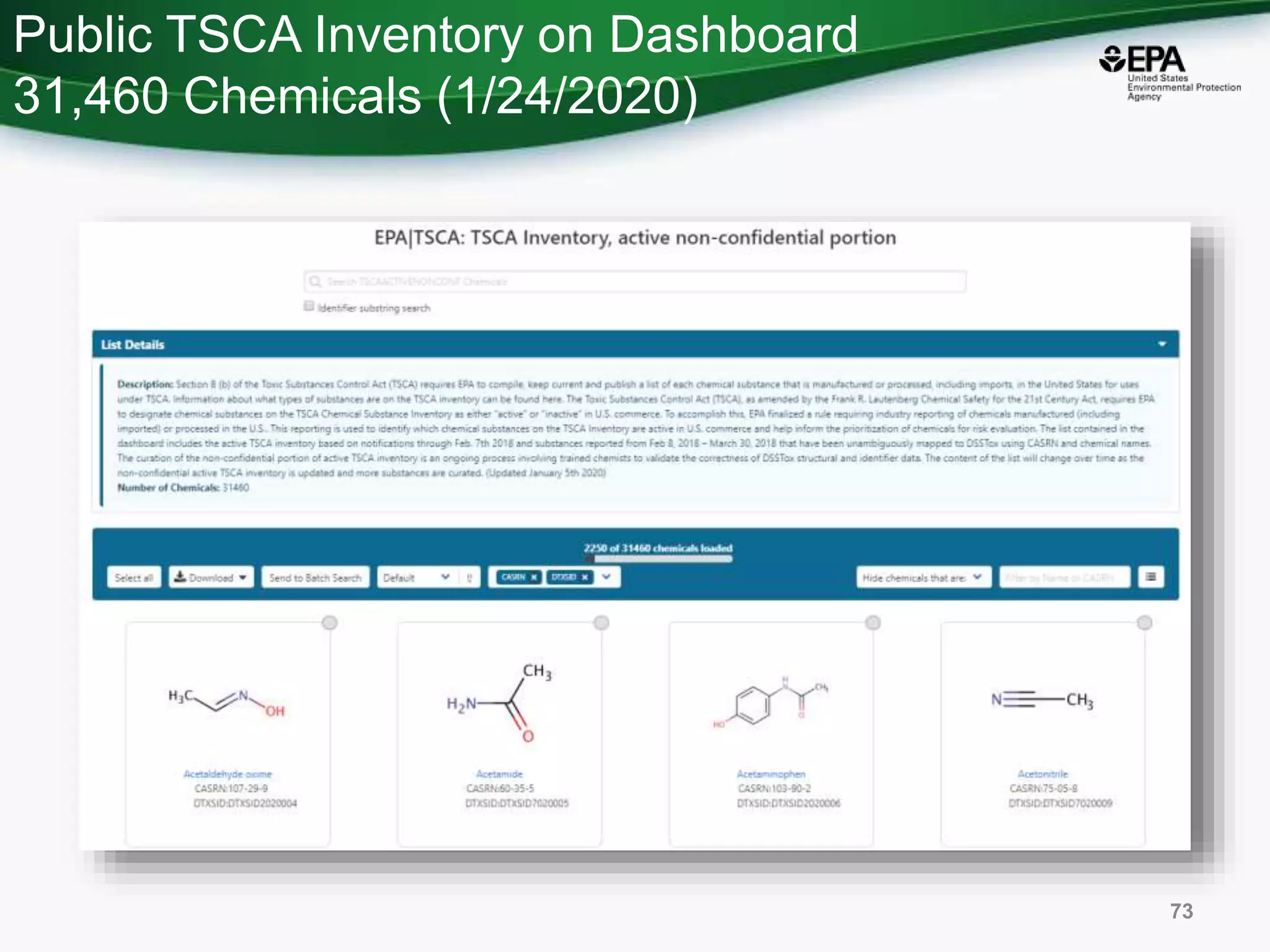

74. Public TSCA Inventory on Dashboard
31,460 Chemicals (1/24/2020)
73

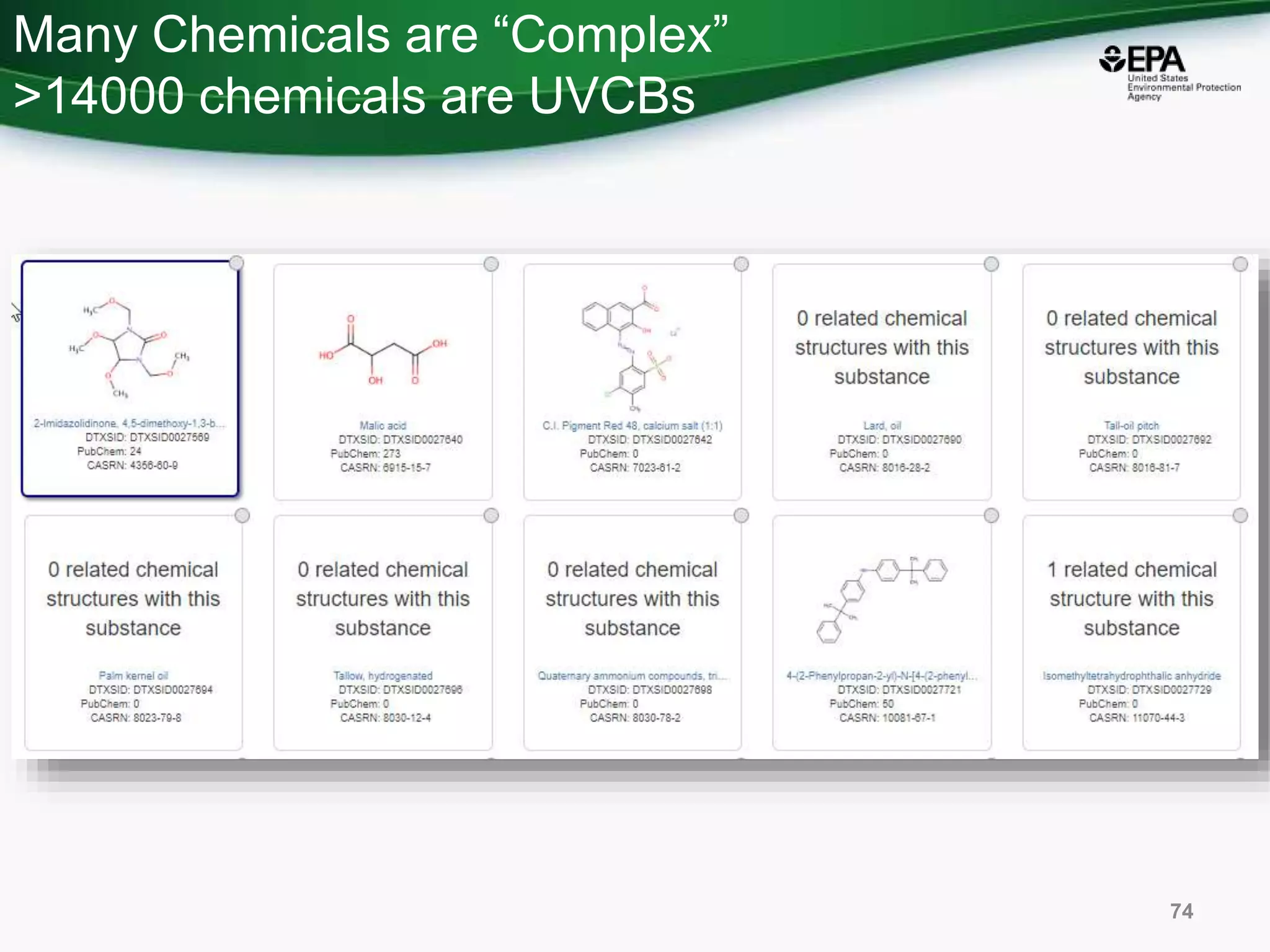

75. Many Chemicals are “Complex”
>14000 chemicals are UVCBs
74

76. “Markush Structures”
https://en.wikipedia.org/wiki/Markush_structure
75

77. How to represent complexity?

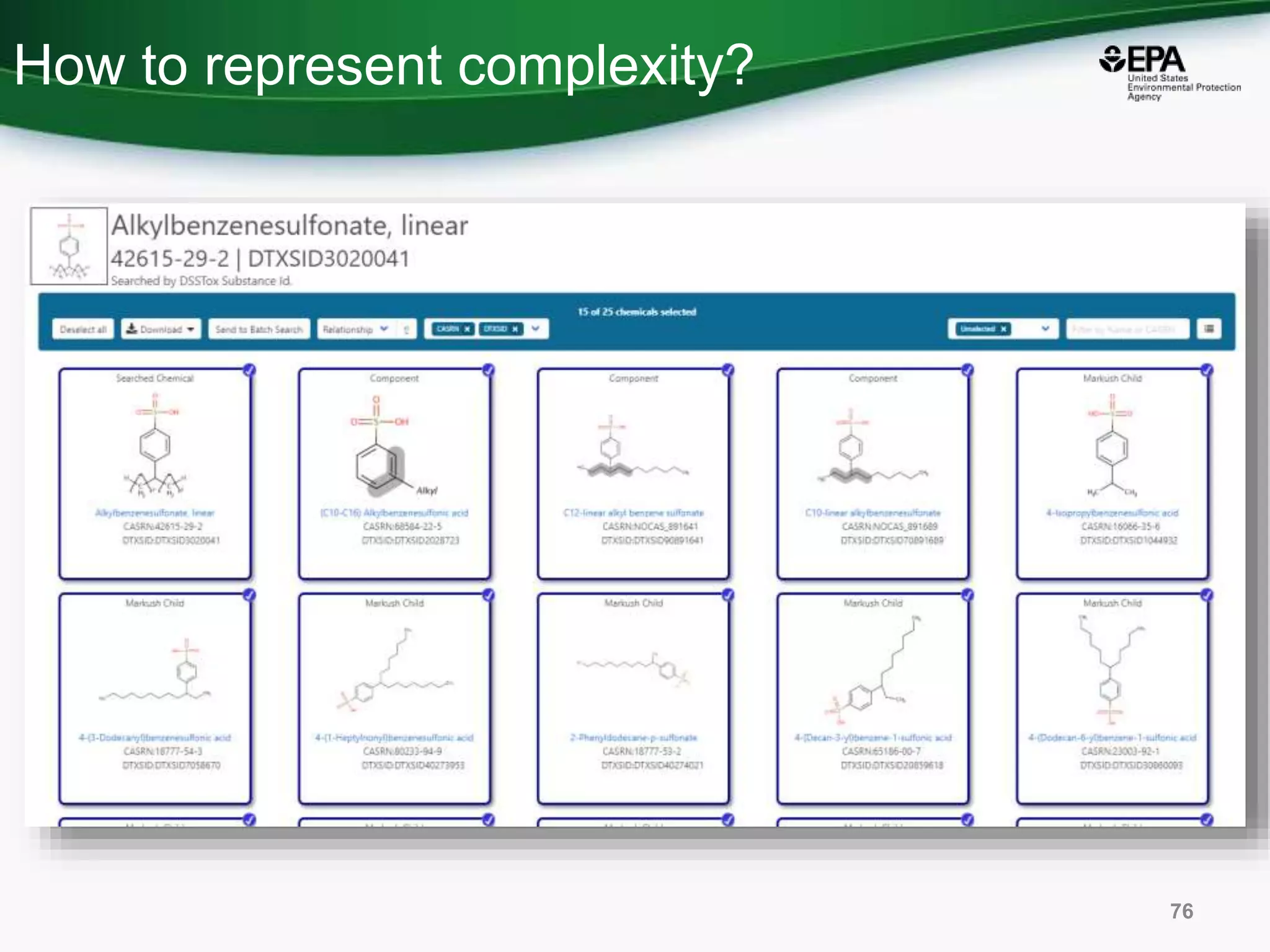

76

78. In the Dashboard
Abstract
Sifter
77

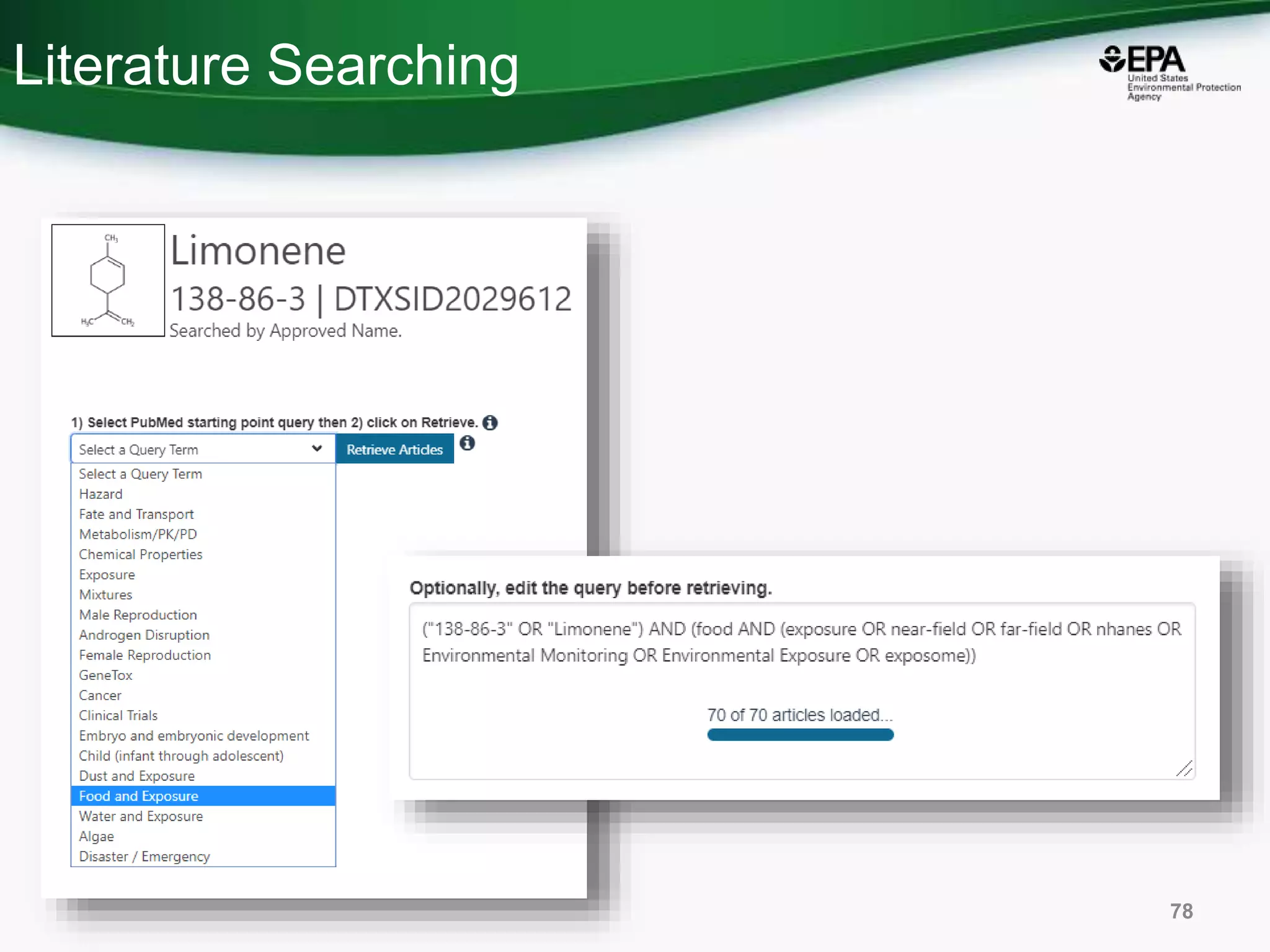

79. Literature Searching
78

80. Literature Searching
79

81. Abstract Sifter for Excel
80

82. Work in
Progress
81

83. List Registration Activities
• Registering and curating numerous lists
– NIST library of chemicals –clean up especially around
stereochemical representation
– United States Geological Survey chemicals in water
– Scientific Working Group for the Analysis of Seized Drugs
– Synthetic Cannabinoids
– Blood Exposome Database
82

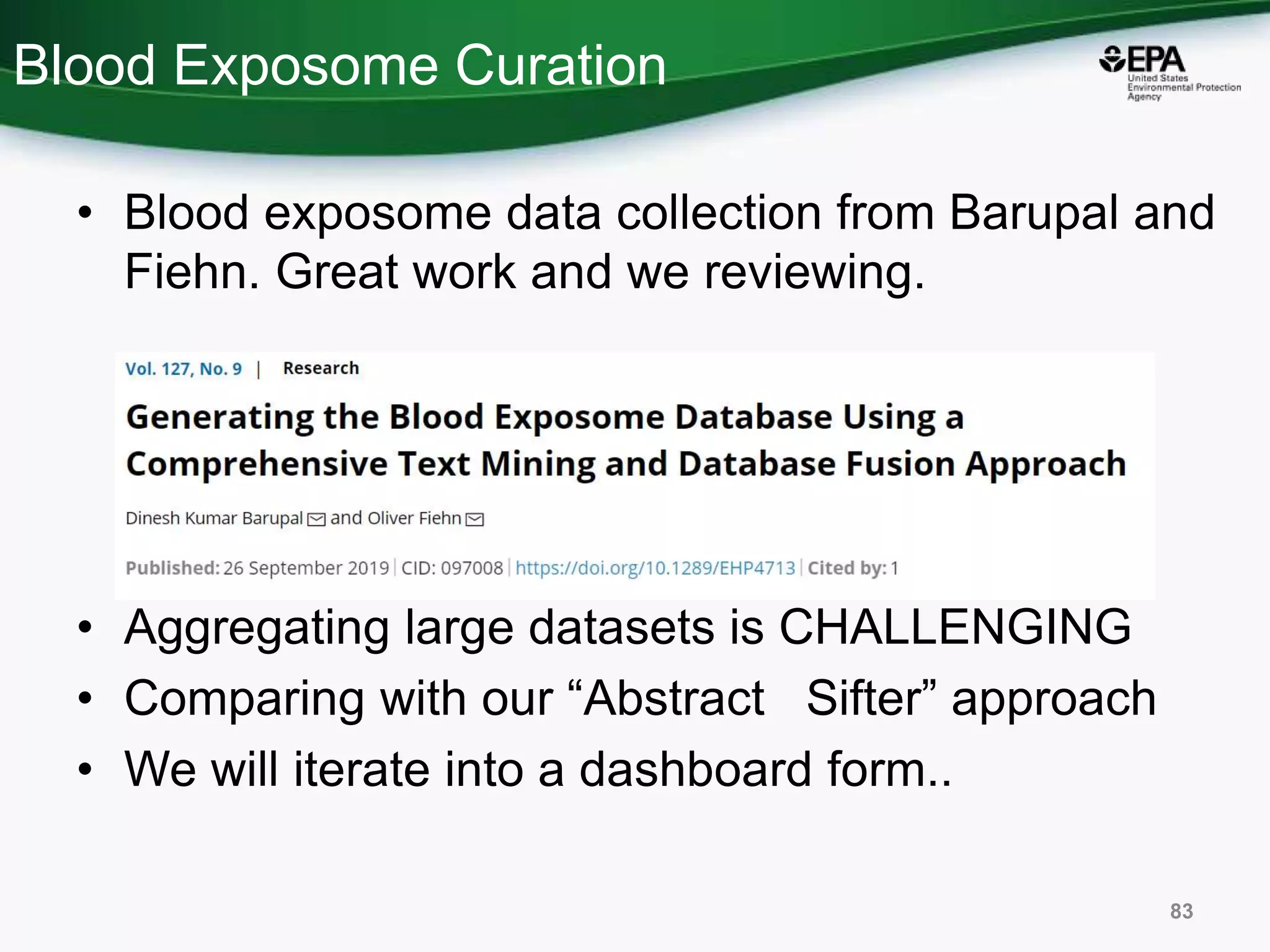

84. Blood Exposome Curation
83
• Blood exposome data collection from Barupal and
Fiehn. Great work and we reviewing.
• Aggregating large datasets is CHALLENGING
• Comparing with our “Abstract Sifter” approach
• We will iterate into a dashboard form..

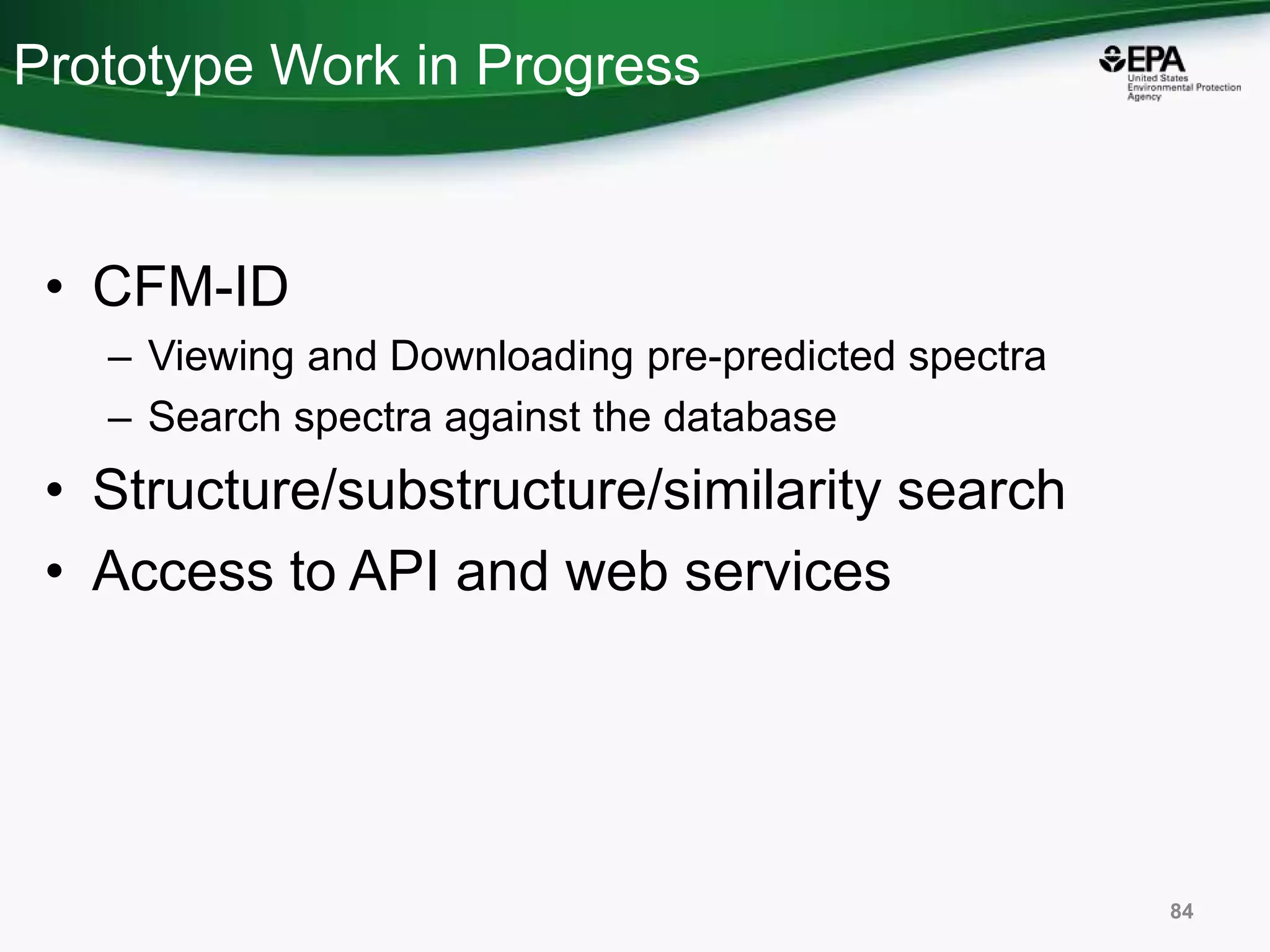

85. Prototype Work in Progress
• CFM-ID
– Viewing and Downloading pre-predicted spectra
– Search spectra against the database
• Structure/substructure/similarity search
• Access to API and web services
84

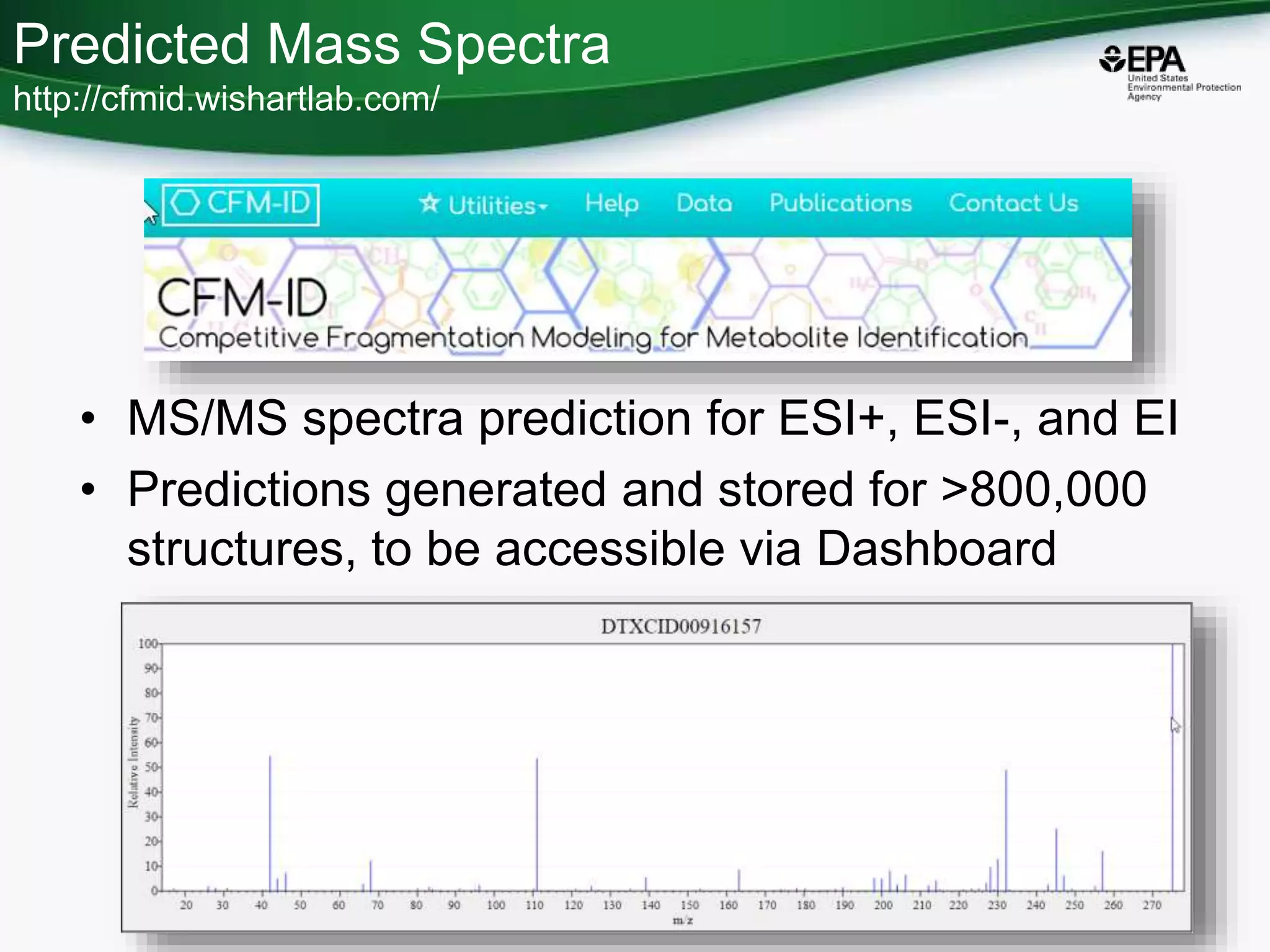

86. Predicted Mass Spectra
http://cfmid.wishartlab.com/
• MS/MS spectra prediction for ESI+, ESI-, and EI
• Predictions generated and stored for >800,000
structures, to be accessible via Dashboard
85

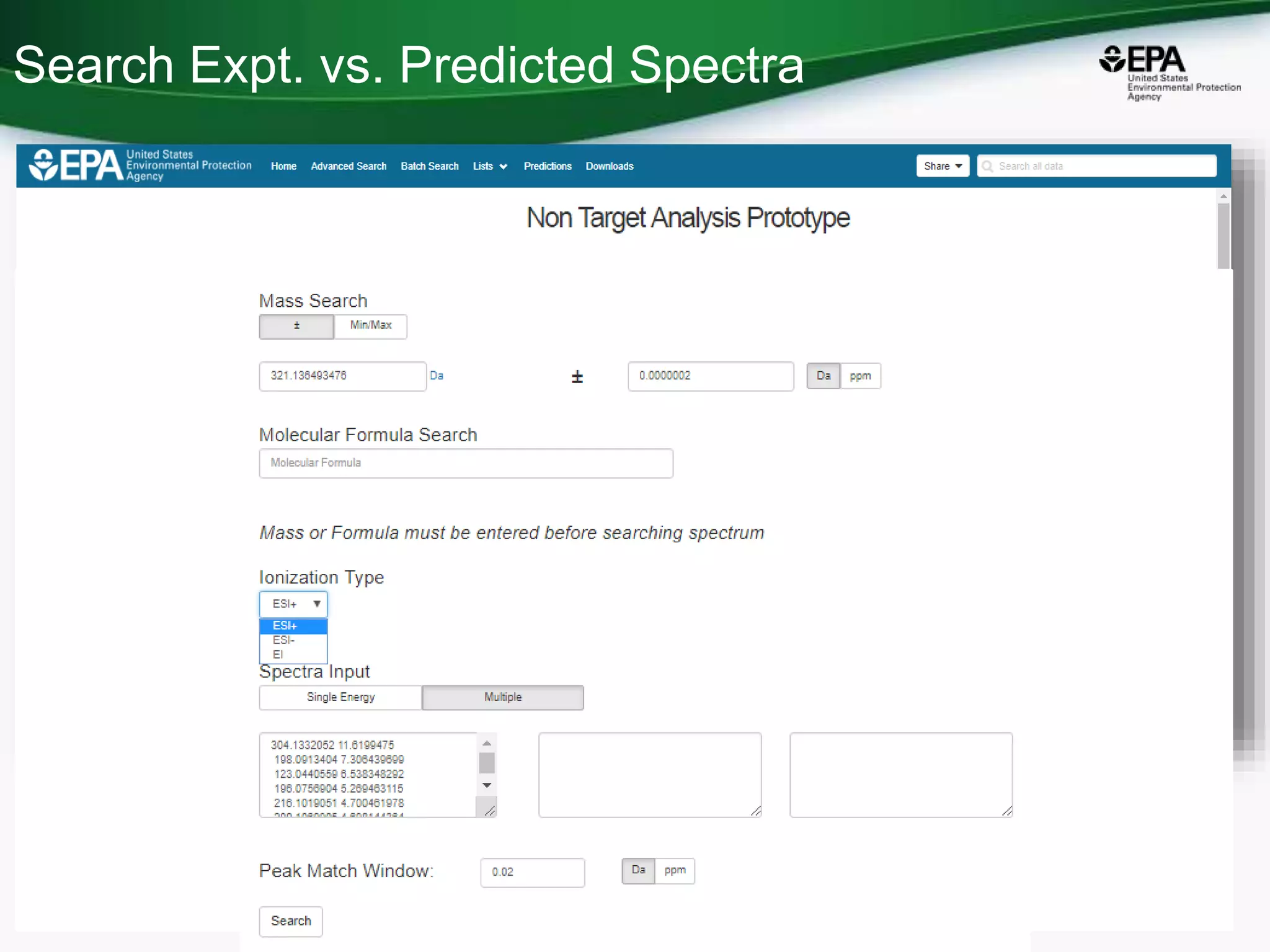

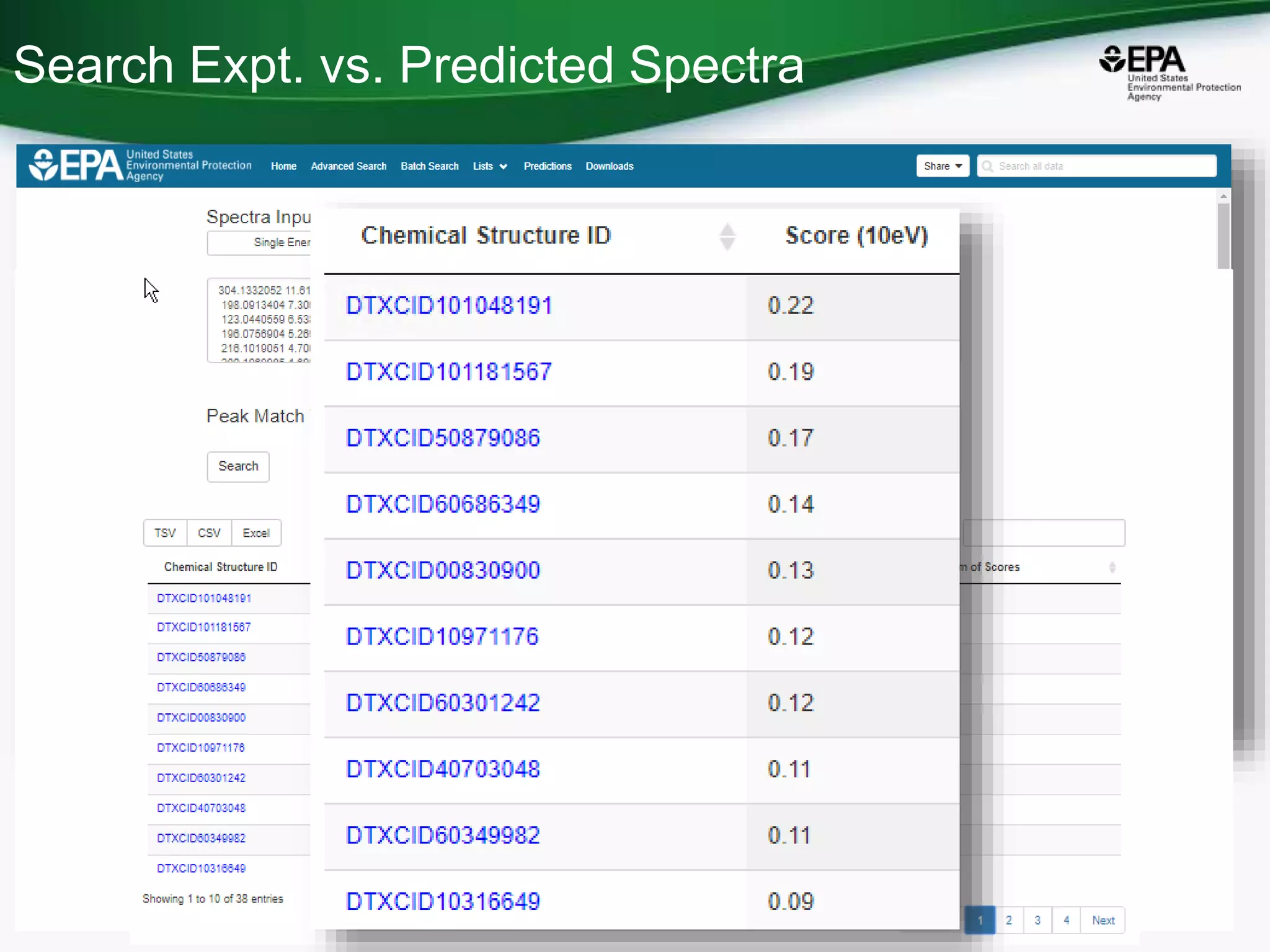

87. Search Expt. vs. Predicted Spectra

88. Search Expt. vs. Predicted Spectra

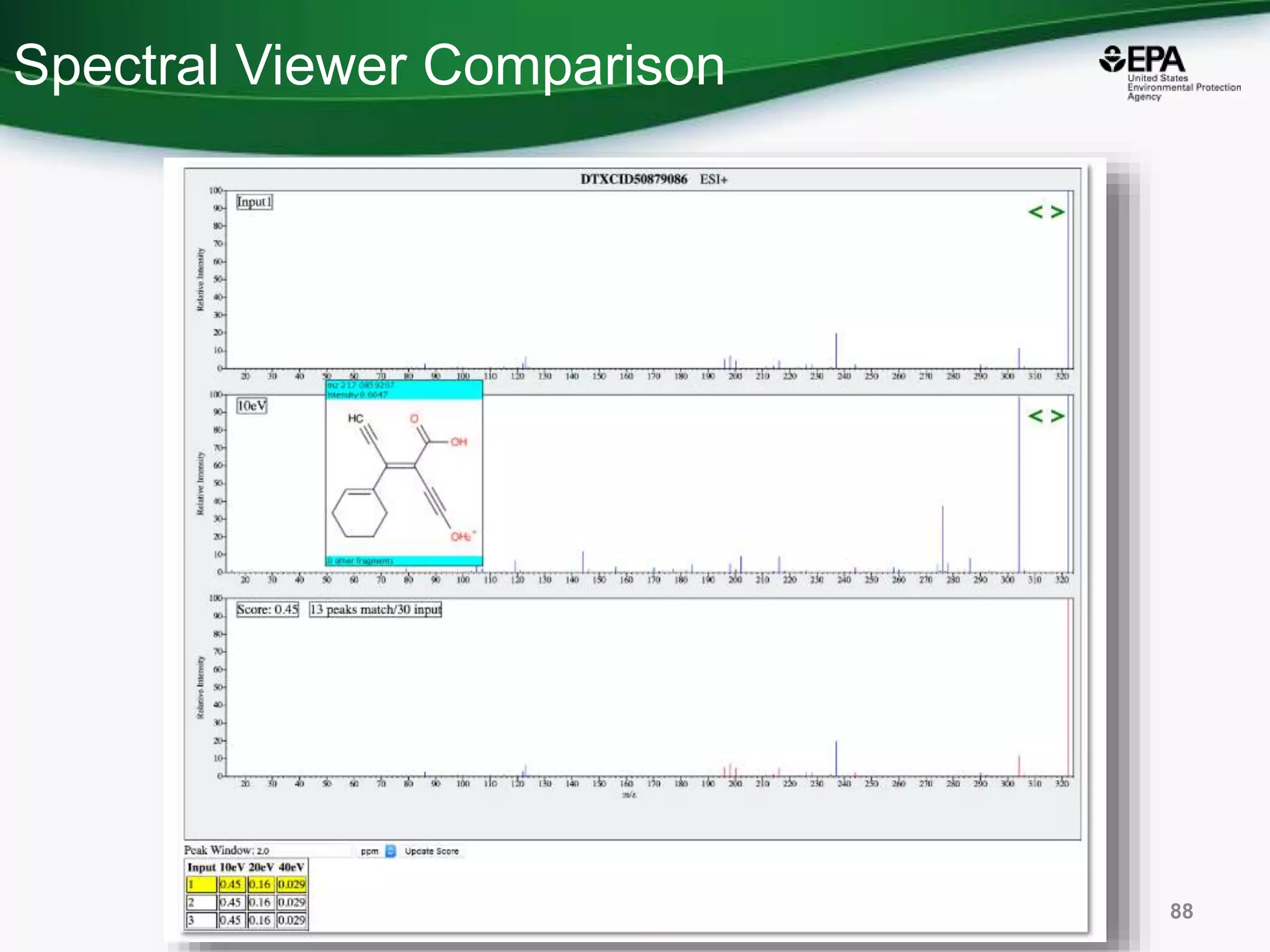

89. Spectral Viewer Comparison
88

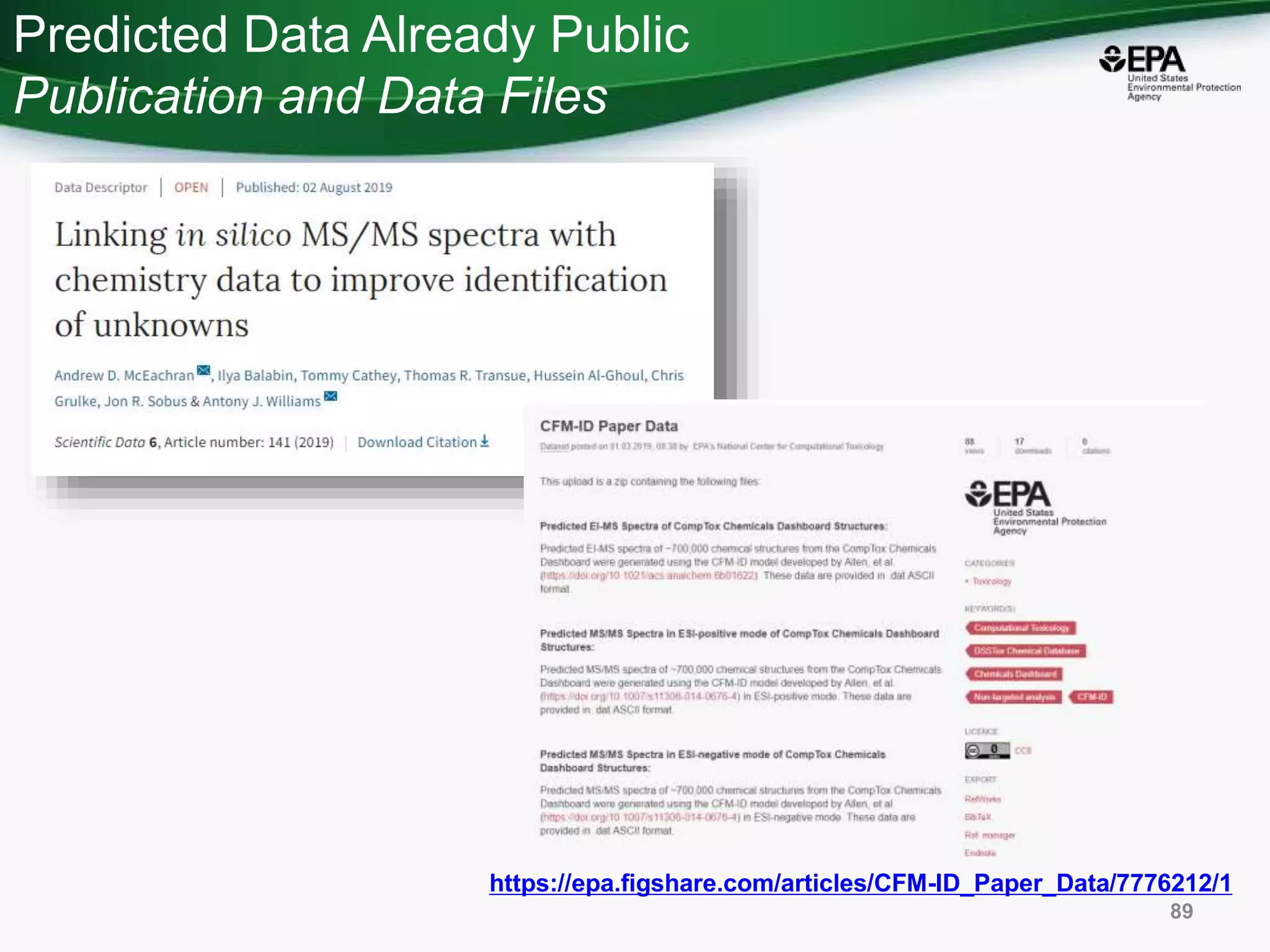

90. Predicted Data Already Public
Publication and Data Files
89
https://epa.figshare.com/articles/CFM-ID_Paper_Data/7776212/1

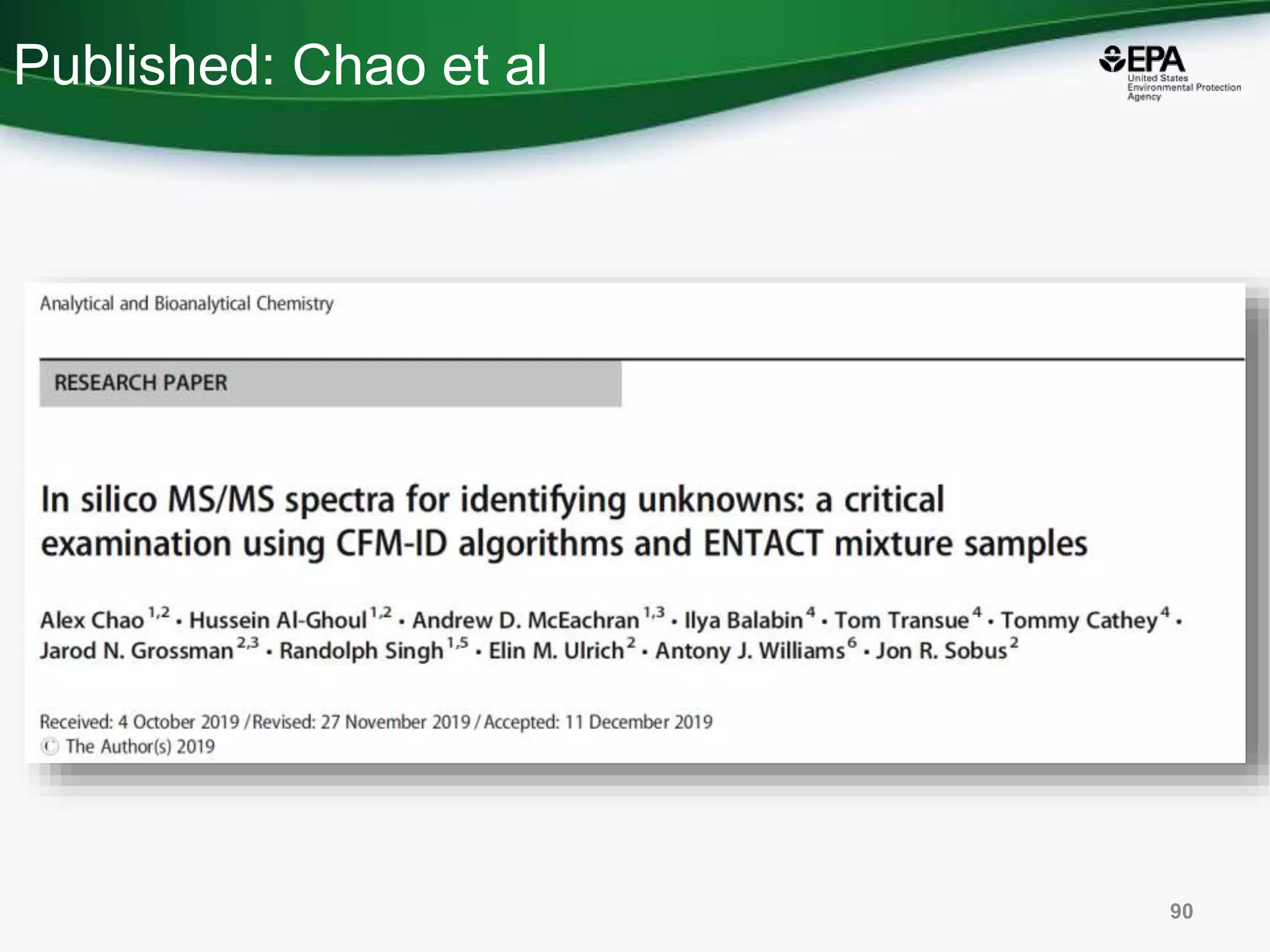

91. Published: Chao et al
90

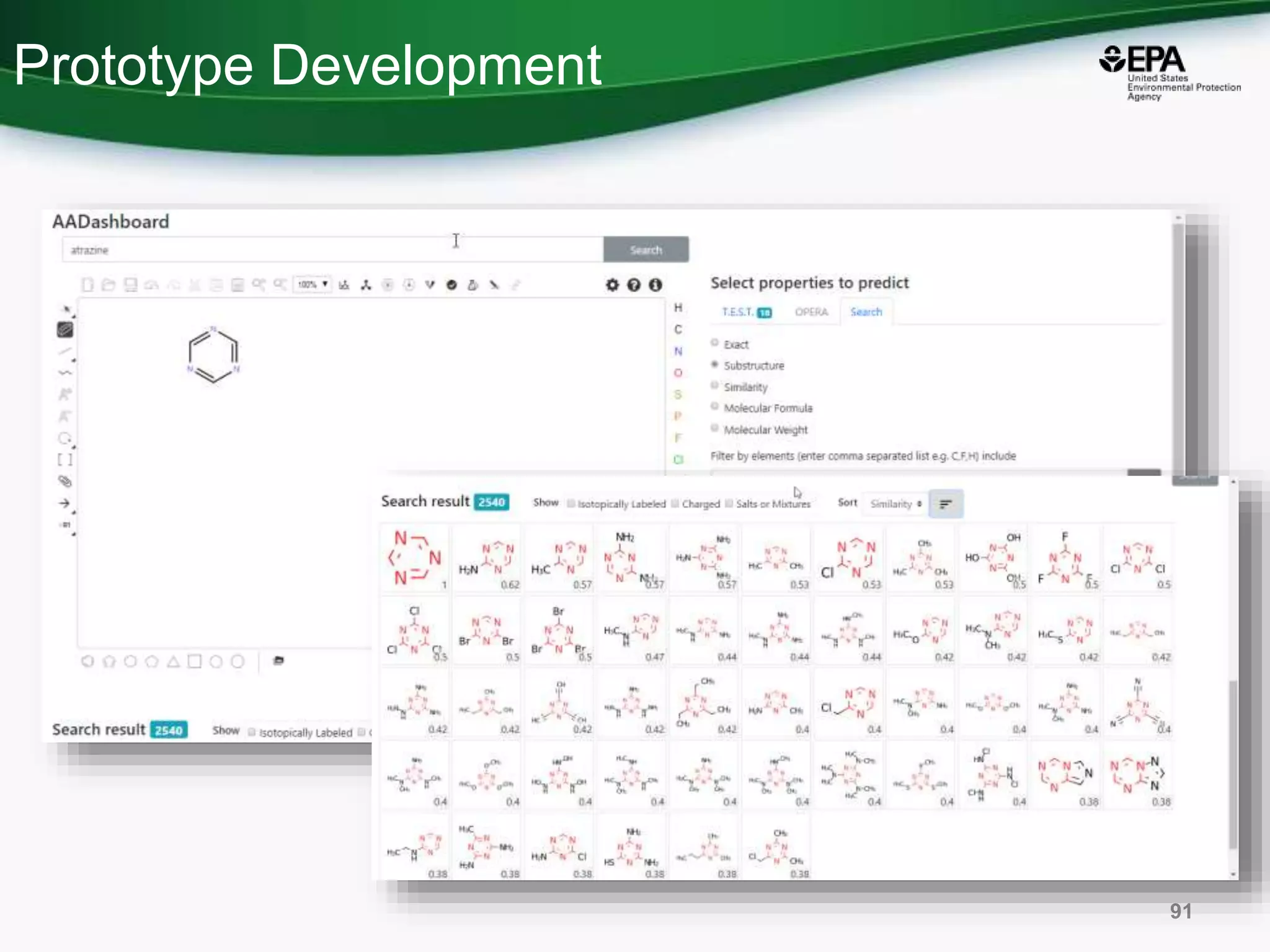

92. Prototype Development
91

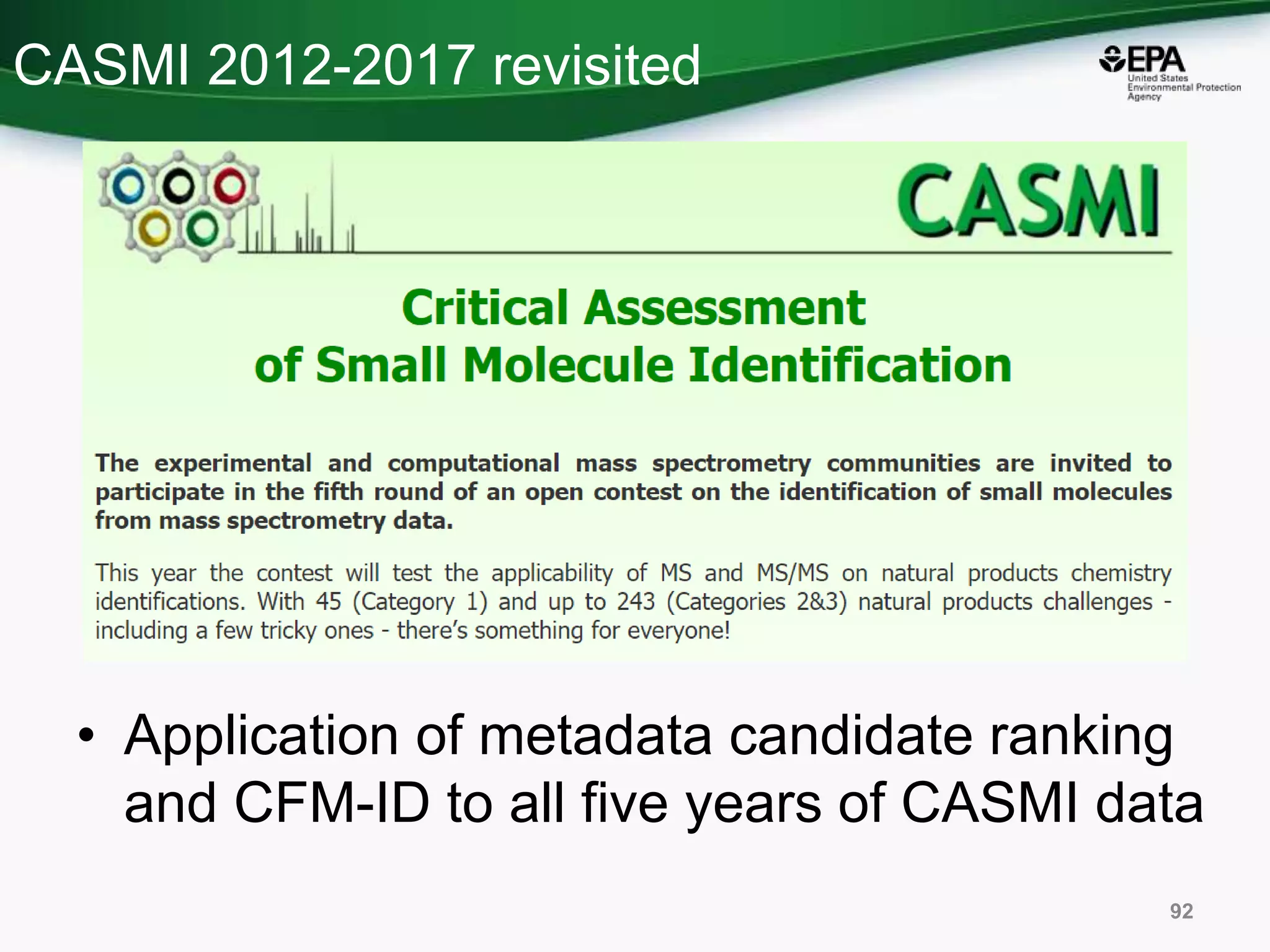

93. CASMI 2012-2017 revisited
• Application of metadata candidate ranking
and CFM-ID to all five years of CASMI data
92

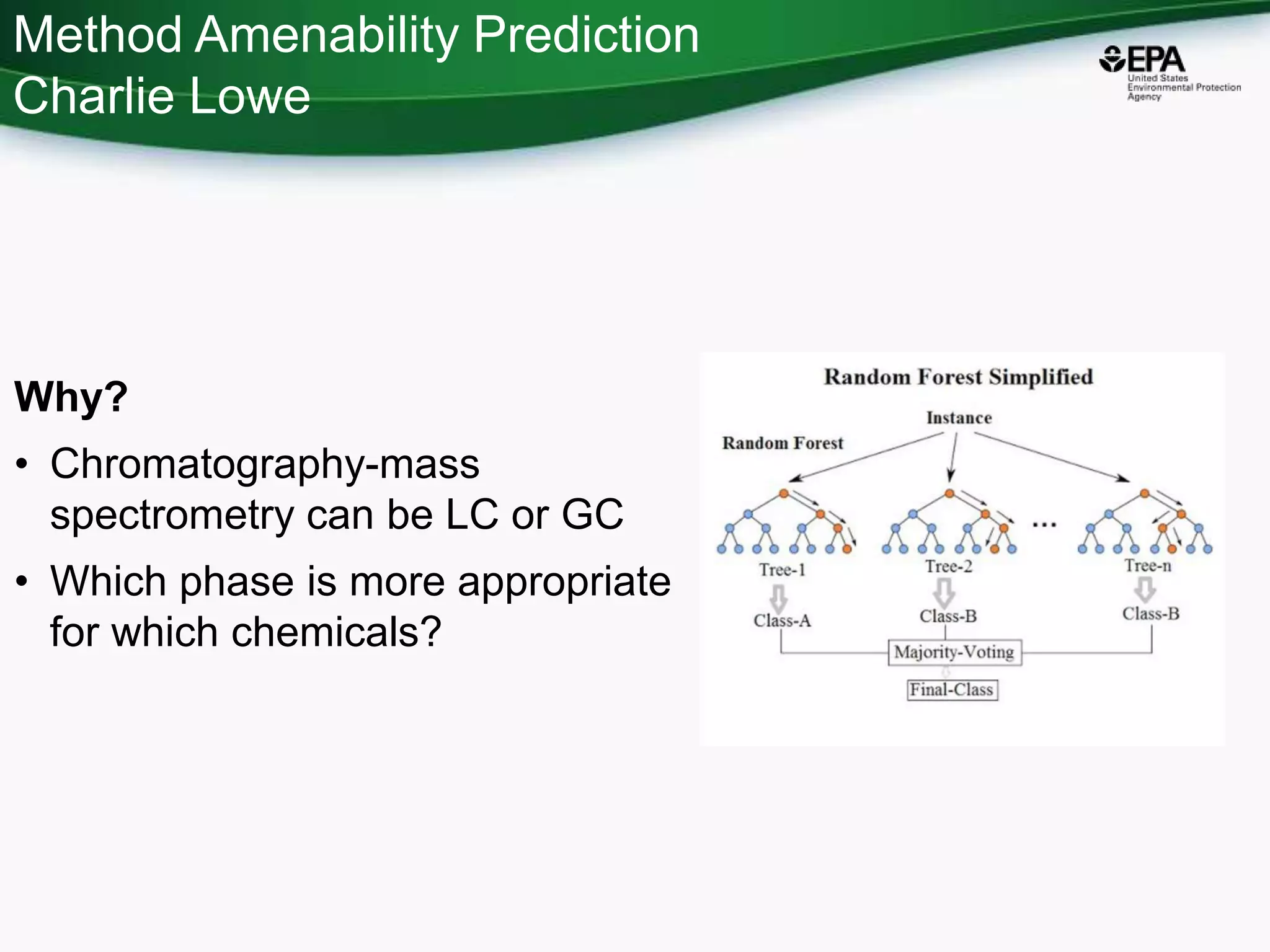

94. Method Amenability Prediction
Charlie Lowe
Why?
• Chromatography-mass
spectrometry can be LC or GC
• Which phase is more appropriate
for which chemicals?

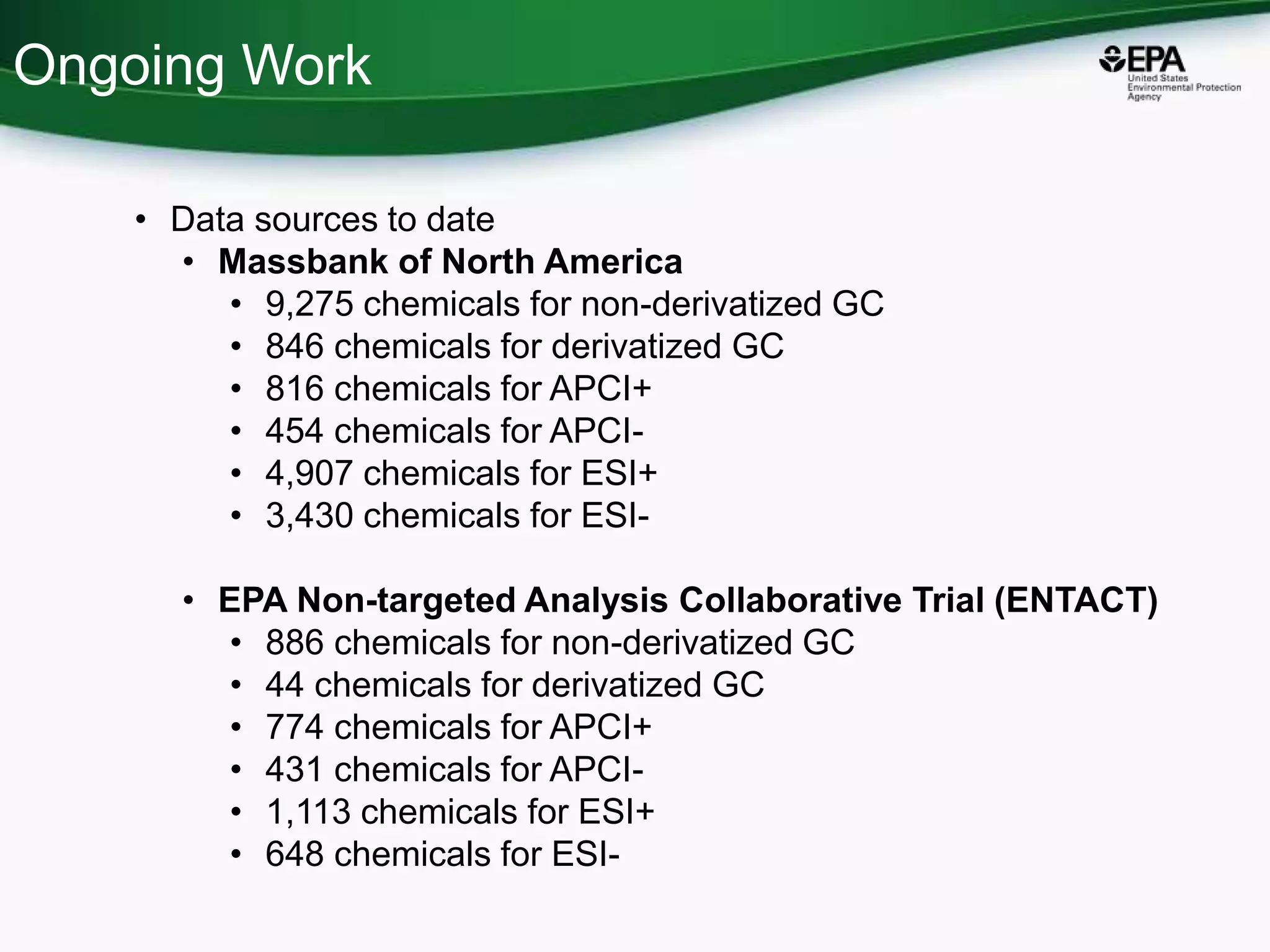

95. Ongoing Work
• Data sources to date
• Massbank of North America
• 9,275 chemicals for non-derivatized GC
• 846 chemicals for derivatized GC
• 816 chemicals for APCI+
• 454 chemicals for APCI-
• 4,907 chemicals for ESI+
• 3,430 chemicals for ESI-
• EPA Non-targeted Analysis Collaborative Trial (ENTACT)
• 886 chemicals for non-derivatized GC
• 44 chemicals for derivatized GC
• 774 chemicals for APCI+
• 431 chemicals for APCI-
• 1,113 chemicals for ESI+
• 648 chemicals for ESI-

96. TMAP Visualization of MoNA GC Data

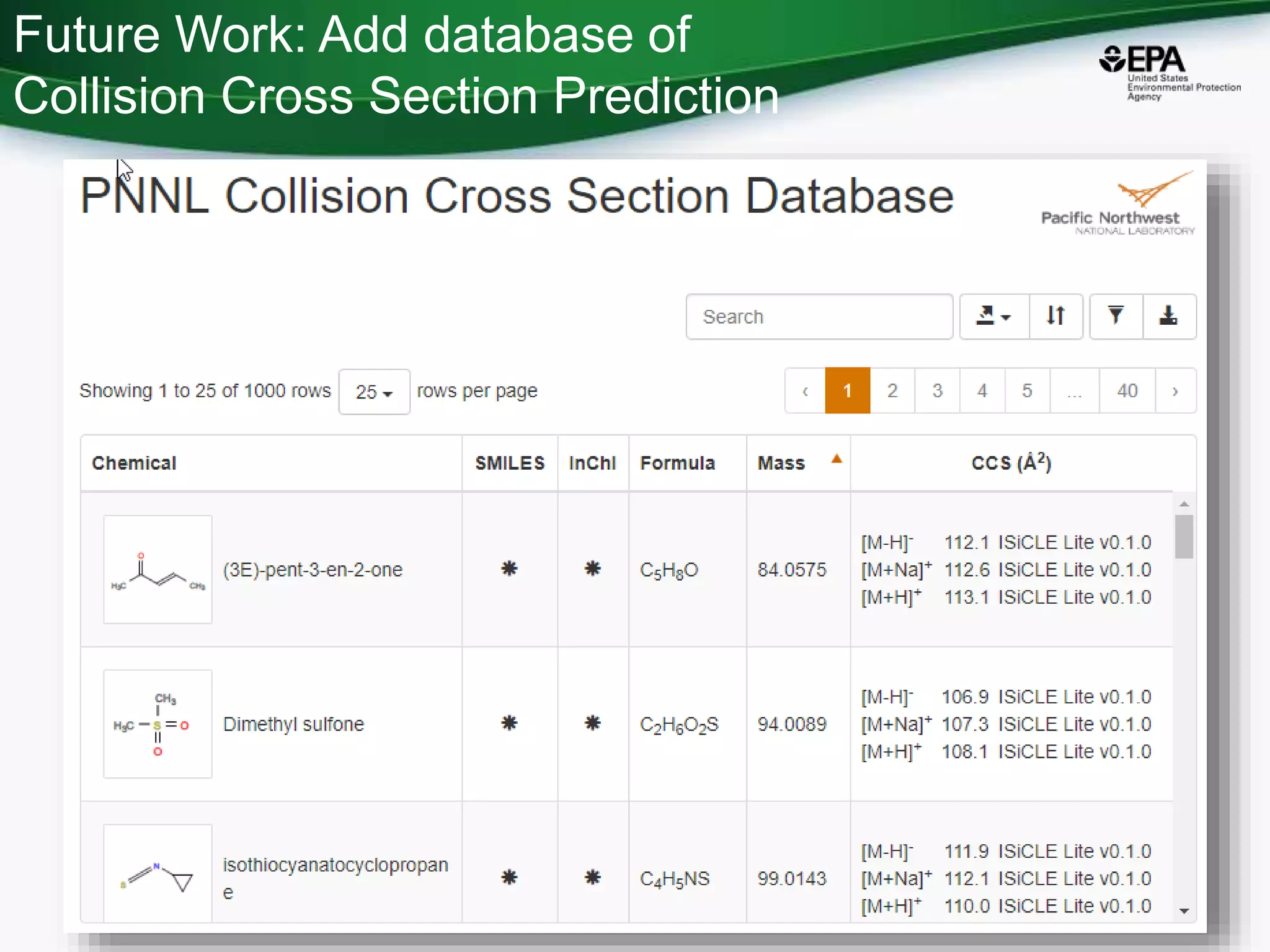

97. Future Work: Add database of
Collision Cross Section Prediction
96

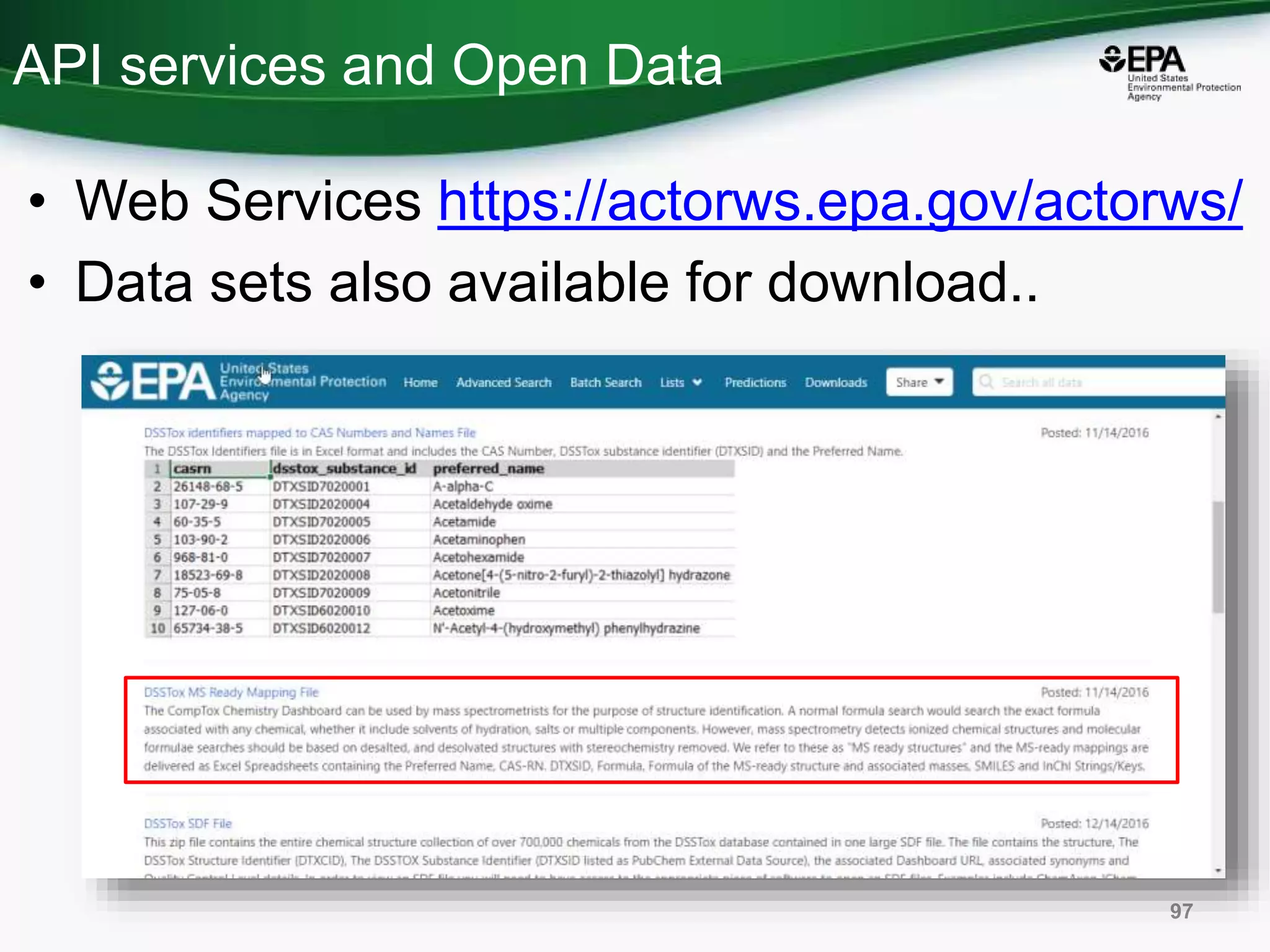

98. API services and Open Data
• Web Services https://actorws.epa.gov/actorws/
• Data sets also available for download..
97

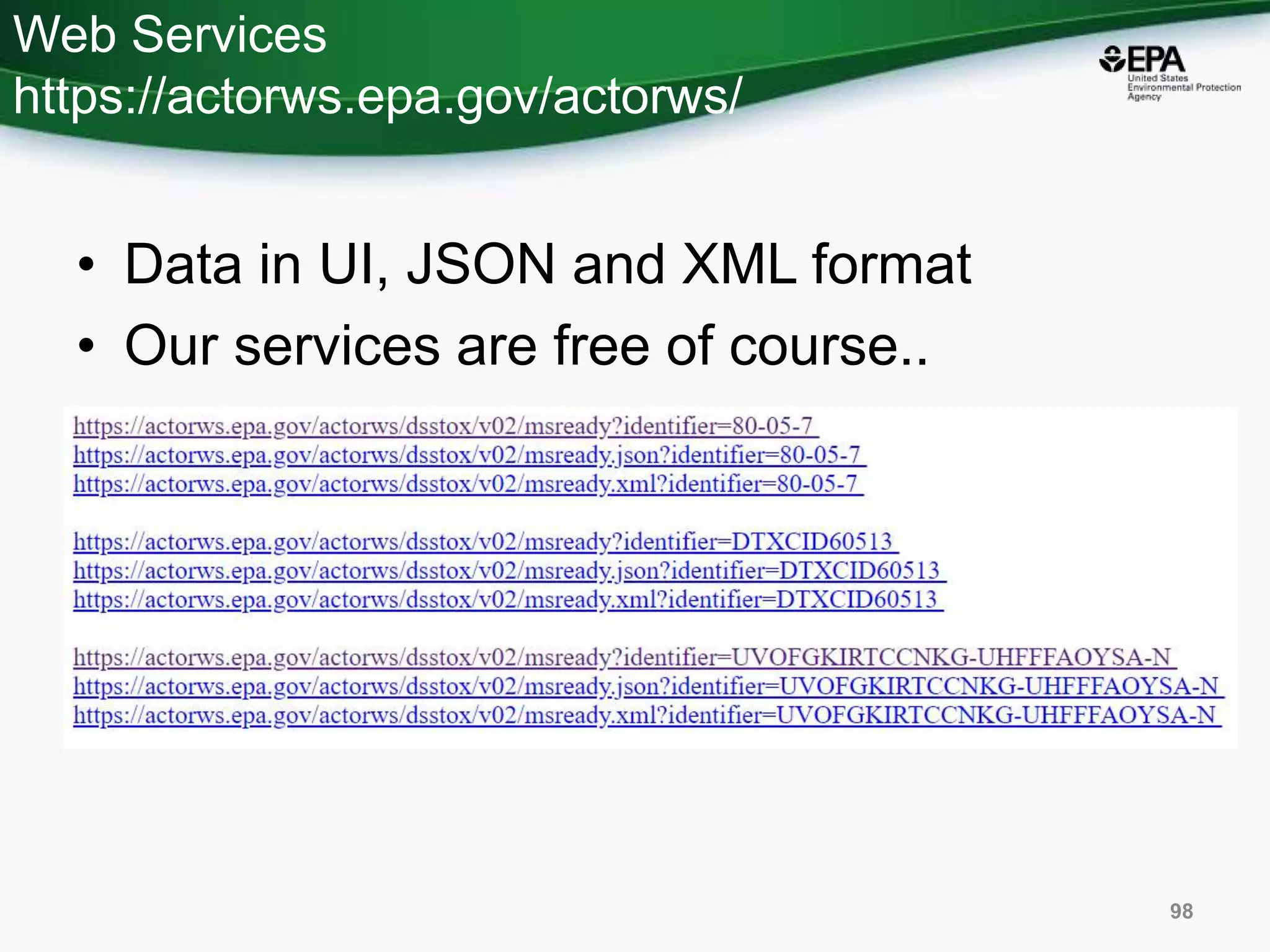

99. Web Services
https://actorws.epa.gov/actorws/
• Data in UI, JSON and XML format
• Our services are free of course..
98

100. InChIKey to DTXCIDs
99
https://actorws.epa.gov/actorws/dsstox/v02/msready?identifier
=UVOFGKIRTCCNKG-UHFFFAOYSA-N

101. Data and Services
used by the
Community
100

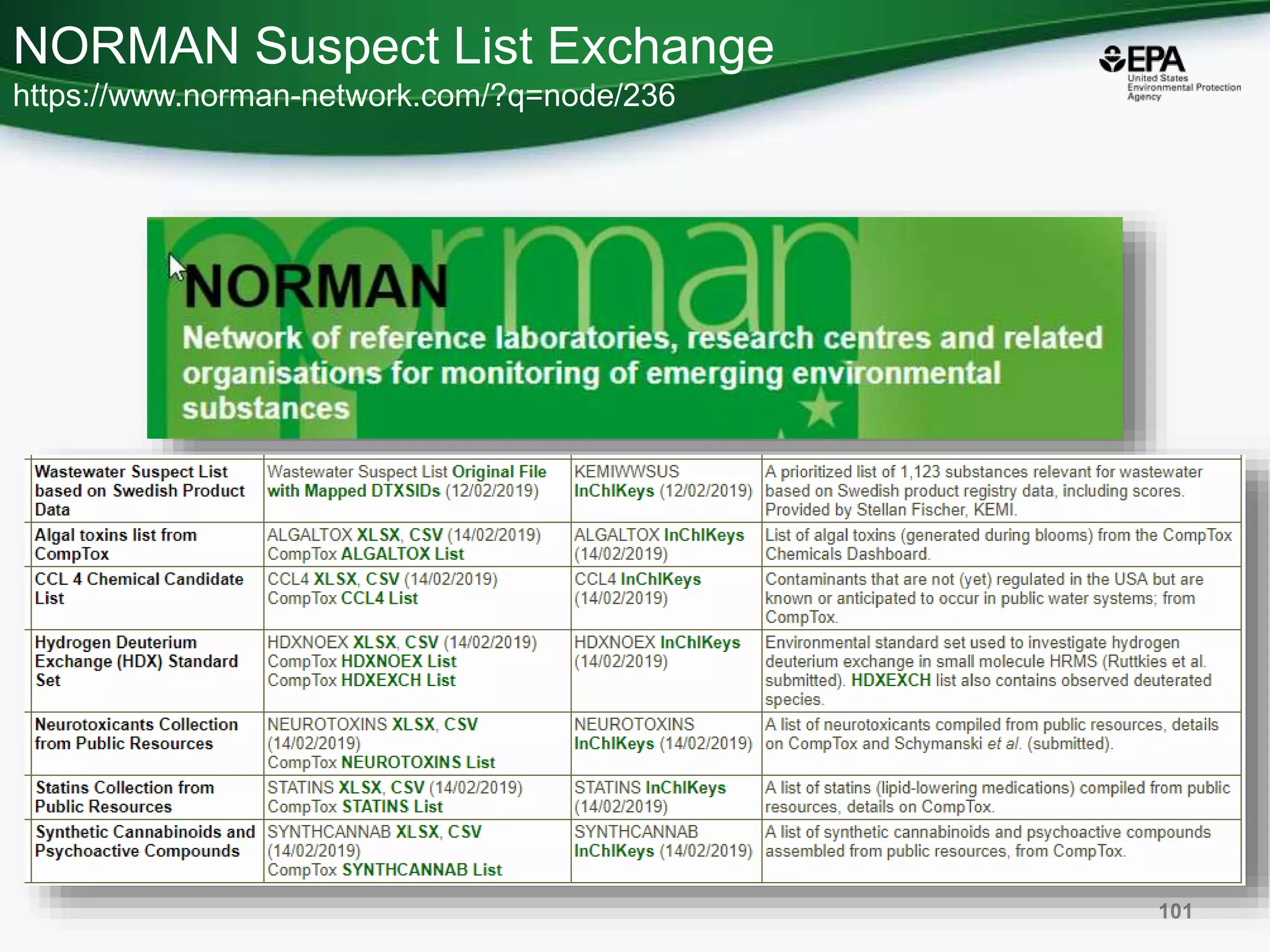

102. NORMAN Suspect List Exchange
https://www.norman-network.com/?q=node/236
101

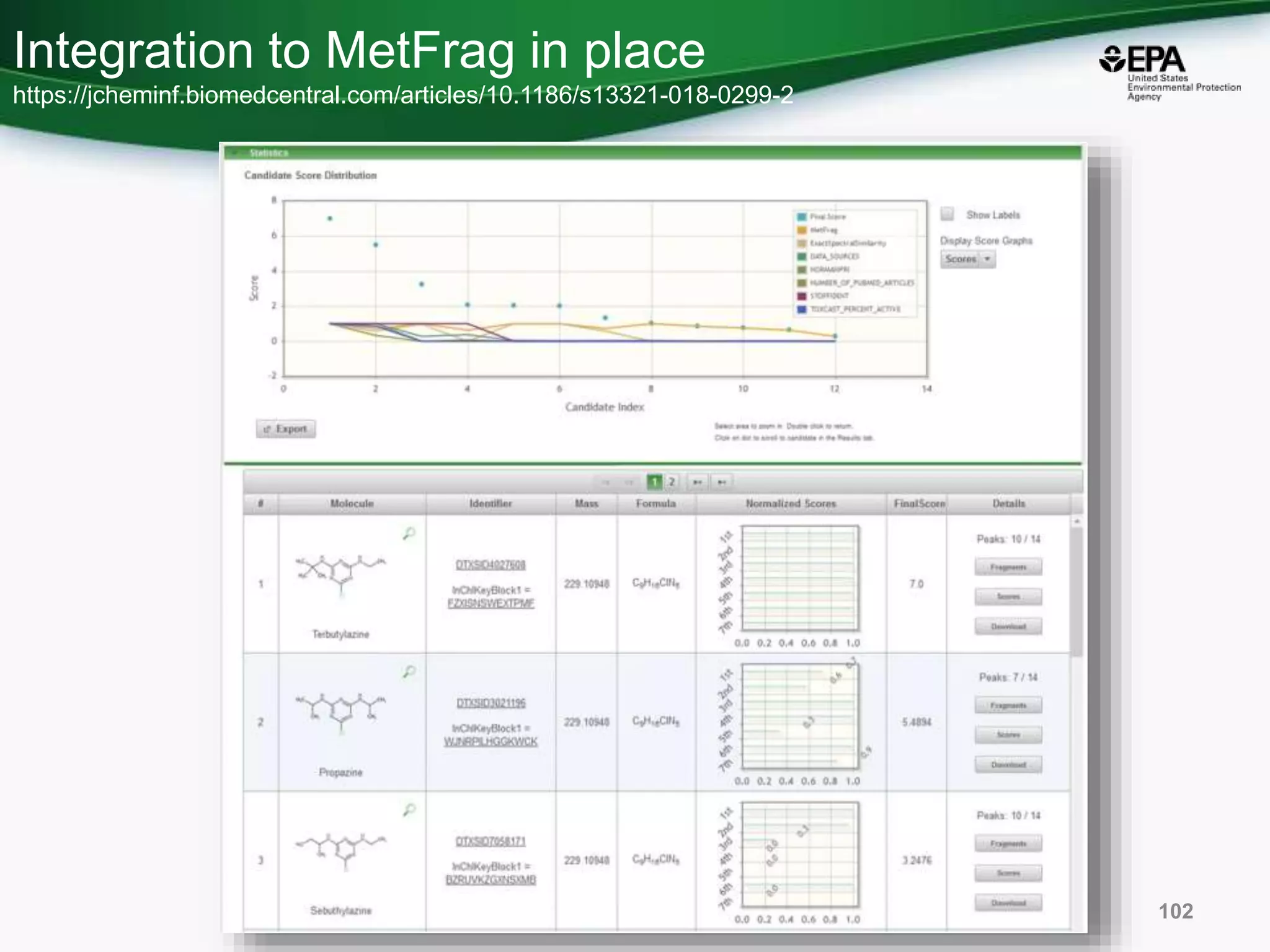

103. Integration to MetFrag in place
https://jcheminf.biomedcentral.com/articles/10.1186/s13321-018-0299-2
102

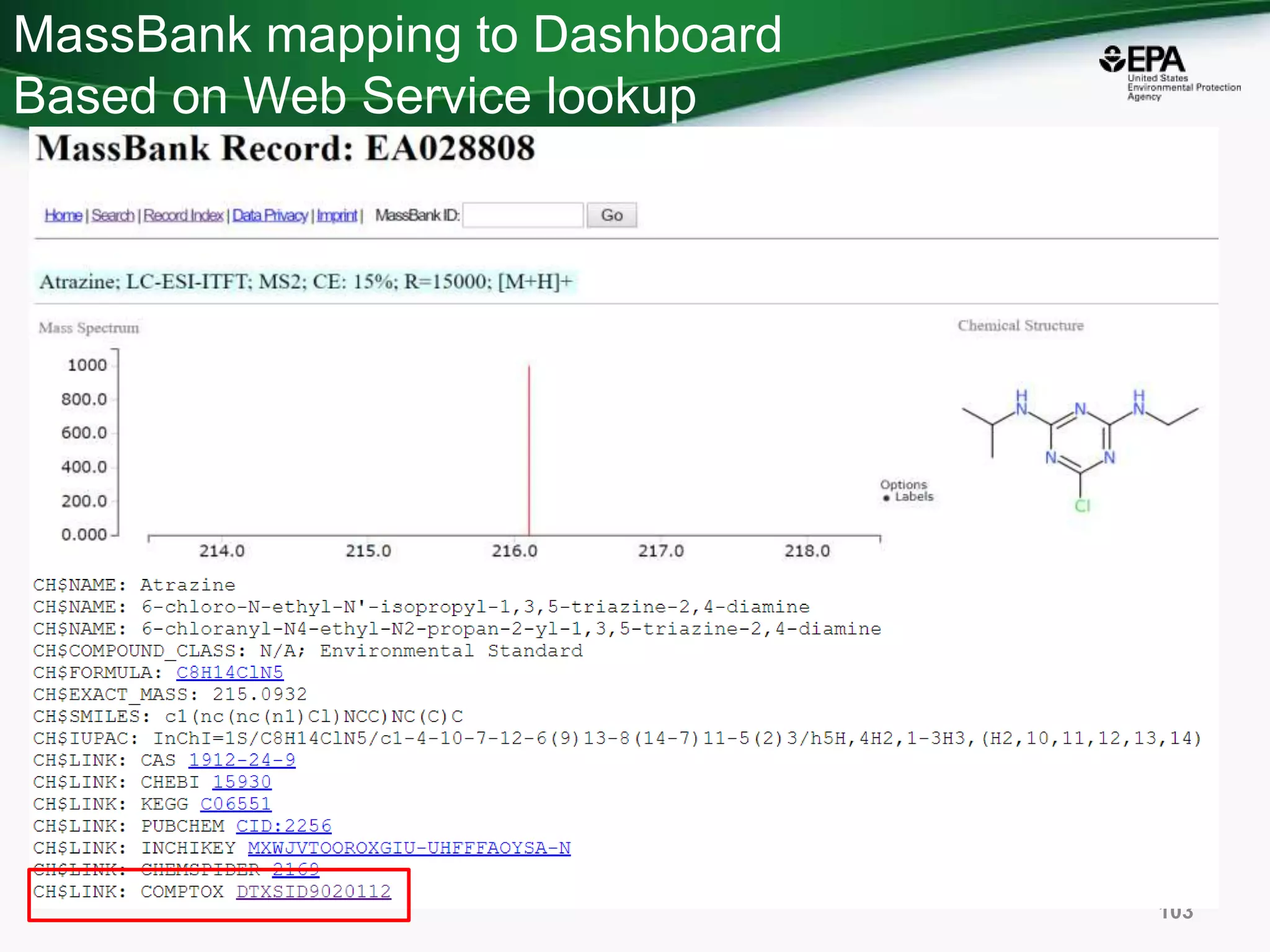

104. MassBank mapping to Dashboard
Based on Web Service lookup
103

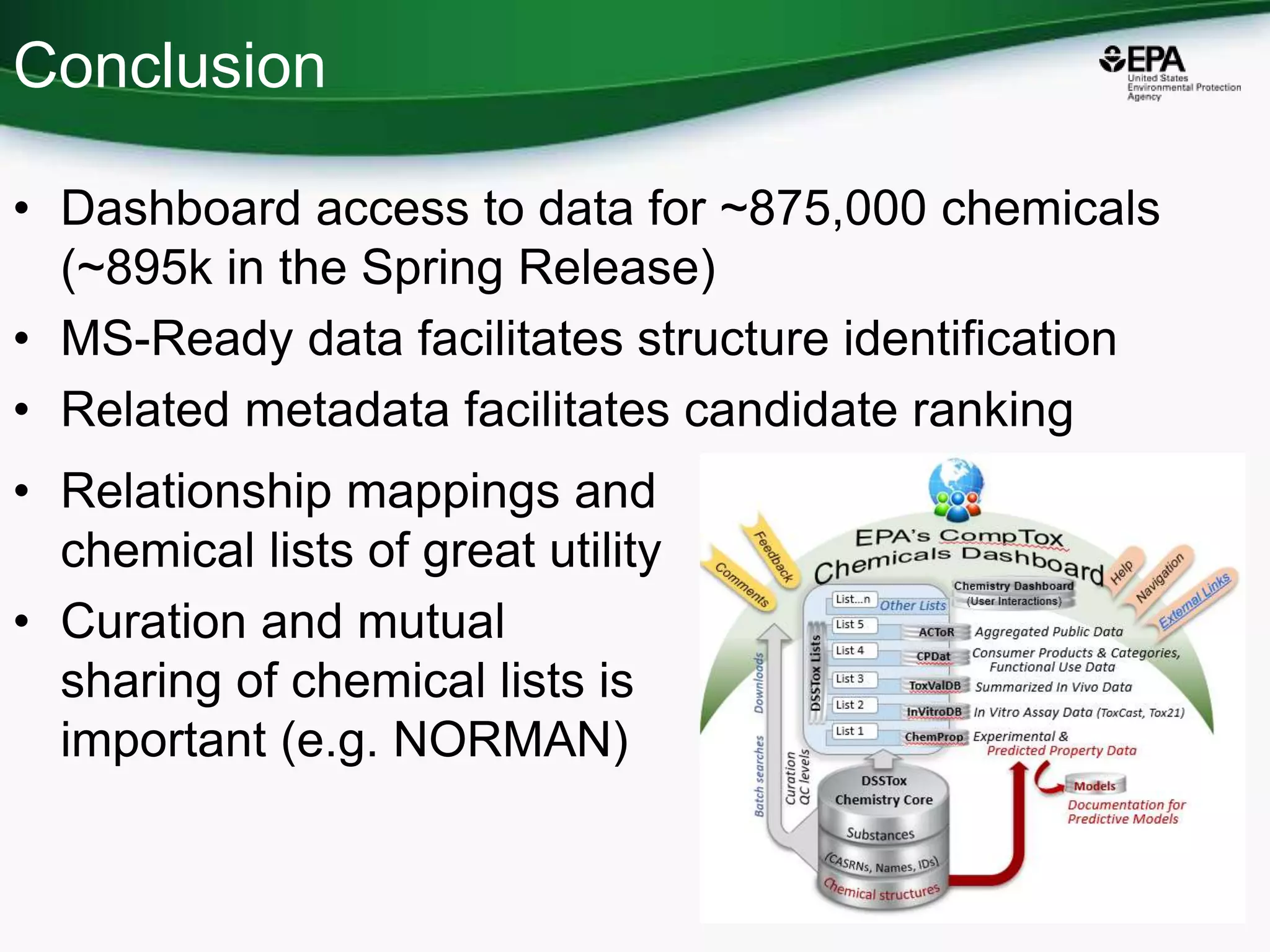

105. Conclusion
• Dashboard access to data for ~875,000 chemicals
(~895k in the Spring Release)
• MS-Ready data facilitates structure identification
• Related metadata facilitates candidate ranking
104
• Relationship mappings and
chemical lists of great utility
• Curation and mutual
sharing of chemical lists is
important (e.g. NORMAN)

106. ILS
Kamel Mansouri
EPA ORD
Ann Richard
Chris Grulke
Jeremy Dunne
Jeff Edwards
Grace Patlewicz
Alex Chao
Kristin Isaacs
Charles Lowe
James McCord
Seth Newton
Katherine Phillips
Jon Sobus
Mark Strynar
Elin Ulrich
Joach Pleil
GDIT
Ilya Balabin
Tom Transue
Tommy Cathey
Acknowledgements
TEAMS
IT Development Team
Curation Team
Collaborators
Emma Schymanski
NORMAN Network
Andrew McEachran

107. MANY presentations online
https://tinyurl.com/w5hqs55
106

108. Contact
Antony Williams
CCTE, US EPA Office of Research and Development,
Williams.Antony@epa.gov
ORCID: https://orcid.org/0000-0002-2668-4821
107
https://doi.org/10.1186/s13321-017-0247-6
