The document discusses the calculation of transmittance and reflectance of light at normal and oblique incidence on thin glass slabs and multilayer structures. It shows analytical and simulation results for the reflectance and transmittance of a 5 micron glass slab at normal incidence. Additionally, it demonstrates simulations of oblique incidence of TE and TM polarized light at angles of 30 and 60 degrees onto a glass substrate.

1. Calculation of Transmittance &
Reflectance
fagung@gmail.com Fa-Gung Fan

2. Normal Incidence
��0
glass 5 microns
fagung@gmail.com Fa-Gung Fan

3. PML
air
glass
air
PML
fagung@gmail.com Fa-Gung Fan

4. Normal Incident of Light on a 5um Glass Slab (n=1.5)
1.6E-01
1.4E-01
1.2E-01
Reflectance
1.0E-01
Exact solution
8.0E-02
Comsol calculations
6.0E-02
4.0E-02
2.0E-02
0.0E+00
600 650 700 750 800 850 900
wavelength (nm)
Normal Incident of Light on a 5um Glass Slab (n=1.5)
1.02E+00
1.00E+00
9.80E-01
Transmittance
9.60E-01
9.40E-01 Exact solution
9.20E-01 Comsol calculations
9.00E-01
8.80E-01
8.60E-01
8.40E-01
600 650 700 750 800 850 900
wavelength (nm)
Analytical solution: Eq. (22-42) on Page 461 of Pedrotti, F. L. and Pedrotti, L. S., "Introduction to Optics,"
Prentice-Hall, Inc., 1987.
fagung@gmail.com Fa-Gung Fan

5. Animation of propagation patterns for light of wavelength
from 700 to 800 nm: Video at the right.
fagung@gmail.com Fa-Gung Fan

6. Oblique Incidence
�
glass
fagung@gmail.com Fa-Gung Fan

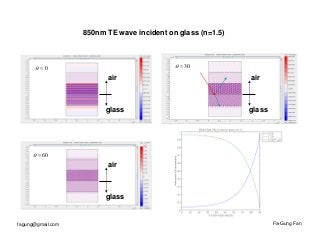

7. 850nm TE wave incident on glass (n=1.5)
� �0 � � 30
air air
glass glass
� � 60
air
glass
fagung@gmail.com Fa-Gung Fan

8. 850nm TM wave incident on glass (n=1.5)
PML
� �0 � � 30
air air
PML glass glass
� � 60
air
Brewster’s angle
glass
