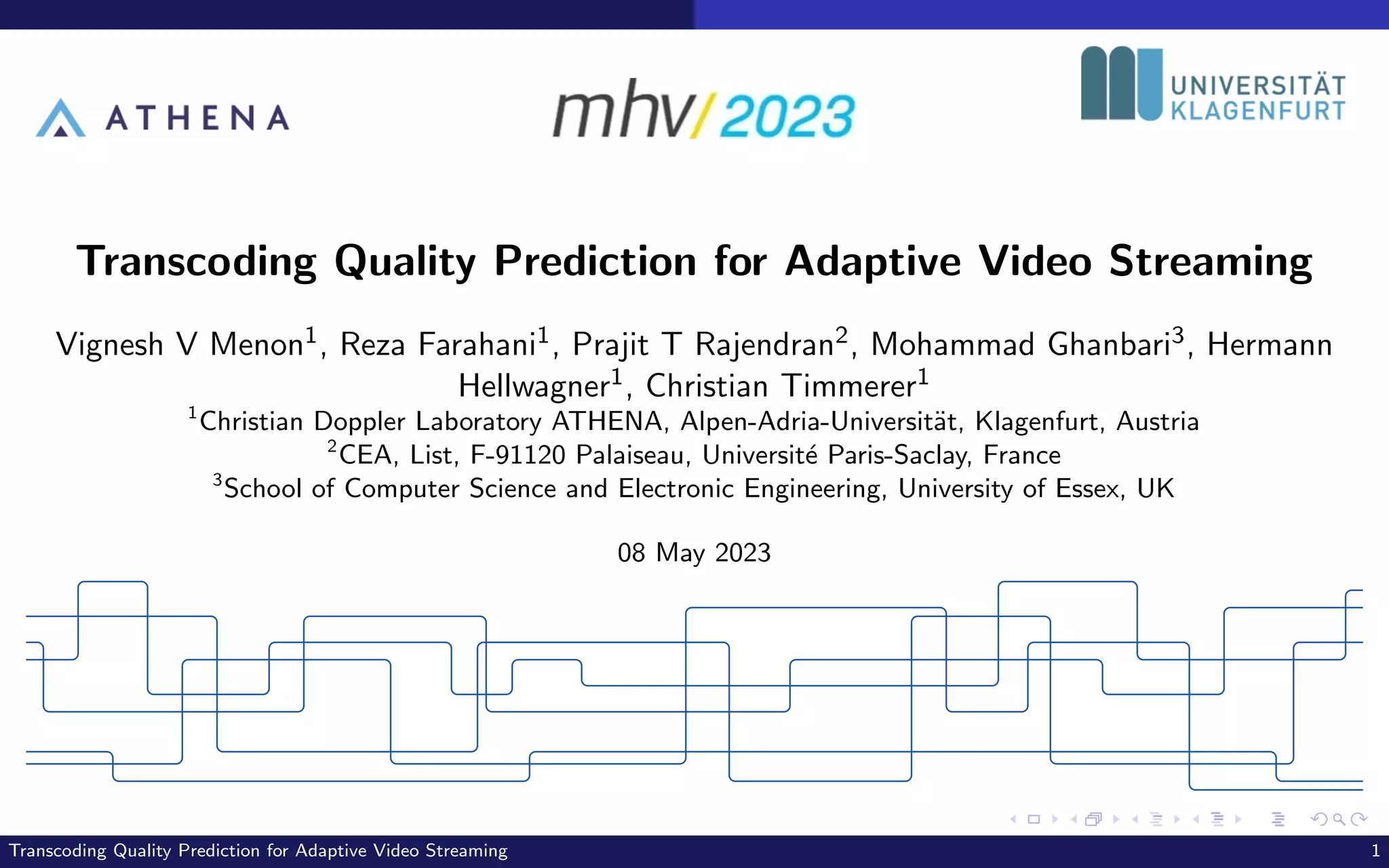

Transcoding Quality Prediction for Adaptive Video Streaming
Vignesh V Menon1, Reza Farahani1, Prajit T Rajendran2, Mohammad Ghanbari3, Hermann
Hellwagner1, Christian Timmerer1
1
Christian Doppler Laboratory ATHENA, Alpen-Adria-Universität, Klagenfurt, Austria
2
CEA, List, F-91120 Palaiseau, Université Paris-Saclay, France
3
School of Computer Science and Electronic Engineering, University of Essex, UK
08 May 2023
Transcoding Quality Prediction for Adaptive Video Streaming 1
Outline
1 Introduction
2 M-stage transcoding model
3 TQPM Architecture
4 Evaluation
5 Conclusions
Transcoding Quality Prediction for Adaptive Video Streaming 2
Introduction
Introduction
HTTP Adaptive Streaming (HAS)1
Source: https://bitmovin.com/adaptive-streaming/
Why Adaptive Streaming?
Adapt for a wide range of devices.
Adapt for a broad set of Internet speeds.
What HAS does?
Each source video is split into segments.
Encoded at multiple bitrates, resolutions,
and codecs.
Delivered to the client based on the device
capability, network speed etc.
1
A. Bentaleb et al. “A Survey on Bitrate Adaptation Schemes for Streaming Media Over HTTP”. In: IEEE Communications Surveys Tutorials 21.1 (2019),
pp. 562–585.
Transcoding Quality Prediction for Adaptive Video Streaming 3
Introduction
Motivation
Video transcoding has been considered a prevalent solution for reconstructing video sequences at
in-network servers (deployed at cloud or edge) in latency-sensitive video streaming applications.
e
Original
Video
Segment
Highest Bitrate
Representation
1 d1 2
e
2160p, 16.8 Mbps
2160p, 16.8 Mbps
2160p, 11.6 Mbps
1080p, 5.8 Mbps
720p, 2.4 Mbps
Origin Server
Edge Server
ClientA
Client
Client
Client
B
D
Client
C
E
Transcoding
1
1
2
2
2
Figure: An example scenario of VQA in adaptive streaming applications. Clients A and B receive the
highest bitrate representation of the bitrate ladder, encoded at the origin server (single-stage transcoding).
In contrast, Clients C, D, and E receive lower bitrate representations transcoded at the edge server (two-
stage transcoding).
Transcoding Quality Prediction for Adaptive Video Streaming 4
Introduction
Motivation
Features
Quality Scores Processor
Input
Video
Reconstructed
Video
Video Processing
Features
Figure: Workflow of state-of-the-art VQA methods.
VQA is cumbersome in most video streaming applications where:
The original input video segment is not available as the reference at the destination
The final reconstructed video segment is not available at the source
Slow quality-based decision-making is not acceptable for online latency-sensitive services.
Transcoding Quality Prediction for Adaptive Video Streaming 5
M-stage transcoding model
M-stage transcoding model
e d e d e d
Input
Video
Segment
Reconstructed
Video
Segment
M-Stage Transcoding System Model
...
b
~
1 b
~
2 b
~
M
1 1 2 2 M M
Stage 1 Stage 2 Stage M
Figure: M-stage transcoding model considered in this paper. Here, ei and di represent the encoding and
decoding in ith
stage of transcoding, while b̃i denotes the target bitrate of ei where i ∈ [1, M].
The generalized M-stage transcoding model for HAS consists of a series of M encoders and
M decoders in a chain.
M=1 transcoding corresponds to the single-stage transcoding while M=2 transcoding corre-
sponds to the two-stage transcoding.
Transcoding Quality Prediction for Adaptive Video Streaming 6
M-stage transcoding model
M-stage transcoding model
e d e d e d
Input
Video
Segment
Reconstructed
Video
Segment
M-Stage Transcoding System Model
...
b
~
1 b
~
2 b
~
M
1 1 2 2 M M
Stage 1 Stage 2 Stage M
τT =
M
X
i=1
(τei + τdi
) + 2 · τf (1)
VQA at source by predicting the video quality using the input video segment characteristics and
the transcoding system characteristics solves the discussed problems.
Transcoding Quality Prediction for Adaptive Video Streaming 7
TQPM Architecture
TQPM Architecture
...
...
...
E
h
L L L
h h
E E
1
1
1
T
T
X
X1 T
Video
Quality
Prediction
Model bM
~
V
^
b2
~ b1
~
...
Input
Video
Segment
E T
b1
~
b2
~
.
.
.
bM
~
[T x (M+3)]
I
II
I Input Video Segment Characteristics
II M-Stage Transcoding Model Characteristics
~
Figure: TQPM architecture
The TQPM architecture comprises three steps:
input video segment characterization
transcoding model Characterization
video quality prediction
Transcoding Quality Prediction for Adaptive Video Streaming 8
TQPM Architecture Phase 1: Input video segment characterization
Input video segment characterization
Compute texture energy per block
A DCT-based energy function is used to determine the block-wise feature of each frame
defined as:
Hk =
w−1
X
i=0
w−1
X
j=0
e|( ij
wh
)2−1|
|DCT(i, j)| (2)
where wxw is the size of the block, and DCT(i, j) is the (i, j)th DCT component when
i + j > 0, and 0 otherwise.
The energy values of blocks in a frame are averaged to determine the energy per frame.2,3
Es =
K−1
X
k=0
Hs,k
K · w2
(3)
2
Michael King, Zinovi Tauber, and Ze-Nian Li. “A New Energy Function for Segmentation and Compression”. In: 2007 IEEE International Conference on
Multimedia and Expo. 2007, pp. 1647–1650. doi: 10.1109/ICME.2007.4284983.
3
Vignesh V Menon et al. “Efficient Content-Adaptive Feature-Based Shot Detection for HTTP Adaptive Streaming”. In: 2021 IEEE International Conference
on Image Processing (ICIP). 2021, pp. 2174–2178. doi: 10.1109/ICIP42928.2021.9506092.
Transcoding Quality Prediction for Adaptive Video Streaming 9
TQPM Architecture Phase 1: Input video segment characterization
Input video segment characterization
hs: SAD of the block level energy values of frame s to that of the previous frame s − 1.
hs =
K−1
X
k=0
| Hs,k, Hs−1,k |
K · w2
(4)
where K denotes the number of blocks in frame s.
The luminescence of non-overlapping blocks k of sth frame is defined as:
Ls,k =
p
DCT(0, 0) (5)
The block-wise luminescence is averaged per frame denoted as Ls as shown below.4
Ls =
K−1
X
k=0
Ls,k
K · w2
(6)
4
Vignesh V Menon et al. “VCA: Video Complexity Analyzer”. In: Proceedings of the 13th ACM Multimedia Systems Conference. MMSys ’22. Athlone,
Ireland: Association for Computing Machinery, 2022, 259–264. isbn: 9781450392839. doi: 10.1145/3524273.3532896. url:
https://doi.org/10.1145/3524273.3532896.
Transcoding Quality Prediction for Adaptive Video Streaming 10
TQPM Architecture Phase 1: Input video segment characterization
Input video segment characterization
The video segment is divided into T chunks with a fixed number of frames (i.e., fc) in each
chunk. The averages of the E, h, and L features of each chunk are computed to obtain the
reduced reference representation of the input video segment, expressed as:
X = {x1, x2, .., xT } (7)
where, xi is the feature set of every ith chunk, represented as :
xi = [Ei , hi , Li ] ∀i ∈ [1, T] (8)
Transcoding Quality Prediction for Adaptive Video Streaming 11
TQPM Architecture Phase 2: Transcoding model Characterization
Phase 2: Transcoding model Characterization
e d e d e d
Input
Video
Segment
Reconstructed
Video
Segment
M-Stage Transcoding System Model
...
b
~
1 b
~
2 b
~
M
1 1 2 2 M M
Stage 1 Stage 2 Stage M
The settings of the encoders in the M-stage transcoding process, except the target bitrate-
resolution pair, are assumed identical.5
The resolutions corresponding to the target bitrates in the bitrate ladder are also assumed
to be fixed.
The transcoding model can be characterized as follows:
B̃ = [b̃1, b̃2, .., b̃M] (9)
where b̃i represents the target bitrate of the ei encoder.
5
Vignesh V Menon et al. “EMES: Efficient Multi-Encoding Schemes for HEVC-Based Adaptive Bitrate Streaming”. In: ACM Trans. Multimedia Comput.
Commun. Appl. 19.3s (2023). issn: 1551-6857. doi: 10.1145/3575659. url: https://doi.org/10.1145/3575659.
Transcoding Quality Prediction for Adaptive Video Streaming 12
TQPM Architecture Phase 3: Video quality prediction
Phase 3: Video quality prediction
B̃ is appended to xi , which is determined during the input video segment characterization phase,
to obtain:
˜
xi = [xi |B̃]T
∀˜
xi ∈ X̃, i ∈ [1, T] (10)
The predicted quality v̂b̃M |..|b̃1
can be presented as:
v̂b̃M |..|b̃1
= f (X̃) (11)
The feature sequences in the series X̃ are input to the LSTM model, which predicts visual quality
v̂ for the corresponding input video segment and chain of encoders in the transcoding process.
Transcoding Quality Prediction for Adaptive Video Streaming 13
Evaluation Experimental Setup
Experimental Setup
Dataset : JVET,6 MCML,7 SJTU,8 Berlin,9 UVG,10 BVI11
Framerate : 30fps
Encoder : x265 v3.5
Preset : ultrafast
Table: Representations considered in this paper.
Representation ID 01 02 03 04 05 06 07 08 09 10 11 12
r (width in pixels) 360 432 540 540 540 720 720 1080 1080 1440 2160 2160
b (in Mbps) 0.145 0.300 0.600 0.900 1.600 2.400 3.400 4.500 5.800 8.100 11.600 16.800
E, h, L features are extracted using VCAv2.0.
6
Jill Boyce et al. JVET-J1010: JVET common test conditions and software reference configurations. July 2018.
7
Manri Cheon and Jong-Seok Lee. “Subjective and Objective Quality Assessment of Compressed 4K UHD Videos for Immersive Experience”. In: IEEE
Transactions on Circuits and Systems for Video Technology 28.7 (2018), pp. 1467–1480. doi: 10.1109/TCSVT.2017.2683504.
8
Li Song et al. “The SJTU 4K Video Sequence Dataset”. In: Fifth International Workshop on Quality of Multimedia Experience (QoMEX2013) (July 2013).
9
B. Bross et al. “AHG4 Multiformat Berlin Test Sequences”. In: JVET-Q0791. 2020.
10
Alexandre Mercat, Marko Viitanen, and Jarno Vanne. “UVG Dataset: 50/120fps 4K Sequences for Video Codec Analysis and Development”. In: Proceedings
of the 11th ACM Multimedia Systems Conference. New York, NY, USA: Association for Computing Machinery, 2020, 297–302. isbn: 9781450368452. url:
https://doi.org/10.1145/3339825.3394937.
11
Alex Mackin, Fan Zhang, and David R. Bull. “A study of subjective video quality at various frame rates”. In: 2015 IEEE International Conference on Image
Processing (ICIP). 2015, pp. 3407–3411. doi: 10.1109/ICIP.2015.7351436.
Transcoding Quality Prediction for Adaptive Video Streaming 14
Evaluation Experimental Results
Experimental Results
20 30 40 50
Actual PSNR (in dB)
20
30
40
50
Predicted
PSNR
(in
dB)
(a)
10 20 30 40
Actual SSIM (in dB)
10
20
30
40
Predicted
SSIM
(in
dB)
(b)
0 25 50 75 100
Actual VMAF
0
20
40
60
80
100
Predicted
VMAF
JND threshold
(c)
20 30 40 50
Actual PSNR (in dB)
20
30
40
50
Predicted
PSNR
(in
dB)
(d)
10 20 30 40
Actual SSIM (in dB)
10
20
30
40
Predicted
SSIM
(in
dB)
(e)
0 25 50 75 100
Actual VMAF
0
20
40
60
80
100
Predicted
VMAF
JND threshold
(f)

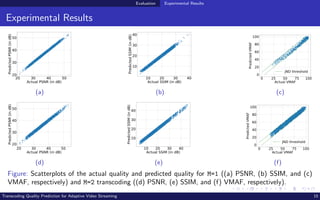

Figure: Scatterplots of the actual quality and predicted quality for M=1 ((a) PSNR, (b) SSIM, and (c)
VMAF, respectively) and M=2 transcoding ((d) PSNR, (e) SSIM, and (f) VMAF, respectively).
Transcoding Quality Prediction for Adaptive Video Streaming 15
Evaluation Experimental Results
Experimental Results
Table: Prediction accuracy of TQPM when M=1 and M=2, respectively, for b̃1 representations considered in
this paper encoded using x265 HEVC encoder.
PSNR prediction SSIM prediction VMAF prediction
M=1 M=2 M=1 M=2 M=1 M=2
b̃1 R2 MAE R2 MAE R2 MAE R2 MAE R2 MAE R2 MAE
b1 360p 0.145 Mbps 0.82 1.20 dB - - 0.89 1.08 dB - - 0.87 3.35 - -
b2 432p 0.300 Mbps 0.83 1.19 dB 0.84 1.37 dB 0.89 1.14 dB 0.87 1.34 dB 0.87 3.51 0.76 3.38
b3 540p 0.600 Mbps 0.83 1.19 dB 0.85 1.28 dB 0.88 1.18 dB 0.85 1.21 dB 0.90 4.05 0.84 3.55
b4 540p 0.900 Mbps 0.83 1.19 dB 0.83 1.22 dB 0.86 1.17 dB 0.86 1.11 dB 0.90 3.83 0.89 3.53
b5 540p 1.600 Mbps 0.82 1.22 dB 0.82 1.15 dB 0.84 1.19 dB 0.85 1.38 dB 0.90 3.45 0.90 3.44
b6 720p 2.400 Mbps 0.83 1.26 dB 0.83 1.28 dB 0.82 1.18 dB 0.83 1.57 dB 0.88 2.88 0.91 3.45
b7 720p 3.400 Mbps 0.81 1.30 dB 0.85 1.23 dB 0.83 1.20 dB 0.82 1.35 dB 0.84 2.89 0.94 3.03
b8 1080p 4.500 Mbps 0.84 1.28 dB 0.83 1.28 dB 0.88 1.23 dB 0.82 1.34 dB 0.87 2.28 0.95 3.03
b9 1080p 5.800 Mbps 0.86 1.31 dB 0.87 1.42 dB 0.83 1.29 dB 0.86 1.30 dB 0.87 2.23 0.95 3.34
b10 1440p 8.100 Mbps 0.84 1.39 dB 0.81 1.41 dB 0.87 1.29 dB 0.87 1.32 dB 0.85 2.73 0.96 2.96
b11 2160p 11.600 Mbps 0.79 1.50 dB 0.82 1.31 dB 0.88 1.17 dB 0.84 1.32 dB 0.82 2.58 0.96 3.02
b12 2160p 16.800 Mbps 0.84 1.49 dB 0.79 1.26 dB 0.88 1.19 dB 0.86 1.35 dB 0.86 2.38 0.96 2.99
Average 0.83 1.31 dB 0.84 1.32 dB 0.85 1.19 dB 0.86 1.33 dB 0.87 3.01 0.91 3.25
The average processing time of TQPM for a 4s segment is 0.328s.
Transcoding Quality Prediction for Adaptive Video Streaming 16
Conclusions
Conclusions
This paper proposed TQPM, an online transcoding quality prediction model for video stream-
ing applications.
The proposed LSTM-based model uses DCT-energy-based features as reduced reference
to characterize the input video segment, which is used to predict the visual quality of an
M-stage transcoding process.
The performance of TQPM is validated by the Apple HLS bitrate ladder encoding and
transcoding using the x265 open-source HEVC encoder.
On average, for single-stage transcoding, TQPM predicts PSNR, SSIM, and VMAF with an
MAE of 1.31 dB, 1.19 dB, and 3.01, respectively.
Furthermore, PSNR, SSIM, and VMAF are predicted for two-stage transcoding with an
average MAE of 1.32 dB, 1.33 dB, and 3.25, respectively.
Transcoding Quality Prediction for Adaptive Video Streaming 17
Conclusions
Future Directions
In the future, transcoding between bitrate ladder representations of various codecs shall be
investigated.
Another future direction is defining a decision-making component based on the proposed
model in an end-to-end live streaming system.
Transcoding Quality Prediction for Adaptive Video Streaming 18
Q & A
Q & A
Thank you for your attention!
Vignesh V Menon (vignesh.menon@aau.at)
VCA
Transcoding Quality Prediction for Adaptive Video Streaming 19

More Related Content

Similar to TQPM.pdf

Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdfPerceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Vignesh V Menon

OPTE: Online Per-title Encoding for Live Video Streaming
OPTE: Online Per-title Encoding for Live Video StreamingOPTE: Online Per-title Encoding for Live Video Streaming
OPTE: Online Per-title Encoding for Live Video Streaming
Alpen-Adria-Universität

OPTE: Online Per-title Encoding for Live Video Streaming.pdf
OPTE: Online Per-title Encoding for Live Video Streaming.pdfOPTE: Online Per-title Encoding for Live Video Streaming.pdf
OPTE: Online Per-title Encoding for Live Video Streaming.pdf
Vignesh V Menon

CODA_presentation.pdf
CODA_presentation.pdfCODA_presentation.pdf
CODA_presentation.pdf
JunZhao68

Efficient bitrate ladder construction for live video streaming
Efficient bitrate ladder construction for live video streamingEfficient bitrate ladder construction for live video streaming
Efficient bitrate ladder construction for live video streaming
Minh Nguyen

CAPS_Presentation.pdf
CAPS_Presentation.pdfCAPS_Presentation.pdf
CAPS_Presentation.pdf
Vignesh V Menon

ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdfETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
Vignesh V Menon

ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live StreamingETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
Alpen-Adria-Universität

JASLA_presentation.pdf
JASLA_presentation.pdfJASLA_presentation.pdf
JASLA_presentation.pdf
Vignesh V Menon

LiveVBR presentation at VQEG NORM.pdf
LiveVBR presentation at VQEG NORM.pdfLiveVBR presentation at VQEG NORM.pdf
LiveVBR presentation at VQEG NORM.pdf
Vignesh V Menon

IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
Vignesh V Menon

Online Bitrate ladder prediction for Adaptive VVC Streaming
Online Bitrate ladder prediction for Adaptive VVC StreamingOnline Bitrate ladder prediction for Adaptive VVC Streaming
Online Bitrate ladder prediction for Adaptive VVC Streaming
Vignesh V Menon

IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVCIEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
Vignesh V Menon

INCEPT: Intra CU Depth Prediction for HEVC
INCEPT: Intra CU Depth Prediction for HEVCINCEPT: Intra CU Depth Prediction for HEVC
INCEPT: Intra CU Depth Prediction for HEVC
Alpen-Adria-Universität

Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...
Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...
Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...
Vignesh V Menon

Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
IJECEIAES

Low complexity video coding for sensor network
Low complexity video coding for sensor networkLow complexity video coding for sensor network
Low complexity video coding for sensor network
eSAT Journals

Low complexity video coding for sensor network
Low complexity video coding for sensor networkLow complexity video coding for sensor network
Low complexity video coding for sensor network
eSAT Publishing House

Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
IJECEIAES

Machine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Machine Learning Based Video Coding Enhancements for HTTP Adaptive StreamingMachine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Machine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Alpen-Adria-Universität


Similar to TQPM.pdf (20)

Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdfPerceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf

OPTE: Online Per-title Encoding for Live Video Streaming
OPTE: Online Per-title Encoding for Live Video StreamingOPTE: Online Per-title Encoding for Live Video Streaming
OPTE: Online Per-title Encoding for Live Video Streaming

OPTE: Online Per-title Encoding for Live Video Streaming.pdf
OPTE: Online Per-title Encoding for Live Video Streaming.pdfOPTE: Online Per-title Encoding for Live Video Streaming.pdf
OPTE: Online Per-title Encoding for Live Video Streaming.pdf

CODA_presentation.pdf
CODA_presentation.pdfCODA_presentation.pdf
CODA_presentation.pdf

Efficient bitrate ladder construction for live video streaming
Efficient bitrate ladder construction for live video streamingEfficient bitrate ladder construction for live video streaming
Efficient bitrate ladder construction for live video streaming

CAPS_Presentation.pdf
CAPS_Presentation.pdfCAPS_Presentation.pdf
CAPS_Presentation.pdf

ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdfETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf

ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live StreamingETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming

JASLA_presentation.pdf
JASLA_presentation.pdfJASLA_presentation.pdf
JASLA_presentation.pdf

LiveVBR presentation at VQEG NORM.pdf
LiveVBR presentation at VQEG NORM.pdfLiveVBR presentation at VQEG NORM.pdf
LiveVBR presentation at VQEG NORM.pdf

IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...

Online Bitrate ladder prediction for Adaptive VVC Streaming
Online Bitrate ladder prediction for Adaptive VVC StreamingOnline Bitrate ladder prediction for Adaptive VVC Streaming
Online Bitrate ladder prediction for Adaptive VVC Streaming

IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVCIEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC

INCEPT: Intra CU Depth Prediction for HEVC
INCEPT: Intra CU Depth Prediction for HEVCINCEPT: Intra CU Depth Prediction for HEVC
INCEPT: Intra CU Depth Prediction for HEVC

Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...
Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...
Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resoluti...

Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...

Low complexity video coding for sensor network
Low complexity video coding for sensor networkLow complexity video coding for sensor network
Low complexity video coding for sensor network

Low complexity video coding for sensor network
Low complexity video coding for sensor networkLow complexity video coding for sensor network
Low complexity video coding for sensor network

Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...
Evaluation and Analysis of Rate Control Methods for H.264/AVC and MPEG-4 Vide...

Machine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Machine Learning Based Video Coding Enhancements for HTTP Adaptive StreamingMachine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Machine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming


More from Vignesh V Menon

Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Vignesh V Menon

Content_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdf
Content_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdfContent_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdf
Content_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdf
Vignesh V Menon

Green Variable framerate encoding for Adaptive Live Streaming
Green Variable framerate encoding  for Adaptive Live StreamingGreen Variable framerate encoding  for Adaptive Live Streaming
Green Variable framerate encoding for Adaptive Live Streaming
Vignesh V Menon

Doctoral Symposium presentation.pdf
Doctoral Symposium presentation.pdfDoctoral Symposium presentation.pdf
Doctoral Symposium presentation.pdf
Vignesh V Menon

Research@Lunch_Presentation.pdf
Research@Lunch_Presentation.pdfResearch@Lunch_Presentation.pdf
Research@Lunch_Presentation.pdf
Vignesh V Menon

Video Complexity Dataset (VCD).pdf
Video Complexity Dataset (VCD).pdfVideo Complexity Dataset (VCD).pdf
Video Complexity Dataset (VCD).pdf
Vignesh V Menon

Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive StreamingLive-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Vignesh V Menon

IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
Vignesh V Menon


More from Vignesh V Menon (8)

Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...

Content_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdf
Content_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdfContent_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdf
Content_adaptive_video_coding_for_HTTP_Adaptive_Streaming.pdf

Green Variable framerate encoding for Adaptive Live Streaming
Green Variable framerate encoding  for Adaptive Live StreamingGreen Variable framerate encoding  for Adaptive Live Streaming
Green Variable framerate encoding for Adaptive Live Streaming

Doctoral Symposium presentation.pdf
Doctoral Symposium presentation.pdfDoctoral Symposium presentation.pdf
Doctoral Symposium presentation.pdf

Research@Lunch_Presentation.pdf
Research@Lunch_Presentation.pdfResearch@Lunch_Presentation.pdf
Research@Lunch_Presentation.pdf

Video Complexity Dataset (VCD).pdf
Video Complexity Dataset (VCD).pdfVideo Complexity Dataset (VCD).pdf
Video Complexity Dataset (VCD).pdf

Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive StreamingLive-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming

IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...


Recently uploaded

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

Azure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHatAzure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHat
Scholarhat

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17
Celine George

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
Nguyen Thanh Tu Collection

PIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf IslamabadPIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf Islamabad
AyyanKhan40

Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5
sayalidalavi006

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory
Celine George

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)
Academy of Science of South Africa

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf
Dr. Mulla Adam Ali

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student
NgcHiNguyn25

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
mulvey2

Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat  Leveraging AI for Diversity, Equity, and InclusionExecutive Directors Chat  Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
TechSoup

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share
taiba qazi

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie
Nicholas Montgomery

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection
Israel Genealogy Research Association

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf
Priyankaranawat4


Recently uploaded (20)

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

Azure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHatAzure Interview Questions and Answers PDF By ScholarHat
Azure Interview Questions and Answers PDF By ScholarHat

How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17How to Fix the Import Error in the Odoo 17
How to Fix the Import Error in the Odoo 17

BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...
BÀI TẬP BỔ TRỢ TIẾNG ANH 8 CẢ NĂM - GLOBAL SUCCESS - NĂM HỌC 2023-2024 (CÓ FI...

PIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf IslamabadPIMS Job Advertisement 2024.pdf Islamabad
PIMS Job Advertisement 2024.pdf Islamabad

Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5Community pharmacy- Social and preventive pharmacy UNIT 5
Community pharmacy- Social and preventive pharmacy UNIT 5

How to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 InventoryHow to Setup Warehouse & Location in Odoo 17 Inventory
How to Setup Warehouse & Location in Odoo 17 Inventory

Chapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptxChapter 4 - Islamic Financial Institutions in Malaysia.pptx
Chapter 4 - Islamic Financial Institutions in Malaysia.pptx

South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)South African Journal of Science: Writing with integrity workshop (2024)
South African Journal of Science: Writing with integrity workshop (2024)

Hindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdfHindi varnamala | hindi alphabet PPT.pdf
Hindi varnamala | hindi alphabet PPT.pdf

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

Life upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for studentLife upper-Intermediate B2 Workbook for student
Life upper-Intermediate B2 Workbook for student

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptxC1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx
C1 Rubenstein AP HuG xxxxxxxxxxxxxx.pptx

Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat  Leveraging AI for Diversity, Equity, and InclusionExecutive Directors Chat  Leveraging AI for Diversity, Equity, and Inclusion
Executive Directors Chat Leveraging AI for Diversity, Equity, and Inclusion

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share

writing about opinions about Australia the movie
writing about opinions about Australia the moviewriting about opinions about Australia the movie
writing about opinions about Australia the movie

The Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collectionThe Diamonds of 2023-2024 in the IGRA collection
The Diamonds of 2023-2024 in the IGRA collection

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf


TQPM.pdf

  • 1. Transcoding Quality Prediction for Adaptive Video Streaming Vignesh V Menon1, Reza Farahani1, Prajit T Rajendran2, Mohammad Ghanbari3, Hermann Hellwagner1, Christian Timmerer1 1 Christian Doppler Laboratory ATHENA, Alpen-Adria-Universität, Klagenfurt, Austria 2 CEA, List, F-91120 Palaiseau, Université Paris-Saclay, France 3 School of Computer Science and Electronic Engineering, University of Essex, UK 08 May 2023 Transcoding Quality Prediction for Adaptive Video Streaming 1
  • 2. Outline 1 Introduction 2 M-stage transcoding model 3 TQPM Architecture 4 Evaluation 5 Conclusions Transcoding Quality Prediction for Adaptive Video Streaming 2
  • 3. Introduction Introduction HTTP Adaptive Streaming (HAS)1 Source: https://bitmovin.com/adaptive-streaming/ Why Adaptive Streaming? Adapt for a wide range of devices. Adapt for a broad set of Internet speeds. What HAS does? Each source video is split into segments. Encoded at multiple bitrates, resolutions, and codecs. Delivered to the client based on the device capability, network speed etc. 1 A. Bentaleb et al. “A Survey on Bitrate Adaptation Schemes for Streaming Media Over HTTP”. In: IEEE Communications Surveys Tutorials 21.1 (2019), pp. 562–585. Transcoding Quality Prediction for Adaptive Video Streaming 3
  • 4. Introduction Motivation Video transcoding has been considered a prevalent solution for reconstructing video sequences at in-network servers (deployed at cloud or edge) in latency-sensitive video streaming applications. e Original Video Segment Highest Bitrate Representation 1 d1 2 e 2160p, 16.8 Mbps 2160p, 16.8 Mbps 2160p, 11.6 Mbps 1080p, 5.8 Mbps 720p, 2.4 Mbps Origin Server Edge Server ClientA Client Client Client B D Client C E Transcoding 1 1 2 2 2 Figure: An example scenario of VQA in adaptive streaming applications. Clients A and B receive the highest bitrate representation of the bitrate ladder, encoded at the origin server (single-stage transcoding). In contrast, Clients C, D, and E receive lower bitrate representations transcoded at the edge server (two- stage transcoding). Transcoding Quality Prediction for Adaptive Video Streaming 4
  • 5. Introduction Motivation Features Quality Scores Processor Input Video Reconstructed Video Video Processing Features Figure: Workflow of state-of-the-art VQA methods. VQA is cumbersome in most video streaming applications where: The original input video segment is not available as the reference at the destination The final reconstructed video segment is not available at the source Slow quality-based decision-making is not acceptable for online latency-sensitive services. Transcoding Quality Prediction for Adaptive Video Streaming 5
  • 6. M-stage transcoding model M-stage transcoding model e d e d e d Input Video Segment Reconstructed Video Segment M-Stage Transcoding System Model ... b ~ 1 b ~ 2 b ~ M 1 1 2 2 M M Stage 1 Stage 2 Stage M Figure: M-stage transcoding model considered in this paper. Here, ei and di represent the encoding and decoding in ith stage of transcoding, while b̃i denotes the target bitrate of ei where i ∈ [1, M]. The generalized M-stage transcoding model for HAS consists of a series of M encoders and M decoders in a chain. M=1 transcoding corresponds to the single-stage transcoding while M=2 transcoding corre- sponds to the two-stage transcoding. Transcoding Quality Prediction for Adaptive Video Streaming 6
  • 7. M-stage transcoding model M-stage transcoding model e d e d e d Input Video Segment Reconstructed Video Segment M-Stage Transcoding System Model ... b ~ 1 b ~ 2 b ~ M 1 1 2 2 M M Stage 1 Stage 2 Stage M τT = M X i=1 (τei + τdi ) + 2 · τf (1) VQA at source by predicting the video quality using the input video segment characteristics and the transcoding system characteristics solves the discussed problems. Transcoding Quality Prediction for Adaptive Video Streaming 7
  • 8. TQPM Architecture TQPM Architecture ... ... ... E h L L L h h E E 1 1 1 T T X X1 T Video Quality Prediction Model bM ~ V ^ b2 ~ b1 ~ ... Input Video Segment E T b1 ~ b2 ~ . . . bM ~ [T x (M+3)] I II I Input Video Segment Characteristics II M-Stage Transcoding Model Characteristics ~ Figure: TQPM architecture The TQPM architecture comprises three steps: input video segment characterization transcoding model Characterization video quality prediction Transcoding Quality Prediction for Adaptive Video Streaming 8
  • 9. TQPM Architecture Phase 1: Input video segment characterization Input video segment characterization Compute texture energy per block A DCT-based energy function is used to determine the block-wise feature of each frame defined as: Hk = w−1 X i=0 w−1 X j=0 e|( ij wh )2−1| |DCT(i, j)| (2) where wxw is the size of the block, and DCT(i, j) is the (i, j)th DCT component when i + j > 0, and 0 otherwise. The energy values of blocks in a frame are averaged to determine the energy per frame.2,3 Es = K−1 X k=0 Hs,k K · w2 (3) 2 Michael King, Zinovi Tauber, and Ze-Nian Li. “A New Energy Function for Segmentation and Compression”. In: 2007 IEEE International Conference on Multimedia and Expo. 2007, pp. 1647–1650. doi: 10.1109/ICME.2007.4284983. 3 Vignesh V Menon et al. “Efficient Content-Adaptive Feature-Based Shot Detection for HTTP Adaptive Streaming”. In: 2021 IEEE International Conference on Image Processing (ICIP). 2021, pp. 2174–2178. doi: 10.1109/ICIP42928.2021.9506092. Transcoding Quality Prediction for Adaptive Video Streaming 9
  • 10. TQPM Architecture Phase 1: Input video segment characterization Input video segment characterization hs: SAD of the block level energy values of frame s to that of the previous frame s − 1. hs = K−1 X k=0 | Hs,k, Hs−1,k | K · w2 (4) where K denotes the number of blocks in frame s. The luminescence of non-overlapping blocks k of sth frame is defined as: Ls,k = p DCT(0, 0) (5) The block-wise luminescence is averaged per frame denoted as Ls as shown below.4 Ls = K−1 X k=0 Ls,k K · w2 (6) 4 Vignesh V Menon et al. “VCA: Video Complexity Analyzer”. In: Proceedings of the 13th ACM Multimedia Systems Conference. MMSys ’22. Athlone, Ireland: Association for Computing Machinery, 2022, 259–264. isbn: 9781450392839. doi: 10.1145/3524273.3532896. url: https://doi.org/10.1145/3524273.3532896. Transcoding Quality Prediction for Adaptive Video Streaming 10
  • 11. TQPM Architecture Phase 1: Input video segment characterization Input video segment characterization The video segment is divided into T chunks with a fixed number of frames (i.e., fc) in each chunk. The averages of the E, h, and L features of each chunk are computed to obtain the reduced reference representation of the input video segment, expressed as: X = {x1, x2, .., xT } (7) where, xi is the feature set of every ith chunk, represented as : xi = [Ei , hi , Li ] ∀i ∈ [1, T] (8) Transcoding Quality Prediction for Adaptive Video Streaming 11
  • 12. TQPM Architecture Phase 2: Transcoding model Characterization Phase 2: Transcoding model Characterization e d e d e d Input Video Segment Reconstructed Video Segment M-Stage Transcoding System Model ... b ~ 1 b ~ 2 b ~ M 1 1 2 2 M M Stage 1 Stage 2 Stage M The settings of the encoders in the M-stage transcoding process, except the target bitrate- resolution pair, are assumed identical.5 The resolutions corresponding to the target bitrates in the bitrate ladder are also assumed to be fixed. The transcoding model can be characterized as follows: B̃ = [b̃1, b̃2, .., b̃M] (9) where b̃i represents the target bitrate of the ei encoder. 5 Vignesh V Menon et al. “EMES: Efficient Multi-Encoding Schemes for HEVC-Based Adaptive Bitrate Streaming”. In: ACM Trans. Multimedia Comput. Commun. Appl. 19.3s (2023). issn: 1551-6857. doi: 10.1145/3575659. url: https://doi.org/10.1145/3575659. Transcoding Quality Prediction for Adaptive Video Streaming 12
  • 13. TQPM Architecture Phase 3: Video quality prediction Phase 3: Video quality prediction B̃ is appended to xi , which is determined during the input video segment characterization phase, to obtain: ˜ xi = [xi |B̃]T ∀˜ xi ∈ X̃, i ∈ [1, T] (10) The predicted quality v̂b̃M |..|b̃1 can be presented as: v̂b̃M |..|b̃1 = f (X̃) (11) The feature sequences in the series X̃ are input to the LSTM model, which predicts visual quality v̂ for the corresponding input video segment and chain of encoders in the transcoding process. Transcoding Quality Prediction for Adaptive Video Streaming 13
  • 14. Evaluation Experimental Setup Experimental Setup Dataset : JVET,6 MCML,7 SJTU,8 Berlin,9 UVG,10 BVI11 Framerate : 30fps Encoder : x265 v3.5 Preset : ultrafast Table: Representations considered in this paper. Representation ID 01 02 03 04 05 06 07 08 09 10 11 12 r (width in pixels) 360 432 540 540 540 720 720 1080 1080 1440 2160 2160 b (in Mbps) 0.145 0.300 0.600 0.900 1.600 2.400 3.400 4.500 5.800 8.100 11.600 16.800 E, h, L features are extracted using VCAv2.0. 6 Jill Boyce et al. JVET-J1010: JVET common test conditions and software reference configurations. July 2018. 7 Manri Cheon and Jong-Seok Lee. “Subjective and Objective Quality Assessment of Compressed 4K UHD Videos for Immersive Experience”. In: IEEE Transactions on Circuits and Systems for Video Technology 28.7 (2018), pp. 1467–1480. doi: 10.1109/TCSVT.2017.2683504. 8 Li Song et al. “The SJTU 4K Video Sequence Dataset”. In: Fifth International Workshop on Quality of Multimedia Experience (QoMEX2013) (July 2013). 9 B. Bross et al. “AHG4 Multiformat Berlin Test Sequences”. In: JVET-Q0791. 2020. 10 Alexandre Mercat, Marko Viitanen, and Jarno Vanne. “UVG Dataset: 50/120fps 4K Sequences for Video Codec Analysis and Development”. In: Proceedings of the 11th ACM Multimedia Systems Conference. New York, NY, USA: Association for Computing Machinery, 2020, 297–302. isbn: 9781450368452. url: https://doi.org/10.1145/3339825.3394937. 11 Alex Mackin, Fan Zhang, and David R. Bull. “A study of subjective video quality at various frame rates”. In: 2015 IEEE International Conference on Image Processing (ICIP). 2015, pp. 3407–3411. doi: 10.1109/ICIP.2015.7351436. Transcoding Quality Prediction for Adaptive Video Streaming 14
  • 15. Evaluation Experimental Results Experimental Results 20 30 40 50 Actual PSNR (in dB) 20 30 40 50 Predicted PSNR (in dB) (a) 10 20 30 40 Actual SSIM (in dB) 10 20 30 40 Predicted SSIM (in dB) (b) 0 25 50 75 100 Actual VMAF 0 20 40 60 80 100 Predicted VMAF JND threshold (c) 20 30 40 50 Actual PSNR (in dB) 20 30 40 50 Predicted PSNR (in dB) (d) 10 20 30 40 Actual SSIM (in dB) 10 20 30 40 Predicted SSIM (in dB) (e) 0 25 50 75 100 Actual VMAF 0 20 40 60 80 100 Predicted VMAF JND threshold (f) Figure: Scatterplots of the actual quality and predicted quality for M=1 ((a) PSNR, (b) SSIM, and (c) VMAF, respectively) and M=2 transcoding ((d) PSNR, (e) SSIM, and (f) VMAF, respectively). Transcoding Quality Prediction for Adaptive Video Streaming 15
  • 16. Evaluation Experimental Results Experimental Results Table: Prediction accuracy of TQPM when M=1 and M=2, respectively, for b̃1 representations considered in this paper encoded using x265 HEVC encoder. PSNR prediction SSIM prediction VMAF prediction M=1 M=2 M=1 M=2 M=1 M=2 b̃1 R2 MAE R2 MAE R2 MAE R2 MAE R2 MAE R2 MAE b1 360p 0.145 Mbps 0.82 1.20 dB - - 0.89 1.08 dB - - 0.87 3.35 - - b2 432p 0.300 Mbps 0.83 1.19 dB 0.84 1.37 dB 0.89 1.14 dB 0.87 1.34 dB 0.87 3.51 0.76 3.38 b3 540p 0.600 Mbps 0.83 1.19 dB 0.85 1.28 dB 0.88 1.18 dB 0.85 1.21 dB 0.90 4.05 0.84 3.55 b4 540p 0.900 Mbps 0.83 1.19 dB 0.83 1.22 dB 0.86 1.17 dB 0.86 1.11 dB 0.90 3.83 0.89 3.53 b5 540p 1.600 Mbps 0.82 1.22 dB 0.82 1.15 dB 0.84 1.19 dB 0.85 1.38 dB 0.90 3.45 0.90 3.44 b6 720p 2.400 Mbps 0.83 1.26 dB 0.83 1.28 dB 0.82 1.18 dB 0.83 1.57 dB 0.88 2.88 0.91 3.45 b7 720p 3.400 Mbps 0.81 1.30 dB 0.85 1.23 dB 0.83 1.20 dB 0.82 1.35 dB 0.84 2.89 0.94 3.03 b8 1080p 4.500 Mbps 0.84 1.28 dB 0.83 1.28 dB 0.88 1.23 dB 0.82 1.34 dB 0.87 2.28 0.95 3.03 b9 1080p 5.800 Mbps 0.86 1.31 dB 0.87 1.42 dB 0.83 1.29 dB 0.86 1.30 dB 0.87 2.23 0.95 3.34 b10 1440p 8.100 Mbps 0.84 1.39 dB 0.81 1.41 dB 0.87 1.29 dB 0.87 1.32 dB 0.85 2.73 0.96 2.96 b11 2160p 11.600 Mbps 0.79 1.50 dB 0.82 1.31 dB 0.88 1.17 dB 0.84 1.32 dB 0.82 2.58 0.96 3.02 b12 2160p 16.800 Mbps 0.84 1.49 dB 0.79 1.26 dB 0.88 1.19 dB 0.86 1.35 dB 0.86 2.38 0.96 2.99 Average 0.83 1.31 dB 0.84 1.32 dB 0.85 1.19 dB 0.86 1.33 dB 0.87 3.01 0.91 3.25 The average processing time of TQPM for a 4s segment is 0.328s. Transcoding Quality Prediction for Adaptive Video Streaming 16
  • 17. Conclusions Conclusions This paper proposed TQPM, an online transcoding quality prediction model for video stream- ing applications. The proposed LSTM-based model uses DCT-energy-based features as reduced reference to characterize the input video segment, which is used to predict the visual quality of an M-stage transcoding process. The performance of TQPM is validated by the Apple HLS bitrate ladder encoding and transcoding using the x265 open-source HEVC encoder. On average, for single-stage transcoding, TQPM predicts PSNR, SSIM, and VMAF with an MAE of 1.31 dB, 1.19 dB, and 3.01, respectively. Furthermore, PSNR, SSIM, and VMAF are predicted for two-stage transcoding with an average MAE of 1.32 dB, 1.33 dB, and 3.25, respectively. Transcoding Quality Prediction for Adaptive Video Streaming 17
  • 18. Conclusions Future Directions In the future, transcoding between bitrate ladder representations of various codecs shall be investigated. Another future direction is defining a decision-making component based on the proposed model in an end-to-end live streaming system. Transcoding Quality Prediction for Adaptive Video Streaming 18
  • 19. Q & A Q & A Thank you for your attention! Vignesh V Menon (vignesh.menon@aau.at) VCA Transcoding Quality Prediction for Adaptive Video Streaming 19
