Introduction to dynamic resolution encoding
2
[1] A. Aaron, Z. Li, M. Manohara, J.D. Cock, D. Ronca, "Per-title encode optimization." The Netflix Techblog (2015).

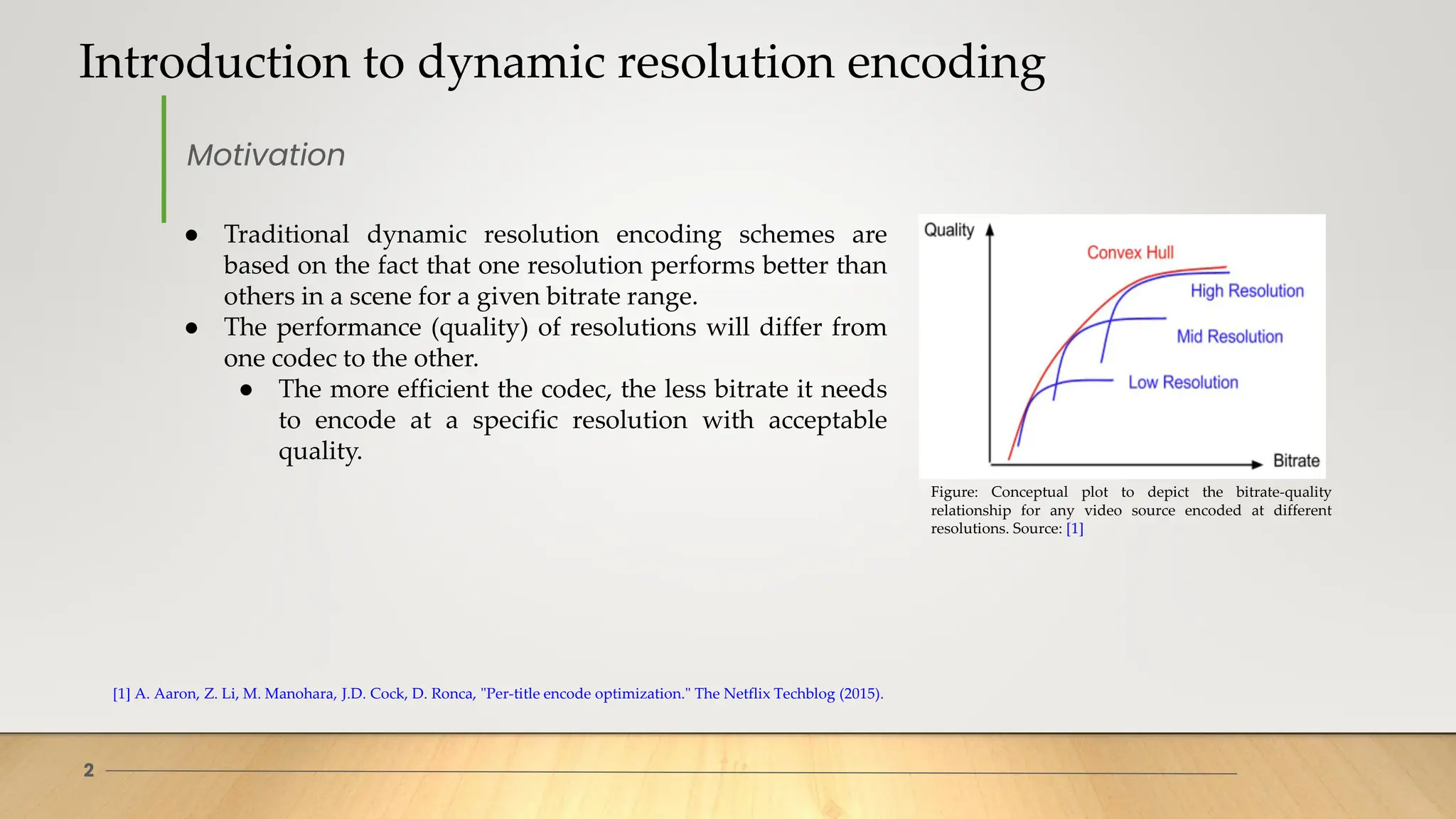

Motivation
● Traditional dynamic resolution encoding schemes are
based on the fact that one resolution performs better than
others in a scene for a given bitrate range.
● The performance (quality) of resolutions will differ from
one codec to the other.
● The more efficient the codec, the less bitrate it needs
to encode at a specific resolution with acceptable
quality.
Figure: Conceptual plot to depict the bitrate-quality
relationship for any video source encoded at different
resolutions. Source: [1]

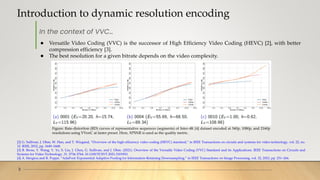

Introduction to dynamic resolution encoding
3
[2] G. Sullivan, J. Ohm, W. Han, and T. Wiegand, “Overview of the high efficiency video coding (HEVC) standard,” in IEEE Transactions on circuits and systems for video technology, vol. 22, no.
12. IEEE, 2012, pp. 1649–1668.
[3] B. Bross, Y. Wang, Y. Ye, S. Liu, J. Chen, G. Sullivan, and J. Ohm. (2021). Overview of the Versatile Video Coding (VVC) Standard and its Applications. IEEE Transactions on Circuits and
Systems for Video Technology. 31. 3736-3764. 10.1109/TCSVT.2021.3101953.
[4] A. Stergiou and R. Poppe, “AdaPool: Exponential Adaptive Pooling for Information-Retaining Downsampling,” in IEEE Transactions on Image Processing, vol. 32, 2023, pp. 251–266.
In the context of VVC…
● Versatile Video Coding (VVC) is the successor of High Efficiency Video Coding (HEVC) [2], with better
compression efficiency [3].
● The best resolution for a given bitrate depends on the video complexity.
Figure: Rate-distortion (RD) curves of representative sequences (segments) of Inter-4K [4] dataset encoded at 540p, 1080p, and 2160p
resolutions using VVenC at faster preset. Here, XPSNR is used as the quality metric.
Introduction to dynamic resolution encoding
4
Encoding time
● Encoding time increases as the target encoding resolution increases owing to the increased
computational complexity.
Figure: Rate-encoding time curves of representative sequences (segments) of Inter-4K dataset encoded at 540p, 1080p, and 2160p resolutions
using VVenC at faster preset.
Introduction to dynamic resolution encoding
5
Encoding time-constraint- Green encoding?
Lower encoding latency aligns with eco-friendly streaming practices by optimizing resource
utilization and minimizing unnecessary energy expenditure.
● Reducing encoding energy consumption (in data centers) is critical in streaming applications
since it contributes to environmental sustainability [5].
● Some researches suggest a pseudo linear relationship between encoding time and encoding
energy consumption [6].
[5] A. Stephens, C. Tremlett-Williams, L. Fitzpatrick, L. Acerini, M. Anderson, and N. Crabbendam, “The Carbon Impacts of Video Streaming,” Jun. 2021.
[6] V. V. Menon, S. Afzal, P. T. Rajendran, K. Schoeffmann, R. Prodan, and C. Timmerer. [n. d.]. Content-Adaptive Variable Framerate Encoding Scheme for Green Live
Streaming, [Online]. Available: http://arxiv.org/abs/2311.08074

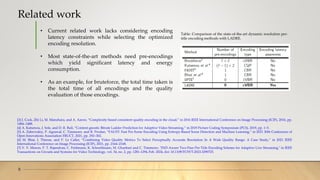

Related work
6
Table: Comparison of the state-of-the-art dynamic resolution per-
title encoding methods with LADRE.
[3] J. Cock, Zhi Li, M. Manohara, and A. Aaron, “Complexity-based consistent-quality encoding in the cloud,” in 2016 IEEE International Conference on Image Processing (ICIP), 2016, pp.
1484–1488.
[4] A. Katsenou, J. Sole, and D. R. Bull, “Content-gnostic Bitrate Ladder Prediction for Adaptive Video Streaming,” in 2019 Picture Coding Symposium (PCS), 2019, pp. 1–5.
[5] A. Zabrovskiy, P. Agrawal, C. Timmerer, and R. Prodan, “FAUST: Fast Per-Scene Encoding Using Entropy-Based Scene Detection and Machine Learning,” in 2021 30th Conference of
Open Innovations Association FRUCT, 2021, pp. 292–302.
[6] M. Bhat, J. Thiesse, and P. Le Callet, “Combining Video Quality Metrics To Select Perceptually Accurate Resolution In A Wide Quality Range: A Case Study,” in 2021 IEEE
International Conference on Image Processing (ICIP), 2021, pp. 2164–2168.
[7] V. V. Menon, P. T. Rajendran, C. Feldmann, K. Schoeffmann, M. Ghanbari and C. Timmerer, "JND-Aware Two-Pass Per-Title Encoding Scheme for Adaptive Live Streaming," in IEEE
Transactions on Circuits and Systems for Video Technology, vol. 34, no. 2, pp. 1281-1294, Feb. 2024, doi: 10.1109/TCSVT.2023.3290725.
• Current related work lacks considering encoding
latency constraints while selecting the optimized
encoding resolution.
• Most state-of-the-art methods need pre-encodings
which yield significant latency and energy
consumption.
• As an example, for bruteforce, the total time taken is
the total time of all encodings and the quality
evaluation of those encodings.
Latency-Aware Dynamic Resolution Encoding (LADRE)
7

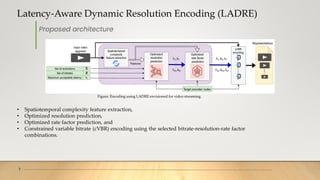

Figure: Encoding using LADRE envisioned for video streaming.
• Spatiotemporal complexity feature extraction,
• Optimized resolution prediction,
• Optimized rate factor prediction, and
• Constrained variable bitrate (cVBR) encoding using the selected bitrate-resolution-rate factor
combinations.
Proposed architecture

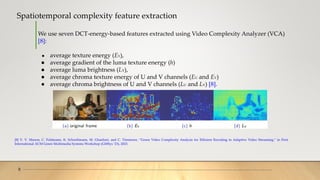

Spatiotemporal complexity feature extraction
8
We use seven DCT-energy-based features extracted using Video Complexity Analyzer (VCA)
[8]:
● average texture energy (EY),
● average gradient of the luma texture energy (h)
● average luma brightness (LY),
● average chroma texture energy of U and V channels (EU and EV)
● average chroma brightness of U and V channels (LU and LV) [8].
[8] V. V. Menon, C. Feldmann, K. Schoeffmann, M. Ghanbari, and C. Timmerer, “Green Video Complexity Analysis for Efficient Encoding in Adaptive Video Streaming,” in First
International ACM Green Multimedia Systems Workshop (GMSys ’23), 2023.

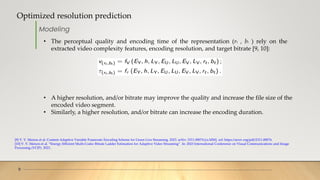

Optimized resolution prediction
9
[9] V. V. Menon et al. Content-Adaptive Variable Framerate Encoding Scheme for Green Live Streaming. 2023. arXiv: 2311.08074 [cs.MM]. url: https://arxiv.org/pdf/2311.08074.
[10] V. V. Menon et al. “Energy-Efficient Multi-Codec Bitrate Ladder Estimation for Adaptive Video Streaming”. In: 2023 International Conference on Visual Communications and Image
Processing (VCIP). 2023..
Modeling
• The perceptual quality and encoding time of the representation (rt , bt ) rely on the
extracted video complexity features, encoding resolution, and target bitrate [9, 10]:
• A higher resolution, and/or bitrate may improve the quality and increase the file size of the
encoded video segment.
• Similarly, a higher resolution, and/or bitrate can increase the encoding duration.
Optimized resolution prediction
10
[11] C. R. Helmrich et al., “Information on and analysis of the VVC encoders in the SDR UHD verification test,” in WG 05 MPEG Joint Video Coding Team(s) with ITU-T SG 16,
document JVET-T0103, Oct. 2020.
[12] M. Wien and V. Baroncini, “Report on VVC compression performance verification testing in the SDR UHD Random Access Category,” in WG 05 MPEG Joint Video Coding
Team(s) with ITU-T SG 16, document JVET-T0097, Oct. 2020.
[13] C. R. Helmrich et al., “A study of the extended perceptually weighted peak signal-to-noise ratio (XPSNR) for video compression with different resolutions and bit depths,” in ITU
Journal: ICT Discoveries, vol. 3, May 2020.

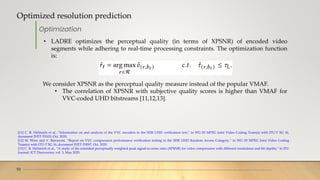

Optimization
• LADRE optimizes the perceptual quality (in terms of XPSNR) of encoded video
segments while adhering to real-time processing constraints. The optimization function
is:
We consider XPSNR as the perceptual quality measure instead of the popular VMAF.
• The correlation of XPSNR with subjective quality scores is higher than VMAF for
VVC-coded UHD bitstreams [11,12,13].

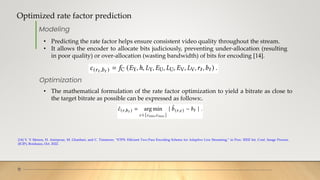

Optimized rate factor prediction
11
[14] V. V Menon, H. Amirpour, M. Ghanbari, and C. Timmerer, “ETPS: Efficient Two-Pass Encoding Scheme for Adaptive Live Streaming,” in Proc. IEEE Int. Conf. Image Process.
(ICIP), Bordeaux, Oct. 2022.
Modeling
• Predicting the rate factor helps ensure consistent video quality throughout the stream.
• It allows the encoder to allocate bits judiciously, preventing under-allocation (resulting
in poor quality) or over-allocation (wasting bandwidth) of bits for encoding [14].
• The mathematical formulation of the rate factor optimization to yield a bitrate as close to
the target bitrate as possible can be expressed as follows:.
Optimization
Experimental design
12
Experimental parameters
Table: Experimental parameters used to evaluate LADRE.
• The Inter-4K dataset [15] is used to validate the performance.
• The sequences are encoded using VVenC v1.10 [16] using preset 0 (faster).
• The spatiotemporal features are extracted using VCA v2.0.
• LADRE uses random forest regression models [17] to predict XPSNR, encoding time, and rate factor
trained for each supported resolution.
• Viewing resolution of UHD is assumed.
[15] A. Stergiou and R. Poppe, “AdaPool: Exponential Adaptive Pooling for Information-Retaining Downsampling,” in IEEE Transactions on Image Processing, vol. 32, 2023, pp. 251–266.
[16] A. Wieckowski, et. al., “VVenC: An Open And Optimized VVC Encoder Implementation,” in Proc. IEEE International Conference on Multimedia Expo Workshops (ICMEW), pp. 1–2.
[17] L. Breiman, “Random Forests,” Machine Learning, vol. 45, 2001.
Experimental design
13

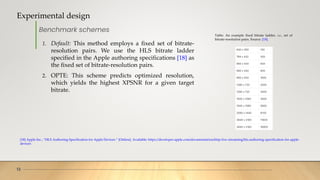

Benchmark schemes
Table: An example fixed bitrate ladder, i.e., set of
bitrate-resolution pairs. Source: [18].
1. Default: This method employs a fixed set of bitrate-
resolution pairs. We use the HLS bitrate ladder
specified in the Apple authoring specifications [18] as
the fixed set of bitrate-resolution pairs.
2. OPTE: This scheme predicts optimized resolution,
which yields the highest XPSNR for a given target
bitrate.
[18] Apple Inc., “HLS Authoring Specification for Apple Devices.” [Online]. Available: https://developer.apple.com/documentation/http-live-streaming/hls-authoring-specification-for-apple-
devices
Experimental results
14

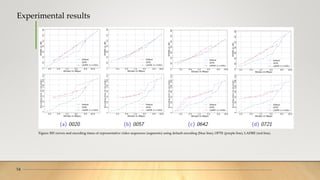

Figure: RD curves and encoding times of representative video sequences (segments) using default encoding (blue line), OPTE (purple line), LADRE (red line).
Experimental results
15
Table: Average results of the encoding schemes compared to the Default encoding.
● Coding efficiency (in terms of Bjøntegaard Delta [19] rates), and encoding times decrease as the
encoding time constraint is decreased.
● OPTE yields the highest coding efficiency (maximizes XPSNR with no encoding time constraint).
● We yield storage reduction using LADRE.
● Some high bitrate representations are eliminated because it cannot be encoded with the target
maximum encoding time.
● The maximum encoding time for a video segment in parallel encoding environment is shown in the
table below (last column). It is below the desired threshold.
[19] HSTP-VID-WPOM, “Working practices using objective metrics for evaluation of video coding efficiency experiments,” International Telecommunication Union, 2020. [Online].
Available: http://handle.itu.int/11.1002/pub/8160e8da-en

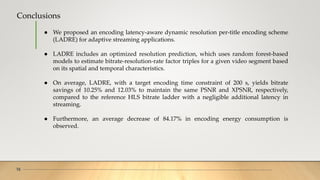

Conclusions
16
● We proposed an encoding latency-aware dynamic resolution per-title encoding scheme
(LADRE) for adaptive streaming applications.
● LADRE includes an optimized resolution prediction, which uses random forest-based
models to estimate bitrate-resolution-rate factor triples for a given video segment based
on its spatial and temporal characteristics.
● On average, LADRE, with a target encoding time constraint of 200 s, yields bitrate
savings of 10.25% and 12.03% to maintain the same PSNR and XPSNR, respectively,
compared to the reference HLS bitrate ladder with a negligible additional latency in
streaming.
● Furthermore, an average decrease of 84.17% in encoding energy consumption is
observed.

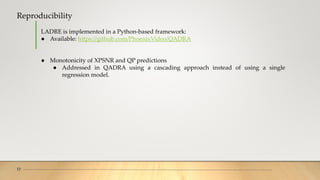

Reproducibility
17
LADRE is implemented in a Python-based framework:
● Available: https://github.com/PhoenixVideo/QADRA
● Monotonicity of XPSNR and QP predictions
● Addressed in QADRA using a cascading approach instead of using a single
regression model.
18

More Related Content

Similar to Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resolution Encoding

Content-adaptive Video Coding for HTTP Adaptive Streaming
Content-adaptive Video Coding for HTTP Adaptive StreamingContent-adaptive Video Coding for HTTP Adaptive Streaming
Content-adaptive Video Coding for HTTP Adaptive Streaming
Alpen-Adria-Universität

QoE- and Energy-aware Content Consumption for HTTP Adaptive Streaming
QoE- and Energy-aware Content Consumption for HTTP Adaptive StreamingQoE- and Energy-aware Content Consumption for HTTP Adaptive Streaming
QoE- and Energy-aware Content Consumption for HTTP Adaptive Streaming
DanieleLorenzi6

TQPM.pdf
TQPM.pdfTQPM.pdf
TQPM.pdf
Vignesh V Menon


Similar to Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resolution Encoding (20)

Content-adaptive Video Coding for HTTP Adaptive Streaming
Content-adaptive Video Coding for HTTP Adaptive StreamingContent-adaptive Video Coding for HTTP Adaptive Streaming
Content-adaptive Video Coding for HTTP Adaptive Streaming

OPSE: Online Per-Scene Encoding for Adaptive HTTP Live Streaming
OPSE: Online Per-Scene Encoding for Adaptive HTTP Live StreamingOPSE: Online Per-Scene Encoding for Adaptive HTTP Live Streaming
OPSE: Online Per-Scene Encoding for Adaptive HTTP Live Streaming

OPSE_Online Per-Scene Encoding for Adaptive HTTP Live Streaming.pdf
OPSE_Online Per-Scene Encoding for Adaptive HTTP Live Streaming.pdfOPSE_Online Per-Scene Encoding for Adaptive HTTP Live Streaming.pdf
OPSE_Online Per-Scene Encoding for Adaptive HTTP Live Streaming.pdf

ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdfETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf
ETPS_Efficient_Two_pass_Encoding_Scheme_for_Adaptive_Streaming.pdf

ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live StreamingETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming
ETPS: Efficient Two-pass Encoding Scheme for Adaptive Live Streaming

Optimal coding unit decision for early termination in high efficiency video c...
Optimal coding unit decision for early termination in high efficiency video c...Optimal coding unit decision for early termination in high efficiency video c...
Optimal coding unit decision for early termination in high efficiency video c...

QoE- and Energy-aware Content Consumption for HTTP Adaptive Streaming
QoE- and Energy-aware Content Consumption for HTTP Adaptive StreamingQoE- and Energy-aware Content Consumption for HTTP Adaptive Streaming
QoE- and Energy-aware Content Consumption for HTTP Adaptive Streaming

Doctoral Symposium presentation.pdf
Doctoral Symposium presentation.pdfDoctoral Symposium presentation.pdf
Doctoral Symposium presentation.pdf

OPTE: Online Per-title Encoding for Live Video Streaming
OPTE: Online Per-title Encoding for Live Video StreamingOPTE: Online Per-title Encoding for Live Video Streaming
OPTE: Online Per-title Encoding for Live Video Streaming

OPTE: Online Per-title Encoding for Live Video Streaming.pdf
OPTE: Online Per-title Encoding for Live Video Streaming.pdfOPTE: Online Per-title Encoding for Live Video Streaming.pdf
OPTE: Online Per-title Encoding for Live Video Streaming.pdf

Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...
Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...
Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...

HTTP Adaptive Streaming – Where Is It Heading?
HTTP Adaptive Streaming – Where Is It Heading?HTTP Adaptive Streaming – Where Is It Heading?
HTTP Adaptive Streaming – Where Is It Heading?

Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...
Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...
Jiri ece-01-03 adaptive temporal averaging and frame prediction based surveil...

Efficient bitrate ladder construction for live video streaming
Efficient bitrate ladder construction for live video streamingEfficient bitrate ladder construction for live video streaming
Efficient bitrate ladder construction for live video streaming

Green_VCA_presentation.pdf
Green_VCA_presentation.pdfGreen_VCA_presentation.pdf
Green_VCA_presentation.pdf

Machine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Machine Learning Based Video Coding Enhancements for HTTP Adaptive StreamingMachine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming
Machine Learning Based Video Coding Enhancements for HTTP Adaptive Streaming

Rate Distortion Performance for Joint Source Channel Coding of JPEG image Ove...
Rate Distortion Performance for Joint Source Channel Coding of JPEG image Ove...Rate Distortion Performance for Joint Source Channel Coding of JPEG image Ove...
Rate Distortion Performance for Joint Source Channel Coding of JPEG image Ove...

40120140504006
4012014050400640120140504006
40120140504006

Fractal Compression of an AVI Video File using DWT and Particle Swarm Optimiz...
Fractal Compression of an AVI Video File using DWT and Particle Swarm Optimiz...Fractal Compression of an AVI Video File using DWT and Particle Swarm Optimiz...
Fractal Compression of an AVI Video File using DWT and Particle Swarm Optimiz...

TQPM.pdf
TQPM.pdfTQPM.pdf
TQPM.pdf


More from Vignesh V Menon

IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
Vignesh V Menon


More from Vignesh V Menon (11)

Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...
Gain of Grain: A Film Grain Handling Toolchain for VVC-based Open Implementat...

Green Variable framerate encoding for Adaptive Live Streaming
Green Variable framerate encoding  for Adaptive Live StreamingGreen Variable framerate encoding  for Adaptive Live Streaming
Green Variable framerate encoding for Adaptive Live Streaming

JASLA_presentation.pdf
JASLA_presentation.pdfJASLA_presentation.pdf
JASLA_presentation.pdf

CAPS_Presentation.pdf
CAPS_Presentation.pdfCAPS_Presentation.pdf
CAPS_Presentation.pdf

LiveVBR presentation at VQEG NORM.pdf
LiveVBR presentation at VQEG NORM.pdfLiveVBR presentation at VQEG NORM.pdf
LiveVBR presentation at VQEG NORM.pdf

Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdfPerceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf
Perceptually-aware Per-title Encoding for Adaptive Video Streaming.pdf

Video Complexity Dataset (VCD).pdf
Video Complexity Dataset (VCD).pdfVideo Complexity Dataset (VCD).pdf
Video Complexity Dataset (VCD).pdf

Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive StreamingLive-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming
Live-PSTR: Live Per-Title Encoding for Ultra HD Adaptive Streaming

IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVCIEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC
IEEE MMSP'21: INCEPT: Intra CU Depth Prediction for HEVC

IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...
IEEE PCS'21: Efficient multi-encoding for large-scale HTTP Adaptive Streaming...

IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...
IEEE ICIP'22:Efficient Content-Adaptive Feature-based Shot Detection for HTTP...


Recently uploaded

Recently uploaded (20)

2024_Student Session 2_ Set Plan Preparation.pptx
2024_Student Session 2_ Set Plan Preparation.pptx2024_Student Session 2_ Set Plan Preparation.pptx
2024_Student Session 2_ Set Plan Preparation.pptx

Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45

Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17

Danh sách HSG Bộ môn cấp trường - Cấp THPT.pdf
Danh sách HSG Bộ môn cấp trường - Cấp THPT.pdfDanh sách HSG Bộ môn cấp trường - Cấp THPT.pdf
Danh sách HSG Bộ môn cấp trường - Cấp THPT.pdf

Post Exam Fun(da) Intra UEM General Quiz - Finals.pdf
Post Exam Fun(da) Intra UEM General Quiz - Finals.pdfPost Exam Fun(da) Intra UEM General Quiz - Finals.pdf
Post Exam Fun(da) Intra UEM General Quiz - Finals.pdf

Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17

Matatag-Curriculum and the 21st Century Skills Presentation.pptx
Matatag-Curriculum and the 21st Century Skills Presentation.pptxMatatag-Curriculum and the 21st Century Skills Presentation.pptx
Matatag-Curriculum and the 21st Century Skills Presentation.pptx

The Benefits and Challenges of Open Educational Resources
The Benefits and Challenges of Open Educational ResourcesThe Benefits and Challenges of Open Educational Resources
The Benefits and Challenges of Open Educational Resources

Essential Safety precautions during monsoon season
Essential Safety precautions during monsoon seasonEssential Safety precautions during monsoon season
Essential Safety precautions during monsoon season

The Last Leaf, a short story by O. Henry
The Last Leaf, a short story by O. HenryThe Last Leaf, a short story by O. Henry
The Last Leaf, a short story by O. Henry

How to the fix Attribute Error in odoo 17
How to the fix Attribute Error in odoo 17How to the fix Attribute Error in odoo 17
How to the fix Attribute Error in odoo 17

Capitol Tech Univ Doctoral Presentation -May 2024
Capitol Tech Univ Doctoral Presentation -May 2024Capitol Tech Univ Doctoral Presentation -May 2024
Capitol Tech Univ Doctoral Presentation -May 2024

slides CapTechTalks Webinar May 2024 Alexander Perry.pptx
slides CapTechTalks Webinar May 2024 Alexander Perry.pptxslides CapTechTalks Webinar May 2024 Alexander Perry.pptx
slides CapTechTalks Webinar May 2024 Alexander Perry.pptx

Behavioral-sciences-dr-mowadat rana (1).pdf
Behavioral-sciences-dr-mowadat rana (1).pdfBehavioral-sciences-dr-mowadat rana (1).pdf
Behavioral-sciences-dr-mowadat rana (1).pdf

Operations Management - Book1.p - Dr. Abdulfatah A. Salem
Operations Management - Book1.p  - Dr. Abdulfatah A. SalemOperations Management - Book1.p  - Dr. Abdulfatah A. Salem
Operations Management - Book1.p - Dr. Abdulfatah A. Salem

[GDSC YCCE] Build with AI Online Presentation
[GDSC YCCE] Build with AI Online Presentation[GDSC YCCE] Build with AI Online Presentation
[GDSC YCCE] Build with AI Online Presentation

Post Exam Fun(da) Intra UEM General Quiz 2024 - Prelims q&a.pdf
Post Exam Fun(da) Intra UEM General Quiz 2024 - Prelims q&a.pdfPost Exam Fun(da) Intra UEM General Quiz 2024 - Prelims q&a.pdf
Post Exam Fun(da) Intra UEM General Quiz 2024 - Prelims q&a.pdf

Championnat de France de Tennis de table/
Championnat de France de Tennis de table/Championnat de France de Tennis de table/
Championnat de France de Tennis de table/

Incoming and Outgoing Shipments in 2 STEPS Using Odoo 17
Incoming and Outgoing Shipments in 2 STEPS Using Odoo 17Incoming and Outgoing Shipments in 2 STEPS Using Odoo 17
Incoming and Outgoing Shipments in 2 STEPS Using Odoo 17

Morse OER Some Benefits and Challenges.pptx
Morse OER Some Benefits and Challenges.pptxMorse OER Some Benefits and Challenges.pptx
Morse OER Some Benefits and Challenges.pptx

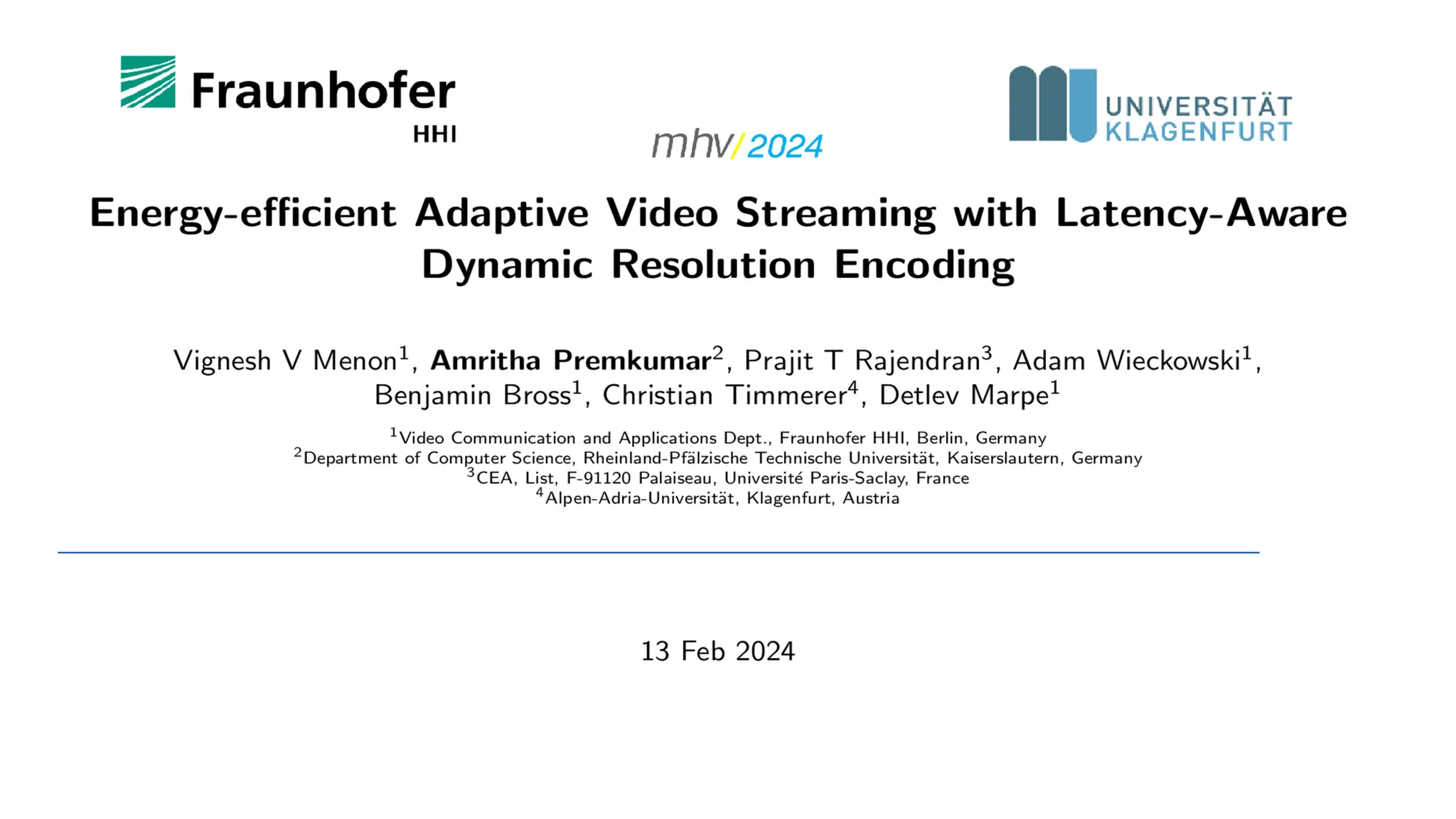

Energy-efficient Adaptive Video Streaming with Latency-Aware Dynamic Resolution Encoding

  • 1.
  • 2. Introduction to dynamic resolution encoding 2 [1] A. Aaron, Z. Li, M. Manohara, J.D. Cock, D. Ronca, "Per-title encode optimization." The Netflix Techblog (2015). Motivation ● Traditional dynamic resolution encoding schemes are based on the fact that one resolution performs better than others in a scene for a given bitrate range. ● The performance (quality) of resolutions will differ from one codec to the other. ● The more efficient the codec, the less bitrate it needs to encode at a specific resolution with acceptable quality. Figure: Conceptual plot to depict the bitrate-quality relationship for any video source encoded at different resolutions. Source: [1]
  • 3. Introduction to dynamic resolution encoding 3 [2] G. Sullivan, J. Ohm, W. Han, and T. Wiegand, “Overview of the high efficiency video coding (HEVC) standard,” in IEEE Transactions on circuits and systems for video technology, vol. 22, no. 12. IEEE, 2012, pp. 1649–1668. [3] B. Bross, Y. Wang, Y. Ye, S. Liu, J. Chen, G. Sullivan, and J. Ohm. (2021). Overview of the Versatile Video Coding (VVC) Standard and its Applications. IEEE Transactions on Circuits and Systems for Video Technology. 31. 3736-3764. 10.1109/TCSVT.2021.3101953. [4] A. Stergiou and R. Poppe, “AdaPool: Exponential Adaptive Pooling for Information-Retaining Downsampling,” in IEEE Transactions on Image Processing, vol. 32, 2023, pp. 251–266. In the context of VVC… ● Versatile Video Coding (VVC) is the successor of High Efficiency Video Coding (HEVC) [2], with better compression efficiency [3]. ● The best resolution for a given bitrate depends on the video complexity. Figure: Rate-distortion (RD) curves of representative sequences (segments) of Inter-4K [4] dataset encoded at 540p, 1080p, and 2160p resolutions using VVenC at faster preset. Here, XPSNR is used as the quality metric.
  • 4. Introduction to dynamic resolution encoding 4 Encoding time ● Encoding time increases as the target encoding resolution increases owing to the increased computational complexity. Figure: Rate-encoding time curves of representative sequences (segments) of Inter-4K dataset encoded at 540p, 1080p, and 2160p resolutions using VVenC at faster preset.
  • 5. Introduction to dynamic resolution encoding 5 Encoding time-constraint- Green encoding? Lower encoding latency aligns with eco-friendly streaming practices by optimizing resource utilization and minimizing unnecessary energy expenditure. ● Reducing encoding energy consumption (in data centers) is critical in streaming applications since it contributes to environmental sustainability [5]. ● Some researches suggest a pseudo linear relationship between encoding time and encoding energy consumption [6]. [5] A. Stephens, C. Tremlett-Williams, L. Fitzpatrick, L. Acerini, M. Anderson, and N. Crabbendam, “The Carbon Impacts of Video Streaming,” Jun. 2021. [6] V. V. Menon, S. Afzal, P. T. Rajendran, K. Schoeffmann, R. Prodan, and C. Timmerer. [n. d.]. Content-Adaptive Variable Framerate Encoding Scheme for Green Live Streaming, [Online]. Available: http://arxiv.org/abs/2311.08074
  • 6. Related work 6 Table: Comparison of the state-of-the-art dynamic resolution per- title encoding methods with LADRE. [3] J. Cock, Zhi Li, M. Manohara, and A. Aaron, “Complexity-based consistent-quality encoding in the cloud,” in 2016 IEEE International Conference on Image Processing (ICIP), 2016, pp. 1484–1488. [4] A. Katsenou, J. Sole, and D. R. Bull, “Content-gnostic Bitrate Ladder Prediction for Adaptive Video Streaming,” in 2019 Picture Coding Symposium (PCS), 2019, pp. 1–5. [5] A. Zabrovskiy, P. Agrawal, C. Timmerer, and R. Prodan, “FAUST: Fast Per-Scene Encoding Using Entropy-Based Scene Detection and Machine Learning,” in 2021 30th Conference of Open Innovations Association FRUCT, 2021, pp. 292–302. [6] M. Bhat, J. Thiesse, and P. Le Callet, “Combining Video Quality Metrics To Select Perceptually Accurate Resolution In A Wide Quality Range: A Case Study,” in 2021 IEEE International Conference on Image Processing (ICIP), 2021, pp. 2164–2168. [7] V. V. Menon, P. T. Rajendran, C. Feldmann, K. Schoeffmann, M. Ghanbari and C. Timmerer, "JND-Aware Two-Pass Per-Title Encoding Scheme for Adaptive Live Streaming," in IEEE Transactions on Circuits and Systems for Video Technology, vol. 34, no. 2, pp. 1281-1294, Feb. 2024, doi: 10.1109/TCSVT.2023.3290725. • Current related work lacks considering encoding latency constraints while selecting the optimized encoding resolution. • Most state-of-the-art methods need pre-encodings which yield significant latency and energy consumption. • As an example, for bruteforce, the total time taken is the total time of all encodings and the quality evaluation of those encodings.
  • 7. Latency-Aware Dynamic Resolution Encoding (LADRE) 7 Figure: Encoding using LADRE envisioned for video streaming. • Spatiotemporal complexity feature extraction, • Optimized resolution prediction, • Optimized rate factor prediction, and • Constrained variable bitrate (cVBR) encoding using the selected bitrate-resolution-rate factor combinations. Proposed architecture
  • 8. Spatiotemporal complexity feature extraction 8 We use seven DCT-energy-based features extracted using Video Complexity Analyzer (VCA) [8]: ● average texture energy (EY), ● average gradient of the luma texture energy (h) ● average luma brightness (LY), ● average chroma texture energy of U and V channels (EU and EV) ● average chroma brightness of U and V channels (LU and LV) [8]. [8] V. V. Menon, C. Feldmann, K. Schoeffmann, M. Ghanbari, and C. Timmerer, “Green Video Complexity Analysis for Efficient Encoding in Adaptive Video Streaming,” in First International ACM Green Multimedia Systems Workshop (GMSys ’23), 2023.
  • 9. Optimized resolution prediction 9 [9] V. V. Menon et al. Content-Adaptive Variable Framerate Encoding Scheme for Green Live Streaming. 2023. arXiv: 2311.08074 [cs.MM]. url: https://arxiv.org/pdf/2311.08074. [10] V. V. Menon et al. “Energy-Efficient Multi-Codec Bitrate Ladder Estimation for Adaptive Video Streaming”. In: 2023 International Conference on Visual Communications and Image Processing (VCIP). 2023.. Modeling • The perceptual quality and encoding time of the representation (rt , bt ) rely on the extracted video complexity features, encoding resolution, and target bitrate [9, 10]: • A higher resolution, and/or bitrate may improve the quality and increase the file size of the encoded video segment. • Similarly, a higher resolution, and/or bitrate can increase the encoding duration.
  • 10. Optimized resolution prediction 10 [11] C. R. Helmrich et al., “Information on and analysis of the VVC encoders in the SDR UHD verification test,” in WG 05 MPEG Joint Video Coding Team(s) with ITU-T SG 16, document JVET-T0103, Oct. 2020. [12] M. Wien and V. Baroncini, “Report on VVC compression performance verification testing in the SDR UHD Random Access Category,” in WG 05 MPEG Joint Video Coding Team(s) with ITU-T SG 16, document JVET-T0097, Oct. 2020. [13] C. R. Helmrich et al., “A study of the extended perceptually weighted peak signal-to-noise ratio (XPSNR) for video compression with different resolutions and bit depths,” in ITU Journal: ICT Discoveries, vol. 3, May 2020. Optimization • LADRE optimizes the perceptual quality (in terms of XPSNR) of encoded video segments while adhering to real-time processing constraints. The optimization function is: We consider XPSNR as the perceptual quality measure instead of the popular VMAF. • The correlation of XPSNR with subjective quality scores is higher than VMAF for VVC-coded UHD bitstreams [11,12,13].
  • 11. Optimized rate factor prediction 11 [14] V. V Menon, H. Amirpour, M. Ghanbari, and C. Timmerer, “ETPS: Efficient Two-Pass Encoding Scheme for Adaptive Live Streaming,” in Proc. IEEE Int. Conf. Image Process. (ICIP), Bordeaux, Oct. 2022. Modeling • Predicting the rate factor helps ensure consistent video quality throughout the stream. • It allows the encoder to allocate bits judiciously, preventing under-allocation (resulting in poor quality) or over-allocation (wasting bandwidth) of bits for encoding [14]. • The mathematical formulation of the rate factor optimization to yield a bitrate as close to the target bitrate as possible can be expressed as follows:. Optimization
  • 12. Experimental design 12 Experimental parameters Table: Experimental parameters used to evaluate LADRE. • The Inter-4K dataset [15] is used to validate the performance. • The sequences are encoded using VVenC v1.10 [16] using preset 0 (faster). • The spatiotemporal features are extracted using VCA v2.0. • LADRE uses random forest regression models [17] to predict XPSNR, encoding time, and rate factor trained for each supported resolution. • Viewing resolution of UHD is assumed. [15] A. Stergiou and R. Poppe, “AdaPool: Exponential Adaptive Pooling for Information-Retaining Downsampling,” in IEEE Transactions on Image Processing, vol. 32, 2023, pp. 251–266. [16] A. Wieckowski, et. al., “VVenC: An Open And Optimized VVC Encoder Implementation,” in Proc. IEEE International Conference on Multimedia Expo Workshops (ICMEW), pp. 1–2. [17] L. Breiman, “Random Forests,” Machine Learning, vol. 45, 2001.
  • 13. Experimental design 13 Benchmark schemes Table: An example fixed bitrate ladder, i.e., set of bitrate-resolution pairs. Source: [18]. 1. Default: This method employs a fixed set of bitrate- resolution pairs. We use the HLS bitrate ladder specified in the Apple authoring specifications [18] as the fixed set of bitrate-resolution pairs. 2. OPTE: This scheme predicts optimized resolution, which yields the highest XPSNR for a given target bitrate. [18] Apple Inc., “HLS Authoring Specification for Apple Devices.” [Online]. Available: https://developer.apple.com/documentation/http-live-streaming/hls-authoring-specification-for-apple- devices
  • 14. Experimental results 14 Figure: RD curves and encoding times of representative video sequences (segments) using default encoding (blue line), OPTE (purple line), LADRE (red line).
  • 15. Experimental results 15 Table: Average results of the encoding schemes compared to the Default encoding. ● Coding efficiency (in terms of Bjøntegaard Delta [19] rates), and encoding times decrease as the encoding time constraint is decreased. ● OPTE yields the highest coding efficiency (maximizes XPSNR with no encoding time constraint). ● We yield storage reduction using LADRE. ● Some high bitrate representations are eliminated because it cannot be encoded with the target maximum encoding time. ● The maximum encoding time for a video segment in parallel encoding environment is shown in the table below (last column). It is below the desired threshold. [19] HSTP-VID-WPOM, “Working practices using objective metrics for evaluation of video coding efficiency experiments,” International Telecommunication Union, 2020. [Online]. Available: http://handle.itu.int/11.1002/pub/8160e8da-en
  • 16. Conclusions 16 ● We proposed an encoding latency-aware dynamic resolution per-title encoding scheme (LADRE) for adaptive streaming applications. ● LADRE includes an optimized resolution prediction, which uses random forest-based models to estimate bitrate-resolution-rate factor triples for a given video segment based on its spatial and temporal characteristics. ● On average, LADRE, with a target encoding time constraint of 200 s, yields bitrate savings of 10.25% and 12.03% to maintain the same PSNR and XPSNR, respectively, compared to the reference HLS bitrate ladder with a negligible additional latency in streaming. ● Furthermore, an average decrease of 84.17% in encoding energy consumption is observed.
  • 17. Reproducibility 17 LADRE is implemented in a Python-based framework: ● Available: https://github.com/PhoenixVideo/QADRA ● Monotonicity of XPSNR and QP predictions ● Addressed in QADRA using a cascading approach instead of using a single regression model.

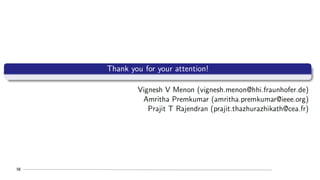

  • 18. 18
