This document discusses an approach used by PoolParty (PPT) to validate and repair taxonomies integrated from various data sources to ensure they conform to quality heuristics. It specifies data constraints using SHACL, validates datasets for violations, and combines formal constraint definitions with reusable repair strategies that can automatically resolve violations. The approach was tested on PPT-generated and third-party datasets, with validation performance varying based on dataset size and structure, and repair strategies scaling well to larger datasets.

1. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Towards maintainable constraint validation
and repair for taxonomies
- The PoolParty approach
Monika Solanki
https://w3id.org/people/msolanki
@nimonika
University of Oxford
Joint work with
Christian Mader
Fraunhofer IAIS, Germany

2. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe

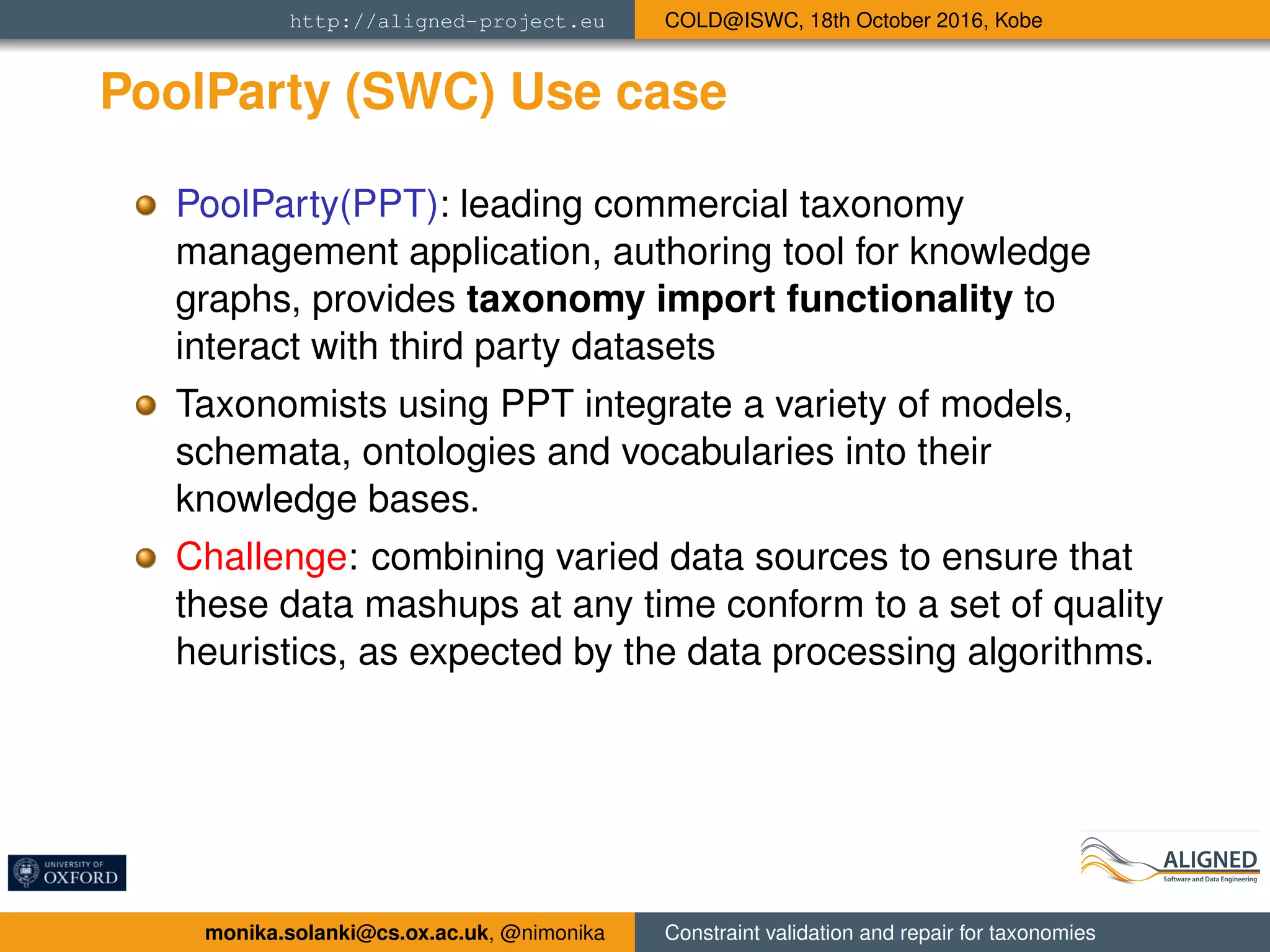

PoolParty (SWC) Use case
PoolParty(PPT): leading commercial taxonomy
management application, authoring tool for knowledge
graphs, provides taxonomy import functionality to
interact with third party datasets
Taxonomists using PPT integrate a variety of models,
schemata, ontologies and vocabularies into their
knowledge bases.
Challenge: combining varied data sources to ensure that
these data mashups at any time conform to a set of quality
heuristics, as expected by the data processing algorithms.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

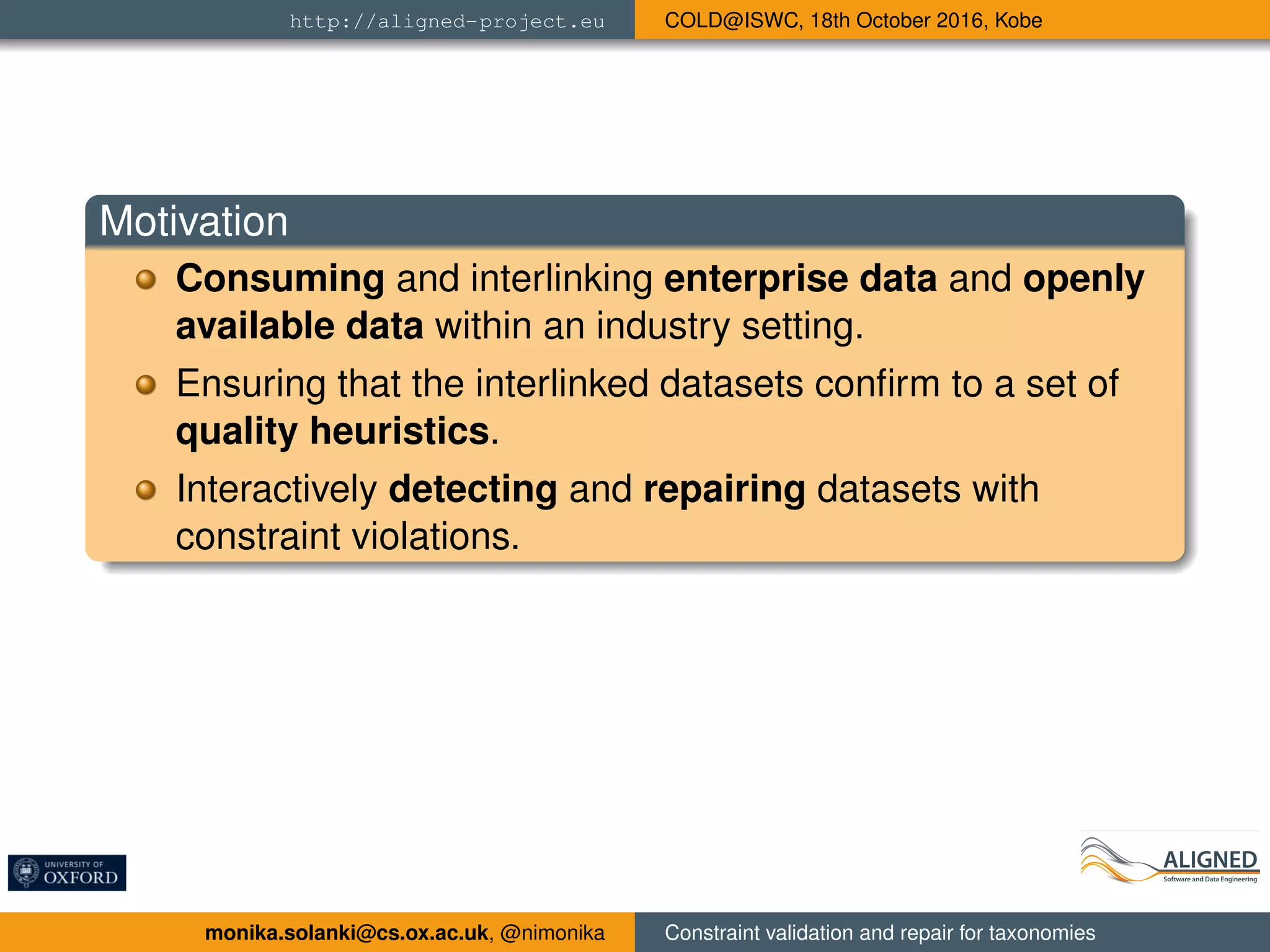

3. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Motivation
Consuming and interlinking enterprise data and openly
available data within an industry setting.
Ensuring that the interlinked datasets confirm to a set of
quality heuristics.
Interactively detecting and repairing datasets with
constraint violations.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

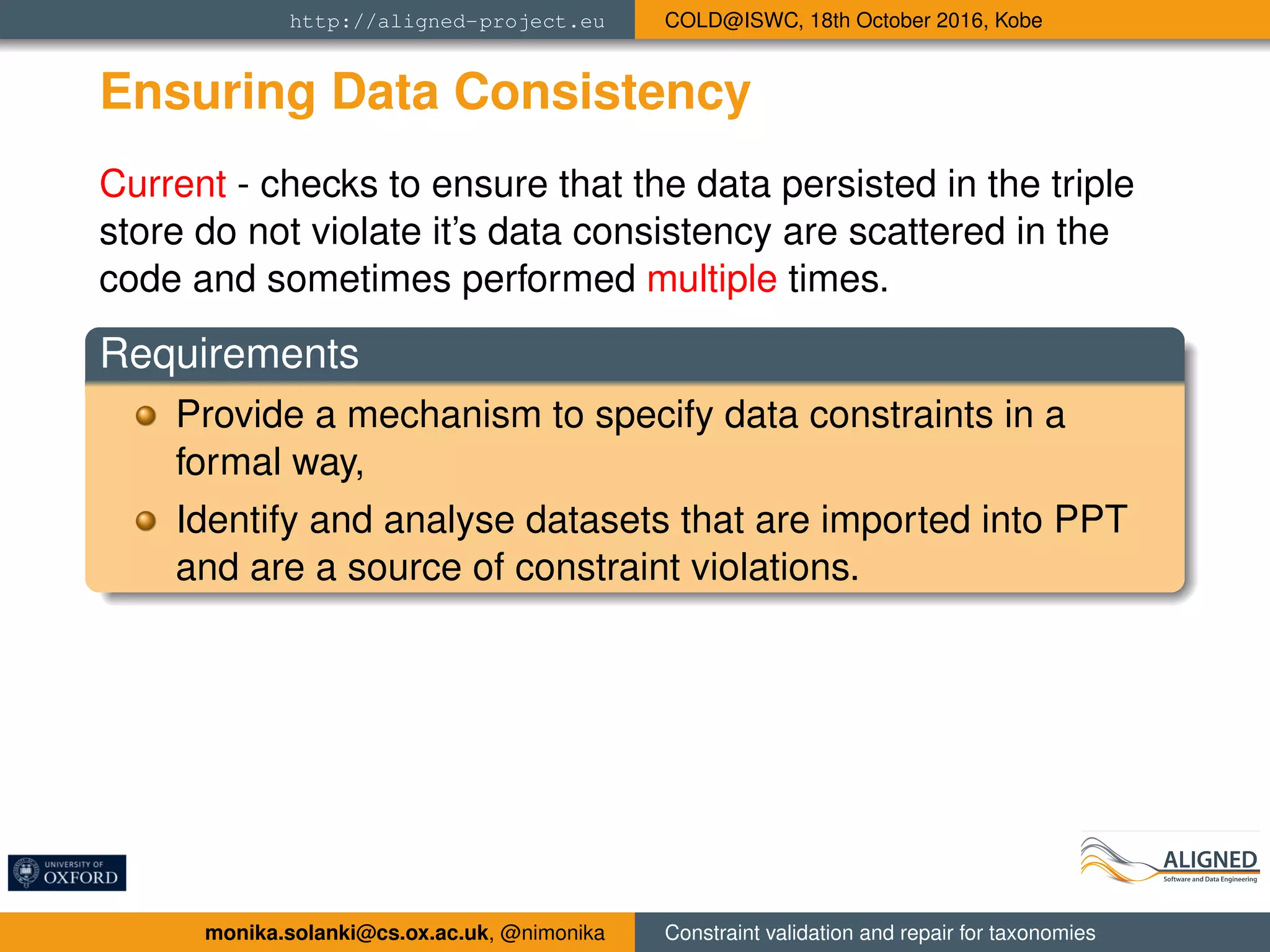

4. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Ensuring Data Consistency
Current - checks to ensure that the data persisted in the triple
store do not violate it’s data consistency are scattered in the
code and sometimes performed multiple times.
Requirements
Provide a mechanism to specify data constraints in a
formal way,
Identify and analyse datasets that are imported into PPT
and are a source of constraint violations.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

5. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe

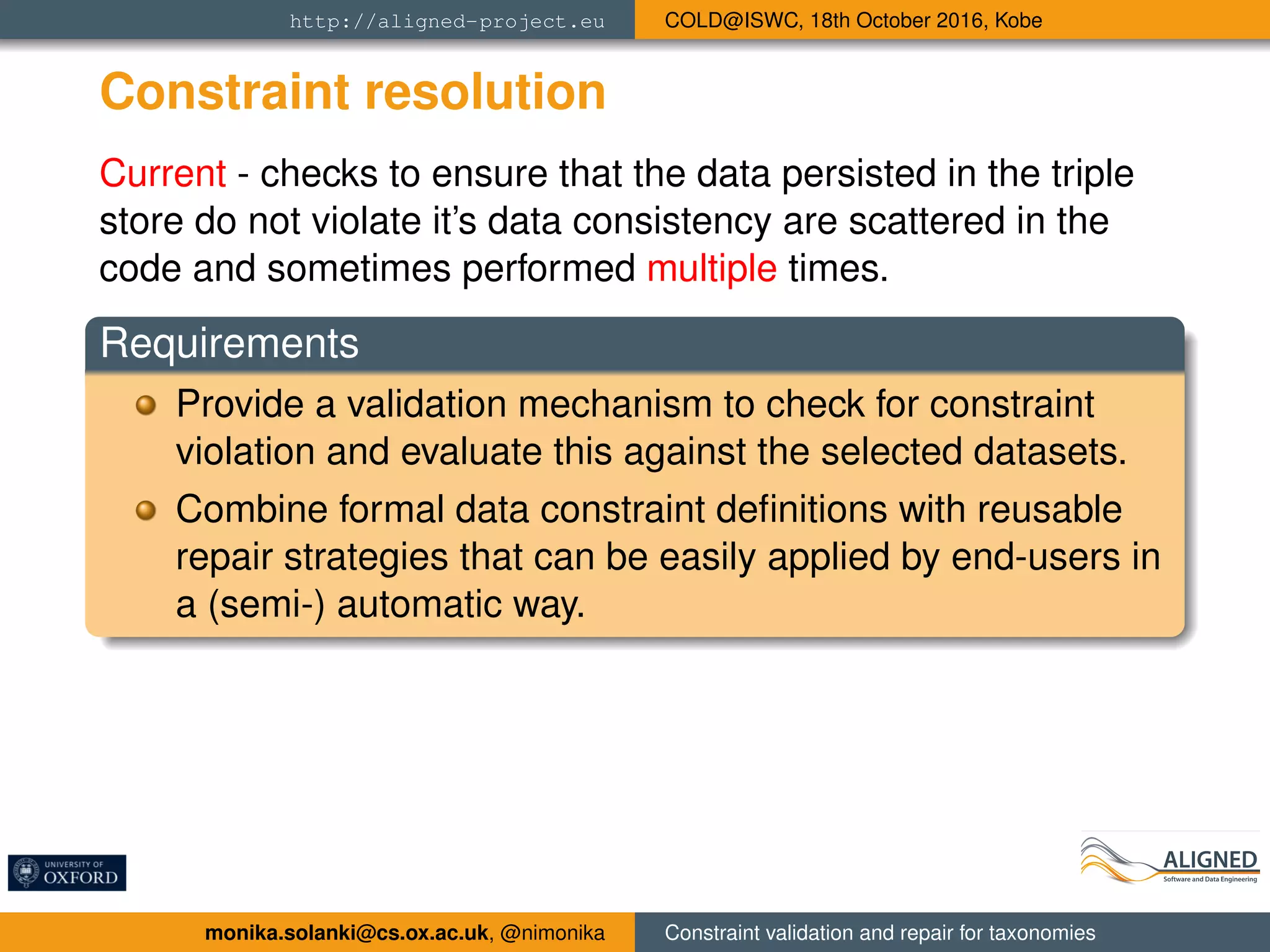

Constraint resolution
Current - checks to ensure that the data persisted in the triple
store do not violate it’s data consistency are scattered in the
code and sometimes performed multiple times.
Requirements
Provide a validation mechanism to check for constraint
violation and evaluate this against the selected datasets.
Combine formal data constraint definitions with reusable
repair strategies that can be easily applied by end-users in
a (semi-) automatic way.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

6. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe

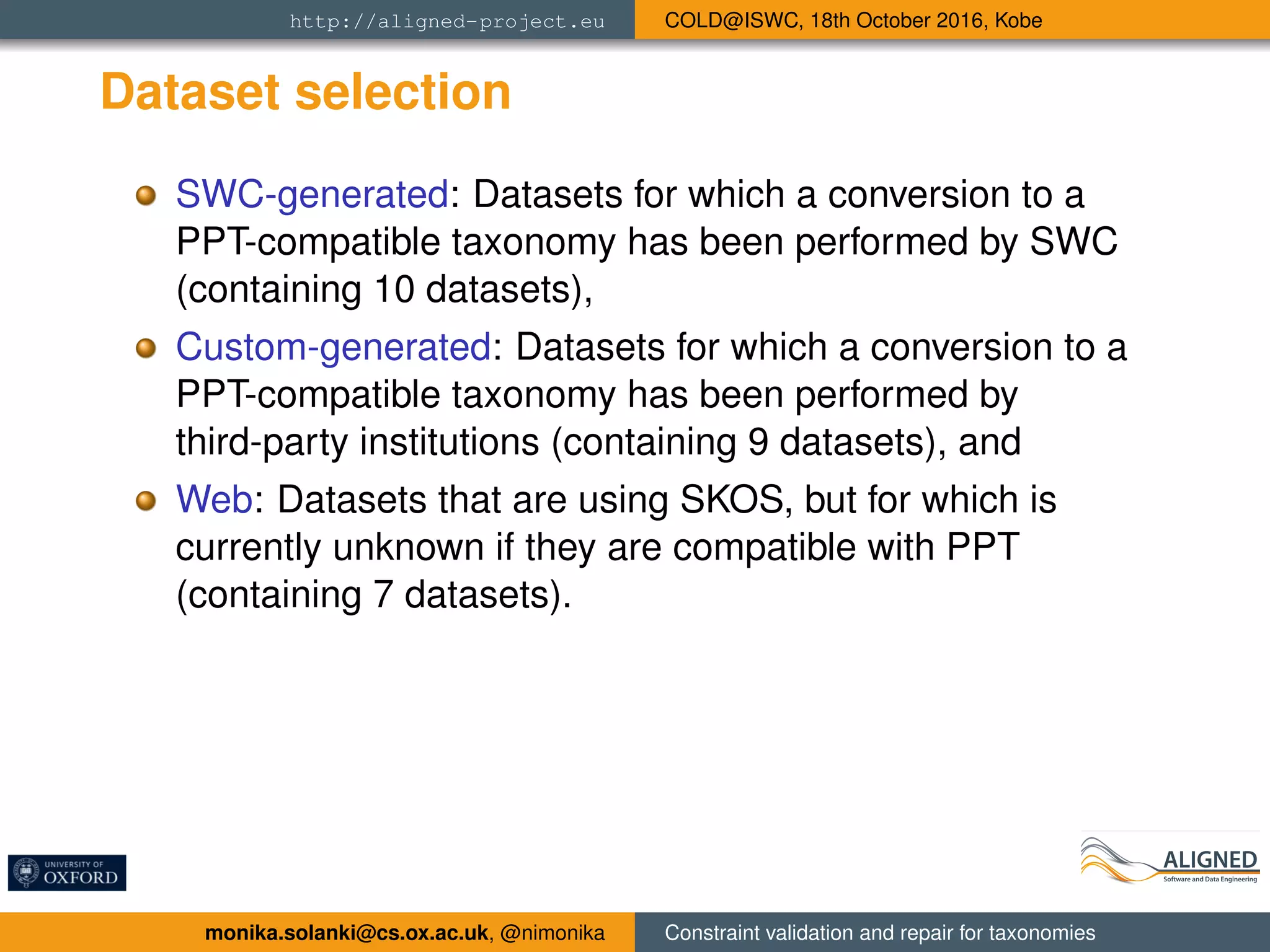

Dataset selection
SWC-generated: Datasets for which a conversion to a
PPT-compatible taxonomy has been performed by SWC
(containing 10 datasets),
Custom-generated: Datasets for which a conversion to a
PPT-compatible taxonomy has been performed by
third-party institutions (containing 9 datasets), and
Web: Datasets that are using SKOS, but for which is
currently unknown if they are compatible with PPT
(containing 7 datasets).
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

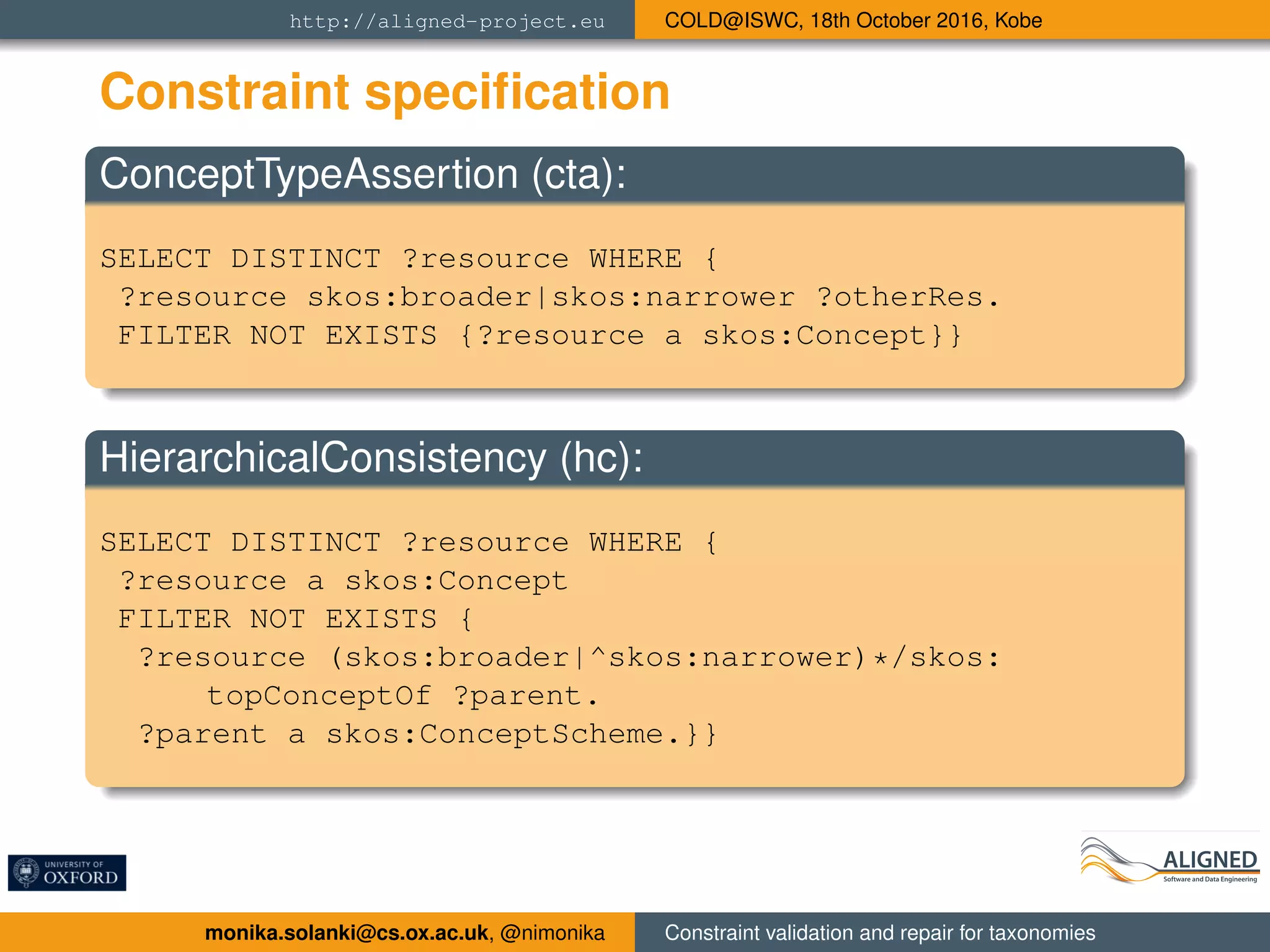

7. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Constraint specification
ConceptTypeAssertion (cta):
SELECT DISTINCT ?resource WHERE {
?resource skos:broader|skos:narrower ?otherRes.
FILTER NOT EXISTS {?resource a skos:Concept}}
HierarchicalConsistency (hc):
SELECT DISTINCT ?resource WHERE {
?resource a skos:Concept
FILTER NOT EXISTS {
?resource (skos:broader|^skos:narrower)*/skos:
topConceptOf ?parent.
?parent a skos:ConceptScheme.}}
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

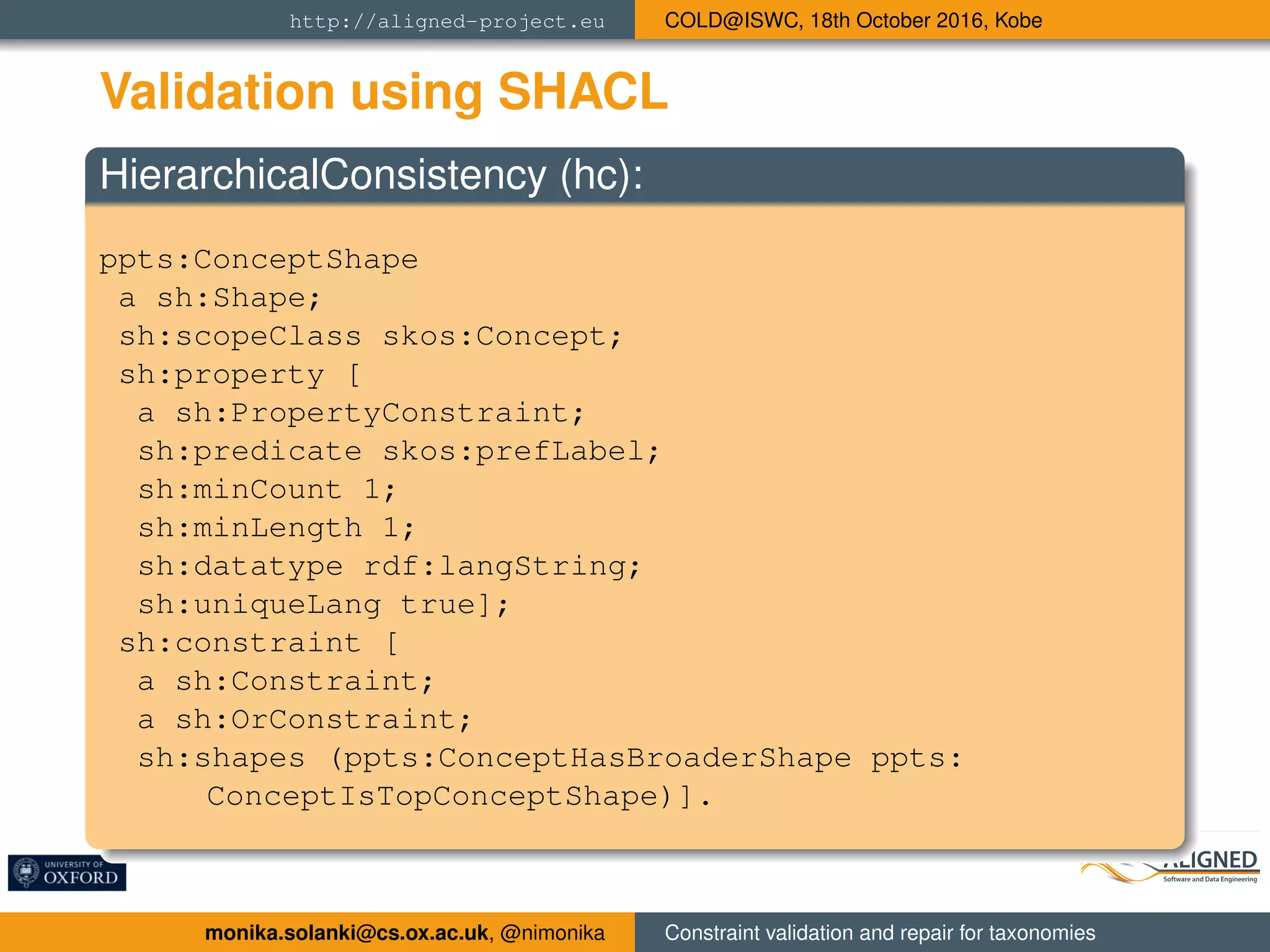

8. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Validation using SHACL
HierarchicalConsistency (hc):
ppts:ConceptShape
a sh:Shape;
sh:scopeClass skos:Concept;
sh:property [
a sh:PropertyConstraint;
sh:predicate skos:prefLabel;
sh:minCount 1;
sh:minLength 1;
sh:datatype rdf:langString;
sh:uniqueLang true];
sh:constraint [
a sh:Constraint;
a sh:OrConstraint;
sh:shapes (ppts:ConceptHasBroaderShape ppts:
ConceptIsTopConceptShape)].
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

9. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe

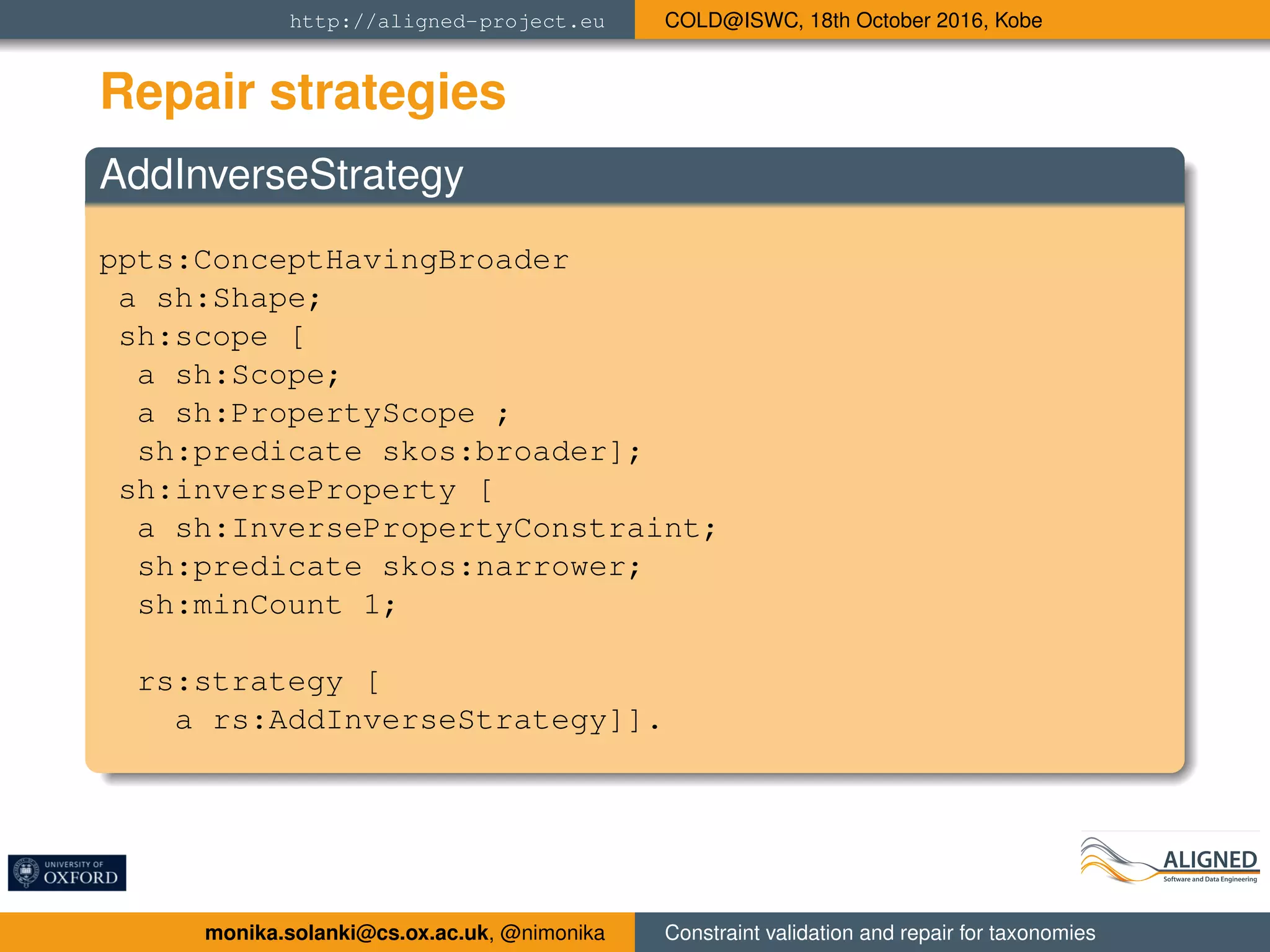

Repair strategies
AddInverseStrategy
ppts:ConceptHavingBroader
a sh:Shape;
sh:scope [
a sh:Scope;
a sh:PropertyScope ;
sh:predicate skos:broader];
sh:inverseProperty [
a sh:InversePropertyConstraint;
sh:predicate skos:narrower;
sh:minCount 1;
rs:strategy [
a rs:AddInverseStrategy]].
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

10. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe

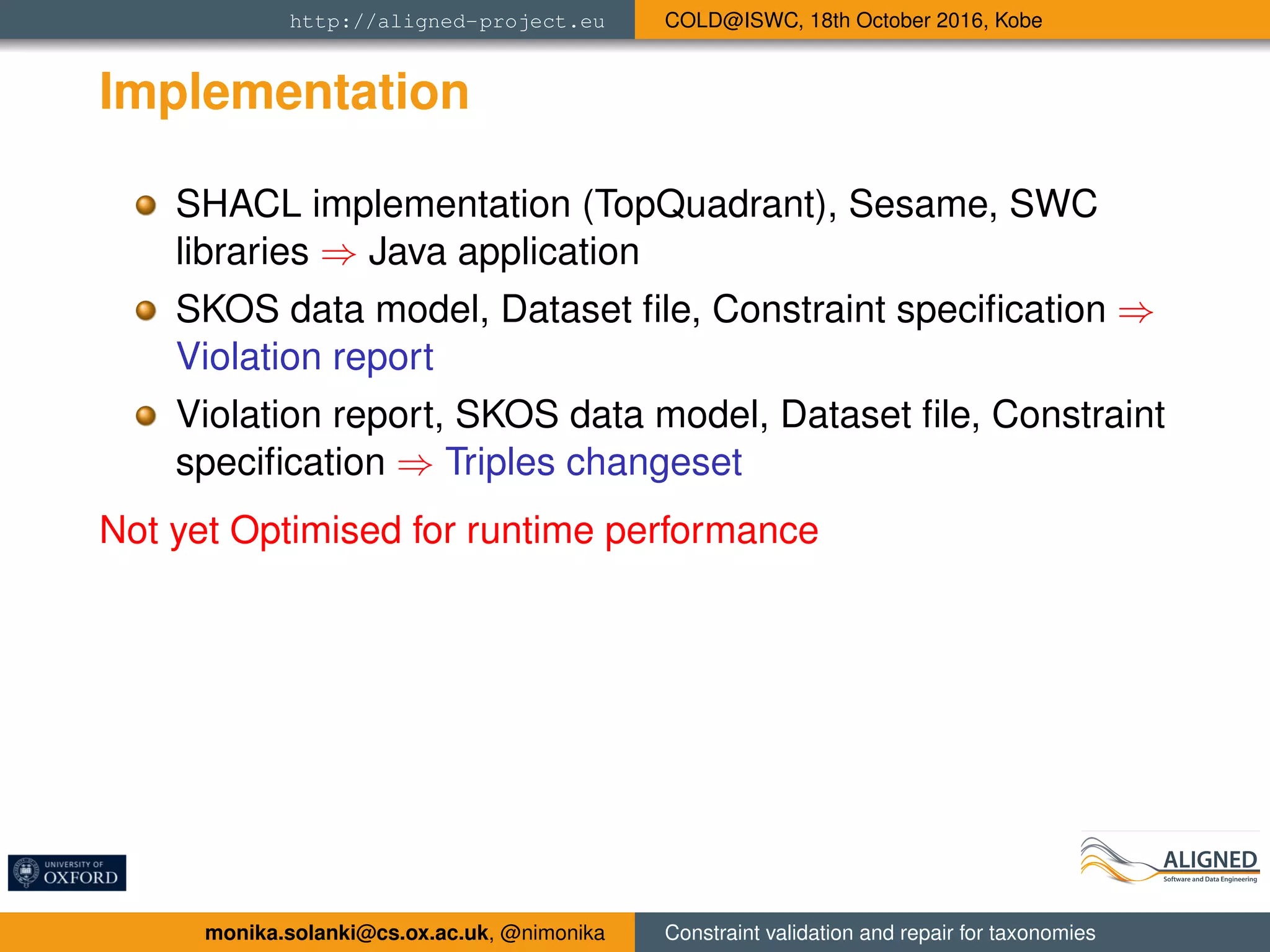

Implementation
SHACL implementation (TopQuadrant), Sesame, SWC
libraries ⇒ Java application
SKOS data model, Dataset file, Constraint specification ⇒
Violation report
Violation report, SKOS data model, Dataset file, Constraint
specification ⇒ Triples changeset
Not yet Optimised for runtime performance
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

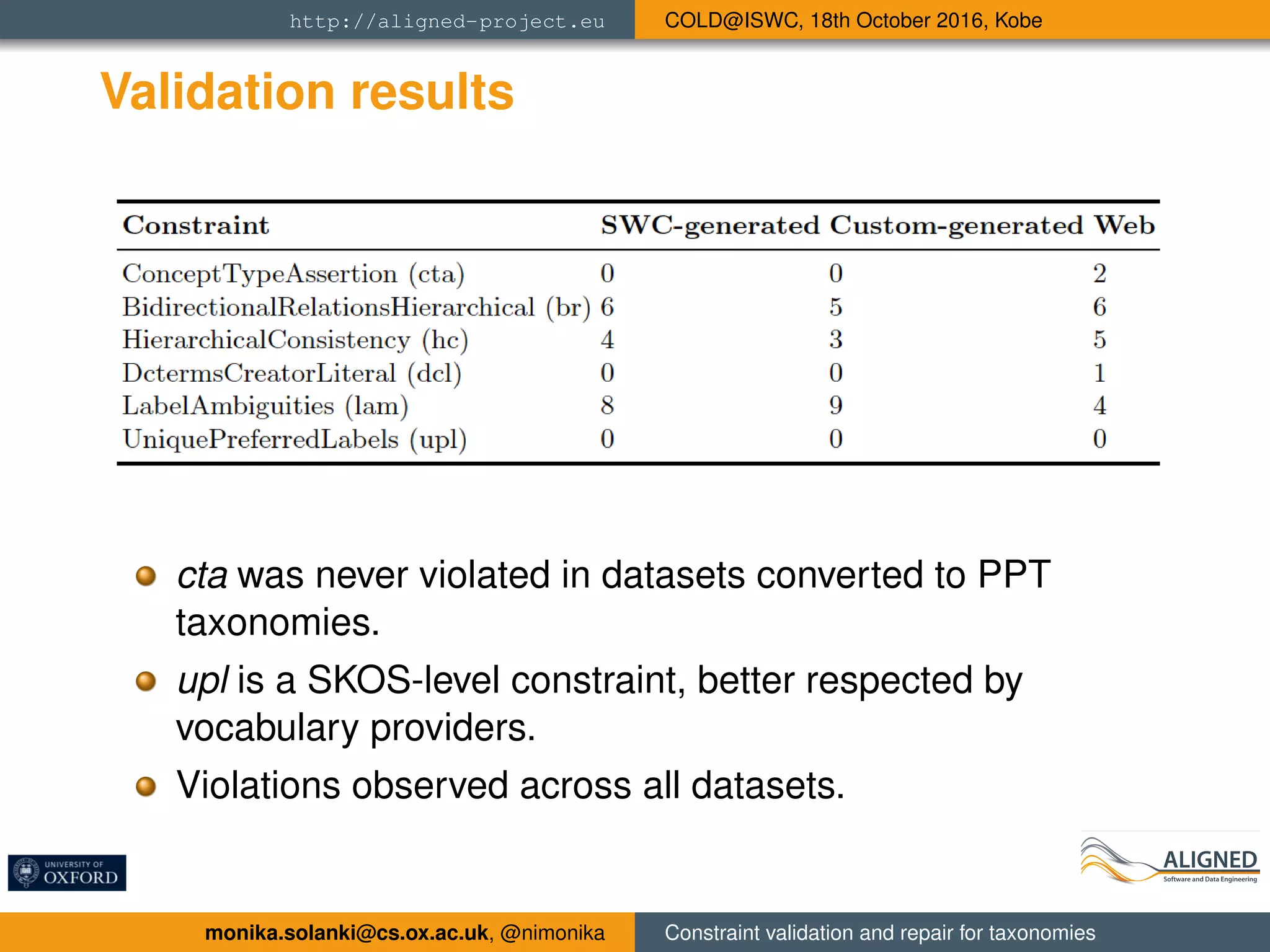

11. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Validation results
cta was never violated in datasets converted to PPT
taxonomies.
upl is a SKOS-level constraint, better respected by
vocabulary providers.
Violations observed across all datasets.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

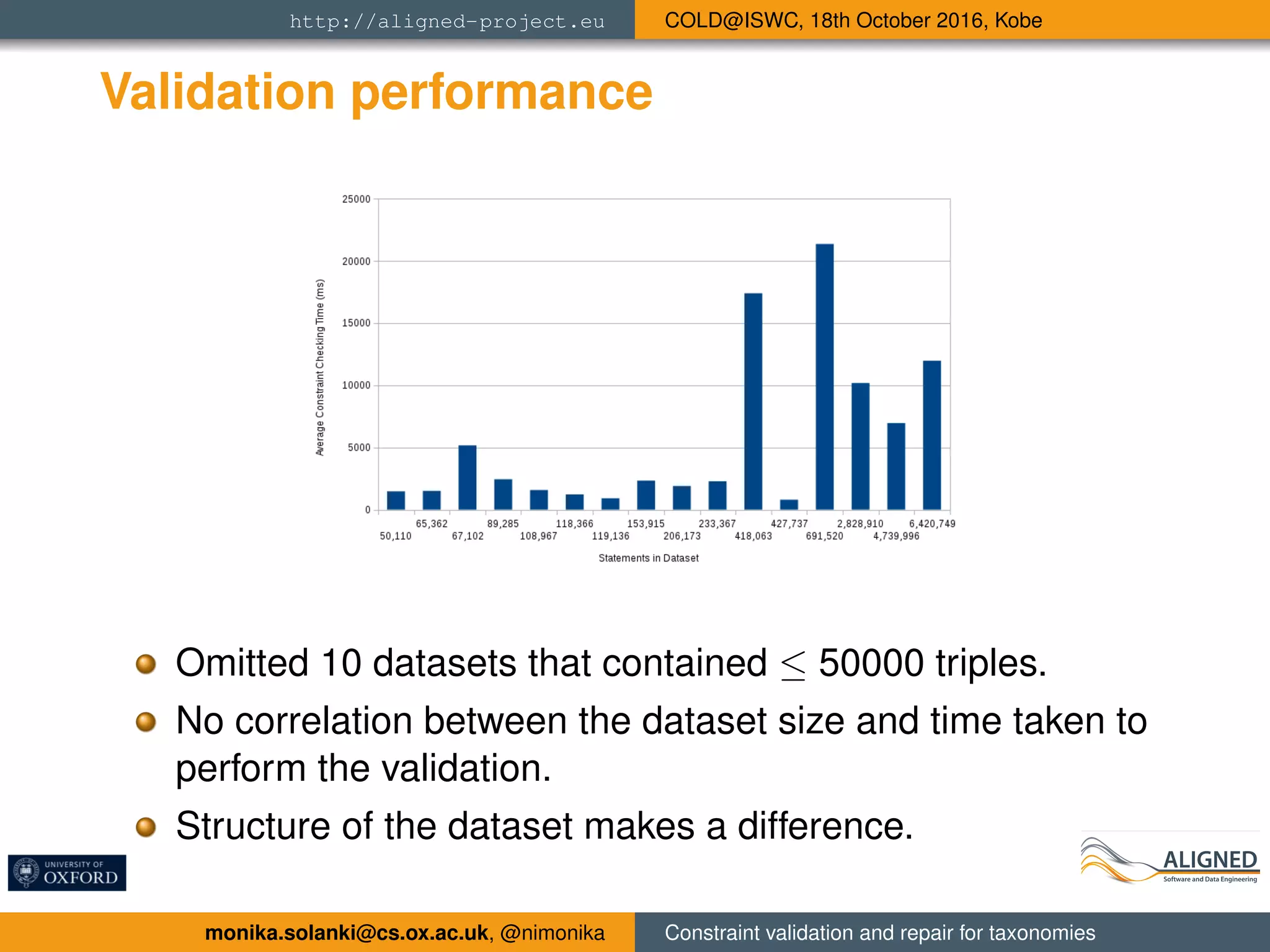

12. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Validation performance
Omitted 10 datasets that contained ≤ 50000 triples.
No correlation between the dataset size and time taken to
perform the validation.
Structure of the dataset makes a difference.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

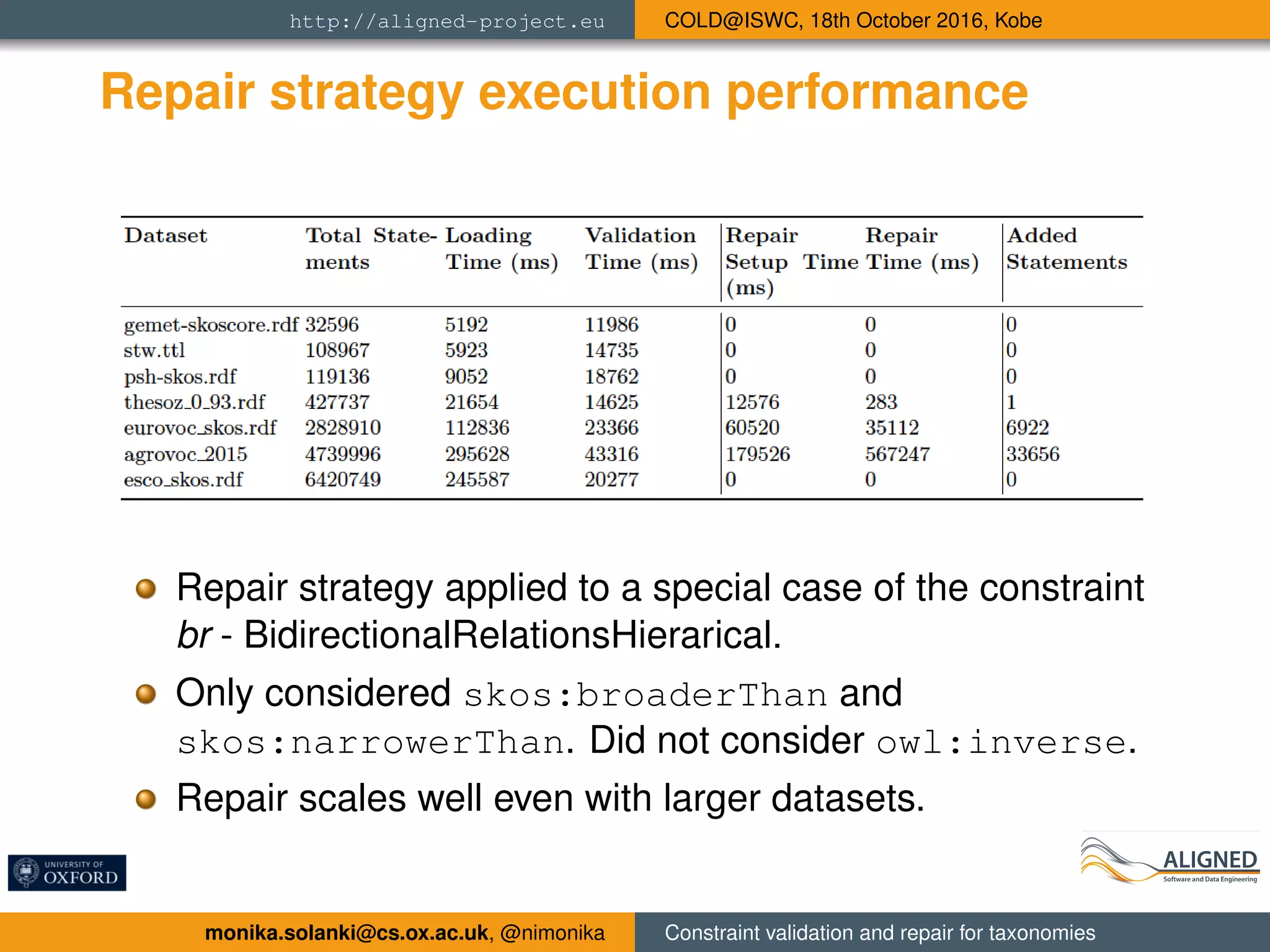

13. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe
Repair strategy execution performance
Repair strategy applied to a special case of the constraint
br - BidirectionalRelationsHierarical.
Only considered skos:broaderThan and
skos:narrowerThan. Did not consider owl:inverse.
Repair scales well even with larger datasets.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies

14. http://aligned-project.eu COLD@ISWC, 18th October 2016, Kobe

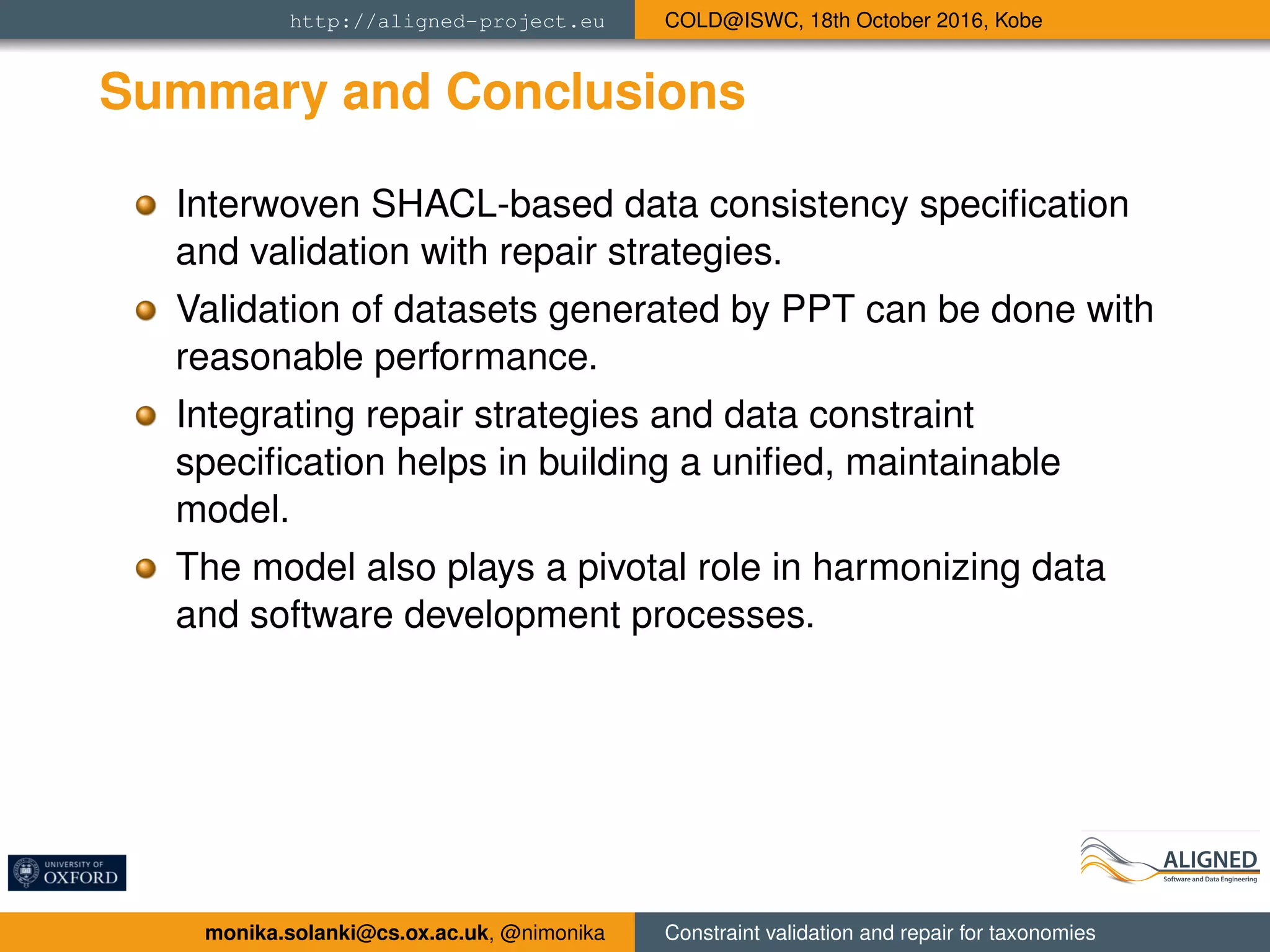

Summary and Conclusions
Interwoven SHACL-based data consistency specification
and validation with repair strategies.
Validation of datasets generated by PPT can be done with
reasonable performance.
Integrating repair strategies and data constraint
specification helps in building a unified, maintainable
model.
The model also plays a pivotal role in harmonizing data
and software development processes.
monika.solanki@cs.ox.ac.uk, @nimonika Constraint validation and repair for taxonomies
