Privacy Preservation in Location-Based
Services: A Novel Metric and Attack Model
Sina Shaham, Ming Ding, Bo Liu, Shuping Dang, Zihuai Lin, and Jun Li
Abstract—Recent years have seen rising needs for location-based services in our everyday life. Aside from the many advantages
provided by these services, they have caused serious concerns regarding the location privacy of users. Adversaries can monitor the
queried locations by users to infer sensitive information, such as home addresses and shopping habits. To address this issue,
dummy-based algorithms have been developed to increase the anonymity of users, and thus, protecting their privacy. Unfortunately,
the existing algorithms only assume a limited amount of side information known by adversaries, which may face more severe
challenges in practice. In this paper, we develop an attack model termed as Viterbi attack, which represents a realistic privacy threat on
user trajectories. Moreover, we propose a metric called transition entropy that enables the evaluation of dummy-based algorithms,
followed by developing a robust algorithm that can defend users against the Viterbi attack while maintaining significantly high
performance in terms of the traditional metrics. We compare and evaluate our proposed algorithm and metric on a publicly available
dataset published by Microsoft, i.e., Geolife dataset.
Index Terms—k-anonymity, spatio-temporal trajectories, location-based services, privacy preservation.
F
1 INTRODUCTION
WITH the ubiquitous use of smartphones and social networks,
location-based services (LBSs) have become an essential
part of contemporary society. The users of smart devices can
download LBS applications from Google Play or Apple Store,
and ‘query’ for LBSs they desire. Query refers to a request
for a service by providing a location. For example, users can
query their locations from an LBS provider to find restaurants
nearby [1], refine route planning [2], and receive location-based
advertisements [3]. The annual market for LBSs is expected to
reach 77.84 billion US dollars by 2021, with an annual growth
rate of 38.9% [4].
Unfortunately, the privacy issues associated with the LBSs
have raised many concerns. Notably, after the recent Facebook
data privacy scandal occupying the headlines of major media [5].
Different from the security of data, which is mainly concerned
with secure encryption and integrity, privacy indicates how in
control users are to prevent the leakage of their data; Can LBS
providers analyze users’ locations to find out their home address?
Can LBS providers take advantage of users’ data to figure out
their shopping habits? Can LBS providers share user data with
third-parties? And these are just some of the issues that may
compromise the location privacy of users.
This work was submitted in part and accepted to present in IEEE INFOCOM,
2019.
S. Shaham and Z. Lin are with the Department of Engineering, The Uni-
versity of Sydney, Sydney, NSW, 2006 Australia (Email: sina.shaham, zi-
huai.lin}@sydney.edu.au).
M. Ding is with Data61, CSIRO, Sydney, NSW, 2015 Australia (email:
ming.ding@data61.csiro.au)
B. Liu is with University of Technology Sydney, NSW 2007, Australia (Email:
bo.liu@uts.edu.au)
S. Dang is with Computer, Electrical and Mathematical Sciences and En-
gineering Division, King Abdullah University of Science and Technology
(KAUST), Thuwal 23955-6900, Kingdom of Saudi Arabia (Email: shup-
ing.dang@kaust.edu.sa).
Jun Li is with the School of Electronic and Optical Engineering, Nanjing
University of Science and Technology, Nanjing, 210094, CHINA. He is also
with the School of Computer Science and Robotics, National Research Tomsk
Polytechnic University, Tomsk, 634050, RUSSIA. (Email: jun.li@njust.edu.cn.)
Krumm et al. [6] warn about the current location privacy
threats. The authors show that just by having the last location
of a day, it is possible to estimate the home location within 60
meters of the actual site. The authors in [7] demonstrate that even
when locations are queried from LBS providers as members of
a community, sensitive locations associated with users can still
be identified based on the distribution of queries. Beresford and
Stajano [8] also warn that a system collecting users’ locations may
invade their location privacy. Therefore, it is crucial to devise new
ways to preserve the location privacy of users formally defined as
“the ability to prevent other parties from learning one’s current or
past locations” [8].
Researchers have proposed several approaches to preserve the
location privacy of users, among which dummy-based algorithms
have drawn a great deal of attention [8]–[12]. For a given user
location, the dummy generation algorithms aim at generating
k − 1 dummy locations aside from the actual location of the
user and submitting them all together to the LBS server. Thus,
making it difficult for untrusted servers, or so-called adversaries, to
identify the actual user location. All algorithms are executed in the
application layer of mobile phones before sending queries to LBS
providers. The groundwork in this field was laid by the authors of
[13]. They generated dummies randomly throughout the map and
evolved them as users move. Followed by this work, the authors
in [14] and [15] proposed to choose the candidate dummies from
a virtual circle or grid constructed around the current location of
the user.
More recently, an enhanced algorithm was proposed in [16],
termed as the dummy-location selection (DLS) algorithm. This
algorithm considers the likelihood of locations being real or fake
predicated on the history of queries on the map. The basic idea of
the DLS algorithm can be explained intuitively in Fig. 1. Assume
that a user is at location A and a dummy generation algorithm is
required to generate one dummy to preserve the location privacy
of user shown by A0
. The DLS algorithm argues that A0
cannot
just be any point on the map but a location that has a similar
Authorized licensed use limited to: University of Canberra. Downloaded on June 06,2020 at 13:08:55 UTC from IEEE Xplore. Restrictions apply.

2

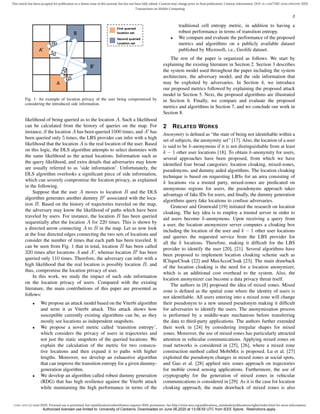

Fig. 1: An example of location privacy of the user being compromised by
considering the introduced side information.
likelihood of being queried as to the location A. Such a likelihood
can be calculated from the history of queries on the map. For
instance, if the location A has been queried 1000 times, and A0
has
been queried only 5 times, the LBS provider can infer with a high
likelihood that the location A is the real location of the user. Based
on this logic, the DLS algorithm attempts to select dummies with
the same likelihood as the actual locations. Information such as
the query likelihood, and extra details that adversaries may know
are usually referred to as ‘side information’. Unfortunately, the
DLS algorithm overlooks a significant piece of side information,
which can severely compromise the location privacy, as explained
in the following.
Suppose that the user A moves to location B and the DLS
algorithm generates another dummy B0
associated with the loca-
tion B. Based on the history of trajectories traveled on the map,
the adversary may know the likelihood of paths which have been
traveled by users. For instance, the location B has been queried
sequentially after the location A for 220 times. This is shown by
a directed arrow connecting A to B in the map. Let us now look
at the four directed edges connecting the two sets of locations and
consider the number of times that each path has been traveled. It
can be seen from Fig. 1 that in total, location B has been called
320 times after locations A and A0
, whereas location B0
has been
queried only 110 times. Therefore, the adversary can infer with a
high likelihood that the real location is possibly location B, and
thus, compromise the location privacy of user.
In this work, we study the impact of such side information
on the location privacy of users. Compared with the existing
literature, the main contributions of this paper are presented as
follows:
• We propose an attack model based on the Viterbi algorithm
and term it as Viterbi attack. This attack shows how
susceptible currently existing algorithms can be, as they
mostly see locations as independent snapshots.
• We propose a novel metric called ‘transition entropy’,
which considers the privacy of users in trajectories and
not just the static snapshots of the queried locations. We
explain the calculation of the metric for two consecu-
tive locations and then expand it to paths with higher
lengths. Moreover, we develop an exhaustive algorithm
that can improve the transition entropy for a given dummy-
generation algorithm.
• We develop an algorithm called robust dummy generation
(RDG) that has high resilience against the Viterbi attack
while maintaining the high performance in terms of the
traditional cell entropy metric, in addition to having a
robust performance in terms of transition entropy.
• We compare and evaluate the performance of the proposed
metrics and algorithms on a publicly available dataset
published by Microsoft, i.e., Geolife dataset.
The rest of the paper is organized as follows. We start by
explaining the existing literature in Section 2. Section 3 describes
the system model used throughout the paper including the system
architecture, the adversary model, and the side information that
may be exploited by adversaries. In Section 4, we introduce
our proposed metrics followed by explaining the proposed attack
model in Section 5. Next, the proposed algorithms are illustrated
in Section 6. Finally, we compare and evaluate the proposed
metrics and algorithms in Section 7, and we conclude our work in
Section 8.
2 RELATED WORKS
Anonymity is defined as “the state of being not identifiable within a
set of subjects, the anonymity set” [17]. Also, the location of a user
is said to be k-anonymous if it is not distinguishable from at least
k − 1 other user locations [18]. To obtain k-anonymity for users,
several approaches have been proposed, from which we have
identified four broad categories: location cloaking, mixed-zones,
pseudonyms, and dummy aided algorithms. The location cloaking
technique is based on requesting LBSs for an area consisting of
k locations via a trusted party, mixed-zones are predicated on
anonymous regions for users, the pseudonyms approach takes
advantage of fake IDs for users, and finally, the dummy generation
algorithms query fake locations to confuse adversaries.
Gruteser and Grunwald [19] initiated the research on location
cloaking. The key idea is to employ a trusted server in order to
aid users become k-anonymous. Upon receiving a query from
a user, the location anonymizer server computes a cloaking box
including the location of the user and k − 1 other user locations
and queries the requested service from the LBS provider for
all the k locations. Therefore, making it difficult for the LBS
provider to identify the user [20], [21]. Several algorithms have
been proposed to implement location cloaking scheme such as
ICliqueCloak [22] and MaxAccuCloak [23]. The main drawback
of the location cloaking is the need for a location anonymizer,
which is an additional cost overhead to the system. Also, the
location anonymizer can become a data privacy threat itself.
The authors in [8] proposed the idea of mixed zones. Mixed
zone is defined as the spatial zone where the identity of users is
not identifiable. All users entering into a mixed zone will change
their pseudonym to a new unused pseudonym making it difficult
for adversaries to identify the users. The anonymization process
is performed by a middle-ware mechanism before transferring
the data to third-party applications. The authors further extended
their work in [24] by considering irregular shapes for mixed
zones. Moreover, the use of mixed zones has particularly attracted
attention in vehicular communications. Applying mixed zones on
road networks is considered in [25], [26], where a mixed zone
construction method called MobiMix is proposed. Lu et al. [27]
exploited the pseudonym changes in mixed zones at social spots,
and Gao et al. [28] applied mix zones approach on trajectories
for mobile crowd sensing applications. Furthermore, the use of
cryptography for the generation of mixed zones in vehicular
communications is considered in [29]. As it is the case for location
cloaking approach, the main drawback of mixed zones is also

3
the need for a middle-ware mechanism or a trusted party before
transferring the data to an untrusted LBS provider.
Another technique to increase the location privacy of users is
based on the assignment of pseudonyms to hide the identity of
users. The identity of a user can be the name of the person, a
unique identifier, such as IP address, or any properties that can be
related to the user. The authors in [30] proposed a scenario called
the intermediary scenario, in which a trusted intermediary collects
the location information of users, such as GPS data and assigns a
pseudonym before sending them to an untrusted third-party LBS
provider. The paper claims that the use of pseudonyms prevents
the third-party LBS provider from identifying and tracking users.
The work in [31] suggests that instead of delegating the generation
of pseudonyms to the location intermediary, users are suggested
to generate the pseudonyms themselves. The use of pseudonyms
for preserving the location privacy has also been considered in
vehicular communication systems, such as the work presented in
[32]. There are several drawbacks associated with this approach.
First of all, many of the location-based applications require users
to subscribe in order to use services. Secondly, similar to the last
two categories, this approach also requires a trusted intermediary,
and more importantly, by analyzing the patterns in location data,
an adversary can discover the identity of the users [33].
The dummy-based algorithms are considered to be a more
promising approach as there is no need for a trusted anonymizer.
This technique was initially proposed in [13]. The key idea is to
achieve k-anonymity by sending k − 1 dummy locations aside
from the real location of the user while requesting for a service.
All locations use the same identifier corresponding to the user,
and therefore, it would be difficult for adversaries to identify the
real locations of users. Several algorithms have been proposed to
help users generate dummies. The authors in [14] proposed to use
a virtual circle or a virtual grid that is based on the real location
of users to generate dummies. The idea was further developed in
[15]. More recently, an algorithm called dummy-location selection
(DLS) was proposed in [16]. The algorithm takes the number of
queries made on the map into consideration and demonstrates
via simulations that the previous algorithms are susceptible to
probability attacks. Although the algorithm provides an excellent
framework for the generation of dummies, it does not take into
account the susceptibility of users in trajectories and the privacy
threats associated with that. Do et al. [34] utilized conditional
probabilities to generate realistic false locations, and Hara et al.
[35] proposed a method based on physical constraints of the real
environment.
Among the other metrics proposed to preserve the privacy
of users, the notion of differential privacy, proposed by the
authors in [36], has attracted attention from both academia and
the industry. The primary goal of the metric is to publish ag-
gregated information queried by the users without compromising
the privacy of any individual in the database. Most works in the
literature aim to achieve differential privacy by addition of noise
to the database. Differential privacy is a practical approach for
preserving the privacy of population queries; however, it is not
suitable for more operational scenarios, where specific queries are
made to obtain specific answers. A recent metric proposed in [37],
[38] offer a more promising solution to preserve the privacy of
users in mobile networks. Still, unfortunately, adversaries are
able to limit the surrounding area around the users with a high
probability.
3 SYSTEM MODEL AND PROBLEM FORMULATION
3.1 System Architecture
Following the recent standards and the current system designs used
in the telecommunications industry [39]–[41], we adopt a non-
cooperative system architecture as shown in Fig. 2. In this design,
there are two main parties involved: LBS users and an LBS server.
There is also the telecommunication infrastructure in between
which works as a medium for communications between the two
parties. The role of each party is explained in the following.
1) LBS users: The system model consists of multiple users
equipped with mobile phones with embedded GPS modules. Users
can benefit from numerous services provided by downloading and
installing LBS applications on their mobile phones. The LBS
applications do not necessarily require users to log in to the
system, and users can request for services by providing their
(I) identifiers such as IP address, username, etc., (II) location
information, (III) type of services, (IV) some dummy locations
to hide their exact locations. Moreover, in this paper, we focus on
‘explicit’ trajectory data in which queries are made in equal time
intervals. GPS data is the most representative example of explicit
trajectory data, which is widely adopted in the studies of trajectory
analysis [42]–[44].
2) LBS server: The LBS provider is responsible for providing
queried services by users. It is capable of storing the queried
information and may have access to other databases and side
information. This configuration enables the LBS server to infer
the historical query probabilities of users, which can severely
compromise the privacy of users. After each query from a user, the
server stores the requested information and updates the database
accordingly. The LBS server may be untrusted and aim at abusing
the personal information of users. Thus, we refer to it as an
‘adversary’ throughout the paper.
3) Intermediary infrastructure: The queried services from the
LBS server are transmitted through telecommunications infras-
tructure. The telecommunications infrastructure is controlled by
mobile operators and regulated by government agencies [45], [46].
Therefore, such infrastructure is considered to be trusted in the
system model. Admittedly, this assumption might not hold for
untrusted operators and governments that violate the privacy of
users in the name of national security. Such a consideration is out
of the scope of our work here.
3.2 Preliminaries
Assume that the location map is divided into an n × n grid, and
a user communicates with an LBS server for service. At the time
tq
, the user intends to make his/her q-th query from the service
provider, preserving kq
-anonymity. Here, kq
quantifies the privacy
protection requirement of the user. This metric implies that the
adversary is not able to identify the real location of the user with a
probability higher than 1/kq
. Hence, such a user needs to transmit
kq
− 1 dummy locations to hide his/her true location from the
observer. Note that the term ‘location’ refers to the cell in which
the user is located. We denote the set of locations transmitted to
the LBS provider at q-th query by
LSq
= {lq
1, lq
2, ..., lq
kq }. (1)
Also, the real location is shown by rq
, where rq
∈ LSq
. The
probability of location lq
x being the real location can be expressed
as
Pr(lq
x = rq
), ∀x = 1, ..., kq
. (2)

4

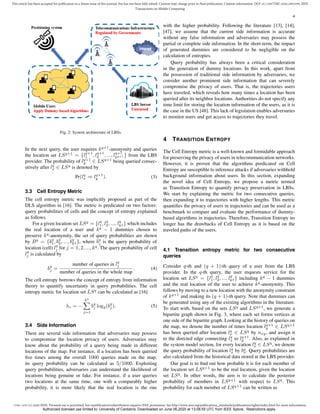

Fig. 2: System architecture of LBSs.
In the next query, the user requires kq+1
-anonymity and queries
the location set LSq+1
= {lq+1
1 , lq+1
2 , ..., lq+1
kq+1 } from the LBS
provider. The probability of lq+1
y ∈ LSq+1
being queried consec-
utively after lq
x ∈ LSq
is denoted by
Pr(lq
x ⇒ lq+1
y ). (3)
3.3 Cell Entropy Metric
The cell entropy metric was implicitly proposed as part of the
DLS algorithm in [16]. The metric is predicated on two factors:
query probabilities of cells and the concept of entropy explained
as follows.
For a given location set LSq
= {lq
1, lq
2, ..., lq
kq } which includes
the real location of a user and kq
− 1 dummies chosen to
preserve kq
-anonymity, the set of query probabilities are shown
by Bq
= {bq
1, bq
2, ..., bq
kq }, where bq
j is the query probability of
location (cell) lq
j for j = 1, 2, ..., kq
. The query probability of cell
lq
j is calculated by
bq
j =
number of queries in lq
j
number of queries in the whole map
. (4)
The cell entropy borrows the concept of entropy from information
theory to quantify uncertainty in query probabilities. The cell
entropy metric for location set LSq
can be calculated as [16]
hc = −
kq
X
j=1
bq
j log2(bq
j ). (5)
3.4 Side Information
There are several side information that adversaries may possess
to compromise the location privacy of users. Adversaries may
know about the probability of a query being made in different
locations of the map. For instance, if a location has been queried
five times among the overall 1000 queries made on the map,
its query probability can be calculated as 5/1000. Exploiting
query probabilities, adversaries can understand the likelihood of
locations being genuine or fake. For instance, if a user queries
two locations at the same time, one with a comparably higher
probability, it is more likely that the real location is the one
with the higher probability. Following the literature [13], [14],
[47], we assume that the current side information is accurate
without any false information and adversaries may possess the
partial or complete side information. In the short-term, the impact
of generated dummies are considered to be negligible on the
calculation of entropies.
Query probability has always been a critical consideration
in the generation of dummy locations. In this work, apart from
the possession of traditional side information by adversaries, we
consider another prominent side information that can severely
compromise the privacy of users. That is, the trajectories users
have traveled, which reveals how many times a location has been
queried after its neighbor locations. Authorities do not specify any
time limit for storing the location information of the users, as it is
the case in the US [48]. This lack of legislation enables adversaries
to monitor users and get access to trajectories they travel.
4 TRANSITION ENTROPY
The Cell Entropy metric is a well-known and formidable approach
for preserving the privacy of users in telecommunication networks.
However, it is proven that the algorithms predicated on Cell
Entropy are susceptible to inference attacks if adversaries withhold
background information about users. In this section, expanding
the novel idea of Cell Entropy, we propose a metric termed
as Transition Entropy to quantify privacy preservation in LBSs.
We start by explaining the metric for two consecutive queries,
then expanding it to trajectories with higher lengths. This metric
quantifies the privacy of users in trajectories and can be used as a
benchmark to compare and evaluate the performance of dummy-
based algorithms in trajectories. Therefore, Transition Entropy no
longer has the drawbacks of Cell Entropy as it is based on the
traveled paths of the users.
4.1 Transition entropy metric for two consecutive
queries
Consider q-th and (q + 1)-th query of a user from the LBS
provider. In the q-th query, the user requests service for the
location set LSq
= {lq
1, lq
2, ..., lq
kq } including kq
− 1 dummies
and the real location of the user to achieve kq
-anonymity. This
follows by moving to a new location with the anonymity constraint
of kq+1
and making its (q + 1)-th query. Note that dummies can
be generated using any of the existing algorithms in the literature.
To start with, based on the sets LSq
and LSq+1
, we generate a
bipartite graph shown in Fig. 3, where each set forms vertices at
one side of the bipartite graph. Looking at the history of queries on
the map, we denote the number of times location lq+1
y ∈ LSq+1
has been queried after location lq
x ∈ LSq
by nxy, and assign it
to the directed edge connecting lq
x to lq+1
y . Also, as explained in
the system model section, for every location lq
x ∈ LSq
, we denote
the query probability of location lq
x by bq
x. Query probabilities are
also calculated from the historical data stored at the LBS provider.
Our goal is to find out how probable it is for each member of
the location set LSq+1
to be the real location, given the location
set LSq
. In other words, the aim is to calculate the posterior
probability of members in LSq+1
with respect to LSq
. This
probability for each member of LSq+1
can be written as

5

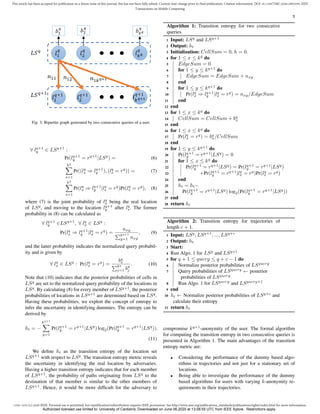

Fig. 3: Bipartite graph generated by two consecutive queries of a user.
∀ lq+1
y ∈ LSq+1
:
Pr(lq+1
y = rq+1
|LSq
) = (6)
kq
X
s=1
Pr((lq
s ⇒ lq+1
y ), (lq
s = rq
)) = (7)
kq
X
s=1
Pr(lq
s ⇒ lq+1
y |lq
s = rq
)Pr(lq
s = rq
), (8)
where (7) is the joint probability of lq
s being the real location
of LSq
, and moving to the location lq+1
y after lq
s. The former
probability in (8) can be calculated as
∀ lq+1
y ∈LSq+1
, ∀ lq
x ∈ LSq
:
Pr(lq
x ⇒ lq+1
y |lq
x = rq
) =
nxy
Pkq+1
y=1 nxy
, (9)
and the latter probability indicates the normalized query probabil-
ity and is given by
∀ lq
x ∈ LSq
: Pr(lq
x = rq
) =
bq
x
Pkq
j=1 bq
j
. (10)
Note that (10) indicates that the posterior probabilities of cells in
LSq
are set to the normalized query probability of the locations in
LSq
. By calculating (8) for every member of LSq+1
, the posterior
probabilities of locations in LSq+1
are determined based on LSq
.
Having these probabilities, we exploit the concept of entropy to
infer the uncertainty in identifying dummies. The entropy can be
derived by
ht = −
kq+1
X
y=1
Pr(lq+1
y = rq+1
|LSq
) log2(Pr(lq+1
y = rq+1
|LSq
)).
(11)
We define ht as the transition entropy of the location set
LSq+1
with respect to LSq
. The transition entropy metric reveals
the uncertainty in identifying the real location by adversaries.
Having a higher transition entropy indicates that for each member
of LSq+1
, the probability of paths originating from LSq
to the
destination of that member is similar to the other members of
LSq+1
. Hence, it would be more difficult for the adversary to
Algorithm 1: Transition entropy for two consecutive
queries.
1 Input: LSq
and LSq+1
2 Output: ht
3 Initialization: CellSum = 0, h = 0.
4 for 1 ≤ x ≤ kq
do
5 EdgeSum = 0
6 for 1 ≤ y ≤ kq+1
do
7 EdgeSum = EdgeSum + nxy
8 end
9 for 1 ≤ y ≤ kq+1
do
10 Pr(lq
x ⇒ lq+1
y |lq
x = rq
) = nxy/EdgeSum
11 end
12 end
13 for 1 ≤ x ≤ kq
do
14 CellSum = CellSum + bq
x
15 end
16 for 1 ≤ x ≤ kq
do
17 Pr(lq
x = rq
) = bq
x/CellSum
18 end
19 for 1 ≤ y ≤ kq+1
do
20 Pr(lq+1
y = rq+1
|LSq
) = 0
21 for 1 ≤ x ≤ kq
do
22 Pr(lq+1
y = rq+1
|LSq
) = Pr(lq+1
y = rq+1
|LSq
)
23 +Pr(lq+1
y = rq+1
|lq
x = rq
)Pr(lq
x = rq
)
24 end
25 ht = ht−
26 Pr(lq+1
y = rq+1
|LSq
) log2(Pr(lq+1
y = rq+1
|LSq
))
27 end
28 return ht
Algorithm 2: Transition entropy for trajectories of
length c + 1.
1 Input: LSq
, LSq+1
, ..., LSq+c
2 Output: ht
3 Start:
4 Run Algo. 1 for LSq
and LSq+1
5 for q + 1 ≤ query ≤ q + c − 1 do
6 Normalize posterior probabilities of LSquery
7 Query probabilities of LSquery
← posterior
probabilities of LSquery
8 Run Algo. 1 for LSquery
and LSquery+1
9 end
10 ht ← Normalize posterior probabilities of LSq+c
and
calculate their entropy
11 return ht
compromise kq+1
-anonymity of the user. The formal algorithm
for computing the transition entropy in two consecutive queries is
presented in Algorithm 1. The main advantages of the transition
entropy metric are:
• Considering the performance of the dummy based algo-
rithms in trajectories and not just for a stationary set of
locations.
• Being able to investigate the performance of the dummy
based algorithms for users with varying k-anonymity re-
quirements in their trajectories.

6
kq+c−1
X
sc=1
kq+c−2
X
sc−1=1
...
kq
X
s1=1
(Pr(lq
s1 = rq
)Pr(lq+c−1
sc ⇒ lq+c
y |lq+c−1
sc = rq+c−1
)
c−1
Y
i=1
Pr(lq+i−1
si ⇒ lq+i+1
q+i |lq+i−1
si = rq+i−1
)) (15)
• Elimination of the need for many other previously con-
sidered factors, such as time reachability and direction
similarity.
4.2 Transition entropy metric for trajectories
Here, we generalize the transition entropy metric for trajectories
with different lengths. Consider a user requesting for its (c+1)-th
query at time tq+c
. Hence, providing the LBS provider with the
location set LSq+c
= {lq+c
1 , lq+c
2 , ..., lq+c
kq+c } in order to preserve
kq+c
-anonymity. The previous queried location sets of the user
are shown by LSq+i
for i = 0, ..., c − 1, each with the privacy
requirement shown by kq+i
. Initially, we aim to calculate the
posterior probability of each location in LSq+c
. The posterior
probabilities indicate the likelihood of any location in LSq+c
being the real location based on the previous queries of the user.
The posterior probability for each location in LSq+c
can be
written as
∀ lq+c
y ∈ LSq+c
: Pr(lq+c
y = rq+c
|LSq
, ..., LSq+c−1
) = (12)
kq+c−1
X
sc=1
Pr((lq+c−1
sc ⇒ lq+c
y ),
(lq+c−1
sc = rq+c−1
)|LSq
, ..., LSq+c−2
)) = (13)
kq+c−1
X
sc=1
Pr(lq+c−1
sc ⇒ lq+c
y |lq+c−1
sc = rq+c−1
)×
Pr(lq+c−1
sc = rq+c−1
|LSq
, ..., LSq+c−2
). (14)
Following the same process of moving from (12) to (14), the
probability of Pr(lq+c−1
sc−1 = rq+c−1
|LSq
, ..., LSq+c−2
) can be
solved recursively to reach (15). Also, the transition probabilities
in (12) can be calculated as (9). Therefore, evaluating (15) for each
node in LSq+c
, we can determine the likelihood of a location
being the real location of the queried set LSq+c
. Finally, we
borrow the concept of entropy to characterize the uncertainty in
probabilities of LSq+c
. So that:
ht = −
kq+c
X
y=1
Pr(lq+c
y = rq+c
|LSq
, ..., LSq+c−1
)
log2(Pr(lq+c
y = rq+c
|LSq
, ..., LSq+c−1
)).
(16)
We call ht, the transition entropy of the set LSq+c
with respect
to location sets LSq
, ..., LSq+c−1
. Our experiments demonstrate
that the proposed transition entropy metric shows the high possi-
bility of revealing the real location of users from their previous
queries made on the map. The algorithm to calculate the transition
entropy metric is presented formally in Algorithm 2.
It is important to note that in the derivation of transition en-
tropy, the first queried location set is the only place in which query
probabilities of locations play a role. The transitions between the
queried locations determine the remaining factors. It is essential
to understand why the query probabilities of the other locations
on the path are not used in the calculation of transition entropy.
We explain the concept using an example. Fig. 4 demonstrates a
case where a user requests an LBS in two consecutive queries.
The numbers written on the nodes indicate the normalized query
probability of locations, and the numbers printed on the edges in-
dicate the normalized probability of that transition. Now, consider
the calculation of LSq+1
based on the previous queried location
set LSq
. The purpose of the example is to illustrate why the
posterior probabilities calculated by previous queries for LSq+1
is
more reliable than the query probabilities of locations in LSq+1
.
First, let us calculate the posterior probabilities of LSq+1
and
its entropy. According to (15), the posterior probabilities can be
written as
Posterior probability of A being the true location = (17)
3
5
×
1
3
+
1
5
×
1
4
+
1
5
×
1
4
=
6
20
Posterior probability of B being the true location = (18)
3
5
×
1
3
+
1
5
×
2
4
+
1
5
×
3
4
=
9
20
Posterior probability of C being the true location = (19)
3
5
×
1
3
+
1
5
×
1
4
=
5
20
According to the query probabilities of LSq+1
, the location A is
more likely to be the real location as it has a significantly higher
query probability. However, looking at the posterior probabilities
calculated for the location set, we can see that based on LSq
,
location B is more probable to be the real location of the user.
This discrepancy can be explained by looking at what the actual
meaning of query probability is. The query probability indicates
the number of times a location has been called but does not
specify if it has been called after any particular location. Therefore,
although the location A has been called more times than the other
locations in LSq+1
, most of these queries have been made after
locations E and D, which are not a member of the location set
LSq
. Hence, it can be seen that the posterior probabilities are more
credible, as they are considering the number of times queries made
after the previous location set LSq
.
5 VITERBI ATTACK
The Viterbi algorithm is a well-known dynamic programming
algorithm proposed in 1967 [49]. Initially, it was designed
specifically for convolutional codes, but then it found numerous
applications, such as exploring the most likely sequence of hidden
states in Hidden Markov Models (HMMs). For a given graph, the
aim of the algorithm is to find the shortest path or the so-called
Viterbi path. The Viterbi algorithm provides several features that
distinguish this algorithm from the other existing algorithms. The
most essential feature of the algorithm is the low computational
complexity. Here, we design an attack model based on the Viterbi
algorithm and name it Viterbi attack, since the principal idea be-
hind the attack is inspired by the Viterbi algorithm. The proposed

7

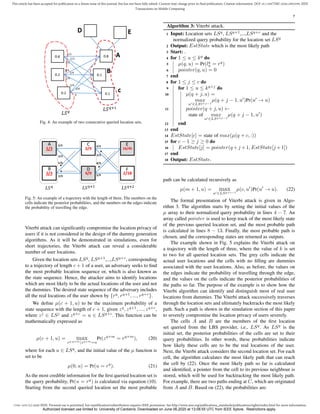

Fig. 4: An example of two consecutive queried location sets.
Fig. 5: An example of a trajectory with the length of three. The numbers on the
cells indicate the posterior probabilities, and the numbers on the edges indicate
the probability of travelling the edge.
Viterbi attack can significantly compromise the location privacy of
users if it is not considered in the design of the dummy generation
algorithms. As it will be demonstrated in simulations, even for
short trajectories, the Viterbi attack can reveal a considerable
number of user locations.
Given the location sets LSq
, LSq+1
,...,LSq+c
, corresponding
to a trajectory of length c + 1 of a user, an adversary seeks to find
the most probable location sequence or, which is also known as
the state sequence. Hence, the attacker aims to identify locations
which are most likely to be the actual locations of the user and not
the dummies. The desired state sequence of the adversary includes
all the real locations of the user shown by {rq
, rq+1
, ..., rq+c
}.
We define µ(c + 1, u) to be the maximum probability of a
state sequence with the length of c + 1, given zq
, zq+1
, ..., zq+c
,
where zj
∈ LSj
and zq+c
= u ∈ LSq+c
. This function can be
mathematically expressed as
µ(c + 1, u) = max
zq:q+m|zq+m=u
Pr(zq+m
= rq+m
), (20)
where for each u ∈ LSq
, and the initial value of the µ function is
set to be
µ(0, u) = Pr(u = rq
). (21)
As the most credible information for the first queried location set is
the query probability, Pr(u = rq
) is calculated via equation (10).
Starting from the second queried location set the most probable
Algorithm 3: Viterbi attack.
1 Input: Location sets LSq
, LSq+1
,...,LSq+c
and the
normalized query probability for the location set LSq
2 Output: EstState which is the most likely path
3 Start: .
4 for 1 ≤ u ≤ kq
do
5 µ(q, u) = Pr(lq
u = rq
)
6 pointer(q, u) = 0
7 end
8 for 1 ≤ j ≤ c do
9 for 1 ≤ u ≤ kq+j
do
10 µ(q + j, u) =
max
u0∈LSq+j−1
µ(q + j − 1, u0
)Pr(u0
→ u)
11 pointer(q + j, u) ←
state of max
u0∈LSq+j−1
µ(q + j − 1, u0
)
12 end
13 end
14 EstState[c] = state of max(µ(q + c, :))
15 for c − 1 ≥ j ≥ 0 do
16 EstState[j] = pointer(q +j +1, EstState[j +1])
17 end
18 Output: EstState.
path can be calculated recursively as
µ(m + 1, u) = max
u0∈LSq+c−1
µ(c, u0
)Pr(u0
→ u). (22)
The formal presentation of Viterbi attack is given in Algo-
rithm 3. The algorithm starts by setting the initial values of the
µ array to their normalized query probability in lines 4 − 7. An
array called pointer is used to keep track of the most likely state
of the previous queried location set, and the most probable path
is calculated in lines 8 − 13. Finally, the most probable path is
chosen, and the corresponding states are returned as outputs.
The example shown in Fig. 5 explains the Viterbi attack on
a trajectory with the length of three, where the value of k is set
to two for all queried location sets. The grey cells indicate the
actual user locations and the cells with no filling are dummies
associated with the user locations. Also, as before, the values on
the edges indicate the probability of travelling through the edge,
and the values on the cells indicate the posterior probabilities of
the paths so far. The purpose of the example is to show how the
Viterbi algorithm can identify and distinguish most of real user
locations from dummies. The Viterbi attack successively traverses
through the location sets and ultimately backtracks the most likely
path. Such a path is shown in the simulation section of this paper
to severely compromise the location privacy of users severely.
The cells A and B are the members of the first location
set queried from the LBS provider, i.e., LSq
. As LSq
is the
initial set, the posterior probabilities of the cells are set to their
query probabilities. In other words, these probabilities indicate
how likely these cells are to be the real locations of the user.
Next, the Viterbi attack considers the second location set. For each
cell, the algorithm calculates the most likely path that can reach
the cell by (22). Once the most likely path so far is calculated
and identified, a pointer from the cell to its previous neighbour is
stored, which will be used for backtracking the most likely path.
For example, there are two paths ending at C, which are originated
from A and B. Based on (22), the probabilities are:

8
Algorithm 4: Exhaustive search algorithm
1 Input: LSq
= {lq
1, lq
2, ..., lq
kq }, {lq+1
1 }, kq+1
2 Output: LSq+1
3 Start:
4 D ← generate a pool of 4kq+1
dummies using the X
algorithm
5 {S1, S2, ...Sm} ← choose m distinct (kq+1
− 1)-subsets
of D
6 for 1 ≤ y ≤ m do
7 Sy ← Sy ∪ {lq+1
1 }
8 hy ← calculate transition entropy of Sy
9 H ← H ∪ {hy}
10 end
11 LSq+1
← S corresponding to the maximum h
12 return LSq+1
Probability of path from A to C = (23)
1
3
×
1
2
=
1
6
Probability of path from B to C = (24)
2
3
×
1
3
=
2
9
As the path from B to C has a higher probability, and this
value is shown on the cell. A pointer is used to store B as the
previous neighbour of C. The pointer is shown by an arrow on the
edge. A similar approach is continued in sequence for the cells D,
E, and F. After the calculation of probabilities, as shown in the
figure, the most likely path is identified based on the probabilities
shown on the last location set. In this example, the path ending
at the cell E has the highest probability. Therefore, based on the
stored pointers, the most likely path corresponds to the cells B,
D and E. In this example, the Viterbi attack is able to distinguish
two out of three of the user locations correctly.
6 PROPOSED ALGORITHMS TO IMPROVE LOCA-
TION PRIVACY OF USERS
In this section, we start by developing an exhaustive search algo-
rithm to improve the transition entropy metric for a given dummy-
generation algorithm. We denote this hypothetical algorithm by X
and aim at increasing its transition entropy in trajectories. Next,
we propose an algorithm called RDG that significantly increase the
privacy of users against the Viterbi attack, while maintaining the
high performance in terms of transition entropy and cell entropy.
6.1 Exhaustive Search Algorithm
Suppose that a user has made its q-th query shown by
LSq
= {lq
1, lq
2, ..., lq
kq }, which includes the real location and
its associated dummies. The dummies in LSq
are generated using
a given algorithm X. In the next query, the user moves to a new
location (lq+1
1 ) and seeks to generate kq+1
− 1 dummy locations.
The following approach will help the user increase its transition
entropy while generating LSq+1
.
The idea is to generate a pool of dummies based on the
algorithm X instead of only kq+1
− 1 dummy locations. Having
the dummy pool, the exhaustive search algorithm goes through
kq+1
− 1 subsets of the pool to find the one that maximizes
the transition entropy. The formal description of the proposed
exhaustive approach is presented in Algorithm 4. The inputs of
the algorithm are the location set LSq
= {lq
1, lq
2, ..., lq
kq }, the
real location of the user in (q + 1)-th query, and the privacy
requirement of the user in (q + 1)-th query. The exhaustive search
algorithm starts by generating a pool of 4kq+1
dummies using the
X algorithm and assigns them to an empty set D. Then, m distinct
subsets of D with (kq+1
−1) members are chosen and assigned to
S = {S1, S2, ...Sm}. Any of the members in S, once attached to
lq+1
1 will form a complete kq+1
set, preserving kq+1
-anonymity.
Note that the constraint m is chosen to limit the number of subsets
computed in case of large pool size. Next, the transition entropies
resulted from the members of S are calculated and stored in H.
Finally, the member of S that results in the maximum transition
entropy is returned as the output.
6.2 RDG Algorithm
We propose a robust algorithm termed the RDG algorithm to
preserve the location privacy of LBS users in mobile networks.
The RDG algorithm has three primary advantages compared with
the existing algorithms: (I) Achieves near-optimal cell entropy; (II)
results in a significantly high transition entropy compared with the
current approaches; (III) provides a robust performance against
Viterbi attack. The algorithm is based on the idea of posterior
probabilities, and it is formally presented in Algorithm 5.
Following the same setup as the proposed exhaustive
search algorithm, a user has made its q-th query shown by
LSq
= {lq
1, lq
2, ..., lq
kq }, which includes the real location and its
associated dummies. The dummies in LSq
are generated using the
DLS algorithm. In the next query, the user moves to a new location
(lq+1
1 ) and seeks to generate kq+1
−1 dummy locations. If LSq
is
the initial query of the user from the LBS provider, then the initial
posterior probabilities are set to the normalized query probabilities
of the locations in LSq
; otherwise, the posterior probabilities are
calculated by (12). In the algorithm, posterior probabilities are
assigned to an array called weight.
The algorithm starts with the generation of a pool of dummies
using the DLS algorithm based on the real location of LSq+1
.
Using the DLS algorithm to generate the pool of dummies will
ensure high performance in terms of cell entropy. From our
experiments, setting the pool size to four times of the kq+1
maintains the cell entropy sufficiently high, while resulting in a
robust performance in terms of the transition entropy and Viterbi
attack resilience. Next, the algorithm continues by employing a
greedy approach to add the most suitable dummies for the location
set LSq+1
. For choosing the i-th member of the set LSq+1
, each
of the remaining dummies in the pool is checked one by one. A
criterion chosen here is based on maximizing the entropy for the
array weight. For each member u ∈ LSq+1
, the weight array is
calculated as
weight(q + 1, u) = max
u0∈LSq
weight(q, u0
)Pr(u0
→ u). (25)
The first index of the weight array is used to distinguish between
weights corresponding to different location sets. For each member
of the dummy pool, its weight is calculated, followed by the
entropy of the weight array. After calculation of the entropy for
all possible members, the member having the maximum entropy is
chosen as the next member of LSq+1
. The process continues until

9
Algorithm 5: RDG algorithm.
1 Input: LSq
= {lq
1, lq
2, ..., lq
kq }, {lq+1
1 }, kq+1
2 Output: LSq+1
3 Start:
4 for 1 ≤ u ≤ kq
do
5 weight(q, u) ← Posterior probability of lq
u
6 end
7 D ← generate a pool of 4kq+1
dummies using the DLS
algorithm
8 for 1 ≤ member ≤ kq+1
− 1 do
9 entropy = zeros(1 × |D|)
10 for 1 ≤ d ≤ |D| do
11 LSq+1
= LSq+1
∪ {D[d]}
12 for 1 ≤ u ≤ kq+1
do
13 weight(q + 1, u) =
max
u0∈LSq
weight(q, u0
)Pr(u0
→ u)
14 end
15 normalize weight(2, :)
16 entropy[d] ← entropy of weight(q + 1, :)
17 LSq+1
= LSq+1
− {D[d]}
18 end
19 NewMember ←
{member of D which maximize entropy}
LSq+1
= LSq+1
∪ {NewMember}
20 D = D − {NewMember}
21 end
22 return LSq+1
all kq+1
− 1 dummies of LSq+1
are chosen. Note that before
the calculation of entropy, the weights are normalized to make
the accumulation of probabilities add up to one. The algorithm
is designed to provide a high cell entropy and transition entropy
for users’ of the LBS applications while protecting them from the
Viterbi attack on trajectories.
7 PERFORMANCE EVALUATION
7.1 Experimental Setup
In our experiments, we use the data collected by Geolife project
[50]–[52]. The Geolife dataset includes the GPS trajectories of
182 users from April 2007 to August 2012 in Beijing, China.
The dataset contains 13, 561 trajectories with a total distance of
1, 292, 951 km. Two main advantages are distinguishing Geo-
life dataset for our work: Firstly, the recorded data aside from
monitoring the daily routines of users, such as going to work
or home, includes trajectories involving sports activities such as
hiking and cycling. Secondly, many of the recorded trajectories
are tagged with transportation modes, which indicate the use of
various means of traveling from bus and car to airplane and train.
We conducted our experiments on 1km× 1km central part
on the Beijing map with the resolution of 0.01km×0.01km for
each grid cell. The location privacy requirements of users are
investigated for values 2 to 30. For each value of k, the trial
is repeated 3000 times to ensure the reliability of results. The
experiments were performed on a PC with a 3.40 GHz Core-
i7 Intel processor, 64-bit Windows 7 operating system, and an
8.00 GB of RAM. Python programming is used to implement
algorithms.
TABLE 1: Statistics of Geolife dataset.
Dataset Geolife
Total number of samples 47581
Number of trajectories 13561
Number of users 182
Total distance 1, 292, 951 km
Fig. 6: Comparison of algorithms in terms of cell entropy for different k.
7.2 Performance Analysis
We evaluate the performance of the proposed algorithms and
metrics through extensive experiments. We intend to show that
the proposed RDG algorithm can achieve:
• Near-optimal cell entropy;
• Robust transition entropy performance compared to prior
works;
• Improved resilience against Viterbi attack.
Therefore, in the following subsections, we start by evaluating the
performance of algorithms in terms of cell entropy, followed by
transition entropy analysis and the investigation of the resilience
to the Viterbi attack.
7.2.1 Cell entropy performance evaluation
Cell entropy indicates how different is the query probability of the
actual user location from its associated dummies. A higher cell
entropy is desirable, as it results in higher uncertainty of finding
the real location. Fig. 6 presents the comparison among different
algorithms in terms of cell entropy. The optimal value is achieved
when all k locations queried from the LBS provider have the same
probability of 1/k, or equivalently, the location set has the cell
entropy of h = log2(k). The optimal value is the upper bound for
all algorithms since it is the maximum entropy that a location set
can achieve.
In Fig 6, three algorithms are compared, including the DLS
algorithm which is the conventional method for generation of
dummy locations, our proposed RDG algorithm, and the random
scheme by which dummies are chosen randomly. Moreover, opti-
mal cell entropy values are shown as a benchmark. As expected,
the random scheme proposed in [13] results in a lower cell entropy

10
(a) Trajectories of length 2. (b) Trajectories of length 3. (c) Trajectories of length 4.
Fig. 7: Comparison of algorithms in terms of transition entropy for different k.
compared to the other algorithms due to the random generation
of dummies. On the other hand, the RDG and DLS algorithms
both consider the query probability of cells in the generation of
dummies. Therefore, the cell entropy of these two algorithms is
higher than the random scheme and almost achieves near-optimal
performance. Having such a high cell entropy ensures that the
adversary is not able to compromise the location privacy of users
from a stationery set of locations submitted to the server. Unfortu-
nately, although the DLS algorithm has a robust performance for
a single collection of queried locations, no consideration has been
given to locations queried as part of trajectories.
7.2.2 Transition entropy performance evaluation
The currently established cell entropy metric only considers the
location privacy for a stationary set of queried locations submitted
to the LBS server but overlooks the fact that users may ask for
services successively. If users query location sets in consecutive
attempts, they reveal the trajectory they are traveling. Therefore,
adversaries can use the likelihood of traveling different paths
between consecutive location sets to calculate the posterior prob-
abilities and compromise the location privacy of users.
Fig. 7 compares the performance of different algorithms in
terms of the transition entropy metric for various k. Having a
lower transition entropy suggests a lower privacy level for users of
the LBS applications and a higher likelihood for adversaries to find
out the actual coordinates of the users. We start our evaluation by
trajectories of length 2 in Fig. 7a, and then focus on the transition
entropy for longer paths in Figs. 7b and 7c. In all the three graphs,
the comparison is conducted among the optimal transition entropy
values, the widely adopted algorithm DLS, the proposed RDG
algorithm, and the random scheme.
In Fig. 7a, two consecutive location sets are generated based
on the specified value of k. Each of the locations sets includes
the real location of the user and its associated dummies. To
make experiments as realistic as possible, the movement pattern
is chosen randomly from the recorded trajectories in the dataset.
The optimal value corresponds to a scenario, in which all mem-
bers of the second location set are equally likely to be called
consecutively after the members of the first location set. This
outcome is desirable, as it results in achieving k-anonymity for
users and protecting their location privacy. The optimal values
can be calculated in a similar way as the optimal number for
the cell entropy. Considering Fig. 7a, the random scheme in
which the dummy locations are chosen randomly achieves the
lowest transition entropy, indicating that the adversary can easily
recognize most of the dummies from the transition entropy even
for the two consecutive location sets queried by the user.
Furthermore, it can be seen from the figure that although
the DLS algorithm achieves near-optimal performance in terms
of cell entropy, it results in significantly low privacy protection
in trajectories. Even for two consecutive queries from the LBS
provider, the DLS algorithm indicates a significantly low transition
entropy. Such performance shows that adversaries can compro-
mise the location privacy of users by calculating the posterior
probabilities. Fortunately, the proposed RDG algorithm can sig-
nificantly improve the transition entropy, achieving almost twice
as high transition entropy as the DLS algorithm. In other words,
the likelihood of compromising the k-anonymity requirement is
decreased by the proposed algorithm, which leads to a higher
location privacy level for users of the LBSs.
Figs. 7b and 7c extend our analysis of transition entropy to
trajectories with higher lengths. Both graphs indicate that as more
locations are queried from the LBS provider, the transition entropy
decreases. These experimental outcomes match well with the
theory because having more information results in a more accurate
calculation of posterior probabilities by adversaries; Hence, we
expect to see less uncertainty and transition entropy. Further
investigating the figures, the DLS algorithm can be seen to have
a very low transition entropy compared to the proposed RDG
algorithm. Therefore, the RDG algorithm is viable in increasing
the transition entropy of users while maintaining the cell entropy
to a near-optimal level. However, as the adversary acquires more
location points, the threat to location privacy of users gets more
serious. This fact can be seen in Fig. 7. As the length of trajectory
increases, the transition entropy decreases, which refers to having
a higher chance for adversaries to get access to the location data
of users.
7.3 Performance of Algorithms against Viterbi Attack
In this section, we compare and evaluate the performance of our
proposed RDG algorithm and the widely accepted DLS method
against the attack model proposed in Section 5. The Viterbi attack
considers users in trajectories instead of just taking into account
snapshots of the real locations and dummies. The Viterbi attack is
based on the calculation of posterior probabilities of user locations
revealed to the LBS provider. It will be shown in this section that
applying such an attack can significantly compromise the location

11
(a) Percentage of user locations protected for the trajectory length
of 2.
(b) Percentage of user locations protected for the trajectory length
of 4.
(c) Percentage of user locations protected for the trajectory length
of 6.
(d) Percentage of user locations protected for the trajectory length
of 8.
Fig. 8: The performance evaluation and comparison of algorithms against the
Viterbi attack considering various path lengths and privacy requirement k.
privacy of users. Therefore, having a robust algorithm such as
RDG is crucial to protect the location privacy.
Fig. 8 illustrates the performance of the RDG and DLS
algorithms once the Viterbi attack is applied to the dataset. The
figure consists of four subfigures to show the performance with
various length of trajectories. In each subfigure, the percentage
of real locations of users which have been protected are exhibited
for different privacy requirements k. For instance, in Fig. 8b, when
k = 5, the graph indicates that the DLS algorithm can only protect
0.8 percent of the queried locations, and therefore, adversaries can
almost distinguish all true locations of users from their associated
dummies. This indicates how dangerous and powerful the Viterbi
attack can be in compromising the privacy of users.
Considering the performance of the DLS algorithm, it can
be seen in the figure that for path lengths greater than 2, the
Viterbi attack can almost find out all real locations of the users
despite the existence of dummy locations. Therefore, although in a
single query user locations are protected using the existing dummy
generation algorithms, when users are considered in trajectories,
due to the extra side information that adversaries may hold,
they are able to identify user locations. Furthermore, another
mainstream observation is that increasing the number of dummies
can improve location privacy. Such an effect is expected as having
a larger k indicates the generation of more dummies to protect
user privacy. Unfortunately, the boost in privacy by increasing the
value of k is not sufficient even when the trajectory length is two.
From Fig 8, our proposed RDG algorithm can help users to
protect their privacy significantly better. The RDG algorithm takes
into account the posterior probabilities that adversaries may hold
and aims at making the likelihood of different paths equal. Doing
so, the algorithm confuses adversaries in identifying exact loca-
tions of users. In contrast to the DLS algorithm, the performance
of RDG algorithm improves as the path length increases. It means
that for longer trajectories, the adversary has a less chance of
compromising user privacy. Also, expectedly, increasing the value
of k improves the privacy of users for the RDG algorithm as well.
8 CONCLUSIONS AND FUTURE DIRECTIONS
In this paper, we investigated the location privacy of users in
trajectories and considered the threats that their previous queries
could pose on their location privacy. We developed an attack
model based on the Viterbi algorithm that demonstrates how
susceptible the location privacy of users is. Therefore, to overcome
the difficulties current research face in the evaluation of user
privacy in trajectories. We have extended the well-known metric
cell entropy to consider users throughout the entire travelled path.
The new metric transition entropy can be used to identify how
susceptible the users are to contextual location privacy threats.
Furthermore, to improve the transition entropy metric, an
exhaustive search approach was proposed, which can increase
the transition entropy for a given dummy generation algorithm.
We also proposed a powerful algorithm called RDG that results
in a robust performance in terms of both transition entropy and
cell entropy, while protecting users against the Viterbi attack,
particularly in short trajectories.
Based on the results and achievements in this paper, there are
several potential research directions worth further investigations:
• Improve the RDG algorithm to achieve higher transition
entropy levels. Although the RDG algorithm can signif-
icantly enhance user privacy against the Viterbi attack,

12
as the trajectory length increases, adversaries learn more
information about users, and consequently, the transition
entropy is decreased. Therefore, improvements to the al-
gorithm are required to ensure that transition entropy stays
above an acceptable level.
• Extend our approach to ‘implicit’ datasets, in which the
time intervals between queries are not equal.
• Improve the comprehensiveness of posterior probabilities
in the calculation of transition entropy to incorporate the
temporal information of users.
REFERENCES
[1] D. Arribas-Bel and J. Bakens, “Use and validation of location-based
services in urban research: An example with dutch restaurants,” Urban
Studies, vol. 56, no. 5, pp. 868–884, 2019.
[2] K. H. Lim, J. Chan, S. Karunasekera, and C. Leckie, “Tour recommen-
dation and trip planning using location-based social media: a survey,”
Knowledge and Information Systems, pp. 1–29, 2018.
[3] X. Chen, F. Xu, W. Wang, Y. Du, and M. Li, “Geographic big data’s
applications in retailing business market,” in Big data support of urban
planning and management. Springer, 2018, pp. 157–176.
[4] MARKETSANDMARKETS, “Location-based services (lbs) and real-
time location systems (rtls) market by component (hardware,
software and services), location type (indoor and outdoor),
vertical, region - global forecast to 2024,” Aug 2019. [On-
line]. Available: https://www.marketsandmarkets.com/Market-Reports/
location-based-service-market-96994431.html
[5] Financial Times, “Facebook privacy breach,” Mar
2018. [Online]. Available: https://www.ft.com/content/
87184c40-2cfe-11e8-9b4b-bc4b9f08f381
[6] J. Krumm, “Realistic driving trips for location privacy,” in International
Conference on Pervasive Computing. Springer, 2009, pp. 25–41.
[7] B. Liu, W. Zhou, S. Yu, K. Wang, Y. Wang, Y. Xiang, and J. Li,
“Home location protection in mobile social networks: a community
based method (short paper),” in International Conference on Information
Security Practice and Experience. Springer, 2017, pp. 694–704.
[8] A. R. Beresford and F. Stajano, “Location privacy in pervasive comput-
ing,” IEEE Pervasive computing, no. 1, pp. 46–55, 2003.
[9] T. Jiang, H. J. Wang, and Y.-C. Hu, “Preserving location privacy in
wireless lans,” in Proceedings of the 5th international conference on
Mobile systems, applications and services. ACM, 2007, pp. 246–257.
[10] C.-Y. Chow, M. F. Mokbel, and X. Liu, “A peer-to-peer spatial cloaking
algorithm for anonymous location-based service,” in Proceedings of the
14th annual ACM international symposium on Advances in geographic
information systems. ACM, 2006, pp. 171–178.
[11] M. L. Yiu, C. S. Jensen, J. Møller, and H. Lu, “Design and analysis of a
ranking approach to private location-based services,” ACM Transactions
on Database Systems (TODS), vol. 36, no. 2, p. 10, 2011.
[12] R. Schlegel, C.-Y. Chow, Q. Huang, and D. S. Wong, “User-defined
privacy grid system for continuous location-based services,” IEEE Trans-
actions on Mobile Computing, vol. 14, no. 10, pp. 2158–2172, 2015.
[13] H. Kido, Y. Yanagisawa, and T. Satoh, “An anonymous communication
technique using dummies for location-based services,” in Pervasive Ser-
vices, 2005. ICPS’05. Proceedings. International Conference on. IEEE,
2005, pp. 88–97.
[14] B. Niu, Z. Zhang, X. Li, and H. Li, “Privacy-area aware dummy
generation algorithms for location-based services,” in Communications
(ICC), 2014 IEEE International Conference on. IEEE, 2014, pp. 957–
962.
[15] H. Lu, C. S. Jensen, and M. L. Yiu, “Pad: privacy-area aware, dummy-
based location privacy in mobile services,” in Proceedings of the Seventh
ACM International Workshop on Data Engineering for Wireless and
Mobile Access. ACM, 2008, pp. 16–23.
[16] B. Niu, Q. Li, X. Zhu, G. Cao, and H. Li, “Achieving k-anonymity in
privacy-aware location-based services,” in INFOCOM, 2014 Proceedings
IEEE. IEEE, 2014, pp. 754–762.
[17] A. Pfitzmann and M. Köhntopp, “Anonymity, unobservability, and
pseudonymity a proposal for terminology,” in Designing privacy enhanc-
ing technologies. Springer, 2001, pp. 1–9.
[18] P. Samarati and L. Sweeney, “Protecting privacy when disclosing in-
formation: k-anonymity and its enforcement through generalization and
suppression,” Technical report, SRI International, Tech. Rep., 1998.
[19] M. Gruteser and D. Grunwald, “Anonymous usage of location-based
services through spatial and temporal cloaking,” in Proceedings of the 1st
international conference on Mobile systems, applications and services.
ACM, 2003, pp. 31–42.
[20] C.-Y. Chow and M. F. Mokbel, “Enabling private continuous queries
for revealed user locations,” in International Symposium on Spatial and
Temporal Databases. Springer, 2007, pp. 258–275.
[21] T. Xu and Y. Cai, “Exploring historical location data for anonymity
preservation in location-based services,” in INFOCOM 2008. The 27th
Conference on Computer Communications. IEEE. IEEE, 2008, pp.
547–555.
[22] X. Pan, J. Xu, and X. Meng, “Protecting location privacy against location-
dependent attacks in mobile services,” IEEE Transactions on Knowledge
and Data Engineering, vol. 24, no. 8, pp. 1506–1519, 2012.
[23] J. Xu, X. Tang, H. Hu, and J. Du, “Privacy-conscious location-based
queries in mobile environments,” IEEE Transactions on Parallel and
Distributed Systems, vol. 21, no. 3, pp. 313–326, 2010.
[24] A. R. Beresford and F. Stajano, “Mix zones: User privacy in location-
aware services,” in Pervasive Computing and Communications Work-
shops, 2004. Proceedings of the Second IEEE Annual Conference on.
IEEE, 2004, pp. 127–131.
[25] B. Palanisamy and L. Liu, “Mobimix: Protecting location privacy with
mix-zones over road networks,” in Data Engineering (ICDE), 2011 IEEE
27th International Conference on. IEEE, 2011, pp. 494–505.
[26] P. Balaji and L. Liu, “Attack-resilient mix-zones over road networks:
architecture and algorithms,” IEEE Transactions on Mobile Computing,
vol. 14, no. 3, pp. 495–508, 2014.
[27] R. Lu, X. Lin, T. H. Luan, X. Liang, and X. Shen, “Pseudonym changing
at social spots: An effective strategy for location privacy in vanets,” IEEE
Transactions on Vehicular Technology, vol. 61, no. 1, pp. 86–96, 2012.
[28] S. Gao, J. Ma, W. Shi, G. Zhan, and C. Sun, “Trpf: A trajectory privacy-
preserving framework for participatory sensing,” IEEE Transactions on
Information Forensics and Security, vol. 8, no. 6, pp. 874–887, 2013.
[29] J. Freudiger, M. Raya, M. Félegyházi, P. Papadimitratos, and J.-P.
Hubaux, “Mix-zones for location privacy in vehicular networks,” in ACM
Workshop on Wireless Networking for Intelligent Transportation Systems
(WiN-ITS), no. LCA-CONF-2007-016, 2007.
[30] T. Kölsch, L. Fritsch, M. Kohlweiss, and D. Kesdogan, “Privacy for prof-
itable location based services,” in International Conference on Security
in Pervasive Computing. Springer, 2005, pp. 164–178.
[31] T. Rodden, A. Friday, H. Muller, A. Dix et al., “A lightweight
approach to managing privacy in location-based services,” Eprint
Lancaster University, 2002. [Online]. Available: https://eprints.lancs.ac.
uk/id/eprint/12967
[32] R. Lu, X. Lin, T. H. Luan, X. Liang, and X. Shen, “Pseudonym changing
at social spots: An effective strategy for location privacy in vanets,” IEEE
Transactions on Vehicular Technology, vol. 61, no. 1, pp. 86–96, 2012.
[33] M. Wernke, P. Skvortsov, F. Dürr, and K. Rothermel, “A classification
of location privacy attacks and approaches,” Personal and ubiquitous
computing, vol. 18, no. 1, pp. 163–175, 2014.
[34] H. J. Do, Y.-S. Jeong, H.-J. Choi, and K. Kim, “Another dummy
generation technique in location-based services,” in Big Data and Smart
Computing (BigComp), 2016 International Conference on. IEEE, 2016,
pp. 532–538.
[35] T. Hara, A. Suzuki, M. Iwata, Y. Arase, and X. Xie, “Dummy-based
user location anonymization under real-world constraints,” IEEE Access,
vol. 4, pp. 673–687, 2016.
[36] C. Dwork, F. McSherry, K. Nissim, and A. Smith, “Calibrating noise to
sensitivity in private data analysis,” in Theory of cryptography confer-
ence. Springer, 2006, pp. 265–284.
[37] K. Chatzikokolakis, E. Elsalamouny, and C. Palamidessi, “Efficient
utility improvement for location privacy,” Proceedings on Privacy En-
hancing Technologies, vol. 2017, no. 4, pp. 308–328, 2017.
[38] S. Oya, C. Troncoso, and F. Pérez-González, “Is geo-indistinguishability
what you are looking for?” in ACM WPES, 2017.
[39] R. Cheng, Y. Zhang, E. Bertino, and S. Prabhakar, “Preserving user loca-
tion privacy in mobile data management infrastructures,” in International
Workshop on Privacy Enhancing Technologies. Springer, 2006, pp.
393–412.
[40] S. Shaham, M. Ding, B. Liu, S. Dang, Z. Lin, and J. Li, “Privacy
preserving location data publishing: A machine learning approach,” IEEE
Transactions on Knowledge and Data Engineering, 2020.
[41] R. Angmo, V. Mangat, and N. Aggarwal, “Preserving user location
privacy in era of location-based services: Challenges, techniques and
framework,” in Proceedings of 2nd International Conference on Commu-
nication, Computing and Networking. Springer, 2019, pp. 43–52.

13
[42] X. Kong, F. Xia, Z. Ning, A. Rahim, Y. Cai, Z. Gao, and J. Ma, “Mobility
dataset generation for vehicular social networks based on floating car
data,” IEEE Transactions on Vehicular Technology, vol. 67, no. 5, pp.
3874–3886, 2018.
[43] X. Kong, M. Li, K. Ma, K. Tian, M. Wang, Z. Ning, and F. Xia, “Big
trajectory data: A survey of applications and services,” IEEE Access,
vol. 6, pp. 58 295–58 306, 2018.
[44] J. Fan, C. Fu, K. Stewart, and L. Zhang, “Using big gps trajectory data
analytics for vehicle miles traveled estimation,” Transportation Research
Part C: Emerging Technologies, vol. 103, pp. 298–307, 2019.
[45] H. Talat, T. Nomani, M. Mohsin, and S. Sattar, “A survey on location
privacy techniques deployed in vehicular networks,” in 2019 16th In-
ternational Bhurban Conference on Applied Sciences and Technology
(IBCAST). IEEE, 2019, pp. 604–613.
[46] B. Liu, W. Zhou, T. Zhu, L. Gao, and Y. Xiang, “Location privacy and its
applications: a systematic study,” IEEE access, vol. 6, pp. 17 606–17 624,
2018.
[47] B. Niu, Q. Li, X. Zhu, G. Cao, and H. Li, “Enhancing privacy through
caching in location-based services,” in 2015 IEEE conference on com-
puter communications (INFOCOM). IEEE, 2015, pp. 1017–1025.
[48] US Gov., “Text - s.1223 - 112th congress (2011-2012): Location
privacy protection act of 2012,” Dec 2012. [Online]. Available:
https://www.congress.gov/bill/112th-congress/senate-bill/1223/text
[49] G. D. Forney, “The viterbi algorithm,” Proceedings of the IEEE, vol. 61,
no. 3, pp. 268–278, 1973.
[50] Y. Zheng, L. Zhang, X. Xie, and W.-Y. Ma, “Mining interesting locations
and travel sequences from gps trajectories,” in Proceedings of the 18th
international conference on World wide web. ACM, 2009, pp. 791–800.
[51] Y. Zheng, Q. Li, Y. Chen, X. Xie, and W.-Y. Ma, “Understanding mobility
based on gps data,” in Proceedings of the 10th international conference
on Ubiquitous computing. ACM, 2008, pp. 312–321.
[52] Y. Zheng, X. Xie, and W.-Y. Ma, “Geolife: A collaborative social
networking service among user, location and trajectory.” IEEE Data Eng.
Bull., vol. 33, no. 2, pp. 32–39, 2010.
Sina Shaham received B.Eng (Hons) in Electri-
cal and Electronic Engineering from the Univer-
sity of Manchester (with first class honors). He
is currently an MPhil student at the University of
Sydney. He has years of experience as a Data
Scientist and Software Engineer in companies
such as InDebted. His current research interests
include applications of artificial intelligence in big
data and privacy.
Ming Ding (M’12-SM’17) received the B.S. and
M.S. degrees (with first class Hons.) in elec-
tronics engineering from Shanghai Jiao Tong
University (SJTU), Shanghai, China, and the
Doctor of Philosophy (Ph.D.) degree in sig-
nal and information processing from SJTU, in
2004, 2007, and 2011, respectively. From April
2007 to September 2014, he worked at Sharp
Laboratories of China in Shanghai, China as
a Researcher/Senior Researcher/Principal Re-
searcher. He also served as the Algorithm De-
sign Director and Programming Director for a system-level simulator of
future telecommunication networks in Sharp Laboratories of China for
more than 7 years. Currently, he is a senior research scientist at Data61,
CSIRO, in Sydney, NSW, Australia. He has authored over 100 papers in
IEEE journals and conferences, all in recognized venues, and about 20
3GPP standardization contributions, as well as a Springer book “Multi-
point Cooperative Communication Systems: Theory and Applications”.
Also, he holds 21 US patents and co-invented another 100+ patents
on 4G/5G technologies in CN, JP, EU, etc. Currently, he is an editor
of IEEE Transactions on Wireless Communications. Besides, he is or
has been Guest Editor/Co-Chair/Co-Tutor/TPC member of several IEEE
top-tier journals/conferences, e.g., the IEEE Journal on Selected Areas
in Communications, the IEEE Communications Magazine, and the IEEE
Globecom Workshops, etc. He was the lead speaker of the industrial
presentation on unmanned aerial vehicles in IEEE Globecom 2017,
which was awarded as the Most Attended Industry Program in the
conference. Also, he was awarded in 2017 as the Exemplary Reviewer
for IEEE Transactions on Wireless Communications.
Bo Liu (M’10) received the B.Sc. degree from
the Department of Computer Science and Tech-
nology from Nanjing University of Posts and
Telecommunications, Nanjing, China, in 2004
and then he received the and MEng. and PhD
degrees from the Department of Electronic Engi-
neering, Shanghai Jiao Tong University, Shang-
hai, China, in 2007, and 2010 respectively. He
is currently a Senior Lecturer with the University
of Technology Sydney, Australia. His research
interests include cybersecurity and privacy, wire-
less communications and networks.
Zihuai Lin received the Ph.D. degree in Elec-
trical Engineering from Chalmers University of
Technology, Sweden, in 2006. Prior to this he
has held positions at Ericsson Research, Stock-
holm, Sweden. Following Ph.D. graduation, he
worked as a Research Associate Professor at
Aalborg University, Denmark and currently at the
School of Electrical and Information Engineer-
ing, the University of Sydney, Australia. His re-
search interests include source/channel/network
coding, coded modulation, MIMO, OFDMA, SC-
FDMA, radio resource management, cooperative communications,
small-cell networks, 5G cellular systems, etc.
Shuping Dang (S’13–M’18) received B.Eng
(Hons) in Electrical and Electronic Engineering
from the University of Manchester (with first
class honors) and B.Eng in Electrical Engineer-
ing and Automation from Beijing Jiaotong Uni-
versity in 2014 via a joint ‘2+2’ dual-degree pro-
gram. He also received D.Phil in Engineering
Science from University of Oxford in 2018. Dr.
Dang joined in the R&D Center, Huanan Com-
munication Co., Ltd. after graduating from Uni-
versity of Oxford and is currently working as a
Postdoctoral Fellow with the Computer, Electrical and Mathematical
Science and Engineering Division, King Abdullah University of Science
and Technology (KAUST). He is a co-recipient of the ‘best paper’ award
for work presented at 2019 19th IEEE International Conference on
Communication Technology. He serves as a reviewer for a number
of key journals in communications and information science, including
IEEE TRANSACTIONS ON WIRELESS COMMUNICATIONS, IEEE TRANS-
ACTIONS ON COMMUNICATIONS, IEEE WIRELESS COMMUNICATIONS
LETTERS, IEEE COMMUNICATIONS LETTERS, and IEEE TRANSAC-
TIONS ON VEHICULAR TECHNOLOGY. Dr. Dang is recognized as the
Exemplary Reviewer of IEEE Communications Letters in 2019. His cur-
rent research interests include novel modulation schemes, cooperative
communications, terahertz communications, and 6G wireless network
design.
Jun Li (M’09-SM’16) received Ph. D degree in
Electronic Engineering from Shanghai Jiao Tong
University, Shanghai, P. R. China in 2009. From
January 2009 to June 2009, he worked in the
Department of Research and Innovation, Alcatel
Lucent Shanghai Bell as a Research Scientist.
From June 2009 to April 2012, he was a Post-
doctoral Fellow at the School of Electrical Engi-
neering and Telecommunications, the University
of New South Wales, Australia. From April 2012
to June 2015, he is a Research Fellow at the
School of Electrical Engineering, the University of Sydney, Australia.
From June 2015 to now, he is a Professor at the School of Electronic
and Optical Engineering, Nanjing University of Science and Technology,
Nanjing, China. He was a visiting professor at Princeton University from
2018 to 2019. His research interests include network information the-
ory, game theory, distributed intelligence, multiple agent reinforcement
learning, and their applications in ultra-dense wireless networks, mobile
edge computing, network privacy and security, and industrial Internet of
things. He has co-authored more than 200 papers in IEEE journals and
conferences, and holds 1 US patents and more than 10 Chinese patents
in these areas. He was serving as an editor of IEEE Communication
Letters and TPC member for several flagship IEEE conferences. He
received Exemplary Reviewer of IEEE Transactions on Communications
in 2018, and best paper award from IEEE International Conference on
5G for Future Wireless Networks in 2017.

TMC.2020.2993599.pdf

More Related Content

Similar to TMC.2020.2993599.pdf

Recently uploaded

TMC.2020.2993599.pdf
