The document summarizes the features of the TLM-700PD 7-inch industrial LCD monitor. It has a resolution of 800 x 480 pixels, a contrast ratio of 1000:1, and a backlight expected to last 50,000 hours. The monitor supports HD/SD-SDI, HDMI, HD/SD-YUV, and composite video inputs and has features like safe area indicators for 16:9 and 4:3 formats, time code display, audio monitoring, and multiple color temperature presets.

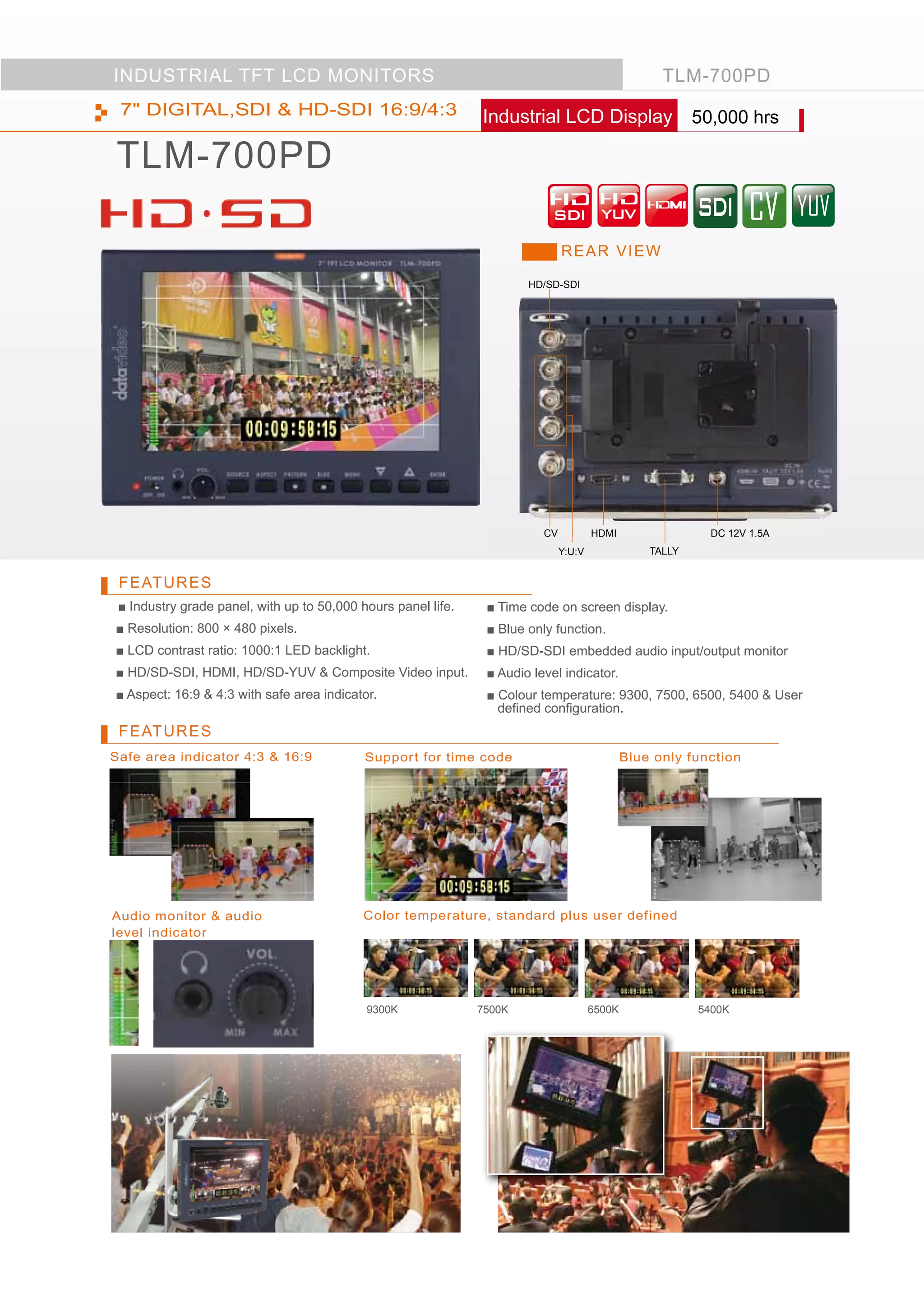

1. INDUSTRIAL TFT LCD MONITORS TLM-700PD
7" DIGITAL,SDI & HD-SDI 16:9/4:3 Industrial LCD Display 50,000 hrs
TLM-700PD
SDI YUV SDI
REAR VIEW
HD/SD-SDI
CV HDMI DC 12V 1.5A
Y:U:V TALLY
FEATURES
■ Industry grade panel, with up to 50,000 hours panel life. ■ Time code on screen display.
■ Resolution: 800 × 480 pixels. ■ Blue only function.
■ LCD contrast ratio: 1000:1 LED backlight. ■ HD/SD-SDI embedded audio input/output monitor
■ HD/SD-SDI, HDMI, HD/SD-YUV & Composite Video input. ■ Audio level indicator.
■ Aspect: 16:9 & 4:3 with safe area indicator. ■ Colour temperature: 9300, 7500, 6500, 5400 & User
defined configuration.
FEATURES
Safe area indicator 4:3 & 16:9 Suppor t for time code Blue only function
Audio monitor & audio Color temperature, standard plus user defined
level indicator
9300K 7500K 6500K 5400K
