The document describes an industrial TFT LCD monitor bank with two 7-inch 16:9/4:3 displays. Key features include an industry-grade panel with a lifespan of 50,000 hours, 800x480 resolution, 1000:1 contrast ratio, HD/SD-SDI, HDMI, HD/YUV and composite video inputs, 16:9 and 4:3 aspect ratios with safe area indicators, time code display, and individual adjustment controls for brightness, contrast, color and tint for each display. The dual monitor unit has a standard 19-inch 3U rack design and tilt adjustment while mounted.

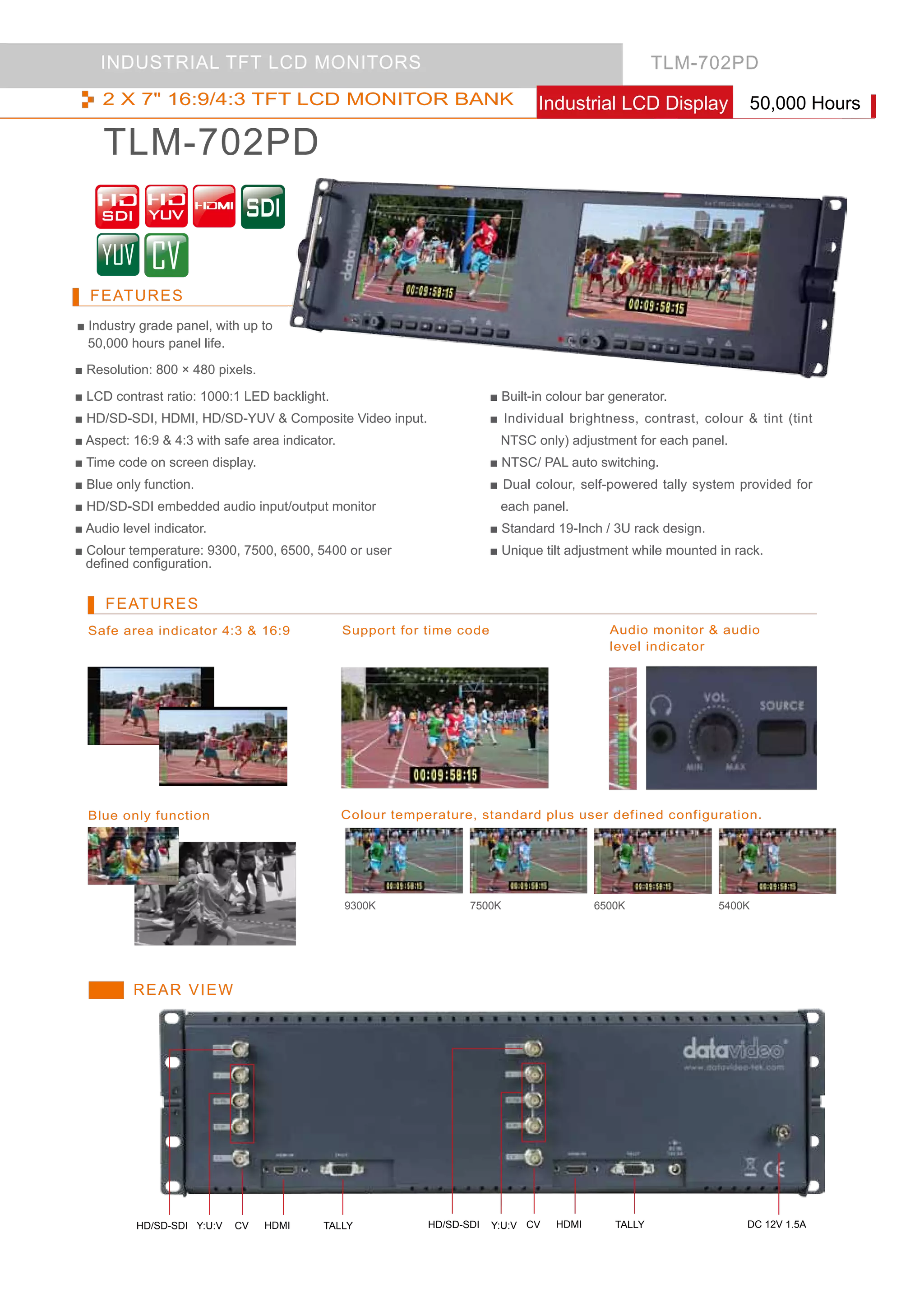

1. INDUSTRIAL TFT LCD MONITORS TLM-702PD
2 X 7" 16:9/4:3 TFT LCD MONITOR BANK Industrial LCD Display 50,000 Hours
TLM-702PD
SDI YUV SDI
FEATURES
■ Industry grade panel, with up to
50,000 hours panel life.
■ Resolution: 800 × 480 pixels.
■ LCD contrast ratio: 1000:1 LED backlight. ■ Built-in colour bar generator.
■ HD/SD-SDI, HDMI, HD/SD-YUV & Composite Video input. ■ Individual brightness, contrast, colour & tint (tint
■ Aspect: 16:9 & 4:3 with safe area indicator. NTSC only) adjustment for each panel.
■ Time code on screen display. ■ NTSC/ PAL auto switching.
■ Blue only function. ■ Dual colour, self-powered tally system provided for
■ HD/SD-SDI embedded audio input/output monitor each panel.
■ Audio level indicator. ■ Standard 19-Inch / 3U rack design.
■ Colour temperature: 9300, 7500, 6500, 5400 or user ■ Unique tilt adjustment while mounted in rack.
defined configuration.
FEATURES
Safe area indicator 4:3 & 16:9 Suppor t for time code Audio monitor & audio
level indicator
Blue only function Colour temperature, standard plus user defined configuration.
9300K 7500K 6500K 5400K
REAR VIEW
HD/SD-SDI Y:U:V CV HDMI TALLY HD/SD-SDI Y:U:V CV HDMI TALLY DC 12V 1.5A
