The document summarizes the features of the TLM-700HD 7-inch digital monitor, which includes HD/SD-SDI, YUV, CV, and HDMI inputs, 800x480 resolution, adjustable brightness, contrast and color, internal color bars, blue only function, audio level indicators, 16:9/4:3 aspect ratio switching, and V-mount for powering from a universal battery in the field.

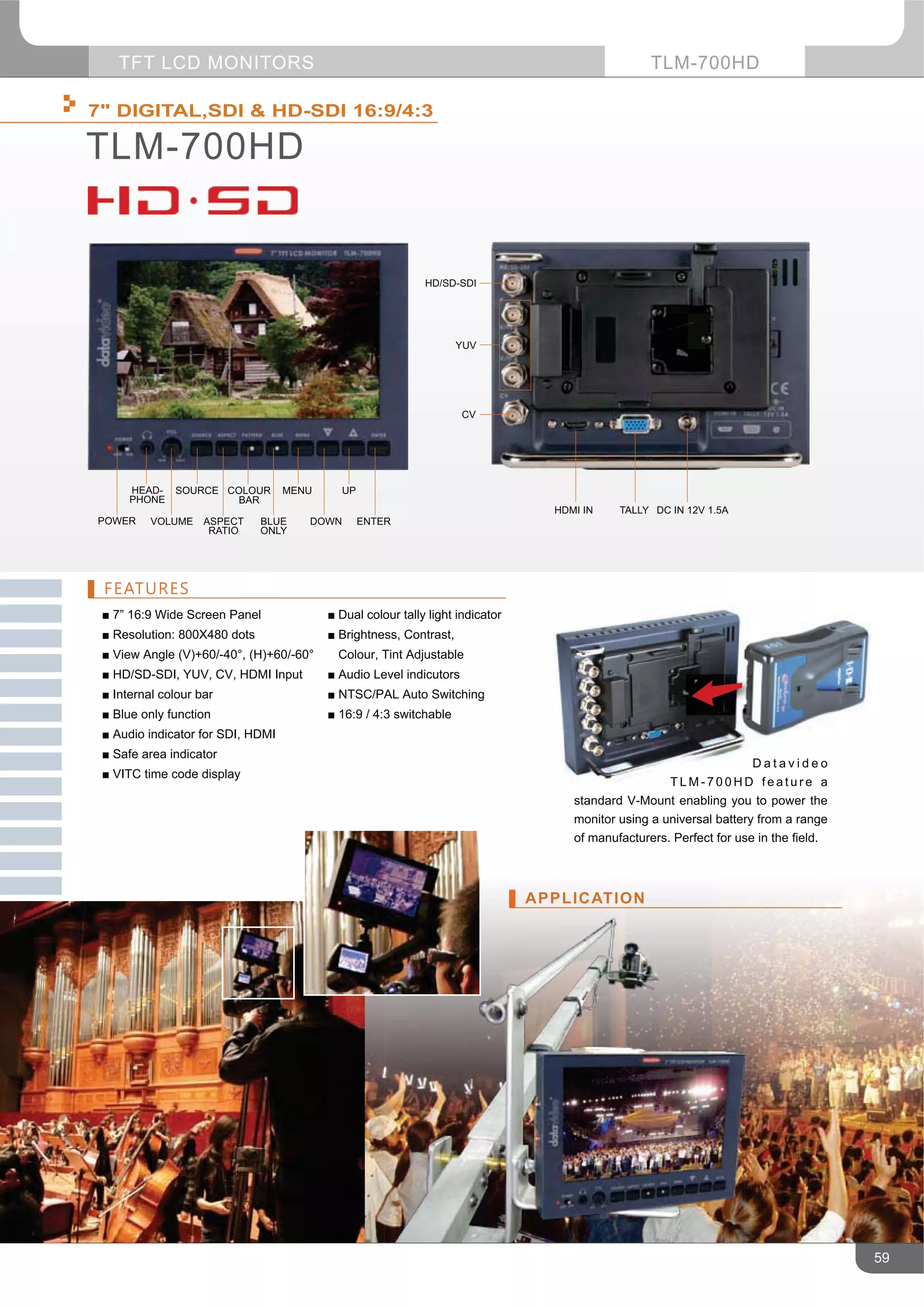

1. TFT LCD MONITORS TLM-700HD
7" DIGITAL,SDI & HD-SDI 16:9/4:3
TLM-700HD
HD/SD-SDI
YUV
CV
HEAD- SOURCE COLOUR MENU UP
PHONE BAR
HDMI IN TALLY DC IN 12V 1.5A
POWER VOLUME ASPECT BLUE DOWN ENTER
RATIO ONLY
■ 7” 16:9 Wide Screen Panel ■ Dual colour tally light indicator
■ Resolution: 800X480 dots ■ Brightness, Contrast,
■ View Angle (V)+60/-40°, (H)+60/-60° Colour, Tint Adjustable
■ HD/SD-SDI, YUV, CV, HDMI Input ■ Audio Level indicutors
■ Internal colour bar ■ NTSC/PAL Auto Switching
■ Blue only function ■ 16:9 / 4:3 switchable
■ Audio indicator for SDI, HDMI
■ Safe area indicator
Datavideo
■ VITC time code display
TLM-700HD feature a
standard V-Mount enabling you to power the
monitor using a universal battery from a range
of manufacturers. Perfect for use in the field.
A P P L I C AT I ON
59
