This document describes a portable ultrasound display device. It has a lightweight and portable structure designed by experts. It offers sharp images on a large screen and enhanced audio through 2.1 channel stereo. The rechargeable lithium battery can power it for up to 8 hours. It is compatible with various ultrasound scanners through standard audio/video interfaces and cables or wireless adapters.

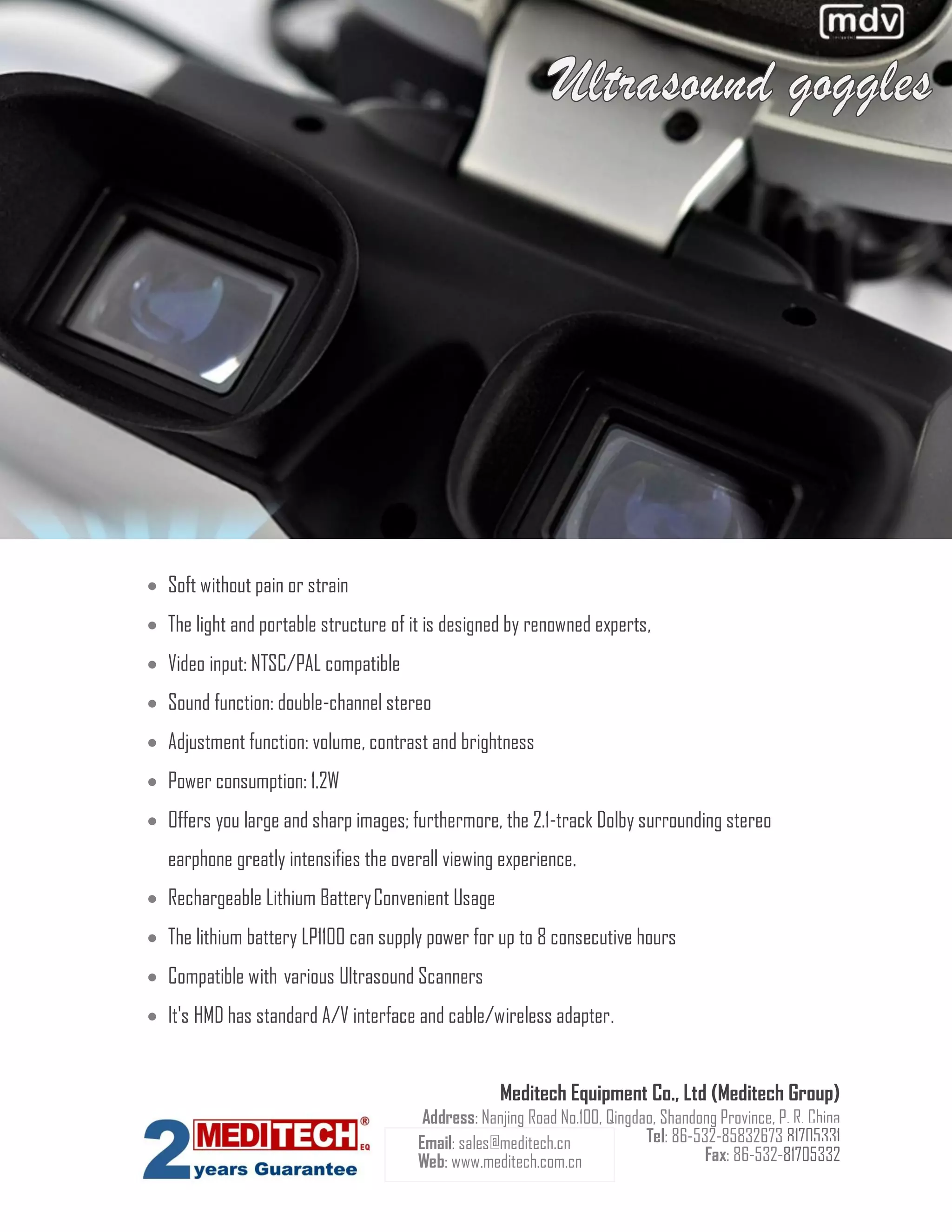

1.  Soft without pain or strain
 The light and portable structure of it is designed by renowned experts,
 Video input: NTSC/PAL compatible
 Sound function: double-channel stereo
 Adjustment function: volume, contrast and brightness
 Power consumption: 1.2W
 Offers you large and sharp images; furthermore, the 2.1-track Dolby surrounding stereo
earphone greatly intensifies the overall viewing experience.
 Rechargeable Lithium BatteryConvenient Usage
 The lithium battery LP1100 can supply power for up to 8 consecutive hours
 Compatible with various Ultrasound Scanners
 It's HMD has standard A/V interface and cable/wireless adapter.
Meditech Equipment Co., Ltd (Meditech Group)
Address: Nanjing Road No.100, Qingdao, Shandong Province, P. R. China
Tel: 86-532-85832673 81705331
Fax: 86-532-81705332
Email: sales@meditech.cn
Web: www.meditech.com.cn

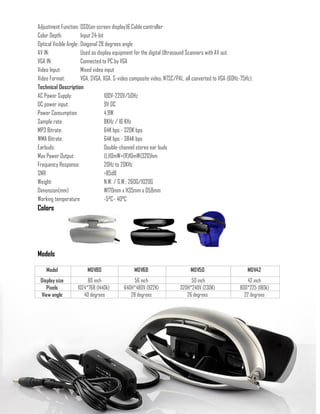

2. Colors
Models
Adjustment Function: OSD(on-screen display)& Cable controller
Color Depth: Input 24-bit
Optical Visible Angle: Diagonal 28 degrees angle
AV IN: Used as display equipment for the digital Ultrasound Scanners with AV out.
VGA IN: Connected to PC by VGA
Video Input: Mixed video input
Video Format: VGA, SVGA, XGA, S-video composite video, NTSC/PAL, all converted to VGA (60Hz-75Hz).
Technical Description
AC Power Supply: 100V-220V/50Hz
DC power input: 9V DC
Power Consumption 4.9W
Sample rate: 8KHz / 16 KHz
MP3 Bitrate: 64K bps - 320K bps
WMA Bitrate: 64K bps - 384K bps
Earbuds: Double-channel stereo ear buds
Max Power Output: (L)10mW+(R)10mW(320)hm
Frequency Response: 20Hz to 20KHz
SNR >85dB
Weight: N.W. / G.W.: 260G/1020G
Dimension(mm) W170mm x H35mm x D58mm
Working temperature -5°C- 40°C
Model MDV80 MDV68 MDV50 MDV42
Display size 80 inch 56 inch 50 inch 42 inch
Pixels 1024*768 (1440k) 640H*480V (922K) 320H*240V (230K) 800*225 (180k)
View angle 40 degrees 28 degrees 26 degrees 22 degrees
