Shenzhen Advanced Titanium Technology Co., Ltd. specializes in investment casting and 3D printing of titanium and other alloys, producing custom parts for various industries such as aerospace, automotive, and marine. The company is based in Shenzhen, a key technological and manufacturing hub in China, and holds ISO 9001:2008 certification. They focus on innovation and have a range of advanced machinery for precision manufacturing and quality assurance.

1. Shenzhen Add：Rm. 305, Unit B, Gangzhilong Science Park,
Qinglong Road, Longhua District,Shenzhen, China
Tel：0755-237 10011 Fax：0755-237 10011
Hong Kong Add：Floor 8,Joint-in Hang Sing Centre, 2-16 Kwai Fung
Crescent,Kwai Chung, NT.,Hong Kong
Tel：00852-3188 5386 00852-3188 5389
Websites：http://www.adv-ti.net http://advti.en.alibaba.com
Shenzhen Advanced Titanium Technology Co.,ltd.
Hong Kong Advanced Titanium Group Limited
Shenzhen Advanced
Titanium Technology Co.,ltd.
Titanium
Alloy
Casting
We are a investment casting OEM factory with CNC service,
specialized in investment casting and 3D print of titanium, superalloys,
stainless steel, special steel,etc. We produce custom items like impeller,
connecting rod, statorrotor, valve, and other Customized Parts for Aeroapace,
Automotive, marine, propulsion, etc.
Contact: Ivy Li Mobile：+86 13641458232
Whatsapp: +86-13641458232
Skype: i20041206
Email: ivyli@adv-ti.net; ivyli258@hotmail.com

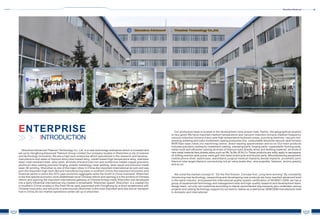

2. Shenzhen Advanced
01 02
NTRODUCTIONI
ENTERPRISE
Shenzhen Advanced Titanium Technology Co.,Ltd. is a new technology enterprise which is invested and
set up by HongKong Advanced Titanium Group Limited.Our company locates in Shenzhen,a city of science
and technology innovation.We are a high-tech enterprise which specialized in the research and develop,
manufacture and sales of titanium alloy,nikel-based alloy, cobalt-based high temperature alloy, stainless
steel, heat-resistant steel, alloy steel, all kinds of brand Cast iron and nonferrous metals copper,precision
aluminum alloy casting,precision forging, powder metallurgy, laser welding, laser repair and precision metal
laser 3D printing. Shenzhen is one of the major cities in China,the important international air port and sea
port,the important high-tech rd and manufacturing base in southern China,the important economic and
financial centre in china,the 2012 year economic aggregate ranks the fourth in China mainland. Shenzhen
is the first special economic zone established since Chinese reform and opening.it is the window of Chinese
reform and opening,the important international gateway of Chinese foreign trade.Shenzhen has developed
into a fairly influential international city,created a remarkable “Shenzhen speed”.Shenzhen is a coastal city
in southern China,locates in the Pearl River east,separated with HongKong by a strait.established with
Chinese most entry and exit ports in area boundry.Shenzhen is the most important land,sea and air transport
hub in China.So our market operations center set up in shenzhen.
Our production base is located in the development zone,airport road, Harbin, the geographical position
is very good.We have imported medium temperature wax vacuum induction furnace,medium frequency
vacuum induction furnace,many sets high temperature hydraulic press, punching machine, vacuum hot-
pressing sintering and ludox investment casting production line, consumable electrode vacuum skull furnace,
6KW fiber laser,robot,cnc machining centre, direct reading spectrometer and so on.Our main products
includes:precision casting by investment casting, stamping parts, forging parts, superplastic forming parts,
metal mold and offcenter casting,all kinds of titanium bars,sheets,wires and welding material, all kinds of
rare metal material bars,sheets,wires,such as Nb,Ta,Mo,W,Ni,Co.These products are widly apply to aerospace,
oil drilling,reaction tank,pump valve,golf club head,motorcycle and bicycle parts, Mountaineering equipment,
mobile phone shell, watchcase, watchband,surgical medical implants,dental implants, prosthetic joint,
titanium tube target,titanium connectiong rod,air valve,brake disc, ship propeller, fastener, anchor,jewelry
and so on.
We insist the market concept of “Do the first forever, Concept first, Long-term winning”.By constantly
introducing new technology, researching and developping new products,we have reached advanced level
in the same industry. and passed the international quality system certification of ISO9001:2008, we has a
group of experienced technology and management elite and high-quality research and development team,
design team, not only can customize according to clients' personalized requirements,also undertake various
projects and casting technology support,try our best to realize as a well-know OEM/ODM manufacturer both
in domestic and international.

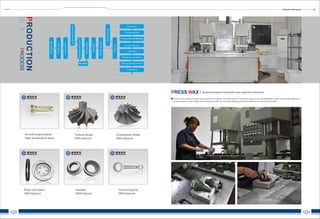

3. Shenzhen Advanced
03 04
MoulMaking
WaxMould
Combination
Coatingprepatarion
Coatingandsanding
Shelldrying
Dawaxing
ShellRoasting
Alloymelging
Pouring
Repetition
Unshelling
Casting head removed
Repair and Cleaning
inspection
Heat treatment
Finishing and sandblasting
Final inspection
Warehous
ROCESSP
PRODUCTION
P WRESS AX Double location hydraulic wax injection machine
Using mould to press product wax models. the marked characteristics of investment casting is to use meltability model (hereinafter referred to
as wax pattern or wax model) manufacturing model, and for each casting production needs to consume a wax model.
Aircraft engine blade
High temperature alloy
Turbine wheel
GR5 titanium
Compressor wheel
GR5 titanium
Rotor and stator
GR5 titanium
Impeller
GR5 titanium
Connecting rod
GR5 titanium

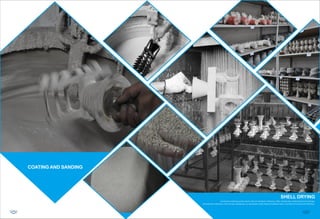

4. COATING AND SANDING
SHELL DRYING
Investment casting use the shell made of multilayer refractory, After module dip coating fireproof coatings,
and granular refractory, then drying, hardening, so repeatedly,make fireproof material layer to achieve the required thickness.
05 06

5. Shenzhen Advanced
07 08

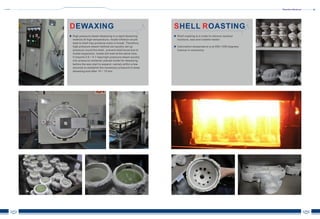

DEWAXING
High pressure steam dewaxing is a rapid dewaxing
method.At high temperature, model inflation would
lead to shell may produce crack or break. Therefore,
high pressure steam method can quickly set up
pressure round the shell , prevent shell burst due to
model expansion, model will melt at the same time.
It imports 0.6 ~ 0.7 mpa high-pressure steam quickly
into pressure container placed model for dewaxing,
before the wax start to expand, namely within a few
seconds to establish the necessary pressure to keep
dewaxing end after 10 ~ 15 min.
S RHELL OASTING
Shell roasting is in order to remove residual
moisture, wax and volatile matter.
Calcination temperature is at 950-1050 degrees
Celsius in commonly.

6. Shenzhen Advanced
09 10

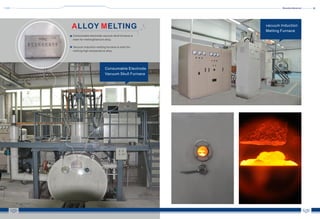

A MLLOY ELTING
Consumable electrode vacuum skull furnace is
main for meltingtitanium alloy.
Vacuum induction melting furnace is main for
melting high temperature alloy.
vacuum Induction
Melting Furnace
Consumable Electrode
Vacuum Skull Furnace

7. Shenzhen Advanced
11 12

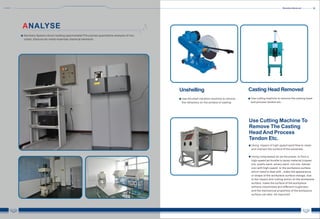

ANALYSE
Germany Spectro direct reading spectrometerThe precise quantitative analysis of iron,
nickel, titanium etc metal materials chemical elements
Unshelling
Use the shell vibration machine to remove
the refractory on the surface of casting
Use Cutting Machine To
Remove The Casting
Head And Process
Tendon Etc.
Using impact of high-speed sand flow to clean
and coarsen the surface of the substrate.
Using compressed air as the power, to form a
high-speed jet bundle to spray material (copper
ore, quartz sand, emery sand, iron ore, hainan
ore) with high-speed to the workpiece surface
which need to deal with , make the appearance
or shape of the workpiece surface change, due
to the impact and cutting action on the workpiece
surface, make the surface of the workpiece
achieve cleanliness and different roughness,
and the mechanical properties of the workpiece
surface can also be improved .
Casting Head Removed
Use cutting machine to remove the casting head
and process tendon etc.

8. 11 12

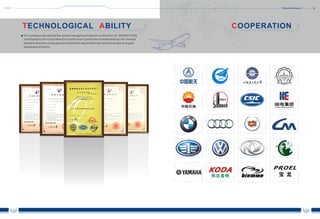

COOPERATIONT AECHNOLOGICAL BILITY
Our company has passed the quality management system certification of ISO9001/2008,
certificated by the China New Era Certification Centre which established by the Chinese
people's liberation army general armaments department.we have the access to supply
aerospace products.
Shenzhen Advanced
