1. Ring Documentation, Release 1.5.1

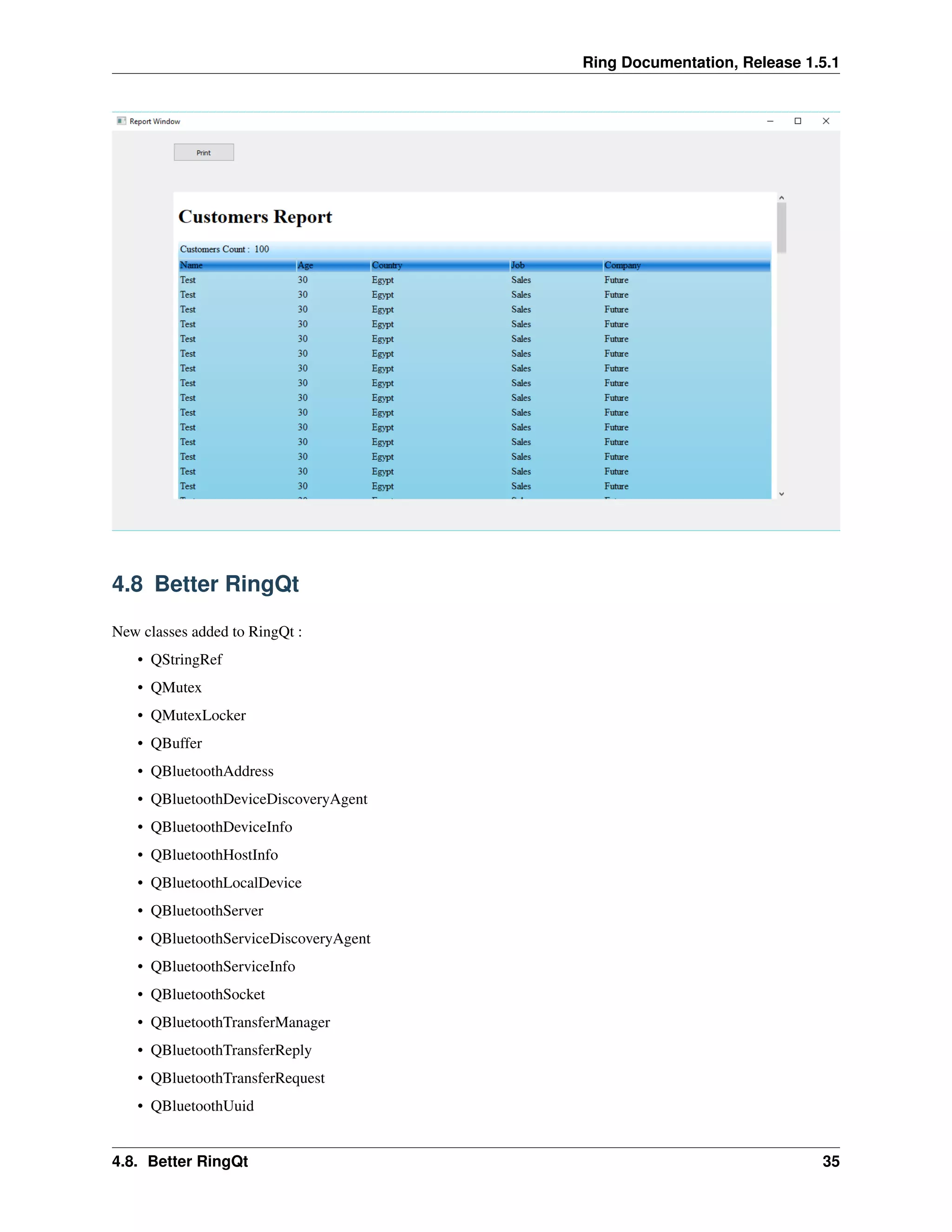

4.8 Better RingQt
New classes added to RingQt :
• QStringRef
• QMutex
• QMutexLocker
• QBuffer
• QBluetoothAddress
• QBluetoothDeviceDiscoveryAgent
• QBluetoothDeviceInfo
• QBluetoothHostInfo
• QBluetoothLocalDevice
• QBluetoothServer
• QBluetoothServiceDiscoveryAgent
• QBluetoothServiceInfo
• QBluetoothSocket
• QBluetoothTransferManager
• QBluetoothTransferReply
• QBluetoothTransferRequest
• QBluetoothUuid
4.8. Better RingQt 35

2. Ring Documentation, Release 1.5.1

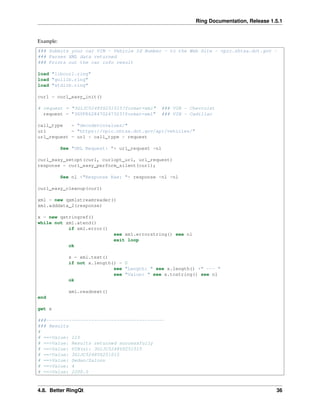

Example:
### Submits your car VIN - Vehicle Id Number - to the Web Site - vpic.nhtsa.dot.gov -
### Parses XML data returned
### Prints out the car info result
load "libcurl.ring"
load "guilib.ring"
load "stdlib.ring"
curl = curl_easy_init()
# request = "3G1JC5248YS251015?format=xml" ### VIN - Chevrolet
request = "3GYFK62847G247323?format=xml" ### VIN - Cadillac
call_type = "decodevinvalues/"
url = "https://vpic.nhtsa.dot.gov/api/vehicles/"
url_request = url + call_type + request
See "URL Request: "+ url_request +nl
curl_easy_setopt(curl, curlopt_url, url_request)
response = curl_easy_perform_silent(curl);
See nl +"Response Raw: "+ response +nl +nl
curl_easy_cleanup(curl)
xml = new qxmlstreamreader()
xml.adddata_2(response)
x = new qstringref()
while not xml.atend()
if xml.error()
see xml.errorstring() see nl
exit loop
ok
x = xml.text()
if not x.length() = 0
see "Length: " see x.length() +" --- "
see "Value: " see x.tostring() see nl
ok
xml.readnext()
end
get x
###------------------------------------------
### Results
#
# ==>Value: 115
# ==>Value: Results returned successfully
# ==>Value: VIN(s): 3G1JC5248YS251015
# ==>Value: 3G1JC5248YS251015
# ==>Value: Sedan/Saloon
# ==>Value: 4
# ==>Value: 2200.0
4.8. Better RingQt 36

3. Ring Documentation, Release 1.5.1
# ==>Value: 134.25223700841
# ==>Value: 2.2
# ==>Value: 4
# ==>Value: LN2
# ==>Value: CHEVROLET
# ==>Value: GENERAL MOTORS LLC
# ==>Value: Cavalier
# ==>Value: 2000
# ==>Value: Ramos Arzipe
# ==>Value: PASSENGER CAR
# ==>Value: 4
# ==>Value: In-Line
# ==>Value: 1st Row (Driver & Passenger)
# ==>Value: Sequential Fuel Injection (SFI)
# ==>Value: Mexico
# ==>Value: NA
# ==>Value: Manual
# ==>Value: Body Type: Sedan, 4-6 Window, Notchback (GM codes: 19, 69)
# ==>Value: Name Plate: Chevrolet, Pontiac
# ==>Value: 0 - VIN decoded clean. Check Digit (9th position) is correct
# ==>Value: LAN
# ==>Value: 984
#
###-----------------------------------------
4.9 Better Objects Library
The function Open_WindowInPackages() is added to the Objects library.
The Open_WindowInPackages() function is the same as Open_Window() but takes an extra list that determine the
packages to import before opening the window.
Syntax:
Open_WindowInPackages(cClassName,aPackagesList)
Example:
The next example from the Form Designer source code, Open the Window Flags window using the
open_windowInPackages() function.
We determine the class name “WindowFlagsController” and the packages name.
The Window Flags window uses the FormDesigner and System.GUI packages.
open_windowInPackages(:WindowFlagsController,[
"formdesigner",
"System.GUI"
])
4.10 RingFreeGLUT Extension
Ring 1.5 comes with RingFreeGLUT extension to support the FreeGLUT library
Example:
4.9. Better Objects Library 37

4. Ring Documentation, Release 1.5.1
/*

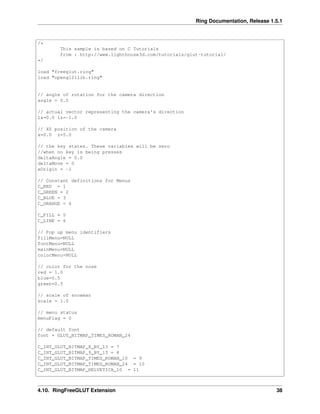

This sample is based on C Tutorials
from : http://www.lighthouse3d.com/tutorials/glut-tutorial/
*/
load "freeglut.ring"
load "opengl21lib.ring"
// angle of rotation for the camera direction
angle = 0.0
// actual vector representing the camera's direction
lx=0.0 lz=-1.0
// XZ position of the camera
x=0.0 z=5.0
// the key states. These variables will be zero
//when no key is being presses
deltaAngle = 0.0
deltaMove = 0
xOrigin = -1
// Constant definitions for Menus
C_RED = 1
C_GREEN = 2
C_BLUE = 3
C_ORANGE = 4
C_FILL = 5
C_LINE = 6
// Pop up menu identifiers
fillMenu=NULL
fontMenu=NULL
mainMenu=NULL
colorMenu=NULL
// color for the nose
red = 1.0
blue=0.5
green=0.5
// scale of snowman
scale = 1.0
// menu status
menuFlag = 0
// default font
font = GLUT_BITMAP_TIMES_ROMAN_24
C_INT_GLUT_BITMAP_8_BY_13 = 7
C_INT_GLUT_BITMAP_9_BY_15 = 8
C_INT_GLUT_BITMAP_TIMES_ROMAN_10 = 9
C_INT_GLUT_BITMAP_TIMES_ROMAN_24 = 10
C_INT_GLUT_BITMAP_HELVETICA_10 = 11
4.10. RingFreeGLUT Extension 38

5. Ring Documentation, Release 1.5.1

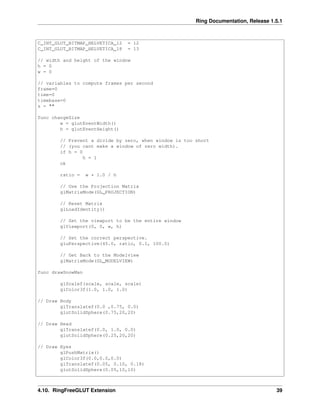

C_INT_GLUT_BITMAP_HELVETICA_12 = 12
C_INT_GLUT_BITMAP_HELVETICA_18 = 13
// width and height of the window
h = 0
w = 0
// variables to compute frames per second
frame=0
time=0
timebase=0
s = ""
func changeSize
w = glutEventWidth()
h = glutEventHeight()
// Prevent a divide by zero, when window is too short
// (you cant make a window of zero width).
if h = 0
h = 1
ok
ratio = w * 1.0 / h
// Use the Projection Matrix
glMatrixMode(GL_PROJECTION)
// Reset Matrix
glLoadIdentity()
// Set the viewport to be the entire window
glViewport(0, 0, w, h)
// Set the correct perspective.
gluPerspective(45.0, ratio, 0.1, 100.0)
// Get Back to the Modelview
glMatrixMode(GL_MODELVIEW)
func drawSnowMan
glScalef(scale, scale, scale)
glColor3f(1.0, 1.0, 1.0)
// Draw Body
glTranslatef(0.0 ,0.75, 0.0)
glutSolidSphere(0.75,20,20)
// Draw Head
glTranslatef(0.0, 1.0, 0.0)
glutSolidSphere(0.25,20,20)
// Draw Eyes
glPushMatrix()
glColor3f(0.0,0.0,0.0)
glTranslatef(0.05, 0.10, 0.18)
glutSolidSphere(0.05,10,10)
4.10. RingFreeGLUT Extension 39

6. Ring Documentation, Release 1.5.1
glTranslatef(-0.1, 0.0, 0.0)
glutSolidSphere(0.05,10,10)
glPopMatrix()
// Draw Nose
glColor3f(red, green, blue)
glRotatef(0.0,1.0, 0.0, 0.0)
glutSolidCone(0.08,0.5,10,2)
glColor3f(1.0, 1.0, 1.0)
func renderBitmapString x,y,z,font,string
glRasterPos3f(x, y,z)
for c in string
glutBitmapCharacter(font,ascii(c))
next
func renderStrokeFontString x,y,z,font,string
glPushMatrix()
glTranslatef(x, y,z)
glScalef(0.002, 0.002, 0.002)
for c in string
glutStrokeCharacter(font, Ascii(c));
next
glPopMatrix()
func restorePerspectiveProjection
glMatrixMode(GL_PROJECTION)
// restore previous projection matrix
glPopMatrix()
// get back to modelview mode
glMatrixMode(GL_MODELVIEW)
func setOrthographicProjection
// switch to projection mode
glMatrixMode(GL_PROJECTION)
// save previous matrix which contains the
//settings for the perspective projection
glPushMatrix()
// reset matrix
glLoadIdentity()
// set a 2D orthographic projection
gluOrtho2D(0, w, h, 0)
// switch back to modelview mode
glMatrixMode(GL_MODELVIEW)
func computePos deltaMove
4.10. RingFreeGLUT Extension 40

7. Ring Documentation, Release 1.5.1

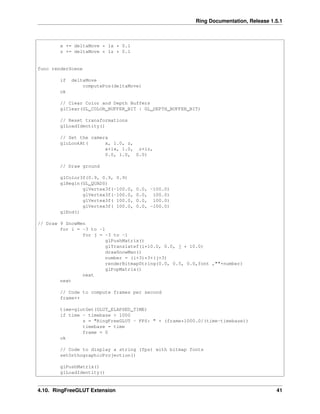

x += deltaMove * lx * 0.1
z += deltaMove * lz * 0.1
func renderScene
if deltaMove
computePos(deltaMove)
ok
// Clear Color and Depth Buffers
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
// Reset transformations
glLoadIdentity()
// Set the camera
gluLookAt( x, 1.0, z,
x+lx, 1.0, z+lz,
0.0, 1.0, 0.0)
// Draw ground
glColor3f(0.9, 0.9, 0.9)
glBegin(GL_QUADS)
glVertex3f(-100.0, 0.0, -100.0)
glVertex3f(-100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, -100.0)
glEnd()
// Draw 9 SnowMen
for i = -3 to -1
for j = -3 to -1
glPushMatrix()
glTranslatef(i*10.0, 0.0, j * 10.0)
drawSnowMan()
number = (i+3)*3+(j+3)
renderBitmapString(0.0, 0.5, 0.0,font ,""+number)
glPopMatrix()
next
next
// Code to compute frames per second
frame++
time=glutGet(GLUT_ELAPSED_TIME)
if time - timebase > 1000
s = "RingFreeGLUT - FPS: " + (frame*1000.0/(time-timebase))
timebase = time
frame = 0
ok
// Code to display a string (fps) with bitmap fonts
setOrthographicProjection()
glPushMatrix()
glLoadIdentity()
4.10. RingFreeGLUT Extension 41

8. Ring Documentation, Release 1.5.1

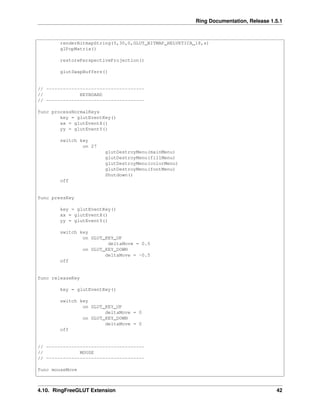

renderBitmapString(5,30,0,GLUT_BITMAP_HELVETICA_18,s)
glPopMatrix()
restorePerspectiveProjection()
glutSwapBuffers()
// -----------------------------------
// KEYBOARD
// -----------------------------------
func processNormalKeys
key = glutEventKey()
xx = glutEventX()
yy = glutEventY()
switch key
on 27
glutDestroyMenu(mainMenu)
glutDestroyMenu(fillMenu)
glutDestroyMenu(colorMenu)
glutDestroyMenu(fontMenu)
Shutdown()
off
func pressKey
key = glutEventKey()
xx = glutEventX()
yy = glutEventY()
switch key
on GLUT_KEY_UP
deltaMove = 0.5
on GLUT_KEY_DOWN
deltaMove = -0.5
off
func releaseKey
key = glutEventKey()
switch key
on GLUT_KEY_UP
deltaMove = 0
on GLUT_KEY_DOWN
deltaMove = 0
off
// -----------------------------------
// MOUSE
// -----------------------------------
func mouseMove
4.10. RingFreeGLUT Extension 42

9. Ring Documentation, Release 1.5.1

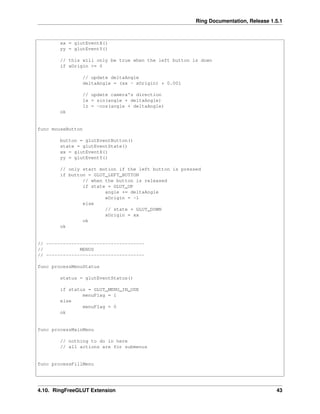

xx = glutEventX()
yy = glutEventY()
// this will only be true when the left button is down
if xOrigin >= 0
// update deltaAngle
deltaAngle = (xx - xOrigin) * 0.001
// update camera's direction
lx = sin(angle + deltaAngle)
lz = -cos(angle + deltaAngle)
ok
func mouseButton
button = glutEventButton()
state = glutEventState()
xx = glutEventX()
yy = glutEventY()
// only start motion if the left button is pressed
if button = GLUT_LEFT_BUTTON
// when the button is released
if state = GLUT_UP
angle += deltaAngle
xOrigin = -1
else
// state = GLUT_DOWN
xOrigin = xx
ok
ok
// -----------------------------------
// MENUS
// -----------------------------------
func processMenuStatus
status = glutEventStatus()
if status = GLUT_MENU_IN_USE
menuFlag = 1
else
menuFlag = 0
ok
func processMainMenu
// nothing to do in here
// all actions are for submenus
func processFillMenu
4.10. RingFreeGLUT Extension 43

10. Ring Documentation, Release 1.5.1

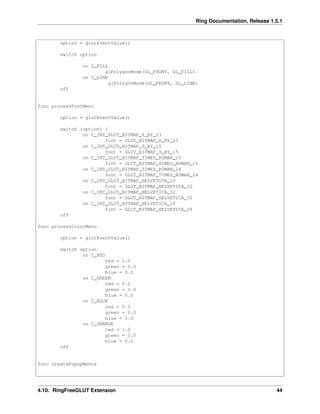

option = glutEventValue()
switch option
on C_FILL
glPolygonMode(GL_FRONT, GL_FILL)
on C_LINE
glPolygonMode(GL_FRONT, GL_LINE)
off
func processFontMenu
option = glutEventValue()
switch (option) {
on C_INT_GLUT_BITMAP_8_BY_13
font = GLUT_BITMAP_8_BY_13
on C_INT_GLUT_BITMAP_9_BY_15
font = GLUT_BITMAP_9_BY_15
on C_INT_GLUT_BITMAP_TIMES_ROMAN_10
font = GLUT_BITMAP_TIMES_ROMAN_10
on C_INT_GLUT_BITMAP_TIMES_ROMAN_24
font = GLUT_BITMAP_TIMES_ROMAN_24
on C_INT_GLUT_BITMAP_HELVETICA_10
font = GLUT_BITMAP_HELVETICA_10
on C_INT_GLUT_BITMAP_HELVETICA_12
font = GLUT_BITMAP_HELVETICA_12
on C_INT_GLUT_BITMAP_HELVETICA_18
font = GLUT_BITMAP_HELVETICA_18
off
func processColorMenu
option = glutEventValue()
switch option
on C_RED
red = 1.0
green = 0.0
blue = 0.0
on C_GREEN
red = 0.0
green = 1.0
blue = 0.0
on C_BLUE
red = 0.0
green = 0.0
blue = 1.0
on C_ORANGE
red = 1.0
green = 0.5
blue = 0.5
off
func createPopupMenus
4.10. RingFreeGLUT Extension 44
