This document provides an example of using the RingFreeGLUT extension in Ring to interface with the FreeGLUT library. It includes code to: 1. Initialize FreeGLUT and create an OpenGL window. 2. Define callbacks for rendering, window resizing, and keyboard/mouse input. 3. Render a 3D scene with 9 snowmen using OpenGL, including drawing spheres, cones, text with bitmap fonts, and handling camera movement. 4. Create popup menus for options like polygon rendering mode, font selection, and object colors. So in summary, it shows how to set up a basic 3D application with RingFreeGLUT to display a winter scene with snowmen

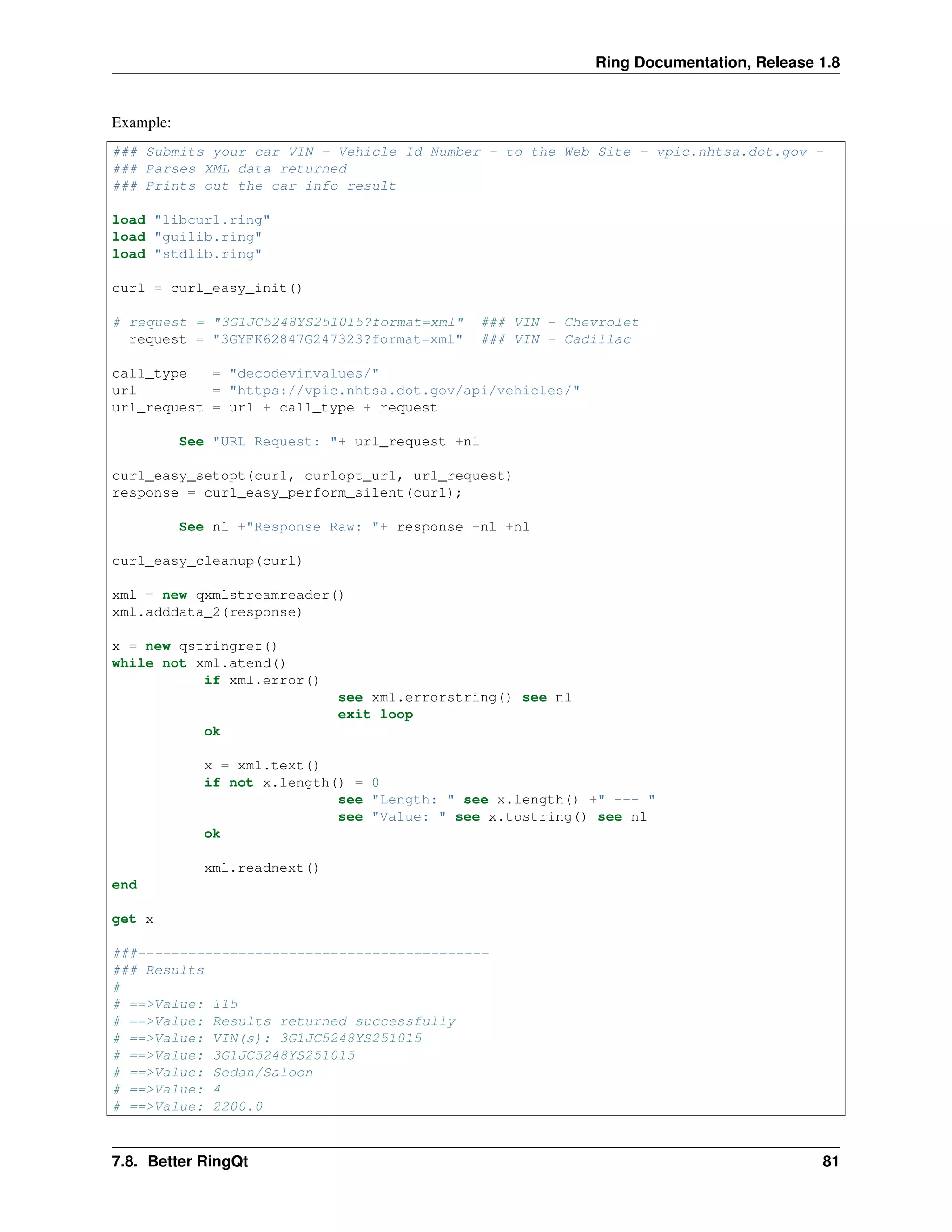

1. Ring Documentation, Release 1.8
Example:
### Submits your car VIN - Vehicle Id Number - to the Web Site - vpic.nhtsa.dot.gov -
### Parses XML data returned
### Prints out the car info result
load "libcurl.ring"
load "guilib.ring"
load "stdlib.ring"
curl = curl_easy_init()
# request = "3G1JC5248YS251015?format=xml" ### VIN - Chevrolet
request = "3GYFK62847G247323?format=xml" ### VIN - Cadillac
call_type = "decodevinvalues/"
url = "https://vpic.nhtsa.dot.gov/api/vehicles/"
url_request = url + call_type + request
See "URL Request: "+ url_request +nl
curl_easy_setopt(curl, curlopt_url, url_request)
response = curl_easy_perform_silent(curl);
See nl +"Response Raw: "+ response +nl +nl
curl_easy_cleanup(curl)
xml = new qxmlstreamreader()
xml.adddata_2(response)
x = new qstringref()
while not xml.atend()
if xml.error()
see xml.errorstring() see nl
exit loop
ok
x = xml.text()
if not x.length() = 0
see "Length: " see x.length() +" --- "
see "Value: " see x.tostring() see nl
ok
xml.readnext()
end
get x
###------------------------------------------
### Results
#
# ==>Value: 115
# ==>Value: Results returned successfully
# ==>Value: VIN(s): 3G1JC5248YS251015
# ==>Value: 3G1JC5248YS251015
# ==>Value: Sedan/Saloon
# ==>Value: 4
# ==>Value: 2200.0
7.8. Better RingQt 81

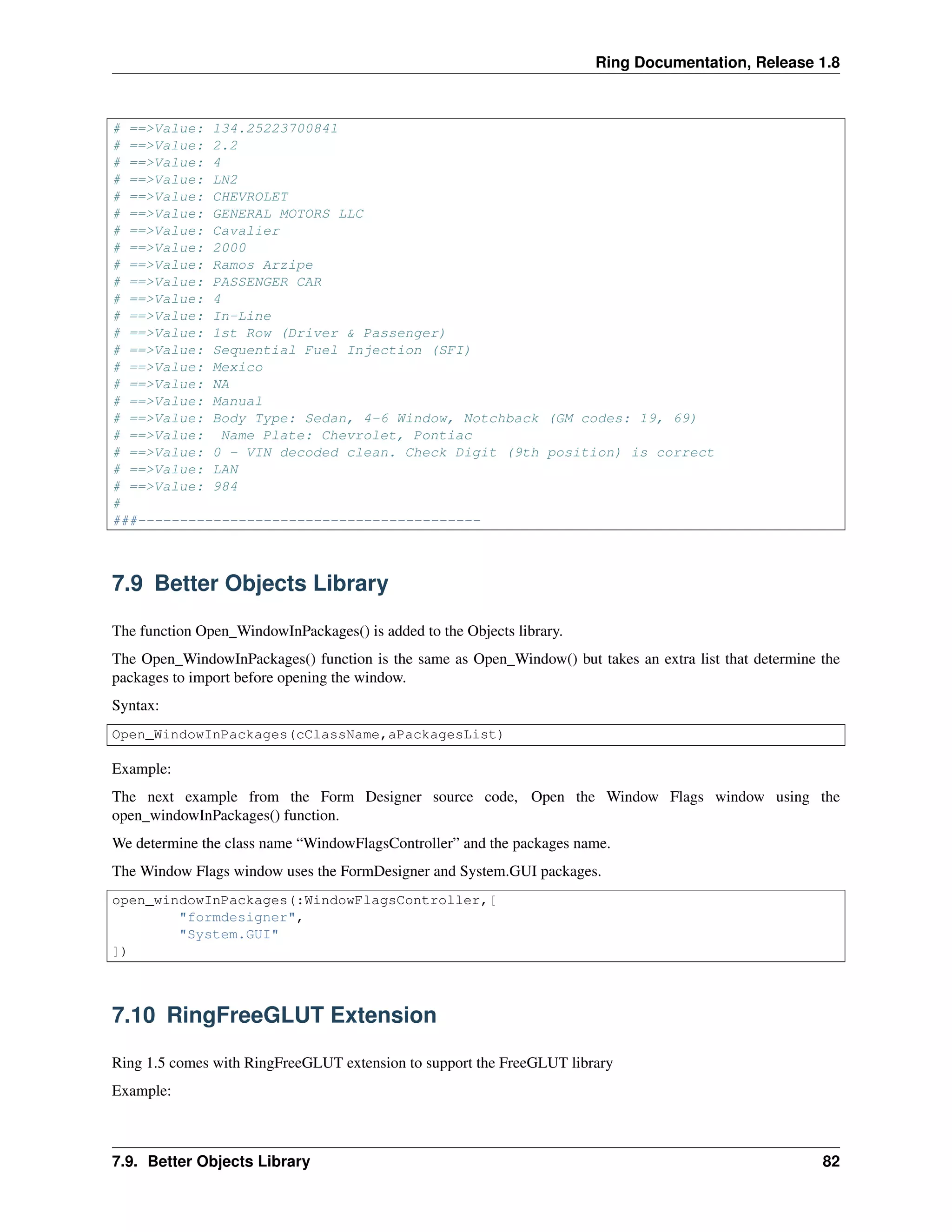

2. Ring Documentation, Release 1.8
# ==>Value: 134.25223700841
# ==>Value: 2.2
# ==>Value: 4
# ==>Value: LN2
# ==>Value: CHEVROLET
# ==>Value: GENERAL MOTORS LLC
# ==>Value: Cavalier
# ==>Value: 2000
# ==>Value: Ramos Arzipe
# ==>Value: PASSENGER CAR
# ==>Value: 4
# ==>Value: In-Line
# ==>Value: 1st Row (Driver & Passenger)
# ==>Value: Sequential Fuel Injection (SFI)
# ==>Value: Mexico
# ==>Value: NA
# ==>Value: Manual
# ==>Value: Body Type: Sedan, 4-6 Window, Notchback (GM codes: 19, 69)
# ==>Value: Name Plate: Chevrolet, Pontiac
# ==>Value: 0 - VIN decoded clean. Check Digit (9th position) is correct
# ==>Value: LAN
# ==>Value: 984
#
###-----------------------------------------
7.9 Better Objects Library
The function Open_WindowInPackages() is added to the Objects library.
The Open_WindowInPackages() function is the same as Open_Window() but takes an extra list that determine the
packages to import before opening the window.
Syntax:
Open_WindowInPackages(cClassName,aPackagesList)
Example:
The next example from the Form Designer source code, Open the Window Flags window using the
open_windowInPackages() function.
We determine the class name “WindowFlagsController” and the packages name.
The Window Flags window uses the FormDesigner and System.GUI packages.
open_windowInPackages(:WindowFlagsController,[
"formdesigner",
"System.GUI"
])
7.10 RingFreeGLUT Extension
Ring 1.5 comes with RingFreeGLUT extension to support the FreeGLUT library
Example:
7.9. Better Objects Library 82

3. Ring Documentation, Release 1.8
/*

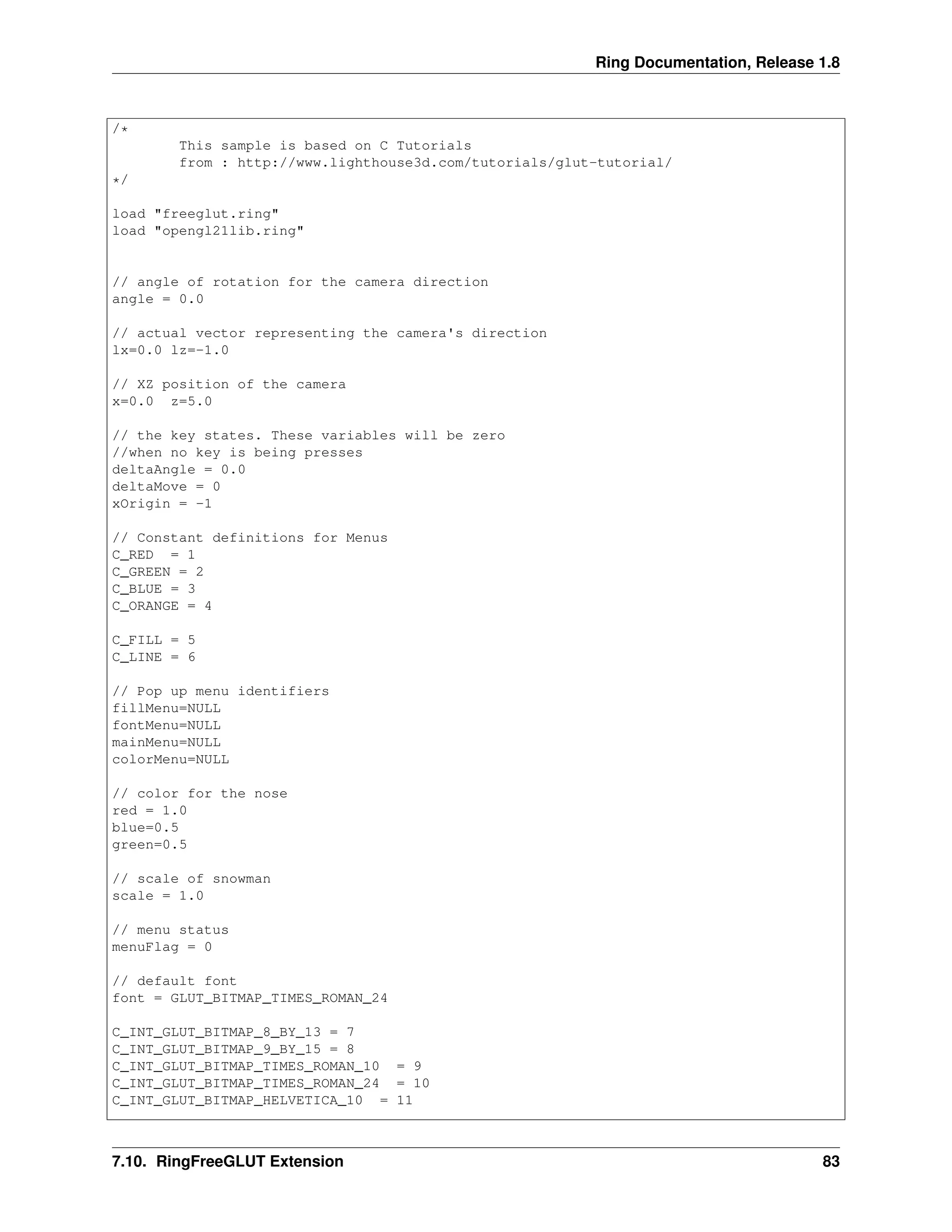

This sample is based on C Tutorials
from : http://www.lighthouse3d.com/tutorials/glut-tutorial/
*/
load "freeglut.ring"
load "opengl21lib.ring"
// angle of rotation for the camera direction
angle = 0.0
// actual vector representing the camera's direction
lx=0.0 lz=-1.0
// XZ position of the camera
x=0.0 z=5.0
// the key states. These variables will be zero
//when no key is being presses
deltaAngle = 0.0
deltaMove = 0
xOrigin = -1
// Constant definitions for Menus
C_RED = 1
C_GREEN = 2
C_BLUE = 3
C_ORANGE = 4
C_FILL = 5
C_LINE = 6
// Pop up menu identifiers
fillMenu=NULL
fontMenu=NULL
mainMenu=NULL
colorMenu=NULL
// color for the nose
red = 1.0
blue=0.5
green=0.5
// scale of snowman
scale = 1.0
// menu status
menuFlag = 0
// default font
font = GLUT_BITMAP_TIMES_ROMAN_24
C_INT_GLUT_BITMAP_8_BY_13 = 7
C_INT_GLUT_BITMAP_9_BY_15 = 8
C_INT_GLUT_BITMAP_TIMES_ROMAN_10 = 9
C_INT_GLUT_BITMAP_TIMES_ROMAN_24 = 10
C_INT_GLUT_BITMAP_HELVETICA_10 = 11
7.10. RingFreeGLUT Extension 83

4. Ring Documentation, Release 1.8

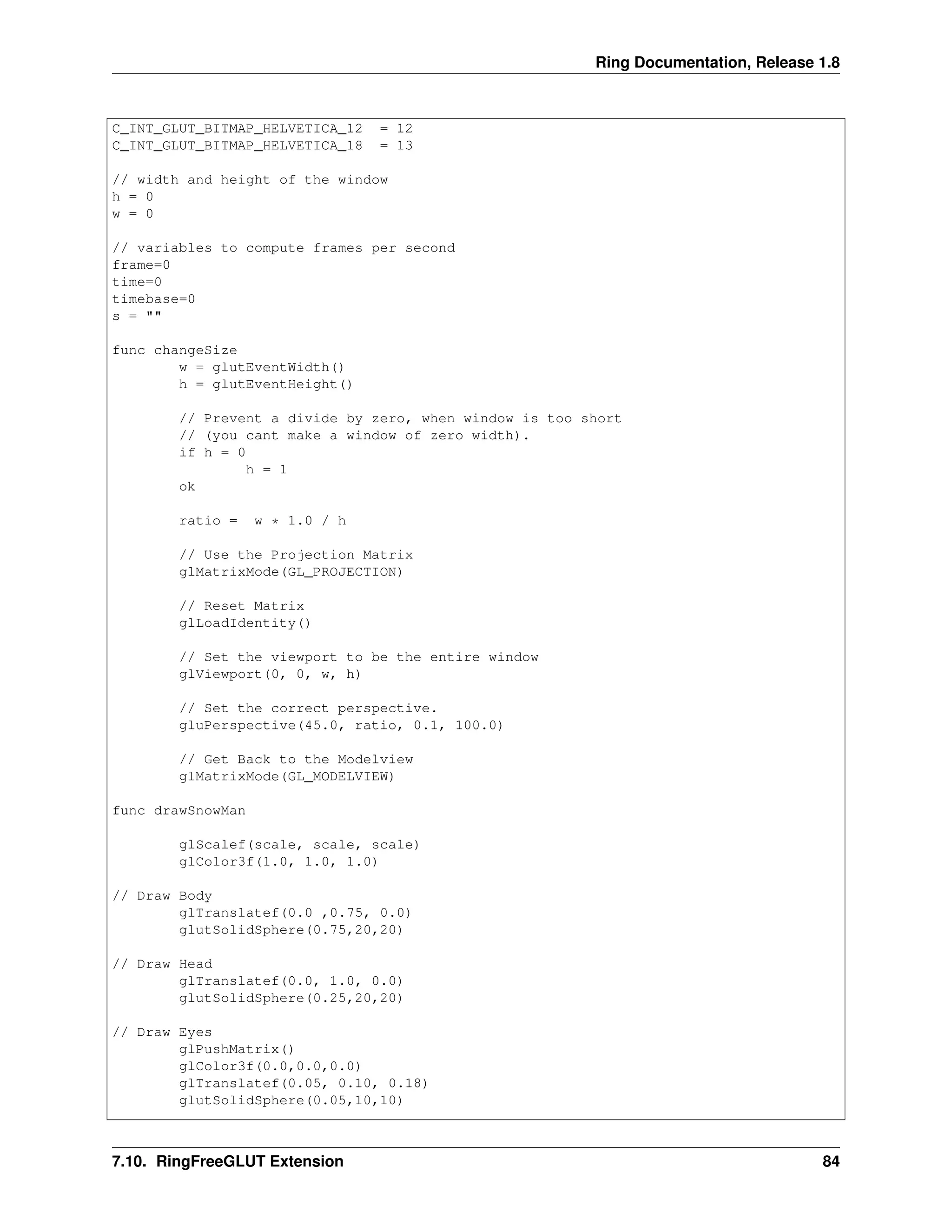

C_INT_GLUT_BITMAP_HELVETICA_12 = 12
C_INT_GLUT_BITMAP_HELVETICA_18 = 13
// width and height of the window
h = 0
w = 0
// variables to compute frames per second
frame=0
time=0
timebase=0
s = ""
func changeSize
w = glutEventWidth()
h = glutEventHeight()
// Prevent a divide by zero, when window is too short
// (you cant make a window of zero width).
if h = 0
h = 1
ok
ratio = w * 1.0 / h
// Use the Projection Matrix
glMatrixMode(GL_PROJECTION)
// Reset Matrix
glLoadIdentity()
// Set the viewport to be the entire window
glViewport(0, 0, w, h)
// Set the correct perspective.
gluPerspective(45.0, ratio, 0.1, 100.0)
// Get Back to the Modelview
glMatrixMode(GL_MODELVIEW)
func drawSnowMan
glScalef(scale, scale, scale)
glColor3f(1.0, 1.0, 1.0)
// Draw Body
glTranslatef(0.0 ,0.75, 0.0)
glutSolidSphere(0.75,20,20)
// Draw Head
glTranslatef(0.0, 1.0, 0.0)
glutSolidSphere(0.25,20,20)
// Draw Eyes
glPushMatrix()
glColor3f(0.0,0.0,0.0)
glTranslatef(0.05, 0.10, 0.18)
glutSolidSphere(0.05,10,10)
7.10. RingFreeGLUT Extension 84

5. Ring Documentation, Release 1.8

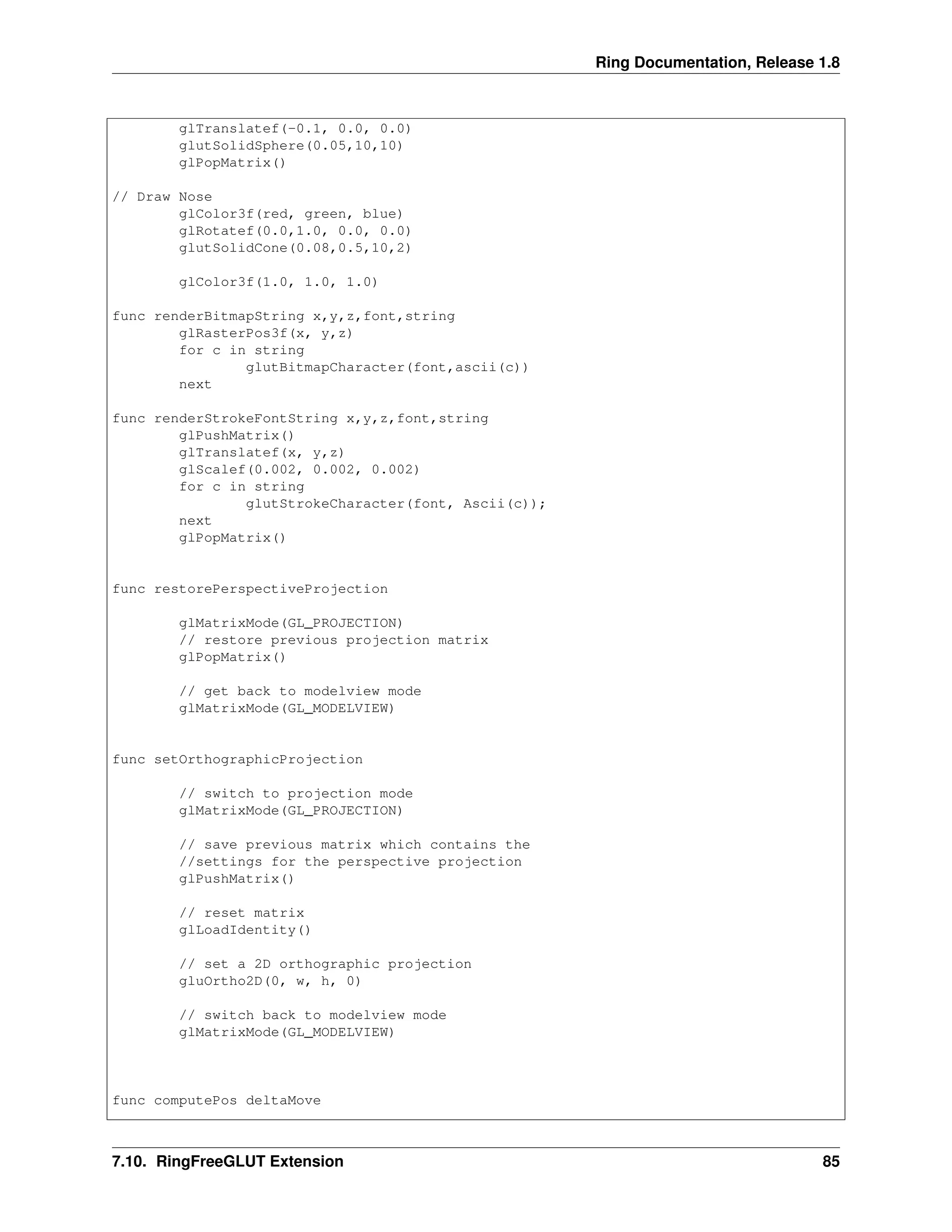

glTranslatef(-0.1, 0.0, 0.0)
glutSolidSphere(0.05,10,10)
glPopMatrix()
// Draw Nose
glColor3f(red, green, blue)
glRotatef(0.0,1.0, 0.0, 0.0)
glutSolidCone(0.08,0.5,10,2)
glColor3f(1.0, 1.0, 1.0)
func renderBitmapString x,y,z,font,string
glRasterPos3f(x, y,z)
for c in string
glutBitmapCharacter(font,ascii(c))
next
func renderStrokeFontString x,y,z,font,string
glPushMatrix()
glTranslatef(x, y,z)
glScalef(0.002, 0.002, 0.002)
for c in string
glutStrokeCharacter(font, Ascii(c));
next
glPopMatrix()
func restorePerspectiveProjection
glMatrixMode(GL_PROJECTION)
// restore previous projection matrix
glPopMatrix()
// get back to modelview mode
glMatrixMode(GL_MODELVIEW)
func setOrthographicProjection
// switch to projection mode
glMatrixMode(GL_PROJECTION)
// save previous matrix which contains the
//settings for the perspective projection
glPushMatrix()
// reset matrix
glLoadIdentity()
// set a 2D orthographic projection
gluOrtho2D(0, w, h, 0)
// switch back to modelview mode
glMatrixMode(GL_MODELVIEW)
func computePos deltaMove
7.10. RingFreeGLUT Extension 85

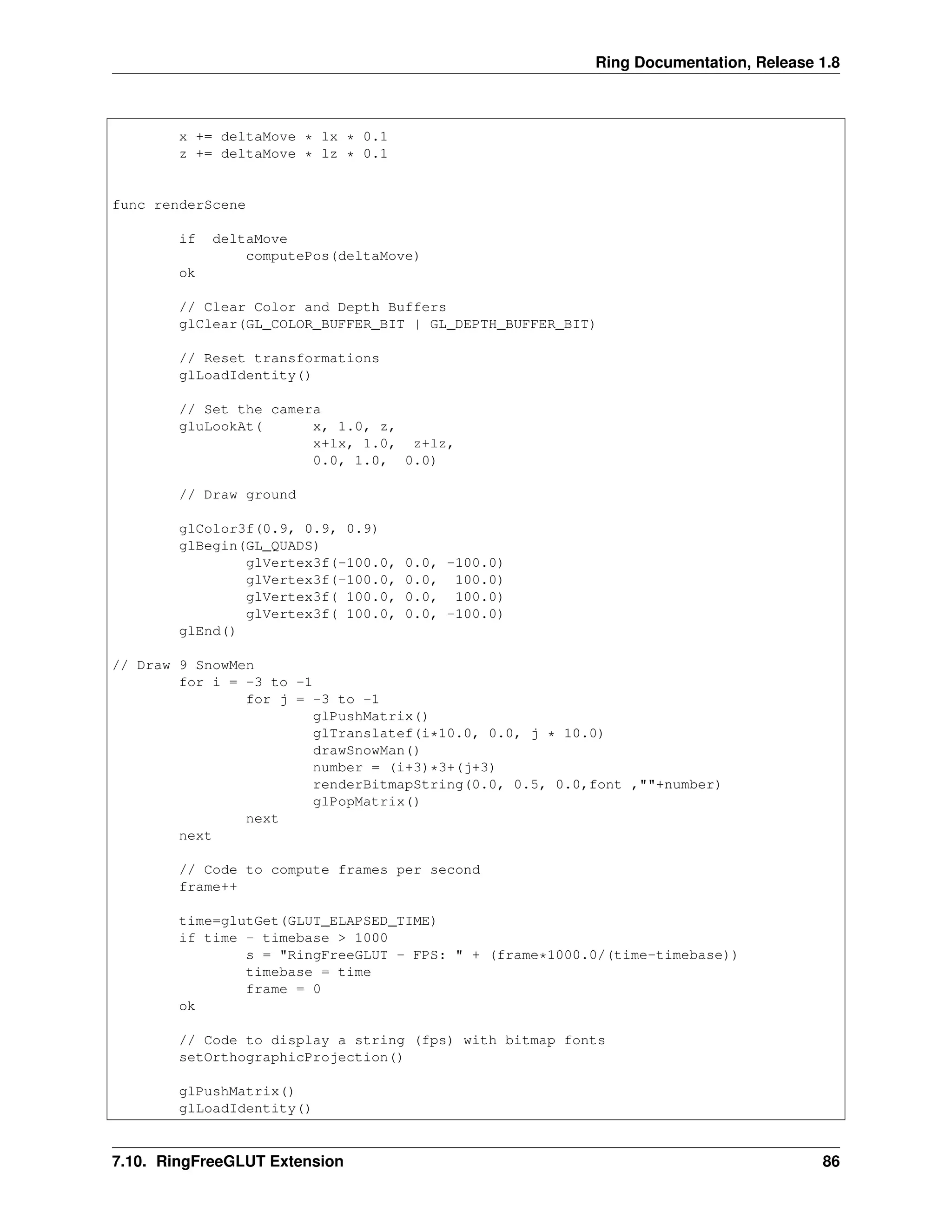

6. Ring Documentation, Release 1.8
x += deltaMove * lx * 0.1
z += deltaMove * lz * 0.1
func renderScene
if deltaMove
computePos(deltaMove)
ok
// Clear Color and Depth Buffers
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
// Reset transformations
glLoadIdentity()
// Set the camera
gluLookAt( x, 1.0, z,
x+lx, 1.0, z+lz,
0.0, 1.0, 0.0)
// Draw ground
glColor3f(0.9, 0.9, 0.9)
glBegin(GL_QUADS)
glVertex3f(-100.0, 0.0, -100.0)
glVertex3f(-100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, 100.0)
glVertex3f( 100.0, 0.0, -100.0)
glEnd()
// Draw 9 SnowMen
for i = -3 to -1
for j = -3 to -1
glPushMatrix()
glTranslatef(i*10.0, 0.0, j * 10.0)
drawSnowMan()
number = (i+3)*3+(j+3)
renderBitmapString(0.0, 0.5, 0.0,font ,""+number)
glPopMatrix()
next
next
// Code to compute frames per second
frame++
time=glutGet(GLUT_ELAPSED_TIME)
if time - timebase > 1000
s = "RingFreeGLUT - FPS: " + (frame*1000.0/(time-timebase))
timebase = time
frame = 0
ok
// Code to display a string (fps) with bitmap fonts
setOrthographicProjection()
glPushMatrix()
glLoadIdentity()
7.10. RingFreeGLUT Extension 86

7. Ring Documentation, Release 1.8

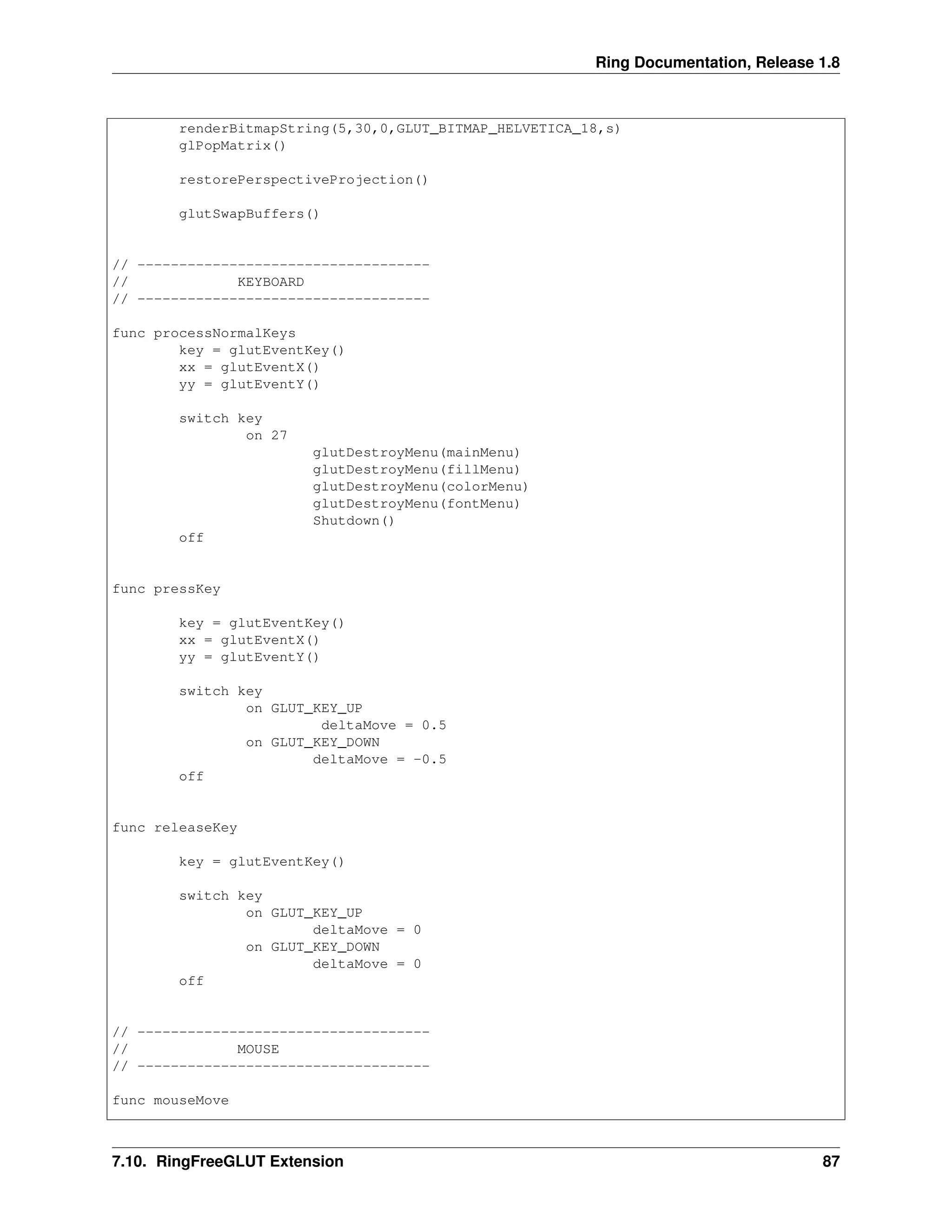

renderBitmapString(5,30,0,GLUT_BITMAP_HELVETICA_18,s)
glPopMatrix()
restorePerspectiveProjection()
glutSwapBuffers()
// -----------------------------------
// KEYBOARD
// -----------------------------------
func processNormalKeys
key = glutEventKey()
xx = glutEventX()
yy = glutEventY()
switch key
on 27
glutDestroyMenu(mainMenu)
glutDestroyMenu(fillMenu)
glutDestroyMenu(colorMenu)
glutDestroyMenu(fontMenu)
Shutdown()
off
func pressKey
key = glutEventKey()
xx = glutEventX()
yy = glutEventY()
switch key
on GLUT_KEY_UP
deltaMove = 0.5
on GLUT_KEY_DOWN
deltaMove = -0.5
off
func releaseKey
key = glutEventKey()
switch key
on GLUT_KEY_UP
deltaMove = 0
on GLUT_KEY_DOWN
deltaMove = 0
off
// -----------------------------------
// MOUSE
// -----------------------------------
func mouseMove
7.10. RingFreeGLUT Extension 87

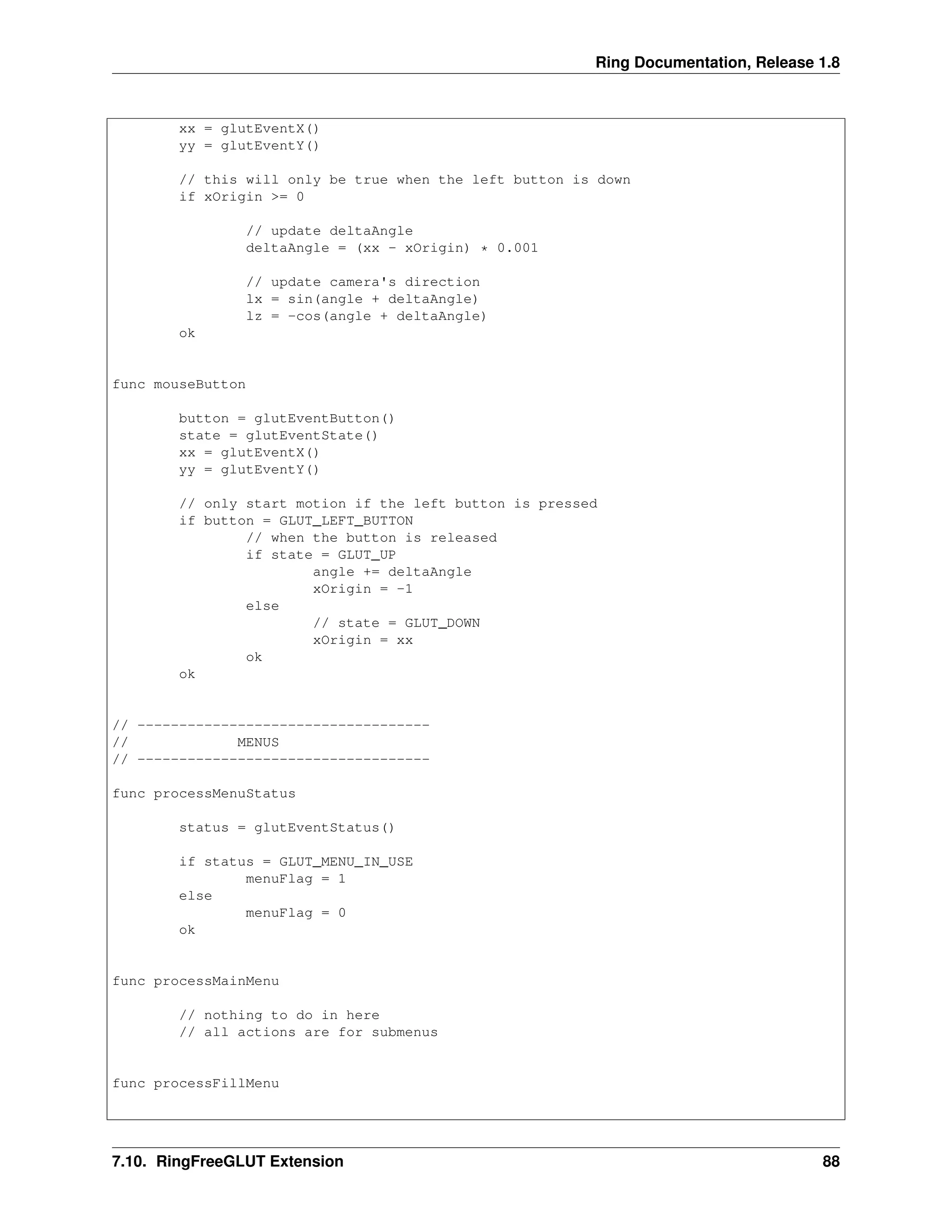

8. Ring Documentation, Release 1.8
xx = glutEventX()
yy = glutEventY()
// this will only be true when the left button is down
if xOrigin >= 0
// update deltaAngle
deltaAngle = (xx - xOrigin) * 0.001
// update camera's direction
lx = sin(angle + deltaAngle)
lz = -cos(angle + deltaAngle)
ok
func mouseButton
button = glutEventButton()
state = glutEventState()
xx = glutEventX()
yy = glutEventY()
// only start motion if the left button is pressed
if button = GLUT_LEFT_BUTTON
// when the button is released
if state = GLUT_UP
angle += deltaAngle
xOrigin = -1
else
// state = GLUT_DOWN
xOrigin = xx
ok
ok
// -----------------------------------
// MENUS
// -----------------------------------
func processMenuStatus
status = glutEventStatus()
if status = GLUT_MENU_IN_USE
menuFlag = 1
else
menuFlag = 0
ok
func processMainMenu
// nothing to do in here
// all actions are for submenus
func processFillMenu
7.10. RingFreeGLUT Extension 88

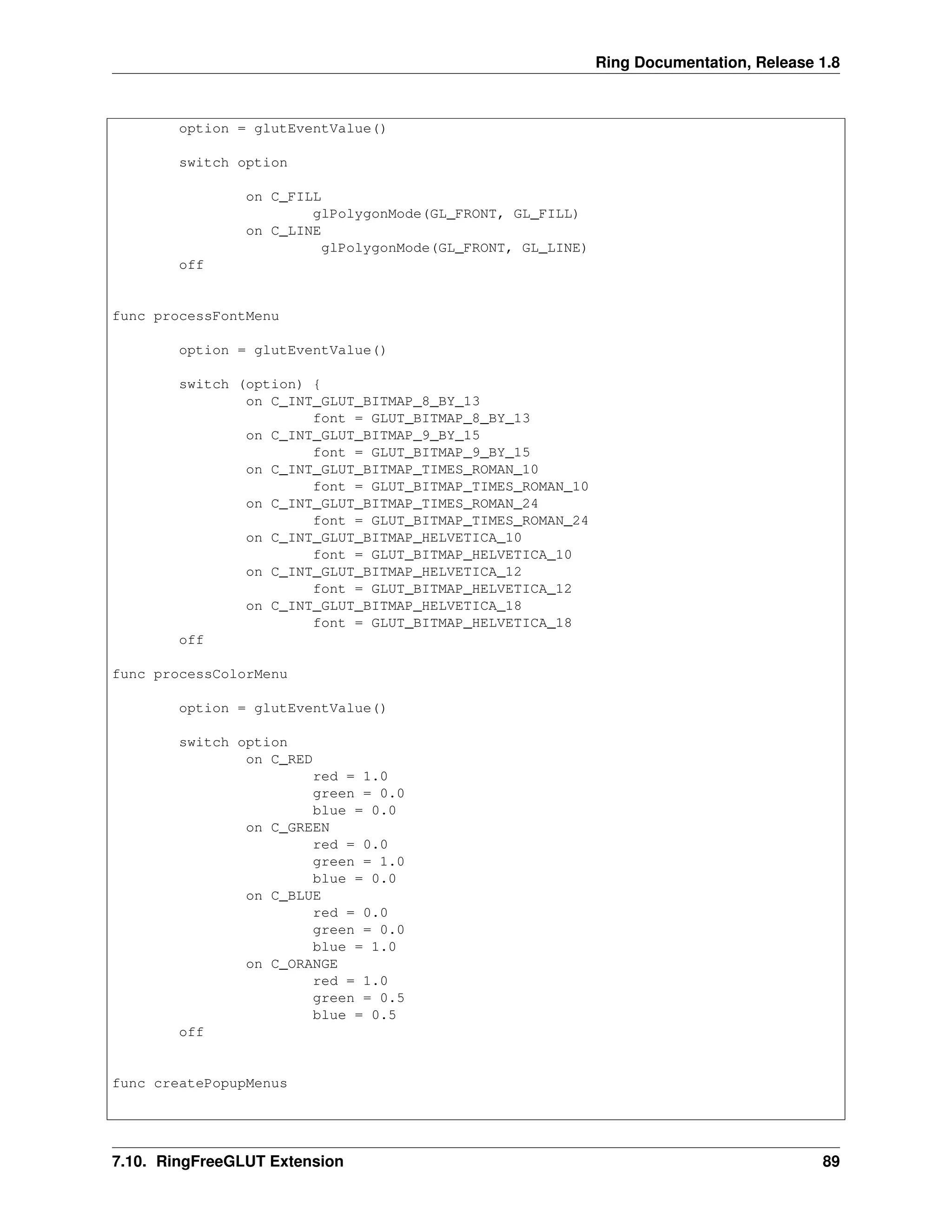

9. Ring Documentation, Release 1.8
option = glutEventValue()
switch option
on C_FILL
glPolygonMode(GL_FRONT, GL_FILL)
on C_LINE
glPolygonMode(GL_FRONT, GL_LINE)
off
func processFontMenu
option = glutEventValue()
switch (option) {
on C_INT_GLUT_BITMAP_8_BY_13
font = GLUT_BITMAP_8_BY_13
on C_INT_GLUT_BITMAP_9_BY_15
font = GLUT_BITMAP_9_BY_15
on C_INT_GLUT_BITMAP_TIMES_ROMAN_10
font = GLUT_BITMAP_TIMES_ROMAN_10
on C_INT_GLUT_BITMAP_TIMES_ROMAN_24
font = GLUT_BITMAP_TIMES_ROMAN_24
on C_INT_GLUT_BITMAP_HELVETICA_10
font = GLUT_BITMAP_HELVETICA_10
on C_INT_GLUT_BITMAP_HELVETICA_12
font = GLUT_BITMAP_HELVETICA_12
on C_INT_GLUT_BITMAP_HELVETICA_18
font = GLUT_BITMAP_HELVETICA_18
off
func processColorMenu
option = glutEventValue()
switch option
on C_RED
red = 1.0
green = 0.0
blue = 0.0
on C_GREEN
red = 0.0
green = 1.0
blue = 0.0
on C_BLUE
red = 0.0
green = 0.0
blue = 1.0
on C_ORANGE
red = 1.0
green = 0.5
blue = 0.5
off
func createPopupMenus
7.10. RingFreeGLUT Extension 89

10. Ring Documentation, Release 1.8

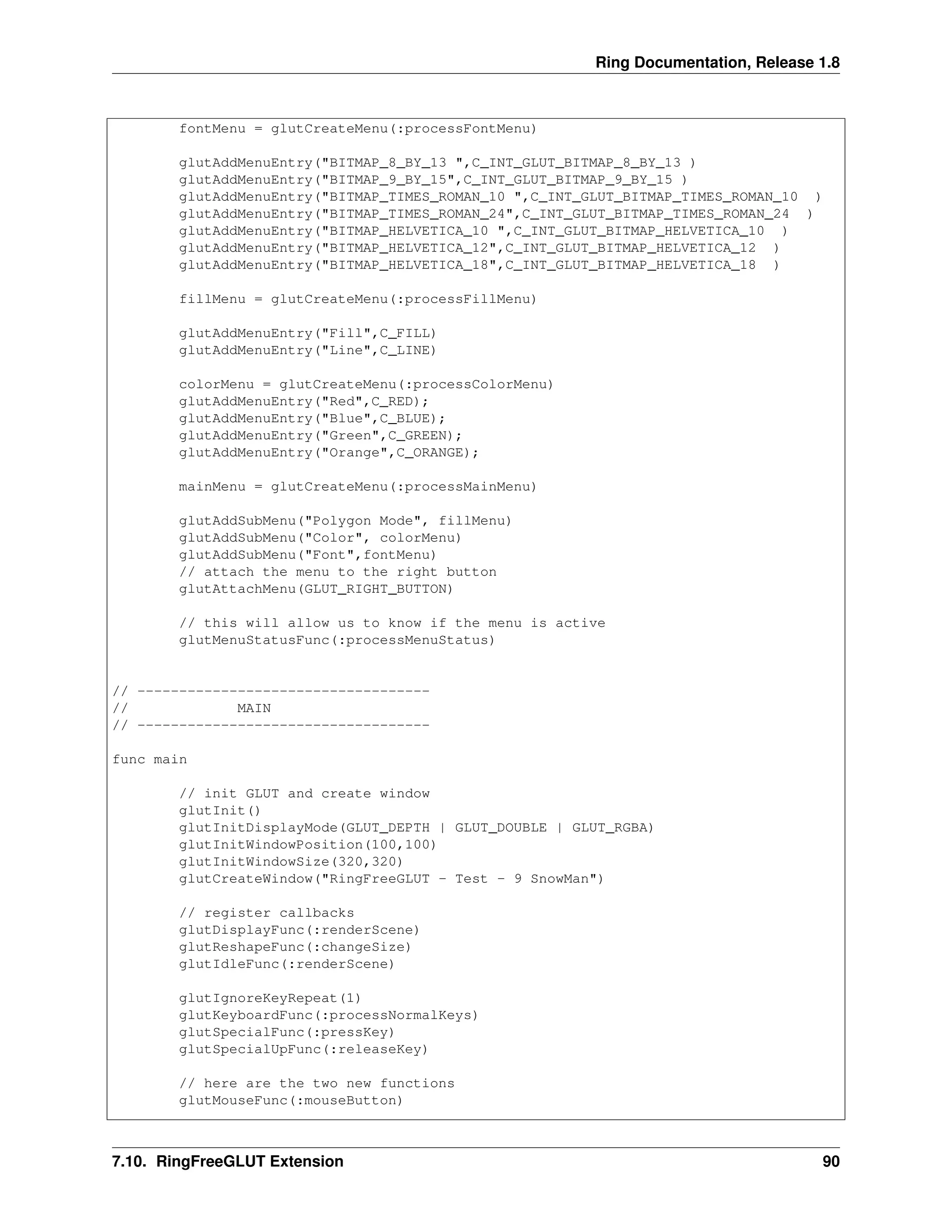

fontMenu = glutCreateMenu(:processFontMenu)
glutAddMenuEntry("BITMAP_8_BY_13 ",C_INT_GLUT_BITMAP_8_BY_13 )
glutAddMenuEntry("BITMAP_9_BY_15",C_INT_GLUT_BITMAP_9_BY_15 )
glutAddMenuEntry("BITMAP_TIMES_ROMAN_10 ",C_INT_GLUT_BITMAP_TIMES_ROMAN_10 )
glutAddMenuEntry("BITMAP_TIMES_ROMAN_24",C_INT_GLUT_BITMAP_TIMES_ROMAN_24 )
glutAddMenuEntry("BITMAP_HELVETICA_10 ",C_INT_GLUT_BITMAP_HELVETICA_10 )
glutAddMenuEntry("BITMAP_HELVETICA_12",C_INT_GLUT_BITMAP_HELVETICA_12 )
glutAddMenuEntry("BITMAP_HELVETICA_18",C_INT_GLUT_BITMAP_HELVETICA_18 )
fillMenu = glutCreateMenu(:processFillMenu)
glutAddMenuEntry("Fill",C_FILL)
glutAddMenuEntry("Line",C_LINE)
colorMenu = glutCreateMenu(:processColorMenu)
glutAddMenuEntry("Red",C_RED);
glutAddMenuEntry("Blue",C_BLUE);
glutAddMenuEntry("Green",C_GREEN);
glutAddMenuEntry("Orange",C_ORANGE);
mainMenu = glutCreateMenu(:processMainMenu)
glutAddSubMenu("Polygon Mode", fillMenu)
glutAddSubMenu("Color", colorMenu)
glutAddSubMenu("Font",fontMenu)
// attach the menu to the right button
glutAttachMenu(GLUT_RIGHT_BUTTON)
// this will allow us to know if the menu is active
glutMenuStatusFunc(:processMenuStatus)
// -----------------------------------
// MAIN
// -----------------------------------
func main
// init GLUT and create window
glutInit()
glutInitDisplayMode(GLUT_DEPTH | GLUT_DOUBLE | GLUT_RGBA)
glutInitWindowPosition(100,100)
glutInitWindowSize(320,320)
glutCreateWindow("RingFreeGLUT - Test - 9 SnowMan")
// register callbacks
glutDisplayFunc(:renderScene)
glutReshapeFunc(:changeSize)
glutIdleFunc(:renderScene)
glutIgnoreKeyRepeat(1)
glutKeyboardFunc(:processNormalKeys)
glutSpecialFunc(:pressKey)
glutSpecialUpFunc(:releaseKey)
// here are the two new functions
glutMouseFunc(:mouseButton)
7.10. RingFreeGLUT Extension 90
