The document discusses the importance of observability in serverless architectures, differentiating it from monitoring and emphasizing the need to understand the health of individual user experiences rather than the overall system. It outlines the four pillars of observability engineering—monitoring, alerting/visualization, distributed systems tracing, and log aggregation—and highlights challenges faced in distributed systems, such as data loss and latency. The text provides insights into complexities of asynchronous invocations and the inadequacies of existing tools for effectively tracing user actions across microservices.

1. and FUTUREThe
Serverless
OBSERVABILITY
ofpresent

2. hi, my name is Yan.

3. hi, my name is Yan.

4. hi, my name is Yan.
AWS user since 2009

5. http://bit.ly/yubl-serverless

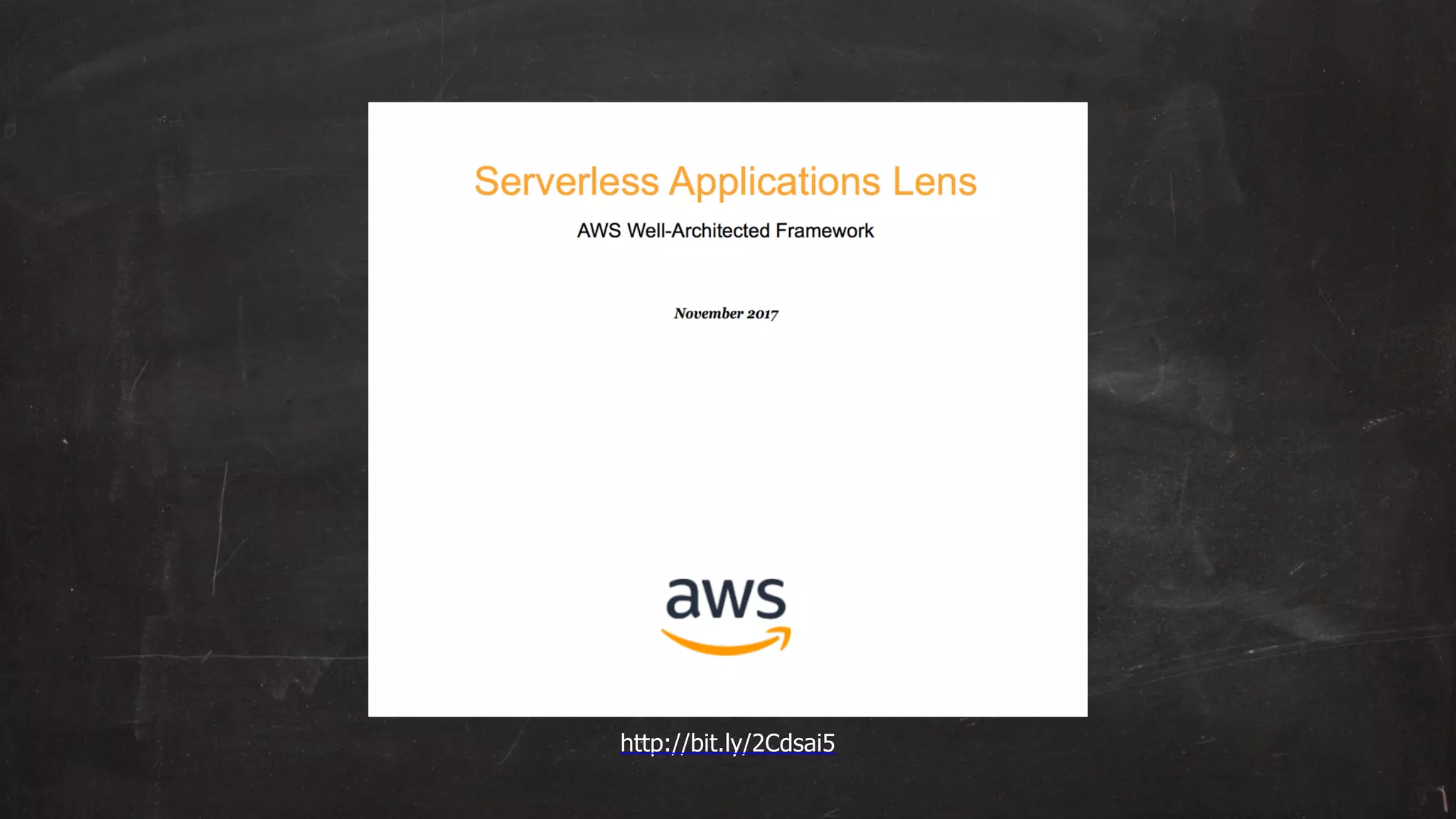

6. http://bit.ly/2Cdsai5

7. 2017
observability

8. http://bit.ly/2EXQZBj

9. http://bit.ly/2EXKEFZ

10. mm… I wonder what’s
going on here…

11. what is observability?
how is it different from monitoring?

12. Monitoring
watching out for
known failure modes
in the system,
e.g. network I/O, CPU,
memory usage, …

13. Observability
being able to debug
the system, and gain
insights into the
system’s behaviour

14. However, I would argue that the health of the system no
longer matters. We've entered an era where what matters is
the health of each individual event, or each individual user's
experience, or each shopping cart's experience (or other high
cardinality dimensions). With distributed systems you
don't care about the health of the system, you care about
the health of the event or the slice.
”http://bit.ly/2E2QngU- Charity Majors
“

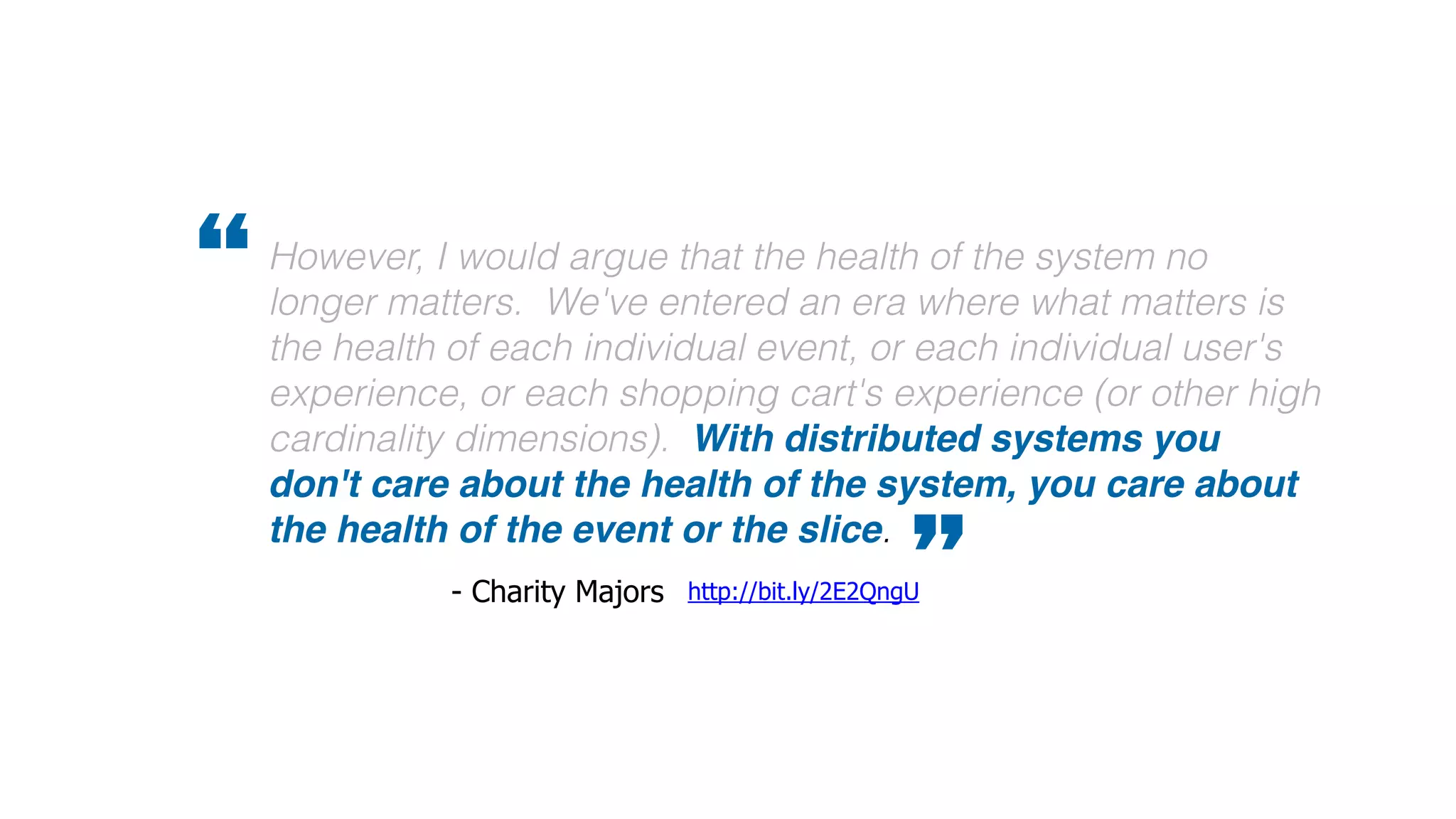

15. However, I would argue that the health of the system no
longer matters. We've entered an era where what matters is
the health of each individual event, or each individual user's
experience, or each shopping cart's experience (or other high
cardinality dimensions). With distributed systems you
don't care about the health of the system, you care about
the health of the event or the slice.
”http://bit.ly/2E2QngU- Charity Majors
“

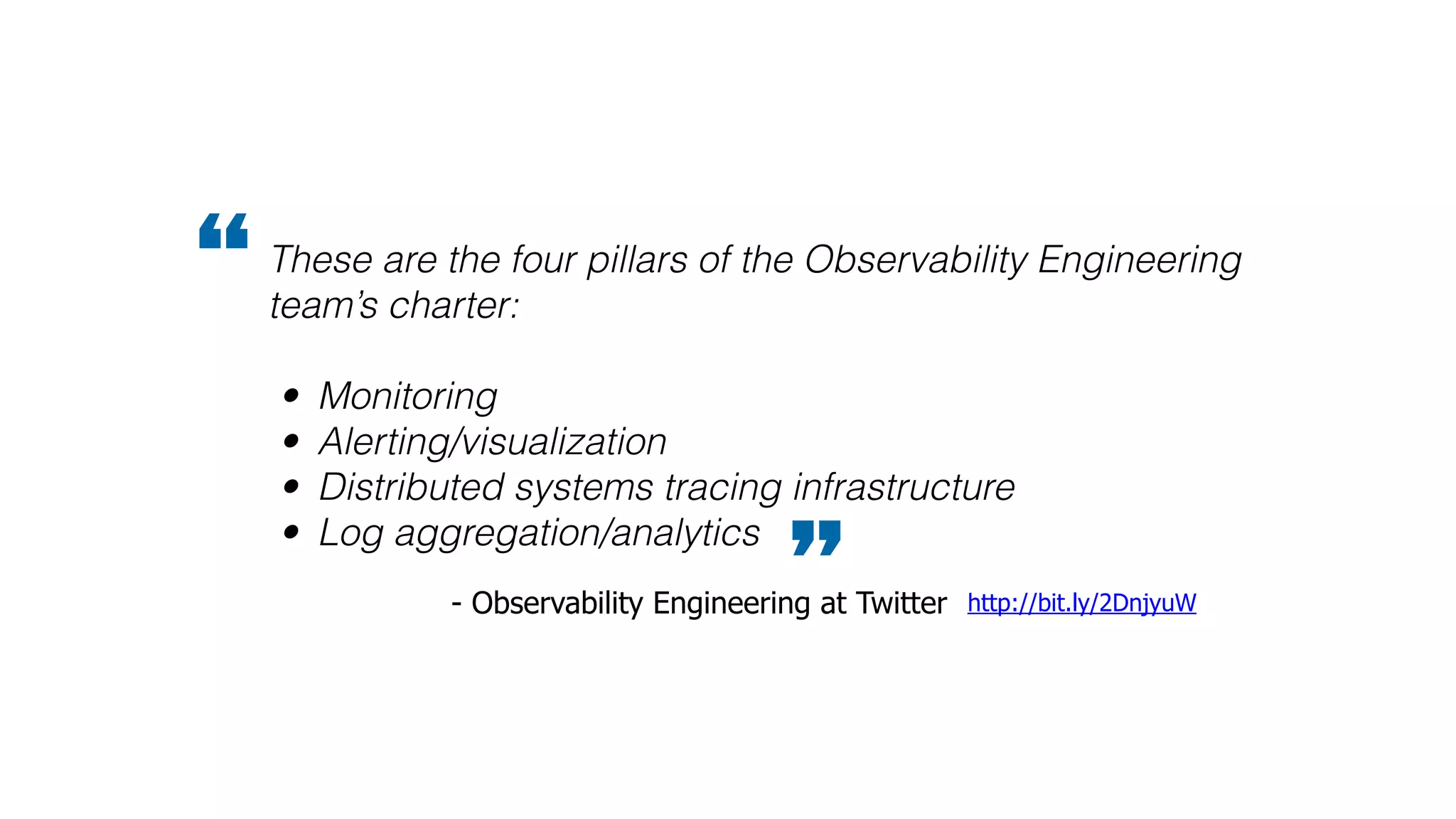

16. These are the four pillars of the Observability Engineering
team’s charter:
• Monitoring
• Alerting/visualization
• Distributed systems tracing infrastructure
• Log aggregation/analytics
“
” http://bit.ly/2DnjyuW- Observability Engineering at Twitter

17. Observability is useful even outside of incidents and outages

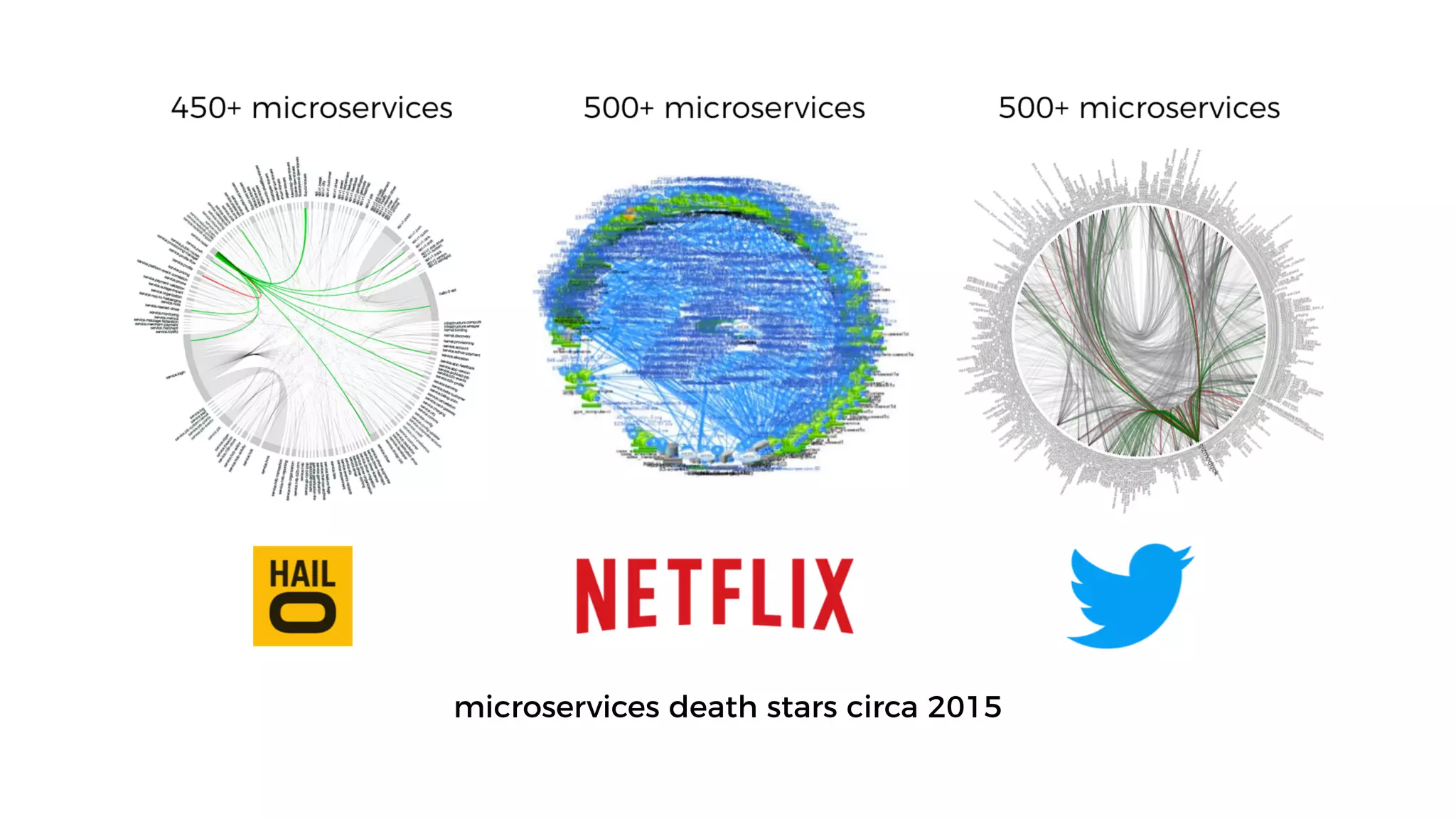

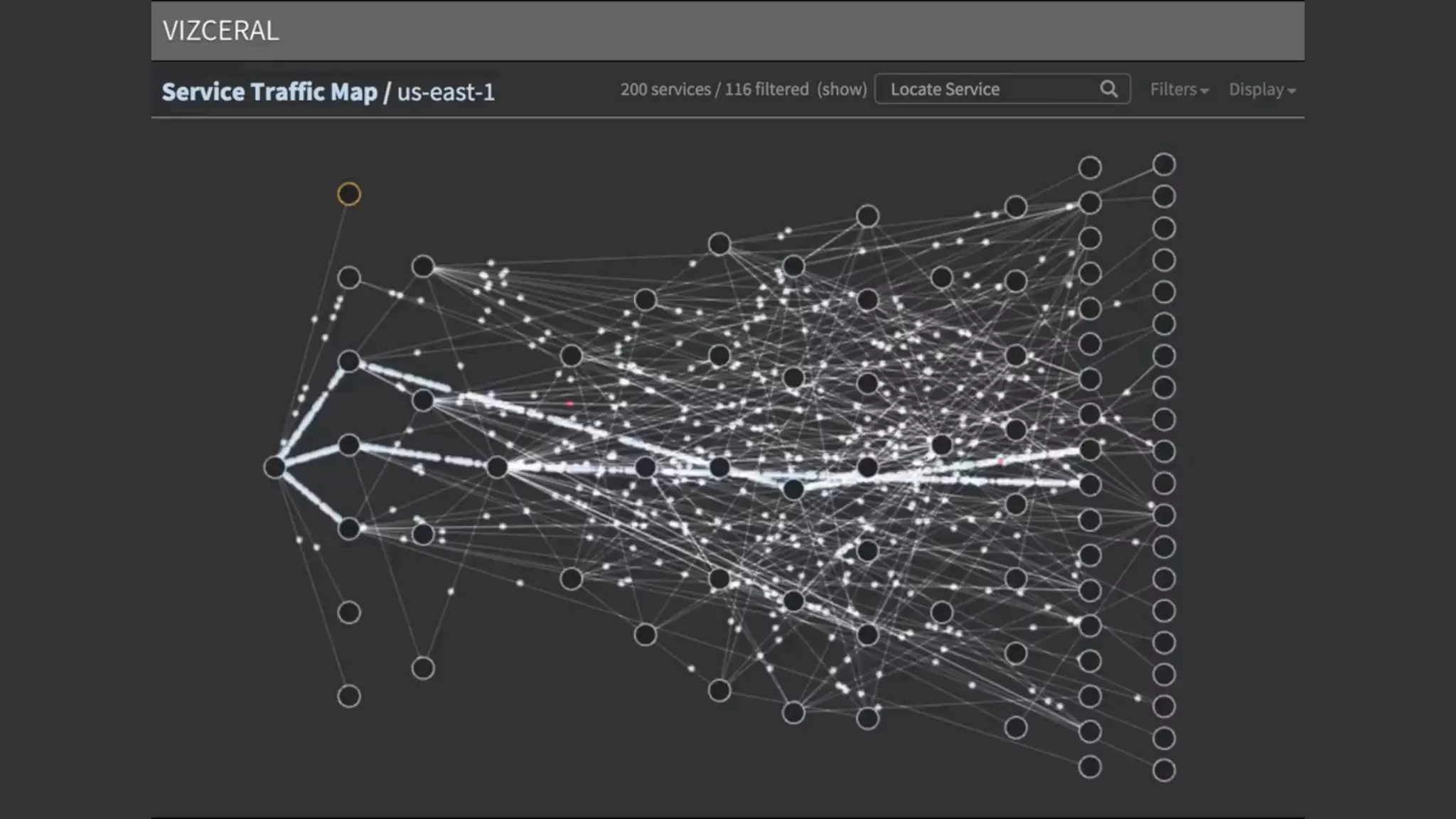

18. microservices death stars circa 2015

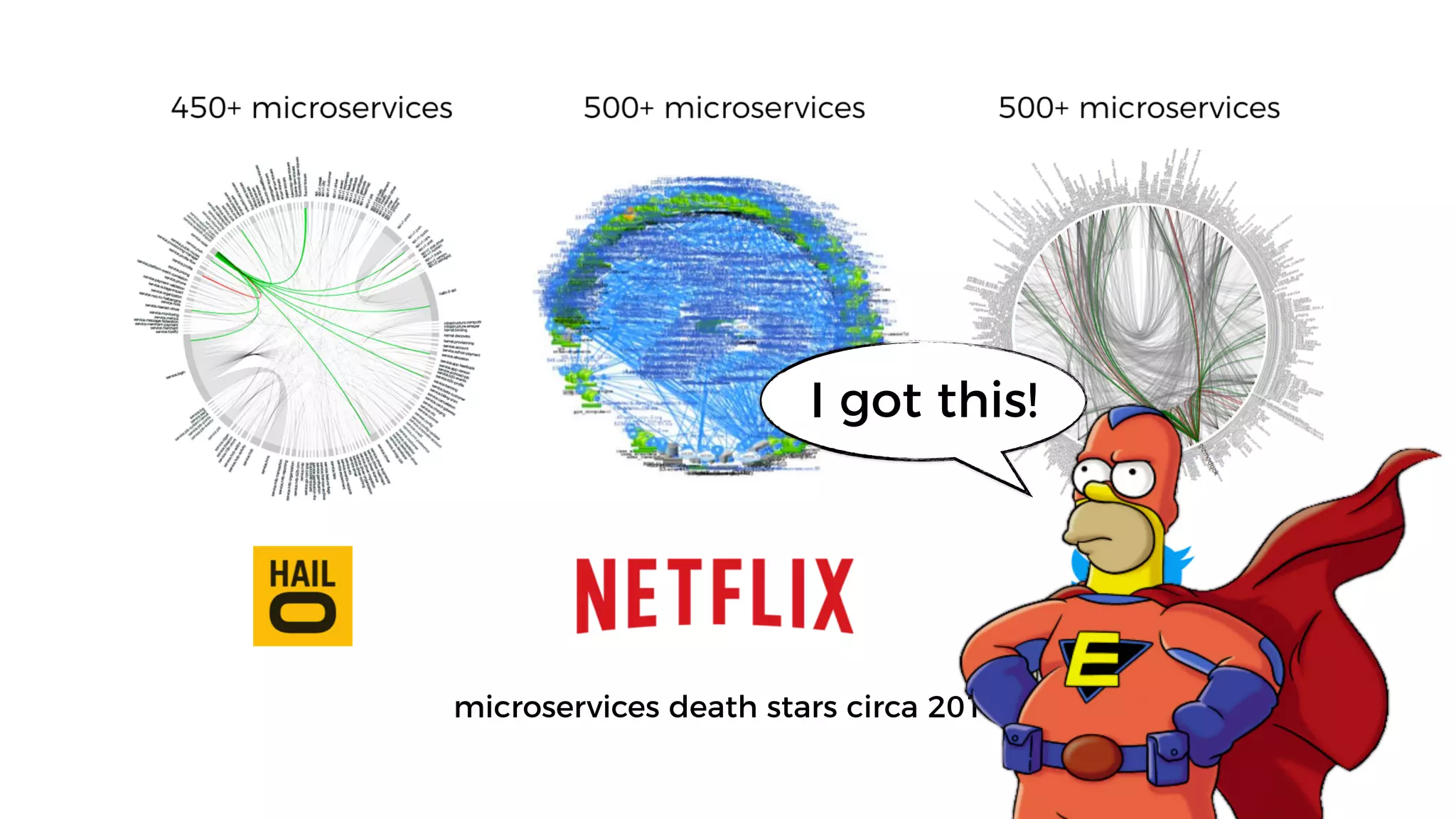

23. microservices death stars circa 2015
I got this!

25. new
challenges

26. new
challenges

27. NO ACCESS
to underlying OS

28. NOWHERE
to install agents/daemons

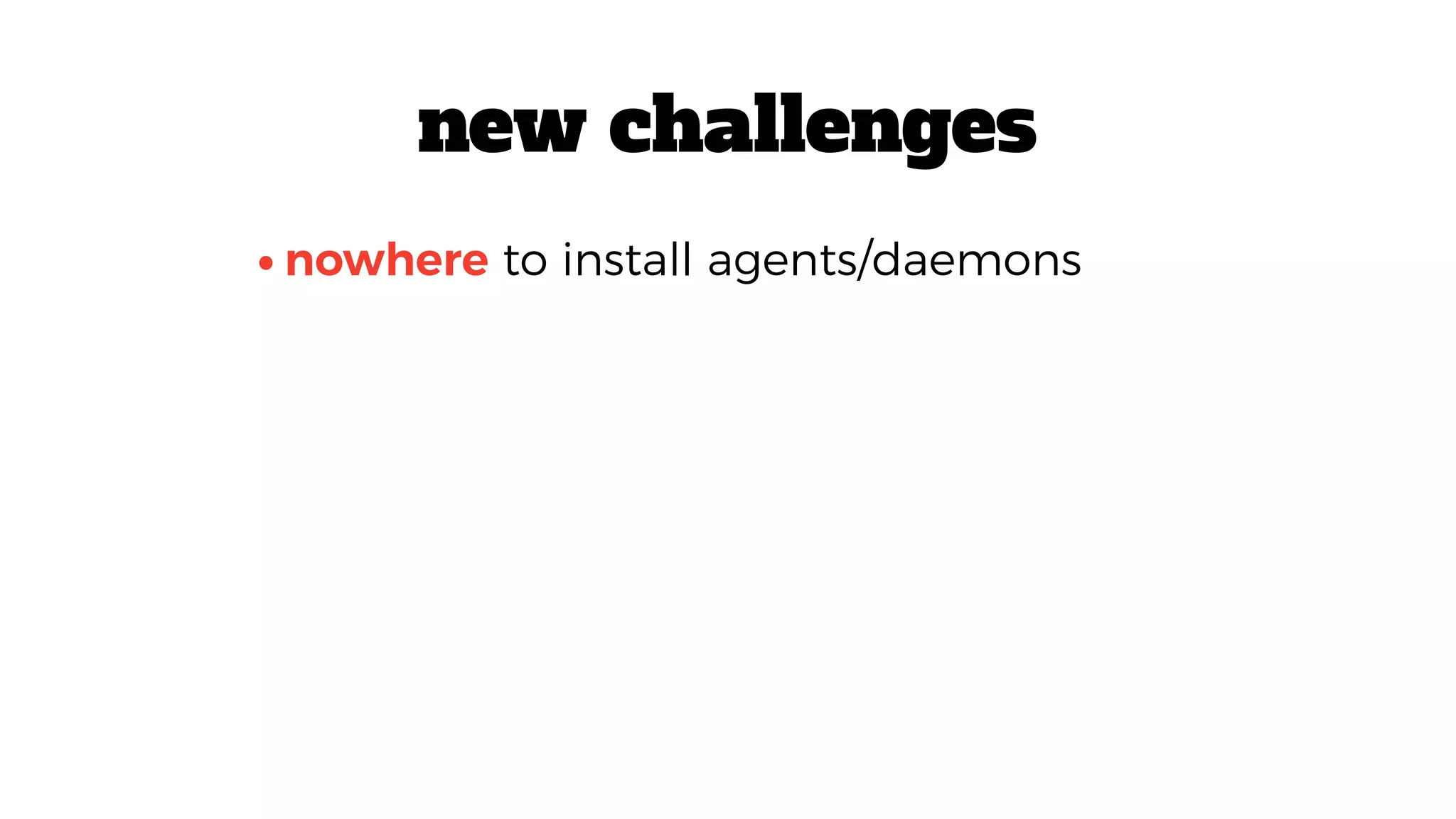

29. •nowhere to install agents/daemons
new challenges

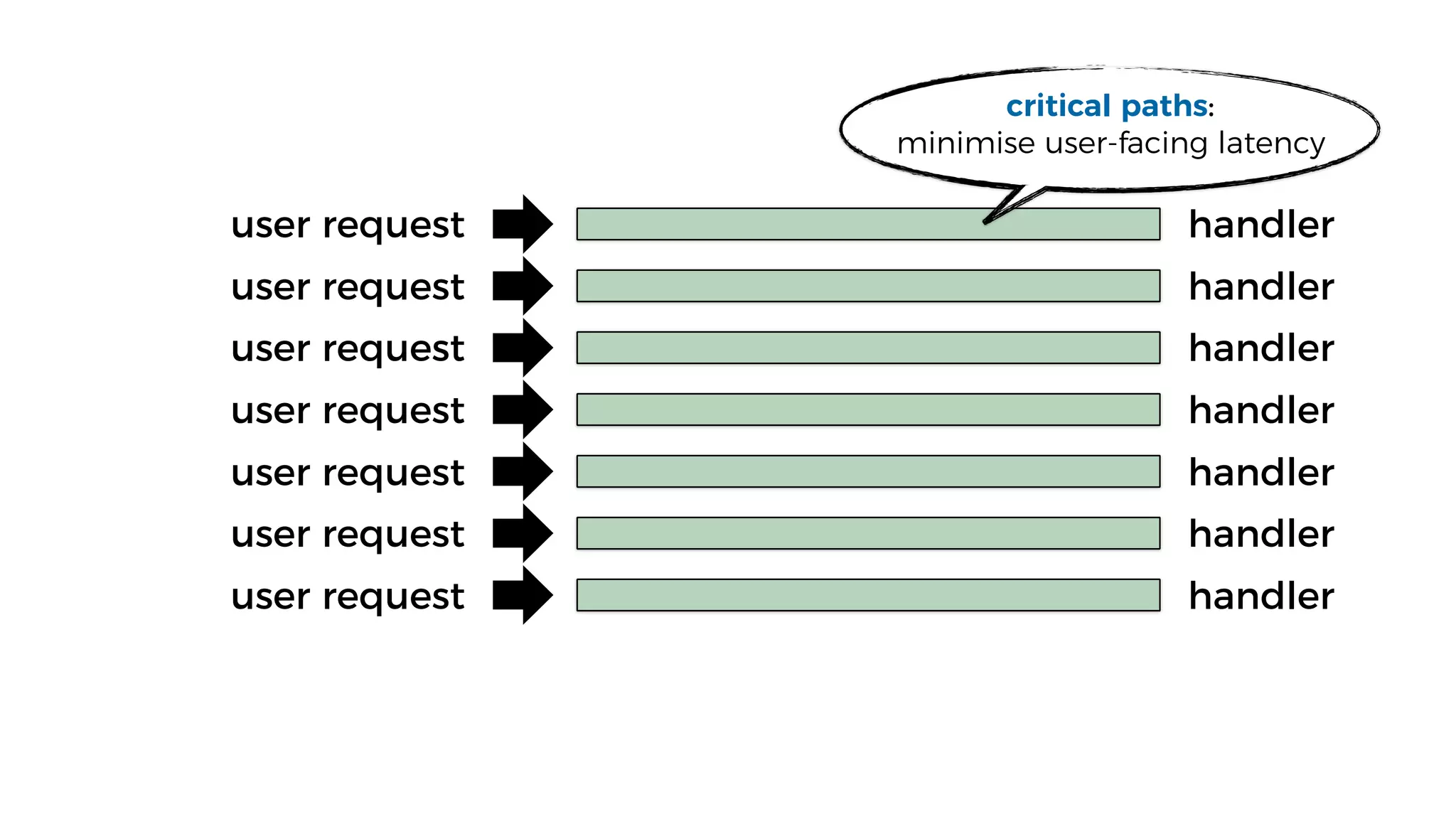

30. user request
user request
user request
user request
user request
user request
user request
critical paths:
minimise user-facing latency
handler
handler
handler
handler
handler
handler
handler

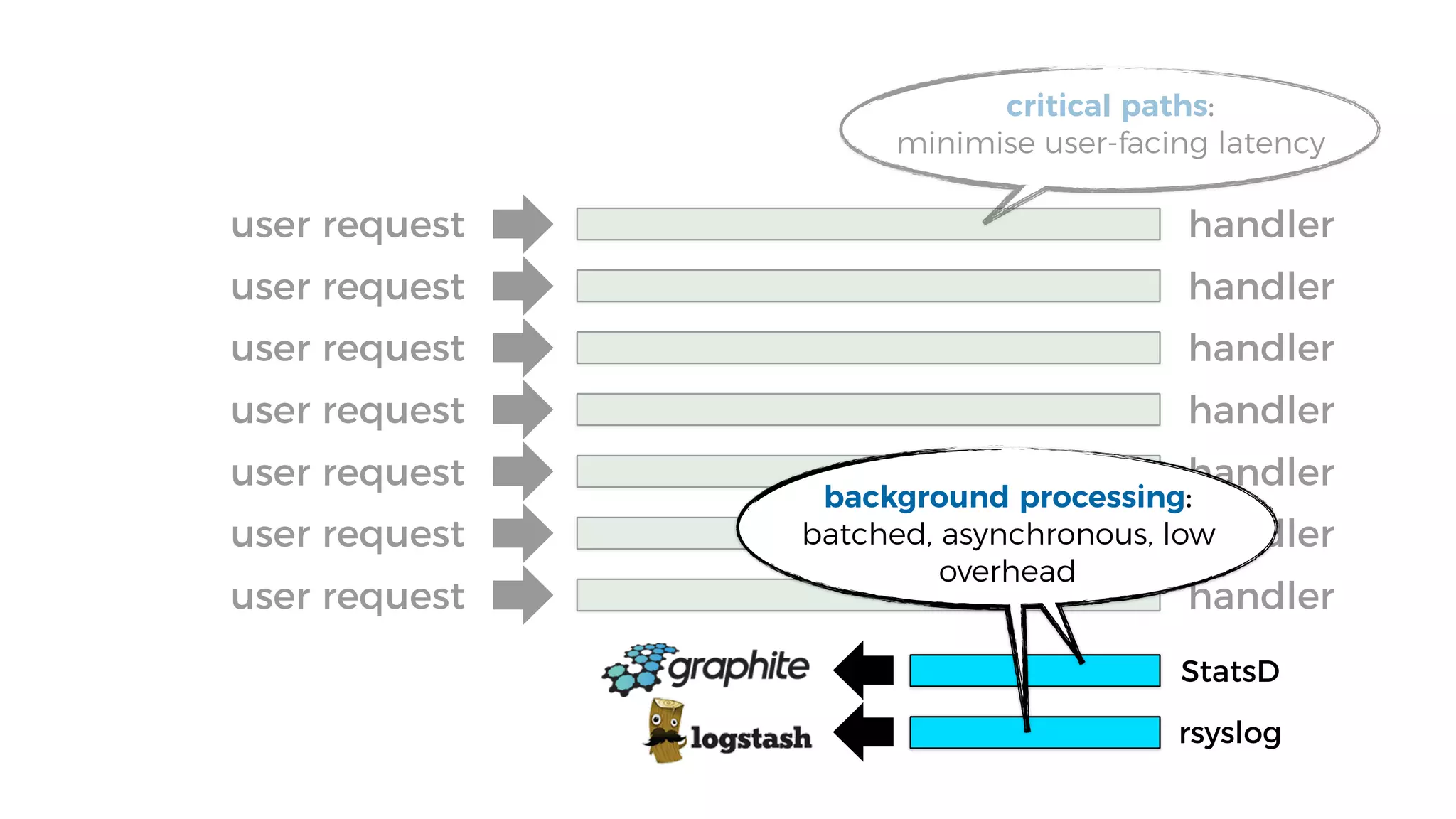

31. user request
user request
user request
user request
user request
user request
user request
critical paths:
minimise user-facing latency
StatsD
handler
handler
handler
handler
handler
handler
handler
rsyslog
background processing:
batched, asynchronous, low
overhead

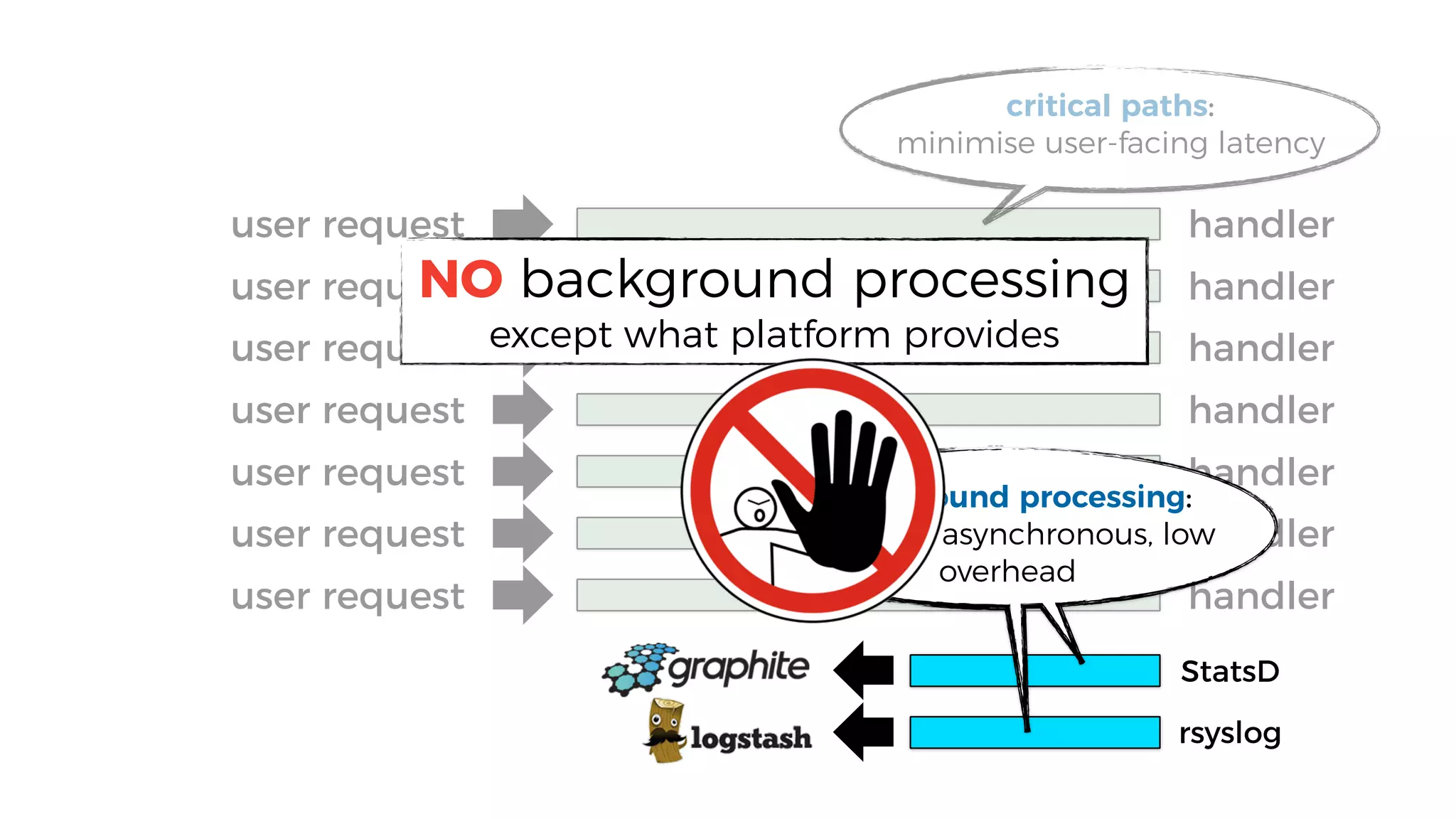

32. user request
user request
user request
user request
user request
user request
user request
critical paths:
minimise user-facing latency
StatsD
handler
handler
handler
handler
handler
handler
handler
rsyslog
background processing:
batched, asynchronous, low
overhead
NO background processing
except what platform provides

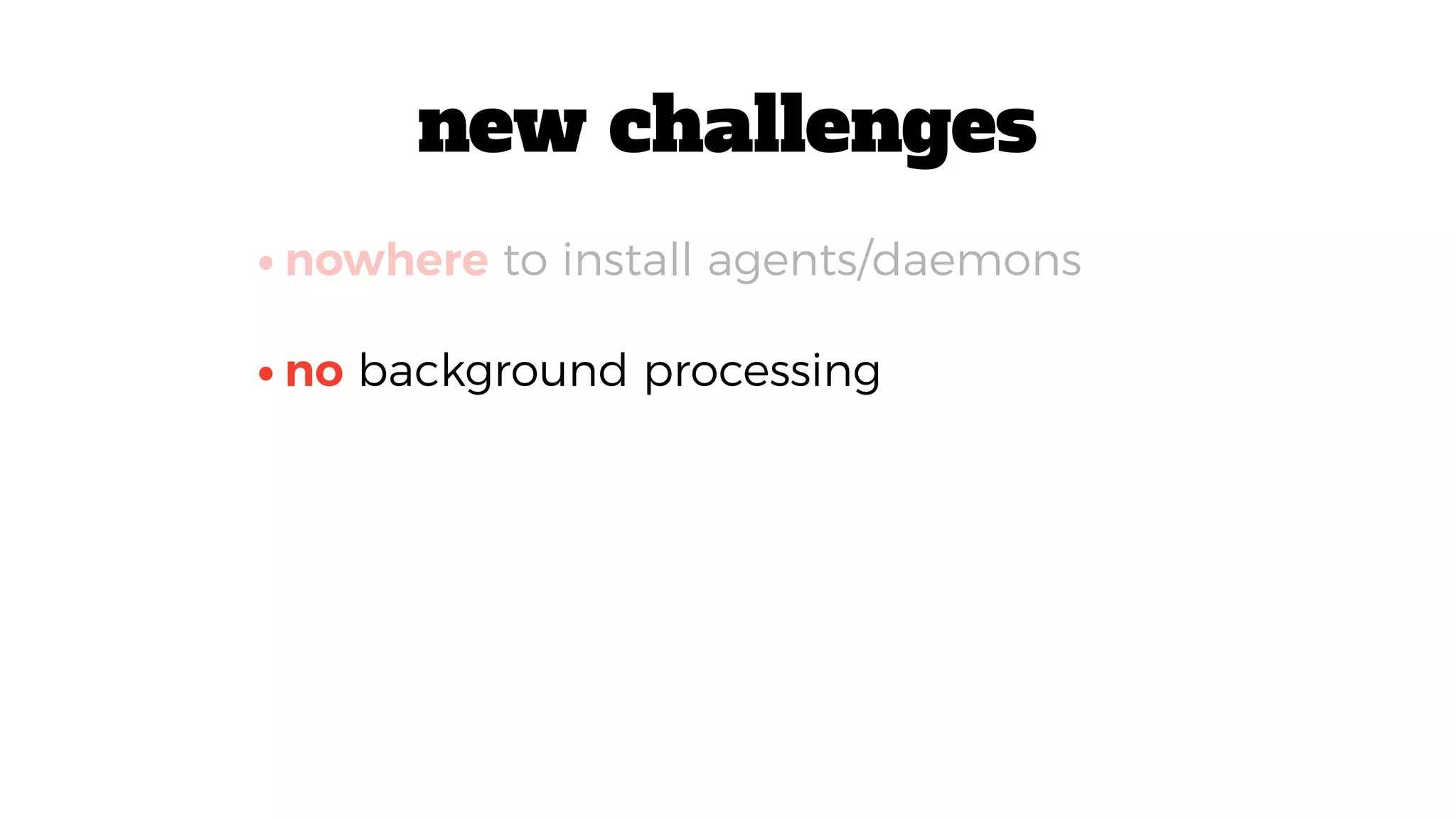

33. •no background processing
•nowhere to install agents/daemons
new challenges

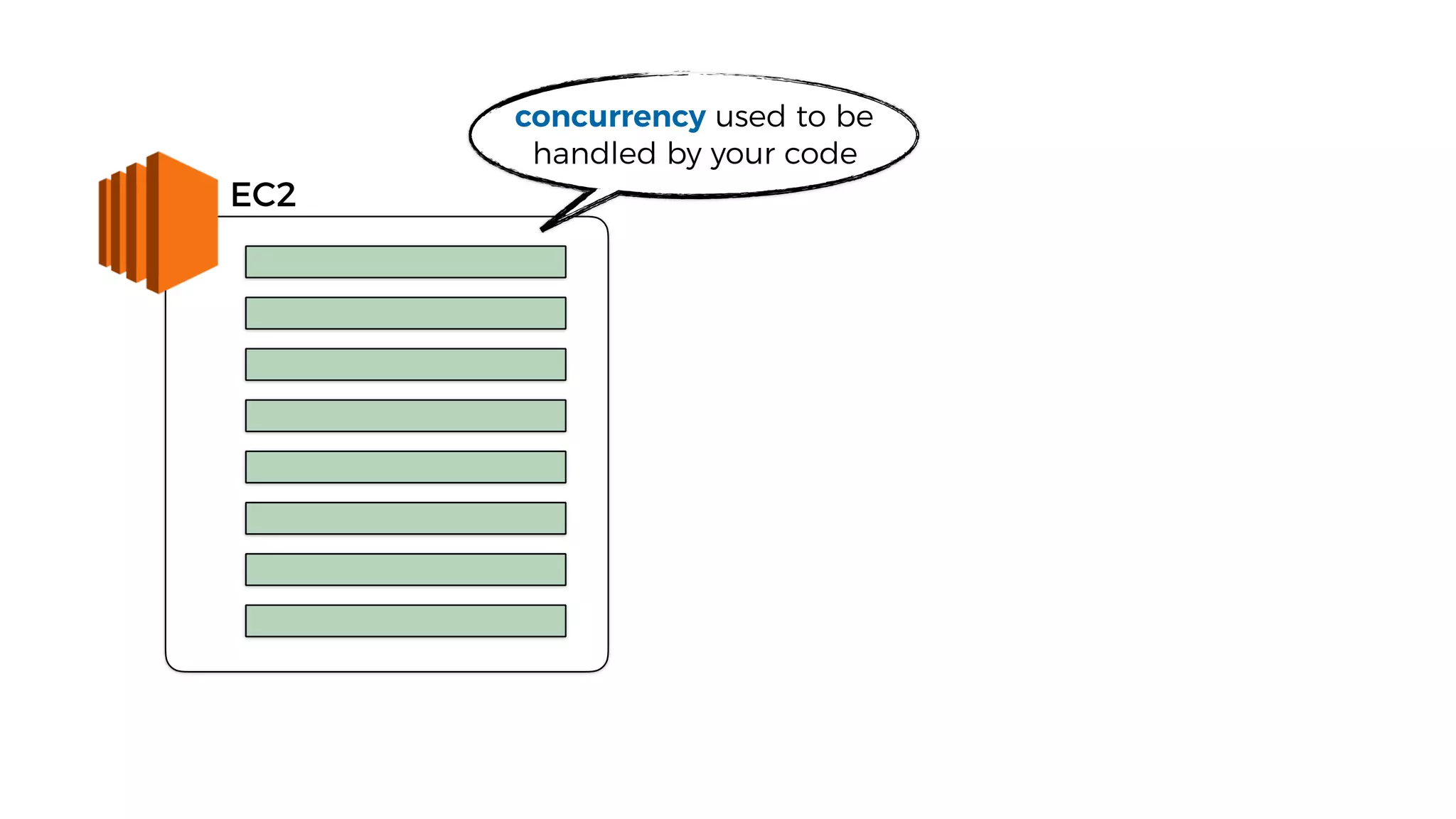

34. EC2
concurrency used to be
handled by your code

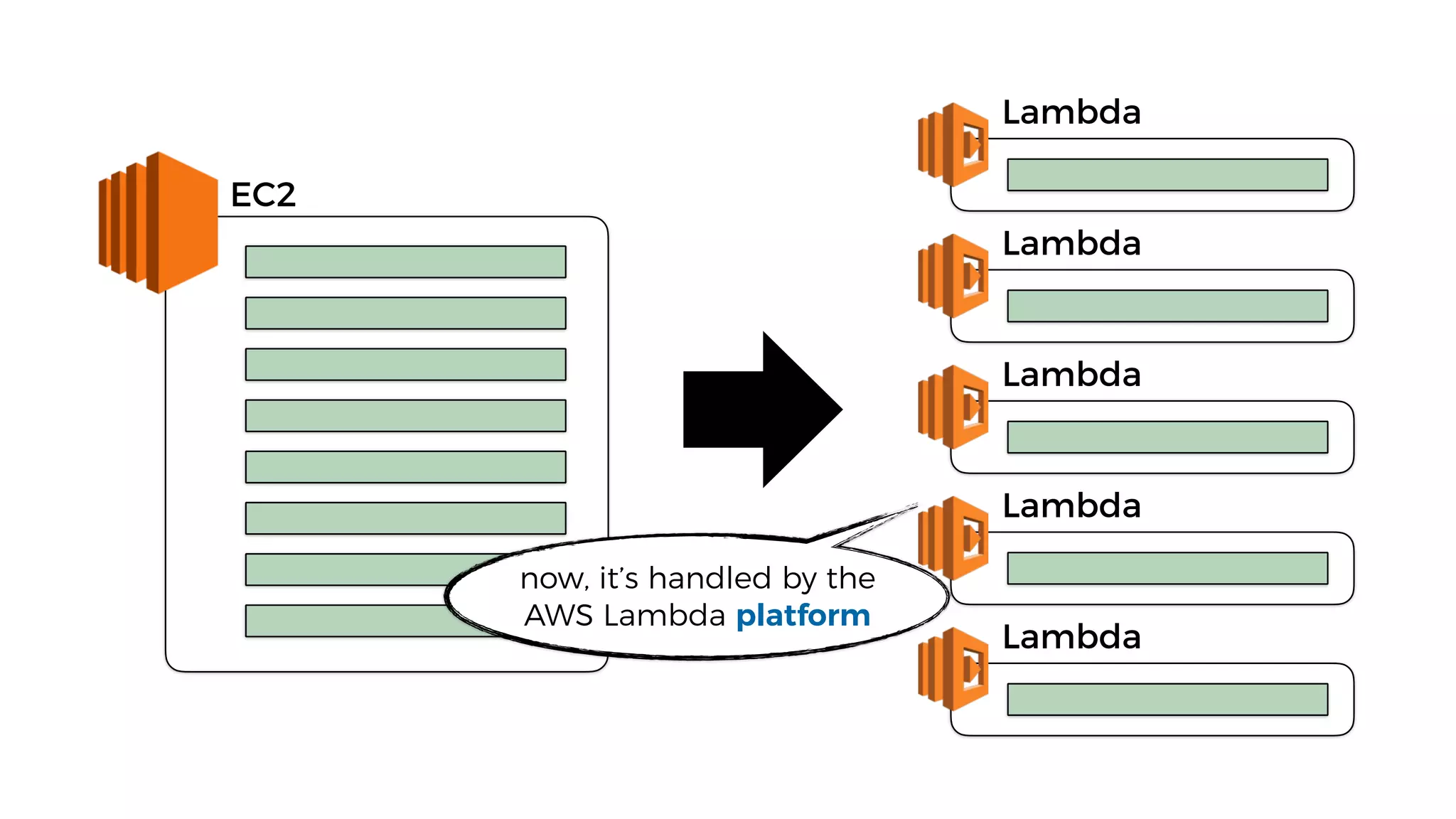

35. EC2
Lambda
Lambda
Lambda
Lambda
Lambda
now, it’s handled by the
AWS Lambda platform

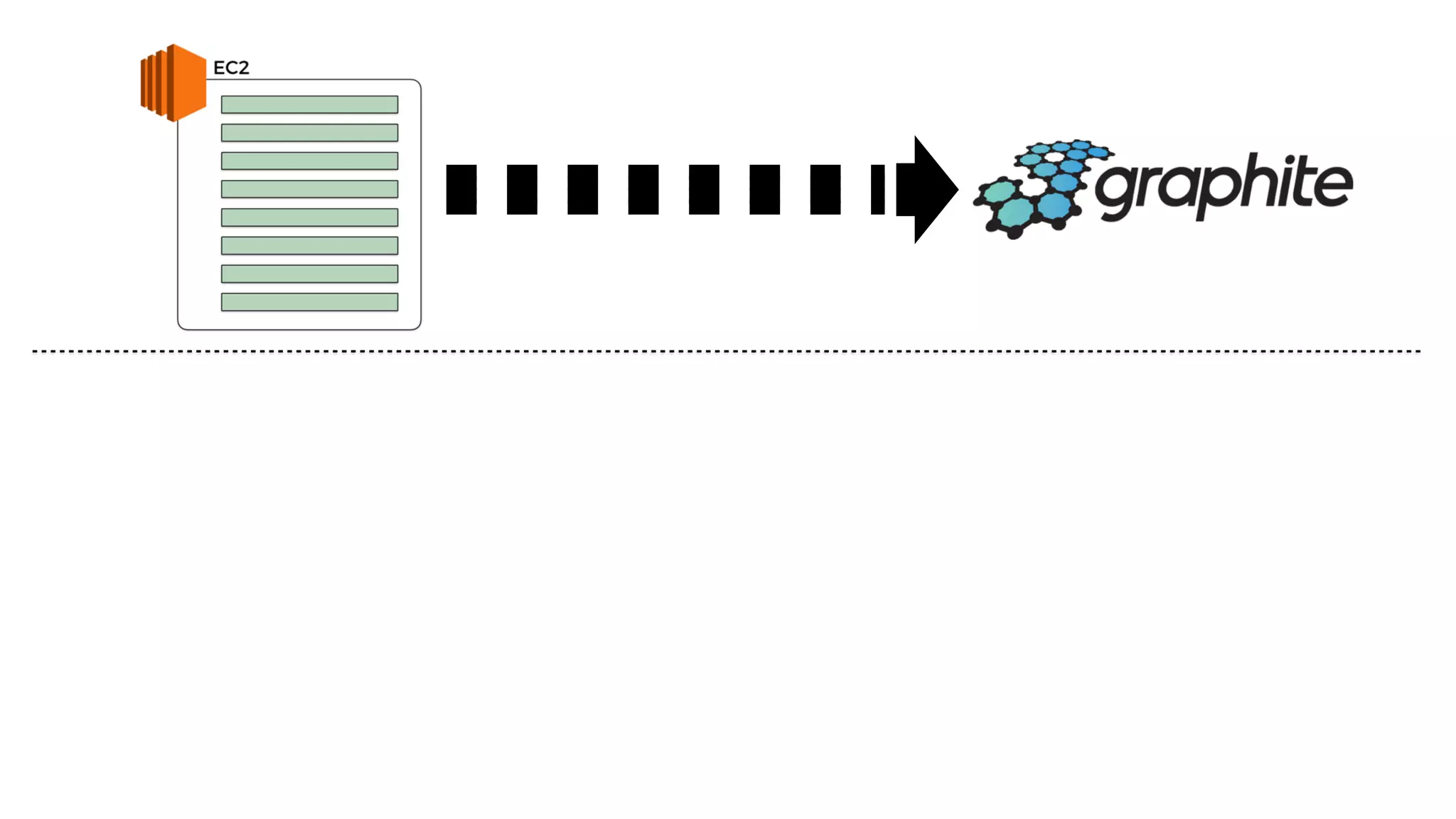

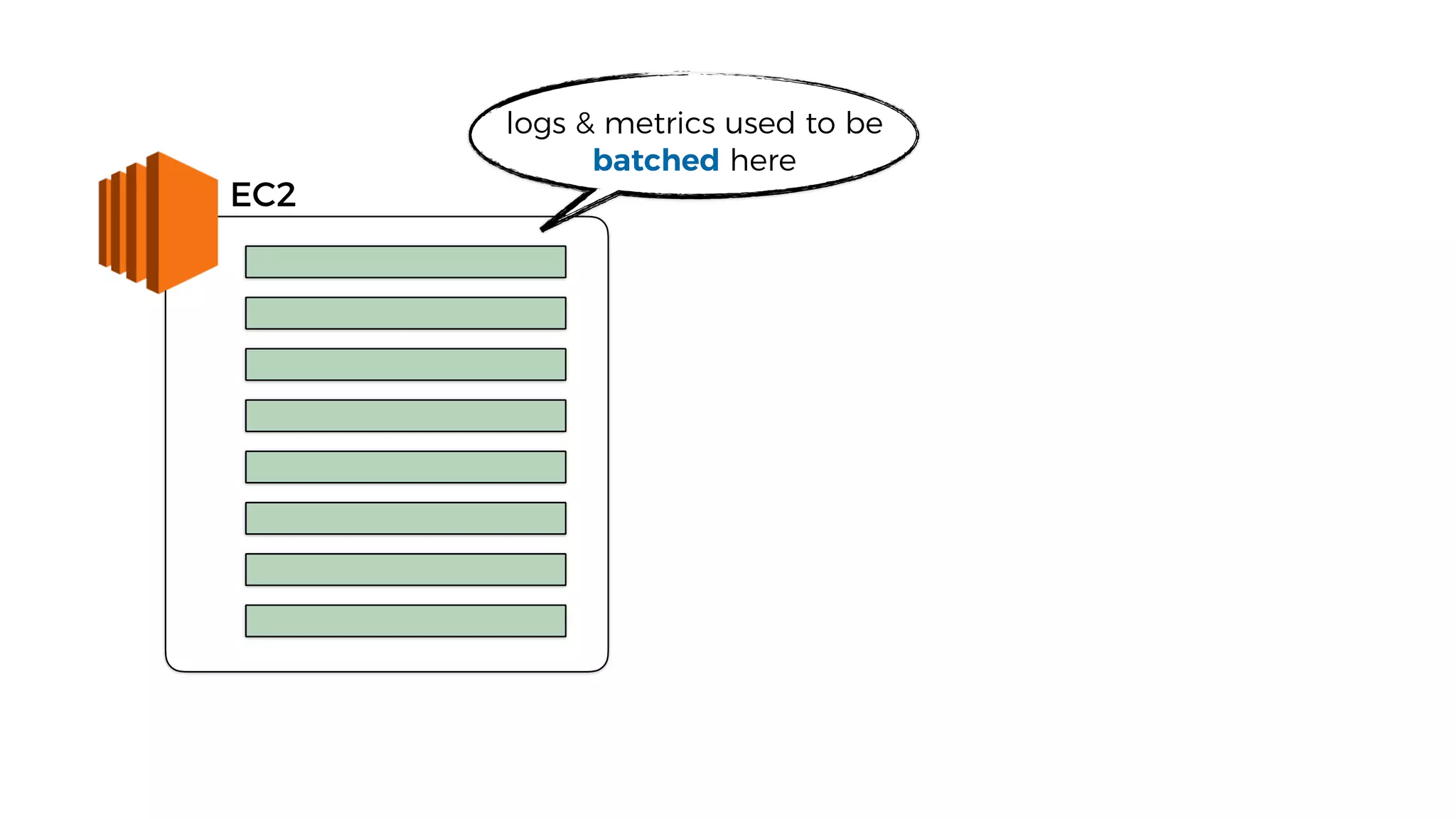

36. EC2
logs & metrics used to be
batched here

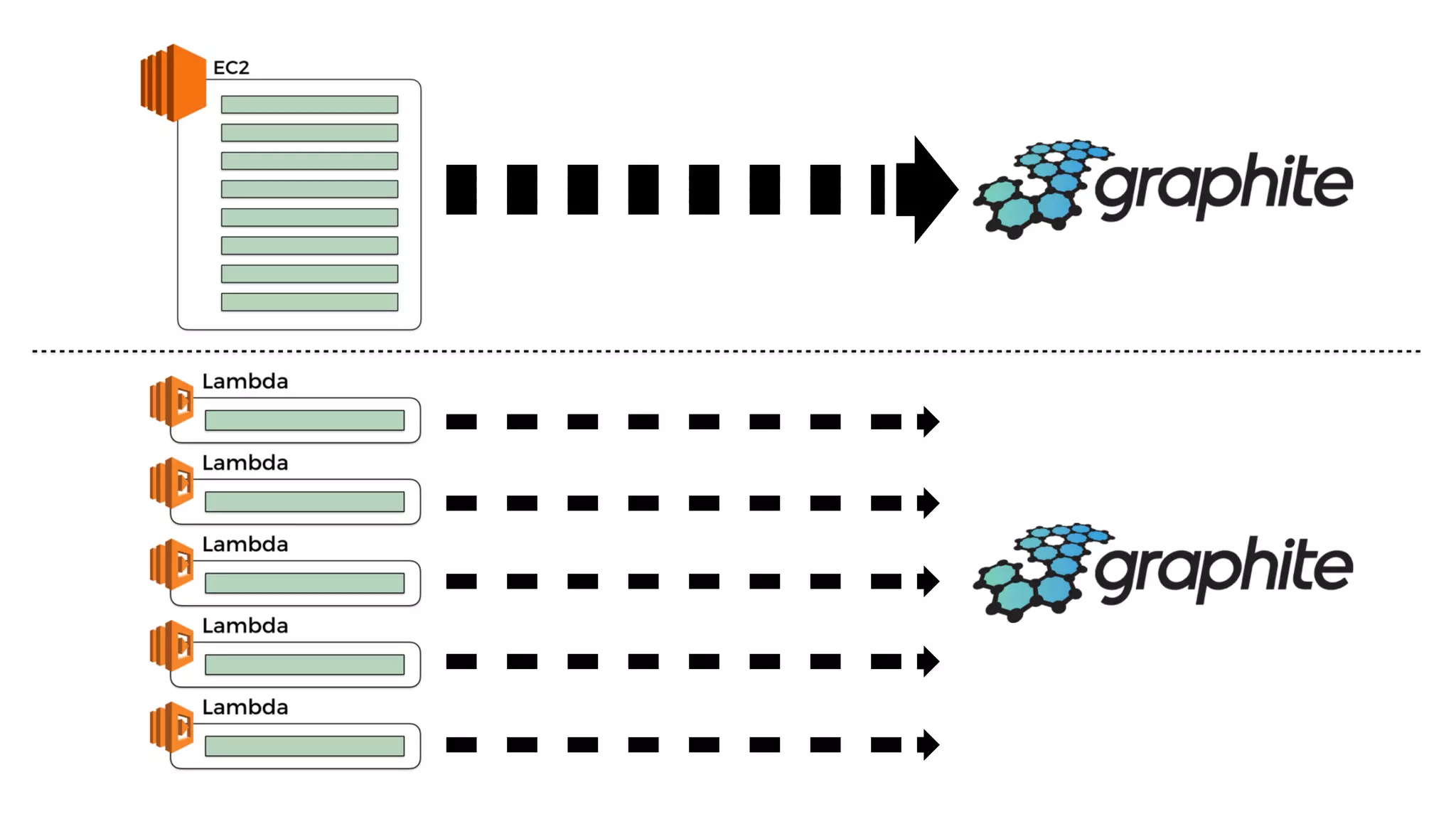

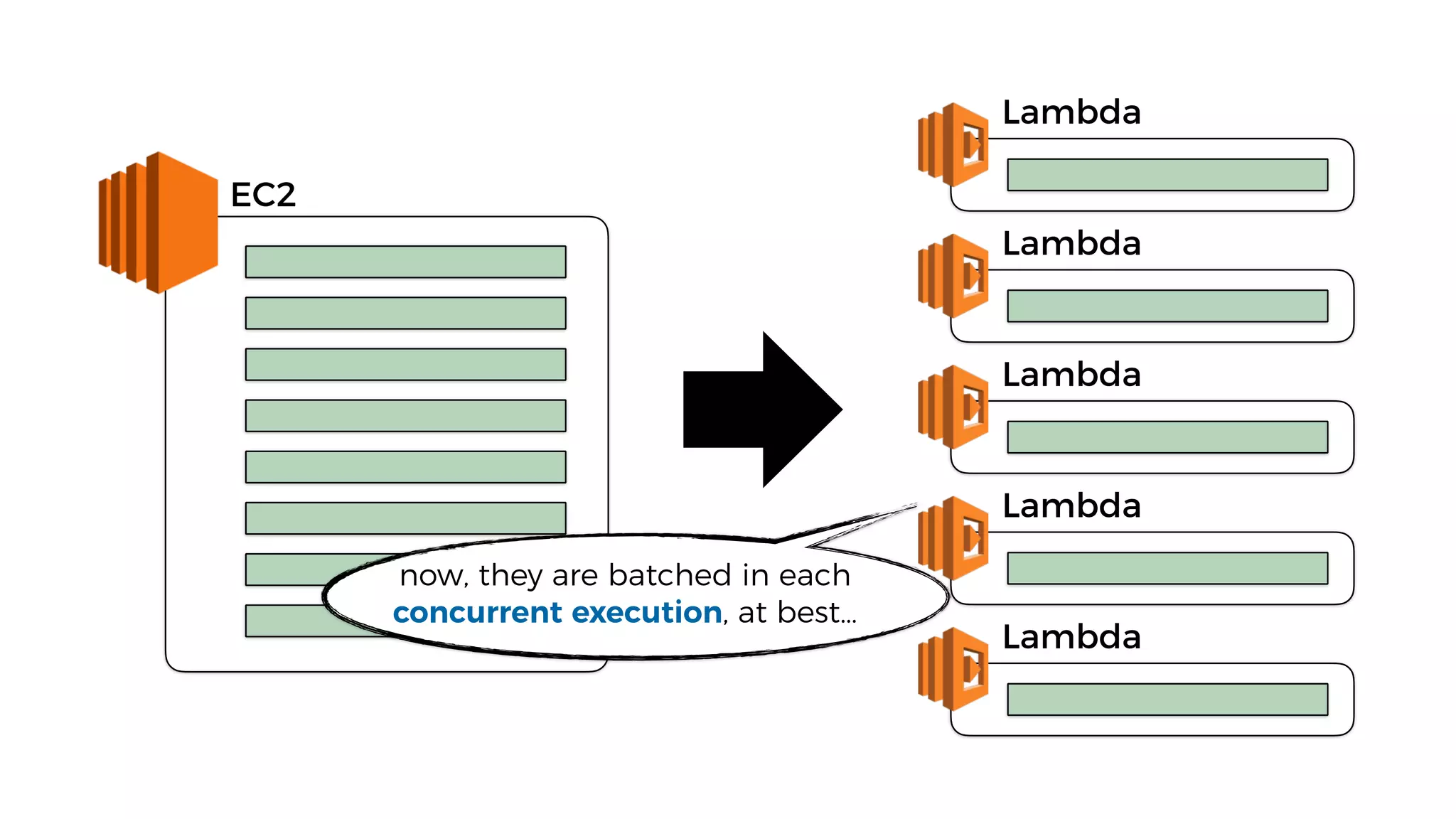

37. EC2
Lambda
Lambda
Lambda
Lambda
Lambda
now, they are batched in each
concurrent execution, at best…

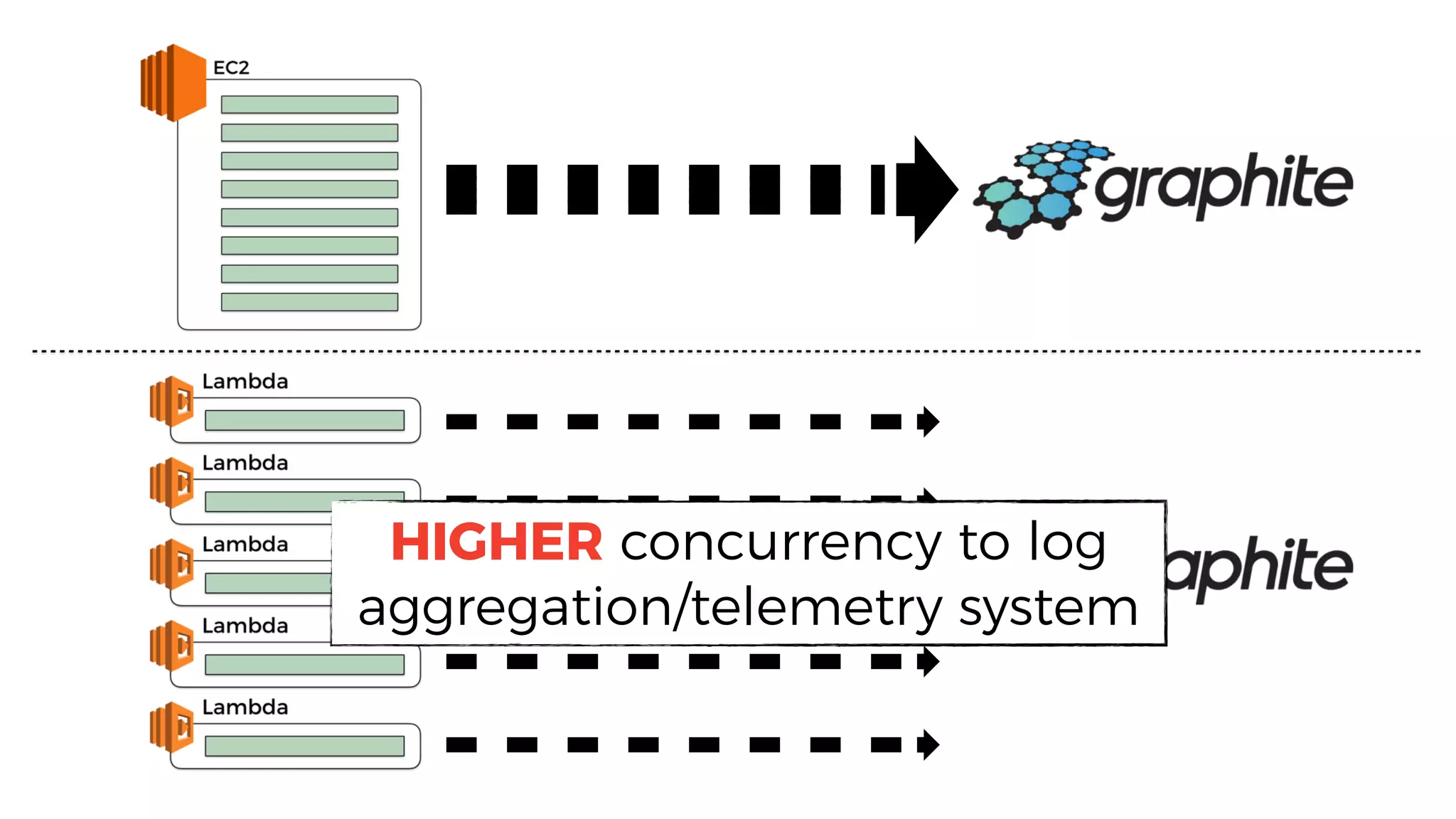

40. HIGHER concurrency to log
aggregation/telemetry system

41. •higher concurrency to telemetry system
•nowhere to install agents/daemons
•no background processing
new challenges

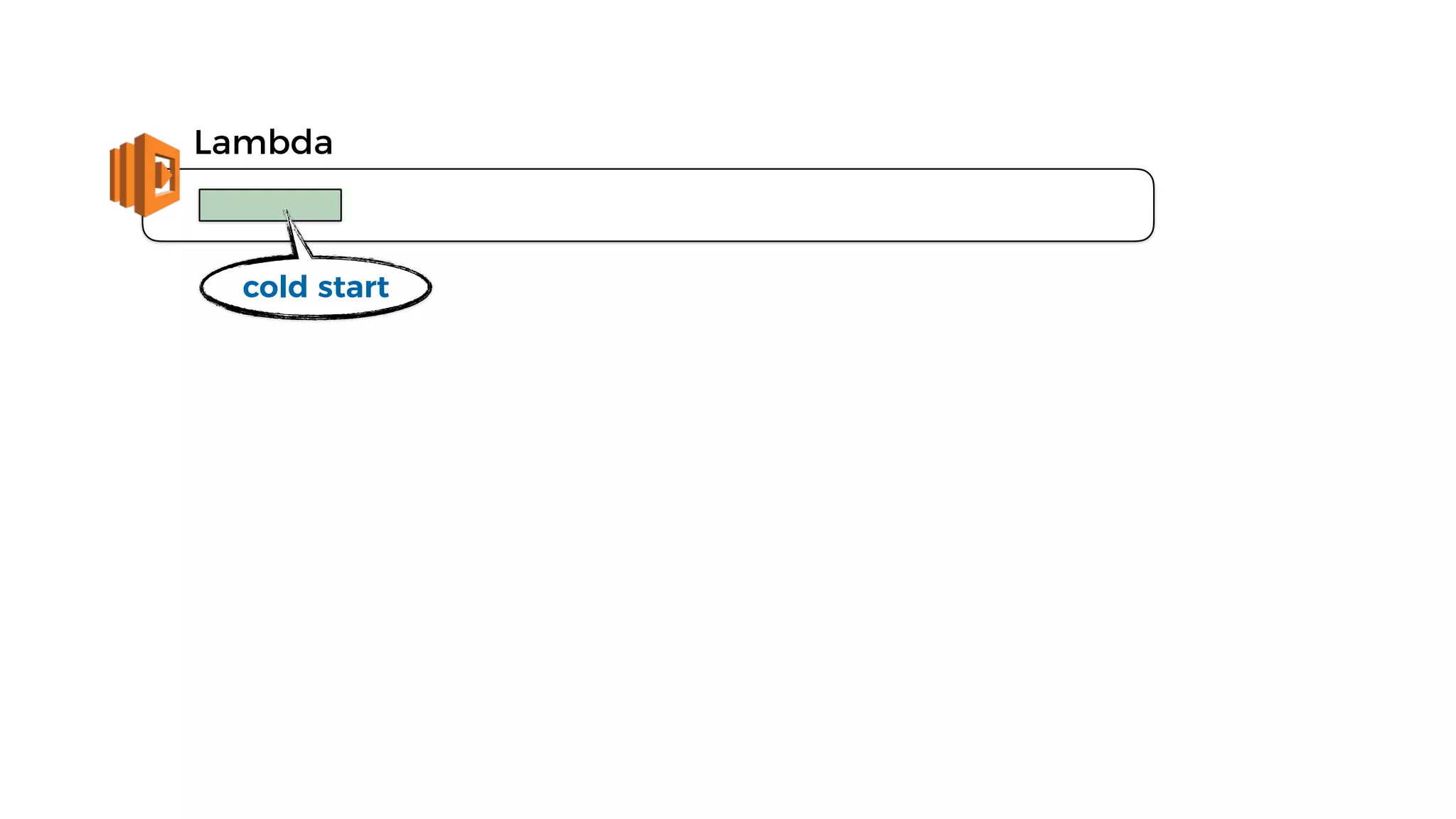

42. Lambda
cold start

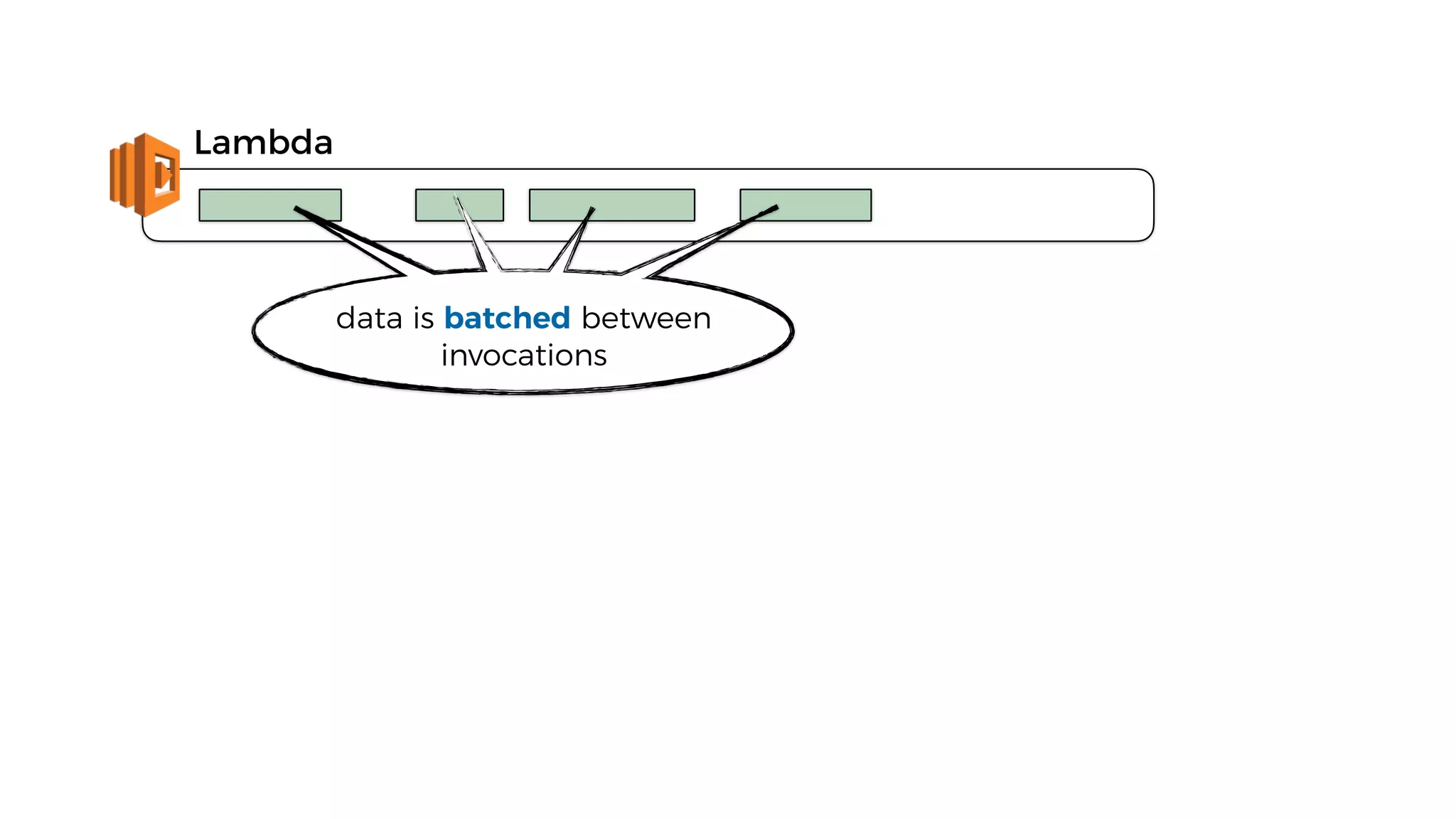

43. Lambda
data is batched between
invocations

44. Lambda
idle
data is batched between
invocations

45. Lambda
idle
garbage collectiondata is batched between
invocations

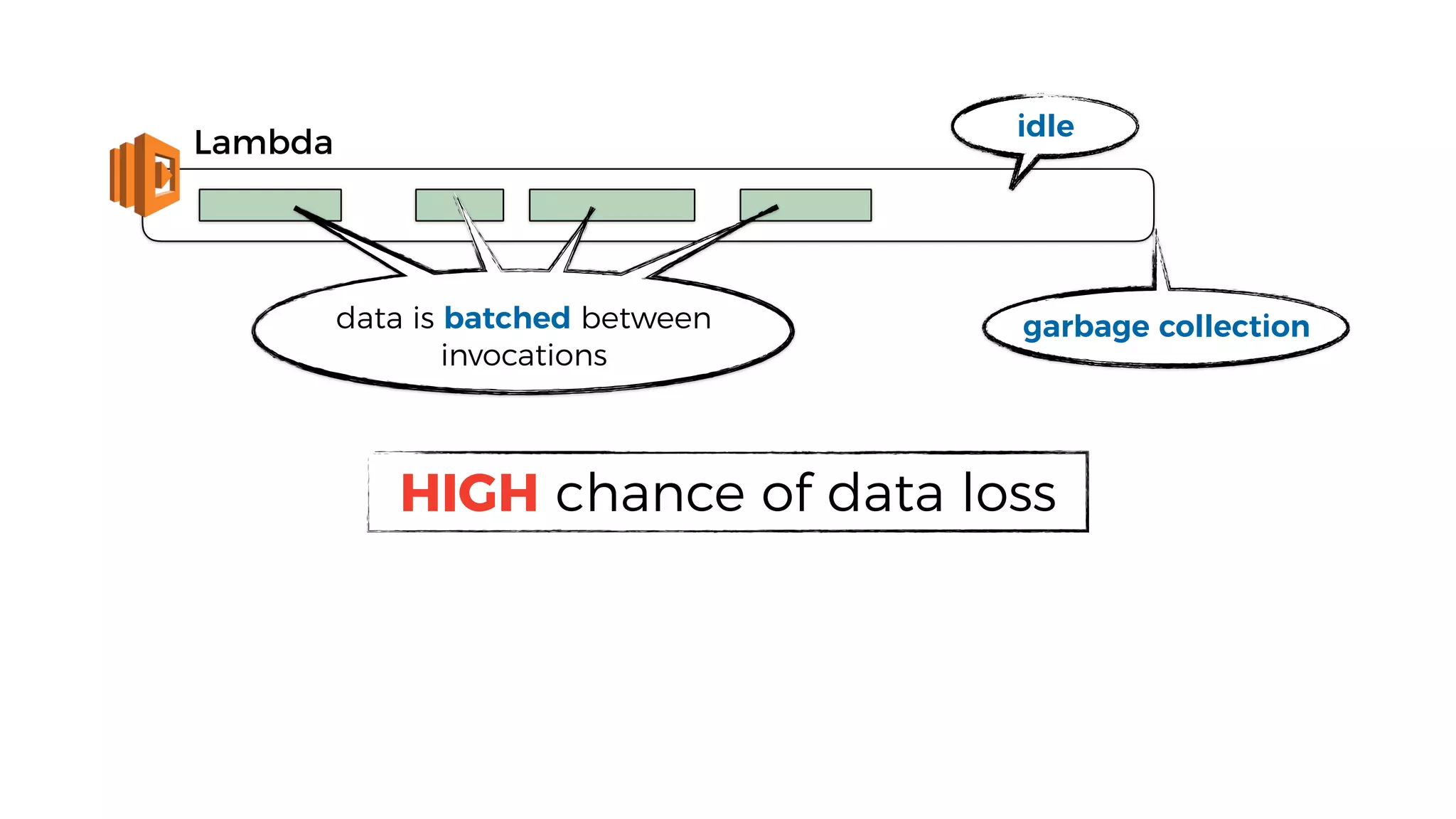

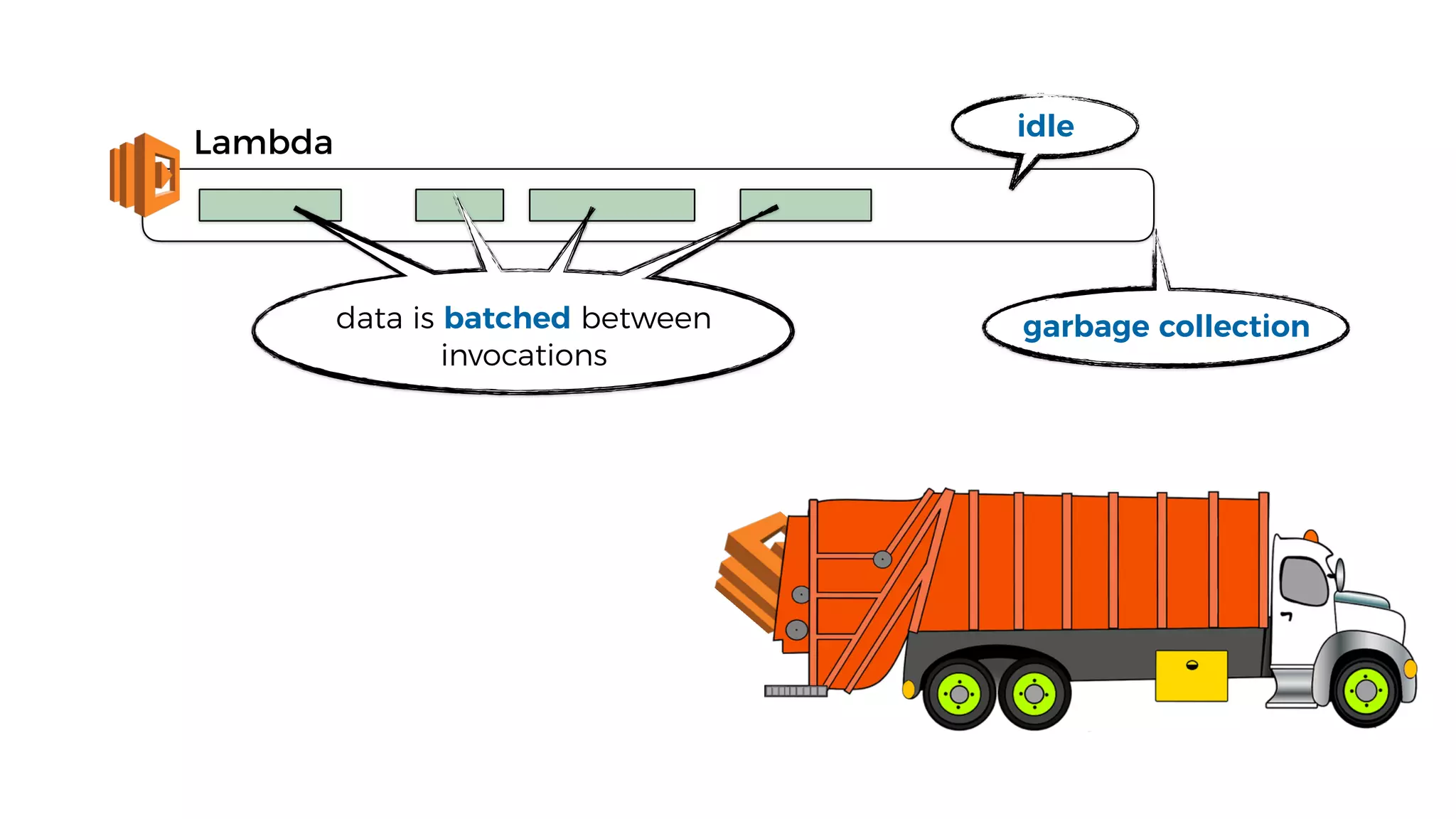

46. Lambda
idle
garbage collectiondata is batched between
invocations
HIGH chance of data loss

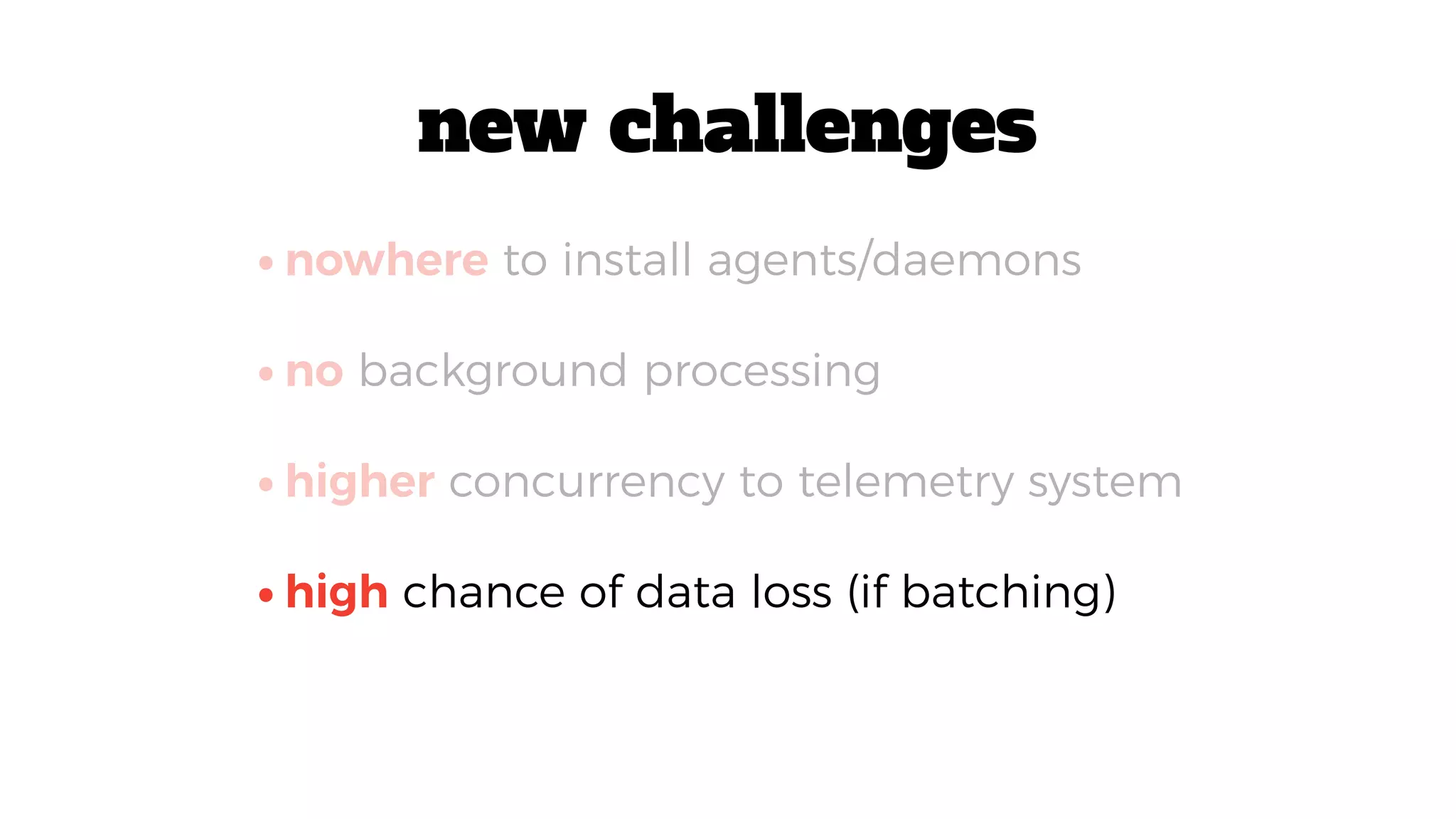

47. •high chance of data loss (if batching)
•nowhere to install agents/daemons
•no background processing
•higher concurrency to telemetry system
new challenges

48. Lambda

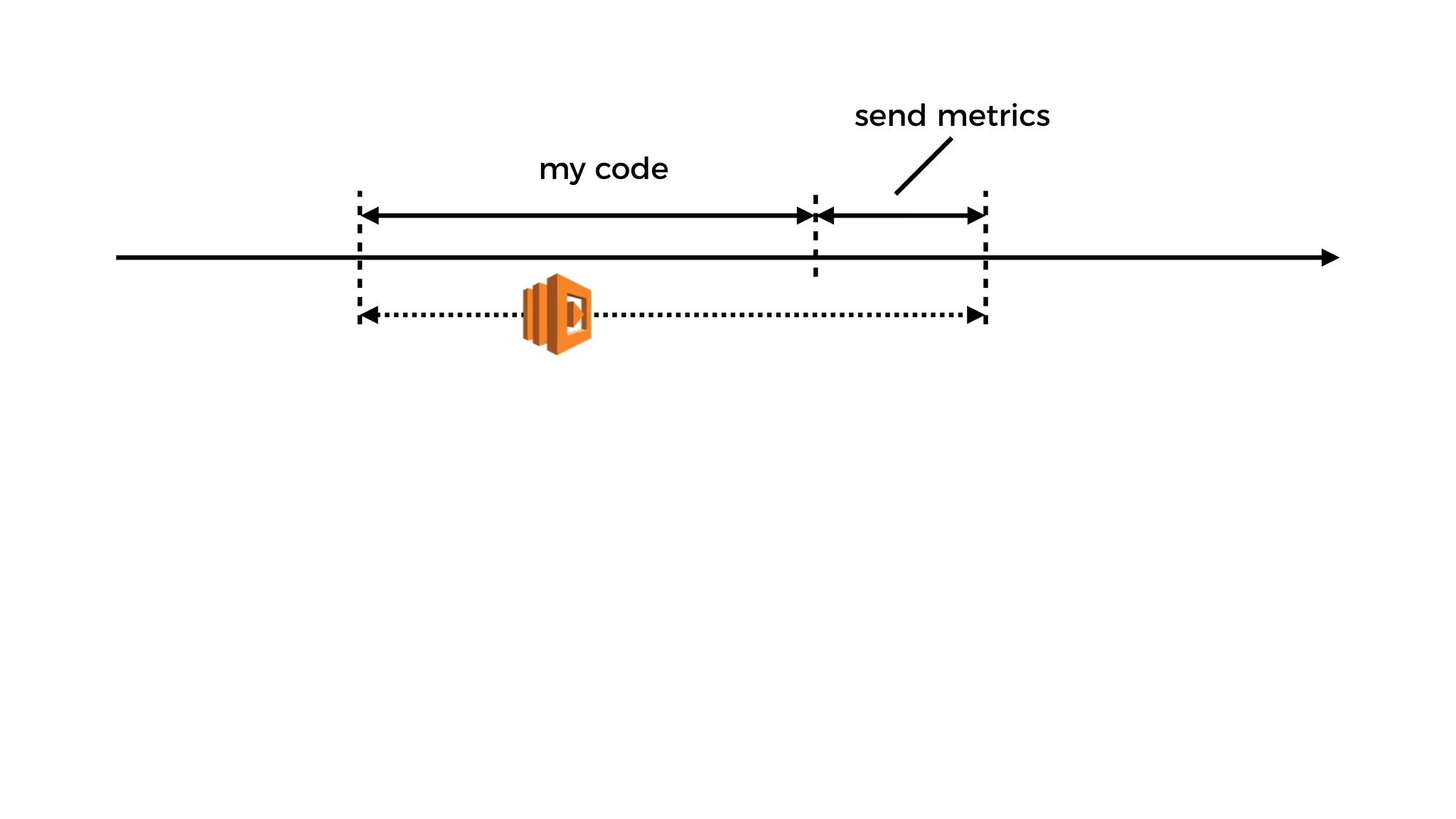

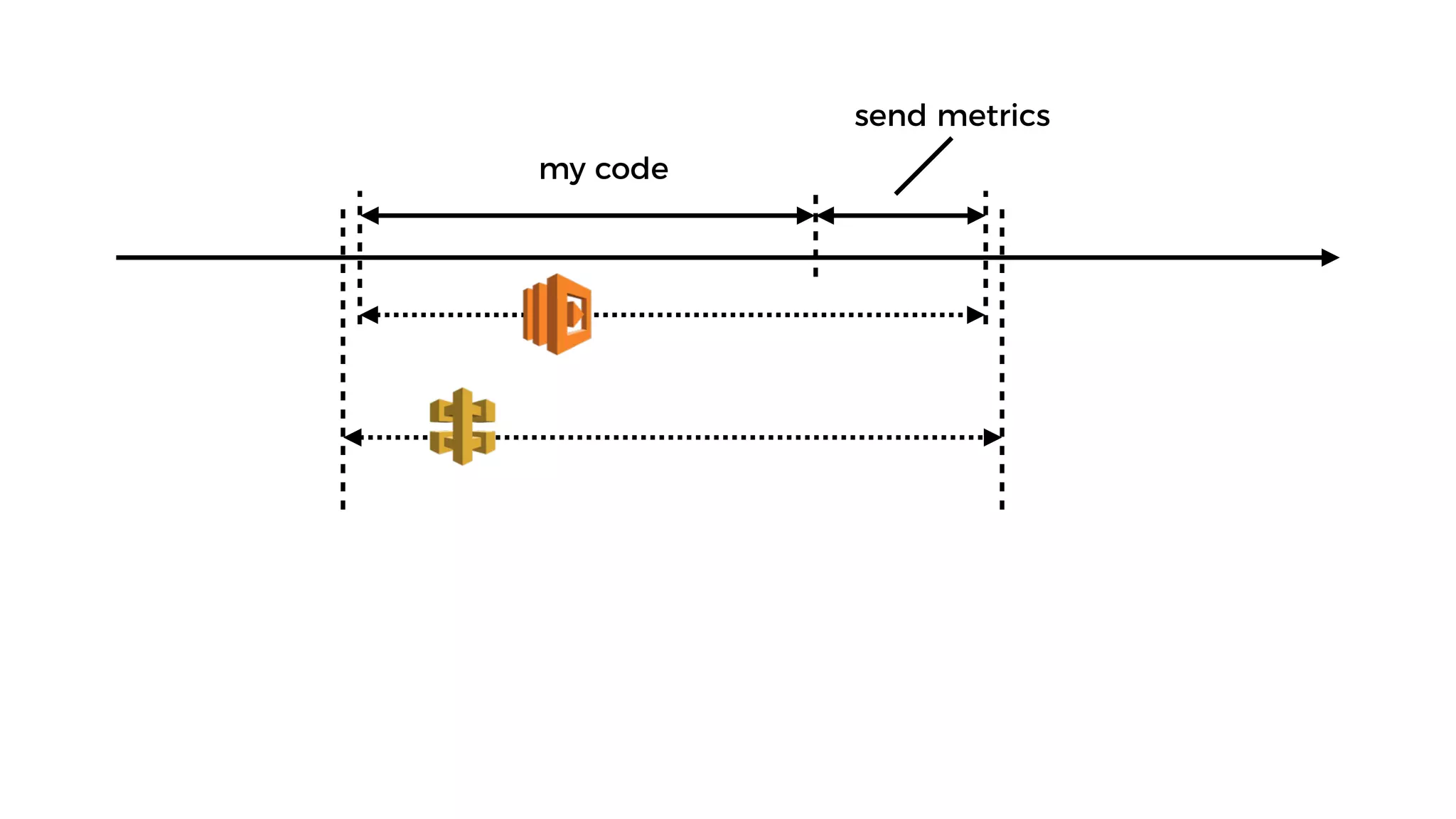

49. my code
send metrics

50. my code
send metrics

51. my code
send metrics
internet internet
press button something happens

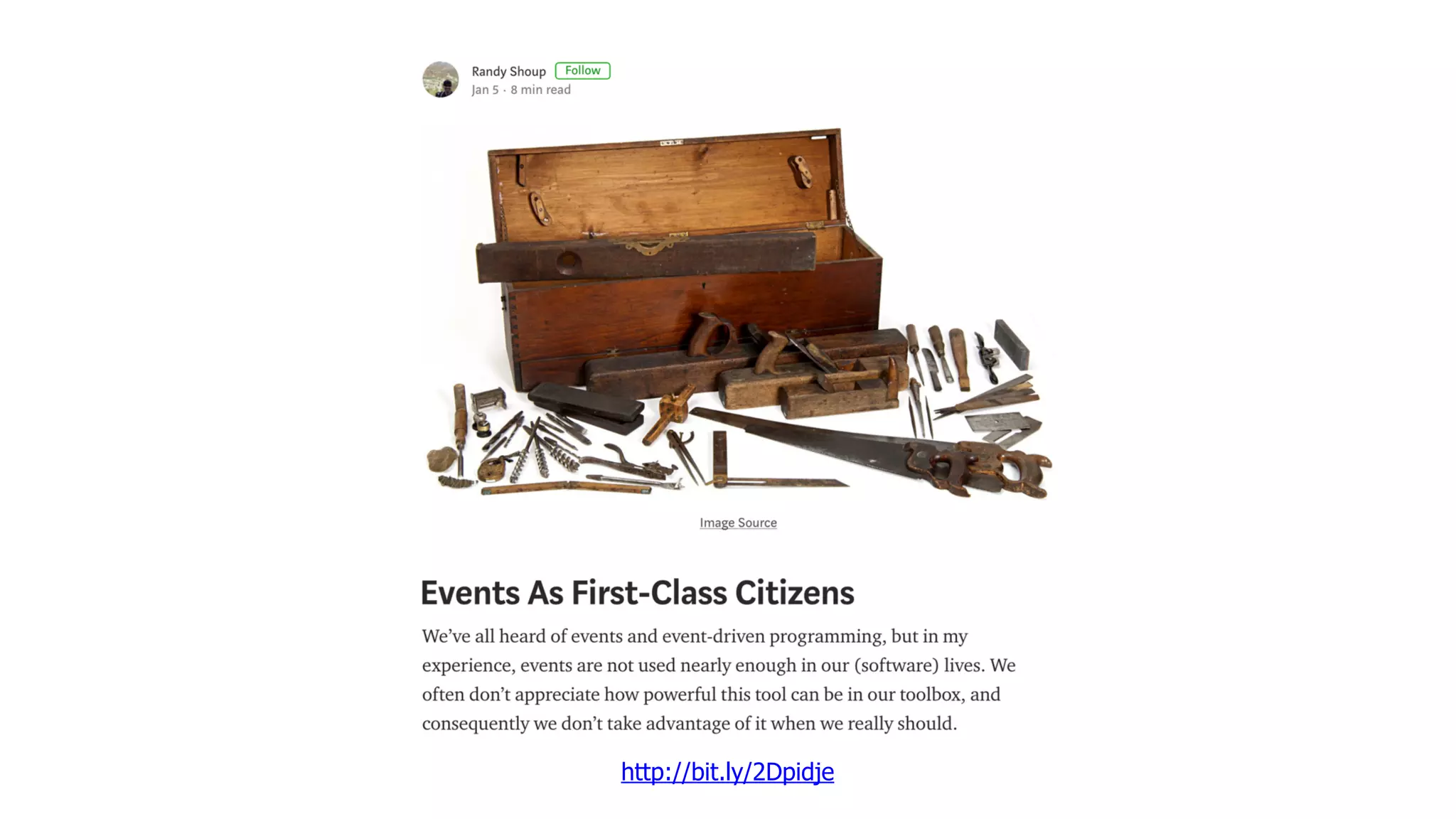

53. http://bit.ly/2Dpidje

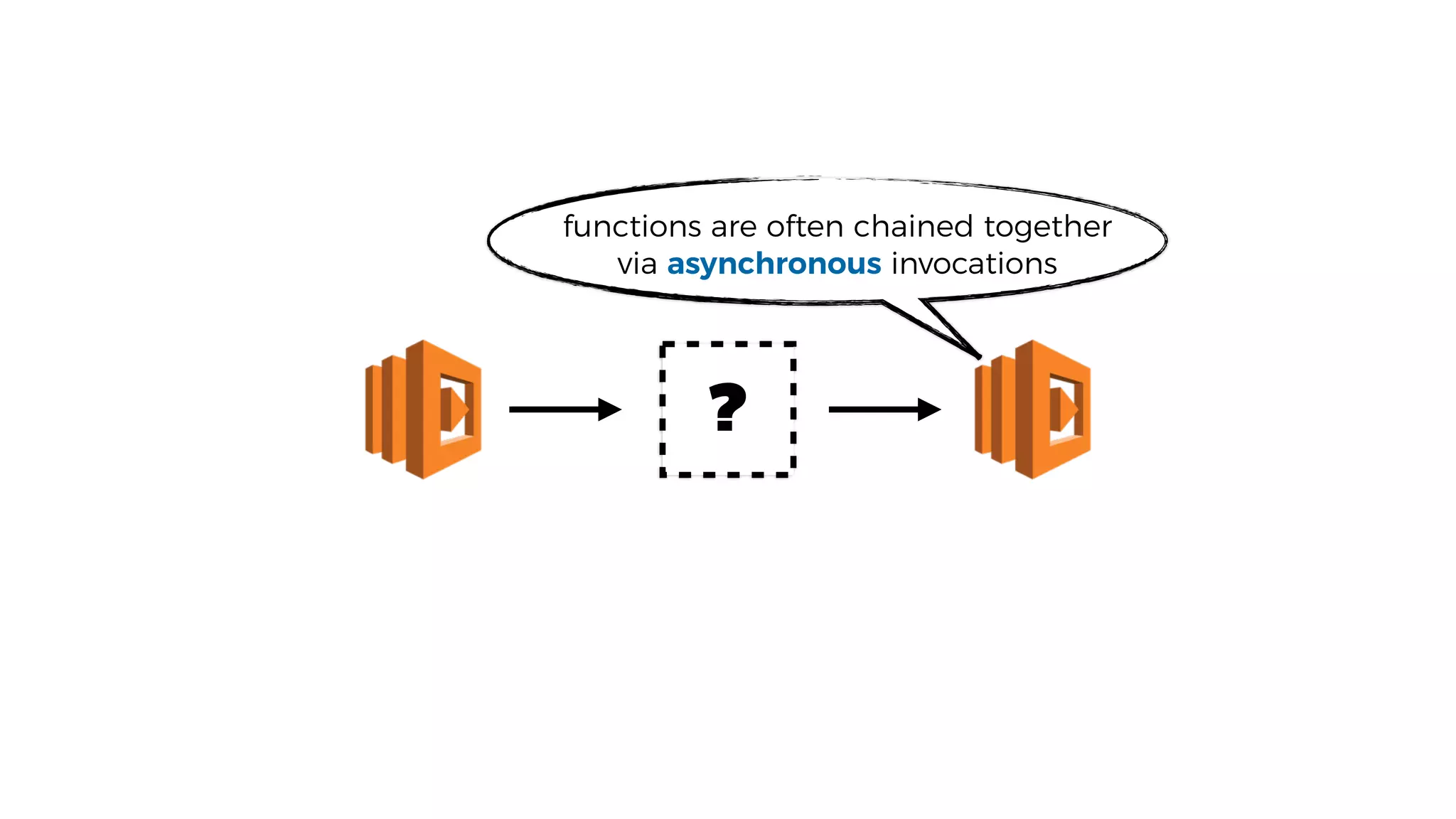

54. ?
functions are often chained together
via asynchronous invocations

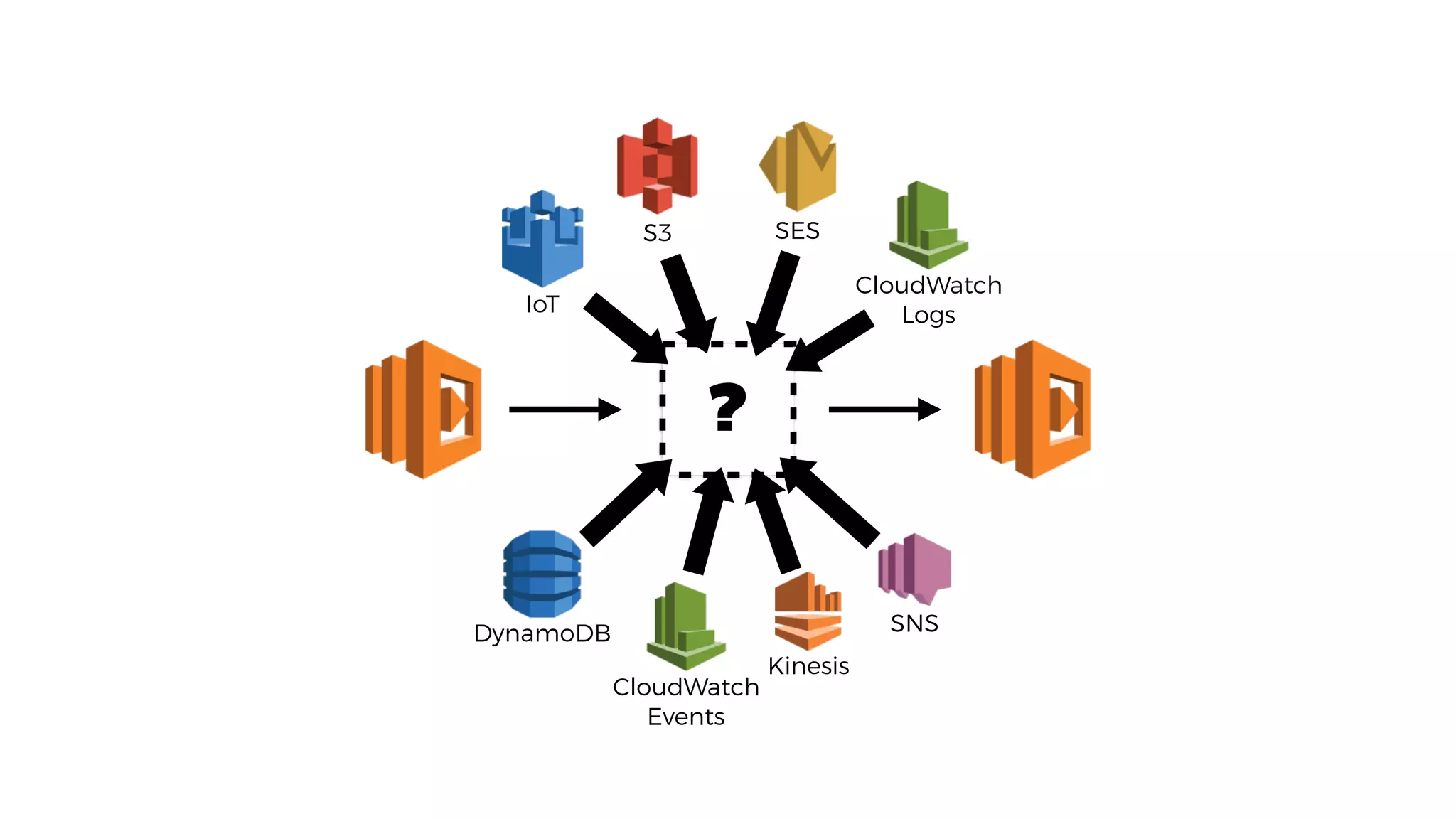

55. ?
SNS
Kinesis
CloudWatch
Events
CloudWatch
LogsIoT
DynamoDB
S3 SES

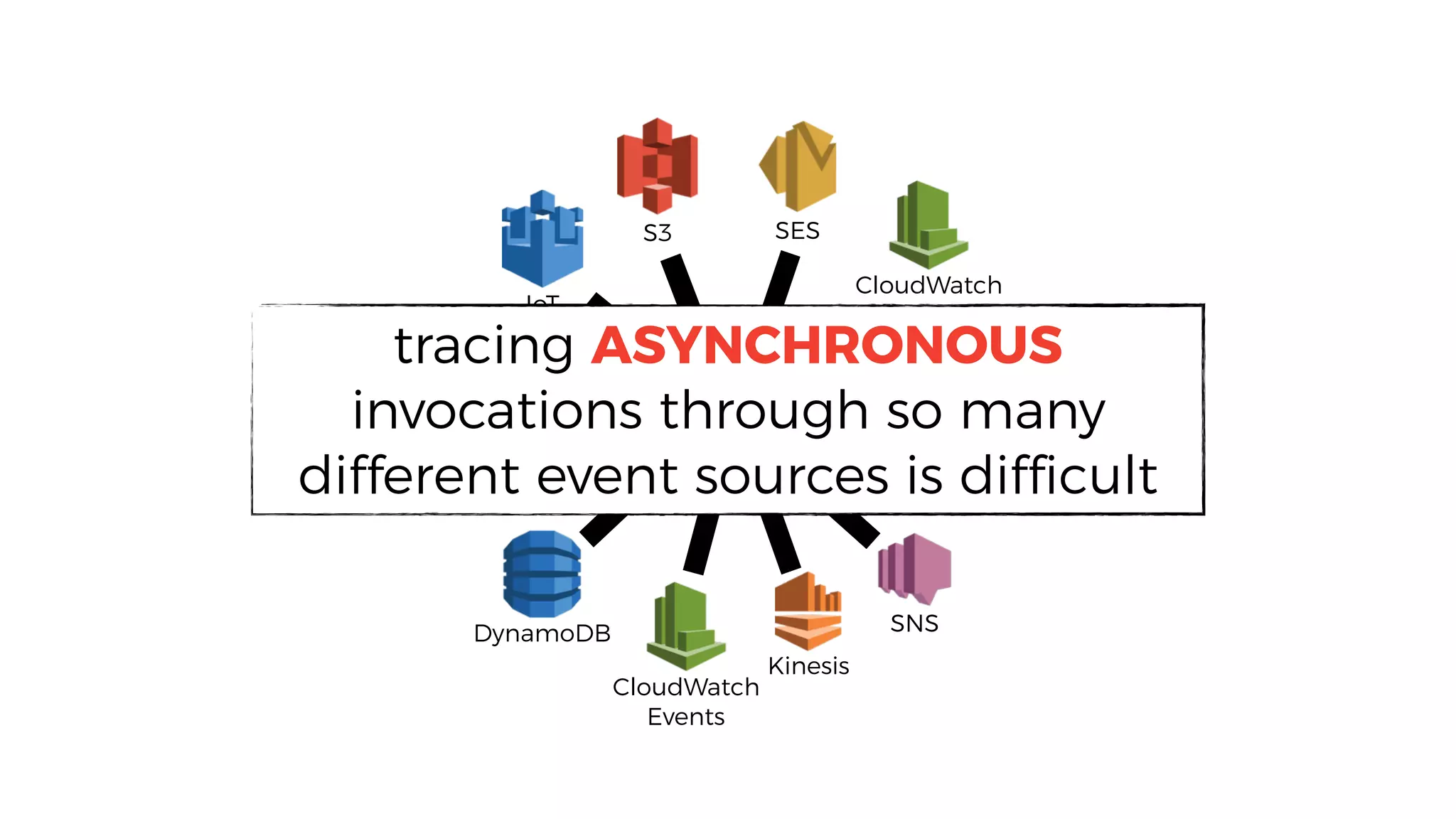

56. ?
SNS
Kinesis
CloudWatch
Events
CloudWatch
LogsIoT
DynamoDB
S3 SES
tracing ASYNCHRONOUS
invocations through so many
different event sources is difficult

57. •asynchronous invocations
•nowhere to install agents/daemons
•no background processing
•higher concurrency to telemetry system
•high chance of data loss (if batching)
new challenges

58. the Present

59. These are the four pillars of the Observability Engineering
team’s charter:
• Monitoring
• Alerting/visualization
• Distributed systems tracing infrastructure
• Log aggregation/analytics
“
” http://bit.ly/2DnjyuW- Observability Engineering at Twitter

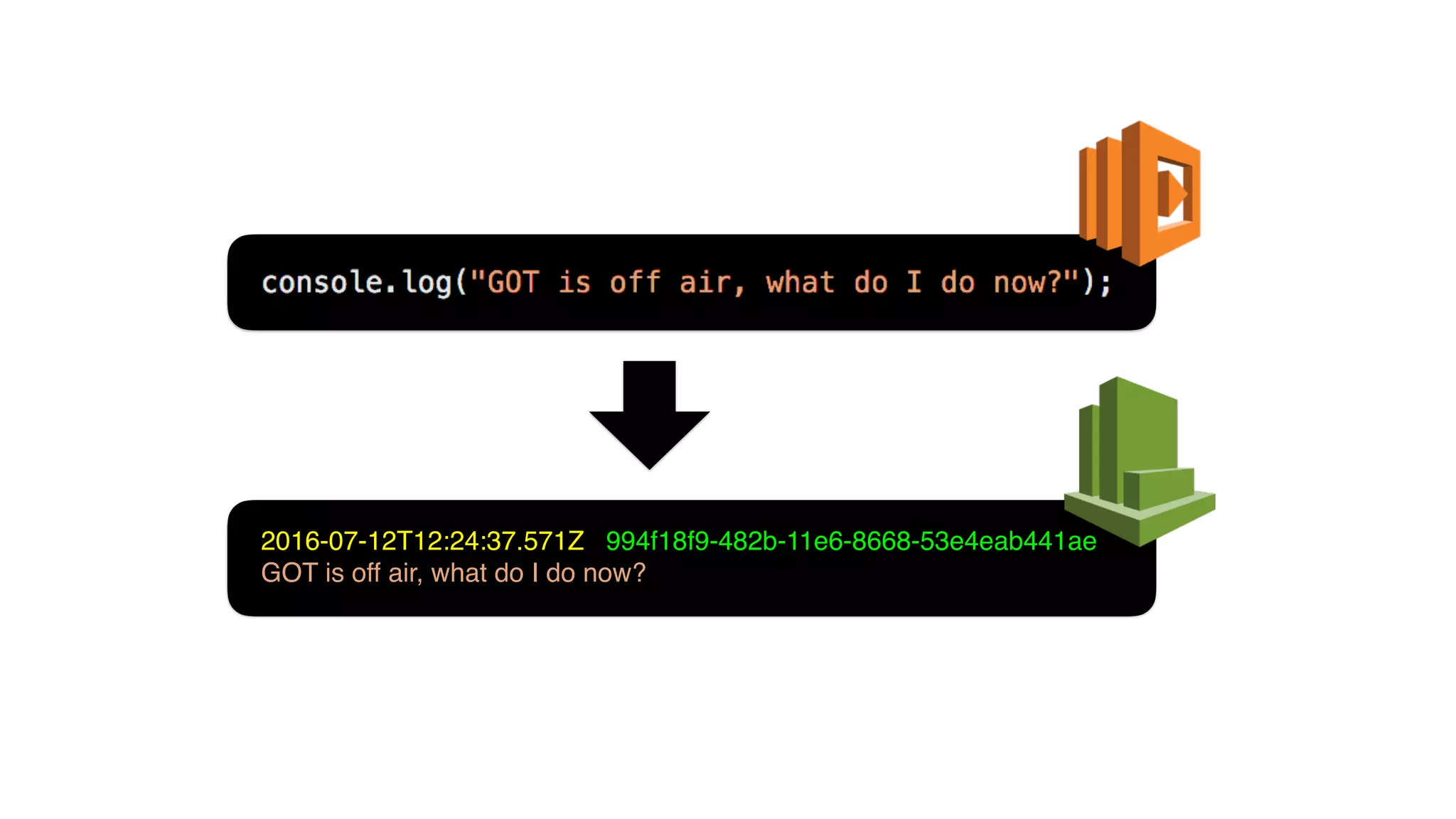

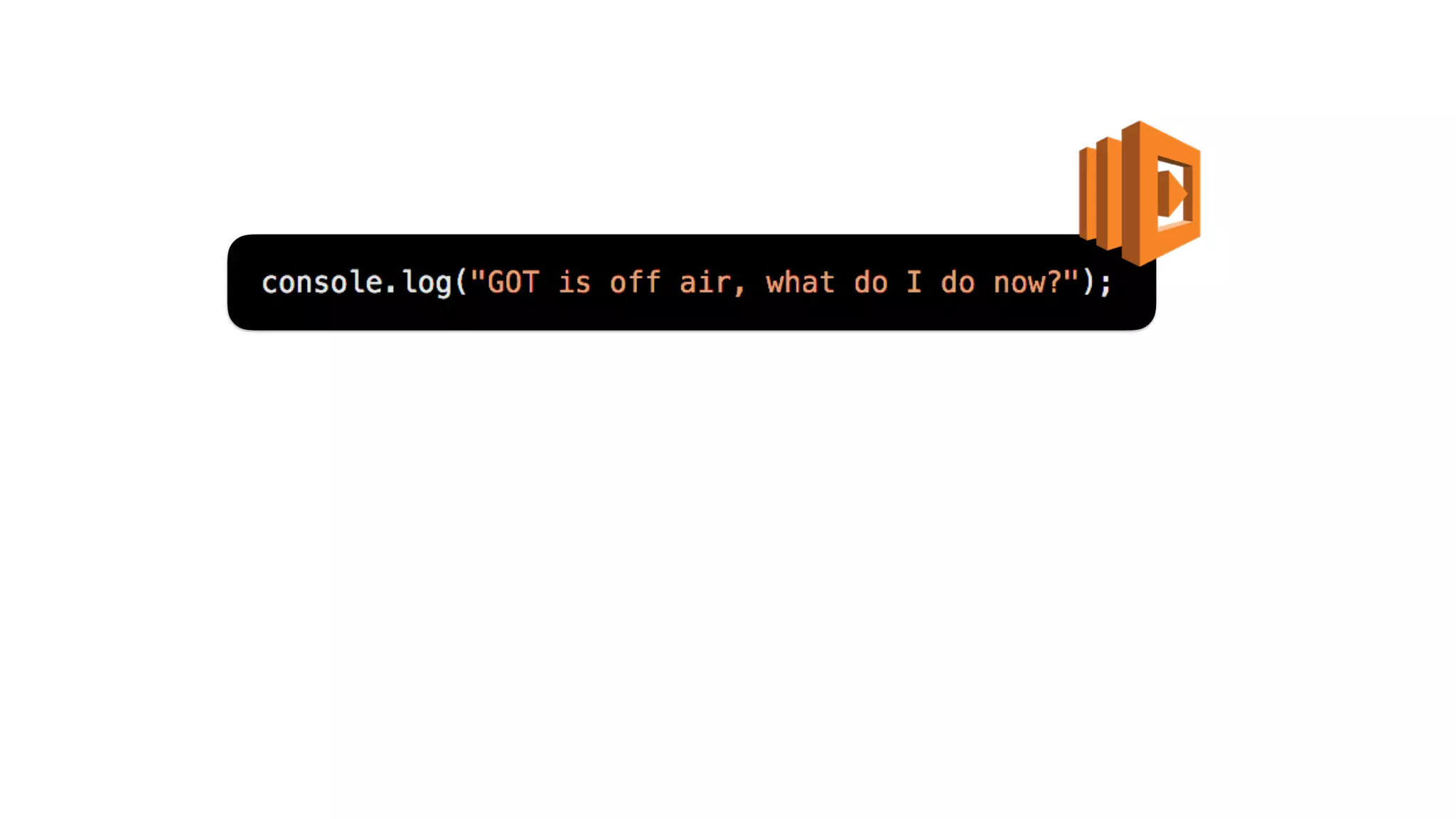

62. 2016-07-12T12:24:37.571Z 994f18f9-482b-11e6-8668-53e4eab441ae
GOT is off air, what do I do now?

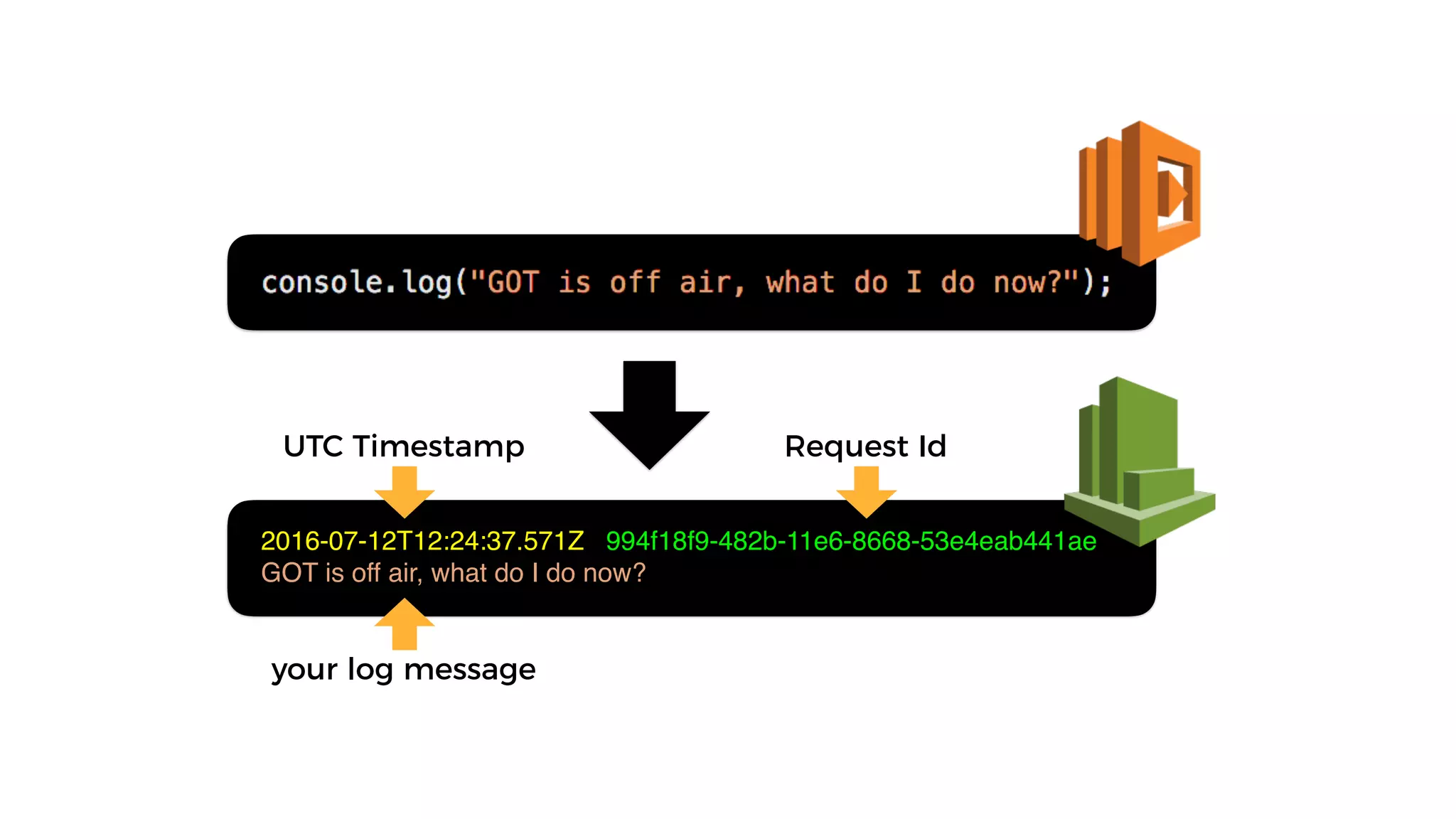

63. 2016-07-12T12:24:37.571Z 994f18f9-482b-11e6-8668-53e4eab441ae
GOT is off air, what do I do now?
UTC Timestamp Request Id
your log message

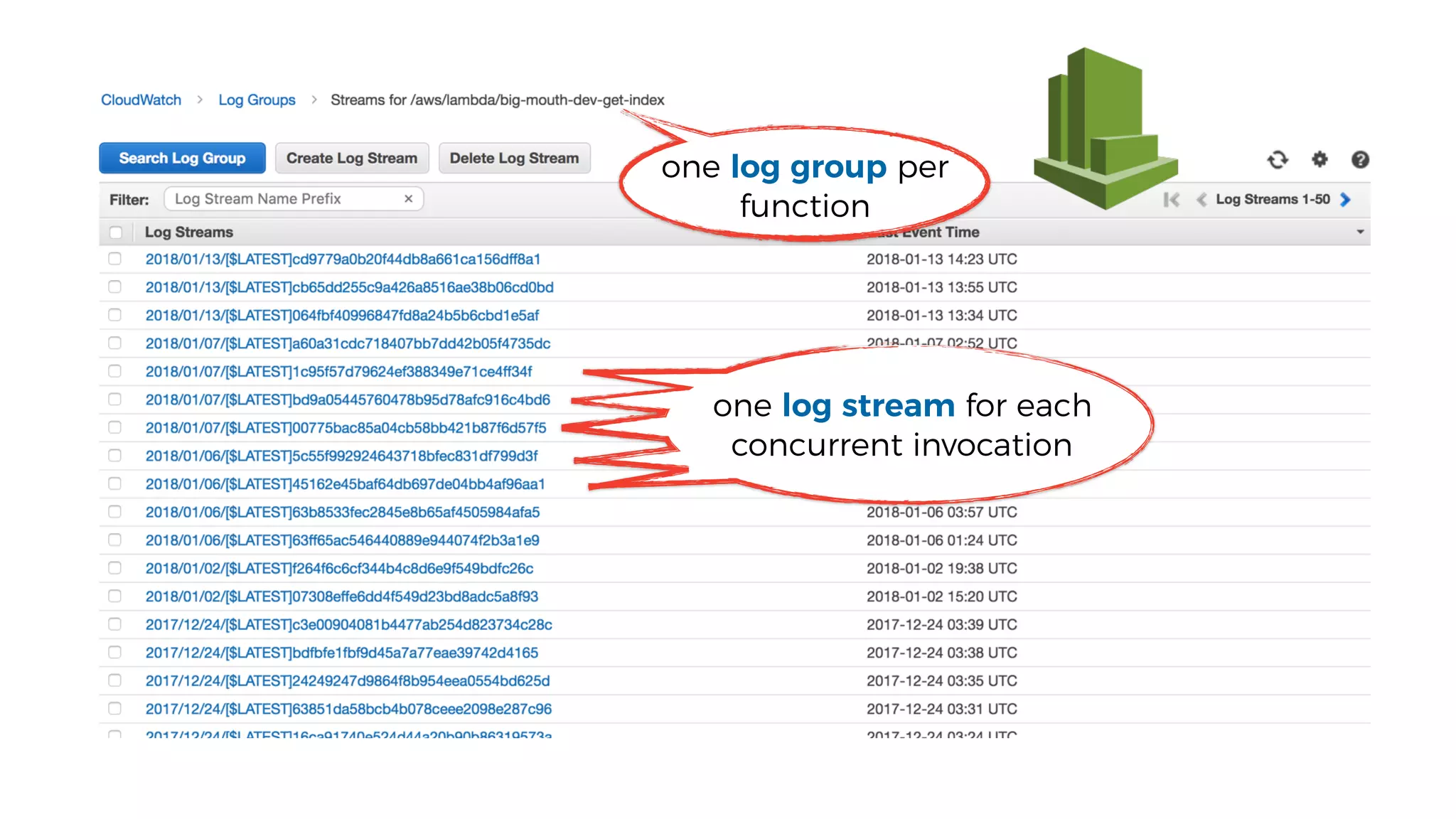

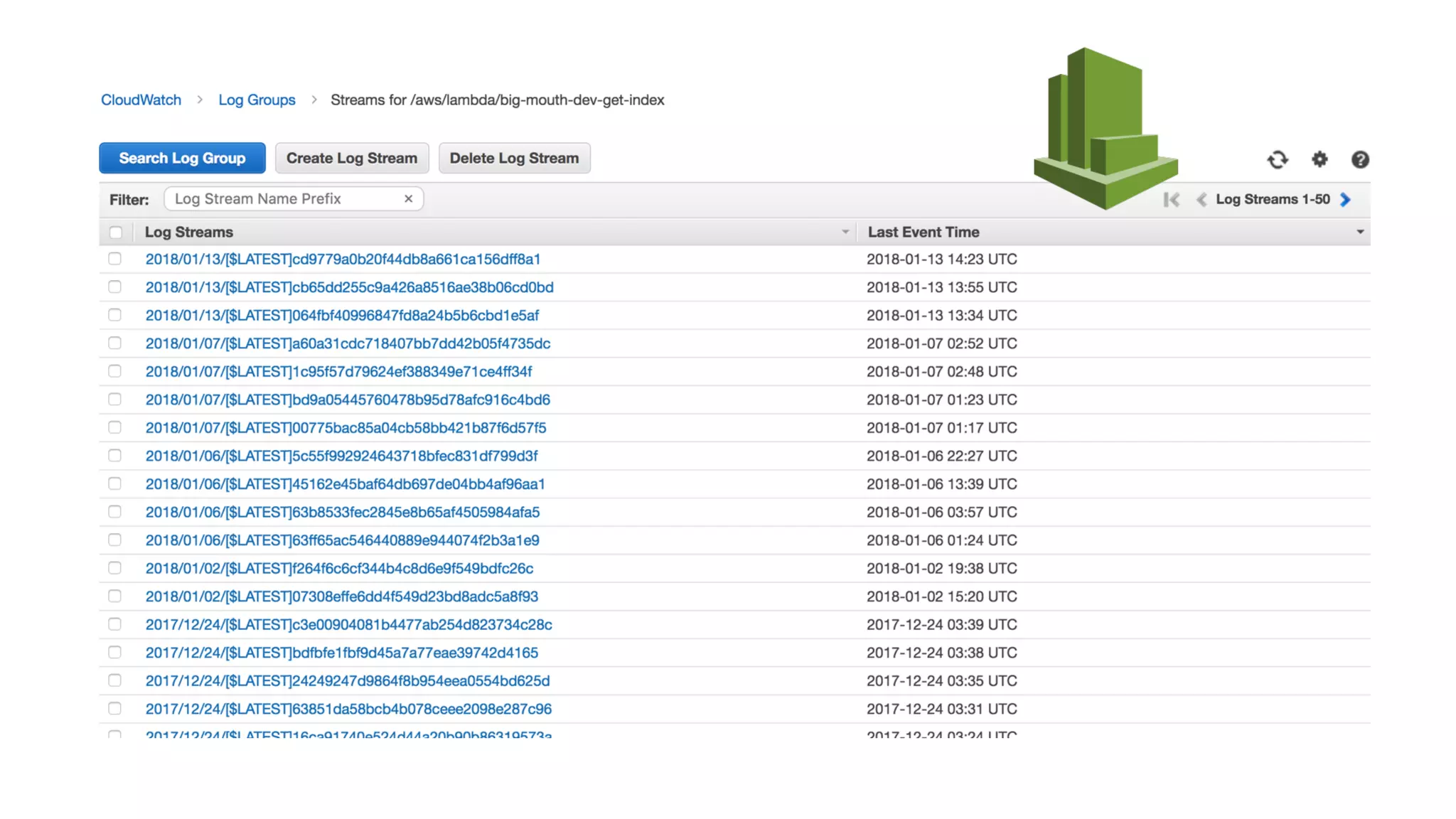

65. one log group per
function
one log stream for each
concurrent invocation

66. logs are not easily searchable in
CloudWatch Logs
me

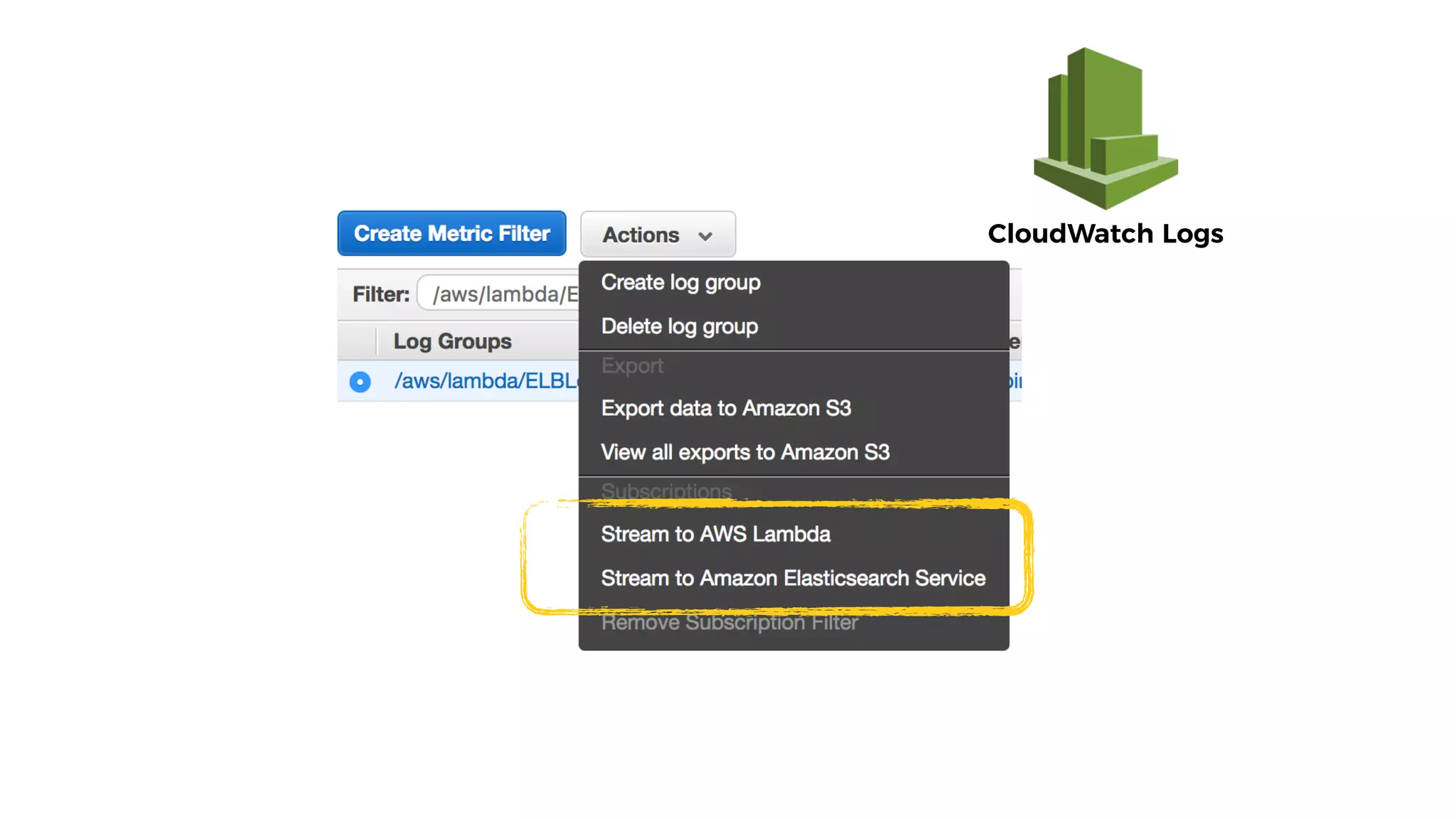

67. CloudWatch Logs

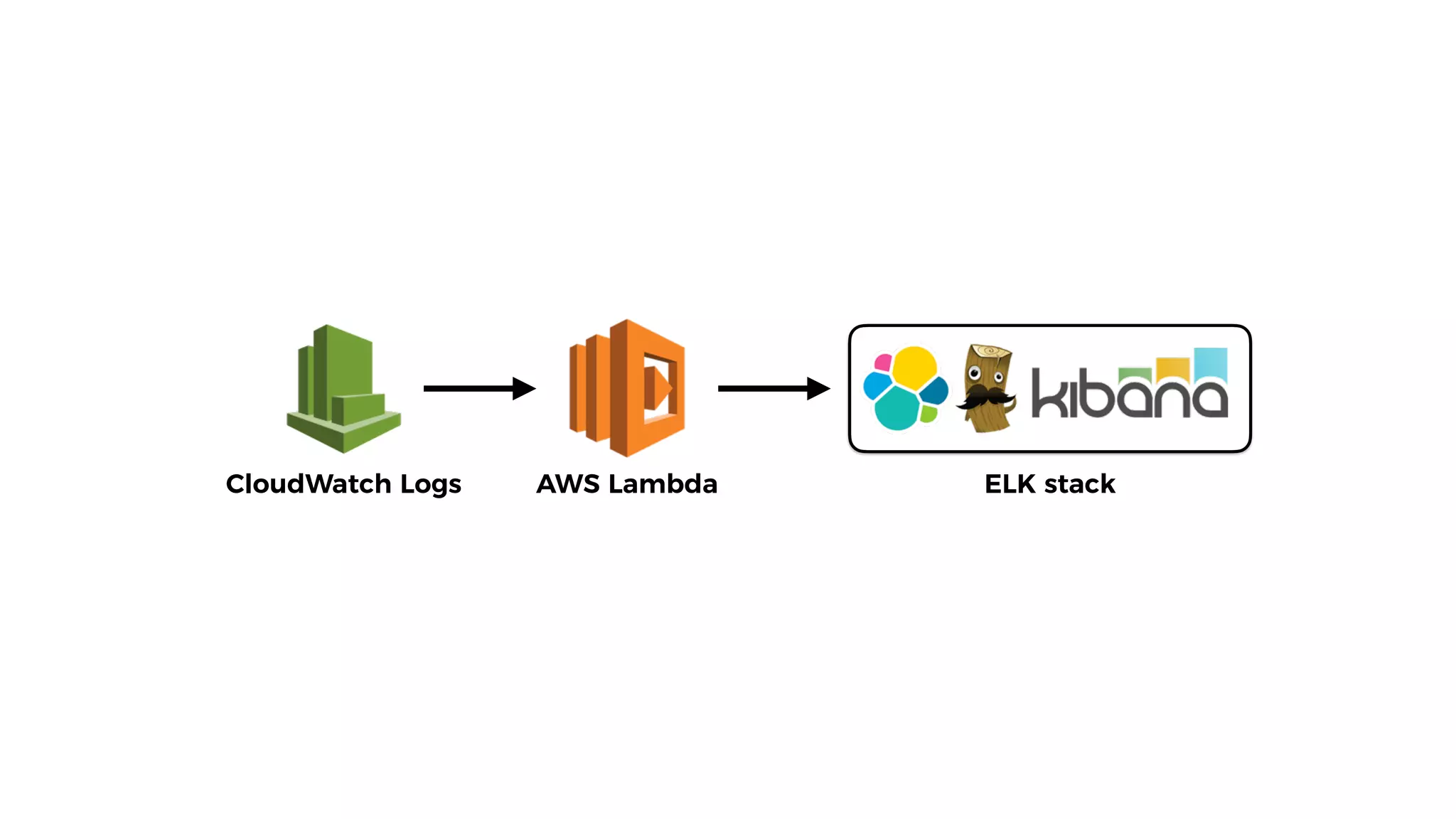

68. CloudWatch Logs AWS Lambda ELK stack

69. …

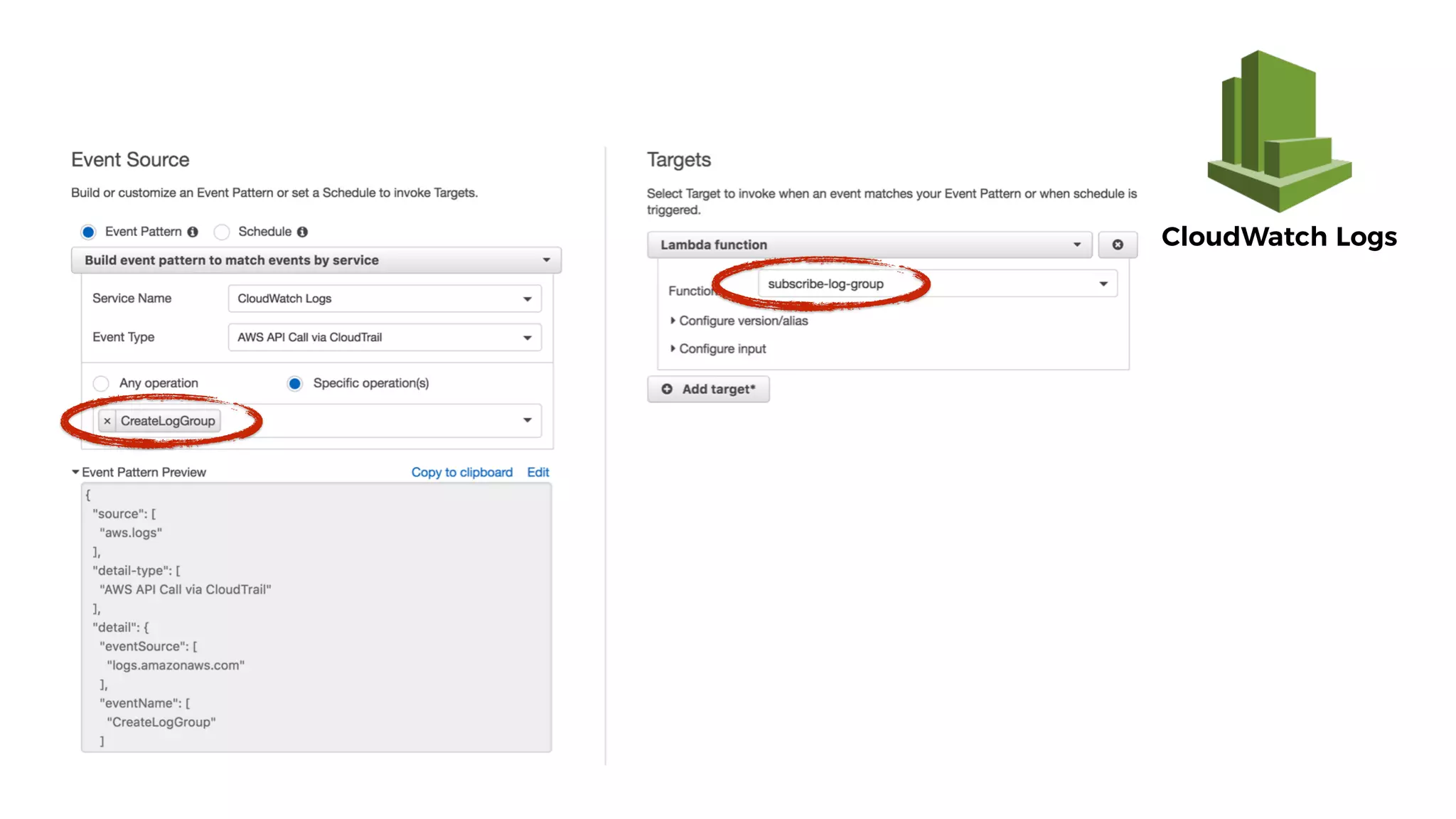

70. CloudWatch Logs

74. •no background processing
•nowhere to install agents/daemons
new challenges

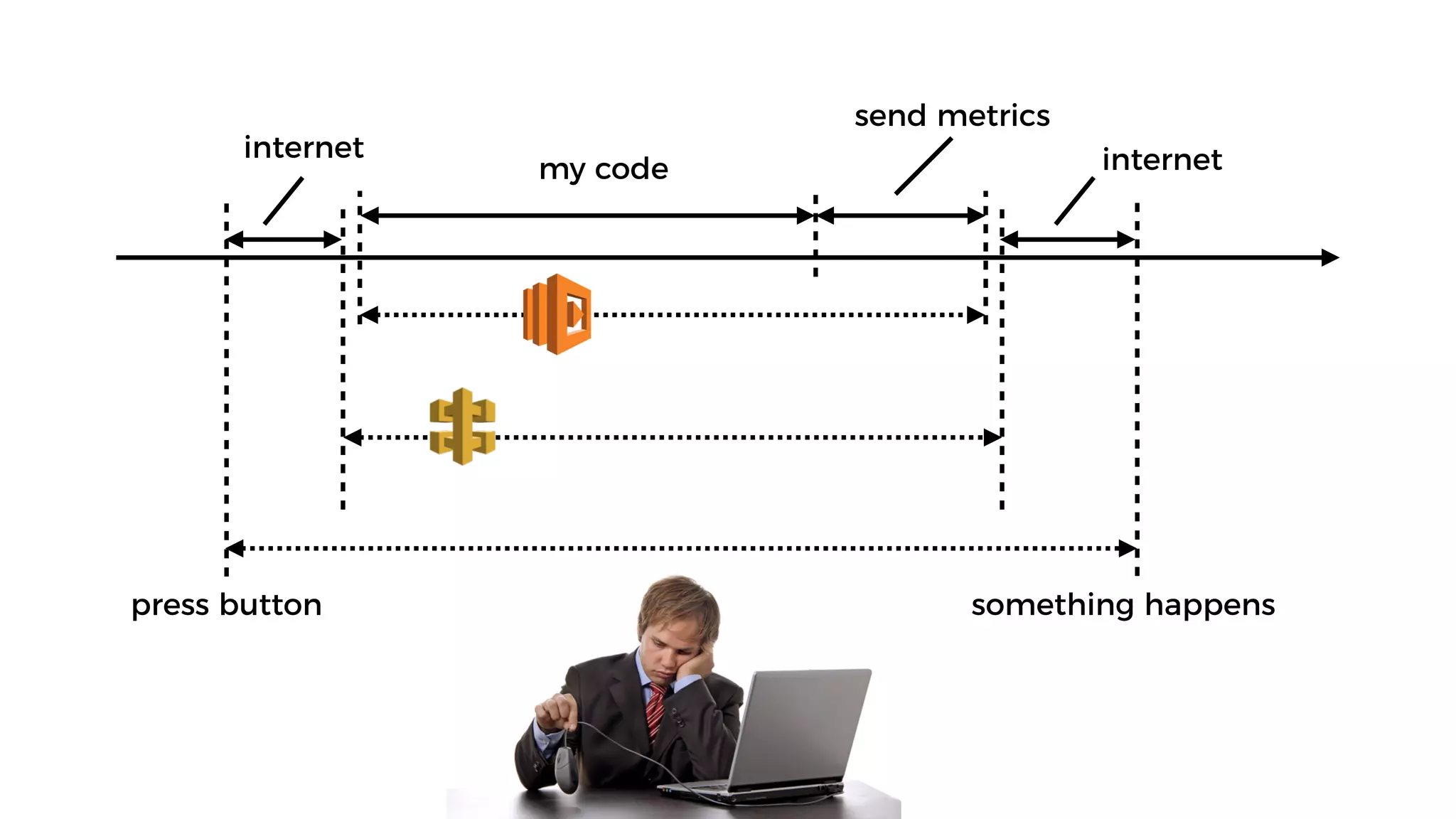

75. my code
send metrics
internet internet
press button something happens

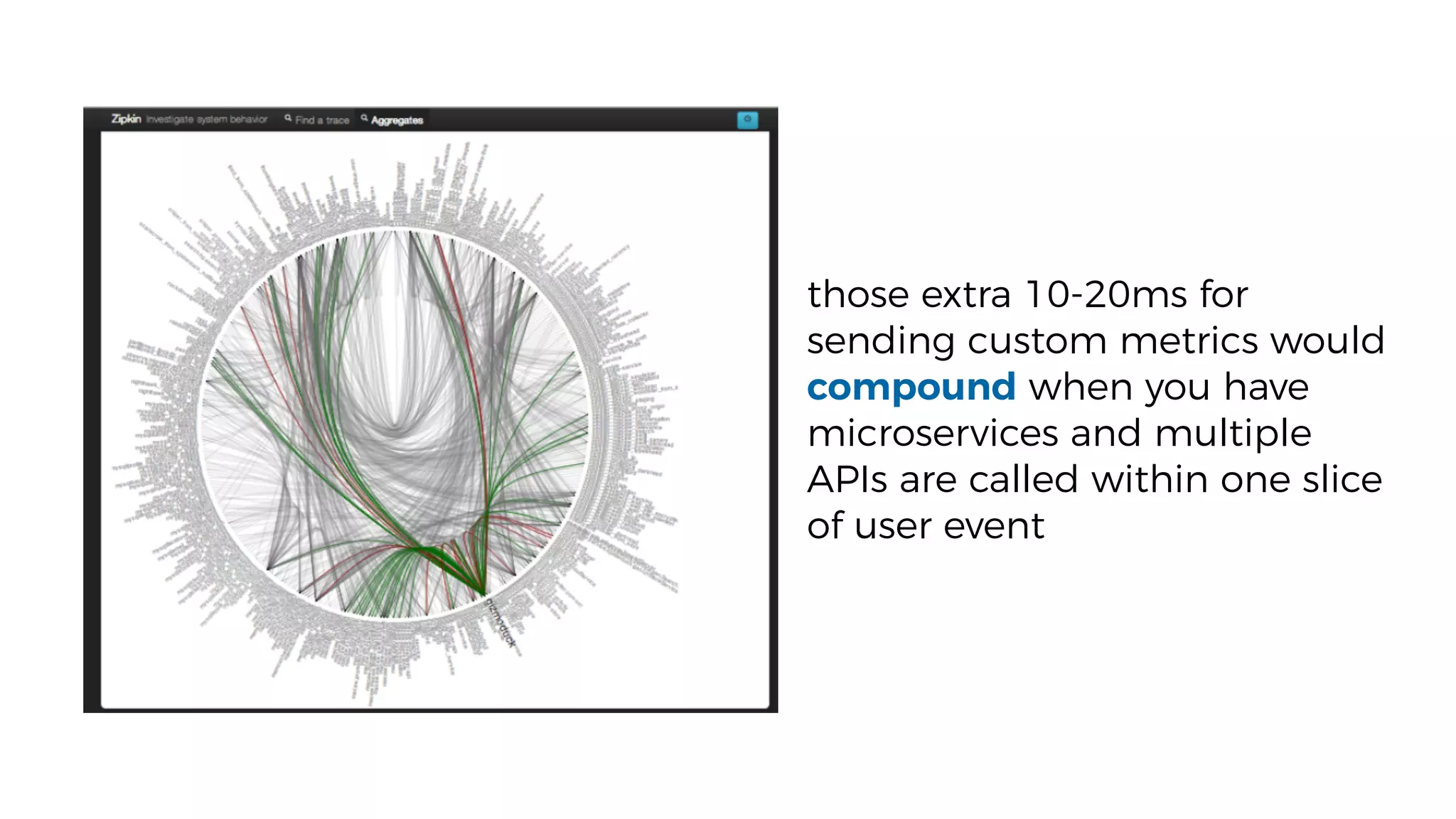

76. those extra 10-20ms for
sending custom metrics would
compound when you have
microservices and multiple
APIs are called within one slice
of user event

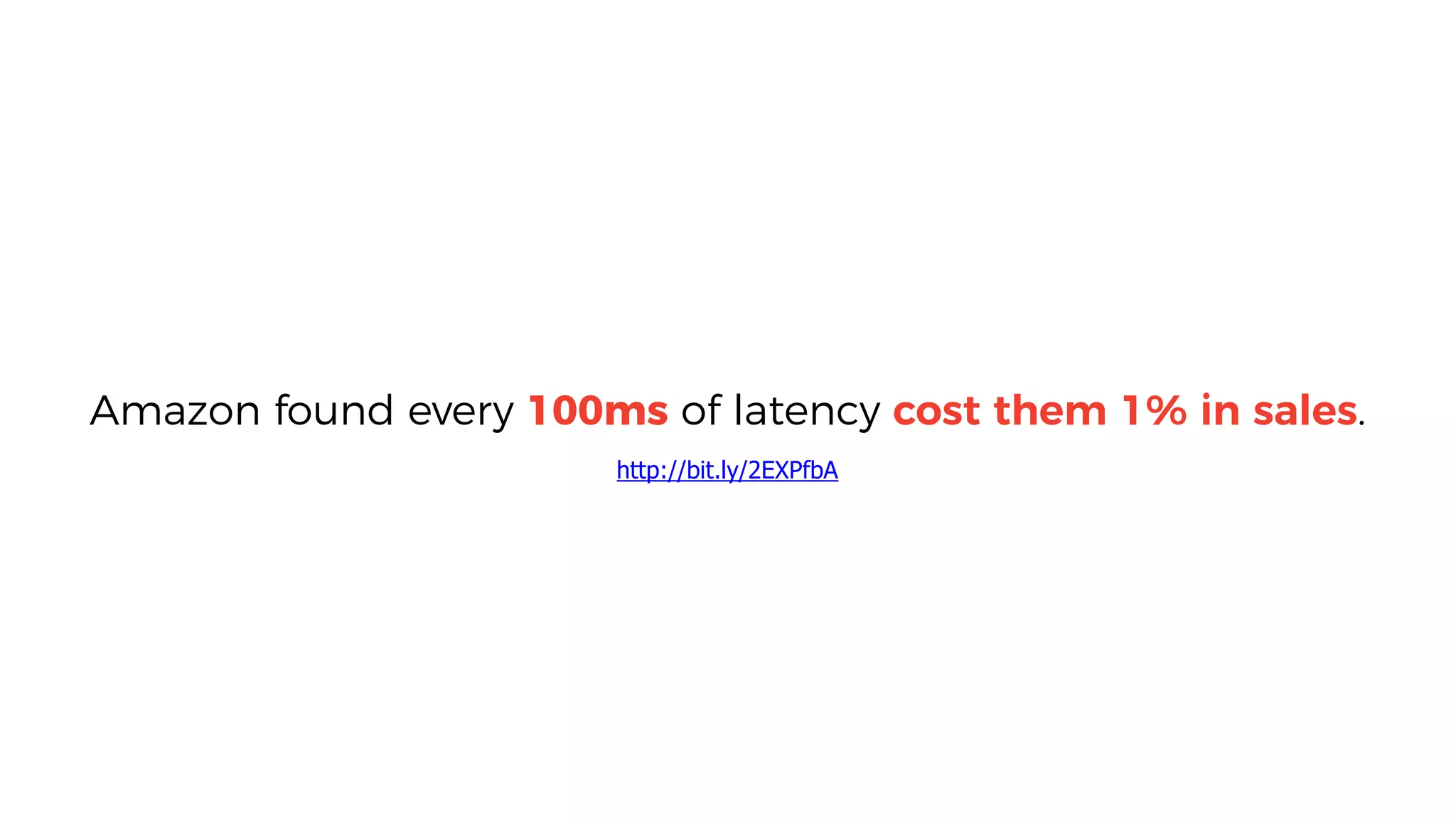

77. Amazon found every 100ms of latency cost them 1% in sales.
http://bit.ly/2EXPfbA

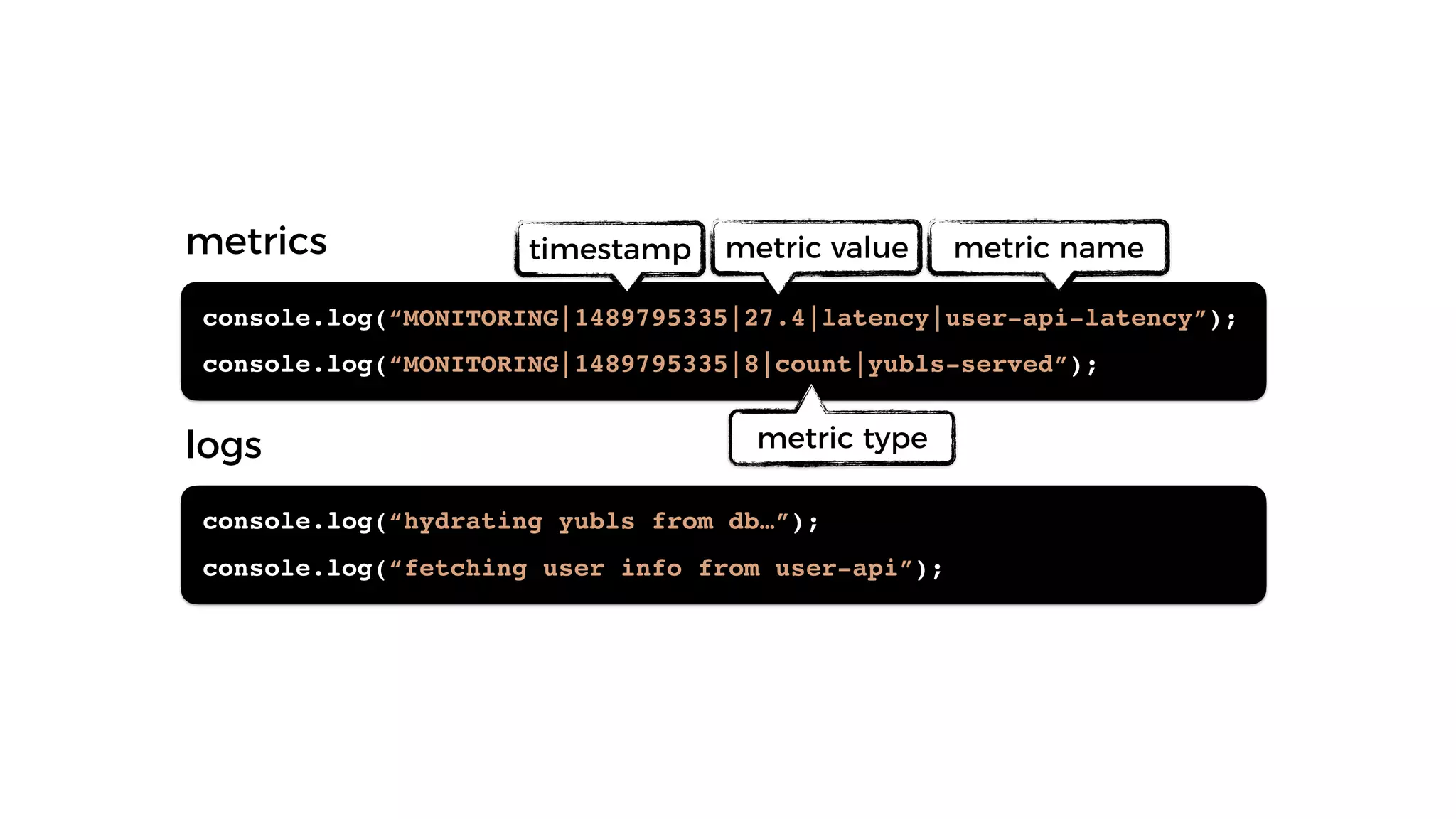

78. console.log(“hydrating yubls from db…”);
console.log(“fetching user info from user-api”);
console.log(“MONITORING|1489795335|27.4|latency|user-api-latency”);
console.log(“MONITORING|1489795335|8|count|yubls-served”);
timestamp metric value
metric type
metric namemetrics
logs

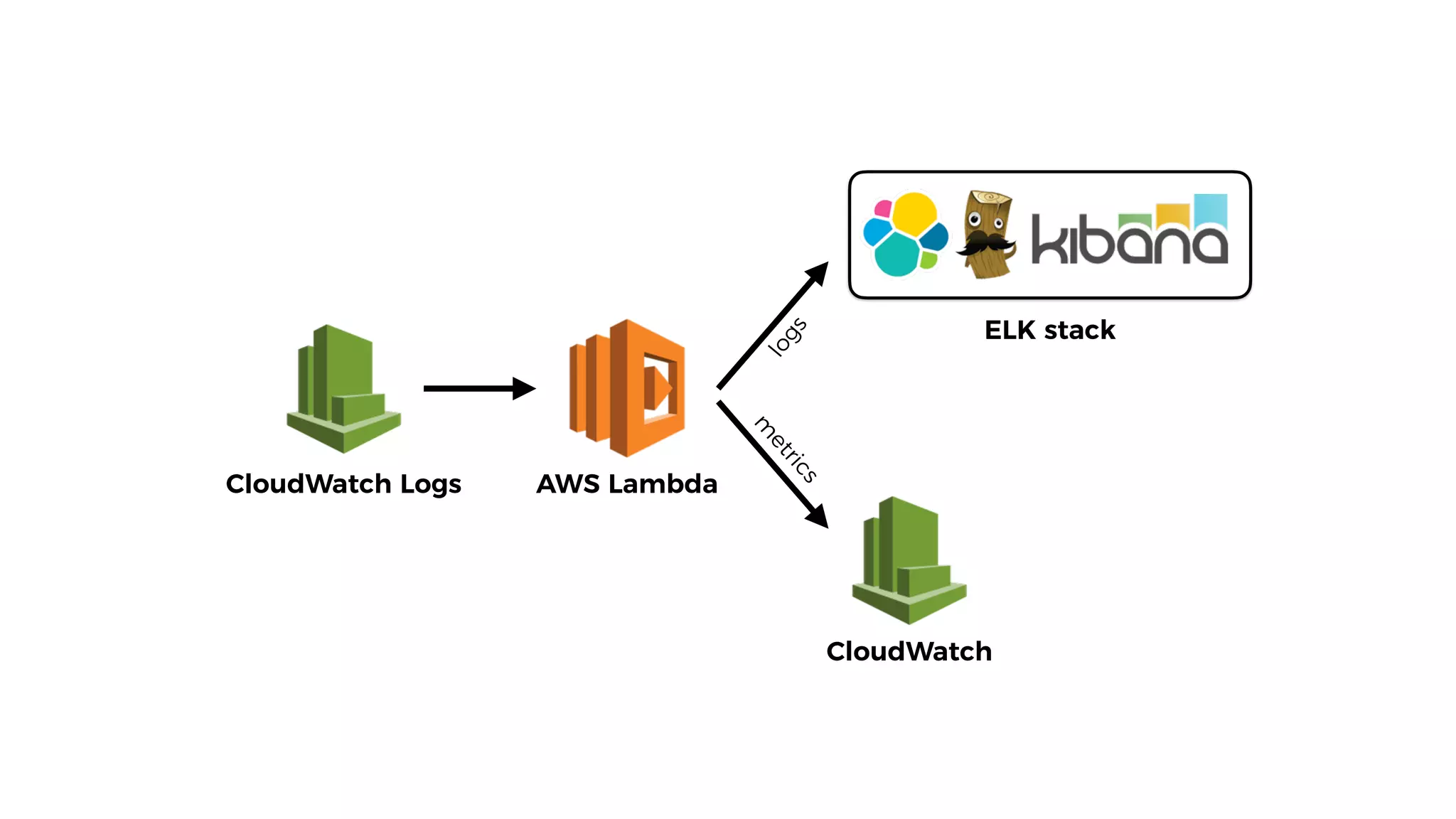

79. CloudWatch Logs AWS Lambda
ELK stack
logs
m
etrics
CloudWatch

81. delay
cost
concurrency

82. delay
cost
concurrency
no latency
overhead

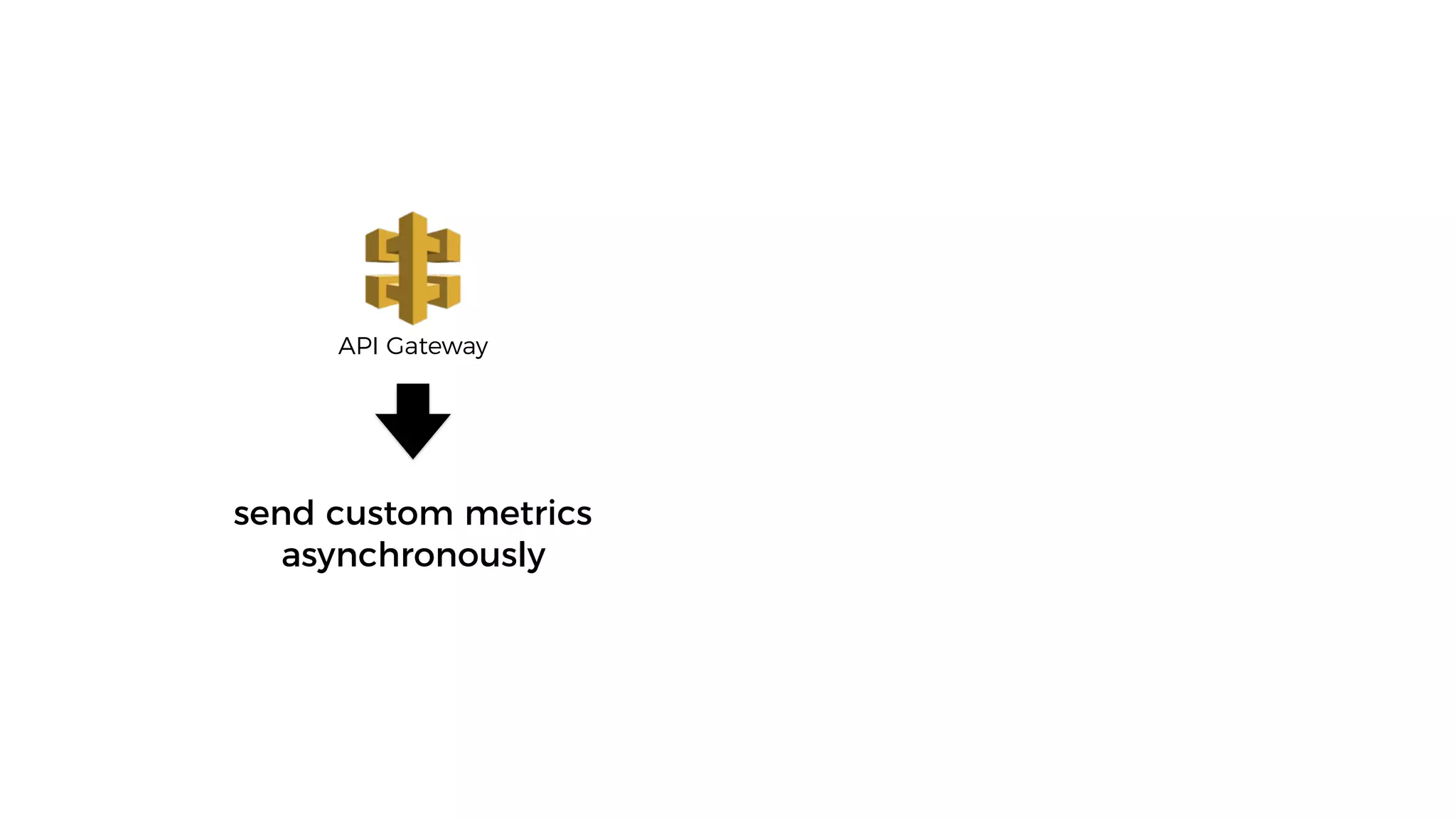

83. API Gateway
send custom metrics
asynchronously

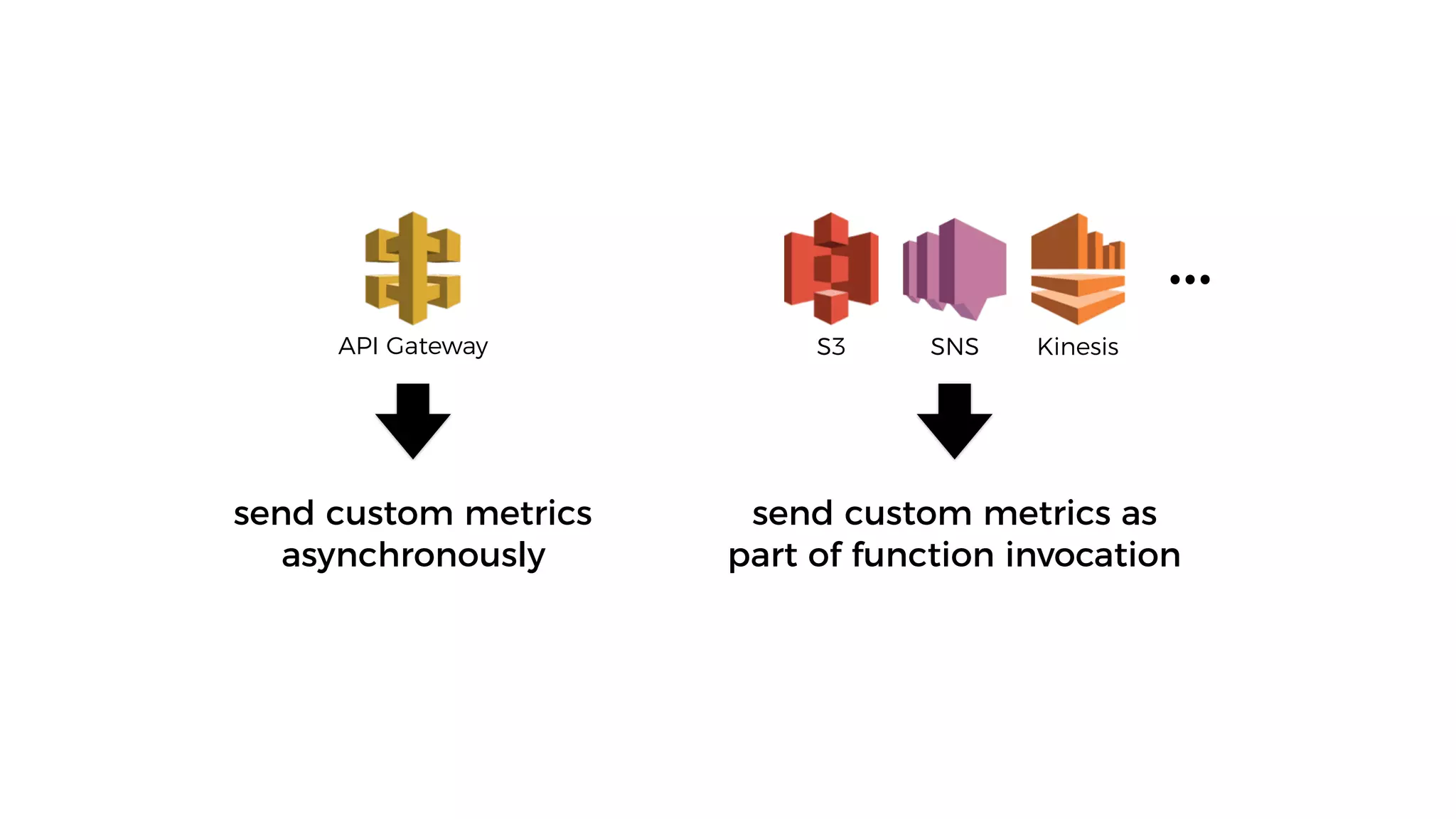

84. SNS KinesisS3API Gateway
…
send custom metrics
asynchronously
send custom metrics as
part of function invocation

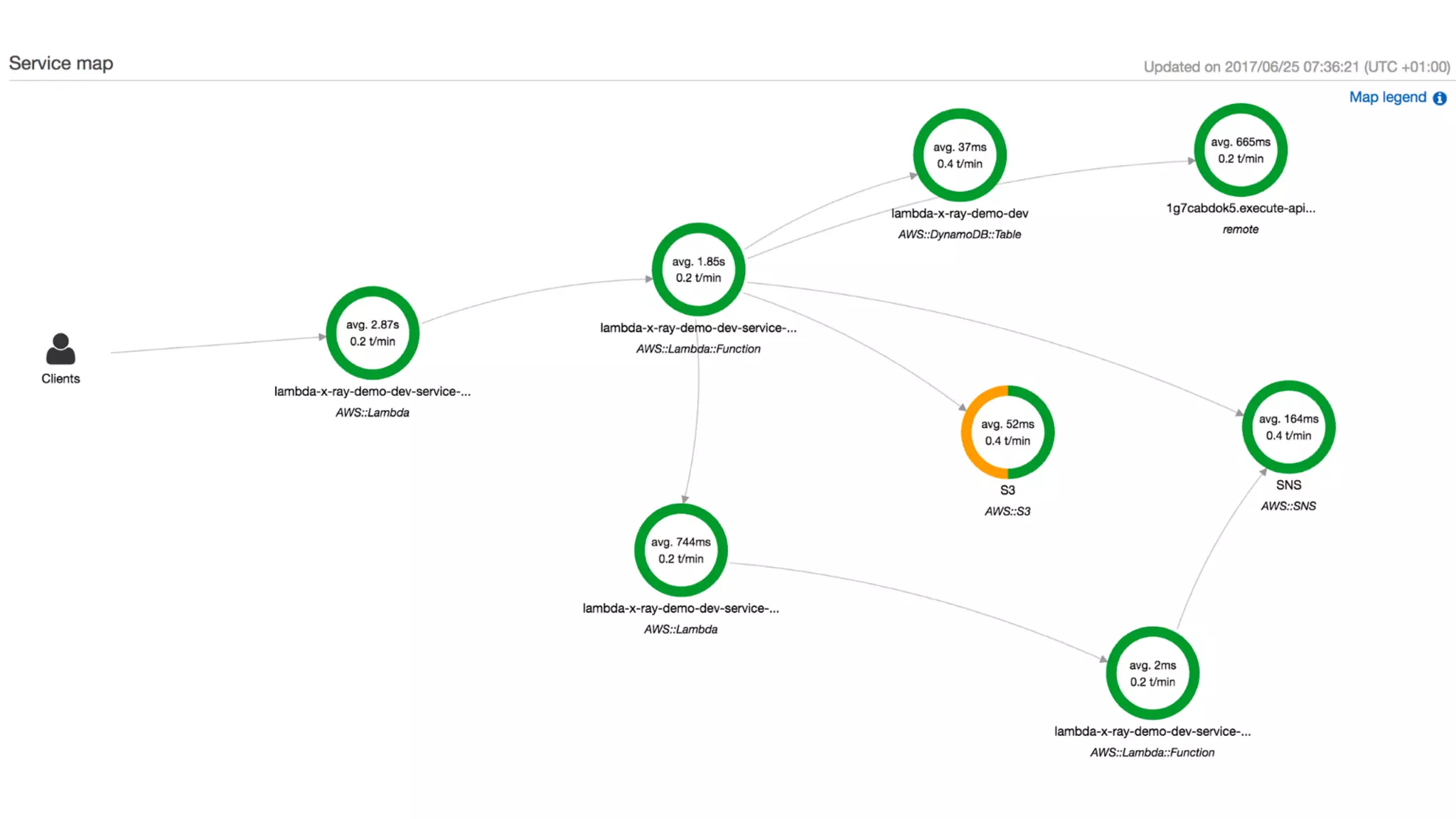

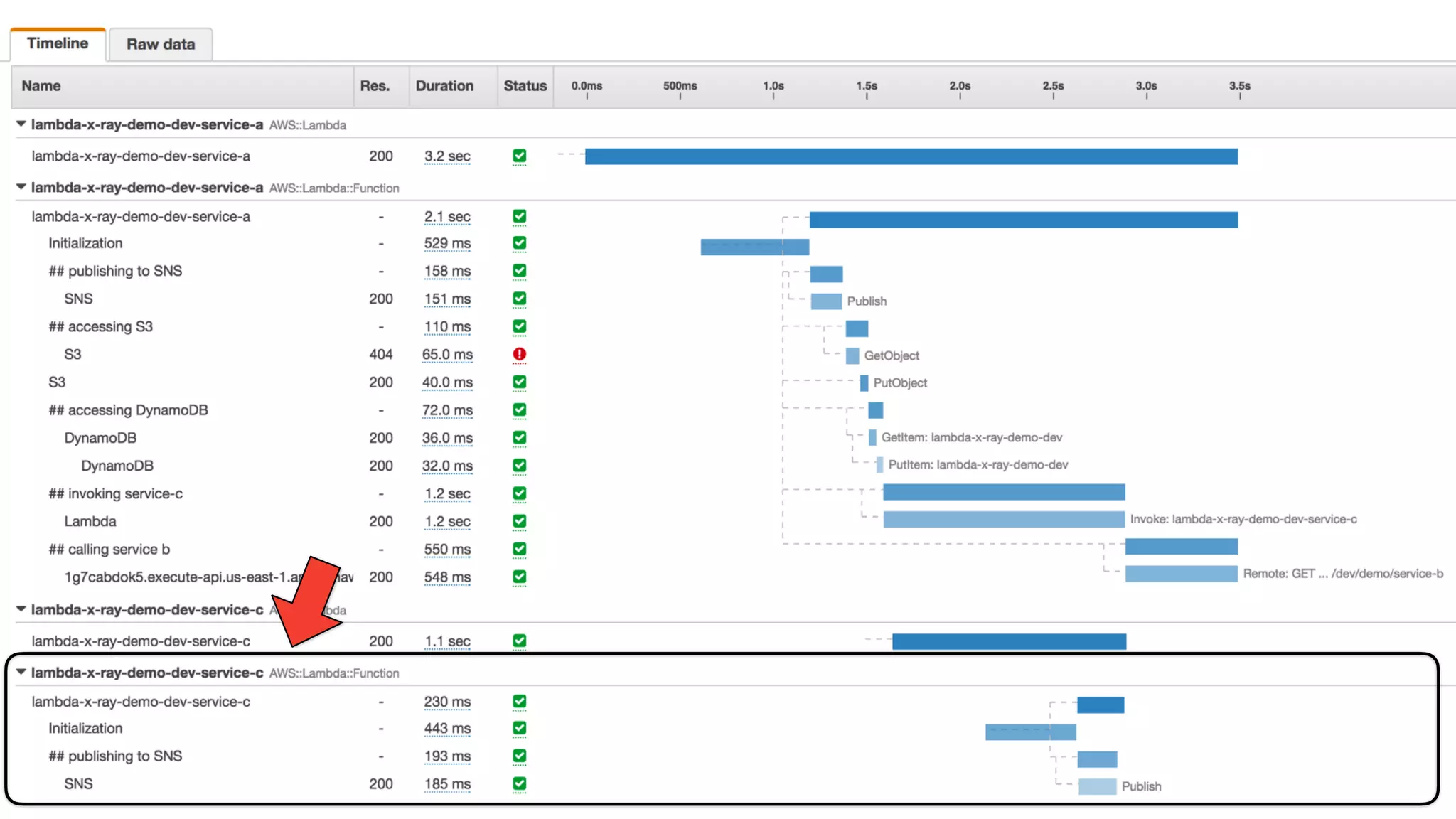

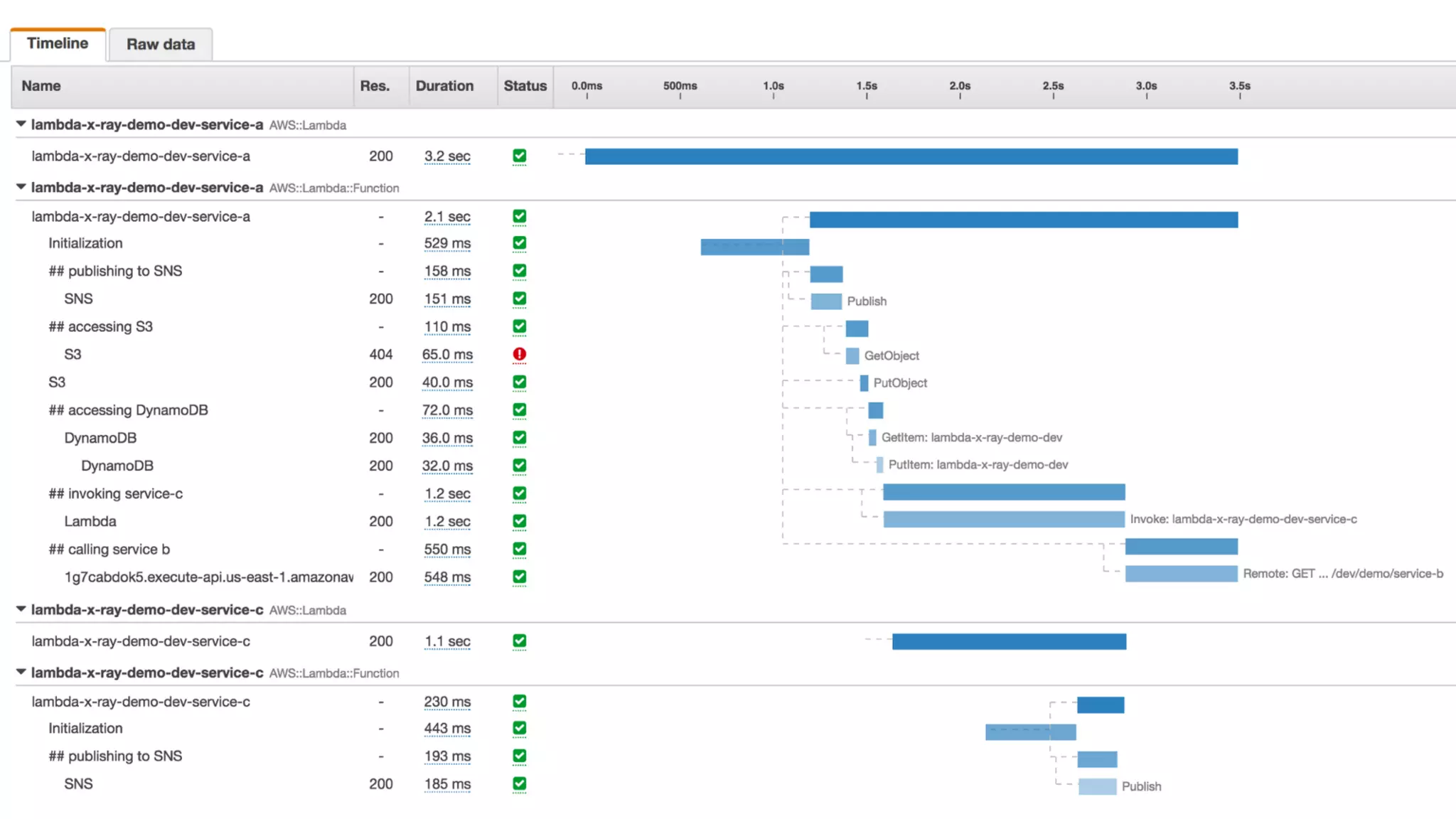

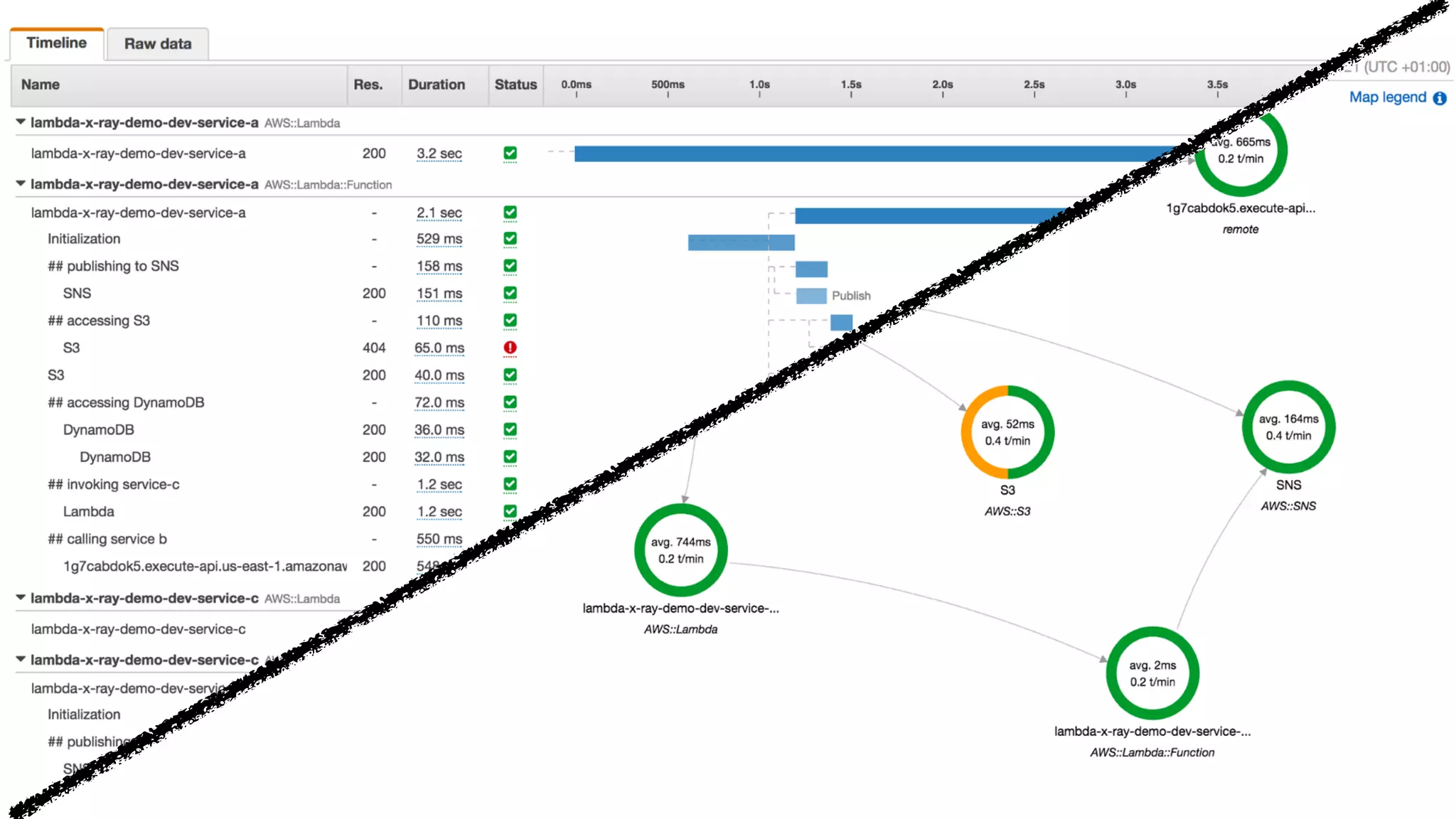

86. X-Ray

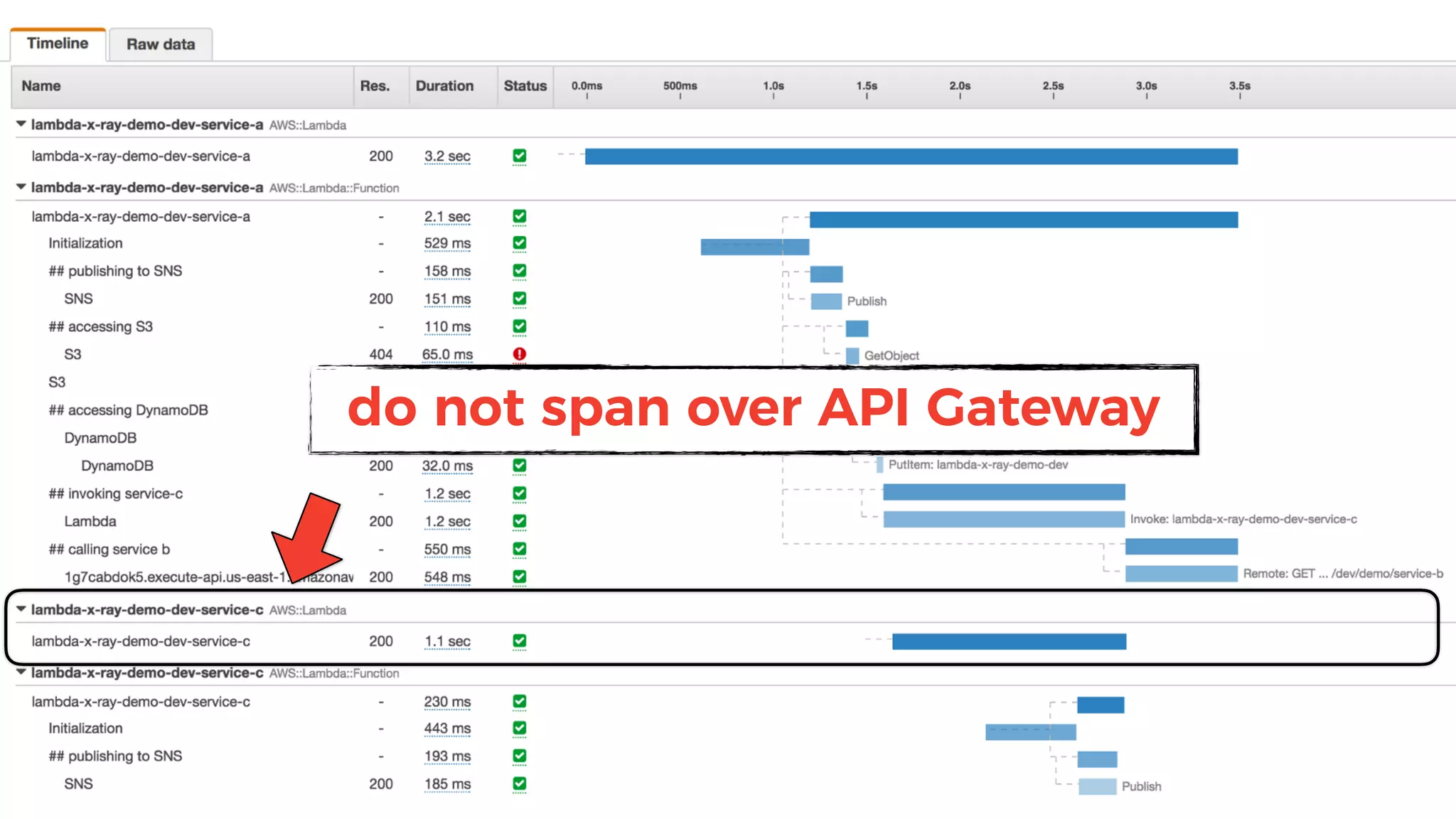

89. do not span over API Gateway

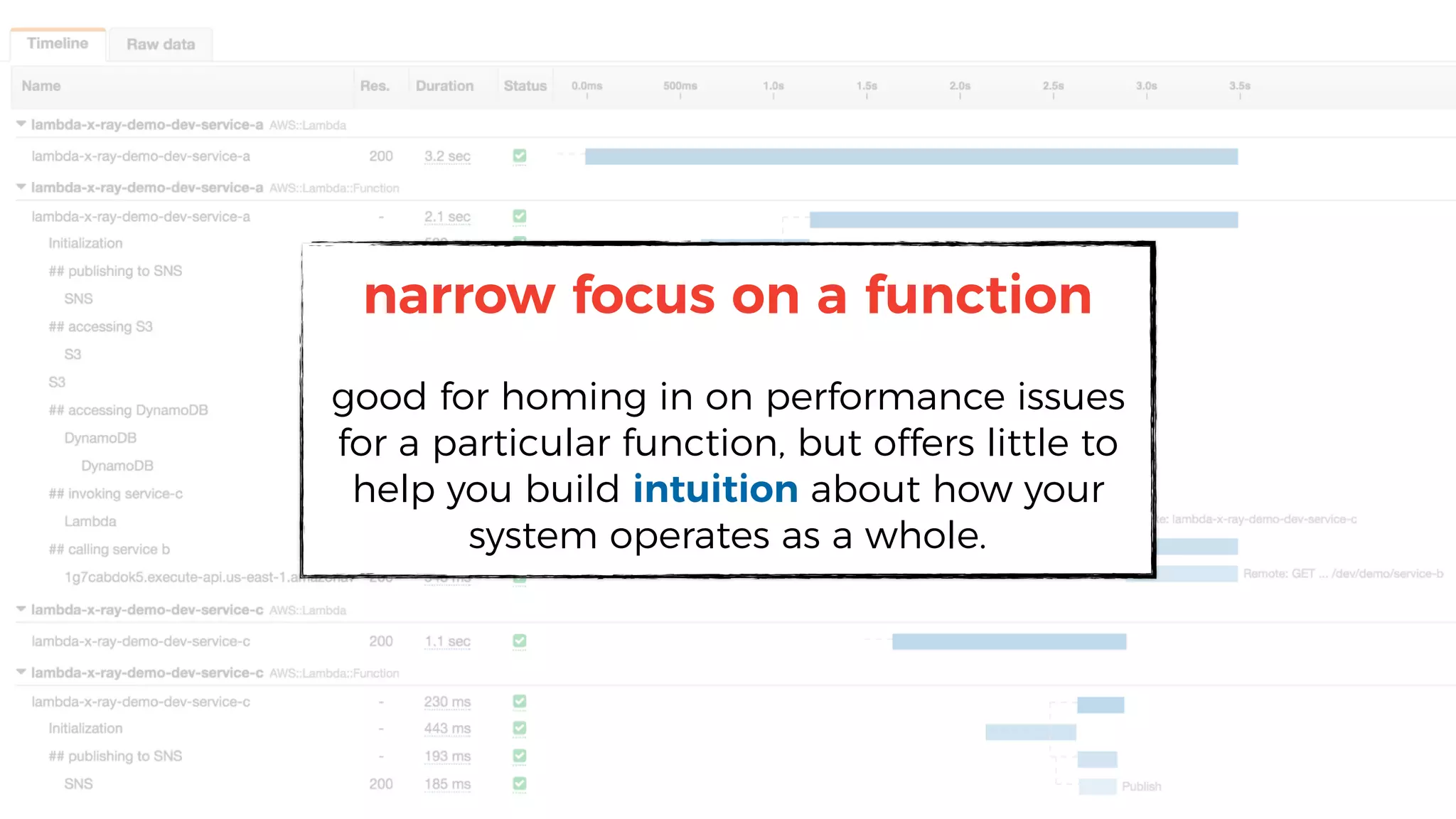

90. narrow focus on a function
good for homing in on performance issues
for a particular function, but offers little to
help you build intuition about how your
system operates as a whole.

91. However, I would argue that the health of the system no
longer matters. We've entered an era where what matters is
the health of each individual event, or each individual user's
experience, or each shopping cart's experience (or other high
cardinality dimensions). With distributed systems you don't
care about the health of the system, you care about the
health of the event or the slice.
”http://bit.ly/2E2QngU- Charity Majors
“

92. follow the data

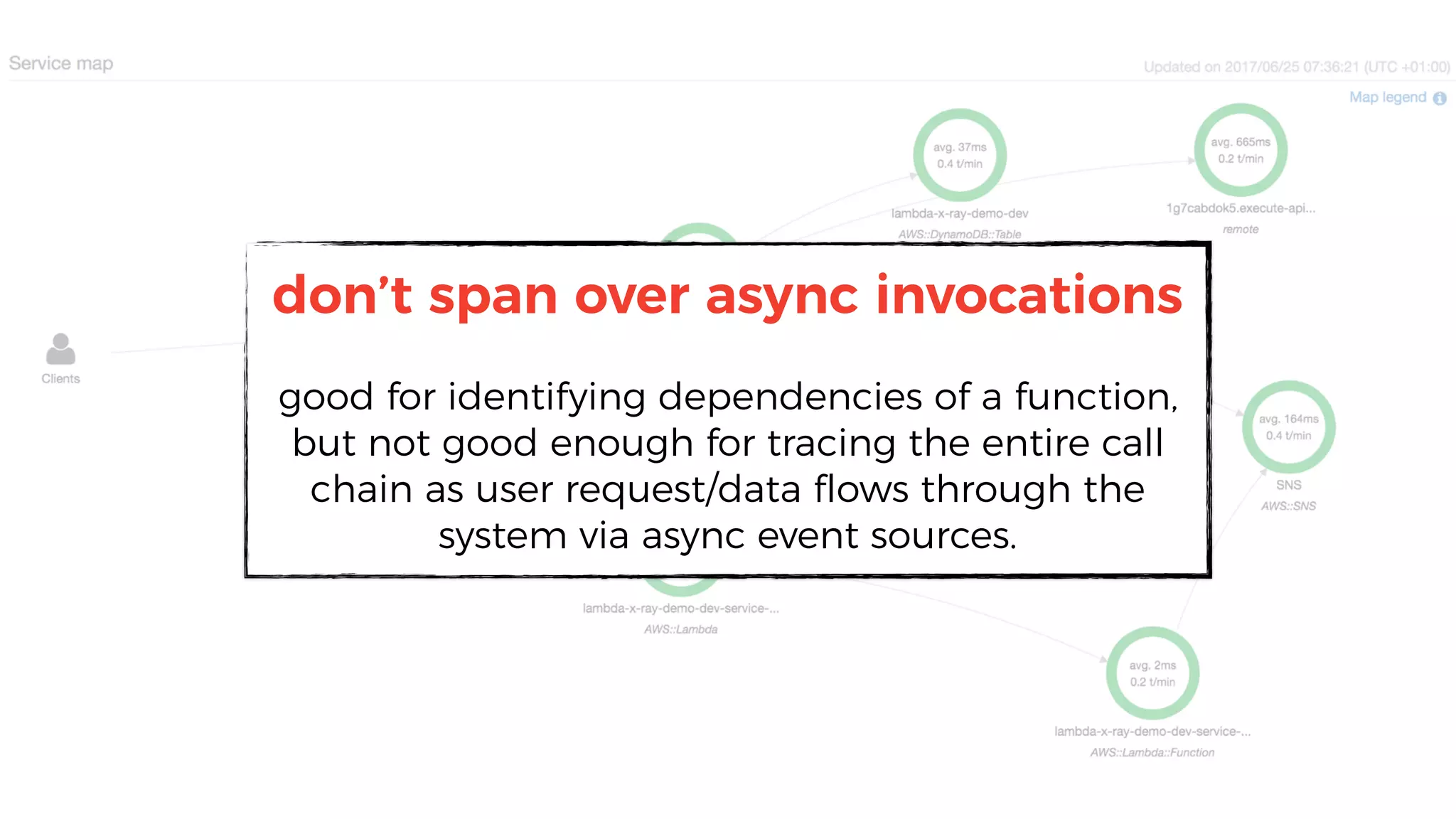

94. don’t span over async invocations
good for identifying dependencies of a function,
but not good enough for tracing the entire call
chain as user request/data flows through the
system via async event sources.

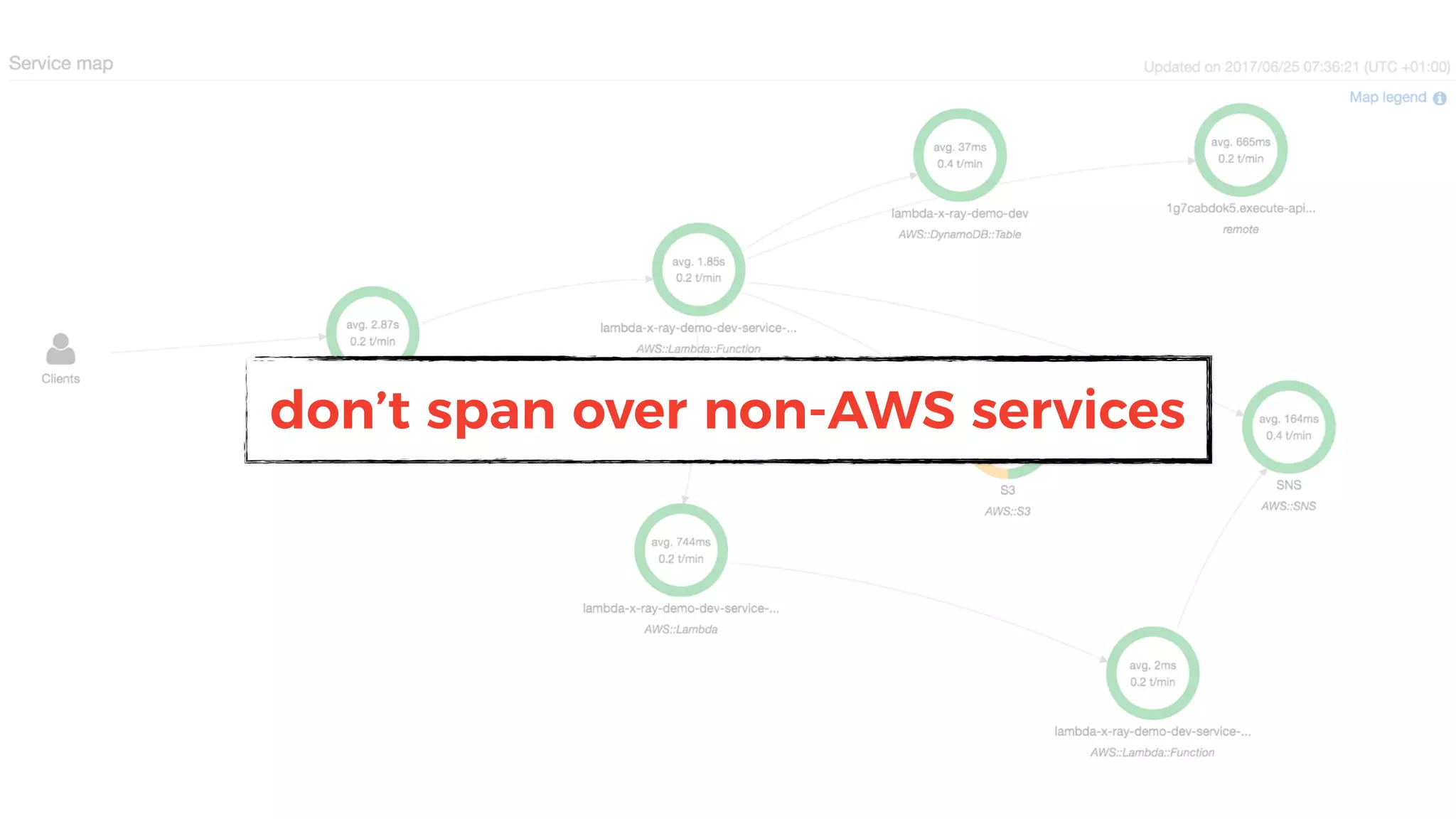

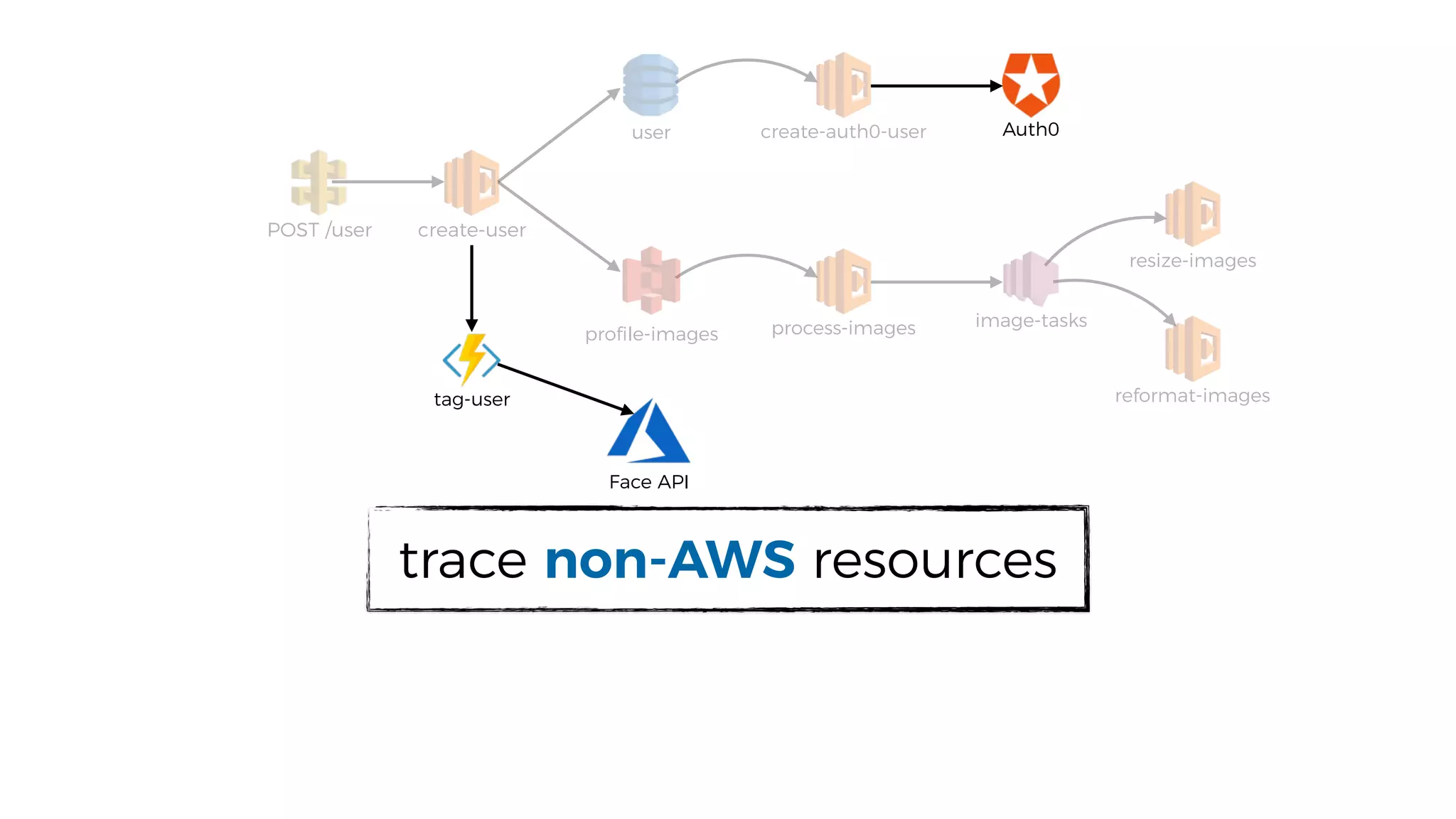

95. don’t span over non-AWS services

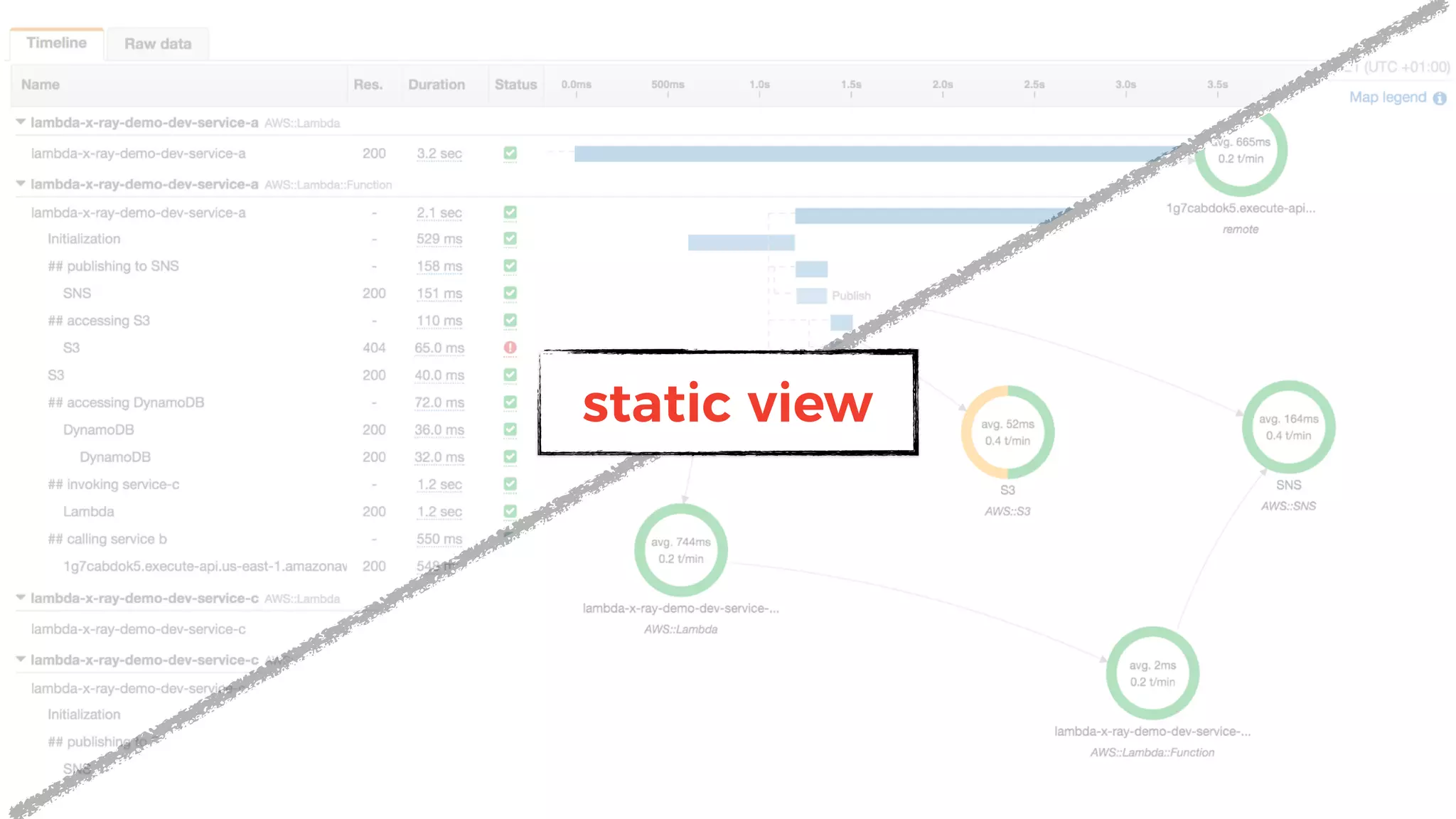

97. static view

98. our tools need to do more to help us with
understanding & debugging our distributed system,
not just what happens inside one function

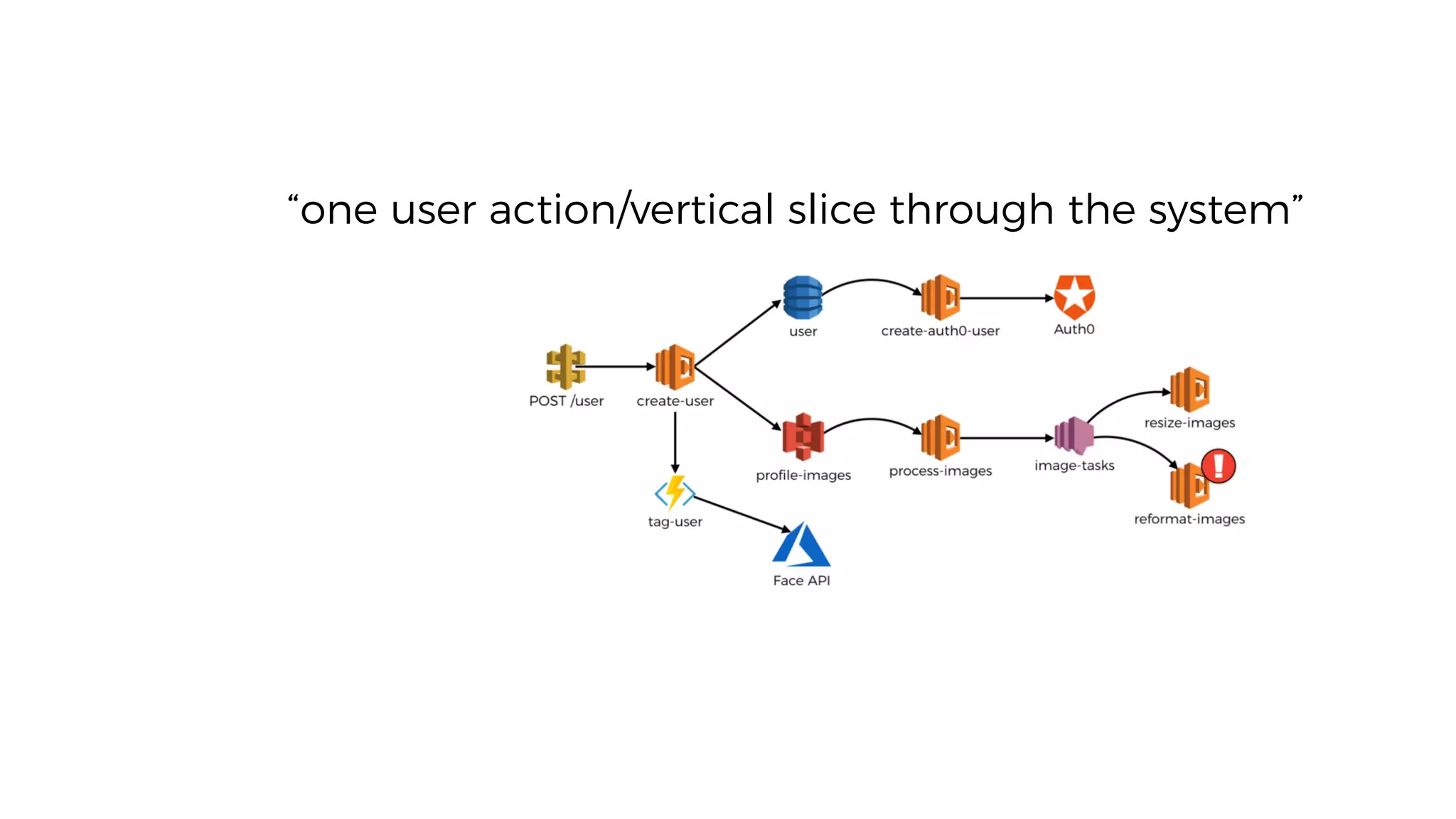

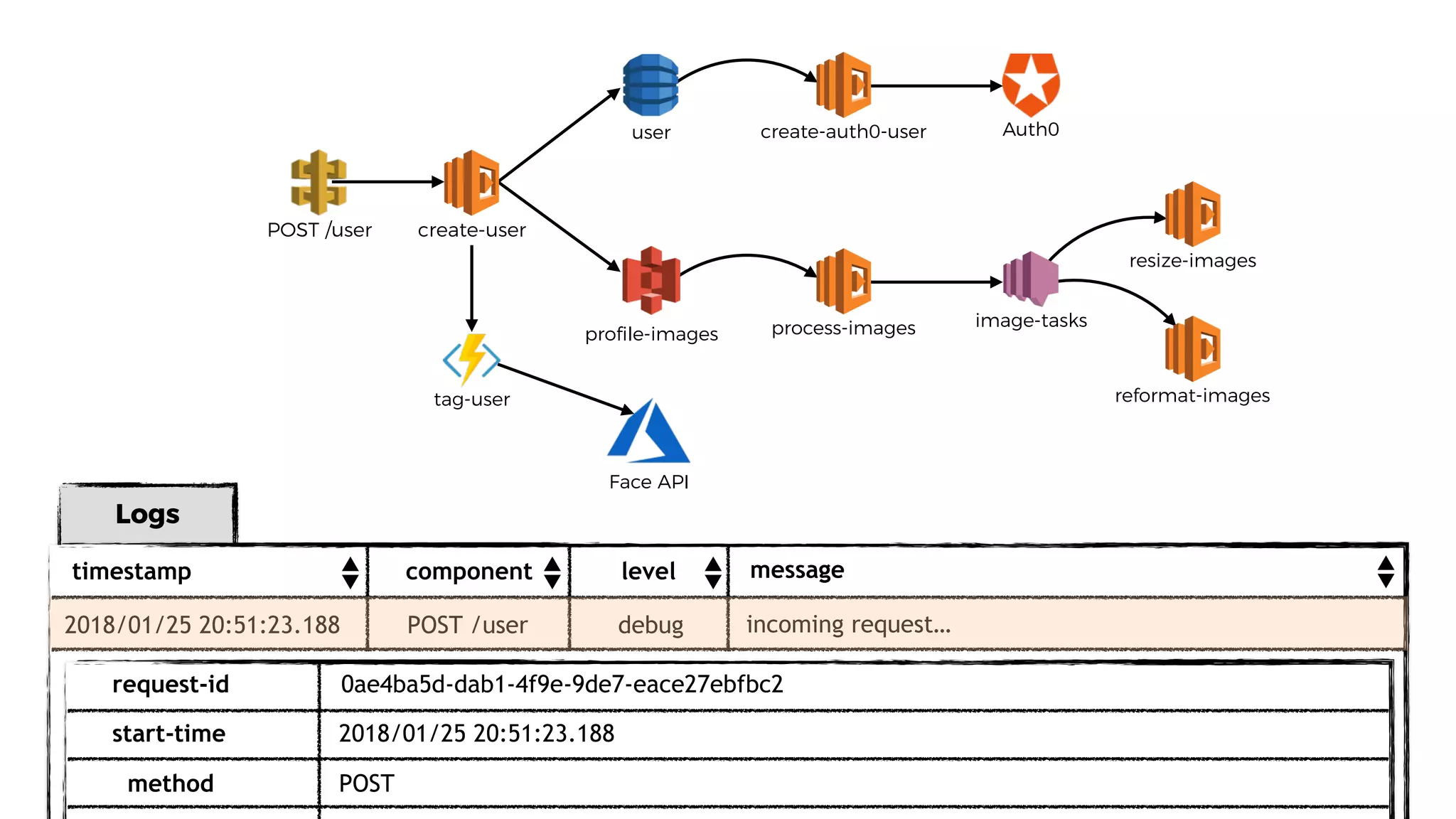

100. “one user action/vertical slice through the system”

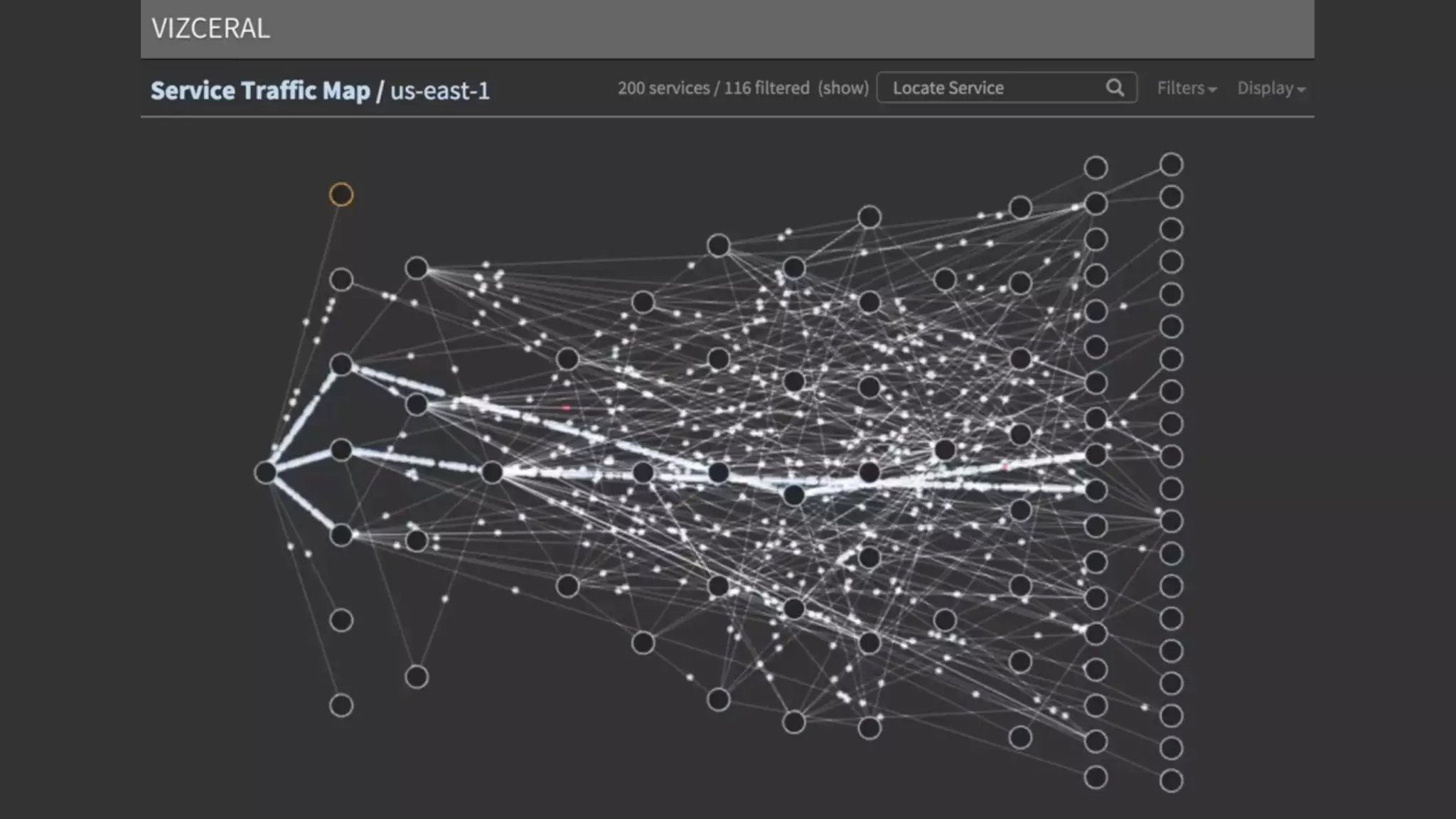

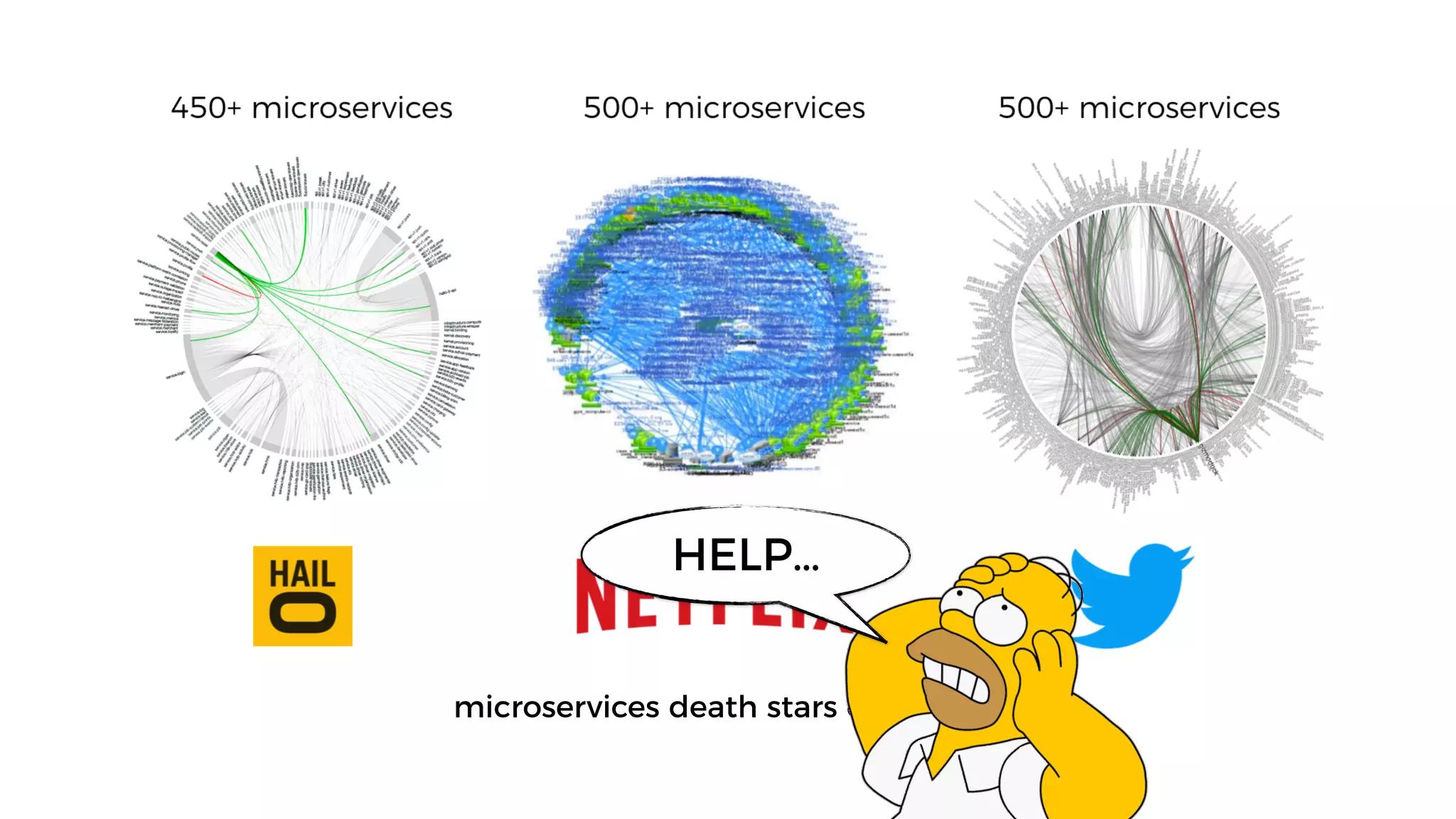

101. microservices death stars circa 2015

102. microservices death stars circa 2015
HELP…

104. WARNING: this is part fiction, part inspired by new tools

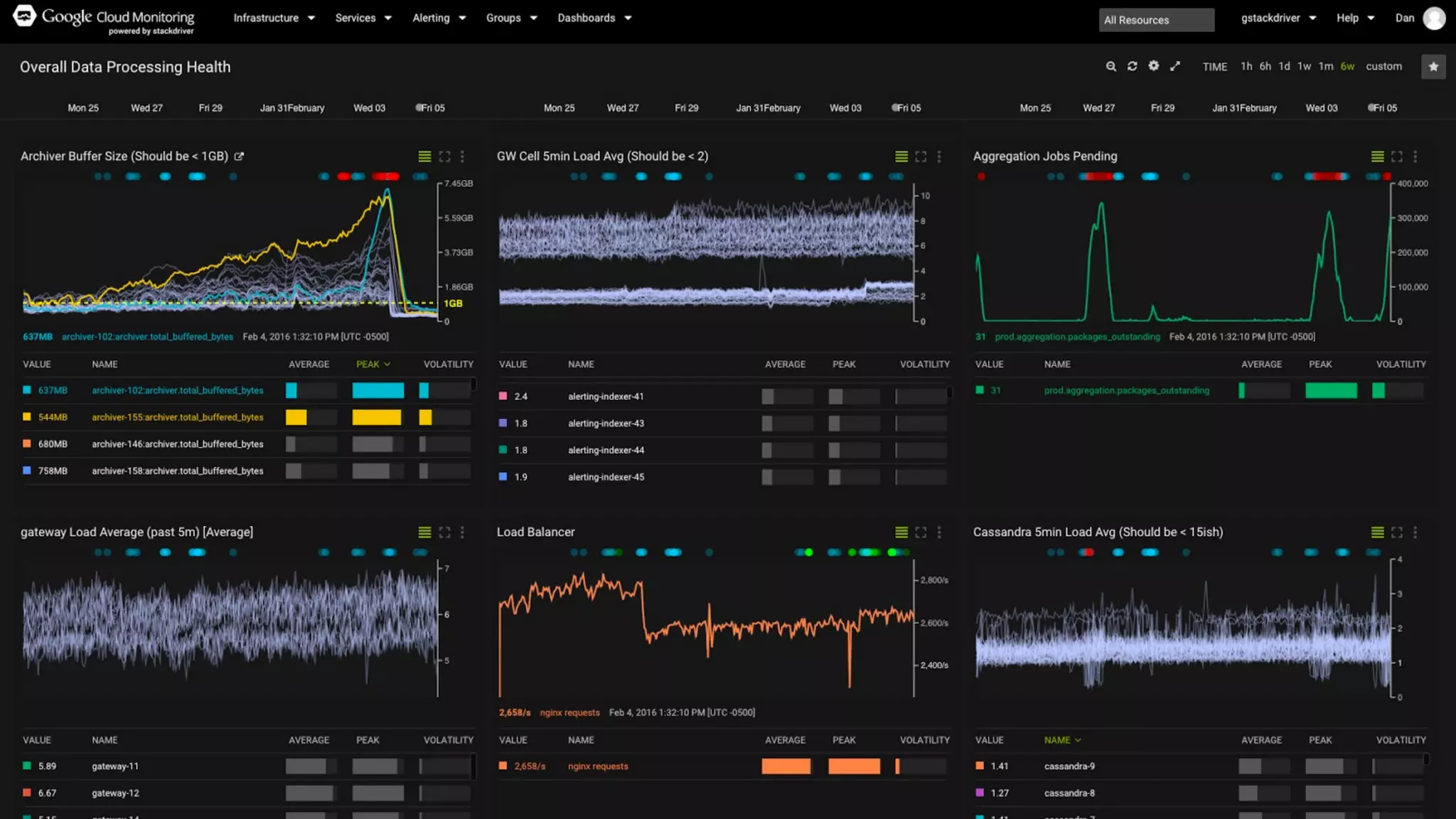

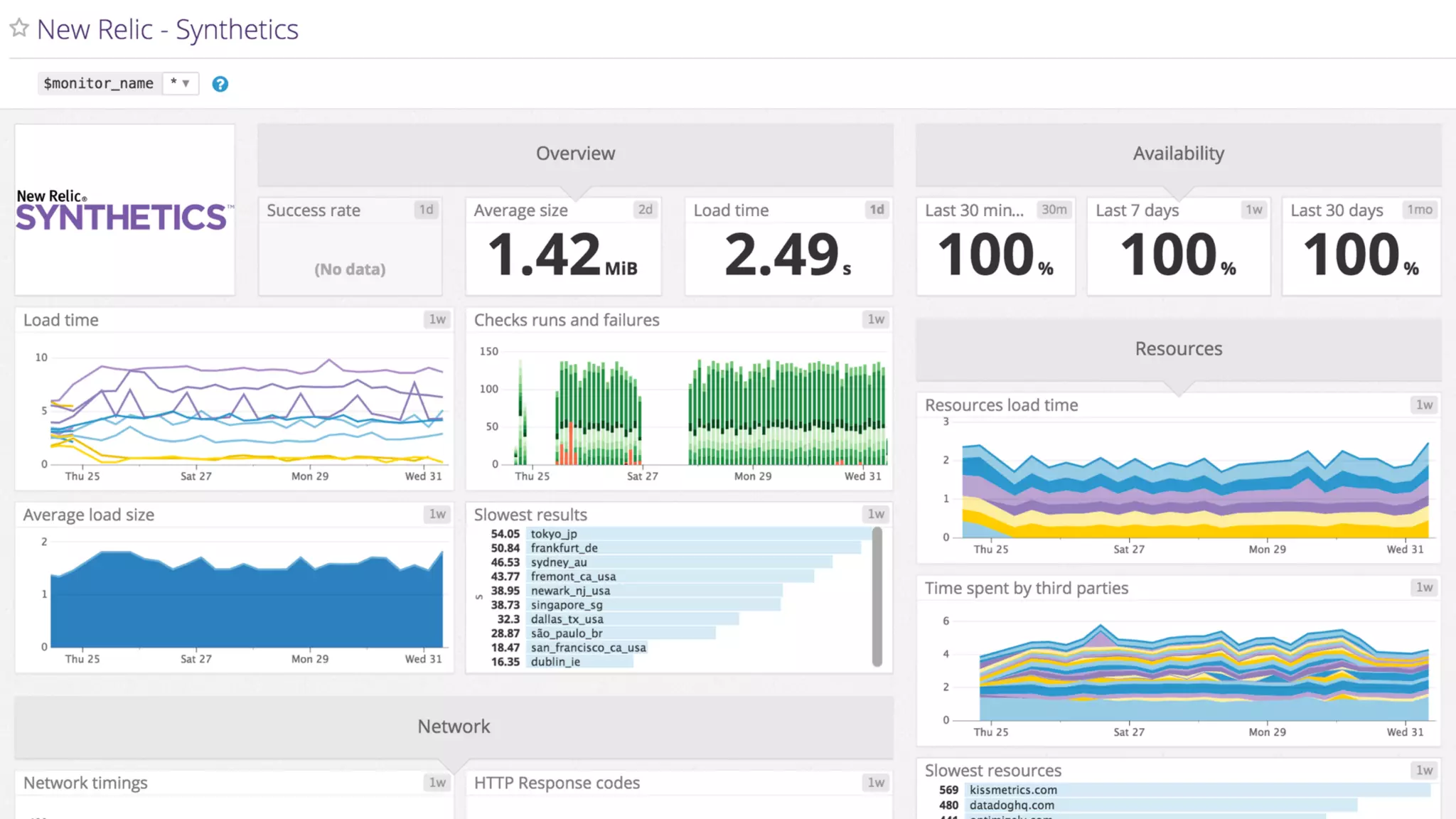

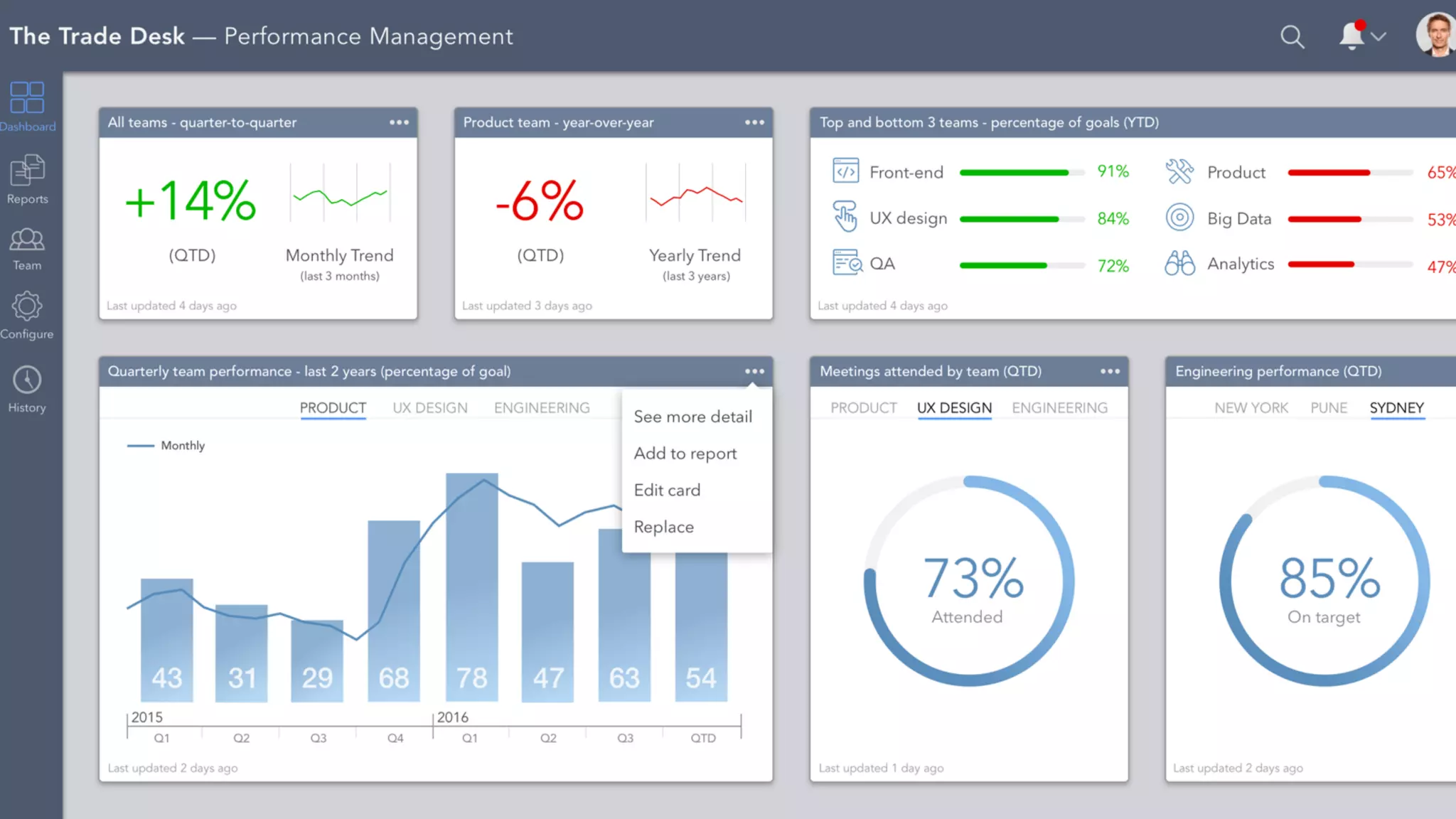

105. DASHBOARDS

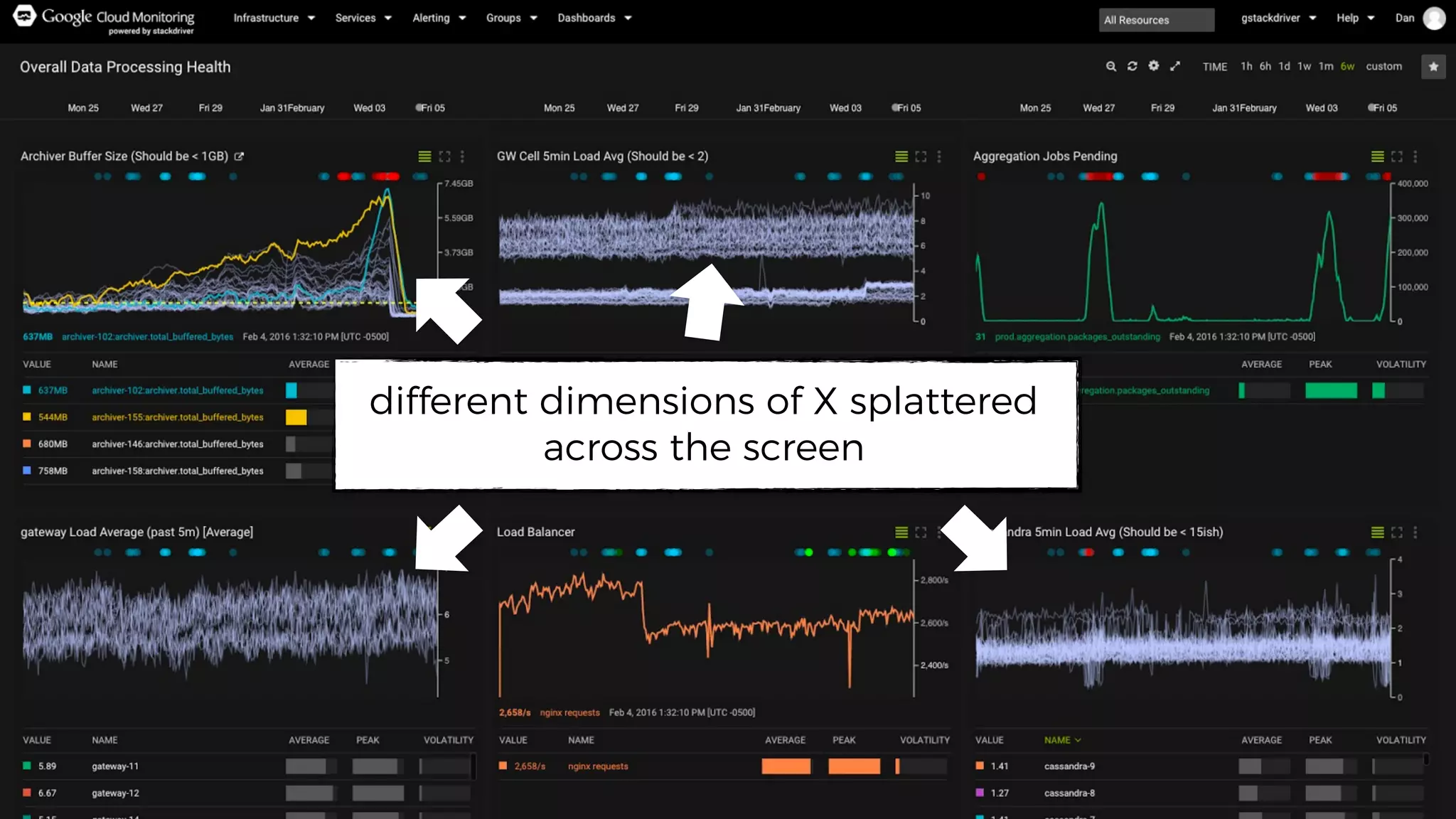

109. different dimensions of X splattered
across the screen

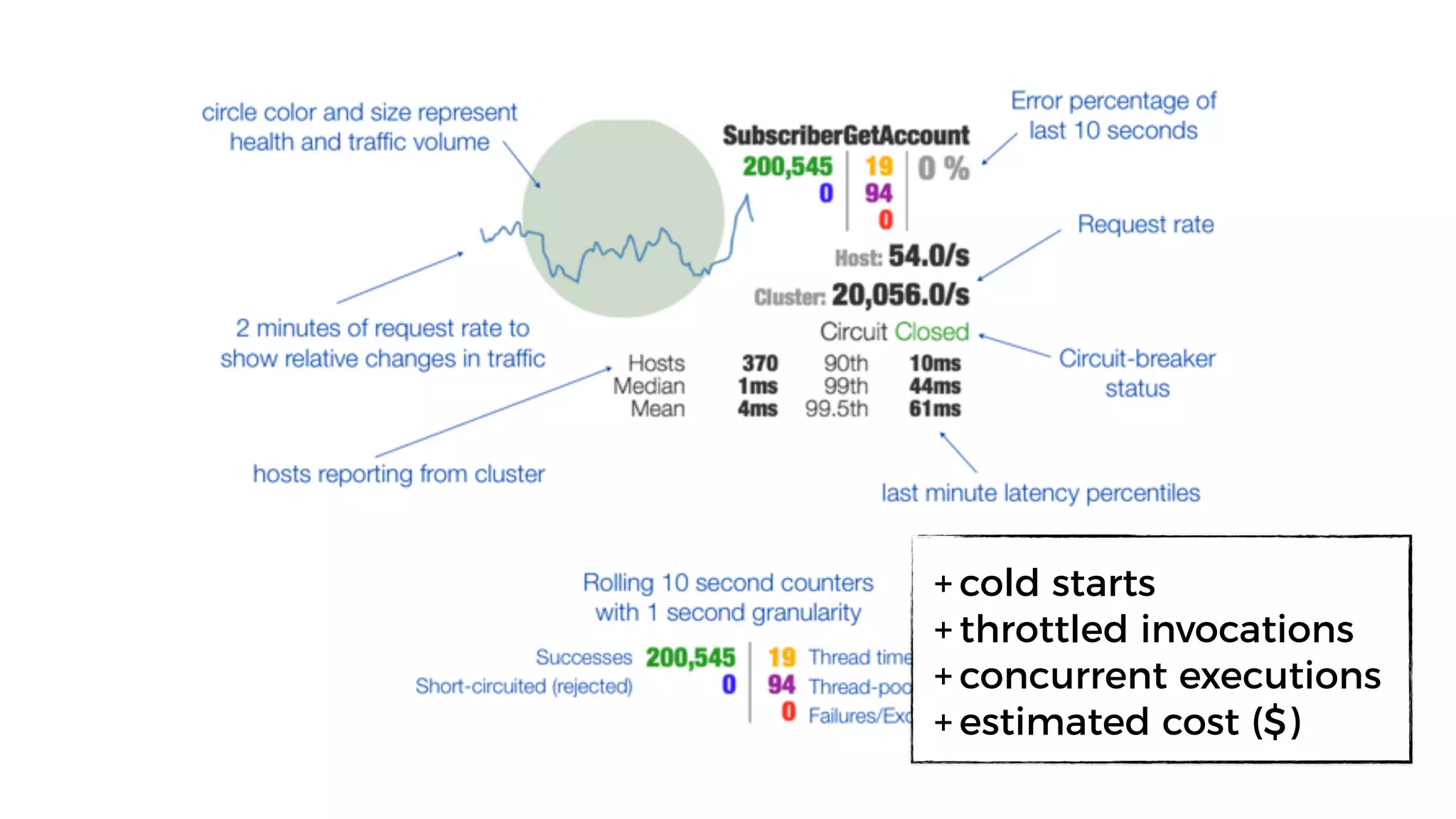

112. + cold starts
+ throttled invocations
+ concurrent executions
+ estimated cost ($)

113. SubscriberGetAccount
200,545
0
19
94
0
0 %
0 %
Est Cost:
Req Rate:
$54.0/s
20,056.0/s
Concurrency
Median
Mean 99.5th
99th
90th370
1ms
4ms 61ms
44ms
10ms
circle colour and size represent
health and traffic volume
2 minutes of request rate to
show relative changes in traffic
no. of concurrent executions
of this function
Request rate
Estimated cost
Error percentage
of last 10 seconds
Cold start percentage
last 10 seconds
last minute latency percentiles
200,545
0
19
94
0
Rolling 10 second counters
with 1 second granularity
Successes
Cold starts
Timeouts
Throttled Invocations
Errors

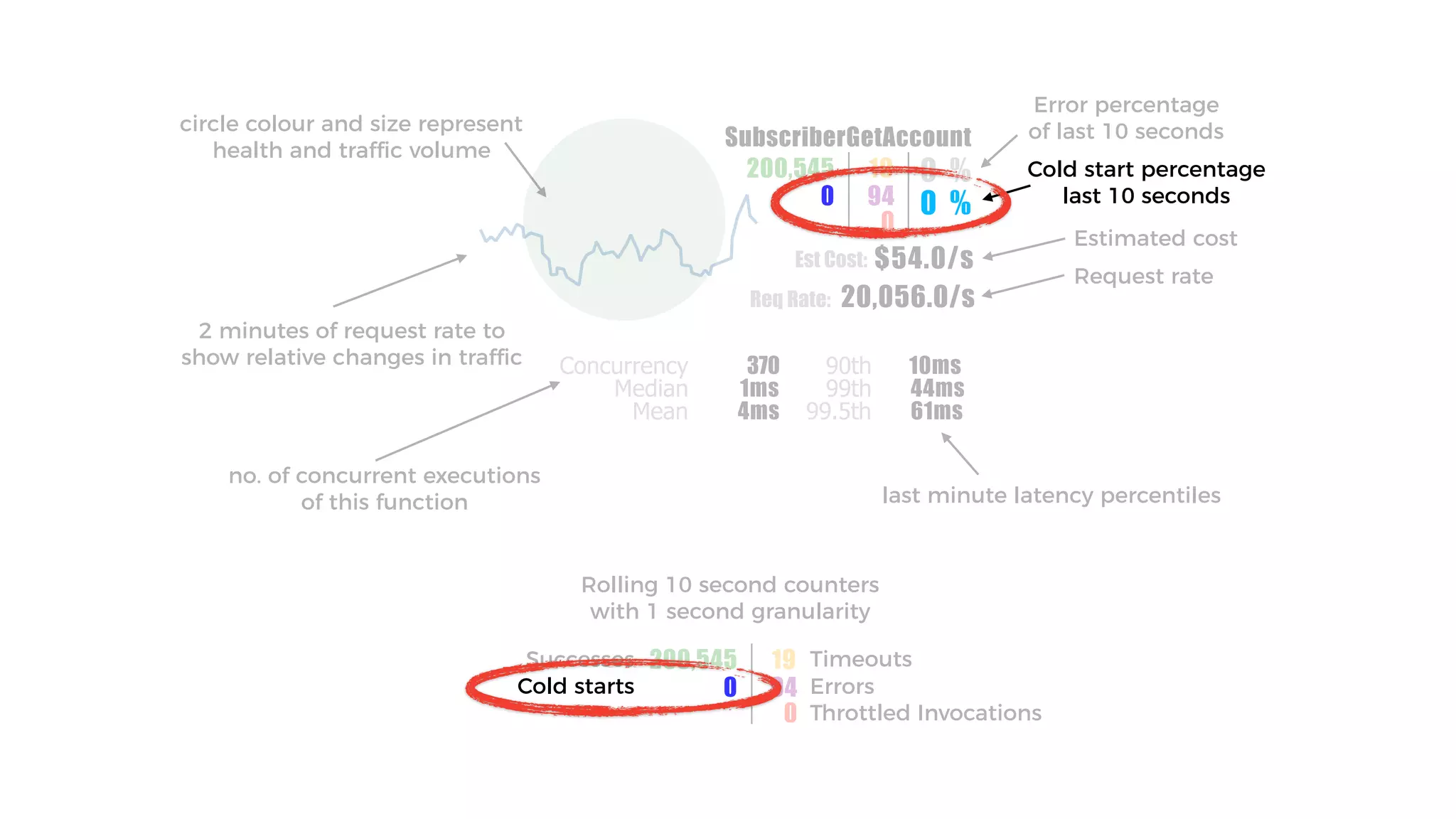

114. SubscriberGetAccount
200,545
0
19
94
0
0 %
0 %
Est Cost:
Req Rate:
$54.0/s
20,056.0/s
Concurrency
Median
Mean 99.5th
99th
90th370
1ms
4ms 61ms
44ms
10ms
circle colour and size represent
health and traffic volume
2 minutes of request rate to
show relative changes in traffic
no. of concurrent executions
of this function
Request rate
Estimated cost
Error percentage
of last 10 seconds
Cold start percentage
last 10 seconds
last minute latency percentiles
200,545
0
19
94
0
Rolling 10 second counters
with 1 second granularity
Successes
Cold starts
Timeouts
Throttled Invocations
Errors

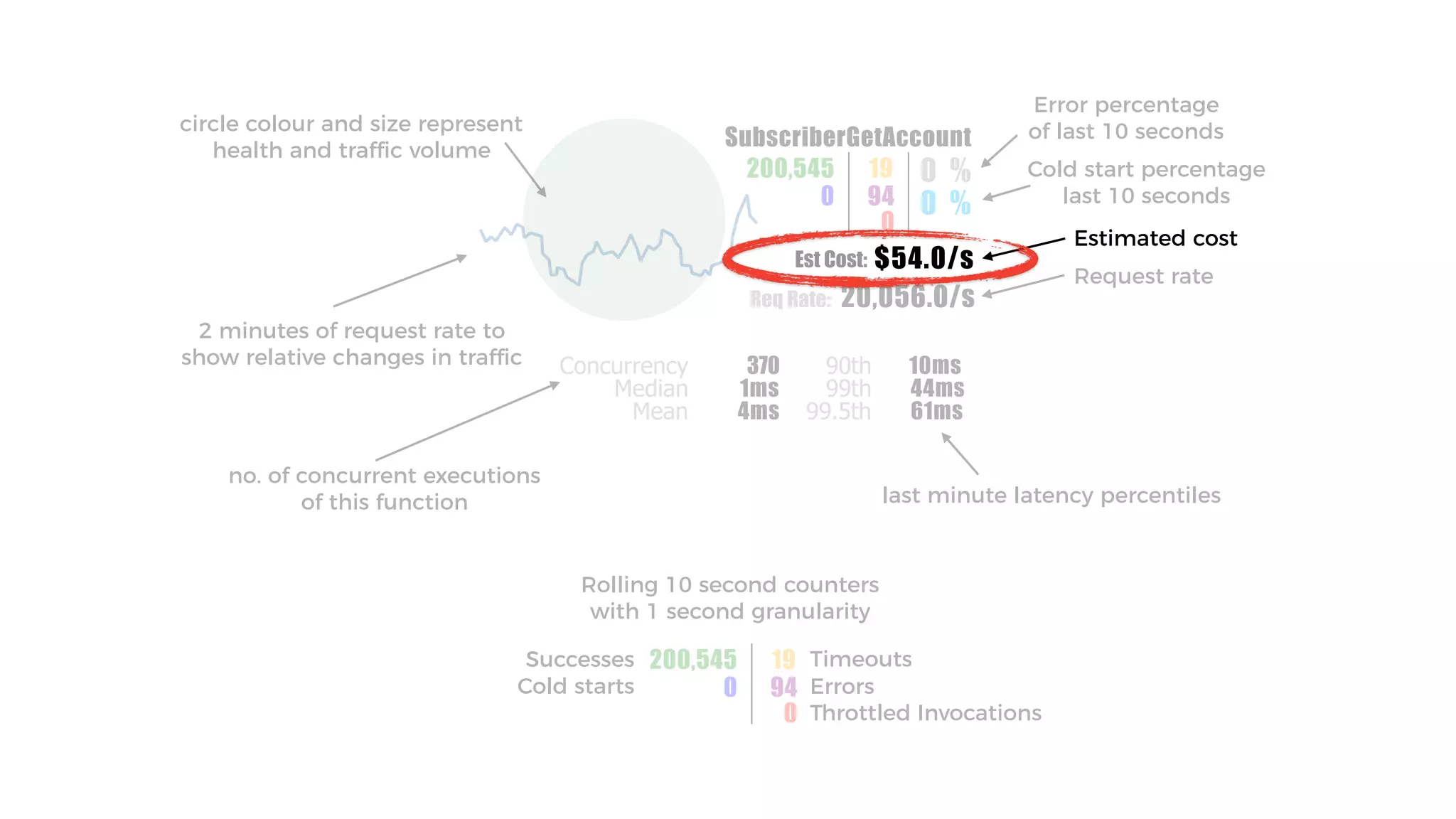

115. SubscriberGetAccount
200,545
0
19
94
0
0 %
0 %
Est Cost:
Req Rate:
$54.0/s
20,056.0/s
Concurrency
Median
Mean 99.5th
99th
90th370
1ms
4ms 61ms
44ms
10ms
circle colour and size represent
health and traffic volume
2 minutes of request rate to
show relative changes in traffic
no. of concurrent executions
of this function
Request rate
Estimated cost
Error percentage
of last 10 seconds
Cold start percentage
last 10 seconds
last minute latency percentiles
200,545
0
19
94
0
Rolling 10 second counters
with 1 second granularity
Successes
Cold starts
Timeouts
Throttled Invocations
Errors

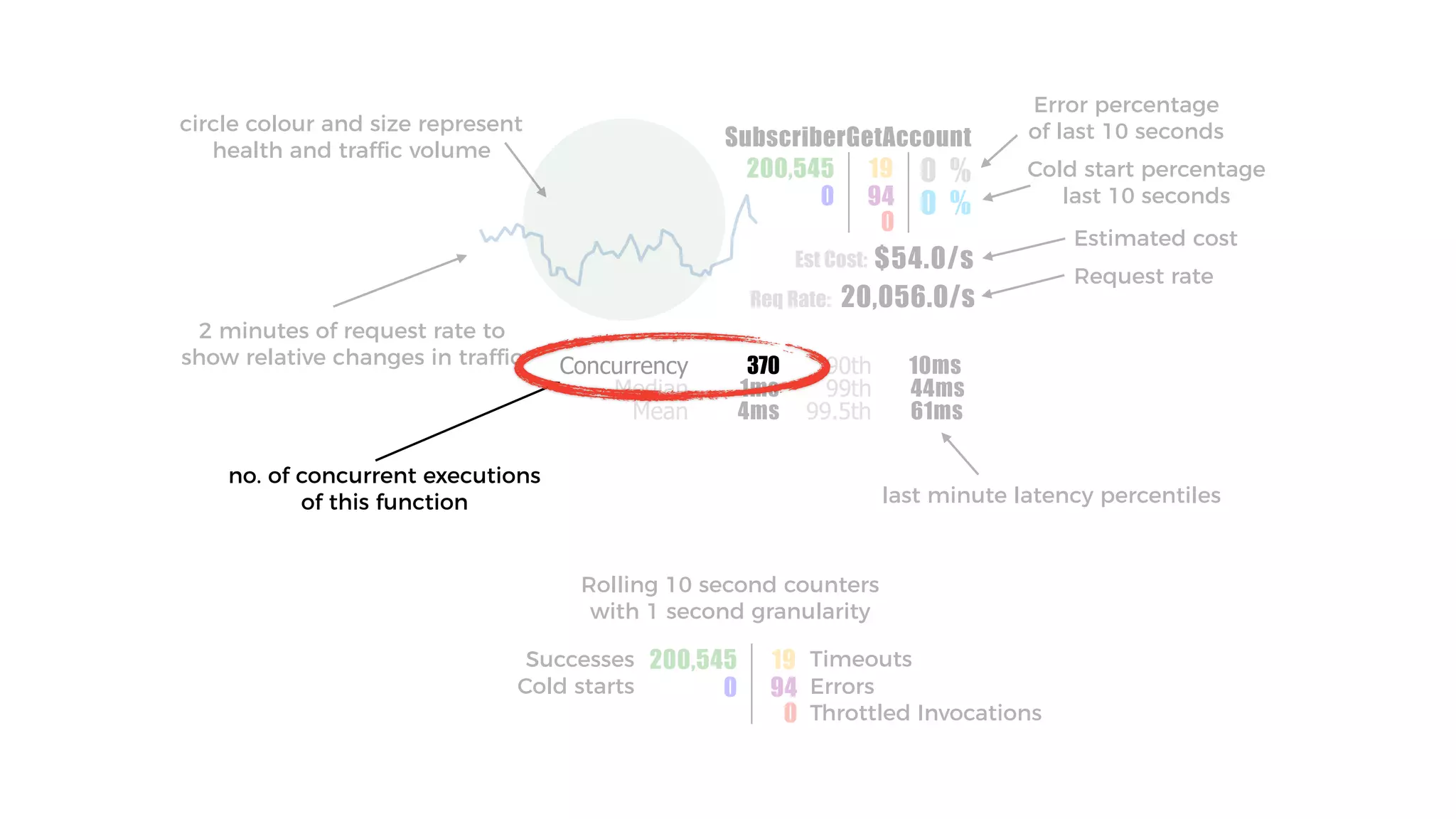

116. SubscriberGetAccount
200,545
0
19
94
0
0 %
0 %
Est Cost:
Req Rate:
$54.0/s
20,056.0/s
Concurrency
Median
Mean 99.5th
99th
90th370
1ms
4ms 61ms
44ms
10ms
circle colour and size represent
health and traffic volume
2 minutes of request rate to
show relative changes in traffic
no. of concurrent executions
of this function
Request rate
Estimated cost
Error percentage
of last 10 seconds
Cold start percentage
last 10 seconds
last minute latency percentiles
200,545
0
19
94
0
Rolling 10 second counters
with 1 second granularity
Successes
Cold starts
Timeouts
Throttled Invocations
Errors

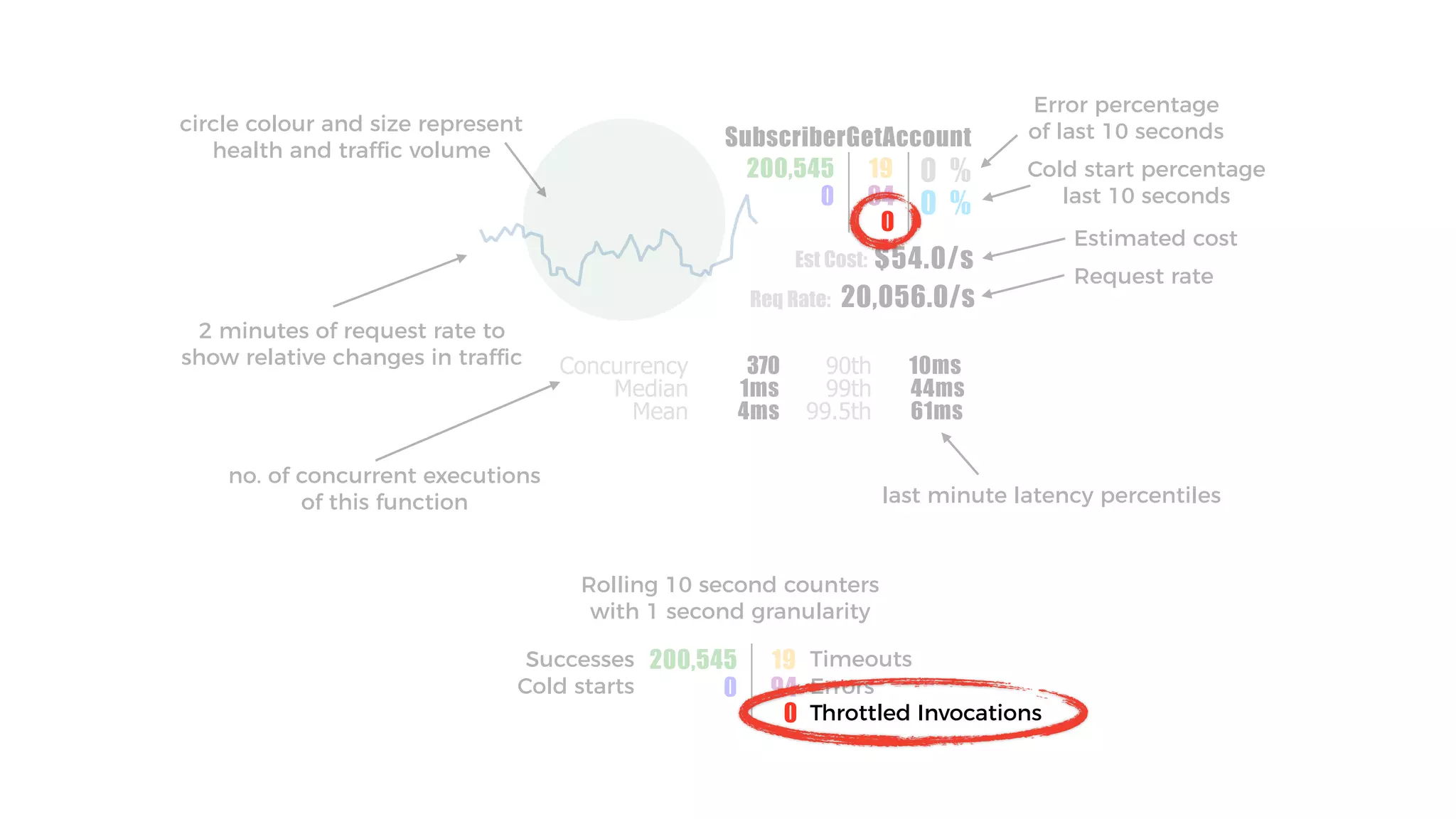

117. SubscriberGetAccount
200,545
0
19
94
0
0 %
0 %
Est Cost:
Req Rate:
$54.0/s
20,056.0/s
Concurrency
Median
Mean 99.5th
99th
90th370
1ms
4ms 61ms
44ms
10ms
circle colour and size represent
health and traffic volume
2 minutes of request rate to
show relative changes in traffic
no. of concurrent executions
of this function
Request rate
Estimated cost
Error percentage
of last 10 seconds
Cold start percentage
last 10 seconds
last minute latency percentiles
200,545
0
19
94
0
Rolling 10 second counters
with 1 second granularity
Successes
Cold starts
Timeouts
Throttled Invocations
Errors

123. birds-eye view of our system as it lives and breathes

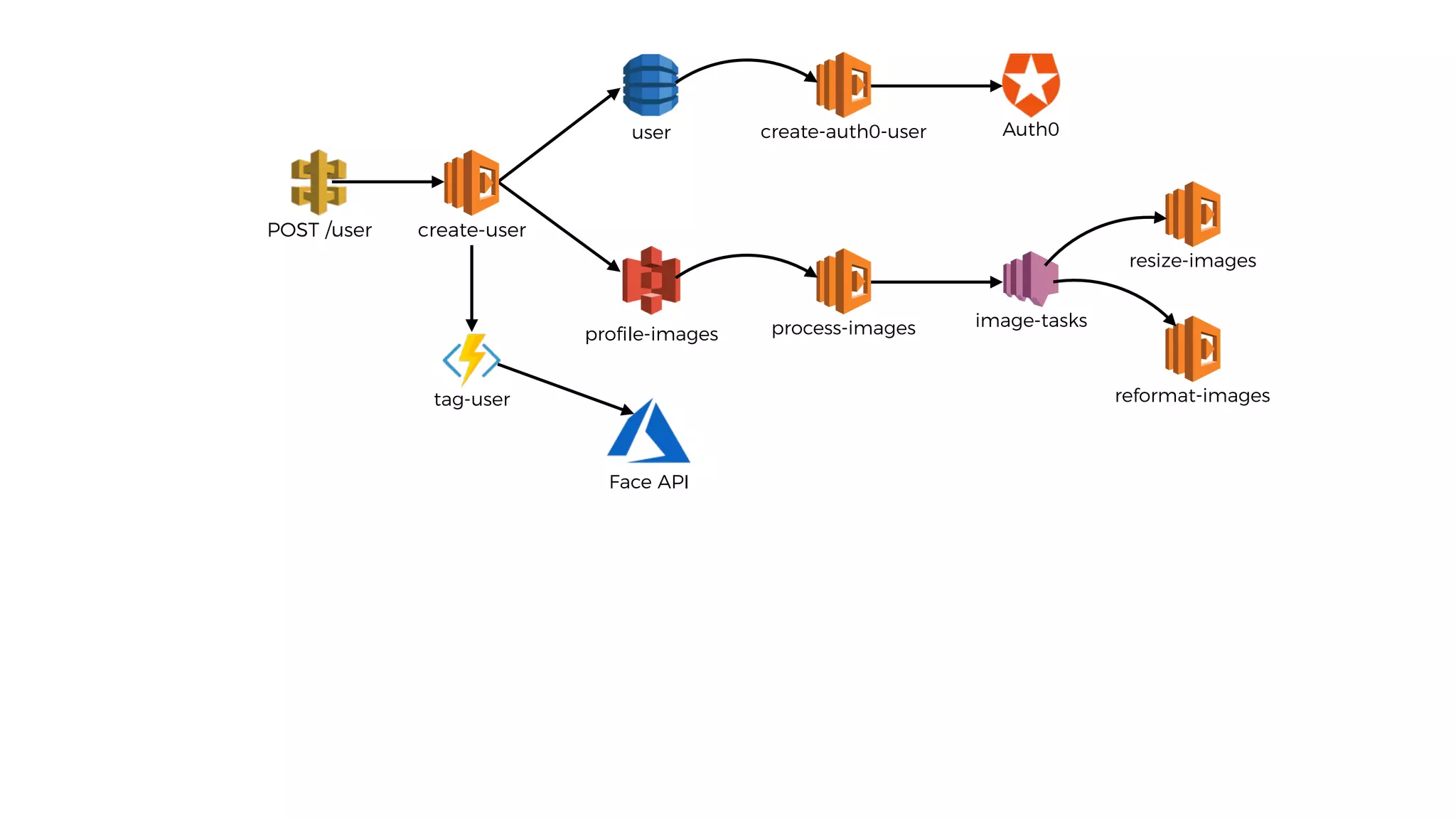

125. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
create-auth0-user

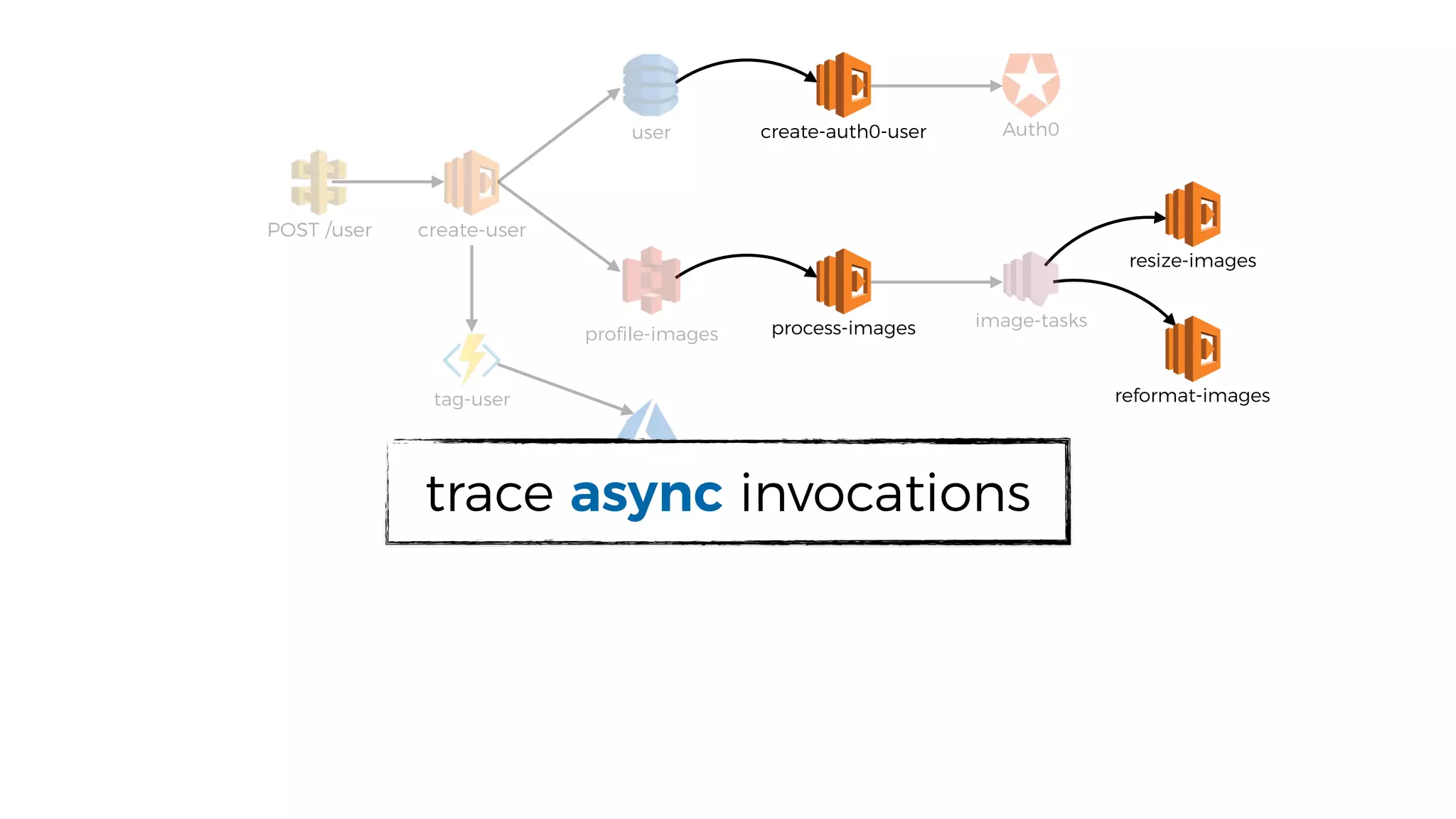

126. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
trace async invocations
create-auth0-user

127. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
trace non-AWS resources
create-auth0-user

128. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
Logs
timestamp component message
POST /user2018/01/25 20:51:23.188
2018/01/25 20:51:23.201 create-user
2018/01/25 20:51:23.215 create-user
2018/01/25 20:51:23.521 tag-user
incoming request…
saving user [theburningmonk] in the [user] table…
saved user [theburningmonk] in the [user] table
level
debug
debug
debug
debug tagging user [theburningmonk] with Azure Face API…
create-auth0-user

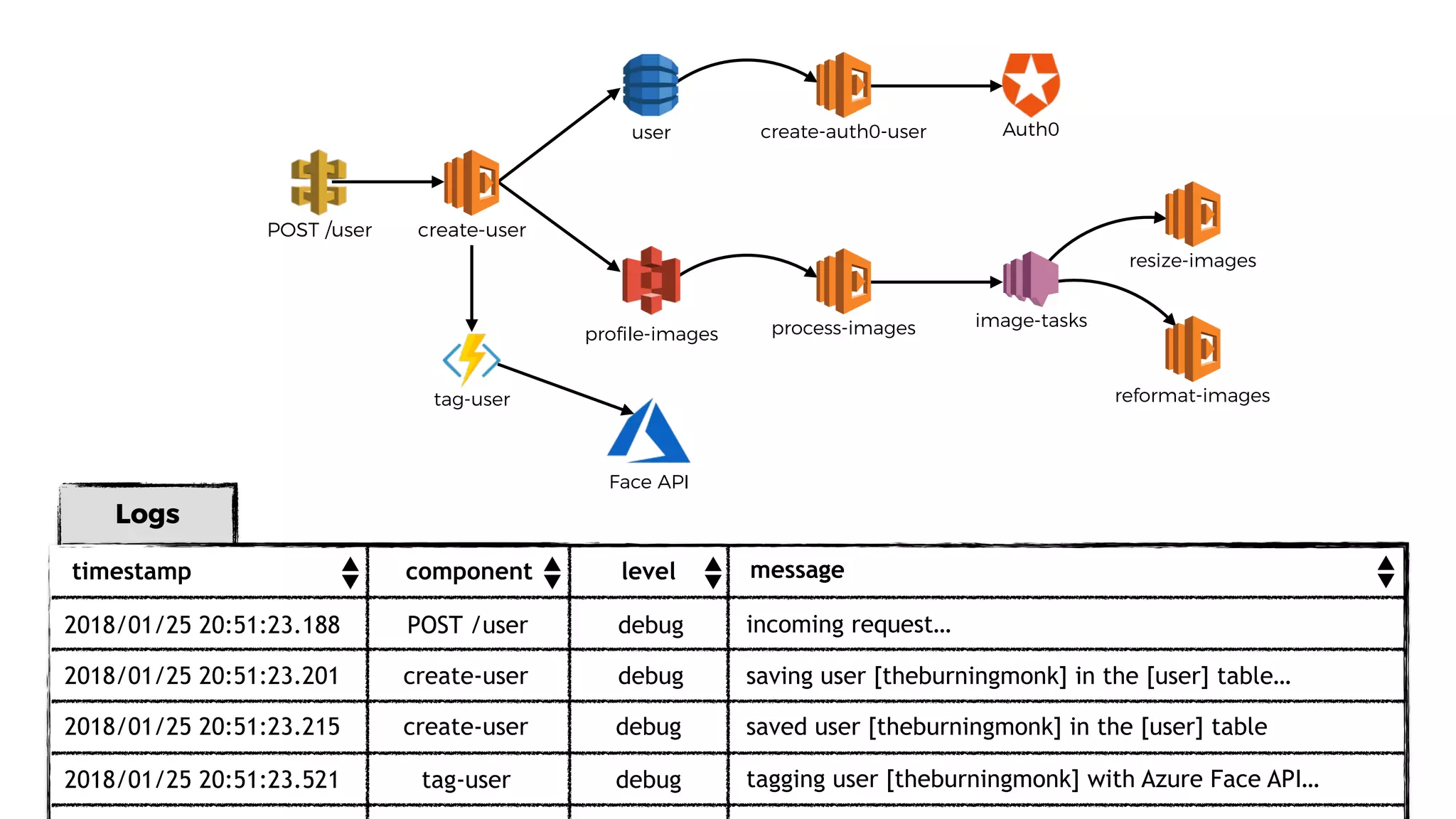

129. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
Logs
timestamp component message
POST /user2018/01/25 20:51:23.188
2018/01/25 20:51:23.201 create-user
2018/01/25 20:51:23.215 create-user
2018/01/25 20:51:23.521 tag-user
incoming request…
saving user [theburningmonk] in the [user] table…
saved user [theburningmonk] in the [user] table
level
debug
debug
debug
debug tagging user [theburningmonk] with Azure Face API…
create-auth0-user

130. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
Logs
timestamp component message
POST /user2018/01/25 20:51:23.188 incoming request…
level
debug
request-id
start-time
0ae4ba5d-dab1-4f9e-9de7-eace27ebfbc2
2018/01/25 20:51:23.188
method POST
create-auth0-user

131. user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
Logs
timestamp component message
2018/01/25 20:51:23.201 create-user
2018/01/25 20:51:23.215 create-user
2018/01/25 20:51:23.585
saving user [theburningmonk] in the [user] table…
saved user [theburningmonk] in the [user] table
level
debug
debug
debug uploading profile image…
create-user debug tagged user [theburningmonk] with Azure Face API…
create-user2018/01/25 20:51:23.587
create-auth0-user

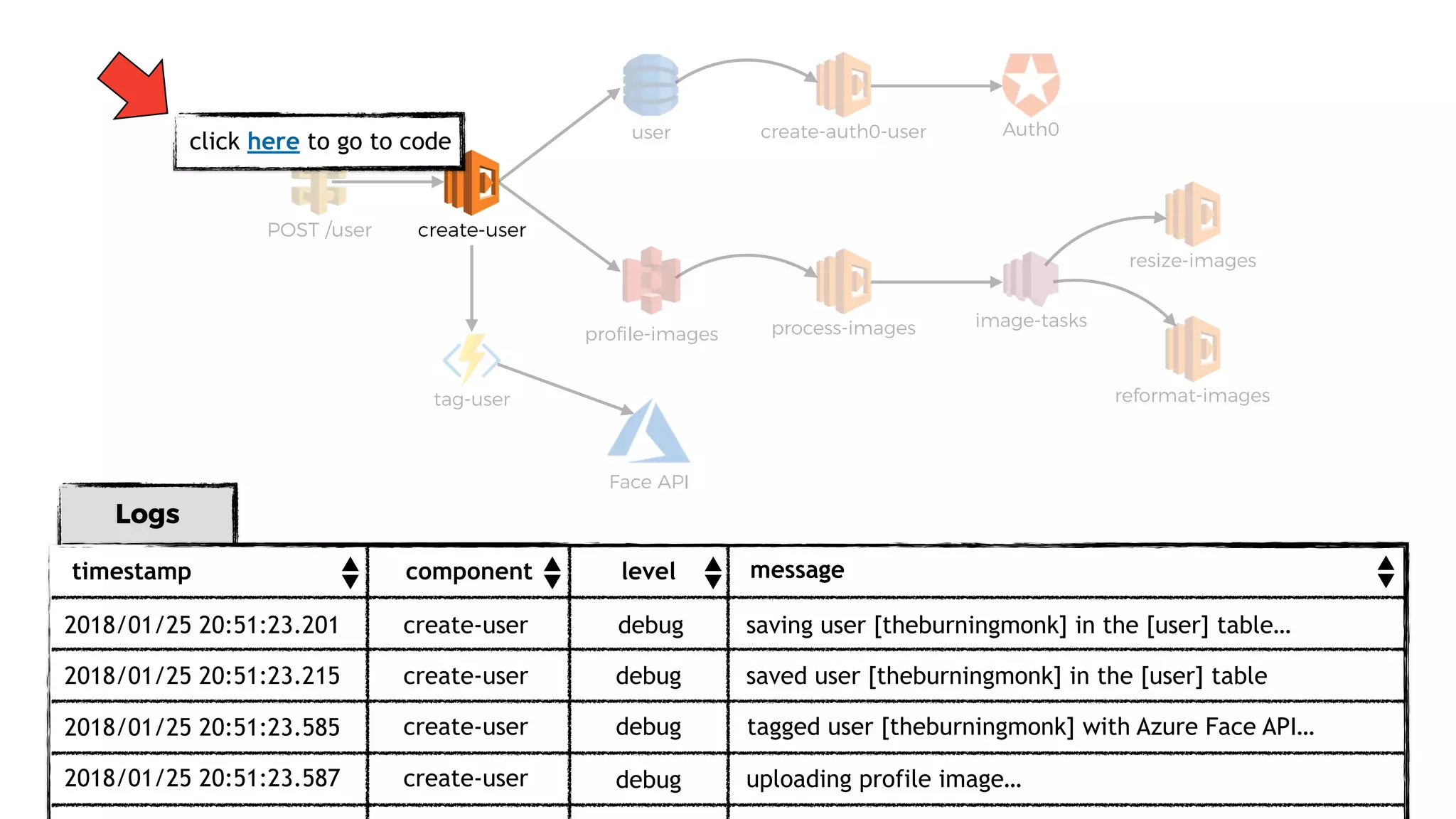

132. user
profile-images
POST /user
process-images
resize-images

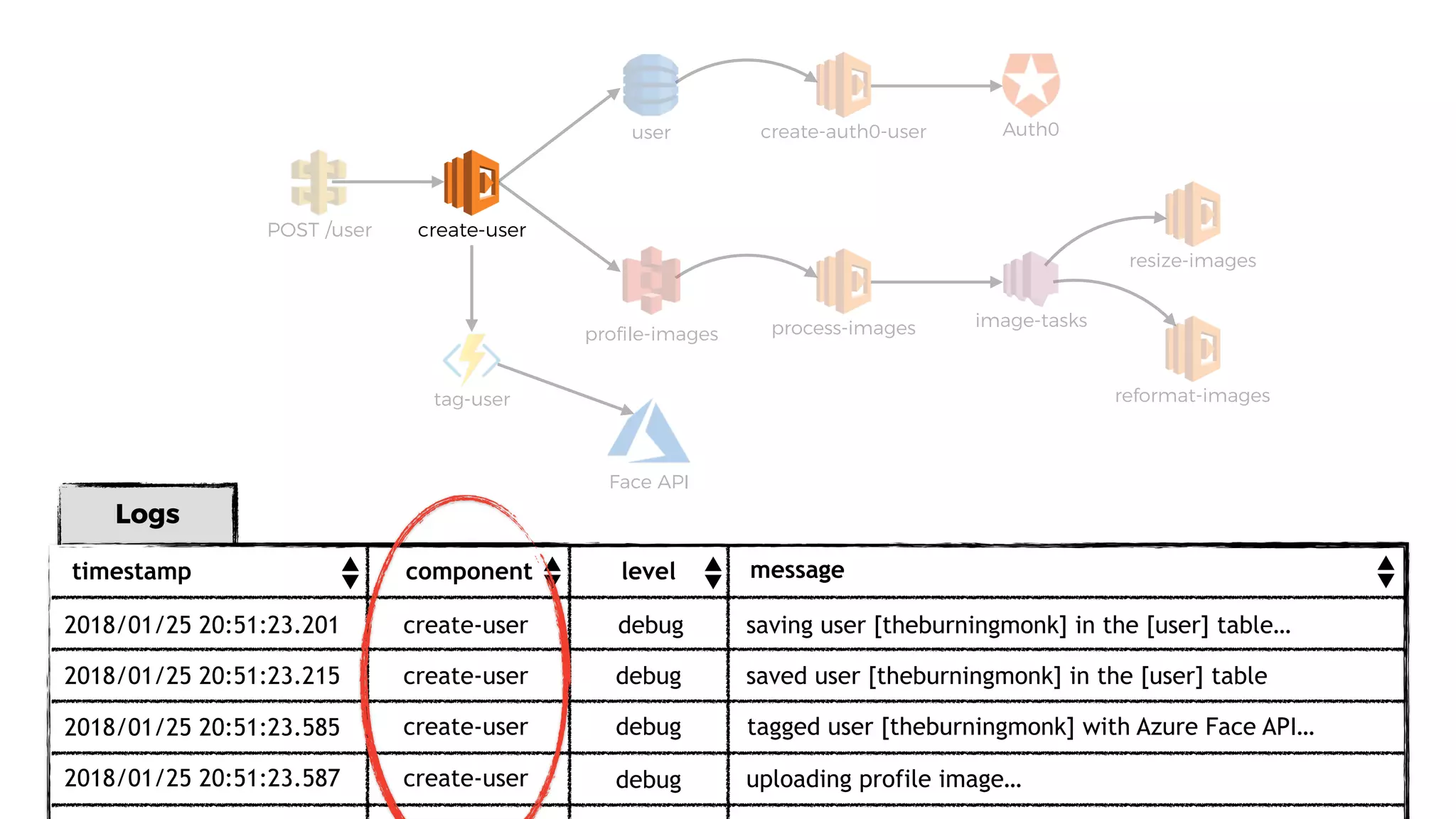

image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
Logs
timestamp component message
2018/01/25 20:51:23.201 create-user
2018/01/25 20:51:23.215 create-user
2018/01/25 20:51:23.585
saving user [theburningmonk] in the [user] table…
saved user [theburningmonk] in the [user] table
level
debug
debug
debug uploading profile image…
create-user debug tagged user [theburningmonk] with Azure Face API…
create-user2018/01/25 20:51:23.587
click here to go to code create-auth0-user

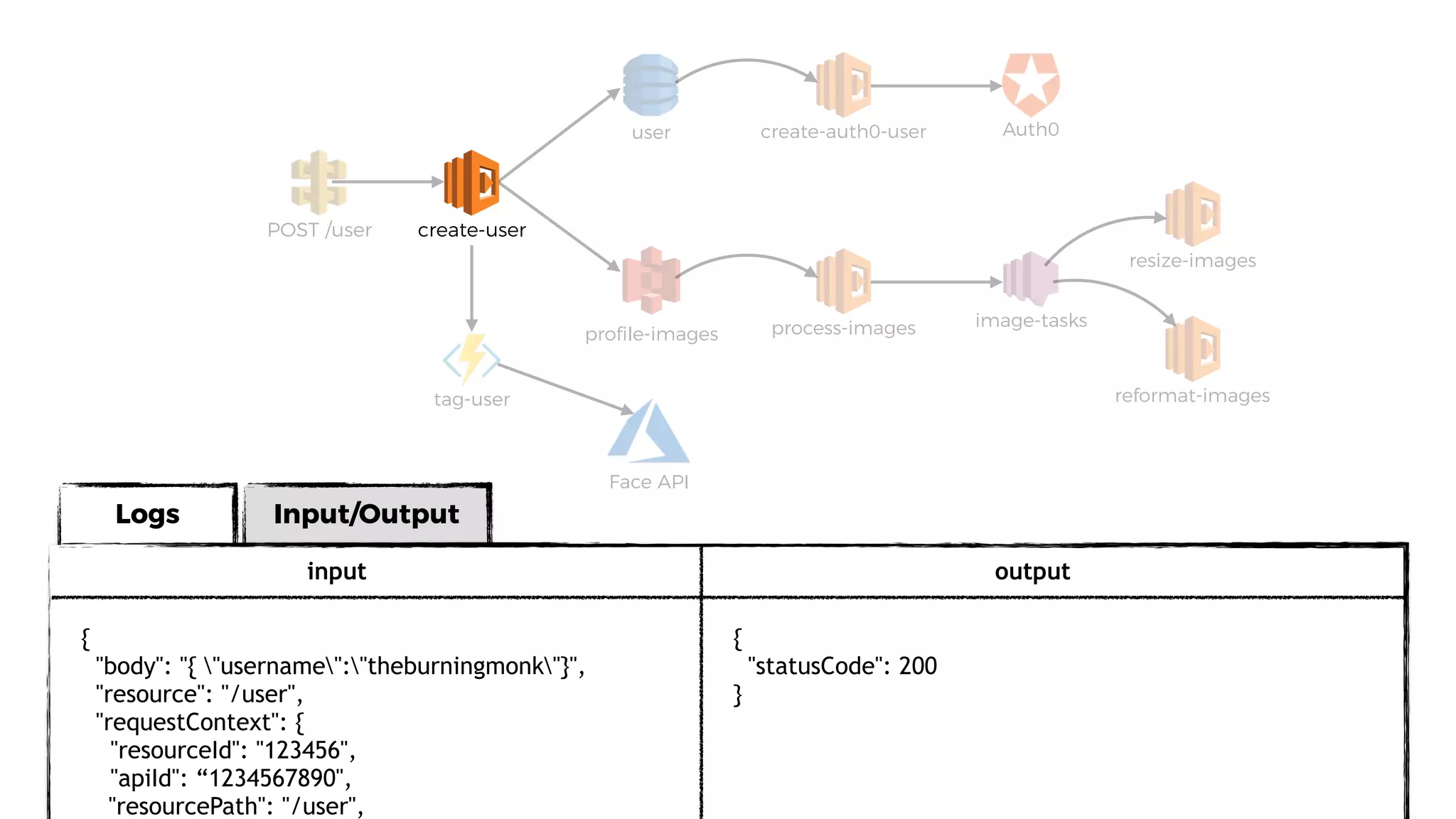

134. Logs Input/Output
user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
input output
{
"body": "{ "username":"theburningmonk"}",
"resource": "/user",
"requestContext": {
"resourceId": "123456",
"apiId": “1234567890",
"resourcePath": "/user",
{
"statusCode": 200
}
create-auth0-user

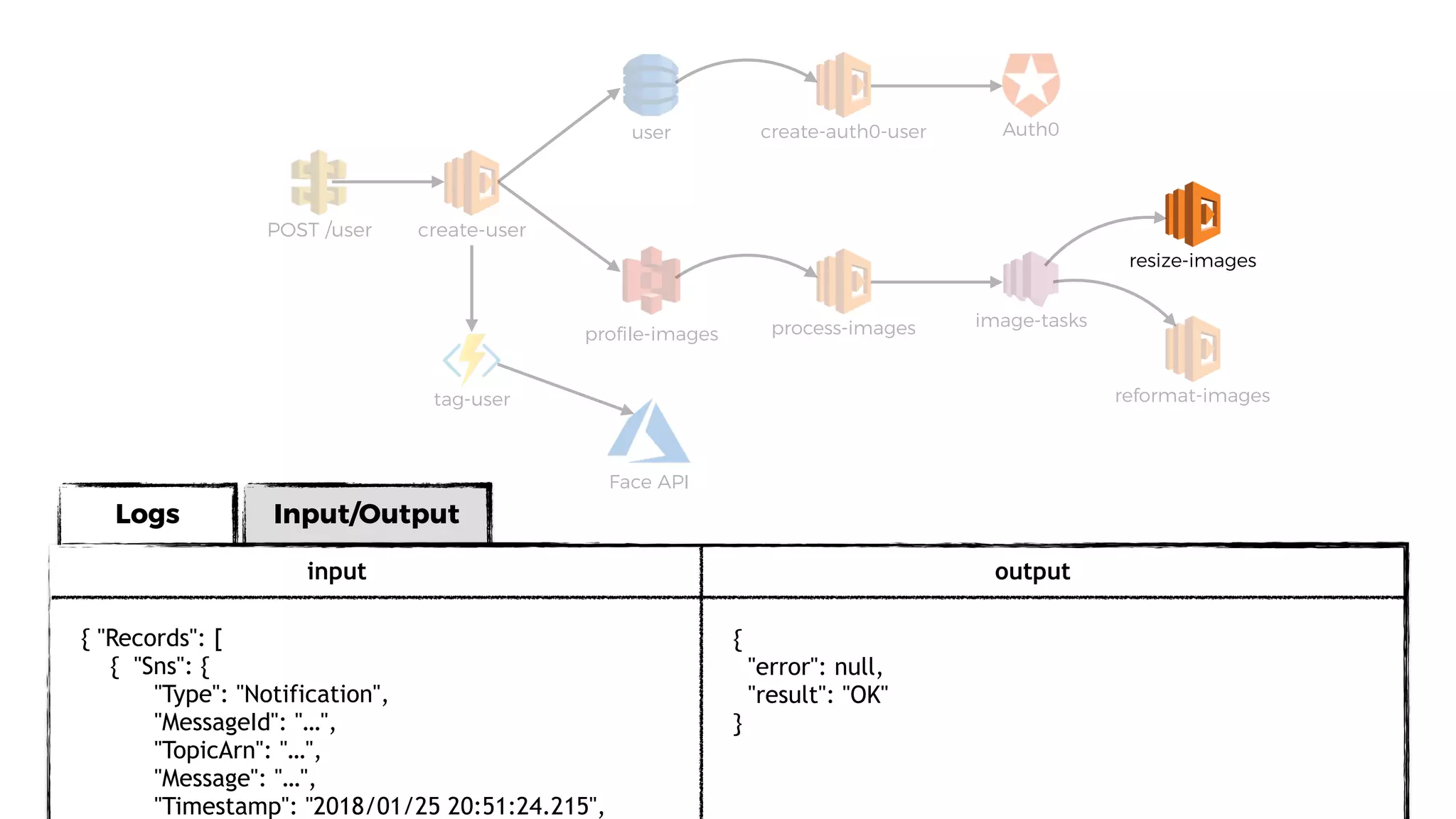

135. Logs Input/Output
user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
input output
{ "Records": [
{ "Sns": {
"Type": "Notification",
"MessageId": "…",
"TopicArn": "…",
"Message": "…",
"Timestamp": "2018/01/25 20:51:24.215",
{
"error": null,
"result": "OK"
}
create-auth0-user

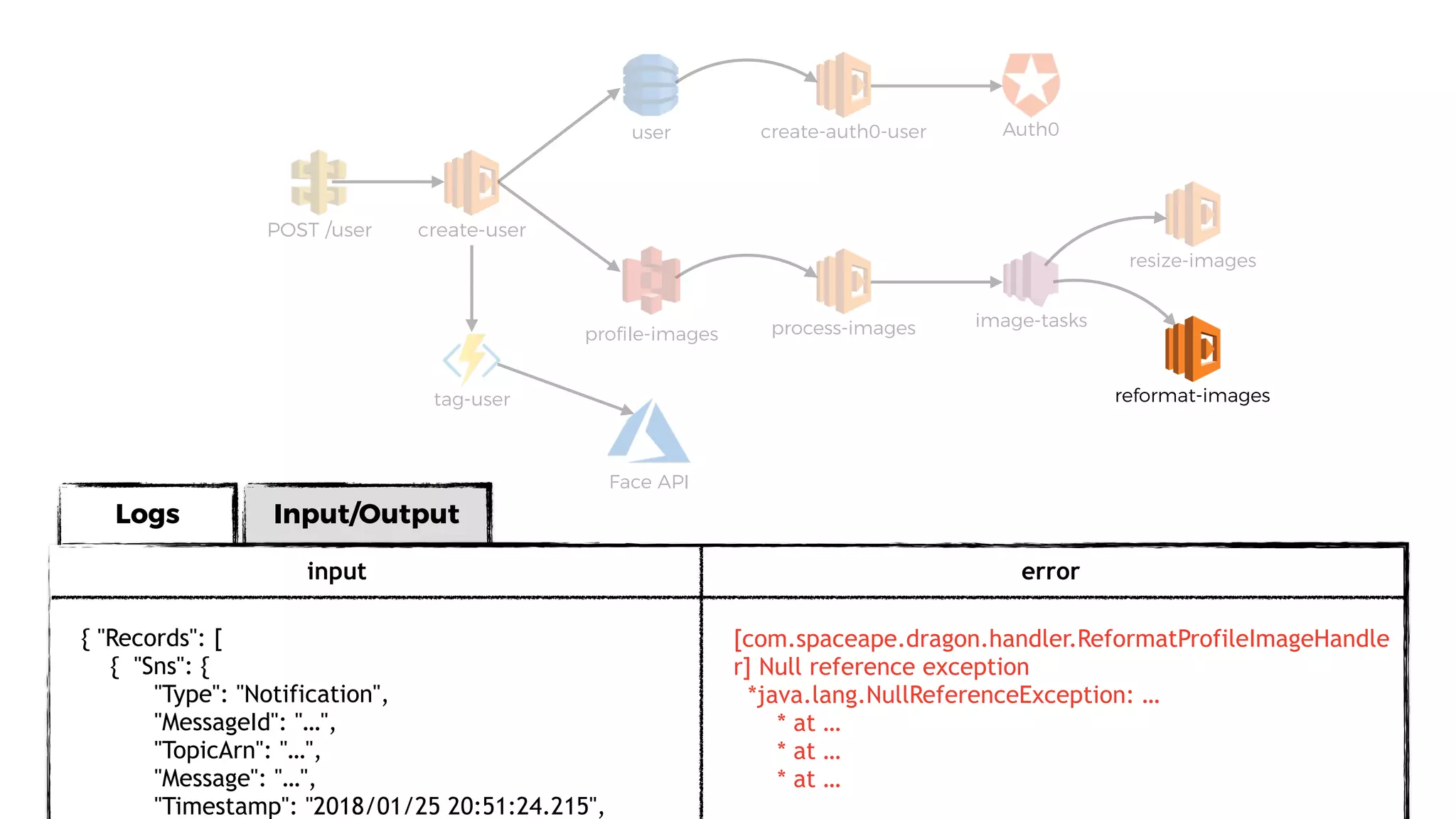

136. Logs Input/Output
user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
reformat-imagestag-user
Face API
input error
{ "Records": [
{ "Sns": {
"Type": "Notification",
"MessageId": "…",
"TopicArn": "…",
"Message": "…",
"Timestamp": "2018/01/25 20:51:24.215",
[com.spaceape.dragon.handler.ReformatProfileImageHandle
r] Null reference exception
*java.lang.NullReferenceException: …
* at …
* at …
* at …
create-auth0-user

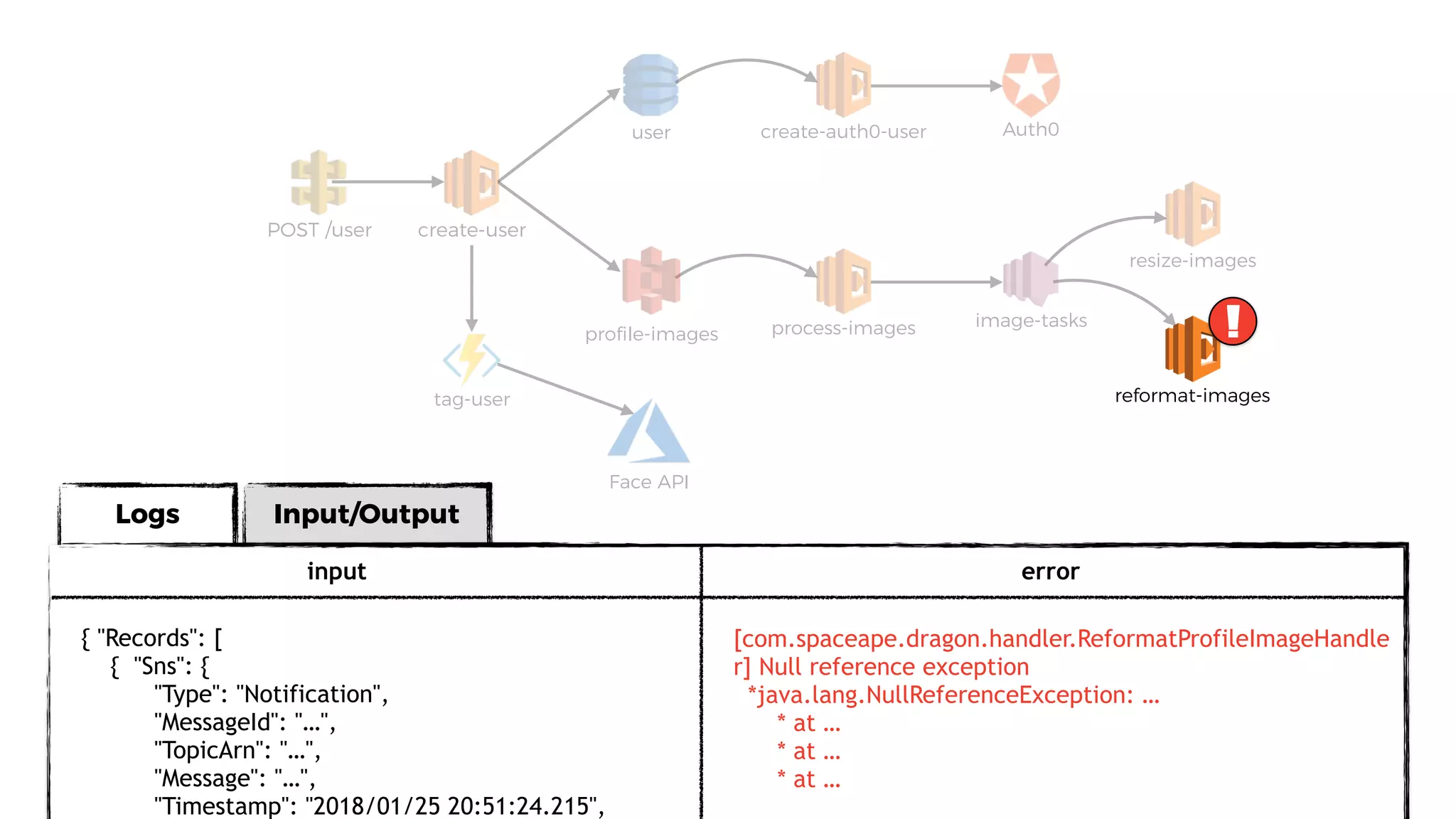

137. Logs Input/Output
user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
create-auth0-user
reformat-imagestag-user
Face API
input error
{ "Records": [
{ "Sns": {
"Type": "Notification",
"MessageId": "…",
"TopicArn": "…",
"Message": "…",
"Timestamp": "2018/01/25 20:51:24.215",
[com.spaceape.dragon.handler.ReformatProfileImageHandle
r] Null reference exception
*java.lang.NullReferenceException: …
* at …
* at …
* at …
!

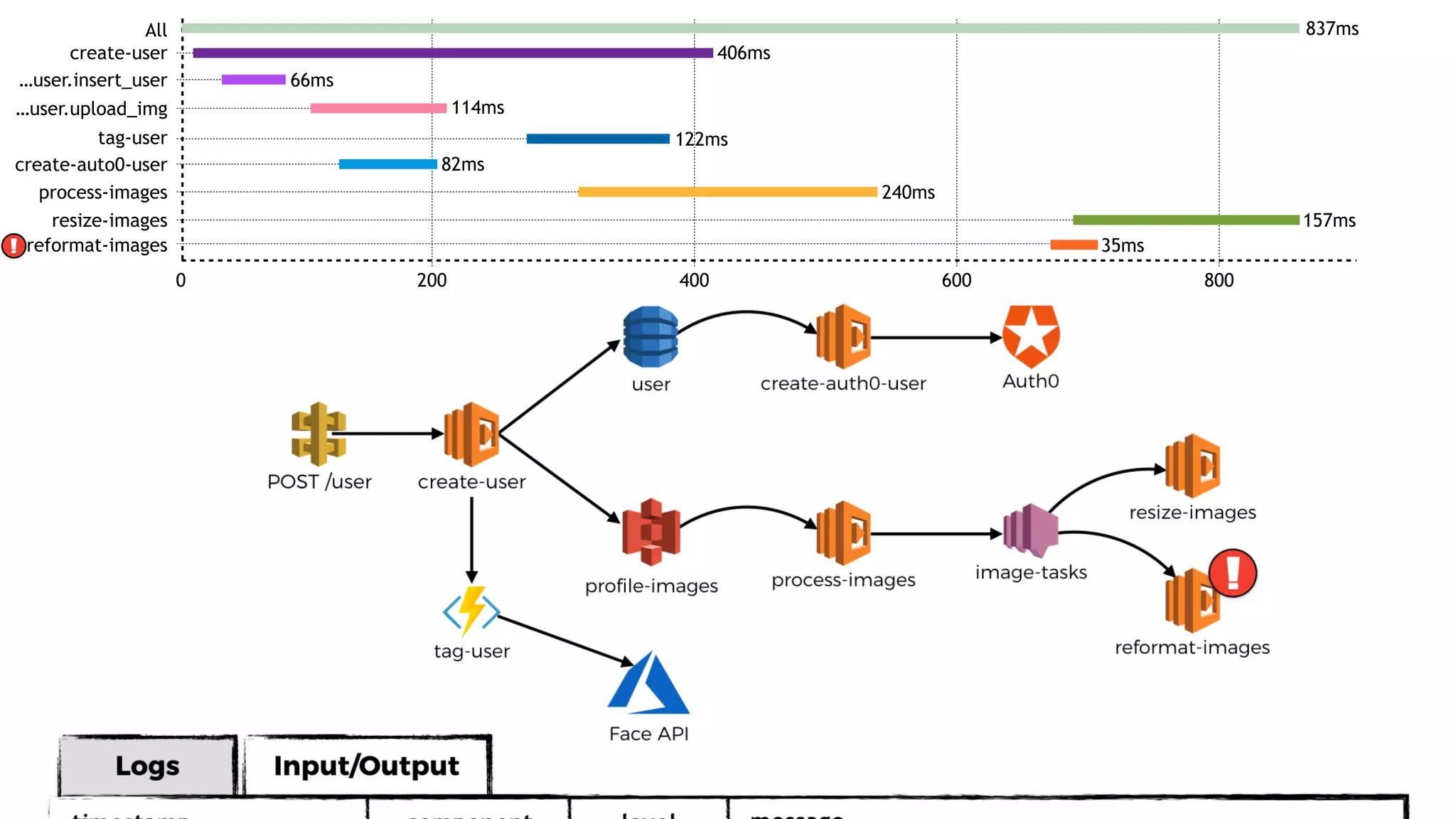

139. All
0 200 400 600 800
create-user
…user.insert_user
…user.upload_img
tag-user
create-auto0-user
process-images
resize-images
reformat-images!
837ms
406ms
66ms
114ms
122ms
82ms
240ms
157ms
35ms

140. All
0 200 400 600 800
create-user
…user.insert_user
…user.upload_img
tag-user
create-auto0-user
process-images
resize-images
reformat-images!
837ms
406ms
66ms
114ms
122ms
82ms
240ms
157ms
35ms

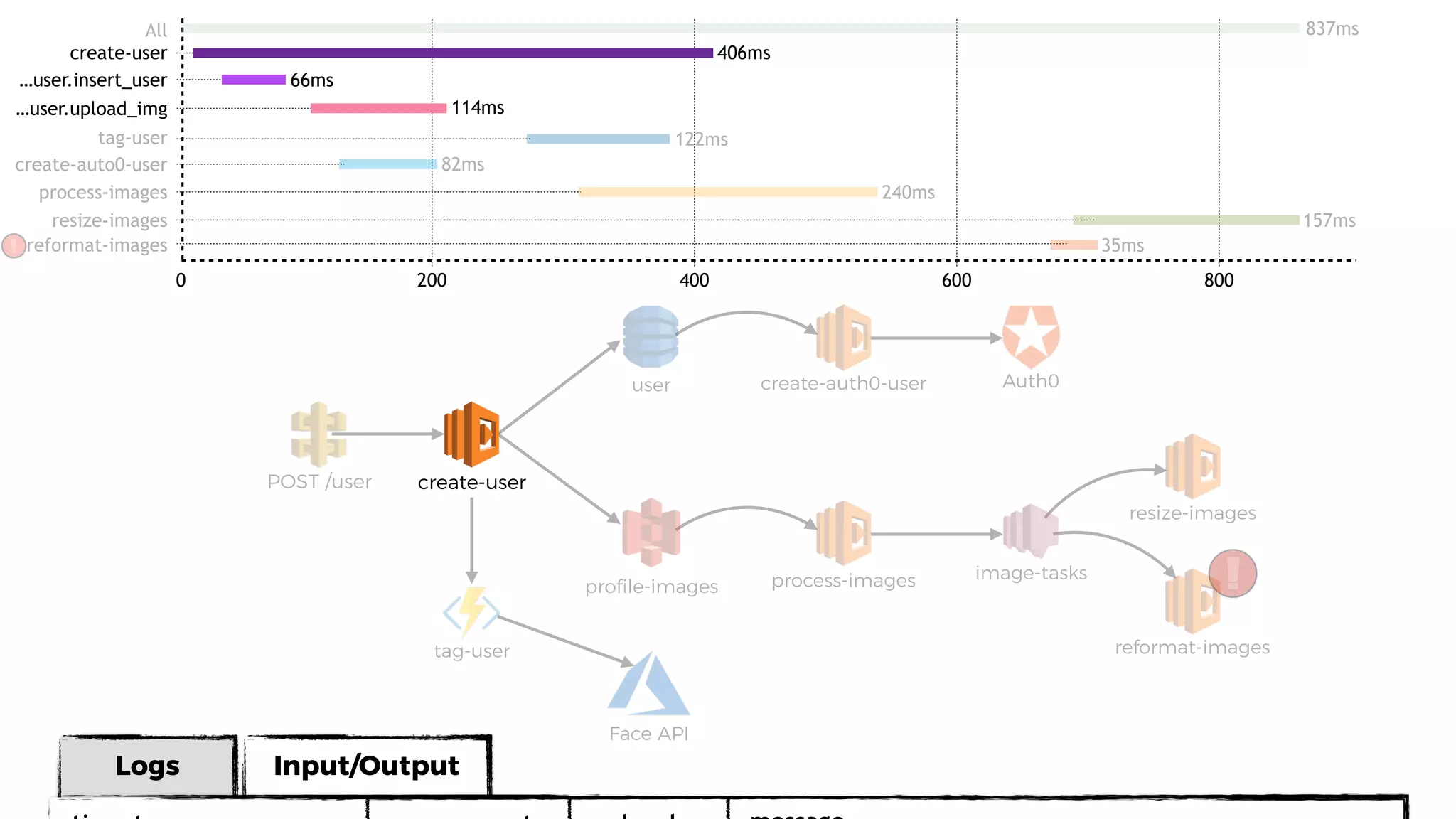

141. Input/Output
user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
create-auth0-user
reformat-imagestag-user
Face API
Logs
!
All
0 200 400 600 800
create-user
…user.insert_user
…user.upload_img
tag-user
create-auto0-user
process-images
resize-images
reformat-images!
837ms
406ms
66ms
114ms
122ms
82ms
240ms
157ms
35ms

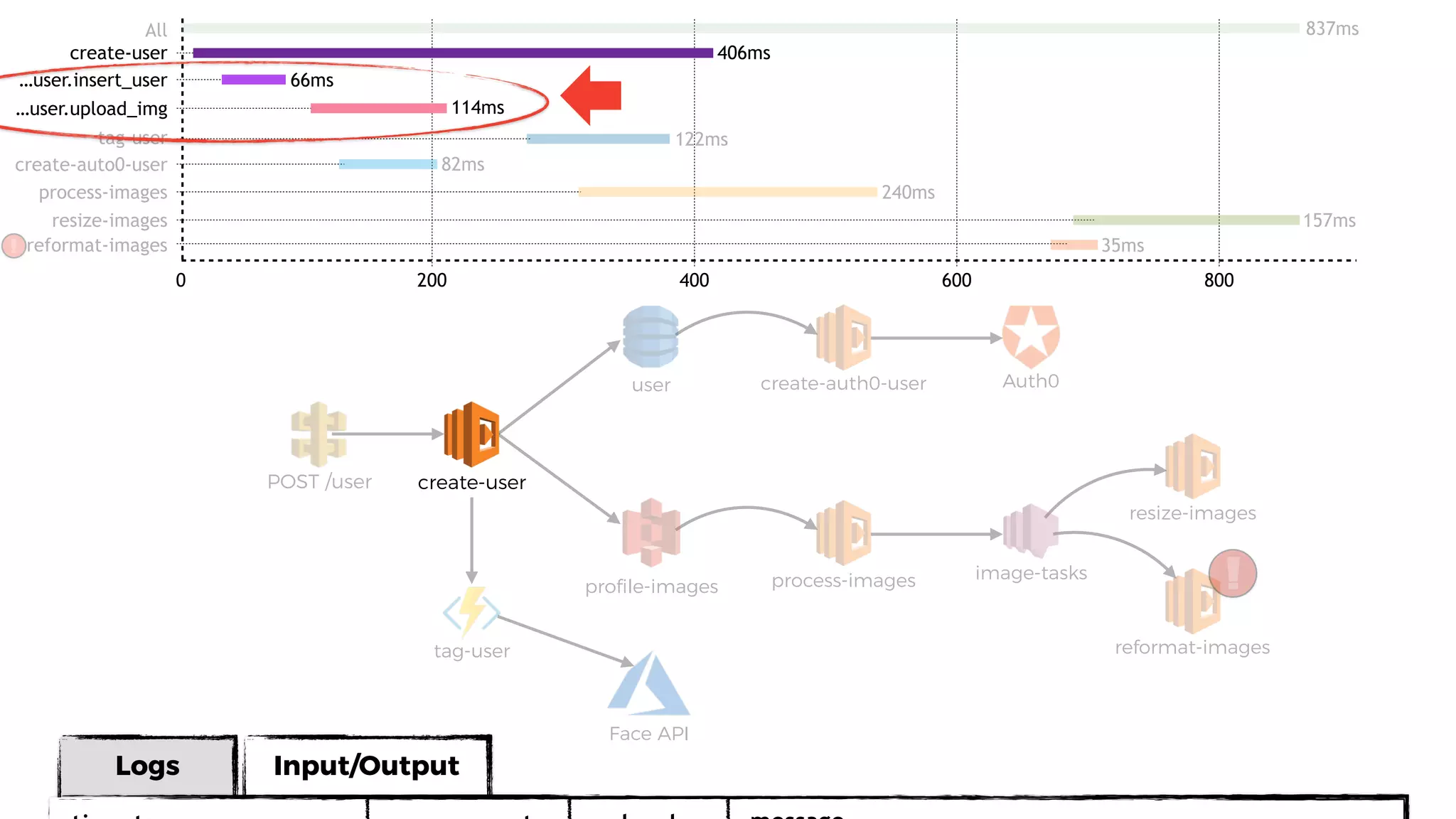

142. Input/Output
user
profile-images
POST /user
process-images
resize-images
image-tasks
Auth0
create-user
create-auth0-user
reformat-imagestag-user
Face API
Logs
!
All
0 200 400 600 800
create-user
…user.insert_user
…user.upload_img
tag-user
create-auto0-user
process-images
resize-images
reformat-images!
837ms
406ms
66ms
114ms
122ms
82ms
240ms
157ms
35ms

143. all your needs in one placeTRACING

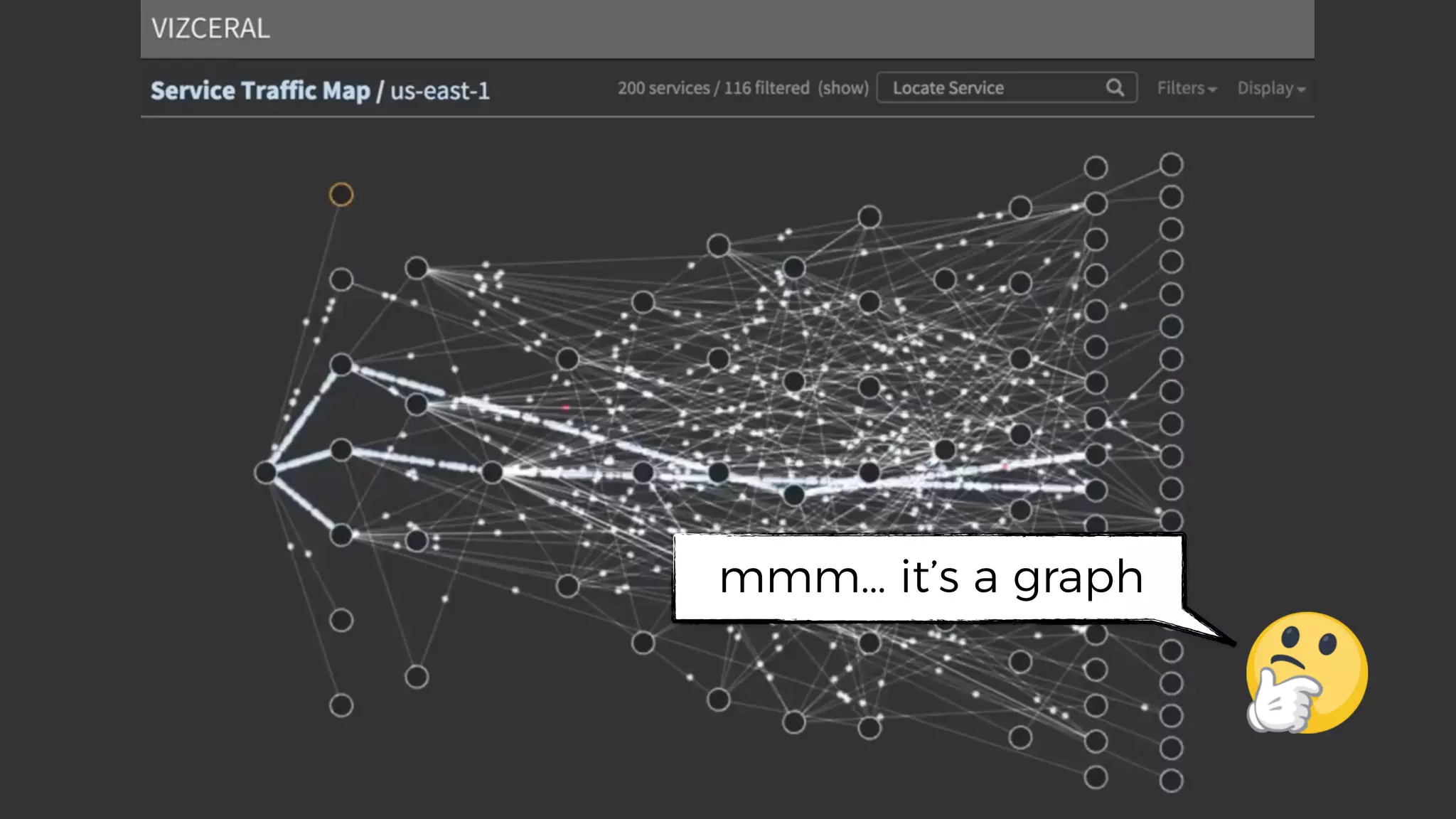

145. mmm… it’s a graph

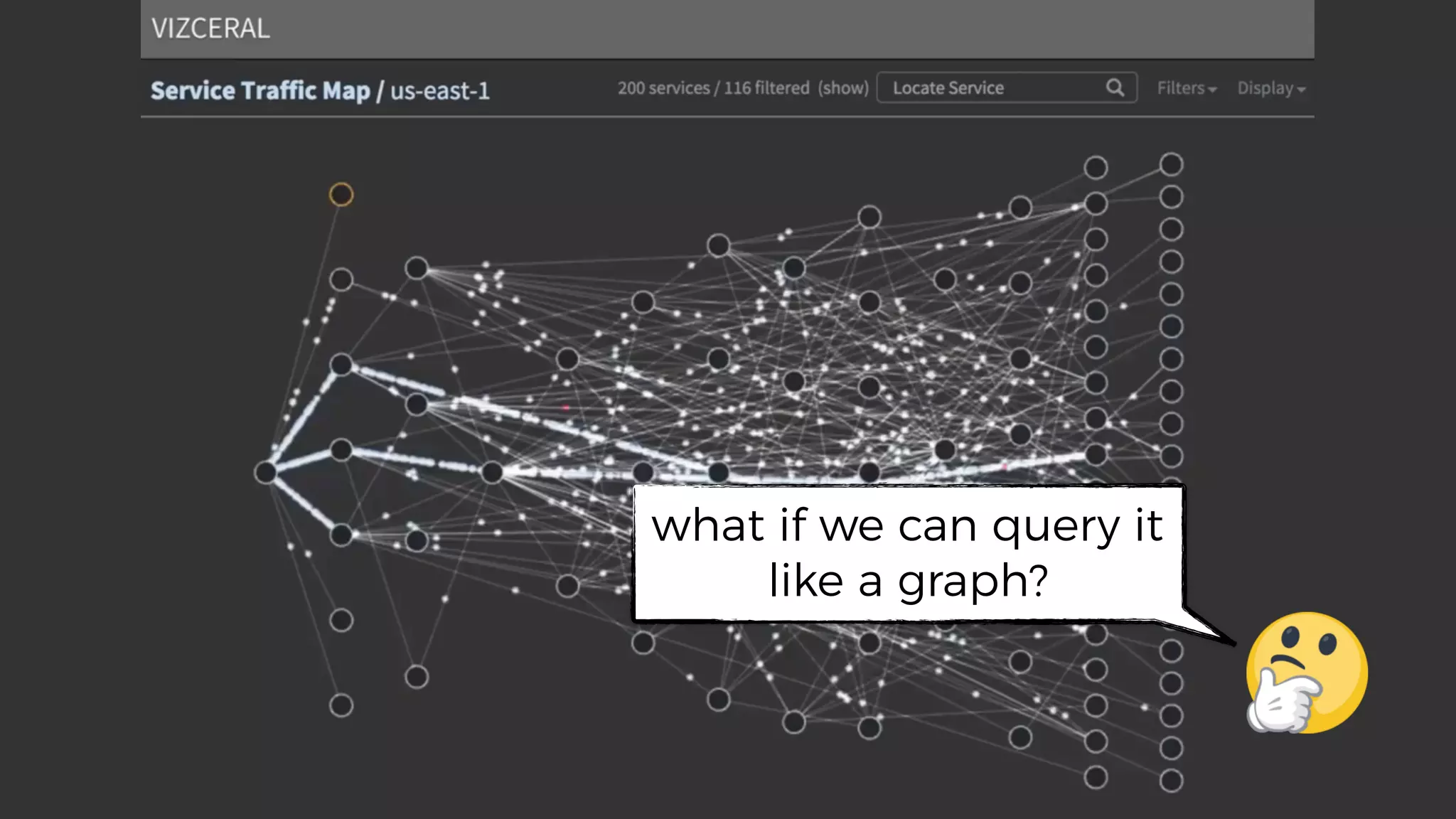

146. what if we can query it
like a graph?

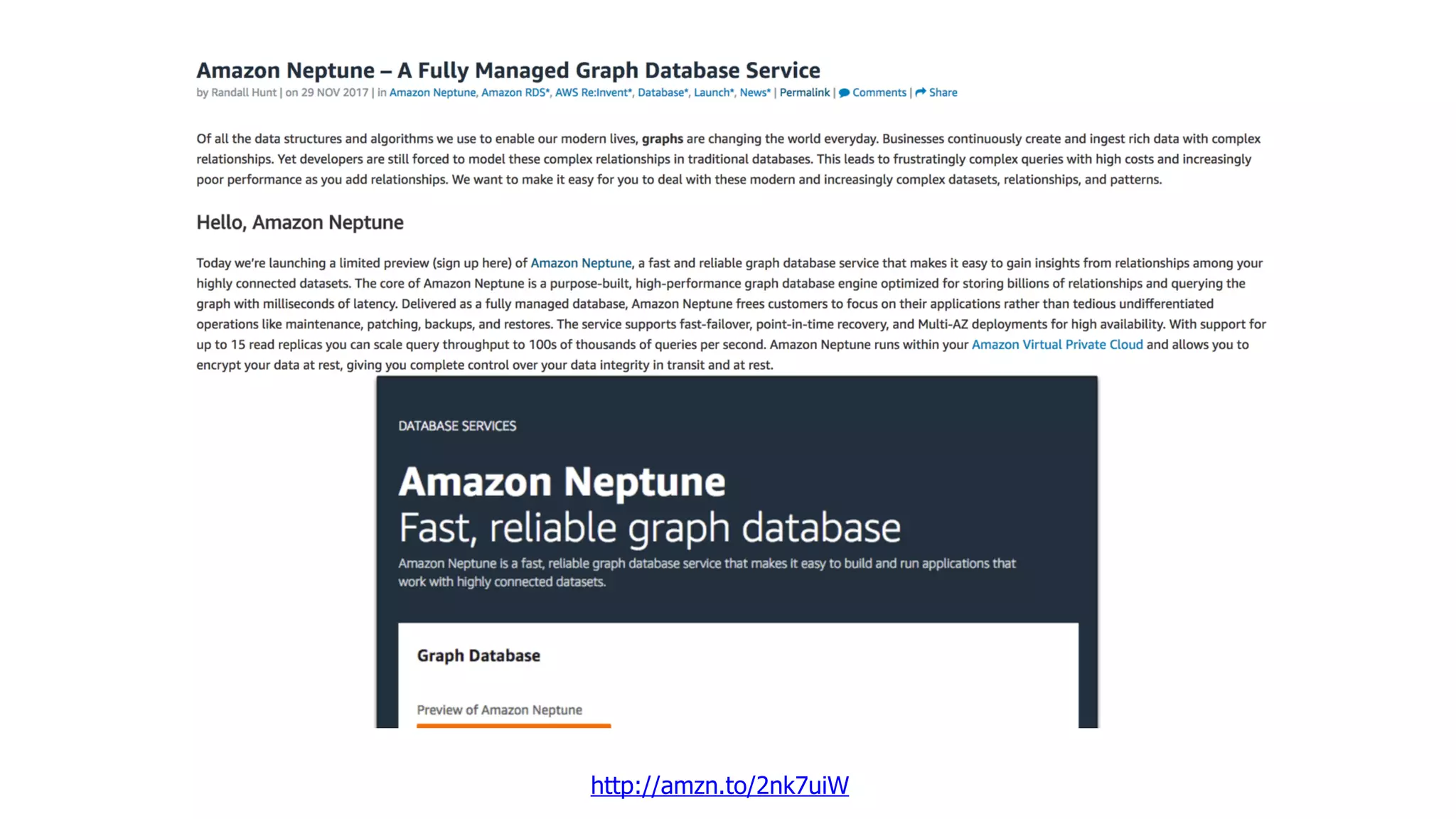

148. http://amzn.to/2nk7uiW

149. ability to query based on the relationship
between observed components
(as well as the components themselves)

150. root cause analysis

151. the elevated error rate in service X was caused by
DynamoDB table throttling.“
”

152. payment was slow last
night around 10PM.
investigate.

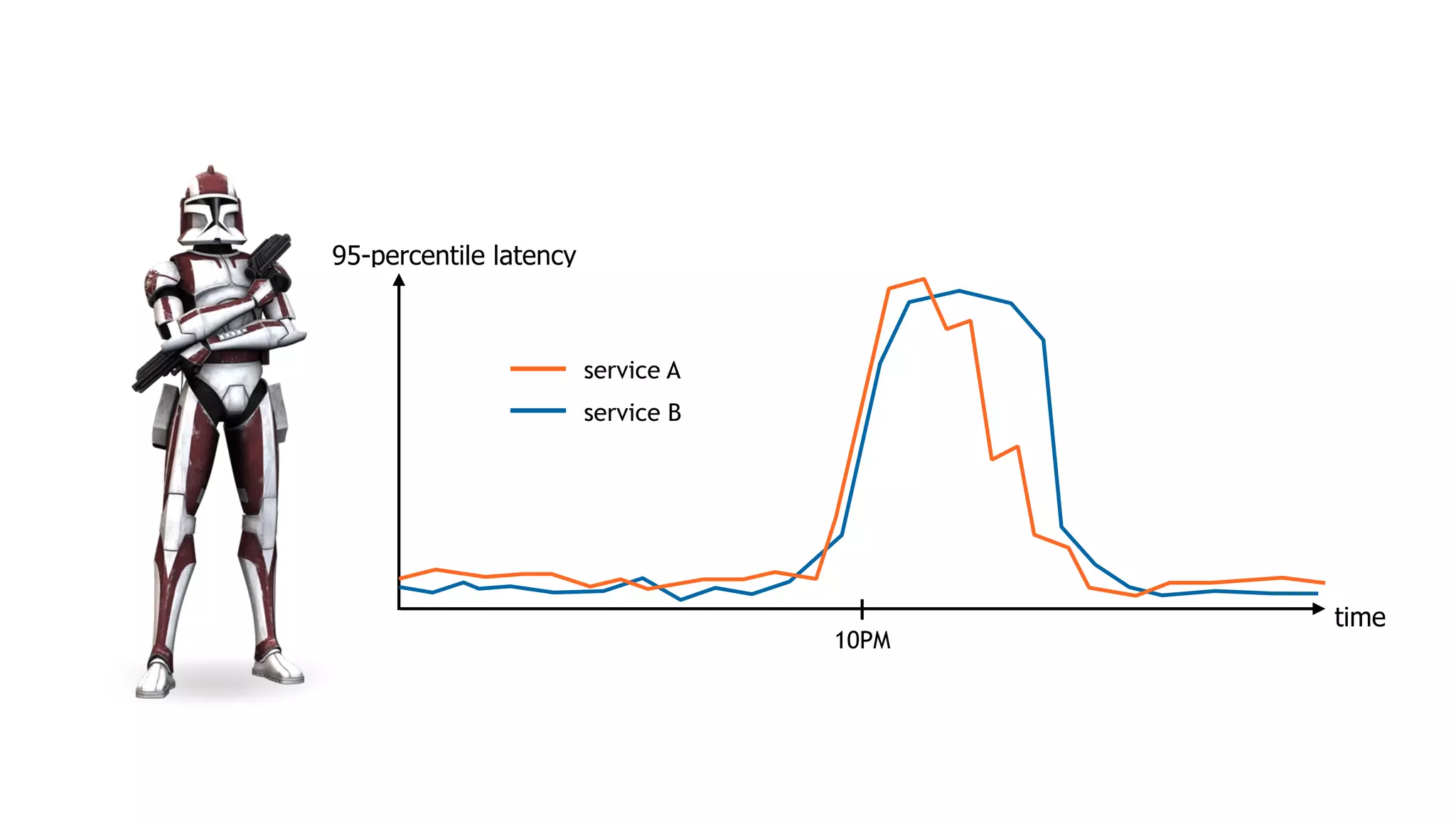

153. time
95-percentile latency
service A
service B
10PM

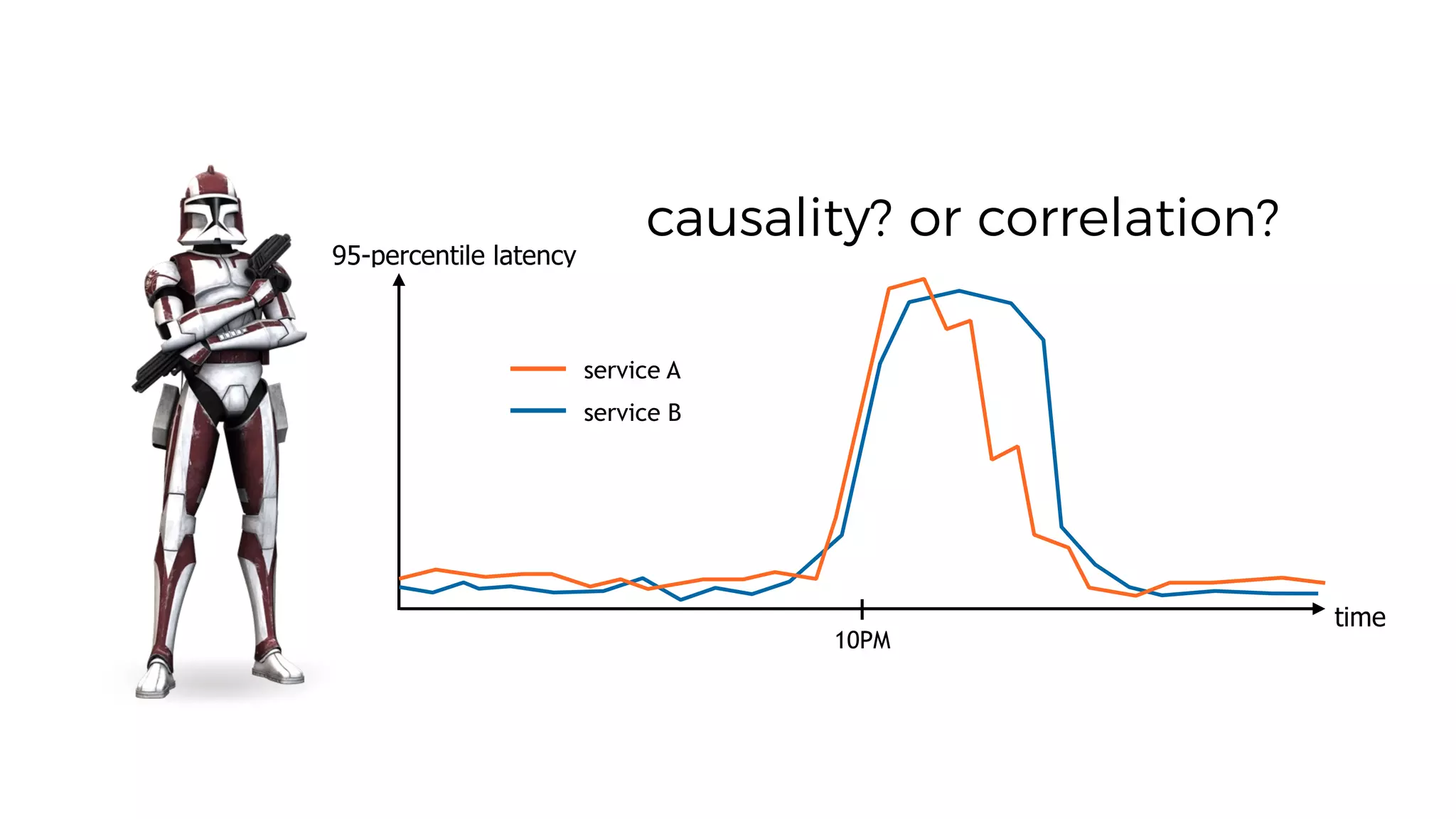

154. time
95-percentile latency
service A
service B
10PM
causality? or correlation?

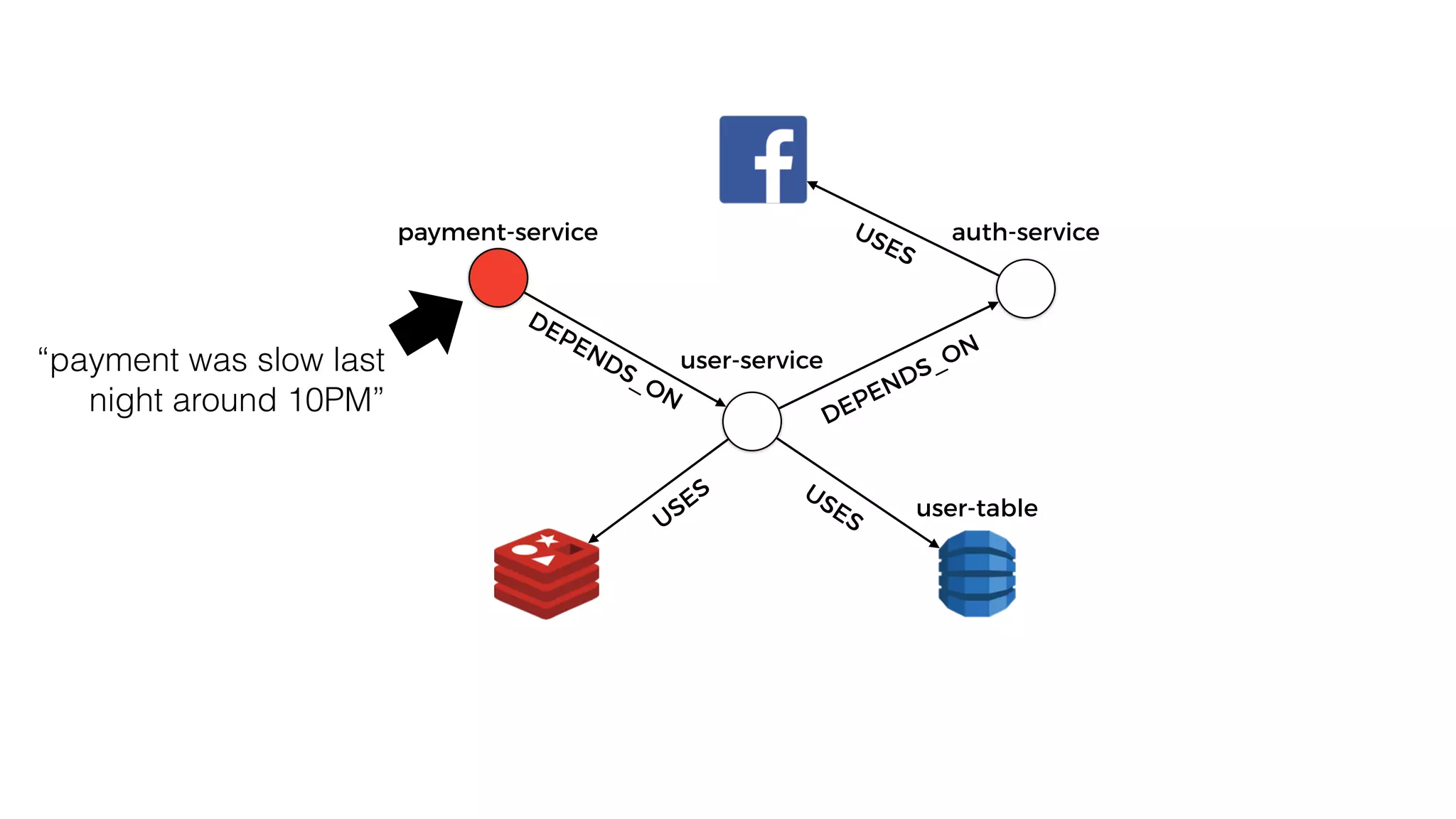

155. user-service
USESUSES
DEPENDS_ON
auth-serviceUSES
payment-service
DEPENDS_ON
“payment was slow last
night around 10PM”
user-table

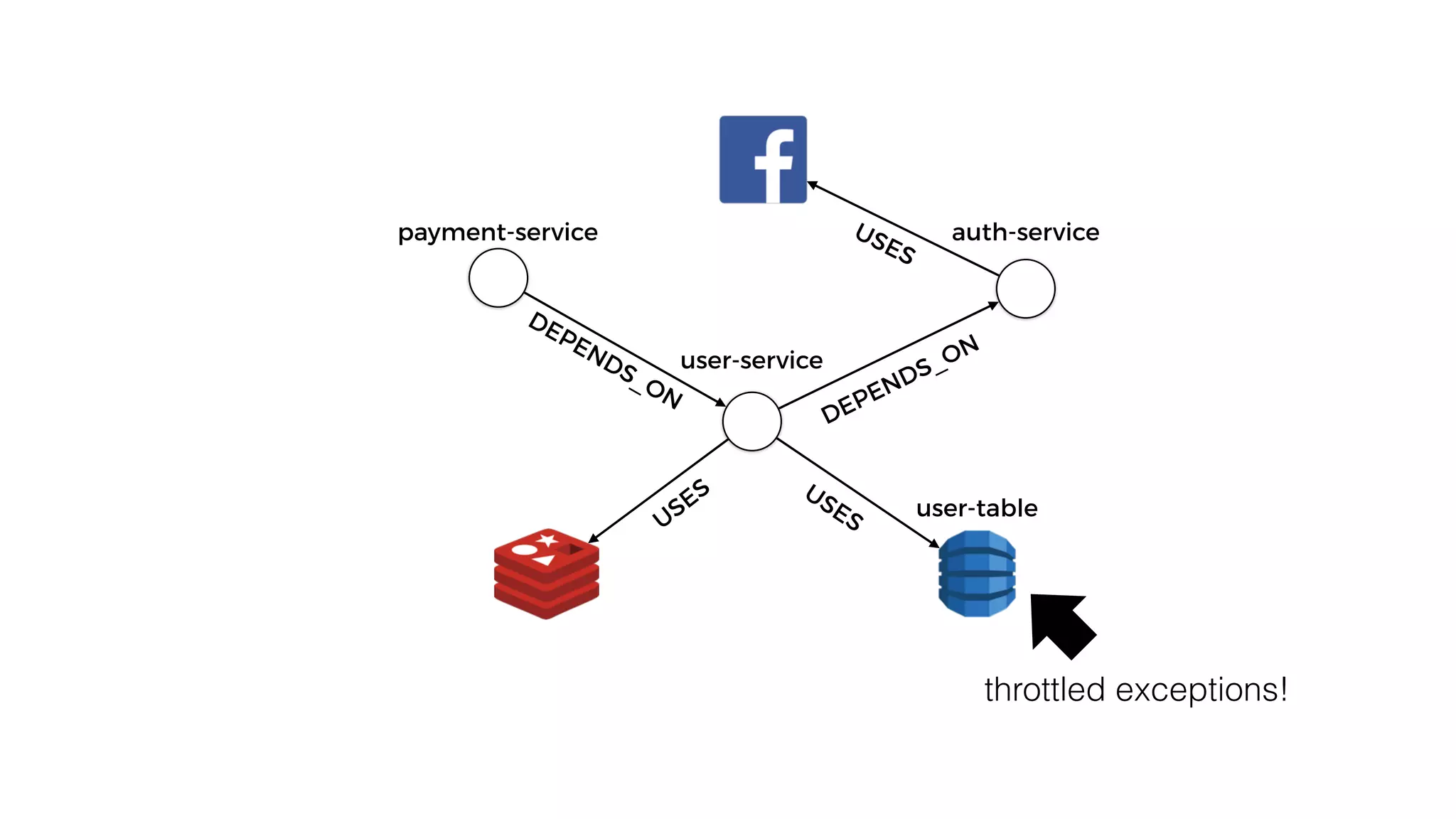

156. user-service
USESUSES
DEPENDS_ON
auth-serviceUSES
DEPENDS_ON
payment-service
user-table
throttled exceptions!

157. user-table
user-stream
DEPENDS_ON
DEPENDS_ON USES
USES
USES
USES
USES
DEPENDS_ON
D
EPEN
D
S_O
N
DEPENDS_ON
PUBLISHES_TO
“what else is impacted by the throttled exceptions on user-table?”

158. user-table
user-stream
DEPENDS_ON
DEPENDS_ON USES
USES
USES
USES
USES
DEPENDS_ON
D
EPEN
D
S_O
N
DEPENDS_ON
PUBLISHES_TO
“what else is impacted by the throttled exceptions on user-table?”

159. wouldn’t that be nice?

161. MACHINE
LEARNING

162. use ML to auto-detect erroneous or
suspicious behaviours, or to suggest
possible improvements

164. !
Function [X] just performed
an unexpected write against
DynamoDB table [Y].
Should I…
ignore it from now on
shut it down!!

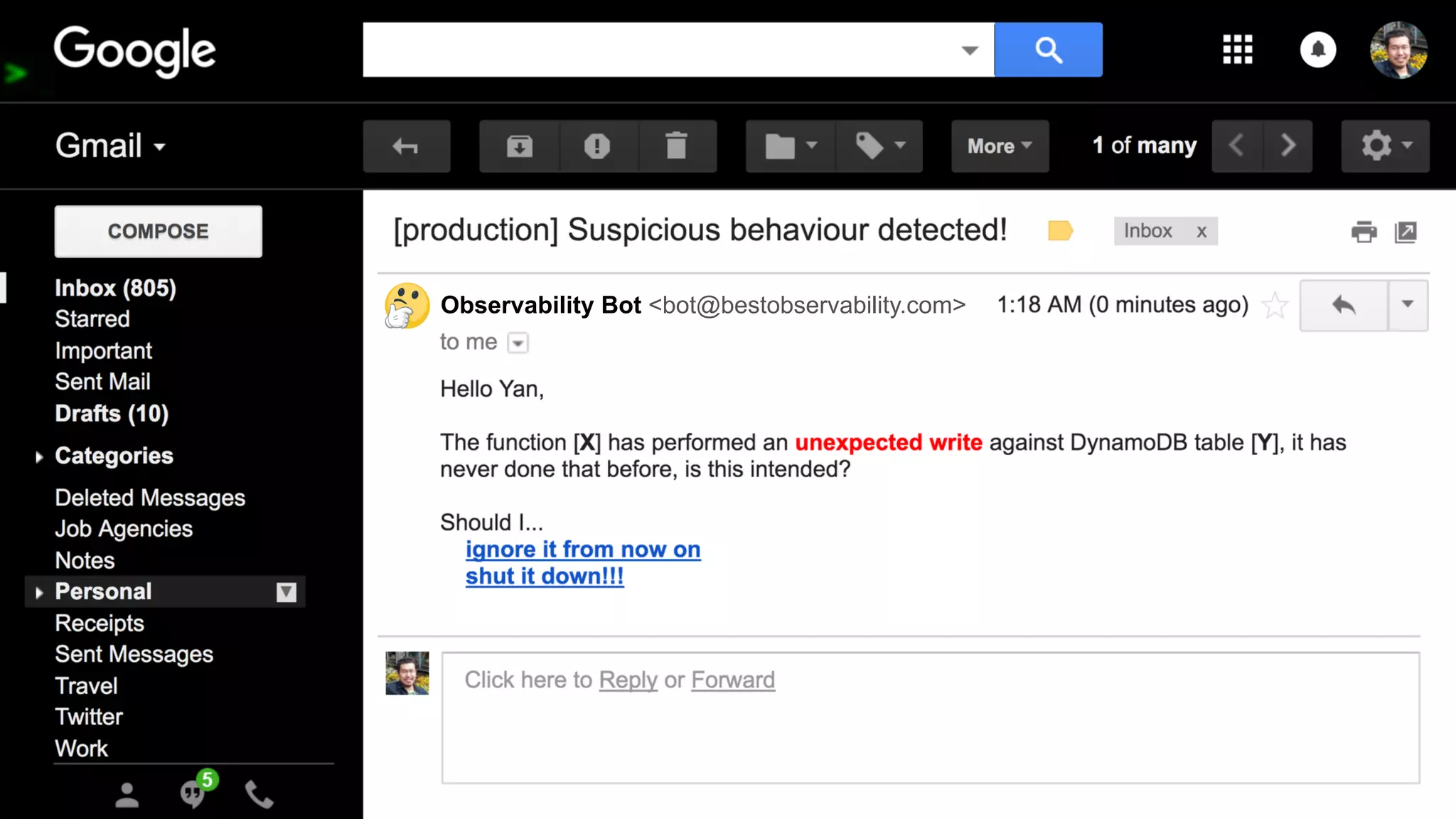

165. Observability Bot <bot@bestobservability.com>

166. Observability Bot <bot@bestobservability.com>
don’t bother me about this again

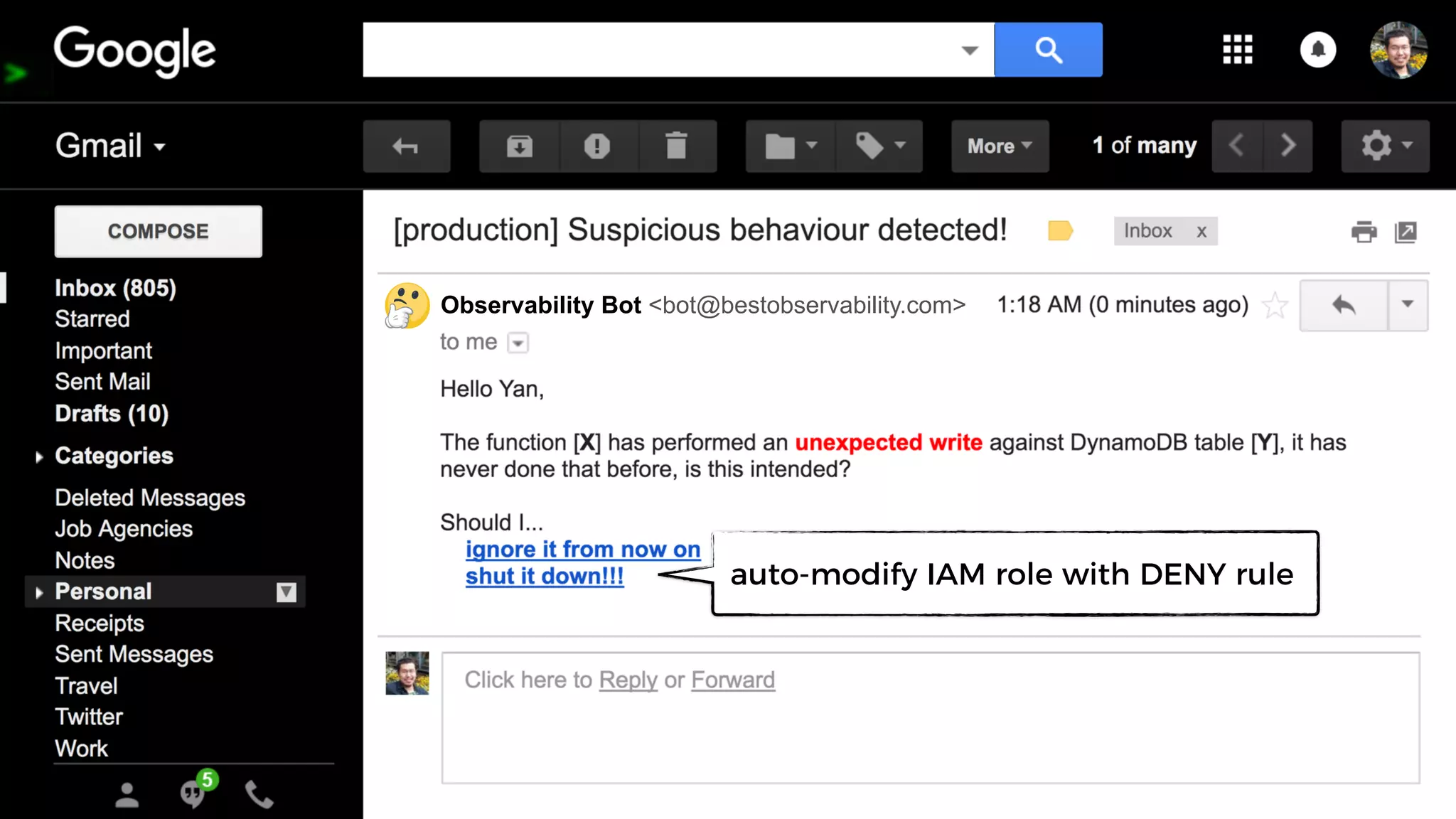

167. Observability Bot <bot@bestobservability.com>
auto-modify IAM role with DENY rule

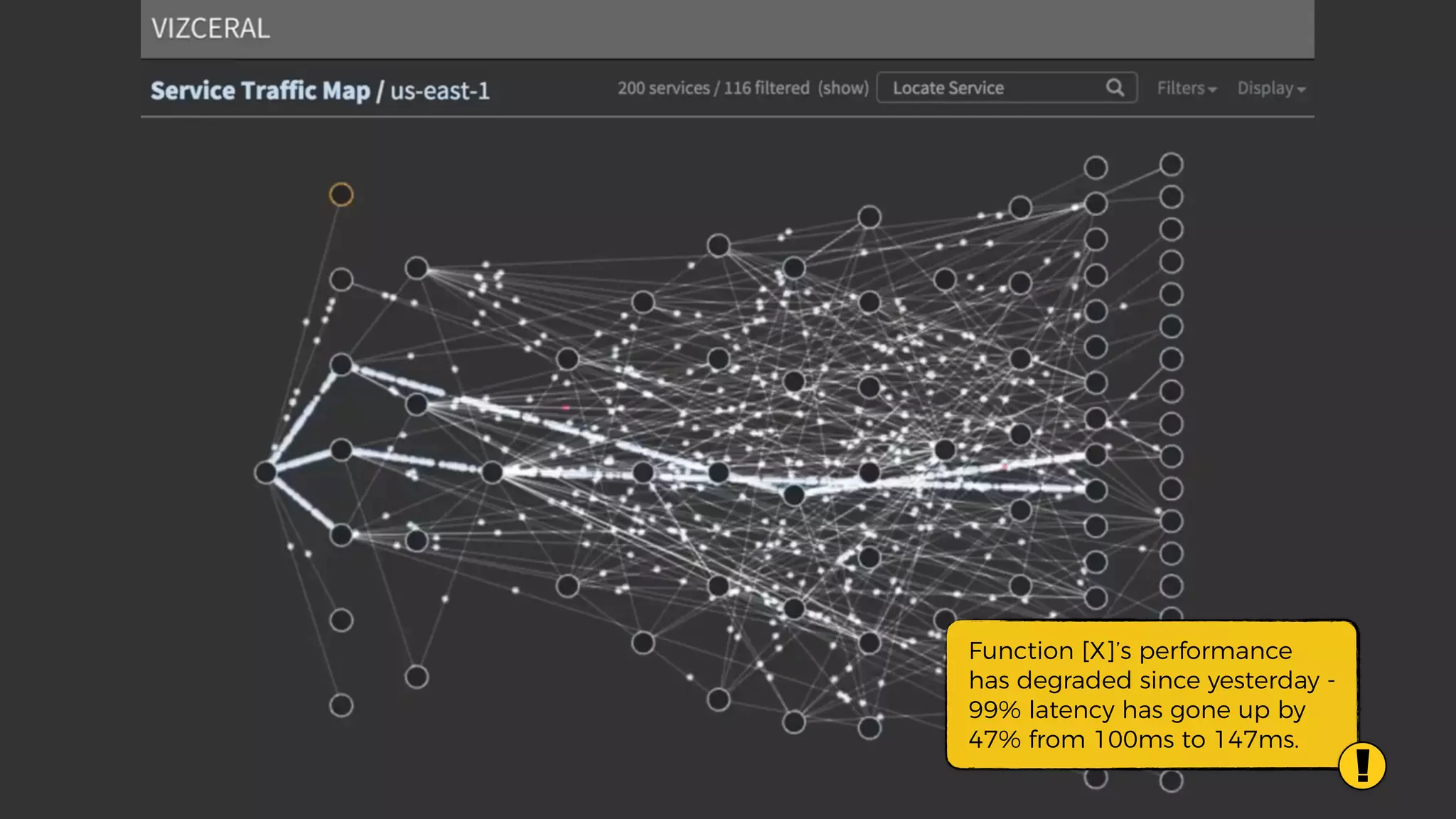

168. Function [X]’s performance
has degraded since yesterday -
99% latency has gone up by
47% from 100ms to 147ms.
!

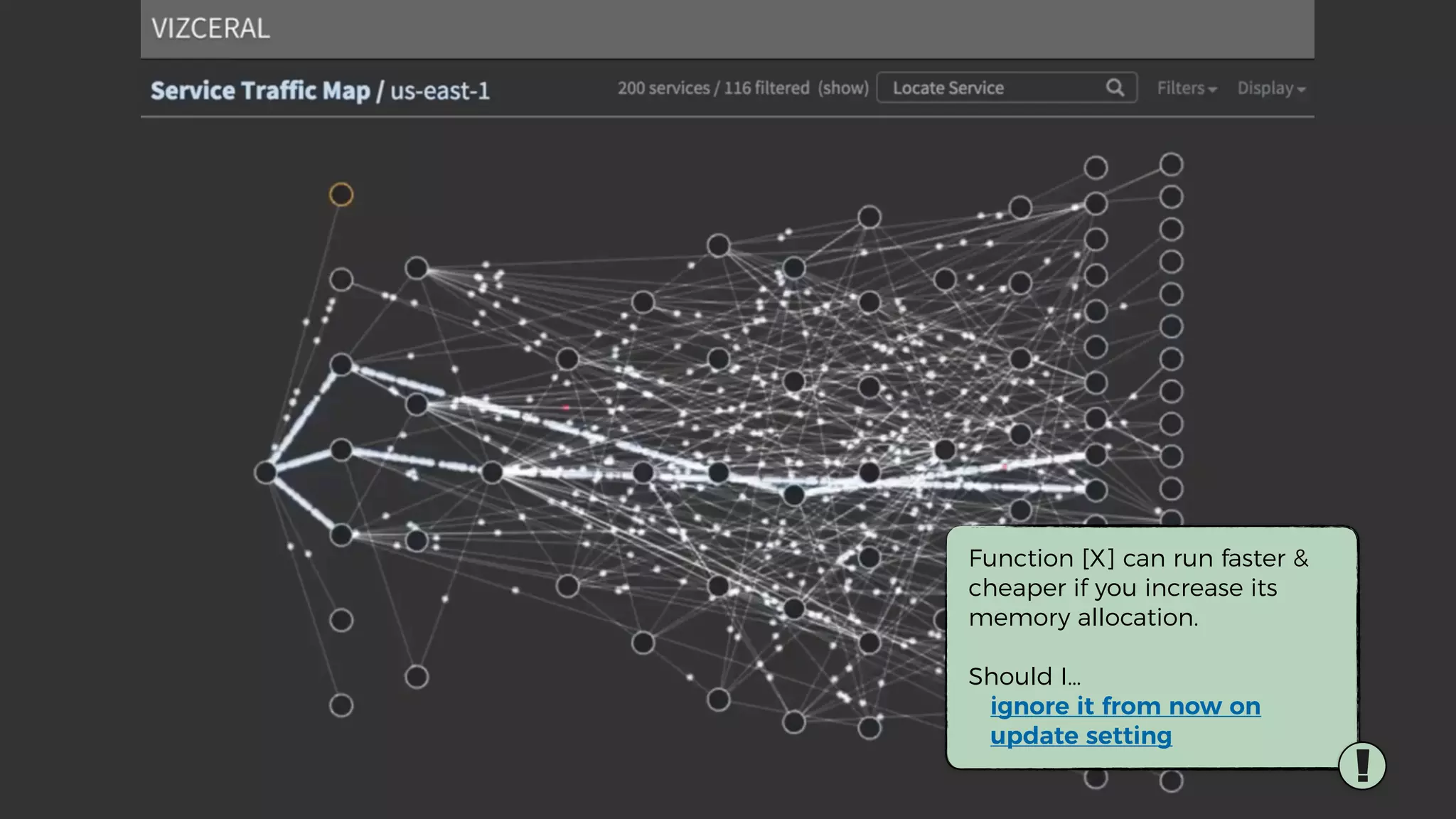

169. !
Function [X] can run faster &
cheaper if you increase its
memory allocation.
Should I…
ignore it from now on
update setting

170. zzz… the future of… zzz …
serverless observability… zzz

172. Simon Wardley

173. Simon Wardley
context &
movement

174. However, I would argue that the health of the system no
longer matters. We've entered an era where what matters is
the health of each individual event, or each individual user's
experience, or each shopping cart's experience (or other high
cardinality dimensions). With distributed systems you don't
care about the health of the system, you care about the
health of the event or the slice.
”http://bit.ly/2E2QngU- Charity Majors
“

175. “one user action/vertical slice through the system”

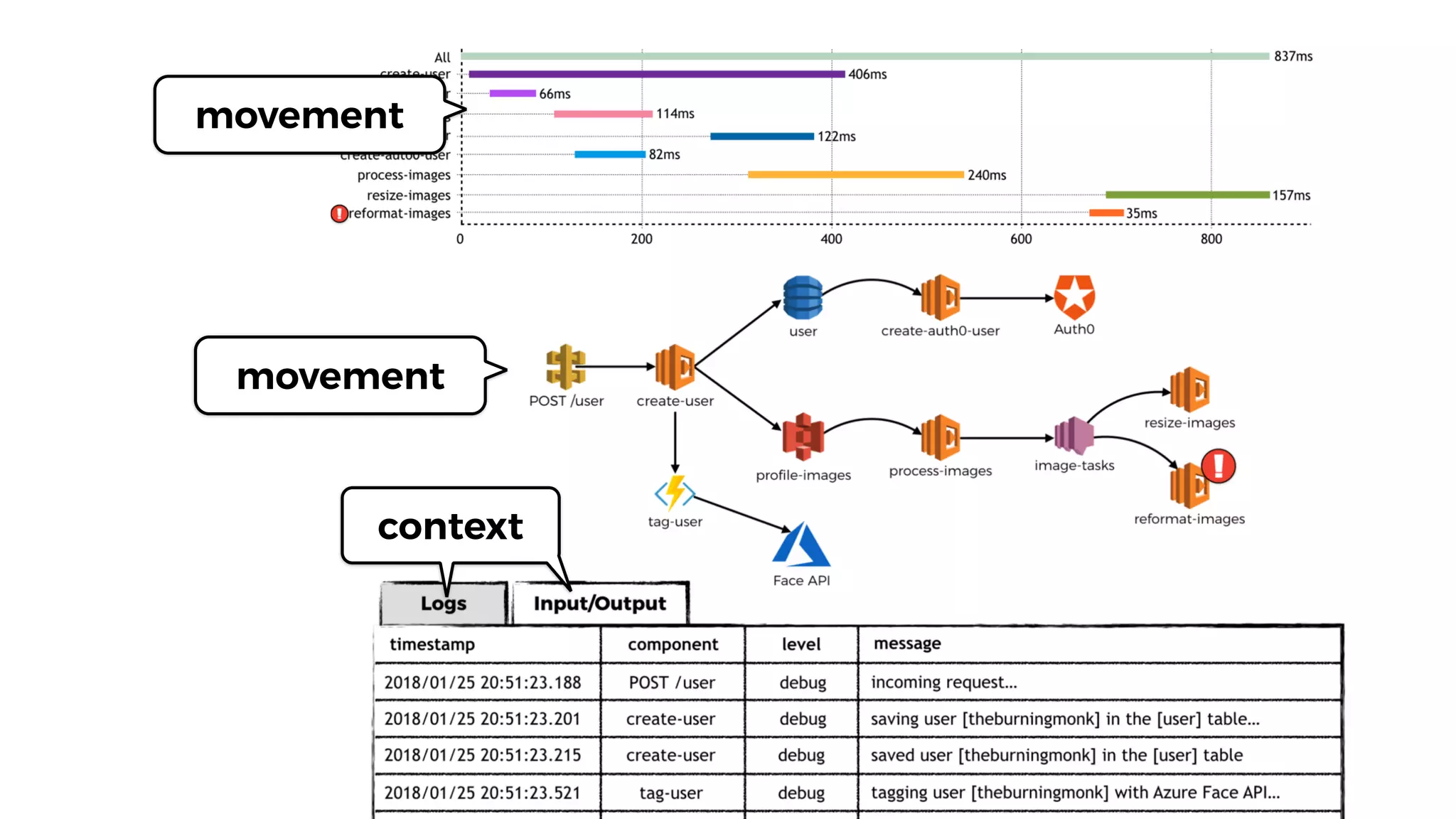

176. movement
context
movement

177. The best way to predict the future
is to invent it.
- Alan Kay

178. The best way to invent
the future is to inception
someone else to do it.
- me

179. Serkan Özal
@serkan_ozal

180. Adam Johnson
@adjohn
Erica Windisch
@ewindisch

181. Nitzan Shapira
@nitzanshapira
Ran Ribenzaft
@ranrib

184. Charity Majors
@mipsytipsy
Cindy Sridharan
@copyconstruct
Erica Windisch
@ewindisch
Liz Fong-Jones
@lizthegrey
JBD
@rakyll

185. API Gateway and Kinesis
Authentication & authorisation (IAM, Cognito)
Testing
Running & Debugging functions locally
Log aggregation
Monitoring & Alerting
X-Ray
Correlation IDs
CI/CD
Performance and Cost optimisation
Error Handling
Configuration management
VPC
Security
Leading practices (API Gateway, Kinesis, Lambda)
Canary deployments
http://bit.ly/production-ready-serverless
get 40% off
with code:
ytcui
