Building a social network in under 4 weeks with Serverless and GraphQL

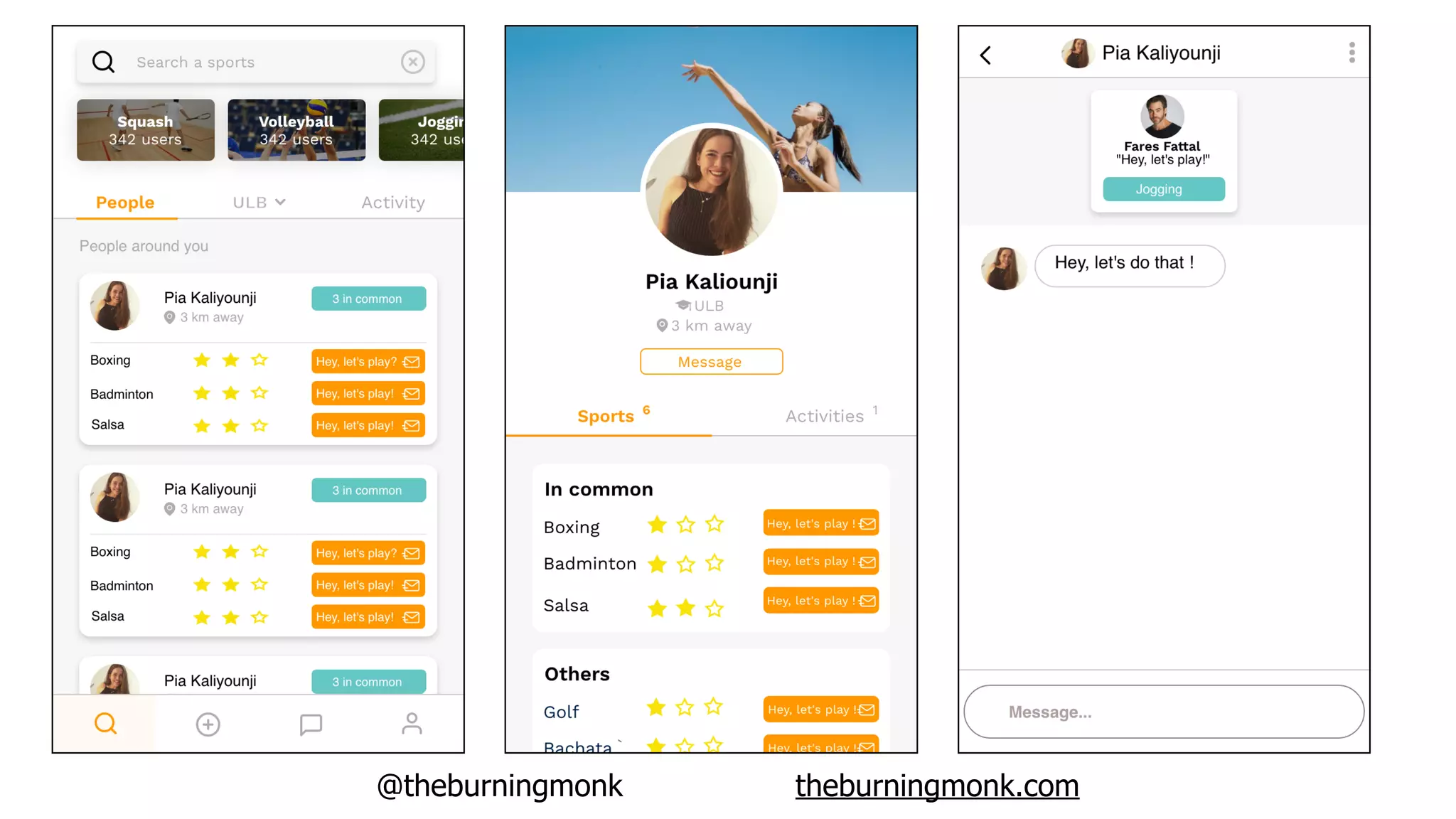

Building a social network
in under 4 weeks with
Serverless and
GraphQL

@theburningmonk theburningmonk.com

bootstrapped startup: severe constraints on time & money

speed of development
scale to millions of users

minimal up-keep

minimal up-keep
cost efficient

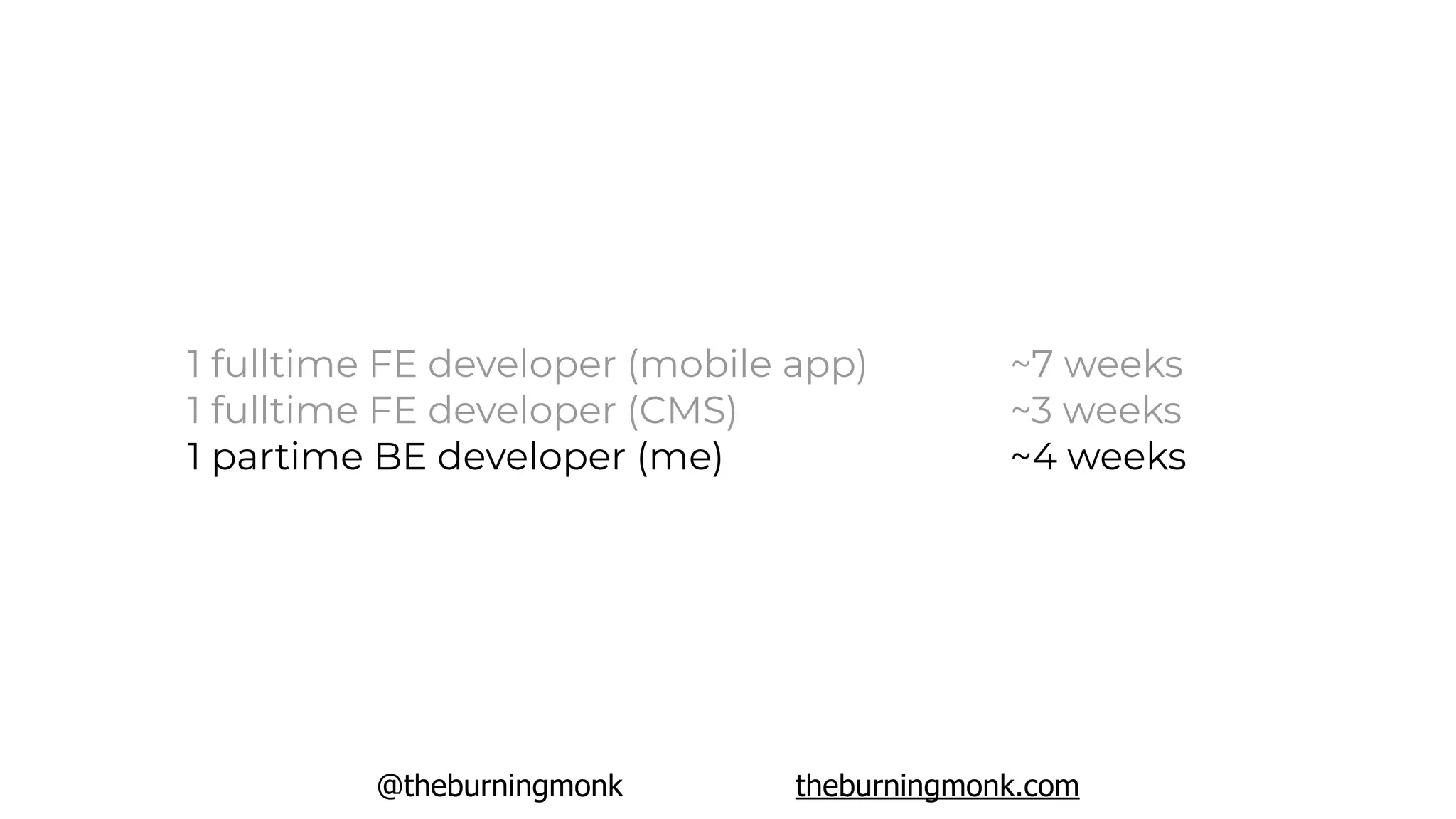

1 fulltime FE developer (mobile app)
1 fulltime FE developer (CMS)
1 partime BE developer (me)
~7 weeks
~3 weeks
~4 weeks

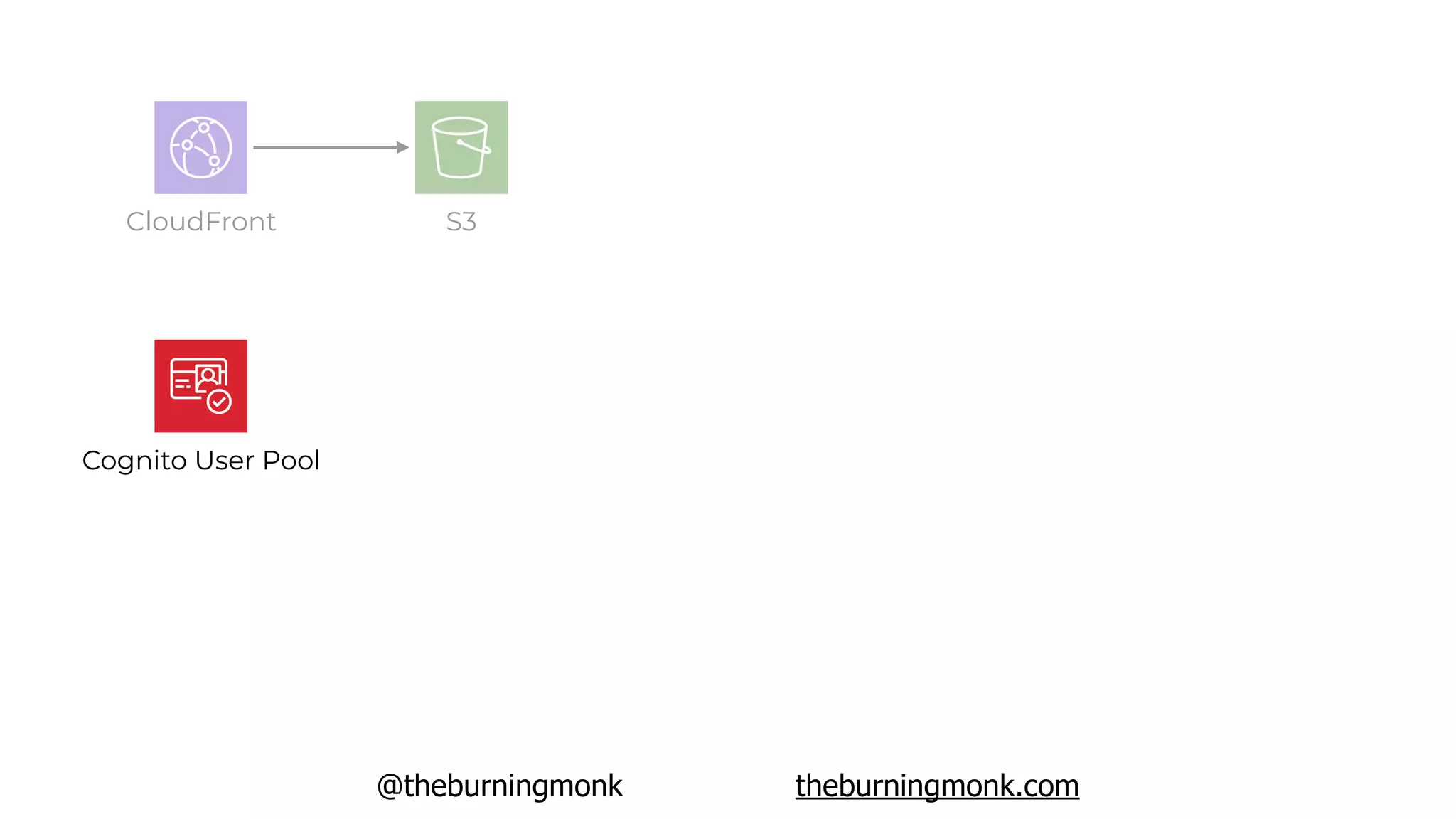

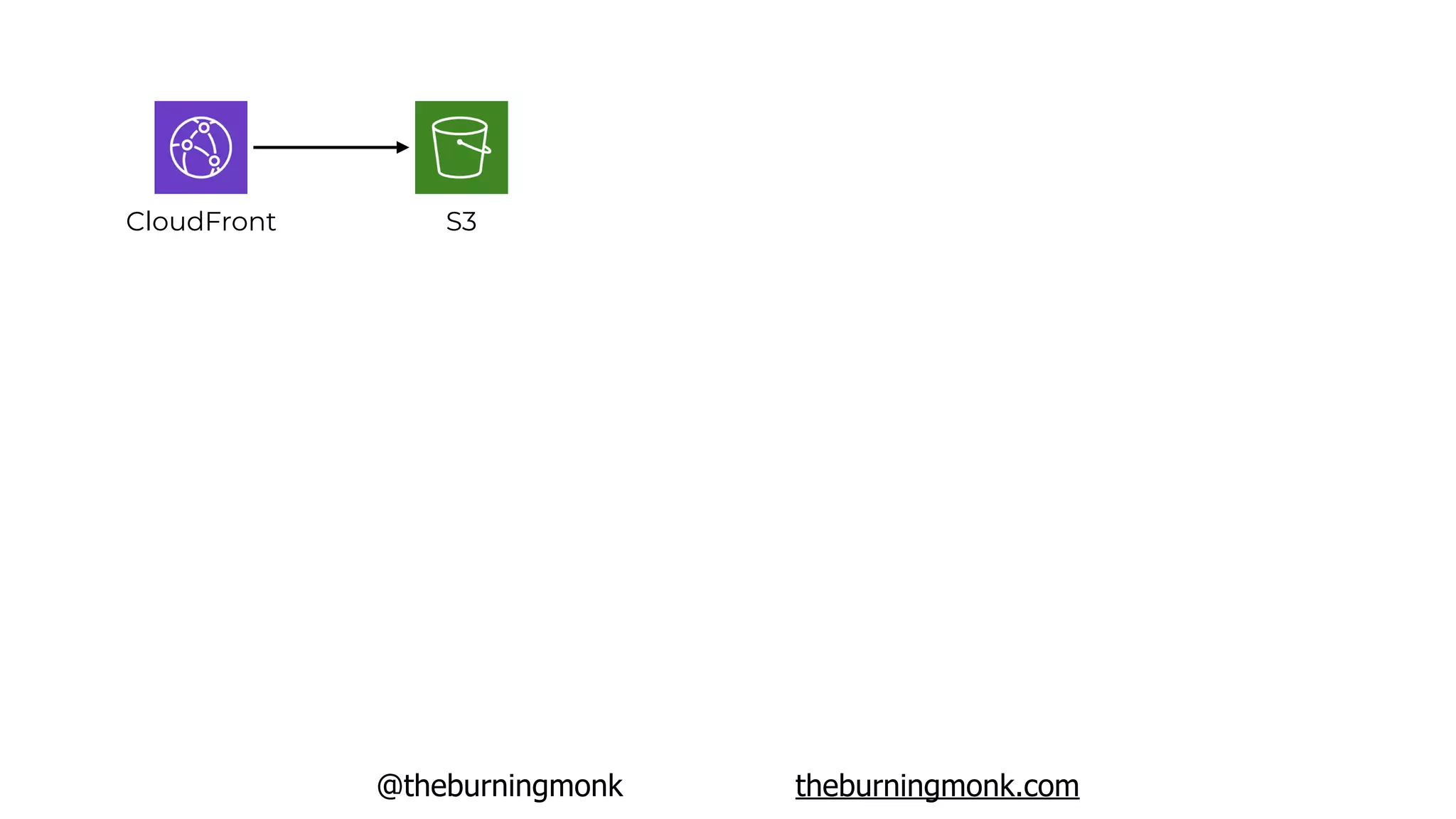

S3CloudFront

Cognito User Pool
S3CloudFront

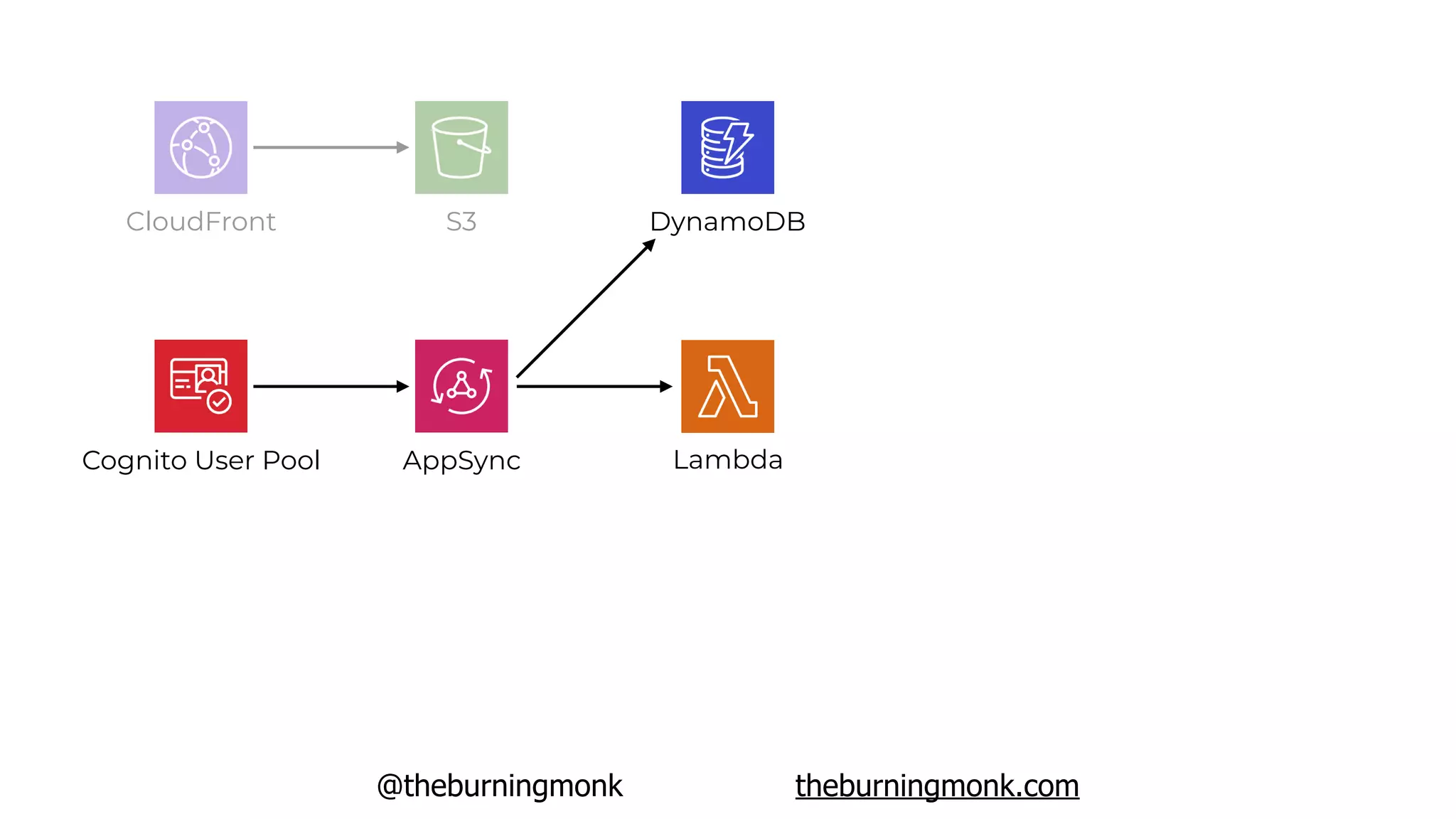

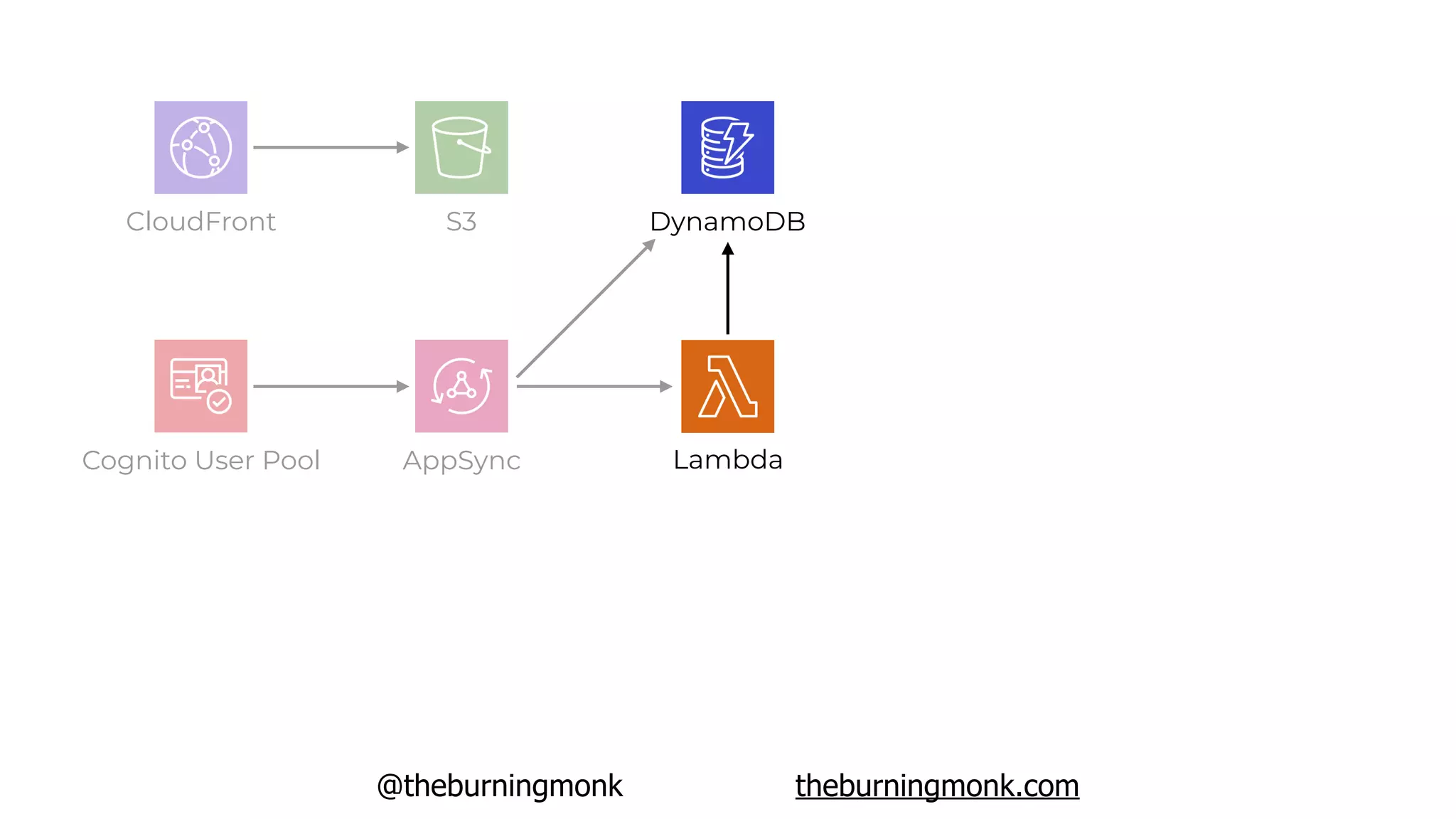

Cognito User Pool AppSync
S3CloudFront DynamoDB
Lambda

DynamoDB
Lambda
S3CloudFront

DynamoDB
Lambda
S3
Algolia
CloudFront

DynamoDB
Lambda

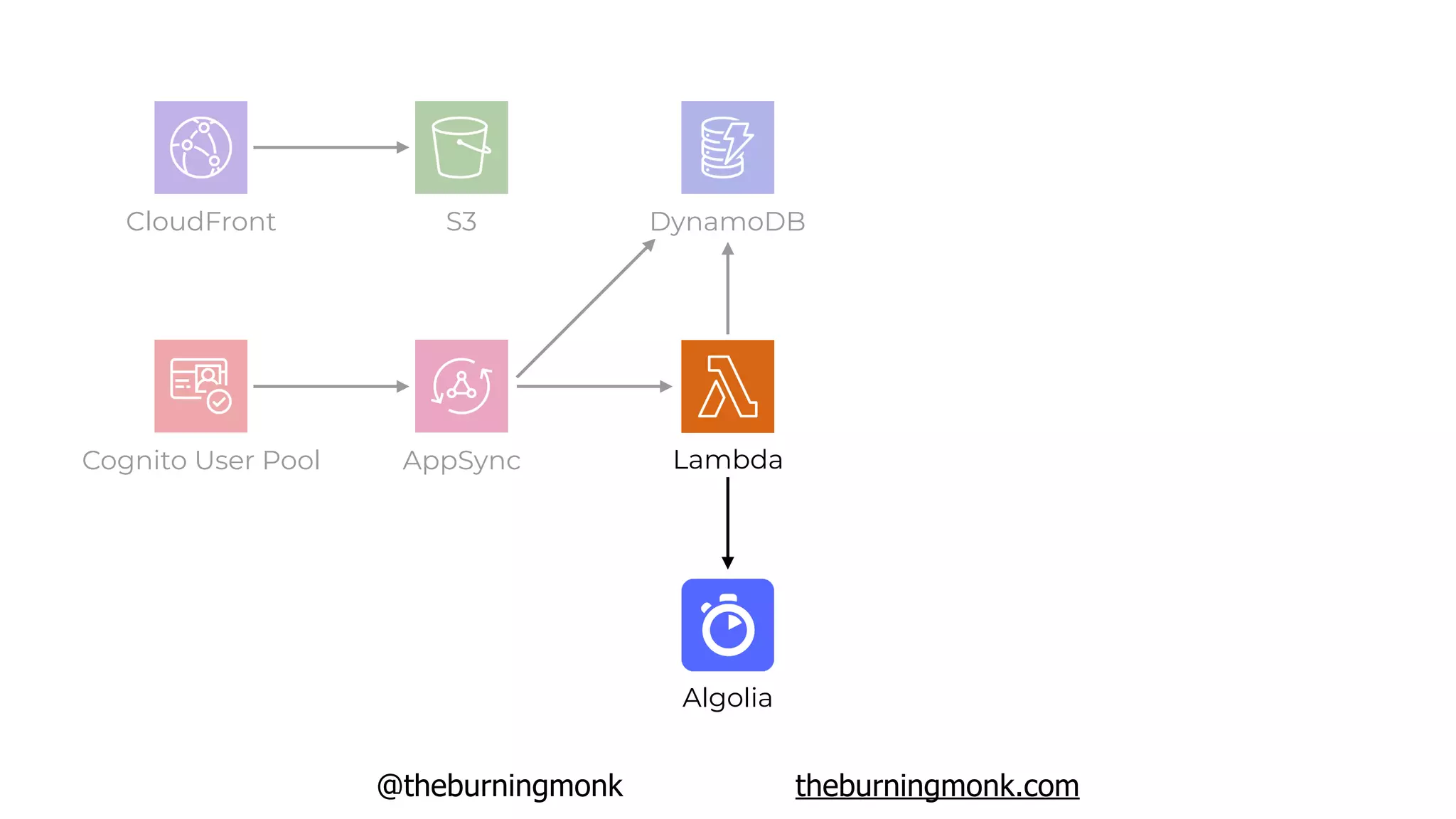

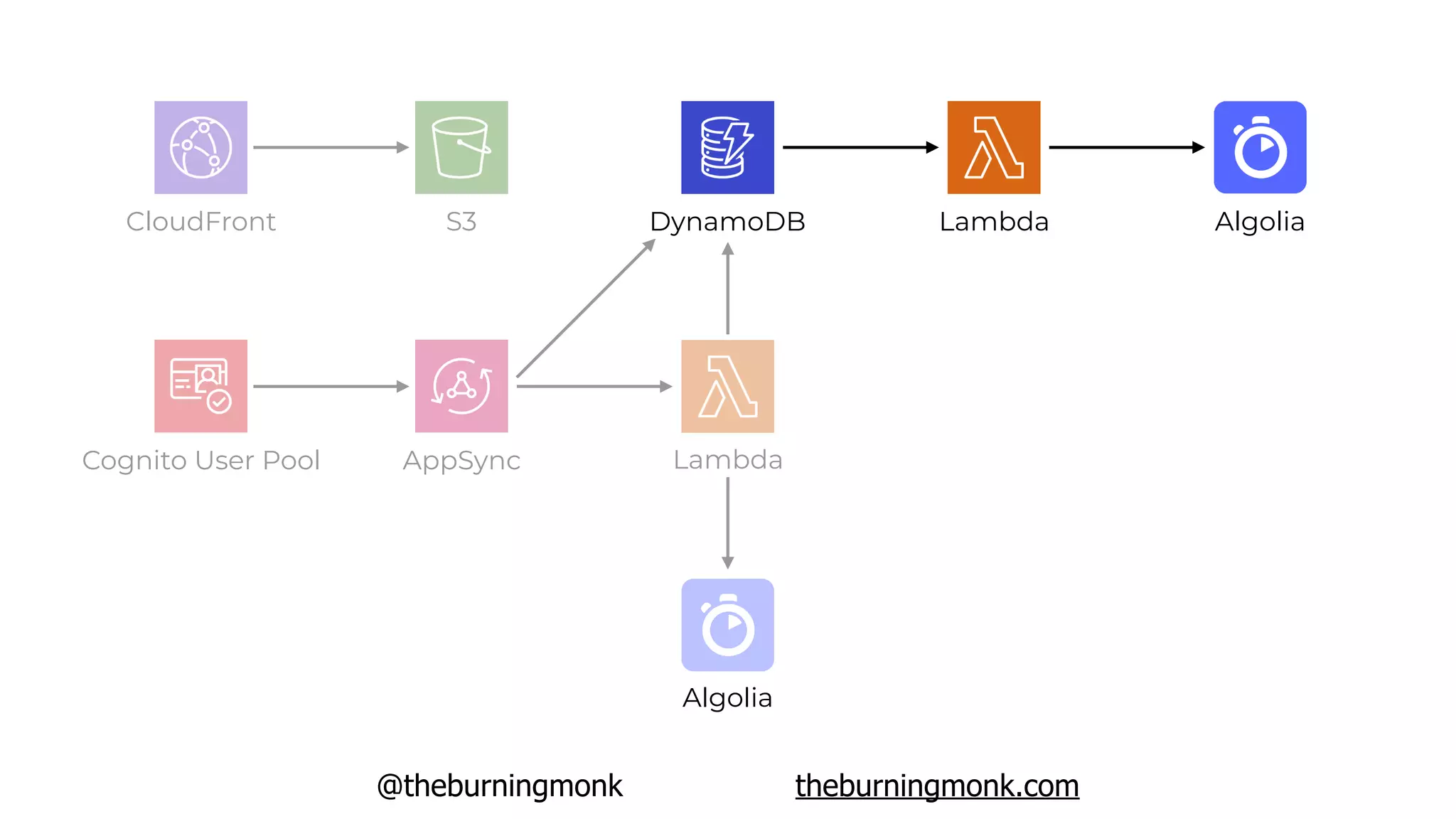

S3 AlgoliaCloudFront Lambda
Algolia

DynamoDB
Lambda

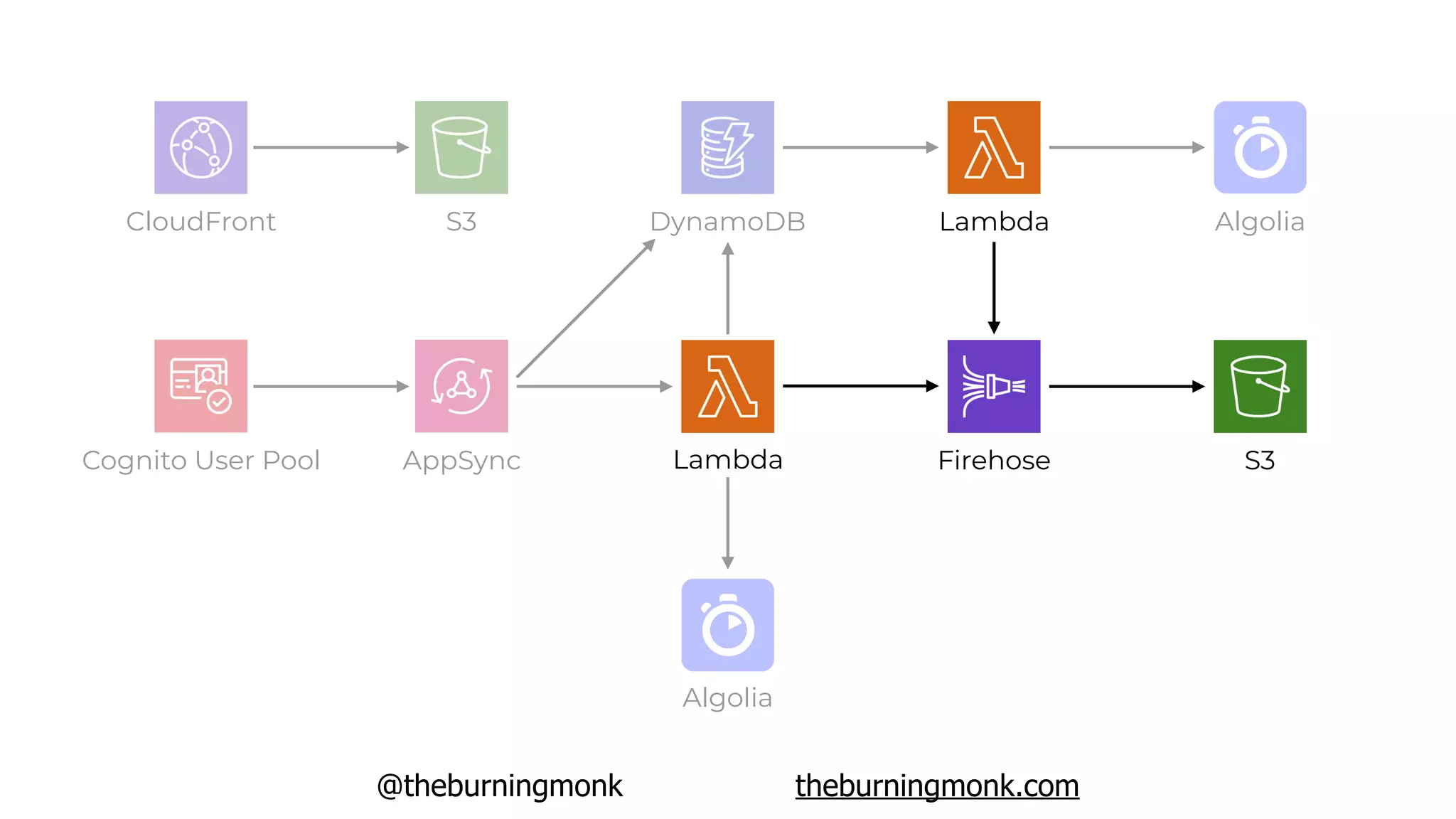

S3
Firehose
Algolia
CloudFront
S3
Lambda Algolia

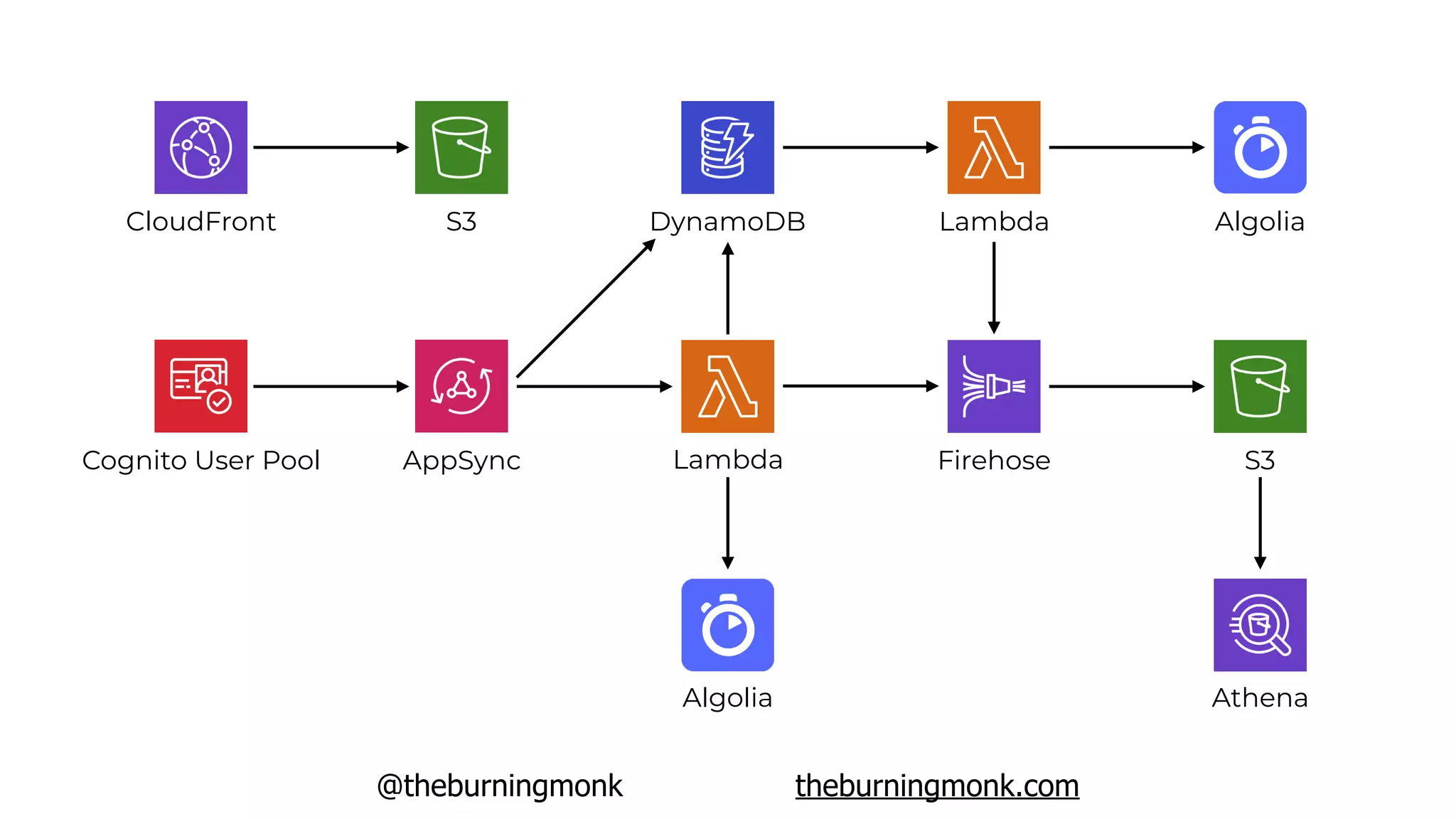

DynamoDB
Lambda

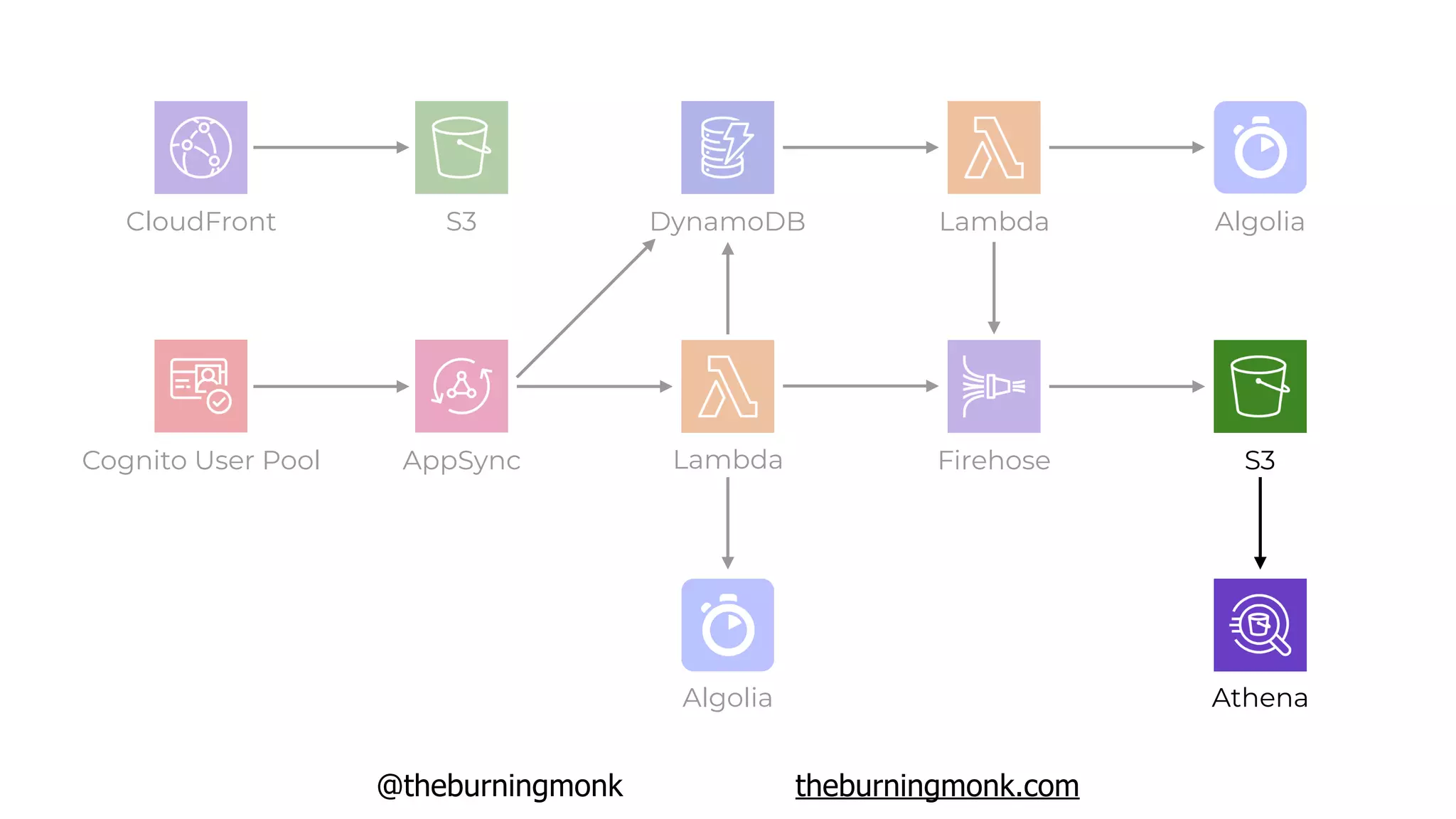

S3
Firehose
AthenaAlgolia
CloudFront
S3
Lambda Algolia

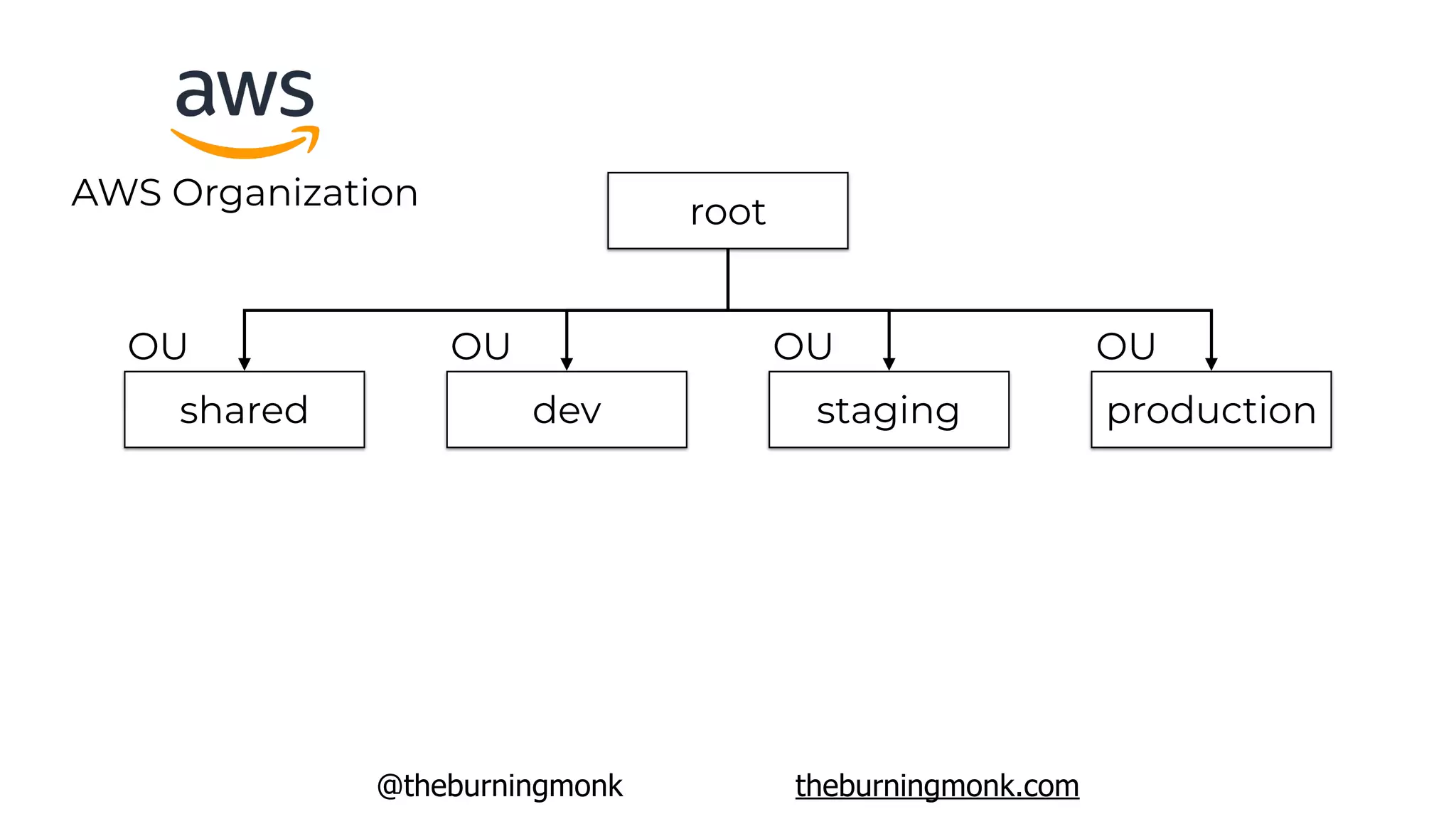

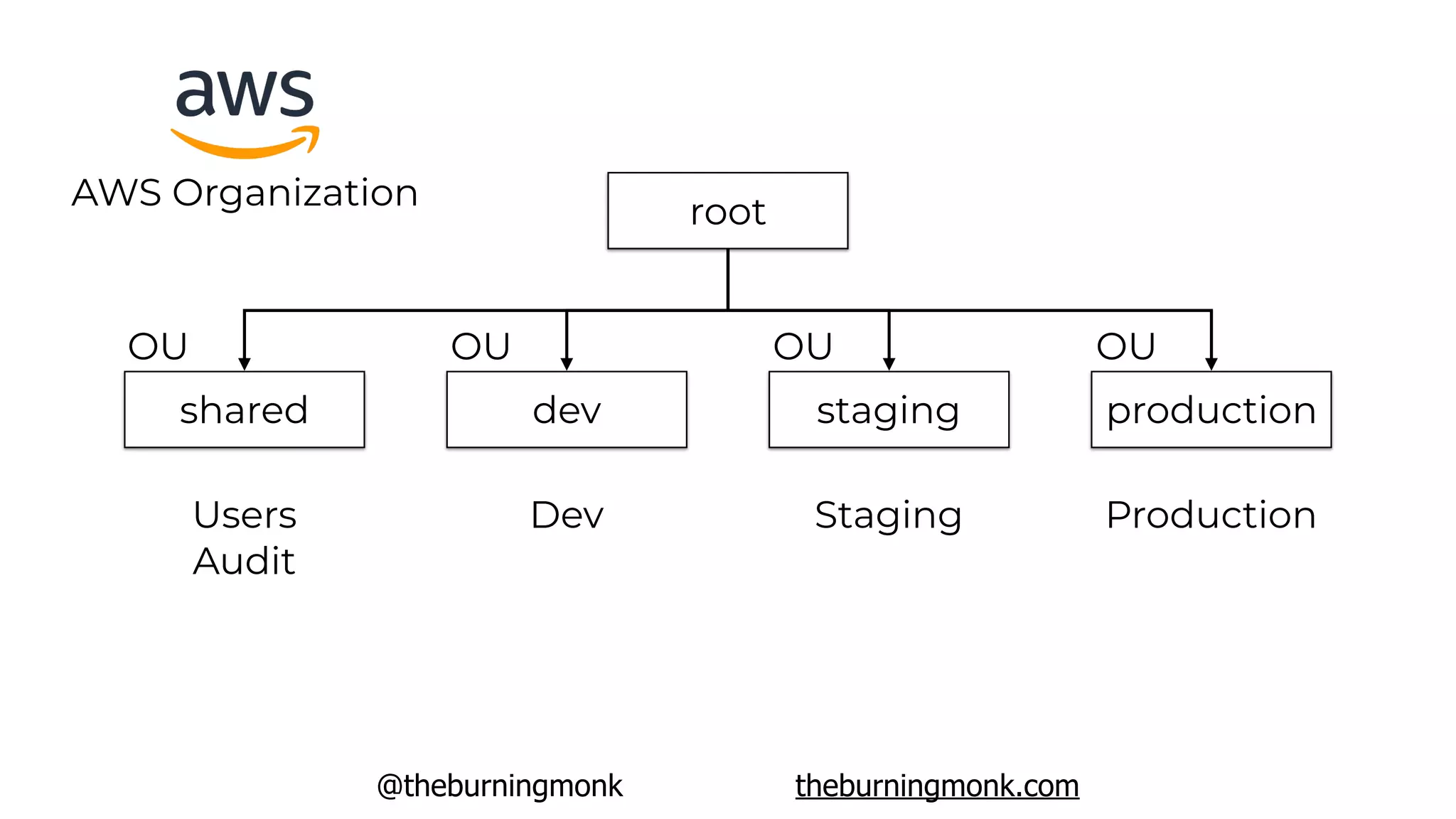

AWS Organization
productionstagingdevshared
root
OU OU OU OU

AWS Organization
root
OU OU OU OU
Users
Audit
Dev Staging Production

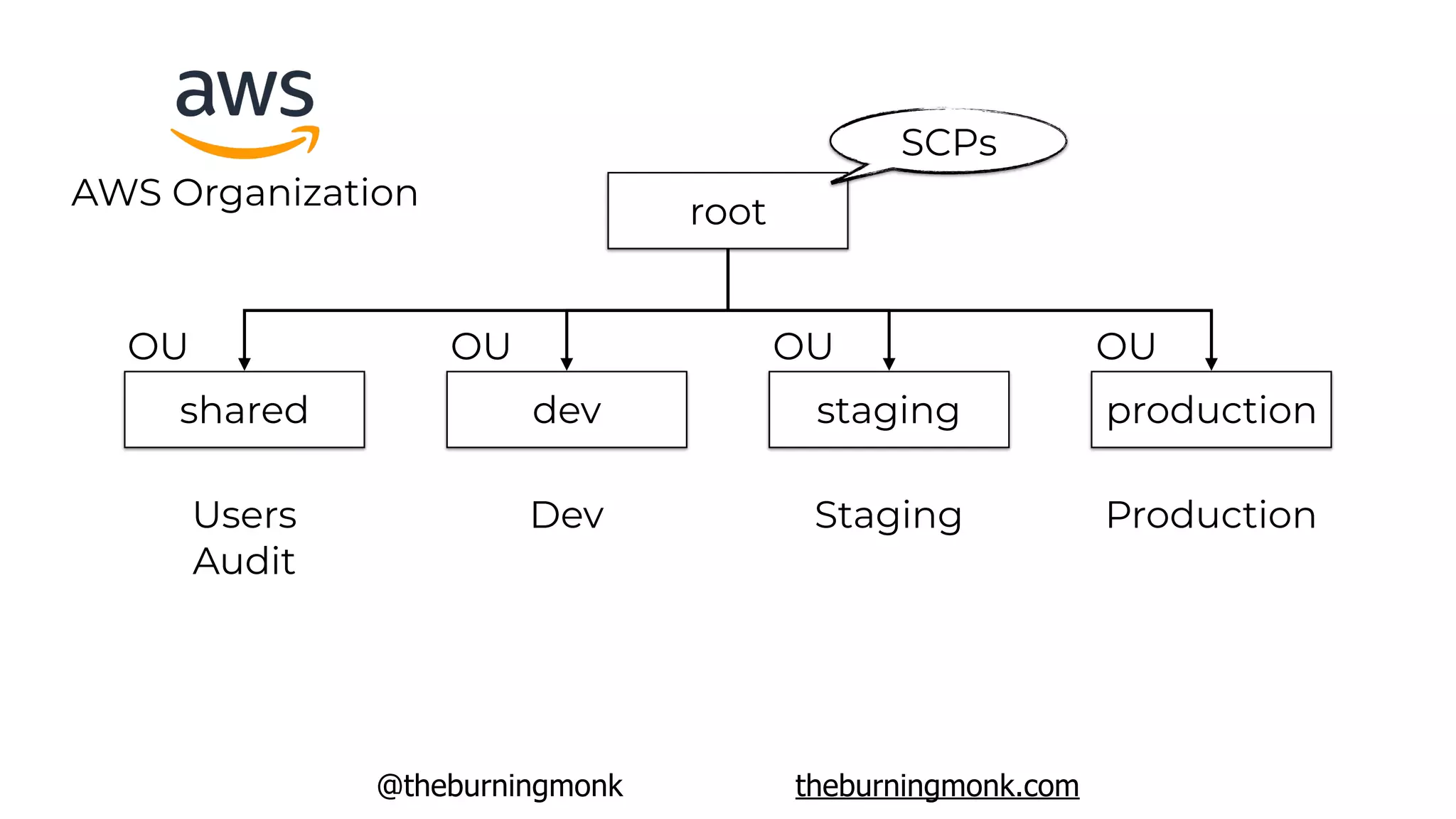

AWS Organization
root
OU OU OU OU
Users
Audit
Dev Staging Production
SCPs

Yan Cui
http://theburningmonk.com
@theburningmonk
AWS user for 10 years

Yan Cui
@theburningmonk
Developer Advocate @

Yan Cui
@theburningmonk
Independent Consultant
advisetraining delivery

What is GraphQL?

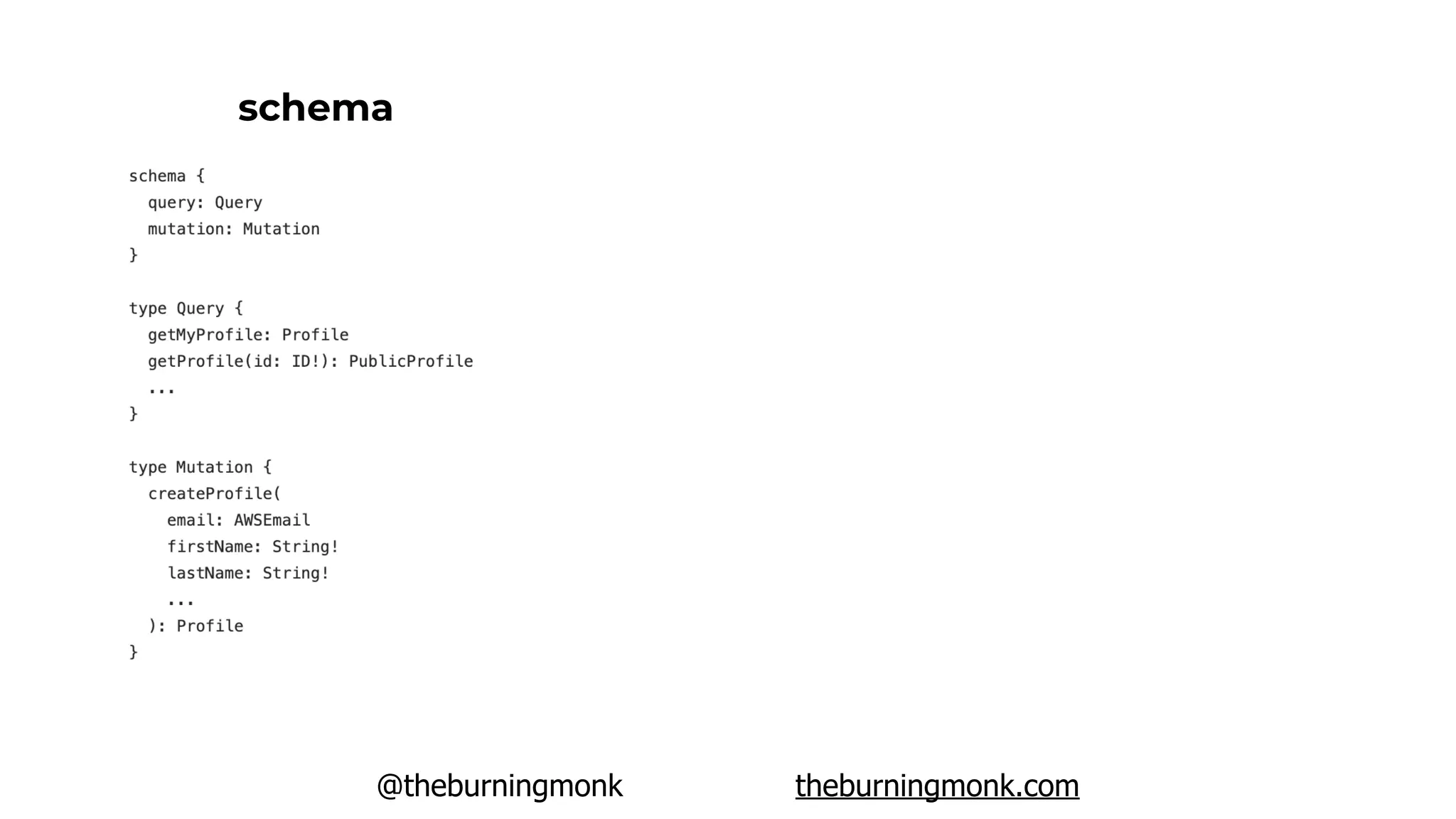

schema

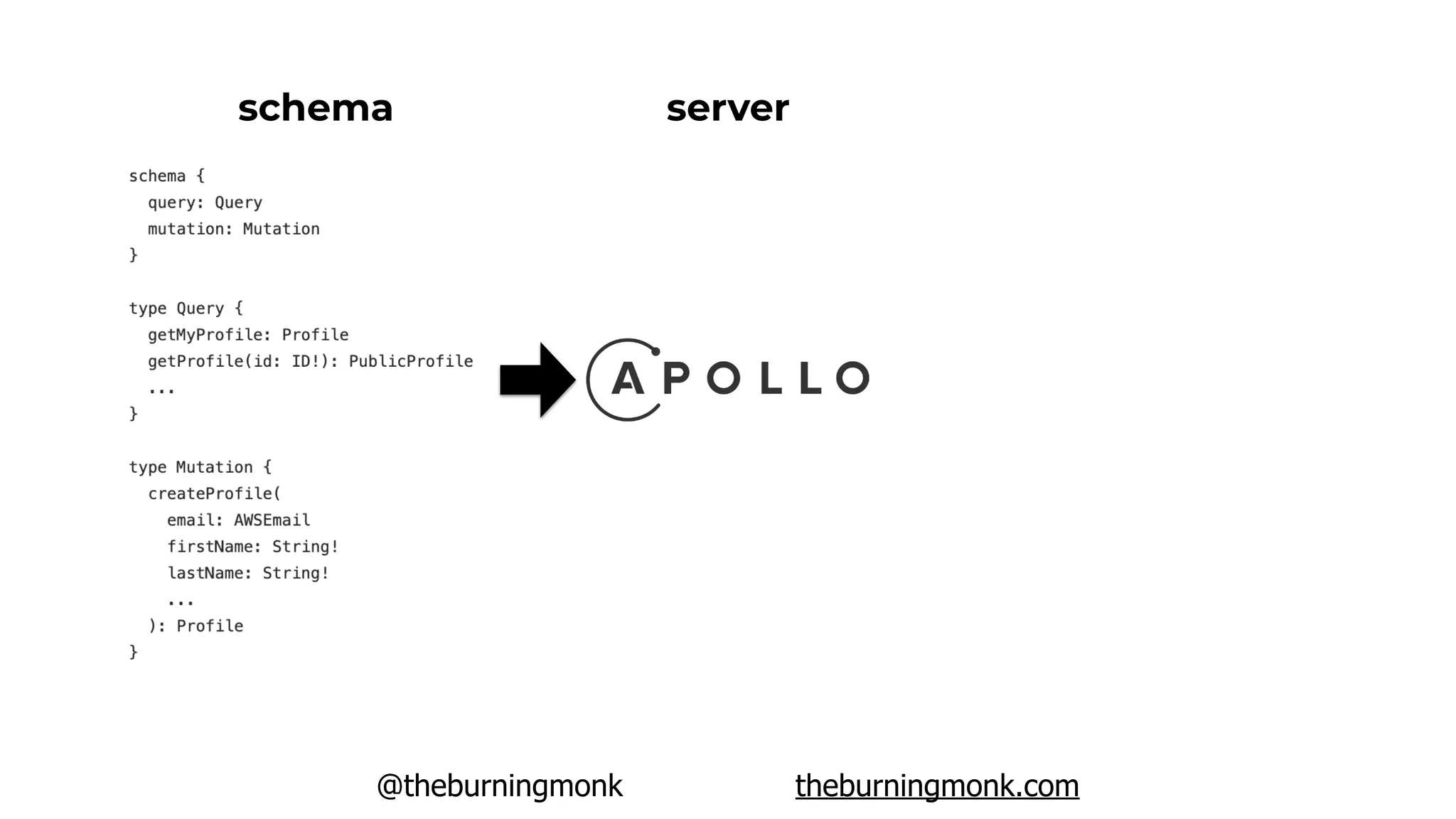

schema server

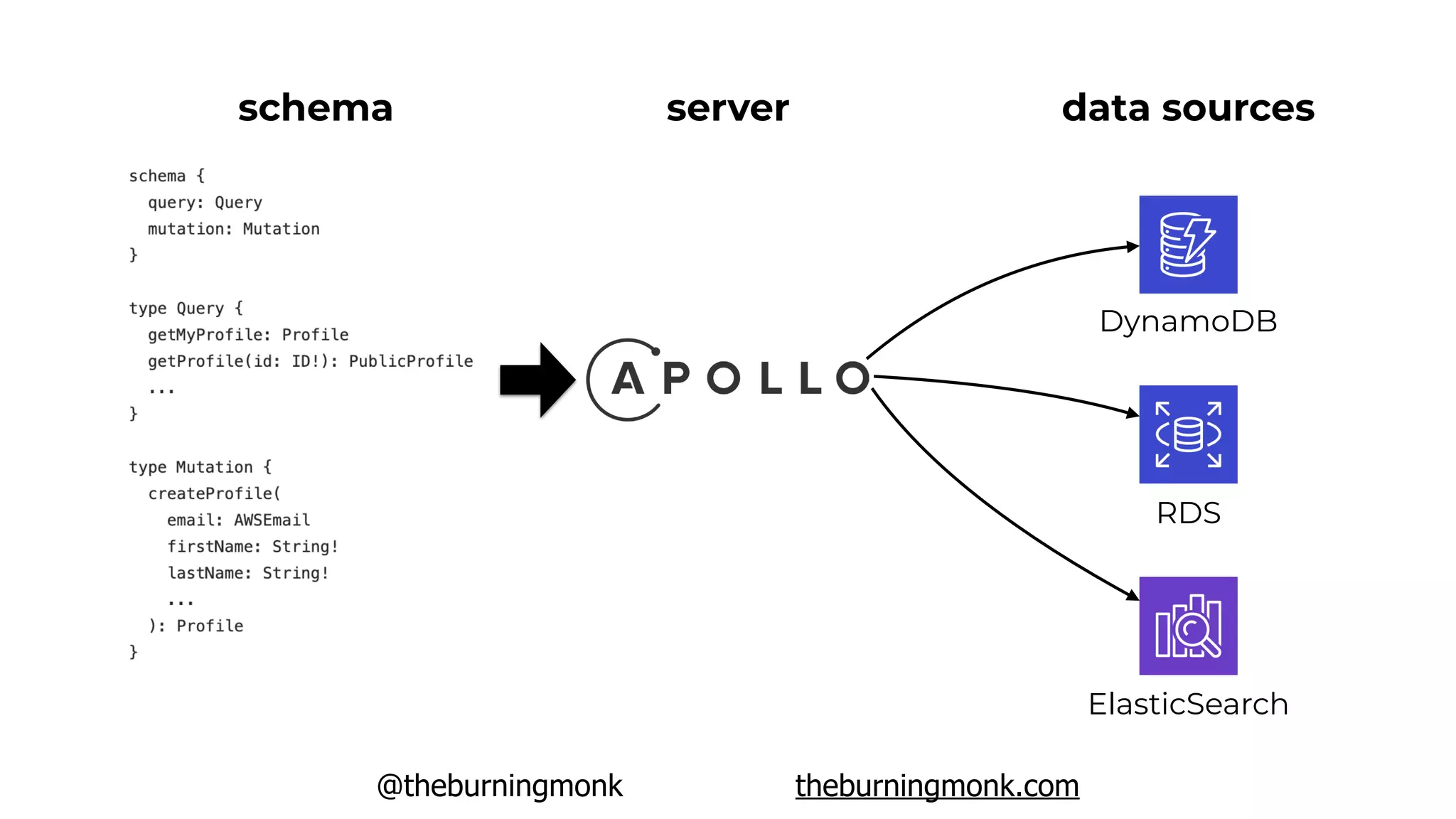

schema server data sources
DynamoDB
RDS
ElasticSearch

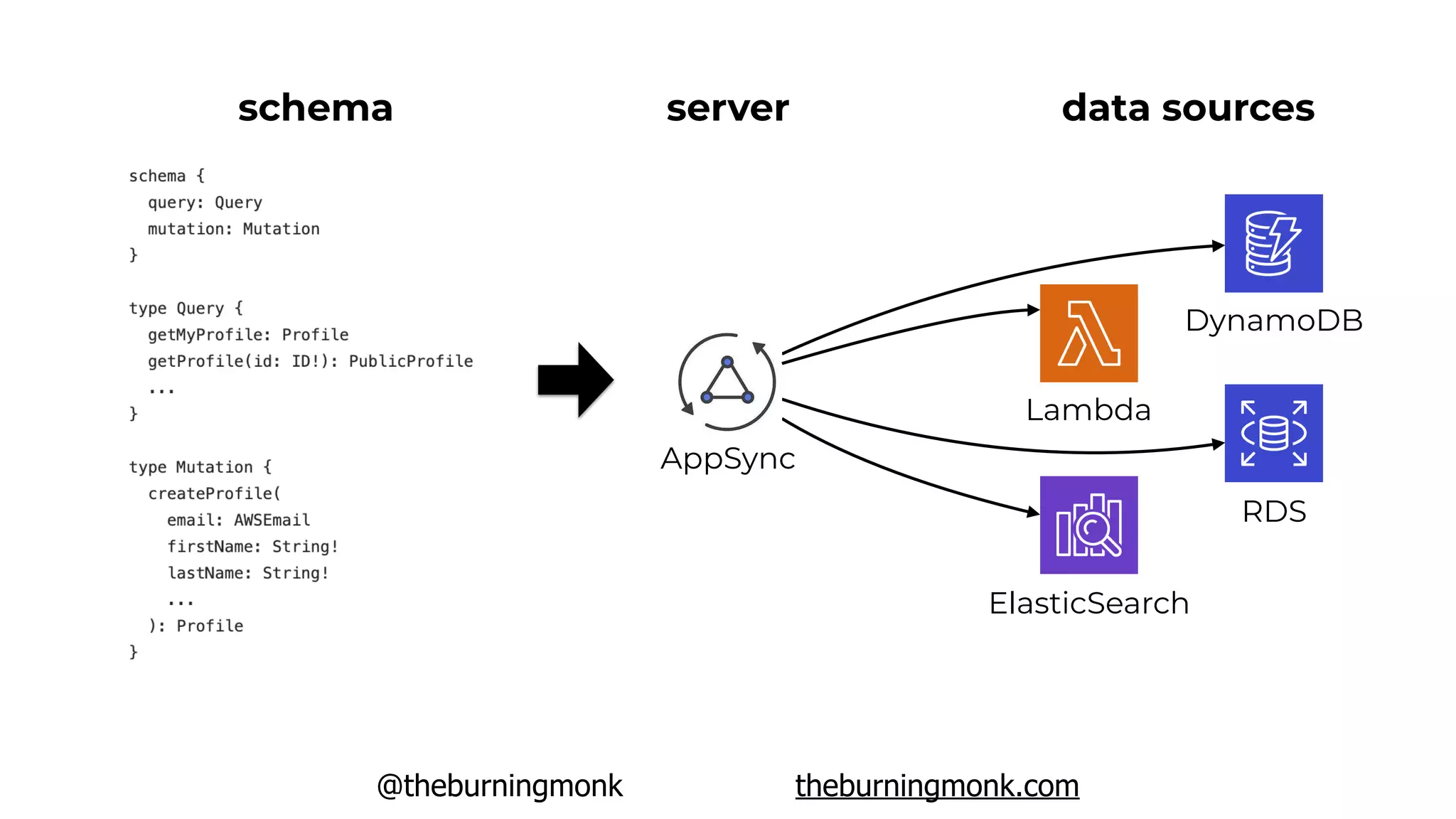

What is AppSync?

schema server data sources
DynamoDB
RDS
ElasticSearch

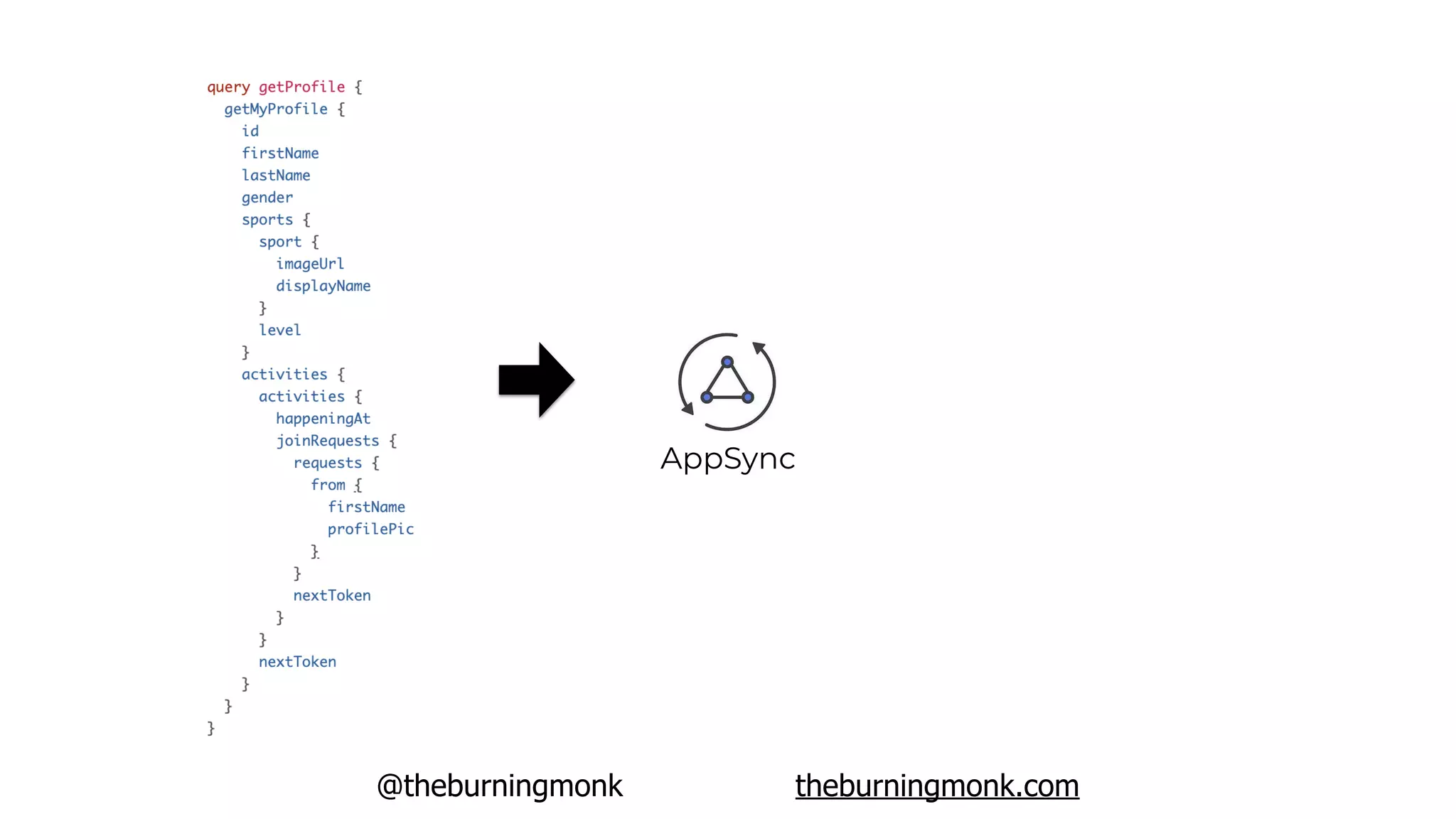

AppSync
Lambda

AppSync

AppSync

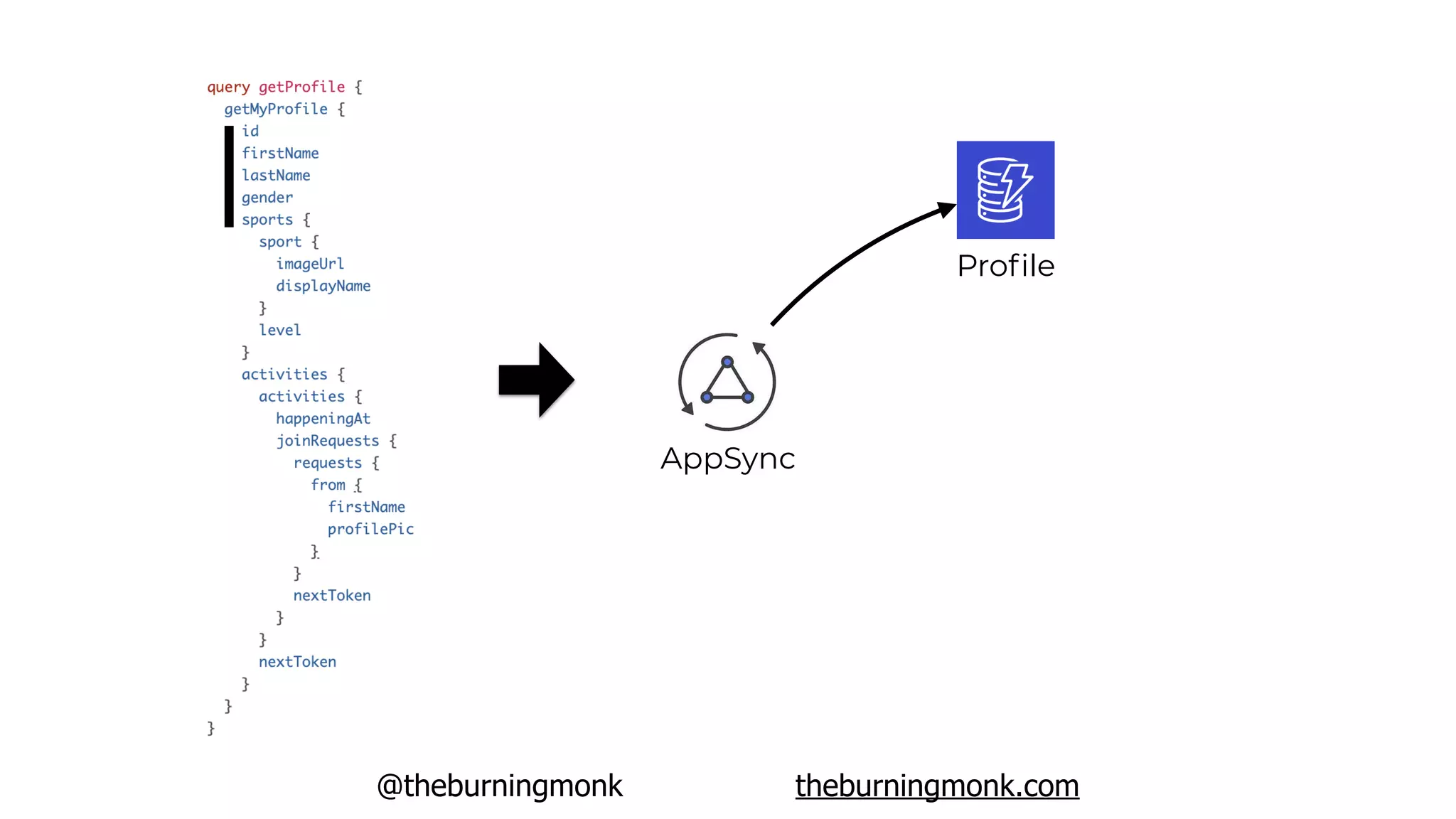

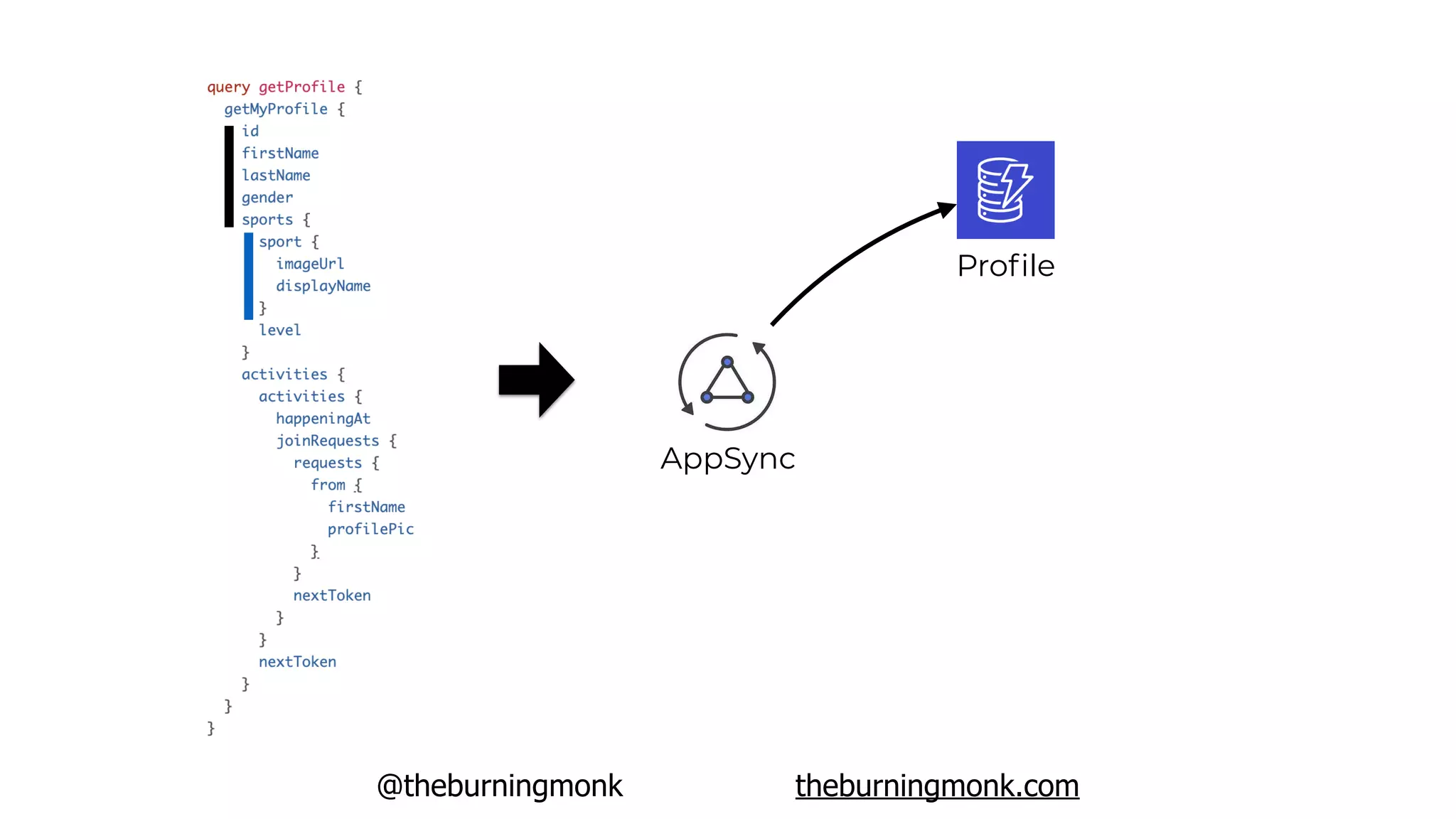

Proﬁle

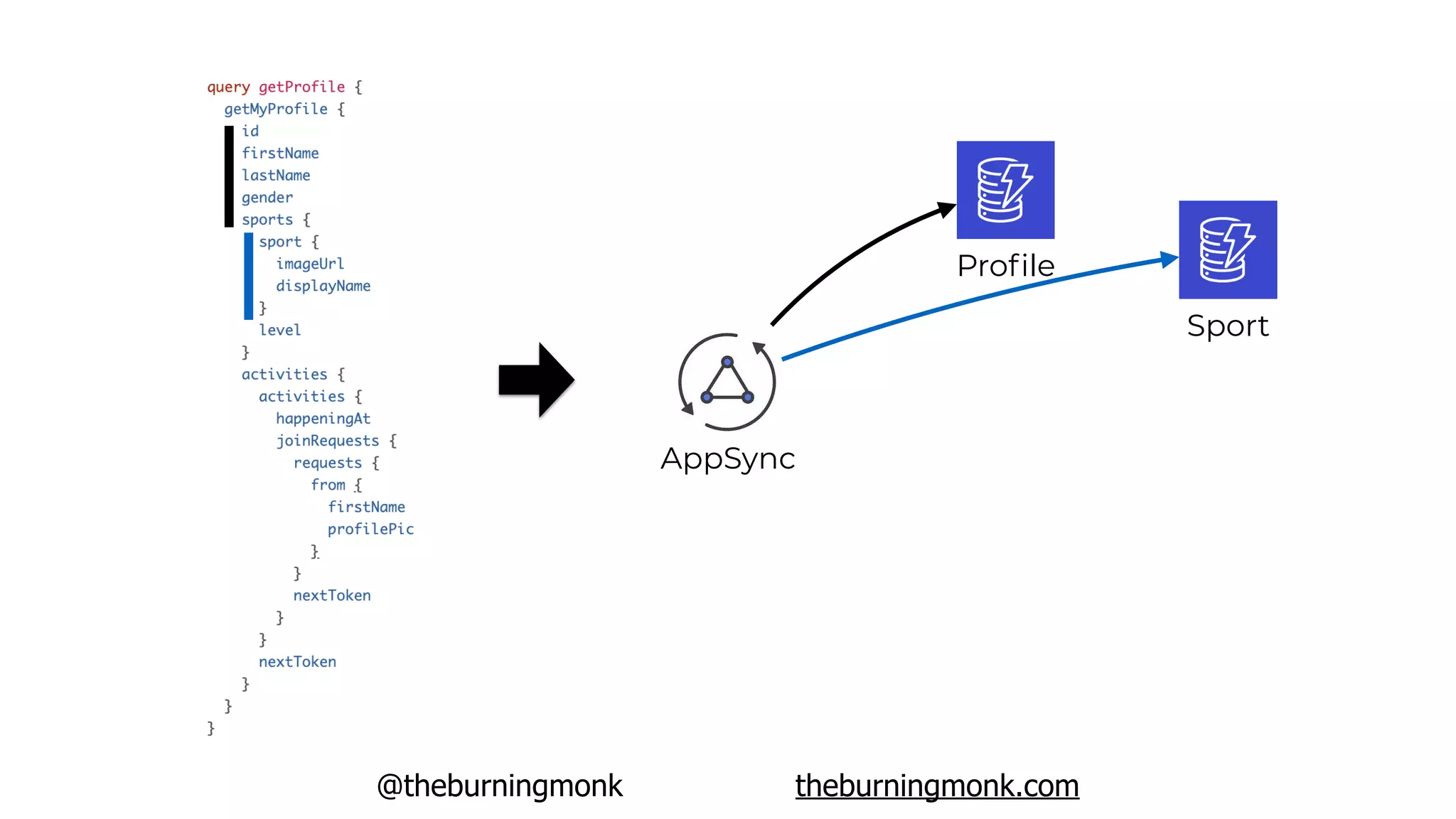

AppSync
Proﬁle
Sport

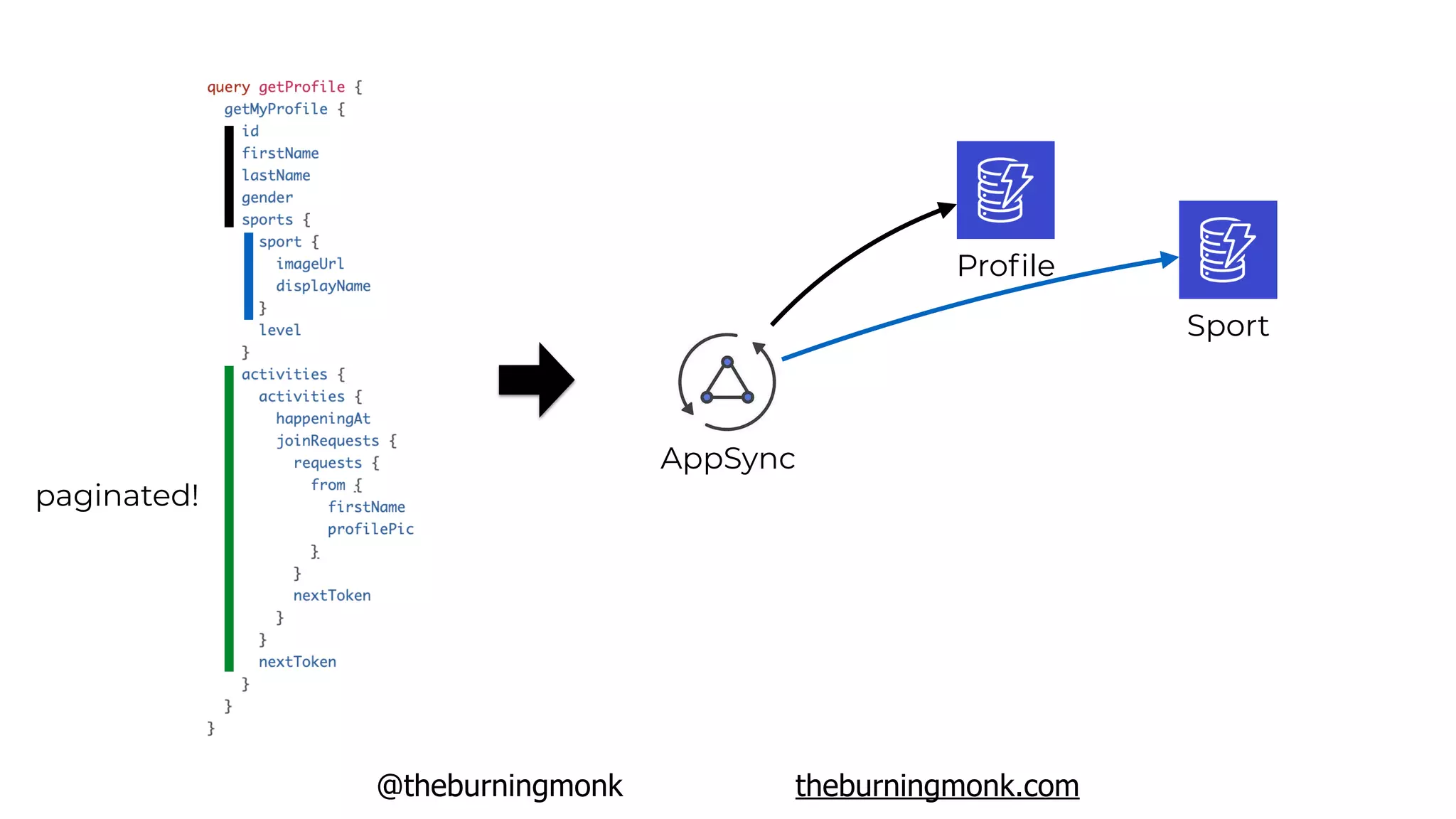

AppSync
Proﬁle
Sport
paginated!

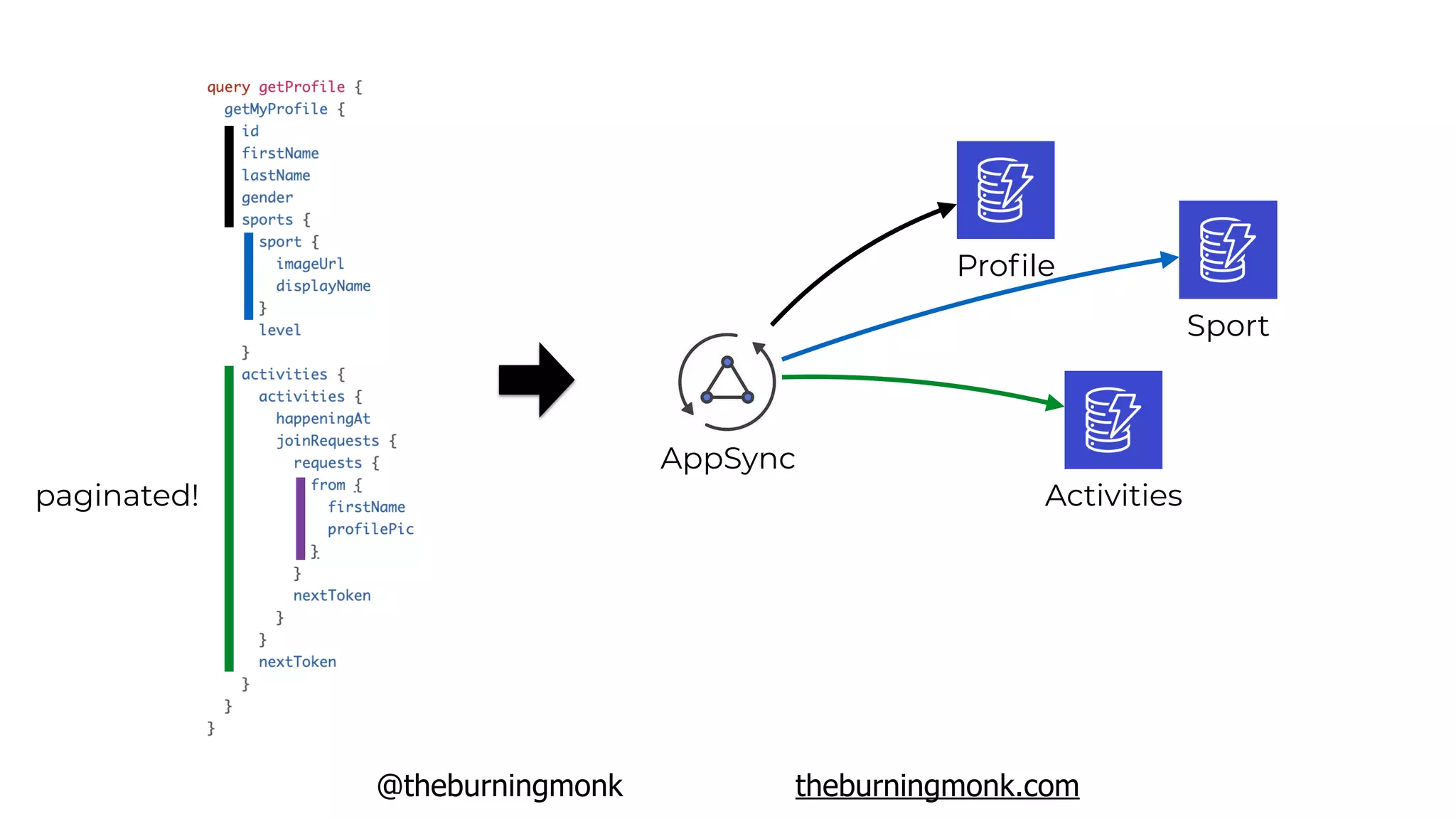

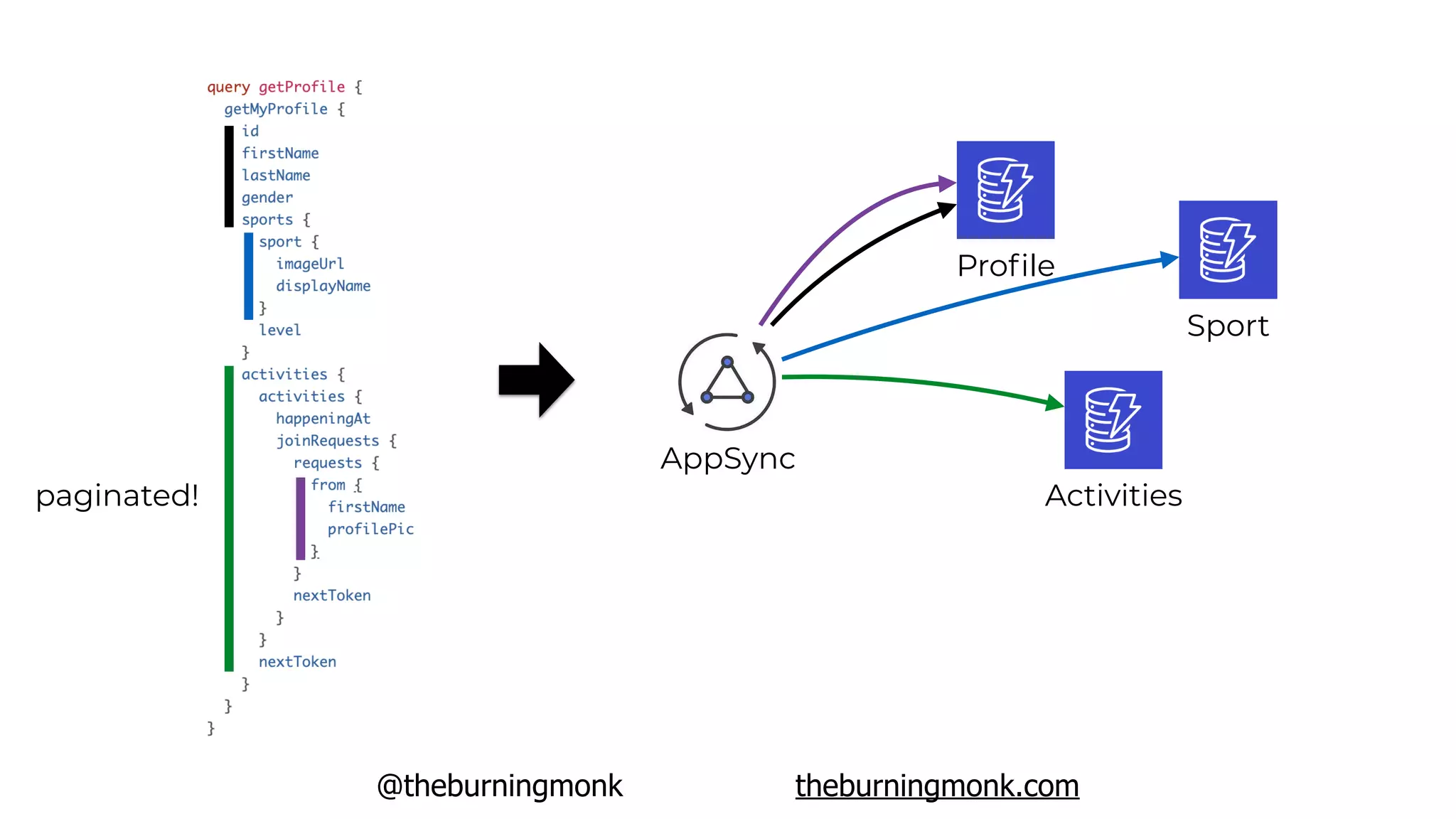

AppSync
Proﬁle
Sport
paginated! Activities

AppSync
Proﬁle
Sport
very ﬂexible!

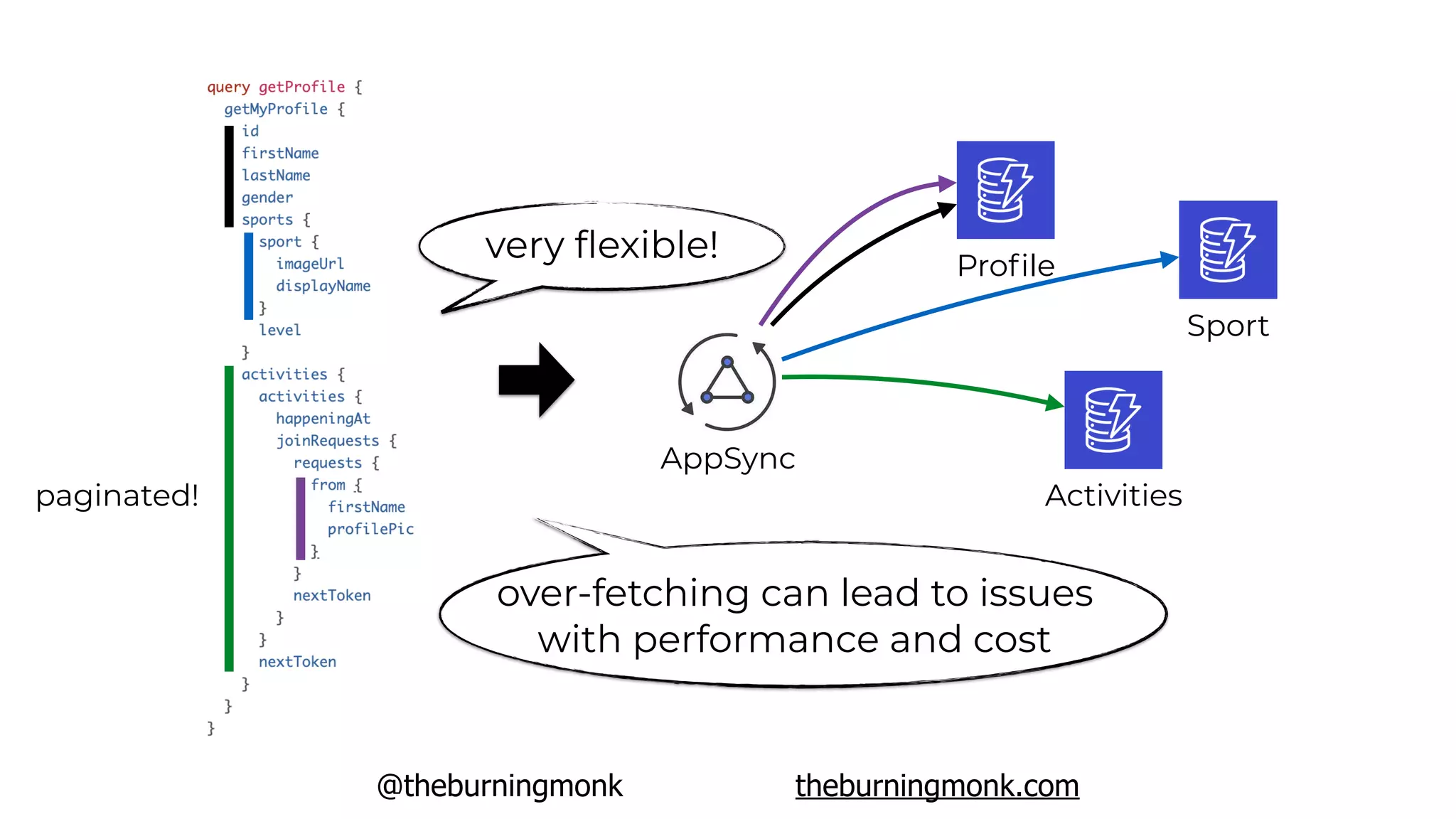

AppSync
Proﬁle
Sport
very ﬂexible!
over-fetching can lead to issues
with performance and cost

AppSync
Proﬁle
Sport
enable caching on
speciﬁc resolvers

AppSync
Profile
Sport

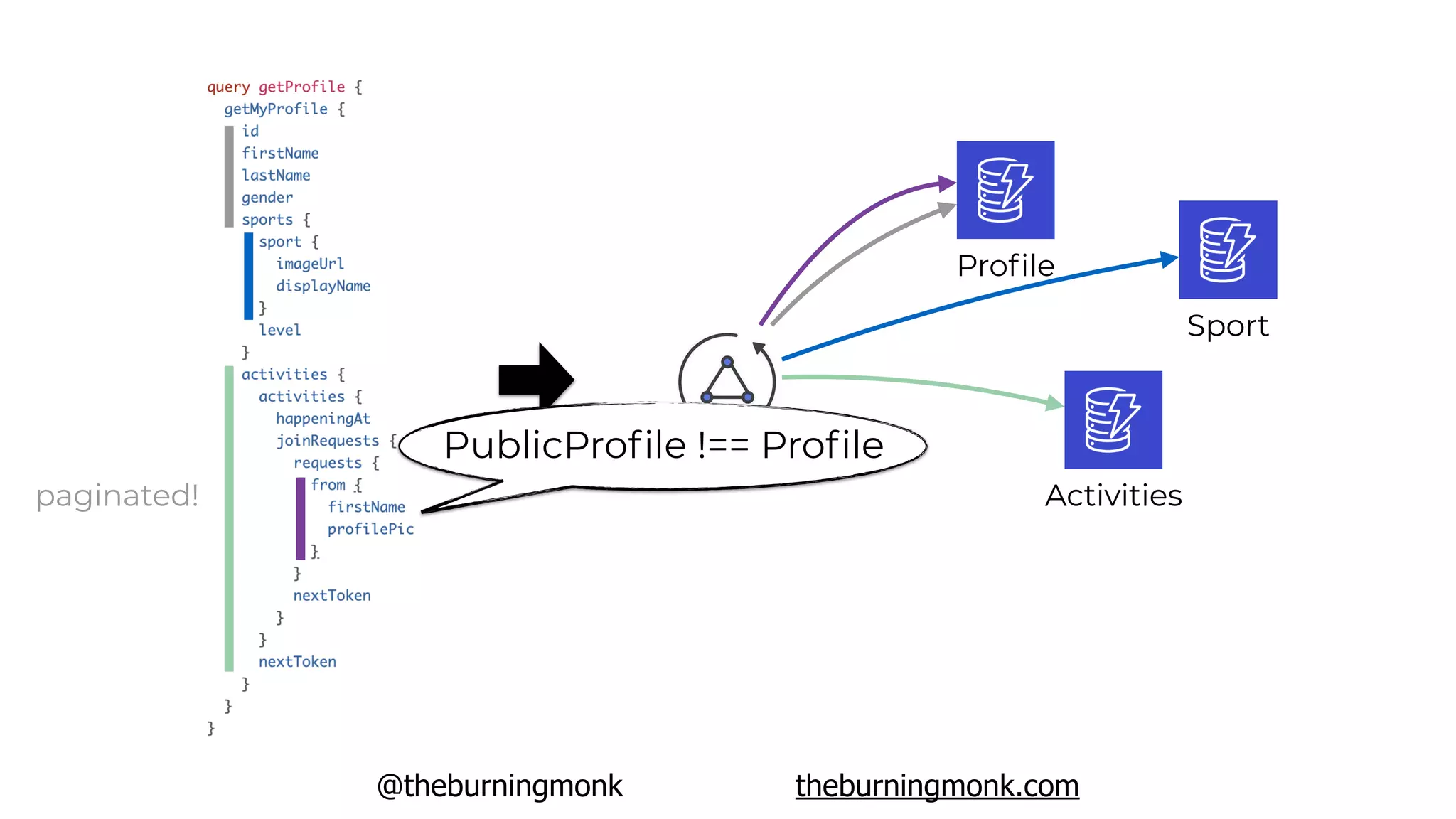

PublicProfile !== Profile

AWS AppSync
scalable & multi-az out of the box

AWS AppSync
pay as you use ($4.00 per Million)

AWS AppSync
built-in caching (extra $)

AWS AppSync

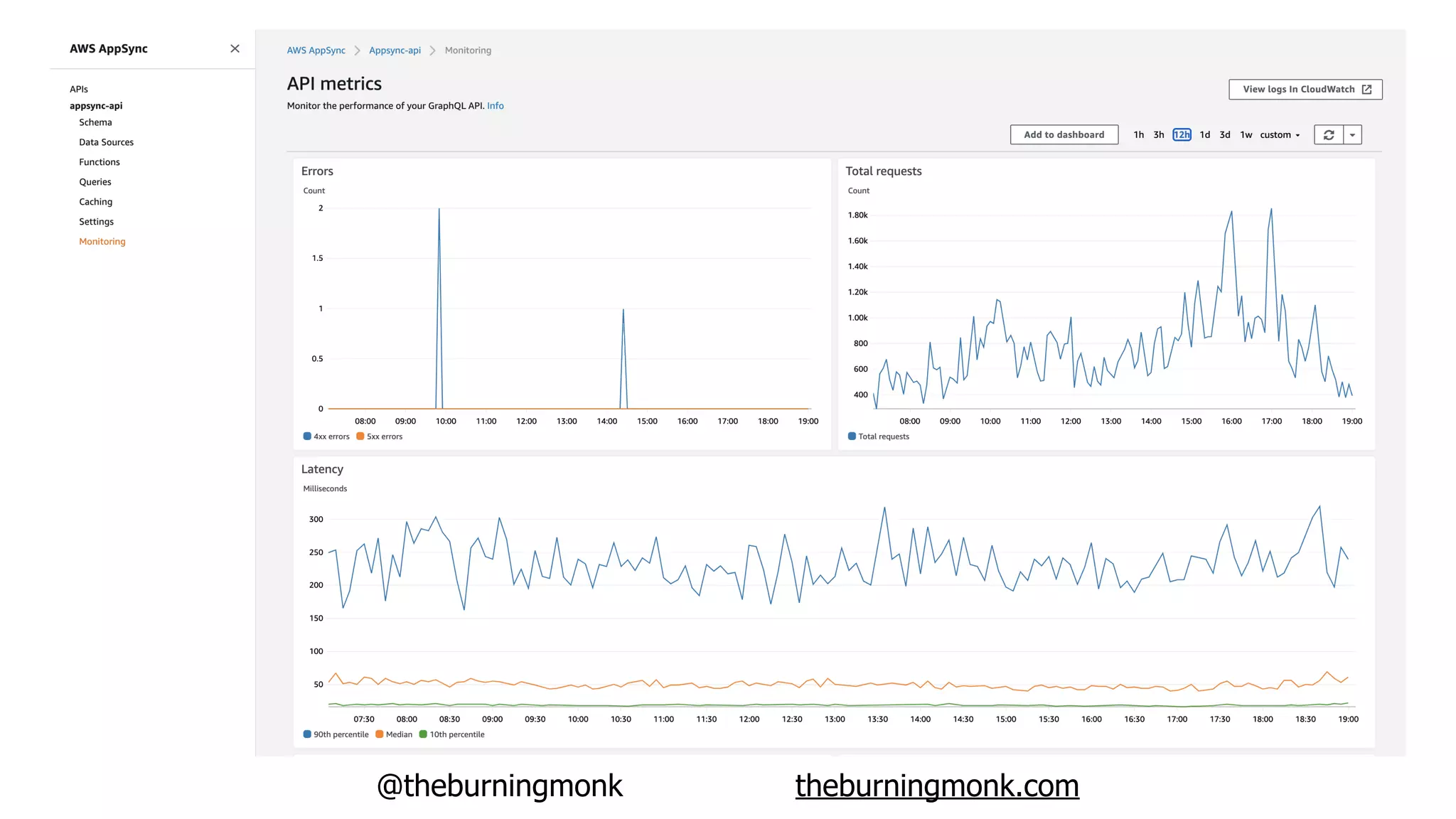

built-in metrics through CloudWatch

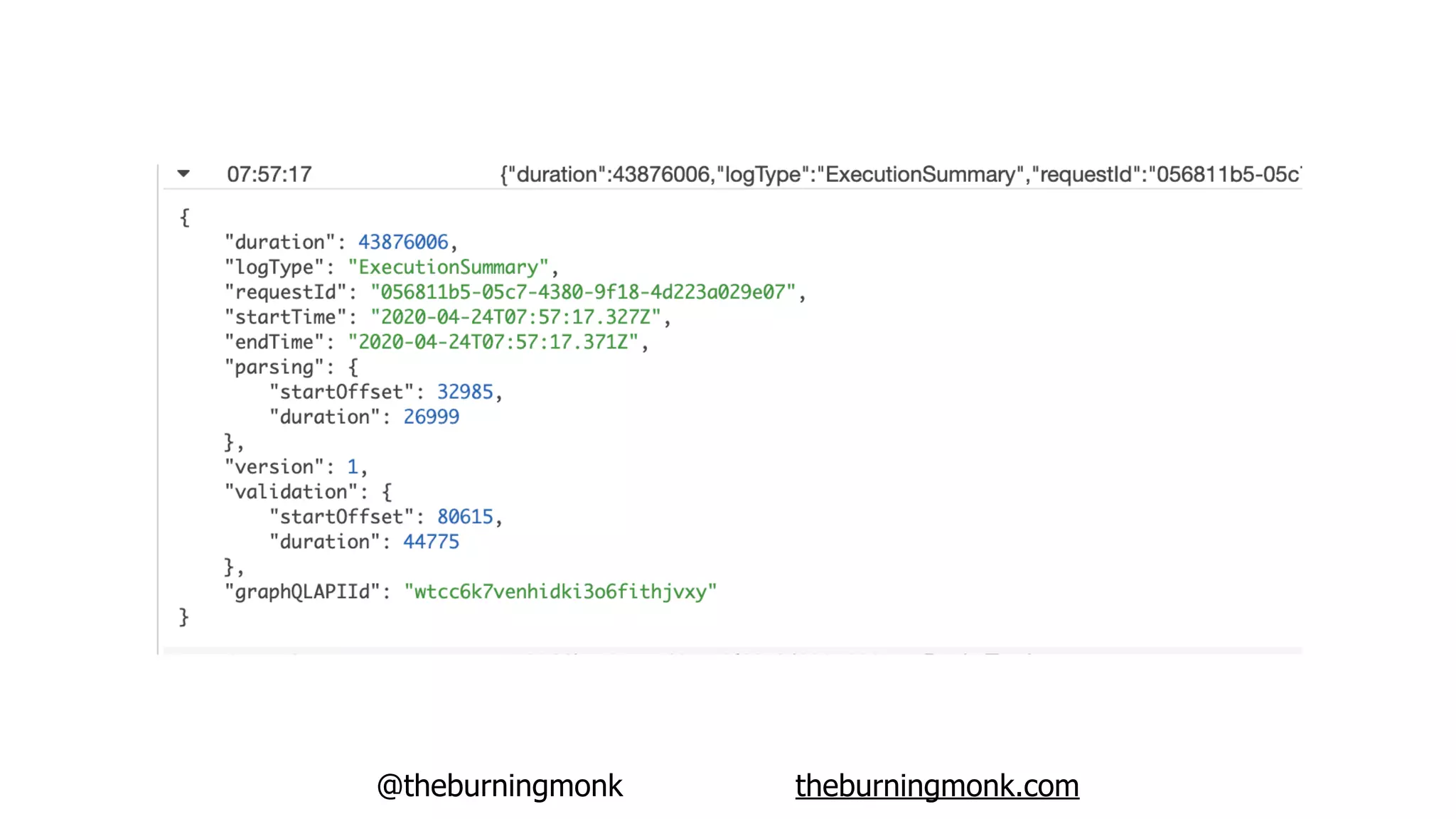

built-in logging through CloudWatch Logs

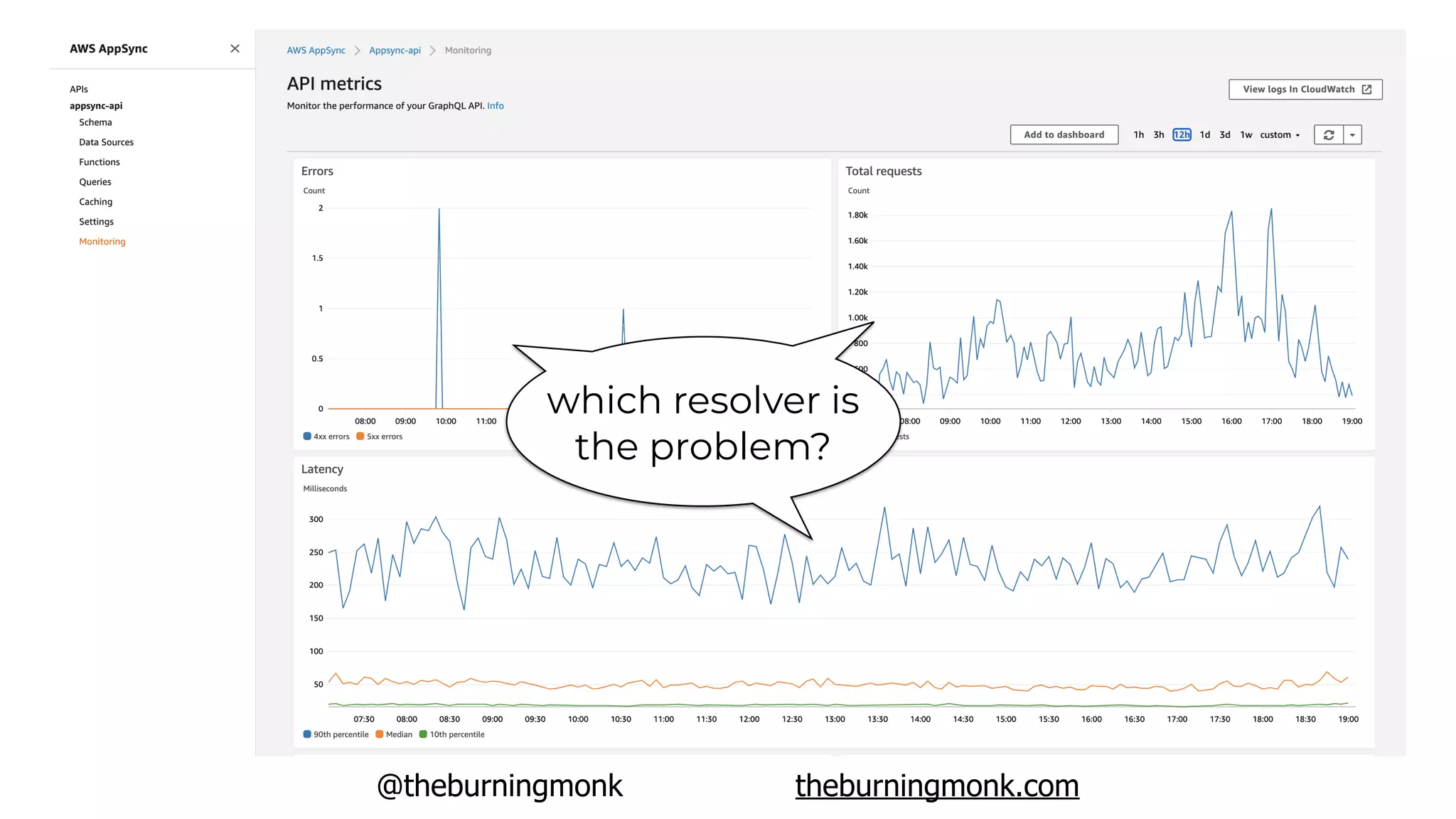

which resolver is
the problem?

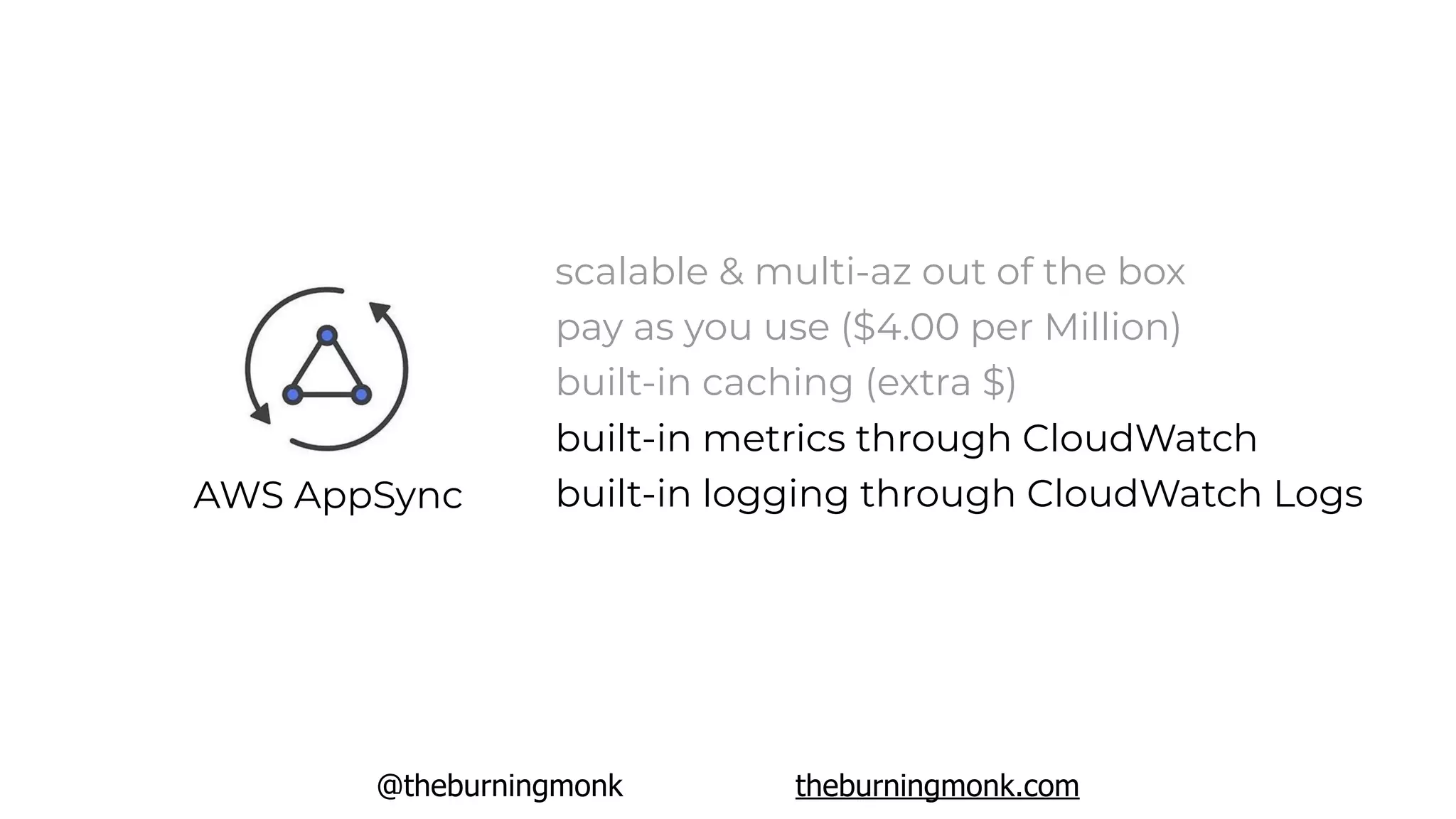

AWS AppSync
built-in metrics through CloudWatch
built-in logging through CloudWatch Logs
no servers to manage

Why not single-table?

Use single-table design techniques,
but why force yourself to 1 table?

CloudFormation can only update 1 GSI at a time

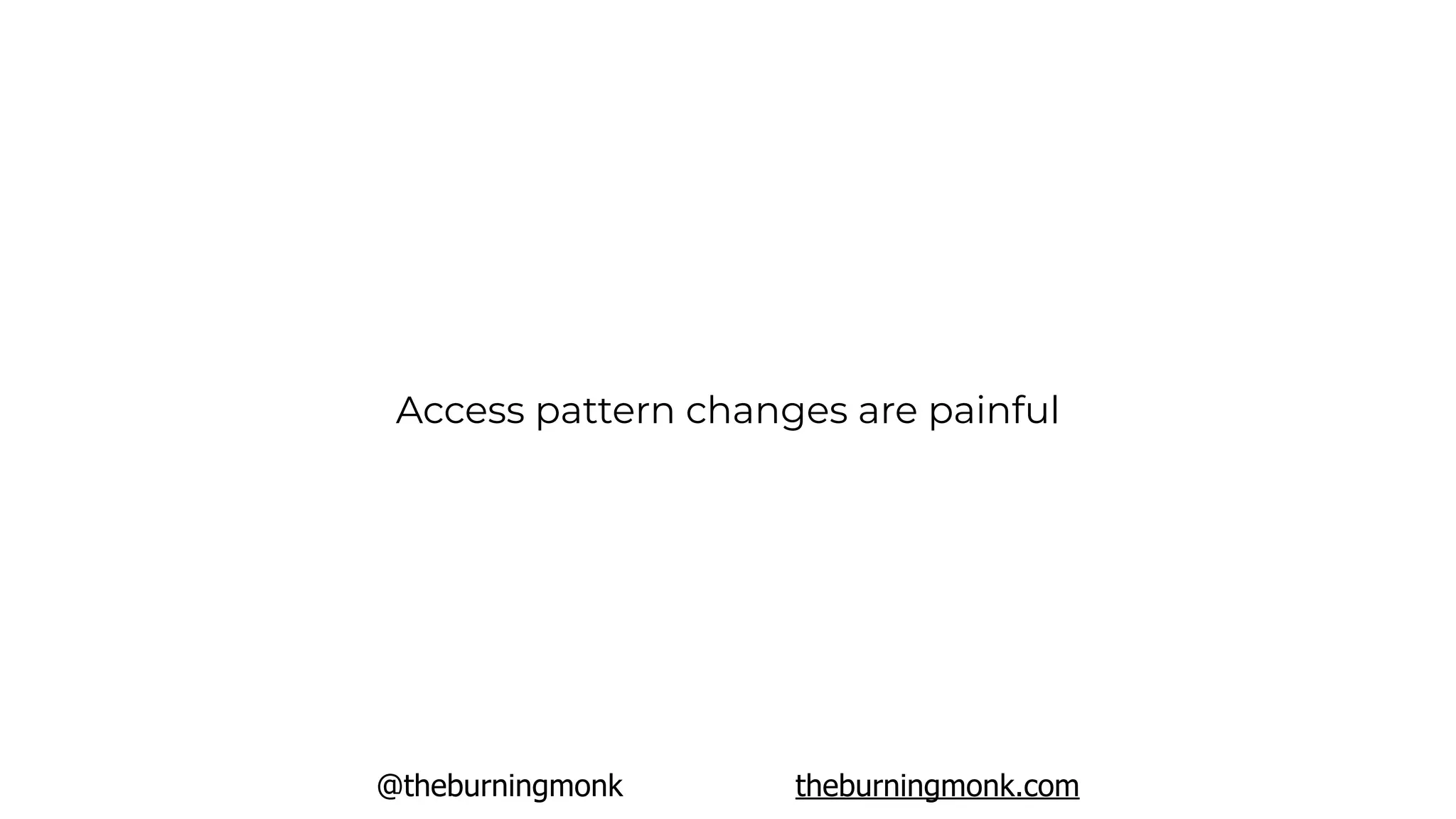

Access pattern changes are painful

AppSync stitches related DynamoDB reads just ﬁne

Using single-table === writing more custom VTL

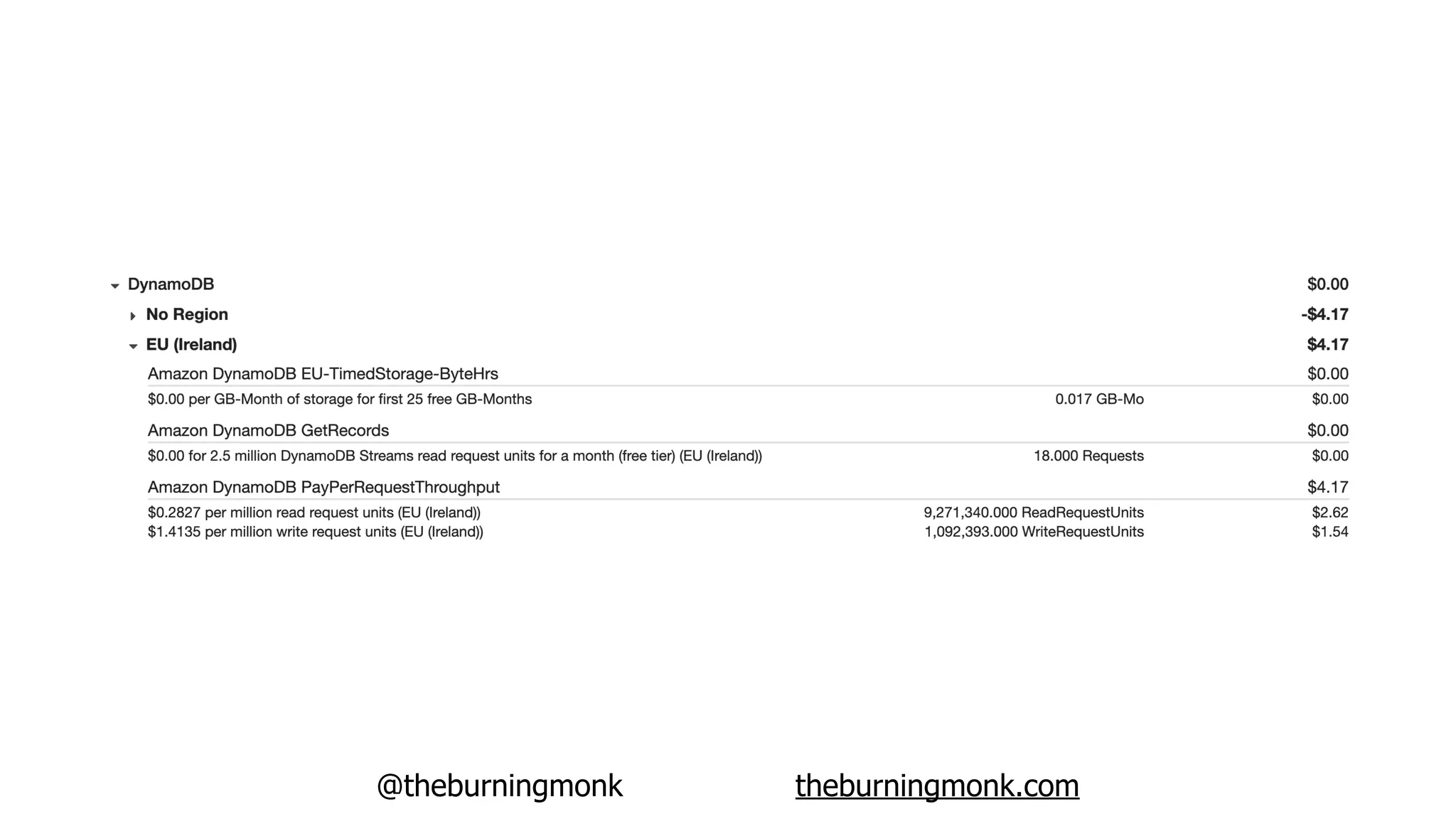

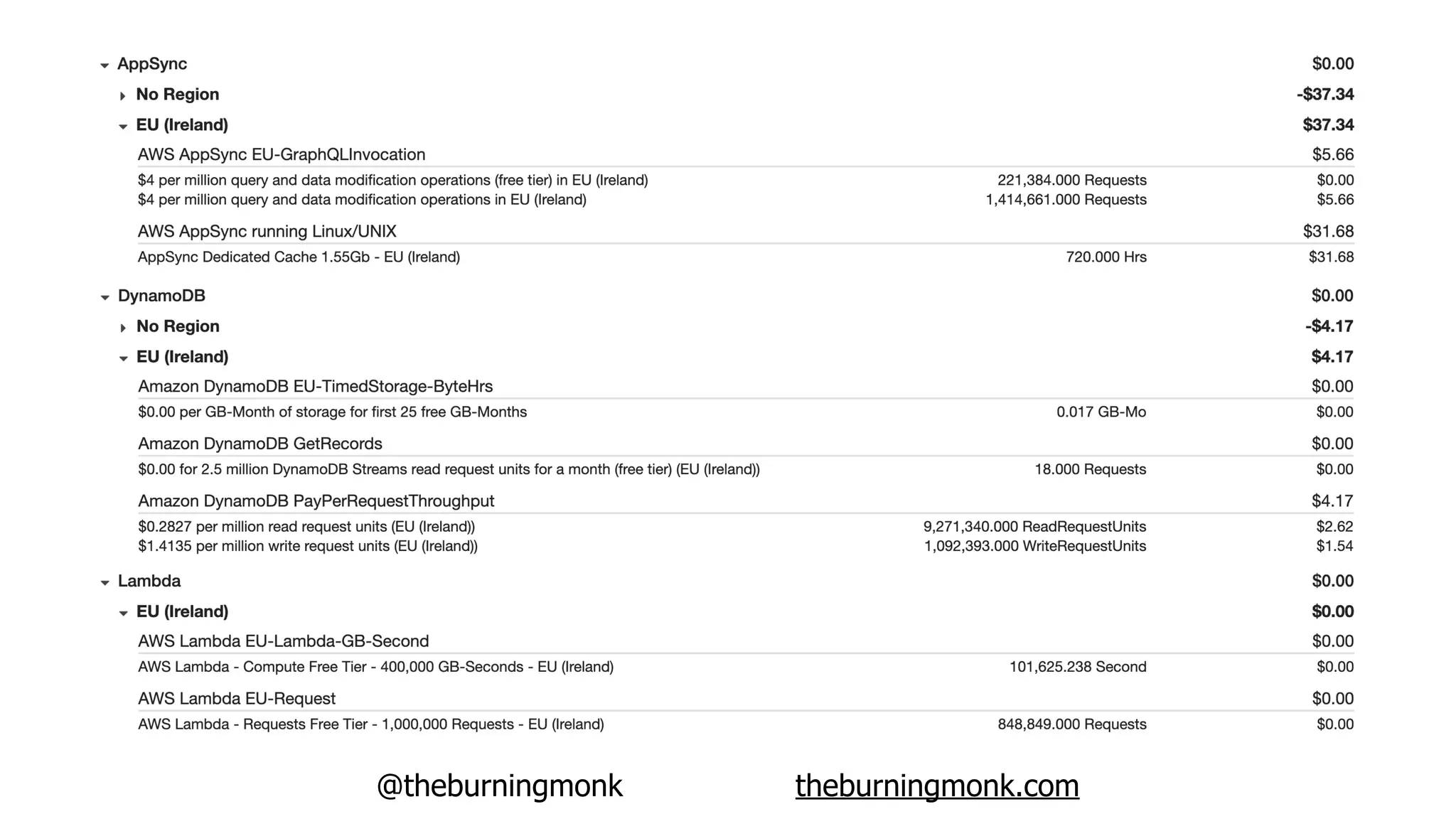

What about the cost saving?

Sensible caching will save you far more than
single-table design ever will

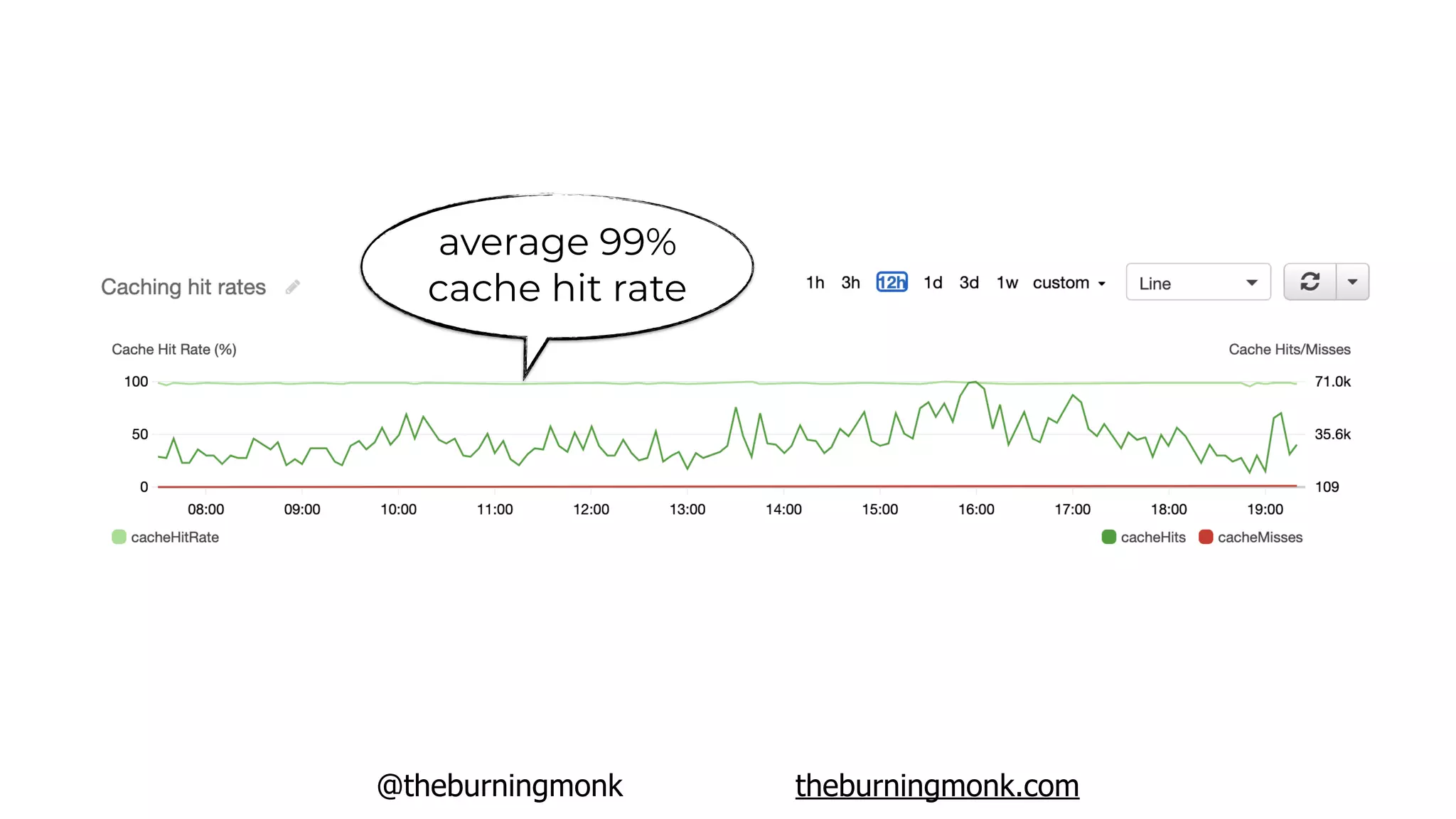

average 99%
cache hit rate

Sometimes, good enough is good enough

Design your system as if it’ll be run by idiots.
Because one day it’ll be.

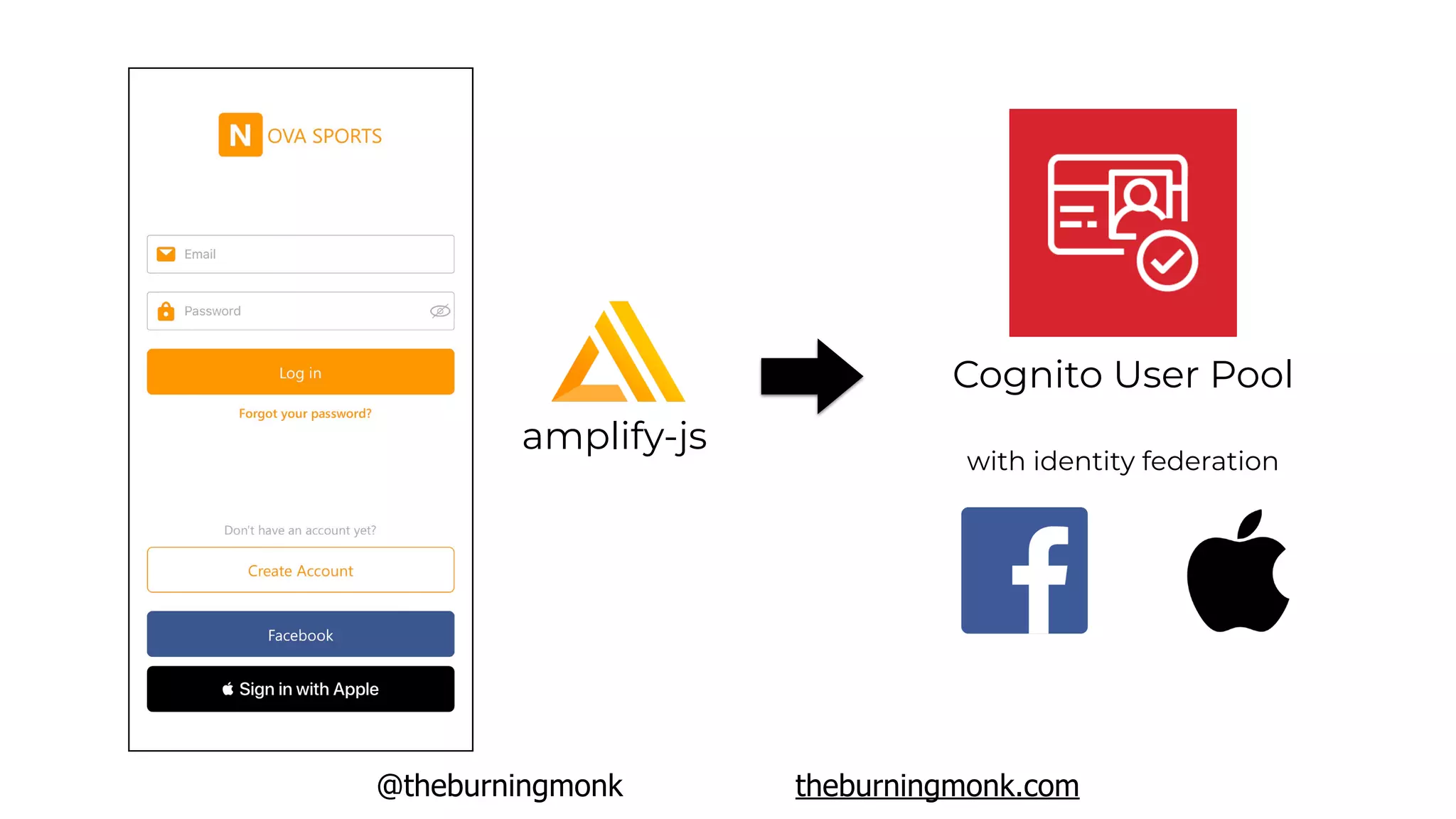

Cognito User Pool
with identity federation
amplify-js

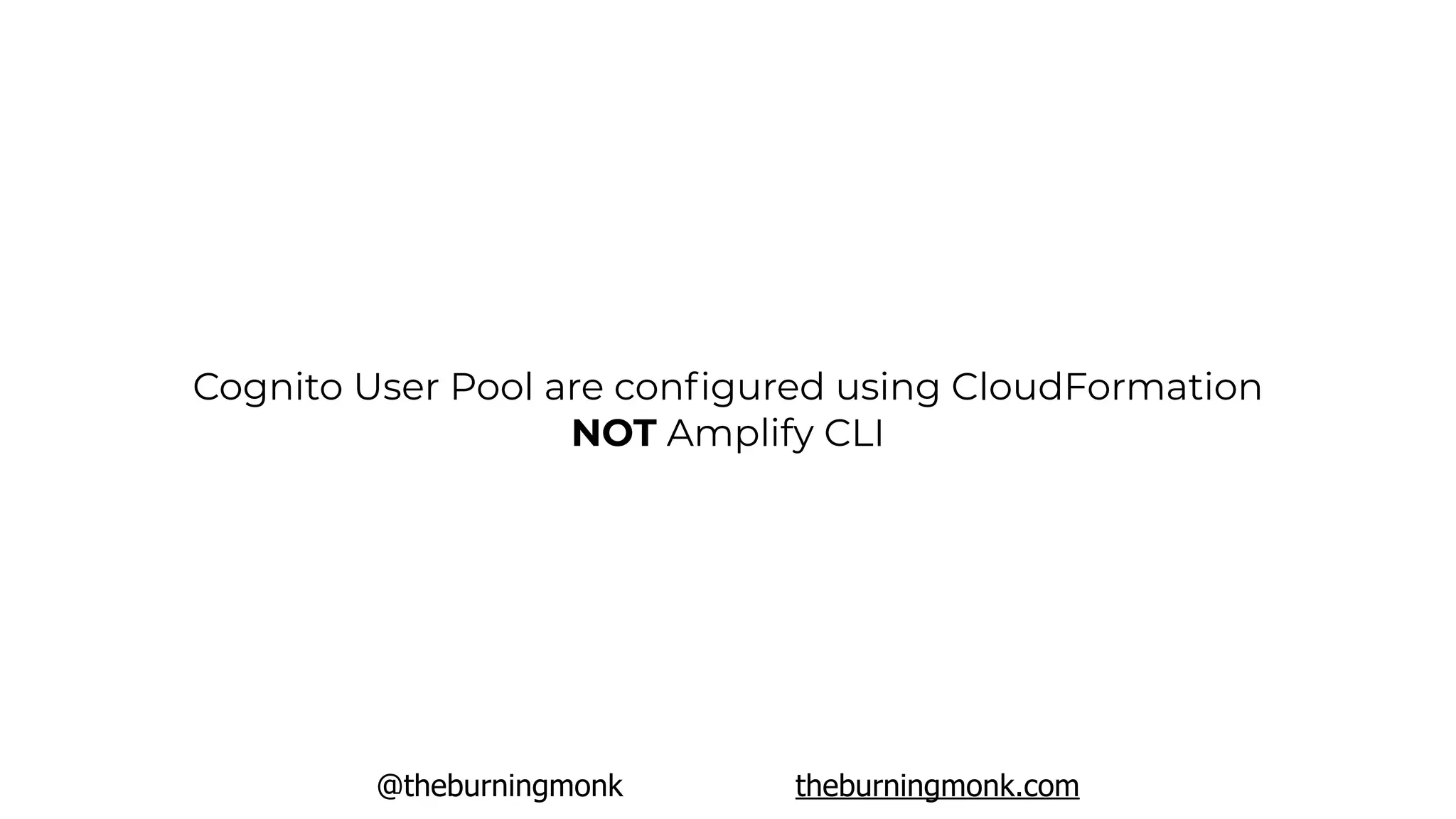

Cognito User Pool are conﬁgured using CloudFormation
NOT Amplify CLI

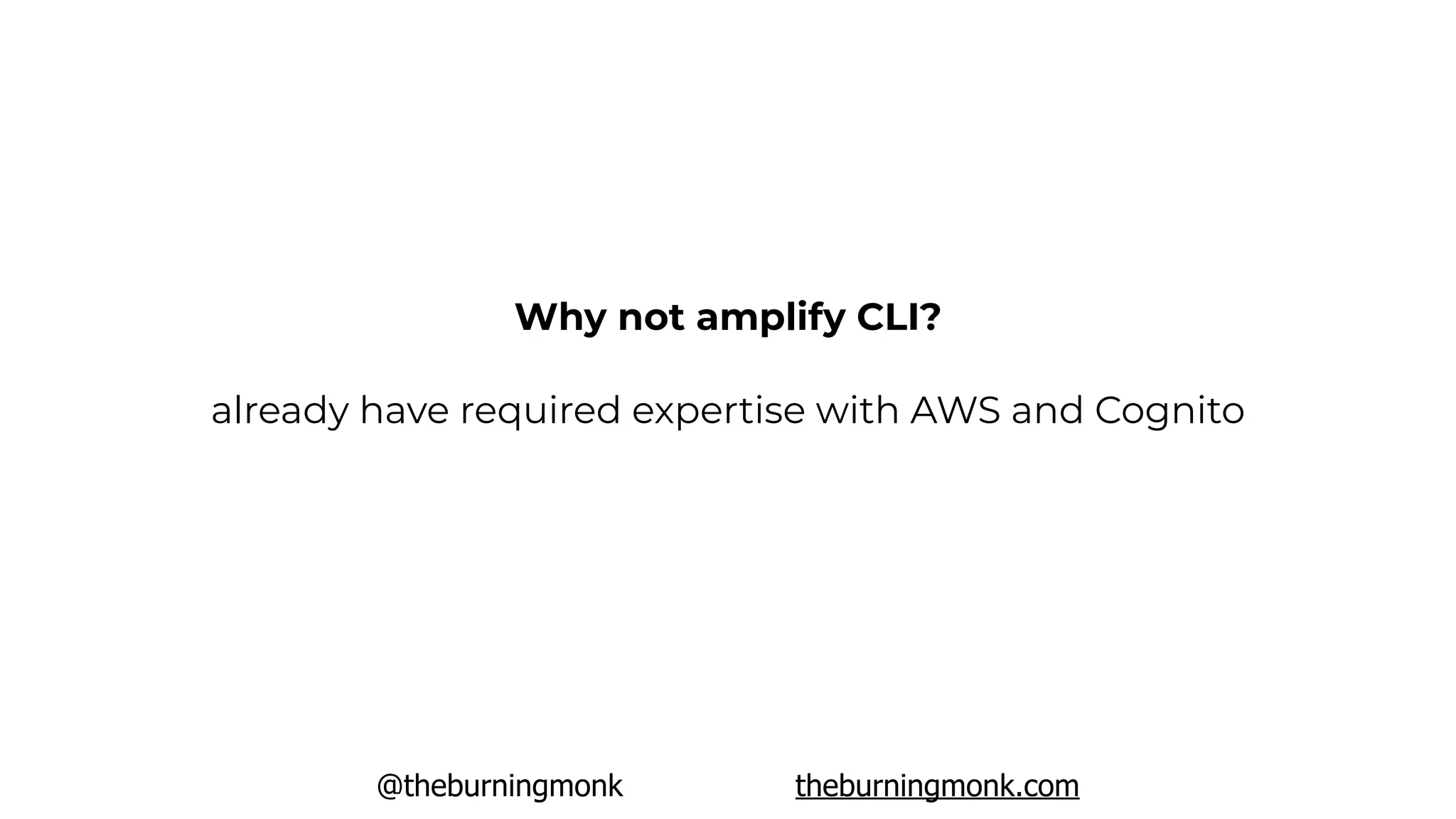

already have required expertise with AWS and Cognito

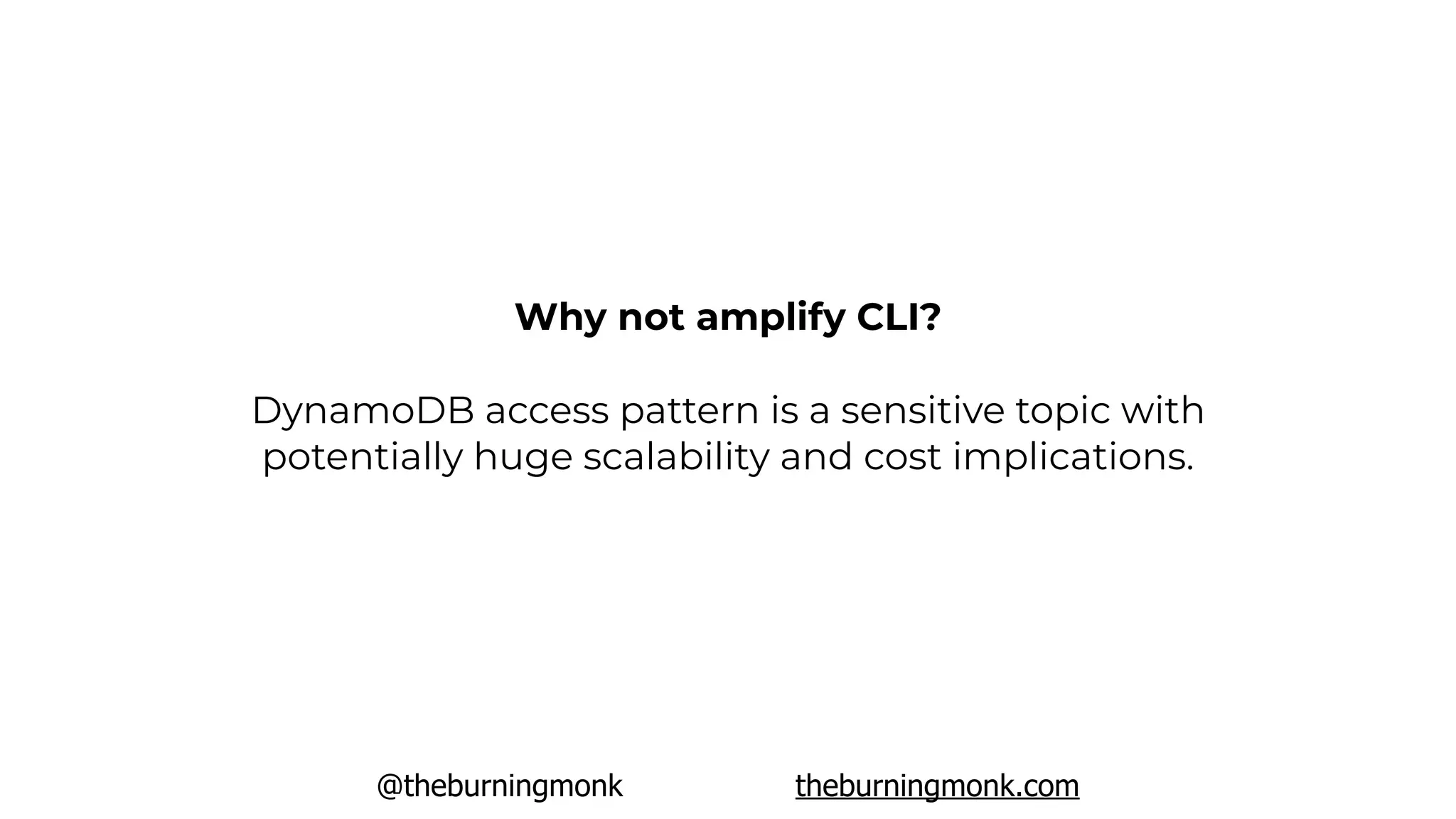

Why not amplify CLI?

great for bootstrapping but question marks
about how well it copes with changes

not all the decisions it makes are good decisions,
e.g. using DynamoDB scans for list operations

DynamoDB access pattern is a sensitive topic with
potentially huge scalability and cost implications.

Hides too much important details.

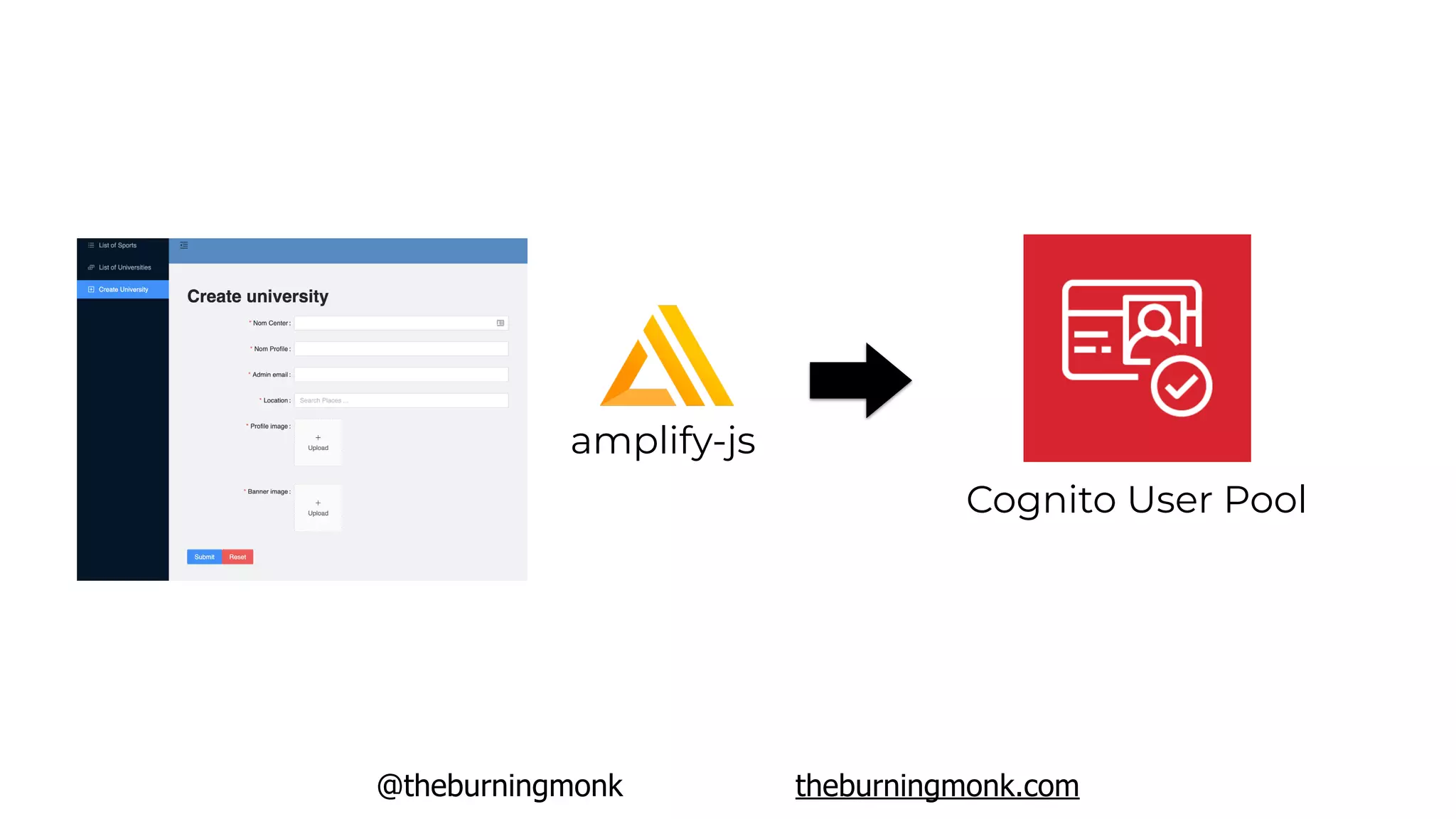

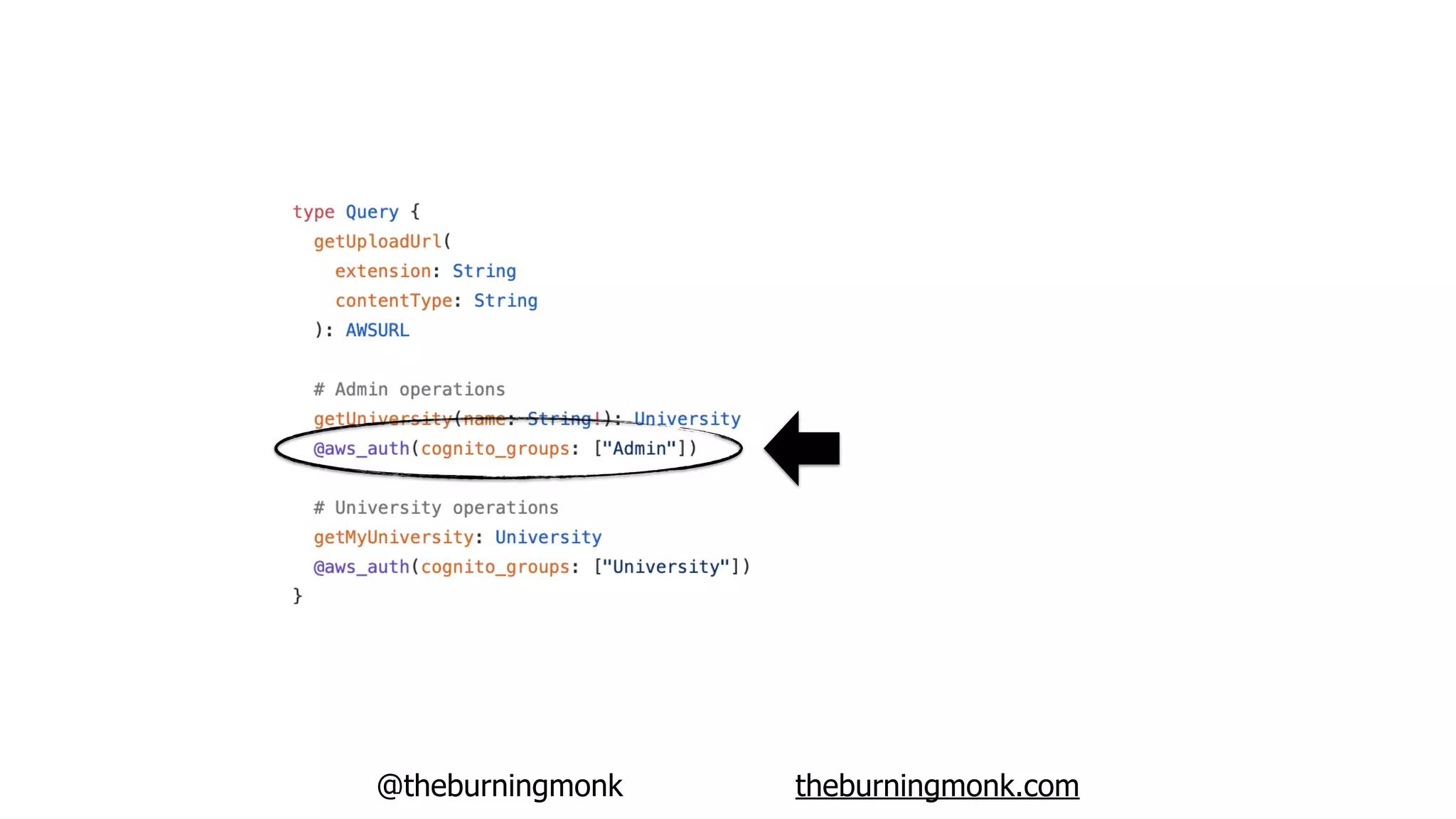

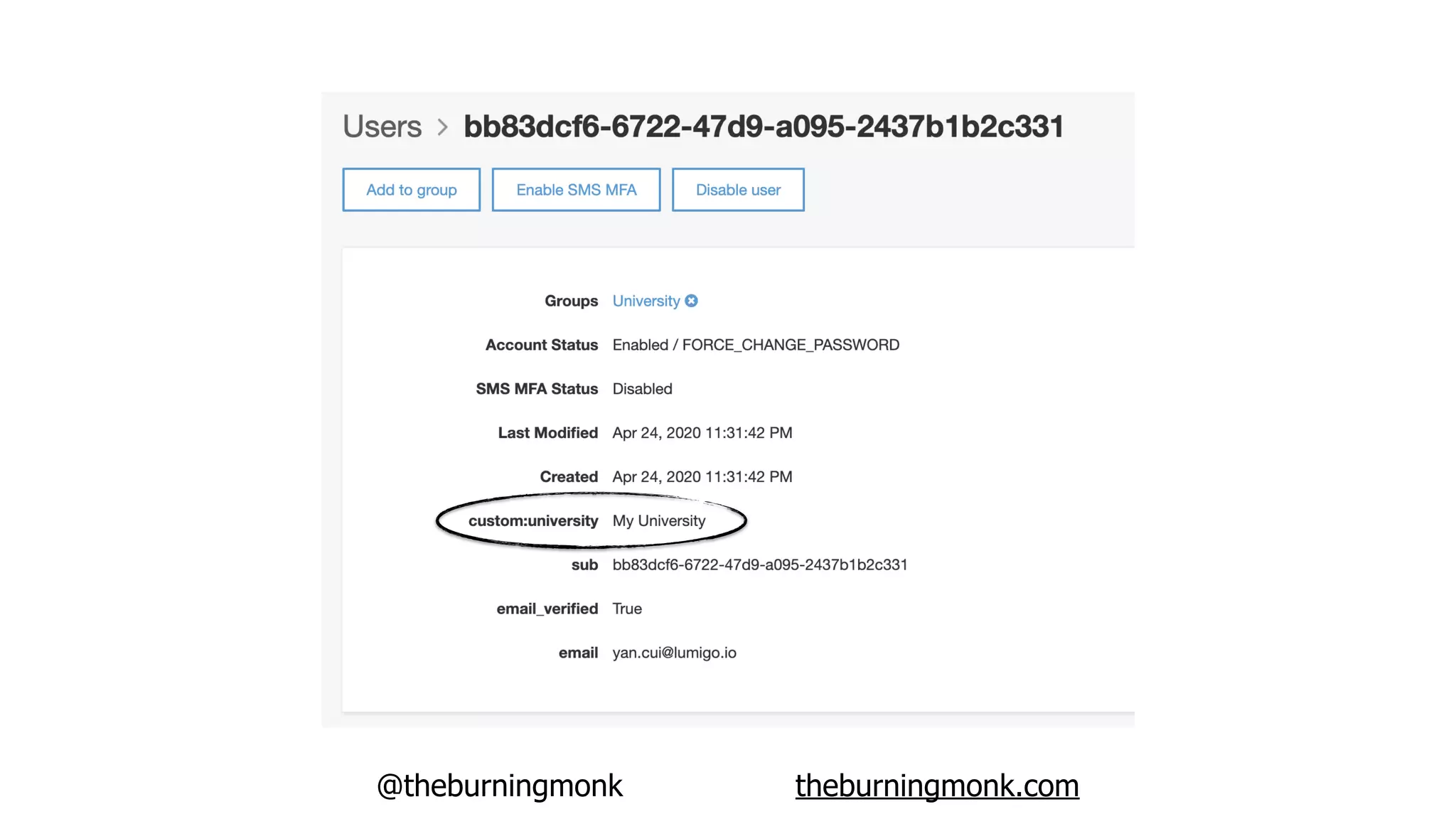

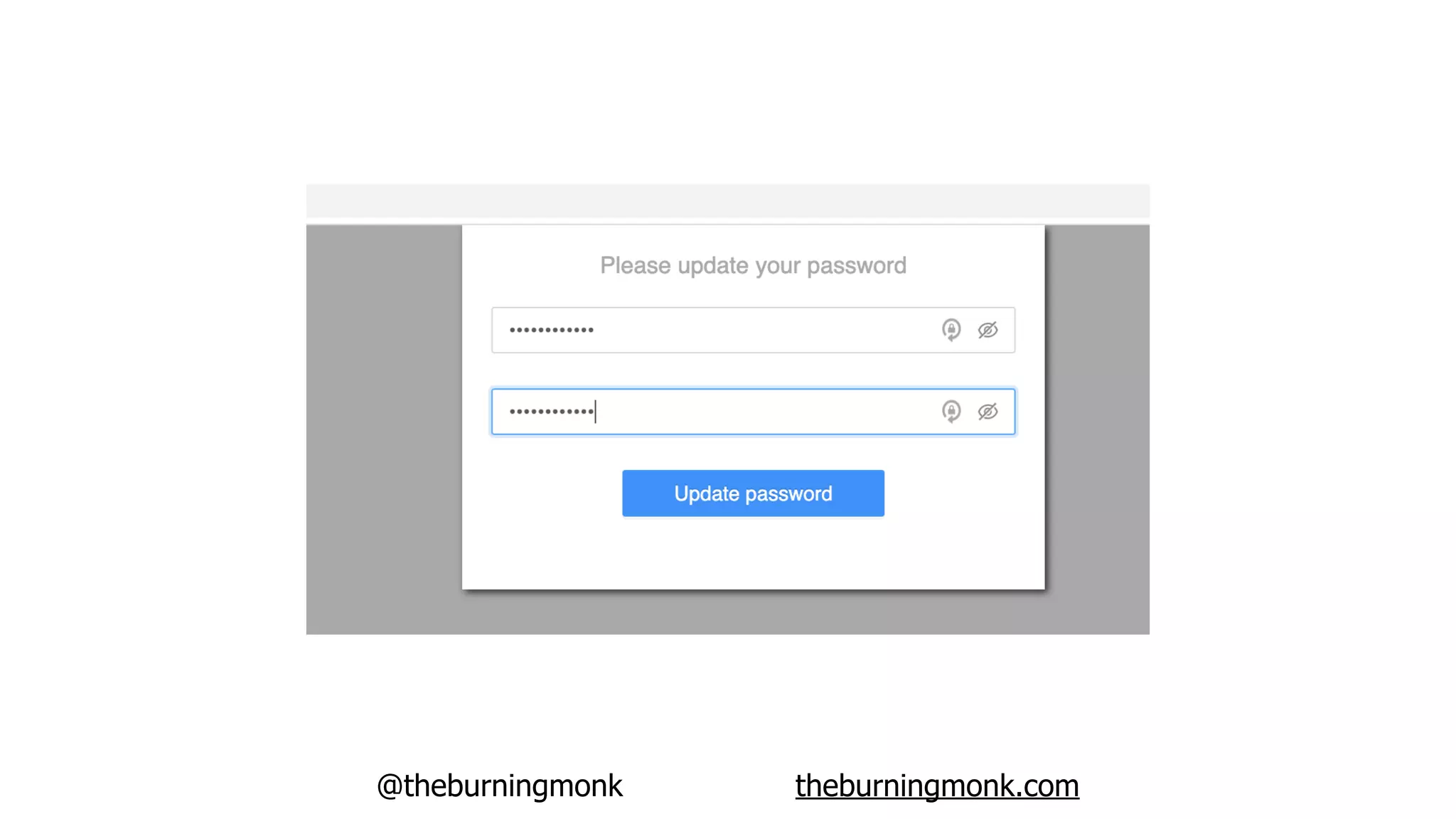

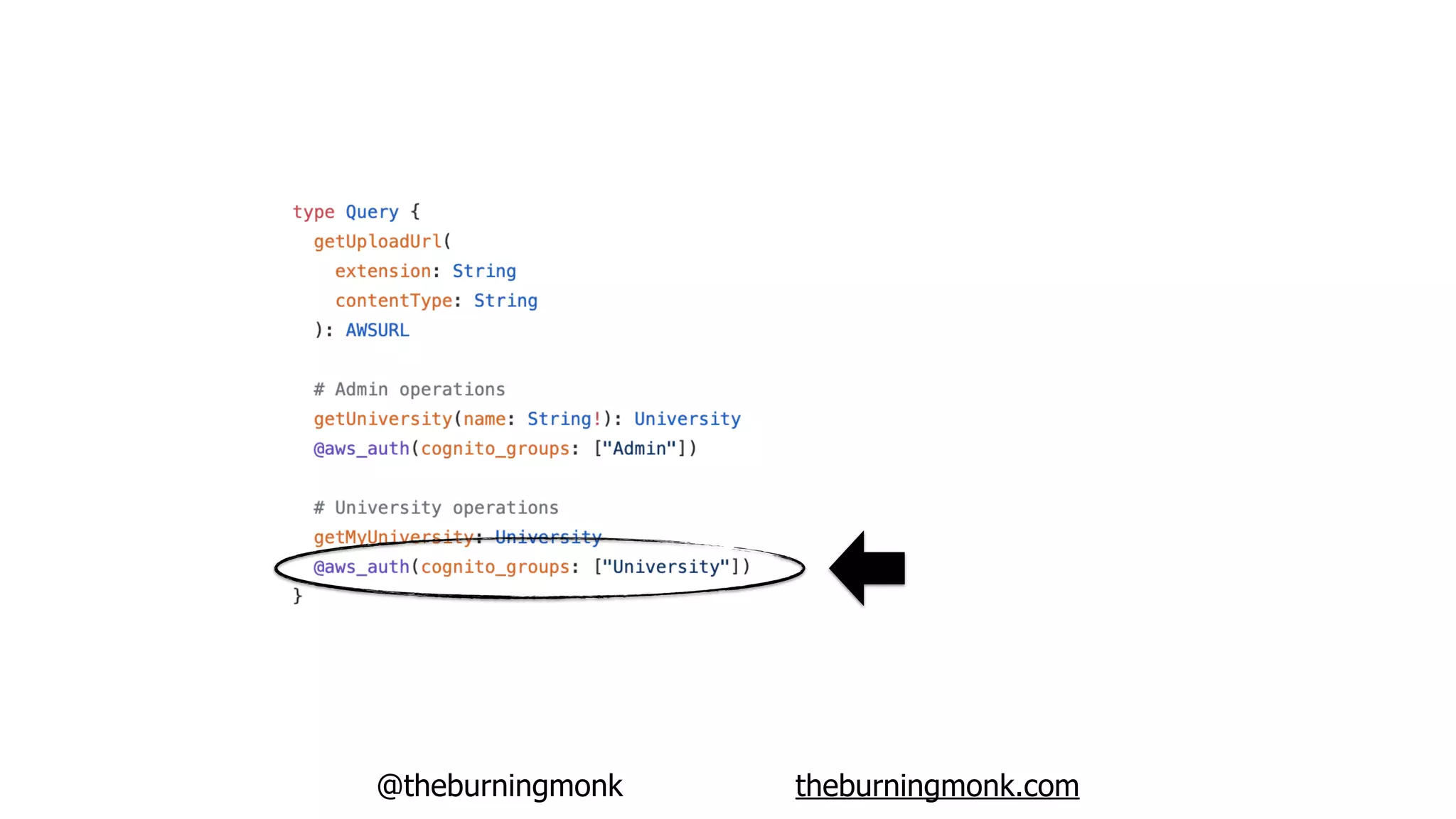

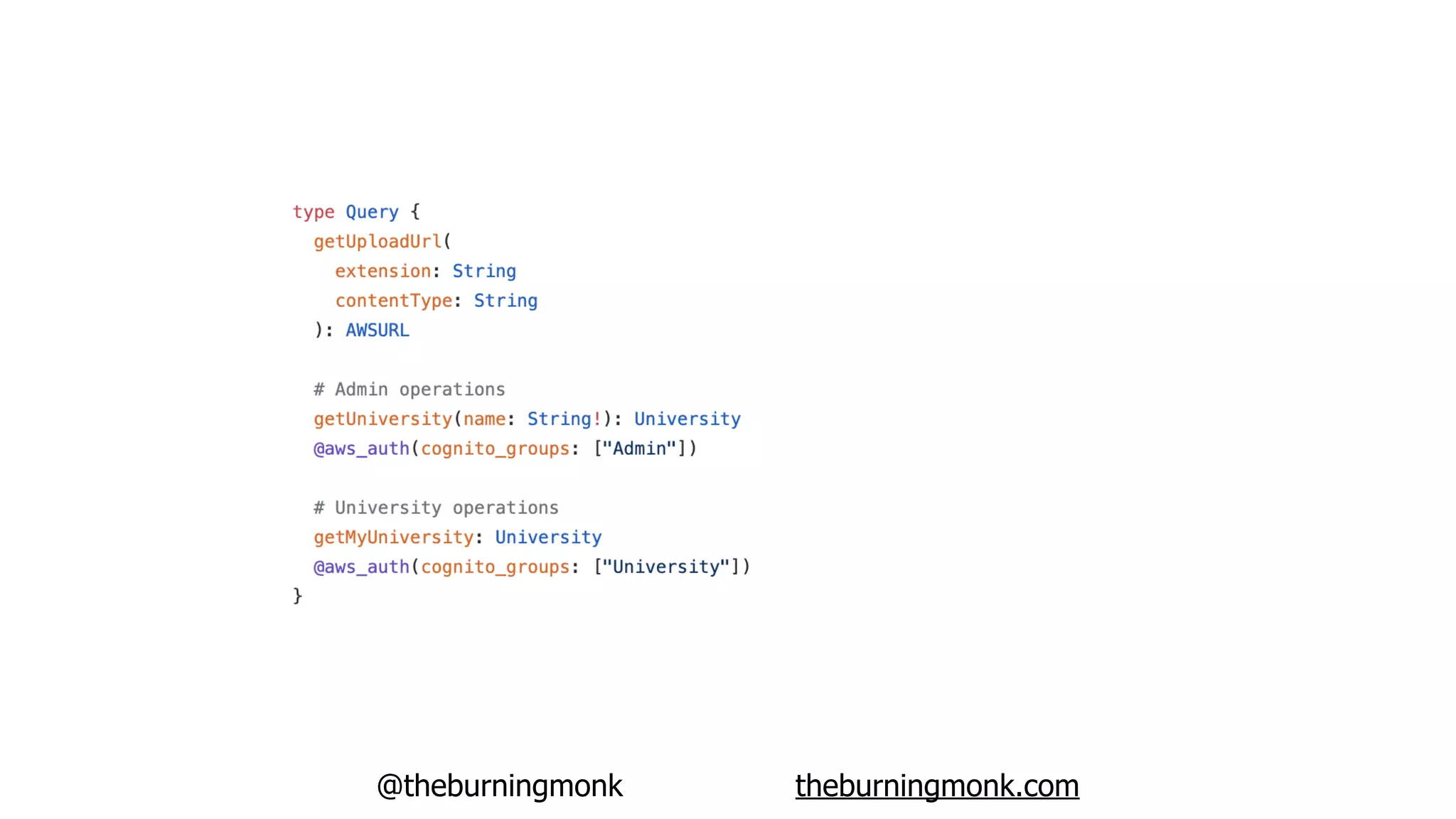

Cognito User Pool
amplify-js

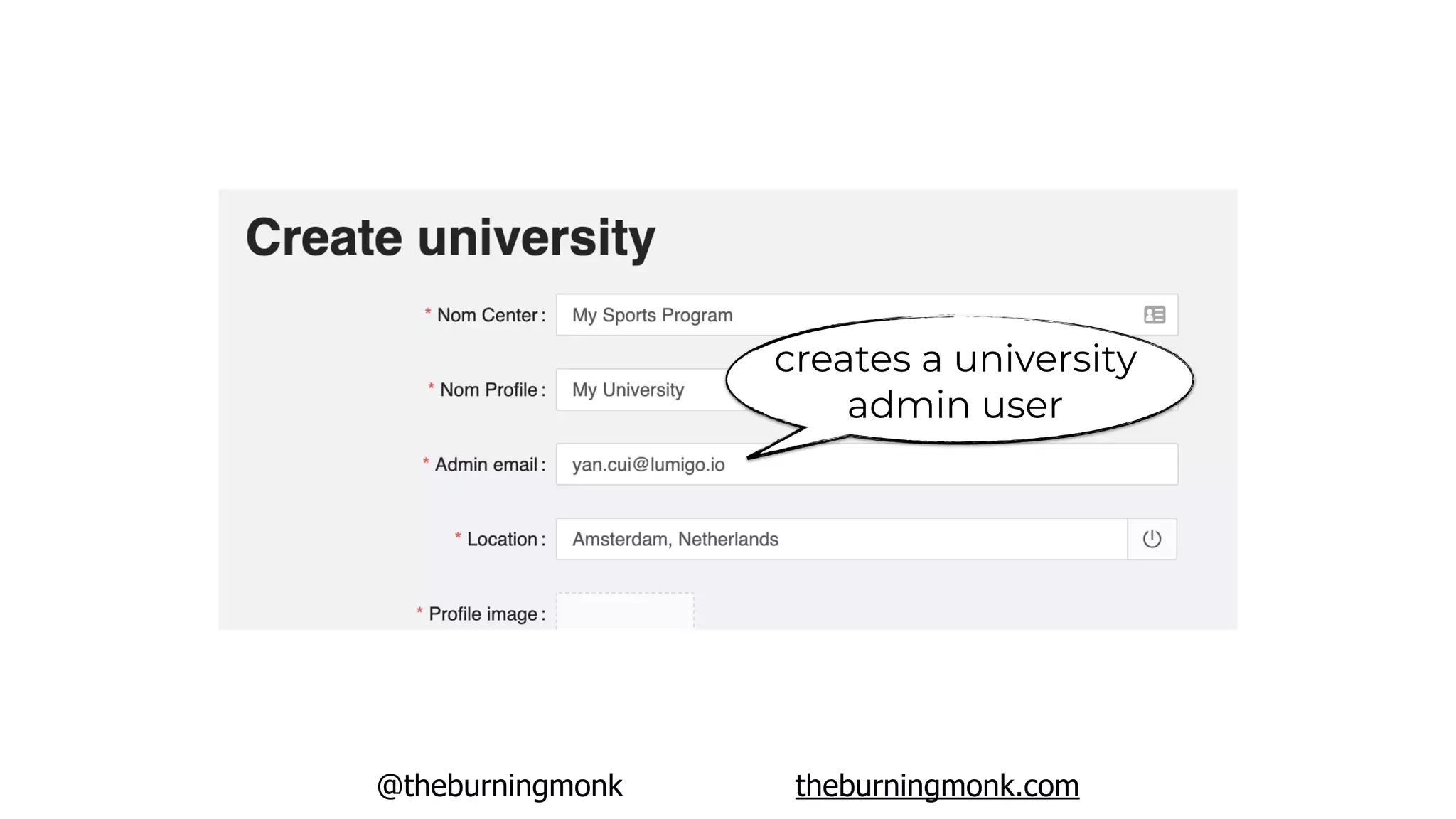

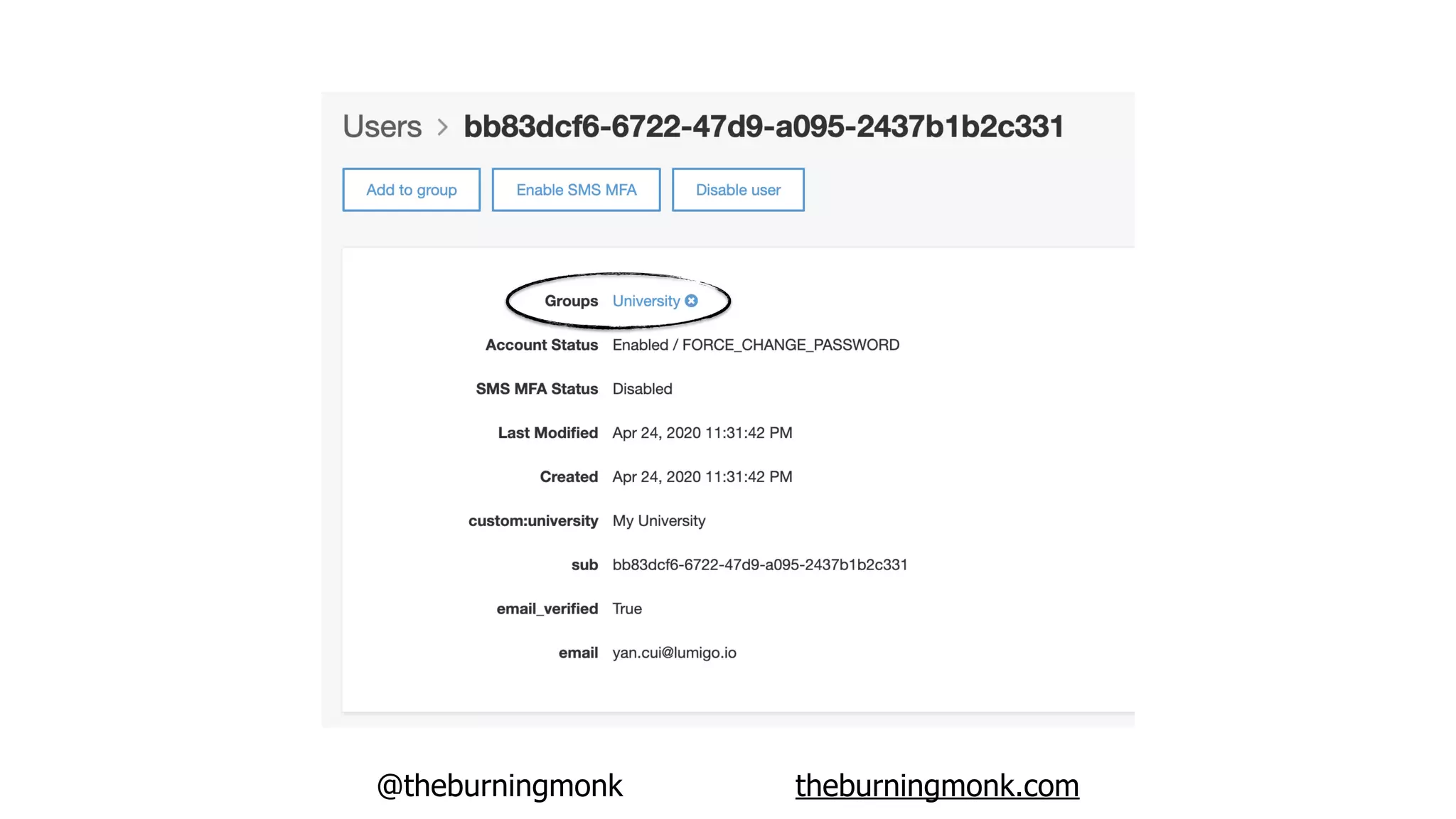

creates a university
admin user

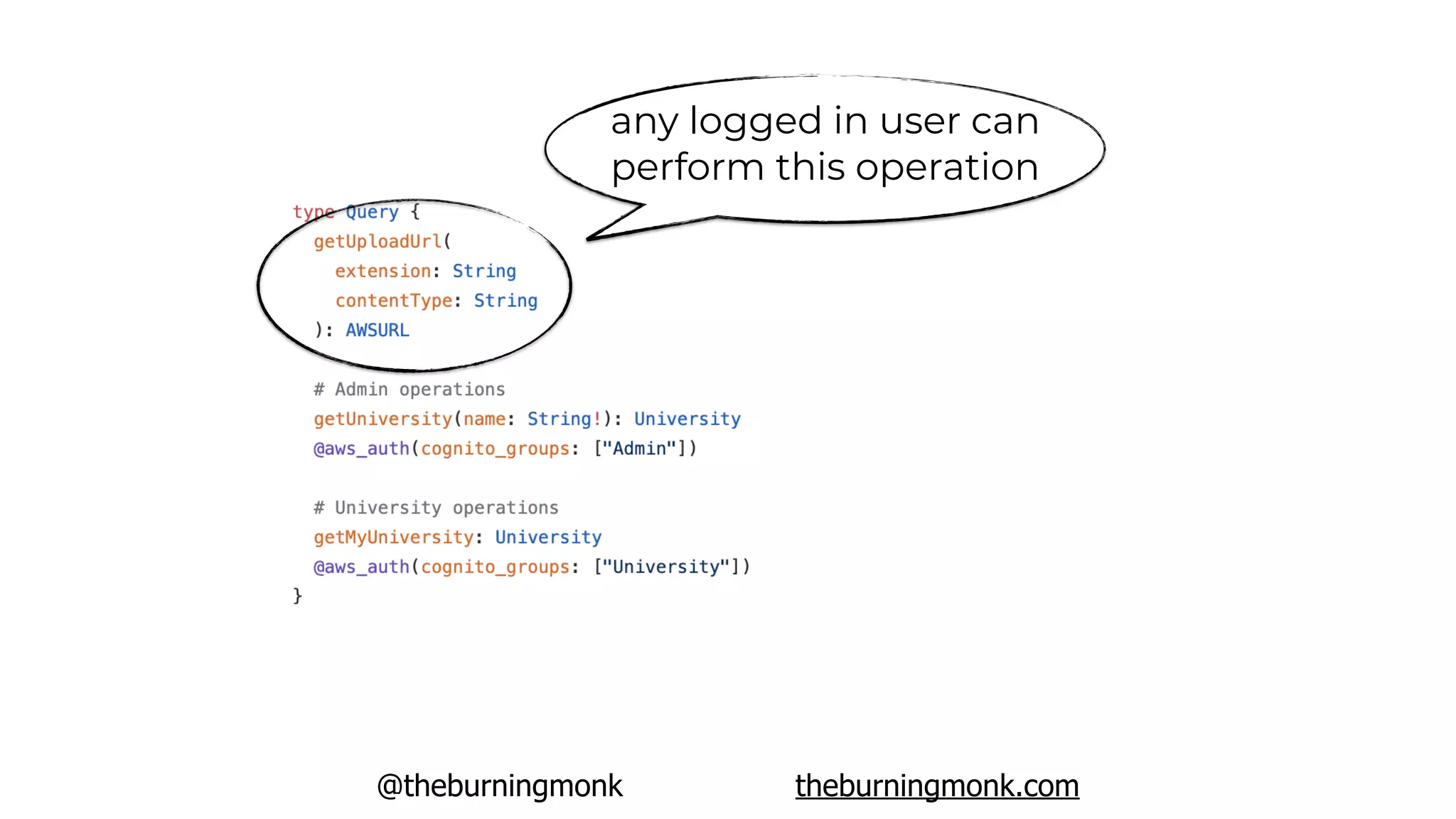

any logged in user can
perform this operation

Serverless
framework

Serverless
framework
mature, strong community support

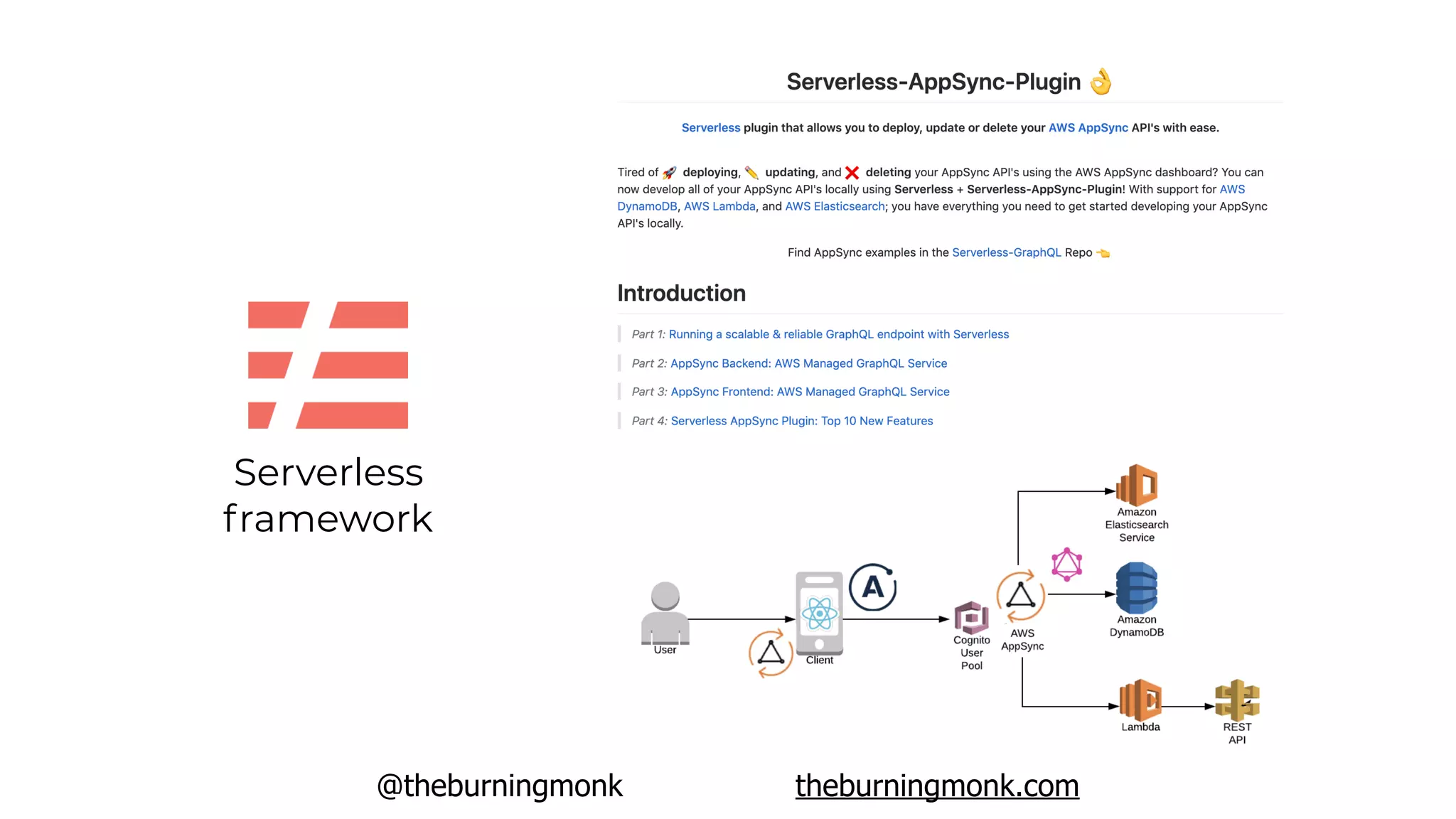

Serverless
framework
extensible & customizable through plugins
rich ecosystem of community plugins

Serverless
framework
extensible & customizable through plugins
rich ecosystem of community plugins
already familiar with it

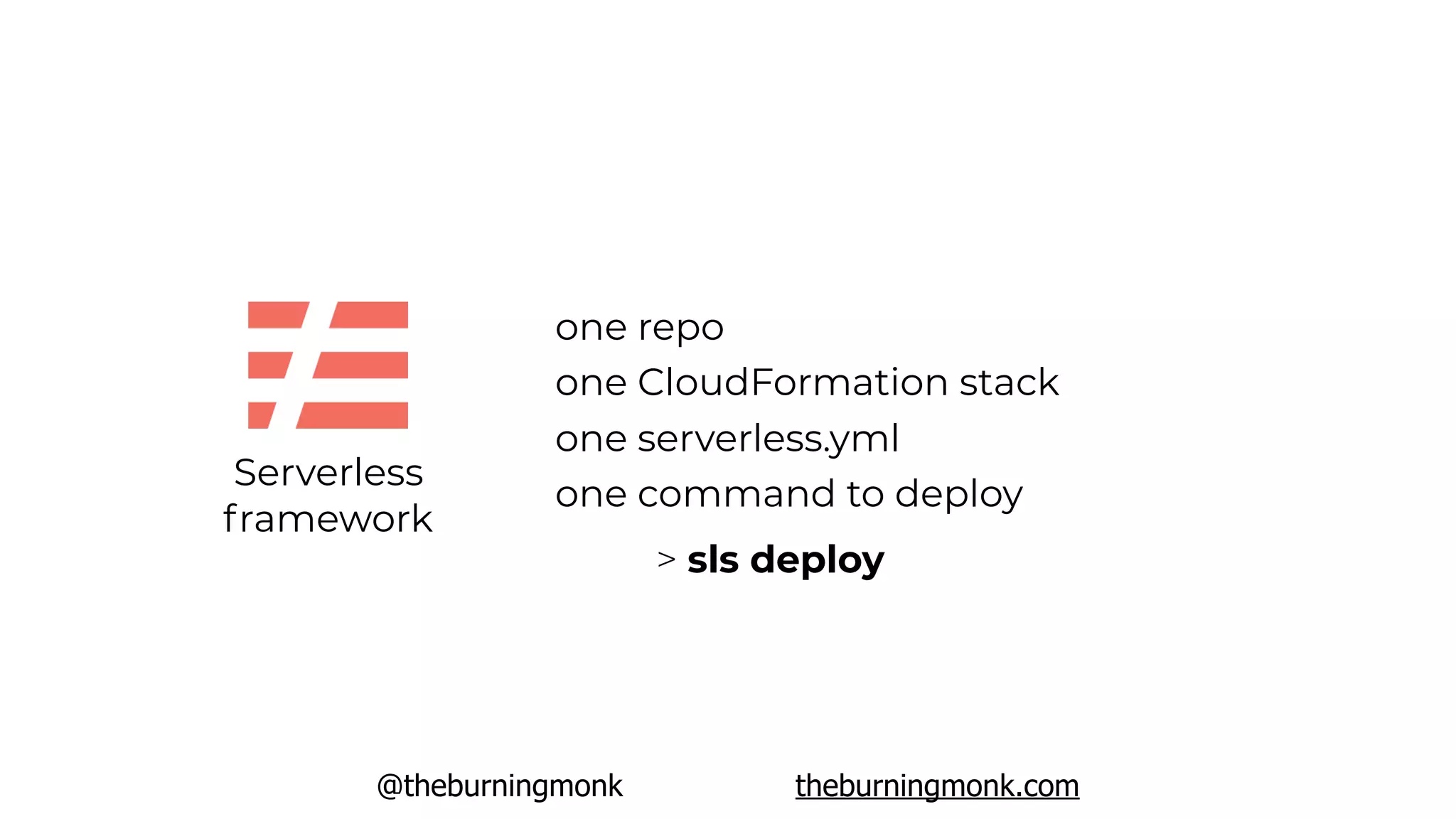

Serverless
framework
one repo
one CloudFormation stack
one serverless.yml
one command to deploy
> sls deploy

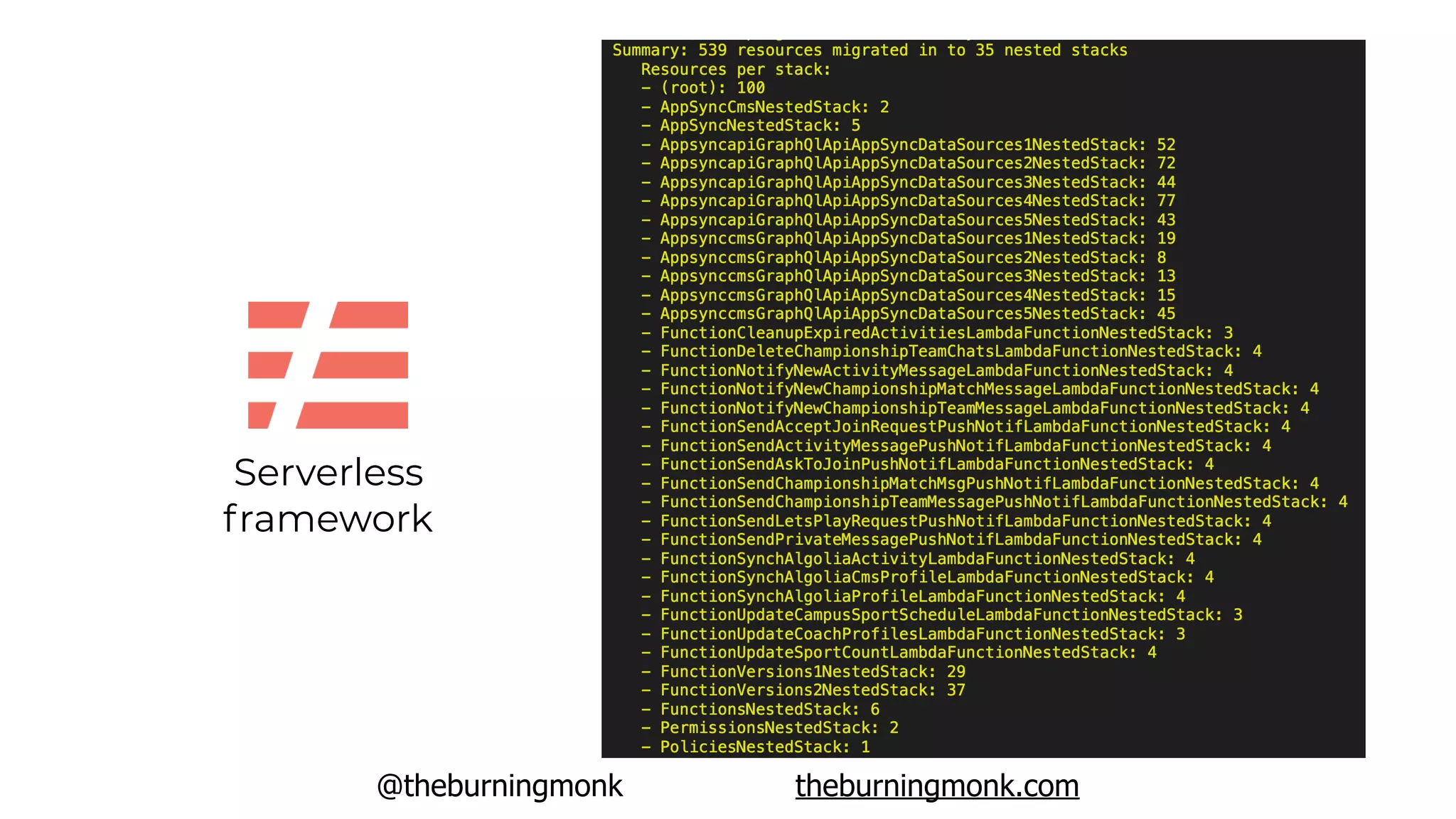

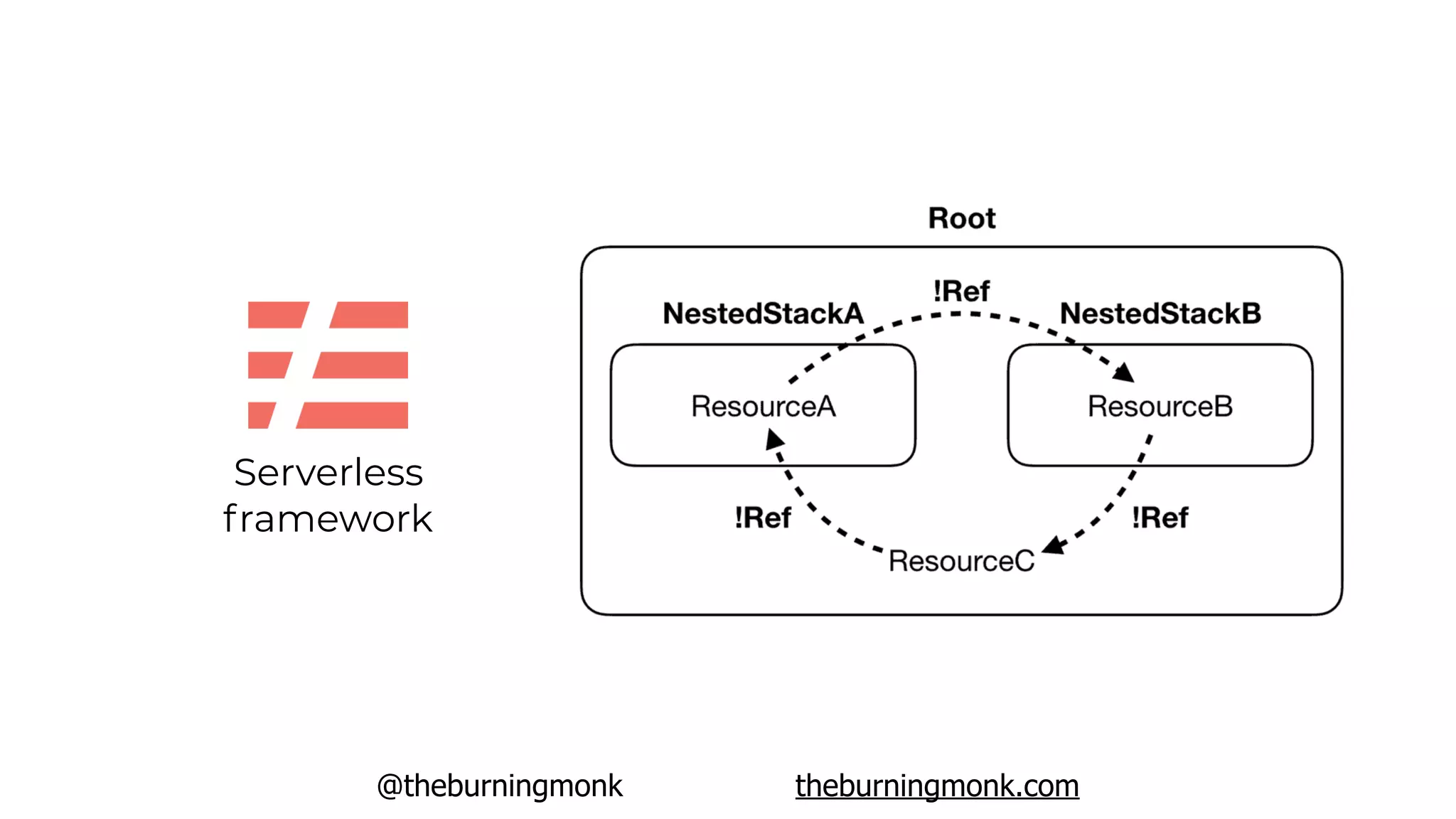

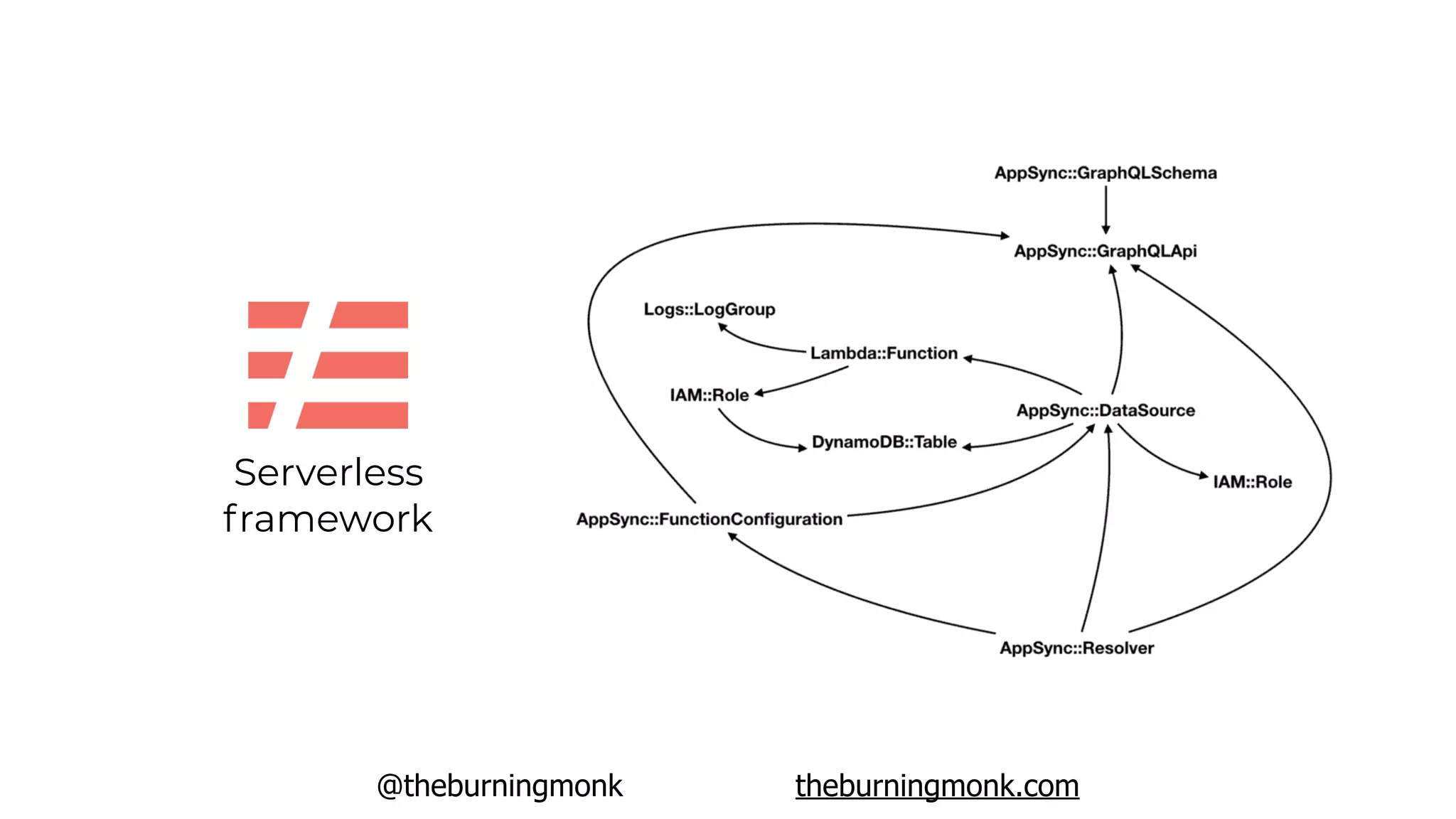

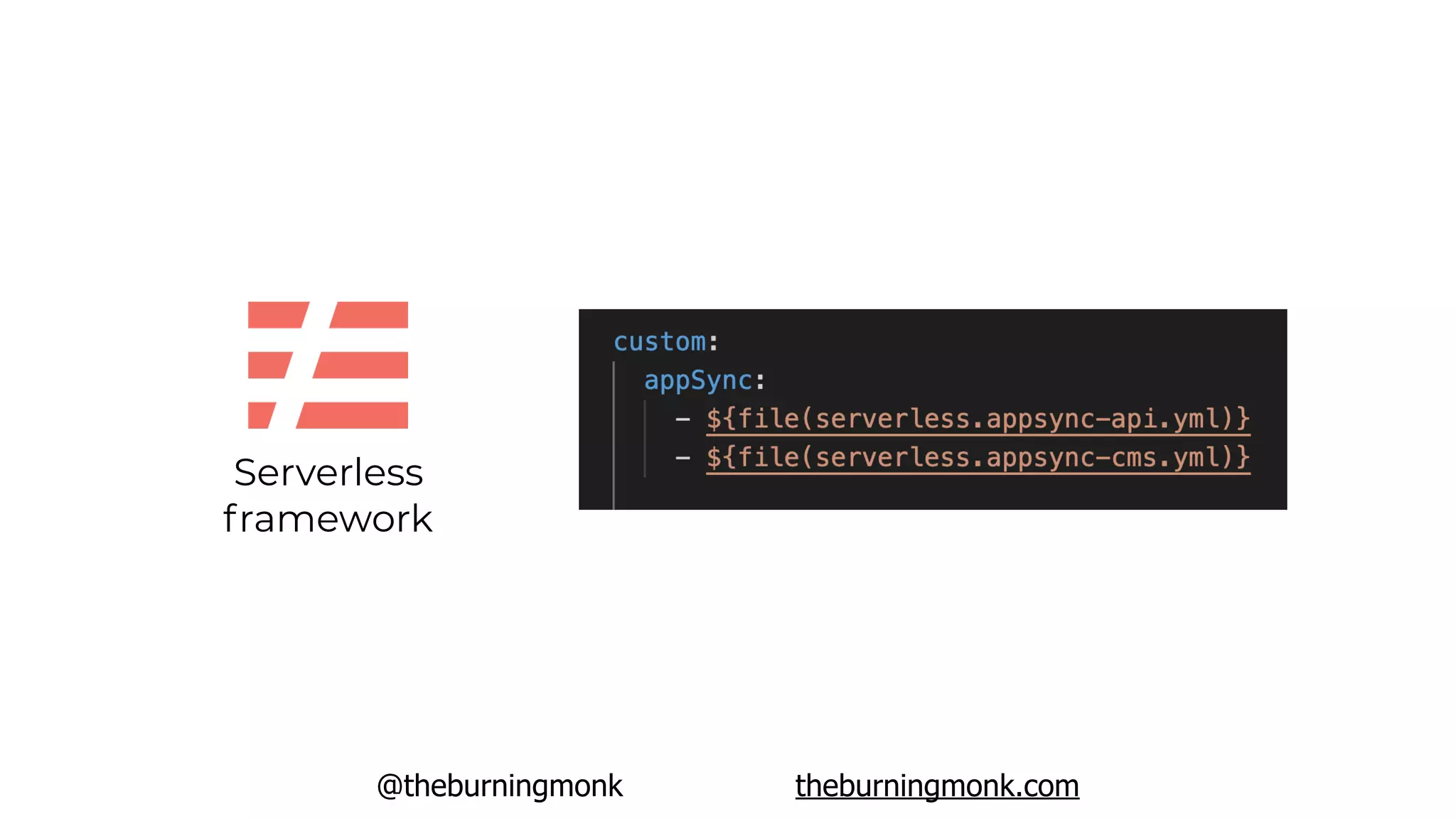

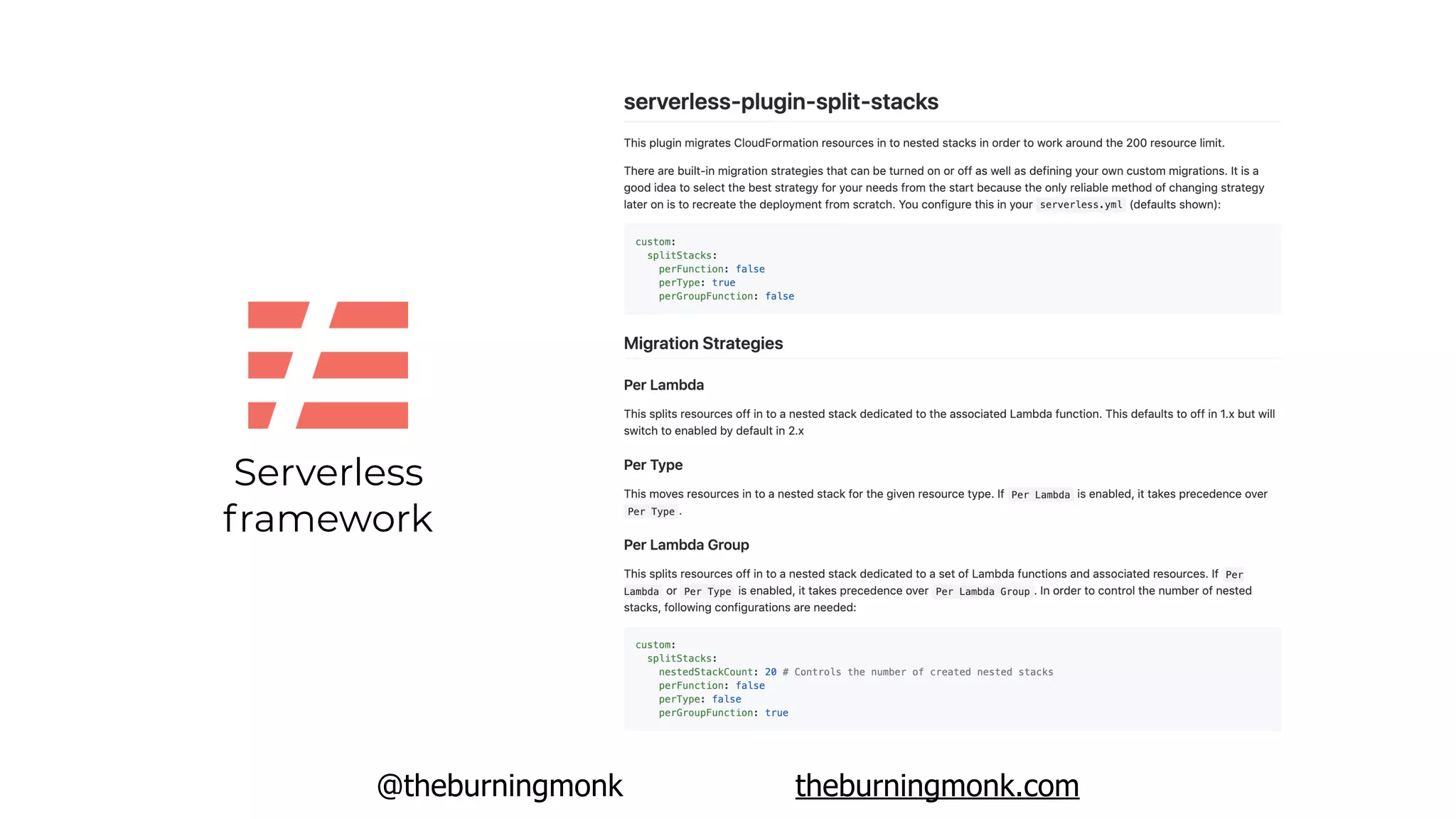

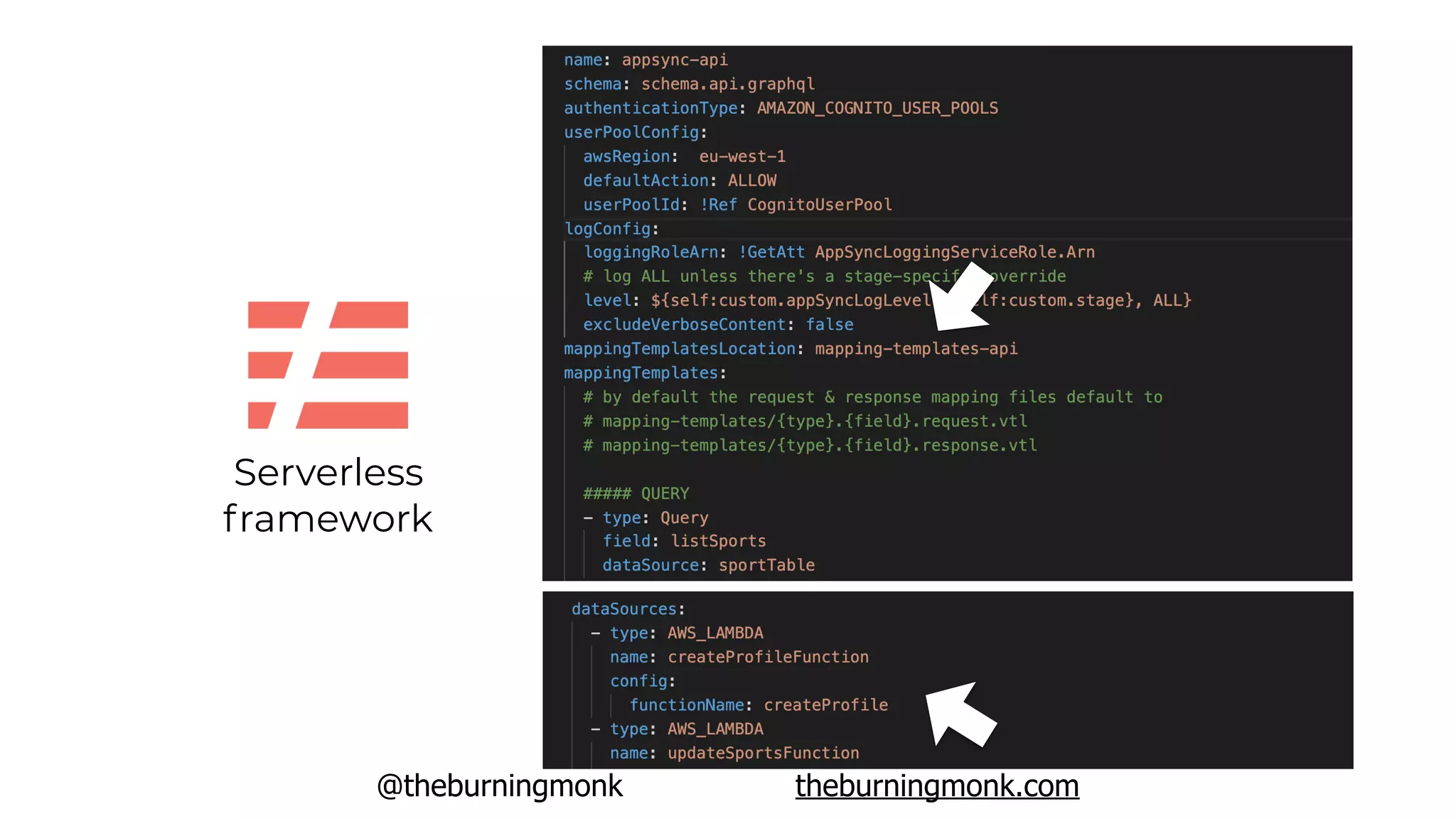

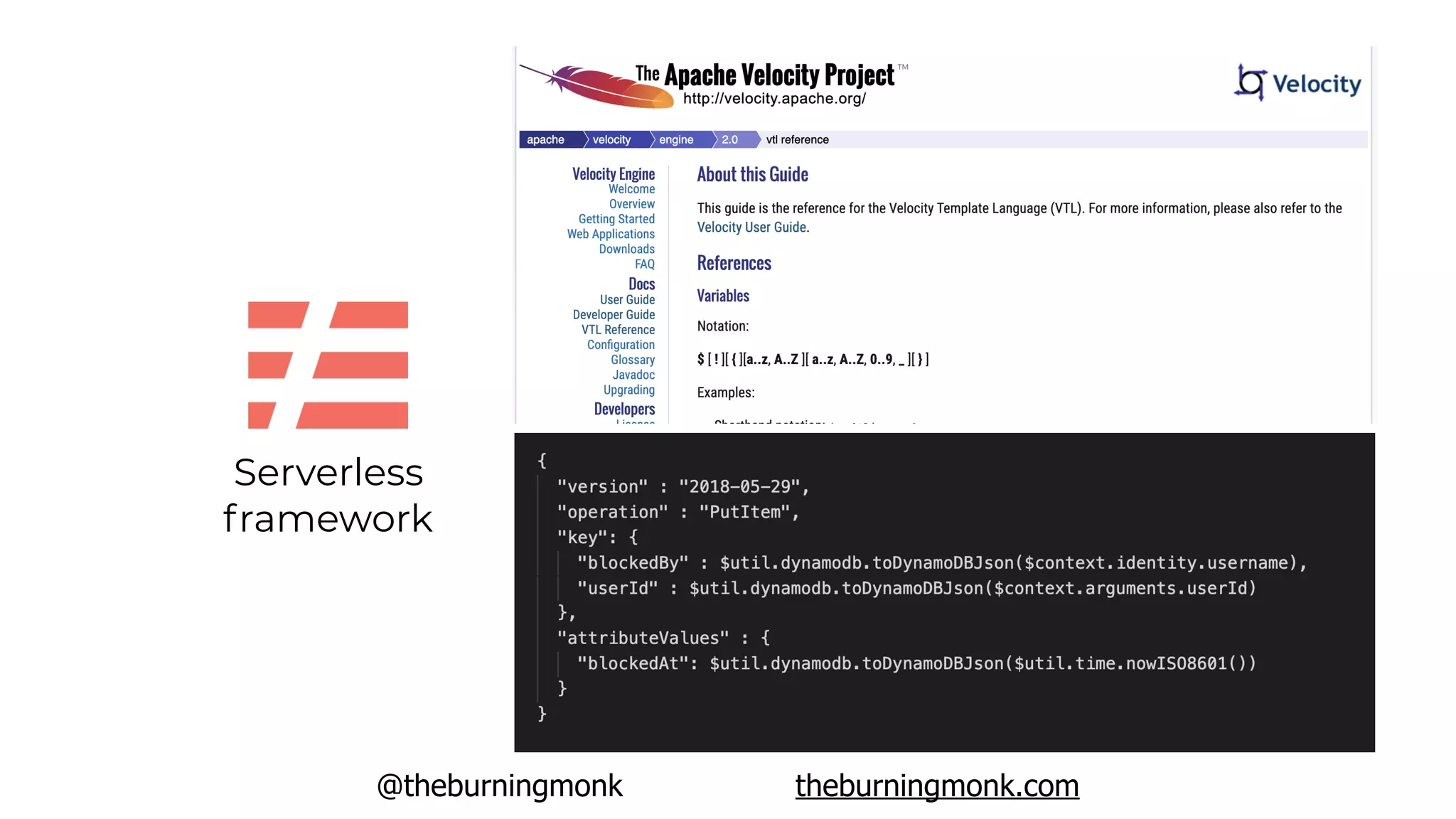

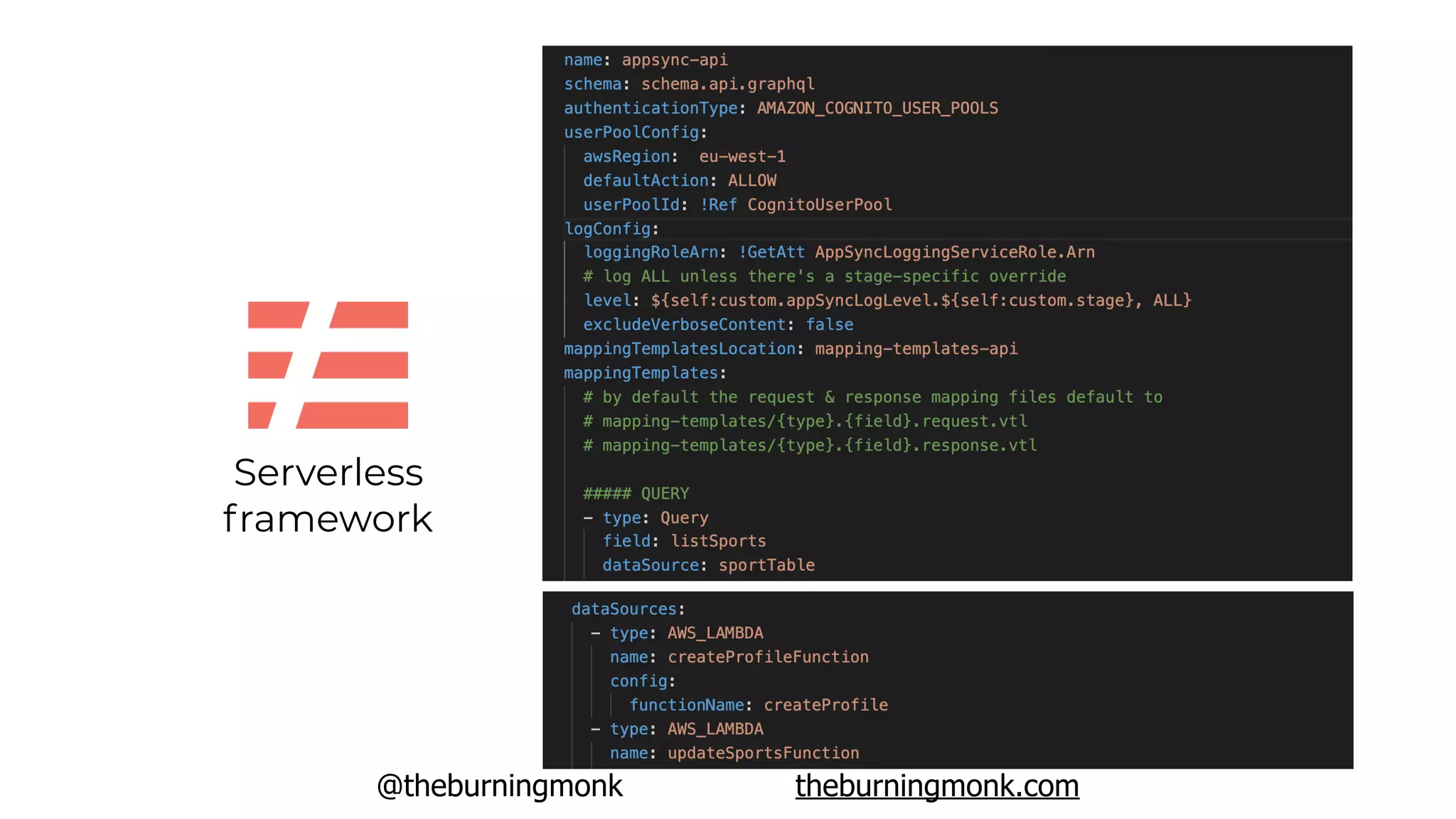

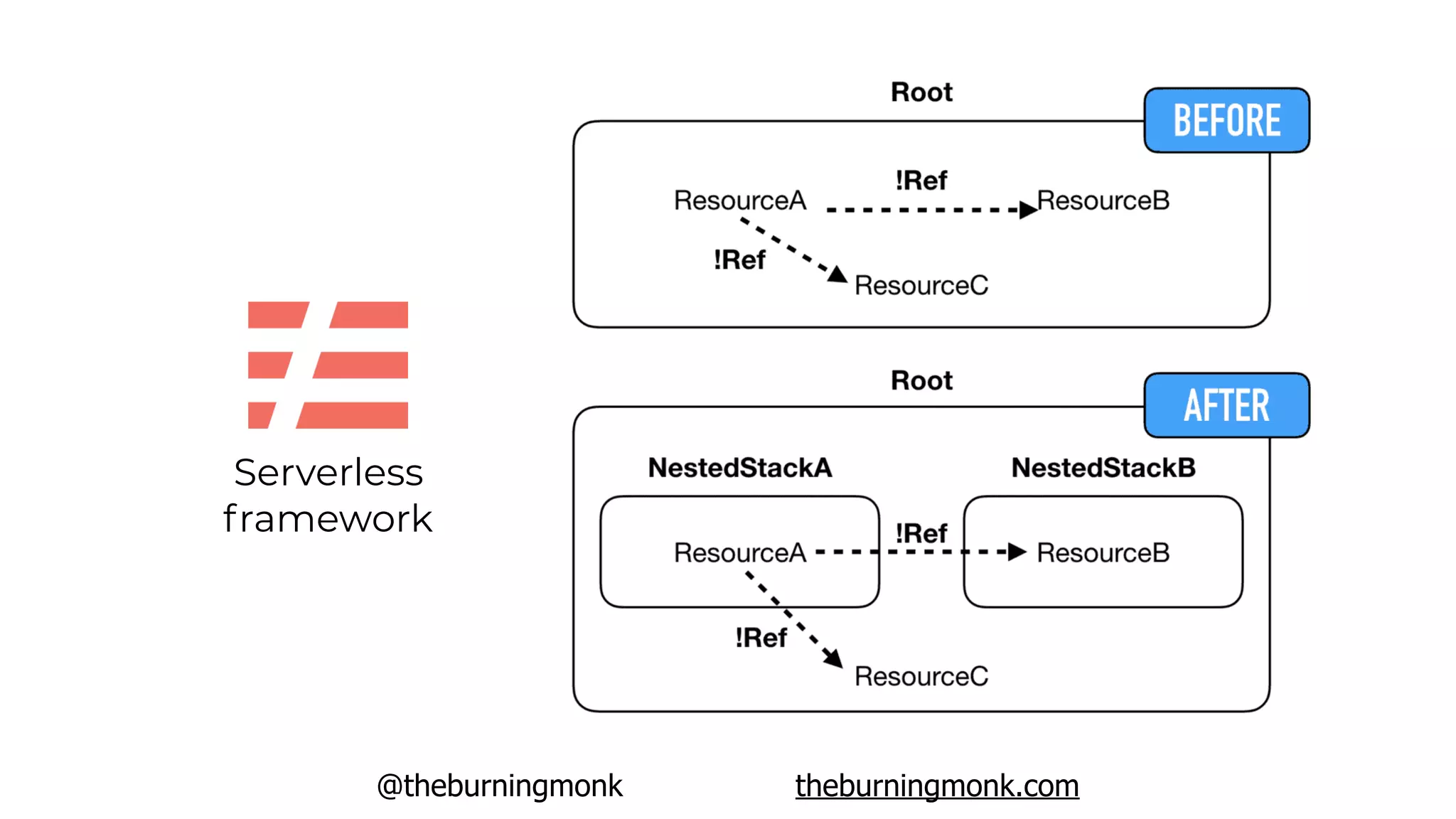

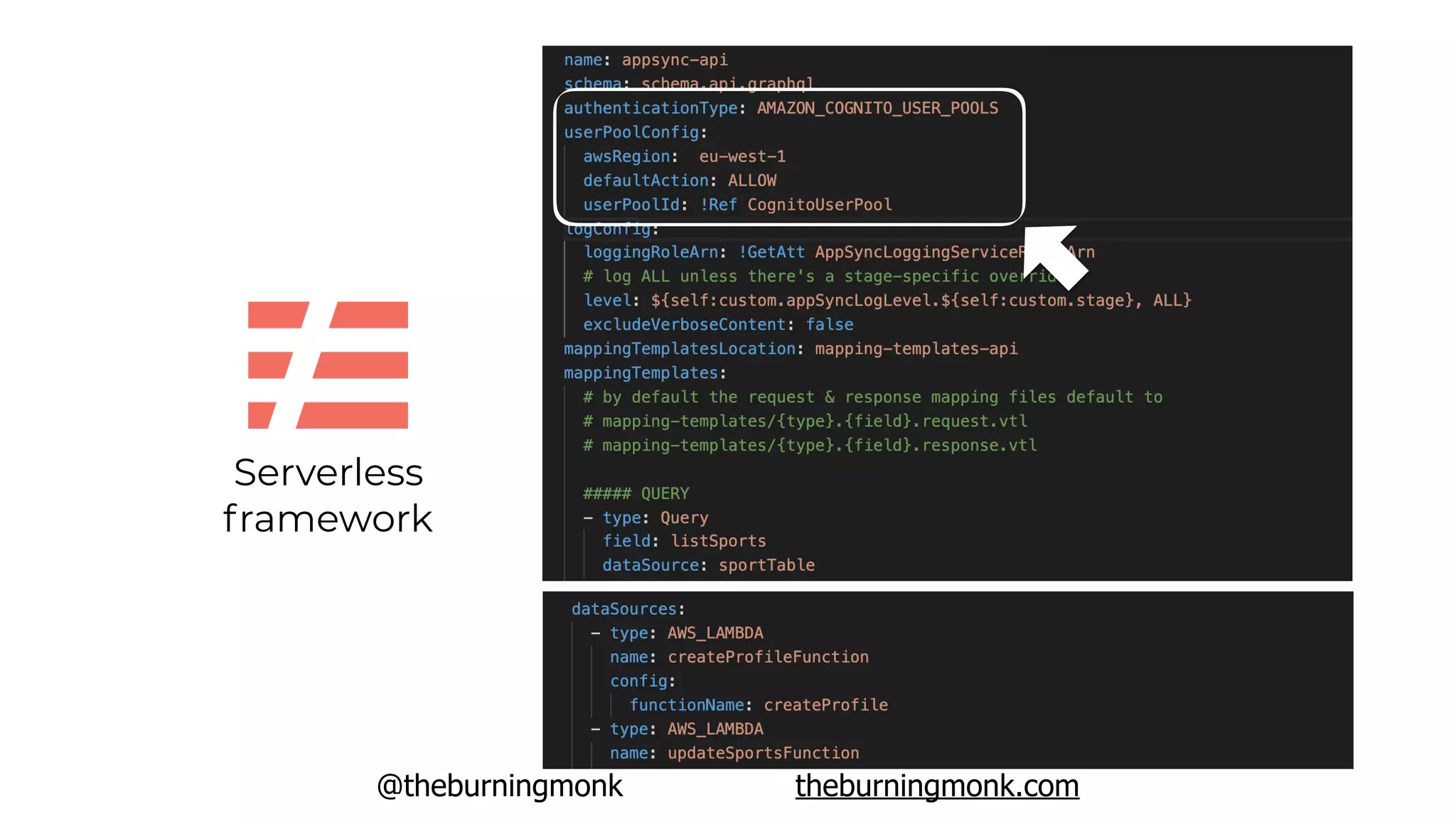

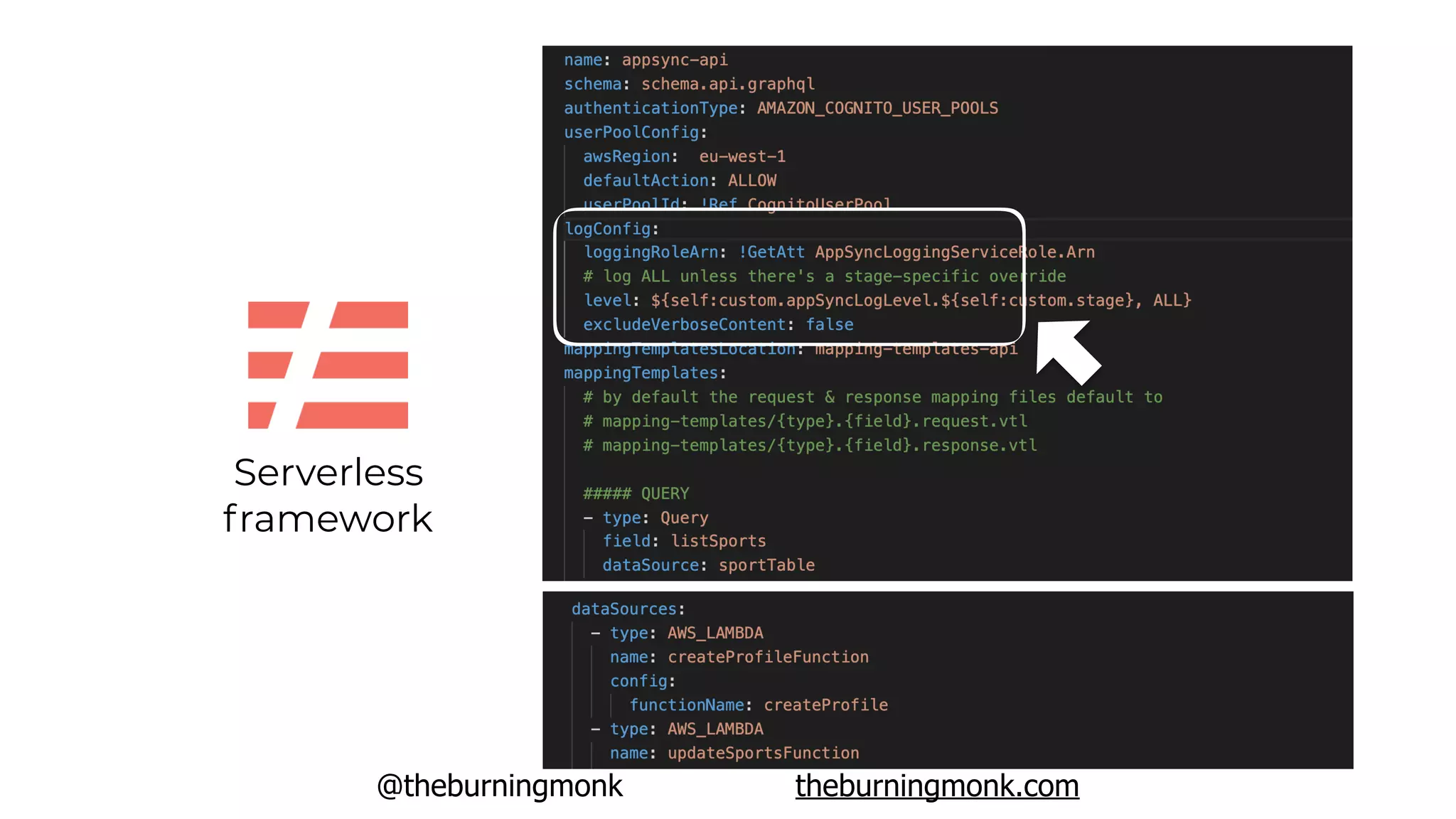

Serverless
framework

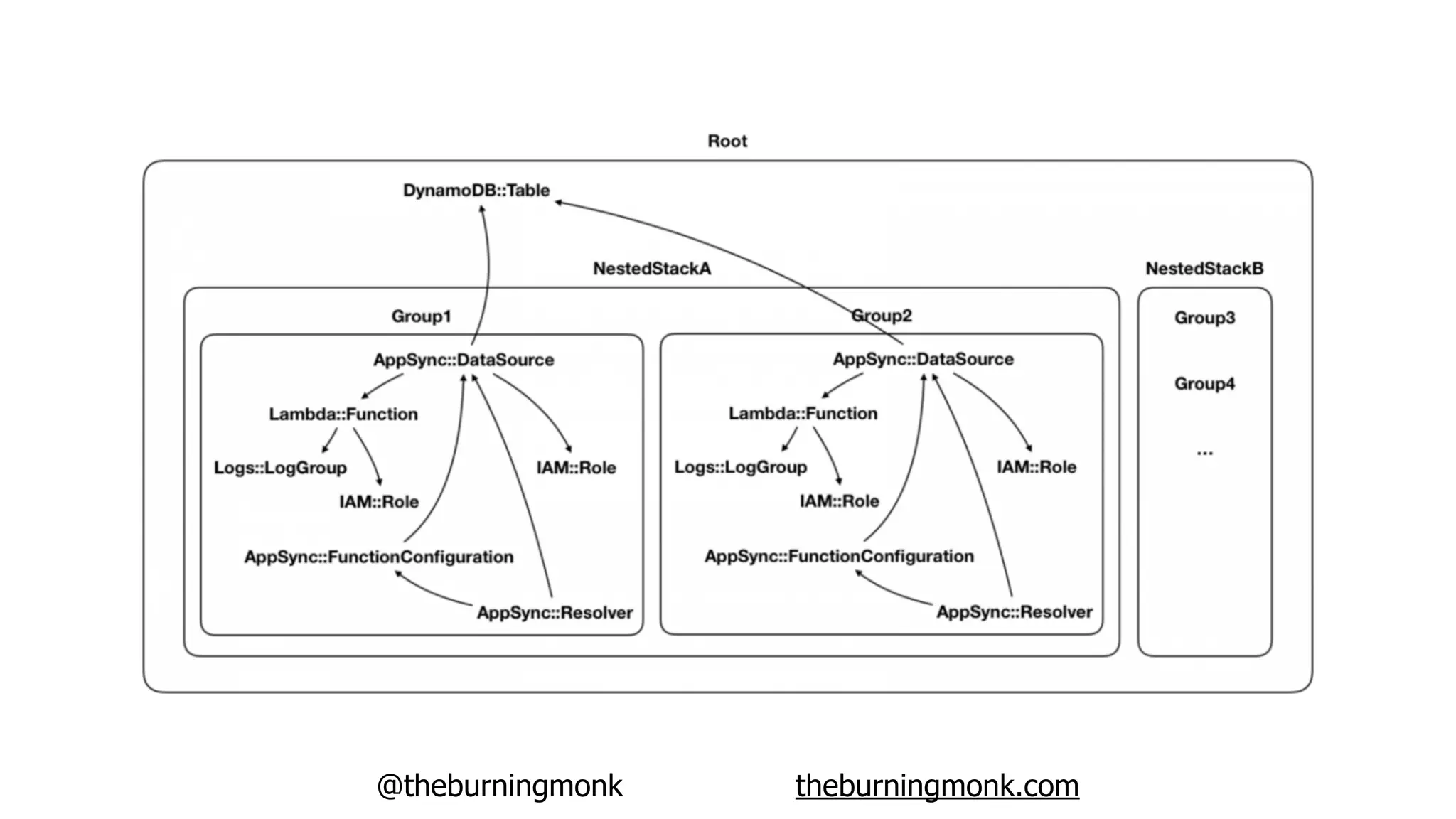

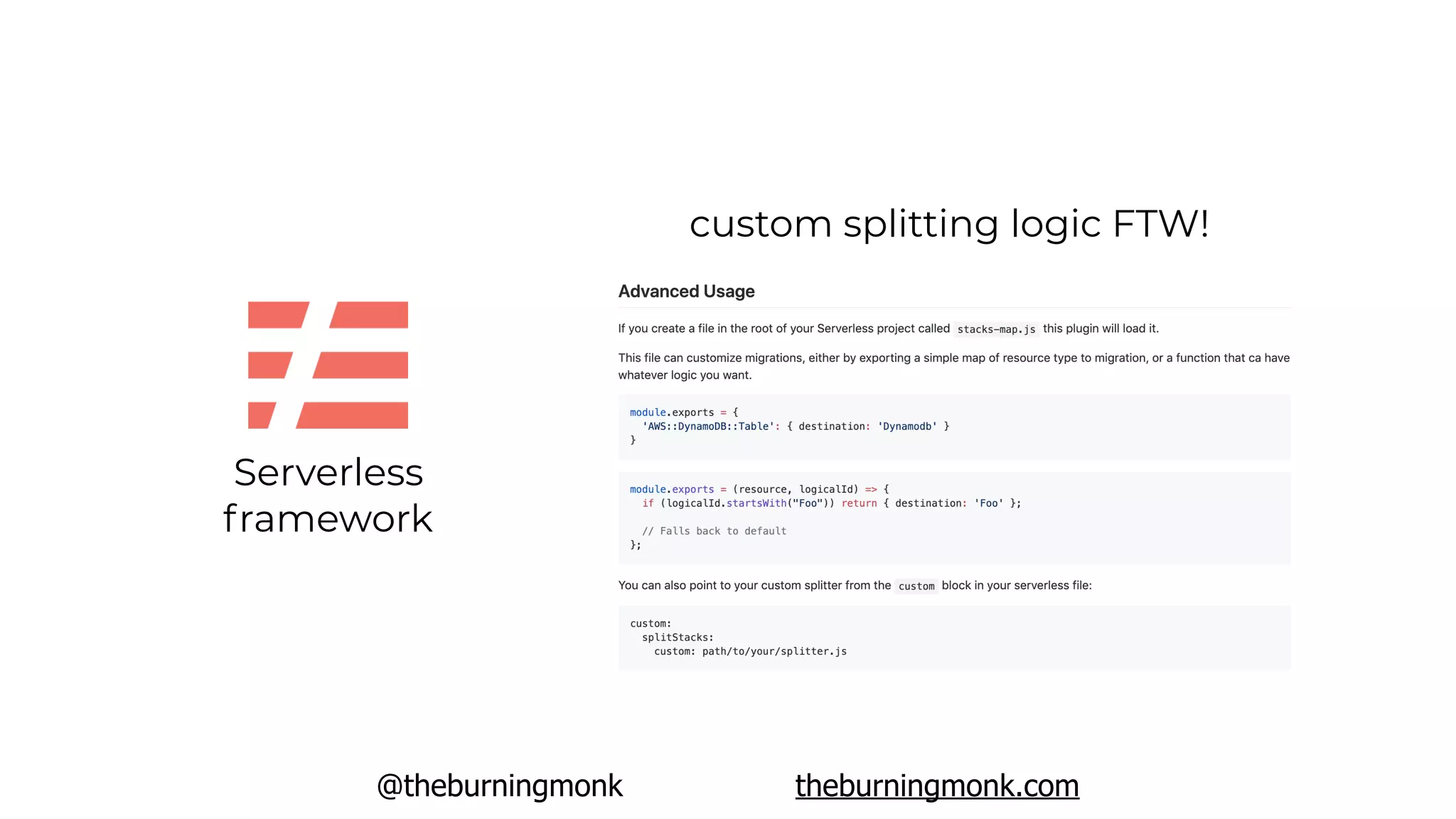

custom splitting logic FTW!

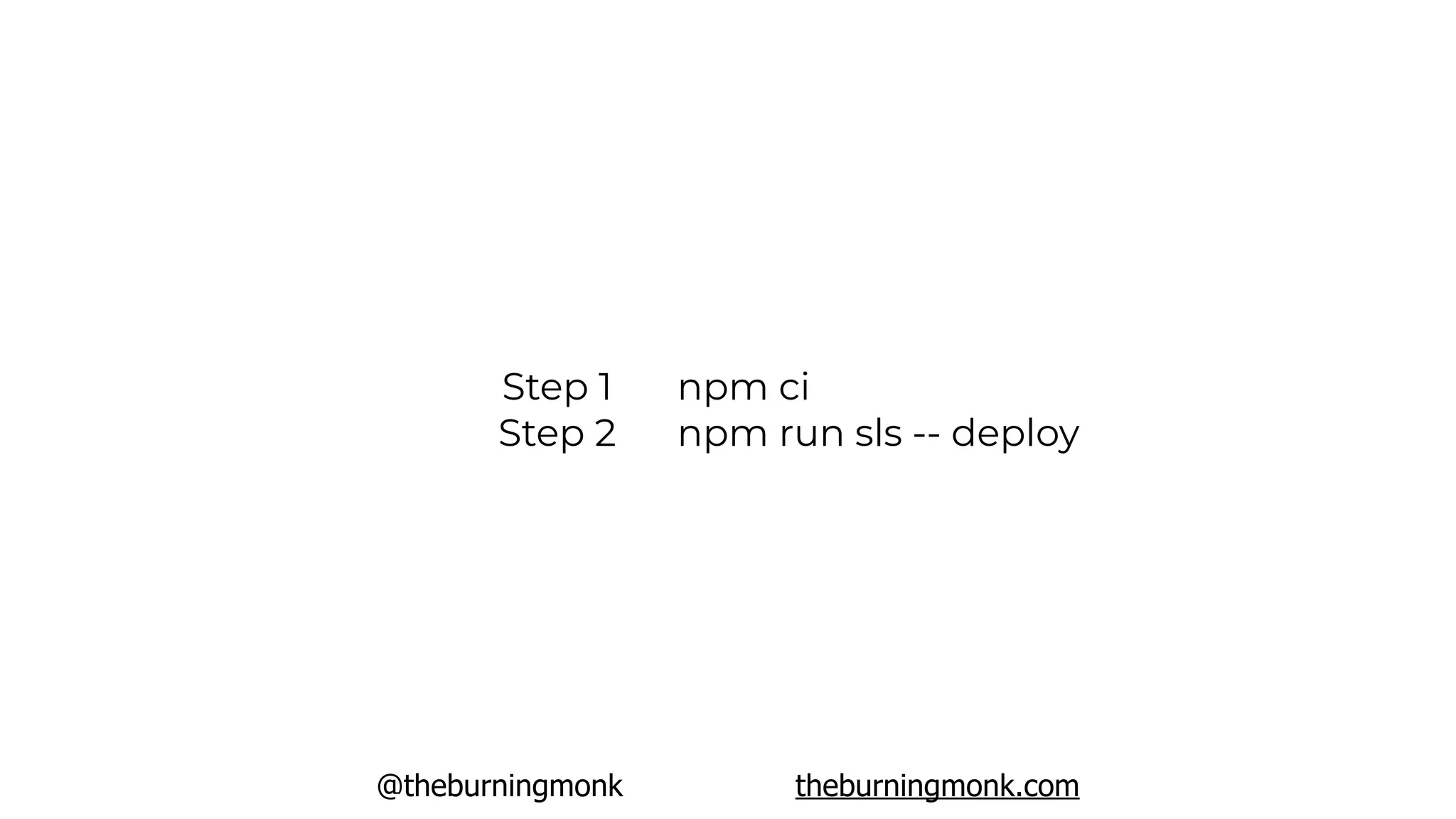

Step 1
Step 2
npm ci
npm run sls -- deploy

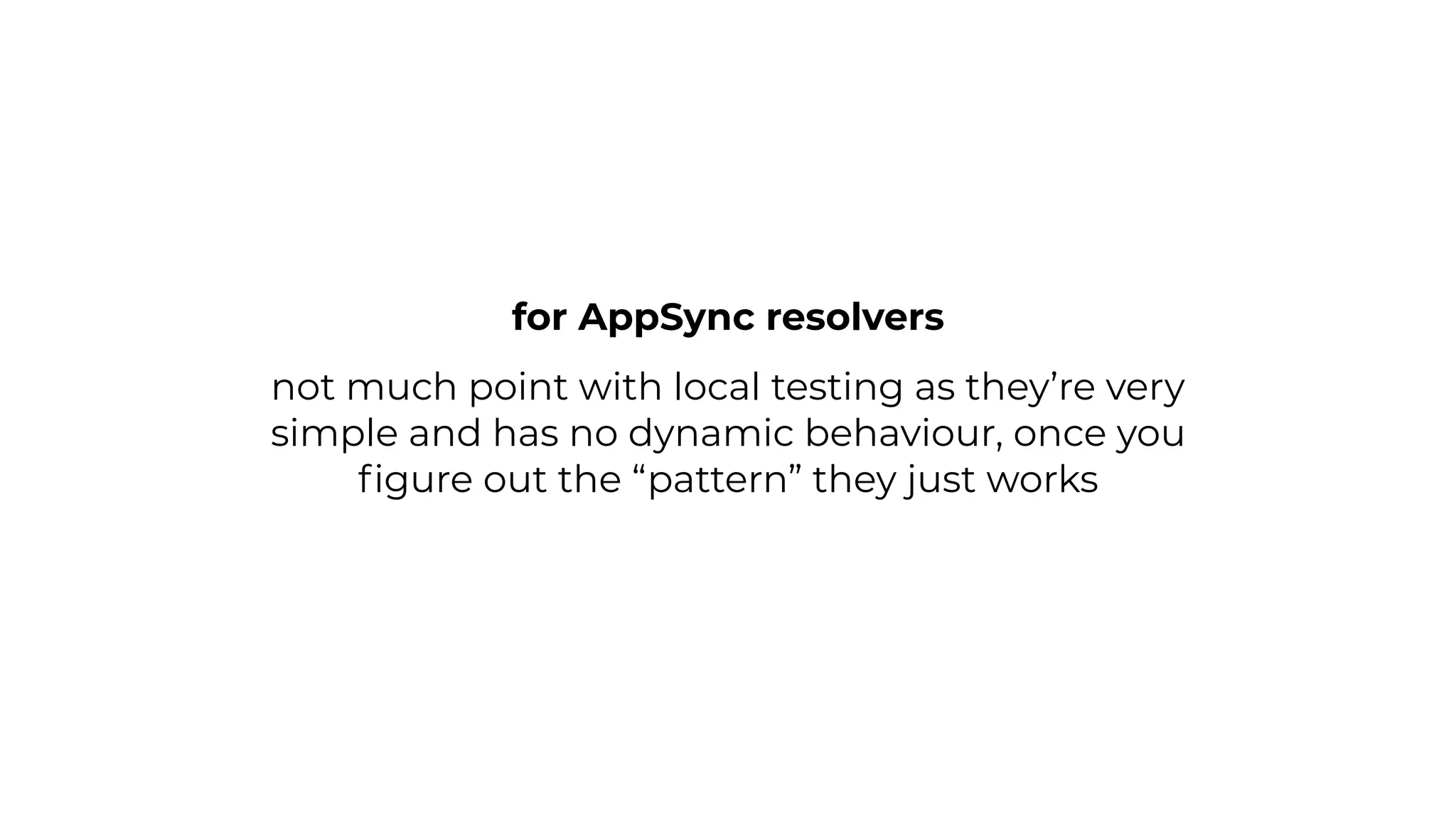

not much point with local testing as they’re very
simple and has no dynamic behaviour, once you
ﬁgure out the “pattern” they just works
for AppSync resolvers

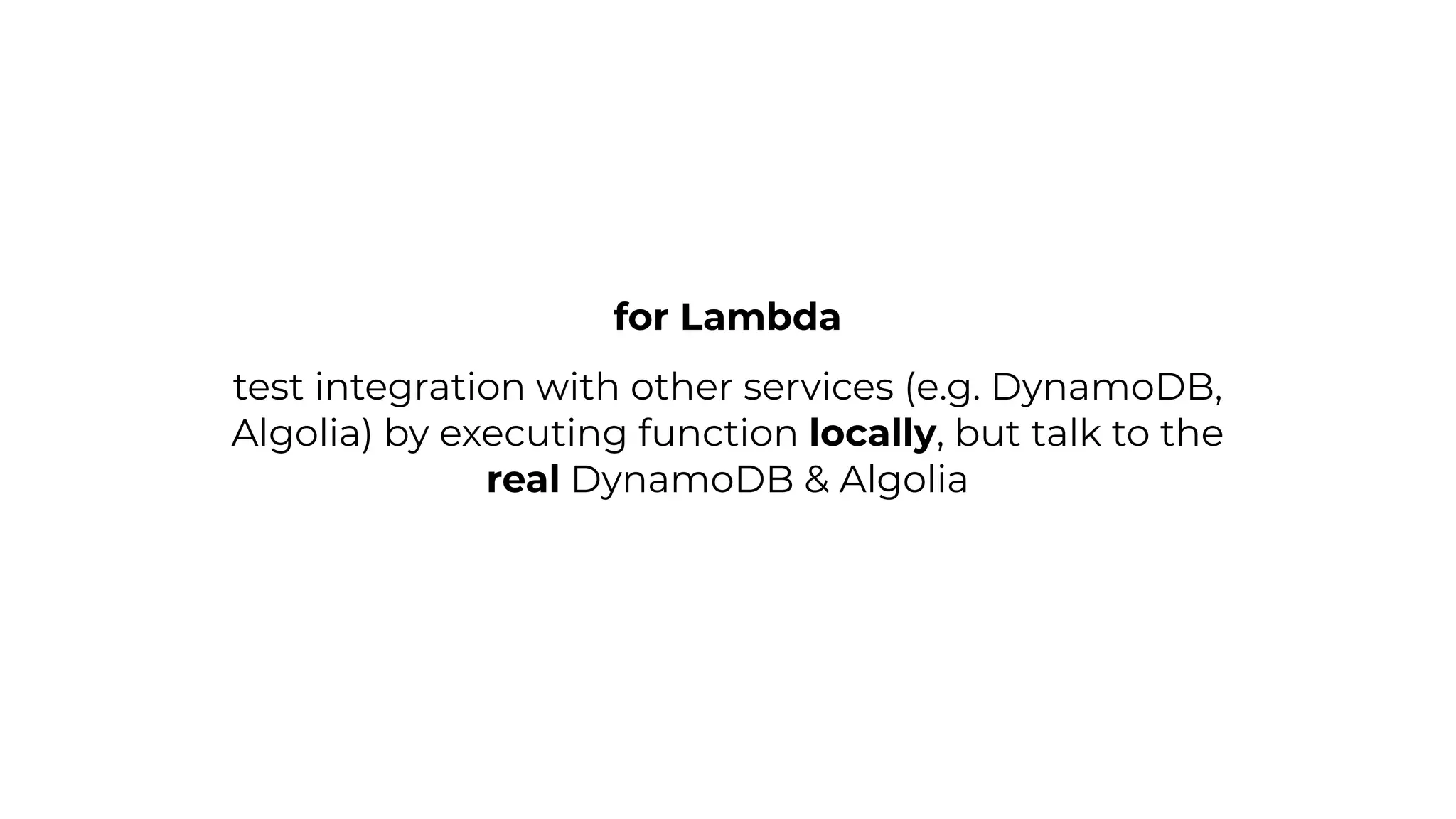

test integration with other services (e.g. DynamoDB,
Algolia) by executing function locally, but talk to the
real DynamoDB & Algolia
for Lambda

E2E test - execute user stories against
deployed GraphQL endpoints

debugging failed E2E tests is a rehearsal for
debugging real production issues

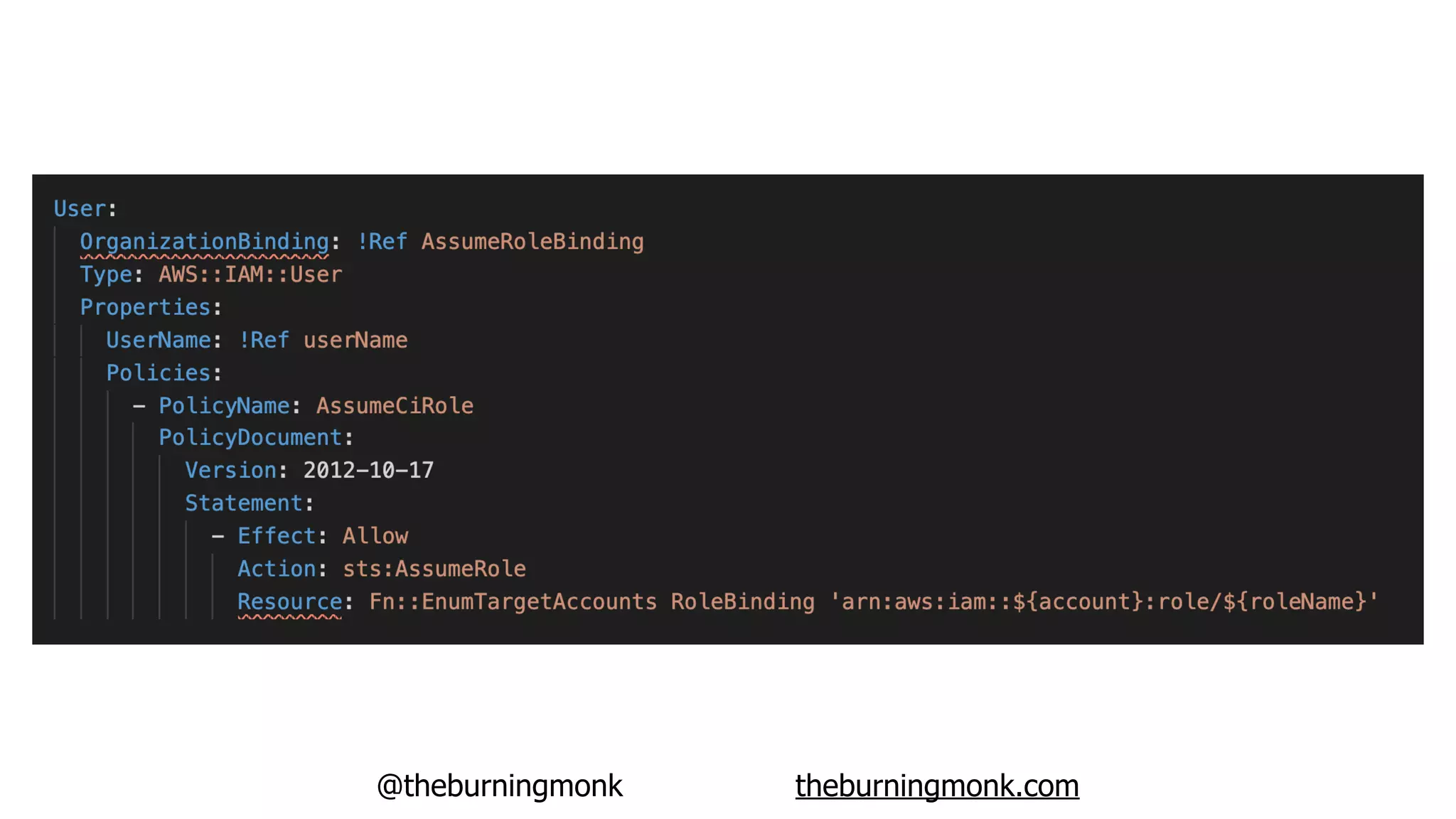

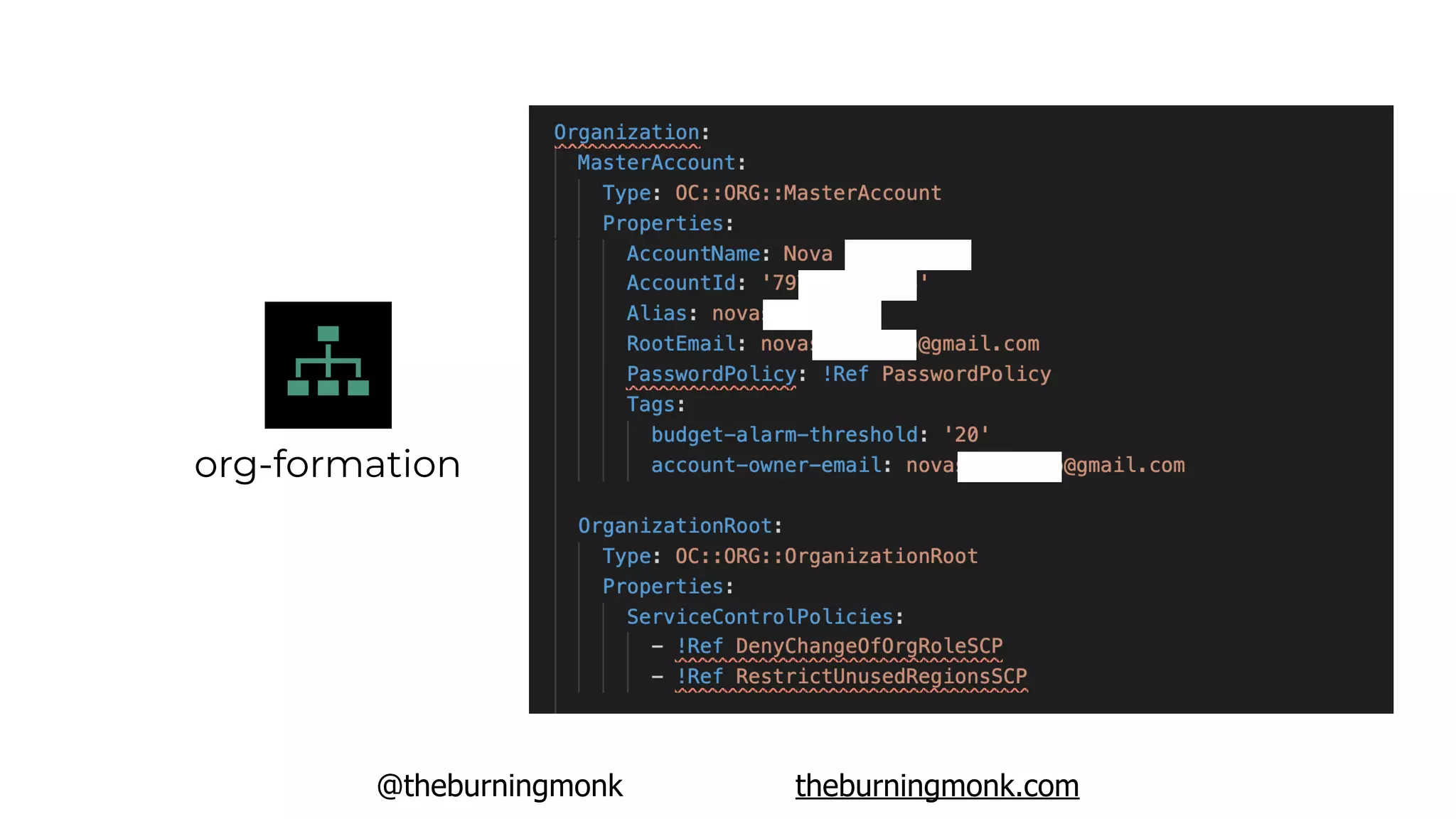

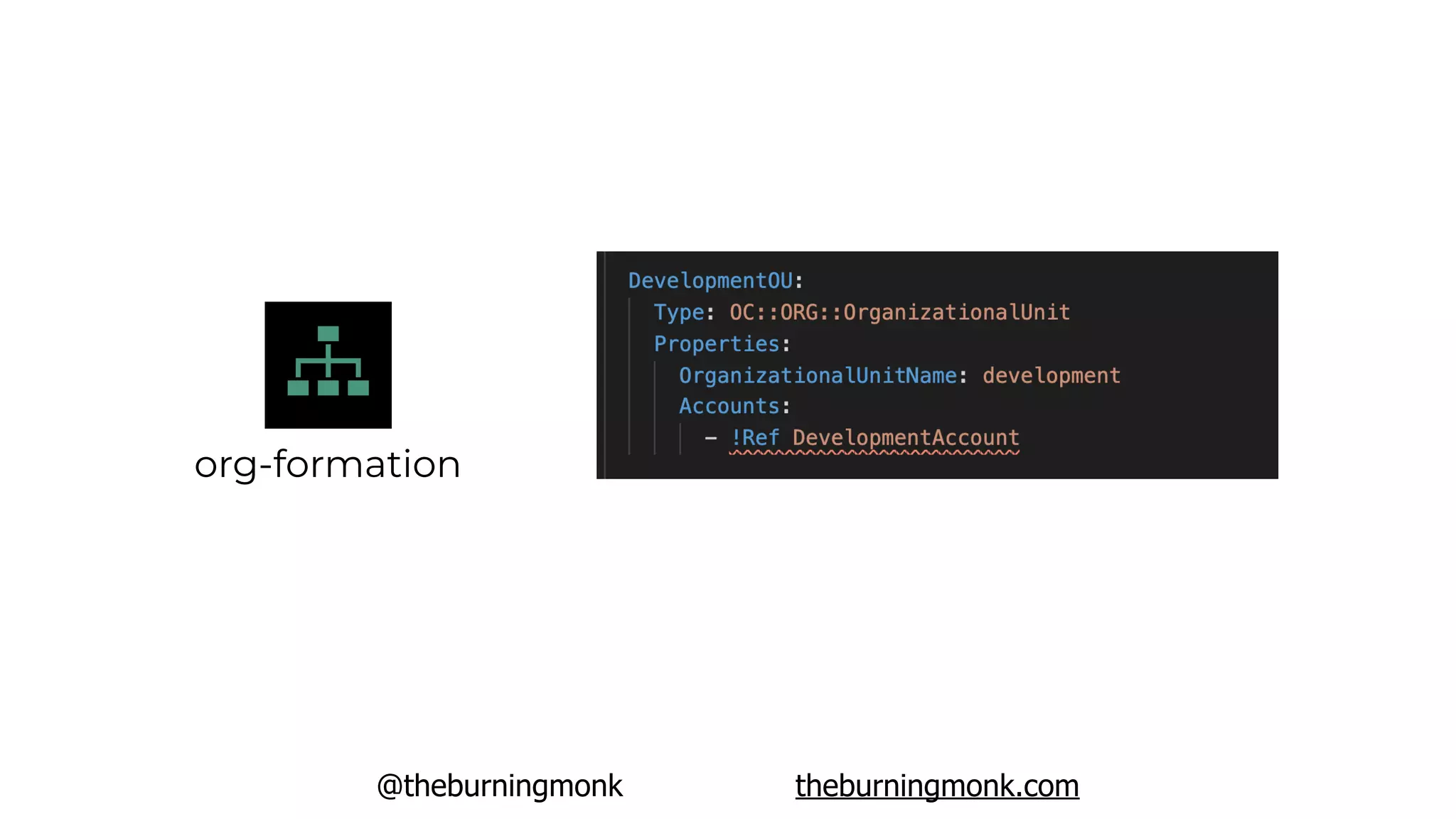

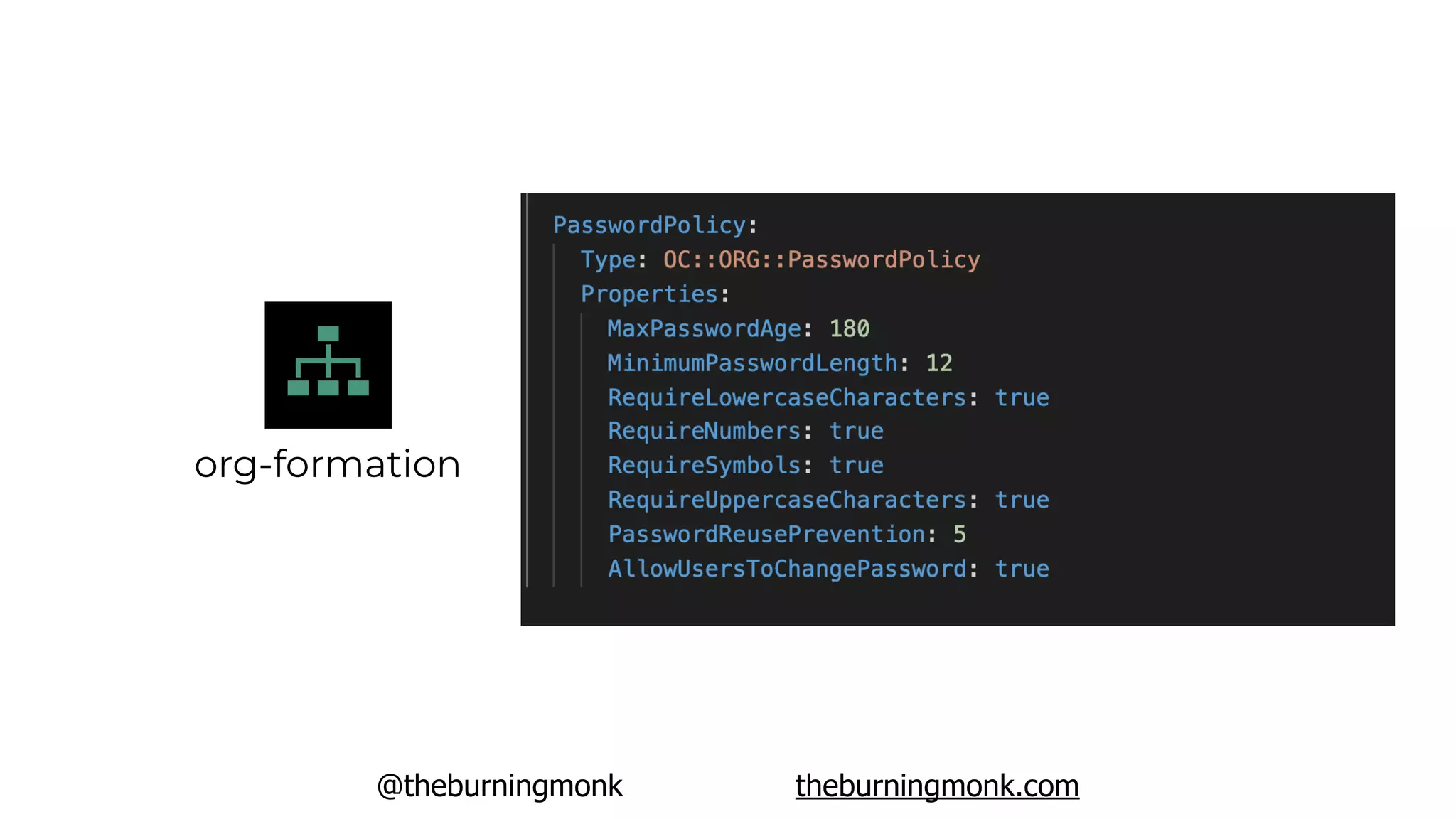

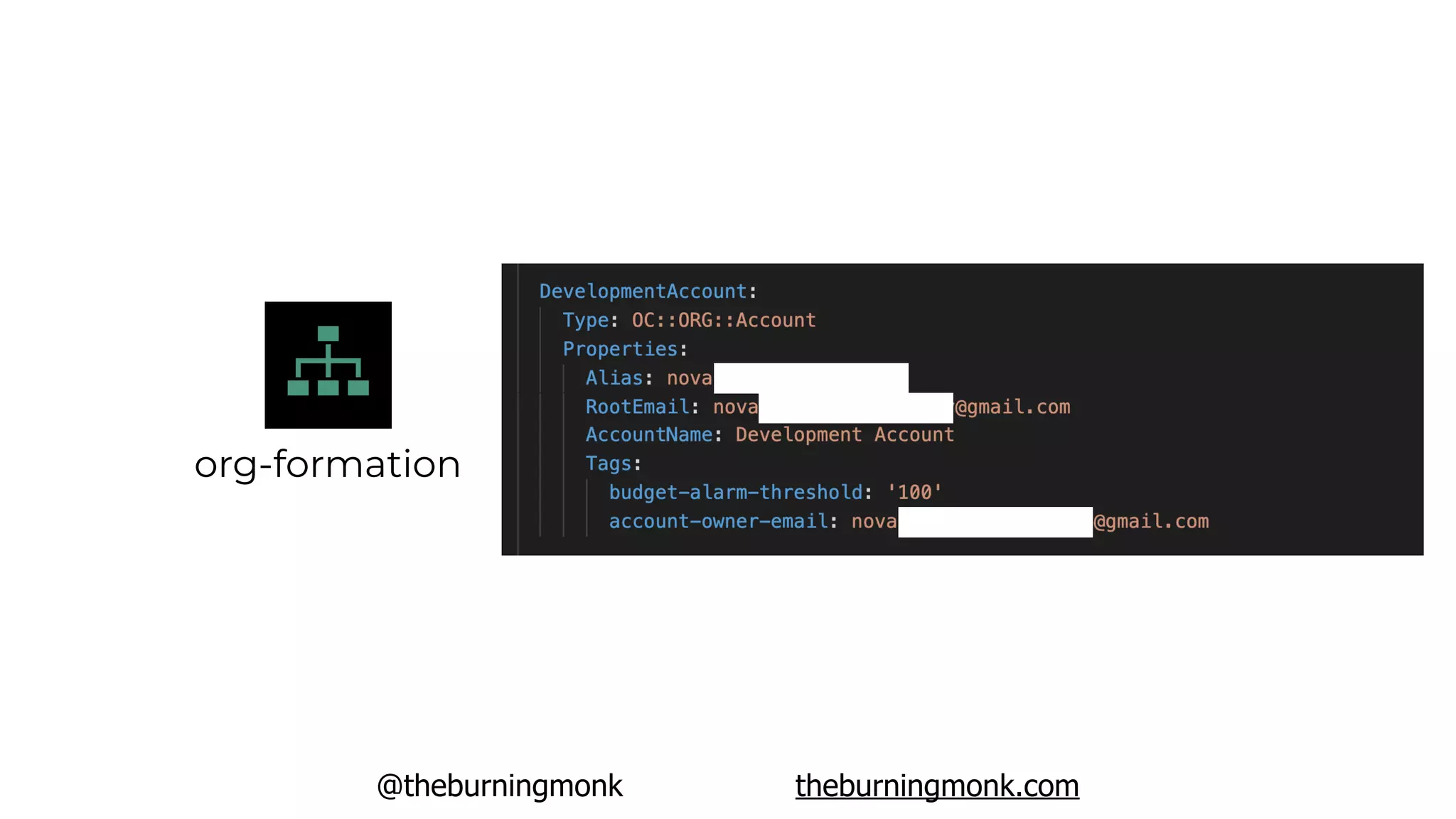

org-formation
infrastructure-as-code
CloudFormation-like YML syntax
template landing zones

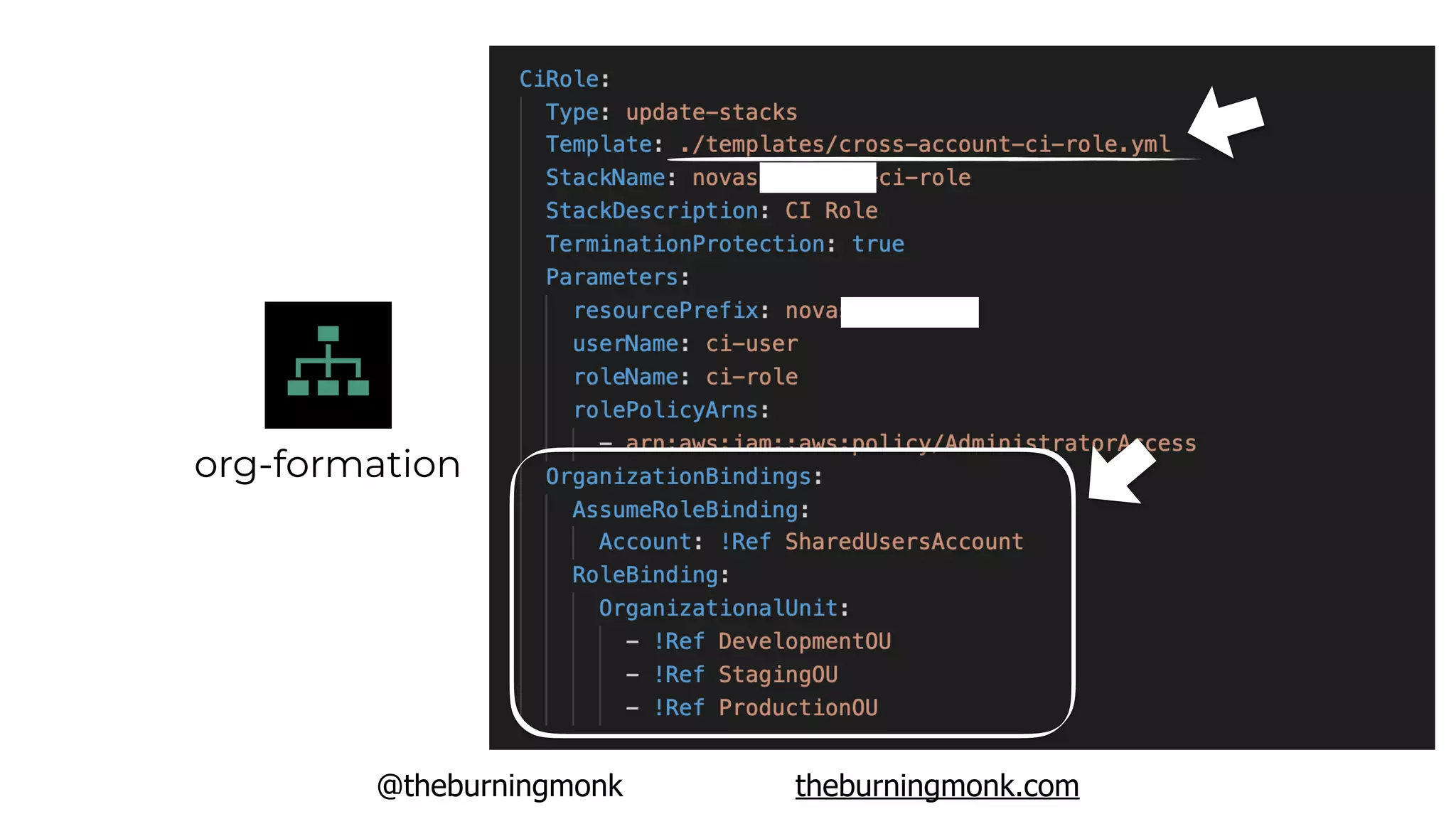

org-formation

org-formation

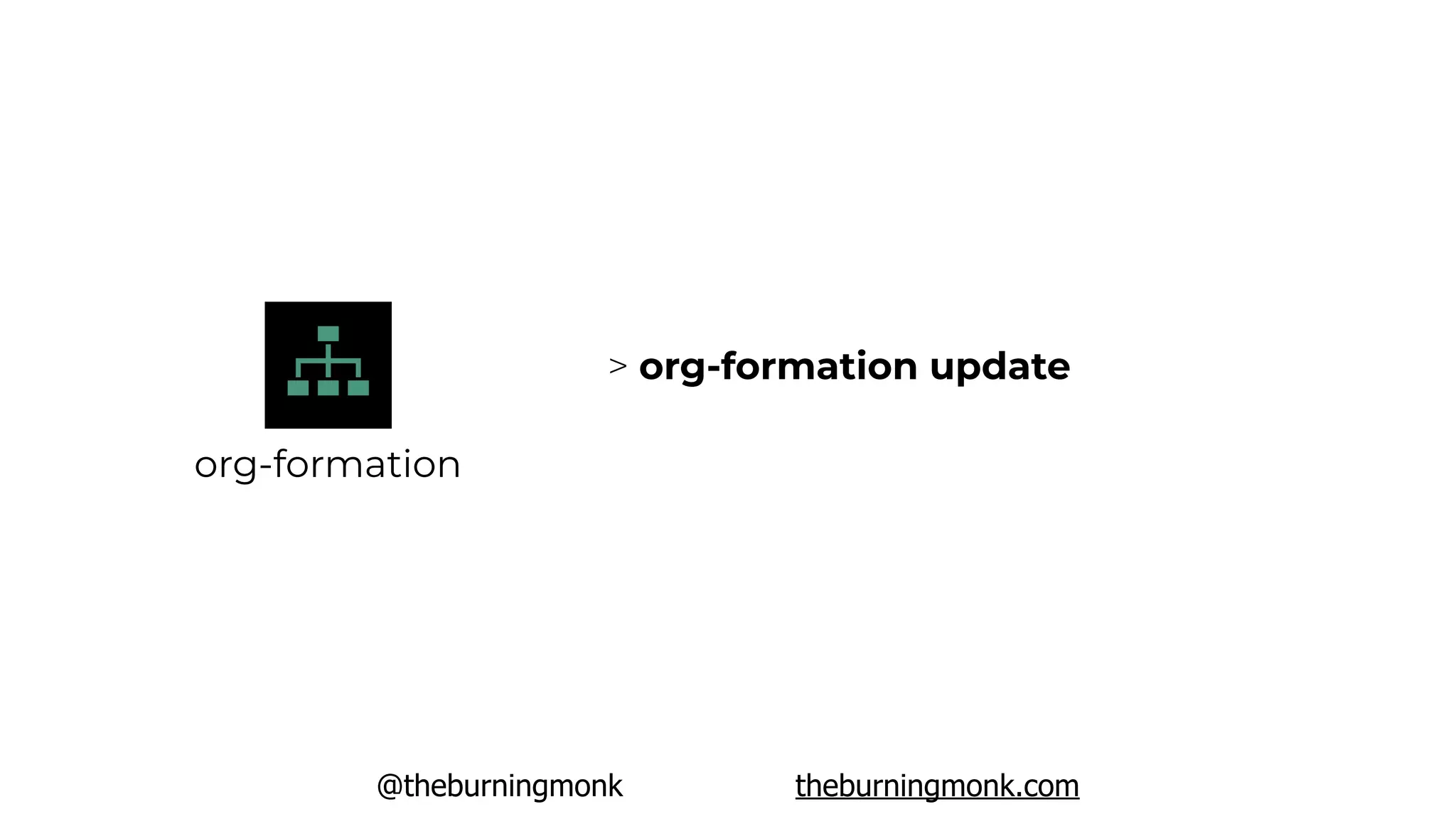

> org-formation update

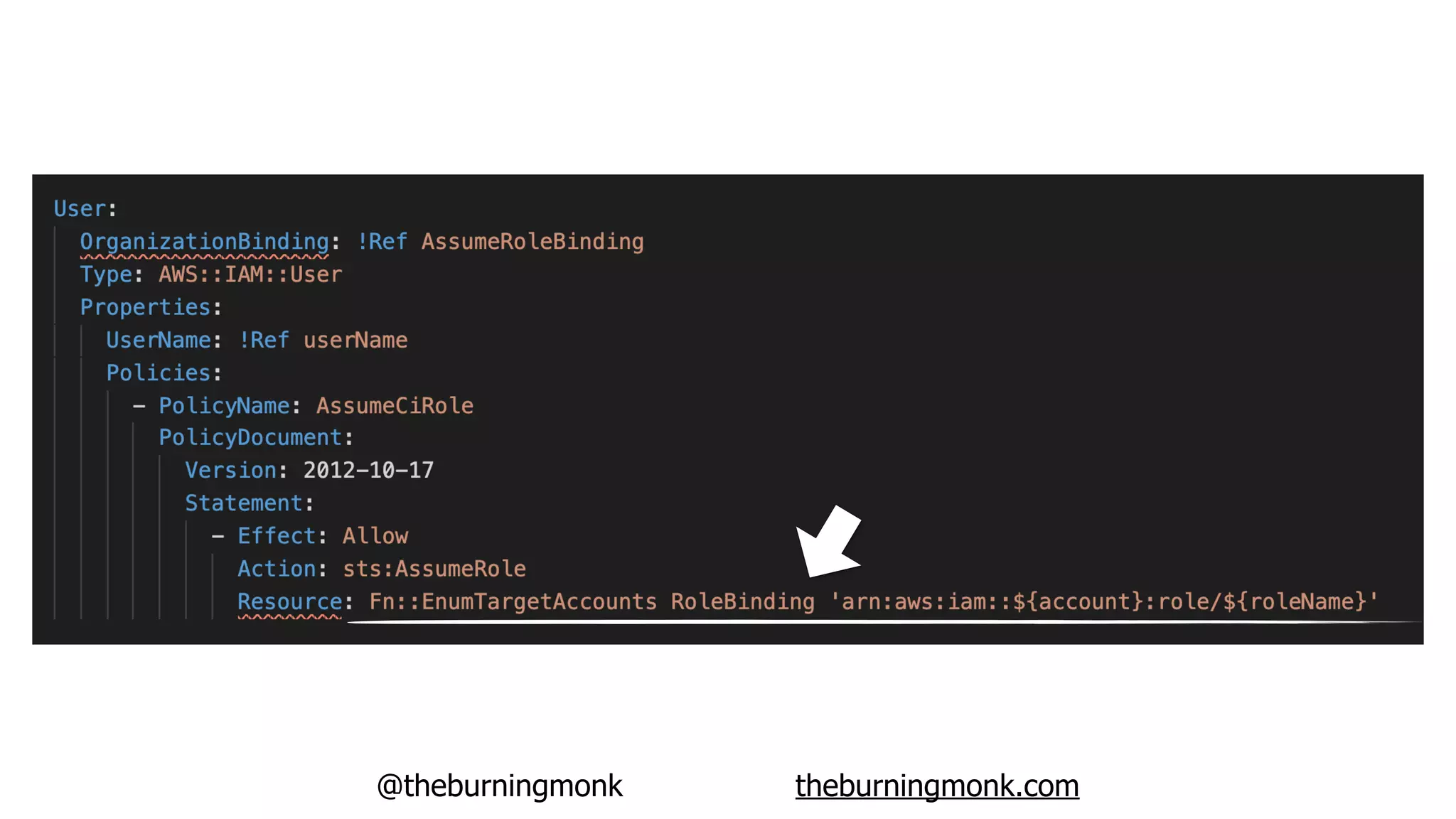

org-formation
> org-formation perform-tasks

org-formation

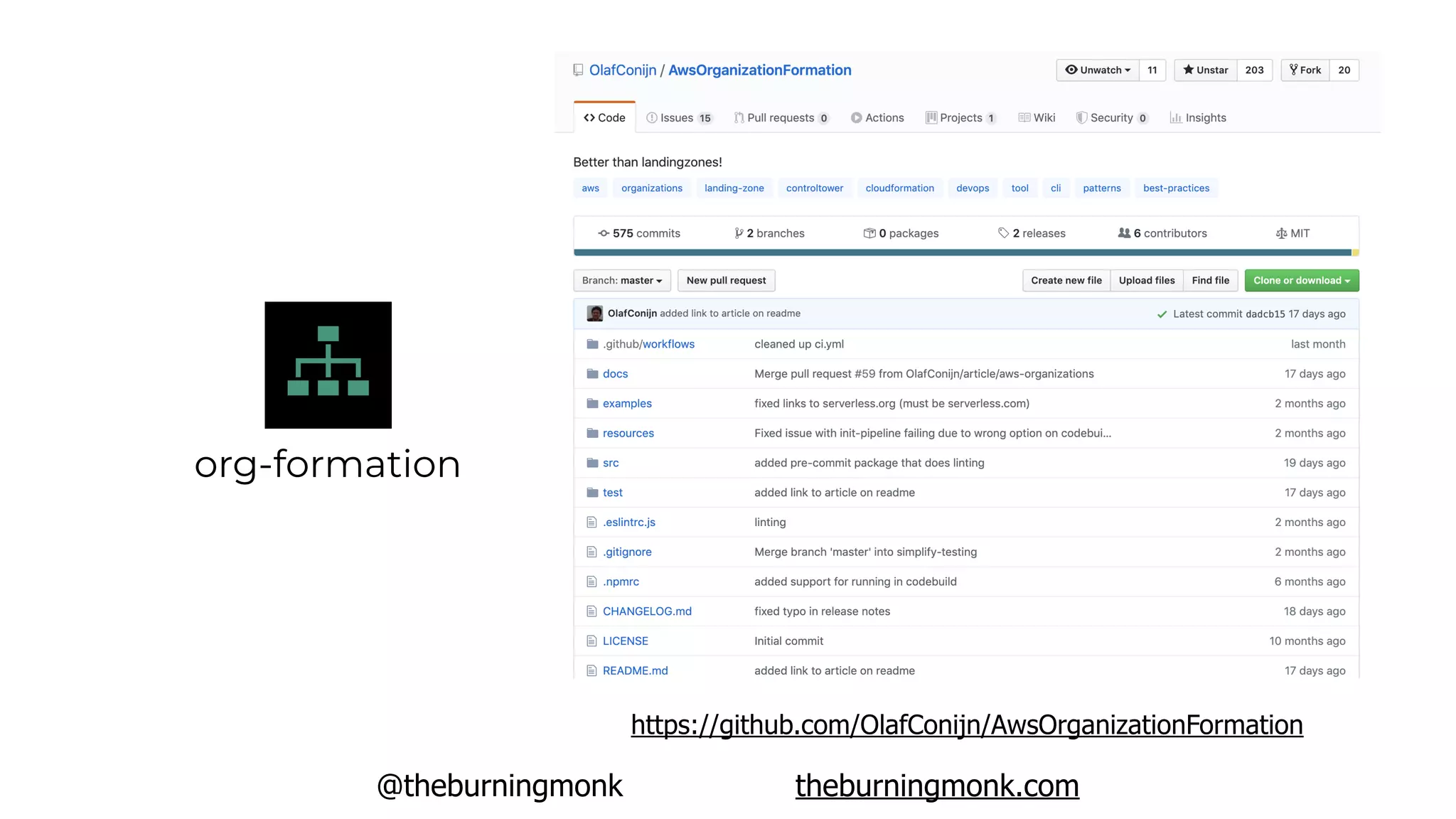

https://github.com/OlafConijn/AwsOrganizationFormation

Serverless
framework
AppSync org-formation

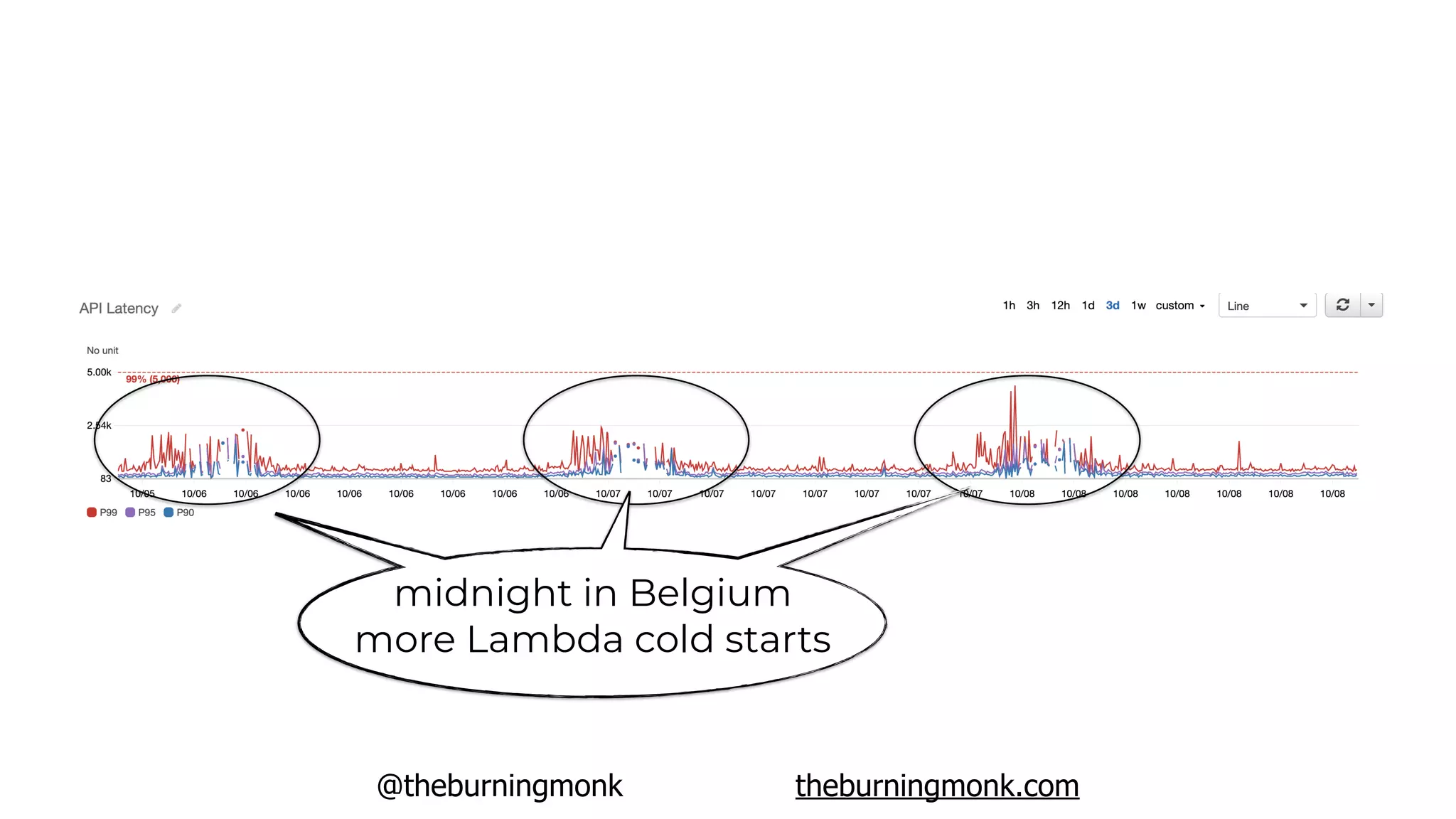

midnight in Belgium
more Lambda cold starts

https://theburningmonk.com/hire-me
AdviseTraining Delivery
“Fundamentally, Yan has improved our team by increasing our
ability to derive value from AWS and Lambda in particular.”
Nick Blair
Tech Lead

Learn GraphQL and AppSync by building a
Twitter clone with these technologies
appsyncmasterclass.com

@theburningmonk
theburningmonk.com
github.com/theburningmonk
