Igor Miniailo
Magento Architect,
Community Engineering Team

3. © 2018 Magento, An Adobe Company Page | 3
Agenda
© 2018 Magento, An Adobe Company Page | 3

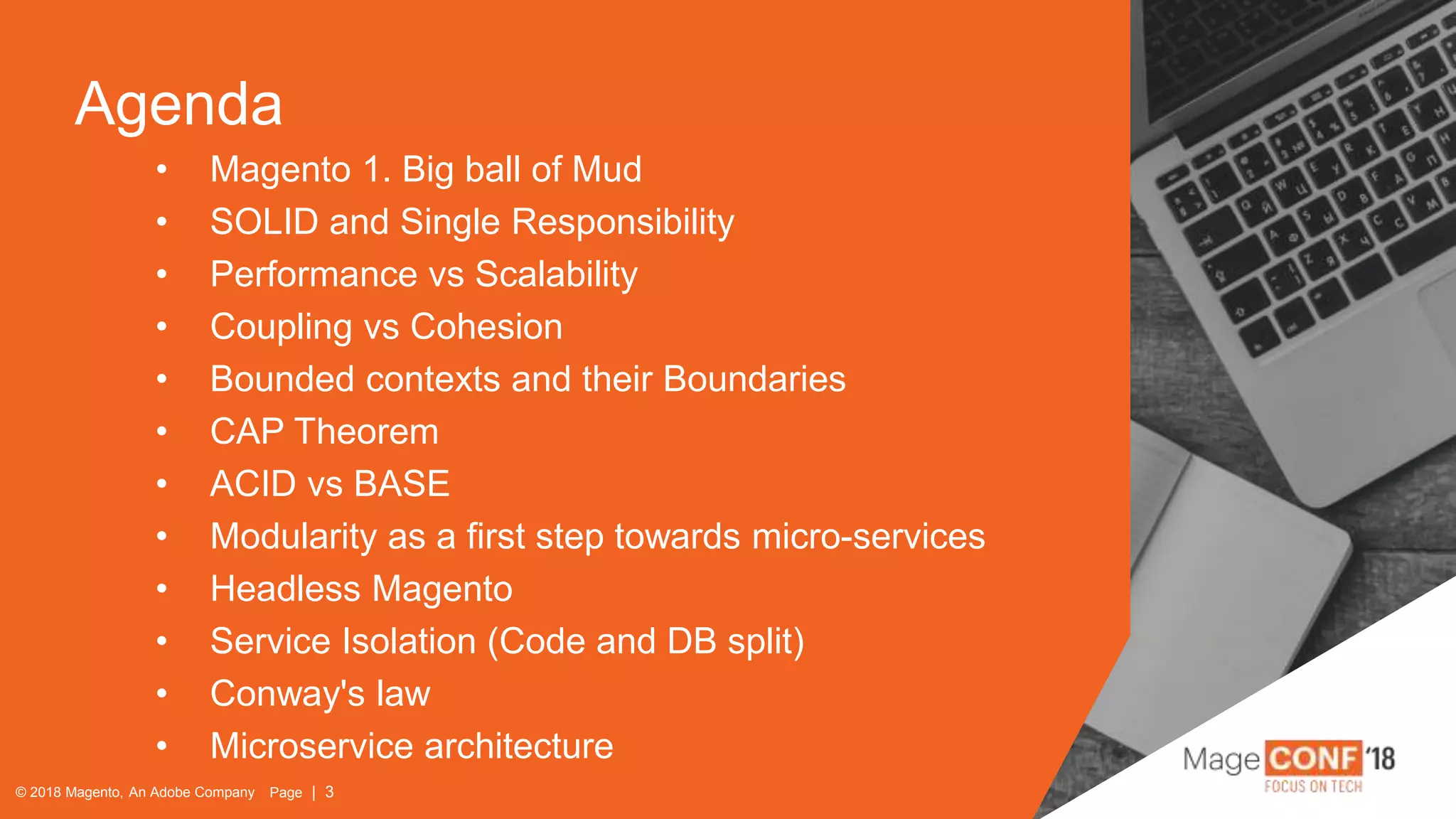

• Magento 1. Big ball of Mud
• SOLID and Single Responsibility
• Performance vs Scalability
• Coupling vs Cohesion
• Bounded contexts and their Boundaries
• CAP Theorem
• ACID vs BASE
• Modularity as a first step towards micro-services
• Headless Magento
• Service Isolation (Code and DB split)
• Conway's law
• Microservice architecture

4. © 2018 Magento, An Adobe Company Page | 4© 2018 Magento, An Adobe Company Page | 4
Magento 1
And all the legacy we got starting Magento 2 development

5. © 2018 Magento, An Adobe Company Page | 5

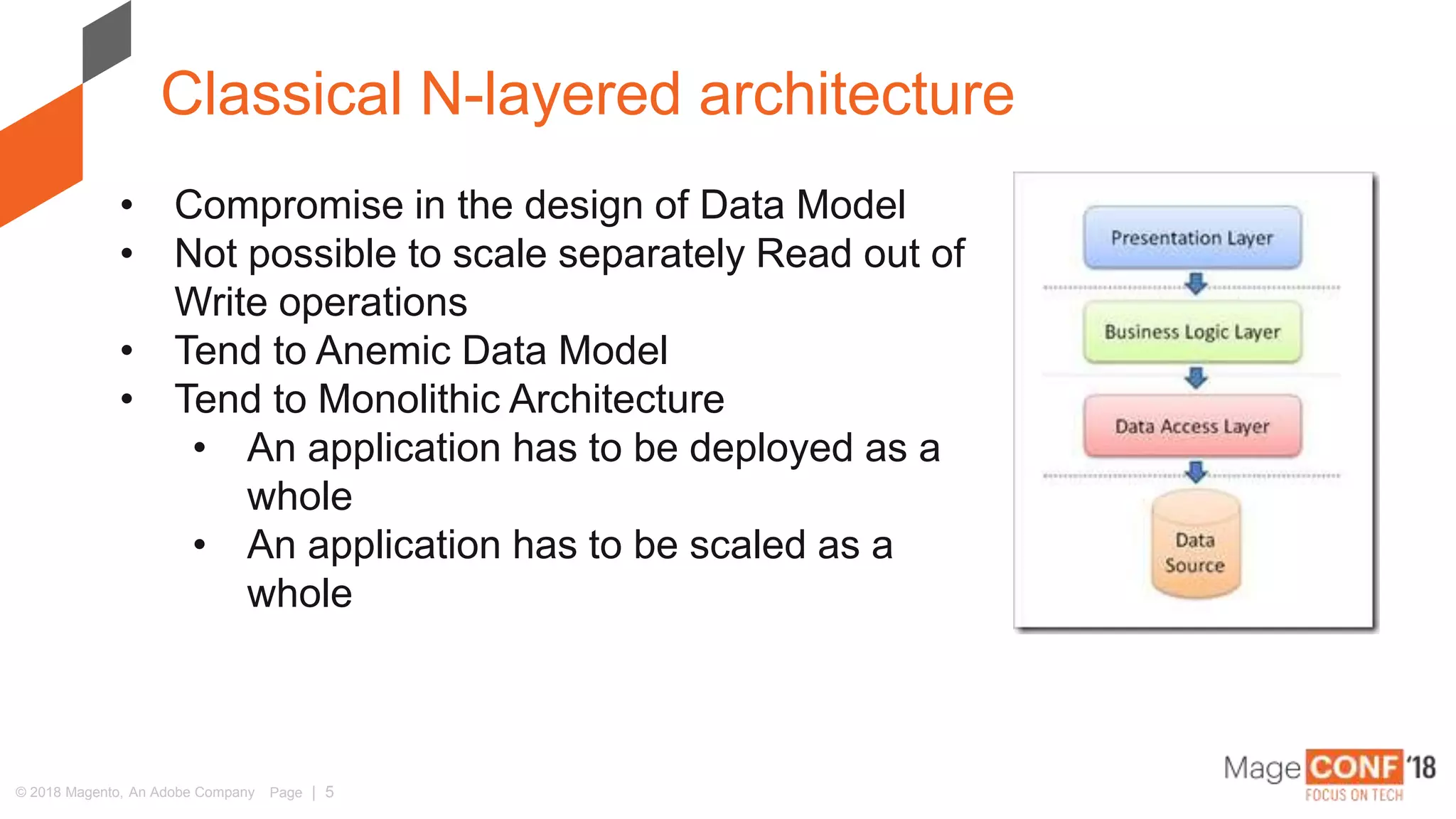

Classical N-layered architecture
• Compromise in the design of Data Model
• Not possible to scale separately Read out of
Write operations
• Tend to Anemic Data Model
• Tend to Monolithic Architecture
• An application has to be deployed as a
whole
• An application has to be scaled as a
whole

6. © 2018 Magento, An Adobe Company Page | 6

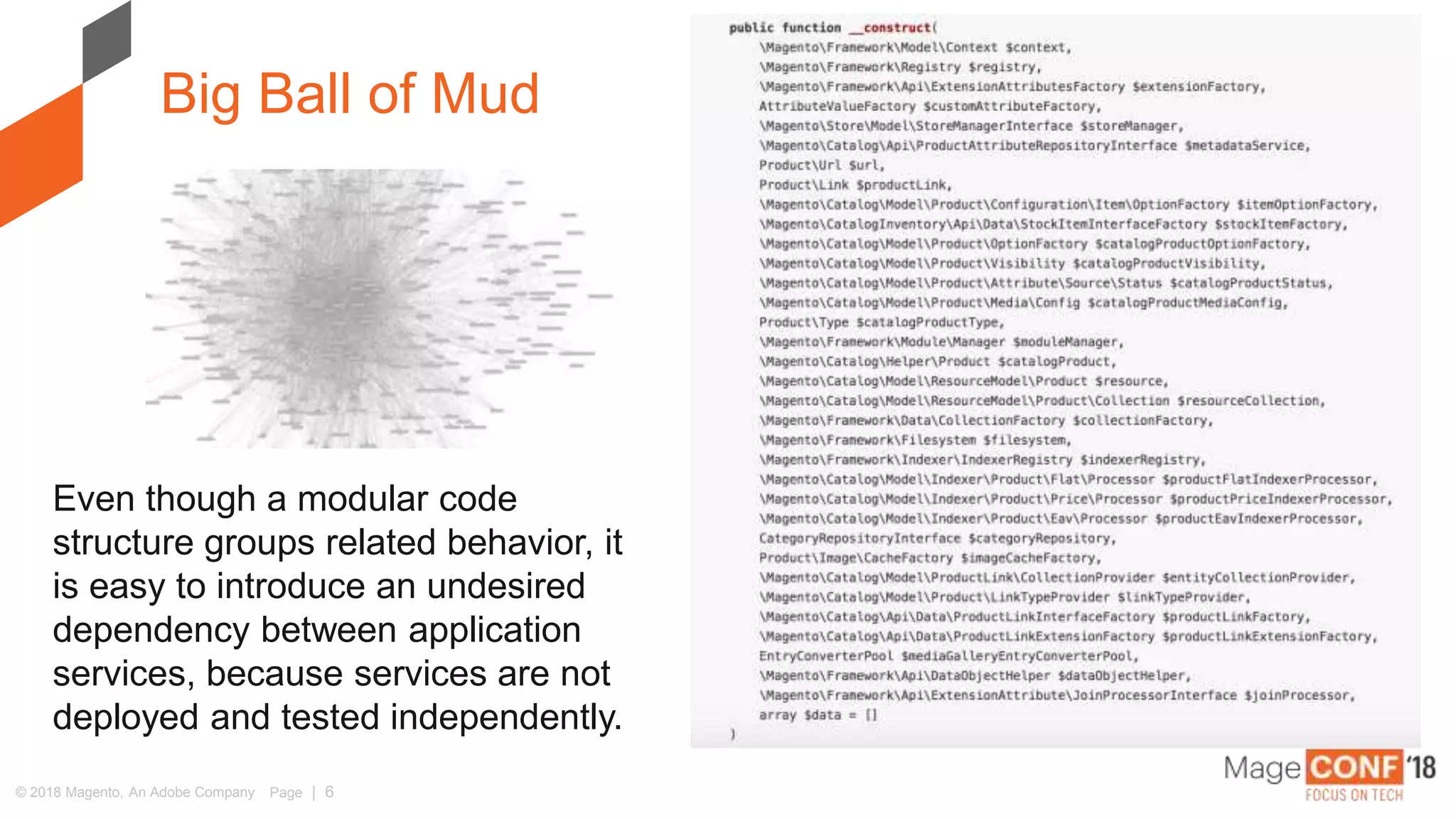

Big Ball of Mud
Even though a modular code
structure groups related behavior, it
is easy to introduce an undesired
dependency between application
services, because services are not
deployed and tested independently.

7. © 2018 Magento, An Adobe Company Page | 7
SOLID comes to rescue

8. © 2018 Magento, An Adobe Company Page | 8© 2018 Magento, An Adobe Company Page | 8
Modularity as a first step towards
micro-services

9. © 2018 Magento, An Adobe Company Page | 9
• Every sophisticated business
domain consists of a bunch of
Bounded Contexts
• Each Bounded Context
contains models and maybe
other contexts
• The Bounded Context is also a
boundary for the meaning of a
given model

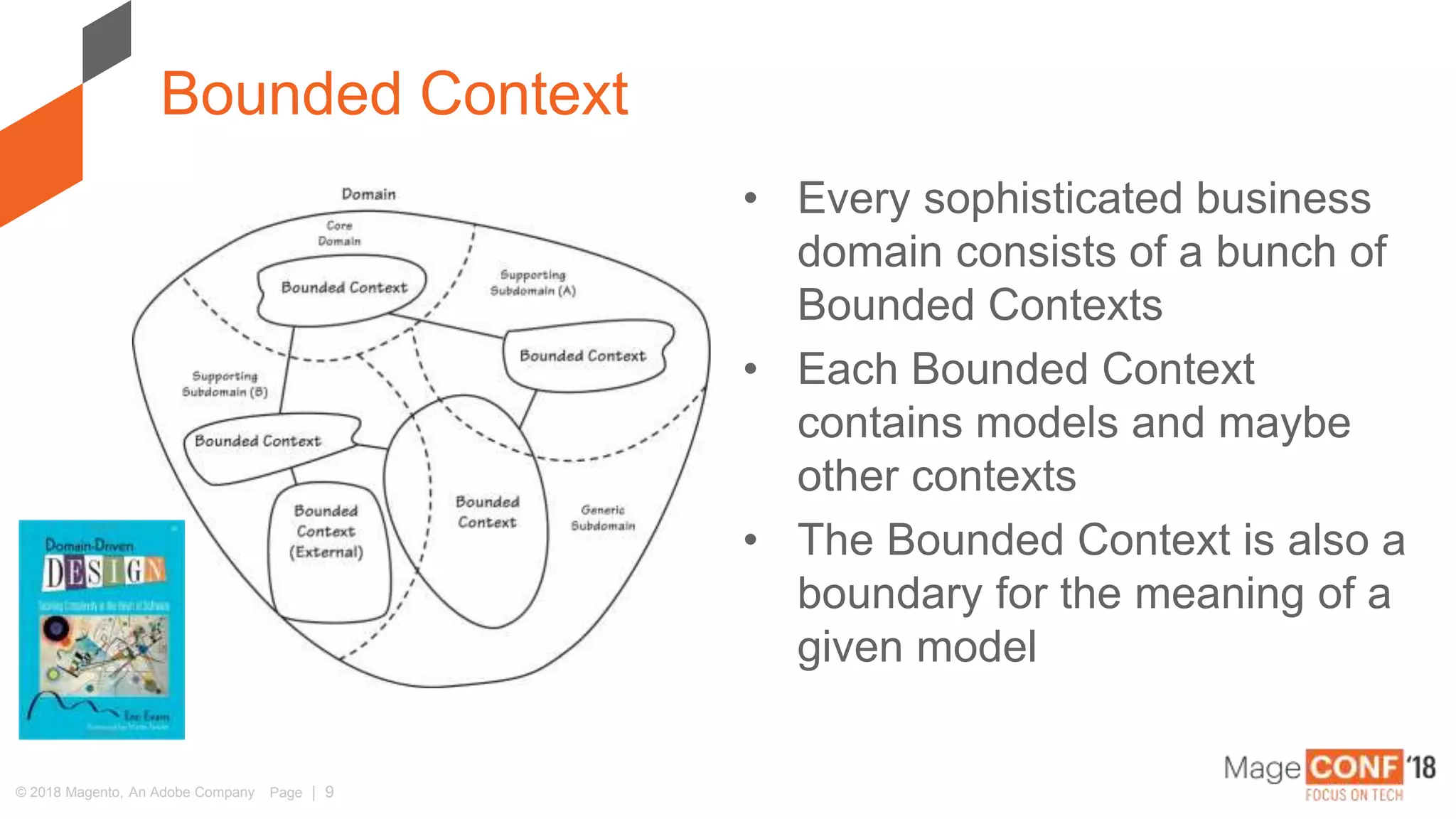

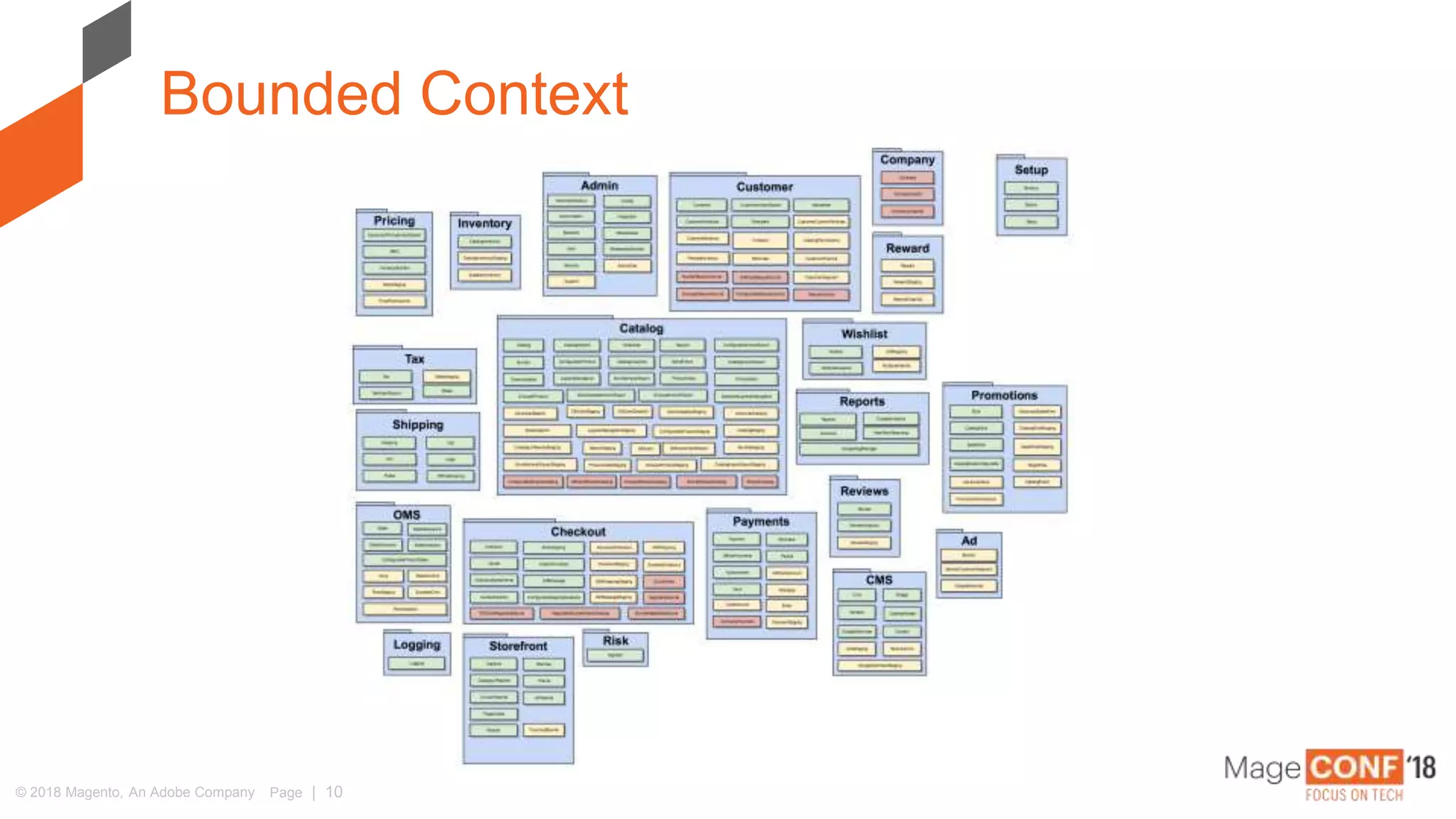

Bounded Context

10. © 2018 Magento, An Adobe Company Page | 10
Bounded Context

11. © 2018 Magento, An Adobe Company Page | 11

12. © 2018 Magento, An Adobe Company Page | 12

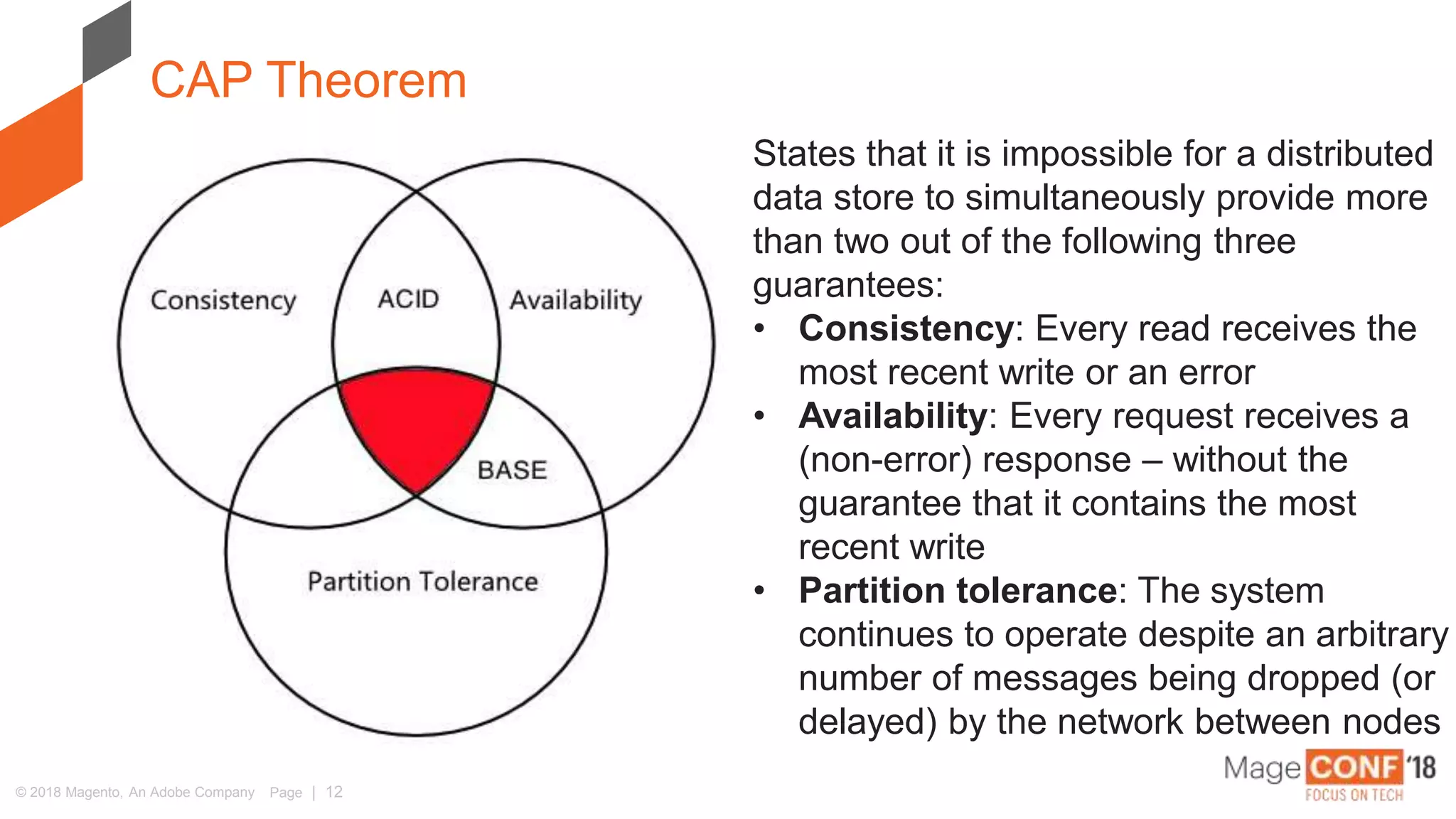

CAP Theorem
States that it is impossible for a distributed
data store to simultaneously provide more
than two out of the following three
guarantees:
• Consistency: Every read receives the
most recent write or an error
• Availability: Every request receives a
(non-error) response – without the
guarantee that it contains the most
recent write
• Partition tolerance: The system
continues to operate despite an arbitrary
number of messages being dropped (or
delayed) by the network between nodes

13. © 2018 Magento, An Adobe Company Page | 13
Asynchronous processing
http://www.enterpriseintegrationpatterns.com/docs/IEEE_Software_Design_2PC.pdf

14. © 2018 Magento, An Adobe Company Page | 14

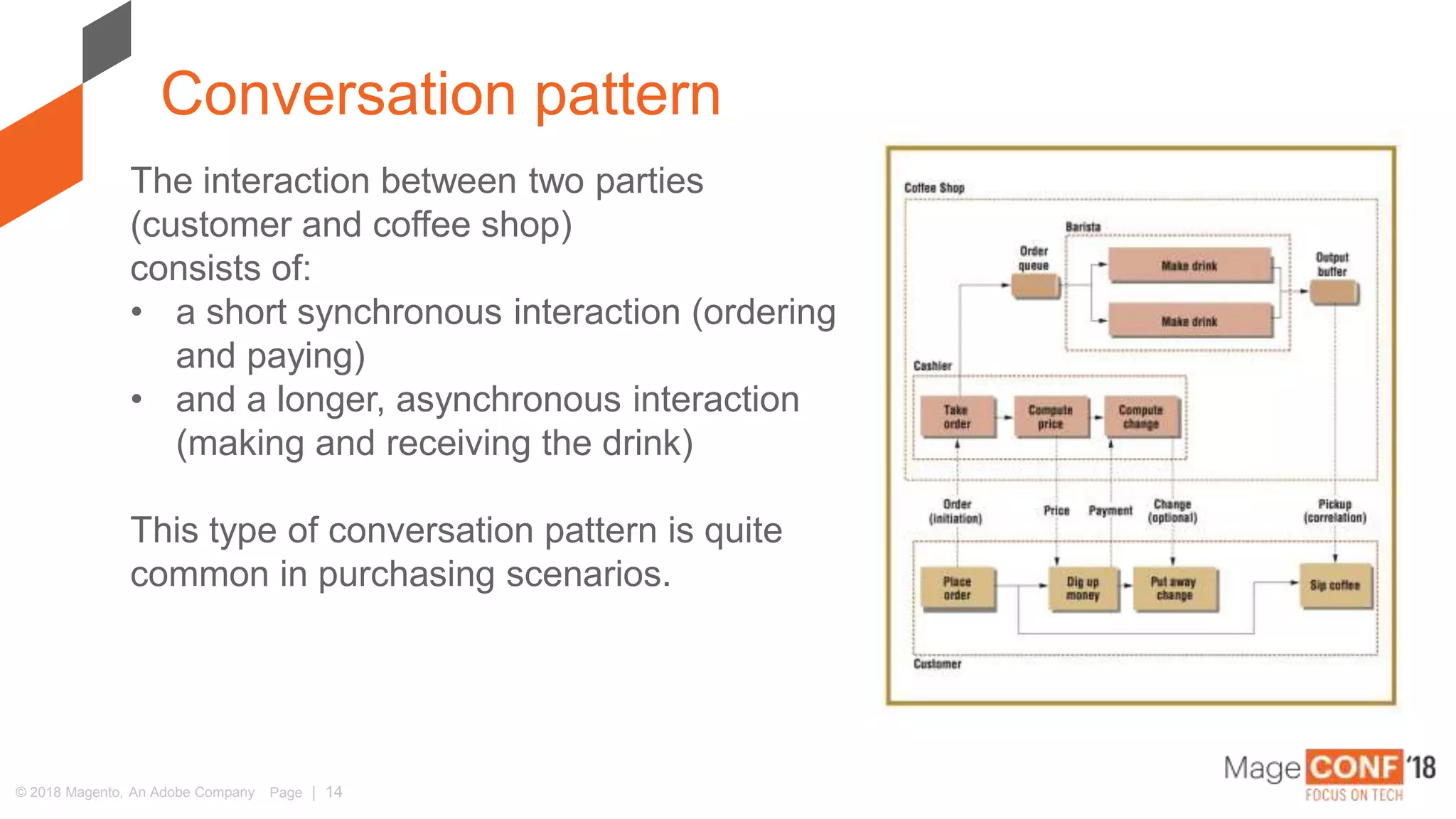

Conversation pattern
The interaction between two parties
(customer and coffee shop)
consists of:
• a short synchronous interaction (ordering
and paying)
• and a longer, asynchronous interaction
(making and receiving the drink)
This type of conversation pattern is quite
common in purchasing scenarios.

15. © 2018 Magento, An Adobe Company Page | 15

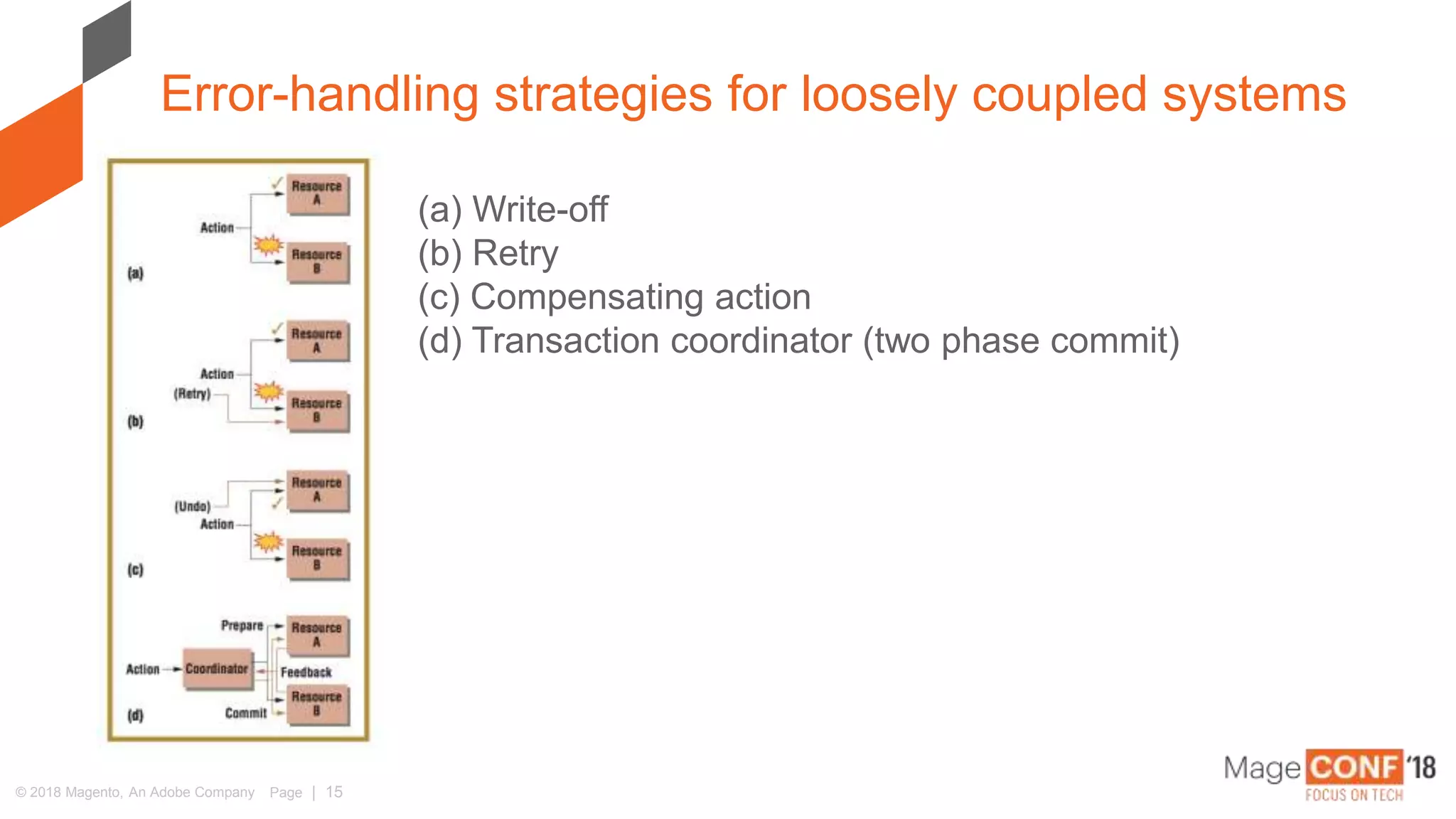

Error-handling strategies for loosely coupled systems
(a) Write-off
(b) Retry
(c) Compensating action
(d) Transaction coordinator (two phase commit)

16. © 2018 Magento, An Adobe Company Page | 16

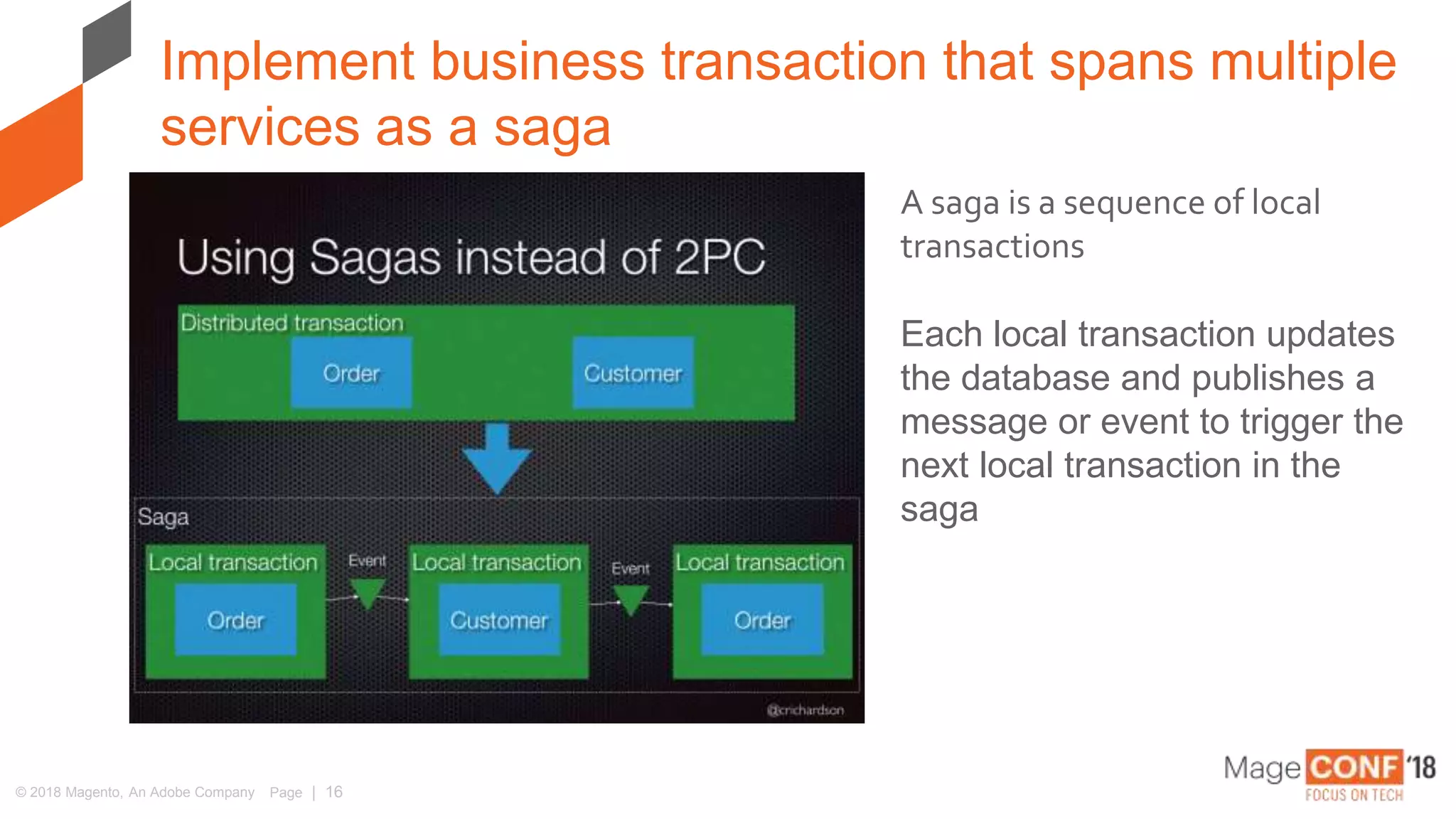

Implement business transaction that spans multiple
services as a saga
A saga is a sequence of local
transactions
Each local transaction updates
the database and publishes a
message or event to trigger the
next local transaction in the
saga

17. © 2018 Magento, An Adobe Company Page | 17

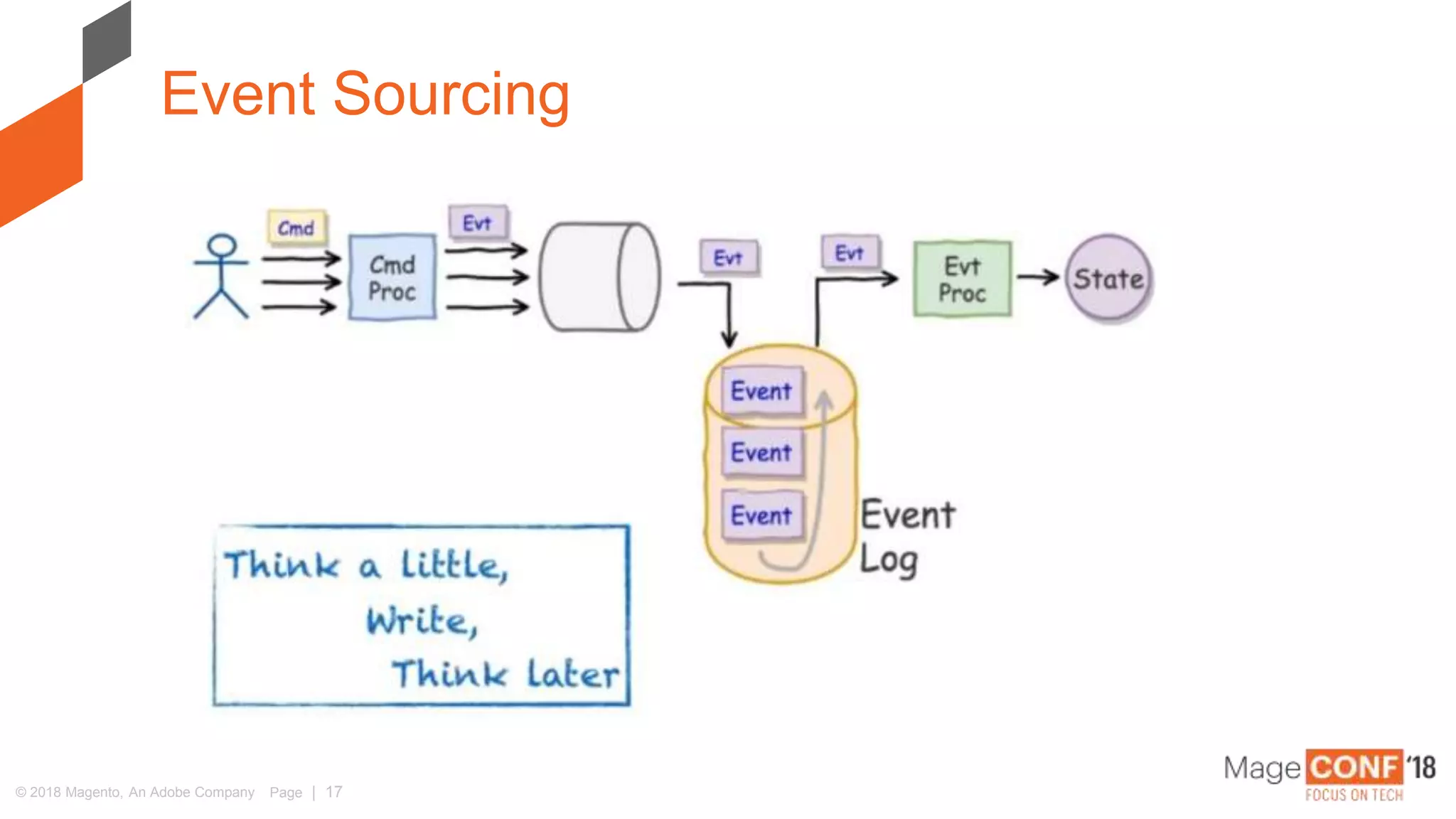

Event Sourcing

18. © 2018 Magento, An Adobe Company Page | 18
*The property of certain operations whereby they can be
applied multiple times without changing the result beyond
the initial application.

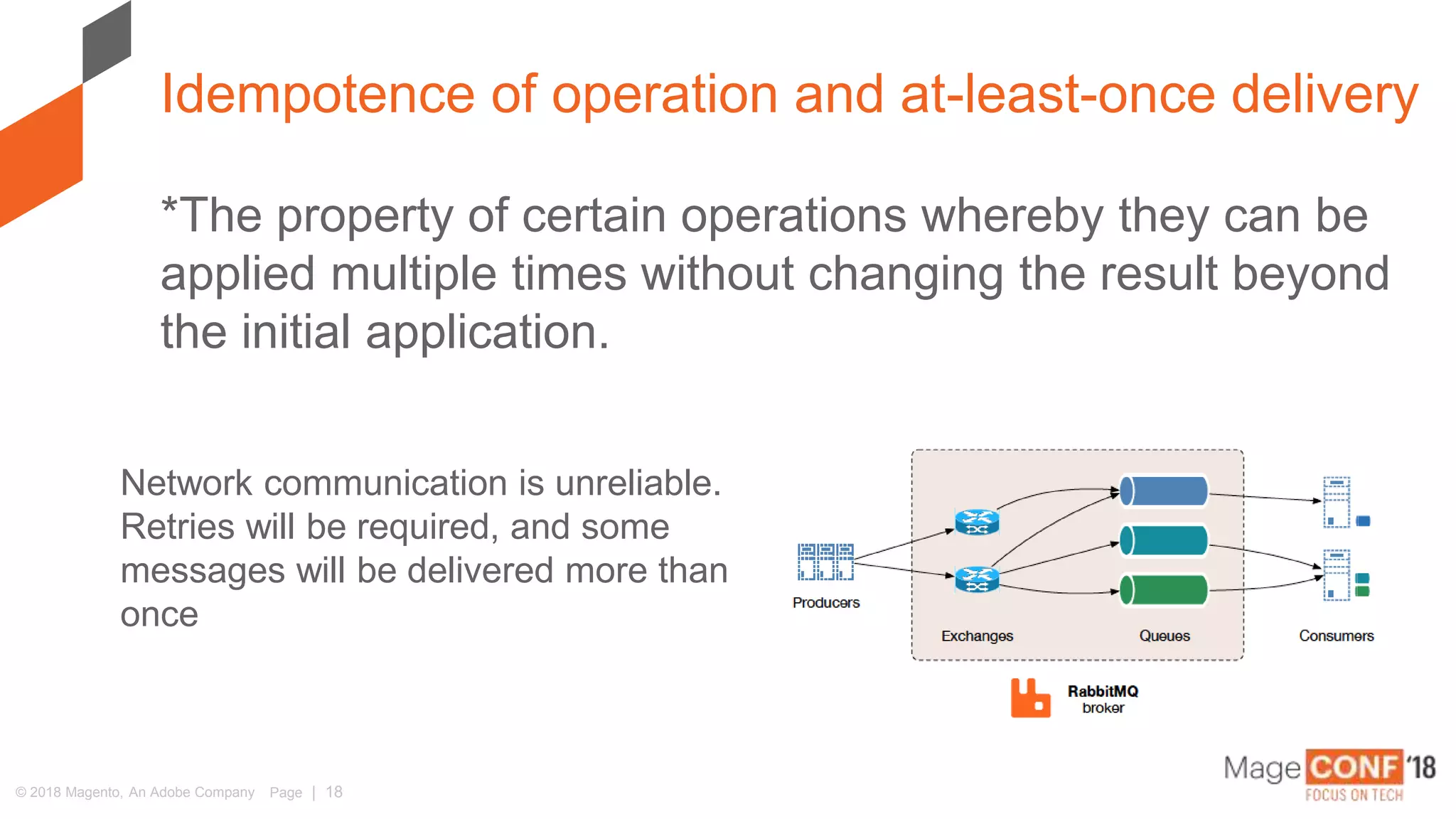

Idempotence of operation and at-least-once delivery
Network communication is unreliable.
Retries will be required, and some
messages will be delivered more than
once

19. © 2018 Magento, An Adobe Company Page | 19
• All operations MUST BE idempotent.
• Sagas SHOULD BE used for consistency of
distributed operations
• All new service contracts SHOULD expose
asynchronous APIs
• All new state modifying operations SHOULD expose
bulk APIs
• All service operations MUST BE stateless
• There MUST BE NO data dependencies between
services
Design Principles to follow

20. © 2018 Magento, An Adobe Company Page | 20
• Every module defines its APIs (service contracts),
which are PHP interfaces that can be called either
from within a PHP process or remotely through
REST, SOAP or AMQP APIs.
• Every module can call other modules only through
their service contracts.

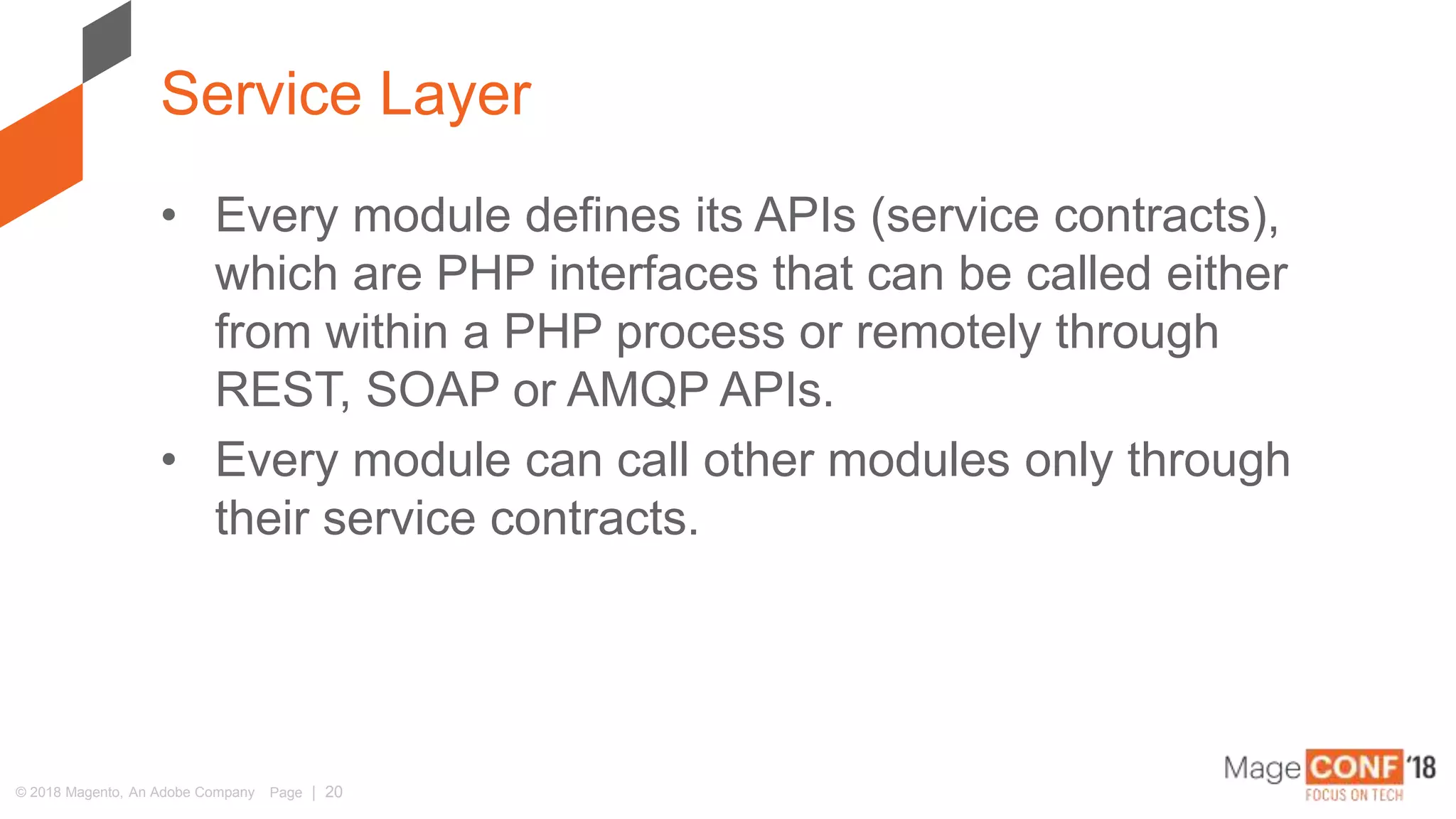

Service Layer

21. © 2018 Magento, An Adobe Company Page | 21

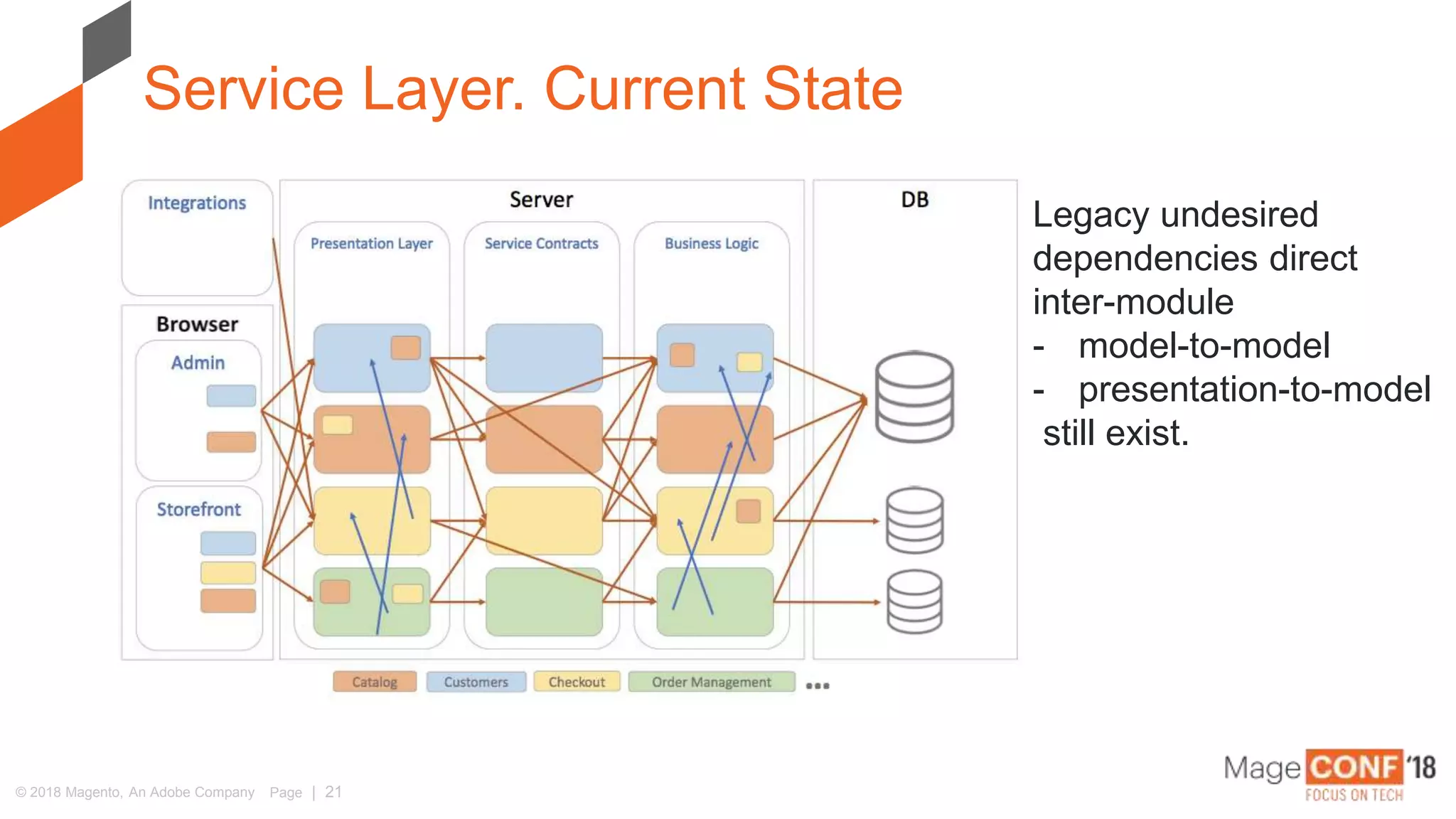

Service Layer. Current State
Legacy undesired
dependencies direct
inter-module
- model-to-model
- presentation-to-model
still exist.

22. © 2018 Magento, An Adobe Company Page | 22

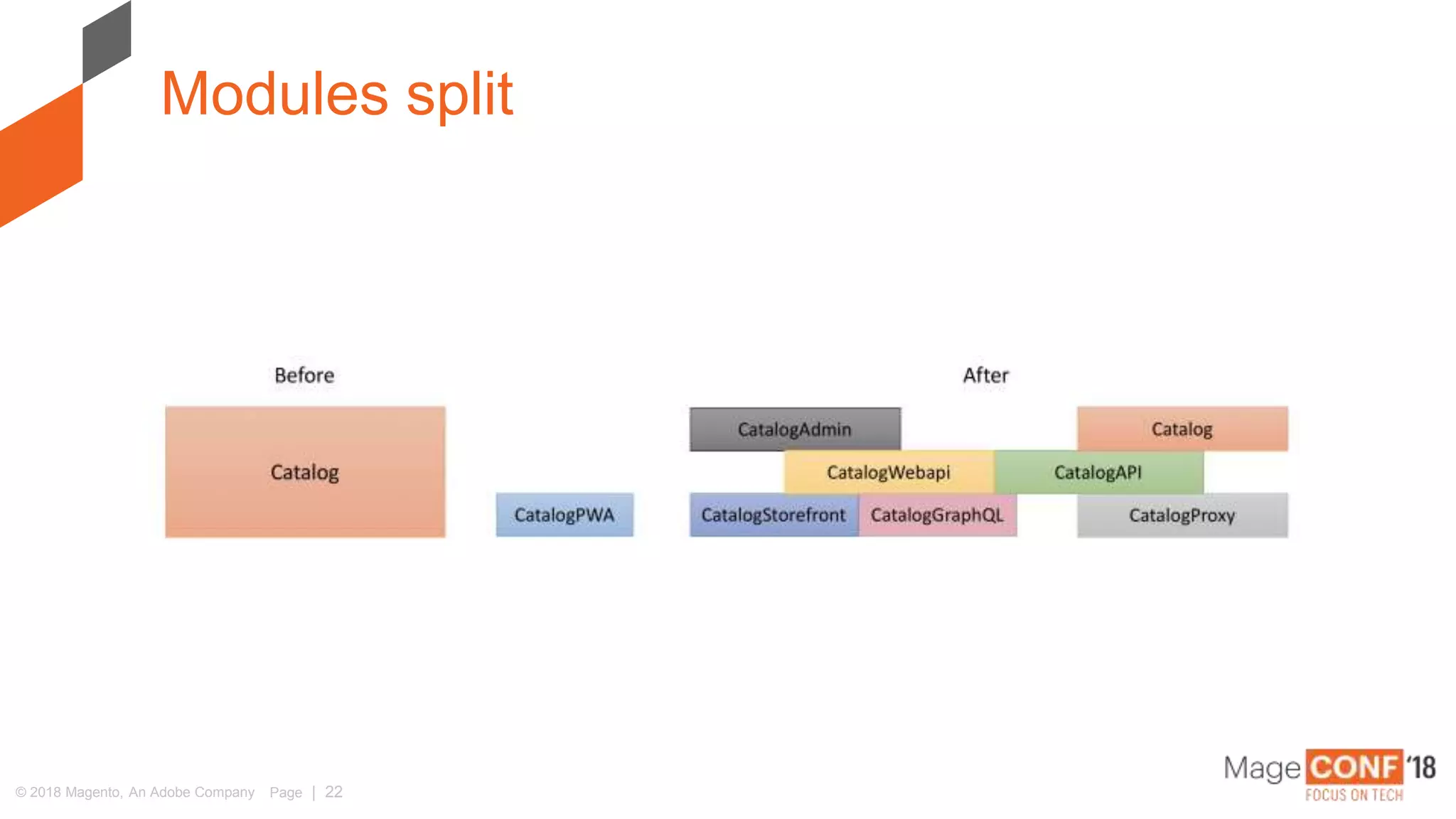

Modules split

23. © 2018 Magento, An Adobe Company Page | 23

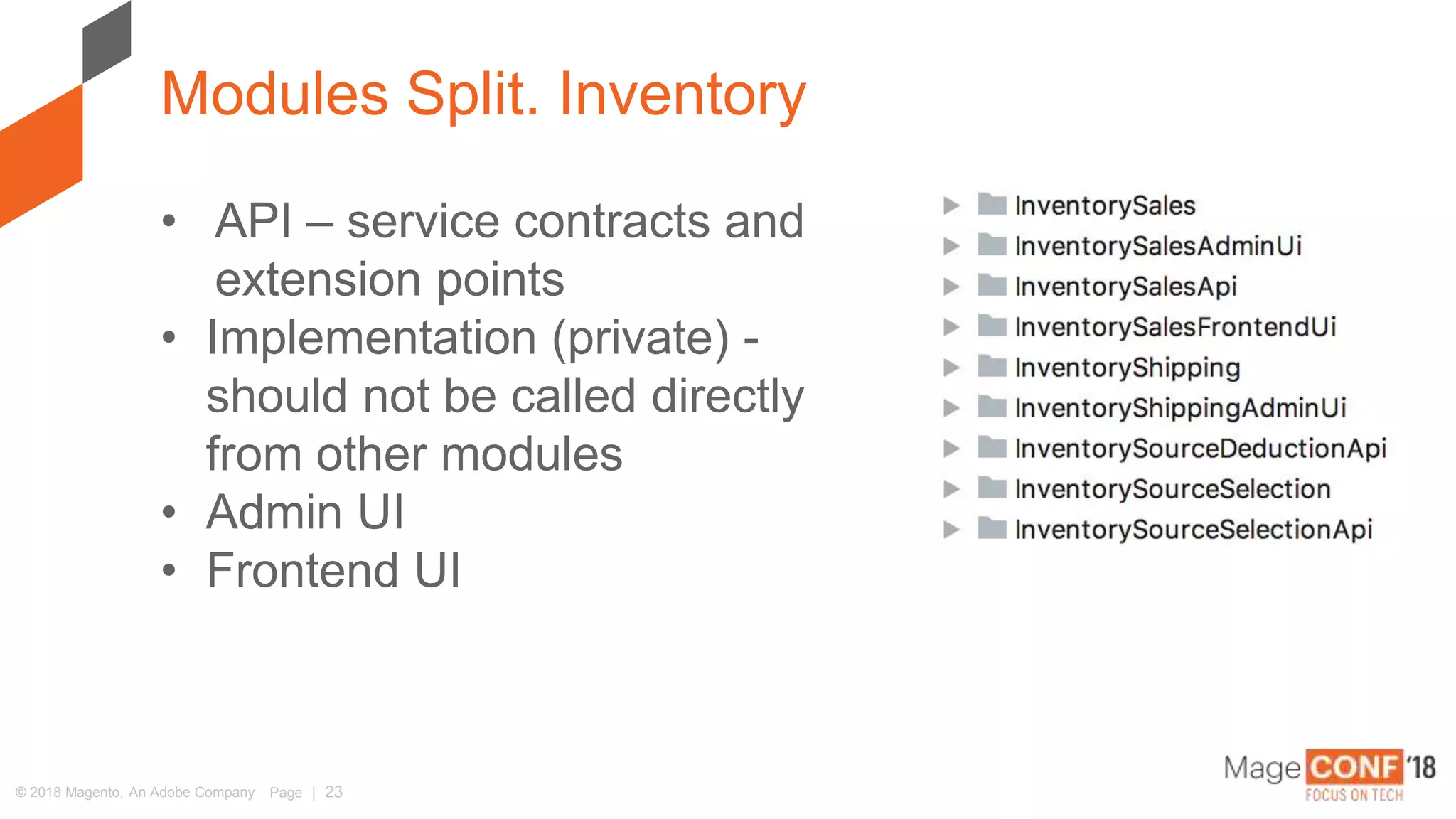

Modules Split. Inventory
• API – service contracts and
extension points
• Implementation (private) -
should not be called directly
from other modules
• Admin UI
• Frontend UI

24. © 2018 Magento, An Adobe Company Page | 24
Headless Multi-Source Inventory
UI modules are removable if merchant
wants to use external ERP system as a
source of truth where he will manage
inventory

25. © 2018 Magento, An Adobe Company Page | 25
Desirable State

26. © 2018 Magento, An Adobe Company Page | 26

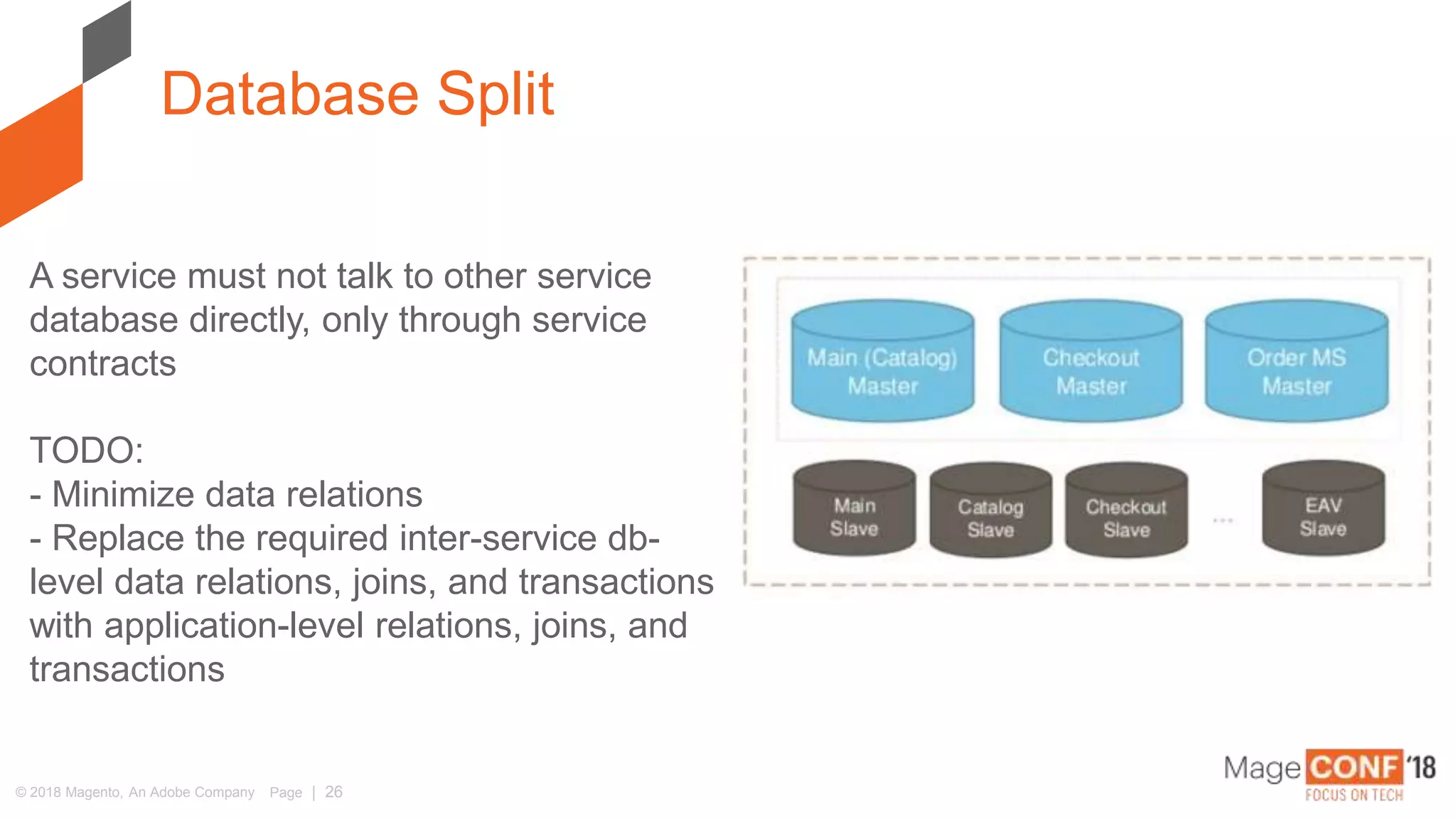

Database Split
A service must not talk to other service
database directly, only through service
contracts
TODO:
- Minimize data relations
- Replace the required inter-service db-
level data relations, joins, and transactions
with application-level relations, joins, and
transactions

27. © 2018 Magento, An Adobe Company Page | 27

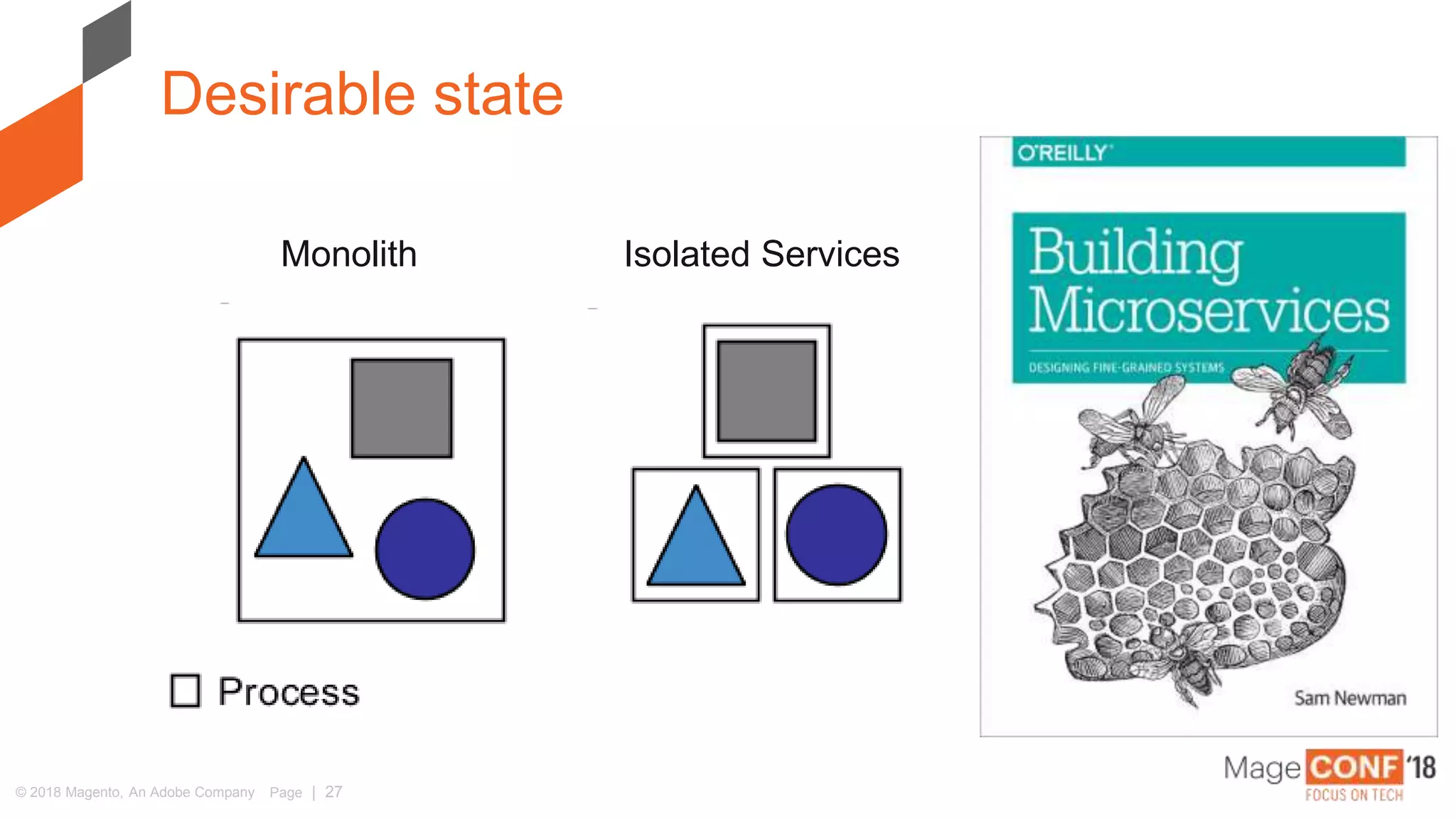

Desirable state
Isolated ServicesMonolith

28. © 2018 Magento, An Adobe Company Page | 28

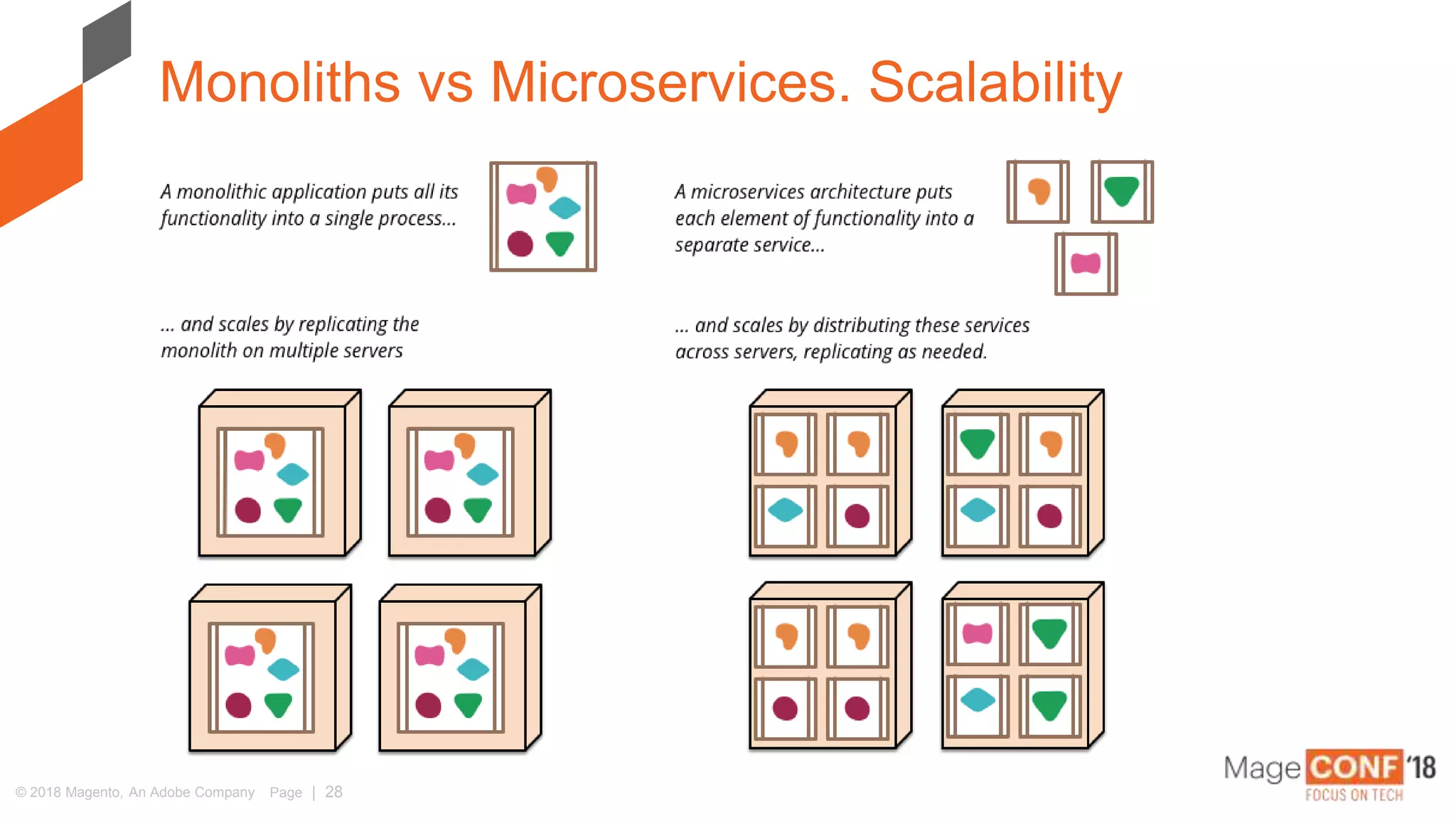

Monoliths vs Microservices. Scalability

29. © 2018 Magento, An Adobe Company Page | 29

30. © 2018 Magento, An Adobe Company Page | 30

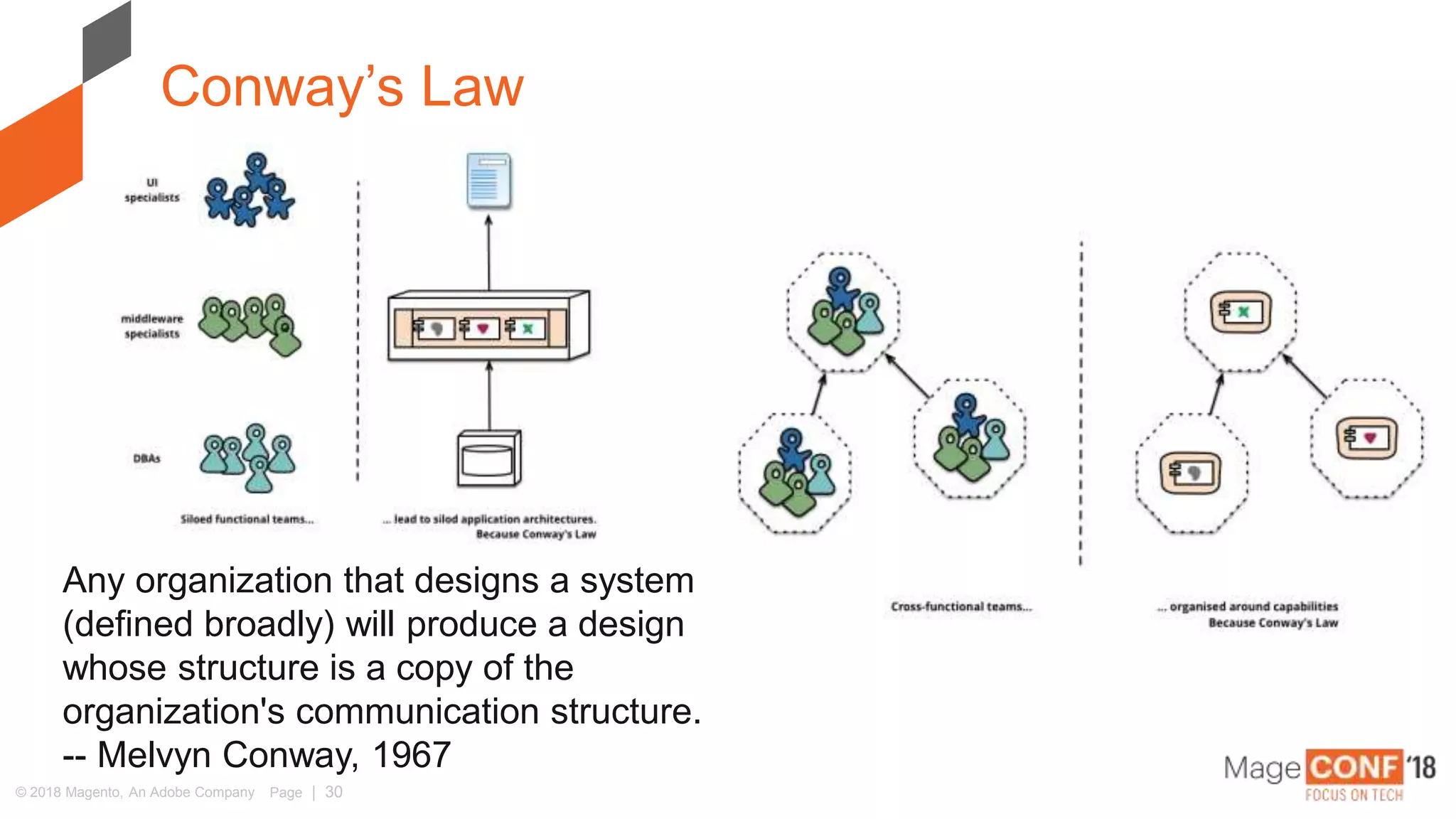

Conway’s Law
Any organization that designs a system
(defined broadly) will produce a design
whose structure is a copy of the
organization's communication structure.
-- Melvyn Conway, 1967

31. © 2018 Magento, An Adobe Company Page | 31
2.3 Stage #1 Stage #2 Stage #3 Stage #4 Stage #5
Inventory (MSI) App Framework Order Management CMS Shipping Marketing
Pricing Tax Reports Promotions Risk
Checkout Customer Payments Wishlist
Rewards
Company
Service decomposition

32. © 2018 Magento, An Adobe Company Page | 32

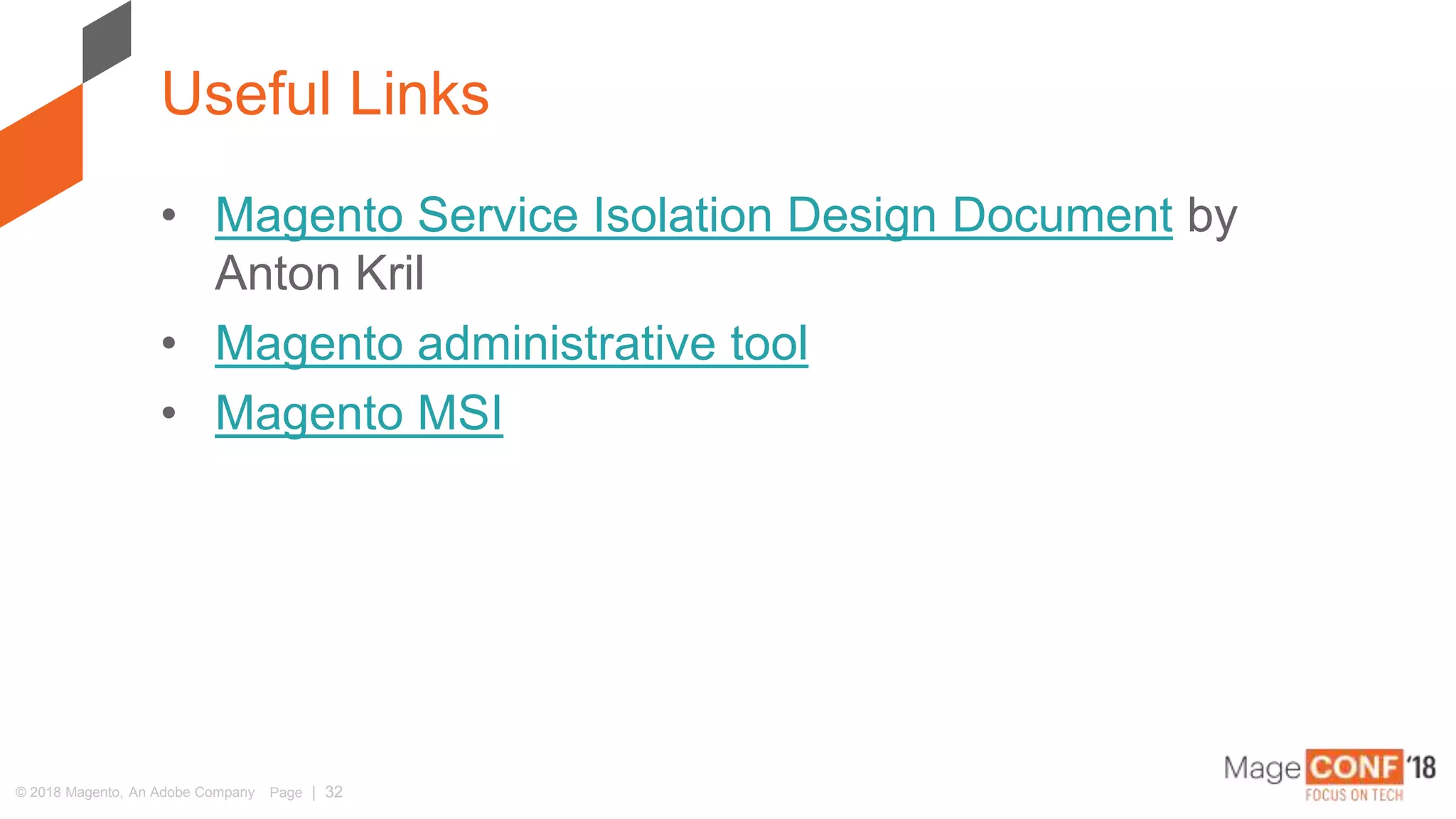

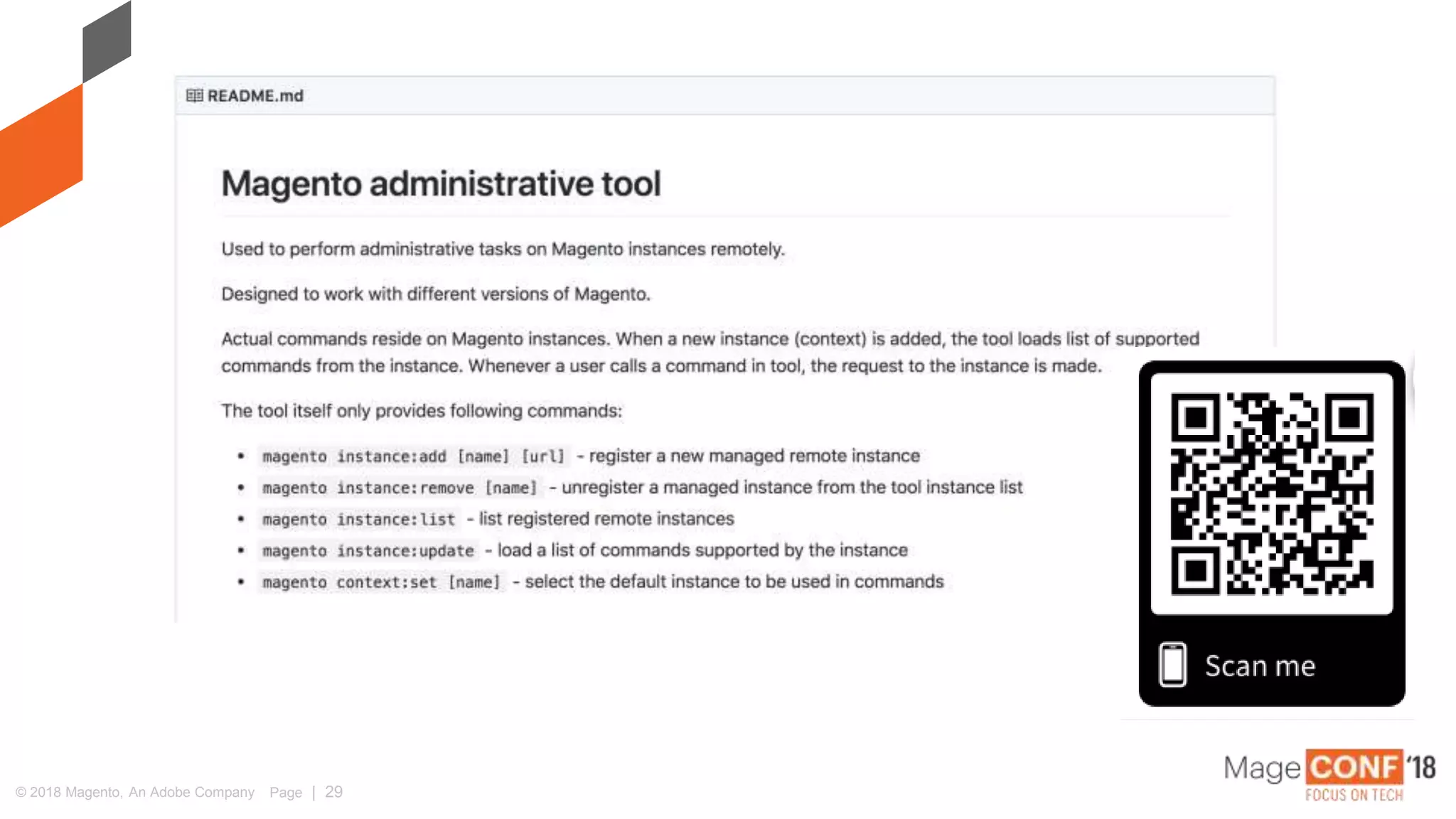

• Magento Service Isolation Design Document by
Anton Kril
• Magento administrative tool
• Magento MSI
Useful Links

33. © 2018 Magento, An Adobe Company Page | 33
Q&AFollow me in Twitter
@iminyaylo

34. © 2018 Magento, An Adobe Company Page | 34
Thank You
© 2018 Magento, An Adobe Company Page | 34
